Model biomolecular condensates have heterogeneous structure quantitatively dependent on the interaction profile of their constituent macromolecules

Abstract

Biomolecular condensates play numerous roles in cells by selectively concentrating client proteins while excluding others. These functions are likely to be sensitive to the spatial organization of the scaffold proteins forming the condensate. We use coarse-grained molecular simulations to show that model intrinsically-disordered proteins phase separate into a heterogeneous, structured fluid characterized by a well-defined length scale. The proteins are modelled as semi-flexible polymers with punctate, multifunctional binding sites in good solvent conditions. Their dense phase is highly solvated with a spatial structure that is more sensitive to the separation of the binding sites than their affinity. We introduce graph theoretic measures to quantify their heterogeneity, and find that it increases with increasing binding site number, and exhibits multi-timescale dynamics. The model proteins also swell on passing from the dilute solution to the dense phase. The simulations predict that the structure of the dense phase is modulated by the location and affinity of binding sites distant from the termini of the proteins, while sites near the termini more strongly affect its phase behaviour. The relations uncovered between the arrangement of weak interaction sites on disordered proteins and the material properties of their dense phase can be experimentally tested to give insight into the biophysical properties, pathological effects, and rational design of biomolecular condensates.

---

Introduction

The phase separation of intrinsically-disordered proteins (IDP) into biomolecular condensates has taken centre stage in cellular physiology.¹ Biomolecular condensates (BC) appear in numerous locations in cells where they carry out many biochemical functions.^2,3 They modulate enzymatic activity,^4–7 a function that has been reproduced with rationally designed peptides,^8–10 modulate buffer protein concentration,¹¹ reduce noise in gene expression,¹² and regulate cell migration.¹³ Phase separation of IDPs is crucial for the healthy functioning of neuronal synapses in the presynaptic axon^14,15 and postsynaptic dendrite.^16,17 However, dysfunctional phase separation underlies many pathological processes. Many neurodegenerative diseases involve aberrant phase transitions of IDPs,¹⁸ and interfering with such transitions presages new routes for therapeutic advances in neurology.¹⁹ Viral replication occurs within phase-separated inclusion bodies,²⁰ and proteins responsible for packing the RNA of SARS-Cov2 also undergo phase separation.²¹ These processes depend on the ease with which enzymes and reactants can diffuse, fluctuate, and interact within BCs.^22,23 A better understanding of how the molecular architecture of scaffold IDPs influences the material properties of BCs would help elucidate the physical mechanisms underlying their functions and guide the identification of targets for drugs,²⁴ opening up new approaches to attack cancer and other diseases.^25–28

Although many biomolecular condensates are fluid,²⁹ they do not behave as simple liquids.^30,31 A slow transition from the fluid phase to a rigid, fibrillous phase has been observed in vivo and in vitro for IDPs including Huntingtin,^32,33 FUS,^34,35 and alpha synuclein.¹⁸ Chromatin has been shown to undergo phase separation in vitro,³⁶ and to be mechanically restructured in a process that depends on its viscoelastic properties.^37,38 Such experiments show that recapitulating the dynamics of condensates does not require the complex environment of a living cell.²³ It has been conjectured that reversible phase separation is indicative of cellular health while irreversible rigidification of BCs marks a cell's transition into disease states.²⁹ Empirically classifying biomolecular condensates on a spectrum from fluid (healthy) to rigid (disease) motivates us to learn how their material properties arise from their constituent IDPs.^39–41 But although an enormous amount of experimental data is accessible in online databases,^42–44via web-based interfaces (https://mlos.leloir.org.ar),⁴⁵ there is no mechanistic understanding of how IDP molecular architecture controls the structure of their dense phase.

Computational modelling has been extensively used to connect molecular details such as multivalency and hydrophobicity to IDP phase behaviour in model systems.^46–49 Exquisite detail on residue–residue interactions⁵⁰ and the conformational dynamics of IDPs within condensates is revealed by Atomistic Molecular dynamics (aaMD) simulations,^23,51 but these are limited to near-molecular system sizes and short times. Coarse-grained simulation techniques simplify the atomic details of proteins in order to simulate thousands of molecules.^52–57 A minimal model of the phase separation of multivalent proteins is the patchy particle scheme in which proteins are treated as spheres with attractive sites on their surface.^58,59 These models, however, ignore conformational fluctuations that may be important for flexible proteins. Other coarse-grained models represent an IDP as a linear polymer of monomers (or beads) held together by bonds (or springs), thereby retaining translational and conformational degrees of freedom of the IDPs whilst simplifying their enthalpic interactions to increase the accessible length and time scales. A bead represents one or more amino acids and the models differ chiefly in which molecular details are kept.^{39,46,47,52,55,60,61} Recent reviews describe how modeling is able to reveal physical principles underlying phase separation of IDPs.^31,53,62,63

In this work, we go beyond establishing the phase boundaries of a model IDP in aqueous solution, and quantitatively study its dense phase. An IDP is represented as a semi-flexible polymer with multiple, punctate, attractive sites immersed in a good solvent.^4,64 Our results are thus distinct from previous applications of similar stickers and spacers models, in which the polymers are in a poor solvent and possess a large fraction of hydrophobic monomers.^{39,40,47,65,66} Although motivated by the study of IDPs, our model is also applicable to the phase separation of uncharged, associative polymers.⁶⁷ We use the coarse-grained simulation technique of dissipative particle dynamics,^68,69 which is suitable for simulating (uncharged) IDPs because of their polymeric nature and transient, weak interactions.⁷⁰ We find that the dense phase has a low (∼mM) internal concentration and approximately 70% solvent by volume, both results in good agreement with experiments on the uncharged IDP FUS.^35,71 The IDPs form a structured fluid network in which their binding sites transiently meet at junctions. The molecules typically fluctuate between multiple junctions, which causes them to swell compared to their conformations in the dilute phase, an effect also observed in other recent studies.^39,61,72 The length scale between the junctions is much larger than the monomer size, and varies more strongly with the binding site separation than with their affinity. It is reminiscent of the diffraction peaks observed in SANS experiments on the dense phase of the multivalent nucleolar protein NPM1.⁷³ The spatial heterogeneity is revealed further using graph theoretic measures,^74,75 which have been applied to metabolic networks,⁷⁶ allosteric pathways,⁷⁷ and the importance of residue mutations in proteins.⁷⁸ We map the junctions to the nodes of a graph, and place edges between nodes spanned by at least one polymer. The local clustering coefficient quantifies the crowding of polymers around the nodes.^79,80 Thirdly, the dense phase evolves on multiple timescales, indicating a complex internal dynamics of the IDPs.²³ Finally, our model predicts that the location of attractive domains on IDPs is important for their phase separation. When the binding sites at the polymer endcaps are disabled, the dense phase dissolves.

Methods

Dissipative particle dynamics simulation technique

We use the dissipative particle dynamics simulation technique (DPD) to study the phase behaviour of a series of model IDPs. The source code for the simulations is available on Github.⁸¹ DPD is a coarse-grained, explicit-solvent simulation technique invented to study the hydrodynamic behaviour of complex fluids.^68,69 It has since been applied to many soft matter systems including amphiphilic membranes,^82–84 vesicle fusion,^85,86 and domain formation in vesicles,⁸⁷ among many others.⁸⁸ It is highly suited to simulations of (uncharged) IDPs because the interactions are weak, and it has been shown that polymers in DPD exhibit self-avoiding walk scaling.⁸⁹ DPD is able to follow the evolution of fluid systems over large length and time scales by grouping atoms or atomic groups into beads, and replacing complex, interatomic potentials by effective forces that are softer and short-ranged. This reduces the number of degrees of freedom being integrated, and allows a larger integration time step in the equations of motion.

Beads in DPD have mass m and interact via three non-bonded interactions that are soft, short-ranged (vanish beyond a fixed length-scale d₀), pairwise additive, and conserve linear momentum. A conservative force gives each bead an identity such as hydrophilic or hydrophobic:

F^C_ij = a_ij(1 − r_ij/d₀)r̂_ij, (1)

for r_ij < d₀. The maximum value of the force is a_ij; r_ij = r_i − r_j is the relative position vector from bead j to bead i, r_ij is its magnitude, and r̂_ij is the unit vector directed from bead j to bead i. The other two non-bonded forces constitute a thermostat that ensures the equilibrium states of the simulation are Boltzmann distributed.⁶⁹ The dissipative force is:

F^D_ij = −γ_ij(1 − r_ij/d₀)²(r̂_ij·v_ij)·r̂_ij, (2)

where γ_ij is the strength of the dissipative force and v_ij is the relative velocity between beads i and j. This force destroys relative momentum between interacting particles. The random force is:where k_BT is the system temperature and ζ_ij is a symmetric, uniform, unit random variable that is sampled for each pair of interacting beads and satisfies ζ_ij = ζ_ji, 〈ζ_ij(t)〉 = 0, and 〈ζ_ij(t)ζ_kl(t′)〉 = (δ_ikδ_jl + δ_ilδ_jk)δ(t − t′). This force creates relative momentum between pairs of interacting particles i and j. The factor is required in the random force so that the discretized form of the Langevin equation is well defined.⁶⁹

Molecules are constructed by tying beads together using Hookean springs with potential energy:

U₂(i, i + 1) = (1/2)k₂(r_ii+1 − l₀)², (4)

where the spring constant, k₂, and unstretched length, l₀ may be different for each bead type pair but are here fixed at the values k₂ = 128k_BT/d₀² and l₀ = 0.5d₀. The semi-flexible nature of IDPs is represented by a chain bending potential applied to the angle φ defined by adjacent backbone bead triples (BBB):

U₃(i − 1, i, i + 1) = k₃(1 − cos(φ − φ₀)), (5)

with parameters k₃ = 5 k_BT and φ₀ = 0. All bonded and non-bonded interaction parameters are given in Table 1. For further details of the force field and DPD method applied to IDPs, the reader is referred to previous work.⁴⁹

Table 1 Bead–bead conservative force parameters a_ij (in units of k_BT/d₀) and dissipative force parameters γ_ij (in units of ) for all bead pairs, and Hookean spring potential parameters (in units of k_BT/d₀² and d₀ respectively). Note that E represents the endcap beads and F the internal binding site beads for computational and visualisation purposes, but these bead types have identical interactions except when one or the other is turned off as described in the text. NA = not applicable. A three-body bending potential is applied to adjacent triples of backbone beads (BBB) with parameters k₃ = 5k_BT and φ₀ = 0

Bead pairs	a ij	γ ij	k 2	l 0
WW, WE, WF	25	4.5	NA	NA
WB	23	4.5	NA	NA
BB, BE, BF	25	4.5	128	0.5
EE, EF, FF	Varies	4.5	128	0.5

---

An IDP is represented as a linear polymer of hydrophilic backbone beads (B) with short segments of hydrophilic sticky beads regularly interspersed between them (Fig. 1). This is motivated by the observation that many IDPs have multiple attractive, aromatic residues (such as tyrosine) uniformly distributed throughout their disordered regions.^90,91 Each binding site segment contains 4 beads of type F (type E for the endcaps) that adopt approximately spherical binding sites, and that prefer interacting with each other to the solvent or backbone beads. As is true for all coarse-grained simulation techniques, there is no direct relation between the DPD conservative force parameter a_ij between bead types i, j and atomic or molecular forces. The energy scale can be fixed by comparing an experimental force or work with the simulated value in a relevant process. But in the absence of this information, the conservative parameters for the sticky bead types E, F are set so that they prefer to interact with each other than with the solvent and backbone beads. Namely, we set a_EW = a_FW = a_EB = a_FB = a_WW and a_EE = a_FF = a_EF < a_EW. Then this attraction is quantified by the dimensionless parameter ε = (a_EW − a_EE)/a_EW. A value of ε = 0 means there is no net attraction between the sticky sites as they have the same interaction with each other as with the solvent beads. Increasing ε to 1 leads to effectively irreversible binding between the sticky beads on the timescale of the simulations. Bead types E and F have identical interactions except when one or other is disabled to represent disabling a binding site. Backbone beads are green, endcaps are red, and internal binding sites are yellow. They are coloured differently for visual distinctness only. The backbone beads are slightly more hydrophilic than binding sites to ensure they remain solvated in the dense phase. The solvent is represented by a single bead W and is invisible in all snapshots/movies for clarity.

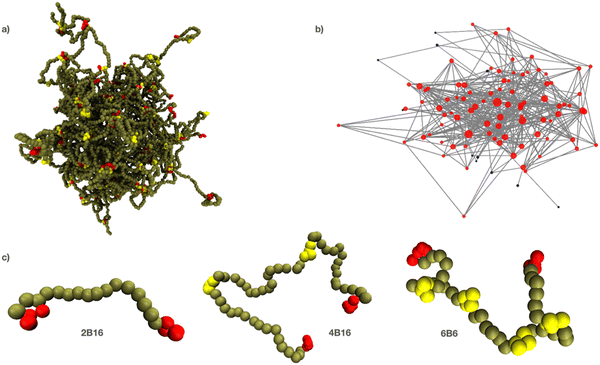

Fig. 1 (a) Snapshot of 160 polymers of type 4B16 in solvent (invisible for clarity). (b) The equivalent graph for the largest connected component of the system shown in (a). Nodes of the graph are placed where the polymer binding sites touch and edges connect nodes spanned by at least one polymer. (c) Nomenclature for polymers with multiple binding sites; sticky sites are separated by equal spacer lengths except in special cases (see Methods).

The number, location and affinity of the binding sites are the main parameters of the model. We use the nomenclature nBm (or nIm) to identify the structure of a polymer in the text, where n is the total number of binding sites (internal plus endcaps), and m is the number of backbone beads between adjacent binding sites (referred to as the gap between binding sites.) The letter B indicates that endcaps are present in the polymer and the letter I indicates that only internal binding sites are present. Selected binding sites can be turned on or off thereby changing the effective separation of the remaining active sites in a manner analogous to PTMs on a protein revealing/occluding specific interaction motifs. A typical phase separated droplet is shown in Fig. 1a together with its equivalent graph in Fig. 1b, which is further discussed in Section E. We refer to the dense phase equivalently as a droplet, network, or simply the dense phase. Three examples of polymers with different numbers of binding sites are shown in Fig. 1c.

Simulations take place in a cubical box of size (48d₀)³ unless otherwise noted, and the system temperature is k_BT = 1. A given number N_IDP of IDPs are randomly distributed throughout the simulation box together with N_W water particles to the constant density ρd₀³ = 3. Polymer concentrations are specified as the number fraction of IDPs, which is N_IDP/(N_IDP + N_W). The system is evolved by integrating Newton's laws of motion for all beads for at least 3 million time steps. The integration step size is 0.02τ, where is the DPD timescale. The first million steps are discarded to allow the system to equilibrate, and ensemble averages are constructed by sampling from the remaining time. Because we are interested in equilibrium properties, we do not try to characterize the time-scale more precisely. One simulation of this system (3 million steps) requires 20 cpu days on a single core of a 4.5 GHz Ryzen Threadripper 3970X machine. Further details of the DPD technique are given in the literature.^69,88

Results

A Dense phase concentration is modulated by binding site separation and affinity

We first explore how the phase behaviour of the model IDPs depends on the number and strength (or affinity) of their binding sites. The IDPs are hydrophilic, so the only direct attractive force between them arises from the interaction between these sites. They represent short residue motifs with weak, uncharged, attractive interactions.^4,64 The strength of the attraction is represented by the dimensionless parameter ε. The value ε = 0 corresponds to no attraction and increasing ε towards 1 creates a stronger attraction between binding site beads (see Methods).

Although representing an IDP as a semi-flexible polymer with discrete binding sites is a great simplification, the resulting model still possesses a large parameter space. At a minimum, the polymer length, bending stiffness, concentration, and the number, location and affinity of the binding sites must be specified. After a preliminary exploration, we focused on B48 polymers with 6 binding sites separated by 6, 8, or 10 backbone beads (referred to hereafter as 6B6, 6B8, 6B10 respectively). The top row of Fig. 2 shows the dense phase of 6B6 polymers for three values of the affinity decreasing from left to right. The droplet shows little visible change in cohesion over this range. By contrast, the bottom row shows that a droplet composed of 6B10 polymers begins to dissolve for the same change in affinity. The stability of the dense phase is clearly sensitive to the affinity and separation of the binding sites: more widely-separated binding sites require a higher affinity to drive their phase separation.

Fig. 2 The dense phase stability depends on the binding site separation when their affinity is reduced. The 6B6 droplet remains phase separated on reducing the affinity, but the 6B10 droplet starts to dissolve. (top row, left to right) 129 polymers 6B6 with affinity ε = 0.84, 0.76, 0.74; (bottom row, left to right) 128 polymers 6B10 with the same affinities.

We establish a correspondence between the simulated droplets and experiments by calculating the concentration of the dense phase. Although it is difficult to measure the volume of arbitrarily-shaped droplets, their fluidity usually results in their being approximately spherical (cp. Fig. 2), which enables their volume to be estimated from their radius of gyration. This is obtained from the coordinates of the polymers’ binding site beads under the assumption (verified by visual inspection of snapshots) that they are uniformly distributed throughout the droplet's volume.

In equilibrium, the dense phase concentration C is:

where 〈N^drop〉 and 〈R^drop_g〉 are the time-averaged number of polymers in the droplet and the droplet's (dimensionless) radius of gyration respectively. The parameter d₀ is the DPD length scale (see Methods section). To proceed further we have to map the DPD polymers onto an experimental IDP.

A common target for experimental investigation is the RNA-binding protein Fused in Sarcoma (FUS) that is implicated in the neurodegenerative disease ALS.⁹² The low complexity, N-terminal domain of FUS (FUS-LC, residues 1–163) is enriched in three polar amino acids (Q, S, Y), has only two charged residues (D), and around one quarter hydrophobic residues (mainly G and P) and none of the most hydrophobic residues (I, F, L, M V). FUS-LC phase separates into fluid droplets³⁴ with a high viscosity.³⁵ It makes multiple, transient, weak interactions within the dense phase indicating that it has little or no secondary structure.^70,93 The near absence of charge and secondary structure make it suitable for coarse-grained simulations.

We do not attempt to map the specific residue sequence of FUS-LC onto the coarse-grained polymers in our model. Instead, we assign an effective attraction to the punctate binding sites along the polymers thereby allowing a variety of arrangements of binding sites to be mapped onto the experimental FUS-LC system. Next, we choose the level of coarse-graining to connect the simulated IDPs with the FUS-LC protein. The DPD length scale d₀ is fixed by equating the experimentally derived radius of gyration of FUS-LC with the value obtained from a simulation of a single polymer in the dilute phase: 〈R_g〉d₀ = R^FUS-LC_g. Fig. S9 in the ESI† shows the radius of gyration of each IDP studied obtained from independent simulations of a single polymer in dilute solution. It is evident that the model IDPs exhibit the conformational fluctuations of a self-avoiding walk for all the binding site affinities and polymer lengths studied.

Tomasso et al.,⁹⁴ and Marsh and Forman-Kay⁹⁵ have empirically fit the hydrodynamic radius R_h of a wide range of uncharged IDPs with the formula:

R_h = (0.217 nm)N^0.509, (7)

where N is the number of residues in the proteins, and the exponent is close to the Flory exponent of 1/2 for ideal chains.⁹⁶ In order to relate the hydrodynamic radius of an IDP to its radius of gyration one has to adopt a particular polymer model, e.g., treating it as an ideal chain or self-avoiding walk (SAW). Dünweg et al. used computer simulations to show that the hydrodynamic radius (R_h) of a fluctuating polymer is related to its radius of gyration (R_g) by R_g/R_h = 1.5045 (ideal chain) or R_g/R_h = 1.591 (SAW).⁹⁷ The radius of gyration of an ideal chain is related to its mean end-to-end length by and Dünweg et al. further established that the corresponding relation for a self-avoiding walk is . It is interesting to note that these relations imply that a polymer's hydrodynamic radius is smaller than its radius of gyration, which is the opposite of a uniformly-dense sphere, for which the relationship is . This implies that a fluctuating polymer in the dilute phase diffuses faster than a sphere with the same radius of gyration.

FUS-LC contains 163 residues and its hydrodynamic radius is predicted to be 2.9 nm from eqn (2). Its radius of gyration is R_g = 4.36 nm using the relation for ideal chains or 4.61 nm for a SAW. The value of d₀ is then fixed by: 〈R_g〉d₀ = R^FUS-LC_g = 4.61 nm. Combining all the numerical factors together with 1000/0.6 to convert the concentration from polymers per nm³ into mM in eqn (1) allows the dense phase concentration to be determined from the formula 4.06〈N〉/(〈R^drop_g〉/〈R_g〉)³ [mM], where we have adopted the SAW model for the polymer. The quantities in angle brackets are obtained by sampling from the equilibrated stage of the simulation. If the polymers are regarded as ideal chains instead of self-avoiding walks the numerical constant 4.06 changes to 4.8, corresponding to an increase in concentration of about 18% independent of the droplet size, which does not change our results significantly.

We find that the dense phase concentration lies in the range 1–15 mM for all systems with 4, 5, or 6 binding sites separated by 4–10 backbone beads, and for affinities between ε = 0.76–0.84 (Tables S3 and S4, ESI†) These values are in excellent agreement with recent experiments that find the dense phase concentration to be 2 mM for full length FUS,⁷¹ and 7 mM⁷⁰ and 27.8 mM³⁵ for FUS-LC. We also show in Section S6 of the ESI† that the dense phase contains 65–70% water by volume (Fig. S15, ESI†), a result also in good agreement with experiment.³⁵

B The spatial structure of the dense phase varies with binding site separation

We next determine how the spatial organisation of the model IDPs depends on the affinity and location of their binding sites. Close examination of Fig. 2 shows that the binding sites (yellow for internal and red for endcaps) meet at junctions within the condensed phase that are separated by solvent-filled voids (Movies M1–M5 show the equilibrium fluctuations of droplets composed of 6B6 and 6B10 polymers with affinities ε = 0.84, 0.74, 0.68, ESI†). The distribution of binding sites at these junctions is highly heterogeneous. We quantify this observation by counting the number of binding sites on each junction (the junction mass) and measure the distance between them (the junction separation). Fig. 3 shows how these observables vary over a wide range of the total polymer concentration. Because the droplet is a fluid, there is a continuous exchange of polymers between it and the surrounding dilute phase, whose rate depends on the binding site affinity. For this analysis, we identify the dense phase with the Largest Equilibrium Network (LEN), which is defined as the largest set of polymers that are connected into a network by at least two binding sites. This excludes polymers in the dilute phase and those dangling off the droplet by a single binding site.

Fig. 3 Quantitative properties of the dense phase of polymers 6Bm, m = 6, 8, 10, and three affinities, ε = 0.84, 0.8, 0.76, in a box (48d₀)³ (top row), and comparison of results for two affinities ε = 0.84, 0.68, in box sizes (48d₀)³ and (64d₀)³ (bottom row). (a) The Largest Equilibrium Network (LEN) size increases linearly with polymer concentration. (b) The junction separation increases with increasing binding site separation, but is largely independent of concentration and affinity. (c) The mean junction mass is independent of the polymer concentration, but shows a (small) systematic increase with increasing affinity and decreasing binding site separation. (d) The fraction of polymers in the LEN is independent of system size within the statistical accuracy of the simulations. This remains true even when ∼25% of the polymers remain in the dilute phase (dashed curves.) Both junction separation (e) and junction mass (f) are independent of system size and concentration. Statistical error bars are smaller than the symbol size. Each legend applies to all graphs in the row.

The top row of Fig. 3 shows how properties of the dense phase of polymers 6Bm, m = 6, 8, 10, vary with the total concentration and binding site affinity in the standard simulation box (48d₀)³. The dense phase grows linearly with concentration (Panel 3a), a result that holds even for the lowest affinity and largest spacing (ε = 0.76, 10 beads, dotted black curve) for which more polymers remain in the dilute phase. The mean junction separation, shown in panel 3b, increases when the binding sites are farther apart on the polymers, which is intuitively expected. But it is largely independent of the affinity, apart from a small divergence (less than the size of a single bead) for the 6B10 polymers, which suggests that the network is loosened by decreasing affinity (cp. bottom row of Fig. 2). This result implies that the porosity of a biomolecular condensate is insensitive to small changes in the strength of the interactions between the constituent IDPs but increases with increasing separation of their binding domains (cp. the top row of Fig. 2). Panel 3c shows that the mean junction mass increases systematically (albeit slowly) with increasing binding site affinity and decreasing separation. Combined with panel 3b, we find that increasing the binding site affinity while keeping their separation unchanged does not change the mean separation of connected junctions in the dense phase, but packs more polymers between them.

We have verified that the dense phase is in equilibrium with the surrounding dilute phase by two methods. It is clear from panels 3b and c that the junction separation and mass are independent of the total polymer concentration in the range studied, which supports the droplets being in thermodynamic equilibrium. We also simulated systems in a larger box (64d₀)³ to confirm that the dense phase structure is independent of the simulation box size. Because the larger simulations are extremely time consuming, requiring 16 cpu days per million time-steps, we have only compared two affinities (ε = 0.76, 0.84) and two separations (6, 10). Panel 3d shows the fraction of polymers in the droplet in both system sizes is independent of the box size even for weak affinities (dashed curves) for which 10–30% of the polymers remain in the dilute phase over this concentration range. Similarly, panels 3e and f show that the mean junction separation and mass are independent of the box size and total concentration for all binding site affinities and spacings studied. Note that the droplets in the larger simulation box have been simulated at three lower concentrations than those in the smaller box. These concentrations are chosen so that there are the same number of polymers in the larger box as for the first three concentrations in the smaller box. It is clear that while the structural properties of the droplets are the same (panels 3e and f),panel 3d shows that polymers migrate from the dense to the dilute phase when a well-formed droplet in the smaller box is simulated in the larger box, further supporting the equilibrium state of the system. Comparing the first data points of the dashed-blue/circle and yellow/square curves shows that while ∼70% of the polymers are in the dense phase in the smaller box, this falls to about 25% of the (same number of) polymers in the larger box. (Section S4 and Fig. S10 of the ESI† provide further supporting data.)

We find that the model IDPs adopt more extended conformations when they move from the dilute to the dense phase. This apparently counter-intuitive result is also seen in Monte Carlo simulations from the Wingreen⁶¹ and Pappu⁷² groups. Fig. 4 shows that a single polymer of types 6B6 and 6B10 in the dilute phase becomes increasingly compact on raising the affinity of its binding sites (dashed blue curve) because it can lower its free energy by making self-bonds with its multiple binding sites. But when its mean end-to-end length (L_ee) drops below the value it would adopt in the dense phase, the latter becomes the equilibrium state. The transition occurs at a higher affinity for 6B10 polymers than for 6B6 polymers because the longer spacers require a higher binding enthalpy before the dense phase becomes stable. The large error bars in the dilute phase reflect the large conformational fluctuations of the single polymer (cp. Movie M7, ESI†). By contrast, the red (box size 48) and purple (box size 64) curves in Fig. 4 show that the mean L_ee of the polymers in the dense phase is largely independent of affinity for 6B6 polymers but shows a small decrease for 6B10 polymers with increasing affinity (cp. Fig. 3b). (They also show that the results are independent of the system size.) The smaller error bars reflect the more extended conformational ensemble of the polymers in the dense phase (cp. Movie M8, ESI†). This result is supported by the observation that IDPs in the dense phase rarely span the same junctions more than once, which would imply binding to themselves (cp. Fig. S8, ESI†). Table S1 (ESI†) shows that 16% of 6B6 polymers in the dense phase span a pair of junctions twice, and only 1.6% three times.

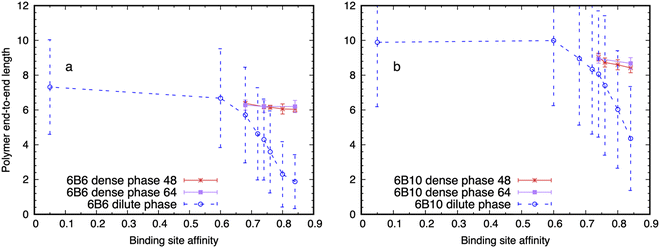

Fig. 4 (a) Variation of the end-to-end length (L_ee) of a polymer of type 6B6 in the dilute phase (dashed blue curve) and dense phase (red and purple curves for box sizes 48 and 64 respectively) with the binding site affinity in the range ε = 0–0.84. (b) Same as (a) for a polymer of type 6B10. Note that the dense phases are only stable for affinities starting at the first data point shown, which occurs when the polymer's mean size in the dilute phase drops below that in the dense phase. Error bars are the standard deviation of the distributions, illustrating the large fluctuations in the dilute phase and much smaller fluctuations in the dense phase. The zero affinity points have been displaced along the abscissa for clarity.

The heterogeneous distribution of polymers within the dense phase raises the question of whether its structure changes on passing from its surface deeper into its core.⁷² We have examined the junction properties in two regions: those polymers closer to the droplet's centre of mass than a distance equal to its radius of gyration, and those polymers outside this distance. Because the polymers are extended objects, the two sets are not easily distinguished. We have varied the radius that distinguishes the two sets to check that the results are not overly-sensitive to the value chosen, and the results are stable, albeit not highly precise. Table S2 (ESI†) shows the junction separation and mass for 6B6 and 6B10 polymers with affinities ε = 0.84, 0.74. The junction separation varies little between the regions, but the junction mass drops by as much as a factor of two for junctions nearer the surface, the effect decreasing for longer spacers and weaker affinity. This result is intuitively expected as more than half the space around those junctions is solvent. It implies the mass of polymers around the junctions has a positive gradient moving deeper into the droplet.

The results of this section demonstrate that the model IDPs phase separate into an heterogeneously-structured fluid in thermodynamic equilibrium with the surrounding dilute phase for a range of combinations of the location and affinity of their binding sites. This supports our comparing the properties of the ∼50 nm diameter simulated droplets with those of much larger experimental BCs. It also suggests that the cell can tolerate some variation in the strength of IDP interactions without greatly modifying the stability and spatial structure of their dense phase.

C The dense phase has long-range spatial structure

The mean values of observables in Fig. 3 do not reveal their spatial variation throughout the dense phase. The radial distribution function (RDF) of the binding sites gives more complete information. The RDF is the probability of finding two entities at a given separation in space. The RDF of the endcaps and internal binding sites for polymers of types 6B10 and 6B6 are shown in Fig. 5 for strong and weak values of affinity (ε = 0.84, 0.76), where these terms are used qualitatively to describe the cases shown in the left and middle columns of Fig. 2. The dense phase possesses spatial structure out to length scales 3d₀–8d₀ far beyond the monomer size d₀. The peak near the origin counts binding sites present at the same junction, and is uninteresting. The first interesting peak in the RDF quantifies the separation of junctions that are spanned by polymers. Notably, it does not shift significantly when the binding site affinity is reduced, but increases as expected when their separation is increased. The second peak also moves to larger distances but the peaks are less pronounced for the weaker affinity than the stronger. The near coincidence of the peak heights for the solid and dashed curves of the same colour shows that the mean junction separation shown in Fig. 3 is an average over junctions formed by endcaps and internal binding sites. The peak heights are proportional to the number of binding sites (4 internal and 2 endcaps), so dashed curves are always above the solid curves for the same affinity and spacing.

Fig. 5 The radial distribution function of polymer binding sites in the dense phase reveals the long-range organisation of junctions for two different binding site affinities (ε = 0.84, 0.76) and separations (gap = 10, 6). Solid curves refer to endcaps and dashed curves to internal binding sites; colours distinguish the separation. Peak heights drop but are still distinguishable for 6B6 (yellow and red curves) and 6B10 (blue and brown curves) polymers on reducing the affinity from ε = 0.84 to 0.76.

D Dense phase properties are modified by the active binding site distribution

The previous section showed that the structure of the model biomolecular condensate responds to variations in the polymer binding site separation and affinity. This raises the question of what the consequences are for the condensate of disabling one or more sites. We performed independent simulations of 6B6 polymers with an affinity of ε = 0.84, over a range of concentrations, for the three cases in which all sites are active, the two internal sites adjacent to the endcaps are deactivated, or the endcaps are deactivated. We note here that each binding site on the coarse-grained IDPs represents a number of amino acids, not a single residue. Disabling the endcap corresponds to replacing all attractive residues (e.g., tyrosine) by polar ones (e.g., serine) in a segment of several residues (see Methods).

Turning off internal binding sites/endcaps in the simulations is accomplished by setting their conservative self-interactions/cross-interactions equal to their interaction with the water beads, which sets their affinity ε = 0. Note that the binding site beads are still present in the polymer, so its length is unaltered. Fig. 6 shows typical droplets for these cases, and the dense phase concentration (mean and standard deviation of 4 runs) is below the snapshots. The first column shows that the droplet has a concentration of ∼3 mM independent of the total polymer concentration when all 6 binding sites are active. The droplet swells but remains phase separated when two internal sites are turned off and its concentration drops by a factor of 2–3 (middle column). Note that the concentration calculation is not affected by the dense phase crossing the periodic boundaries of the simulation box. But the concentration of a non-spherical droplet is not easily measured, and the value at the bottom of the middle column is included for completeness only. The final column shows that the dense phase disintegrates into hairy micelles or a box-spanning network with no sharp boundaries when the endcaps are disabled, even though the polymers still have 4 active binding sites.

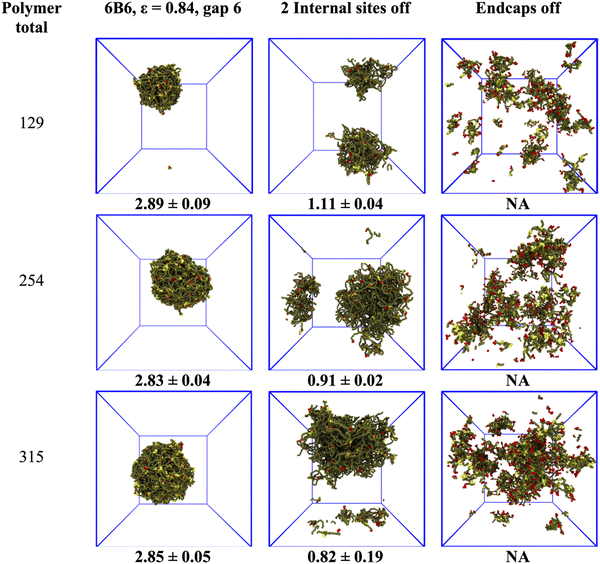

Fig. 6 The dense phase responds differently to disabling internal binding sites or endcaps. Each row shows a droplet at a given total concentration (polymer total at left, numbers under snapshots are the dense phase concentration in mM averaged over four independent runs). In the first column, 6B6 polymers form stable droplets with an average concentration of ∼3 mM. The second column shows the systems with two internal binding sites turned off (i.e., polymer type 4B12-6-12). The droplet swells and the dense phase concentration decreases. The third column shows that without endcaps (i.e., polymer type 4I6) the droplet disperses (NA = not applicable).

We quantify the change in the droplet structure when two internal sites are disabled in Fig. 7 for polymers with three different separations (6B10, 6B8, 6B6) and fixed affinity ε = 0.84. Panel a shows that the network size changes little for the three cases, indicating that the polymers with fewer binding sites still phase separate into stable droplets. The mean junction separation, shown in panel b, increases systematically by a factor that also increases with the binding site separation, reaching almost a factor of two when the binding sites are separated by 10 backbone beads. Concomitantly, the mean junction mass, in panel c, decreases by an amount that is largest for the smallest binding site separation of 6 beads. We cannot measure dense phase properties when the endcaps are disabled because the remnant “networks” are too small to yield meaningful results.

Fig. 7 The structure of the dense phase of polymers with 6 binding sites and affinity ε = 0.84 (solid curves) changes when two inner sites are disabled (dashed curves). Arrows indicate the shift in the property. The binding site separation is colour coded – 6B10 (black), 6B8 (red), and 6B6 (yellow). (a) The dense phase contains (almost) all polymers for all separations and (internal) binding site states. The mean junction separation (b) increases, and the mean junction mass (c) decreases when the two sites are disabled. Snapshots corresponding to the solid and dashed yellow curves are seen in the left and centre columns in Fig. 6. The legend applies to all.

Although results are shown for a single affinity (ε = 0.84), we expect from Fig. 3 that disabling internal sites for other affinities would be similar unless the combination of binding site separation and affinity were such as to render the droplet already close to the phase boundary, e.g., 6B10 with ε = 0.76. Comparing Fig. 3 and 7 shows that droplet's characteristic length scale is more sensitive to the spacing of the binding sites than their affinity, while the junction mass is sensitive to both.

E Clustering coefficient of the dense phase reveals a heterogeneous mass distribution

Although the model BC is an equilibrium thermodynamic phase, there is considerable variability in the spatial distribution of the mass. Fig. 5 shows that the dense phase has a structure that extends far beyond the monomer size and is not smeared out over time in spite of its fluidity. The regulation of biochemical reactions has been identified as a key function of BCs, and the spatial organisation of scaffold proteins within a BC should be expected to influence the diffusion and reactivity of client molecules.^3,98 Previous simulations of telechelic polymers has shown that the distribution of the number of polymers that bind at junctions throughout the dense phase is broad.⁴⁹ In this section we quantify the spatial heterogeneity of the dense phase using measures from graph theory.

The dense phase is mapped to a graph by identifying a node with each junction where polymer binding sites meet, and connecting two nodes by an edge when the corresponding junctions are spanned by at least one polymer. For the purpose of constructing the graph, an edge is assigned to two nodes if two adjacent binding sites on a polymer connect two junctions. Only polymers with at least two binding sites connecting them to the dense phase are included in the graph to avoid skewing its properties with polymers that dangle off into the dilute phase. The graph is recalculated each time the simulation is sampled to generate a time series of graphs that represent the droplet's state from which equilibrium values of observables can be calculated.

All properties of the graph we use are calculated from its adjacency matrix A_ij. This is the square matrix whose dimension is equal to the number of nodes in the graph, and whose elements A_ij = 1, if the nodes i, j are connected by an edge, and 0 if not. Diagonal elements are zero because we ignore self-loops, which represent polymers multiply bound to the same junction. The number of neighbours of a node i, referred to as its degree, is the sum of the elements in row i.

From the matrix A_ij we construct the local clustering coefficient that measures the mutual connectivity of the nodes connected to a given node.^79,80,99 It is defined as the ratio of the number of linked pairwise neighbours of a node to the maximal possible number of linked pairwise neighbours averaged over all the nodes of the graph. The clustering coefficient C_i of node i is:

where k_i is its degree. The mean clustering coefficient (CC) is the average of C_i taken over all nodes in the graph. It measures the local connectivity of the nodes, taking its largest value of unity when all the neighbours of a node are also connected to each other (see Section S1, Fig. S1–S6, for the CC of some simple graphs, ESI†). The CC just defined is the unweighted clustering coefficient. We also define the weighted clustering coefficient (wCC),^80,100 which is calculated using eqn (8) with a modified adjacency matrix whose elements are A_ij = n if there are n edges between nodes i, j. The weighted clustering coefficient contains information about the number of polymers that connect two junctions, and provides a better measure of the mass distribution in the droplet than the unweighted CC that reflects only its connectivity.

Fig. 8a shows that the CC of networks of polymers with multiple binding sites of affinity ε = 0.84 increases linearly with binding site number until it starts to saturate at six sites. The CC is 2–3 times larger than the value for a network of telechelic polymers (2B48) with a similar backbone length, and much greater than for a random graph (see Section S2 in the ESI† for the definition of the random graph). This indicates that multisite polymers form highly-connected junctions. The variance of the CC, indicated by its vertical extent, reinforces the evidence of the radial distribution function in Fig. 5 that the local network density is heterogeneous. Because of the large parameter space of polymers with multiple binding sites, we have not calculated the CC for all combinations of their number and affinity. Section S5 of the ESI† shows further data on the CC of the networks. For telechelic polymers, the CC increases approximately linearly with the binding site affinity (Fig. S12, ESI†). And for multisite polymers, the CC is independent of network size, and decreases with increasing binding site separation (Fig. S13 and S14, ESI†). We find that that both the number, separation, and affinity of the binding sites influence the clustering coefficient.

Fig. 8 Unweighted (CC) and weighted (wCC) clustering coefficients for the dense phase of polymers with binding site affinity ε = 0.84, and 2 (2B48), 4 (4B16), 5 (5B8) and 6 (6B6) binding sites separated by decreasing lengths of linker beads to maintain the polymer length approximately constant. (a) The CC increases linearly with increasing numbers of binding sites. The left-most symbol is for a random graph for comparison. (b) The wCC has a broader distribution than the unweighted CC, and its variance across the dense phase increases with more binding sites.

The wCC in Fig. 8b shows that the average connectivity of junctions increases sharply with increasing binding sites per polymer and its variance increases, particularly for polymers with 5 and 6 sites. Polymers with multiple binding sites form regions with a high local connection density as well as regions with a low density. These results are averaged over samples taken from simulations of 600 000 timesteps (after discarding 10⁶ steps) indicating that they persist in equilibrium. We point out here that the wCC is calculated for each node i in the graph and normalized by dividing by the quantity k_i (k_i − 1), which is the maximum number of triangles the node could make, and then averaged over all nodes. The number of triangles a node actually makes is usually much smaller than this maximum (cp. Fig. 8a), which is why the ordinate of Fig. 8b is not large. But its vertical extent reflects the large variation in the number of polymers spanning the junctions. The wCC of the random graph is not shown because it has edges that span the whole graph, which renders it not comparable to locally-connected droplets. Although moving internal binding sites closer together along the IDPs systematically reduces the separation of the junctions in the BC (cp. Fig. 3b) and increases the mass distribution (cp. Fig. 3c), the dense phase remains highly heterogeneous.

We hypothesize that a cell may regulate the structure of a BC via post-translational modifications to scaffold proteins that occlude or expose interaction sites. To explore the prediction of our model in this case, we have compared the CC for the networks composed of 6B6 polymers with all six sites active and when two internal binding sites are disabled. These correspond to the networks shown in the middle column of Fig. 6. Fig. 9 shows that the CC for the network is independent of concentration for the four points A–D and decreases when two internal binding sites are disabled (cp. “A” and “A two off”, etc.) but the dense phase is still heterogeneous.

Fig. 9 Comparison of the unweighted clustering coefficient for a network of 6B6 polymers with affinity ε = 0.84 and four concentrations (A = 129 polymers, B = 192, C = 254, D = 315) when all binding sites are active (A, etc.) and when two internal sites are disabled (A two off, etc.). The mean clustering coefficient is almost unchanged (∼0.35) for the four concentrations. Disabling two internal binding sites reduces the mean clustering coefficient (∼0.25) for all concentrations, but its variance remains similar, indicating that the network remains heterogeneous.

F Binding site affinity and spacing influence dense phase fluidity

Many biomolecular condensates are in the fluid phase, and loss of fluidity has been proposed as a sign of pathology.²⁹ In this section, we demonstrate that the dense phase of the model IDPs is fluid, and quantify how its internal dynamics depends on the binding site number and affinity.

A common experimental demonstration of condensate fluidity is to follow the spontaneous fusion of two distinct droplets into a single, spherical droplet on contact.^34,101 The same phenomenon is observed in our system. Fig. 10 shows two droplets fusing, each of which is composed of 763 telechelic 2B8 polymers with an endcap affinity ε = 0.76. On encountering each other by diffusion, they merge and eventually form a single, spherical droplet. Movie M6 (ESI†) shows the full evolution of the fusion event.

Fig. 10 Fusion of droplets composed of 763 identical 2B8 polymers that are colored differently for clarity but are otherwise identical. After diffusing to contact, they merge and polymers diffuse throughout the combined droplet that evolves to a spherical shape indicating the presence of a non-zero surface tension. The simulation times at which the snapshots are taken are beneath the images. Note the increased interval between the last two snapshots.

The fusion of two droplets is a non-equilibrium process, but equilibrium droplets are not static. Polymers diffuse and exchange between the droplet and the dilute phase in an affinity-dependent manner. Polymer dynamics in the dense phase may intuitively be separated into the diffusion of the whole polymer, as measured by its (relatively slow) centre of mass (CM) motion, and (relatively fast) conformational fluctuations by which it can bind/unbind to/from other polymers. The latter processes occur even if the polymer's CM is on average stationary. We introduce a new observable f(τ), which we call the network fluidity, that is defined on the droplet's equivalent graph to display the conformational dynamics of the dense phase:

where N is the number of nodes in the graph, M_i(t) is the number of polymer binding sites present on node i at time t, and D_i(t, t + τ) is the number of descendent nodes at time t + τ that contain at least one binding site that was bound to node i at time t. Angle brackets indicate an average over all starting times t. The fluidity is normalized so that f (0) = 0 because each node is then its own descendent, D_i(t, t) = 1. We note that this definition implies that if a polymer has more than one of its binding sites bound to a node and any of them move to a different node, they contribute to the fluidity measure. That is, the fluidity tracks the motion of the binding sites not the whole polymer. We also note that if a binding site leaves a junction and rebinds to the same one within the sampling time of the simulations (50 000 time steps) this is not reflected in the fluidity measure. It would appear if the sampling rate were increased.

The function f(τ) measures the number of descendent nodes into which each node splits during a time interval τ, averaged over the whole graph and normalized so that if a node is its own descendent it contributes 0, and if it totally splits up it contributes 1. It is similar to the auto-correlation function of the number of binding sites present on a node with the important difference that it tracks not only the number of binding sites per node but also their identity: if a binding site leaves a node and a different one joins, the fluidity measure reflects this even though the number of binding sites on the node has not changed. We introduce this definition because binding sites fluctuating between nodes represents a motion that will likely impact the behaviour of other molecules within it, e.g., by permitting the diffusion of objects larger than the mean junction separation because the network can rearrange around them.

Adding more binding sites might be expected to reduce the dense phase fluidity, but this is not observed. Fig. 11 shows that droplets with multiple binding sites are more fluid than telechelic polymers with the same affinity ε = 0.84 (cp. Fig. S11, ESI†), and exhibit fluctuations on shorter timescales. Fig. 11a shows that the dynamics, as measured by the fluidity f (τ), slows down with increasing affinity as intuitively expected, but that the fast motion of the polymers is reduced with increasing binding site separation for stronger affinities (dashed 6B6 curves are above solid 6B10 curves). We attribute this effect to the increasing difficulty of the binding sites on a fluctuating polymer to move to a nearby junction as their separation along the polymer backbone increases (cp. junction separation in Fig. 3). Fig. 11b shows that the fluidity of droplets containing multi-binding site polymers cannot be described by single exponential decay for any of the affinities studied. Their internal dynamics therefore possesses at least two distinct time-scales. The splitting of the curves for 6B10 polymers with the lowest affinity at different concentrations reflects the small size and instability of the dense phase.

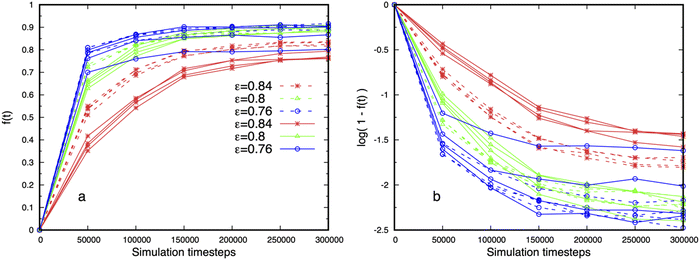

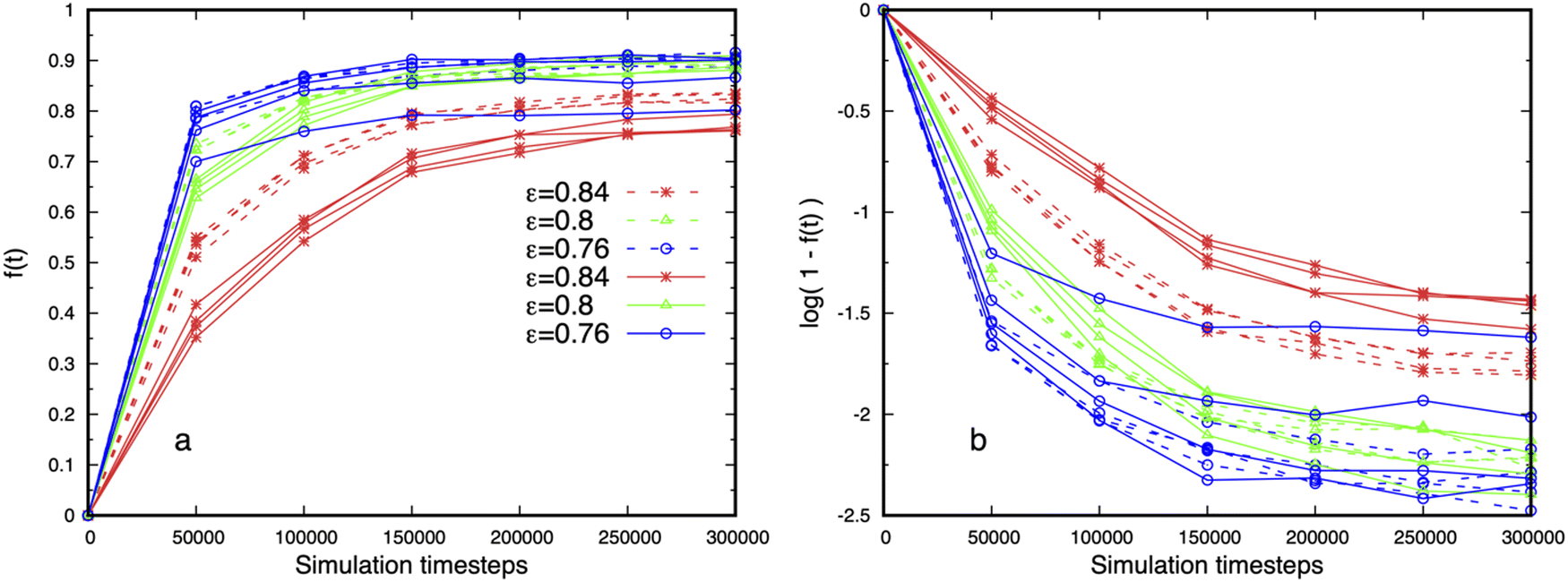

Fig. 11 (a) Fluidity of droplets formed of 6B10 (solid) and 6B6 (dashed) polymers with 6 binding sites and three affinities. Repeated curves of the same colour and type are from simulations at four concentrations. The fluidity increases with decreasing affinity, and is independent of concentration, which shows that the droplets are in equilibrium, except for the lowest affinity with the larger binding site separation (solid blue curve). The 6B10 polymers are less fluid than the 6B6 for higher affinities. (b) log-linear plot of the data showing that the fluidity cannot be described as an exponential decay with a single time-scale for the affinities shown.

Finally, the independence of the fluidity on the total polymer concentration, and therefore on the droplet size, seen in Fig. 11 further supports the claim that the droplets are in equilibrium. Snapshots of droplets corresponding to Fig. 11 for the affinities ε = 0.8, 0.76 are shown in the left and middle images in Fig. 2, and quantitative measures of their structure in Fig. 3 and 5.

Discussion

We have shown that model IDPs with attractive binding sites phase separate into a dense phase in equilibrium with a dilute phase in the absence of a solvophobic repulsion. The dense phase is a dynamic network, in which the binding sites reversibly assemble at junctions (or nodes), and resembles associative polymer systems.^102–104 When the model IDPs are mapped to the FUS low complexity domain, the dense phase has a concentration in the range 2–12 mM, and an aqueous volume fraction in the range 60–70% in good agreement with experiments.³⁵ The junction distribution (or porosity) in the dense phase is spatially heterogeneous with a characteristic length-scale that is much larger than the size of the monomers (Fig. 5). This length-scale is selected by the contour length between binding sites on the IDPs, and is more sensitive to their separation than to their affinity (Fig. 3).

We believe our results cannot be satisfactorily explained within Flory–Huggins (FH) theory,⁹⁶ which is widely used to construct and interpret simulation studies of IDP phase behaviour.^{39,40,47,65,105} FH theory assigns all monomers in a polymer an energetic interaction with the solvent that is quantified by a parameter χ (for heteropolymers this is an effective parameter). When χ is negative (good solvent conditions), the entropy of mixing combines with the favourable solvation energy to keep the single-phase mixture stable. Phase separation only occurs in FH theory when the monomers are solvophobic (large positive χ parameter or bad solvent conditions).^40,47 However, although the model IDPs are in good solvent conditions they are able to phase separate.

Tomasso et al.⁹⁴ present data for a wide range of IDPs in dilute solution showing that they have the conformational fluctuations typical of polymers in a theta or good solvent in that their hydrodynamic radius scales with their monomer number according to eqn (7). Such IDPs cannot phase separate without additional attractive forces. A simple example is provided by telechelic polymers whose endcaps have an attractive self-interaction while both endcaps and backbone are solvophilic.¹⁰² Theory^106,107 and computer simulations^49,108–111 show that telechelic polymers phase separate into a reversible, heterogeneous physical gel.⁹⁶ The presence of multiple binding sites on the IDPs here extends the range of affinity and molecular weight for which phase separation is observed, a robustness that may be important for cellular control of BCs with a varied composition.

We have explored this model of IDPs as polymers in good solvent conditions to understand those that do not contain a majority of hydrophobic residues (e.g., FUS-LC is almost uncharged and has only ∼25% hydrophobic residues). Our model is also applicable to the phase separation of uncharged, hydrophilic polymers possessing punctate sticky sites, and its extension to multicomponent systems is obvious.^{102,106,107,112} The observed dense phase has long-ranged, heterogeneous spatial structure (out to 10 monomer diameters) revealed by the radial distribution function of the binding sites (Fig. 5). We may contrast this with the results of Statt et al. who simulate IDPs as amphiphilic polymers composed of at least 60% hydrophobic beads using coarse-grained Molecular dynamics simulations.⁴⁰ The radial distribution function of their dense phase shows no structure beyond 2–3 bead diameters indicating an homogeneous dense phase.

Perhaps surprisingly, we find that the IDPs are stretched in the dense phase. This swelling has been observed in other simulation techniques, suggesting it is a robust, emergent property.^39,61,72 Weiner et al.⁶¹ found that the increase in conformational entropy of an IDP on moving into the dense phase was a crucial driver of phase separation. While an IDP in dilute phase must double back to gain binding enthalpy, it can bind to multiple junctions in the dense phase without looping, thereby gaining binding enthalpy and increasing its conformational entropy, Our results support their hypothesis that IDPs phase separate once their typical conformations in the dense phase are more extended than in the dilute phase (Fig. 4). We also find that they rarely span the same junctions more than once, which would imply binding to themselves (Table S1, ESI†).

Intriguingly, Weiner et al. observe that phase separation is weakened when there are many conformations of the single polymer whose intramolecular bonds stabilize the dilute phase.⁶¹ By contrast, we find that the dense phase forms when the probability of compact conformations of the single polymers increases (Fig. 4). The difference may originate in the backbone bending stiffness of k₃ = 5k_BT we impose on the polymers, while Weiner et al. have freely-jointed chain polymers. Conformational fluctuations on a short scale are substantially reduced in our model. We observed in a previous publication that telechelic polymers with zero bending stiffness found it hard to aggregate, and we included the bending stiffness in that and the present work to obviate this.⁴⁹ This effect was also seen by Chatteraj et al. in Langevin dynamics simulations of surface-grafted polymers.¹¹³

We also observe that the distribution of IDPs in the dense phase changes with their distance from the surface. Although the junction spacing is insensitive to their location, the mean number of IDPs that bind to the junctions is reduced for junctions near the surface. This makes intuitive sense because those junctions are largely surrounded by solvent. This may affect the rate at which new molecules diffuse into the dense phase, and potentially also modify their conformational fluctuations at the surface of the condensate leading to an enhanced probability of their misfolding into amyloid shapes as observed recently.¹¹⁴ We point out here that a depth-dependent variation in the characteristic IDP conformations is also seen by Farag et al. in their Monte Carlo simulations of a similar stickers and spacers model of IDPs.^46,72

We next explored how phase separation is affected by disabling a fraction of the binding sites (Fig. 6). A clear difference is found when sites distant from the polymer endcaps are disabled (dense phase swells and its concentration drops) compared to sites at the endcaps (dense phase dissolves.) Extrapolating our results to experimental IDPs, we predict that disabling interaction domains near their termini, by mutation or posttranslational modification, will destabilise the dense phase. But disabling domains within the IDPs is likely only to modulate the dense phase concentration. It is worth noting here that PTMs often cluster at the termini of IDPs. For example, FUS contains multiple PTM sites in its N-terminal prion-like domain (PLD) that are phosphorylated under stress conditions and reduce its tendency to undergo phase separation.¹¹⁵ Phosphomimetic alterations of the PLD also influence the transition of FUS granules into pathological solid phases, while leaving the dynamics in the fluid stress granules unaltered.¹¹⁶ The conformational flexibility of IDPs makes these terminal PTM sites easily accessible to diffusing species in the cytoplasm suggesting that regulation by diffusing kinases and phosphatases may be important for the function of FUS. Our results suggest that the reaction and diffusion of client proteins inside biomolecular condensates could by modulated by turning on or off appropriate interaction domains on their scaffold proteins, thereby modifying its porosity. It is instructive to compare these results to recent Monte Carlo simulations of Rana et al. whose model has a similar level of coarse-graining.⁶⁶ An IDP is represented in their work as a sequence of (hydrophobic) sticker beads interspersed with (hydrophilic) spacer beads, in which at least 40% of the polymer sequence must be hydrophobic in order to observe phase separation. Rana et al. also find that the phase behaviour of their model is sensitive to the identity of the terminal beads, but their system changes from phase separated to aggregated clusters under the change of identity whereas we predict the dense phase should dissolve.

The simulated BCs maintain an heterogeneous junction mass distribution over time despite being a fluid, a result we first observed for the dense phase of telechelic polymers.⁴⁹ We have quantified the magnitude of this inhomogeneity by measuring how the binding sites are distributed in the dense phase. By mapping the junctions to nodes of a graph, we used the clustering coefficient (CC) to measure the connectivity of the network and the weighted CC (wCC) for the junction mass distribution. Both the CC and the variance of the wCC (averaged over the dense phase) increase strongly with increasing binding site number, indicating a more heterogeneous, although still fluid phase (Fig. 8). It appears that the connectedness of the binding sites within the polymers, their backbone stiffness, and slow transport through the dense phase prevents all junctions from maintaining the same number of binding sites. Farag et al. also measured the clustering coefficient of the condensate in their Monte Carlo simulation model.⁷² But a detailed comparison of the two results is not simple. They mapped the IDP molecules to the nodes of a graph and placed edges between molecules that bind to each other, and found the resulting CC indicative of a small-world network. However, their graph combines the multiple binding sites of each IDP in one node of the graph, thereby losing their spatial separation. By contrast, we map the spatially-distributed junctions in the condensate to nodes and measure the resulting CC of the junctions. Each IDP can be represented by several nodes in this graph, because its binding sites can be on different junctions, and their spatial separation is preserved. This allows us to reveal the heterogeneous junction mass distribution and its dependence on binding site number (Fig. 8), affinity and separation (Fig. S13 and S14, ESI†). We find that the CC of the junctions is much larger than that of a random graph with the same number of nodes. We believe that further study is needed to resolve the question of the small-world nature of the connectedness in biomolecular condensates.

Fluid FUS-LC droplets have been observed to undergo an irreversible transition to a rigid fibrous state over several hours in vitro,^34,117 and passive rheology experiments show that BCs undergo ageing and exhibit glassy behaviour.¹¹⁸ Condensates with material properties that range from liquid to solid have physiological roles in healthy cells,¹¹⁹ but can also facilitate pathological amyloid formation.³¹ Alpha synuclein (aSyn) fibrillisation is preceded by phase separation into dense fluid droplets, but the individual aSyn molecules are more rigid than in the dilute phase.¹²⁰ The complexity of the electrostatic and hydrophobic domains in aSyn suggest that more complex forces are important in this case. On the other hand, small molecule drugs that harden biomolecular condensates can prevent RNA virus replication and provide novel therapeutic possibilities.¹²¹ We have constructed a novel measure (eqn (9)) to quantify the dynamics of polymer fluctuations within the dense phase, It reflects both the reversible binding/unbinding and diffusion of the IDPs, and shows that they exhibit multi-exponential decay in which both fast and slow relaxation processes are important (Fig. 11). The relaxation dynamics we find is independent of IDP concentration and not accompanied by stiffening of the network structure in the presence of more (weak) internal binding sites. The dense phase fluidity decreases with increasing affinity, but is reduced when the binding sites are more widely spaced. This supports the conjecture that biomolecular condensate structure can be tuned by switching on or off suitably located attractive residues, e.g., by posttranslational modification.^115,122

Conclusions

The formation of biomolecular condensates via liquid–liquid phase separation (LLPS) of proteins has become a new paradigm within which to explain a wide range of phenomena in cellular physiology and pathology. But little solid information relating their material properties to their constituent IDPs is available, except for the primary sequence of the participating IDPs and the fact that under appropriate conditions they phase separate. Nevertheless, we can conclude based on the data that the widely-invoked explanation of LLPS based on the Flory-Huggins (FH) theory of polymer solutions fails for some IDPs, since they display good solvent properties in cytosol buffer conditions. Our work predicts that (uncharged, hydrophilic) IDPs with discrete attractive residues can phase separate into a heterogeneous dense phase that is stabilized by their ability to make multiple, fluctuating contacts. The IDPs swell on entering the dense phase, an effect seen in other simulation techniques, suggesting it is a robust, emergent property of weakly-interacting IDPs.^61,72 The propensity of the dense phase to favour extended molecular conformations may explain observations that biomolecular condensates are protective against Aβ-42 misfolding into amyloid conformations.¹²³ And its lower surface density might allow newly-adsorbed IDPs to sample more compact conformations, which may be relevant to experiments showing that formation of amyloid fibrils of hnRNPA12 is promoted at the boundary of condensates.¹¹⁴ The density variation in the condensate could also be important for segregating enzyme activity to distinct regions of BCs.⁹⁸ We highlight some concrete suggestions for experimental testing of our predictions, and generalize our analysis to other fields.

Although the model IDP binding sites do not represent specific residue–residue interactions, our finding that the dense phase structure is sensitive to their relative positions is interesting in the light of experimental observations that post-translational modification sites are often clustered along the disordered termini of IDPs.¹¹⁵ Our first prediction is that location and separation of interaction domains on phase-separating IDPs are key parameters for BC structure, but their precise affinity is not. We also find that the model IDPs can phase separate with binding endcaps in the absence of some internal binding sites, while the opposite does not hold. This could be experimentally tested by generating mutant IDPs, such as FUS, with segments of inert residues at the termini and observing their phase behaviour. A second prediction is that varying the spacing between attractive domains in IDPs modulates the heterogeneity of the dense phase. Small Angle Neutron Scattering (SANS) in conjunction with specific deuteration and contrast variation techniques is a promising tool to determine if the predicted scaling holds for experimental BCs.

Many IDPs possess multiple PTMs that can be modified by diffusing kinase/phosphatase species. A cell may use the action of these enzymes to adjust the separation and/or affinity of attractive residues.¹²² Steps towards computationally predicting how PTMs affect BC structure and dynamics have already been taken.¹²⁴ Because enzyme diffusion would respond to changes in the heterogeneity of the condensate, this provides a level of feedback to regulate biochemical reactions or control condensate formation/dissolution.⁶¹ We have shown that the dense phase dynamics slows down on increasing the attraction between IDPs, and our third plea for experimental testing is to hasten measurements of dynamic properties of engineered BC phases. Fluorescence recovery after photobleaching could be used to test our prediction of the dependence of BC fluidity on binding domain strength.¹²⁵ Single-particle tracking experiments that follow the diffusion of variously-sized fluorescent probes, or quantum dots, within the BC would probe the predicted porous nature of BCs.

Time-varying graphs are common in many fields, and the graph fluidity measure we introduce could be applied to bioinformatics networks, such as genome association in dynamic complex traits,¹²⁶ metabolic networks,⁷⁶ and be combined with molecular dynamics simulations of large flexible proteins to explore their allosteric properties.^77,78 It may also be useful for studying the evolution of social networks,^127,128 the emergence of a power-law distribution for the node degree and the process of rumour spreading,^129,130 as well as transport and mobility networks, which typically involve shortest-path and trajectory prediction on time-varying graphs.^131,132

In conclusion, our results connect the heterogeneous structure, material properties, and dynamics of model biomolecular condensates to the distribution of binding sites on their constituent IDPs. These relations may guide experimentalists in the design of synthetic BCs with tunable properties.^133–135 Combined with the ability to modify the residue sequence of IDPs,⁶⁴ and online tools to predict the effects of point mutations on local disorder and hydropathy of IDPs,¹³⁶ this will undoubtedly reveal more fascinating mysteries in cellular use of BCs,¹³⁷ and further our understanding of their pathological transitions in disease.¹³⁸

Author contributions

J. C. Shillcock, conceptualization, methodology, software, validation, formal analysis, data curation, visualization, writing – original draft, writing – review and editing; C. Lagisquet, software, validation, data curation, visualization, writing – review and editing; J. Alexandre, software, validation, formal analysis, writing – review and editing. L. Vuillon, software, validation, formal analysis, resources, writing – review and editing, Funding acquisition, project administration. J. H. Ipsen, conceptualization, methodology, resources, writing – review and editing, project administration.

Conflicts of interest

The authors declare no competing financial interests.

Acknowledgements

This study was supported by funding to the Blue Brain Project, a research centre of the École polytechnique fédérale de Lausanne (EPFL), from the Swiss government's ETH Board of the Swiss Federal Institutes of Technology, and the 80PRIME MITI CNRS programme. The authors gratefully acknowledge computer time provided by the Blue Brain Project and Swiss National Supercomputing Centre and the Abacus 2.0 Supercomputing cluster at the University of Southern Denmark. The Dissipative Particle Dynamics simulation source code used in this work is available on GitHub.⁸¹ Custom python code written for the data analysis includes algorithms from the open-source libraries scikit-learn (https://scikit-learn.org/stable/) and networkx (https://networkx.org). The graph analysis code is available on GitHub (https://github.com/clagis/droplets). The authors express their gratitude to M. Brochut and E. Chénais who wrote the analysis code for ref. 49, which was also used here, and to W. Pezeshkian for scripts to generate VMD format files. Snapshots and movies of simulated networks were produced using the open-source VMD software from the University of Illinois Urbana Champaign (http://www.ks.uiuc.edu/Research/vmd).¹³⁹
