Plasma enhanced anti-coking performance of Pd/CeO₂ catalysts for the conversion of methane

Abstract

The direct nonoxidative conversion of methane (CH₄) to valuable chemicals has attracted increasing interest. However, the carbon deposition will inevitably occur due to CH₄ decomposition at high temperature. Here, we report the conversion of CH₄ assisted by non-thermal plasma into olefins and H₂ over a Pd/CeO₂ catalyst. The addition of the plasma could effectively enhance the anti-coking performance of the catalyst, facilitating the conversion of CH₄. The interaction between plasma and catalyst was explored in detail. The energized electron and ions generated by plasma could interact with the adsorbed CH₃ species to efficiently suppress the consequent dehydrogenation of the adsorbed CH₃, accelerating the desorption of the CH₃ species from the surface of the catalyst, thus reducing the amount of carbon deposition on the catalyst surface. The highly efficient catalyst assisted by plasma is effective in enhancing the CH₄ conversion and suppressing the carbon deposition, which deserves to be widely applied in catalysis.

---

1. Introduction

The continuous fossil energy consumption and the increasingly emerging environmental problems have demanded widespread attention toward alternative renewable and sustainable energy resources.¹ In particular, CH₄ as a primary component of natural gas is considered one of the alternatives to nonrenewable coal and crude oil due to its huge reserves, and its upgrading to valuable hydrocarbon feedstocks (such as aromatics, olefins, oxygenates) and hydrogen.^2–4 However, excessive cracking of CH₄ can lead to carbon deposition and catalyst deactivation. Thus, strategies to minimize the excessive cracking of CH₄ are important in CH₄-containing reactions, such as the conversion of CH₄ and biogas reforming technology (CH₄/CO₂ conversion).⁵

The CH₄ conversion can be conventionally achieved either by indirect methods concerning multiple catalytic transformations, such as through synthesis gas (a mixture of CO and H₂)^6,7 and methanol,⁸ or by direct methods consisting of the oxidative coupling of methane (OCM),^9,10 nonoxidative dehydroaromatization of methane (MDA)^11,12 and nonoxidative conversion of methane to olefins, aromatics, and hydrogen (MTOAH).^13–15 Among them, the MTOAH route is a promising approach for CH₄ conversion to C₂ products (C₂H₄ and C₂H₂) and hydrogen due to zero emissions of carbon dioxide and maximum carbon atom utilization.^13,14 However, it still remains a grand challenge to achieve the CH₄ activation at low temperature because of the highest C–H bond strength (434 kJ mol⁻¹), the high ionization energy, the low electron affinity and polarizability.^16,17

It has been reported that single Fe atoms embedded in the SiO₂ matrix (Fe@SiO₂) at 950–1090 °C possessed high catalytic selectivity for the nonoxidative conversion of CH₄ to ethylene (C₂H₄), aromatics (benzene, naphthalene) and H₂.¹³ The conversion of CH₄ reached 48.1% and the selectivity of ethylene exceeded 48% at 1090 °C. The C–H of CH₄ was activated over atomic Fe sites to form methyl (CH₃) radicals. The CH₃ radicals diffused easily from the catalyst surface into the gas phase to trigger a chain reaction (CH₃ + CH₃ → C₂H₆), which subsequently underwent a series of gas-phase reactions to generate the target products. No coke deposition was observed because the absence of Fe ensembles suppressed the C–C coupling and carbon coking under the high-temperature catalytic conditions.¹³ The development of the stable single-atom catalyst at high temperature during the CH₄ conversion reaction provides a new route to inhibit carbon deposition. Dipu et al. reported that the CH₄ was activated over the Ni–P/SiO₂ catalysts,¹⁵ which showed the high selectivity (99.9%) of ethane and ethylene at 850 °C with the low selectivity (0.1%) of the carbon (C) deposition, although the conversion of methane was only 0.08%. The activation of CH₄ first generated ethane (C₂H₆) via two CH₃ radicals coupled to each other as the primary product on the catalyst surface, and then the thermal conversion of C₂H₆ to other target products (olefins and benzene) in the gas phase.¹⁵ The above results showed that for the CH₄ conversion, it is crucial to suppress the carbon deposition through tuning the generation and desorption of the CH₃ species over catalysts and guiding the subsequent series of reactions in the gas phase. However, the active metal species not only aggregate inevitably into larger nanoparticles, but also are easily inactivated at high temperatures (ca. 1000 °C). Therefore, an innovative technique for the direct conversion of the CH₄ process is highly desirable.

The low-temperature activation of CH₄ with highly reactive catalysts assisted by non-thermal plasma (NTP) is a promising strategy to achieve the CH₄ conversion more efficiently and selectively because NTP can generate extremely active electrons with a mean electron energy of 1–10 eV,^18–20 which can activate inert molecules (e.g., CH₄ or CO₂) at atmospheric pressure and low temperatures into the reactive species, such as excited atoms, molecules, ions and radicals (CH₃ radicals and H radicals).^21,22 Until now, much effort has concentrated on the direct nonoxidative conversion of methane using various NTPs with or without a catalyst, including dielectric barrier discharge (DBD),^23,24 pulsed discharge,^25,26 spark discharge,²⁷ radio-frequency discharge,²⁸ corona discharge²⁹ and microwave discharge.³⁰ In particular, the nanosecond pulsed discharge (NPD) has attracted much attention because of its unique features, such as higher energy efficiency,³¹ the extreme non-equilibrium character,³² massive high energy electrons,³³ and the short pulse duration suppressing the transition from plasma to thermal-equilibrium state.³⁴ However, the high conversion of CH₄ and selectivity of the olefins still remain a grand challenge. Thus, combining both advantages of the catalyst and plasma was a promising route.

For the efficient catalyst materials, ceria (CeO₂) as a well-known functional rare earth material has been extensively used as a catalyst support in a variety of catalytic reactions owing to its unique oxygen storage and release capacity.³⁵ In addition, ceria can greatly overcome the sintering of the deposited metal to disperse and stabilize the metals as small-size species, even ultra-fine clusters or single atoms at high temperature, by tuning the interaction between the active metal and CeO₂ support.^36,37 Ceria-supported Pd catalysts have shown some promising properties for CH₄ activation,^35,38 while the formation of carbon deposition is disadvantaged for its catalytic applications.

Herein, we reported Pd/CeO₂ with low loading for the direct nonoxidative conversion of CH₄ into light hydrocarbons and H₂ assisted by nanosecond pulsed DBD at atmospheric pressure to reduce the amount of carbon deposition. A notable enhancement on the CH₄ conversion for the plasma-catalysis is compared with the catalysis-only. The introduction of plasma strongly increased the coke-resistance of the catalyst by the electron-impact with the catalyst surface. The possible reaction mechanisms in the conversion of CH₄ assisted by plasma with or without a catalyst were proposed by a range of catalyst characterizations, product analysis and the plasma kinetic modeling.

2. Experimental

2.1 Synthesis of catalysts

CeO₂ supports and the Pd/CeO₂ catalysts were synthesized by the reported hydrothermal method³⁹ and deposition–precipitation method,⁴⁰ respectively. The detailed synthesis process can be seen in the ESI.†

2.2 Characterization of catalysts

Powder X-ray diffraction (XRD) was performed on a D8 ADVANCE (Bruker, Germany) diffractometer with Cu Kα radiation. The Raman spectra were obtained using a Raman microscope (inVia, RENISHAW, England) system by excitation of the sample at 532 nm with a measurement range from 100 to 4000 cm⁻¹. High-resolution transmission electron microscopy (HR-TEM) was carried out on a JEM-2100F microscope (Japan) at 200 kV. The high-angle annular dark-field scanning transmission electron micrograph (HAADF-STEM) images and the corresponding elemental mappings were performed on the same instrument. The field-emission scanning electron microscopy (FE-SEM) combined with the energy dispersive X-ray analysis (EDS) was operated on a SIGMA microscope (Zeiss Merlin Compact, Germany). Before the test, the samples were dispersed in the ethanol and then dripped onto aluminum foil to accurately determine the carbon content. All analyzed elements were normalized and the carbon content was tested three times. The N₂ adsorption–desorption measurement was operated at −196 °C on an ASAP 2020HD88 unit (Micromeritics, America) to obtain the specific surface area (S_BET) values of each sample. X-ray photoelectron spectroscopy (XPS) was operated with Al Kα radiation (ESCALab-250Xi). The binding energy of all spectra was calibrated using the C 1s signal at 284.6 eV. Temperature programmed reduction by hydrogen (H₂-TPR) was carried out on a Micromeritics Autochem II 2920 analyzer with a thermal conductivity detector (TCD). The fresh 0.5Pd/CeO₂ sample (50 mg) was pretreated in air at 300 °C before the test. Then, the catalyst was heated in 10% H₂/Ar (30 mL min⁻¹) gas mixture from room temperature to 600 °C. Temperature programmed oxidation by oxygen (O₂-TPO) was performed at the same analyser (Micromeritics Autochem II 2920) with a TCD. First, the used samples (100 mg) were activated at 300 °C in He. Then, the samples were heated in 2% O₂/He (30 mL min⁻¹) gas mixture from room temperature to 800 °C. Thermogravimetric (TG) analysis was carried out on a TG-DTA6300 instrument. The sample was treated in air from room temperature to 800 °C (10 °C min⁻¹). The optical emission spectroscopy (OES) from the plasma in the CH₄ DBD reactor was recorded using a spectrograph via an optical fiber equipped with a Princeton Instruments ICCD camera (Andor DH334T) in the range of 300–700 nm. During the test, the optical fiber was placed close to the ground electrode of the DBD reactor. For the spectrometer, the slit width was fixed at 50 μm and the grating groove density was specified to 1200 mm⁻¹.

2.3 Catalytic tests

The nonoxidative conversion of CH₄ was performed in a DBD reactor, as shown in Fig. 1, in which the catalytic tests were performed at atmospheric pressure with a catalyst bed in the discharge zone. The reactor was a typical cylindrical DBD quartz tube (14 mm o.d. × 10 mm i.d.) reactor, which used a stainless-steel foil covering outside of the quartz tube as the grounding electrode and a stainless-steel rod (6 mm o.d.) placed along the axis of the quartz tube as the high voltage electrode. The quartz tube also served as the dielectric between the high voltage electrode and the grounding electrode. In the reactor, a sieve plate was embedded and used to fix the high voltage electrode. The discharge length of the DBD reactor was 130 mm. The discharge gap was 2 mm. The DBD reactor was connected to a nanosecond pulse power supply (Smart Maple HV-2015, China), which provided a peak voltage of 13 kV and an adjustable frequency. The current and voltage of the external capacitor and the actual applied voltage were detected by a digital oscilloscope (Tektronix, DPO 2024). In the plasma-catalysis test, 0.5 g of catalyst (20–40 mesh) was packed into the discharge area and pure CH₄ was introduced into the DBD reactor with a gas hourly space velocity (GHSV) of 9800 mL g⁻¹ h⁻¹. Prior to the reaction, the catalyst was activated at 980 °C for 30 min in 10% H₂/Ar gas mixture. For the temperature-dependent CH₄ conversion test, the reactor temperature was controlled from 800 to 980 °C. At each temperature, the temperature is constant and the same as the set value. Each reaction was allowed to equilibrate for 1 h, and then the concentrations of outlet gases were analyzed. Meanwhile, the experiments were repeated three times and the average of the three measurements was taken. The gaseous products were analyzed via a gas chromatograph (Thermo-Fisher, Trace 1300) equipped with a thermal conductivity detector (TCD), as well as a flame ionized detector (FID), and calculated by an internal standard method. The TCD with a TDX-01 packed column was used to quantify the CH₄ and H₂. The light hydrocarbons including C₂H₆, C₂H₄, C₃H₈, C₃H₆, C₄H₁₀ and C₂H₂ were quantified through the FID with a HPPLOT Al₂O₃ capillary column.

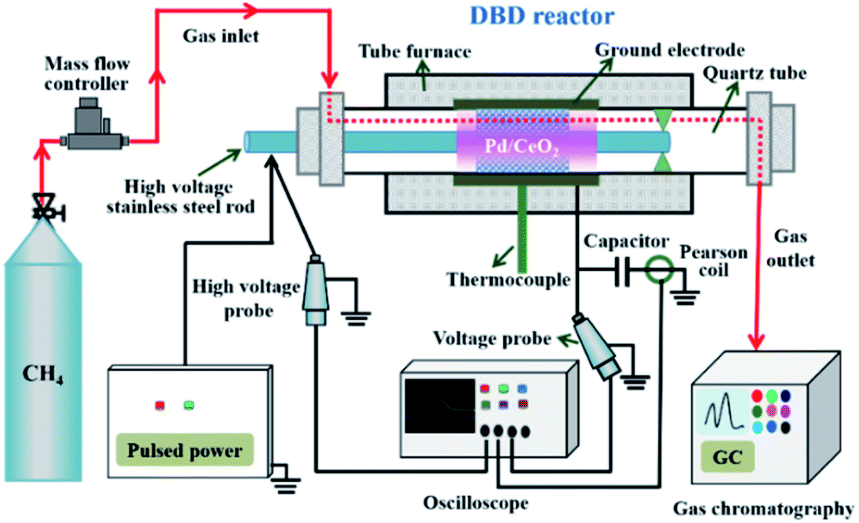

Fig. 1 Schematic diagram of the fixed bed DBD reactor setup for the nonoxidative conversion of CH₄.

The calculations on CH₄ conversion (C_CH4), hydrocarbon products selectivity (S_CxHy) and yields (Y_CxHy), H₂ selectivity (S_H2) and yield (Y_H2), carbon balances (B_C), hydrogen balances (B_H) and energy consumption (EC) of the discharge are shown in the ESI.†

2.4 Density functional theory calculation methods

Density functional theory (DFT) calculation was applied with the Castep program package with the GGA and PW91 functional in the package of Material Studio to simulate the conversion of CH₄.^41,42 Because of the nonmagnetic properties of Pd, the spin polarization effect was not considered. The convergence criterion for the energy, maximum force, stress and energy cutoff were set at 2 × 10⁻⁵ eV per atom, 0.05 eV Å⁻¹, 0.1 GPa and 400 eV, respectively. A density mixing electronic minimizer with a mixing scheme of Pulay was used, and the convergence criteria for the self-consistent field (SCF) was set as 1.0 × 10⁻⁵ eV per atom. The Brillouin zone was sampled by a k-point of 3 × 3 × 1. The transition state (TS) was determined using the LST/QST method.

The Pd (111) surface was modelled by a three-layer slab within a (3 × 3) super cell (27 Pd atoms in the cell), and the positions of all atoms (except for those in the bottom layer) were fully relaxed. A vacuum of 10 Å along the Z-direction was applied to avoid interactions between the periodic images.

The adsorption energy was calculated as:

E_ads = E_{adsorbates/slab} − E_slab − E_adsorbates (1)

where E_{adsorbates/slab}, E_slab and E_adsorbates are the energies of the surface with the adsorbate molecule, clean surface without any adsorbate and the isolated molecule in the gas phase, respectively.

The activation barrier E_a and reaction energy ΔE are defined as:

E_a = E(TS) − E(IS) (2)

ΔE = E(FS) − E(IS) (3)

where E(IS), E(TS) and E(FS) refer to the total energies of the initial, transition and final states, respectively.

2.5 Plasma kinetic modelling

A zero-dimensional (0D) plasma kinetic modelling was performed to elucidate the main reaction mechanism in the plasma for the conversion of CH₄ without 0.5Pd/CeO₂. The plasma chemistry consisting of 23 species (i.e., neutrals, radicals and charged species) and 132 reactions together with the corresponding rate coefficients are listed in Table S1 (see the ESI†). The rate coefficients related to the electron-impact reactions were calculated by a Boltzmann solver Bolsig+,⁴³ according to the energy-dependent collision cross sections^44,45 between the electrons and molecules. The rate coefficients of the electron–ion, ion–neutral and neutral–neutral reactions were usually a function of the gas temperature T_g. All species were assumed to be uniform in the reactor. The initial electron density was set to 10⁷ cm⁻³, which is the sum of positive ion densities satisfying the electroneutrality constraint. Moreover, the initial densities of the radicals were set to 10² cm⁻³.

The time evolution of the density for all species was formulated as:

where subscripts i and j represent the ith species and jth reaction, respectively. N_i is the species density and S_ij is the source term.

The time evolution of the electron energy equation is expressed as:

where N_ε represents the electron energy density, and Δε_j and r_inel,j are the energy losses derived from inelastic collisions and the reaction rate in the jth reaction, respectively. Γ_e is the electron flux with Γ_e = μ_eEN_e, where μ_e is the electron mobility, E is the electric field, and N_e is the electron density.

The operating parameters of the simulation used here were the same as those of the experiment (see the Catalytic tests section).

3. Results and discussion

3.1 Catalytic performance of the catalysts with the plasma for CH₄ conversion

First, we studied the CH₄ conversion performance and product selectivity of 0.5Pd/CeO₂ at 980 °C. As shown in Fig. 2a, for the catalysis-only condition, CH₄ conversion can reach 12.9% at 980 °C, which is much higher than that (4%) for the blank reactor, indicating the crucial catalytic CH₄ activation of the 0.5Pd/CeO₂ catalyst. The selectivity of the light olefins for 0.5Pd/CeO₂ were obviously lower than those for the blank reactor, while the H₂ selectivity was much higher, indicating the presence of the carbon deposition at high temperature. Under the plasma-catalysis condition, the CH₄ conversion of Plasma + 0.5Pd/CeO₂ (1 kHz) was similar to that of 0.5Pd/CeO₂ without plasma when the discharge power was ca. 13.6 W, indicating that the weak discharge was not efficient for the removal of the adsorbed species on the catalyst surface. However, when the discharge power reached ca. 25.1 W, the CH₄ conversion over the Plasma + 0.5Pd/CeO₂ (3 kHz) was almost doubled from 12.9% to 23.6% (an enhancement of ca. 10.7%) compared with that under the catalysis-only. The CH₄ conversion (4.7% vs. 4%) over the blank reactor with or without plasma was almost unchanged (Fig. 2a). The activity difference over 0.5Pd/CeO₂ and the blank reactor suggests that the role of plasma could not only be related with the gas-phase reaction, but there could also be the existence of plasma-assisted surface reactions, promoting the conversion of CH₄.^46,47 The waveforms of the discharge voltage (U_total), gas voltage (U_gas), dielectric voltage (U_diele) and discharge current (I_total) are shown in Fig. S1.† The similar voltage–current waveforms indicated the same discharge properties, suggesting the stability of the controlled experiment. At the same discharge parameters, the EC for the Catalyst + Plasma is much lower than that for the Blank + Plasma (Table 1), exhibiting the key role of the Pd/CeO₂ catalysts in improving the reaction performance. In addition, the stability tests of the catalysts at 980 °C under both thermal and plasma conditions were performed. As shown in Fig. S2,† the conversion of CH₄ slightly decreased during the 6 h test under both thermal and plasma conditions, indicating the fast formation of carbon under catalysis-only conditions, and the collision between plasma and catalyst can ensure the desorption of the CH₃ species from the catalyst surface to suppress the catalyst deactivation in a certain period of time.

Fig. 2 (a) CH₄ conversion, product selectivity and (b) product yield over the 0.5Pd/CeO₂ catalyst in comparison to that over a blank reactor with or without plasma at 980 °C (discharge voltage: 13 kV; frequency: 1 kHz or 3 kHz; rising time: 300 ns; falling time: 500 ns).

Table 1 Comparison of the discharge power (P) and energy consumption (EC) from plasma at 980 °C^a

Samples	P (W)	EC (J mmol^−1)
a Discharge parameter: discharge voltage: 13 kV; frequency: 1 kHz or 3 kHz; rising time: 300 ns; falling time: 500 ns.
Blank + Plasma (1 kHz)	8.4	7.6
Blank + Plasma (3 kHz)	17.4	16.9
Catalyst + Plasma (1 kHz)	13.6	4.3
Catalyst + Plasma (3 kHz)	25.1	4.6

---

The selectivity of each product was similar to that without plasma (Fig. 2a), which suggested that the plasma was mainly involved in homogeneous CH₄ activation, and as the initial step of activating CH₄ to form CH₃ radicals, without influence on the subsequent reaction pathway.⁴⁶ Notably, the selectivity and the C & H balance for 0.5Pd/CeO₂ with plasma were slightly lower than that for the blank reactor with plasma (Fig. 2a and S3a†), suggesting the presence of the high carbon hydrocarbons gas (C₄₊) resulting from further chain growth and cyclization, which were not detected by FID or TCD. Some high carbon hydrocarbon solidifications in the wall of the tube were observed during the test. The yield of each product under the plasma-catalysis condition was more than that for catalysis-only (Fig. 2b). For the CeO₂ support (Fig. S4†), the CH₄ conversion was similar to that for the blank reactor (5.5% vs. 4%). Moreover, the CH₄ conversion increased from 5.5% to 11.3% (an enhancement of ca. 5.8%) after the introduction of plasma, indicating that the contribution of plasma could only be in connection with the gas-phase reaction. It also implied the importance of the Pd species in the catalytic CH₄ conversion.

To better understand the effect of the 0.5Pd/CeO₂ catalyst with or without plasma on the CH₄ conversion, we studied the CH₄ conversion, product selectivity and yields at lower temperatures. As displayed in Fig. 3, CH₄ conversions, the selectivity and yields of the C₂ products under the plasma-catalysis condition increased obviously at 800 °C and 900 °C, which were much higher than those from the blank reactor with plasma (Fig. S5†). The C & H balance was nearly 100% for the 0.5Pd/CeO₂ catalyst with or without plasma at different temperatures (Fig. S3b†), suggesting less carbon deposition at lower temperatures. The corresponding voltage–current waveforms with plasma at 800 °C and 900 °C are shown in Fig. S6.† The CH₄ conversion under the plasma-catalysis condition reached 5.2% at 900 °C, which are quite higher compared with those for the 0.5Pd/CeO₂ catalyst, indicating that the addition of the plasma can promote the conversion of CH₄. The selectivity of C₂H₄ and H₂ reached 15% and 50%, respectively.

Fig. 3 (a) Methane conversion, product selectivity and (b) product yield over the 0.5Pd/CeO₂ catalyst with or without plasma at 800 °C and 900 °C (discharge voltage: 13 kV; frequency: 1 kHz; rising time: 300 ns; falling time: 500 ns).

In addition, the 0.5Pd/CeO₂ catalyst with plasma showed excellent low-temperature catalytic reactivity. At 800 °C, the CH₄ conversion reached nearly 3%. The onset temperature of CH₄ activation on the 0.5Pd/CeO₂ catalyst with plasma is much lower than that previously reported for single-atom Fe@SiO₂ ¹³ and Pt₁@CeO₂.¹⁴ Table S2† shows the CH₄ conversion and the selectivity of the C₂ products (C₂H₆, C₂H₄ and C₂H₂) over various catalysts reported from the literature. Although the selectivity of the C₂ products was slightly lower than those at higher temperature, the Pd/CeO₂ catalyst with plasma in our work has the competitive CH₄ conversion at lower temperature compared with that reported from the literature. This also provides a promising strategy to achieve the nonoxidative conversion of CH₄ at lower temperatures.

3.2 The effect of plasma on carbon deposited over the catalyst surface

The morphology and corresponding elemental mapping analysis of the fresh (named as 0.5Pd/CeO₂-fresh) and used 0.5Pd/CeO₂ catalyst without or with plasma (named as 0.5Pd/CeO₂-used and Plasma + 0.5Pd/CeO₂-used, respectively) were characterized. The fresh 0.5Pd/CeO₂ catalyst calcined at 980 °C underwent severe sintering compared with the rod-like CeO₂ supports subjected to the calcination at 400 °C (Fig. 4a, b, S7 and S8a†). The 0.5Pd/CeO₂ catalyst were sintered into irregular shapes with a size of 200 nm or more. No palladium-containing phases were observed, indicating the stable Pd species disperse uniformly on CeO₂. Only the clear interplanar spacing of 0.32 nm was detected (Fig. 4a and S8d†), corresponding to the (111) lattice fringes of CeO₂.⁴⁸ In addition, the elemental mapping analysis confirmed the homogeneous distribution of both Pd and Ce species (Fig. 4b and c). Notably, a small quantity of carbon species was also detected (6.8%, Table 2), which mainly resulted from the surface-adsorption carbonaceous species.³⁵

Fig. 4 (a, d, g) HR-TEM images, (b, e, h) SEM images and (c, f, i) the corresponding EDS mappings for the 0.5Pd/CeO₂ catalysts: (a–c) the fresh catalyst; (d–f) the catalyst after catalysis-only; (g–i) the catalyst after plasma-catalysis. The collection zones of the STEM-EDS elemental mapping images corresponded to the SEM areas.

Table 2 Physicochemical properties of the catalysts

Samples	Raman intensity ID/IG	Carbon content^a (%)	Carbon amount^b (wt%)	S BET (m^2 g^−1)
a Determined by SEM-EDS. b Calculated from TGA. c BET surface area of the samples.
CeO2	—	—	—	77
0.5Pd/CeO2-fresh	—	6.8	—	0.19
0.5Pd/CeO2-used	1.56	100.0	48.0	3.49
Plasma + 0.5Pd/CeO2-used	1.54	31.0	36.3	0.31

---

Under catalysis-only condition, except the (111) and (002)⁴⁸ lattice fringes of CeO₂, large amounts of carbon species over the catalyst were observed (Fig. 4d–f and S8b, e†). Furthermore, only weak Ce, O and Pd signals were detected (Fig. 4e and f). The carbon species were typical of amorphous carbon and had limited order due to the absence of the observable graphitic reflections in XRD or the HR-TEM.⁴⁹ However, under plasma-catalysis condition, besides the distribution of the carbon element, the signals of Ce, O and Pd elements were obvious (Fig. 4g–i), indicating that the introduction of plasma can effectively inhibit the degree of the carbon deposition. The quantification of the carbon element from the EDS results also verified this point (Table 2). The carbon content (31.0%) under the plasma-catalysis condition was much lower than that (100.0%) under the catalysis-only condition (Table 2). To better exhibit the distribution of the Pd species, HAADF-STEM images and the corresponding elemental mappings were performed. The active Pd species were approximately isolated and monodispersed on CeO₂ (Fig. S9†). In a word, the addition of the plasma can effectively reduce the amount of the carbon deposition. Furthermore, CeO₂ as support can effectively suppress the aggregation of the Pd species during the high-temperature catalytic reaction, showing the outstanding heat resistance and structure stability.

The specific surface areas (S_BET) of the samples were measured by N₂ adsorption–desorption isotherms and the corresponding results are summarized in Table 2. The CeO₂ support showed relatively high S_BET at ca. 77 m² g⁻¹. However, the S_BET value decreased seriously to 0.19 m² g⁻¹ for the fresh 0.5Pd/CeO₂ calcined at 980 °C, mainly due to the increasing CeO₂ crystallite size, as verified by the SEM images. After the CH₄ conversion, the S_BET value (3.49 m² g⁻¹) evidently increased, and was much higher than that (0.31 m² g⁻¹) for the used Plasma + 0.5Pd/CeO₂, which was mainly attributed to the greater carbon deposition on the used 0.5Pd/CeO₂.

XRD results showed that all of the diffraction peaks for the measured samples could be assigned to the face-centered cubic CeO₂ (JCPDS 34-394) phase (Fig. 5a). No diffraction peaks were consistent with the Pd species, possibly due to the low loading of the Pd species. It also suggested the small particle size and high dispersion of the Pd species on the CeO₂ support, which was in line with the HAADF-STEM results. In addition, the mean crystallite sizes (d) of the samples were calculated according to the Scherrer equation, which are summarized in Table S3.† The 0.5Pd/CeO₂-freshly calcined at 980 °C became much larger compared with the CeO₂ supports subjected to the calcination at 400 °C (24.9 nm vs. 8.8 nm). However, the mean crystallite sizes of CeO₂ obviously decreased for the used 0.5Pd/CeO₂ with or without plasma. Moreover, the size of CeO₂ for the used Plasma + 0.5Pd/CeO₂ was apparently larger compared with that for the used 0.5Pd/CeO₂ (Table S3†). This can be due to the lower carbon deposition and greater exposure to CeO₂ after the introduction of the plasma. These phenomena supported the interpretation of the SEM images well.

Fig. 5 (a) XRD patterns and (b) Raman spectra of the CeO₂ support, the fresh and used 0.5Pd/CeO₂ catalyst with or without plasma. (c) XPS spectra of C 1s for the fresh 0.5Pd/CeO₂, the used 0.5Pd/CeO₂ and Plasma + 0.5Pd/CeO₂. (d) TGA profiles of the used 0.5Pd/CeO₂ and Plasma + 0.5Pd/CeO₂ following the long-term stability tests.

Raman spectral tests were used to investigate the surface specific structure of the catalysts. As shown in Fig. 5b, for the fresh 0.5Pd/CeO₂, except for the F_2g mode (462 cm⁻¹) and the defect-induced (D_CeO2, 601 cm⁻¹) mode of the cubic CeO₂ fluoride phase,^35,48 no peaks related to the Pd species were detected, suggesting the small size and low loading of the Pd species. For the used 0.5Pd/CeO₂ catalyst, there was the presence of four new peaks. The strong peak at 1349 cm⁻¹ was assigned to the disorder in graphitic carbon denoted as D.⁵⁰ The G-band at 1596 cm⁻¹ and the G′-band at 2694 cm⁻¹ were ascribed to the graphitic in-plane stretching vibrations from the sp²-bonded carbon and 2D vibrations,^51,52 respectively. The presence of the G-band demonstrated the existence of graphitic carbon.⁵³ The weak G′-band represented the short-range honeycomb structure, indicating the partially ordered carbon structure.⁴⁹ Another weak peak at 2932 cm⁻¹ was assigned to the combination of G and D.⁵² However, no peaks were assigned to the CeO₂ fluoride phase and Pd species, suggesting that the deposition of the carbon species covered the catalyst signal. Surprisingly, the peak related to the F_2g mode of ceria was detected for the used Plasma + 0.5Pd/CeO₂, indicating that the degree of the carbon deposition can be effectively weakened after the introduction of plasma. The similar I_D/I_G ratios (Table 2) between the used 0.5Pd/CeO₂ and Plasma + 0.5Pd/CeO₂ suggested the same graphitic structure, indicating that the addition of plasma did not change the structure of the 0.5Pd/CeO₂ catalyst.

Fig. 5c and S10† show the XPS spectra of C 1s, Pd 3d, Ce 3d and O 1s for the 0.5Pd/CeO₂ samples. For the Pd 3d XPS spectrum of the fresh 0.5Pd/CeO₂ (Fig. S10a†), two symmetric peaks at 337.5 eV and 342.8 eV corresponded to the highly dispersed Pd species in the Pd²⁺ state.⁵⁴ However, for the used Plasma + 0.5Pd/CeO₂ (Fig. S10a†), the accurate confirmation of the Pd species was difficult due to the poor noise resulting from the lower Pd content covered partially by the carbon. From the H₂-TPR results (Fig. S11†), the highly dispersed PdO species were easily reduced below 200 °C,⁵⁵ while the reduction of the PdO species interacting strongly with CeO₂ can be reduced below 400 °C.⁵⁵ Thus, the active state of 0.5Pd/CeO₂ was the metallic Pd phase.

To explore the coordination structure of the carbon species, C 1s XPS spectra were studied (Fig. 5c). For the fresh sample, the peak at 284.8 eV can be assigned to the C–C bond from graphitized carbon.⁵⁶ Two weak peaks at 286.5 eV and 289.2 eV were related to the C–O bond and COO bond,^56,57 respectively. These bonds may result from the contaminant carbon of the measurement system⁵⁸ or the adsorption of CO₂ and H₂O in the air. For the used 0.5Pd/CeO₂ and Plasma + 0.5Pd/CeO₂, they showed the same coordination structure of carbon. The peak intensity related to the C–C bond increased, confirming the deposition of the carbonaceous species during CH₄ conversion. The C–O bond still existed, primarily from the CO₂ adsorption in air. Notably, the peak intensity of the C–C bond for the used 0.5Pd/CeO₂ was much higher compared with the used Plasma + 0.5Pd/CeO₂. Moreover, for the XPS spectra of Pd 3d, Ce 3d and O 1s (Fig. S10†), the peak intensity of the fresh 0.5Pd/CeO₂ was much stronger than that of the used Plasma + 0.5Pd/CeO₂. These observations are in accordance with the Raman and SEM results. The amount of carbon deposition can be effectively reduced after the addition of plasma.

The contents and types of the deposited carbon were characterized by TGA and O₂-TPO. As summarized in Table 2, the TGA results showed that the used Plasma + 0.5Pd/CeO₂ possessed a total weight reduction of 36.3 wt%, in agreement with the SEM-EDS data (Table 2). Meanwhile, more carbon content (48.0 wt%) for the used 0.5Pd/CeO₂ were detected, while this value was much lower than the SEM-EDS results (ca. 100%). This is due to the large amounts of carbon covered over the catalyst, and the thickness of carbon reached the lower detection limit of the SEM instrument. Thus, weak catalyst information was detected, leading to higher carbon content. In addition, they showed the similar TGA and O₂-TPO profiles (Fig. 5d and S12†), confirming the same types of the deposited carbon. The weight loss between 380 and 520 °C was ascribed to amorphous carbon and the weight loss between 520 and 720 °C corresponded to filamentary carbon.^59,60 The weight loss at more than 720 °C resulted from the burn-off of graphitic carbon, which was difficult to gasify or removed by regeneration.⁵⁹ These carbon species were responsible for the low catalytic activation of 0.5Pd/CeO₂.

3.3 Reaction mechanism of the catalysts with the plasma for CH₄ conversion

To identify the active species of the plasma-catalysis condition during the conversion of CH₄, the OES measurement was performed. As shown in Fig. S13,† the excited CH (C²Σ⁺ → X²Π), CH (A²Δ → X²Π) and C₂ (d³Π → a³Π) bands were identified in the OES spectra,⁶¹ demonstrating the existence of CH radicals. This also indicates the presence of CH₃ and CH₂ radicals because the CH radicals are generated via the progressive dehydrogenation of CH₄ under the plasma condition.⁶² Two CH₃ radicals coupled and further reacted with other active species to generate other products. The rest of the peaks were assigned to the vibration of N₂ and N₂⁺,^63,64 which mainly resulted from the discharge between the ground electrode and the quartz tube. The bands assigned to CH and C₂ were very weak compared with those from N₂ and N₂⁺. It was mainly because the size (20–40 mesh) and voids of the catalyst were very small, leading to the light from the CH₄ discharge being obscured.

The DFT calculations were carried out to explore the reaction mechanism and understand the reason of carbon deposition on 0.5Pd/CeO₂ without plasma. The Pd (111) surface was constructed to adsorb CH₄, which was easily activated to generate adsorbed CH₃ (0.88 eV, Fig. 6). However, the consequent dehydrogenation of the adsorbed CH₃ on the catalyst surface is much more favorable compared with the desorption (1.02 eV vs. 2.15 eV). The adsorbed CH₄ mainly occurred in consecutive dehydrogenation steps on the Pd-site, finally forming the carbon deposition. Therefore, the conversion of CH₄ on the Pd-site tends to form carbon-coking, leading to a large amount of carbon covering the catalyst surface, lowering the catalytic performance. Notably, the desorption of the adsorbed CH₃ was easier than that of the adsorbed CH₂ and CH.

Fig. 6 CH₄ consecutive dehydrogenation pathways (blue lines) and desorption energy of the reaction intermediates (orange lines) on the Pd-site based on DFT simulations.

After the introduction of plasma, CH₄ molecules were cracked to generate the abundant CH₃ radicals, and two CH₃ radicals coupled easily to generate C₂H₆. If the CH₃ radicals can readily react with the adsorbed CH₃ to generate C₂H₆, we also simulated the steps via DFT. As shown in Fig. S14,† the energy for the reaction of the CH₃ radicals with the adsorbed CH₃ to generate the C₂H₆ was ca. 2.76 eV, suggesting the difficult process. It also indicated that the conversion of CH₄ to hydrocarbons could occur first through desorption of adsorbed CH₃ from the surface of the catalyst to form CH₃ radicals, and then the CH₃ radical reacted with the gaseous molecules.

According to product analysis and a range of catalyst characterizations, it can be concluded that there is serious carbon deposition over only 0.5Pd/CeO₂. However, the amount of carbon deposition is greatly reduced after the addition of plasma. The influence of plasma on the carbon deposition has been discussed in detail. First, the intense electric field and the diffusion of the active species generated by plasma could modify the surface charge transfer and work function of catalysts to promote the desorption of CH₃.^65,66 Secondly, the energized electron and ions generated by plasma could impact the adsorbed CH₃ species, which could accelerate the desorption of the CH₃ species from the catalyst surface, reducing the amount of carbon deposition. The density of electron averaged over one period was ca. 10¹¹ cm⁻³ (Fig. 7a). The desorption of the adsorbed CH₃ species needed at least 2.15 eV (Fig. 6). Thus, the electron ratio in the range from 2 eV to 9 eV (the minimum energy threshold of CH₄ dissociation and ionization collision) was calculated, which enabled the adsorbed CH₃ to desorb. As shown in Fig. 7b, there was about 55% of the electrons in the 2–9 eV energy range when the reduced field intensity was more than 100 Td. Although not all of the electrons participated in the desorption of CH₃, a part of electrons >2 eV provided the possibility in the CH₃ desorption from the catalyst surface into the gaseous phase, inhibiting the progressive dehydrogenation of adsorbed CH₃.

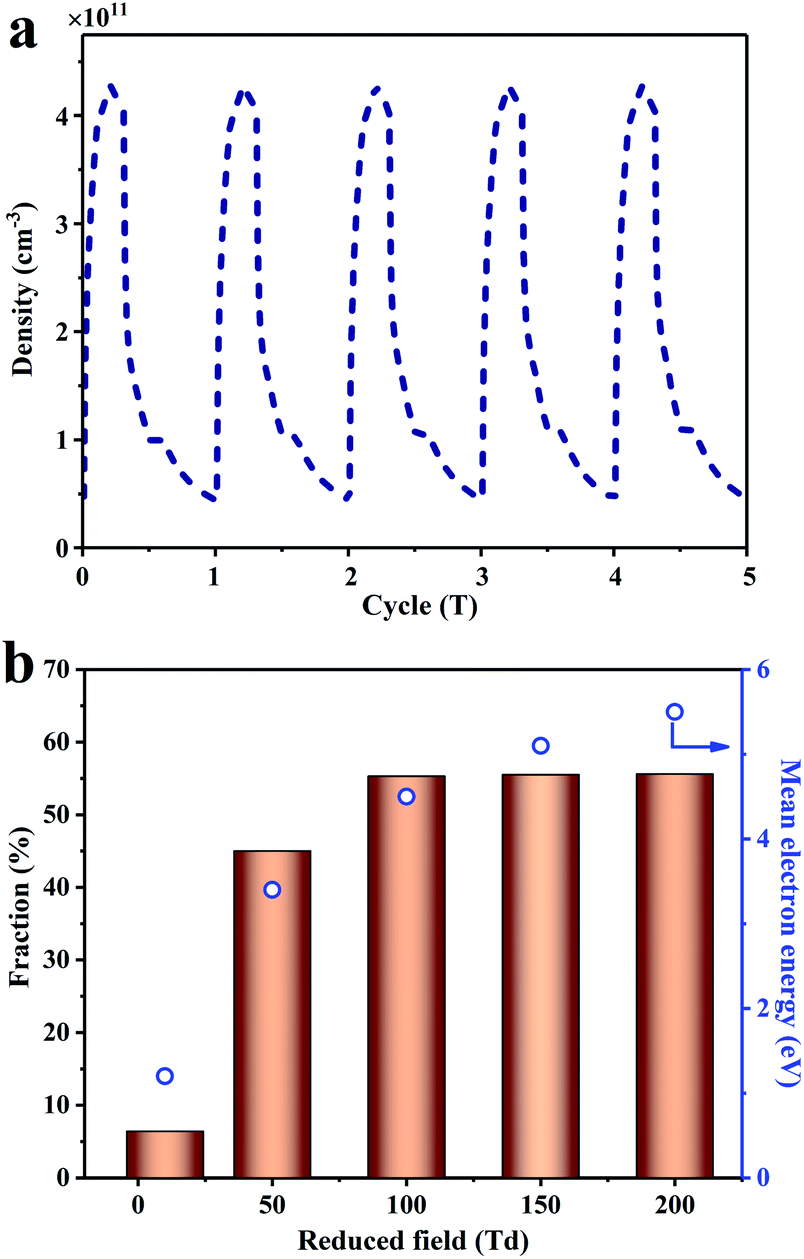

Fig. 7 (a) The density of the electron as a function of time for the CH₄ conversion assisted by plasma without catalyst. (b) The ratio of the electron and mean electron energy as a function of reduced field under the plasma-only conditions.

Combining the above analysis with a previous study,¹³ we infer that the reaction mechanism of CH₄ conversion assisted by plasma in the nonoxidation condition is that CH₄ was first activated by the Pd-site to form the adsorbed CH₃. Partially adsorbed CH₃ bombarded by plasma can desorb from the Pd-site to form the CH₃ radical. Two CH₃ radicals were coupled to form C₂H₆. The forming C₂H₆ species subsequently underwent dehydrogenation and recombination reactions in the gas phase to generate C₂H₄ and other hydrocarbons. The proposed reaction mechanisms on the Pd/CeO₂ surface for the direct conversion of CH₄ into olefins and H₂ with the thermal catalysis and plasma catalysis methods are displayed in Fig. 8.

Fig. 8 Proposed reaction mechanisms on the Pd/CeO₂ surface for the direct conversion of CH₄ with the thermal catalysis and plasma catalysis methods.

3.4 Plasma kinetic modeling

A plasma kinetic modeling based on a zero-dimensional model was performed to study the possible reaction pathways in the plasma for the CH₄ conversion without the 0.5Pd/CeO₂ catalyst. The operating parameters of the simulation used here were the same as those of the experiment (see Catalytic tests section). The simulation results were obtained under the condition of 800 °C and 760 torr. Fig. 9 shows the densities of radicals as a function of time for five periods. The densities of the radicals exhibited similar periodic behaviours. The density of each radical continuously increased during the pulse duration and gradually decreased during the pulse-off period, indicating that the generation of hydrocarbons and H₂ mainly occurred in the gas phase through the recombination of the radicals during the pulse-off period. Moreover, the densities of radicals averaged over one period were calculated and the most abundant radical was CH₃ (10¹³ cm⁻³), followed by H, CH₂, C₂H₅, CH, and C₂H₃.

Fig. 9 The density of each radical as a function of time during five periods for the CH₄ conversion assisted by plasma without catalyst.

Fig. S15† displays the densities of CH₄ and the gas products as a function of time. The density of CH₄ was initially 6.84 × 10¹⁸ cm⁻³, which decreased gradually due to the dissociation and ionization reactions to generate various radicals. Subsequently, hydrocarbons such as C₂H₆, C₂H₄, C₂H₂, C₃H₆ and H₂ formed via the recombination of the radicals. The rapid growth of the densities for the products appeared within the first 0.5 s. Subsequently, the growth slowed and finally did not significantly change. A residence time of 4.8 s was calculated. H₂ was formed with the highest density at 4.8 s. The densities of C₂H₆ and C₂H₄ were in the order of 10¹⁶ cm⁻³, which is one order of magnitude higher than that for C₂H₂ and C₃H₆.

The CH₄ conversion, selectivity of major products and C & H balance based on the above calculation for particle densities are displayed in Fig. S16a.† The calculated CH₄ conversion and product selectivity at 4.8 s matched well with the experimental results (Table S4†), further verifying the reliability of the model. The kinetic simulation for CH₄ pyrolysis in the blank reactor was also studied. As displayed in Fig. S17,† the change trends based on CH₄ conversion and product selectivity were in accordance with those from CH₄ conversion assisted by plasma without catalyst (Fig. S16a†). The thermal cracking of CH₄ was achieved via consecutive dehydrogenation processes. Each free radical reacted to form the final products.

To explore the underlying mechanism governing CH₄ conversion activated by plasma, the generation and loss rates of each product are presented in Fig. S16b–f.† The reaction mechanism of CH₄ conversion assisted by plasma was obviously different from that of CH₄ pyrolysis. As summarized in Fig. S18,† first, CH₄ molecules were dissociated to form CH₃, CH₂, CH and H radicals with the electron. Subsequently, two CH₃ radicals combined or CH₄ reacted with CH₂ to form C₂H₆. C₂H₆ was readily dehydrogenative, followed by a series of gas-phase reaction to form various light hydrocarbons. Moreover, the CH₃ radicals could activate CH₄ homogeneously to enhance the CH₄ conversion (R38, Table S1†) and CH₄ could react with H radicals to produce the CH₃ radicals (R37, Table S1†). Thus, the cycle process promoted the conversion of CH₄, also explaining the reason of the highest density of CH₃ radicals (Fig. 9).

4. Conclusions

In summary, we successfully prepared the stable and highly dispersed Pd species on CeO₂. The Pd species interact strongly with the CeO₂ support, efficiently preventing the Pd species from aggregation during the high-temperature catalytic test. The Pd/CeO₂ catalyst assisted by NTP showed the obvious promotion effect for the conversion of CH₄ compared with thermal-catalysis. The introduction of plasma is not only able to activate the C–H bond of CH₄ to dehydrogenation, but also effectively enhance the coke-resistance of the catalyst. This combination of plasma and catalyst offers a new guidance for lowering the activation temperature of CH₄ and the carbon deposition to achieve the conversion of methane into high value-added chemicals.
