Tingyao
Zhou
and
Xingyu
Jiang
*
Shenzhen Key Laboratory of Smart Healthcare Engineering, Department of Biomedical Engineering, Southern University of Science and Technology, 1088 Xueyuan Road, Nanshan District, Shenzhen, Guangdong 518055, P. R. China. E-mail: jiang@sustech.edu.cn
First published on 26th September 2022
Because of their intriguing luminescence performances, ultrasmall Au nanoparticles (AuNPs) and their assemblies hold great potential in diverse applications, including information security. However, modulating luminescence and assembled shapes of ultrasmall AuNPs to achieve a high-security level of stored information is an enduring and significant challenge. Herein, we report a facile strategy using Pluronic F127 as an adaptive template for preparing Au nanoassemblies (AuNAs) with controllable structures and tunable luminescence to realize hierarchical information encryption through modulating excitation light. The template guided ultrasmall AuNP in situ growth in the inner core and assembled these ultrasmall AuNPs into intriguing necklace-like or spherical nanoarchitectures. By regulating the type of ligand and reductant, their emission was also tunable, ranging from green to the second near-infrared (NIR-II) region. The excitation-dependent emission could be shifted from red to NIR-II, and this significant shift was considerably distinct from the small range variation of conventional nanomaterials in the visible region. In virtue of tunable luminescence and controllable structures, we expanded their potential utility to hierarchical information encryption, and the true information could be decrypted in a two-step sequential manner by regulating excitation light. These findings provided a novel pathway for creating uniform nanomaterials with desired functions for potential applications in information security.
Due to their molecule-like properties, low toxicity, superior photo-stability and ease of preparation, ultrasmall gold nanoparticles (AuNPs) are an emerging class of luminescent nanomaterials,18–21 and their intriguing photoluminescence enables them to be promising for use in sensing, electronics, nanomedicine, information storage and anti-counterfeiting.22–27 Luminescence tunability is critical to achieving multiplexed coding and hierarchical information encryption. Generally, the luminescence performance of ultrasmall AuNPs can be tuned by ligand engineering, metallic kernel alloying and variation of external environmental factors to gain different emissions from blue to red.28 Recently, the emission of ultrasmall AuNPs has been expanded to a second near-infrared (NIR-II) region using strong reductant NaBH4.29–31 Amphiphilic block copolymer-assisted self-assembly provides an effective path for the construction of hierarchical nanoarchitectures and offers an opportunity to explore collective properties.32 In this approach, amphiphilic block copolymers could be rationally designed by manipulating the block segments and assembled to build uniform micelles with controllable size and shape, which could be used as nanoreactors for the growth and assembly of NPs.33,34 Besides, the optical features of the building blocks, ultrasmall Au NPs, could be easily in situ tuned by controlling experimental conditions, including the concentration of the precursors, type of stabilizers and reducing agents to reach the multicolor emissions and enhancement of luminescence and stability.35,36 The distinct assembled structures with tunable emission and controllable morphology may provide a new route to make stored information more secure and robust due to difficulties in imitating and enhanced stability. Nevertheless, it is hard to achieve the facile in situ construction of luminescent AuNP-based assemblies with simultaneous regulation of morphology and emission, and the application of ultrasmall AuNP-based assemblies in hierarchical information encryption is still not explored adequately.

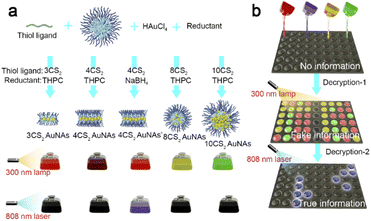

Hence, a facile and robust approach was reported to in situ prepare different types of water-soluble Au nanoassemblies (AuNAs) with controllable structures and tunable luminescence for information storage and hierarchical encryption using Pluronic F127 as a template (Scheme 1). This approach was convenient, cost-efficient, easy to repeat, and environmentally friendly. Pluronic F127, a typical linear amphiphilic block copolymer, could form structurally variable micelles by weak interactions, offering an adaptive template for preparing uniform AuNAs with distinct structures.37,38 The ultrasmall AuNPs were in situ produced in the inner core of the template and organized into distinct nanostructures with necklace-like or spherical shapes in a controllable manner. Their emission was also tunable ranging from green to the NIR-II region by regulating the thiol ligand and reductant type. The necklace-like AuNAs were also controllable for encapsulated NP numbers and greatly distinct from previous reports based on self-assembly of pre-prepared AuNPs,39,40 which usually underwent rigorous assembly conditions, low efficiency and luminescence quenching during self-assembly. More importantly, we obtained a kind of intriguing Au NA with excitation light-dependent emission, which could emit a strong red light identical to that emitted by another Au NA under UV light at 300 nm and could give an outstanding NIR-II emission excited by an 808 nm laser. Additionally, the obtained AuNAs were remarkably stable in their emission and assembled structures to ensure long-term information storage. It was more difficult to imitate for information storage and encryption due to the same Au-related materials and intrinsically assembled nanostructures. Utilizing their unique features, we used these AuNAs as primitives for coding information and modulated the excitation light to achieve hierarchical information encryption and decryption, largely expanding their potential utility to multiple information encryption.

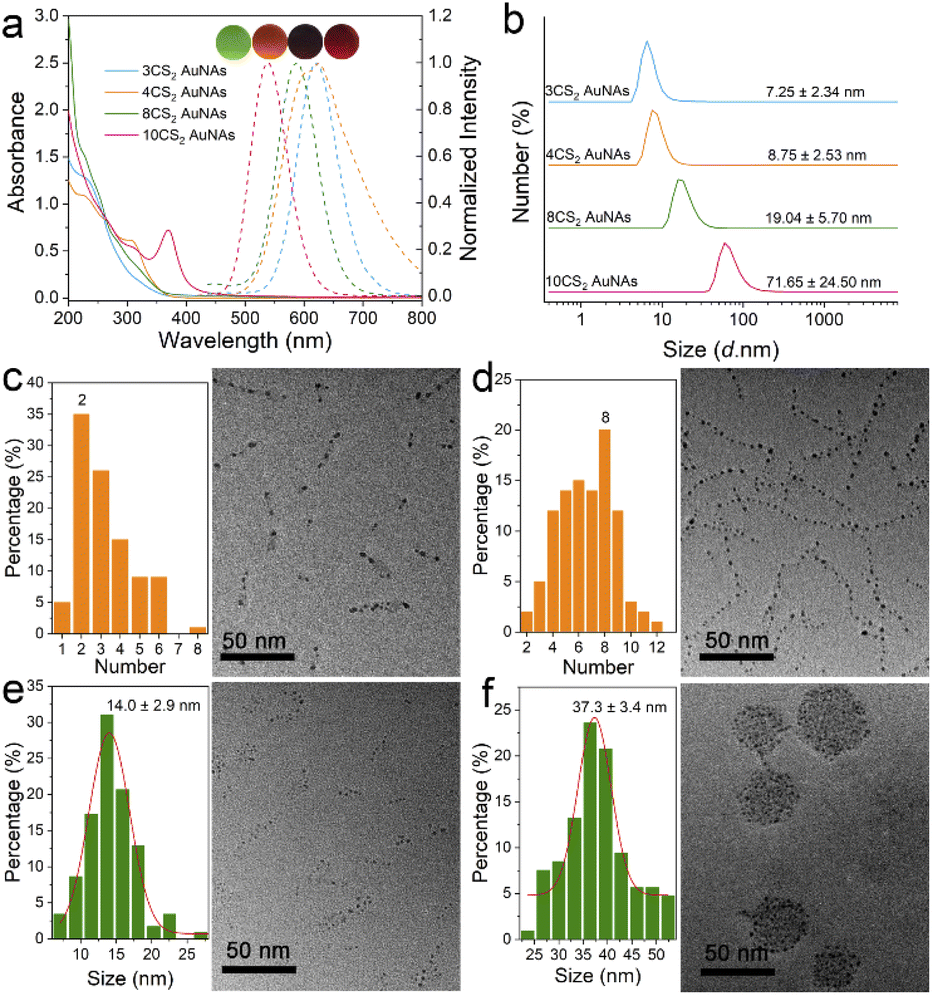

It was intriguing to one-pot synthesize the necklace-like AuNAs in a controllable manner, which was largely different from the self-assembly of the pre-prepared NP strategy.39,40 The one-pot protocol was simple and convenient, effectively avoiding the aggregate generation during self-assembly of pre-prepared NPs. Thus, it was interesting to explore the mechanism for one-pot synthesis of the necklace-like AuNAs. In a typical synthesis of necklace-like 4CS2 AuNAs, Pluronic F127 could self-assemble to form uniform hydrophobic core-hydrophilic shell micelles,42,43 which could be used as the template. Due to the hydrophobic interaction of 4CS2 ligands and strong Au-thiol coordination, ultrasmall AuNPs were favorable to be produced and self-assembled in a hydrophobic core. In this synthetic process, the template Pluronic F127 retained a spherical structure, as its HD maintained at about 20 nm until the dialysis process (Fig. S6†), indicating that the original AuNAs were supposed to consist of several ultrasmall AuNPs in the hydrophobic core and be surrounded by a hydrophilic PEO shell on their surface. After dialysis against water, the HD of the template reduced to 8.7 nm (Fig. 1b), suggesting that the template produced a change in the structure and might guide ultrasmall AuNP redistribution to minimize the system energy. From the X-ray photoelectron spectroscopy (XPS) results (Fig. 2a and b), it was found that the peak intensity at 286.3 eV (C–O bonds) decreased, and the apparent enhancements for C–C bonds at 284.8 eV and Au signals occurred after Ar+ sputtering treatment,44 illustrating that the AuNPs were mainly located in the hydrophobic inner core of the template and were surrounded by a PEG layer on their surface. Atomic force microscopy (AFM) was a preferred technique for directly measuring polymers.45 The AFM image also showed that the 4CS2 AuNAs presented defined linear nanostructures with a width size of 6.3 ± 1.8 nm, which was larger than the size of ultrasmall AuNPs because of measurement by AFM including the surface PEG layer from the template (Fig. 2c and S7†), convincingly confirming that the deformed template Pluronic F127 provided a powerful scaffold for directing ultrasmall AuNPs in confined spaces into necklace-like nanostructures. To gain a deep insight into the chemical information of the 4CS2 AuNAs, we employed high-angle annular dark-field (HAADF) scanning transmission electron microscopy (STEM) and elemental mapping (Fig. 2d and S8†). The HAADF-STEM image showed that 4CS2 AuNAs had an amazing necklace-like morphology. The elemental mapping illustrated that the hydrophobic thiol ligands 4CS2 mainly distributed around the ultrasmall AuNPs. The interaction between ultrasmall AuNPs and phosphorus ligands from the reducer THPC was not obvious because of the weak P signal, indicating that ultrasmall AuNPs were protected by hydrophobic thiol ligands 4CS2 and located in the hydrophobic inner core of the template. The above results unambiguously demonstrated that the one-pot synthesis of 1D necklace-like AuNAs with controllable dimensions was achieved by assistance of structurally alterable template Pluronic F127.
To further explore the mechanism for the one-pot synthesis of the 1D necklace-like AuNAs, the role of thiol ligands was studied. The AuNAs using 3CS2 presented similar necklace-like nanostructures to the 4CS2 AuNAs but only composed of about 3 ultrasmall AuNPs (Fig. 1c). As the carbon chain skeleton of bidentate thiol ligands extended longer than pentane, the AuNAs tended to be spherical as follows: the necklace-like and spherical shape coexisted for the AuNAs using 1,5-pentanedithiol (5CS2), 1,6-hexanedithiol (6CS2), and 1,7-heptanedithiol (7CS2), and the spherical ratio increased from 30% and 42%, to 82% using 5CS2, 6CS2 and 7CS2. In contrast, only spherical nanostructures were observed for the AuNAs using 8CS2 and 10CS2 (Fig. 1e, f, and S9–S11†). It was because bidentate thiol ligands with longer carbon chain skeletons could establish a strong bridge connection among these ultrasmall AuNPs in the hydrophobic inner core and enhance the structural stability of assemblies against dialysis dilution. In contrast, the shorter bidentate thiol ligands such as 4CS2 produced weaker bridge connections. They were insufficient to hold the assembly's original morphology against dialysis dilution, causing the template to deform into a chain-like shape and guiding ultrasmall AuNPs to assemble into the necklace-like nanostructures. We also studied the preparation of Au NPs without bidentate thiol ligands. The surface plasmonic resonance absorbance appeared at around 520 nm (Fig. S12†), revealing that large AuNPs were generated without protection from bidentate thiol ligands. The TEM image also presented the existence of large AuNPs (Fig. S13†). To further reveal the role of bidentate thiol ligands, we investigated the structure and luminescence of AuNAs prepared with different concentrations of 4CS2 ligands. As the concentrations of 4CS2 ligands changed, their assembled shape remained necklace-like (Fig. S13†), and the emission spectrum, including spectral shape and peak, also stayed the same except for the emission intensity (Fig. S14†). Besides, no apparent change of 4CS2 AuNAs in the emission peak and shape was observed when assembled structures changed from spherical to necklace-like through dialysis against water (Fig. S15†). These results further demonstrated that bidentate thiol ligands played an essential role in the assembled shape and emission peak.
As expected, the template Pluronic F127 played a significant role in the one-pot synthesis of the nanonecklaces. The reaction without template Pluronic F127 was conducted in the tetrahydrofuran phase as a control, and the product was a random aggregate containing ultrasmall AuNPs without a necklace-like structure (Fig. S16†). Pluronic F108 and P123, very common kinds of triblock copolymers, were also used as the synthesis templates, respectively. Pluronic F108 with a high weight fraction of the hydrophilic block, which could usually be assembled into spherical micelles, produced analogical nanonecklaces to F127 due to the structural deformation behaviour (Fig. 2e). In contrast, P123 with a lower weight fraction of the hydrophilic block usually formed lamellar micelles without a flexible structure,46 giving lamellar-like AuNP-based nanoarchitectures (Fig. S17†), revealing that the rational selection of block polymers with an adaptable weight fraction of the hydrophilic block was crucial to the formation of the necklace-like nanostructures.
As a comparative study for the reductant THPC, NaBH4, a stronger reducing agent than THPC, was used in the fabrication process. The obtained AuNAs using NaBH4 denoted as 4CS2 AuNAs', also presented a similar necklace-like shape with a AuNP size of 2.2 ± 0.5 nm to the 4CS2 AuNAs (Fig. 2e). More importantly, they not only could emit a strong red light identical to that emitted by 3CS2 AuNAs under UV light at 300 nm, which could not be distinguished from each other by the naked eye, but they could give an outstanding NIR-II emission excited by an 808 nm laser (Fig. 2f). According to recent research, the red and NIR-II emissions arose from the core–shell charge transfer state and the NP core state, respectively.47 Being similar to those of 4CS2 AuNAs, XPS spectra of 4CS2 AuNAs' (Fig. S18†) showed a decrease of a dominant peak associated with C–O bonds (286.3 eV), and the peak assigned to C–C bonds (284.8 eV) became evident along with the considerable enhancement of Au signals after Ar+ sputtering treatment. The ratio of Au(I) to Au(0) species was 0.096 due to the strong reducibility of NaBH4. These results suggested that the 4CS2 AuNAs' presented a unique core–shell structure capped by a hydrophilic PEG layer on the surface. With an increase in the amount of NaBH4, the emission intensity at 610 nm gradually decreased, while the emission intensity at 1055 nm gradually enhanced (Fig. S19†), implying that the luminescence features could be tunable by the modulation of the reducing agent besides altering the types of bidentate thiol ligands.48 We also synthesized the AuNAs using 5CS2 as the ligand and NaBH4 as the reductant. The TEM image showed that the necklace-like and spherical shapes coexisted (Fig. S20†), indicating that reductants had no significant impact on their assembled shapes. The assembled morphologies mainly depended on the choice of bidentate thiol ligands with different lengths of carbon chains and triblock copolymer templates.
The luminescence tunability and structural controllability of the AuNAs offered a novel type of luminescent nanomaterial suitable for hierarchical information encryption. Different from individual ultrasmall AuNPs, these unique assembled nanostructures were significant for information security and anti-counterfeiting due to more difficulties in imitating. As a proof of concept, we utilized 3CS2 AuNAs (red spots) and 4CS2 AuNAs' (purple spots) as the primitives for coding the information pattern and the decryption procedure was carried out in a stepwise manner by modulating excitation light (Fig. 3a and b). Under 300 nm UV irradiation, the patterned dots were encrypted first. They presented an identical red emission, making fake information of the “88” symbol due to the undistinguishable luminescence exposed by the UV light. However, the true information of the “20” symbol could be decrypted in a second step by the regulation of excitation light to 808 nm. To further illustrate the performance in hierarchical information encryption, the letters SUST were encrypted within a square letter array and handwritten on a piece of filter paper (Fig. 3c). The four letters “SUST” were written using 4CS2 AuNAs', while the other letters were written using 3CS2 AuNAs. The letter array was nearly invisible in daylight. Upon irradiation with UV light, the information was encrypted in a first step, and the letter array became visible, but the letters “SUST” were still hidden in them. Once the excitation light changed to an 808 nm laser, the encrypted information “SUST” appeared in a second step due to the unique NIR-II emission of 4CS2 AuNAs'.
Taking advantage of their tunable luminescence and diverse structure, we further explored the potential utility of these AuNAs in multiplexing recording and hierarchical encryption. For example, these AuNAs with different shapes and emissions were employed to code text information of “Hello,World!” according to the binary codes of the standard 8 bit ASCII characters, and the decryption was performed in a stepwise manner by sequentially modulating excitation light of 300 nm to 808 nm (Fig. 4a and Scheme 1b). As a control, the text information was straight encoded using these AuNAs, where 3CS2 AuNAs = 00, 4CS2 AuNAs = 11, 8CS2 AuNAs = 01, and 10CS2 AuNAs = 10. Under 300 nm UV radiation, a four-color array pattern was observed, and the included information could be accurately decoded into the raw information of “Hello,World!” according to the ASCII binary codes (Fig. 4b). To further strengthen this complex information encryption, 4CS2 AuNAs' were used as primitive data 11 instead of 4CS2 AuNAs during the coding process. A color-emitting array pattern appeared when exposed to the UV light as decryption-1 (Fig. 4c), producing fake information of “He’’’T’B'd!” due to the undistinguishable emission between 4CS2 AuNAs' and 3CS2 AuNAs under this condition.49 To obtain the right message, a TEM reader and an 808 nm laser were next employed as decryption-2. As shown in Fig. 4d, typical TEM images presented an obvious difference in the assembled structures between two similar emitting-color pattern dots. The short nanonecklaces containing about 3 ultrasmall AuNPs were assigned to 3CS2 AuNAs. In contrast, the long nanonecklaces containing about 8 ultrasmall AuNPs were assigned to 4CS2 AuNAs', illustrating that the hidden information could be deciphered and translated into the right text through identification of different assembled structures. Furthermore, by regulation of excitation light to 808 nm, the pattern dots assigned to 4CS2 AuNAs' could be accurately identified, deciphering the true information “Hello,World!” by combining with the color-emitting array pattern under UV light (Fig. 4e). It should be noted that the multicolor emissions arose from the same Au-related materials, and different emitting AuNAs presented distinct assembled structures. Even if the elementary composition was deciphered by inductively coupled plasma mass spectrometry (ICP-MS), it would be more difficult to imitate, which is significant for information security and anti-counterfeiting. These observations confirmed that the AuNAs with luminescence tunability and structural controllability could be used as primitives for coding information and had great potential for hierarchical information encryption.
