Insights into chalcone analogues with potential as antioxidant additives in diesel–biodiesel blends

Abstract

Biodiesel production is one of the promising strategies to reduce diesel consumption and an important contribution to climate change. However, biodiesel stability remains a challenging problem in biofuel use in the global energy matrix. In this context, organic additives have been investigated to minimize these problems and reduce harmful emissions to comply with fuel requirement standards. In this study, we discuss a comprehensive structural description, a behavior of B15 [85% volume of diesel and 15% volume of biodiesel (B100)] stability in the presence of antioxidants (chalcone analogues), and a theoretical calculation to pave the way for clarifying and expanding the potential of title compounds as an antioxidant additive for diesel–biodiesel blends. Finally, a systematic description of the oxidation stability was undertaken using a specialized machine learning computational pySIRC platform.

---

1. Introduction

Recently, anthropogenic environmental impacts have been under discussion focused on the world, promoting changes in different societal sectors.^1,2 From the energetic scope, new policies have restricted the fossil fuels use that will gradually be replaced by renewable energy matrices, which are more sustainable and generate lower levels of pollutant emissions.^3–6 The United Nations Conference on Climate Change (COP26)⁷ has discussed issues such as reducing pollution emissions and dependence on fossil fuels through the use of renewable energy.^8,9 Countries have also made commitments to step up and phase out coal, end international financing for fossil fuels, 50% reduction in greenhouse gas emissions by 2030, and among other objectives, pave the pathway for a net-zero emission future.^10–13

The use of biodiesel from biomass feedstocks is recognized as a sustainable option and advocated due to the serious global environmental security challenges.^14–16 The properties of biodiesel are similar to those of petro-diesel with significant benefits, including being non-toxic, having a higher flash point (423 K for biodiesel as compared to 337 K for petro-diesel)¹⁴ and noteworthily lower pollutant emissions and particulate matter.^17–19 However, the full adoption of biofuels is hampered by the fact that they are more susceptible to oxidation than mineral diesel.^17,19–21 The reduction of the blend's shelf-life, when used after long storage periods, can damage mechanical elements in the engine, reduce efficiency, and have the potential to give rise to harmful emissions.^{17–20,22,23} The degradation rate is considered one of the most important parameters to evaluate the shelf-life of the blend during its storage, where a low value of rate constant indicates greater oxidative stability.^24,25

Generally, biodiesel filled with natural or synthetic antioxidant additives can decrease the rate of degradation reactions in biodiesel.^17,21,26 The additives when associated with biodiesel fractions are a gimmick to mitigate nitrogen oxide (NO_x) emissions from the fuel combustion in diesel engines.^17–19,27 The development of chemical additives whose properties favor better storage stability for biodiesel and its blends with diesel is needed. Previous studies have shown that the addition of chalcone compounds into diesel–biodiesel blends reduces the rate of the oxidation process.^28,29 This class of flavonoid intermediates is formed by two aromatic rings linked by a three-carbon bridge having a keto carbonyl group and one α,β-unsaturation, obtained from natural sources^30–32 or synthetic pathways.^33,34 Some physicochemical properties, such as antibacterial,^35–37 antifungal,^38–40 and antioxidant,^28,41 are the key issue for their ability to prevent free radical-induced oxidative damage driven by substitutions in chalcone rings as a function of their chemical flexibility.^42–47

In light of these facts, and as part of our ongoing work regarding the application of chalcones as antioxidant biodiesel additives,^28,29,48 in this paper, we discuss the synthesis, extensive structure characterization, oxidation stability test, and density functional theory (DFT)⁴⁹ calculations for (2E)-3-(4-bromophenyl)-1-[4-(2-oxo-2-phenylethoxy)phenyl]prop-2-en-1-one (BCH) and (2E)-3-(3-nitrophenyl)-1-[4-(2-oxo-2-phenylethoxy)phenyl]prop-2-en-1-one (NCH) (see structures in Fig. 1). Because fundamental thermodynamic parameters are stimulated by changing aromatic ring substitutions^50–52 we hypothesized that BCH and NCH, in terms of biodiesel feedstock,^17,19,53 could be investigated as an additive for diesel–biodiesel blends. An explanation of the kinetic factors involved in oxidation stability was assessed using a machine-learning computational platform.

Fig. 1 The ORTEP diagram for BCH (a) and NCH (b). The ellipsoids are represented at a 75% probability level with the atomic numbering scheme. Hydrogen atoms are represented by spheres with arbitrary radii. Structure overlay for BCH and NCH δ₀ = 4.60° (c).

2. Experimental and computational procedures

2.1. Synthesis and spectroscopy characterization

1.2 mL of K₂CO₃ (0.2 mmol) was added to the solution of hydroxychalcone (0.1 mmol) in acetone and the system cooled to 0 °C. Subsequently, phenacyl bromide (0.14 mmol) was added in a single portion, and the mixture was stirred at room temperature for 2 h. The reaction was monitored by thin-layer chromatography (TLC) and quenched with distilled water (1.2 mL), and the product was extracted with CH₂Cl₂ (3 × 10 mL). The synthesis was carried out with specific chemical elements (hydroxychalcone, K₂CO₃, phenacyl bromide, CH₂Cl₂, anhydrous Na₂SO₄, and methanol) that were purchased from companies specialized in the sale of chemical reagents.⁵⁴ BCH ¹H NMR (500 MHz, CDCl₃): 5.39 (s, 1H); 7.02 (m, 2H); 7.49 (m, 7H); 7.66 (m, 1H); 7.71 (d, 1H, J = 15.7 Hz); 8.02 (m, 4H). ¹³C NMR (125 MHz, CDCl₃): 70.5; 114.4; 114.6; 122.3; 124.6; 128.1; 129.0; 129.7; 130.8; 132.2; 134.2; 142.8; 161.8; 188.4. NCH ¹H NMR (500 MHz, CDCl₃): 5.41 (s, 1H); 7.05 (m, 2H); 7.54 (m, 2H); 7.60 (d, 1H, J = 15.9 Hz); 7.66 (m, 2H); 7.81 (d, 1H, 15.7 Hz); 7.91 (m, 1H); 8.02 (m, 2H); 8.06 (m, 2H); 8.25 (m, 1H); 8.51 (m, 1H). ¹³C NMR (125 MHz, CDCl₃): 70.5; 114.8; 122.2; 124.5; 128.1; 129.0; 130.2; 131.0; 131.3; 131.7; 134.2; 141.0; 145.8; 162.1; 187.8; 193.4.

2.2. Crystallographic analysis

The organic phase was dried with anhydrous Na₂SO₄, filtered, and concentrated in a vacuum. After recrystallization by slow evaporation of methanol, the product was obtained as a yellow crystalline solid with a 34% yield. The X-ray diffraction data were obtained using a Bruker APEX II CCD diffractometer fitted with MoKα radiation (λ = 0.71073 Å) at room temperature. The structure was solved on SHELXT⁵⁵ and refined on SHELXL⁵⁶ using the OLEX2 (ref. 57) platform. The non-hydrogen atoms were refined anisotropically. The hydrogen atoms were refined using the riding model with the individual isotropic displacement parameters or U_iso(H) = 1.2U_eq of the bonded carbon. All supramolecular representations were generated using mercury⁵⁸ and molecular interactions were checked using PLATON.⁵⁹ The crystallographic information files were deposited at the Cambridge Crystallographic Data Centre (CCDC)⁶⁰ under codes 2182574 and 2182577.

The hirshfeld surface (HS) describes intermolecular interactions through color-scaled mapping (red, white, and blue) that permits the identification and description of surface properties.⁵² Where red indicates regions with short intermolecular contacts, white indicates contacts around the separation of the van der Waals radii interface, and blue indicates long contact distances.⁵² The three-dimensional graph of the HS, the d_norm (normalized distance), was constructed by the surface distance to the closest exterior atom (d_e), where the molecules act as the strongest intermolecular contact receptors, by the surface distance to the closest interior atom (d_i), where the molecule acts as the strongest intermolecular donor contact, with the van der Waals radius (r^vdW_i and r^vdW_e) for each atom involved in this close contact with the surface:⁶¹

The complementarity between molecules in the crystal packing, hydrophobic intermolecular interactions, and interactions involving the π system (π … π interactions), was identified from the shape index surface.⁶¹ In addition, the combination of d_e and d_i, generate unique fingerprints for each molecule in the form of 2D plots, allowing a quantitative analysis of each type of intermolecular contact.⁶¹

2.3. Storage stability test

The storage stability of S10 diesel containing a 15% volume of biodiesel (S10 B15 diesel) was verified. The S10 B15 diesel was composed of 85% volume of biodiesel-free reference diesel (fuel according to RANP 764/2018,⁶² applied on emission and consumption tests) and 15% volume of biodiesel (B100) (composed of 60% volume of soybean oil, 37% volume of palm oil, 2% volume of bovine fat and 1% volume of pig fat). Thus, high-density polyethylene (HDPE) bottles of 1 liter capacity were filled with 300 mL of each sample: bottle 1 – diesel S10 B15 containing 109.0 ppm of the BCH, bottle 2 – diesel S10 B15 containing 100.7 ppm of NCH and bottle 3 – diesel S10 B15 without additive. The three flasks remained in an external environment for 90 days. After this period, the oxidation stability was measured using the modified Rancimat method according to the EN 15751:14 standard.⁶³

2.4. Oxidation stability test

The modified Rancimat test method is an important experiment applied to verify diesel–biodiesel blend oxidation stability. It is a standard procedure for the storage stability certification of diesel cycle engine fuels. In the Rancimat test, the sample was heated to 110 °C and subjected to a purified airflow to supply oxygen (induction period process). Thus, oxygen promotes oxidation reactions in the sample, forming peroxides as products, which, due to the high temperature, are dissociated and form volatile compounds such as aldehydes, ketones, and carboxylic acids. These compounds are directed to a container filled with deionized water, which is coupled to a conductivity electrode, and are detected when the conductivity increases quickly, indicating high ion concentrations and the end of the test. The induction period is reported as hours. Therefore, the longer the induction period, the greater the oxidation stability of the sample.^64,65 For our analysis, Metrohm 873 model equipment was applied according to EN 15751: 2014 test method.⁶³

2.5. Computational procedures

The theoretical analysis for both chalcones was performed using DFT.⁴⁹ The geometric parameters obtained from the X-ray data were optimized in the gas phase, with theoretical calculations carried out in the Gaussian09 (ref. 66) software, using M06-2X/6-311++G(d,p),^67–69 From the generated wave function, Frontier molecular orbitals were calculated, (highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO).^50,51 To investigate the reactive sites of both chalcones, the MEP map was constructed from the equation:where® (r) is a potential created at a point r, the first term of summation is the electrostatic potential created by the nucleus and the second term is the electrostatic potential created by electrons.⁷⁰

To identify the main oxidation sites of BCH and NCH, appropriate local reactivity descriptors, such as Fukui function (f),^71,72 were calculated according to equations , , and f_NBO ≈ f_NBO⁺ + f_NBO⁻/2. The Multiwfn package program⁷³ was used to study the topological and Fukui functions. The oxidation reactions promoted by oxygen supply were simulated by pySIRC⁷⁴ – a machine learning computational platform. The hydroxyl radical – an archetypal system of degradation reactions – was selected to mimic the oxidation effect promoted using the oxygenation process.

3. Results and discussion

3.1. Solid-state description

BCH and NCH crystallize in the P1̄ and the P2₁ space groups, respectively. Table 1 summarizes the structure refinement parameters, and the ORTEP⁷⁵ representation is shown in Fig. 1. Structural differences between the two compounds occur in the ligands of aromatic ring 3. A bromine atom in BCH is bonded an ortho carbon (C₂₁), and a hydrogen atom is bonded to the meta carbon (C₂₀). On the other hand, in NCH the ligand in position ortho is a hydrogen atom, while a nitro group is bound to the meta carbon (C₂₀).

Table 1 Crystal data and structure refinement for BCH and NCH

Parameter	BCH	NCH
Empirical formula	C23H17BrO3	C23H17NO5
Formula weight	421.27	387.38
Temperature K^−1	120.02	120
Crystal system	Triclinic	Monoclinic
Space group	P1̄	P21/n
a/Å	6.6262(3)	7.3047(12)
b/Å	7.4872(4)	11.062(2)
c/Å	19.2803(10)	22.299(4)
α/°	87.424(2)	90
β/°	87.609(2)	98.363(3)
γ/°	71.455(2)	90
Volume/Å^3	905.56(8)	1782.7(6)
Z	2	4
ρcalc g cm^−3	1.545	1.443
μ/mm^−1	2.291	0.103
F(000)	428	808
Crystal size mm^−3	0.316 × 0.177 × 0.024	0.618 × 0.123 × 0.109
Radiation	MoKα (λ = 0.71073)	MoKα (λ = 0.71073)
2Θ range for data collection/°	4.232 to 56.422	3.692 to 56.558
Index ranges	−8 ≤ h ≤ 8, −9 ≤ k ≤ 9, −25 ≤ l ≤ 25	−9 ≤ h ≤ 9, −14 ≤ k ≤ 14, −29 ≤ l ≤ 29
Reflections collected	10 681	25 512
Independent reflections	4424 [Rint = 0.0254, Rsigma = 0.0355]	4432 [Rint = 0.0288, Rsigma = 0.0197]
Data/restraints/parameters	4424/0/244	4432/0/262
Goodness-of-fit on F^2	1.011	1.019
Final R indexes [I ≥ 2σ (I)]	R1 = 0.0327, wR2 = 0.0705	R1 = 0.0373, wR2 = 0.0981
Final R indexes [all data]	R1 = 0.0447, wR2 = 0.0746	R1 = 0.0509, wR2 = 0.1058
Largest diff. peak/hole/e Å^−3	0.43/−0.36	0.39/−0.23

---

Bond lengths (Table S1†) of BCH and NCH of carbon–carbon and carbon-oxygen were very close to each other for the chalcones. The largest variations occurred for O₂–C₉ (0.0084 Å), C₂₁–C₂₂ (0.0079 Å), C₆–C₇ (0.0063 Å), and C₂–C₃ (0.0058 Å). In turn, bond angles (Table S2†) calculated for the BCH and NCH present the largest variations in C₂₀–C₂₁–C₂₂ (4.07°), C₂₁–C₂₀–C₁₉ (4.73°), C₁₈–C₁₉–C₂₀ (2.51°), where the angles in parentheses represent the calculated difference between BCH and NCH for each bonded trio atoms. The angular variations occurred because of the different compounds attached to aromatic ring 3 for each chalcone, affecting the angular positions of C₁₈, C₁₉, C₂₀, C₂₁, and C₂₂ atoms, which together with carbon 23, form the aromatic ring 3. BCH (Fig. S1a†) is almost planar and displays an angle between aromatic rings 1 and 2 δ₁ = 6.75°.

A major deviation from planarity was found between aromatic rings 2 and 3, with a plan angle of δ₂ = 13.03°. In NCH, however (Fig. S1b†), the interplanar angles are δ₃ = 9.24° (between rings 1 and 2) δ₄ = 6.62° (between rings 2 and 3) and the largest deviation from planarity is δ₅ = 21.83° (between rings 1 and 3). The superposition of the chalcones (Fig. 1c) allows the comparison between the geometric parameters of the structures. The root means squared (RMS) value predicted by the mercury program package is 0.0194 Å. Changing the substituent on aromatic ring 3 promotes a significant improvement in the planarity, since the planarity in the chalcones is related to donor–acceptor interactions in a molecule, on position and the vicinity of the substituents.^76–78 Chalcones have structures that are generally identified with almost planar conformation, a conformational requirement that may be related to their potential for antifungal activity.^78–82 This activity is necessary to maintain the quality of fuels since the proliferation of microorganisms is harmful to the system.^83,84

Crystal engineering seeks to explore the multiplicity of intermolecular interactions in a crystalline environment. HS analysis allows the location of crucial contacts on the packaging, dependent on molecular geometry, locations, and orientation of the neighbouring molecules. The interactions listed in Table 2 were confirmed by electron density HS mapped over d_norm (ranging from −0.1019 to 1.3604 BCH and −0.1685 to 1.4111 NCH). The supramolecular arrangement of BCH (Fig. 2a and b) is stabilized by the C₃–H₃…Br interaction contributing to the direction [001] described as C₁¹(20) and weak interactions C₄–H₄…O₁, involving aromatic hydrogen since the most significant hydrogen bond motif is C₁¹(6) and R²₂(16) C₁₃–H₁₃…O₁ forming a dimer with periodicity along [100] in a bifurcated fashion. In contrast, the supramolecular structure of NCH crystal (Fig. 2c and d) has three dimers and a bifurcated interaction along the [010] direction, C₅–H₅…O₄ (IV) C₂₂–H₂₂…O₂ (V)C₂₂–H₂₂…O₁ (VI), C₁₃–H₁₃…O₁ (VII) with motifs C₁¹(19), R₂²(24), R₂²(30) and R₂²(16) respectively, and C₂–H₂…O₅ contributing to the [100] direction.

Table 2 Hydrogen-bond geometry obtained from structural analysis for BCH and NCH

	D–H … A	D–H (Å)	H … A (Å)	D … A (Å)	D–H … A (°)	Symmetry code
BCH	C3–H3…Br	0.95(1)	2.92(3)	3.867(2)	173(4)	−2 + x, 1 + y, 1 + z
	C4–H4…O1	0.95(1)	2.54(5)	3.166(3)	123(6)	−1 + x,y,z
	C13–H13…O1	0.95(1)	2.703(4)	3.494(3)	141(5)	1 − x, 2 − y, 1 − z
NCH	C5–H5…O4	0.95(1)	2.62(5)	3.363(1)	134(4)	1 − x, 1 − y,1 − z
	C22–H22…O2	0.95(1)	2.56(6)	3.456(16)	157(6)	1 − x, 2 − y, 1 − z
	C22–H22…O1	0.95(1)	2.64(4)	3.254(2)	122(6)	1 − x, 2 − y, 1 − z
	C13–H13…O1	0.95(1)	2.63(3)	3.463(2)	145(4)	−x, 2 − y, 1 − z
	C2–H2…O5	0.95(1)	2.47(4)	3.2077(16)	135(3)	−5/2 + x,3/2 − y,1/2 + z

---

Fig. 2 The representation of interactions and HS d_norm showing the contacts for BCH (a) C₃–H₃…Br(I) C₄–H₄…O₁(II) and (b) C₁₃–H₁₃…O₁ (III). The NCH (c) C₅–H₅…O₄ (IV), C₂₂–H₂₂…O₂ (V) and C₂₂–H₂₂⋯O₁ (VI) and (d) C₁₃–H₁₃…O₁ (VII) and C₂–H₂…O₅ (VIII).

The π…π stacking is a type of non-covalent interaction, represented by the red and blue triangles (bow tie), and contributes to the stability of structures. For this interaction, the centroid of the aromatic rings for the compounds was calculated, with the distance between the two rings. The distance between the centroids, formed between the center of the aromatic rings is d₁ = 3.746 Å and d₂ = 3.729 Å for BCH (Fig. 3a) and d₃ = 3.802 Å d₄ = 3.709 Å and d₅ = 3.725 Å for NCH (Fig. 3b). The introduction of nitro group atoms into the structure caused a decrease in the stacking distance π…π.

Fig. 3 . Shape index surfaces for evidencing π…π interactions and representation of BCH (a) and NCH (b).

The relative surface area resulting from the contributions of the interactions exposed in the crystal is quantified by analysing the fingerprint (Fig. 4), generated from the d_e vs. d_i plot. The graph represents a bin formed by intervals (0.2 Å). These can be decomposed into contributions of specific atoms, which makes it possible to measure the relative importance of several contacts when comparing the structure. Most of the contacts are H⋯H, which represents 38.2% of the HS for BCH and 35.2% for NCH, characterized by the central peak of the graph. O⋯ H interactions are characterized by the small peaks at the bottom of the fingerprint, representing 16.4% for BCH and 31.6% for NCH. The high difference is explained by the presence of the nitro group and the competition caused by the bromine atom in BCH shown by the peaks at the side edge of the graph. Also, we can ascertain that for NCH the most and strongest hydrogen bonds are present. Furthermore, the C⋯ C contacts with 12.1% for BCH and 13.0% NCH, present in the center, which helps in understanding π⋯π interaction. The interlayer contacts of C⋯O show weak interactions (distances above 3.5 Å) and therefore can be neglected.

Fig. 4 Fingerprint plots with quantitative analysis of the contacts for BCH and NCH (where X = Br and N).

3.2. Antioxidant additive analysis

The shelf-life tests evaluated the performance of BCH and NCH chalcones as antioxidant additives for diesel–biodiesel blends during storage of 90 days. Brazilian legislation does not specify the minimum oxidation stability for the commercial diesel-biodiesel blend. However, the resolution ANP 798/2019(ref. 85) determines a minimum limit of oxidation stability at 110 °C for commercial biodiesel (B100): a minimum of 12 hours, measured according to EN 15751: 2014 test method.⁶³ However, European regulations include the specification of oxidation stability for the diesel–biodiesel blend BS EN 590:2009,⁸⁶ which establishes requirements and test methods for automotive fuels used in diesel cycle engines. As such, the result of the induction period shall be higher than 20 hours for the fuel to be considered suitable for use.

During the sample preparation at the test start, chalcone concentrations added to the flasks differed by 8.3 ppm. Converting this change-over to mol quantity/volume unity, this variation is less significant, on the order of 1.2 × 10⁻⁹ mol.mL⁻¹. Therefore, the chalcones' content was very similar in these two cases. The results shown in Table 3 indicate the oxidation stability values above 30 hours for two types of mixtures (containing BCH e NCH), both results above the induction period of biodiesel without additives that were subjected to the same stability test conditions. The average oxidation stability obtained for the fuel containing the NCH was 2.3% higher than that for the fuel with BCH. Joshi et al. (2013)⁸⁷ showed that the additive concentrations (300, 400, and 500 ppm) are correlated with the stability; the additives butylated hydroxy anisole (BHA), butylated hydroxytoluene (BHT), pyrogallol (PY), propyl gallate (PG), tert-butylhydroxyquinone (TBHQ), and diphenylamine (DPA) showed the values under 30 h to B15 blend. Also, Rizwanul et al. (2014)⁸⁸ showed the following oxidative stability values for the high concentration of additives (2000 ppm) to the B20 blend: TBHQ (28.38 h) > BHT (25.28 h) > BHA (22.27 h). Agarwal et al. (2015)⁸⁹ showed the following values for 500 ppm concentration of additives on pure biodiesel (B100): BHT (5 h), BHA (6 h), TBHQ (4), PG (15 h) and PY (25 h). Moreover, the linear correlation between the antioxidant concentration and the induction period was observed,^17,90–92 which could allow assessing the minimum additive concentrations to their respective effectiveness. The use of chalcone analogues is promising in retaining the biodiesel physicochemical properties during the oxidative processes – especially at low concentrations (typically 200–2000 ppm).^17,92

Table 3 Oxidation stability results from the modified Rancimat method

Modified Rancimat	Result 1	Result 2	Result 3	Average	Standard deviation
S10 B15 + BCH (109.0 ppm)	32.15 h	31.27 h	30.73 h	31.38 h	0.585
S10 B15 + NCH (100.7 ppm)	32.78 h	32.00 h	31.51 h	32.10 h	0.523
S10 B15 without additives	31.21 h	31.23 h	30.78 h	31.07 h	0.208

---

The modified Rancimat (EN 15751: 2014 test method)⁶³ defines the repeatability factor (r) applied to results obtained by the same operator with the same apparatus under constant operating conditions. It is determined from eqn (3) with a confidence level of 95%, in which x is the three average results (Table 3):

r = 0.22027 + 0.04344x (3)

The uncertainties were estimated from the repeatability factor, and they are registered in Fig. 5, both equal to approximately ± 1.6 h.

Fig. 5 The measurement uncertainty estimate of oxidation stability results from the modified Rancimat method.

According to Karavalakis et al. (2009)⁹³ fuel aging can be accelerated in the presence of heat, oxygen, water, metal ions, and other impurities, favoring a viscosity increase due to gum and residue formation.⁹⁴ During the oxidation process of diesel–biodiesel blends, there is also a reduction in the flash point because of aldehyde formation, as well as an increase in the acidity number due to the formation of acids, mainly formic and acetic.⁹⁴ Thus, an antioxidant additive must delay these fuel aging processes, guaranteeing them a longer shelf-life under ideal conditions of use. The S10 B15 blend was produced from reference biodiesel-free diesel (fuel type applied on standard emission tests), which normally shows a better value of oxidation stability in relation to common diesel, considering this application is more rigorous. Thus, it is important to perform new tests using common diesel for blends (Table 3) and verify if it would exceed 30 hours in the presence of BCH and NCH and for additive-free samples. Normally, S10 B15 diesel prepared from common B0 diesel has lower induction period values when evaluated using the modified Rancimat method. Additional tests are required to evaluate the performance of BCH and NCH as antioxidant additives applied to diesel–biodiesel blends prepared using common diesel.

3.3. Molecular modeling analysis

The HOMO and LUMO orbitals over the BCH are similar while NCH presented differences. For BCH, the HOMO and LUMO orbitals are over the aromatic rings 2 and 3, while for NCH, the LUMO orbitals are located over aromatic rings 2 and 3, and the HOMO orbitals are located over aromatic ring 2 (Fig. 6). The HOMO orbital for both chalcones characterizes the bonding orbital, ionization potential (nucleophilic character) while the LUMO orbital represents the antibonding orbital, electron affinity (electrophilic character). The energy calculated for these orbitals for BCH is E_LUMO = −159.55 kJ mol⁻¹, E_HOMO = −757.66 kJ mol⁻¹ and E_GAP = 598.11 kJ mol⁻¹ (E_LUMO–E_HOMO), while for NCH is E_LUMO = −197.62 kJ mol⁻¹, E_HOMO = −784.00 kJ mol⁻¹ and E_GAP = 586.38 kJ mol⁻¹.

Fig. 6 Frontier molecular orbitals (HOMO/LUMO) for BCH and NCH. Orbitals calculated at M06-2X/6311++G(d, p) level of theory.

The high GAP energy values suggest high kinetic stability and low chemical reactivity.⁹⁵ According to these parameters, the E_GAP for BCH suggests greater kinetic stability than NCH. However, the values are very close. Some values of E_GAP for antioxidant molecules or commercial additives, such the BHT have GAP values of about 546.1 kJ mol⁻¹,^96,97 toluene derivatives with GAP values of 477.8 kJ mol⁻¹,⁹⁸ ether molecules with a GAP value ranging from 273.8 kJ mol⁻¹ to 404.6 kJ mol⁻¹,⁹⁹ thiazolidinone molecules (308.5 to 481.8 kJ mol⁻¹)¹⁰⁰ and the p-phenylenediamine (56.8 kJ mol⁻¹ to 114.5 kJ mol⁻¹).^101,102 The GAP values found for BCH (598.11 kJ mol⁻¹) and NCH (586.38 kJ mol⁻¹) are similar and greater than those found in the literature, indicating that both chalcones have greater kinetic stability than those already reported.

MEP (Fig. 7) was used to predict the reactivity of compounds and determine regions where nucleophilic (blue colors) and electrophilic (red colors) attacks are expected. The most electronegative zones occur in the vicinity of oxygens for the two molecules. Due to the nitro group in the NCH, additional zones of high electronegative density are generated, while the BCH presents a zone with positive electrostatic potential (+18.64 kJ mol⁻¹). Therefore, the order of decreasing electrophilic attack for the discussed compounds should be in BCH O3 (−125.68 kJ mol⁻¹) > O2 (−113.50 kJ mol⁻¹) > O1 (−112.84 kJ mol⁻¹) and in NCH O2 (−121.87 kJ mol⁻¹) > O1 (−119.69 kJ mol⁻¹) > O3 (−114.26 kJ mol⁻¹) > O4 (−110.61 kJ mol⁻¹) > O5 (−110.84 kJ mol⁻¹). In addition, regions with light blue coloration are sites with weak interaction.

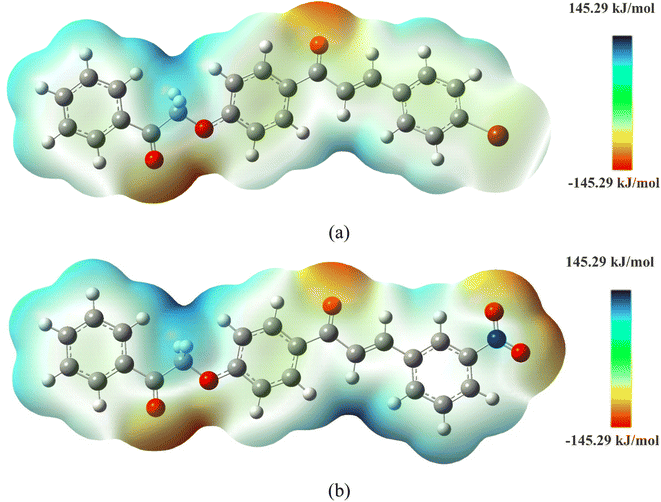

Fig. 7 MEP map for (a) BCH and (b) NCH. The density isovalue of ρ(r) = 4.0 × 10⁻⁴ electrons per bohr³contour encompassing the molecule.

To evaluate the main active sites of both molecules through an oxidative process, Fukui functions were calculated. These functions represent an important approach to explaining the reactivity in chemical systems to a radical attack.^{71,72,103,104} Fig. 8 illustrates significant values (nomenclature in Fig. 1) for the selected atoms. According to Fukui's formulation,⁷¹ higher values are associated with a higher probability of radical attack (f_NBO). In this study, the carbon attached to the bromine atom C₂₁ in BCH has a Fukui index of 0.055, while the carbon attached to the nitro group C₂₀ in NCH has a Fukui index of 0.035, indicating that the reactivity of the NCH is lower in an oxidative process, which is consistent with the data obtained experimentally.

Fig. 8 Fukui function values for the radical attack on selected atoms of both molecules (see nomenclature in Fig. 1).

The reaction rate constant is the most important parameter to reveal the efficiency of the degradation of a compound; in this sense, the oxidative degradation rates by the hydroxyl radical attack of BCH, NCH, diesel (represented by C₁₀H₂₀ molecule), and biodiesel (represented by C₁₇H₃₅COOCH₃ fatty acid methyl ester) compounds were calculated using a web application based on machine learning models, pySiRC,⁷⁴ whose values are 7.15 × 10⁹ M⁻¹ s⁻¹, 6.01 × 10⁹ M⁻¹ s⁻¹, 6.20 × 10⁹ M⁻¹ s⁻¹, and 4.98 × 10⁹ M⁻¹ s⁻¹, respectively. These values suggest that oxidative degradation in BCH has a higher oxidation potential than in NCH, which is consistent with the results obtained experimentally by the modified Rancimat method. Thus, the additive is first “sacrificed” so that the later degradation occurs later in the biodiesel, indicating greater oxidative stability of the biodiesel.

4. Conclusions

The structural analysis of the compounds associated with the evaluation of their physicochemical properties provides important information that contributes to the discovery of new compounds with potential technological applications, including their use as additives for biodiesel blends, considering also that the structural conformation directly affects the chemical and reactional characteristics of a molecule. In this work, it was verified that the change of the components linked to the aromatic ring 3 of both chalcones promoted important structural changes, including that from the conformation of the crystals obtained to the reaction characteristics. Also, it indicates that the application of additives in diesel–biodiesel blends is important for preserving fuel characteristics.

The oxidative stability test for fuel + chalcones indicated that the performance of NCH even at lower concentrations (109.0 ppm of BCH and 100.7 ppm of NCH) is more promising than BCH as an antioxidant agent in a diesel/biodiesel blend. The two compounds delayed the degradation of the biofuel, preserving its properties for 90 days of storage, without any additional processing. Complementary tests can confirm whether other desirable functions of an additive in this metric are maintained or not. Theoretical calculations show that compared to other compounds similar to additives, BCH and NCH show greater kinetic stability since the chalcones are likely to be first oxidized compared to diesel-biodiesel composition. The application of these methods paved the way for clarifying and expanding the potential of BCH and NCH compounds as antioxidant additives for diesel–biodiesel blends.
