Effect of Pr/Zn on the anti-humidity and acetone-sensing properties of Co₃O₄ prepared by electrospray

Abstract

Co₃O₄ is a P-type metal-oxide semiconductor which can realize acetone detection at a lower temperature, but the lower working temperature brings the enhanced humidity effect. In order to solve the problem of a Co₃O₄ gas sensor being easily affected by humidity, an acetone-sensing material of Co₃O₄ mixed with Pr/Zn was prepared by electrospray in this work. The optimal working temperature of Pr/Zn–Co₃O₄ is 160 °C, and the detection limit can reach 1 ppm. The fluctuation of the acetone response is about 7.7% in the relative humidity range of 30–90%. Compared with pure Co₃O₄, the anti-humidity property of this material is obviously enhanced, but the gas-sensing response deteriorates. Compared with Pr–Co₃O₄, the anti-humidity and acetone sensing properties of Pr/Zn–Co₃O₄ were both improved. The morphology, composition, crystal state and energy state of the material were analyzed by SEM, EDS, XRD and XPS. The material of Pr/Zn–Co₃O₄ is a multi-component mixed material composed of PrCoO₃, ZnO, Pr₆O₁₁ and Co₃O₄. The improved anti-humidity and acetone sensing properties exhibited by this material are the result of the synergistic effect of ZnO and Pr³⁺.

---

1. Introduction

Acetone is an important respiratory marker of diabetes. The accurate and stable detection of acetone in breathing gas is of great significance to changing the existing medical diagnosis model for diabetes. As a low-cost and easy-to-manufacture gas sensor, the metal oxide sensor has been widely used in research of acetone detection.^1–5 However, the main problems currently faced in practical application are the low concentration of markers and high humidity in the breathing gas, which requires the sensor to have a lower detection limit and better anti-humidity properties.

Co₃O₄ is a p-type metal-oxide semiconductor, which was widely used in the detection of acetone due to catalytic activity for volatile organic compounds (VOCs) and lower working temperature.^6–10 Su et al. prepared flower-shaped Co₃O₄, and the detection limit of acetone reached 0.2 ppm.⁶ Qiao et al. prepared 3D radial Co₃O₄ nanorod clusters, and the detection limit of acetone reached 0.1 ppm.⁷ Because the acetone concentration in breathing gas is more than 0.3–0.9 ppm, Co₃O₄ is a promising material for acetone sensors for breathing gas. The acetone sensitivity of Co₃O₄ can be further improved by constructing composed materials.^11–14 The composed materials of Co₃O₄ nanorod and ZnO nanosheet prepared by Jang et al. responded to 5 ppm acetone as high as 29, and the theoretical detection limit could reach 5 ppb.¹⁵ However, the sensitivity and stability of Co₃O₄ for acetone sensing deteriorate in a high-humidity environment.^16–18 Srinivasan et al. have shown that high humidity conditions could affect the acetone sensitivity of Co₃O₄, and the acetone response dropped by 16.59% under a relative humidity of 89%.¹⁶ Zhou et al. found that the increase of relative humidity would also reduce the long-term stability of the Co₃O₄ acetone sensor, where the sensor response dropped by 10% in 20 days under a relative humidity of 33%.¹⁷ Therefore, humidity is a negative factor restricting the application of Co₃O₄ for respiration detection, but there are still few reports on the research that actually proposes to solve the influence of humidity on the Co₃O₄ acetone sensor.

Doping is a commonly used strategy to improve the performance of metal oxide gas sensors.^19,20 The elements of Ce, Tb and Pr all have two valence states of 3+ and 4+. Because of the valence states, Ce, Tb and Pr all have reversible oxidation–reduction reactions, which can remove hydroxyl groups and promote the formation of ionized oxygen. These elements have been doped into the sensing materials to realize the anti-humidity property of the gas sensors.^21–24 Yoon et al. used layer-by-layer coating to modify CeO₂ nanoclusters on the surface of In₂O₃ hollow spheres, which exhibited humidity independence.²¹ Kwak et al. prepared Tb-doped SnO₂ yolk–shell spheres by ultrasonic spray pyrolysis, which exhibited similar gas responses in dry condition and relative humidity of 80%.²² The Pr-doped In₂O₃ prepared by Kim et al. also exhibited similar gas responses in different humid conditions.²³ It can be seen that doping of Ce, Tb and Pr provide a new way for the development of gas sensors with anti-humidity property. However, these sensors all worked at a high temperature of 450 °C, and the higher operating temperature promotes the humidity independence of the sensor. In addition, although the doping of Ce, Tb and Pr improved the humidity independence, the gas responses of the sensors reduced to a greater extent. The anti-humidity performance of a sensor with the doping of Ce, Tb and Pr at a low operating temperature and the method to enhance sensitivity of the sensor with the doping of Ce, Tb and Pr still need to be further investigated.

In this work, multi-element hybrid material of Co₃O₄ and the element of Pr/Zn was prepared by electrospray. This work tried to synergize the reversible redox reaction characteristics of Pr and the n-type semiconductor characteristics of ZnO to achieve anti-humidity and acetone enhanced-sensing properties. The mechanism of anti-humidity and enhanced-sensing was initially investigated through the characterization and analysis of the hybrid material.

2. Experimental

2.1 Preparation of materials

Firstly, the electrospray solution was prepared. The solvent was made up of ethanol and water in a ratio of 1 : 1. A mmol of cobalt acetate tetrahydrate (Co(CH₃COO)₂·4H₂O, AR), B mmol of praseodymium nitrate hexahydrate (Pr(NO₃)₃·6H₂O, AR) and C mmol of zinc acetate dihydrate (Zn(CH₃COO)₂·2H₂O, AR) were dissolved in 10 mL of the above mixed solvent and fully stirred with a magnetic stirrer to obtain a uniform solution. Next, the configured solution was transferred into a syringe for electrospray. The schematic diagram of electrospray system has been shown in our previous report.²⁵ The liquid supply flow of the syringe pump was 0.6 mL h⁻¹. The voltage and distance between the nozzle and the collector were 8 kV and 7 cm respectively. The collector was kept at the temperature of 200 °C. Finally, the precursor materials were calcined. The calcination process was carried out in a muffle furnace with a calcination temperature of 600 °C for 3 h. The heating rate of the muffle furnace was set as 2 °C min⁻¹. All materials were used in the purchased state without any pretreatment.

According to the above process, seven samples with different parameters were prepared, and the parameters are shown in Table 1.

Table 1 The composition parameters of the solutes in the samples

Samples	A	B	C
Co100	2	0	0
Pr5Co95	1.9	0.1	0
Pr10Co90	1.8	0.2	0
Pr20Co80	1.6	0.4	0
Pr10Zn10Co80	1.6	0.2	0.2
Pr10Zn20Co70	1.4	0.2	0.4
Pr10Zn40Co50	1	0.2	0.8

---

2.2 Characterization of materials

The morphology and element composition of the samples were analyzed by scanning electron microscope and energy dispersive X-ray spectroscopy (SEM and EDS, SU8010, Hitachi, Japan). X-ray diffraction spectroscopy (XRD, Ultima IV, Rigaku) was used to analyze the crystal composition and crystal quality of the samples. X-ray photoelectron spectroscopy (XPS, Escalab Xi+, Thermo Fisher Scientific) was used to analyze the chemical state of the Pr, Co, Zn and O elements in the sample.

2.3 Gas sensing measurement

In order to detect the acetone responses of all the samples in different humidity environments, a test system was built as shown in Fig. 1. The test system was consisted of an air pump, a filter, a saturated salt solution and a test chamber. The size of the test chamber in this work was 300 mm × 300 mm × 200 mm with the volume of 18 L. The air was passed into the filter through the air pump to filter out the macromolecular substances and the water molecules in the air. Then the gas was passed into the saturated salt solution to generate the air with the required humidity. Finally, the air was passed into the test chamber. The final humidity in the test chamber was calibrated by a humidity sensor, and the relative humidity in the test chamber could be adjusted between 30% and 90%.

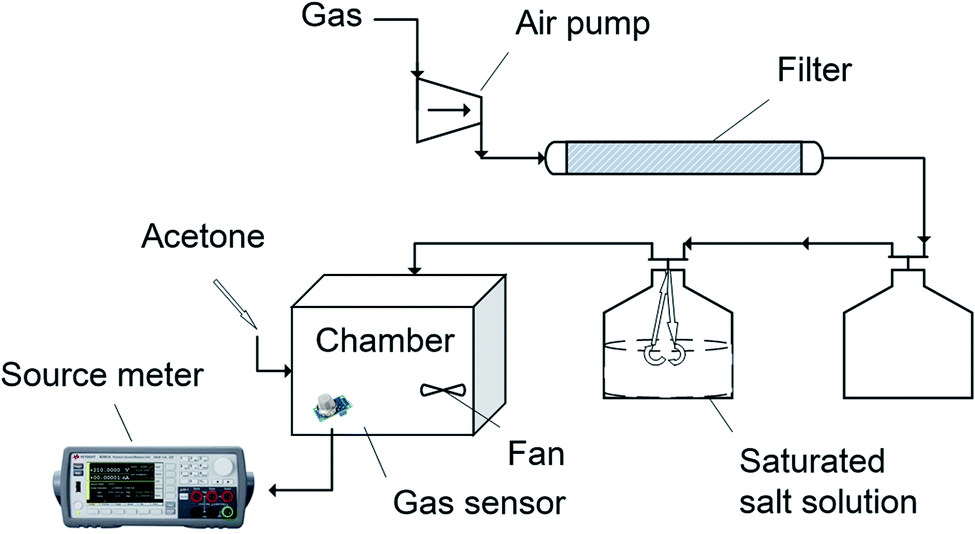

Fig. 1 Schematic diagram of gas sensing test system.

During gas sensing test, the saturated acetone steam was injected into the test chamber to obtain the corresponding concentration of acetone test gas. The volume of saturated acetone steam injected into the test chamber could be calculated according to our previous report.²⁶ The formula for calculating the volume of saturated acetone vapor was V_g = P₀·C_g·V_c/P_g, where P₀ is the ambient atmospheric pressure, C_g is the required concentration of acetone, V_c is the volume of the test chamber, and P_g is the saturated vapor pressure of acetone. After the gas sensing test was complete, the acetone-containing gas was removed from the test chamber and replaced with fresh air.

The resistance of the sensor was measured and saved by the source meter (B2902A, Keysight). The response was defined as (R_g − R_a)/R_a, where R_g and R_a is the resistance of the sensor in acetone atmosphere and in air respectively. The response and recovery time was defined as the time required for the resistance to change to 90% of the change amplitude.

3. Results and discussion

3.1 Gas sensing properties

Fig. 2(a) shows the responses variation of Co₁₀₀, Pr₅Co₉₅, Pr₁₀Co₉₀ and Pr₂₀Co₈₀ with temperature. The responses of the four samples all show a trend of first becoming larger and then smaller as the temperature increases. Among them, the optimal working temperature of Co₁₀₀ is 190 °C, and the optimal working temperature of the hybrid samples with Pr reduced to 160 °C. Fig. 2(b) shows the responses comparison of the four samples to 50 ppm acetone at the optimal working temperature. The response of Co₁₀₀ is the largest, and the responses of the hybrid samples with Pr are greatly weakened. The response of Pr₅Co₉₅ is only 0.56, which is only a quarter of Co₁₀₀. With the Pr concentration further increase, the response of the samples is further reduced, but the change is not significant. It can be seen that the addition of Pr will reduce the sensitivity of sensing materials.

Fig. 2 Responses to 50 ppm acetone at (a) different temperature and (b) the optimal working temperature for Co₁₀₀, Pr₅Co₉₅, Pr₁₀Co₉₀ and Pr₂₀Co₈₀. (c) Responses to 50 ppm acetone in different relative humidity, and (d) ratios of responses at 90% and 30% relative humidity for Co₁₀₀, Pr₅Co₉₅, Pr₁₀Co₉₀ and Pr₂₀Co₈₀.

Fig. 2(c) shows the responses variation of Co₁₀₀, Pr₅Co₉₅, Pr₁₀Co₉₀ and Pr₂₀Co₈₀ with relative humidity. During the relative humidity increases from 30% to 90%, the responses of all the samples decrease. But, the response of Co₁₀₀ is still larger than those of the hybrid samples in different relative humidity. Fig. 2(d) shows the responses ratios of the four samples at 90% and 30% relative humidity. As figure shown, the ratio of Pr₁₀Co₉₀ is the largest. Compared with the response in 30% relative humidity, the response in 90% relative humidity only drops by 9%. The ratio of Co₁₀₀ is the smallest. Compared with the response in 30% relative humidity, the response of Co₁₀₀ in 90% relative humidity drops by 28%. It can be seen that the suitable incorporation of Pr can greatly improve anti-humidity property of Co₃O₄.

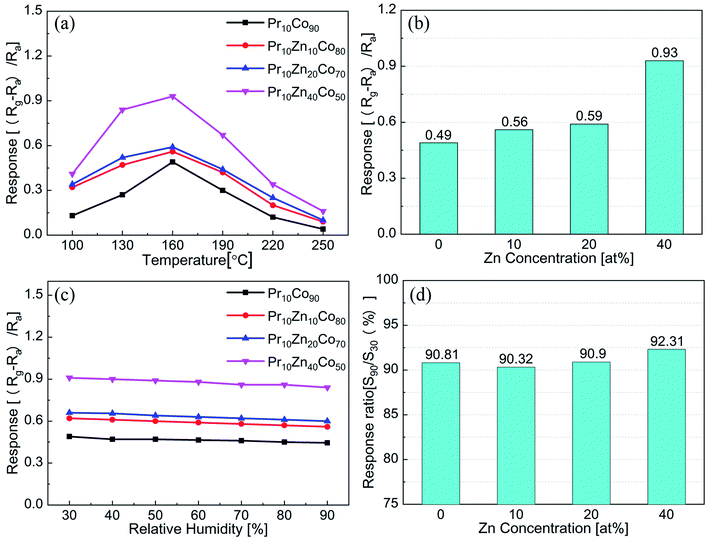

Fig. 3(a) shows the responses variation of Pr₁₀Co₉₀, Pr₁₀Zn₁₀Co₈₀, Pr₁₀Zn₂₀Co₇₀ and Pr₁₀Zn₄₀Co₅₀ with temperature. The responses of the four samples have the same trend with temperature increases, and the largest responses of the samples are achieved at 160 °C. As shown in Fig. 3(b), the incorporation of Zn can enhance the response of Pr₁₀Co₉₀. The response of Pr₁₀Zn₄₀Co₅₀ to 50 ppm acetone is 0.93, which is about twice that of Pr₁₀Co₉₀. Fig. 3(c) shows the responses variation of Pr₁₀Co₉₀, Pr₁₀Zn₁₀Co₈₀, Pr₁₀Zn₂₀Co₇₀ and Pr₁₀Zn₄₀Co₅₀ with relative humidity. In the range of 30–90% relative humidity, the responses of the four samples maintain good stability. As Fig. 3(d) shown, the ratios of the four samples at 90% and 30% relative humidity are all greater than 90%. Among them, the response of Pr₁₀Zn₄₀Co₅₀ in 90% relative humidity is only 7.7% lower than that in 30% relative humidity. This indicates that the incorporation of Zn could enhance the acetone sensitivity of Pr–Co₃O₄ and maintain a good anti-humidity property.

Fig. 3 Responses to 50 ppm acetone at (a) different temperature and (b) the optimal working temperature for Pr₁₀Co₉₀, Pr₁₀Zn₁₀Co₈₀, Pr₁₀Zn₂₀Co₇₀ and Pr₁₀Zn₄₀Co₅₀. (c) Responses to 50 ppm acetone at different relative humidity, and (d) ratios of responses in 90% and 30% relative humidity for Pr₁₀Co₉₀, Pr₁₀Zn₁₀Co₈₀, Pr₁₀Zn₂₀Co₇₀ and Pr₁₀Zn₄₀Co₅₀.

Fig. 4(a) shows the comparison of the anti-humidity and acetone sensing properties of Co₁₀₀, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀. Co₁₀₀ exhibits the largest gas sensing response, but poor anti-humidity property. Pr₁₀Co₉₀ exhibits better anti-humidity property, but the gas sensing response is greatly deteriorated. Pr₁₀Zn₄₀Co₅₀ maintains excellent anti-humidity property while shows a good gas sensing property. It indicates that the multiple incorporation of Pr and Zn into Co₃O₄ can synergistically improve the anti-humidity and acetone sensing properties.

Fig. 4 (a) Responses to 50 ppm acetone and ratios of response at 90% and 30% relative humidity for Co₁₀₀, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀. (b) Response–recovery curves to different concentrations of acetone. (c) Response–recovery curves to 50 ppm acetone. (d) Response to 50 ppm acetone and other gases.

Fig. 4(b) shows the responses of Pr₁₀Zn₄₀Co₅₀ to different concentrations of acetone. The sample shows a good response–recovery to 1–50 ppm acetone, and the response to 1 ppm acetone is 0.14. Fig. 4(c) shows the response–recovery curve of Pr₁₀Zn₄₀Co₅₀ to 50 ppm acetone. The response and recovery time of the sensor is 70 and 330 s, respectively. Fig. 4(d) shows the responses comparison of Pr₁₀Zn₄₀Co₅₀ to 50 ppm acetone, ethanol, triethylamine, methanol, benzene, SO₂, CO and NO₂. Among them, the response to acetone is the highest.

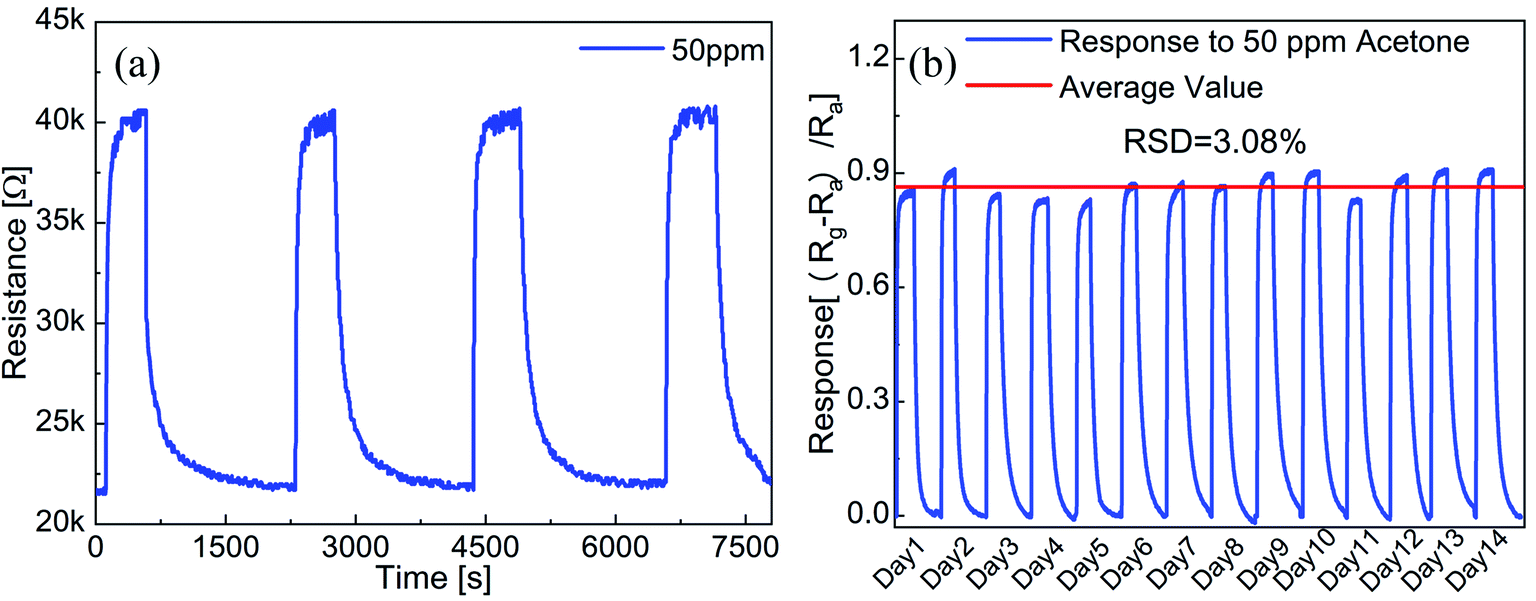

Fig. 5(a) shows the cycle test of Pr₁₀Zn₄₀Co₅₀ to 50 ppm acetone. The response curves of the sample maintain a good consistency during the four-cycle tests. Fig. 5(b) shows the response curves of Pr₁₀Zn₄₀Co₅₀ to 50 ppm acetone over two weeks. The sensor shows good stability with a relative standard deviation of 3.08% for the response values.

Fig. 5 (a) Cycle tests curves to 50 ppm acetone for Pr₁₀Zn₄₀Co₅₀. (b) Responses to 50 ppm acetone over two weeks.

The anti-humidity comparison of Co₃O₄-based acetone sensor between this work and the previous reported work is listed in Table 2. All the sensors in the references show high acetone responses under low humidity conditions. However, under high humidity conditions greater than 80%, the acetone responses of the sensors show a drop of more than 15%, and some even drop by 66.7%.^{16–18,27–29} The sensor of Pr₁₀Zn₄₀Co₅₀ in this work shows good agreement in low and high humidity, and the relative deviation is much smaller than the reported.

Table 2 Comparison of anti-humidity between this work and the reported works^a

Materials	Temp. (°C)	Con. (ppm)	Res./low hum. (%)	Res./high hum. (%)	Relative deviation (%)	Ref.
a Res. was defined as (Rg − Ra)/Ra. Relative deviation was defined as (Res(low) − Res(high))/Res(low). Temp.: temperature; Con.: concentration; res.: response; hum.: humidity; ref.: reference.
Co3O4	500	50	242/32	195/89	19.4	16
Co3O4	240	500	3.16/33	∼1.3/∼95	58.9	17
Co3O4	150	100	34.2/30	15.3/80	55.3	27
Co3O4/graphene	190	1	54.3/30	45.6/90	16	18
Co3O4/graphene	160	50	5.4/20	4/90	25.9	28
Pt–Co3O4	200	0.5	2.1/0	0.7/80	66.7	29
Pr/Zn–Co3O4	160	50	0.91/30	0.84/90	7.7	This work

---

3.2 Materials characterization

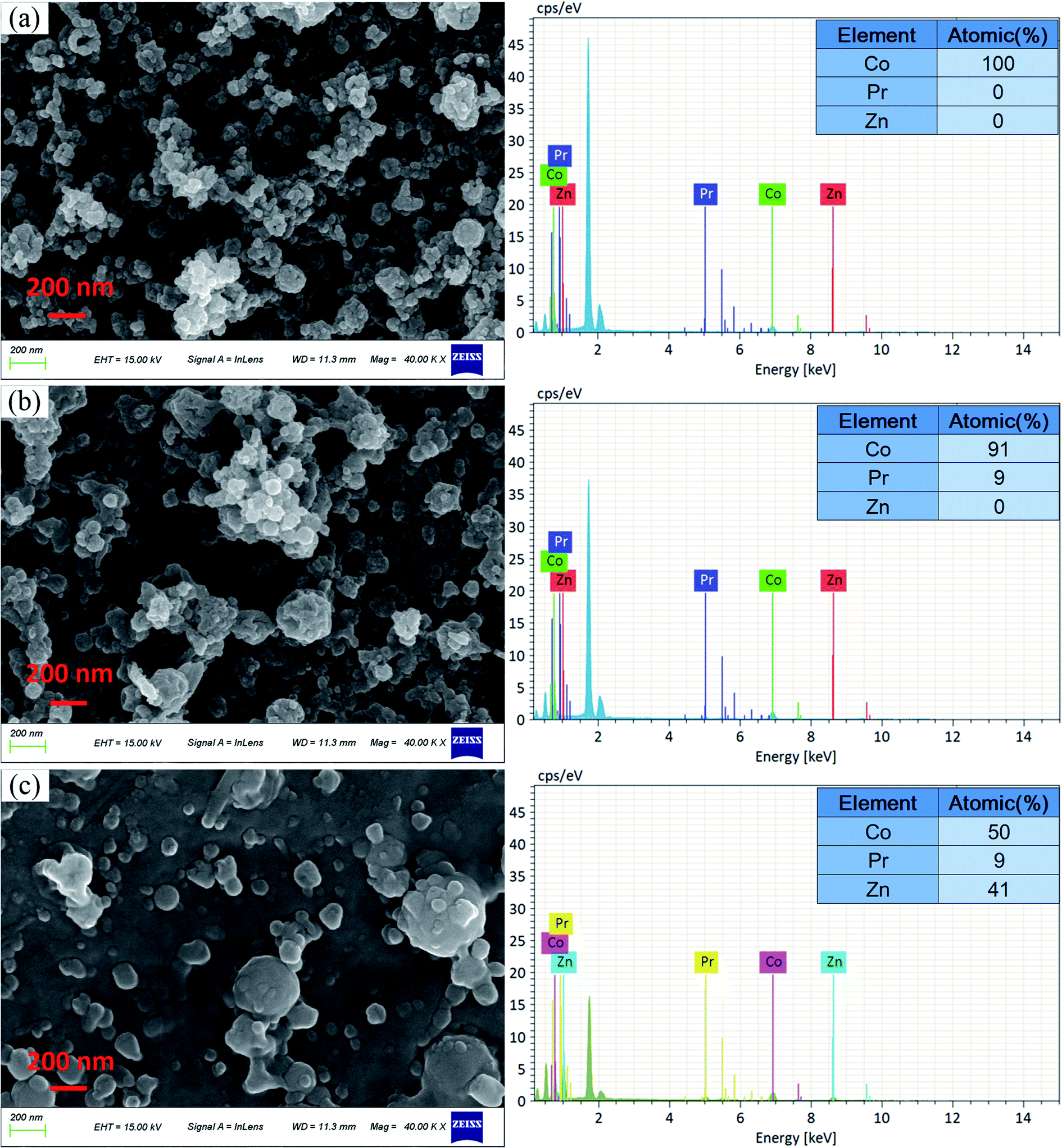

Fig. 6 shows the SEM images and EDS spectra of Co₁₀₀, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀. As SEM images shown, all three samples are composed of nanoparticles, which include bottom and surface layer. The bottom is the particle layer and the surface is dispersed with aggregated particle clusters. Among them, Co₁₀₀ has a higher agglomeration density and a rougher surface, while Pr₁₀Zn₄₀Co₅₀ has a flatter surface with smaller and more dispersed clusters. The elementals proportions of Co, Pr and Zn in the samples were analyzed by EDS. The molar proportion of Co element in Co₁₀₀ is 100%. The molar proportions of Co and Pr in Pr₁₀Co₉₀ are approximately 91% and 9%, respectively. The molar proportions of Co, Pr and Zn in Pr₁₀Zn₄₀Co₅₀ are approximately 50%, 9% and 41%, respectively. The molar proportions of the elements are almost the same as the experimental design.

Fig. 6 SEM images and EDS spectra of (a) Co₁₀₀, (b) Pr₁₀Co₉₀ and (c) Pr₁₀Zn₄₀Co₅₀.

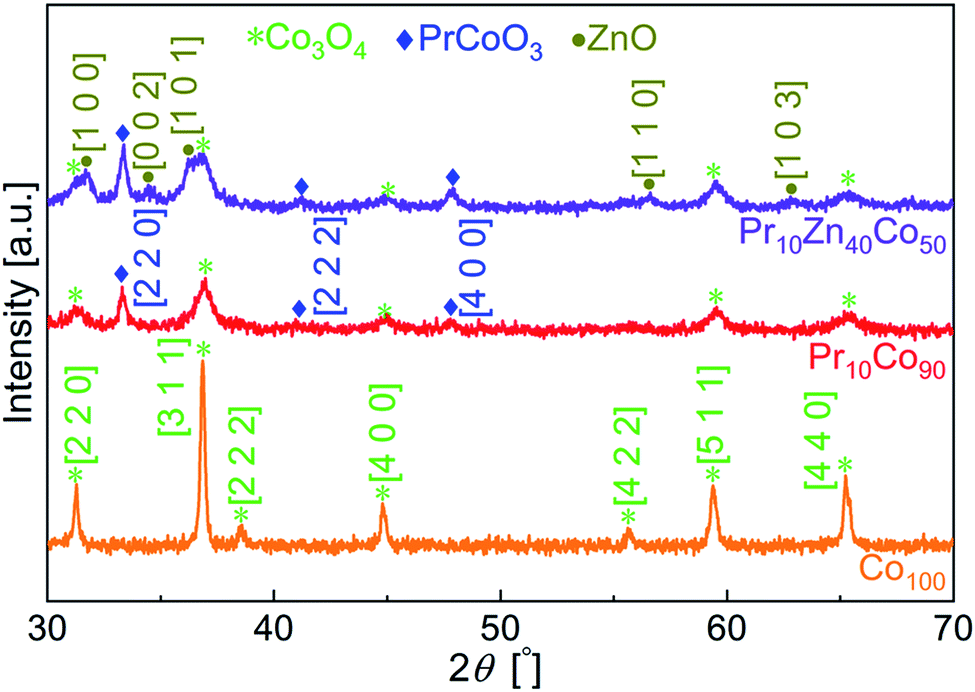

Fig. 7 shows the XRD spectra of Co₁₀₀, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀. The diffraction peaks of Co₁₀₀ are located at 31.28°, 36.86°, 36.58°, 44.8°, 55.62°, 59.38° and 65.24°, corresponding to [2 2 0], [3 1 1], [2 2 2], [4 0 0], [4 2 2], [5 1 1] and [4 4 0] crystal planes of spinel Co₃O₄ (JCPDS 43-1003). As the spectra shows that Co₁₀₀ is composed of Co₃O₄ without other impurities. In addition to the diffraction peaks of Co₃O₄, Pr₁₀Co₉₀ has three new diffraction peaks located at 33.3°, 41.26° and 47.9°, respectively. These three peaks correspond to [2 2 0], [2 2 2] and [4 0 0] crystal planes of PrCoO₃ (JCPDS 25-1069), which indicate that Pr₁₀Co₉₀ is a hybrid material of Co₃O₄ and PrCoO₃. For Pr₁₀Zn₄₀Co₅₀, the other five new diffraction peaks appear on the spectrum, which are located at 31.7°, 34.4°, 36.24, 56.62° and 62.8°. These five peaks correspond to [1 0 0], [0 0 2], [1 0 1], [1 1 0] and [1 0 3] crystal planes of ZnO (JCPDS 36-1451). This indicates that Pr₁₀Zn₄₀Co₅₀ contains at least three kinds of crystals including Co₃O₄, PrCoO₃ and ZnO.

Fig. 7 XRD spectra of (a) Co₁₀₀, (b) Pr₁₀Co₉₀ and (c) Pr₁₀Zn₄₀Co₅₀.

Fig. 8(a)–(c) show the high-resolution XPS spectra of Co 2p in Co₁₀₀, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀. The peak near 794.7 eV corresponds to Co 2p_1/2, which can be divided into the peaks of 795.9 eV and 794.6 eV by Gaussian fitting. The peak near 779.7 eV corresponds to Co 2p_3/2, which can be divided into the peaks of 780.5 eV and 779.5 eV. Among these peaks, the fitting peaks of 795.9 eV and 780.5 eV are derived from Co²⁺, while the fitting peaks of 794.6 eV and 779.5 eV are derived from Co³⁺. By analyzing the peak areas, the ratios of the Co²⁺ and Co³⁺ in the three samples of Co₁₀₀, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀ are 78.6 : 21.4, 74.3 : 25.7 and 71.2 : 28.8, respectively. Due to the incorporation of Pr, the proportion of Co³⁺ in the hybrid material increases, which is attributed to the formation of PrCoO₃.

Fig. 8 High-resolution XPS spectra of (a and g) Co₁₀₀, (b, d and h) Pr₁₀Co₉₀ and (c, e, f and i) Pr₁₀Zn₄₀Co₅₀.

Fig. 8(d) and (e) show the high-resolution XPS spectra of Pr 3d_5/2 in Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀. This peak is located near 933 eV, and can be divided into the peaks of 935 eV, 933 eV, 930.6 eV and 927.8 eV. The fitting peaks of 935 eV and 930.6 eV are derived from Pr⁴⁺, while the fitting peaks of 933 eV and 927.8 eV are derived from Pr³⁺. By analyzing the area of the peaks, the ratios of the peaks area of Pr³⁺ and Pr⁴⁺ are 57.5 : 42.5 and 59 : 41 for Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀, respectively. The proportions of Pr³⁺ and Pr⁴⁺ in the hybrid samples are consistent with that in Pr₆O₁₁ reported in the previous literature.²³ It indicates that the samples of Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀ also contain Pr₆O₁₁.

Fig. 8(f) shows the high-resolution XPS spectrum of Zn in Pr₁₀Zn₄₀Co₅₀. The peak near 1044.6 eV is derived from Zn 2p_1/2, and the peak near 1021.5 eV is derived from Zn 2p_3/2.

Fig. 8(g)–(i) show the high-resolution XPS spectra of O 1s in Co₁₀₀, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀. The O 1s peaks of the three samples can be divided into 4 peaks, which are located at 531.9 eV (O_IV), 530.9 eV (O_III), 529.5 eV (O_II) and 528.5 eV (O_I). O_I, O_II, O_III and O_IV are derived from Pr³⁺–O, crystal lattice oxygen, adsorbed oxygen and Pr⁴⁺–O. The proportions of different oxygen components are analyzed based on the area ratio. Since Co₁₀₀ does not contain Pr, its spectrum only contains O_II and O_III, and the components proportions are 50.2% and 49.8%. The proportions of O_I, O_II, O_III and O_IV in Pr₁₀Co₉₀ are 3.6%, 41.3%, 31% and 24.1%, while the proportions of O_I, O_II, O_III and O_IV in Pr₁₀Zn₄₀Co₅₀ are 3.9%, 39%, 38.8% and 18.3%. Among the oxygen components, O_III is the key to the gas sensitivity. In the three samples, Co₁₀₀ has the highest proportion of O_III, while Pr₁₀Co₉₀ has the lowest proportion.

3.3 Gas sensing mechanism

According to the response curves in Fig. S1,† the samples of Co₁₀₀, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀ all exhibit the characteristics of p-type semiconductor. For p-type semiconductor, the gas sensitivity depends on the thickness of the hole accumulation layer on the surface. Due to the chemical adsorption of oxygen, oxygen traps electrons from the sensing material to form oxygen ions when a sample is exposed to the air, so that the hole accumulation layer on the surface will increase and the resistance will decrease. When the sample is exposed to acetone, oxygen ions react with acetone and release electrons back to the sensing material, resulting in a reduction of the hole accumulation layer and an increase of resistance. The process can be expressed by the following reactions:³⁰

O₂(ads) + e⁻ → O⁻₂(ads)

O⁻₂(ads) + e⁻ → 2O⁻(ads)

CH₃COCH₃(g) + 8O⁻(ads) → 3CO₂ + 3H₂O + 8e⁻

CH₃COCH₃(g) + 4O⁻₂(ads) → 3CO₂ + 3H₂O + 4e⁻

Since the working temperatures of the sensors are relatively low, water molecules will adsorb on the surface and react with the adsorbed oxygen ions to form hydroxyl groups and electronics in a high-humidity environment, resulting in water poisoning of the sensing material and reducing of gas sensitivity. Because Pr has reversible oxidation–reduction reaction property, Pr³⁺ can promote the reverse reaction process of water poisoning. The hydroxyl groups could be effectively removed and the oxygen ions are regenerated with the transition from Pr³⁺ to Pr⁴⁺. Pr⁴⁺ recaptures the electrons brought by the water molecule reaction and turns into Pr³⁺. During the above cyclic redox reaction, the reactants and products are equal. When the hydroxyl groups on the materials surface are completely removed, the resistance and response of the sensitive material are hardly affected. Therefore, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀ shows better consistency of gas responses than Co₁₀₀ in different relative humidity. The process can be expressed by the following reactions:²³

H₂O + O⁻ ↔ 2OH + e⁻

Pr³⁺ + 2OH → Pr⁴⁺ + H₂O + O⁻(ads)

Pr⁴⁺ + e⁻ → Pr³⁺

The gas sensitivity of Co₁₀₀, Pr₁₀Co₉₀ and Pr₁₀Zn₄₀Co₅₀ mainly depend on the surface reaction. Co₃O₄ contains two kinds of Co ions (Co²⁺ and Co³⁺), in which Co²⁺ is the reaction sites.³¹ Therefore, the concentration of Co²⁺ on surface will affect the surface reaction. From XPS analysis, it can be found that the concentration of Co²⁺ on surface of the hybrid samples is reduced because of the formation of PrCoO₃, which results in a reduction of reaction sites and a decrease of the sensitivity. Although the Co²⁺ concentration of Pr₁₀Zn₄₀Co₅₀ is also reduced, the gas sensitivity is improved because of the addition of ZnO. The enhanced sensitivity could be contributed to two reasons. First, ZnO in the hybrid sample brings more electrons, which promotes the increase of oxygen ions adsorbed on the surface. This can be confirmed from the XPS diagram. The concentration of adsorbed oxygen on the surface of Pr₁₀Zn₄₀Co₅₀ is relatively higher than that of Pr₁₀Co₉₀. Second, p–n heterojunctions are formed in Pr₁₀Zn₄₀Co₅₀. As shown in Fig. 9(a), the Fermi level of Co₃O₄ is located at 6.1 eV, while that of ZnO is at 5.2 eV. When the two metal oxides are in contact, ZnO transfers electrons to Co₃O₄ in order to maintain the unity of the Fermi level at the interface. Therefore, the p–n heterojunction is formed with the appearance of a charge depletion layer at the interface, as shown in Fig. 9(b). Heterojunction can adjust the barrier of the material, causing a greater change of resistance during the gas reaction.^32,33

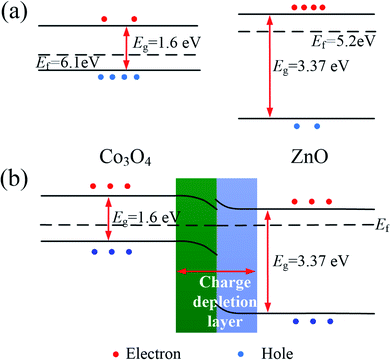

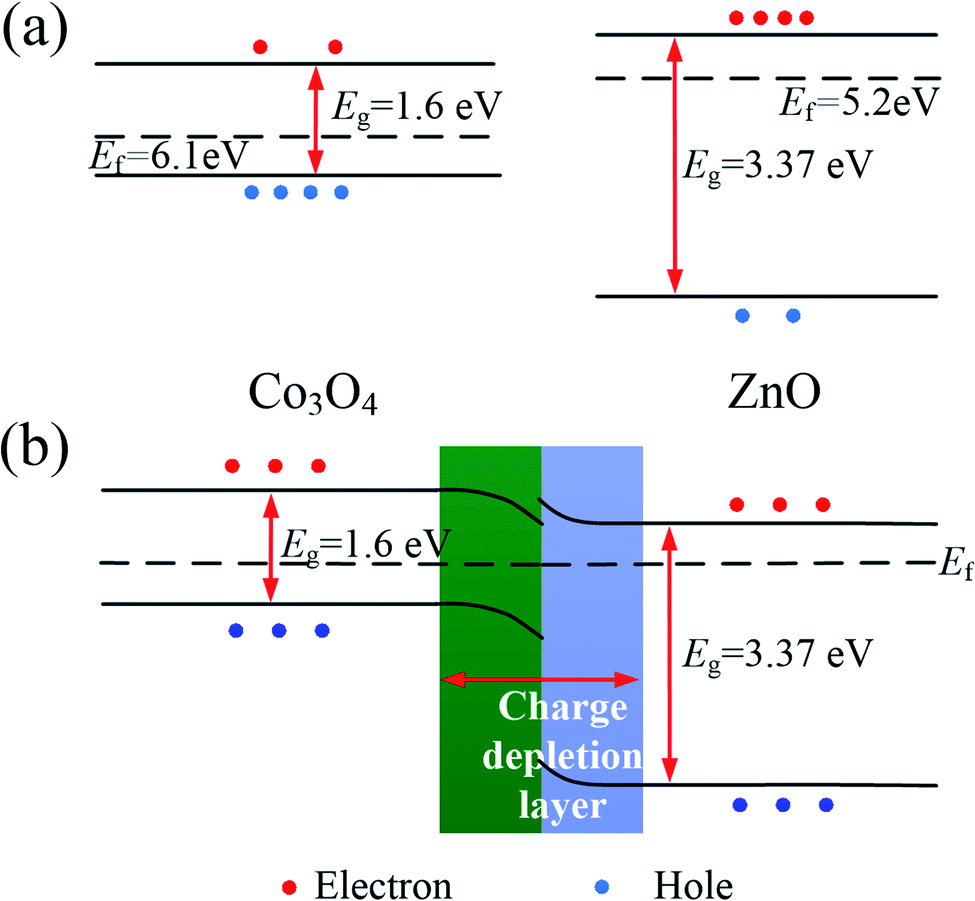

Fig. 9 Band structures of (a) Co₃O₄ and ZnO and (b) Co₃O₄–ZnO heterojunction.

4. Conclusions

An acetone sensing material of Pr₁₀Zn₄₀Co₅₀ was prepared in this work, which is a hybrid material of PrCoO₃, ZnO, Pr₆O₁₁ and Co₃O₄. Compared with pure Co₃O₄, the optimal working temperature of Pr₁₀Zn₄₀Co₅₀ decreases, and the hybrid material exhibits more stable responses to acetone in different humidity conditions. The detection limit for acetone could reach 1 ppm. The anti-humidity property of Pr₁₀Zn₄₀Co₅₀ result from the reverse reaction of Pr to water poisoning, which weakens the reaction of water molecules on the surface of the material to generate hydroxyl groups. Compared with Pr₁₀Co₉₀ containing only Pr addition, the sensitivity of Pr₁₀Zn₄₀Co₅₀ is also enhanced, which depends on the increase of adsorbed oxygen on the surface and the adjustment of the potential barrier by the p–n heterojunction. This work shows that synergistic effects of each material in hybrid material can improve the gas sensing properties.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by Zhejiang Provincial Natural Science Foundation (LQ20F010001).
