Lithium ferrite, LiFe5O8 (LFO), has attracted great attention for various applications, and there has been extensive experimental studies on its material properties and applications. However, no systematic theoretical study has yet been reported, so understanding of its material properties at the atomic scale is still required. In this work, we present a comprehensive investigation into the structural, electronic, magnetic and thermodynamic properties of LFO using first-principles calculations. We demonstrate that the ordered α-phase with ferrimagnetic spin configuration is energetically favourable among various crystalline phases with different magnetic configurations. By applying the DFT + U approach with U = 4 eV, we reproduce the lattice constant, band gap energy, and total magnetization in good agreement with experiments, emphasizing the importance of considering strong correlation and spin-polarization effects originating from the 3d states of Fe atoms. We calculated the phonon dispersions of LFO with ferrimagnetic and non-magnetic states, and subsequently evaluated the Gibbs free energy differences between the two states, plotting the P–T diagram for thermodynamic stability of the ferrimagnetic against non-magnetic state. From the P–T diagram, the Curie temperature is found to be ∼925 K at the normal condition and gradually increase with increasing pressure. Our calculations explain the experimental observations for material properties of LFO, providing a comprehensive understanding of the underlying mechanism and useful guidance for enhancing performance of LFO-based devices.
A lot of experimental work has been performed to manipulate the structural, electrical and magnetic properties for more useful applications of LFO. The most popular and efficient route in doing so is to make solid solutions by substituting suitable metal elements for Li or Fe in LFO.16–18 Many investigations have focused on Co-substituted LFO, reporting the significant impacts of Co substitution of the Fe cation on material properties of LFO.8,19–23 For instance, Sawant et al.20,21 reported the LFO-based solid solution Li0.5CoxFe2.5−xO4 (0 < x < 0.6) where the Fe atoms were partly replaced with the Co atoms using the solution combustion method, demonstrating the varying material properties with varying Co content, x. They found a linear dependence of lattice constant on the Co content indicating the satisfaction of Vegard’s law, and almost uniform and regular morphology with large specific surface areas at all values of Co content. Most importantly, the resistivity and saturation magnetization were found to become larger while the dielectric loss lowers for higher Co content in Co-substituted LFO. In addition to the Co substitution, several investigations reported that the material properties can be effectively tuned by substituting Cu, Mn and Zn atoms for the Fe atom in LFO.24–26 Such substitutions can definitely lead to improvements in performance of the LFO-based devices, such as microwave and permanent magnets compared with the pure LFO.
On the other hand, the material properties of LFO have also been reported to be readily changeable according to the applied synthesis method. There have been different synthetic strategies developed for the preparation of lithium ferrite, such as conventional ceramic and double sintering method, and various wet-chemical methods including solution combustion, hydrothermal, and citrate precursor methods.27–31 In general, the conventional ceramic and double sintering methods require high processing temperatures of over 1200 °C, and because of the volatility of lithium above 1000 °C, such high processing temperature may lead to undesirable damage of electric and magnetic properties of LFO. Recently, Teixeira et al.28 synthesized the nanostructured lithium ferrite using the powdered coconut water-mediated sol–gel method, so-called the biogenic method, modulating the material properties using temperatures ranging from 400 to 1000 °C. They demonstrated that the high quality LFO crystal with higher dielectric constant, lower dielectric loss and smaller crystallite size could be obtained at lower temperatures (≤1000 °C) by this novel and eco-friendly biogenic method, when compared with the conventional ceramic method.
In spite of numerous experimental works for lithium ferrite LiFe5O8, a comprehensive understanding of its material properties has not yet been fully provided. To the best of our knowledge, there is only one theoretical study on the electronic and optical properties of LFO using density functional theory (DFT) calculations.32 Although some progress in understanding the microscopic origin of the electronic and optical properties has been made through theoretical work, Sousa et al.32 largely overestimated the band gap as Eg = 2.40 eV, while underestimating the dielectric constant as ε = 1.66, compared with the experimental values of Eg = 1.93 eV (ref. 33) and ε = 10 ∼ 14.34 This is found with no consideration of the strong correlation and spin-polarization effects of transition metal Fe atoms. Moreover, there is a lack of knowledge about the lattice vibrational properties and thermodynamic stability of LFO. Therefore, a comprehensive theoretical study on the underlying mechanism behind the structural, electronic and magnetic properties of LFO is necessary and important from both fundamental and practical points of view. In this work, we systematically investigate the material properties of lithium ferrite LiFe5O8 such as structural, magnetic, electronic, lattice vibrational properties and thermodynamic stability using the DFT calculations.
In this work, we considered the on-site Coulomb interaction and spin polarization using DFT + U approach5,40,41 in order to take into account the strong correlation effect of Fe 3d states. For Fe atoms, various spin configurations were explored by applying the three different magnetic orderings – ferromagnetic (FOM), ferrimagnetic (FIM) and non-magnetic (NM). For the on-site Coulomb interaction parameter U, we repeated the structural optimizations and electronic structure calculations while varying the parameter U from 1 to 8 eV with a step of 1 eV, and then determined the reasonable value as U = 4 eV that gave the lattice constant and band gap with the best agreement with the experimental values.28,42,43 In addition, we calculated the frequency dependent dielectric constants, ε(ω) = ε1(ω) + iε2(ω), by applying density functional perturbation theory (DFPT).44
To proceed with the calculations of lattice vibrational and thermodynamic properties, we applied the finite displacement method using 2 × 1 × 1 supercells including 112 atoms, as implemented in the Phonopy code.45 For these supercell calculations, a reduced k-point mesh of 3 × 6 × 6 and cutoff energy of 400 eV were used in accordance with the larger size of supercell. The q-point mesh of 50 × 50 × 50 was used for the calculations of phonon DOS and thermodynamic potential functions such as Helmholtz and Gibbs free energies. The Gibbs free energy G(T,P) = F(T,V) + PV was given as a function of temperature T and pressure P, where F(T,V) is the Helmholtz free energy as a function of T and volume V. For evaluating the PV term, we calculated the DFT total energies E with systematically increasing volume from 0.95V0 to 1.05V0 with 11 intervals, where V0 is the equilibrium volume, and fitted the resultant E–V data into the empirical equation of state (EOS) for the solid,46 producing an E(V) function and therein pressure P using differentiation like P = −(∂E/∂V)T. Within the quasiharmonic approximation (QHA),47–51 the Helmholtz free energy F(T,V) was calculated by the following equation,
![]() | (1) |
ΔG(T,P) = GFIM(T,P) − GNM(T,P). | (2) |

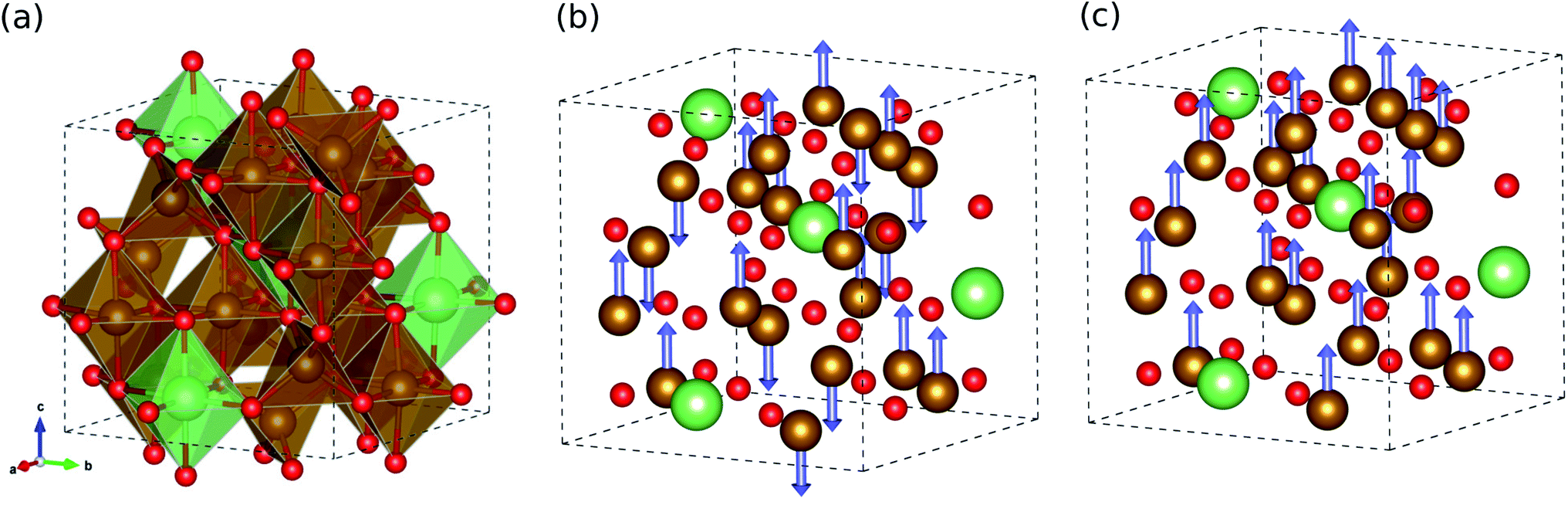

With the ordered α-phase, we then determined the favourable spin configuration of the Fe atoms with the lowest total energy. For the FOM state, the Fe3+ cations at the octahedral 12d and tetrahedral 8c sites were considered to be arranged in parallel spin directions (Fig. 1(c)), whereas for the FIM state the Fe3+ cations at the octahedral sites (spin up) were supposed to have the opposite spin direction with those at the tetrahedral sites (spin down), as shown in Fig. 1(b). However for the NM state, the spin polarization effect of Fe atoms was not considered. It turns out that among the three different spin configurations, the FIM state was energetically favourable with a high total magnetization per formula unit of 2.5 μB f.u.−1 in good agreement with previous experiments42,43 (see Table S1, ESI†).
In the FIM state, although the spins of the Fe atoms at the octahedral and tetrahedral sites are arranged antiparallel, the net magnetization does not vanish because the octahedral site has 1.5 times more Fe atoms than the tetrahedral site. Such high magnetization leads to potential applications of lithium ferrite as permanent magnets and in various microwave devices. Meanwhile, the FOM state was found to have a much higher total magnetization of 6.5 μB f.u.−1 but with higher DFT total energy (∼3.7 eV f.u.−1) compared with the FIM state (see Table S1, ESI†). Based on these calculations for the crystalline structure and magnetic ordering, further calculations for the electronic and lattice vibrational properties considered only the ordered α-phase with ferrimagnetic ordering.

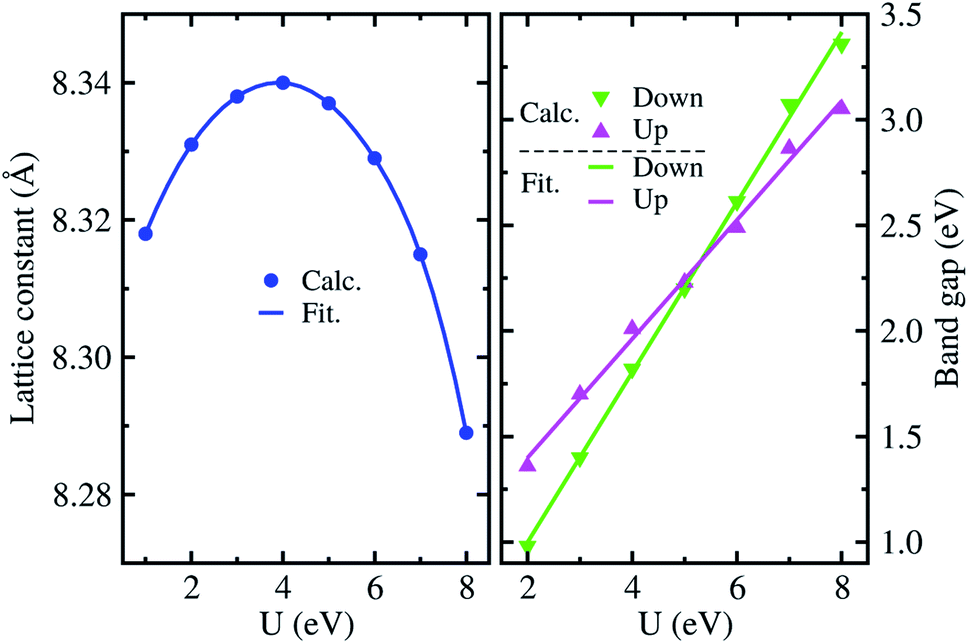

Fig. 2 shows the lattice constants and band gaps calculated with gradually increasing values of the on-site Coulomb interaction parameter U from 1 eV to 8 eV. It was found that the lattice constant varies along the quadratic function while the band gap increases along the linear function of U. For the lattice constants, we obtained the fitting function of a = 8.297 + 0.023U − 0.003U2 (Å), finding the maximum value of 8.34 Å at the U = 4 eV in good agreement with the experimental value of 8.33 Å (ref. 28 and 43) with a very small relative error of 0.5%. For the band gap, the linear fitting functions were obtained to be Eg = 0.84 + 0.28U (eV) and Eg = 0.19 + 0.40U (eV) for the spin up and down state, respectively. Such increasing tendencies of band gaps are related to the conduction bands (CBs) pushing up while the valence bands (VBs) are pushed down with increasing on-site interaction parameter U (see Fig. S2, ESI†). At U = 4 eV, the band gap for the spin up state was calculated to be 1.99 eV, which agrees well with the experimental value of ∼1.93 eV.33 We note that the total magnetization of 2.5 μB f.u.−1 is independent of the value of U for the ordered α-phase. Accordingly, we fixed the on-site Coulomb interaction parameter to U = 4 eV for further calculations of electronic structure, lattice vibrational and thermodynamic properties.
To gain insight into the electric structure, we look deep into the atom-projected DOS and electronic charge densities corresponding to VBM and CBM, as shown in Fig. 4. Through the DOS analysis, it was found that the VBs are characterized by strong p–d hybridization between the O 2p and Fe 3d states, while the CBs are dominated by Fe 3d states (Fig. 4(a)). It should be noted that the Li atoms have negligible contribution to the upper VBs and lower CBs, and the Fe 3d (O 2p) states constitute the major contribution to the Fe (O) atoms (Fig. S4 and S5, ESI†). Moreover, we found that the total DOS for spin up (positive) and down (negative) states have inconsistent contributions, thereby offering non-zero net magnetization for the ferrimagnetic state of LFO. On the other hand, the p–d hybridization between the Fe and O atoms (major contributions of the Fe 3d states) in the VBs (CBs) was further confirmed from the analysis of the electronic charge densities corresponding to VBM (CBM) in Fig. 4(b and c). Based on these electronic structure calculations, we can expect that due to the clearly different behaviours between spin up and down states LFO can be used for spintronic applications. On the other hand, we showed the frequency-dependent dielectric constant ε(ω) (Fig. S6, ESI†), demonstrating that the ε(ω) reaches the maximum value of ∼10.8 in reasonable agreement with the experimental value of ∼13.1 (ref. 34) observed over a high frequency band of 3–30 MHz.
To this end, we calculated the phonon dispersion curves and phonon DOS of LFO in the FIM and NM states. Fig. 5 shows the calculated phonon dispersion curves along the high symmetry points of X, R, M, Γ, and R in the BZ, together with the total and atom-projected phonon DOS of LFO with a space group of P4332 in the FIM and NM states. In the phonon dispersion curves, no anharmonic phonon modes with imaginary phonon energies were observed, indicating that these phases are dynamically stable. That is, it confirms that LFO is stabilized in the α-phase with the FIM or NM state under ambient conditions, as already reported in experiments.28,43 In the phonon dispersion curves of LFO with the NM state, there is a definite gap in the high frequency region around 80 meV unlike the FIM state. From the atom-projected phonon DOS, it is clear that the Fe atoms are responsible for lattice vibrations over the low frequency region while the O atoms have dominant contributions to the high frequency region for both FIM and NM states.
![]() | ||
Fig. 5 Phonon dispersion curves and the atom-projected phonon DOS of the ordered α-phase LiFe5O8 with (a) ferrimagnetic (FIM) and (b) non-magnetic (NM) states. |
By post-processing the calculated phonon dispersions and phonon DOS, we finally evaluated the thermodynamic potential functions as functions of temperature and pressure for the FIM and NM states within QHA. Here we note that QHA can be valid up to the melting temperature of the crystal. By applying eqn (1), we calculated the Helmholtz free energies of LFO with the FIM and NM states as functions of volume at different temperatures (Fig. S9 and S10, ESI†). These obtained free energy–volume data were fitted to EOS at each temperature, yielding the equilibrium volume and bulk modulus. We therefore plotted the unit cell volumes (V) and cubic expansion coefficient (α) as functions of temperature ranging from 0 to 2000 K (Fig. S7, ESI†). We also provided the bulk moduli (B) and heat capacity (CP) evaluated at each temperature (Fig. S8, ESI†). With increasing temperature, V and α were found to increase while B and CP decrease, which is in agreement with the common knowledge about thermal expansion of crystalline materials.
Fig. 6 shows the calculated Gibbs free energy differences between the FIM and NM states as a function of temperature and pressure. This can be regarded as a kind of P–T diagram for the thermodynamic stability of the FIM state against the NM state. From this P–T diagram, it was revealed that the FIM state in LFO is stable in the temperature range 0 to ∼925 K at atmospheric pressure (105 Pa). After all, the Curie temperature TC is ∼925 K under normal conditions, which is in agreement with the experimental value of 943 K.15 Furthermore, we demonstrated from the P–T diagram that TC was gradually increased as pressure increased, and therefore, the ferrimagnetic state could remain stable at higher temperatures upon higher pressure.
