Efficient artificial light-harvesting systems with gel properties formed by ion recognition

Abstract

We constructed a novel supramolecular gelator (G3) by using acylhydrazone, which exhibited excellent selectivity and ultrasensitive sensing properties toward Mg²⁺ in ethanol as well as showed excellent gelation abilities in glycol–H₂O. Meanwhile, an efficient artificial light-harvesting system (ALHS) has been successfully constructed between G3@Mg-sol or G3@Mg-gel and a hydrophobic fluorescent dye (RhB).

---

The development of fluorescent chemosensors for selective recognition of different metal ions has drawn wide attention with their instant response and simple operation, high sensitivity and selectivity.¹ Tremendous amounts of effort have been made toward the development of new fluorescent sensors for metal ions over the past few decades. At present, fluorescent probes have been researched extensively in the fields of analytical and bioimaging, as well as environmental sciences.² As an important cation in the human body, Mg²⁺ participates in a variety of physiological activities and plays a prominent role in many biological processes.³ Therefore, selective detection of Mg²⁺ ions is of particular significance to the design and synthesis of sensitive and selective sensors. However, designing reliable and sensitive analytical methods for Mg²⁺ is still a challenging subject in supramolecular chemistry.

Supramolecular gels are an interesting sort of soft material that display moderate flexibility, which readily allows them to change their shape and properties according to the external conditions, like heat, solvents, pH, light, cations/anions and oxidative/reductive reactions.⁴ The key to gel formation is the self-assembly of the low molecular weight gels (LMWGs), interconnected via a variety non-covalent interactions, such as hydrogen bonding, van der Waals interactions, π–π forces, metal coordination and hydrophobic effects.⁵ These excellent properties offered supramolecular gels extraordinary ability to act as smart materials, which has kept on attracting substantial research interest for promising application prospects in tissue engineering, microfluidic devices, chemosensors, drug delivery, optoelectric devices, smart films and biomaterials etc.⁶

Inspired by photosynthesis in nature, artificial light-harvesting systems (LHSs) can be constructed, which rely on the Förster resonance energy transfer (FRET) processes from donor to acceptor for harvesting, funneling and utilizing light energy.⁷ In order to achieve an artificial supramolecular LHS, two key factors are considered for an efficient FRET system: (1) the emission spectra of the donor fluorophore must overlap well with the absorption spectrum of the acceptor fluorophore; and (2) the donor and acceptor should be close to each other (within 10 nm).⁸ Li and Yang et al. constructed artificial light harvesting systems based on lower-rim dodecylmodified sulfonatocalix arene (SC₄AD) and a naphthyl-1,8-diphenyl pyridinium derivative (NPS) with AIEE as a donor and Nile blue (NiB) as an acceptor. Meanwhile, the NPS–SC4AD–NiB system exhibits an ultrahigh antenna effect (33.1) at a donor/acceptor ratio of 250 : 1.⁹ Yang and co-workers reported a dual-donor (TPE-containing metallacycle 3 and DSA-containing dinitrile guest 4) supramolecular artificial LHS through host–guest interactions, metal–ligand coordination interactions and hydrophobic interactions. Remarkably, the dual-donor artificial LHS exhibited higher energy transfer efficiency and antenna effects.¹⁰

In this work, we proposed and reported a structurally simple and novel gelator (G3, Scheme 1) based on our previous literature.¹¹ The gelator G3 could self-assemble to form a supramolecular gel G3–gel in glycol and water solvents that showed excellent selectivity and sensitivity for identifying Mg²⁺. Based on the above characteristics, we designed two novel efficient artificial light-harvesting supramolecular assembly systems with G3@Mg-sol and RhB, G3@Mg-gel and RhB.

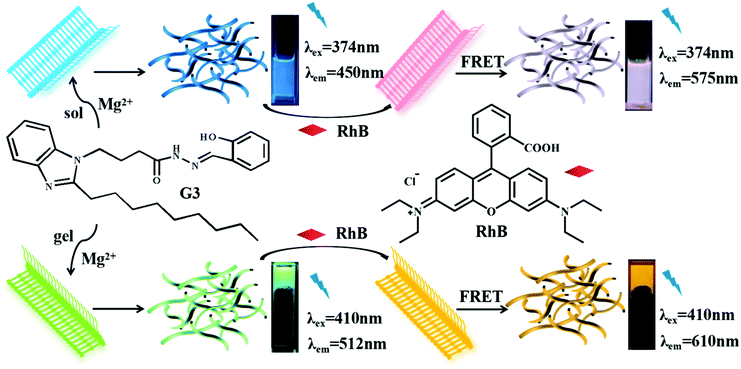

Scheme 1 Construction of the G3@Mg-sol/RhB and G3@Mg-gel/RhB light-harvesting system.

The response properties of G3 in ethyl alcohol were researched by adding positive ions: K⁺, Na⁺, Mn²⁺, Ni²⁺, Pb²⁺, Cd²⁺, Co²⁺, Zn²⁺, Hg²⁺, Cr³⁺, Mg²⁺, Cu²⁺, Fe³⁺, Al³⁺ and Ag⁺ by fluorescence spectra. Only Mg²⁺ could induce the fluorescence intensity of G3 to turn on obviously. As depicted in Fig. 1a, gelator G3 showed a faint blue fluorescence emission at 450 nm in the ethanol medium. However, the addition of Mg²⁺ displayed a bright blue fluorescence and led to a distinct increase in the corresponding emission intensity, but the concentration increases of other positive ions couldn’t trigger any significant changes in the fluorescence spectrum when excited at 374 nm. Interestingly, Al³⁺ causes fluorescence enhancement on the emission intensity compared with the primitive emission spectrum. But, the emission peak at 450 nm was significantly weakened as time goes by, as illustrated in Fig. 1c. Simultaneously, the emission peak was slightly enhanced when Mg²⁺ was added under the same conditions above, as illustrated in Fig. 1d. Therefore, G3 exhibited specific selectivity for Mg²⁺. The detection limit of the G3 for Mg²⁺ is 1.0 × 10⁻⁶ mol L⁻¹, which was obtained by fluorescence titrations and demonstrated high detection sensitivity for Mg²⁺. In order to understand the binding stoichiometry between G3 and Mg²⁺, the Job's plot (Fig. 1b) was revealed based on a continuous variation method. The maximum emission value appears at the mole fraction of 0.5, which exhibited that G3 and Mg²⁺ formed a 1 : 1 ligand–metal complex. According to the IR spectra (Fig. S4, ESI†), the binding mode between the G3 and Mg²⁺ was investigated. In the IR spectrum of G3, the peaks at 3182 cm⁻¹ and 3066 cm⁻¹ were ascribed to the phenol –OH and –NH stretching, respectively. It was found that the peak would move after Mg²⁺ binding, indicating that the phenol O and imino N atoms complexed with Mg²⁺. And, we hypothesized the possible luminescence mechanism of the G3@Mg-gel in Fig. S5 (ESI†). In order to study the self-assembly driving forces of G3 and G3@Mg-sol, X-ray diffraction analysis was carried out. The XRD patterns of G3@Mg-gel (Fig. S6, ESI†) showed a characteristic peak at 2θ = 28.806 with d-spacings of 0.31 nm, supporting the presence of π–π stacking. The gelator G3 and G3@Mg-gel showed d-spacings of 1.639 nm and 1.82 nm at 2θ = 5.384° and 5.41° in addition to remarkable π–π interactions. These results show that the self-assembly mode of G3@Mg-gel is different from that of G3, and this is due to the coordination effect of G3 with Mg²⁺.

Fig. 1 (a) Fluorescence spectra of G3 (1 × 10⁻³ mol L⁻¹) in ethanol with different metal cations (Zn²⁺, Al³⁺, Cu²⁺, Cd²⁺, Co²⁺, Fe³⁺, Cr³⁺, Fe²⁺, Hg²⁺,Mg²⁺, Mn²⁺, Na⁺, Ni²⁺, and Pb²⁺, excited at 374 nm); (b) a Job's plot indicating the 1 : 1 stoichiometry of G3@Mg-sol (the total concentration of G3 and Mg²⁺ is 1 × 10⁻⁴ mol L⁻¹); (c) time-dependent fluorescence spectra of the G3@Al-sol complex; (d) time-dependent fluorescence spectra of the G3@Mg-sol complex.

Considering an efficient FRET system, we initially measured the emission spectrum of G3@Mg-sol and the absorption of RhB to construct a supramolecular light-harvesting system. As demonstrated in Fig. 2a, the fluorescence emission of the G3@Mg-sol complex overlaps well with the absorption band of RhB, ensuring that efficient FRET occurs. Hence, an efficient light-harvesting system (G3@Mg-sol/RhB) is expected to occur when RhB could be loaded into the G3@Mg-sol assembly. Actually, as shown in Fig. 2b, with the increase of the ratio [G3@Mg-sol]/[RhB] from 1000 : 1 to 100 : 1, the fluorescence emission of G3@Mg-sol at 450 nm decreased gradually, and the emission intensity of the RhB at 575 nm increased obviously when excited at 374 nm. Simultaneously, a remarkable color change was observed from blue to pink by the naked eye (Fig. 2b, inset). The fluorescence decay of G3@Mg-sol was fitted by a double-exponential decay with the fluorescence lifetime of τ1 = 0.51 ns and τ₂ = 2.43 ns (Fig. S7 and S8a, ESI†). In the G3@Mg-sol/RhB assembly, the fluorescence lifetimes changed into τ₁ = 2.31 ns followed a double exponential decay (Fig. S7 and S8b, ESI†). Furthermore, the fluorescence quantum yield of G3@Mg-sol/RhB was 15.46% (Fig. S9, ESI†), probably due to efficient energy transfer to RhB rather than direct emission of G3@Mg-sol. In addition, the energy transfer efficiency (ΦET) and antenna effect (AE) are primary empirical parameters for evaluating the performance of such artificial light-harvesting systems. In particular, the ΦET and AE of G3@Mg-sol/RhB were calculated as 44.9% (Fig. S11, ESI†) and 5.3 (Fig. S12, ESI†) at the donor/acceptor molar ratio = 50 : 1. Such results demonstrate that the G3@Mg-sol/RhB is an efficient light harvesting system.

Fig. 2 (a) Normalized absorption and emission spectrum of G3@Mg-sol, and absorption spectrum of RhB. (b) Fluorescence spectrum of G3@Mg-sol/RhB ([G3@Mg-sol] = 1 μM, [RhB] = 0.02 μM) in ethanol and water with different concentrations of RhB (Inset: photographs of G3@Mg-sol and G3@Mg-sol/RhB).

Initially, we researched whether the gelator is able to assemble gels in various solvents (Table S1, ESI†). The compound G3 was added to diverse solvents, the mixed solution was heated until it dissolved, then was left standing and cooled to room temperature, forming a stable gel. The gel characteristics of compound G3 were examined according to the inverted tube method. Among these solvents, it's worth noting that gelator G3 could self-assemble into a stable supramolecular gel G3-gel in ethylene glycol and aqueous solution (volume ratio = 7 : 3) with the lowest critical gelation concentration (CGC) of 2.5% (10 mg mL⁻¹ = 1%) and the highest gel–sol transition temperature (T_gel) of about 85 °C. However, it takes about six hours to complete it, which is a long process. Besides, the G3-gel was thermally reversible (Fig. S13a and b, ESI†). Interestingly, G3 showed excellent gelation abilities in glycol and H₂O when Mg²⁺ was added. Compared with the G3-gel, the G3@Mg-gel exhibited a distinct fluorescence color change from pale blue (Fig. 3b) to bright green (Fig. 3c) when irradiated with UV light at 365 nm. The morphological structure of the G3-gel was further investigated by SEM (scanning electron microscopy), and a loose fibrous sheet nature was observed, as shown in Fig. S13c and d (ESI†).

Fig. 3 (a) Gelator G3, (b) G3-gel, and (c) G3@Mg-gel. Inset: Photographs of the G3-gel and G3@Mg-gel upon irradiation using 365 nm UV light.

Compared with the solution state (G3@Mg-sol), the maximum absorption of G3@Mg-gel manifested a bathochromic-shift (Fig. S14, ESI†), indicating that a J-type π–π aggregation effect exists in self-assembly. Considering the eminent luminescence performance of G3@Mg-gel, RhB as an acceptor could be loaded into the supramolecular gel to achieve efficient energy transfer, because the absorption of G3@Mg-gel overlaps with the emission of RhB (Fig. S15a, ESI†), which makes a supramolecular gel light harvesting system from G3@Mg-gel to RhB (G3@Mg-gel/RhB). As shown in Fig. S15b (ESI†), the fluorescence intensity at 512 nm decreased and a new emission peak at 610 nm appeared simultaneously with 410 nm excitation, when the acceptor RhB was added into G3@Mg-gel. The Stokes shift reached 35 nm and a remarkable color change was observed from pink to orange by the naked eye, compared with the light-harvesting system G3@Mg-sol/RhB. The decay curve of G3@Mg-gel followed a double exponential decay with a fluorescence lifetime of τ₁ = 1.18 ns and τ₂ = 6.83 ns (Fig. S16 and S17a, ESI†). In the G3@Mg-gel/RhB system, the fluorescence lifetimes decreased to τ₁ = 1.14 ns and τ₂ = 6.05 ns (Fig. S16 and S17b, ESI†). Furthermore, the fluorescence quantum yield of G3@Mg-gel/RhB was 30.66% (Fig. S17, ESI†), and the ΦET of G3@Mg-gel/RhB was calculated as 99.99% at the donor/acceptor molar ratio = 50 : 1.

In summary, we have explored and developed an efficient artificial light harvesting system with gel properties formed by ion recognition. We developed a fluorescent probe which displayed a distinct response to Mg²⁺. The G3@Mg-sol/RhB artificial light-harvesting system was successfully constructed and presented the highest fluorescence quantum yield and energy transfer efficiency at the donor/acceptor molar ratio = 50 : 1. Besides, G3@Mg-gel showed green fluorescence in glycol–H₂O under 365 nm UV light. At this optimal ratio, the artificial light harvesting system (G3@Mg-gel/RhB) exhibits better fluorescence quantum yield (30.66%) and higher energy transfer efficiency (99.99%) with G3@Mg-gel as the donor. This work associates ion recognition of the gel with light-harvesting systems.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (No. 21961029), The Natural Science Foundation of Ningxia, China (No. 2020AAC02031), Key Research Foundation of Department of Science and Technology of Ningxia, China (No. 2021BEE03019), The Science and Technology Foundation of Guyuan, China (No. 2021GYKYF003), and Research Award Fund for First-class Discipline Construction (Education Discipline) in Higher Education Institutions of Ningxia, China (No. NXYLXK2021B10), which are gratefully acknowledged.
