L-Leucine is an essential amino acid which has been focusing a lot of investigations on its phase transition sequence for more than fifty years. Combining Raman spectroscopy and X-ray diffraction experiments provides a new interpretation of the second order phase transition extending between 270 and 360 K as a displacive incommensurate-normal phase transition. A soft mode was clearly detected from low-frequency Raman investigations which exhibits the temperature dependence (A·(TC−T)1/2) typical of the temperature behavior of the amplitudon, an excitation specific to incommensurate phases. Simultaneously to the softening of the amplitudon, several very weakly intense X-ray reflections vanish upon heating at 360 K, and thereby are interpreted as satellite reflections. This incommensurability was described as resulting from the freezing of thermally activated hydrophobic side-chain rotations upon cooling in disordered orientations. Raman investigations were also performed on the isomeric amino acid L-norleucine previously identified as undergoing a normal-incommensurate phase transition around 200 K. Comparison of both studies suggests that the temperature behavior of thermally activated local motions generates lattice instabilities. Loss of periodicity can result from the freezing of rotations of molecular moieties in disordered orientations, or from the enhancement of anharmonicity of these rotations. This could be a general phenomenon in hydrophobic amino acids with direct consequences on their applications in the life science area.
Low-frequency Raman spectra were collected using a high-resolution Raman XY-Dilor spectrometer to analyze the non-polarized back-scattered light. The spectrometer is composed of a double monochromator comprising four mirrors characterized by a focal length of 800 mm and a spectrograph. The choice of experimental conditions (incident radiation, entrance and exit slit width opened at 200 μm) gives a spectral resolution of about 1 cm−1 in the 5–250 cm−1 region, with the high rejection of excitation light (the 660 nm line of a solid diode laser) making it possible to detect Raman signal from 5 cm−1. The spectrometer is equipped with a liquid nitrogen cooled charge coupled device detector. The high sensitivity of the detector and the large analyzed scattered volume (∼0.5 cm3) allow us to record low-wavenumber Raman spectra in the 5–250 cm−1 range in 120 seconds. Powder samples were loaded in spherical pyrex cells that were hermetically sealed. The temperature of the sample was regulated using an Oxford nitrogen flux device that keeps temperature fluctuations within 0.1 °C. Spectra were collected during 1 K min−1 heating ramps with an acquisition time of 60 seconds allowing the collection of 1 spectrum per degree.
High-frequency Raman investigations were performed using an InVia Renishaw Raman microscope in the 2800–4000 cm−1 region equipped with a solid diode laser emitting the 514.5 nm radiation. An achromatic lens was used for analyzing a large volume of the powder sample. The sample temperature was controlled by placing the sample in a THMS 600 Linkam temperature device. Spectra were collected during 1 K min−1 heating ramps in the same conditions as performed in the low-frequency region.
X-Ray diffraction was performed on as-received LEU powder using a Panalytical X’pert PRO MPD diffractometer. The Debye–Scherrer geometry was used, operating with the CuKα1,2 radiation selected by a hybrid monochromator. The Lindemann glass capillary (∅ = 0.7 mm) mounted at the center of the goniometer circle was rotating around the horizontal axis during the data collection in order to ensure the proper averaging over the individual crystallites. LEU powder was heated in a Hubert HTC 9634 furnace composed of a Kapton window giving a diffuse intensity to the diffraction pattern below 2θ = 7°. Consequently, the most intense Bragg peak of the diffraction pattern (detected around 2θ ∼ 6°) was omitted in the refinement procedures. The X-ray diffraction patterns collected at room temperature and at 373 K were refined using the “profile matching” option called Le Bail refinement18 of the Fullprof program19 from cell parameters given by Coll et al.20
Low-frequency Raman spectra collected upon heating L-Nle are plotted in Fig. 2. Investigations were carried out with similar conditions (Ṫ = 1 K min−1) as for L-LEU, but over a wider temperature range (120–450 K) since several phase transitions were previously observed in this temperature range.22 In the low-temperature range plotted in Fig. 2b, a sharp and weak intense band is clearly detected in the very low-frequency region below 25 cm−1, localized by an arrow at 120 K in Fig. 2a. This band is almost temperature independent up to 150 K and broadens by shifting towards the lower frequencies upon further heating, giving a significant contribution to the quasielastic scattering (localized by an arrow) at 180 K in Fig. 2a. It is the typical temperature behavior of a soft mode, which can be associated with the N–INC phase transition previously observed around 200 K.22 At higher temperatures, Fig. 2b clearly shows that the disordering progressively continues upon heating via the observation of the broadening and the downshift of the phonon peaks below 50 cm−1, giving a pronounced contribution to the quasielastic scattering. At temperatures above 400 K, no phonon peak can be longer detected, the spectrum resembling the vibrational density of states (VDOS) of a very disordered state, as recently observed in L-methionine.23
Phonon frequencies of lattice modes were determined using the fitting procedure shown in the Fig. S2 (ESI†) for L-LEU. The frequency temperature dependences of the low-frequency phonon peaks detected below 60 cm−1 are plotted in Fig. 3a and b for L-LEU and L-Nle, respectively.

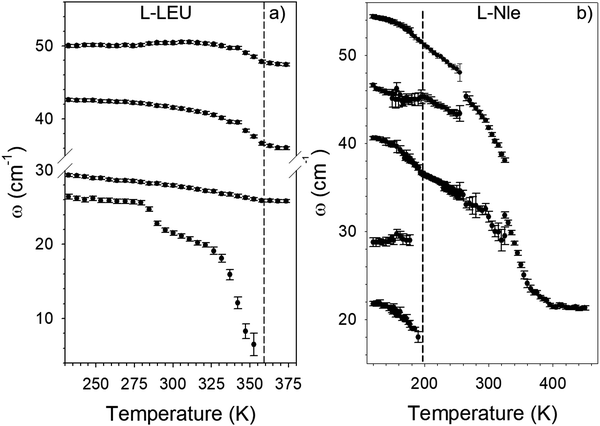

Fig. 3 Temperature dependences of lattice modes frequencies (a) in L-leucine, (b) in L-norleucine; dashed lines indicate the incommensurate – normal transition in both amino acids. |
The softening of the lowest frequency phonon is clearly observed in both compounds. Approaching the phase transition upon heating, the soft modes become a tail of the Rayleigh wing and the fit parameters of the bands (intensity, frequency and width) cannot be satisfactorily defined. Upon further heating above the phase transition, the soft modes are merging into the quasielastic scattering reflecting the local dynamics in L-LEU and L-Nle. At higher frequencies, Fig. 3 highlights a strong contrast between the temperature dependences of lattice modes in L-LEU and L-Nle, which can be also observed by comparing Fig. 1 and 2. Indeed, Fig. 3b is dominated by the strong downshift of lattice modes upon heating merging into a broad low-frequency hump observed in Fig. 2b as mimicking a VDOS of a disordered state. By contrast, lattice modes in L-LEU exhibit slighter downshifts upon heating reflecting a less marked anharmonic character than in L-Nle, probably resulting from a lesser degree of side-chain flexibility.
The very low-frequency region of Raman spectra in molecular materials is characterized by the overlapping of vibrational and relaxational contributions. The two types of motions can be separated by the fitting procedure described in Fig. S3 in the ESI† regardless of the degree of disorder. The relaxational contribution also called quasielastic scattering is associated with fast local motions that are thermally activated, generally corresponding to large amplitude rotations of groups of atoms within the molecule, and is well described by a Lorentzian peak centered at ω = 0. The temperature dependence of the quasielastic intensity is very suited for detecting order-disorder transformations. The quasielastic intensity (IQES) was obtained by integrating the Lorentzian peak after renormalization by the intensity of lattice modes in the 70–150 cm−1 region, not affected by the relaxational contribution. The IQES(T) curve is plotted in Fig. 4a for each amino acid. It can be observed in Fig. 4 that both IQES(T) curves have an exponential behavior in the same temperature range delimited by dashed vertical lines, and a linear behavior outside. This temperature behavior can be fitted between 260 and 360 K, using an Arrhenius relation Ae−Ea/RT for determining the activation energy Ea. Fitting procedures lead to Ea = 11.6 ± 0.2 kJ mol−1 for L-LEU and Ea = 8.3 ± 0.8 kJ mol−1 for L-Nle. A similar IQES(T)-curve shape was obtained in L-methionine in the same limited T-range from 260 K up to 360 K, corresponding to the disordering process characterized by a broad endotherm.23 Consequently, the heat flow trace obtained upon heating was compared with IQES(T) for L-LEU. Fig. 4b reveals a spread transformation extending over 80 K, in accordance with the previous investigations.12 The heat flow trace is typical of a broad second-order behavior, with a long tail on the low-temperature side, which can be considered as the calorimetric signature of a normal (N)–incommensurate (INC) transition observed in L-Nle22 and in A2BX4 materials.24 In incommensurate crystals, the displacive N–INC phase transition is induced by the condensation of a soft lattice vibrational mode.21,25–27 The displacive nature of the phase transition is characterized by the temperature dependence of the order parameter directly related to the amplitude of small atomic displacements.28Fig. 4b shows that the exponential behavior of IQES(T) is covering the temperature range in which both the broad endotherm and the softening of the lattice mode were observed. It is worth noting that DSC experiments performed on L-Nle22 have also revealed an extended transformation in the 250–370 K temperature range, above the N–INC phase transition at 210 K.

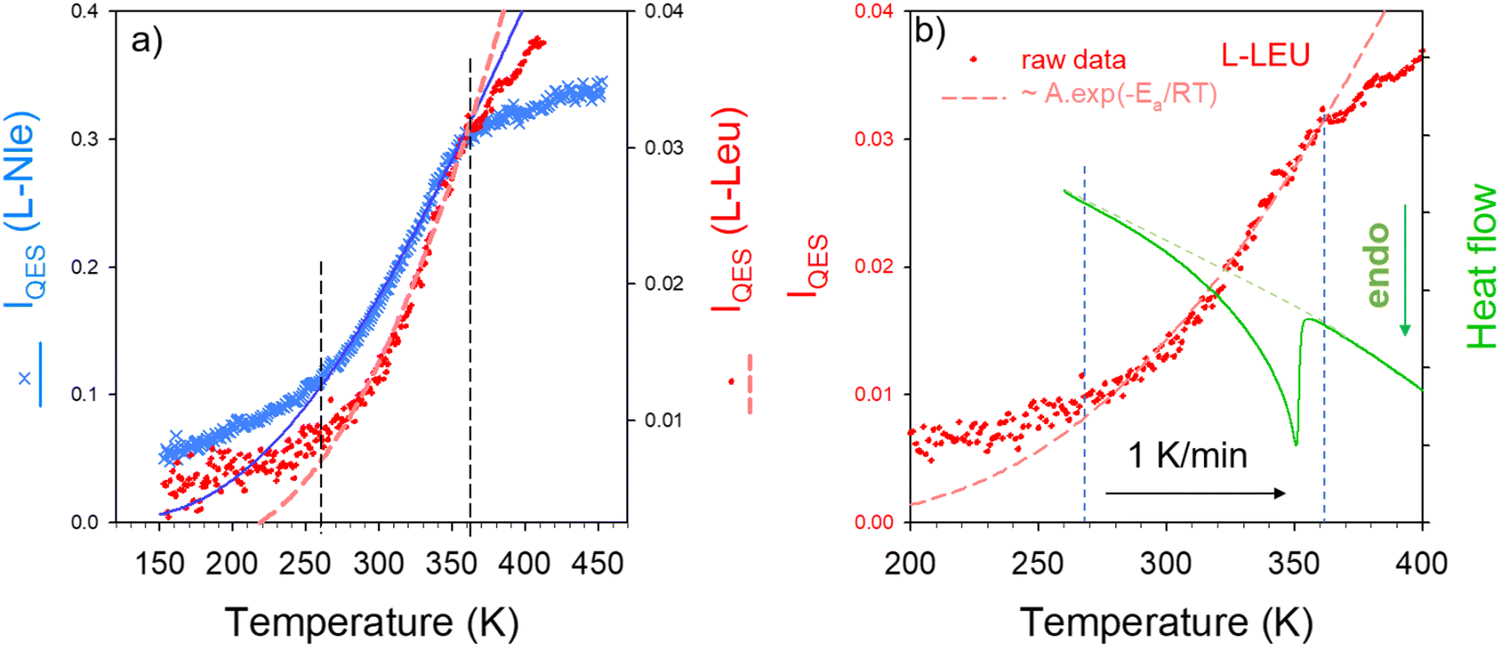

Fig. 4 Temperature dependence of the quasielastic intensity (IQES); (a) comparison of IQES(T) in L-LEU and L-Nle, (b) comparison of IQES(T) with the heat flow trace in L-LEU. |
The temperature dependence of the quasielastic intensity is considered as proportional to that of mean square displacements 〈u2〉 of rigid groups of atoms including local protein side-chain motions.29 This indicates that there is a direct connection between the extended phase transition and the thermal activation of hydrophobic side-chain motions.
High-frequency Raman investigations were performed in order to analyze C–H stretching vibrations since several studies have revealed the involvement of local motions of CH3 groups in the phase transitions at low-temperatures (below 275 K) in L-LEU11 and other amino acids.23,30 These considerations have motivated the analysis of the high-frequency spectrum in the 2500–3200 cm−1 region that is usually dominated by the C–H stretching vibrations. This analysis was performed using the InVia Renishaw spectrometer in the 270–390 K temperature range. Spectra are plotted in Fig. 5a by step of 5 K. The C–H stretching region is generally temperature independent31 except on either side of a phase transition. By contrast to this behavior, Fig. 5a clearly shows a continue temperature dependence of the C–H stretching spectrum between 270 K and 360 K. The two first Raman bands located at 2869 and 2901 cm−1 exhibit two opposite temperature dependences, schematized by the arrows in Fig. 5a. The temperature dependences of these bands were carefully analyzed using a fitting procedure described in Fig. S4 in the ESI.† The frequency temperature dependencies of these bands are plotted in Fig. 5b.
The lowest frequency band (∼2869 cm−1) is characterized by a weakly positive temperature dependence of its position (dω/dT > 0) considered as the signature of H-bonding molecular associations.31 This band can be assigned to the stretching of the C–H group interacting with the oxygen atom of the neighboring molecule in agreement with X-ray diffraction data.14 Around 2900 cm−1 the frequency of the Raman band exhibits an unusual non-linear negative temperature behavior, as previously observed in L-methionine,23 much larger than that of the 2869 cm−1 band. Both bands become temperature independent above 360 K.
The large and non-linear temperature dependence of the 2900 cm−1 band observed both in Fig. 5a and b is undoubtedly related to the reorientational motions of CH3 groups, given that this band was assigned to C–H stretching vibrations in CH3 groups.13 The unusual temperature dependence of the 2900 cm−1 band for a C–H stretch was compared with the temperature dependence of the soft phonon frequency in Fig. 6. Interestingly, the temperature dependences of C–H stretch and soft mode are superimposed, indicating a close relationship between the lattice instability and reorientations of CH3 groups. Given that the fitting procedure of the soft mode fails approaching Tc, the temperature dependence of the soft mode (SM) frequency will be considered as similar to that of the 2900 cm−1 band. The temperature dependence of C–H stretching frequency was fitted with the function A·(TC−T)n in the whole 270–360 K temperature range. Fig. 6 shows that the temperature dependences of both low- and high-frequency bands are correctly described by the function (TC−T)1/2, with TC = 360 K and n = 0.51 ± 0.04. This is the typical temperature dependence of the amplitude mode, the so-called amplitudon, in incommensurate modulated phases.21Fig. 6 shows that the low-frequency mode is typical of the lattice dynamics of modulated phases, and the C–H stretching band frequency has a clear order parameter behavior for a second-order phase transition. This indicates that the normal – incommensurate phase transition is driven by the freezing of reorientational motions of CH3 groups in disordered orientations upon cooling.
High-frequency Raman investigations were also performed in the C–H stretching regions of L-Nle. Spectra collected upon heating L-Nle at 1 K min−1 from 120 K are plotted in Fig. 7a. Significant spectral modifications corresponding to the broadening and shifts of Raman bands can be easily detected. Some of them can be observed by plotting the frequency temperature dependences of C–H stretching bands in the 2930–2980 cm−1 region. The frequencies were obtained by fitting the whole C–H stretching region plotted in Fig. 7a, as performed for L-LEU. Significant downshifts are observed in the very low-temperature range (<170 K) and above 250 K, i.e. in the same temperature range as observed in L-LEU. Additionally, the downshifts of 2 bands detected above 250 K in L-Nle also correspond to a broad endothermic transformation22 but not corresponding to the INC–N phase transition. The simultaneous analysis of Fig. 3b, 4a and 7b shows that the exponential temperature behavior of IQES coincides with the drastic downshift of two C–H stretching bands and the large but incomplete softening of the 50 cm−1 lattice mode. This is the indication that thermally activated motions of CHn groups are responsible for lattice instabilities in L-Nle. The comparison of Fig. 1 and 2 shows that the degree of disorder is significantly higher in L-Nle than in L-LEU. The consequence is a very progressive ordering of CHn groups in L-Nle over a wide temperature range characterized by the freezing in disordered CHn orientations at lower temperatures than in L-LEU.

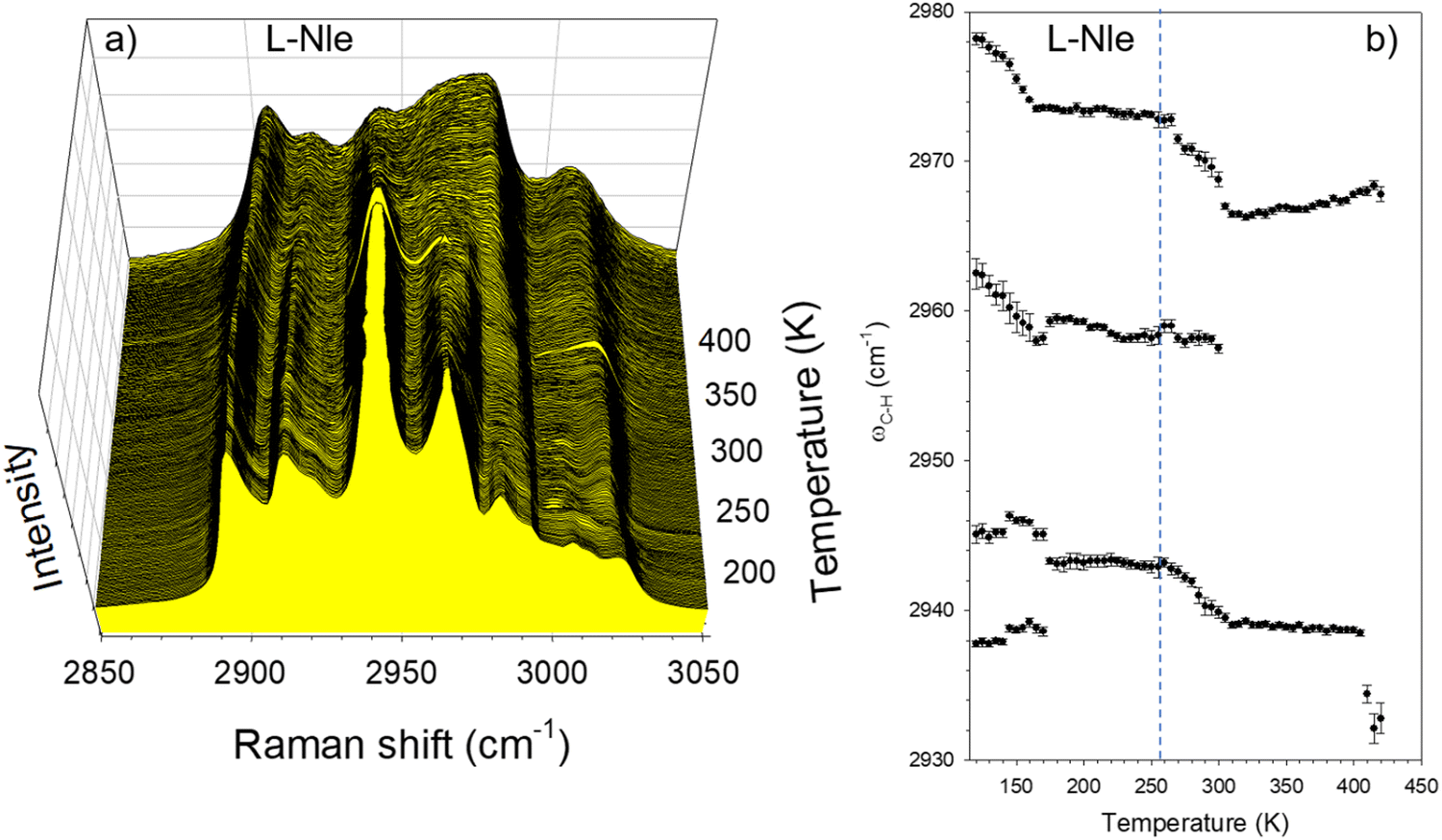

Fig. 7 Analysis of C–H stretching vibrations; temperature dependence of (a) the C–H stretching spectrum; (b) frequency of Raman bands which exhibit strong shifts. |
Additionally, consideration of results obtained on L-LEU and L-Nle and other hydrophobic amino acids from diffraction,22,30 thermodynamic12,35 and vibrational30,35 investigations suggests that ordering/disordering processes of terminal side-chain groups accompanied with lattice mode softening could be a general phenomenon in this class of materials. This type of phase transition often called displacive phase transition could be considered as a common character of this class of materials which have important and numerous applications in the area of the life sciences. Indeed, CH3 reorientations can be at the origin of phase transformations in spray-dried formulations inducing protein destabilization. Hydrophobic acids are also widely used as co-formers in co-amorphous formulations. Their stability can be impacted by rotations of methyl groups. Hydrophobic amino acids are recognized to serve as a building block in protein structure. The thermal activation of CH3 rotations could be the source of protein denaturation.
