The depletion thickness in solutions of semi-flexible polymers near colloidal surfaces: analytical approximations

Abstract

We derive a simple, yet accurate approximate mean-field expression for the depletion thickness δ_sf of a solution of dilute semi-flexible polymers next to a hard surface. In the case of a hard wall this equation has the simple form δ_sf = δ₀[1 − tanh(p_sf/δ₀)], where p_sf accounts for the degree of flexibility and δ₀ is the depletion thickness in the case of fully flexible polymers. For fixed polymer coil size, increasing the chain stiffness leads to a decrease in the depletion thickness. The approach is also extended to include higher polymer concentrations in the semidilute regime. The analytical expressions are in quantitative agreement with numerical self-consistent field computations. A remarkable finding is that there is a maximum in the depletion thickness as a function of the chain stiffness in the semidilute concentration regime. This also means that depletion attractions between colloidal particles reach a maximum for a certain chain stiffness, which may have important implications for the phase stability of colloid–polymer mixtures. The derived equations could be useful for the description of interactions in- and phase stability of mixtures of colloids and semi-flexible polymers.

---

1 Introduction

Non-adsorbing polymers induce a net attraction between colloidal particles, often termed the depletion interaction. Upon exceeding a particular polymer concentration, the depletion interaction can lead to phase separation of colloid–polymer mixtures into polymer- and colloid-rich phases.^1,2 This phase separation is often unwanted in colloid–polymer mixtures, such as paints and food emulsions,³ but can be used beneficially in for example the shape and size selection of synthetic colloids⁴ and the fractionation of proteins.^5,6

The depletion interaction originates from the fact that polymers have less configurational entropy close to a surface,⁷ leading to so-called depletion zones,⁸ which are regions near surfaces that are depleted of polymer. When two depletion zones of adjacent surfaces overlap, an unbalanced osmotic force between the colloidal particles pushes them together,^7–9 indicating the non-adsorbing polymers induce an effective attraction between the colloidal particles, even though all interactions in the system are purely repulsive.

To quantify the depletion interaction and the resulting phase behavior, the depletion thickness is an important parameter. It quantifies the negative adsorption near a surface and is defined as δ = −Γ/φ_b, where Γ is the adsorbed amount and φ_b is the bulk polymer concentration. The depletion thickness depends on the polymer segment density profile near the colloidal particles. These polymer segment density profiles may be calculated for instance using computer simulations,^10,11 numerical computations^12–14 or analytical approximations.^15–17 Eisenriegler¹⁵ showed that for ideal polymers the depletion thickness is close to the polymer radius of gyration R_g: . In contrast, de Gennes¹⁷ showed that in the semidilute polymer concentration regime, the depletion thickness is only a function of the bulk polymer concentration and the solvent–monomer interactions. Fleer et al.¹⁸ connected these limits and derived an expression that provides a smooth cross-over between the dilute and semidilute concentration regimes.

The results mentioned hold for flexible polymers only, in which the monomer size l is equal to the Kuhn length b. In practice, though, most polymers exhibit some form of intrinsic chain stiffness, which increases the effective Kuhn length of the polymer segments and in turn enlarges the radius of gyration of the polymer.^19,20 Additionally, because of the intrinsic stiffness, semi-flexible polymers have less configurational entropy compared to fully flexible polymers.²¹ This may suggest that due to the entropic nature of depletion, chain stiffness possibly affects the polymer segment density profiles and the resulting thickness of the depletion layer. This hypothesis was previously confirmed by Yamazaki et al.²² in an experimental system comprising fumed silica particles and either flexible or semi-flexible polymers. They found that the phase stability strongly depends on the chain flexibility. A notable effect was that a higher polymer concentration is required to induce phase separation in the case of polymers with a larger chain stiffness, i.e., stiffer chains with a comparable radius of gyration are less effective depletants. They argued that this flexibility dependence is attributed to the entropy difference between a flexible and semi-flexible polymer, causing a decrease in the strength of the depletion interaction. Numerous other studies confirmed the chain stiffness dependence of the depletant efficiency.^23–28

This raises the question: what is the effect of chain stiffness on the depletion thickness of polymer solutions? Ausserré et al.²⁹ used geometrical arguments to derive that the depletion thickness of a solution of semi-flexible polymers δ_sf has the following form: δ_sf = δ₀ − b, where b is the effective (Kuhn) segment length. The depletion thickness of a solution of semi-flexible polymers is thus smaller than a solution of flexible polymers by an amount of the order of the Kuhn length b. Later work by Lue,³⁰ who derived a Padé approximation between the excluded volume of a flexible polymer and a stiff needle around a sphere, showed that the excluded volume between a polymer and a sphere is smaller for stiffer polymers if the radius of gyration is kept constant.

The study presented here is motivated by the following observations: both the theoretical treatment of Ausserré et al.²⁹ and Lue³⁰ are derived for dilute polymer solutions only, while the concentration effects in the semidilute regime play an important role in the depletion thickness.¹⁸ Additionally, as shown in Appendix A, even though these theoretical approaches are qualitatively insightful, they are quantitatively inconsistent with numerical self-consistent field (SCF) computations. Furthermore, although the density profiles and depletion thickness for semi-flexible polymers can be computed using numerical self-consistent field theory,^13,31,32 analytical expressions are useful to estimate other physical properties such as the surface tension^17,33 and phase behavior of colloid–polymer mixtures.^2,8 Additionally, it may for instance, yield analytical expressions of the depletion attraction between both flat walls and spheres,⁸ and the friction coefficient of colloidal particles diffusing through a semi-flexible polymer solution.^34,35

Hence in this paper, we aim at finding generalized analytical expressions that enable the quantification of the effect of chain stiffness on the depletion thickness of polymer solutions in both dilute and semidilute concentrations near a flat wall and a spherical colloidal surface. The central concept of the derivation is based on the mapping of known continuum expressions on a lattice theory for semi-flexible polymers. The analytical results obtained are compared to numerical SCF computations, which are performed using the Scheutjens–Fleer formalism.^12,13 All results shown are for a θ-solvent, but they can be generalized to a good solvent using straightforward extensions^18,36 as demonstrated in Appendix C. Furthermore, all length-scales are given in units of the the bond length l.

The outline of this manuscript is as follows. In Section 2, we explain the lattice-based self-consistent field theory for semi-flexible chains, which is used as a starting point for our derivation but is also used to compare our results. We introduce the propagators for a lattice chain with variable stiffness, which are later used to derive boundary conditions for the analytical approximation. In Section 3 analytical expressions are derived using the lattice model equations and a continuum theory for the polymer segment density profiles. In Section 4, the results of our approximate theory are compared with numerical self-consistent field computations and discussed. Finally, the main conclusions are summarized in Section 5.

2 Theoretical background

2.1 Self-consistent field theory

The theoretical treatment presented here was first described by Leermakers and colleagues³¹ and later expanded upon by Wijmans et al.³² It must be noted that it is a mean-field theory, which implies that the polymer chains in the bulk behave as ideal Gaussian chains. For a θ-solvent this is correct, however, for good-solvent conditions fluctuations are not accurately accounted for. The scaling exponents obtained from SF-SCF thus differ from refined field-theoretical methods such as renormalization group theory.^18,37

We focus on a mixture composed of semi-flexible homopolymers and solvent molecules near a hard wall. Concentration gradients are accounted for in a single direction only. The lattice consists of M layers of thickness equal to the monomer length l. Let z denote the layers as z = 1, 2, 3,…, M. The solvent molecules have the same size l and volume l³ as the monomers. A surface is placed in the boundary layer next to the first layer at z = 0. Let λ₀ be the fraction of nearest neighbor contacts in the same layer and λ₁ be the fraction of nearest neighbor contacts in the next or previous layer, so λ₀ + 2λ₁ = 1. The polymer statistics as shown here are for a flat geometry, but extensions towards spherical geometry are straightforward.¹³

2.1.1 Potential field. A lattice polymer chain is composed of N segments, each with ranking number s = 1, 2, 3,…, N. The statistical weighting factor of segment s in layer z is simply the Boltzmann weight due to the potential experienced by the segment in that layer:

G(z) = e^−u_z, (1)

where u_z is the potential in layer z in units of k_BT. For a polymer in a monomeric solvent this potential follows from Flory–Huggins theory as:^1,12,13where χ_s is the adsorption energy, supplemented with a Kronecker delta to ensure that only in the first layer the adsorption energy is applied, χ is the Flory–Huggins interaction parameter between the solvent and segment, and φ_b is the volume fraction of polymer segments in the bulk solution. We follow the convention of Fleer et al.³⁸ and define the adsorption energy to be positive for repulsion and negative for attraction. The quantity 〈φ_z〉 is defined as the contact fraction:^1,12 〈φ_z〉 = λ₁φ_z−1 + λ₀φ_z + λ₁φ_z+1. The potential u_z has a direct effect on the statistics of the polymer chain, which will be treated in the next section.

2.1.2 Polymer statistics. Consider segment s to be positioned on a cubic lattice and connected to segment s − 1. Let j = −1, 0, 1 identify the direction on the lattice: j = −1 for a direction on the lattice from z to z − 1, j = 0 for the four directions within the same layer z and j = 1 for the direction from z to z + 1. Three coupled step-weighting probabilities, P_f, P_b and P_p, corresponding to a forward, backwards and perpendicular step, are defined for each direction. These weighting probabilities are coupled as P_b + 4P_p + P_f = 1. For lattice polymer chains with finite stiffness the backfolding weighting probability P_b is zero.³² Thus, all conformations of the polymer chain where backfolding occurs are excluded. Wijmans et al.³² derived that for a cubic lattice, the Kuhn length b of a polymer composed of segments with length l is related to P_f through:where l_K is the (normalized) Kuhn length of the polymer. Eqn (3) has the limiting values of l_K → ∞ for P_f = 1 and l_K = 1 for P_f = 0, hence, finite semi-flexibility can be mimicked for 0 < P_f < 1.

To include the directionality into a recurrence relation, the statistical weights G(z,s,j|1) and G(z,s,j|N) are introduced. In G(z,s,j|1) the variable j is the direction from segment s to s + 1, thus G(z,s,j|1) is the probability to find segment s in layer z that will make a step in the direction j. In contrast, in G(z,s,j|N), j is the direction from segment s + 1 to segment s. Consequently, G(z,s,j|N) is the probability to find segment s in layer z coming from the direction j. On a cubic lattice, the end-segment probability is the average over all six directions j:¹³

The propagator for a segment s that will make a step in the direction of j is given by a second-order Markov approximation:^32,39with starting condition G(z,1,j|1) = G(z). If one starts from the other side of the chain, it is important to realise that now j is defined as the direction from s + 1 to s. This creates an asymmetry in the propagators because in G(z,s,j|1) the directionality is between segment s − 1, s and s + 1 (j is the direction from s to s + 1) and G(z,s,j|N) the directionality is between segment s, s + 1 and s + 2 (j is from s + 1 to s). Starting with G(z,1,j|N) = G(z), the propagator for G(z,s,j|N) becomes:^32,39The volume fraction profiles of segment s and the polymers can be found using the composition law:^13,31,32where C is a normalization constant equal to φ_b/6N. Summing over all segments s the local polymer segment volume fraction is obtained at layer z. The self-consistency of the theory now also becomes clear; the segment potentials depend on the volume fractions, and the volume fractions also depend on the segment potentials, thus creating a set of equations that should be solved in a self-consistent way.

2.2 Self-consistent field computations

The equations presented in the previous section are solved numerically using the sfbox software package. As initial conditions, the polymer bulk volume fraction, i.e., the volume fraction located somewhere in the bulk, outside of the lattice, is chosen. Additionally, the monomer-solvent interaction parameter χ, the adsorption energy χ_s, the number of monomers N, and the forward probability P_f are set. In this paper, we only considered a θ-solvent, for which χ = 0.5 and used a cubic lattice for both a flat and spherical geometry, where λ₁ = 1/6. The free energy of the system is then minimized using an iterative scheme, yielding the partition function of the polymers and subsequently giving the equilibrium volume fractions at each lattice layer z. The SF-SCF calculations slightly depend on the lattice chosen⁴⁰ and one may choose to use a different lattice parameter. However, the equations presented must then be adjusted, as the transition probabilities and the relation between the Kuhn length and the forward probabilities are dependent on the lattice parameter.

3 Analytical approximation for semi-flexible polymers

In this section we derive analytical approximations for the segment density profile and depletion thickness of a solution of semi-flexible polymers near a non-adsorbing surface. This is done by combining the lattice theory presented in the previous section with a modified analytical expression for the segment density profile of solutions of flexible polymers.

Fleer et al.¹⁸ showed that the normalized polymer segment density ρ = φ/φ_b of a dilute solution of depleted flexible polymers can be described accurately by ρ(z) = tanh²(z/δ₀), where is the depletion thickness and z is now a continuous variable describing the distance from the surface in units of the bond length l. Using the argument that more stiff polymers have less configurational entropy to start with,^21,41 the relative entropy loss due to the non-adsorbing surface is smaller for stiffer polymers. We thus expect that the inhomogeneous part of the density profiles shifts closer to the surface upon increasing the chain stiffness. To account for this, we hypothesize that the segment density has the approximate form: ρ(z) = tanh²[(z + p)/δ₀], such that the density profile is effectively shifted towards the surface over a length p (where p is units of the bond-length l). This is similar to the form that was proposed by Ausserré et al.,²⁹ where they used p = l_K. In the following section, we derive an analytical expression for p by mapping the proposed continuum expression on the lattice theory through boundary conditions at the surface.

3.1 Lattice boundary condition for semi-flexible chains

Consider a polymer segment in the layer next to the surface. After letting the probabilities of terms which contain a direction from or towards the surface go to 0, and excluding all terms in which a segment is contained within the wall (z = 0), we obtain from eqn (4) and (5):As noted by Leermakers et al.³¹ and Fleer et al.,¹³ in SCF a system of sufficiently long semi-flexible chains with N monomers of size l can be approximated by a system of re-scaled flexible chains with N_K monomers of size b. This approximation implies that the statistical weights in eqn (8) can be approximated by the statistical weights of a re-scaled flexible chain, where the lattice spacing is now equal to the Kuhn length b. In normalized units l_K = b/l this yields:where G(l_K,N_K|1) is the propagator for a polymer segment at a normalized distance l_K from the surface. In principle this approximation is not accurate, as it does not hold in the region with a large concentration gradient, such as close to the surface.³⁹ However, we can assume that it is sufficiently accurate, as it allows us to obtain a continuum expression for the boundary conditions, which can be solved analytically. Subsequently, we propose a modified analytical expression for G, which yields an analytical expression for the statistical weights and therefore concentration profile of a solution of semi-flexible polymers at a hard wall.

Some further simplifications are needed to obtain a continuum expression. Sufficiently long chains are assumed such that N_K ≈ N_K − 1; together with 4P_p + P_f = 1 and eqn (3) we obtain the boundary condition:

The lattice boundary condition can be translated to a continuum expression as:^38,42Similarly from the propagator for G(1,s|N) we obtain:where g_i is the continuum expression for the statistical weight of a polymer with N_K segments with size l_K, and the subscripts 1 and N denote that these functions correspond to a solution with either one of the boundary conditions. In a ground-state approximating manner^13,18,38,43 we use g_i(z) ≈ tanh[(z + p)/δ₀].

The solutions which satisfy these boundary conditions, g₁ and g_N, are coupled. In a ground-state approximation the composition law is given by ρ(z) = g(z)²; combining this with the lattice composition law for semi-flexible chains, eqn (7), we find that we can approximate g(z)² as g_N(z)g₁(z). Thus the ground-state composition law for a solution of semi-flexible chains then becomes:

ρ(z) = g(z)² ≈ g_N(z)g₁(z), (13)

which couples eqn (11) and (12). The functions g(l_K) and g(2l_K) require special consideration. When a continuum model is mapped on a discretized space, the correct values for z = l_K and z = 2l_K are found when shifted half a bond length: z = l_K/2 and z = 3l_K/2.^18,38,42 When mapping the continuous functions within the lattice boundary conditions, these values for z are used.

3.2 Concentration profile at a flat wall for dilute conditions

An explicit expression for the density shift length p can be obtained by solving the boundary conditions derived in the previous section. The central assumption in this section is that entropic effects dominate the shape of the depletion concentration profile of semi-flexible polymers. These entropic effects are entirely described by the chain statistics as obtained from the boundary conditions, equations eqn (11) and (12). This assumption allows us to neglect the potential u from the boundary conditions and obtain a density shift length that accounts only for the stiffness of the polymer. In other words, we assume that the density shift length derived from the boundary conditions for u = 0 holds for all u > 0.

Starting with g_i(z) = tanh[(z + p_i)/δ₀] and introducing the parameters p₁ and p_N, corresponding to the density shift lengths obtained from either one of the boundary conditions, and using u = 0 in equations eqn (11) and (12) yields:

Assuming p ≪ δ₀, such that we may approximate tanh(x) ≈ x and solving for p₁ and p_N gives:As a final step, p₁ and p_N are connected through the adjusted composition law at z = 0 as given in eqn (13). Again assuming p₁,p_N,p ≪ δ₀ and approximating tanh(x) ≈ x provides:

p² ≈ p₁p_N. (16)

Because p₁ < 0 and p_N > 0 for all l_K, p is complex valued. To account for this we define p_sf = |p|, where p_sf denotes the overall density shift length. Using eqn (15a) and (15b) gives the final (real-valued) expression for p_sf (in units of the bond length l):The polymer segment density profile for a solution of semi-flexible chains then becomes:where with R_g the radius of gyration (in units of the bond length l) of a re-scaled Kuhn polymer . The length scales R_g and l_K = b/l are schematically shown in Fig. 1; here the chain stiffness is varied at a constant R_g; which is achieved by decreasing the number of monomers.

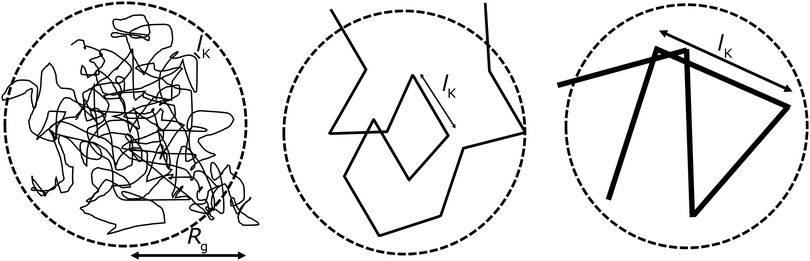

Fig. 1 The two relevant length scales for semi-flexible polymers; the radius of gyration R_g and the Kuhn length l_K (in units of the monomer length l). The radius of gyration is kept constant while the Kuhn length increases from left to right.

Because p_sf is a positive quantity the concentration profile is shifted closer to the surface, as p_sf increases with increasing chain stiffness. Effectively, this results in a smaller depletion layer for stiffer chains. An analysis of the limiting behavior of eqn (17) reveals that it converges towards p_sf = l_K/2–3/2 for large Kuhn lengths and p_sf = 0 for l_K = 1. Thus, the theory is consistent with the theory for flexible polymers;^16,18 in the limit of l_K = 1, ρ(z) = tanh²(z/δ₀) is recovered.

3.3 Depletion thickness at a flat wall in dilute conditions

From the continuum concentration profile obtained with eqn (18), an expression for the depletion thickness of a solution containing semi-flexible polymers at a flat wall can be derived. The depletion thickness is given by:¹⁸Insertion of eqn (18) for ρ(z) and carrying out the integration of eqn (19) yields the following expression for the depletion thickness of a solution of semi-flexible chains:which is valid for dilute polymer solutions.

3.4 Generalized depletion thickness

The depletion thickness as shown in eqn (20) is only valid for dilute conditions. Fleer et al.^18,44 derived a generalized (mean-field) expression for the depletion thickness δ_g which applies to the entire concentration range, including semidilute polymer solutions:withwhere ξ is the (bulk) correlation length in units of the bond length l, and k is a numerical constant:

In order to obtain an expression for the correlation length for a solution of semi-flexible chains we apply a Kuhn model approach. The correlation length can be regarded as the size of a blob.^17,18 Let N_B be the number of segments inside this blob, the (mean-field) size of this blob is then . If we introduce chain stiffness and apply the Kuhn model, we can calculate the number of Kuhn segments in this blob: N_B,K = N_B/l_K. The size of the blob then becomes with ξ_sf the re-scaled blob size. We can write this as:

This expression for the bulk correlation length of a semi-flexible polymer solution ξ_sf is similar to the bulk correlation lengths as derived by Shimada et al.⁴⁵ and Marques et al.⁴⁶ using random phase approximation theory. These authors found the same (l_K)^1/2 dependence of the bulk correlation length.

Rewriting eqn (21) and applying eqn (20) yields an expression for the depletion thickness of a solution of semi-flexible chains:

which predicts the depletion thickness over the complete range of polymer segment volume fractions.

3.5 Extension to spheres

Eqn (18) describes the density profile of a solution of semi-flexible polymers next to a non-adsorbing wall. An extension towards the depletion profile around a sphere can be made using a similar approach. Two research groups independently found the concentration profile of an ideal, flexible chain near a sphere with radius a, where a is in units of the bond length l:^16,47where κ(z) is defined as

κ(z) = 2Ψ(y) − Ψ(2y), (27)

with y = z/R_g and Ψ(y) is given bywhere z is now the distance from the surface of the sphere. Fleer et al.¹⁸ showed eqn (26) can be accurately approximated with the following expression:In the limit of a flat plate (a → ∞) eqn (29) reduces to ρ(z) = tanh²(z/δ₀). Using the Ansatz that, as for the ideal case, the density profile shifts by a length p_sf, we propose the density profile of a solution of semi-flexible polymers around a non-adsorbing sphere of radius a is given by:

3.5.1 Depletion thickness around a sphere. Using the segment density profile around a sphere we can obtain an expression for the depletion thickness around a sphere. Similarly to the depletion thickness at a flat wall, in a spherical geometry, the negative adsorption again gives the depletion thickness. The depletion thickness for a solution of semi-flexible polymers around a sphere (δ_s,sf) then follows from:^8,18No closed-form solution that we know of exists for this integral, but it can be approximated as elaborated in Appendix B. The depletion thickness of a solution of semi-flexible polymers near a colloidal sphere of radius a then becomes:where Li₂ is the dilogarithm defined as . The depletion thickness around a sphere has the limiting value of 1 + δ₀²π²/(4a²) + 3δ₀/a for l_K = 1, which is the same result as obtained by Fleer et al.¹⁸ for a solution of flexible chains. In their paper it was noted that this result is approximate. Aarts et al.⁴⁸ derived the depletion thickness around a sphere for a flexible chain (l_K = 1) using the full expression given in eqn (26). They obtained an equation that has nearly the same limits as eqn (32), the difference is in the numerical pre-factor of the third term, which is a factor π/3 smaller. We incorporate this limit and obtain the following expression for the depletion thickness around a sphere:

While all the equations in this section were written in terms of δ₀, this can easily be extended towards the semidilute regime if the generalized depletion thickness is used as shown in the previous section. In that case, δ₀ is replaced by .

4 Results and discussion

4.1 Concentration profile near a flat wall

In Fig. 2 we compare the analytical expression (solid curves, eqn (18)) with numerical SCF calculations (symbols). The segment density profiles ρ(z) = φ(z)/φ_b are plotted for different Kuhn lengths as indicated, and two different values of the adsorption energy χ_s. The polymer bulk concentration φ_b was set at 10⁻⁶ (very dilute) and the radius of gyration R_g (in units of the monomer length) was fixed at 50 by varying the number of monomers N, using N = 6R_g²/(l_K) (thus varying the contour length). As can be seen, there is good agreement between eqn (18) and SCF results for a wide range of chain stiffnesses.

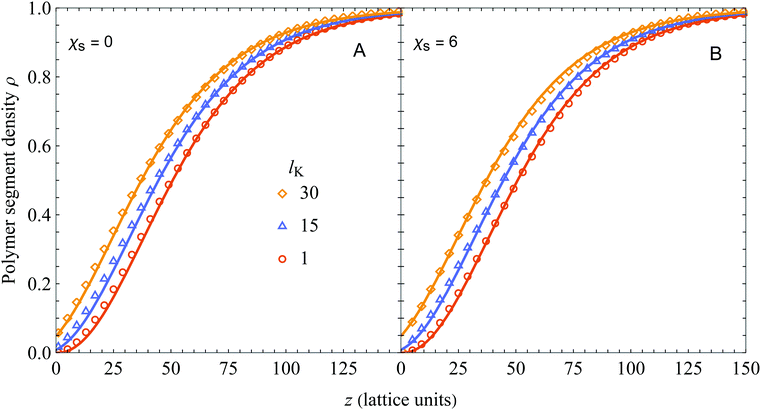

Fig. 2 Polymer segment density profile near a hard wall for polymer solutions containing semi-flexible polymer chains, with φ_b = 10⁻⁶, R_g = 50, and χ_s = 0 (A) or χ_s = 6 (B). Our result (eqn (18), solid curves) is compared with numerical SCF calculations for a Kuhn length of 1 (circles), 15 (triangles), and 30 (diamonds), corresponding to a contour length (in units of the bond length) of 15 000, 1000, and 500, respectively.

In the derivation of the continuum expression for semi-flexible chains the adsorption energy χ_s was neglected, while it is taken into account in the SCF computations. As follows from comparing Fig. 2A (χ_s = 0) and B (χ_s = 6), this assumption is accurate as χ_s hardly affects the density profiles. This observation was extensively discussed by Fleer and Skvortsov³⁸ for flexible polymers; for χ_s much larger than the critical adsorption energy χ_s,crit there is barely any effect of χ_s on the concentration profile of depleted polymers. Closer to the critical adsorption energy there is a shift towards the surface with decreasing χ_s. In principle it is possible to take this into account by defining another density shift length which depends solely on the adsorption energy, however in this work we focus on strong depletion. This observation also indicates the limitations of our presented theory: it is only valid sufficiently far away from the critical adsorption energy χ_s,crit, which was derived by Birshtein et al.²¹ as .

Lastly, since p_sf > 0 for all l_K > 1, eqn (18) predicts a relatively large segment density at the surface. Fig. 3 shows details of the layers close to the surface from Fig. 2A. As can be seen, the agreement is good for all layers, except for the first. The deviation in the first layer can be explained by realizing that the adsorption energy is neglected in deriving of the density shift length. The deviations for layer z > 1 are small because χ_s is only felt by polymer segments in the first layer. Thus, the assumption of u = 0 hardly affects the density profiles for z > 1.

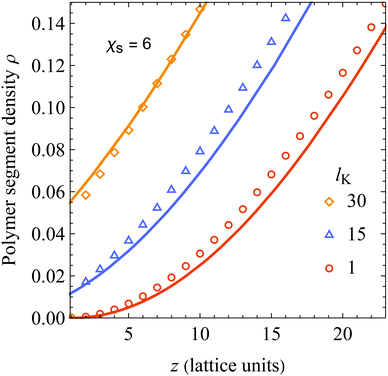

Fig. 3 A close-up of Fig. 2 A around the layers close to the non-adsorbing surface. Our analytical result (eqn (18), solid curves) is compared with numerical SCF computations for a Kuhn length of 1 (circles), 15 (triangles), and 30 (diamonds).

4.2 Depletion thickness at a flat wall

In Fig. 4 the result of eqn (20) (solid curves) is compared to SCF results (symbols) as a function of the Kuhn length for the three values of R_g indicated in the plot. In order to keep R_g constant, the contour length (number of monomers N) is varied and rounded to the nearest integer. A bulk polymer segment volume fraction of φ_b = 10⁻⁶ and an adsorption energy of χ_s = 6 was used in the SCF calculations. As is shown, there is good agreement between the analytical expression for the depletion thickness at a wall in contact with solutions containing semi-flexible chains and the results obtained from SCF. Again, as expected from the concentration profile, the depletion thickness of a semi-flexible chain is smaller as compared to a flexible chain with the same radius of gyration. In turn, the depletion thickness becomes a monotonically decreasing function of chain stiffness if the radius of gyration is kept constant.

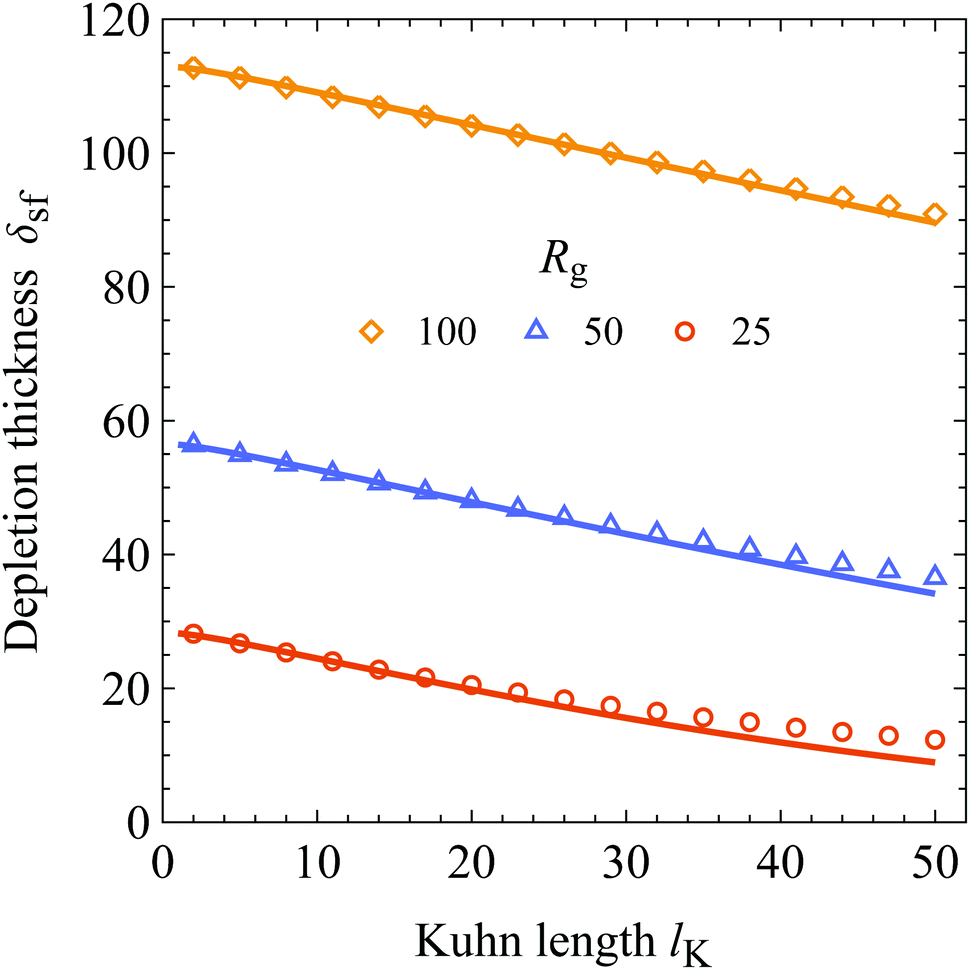

Fig. 4 Chain stiffness dependence of the depletion thickness: δ_sf is plotted as a function of the Kuhn length l_K for three radii of gyration as indicated. Parameters: χ_s = 6 and φ_b = 10⁻⁶. The solid curves follow eqn (20).

For the calculations where the polymers have a radius of gyration R_g of 25 and 50, the deviations between the predictions of eqn (20) and SCF results are small but slightly increase with increasing Kuhn length. These deviations can be explained because the number of Kuhn segments N_K becomes increasingly smaller for larger Kuhn lengths. As an example, in the case of R_g = 25 at l_K = 50, the number of Kuhn segments is N_K = 1.5. For a small number of Kuhn segments the physics of the polymer chain deviates from a statistical Gaussian chain and becomes more rigid-rod-like, which is not accounted for in continuum theories of polymer solutions. For N_K > 8 the error between the numerical SCF and the analytical theory is smaller than 5%.

4.3 Concentration dependence of the depletion thickness

In Fig. 5A we show the concentration dependence of the depletion thickness of semi-flexible polymer solutions. The generalized depletion thickness is plotted as a function of the polymer bulk concentration for various Kuhn lengths, again for R_g = 50. The symbols are results from numerical SCF computations, and the solid curves are the predictions of eqn (25). An adsorption energy of χ_s = 6 is used in the SCF calculations. The polymer bulk concentration can be converted to concentrations in terms of fractions of the overlap concentration ϕ_b using φ_b/φ_ov = ϕ_b, where φ_ov = N/(4/3πR_g³). For Kuhn lengths l_K = 1, l_K = 10, and l_K = 20 used in the Figure this corresponds to φ_ov = 0.0286, φ_ov = 0.0029, and φ_ov = 0.0014.

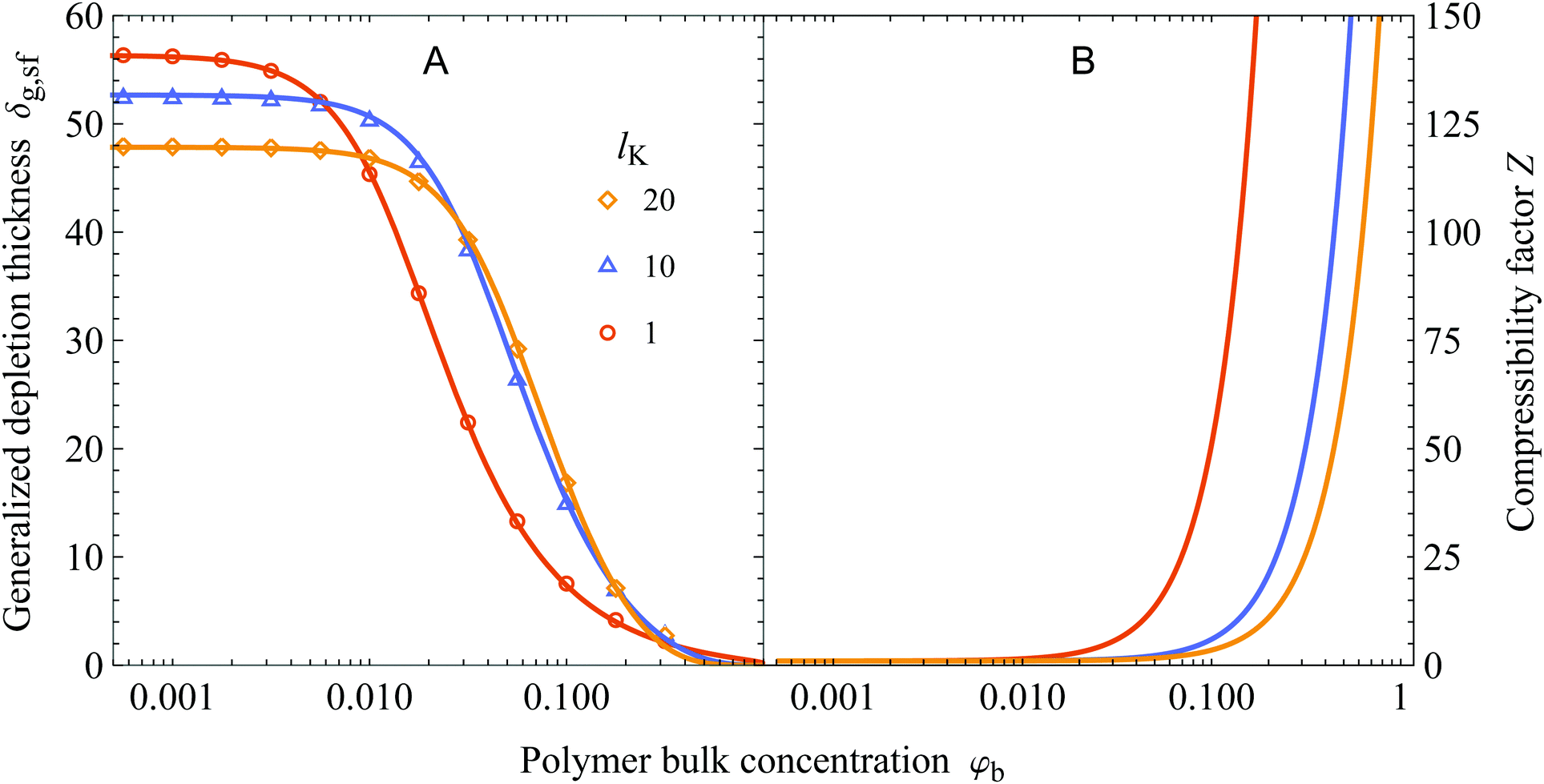

Fig. 5 (A) The generalized depletion thickness as a function of the polymer bulk concentration for a solution of polymers with a radius of gyration of 50, contour lengths of the polymers (in units of the bond-length) are 15 000, 1500, and 750 and overlap concentrations of the polymers are φ_ov = 0.0286, φ_ov = 0.0029, and φ_ov = 0.0014 for l_K = 1, 10, and 20, respectively. The symbols are numerical SCF data and the solid curves are calculated using eqn (25). (B) The compressibility factor as defined in eqn (35) as a function of the polymer bulk concentration for polymers with a gyration radius of 50.

The general observation is that increasing the polymer segment bulk concentration above a certain concentration compresses the depletion zone. This can be understood by the increase in osmotic pressure with increasing polymer segment bulk volume fraction, which pushes polymer chains towards the non-adsorbing surface.^17,18 In turn, the depletion thickness decreases. Eqn (25) is in good agreement with SCF calculations. A notable result is that increasing the chain stiffness results in a more extended concentration range where the depletion thickness is constant; the decrease of δ_g,sf shifted to higher polymer concentrations for solutions with stiffer polymer chains. Additionally, because the semi-flexible polymers have less configurational entropy, the depletion thickness is smaller in the dilute limit compared to the flexible case. These two effects result in a cross-over concentration, after which the solution containing more flexible polymers has a smaller depletion thickness than a solution with stiffer polymers.

The larger range of ‘dilute’ behavior can be explained by looking at the osmotic pressure Π of the polymer solution, which for polymer solutions in a θ-solvent is given by the approximate (mean-field) Flory–Huggins expression:^49,50

where N is the number of monomers in the polymer chain. In the dilute limit the osmotic pressure approaches the van 't Hoff limit Π₀l³/k_BT = φ_b/N. Let us now define a compressibility factor Z:For polymers with a constant radius of gyration, increasing the Kuhn length scales down the number of monomers as N ∼ R_g²/l_Kl². Therefore, Z increases more for solutions containing flexible polymers than for solutions containing stiffer polymers. This phenomenon results in a lower polymer concentration at which Z increases sufficiently to facilitate the compression of the depletion layer, which is shown in Fig. 5B.

The cross-over discussed earlier indicates the existence of a Kuhn length at which the depletion thickness has a maximum at fixed polymer bulk concentration; this is shown in Fig. 6. Here the generalized depletion thickness in the semidilute regime is plotted as a function of the Kuhn length for a bulk concentration of φ_b = 0.03 and φ_b = 0.01. We now indeed find a maximum as a function of both the polymer bulk concentration φ_b and the Kuhn length l_K. The previously mentioned effects can explain this maximum; a solution containing stiffer polymers behaves quasi-ideal up to higher concentrations because the coils are more dilute. On the other hand, because of the decrease in configurational entropy, the depletion thickness in the dilute limit is smaller for solutions containing more stiff polymers. The balance between these two effects results in a maximum of the depletion thickness. This maximum also has important implications for the interactions between colloids in colloid–polymer mixtures. The concentration dependent decrease of the depletion thickness in the semidilute regime has a major impact on the location of the triple point, as shown by Fleer et al.⁵¹ As we observed a maximum in the depletion thickness as a function of chain stiffness, one might expect that chain stiffness thus also impacts the location of the triple point. However, the specific implications of chain stiffness on the phase behavior of polymer–colloid mixtures is out of scope of this work.

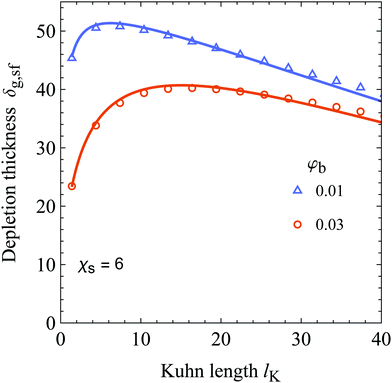

Fig. 6 The generalized depletion thickness as a function of the Kuhn length for φ_b = 0.03 and φ_b = 0.01. The radius of gyration of the polymers is kept constant at 50. The symbols are numerical SCF data and the solid curves are our analytical expression, eqn (25).

It is known that concentrated semi-flexible polymer solutions undergo an isotropic–nematic phase transition at sufficiently high chain stiffness.^45,52–54 This effect is neglected in our theory, which limits our work to polymer concentrations below the isotropic-nematic phase transition. Semenov and Khokhlov showed^55,56 that in the limit of N ≫ l_K a semi-flexible polymer solution is isotropic for φ_b ≲ 10.48/l_K. In the case displayed in Fig. 5, this corresponds to φ_b ≲ 0.5 for l_K = 20 and φ_b ≲ 1 for l_K = 10. However, semi-flexible polymers near a non-adsorbing surface also show nematic ordering close to the surface.^57–60 While this effect is also present for flexible polymers, it is much more pronounced for semi-flexible polymers with some form of intrinsic stiffness.^58,60 This confinement-based nematic ordering results in an ordered layer with a thickness on the order of the persistence length of the polymer.^57–60 Zhang et al. showed⁶⁰ that within a lattice-based self-consistent field model for semi-flexible polymers, neglecting the free energy gain of nematization through a nematic aligning potential results in an underestimation of the effective ordering parameter of the polymers. Incorporating the nematic aligning potential would thus result in a further decrease of the depletion thickness, as the polymer segment density is increased near the surface due to the ordering of the chains. While it is possible to take bond-correlations into account within the Scheutjens-Fleer SCF formalism,^32,39 it does not lead to tractable analytical equations, thus we did not include this in our theory. Nevertheless, we expect that there is qualitative agreement with models that do include the nematic field coupling of the polymer chains. Additionally, we must note that the nematic ordering of semi-flexible polymers is significantly enhanced when the polymers are confined between two surfaces, thus careful consideration of the approximate character of the presented theory must be taken into account when describing, for example, depletion interactions between two surfaces.

4.4 Depletion thickness around a sphere

Fig. 7 shows the depletion thickness around a sphere (eqn (33)) as a function of the polymer–colloid size ratio q_R = R_g/a. We compare the analytical equation (solid curves) with numerical SCF calculations (symbols). The radius of gyration of the polymers (in units of the monomer length) is R_g = 100, the Kuhn length is varied from 1 to 40, and the effects of colloidal sphere radius are scanned from a = 10 000 to a = 10, where a is again in units of the bond length l. To obtain the numerical SCF data a polymer bulk concentration of φ_b = 10⁻⁶ and χ_s = 6 was used.

Fig. 7 The depletion thickness around a sphere as a function of the polymer to colloid size ratio q_R for R_g = 100 and a variable colloidal radius a. Results are shown for l_K = 1, 10, 20 and 40, corresponding to a contour length (in units of the bond-length) of 60 000, 6000, 3000, and 1500, respectively. The solid curves are predictions of eqn (33) and the symbols correspond to results from SCF computations using a polymer bulk concentration of φ_b = 10⁻⁶.

Also, for spherical geometry, the depletion thickness decreases for solutions containing stiffer chains. In the limit of q_R → 0 the exact flat plate result is re-obtained as expected. When q_R increases, the depletion thickness decreases as a result of an increase in the number of polymer configurations near the curved surface. When the polymers are large compared to the spheres, configurations where the polymer is wrapped around the colloidal sphere are possible.¹⁶ This increase in the number of configurations results in a smaller perturbation of the polymer solutions and thus a smaller depletion thickness. Intuitively, chain stiffness also has an effect on the number of available configurations of the polymer. Remarkably, it is observed that incorporating the density shift length p_sf accounts accurately for this effect on the number of configurations, even in spherical geometry.

It can be observed that eqn (33) starts to deviate considerably from the SCF data for q_R > 2. This is due to the less accurate approach of using eqn (29) for large q_R, as noted by Fleer et al.¹⁸ and Tuinier and Lekkerkerker.⁶¹ While corrections to the concentration profile, and therefore the depletion thickness, are possible,⁶¹ they do not result in analytical equations for the depletion thickness; thus, we are satisfied with the current approximate result. We note that for polymer solutions in θ-solvents in the semidilute regime, eqn (33) overestimates the depletion thickness around a sphere up to 10% at large values of q_R. This is because the tanh(z/δ₀) approximation in eqn (29) is strictly speaking not accurate for θ-solvent conditions, as noted by Fleer et al.¹⁸ This can be corrected by replacing tanh(z/δ₀) with a more involved function, accounting more accurately for the energetic interactions between the solvent and polymer segments.

5 Conclusions

In this paper simple, yet accurate analytical expressions for the concentration profile and depletion thickness of solutions containing semi-flexible polymers near a hard flat plate and near a sphere have been derived. Using previous results for solutions of flexible polymers and surface boundary conditions derived from self-consistent field theory, we introduced a density shift length p_sf which accounts for the decrease in configurational entropy of a semi-flexible polymer. The resulting theoretical predictions quantitatively describe the segment density profiles from self-consistent field lattice computations for solutions containing semi-flexible polymer chains. The general finding was that stiffer chains lead to a decrease of the width of the depletion zone.

Using the standard definition of the depletion thickness we derived that the depletion thickness δ_sf of a solution containing semi-flexible polymers has a simple form; δ_sf = δ₀[1 − tanh(p_sf/δ₀)], with and R_g the radius of gyration of the polymers. This approach was extended towards spherical geometry with similar findings: stiffer chains in solution lead to smaller depletion zones. Also, in this case, the theoretical predictions describe the numerical SCF calculations very well, except for the case where the polymers are much larger than the spheres.

Above a certain polymer concentration the depletion thickness drops with increasing polymer concentration. We found that solutions containing stiffer polymers behave quasi-ideal (δ ≈ δ₀) over a more extended range of concentrations. Furthermore, it was shown that there is a local maximum in the depletion thickness as a function of chain stiffness in the semidilute regime. This maximum may have important implications for the phase behavior of colloid–polymer mixtures.

The mean-field treatment presented in this article is built upon the mean-field theory for flexible polymers. The latter has its limitations; both within the self-consistent field calculations and the analytical expressions fluctuations are not accounted for. This means that the scaling exponents for the correlation length differ from more accurate treatments such as scaling theory or renormalization group theory (RGT) calculations. However, the results shown here provide significant insight in the effect of chain stiffness on the depletion behavior of polymer solutions. As a next step, for good-solvent conditions, chain swelling, and fluctuations in the semidilute regime should be incorporated in the presented theory. One possible methodology is by using the correct scaling exponents obtained from scaling theory or RGT calculations.⁵¹

One of the main benefits of the new theory is that concentration effects in the semidilute regime are taken into account. Furthermore, it is entirely consistent with the theory of depletion for solutions of flexible polymers, enabling a general theoretical approach that extends towards stiffer polymer chains. A useful application of this new theory is to predict the phase behavior of mixtures of semi-flexible polymers and colloids, which we intend to work on in the future.

Conflicts of interest

There are no conflicts to declare.

Appendix

A Comparison with earlier theories

In the introduction of this paper we noted that the theories of Ausseré et al.²⁹ and Lue³⁰ are inconsistent with numerical SCF calculations. In this appendix we reproduce Fig. 4 and 7 with dashed lines that represent the expressions obtained by Ausseré et al.²⁹ and Lue,³⁰ respectively. It must be noted that Lue did not derive an expression for depletion thickness but rather for the excluded volume; Tuinier used this to obtain an expression for the depletion thickness,⁶² which is what is shown.

The first comparison is shown in Fig. 8; here the depletion thickness is plotted as a function of the Kuhn length for three radii of gyration as indicated. The dashed lines are the expression of Ausseré et al.,²⁹δ_sf = δ₀ − l_K, and the symbols are numerical SCF calculations. The SCF calculations are obtained using φ_b = 10⁻⁶ and χ_s = 6. As can be seen, the analytical approximation starts to deviate from the SCF calculations substantially at larger Kuhn lengths.

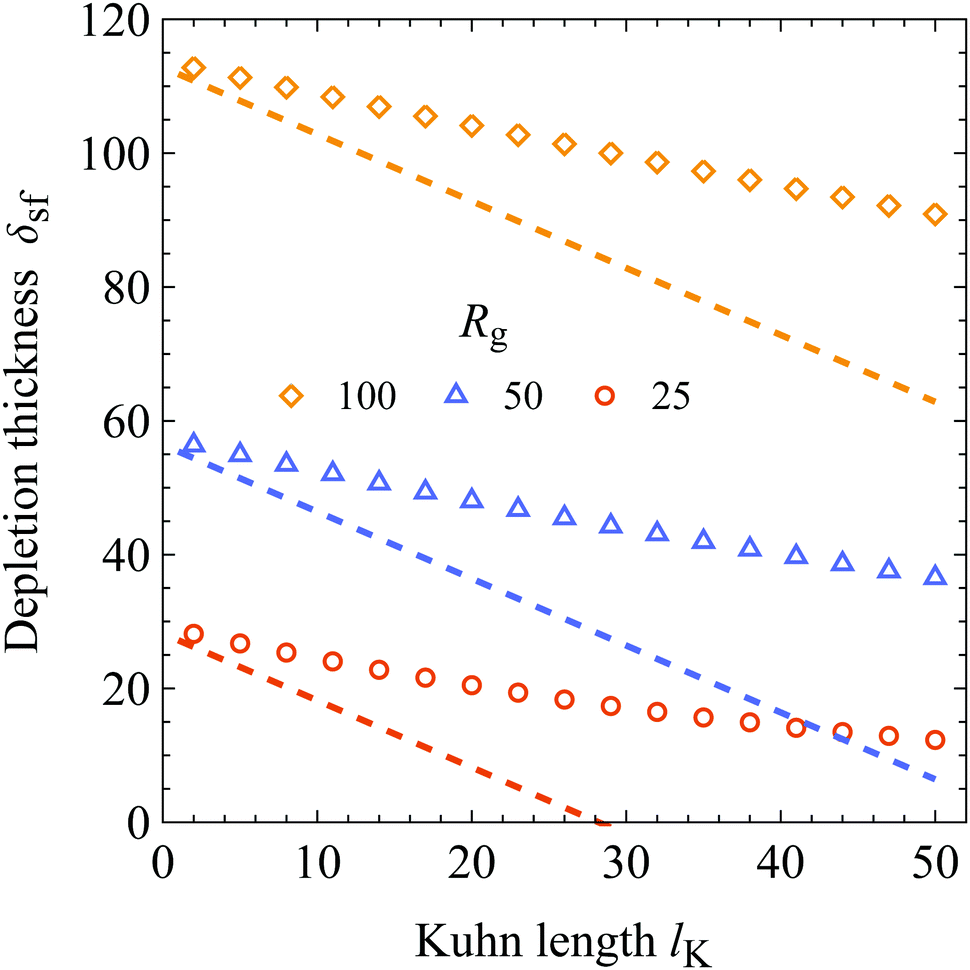

Fig. 8 Chain stiffness dependence of the depletion thickness. δ_sf is plotted as a function of the Kuhn length l_K for three radii of gyration as indicated, χ_s = 6 and φ_b = 10⁻⁶. The dashed curves are the result of Ausseré et al.,²⁹δ_sf = δ₀ − l_K, and the symbols are numerical SCF computations.

Next, we compare the results of Lue³⁰ to SCF computations in Fig. 9. Here we plot the depletion thickness around a sphere as a function of the polymer to colloid size ratio q_R. The dashed curves again are the analytical approximation, and the symbols are numerical SCF calculations. Remarkably, for smaller q_R the analytical approximation overestimates the depletion thickness for all l_K > 1, while for large q_R it is consistent with the SCF calculations.

Fig. 9 The depletion thickness around a sphere as a function of the polymer to colloid size ratio q_R for R_g = 100 and a variable colloidal radius a. A Kuhn length of 1, 10, 20 and 40 is shown, corresponding to a contour length (in units of the bond-length) of 60 000, 6000, 3000, and 1500, respectively. The dashed curves are the Padé approximation of Lue³⁰ converted to a depletion thickness by Tuinier,⁶² and the symbols are SCF calculations. A polymer bulk concentration of φ_b = 10⁻⁶ was used for the SCF calculations.

B Analytical approximation for the spherical depletion thickness

In order to obtain an analytical equation which can be used in further theoretical investigations, the excluded volume integral, eqn (31), must be solved approximately. This approximation can be done as follows. We can change the equations for the concentration profile such that it closely approximates eqn (30) but has a closed-form solution to the excluded volume integral. If we then match the flat plate limit and flexible chain limit it approximates the numerical integral fairly well. Through trail-and-error it was found that one such function is:This function can be used as an input in the excluded volume integral and has the solution:We find that in the limit of a → ∞ this equation results in δ_sf = δ₀[1 − tanh(2p_sf/δ₀)]. To match the flat plate result in this limit we have to replace 2p_sf → p_sf in the second term of eqn (37) and thus we end up with eqn (32).

C The depletion thickness in a good solvent

In this section we check the validity of eqn (25) for the good-solvent case (χ < 0.5). It must be noted that within the mean-field treatment presented in this article, chain swelling and the χ-dependency of the concentration-independent depletion thickness δ₀ is not taken into account.¹⁸ Hanke et al. found³⁶ that for excluded volume polymers δ₀ = 1.07R_g, where R_g scales with N_k^0.588.

In Fig. 10 the result of eqn (25) (solid curves) is compared to SCF results (symbols) as a function of φ_b for three values of l_k as indicated in the plot. The polymer radius of gyration is 50 and the solvency parameter χ = 0, thus we are in the good-solvent limit of pure excluded volume interactions. As can be seen, the agreement is quantitative within the mean-field approximation used. We find similar trends as discussed in Section 4.3: with increasing polymer segment bulk concentration the depletion zone is compressed. This effect is more pronounced in good-solvent conditions as compared to the θ-solvent condition, as was first shown by Fleer et al.¹⁸ Interestingly enough the cross-over concentrations are recovered, thus, there is also a maximum in the depletion thickness in good-solvent conditions. This leads us to the conclusion that within a mean-field approximation, the existence of the maximum is a semi-flexible polymer specific effect, independent of the solvency.

Fig. 10 The generalized depletion thickness in a good-solvent as a function of the polymer bulk concentration for polymers with R_g = 50, contour lengths of the polymers (in units of the bond-length) are 15 000, 1500, and 750 for l_K = 1, 10, and 20, respectively. The symbols are numerical SCF data and the solid curves are calculated using eqn (25) with χ = 0.

Acknowledgements

J. O. gratefully acknowledges the financial support from the Dutch Ministry of Economic Affairs of the Netherlands via the Top-consortium Knowledge and Innovation (TKI) roadmap Chemistry of Advanced Materials (No. CHEMIE.PGT.2018.006). M. V. acknowledges the Netherlands Organization for Scientific Research (NWO) for a Veni grant (No. 722.017.005). S. H. M. van Leuken acknowledges the financial support of the InScite HiperBioPol project. The authors acknowledge Professor Frans Leermakers for the sfbox software package and useful discussions on SCF theory. Additionally, the authors would like to thank a helpful referee for pointing out the wall-induced nematization in depleted polymer solutions.
