Correction: A roadmap for laser optimization of Yb:Ca3(NbGa)5O12-CNGG-type single crystal garnets

J. O. Álvarez-Pérez , J. M. Cano-Torres , A. Ruiz , M. D. Serrano , C. Cascales and C. Zaldo *
Instituto de Ciencia de Materiales de Madrid, Consejo Superior de Investigaciones Científicas, c/Sor Juana Inés de la Cruz 3, 28049 Madrid, Spain. E-mail: cezaldo@icmm.csic.es

Received 13th May 2021 , Accepted 13th May 2021

First published on 23rd May 2021


Abstract

Correction for ‘A roadmap for laser optimization of Yb:Ca3(NbGa)5O12-CNGG-type single crystal garnets’ by J. O. Álvarez-Pérez et al., J. Mater. Chem. C, 2021, 9, 4628–4642, DOI: 10.1039/d0tc05718e.


The authors regret that in the published work the Yb3+Zl/ZU value given was erroneous. The correct value according to the energy level selection given in Fig. S13 in the ESI is Zl/ZU = 1.044. Thus, Fig. 5 in the published article must be replaced with the corrected version shown below. Accordingly, the maximum emission cross sections are σEMI = 1.35 × 10−20 cm2 for Yb:CLNGG, σEMI = 1.12 × 10−20 cm2 for Yb:CNGG and σEMI = 1.17 × 10−20 cm2 for Yb:CNNGG. The radiative lifetimes calculated by the Füchtbauer–Landeburg method using these new emission cross sections are τRAD = 611 μs for Yb:CNGG, τRAD = 644 μs for 12.23 at% Na: 7.13 at% Yb:CNNGG and τRAD = 582 μs for Yb:CLNGG, i.e. much closer to the experimentally determined value, τRAD ≈ 800 μs, than those reported in the published article (τRAD = 419–464 μs).
image file: d1tc90105b-f5.tif

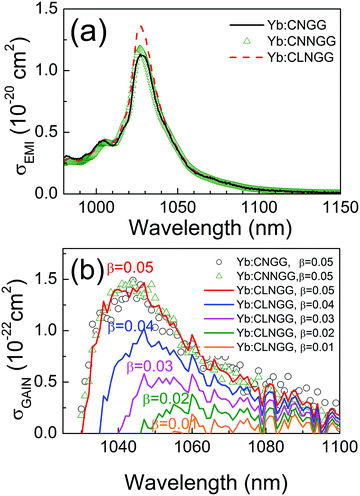

Fig. 5 (a) Emission cross section, σEMI, of Yb:CNGG-type crystals. (b) Gain cross sections of Yb:CNGG-type crystals. Circles are for Yb:CNGG, β = 0.05. Triangles are for Yb:CNNGG, β = 0.05. The lines correspond to Yb:CLNGG for different β values.

These corrections have no effect on any other results published in the article, and do not affect the discussion or any of the published conclusions. The authors sincerely apologize for this error.

The Royal Society of Chemistry apologises for these errors and any consequent inconvenience to authors and readers.
