Biodegradable self-assembly micelles significantly enhanced the solubility, biological stability and in vivo antitumor efficacy of Hexylselen

Abstract

Glutaminolysis inhibitors have shown early promise in cancer therapeutics. Specifically, kidney-type glutaminase (KGA) has been a long-standing anti-tumor drug target; KGA allosteric inhibitors have attracted great attention due to their superior enzyme specificity and good drug safety profiles. However, the main issue with allosteric inhibitors—including BPTES, CB-839, and the recently developed KGA allosteric and glutamate dehydrogenase (GDH) dual inhibitor, Hexylselen (CPD-3B)—is their low solubility; it leads to limited in vivo efficacy. To optimize their formulation, various delivery carriers were screened in the present study. Soluplus® (SOL), an amphiphilic graft polymer, showed an interesting structure–solubility/activity relationship with Selen molecules containing different middle chain sizes. Among these molecules, the long chain molecule CPD-3B showed 3000-fold increased solubility with SOL, forming well-dispersed and stable micelles 60–80 nm in size. Moreover, CPD-3B@SOL micelles exhibited good metabolic stability in both blood and liver microsomes. These advantages significantly enhanced the bioavailability and in vivo antitumor efficacy of CPD-3B@SOL micelles in the H22 hepatocarcinoma xenograft mouse model. Thus, the current study provided a practical delivery system for allosteric inhibitors of glutaminase, which is one of the bottlenecks of targeting tumor glutaminolysis.

---

1. Introduction

Glutaminolysis inhibitors have shown early promise in cancer therapeutics.¹ Specifically, kidney-type glutaminase (KGA) has been a long-standing anti-tumor drug target; as a KGA active site inhibitor, L-6-diazo-5-oxonorleucine (DON) showed efficacy in cancer treatment early in 1979, but its high toxicity prevented its use as a drug.² The recent development of a pro-drug, JHU083, has brought the DON molecule back under consideration.³ KGA allosteric inhibitors have also attracted great attention due to their superior enzyme specificity and good drug safety profiles. However, the main issue with the allosteric inhibitors, such as bis-2-(5-phenylacetamido-1,3,4-thiadiazol-2-yl)ethyl sulfide (BPTES) and CB-839 (Telaglenastat), is their low solubility, which leads to limited in vivo efficacy.^4,5 Efforts have been made to improve the solubility of CB-839 through medicinal chemistry⁶ and that of BPTES through drug formulation.⁷

Interestingly, the allosteric inhibitor Hexylselen (CPD-3B; Fig. 1A) displayed complete growth inhibition at the cellular level and improved in vivo antitumor efficacy,^8,9 while CB-839 and BPTES only showed partial growth inhibition at the cellular level.¹⁰ This was demonstrated by targeting both glutaminase (GLS) and glutamate dehydrogenase (GDH) to completely block glutaminolysis. However, further studies of in vivo efficacy were limited by its poor solubility in various tested solvents (aqueous solution at 1 mg mL⁻¹ in the optimized vehicles).

Fig. 1 The chemical structures of Selen compounds and the polymer Soluplus®. (A) Selen compounds included CPD-B, CPD-1B, CPD-2B and CPD-3B; (B) Soluplus® (SOL).

As a selenazol-3(2H)-one dimer with a six-carbon straight middle chain, CPD-3B is very flexible; this might cause its low solubility in water and aqueous solvents (Table S1, ESI†). However, based on the Like Dissolves Like rule, if any appropriate excipients showed similar physical characteristics to CPD-3B, their molecular interaction would likely provide considerable solubility.¹¹ Thus, a delivery system formed with amphiphile polymeric materials¹² might be suitable for CPD-3B.

Due to their high capacity for increasing the solubility, stability, and bioavailability of water-insoluble drugs or even tumor site targeting features,^13,14 multiple amphiphile polymeric materials and some modified or responsive polymers^15,16 especially for chemotherapeutic agents have gained much attention and favor. Some biodegradable copolymers^17,18 have been extensively investigated for drug delivery systems¹⁹ and even approved by the Food and Drug Administration (FDA) and used for clinical treatment of carcinoma.^20,21 The widely used polyvinyl caprolactam–polyvinyl acetate–polyethylene glycol (PVCap-PVA-PEG, 13%/57%/30%, respectively) graft copolymer Soluplus^®, also called SOL (Fig. 1B), possesses a low critical micellar concentration (CMC) of 7.6 μg mL⁻¹, as well as low toxicity and moderate amphiphilic properties.²²

Because of its high drug-loading capacity and surfactant property,²³ SOL shows excellent solubilizing and anti-diluting features for active pharmaceutical ingredients (APIs) in the Biopharmaceutical Classification System (BCS) group II (this system is a valuable tool for guiding drug-like candidates and exploring pharmaceutical formulation in the early stages of development).²⁴ SOL can also form nanocarriers to keep the drug saturated in gastrointestinal absorption and sustain its release behavior.²⁵

Due to its versatile features, SOL is usually prepared as a solid dispersion,^26,27 nano-emulsion,²⁸ nano-micelle,^29–31 thermosensitive hydrogel,^32,33 or transparent film³⁴ to increase the solubility and bioavailability of APIs. Recent reports have demonstrated that SOL can form composites with excipients, such as Pluronic®, Solutol HS15, hyaluronic acid-ceramide (HACE), and D-α-tocopheryl polyethylene glycol 1000 succinate (Vitamin E TPGS), thereby helping antitumor drugs to avoid toxic agents, achieve higher intestinal epithelial adsorption and better target cancer sites.²² Therefore, SOL might formulate a micelle with CPD-3B to overcome the issues of solubility.

This study investigated the solubility and loading efficiency of SOL using selenazol-3(2H)-one dimers (Selen compounds) with different middle chain sizes (Fig. 1A) to explore the structure–solubility/activity relationship (SAR). SOL increased the solubility of CPD-3B by orders of magnitude, and the resulting colloidal and solid states of CPD-3B@SOL were characterized by Malvern dynamic light scattering (DLS), transmission electron microscopy (TEM), and X-ray powder diffraction (XRPD). The CPD-3B@SOL micelles were internalized by tumor cells, as shown under a fluorescence microscope, and they also demonstrated good stability in blood and mouse liver microsomes. Importantly, the CPD-3B@SOL micelles showed significantly improved pharmacokinetics and in vivo antitumor efficacy.

2. Experiments

2.1 Materials and chemical reagents

The chemical syntheses of CPD-B, CPD-1B, CPD-2B, and CPD-3B have been reported previously.⁸ Soluplus® was gifted by BASF Ltd. (Ludwigshafen, Germany). Hepatoma (H22) and lung cancer (A549) cell lines were purchased from the Shanghai Institute of Biochemistry and Cell Biology of Chinese Academy of Sciences (Shanghai, China). RPMI1640 medium was purchased from M&C Gene Tech, Inc. (Beijing, China), and fetal bovine serum (FBS) was purchased from Zhejiang Tianhang Biotech, Inc. (Deqing, China). EZMTT detection reagents were obtained from JNF Bioscience, Inc. (Hangzhou, China). ICR mice (SPF) were purchased from the Zhejiang Institute of Medical Science (Hangzhou, China) and treated in compliance with ethical standards. All animal experimental procedures were conducted in conformity with institutional guidelines for the care and use of laboratory animals in Zhejiang University of Technology, Hangzhou, China, and the National Institutes of Health Guide for Care and Use of Laboratory Animals (Publication No. 85-23, revised 1996). ICR/CD1 mouse liver microsomes were purchased from the Research Institute for Liver Diseases, Inc. (Shanghai, China). Coumarin was provided by Meryer Chemical Technology, Inc. (Shanghai, China). NADPNa₂ was purchased from Shanghai Yuanye Biotech, Inc. (Shanghai, China). Glucose-6-phosphate (G6P) and G6P dehydrogenase (G6PDH) were purchased from Plant Cell Biotechnology, Inc. (Beijing, China). Chromatographic grade methanol was obtained from Tedia, Inc. (USA), and phosphate buffer saline (PBS) was purchased from Solarbio Inc. (Beijing, China). Milli-Q water (Millipore, Bedford, MA, USA) was used throughout the study, and all other reagents were of analytical grade.

2.2 Solubility of Selen compounds

Powders (more than 2 mg per vial) of Selen compounds (CPD-B, 1B, 2B, and 3B) were treated with distilled water, DMSO, or 1%, 5%, 10%, or 20% SOL in distilled water (1 mL each). The resulting mixtures were shaken at 25 °C for 24 h, and then the supernatants were collected by centrifugation (10 000 rpm for 5 min) and filtration. This was followed by reversed-phase high-performance liquid chromatography (RP-HPLC)⁹ to quantify the dissolved Selen compounds.

2.3 Preparation and formulation of Selen@SOL micelles

The thin film dispersion method was used to prepare Selen@SOL micelles. Briefly, Selen compounds (5 mg) and SOL (50–100 mg) were completely solubilized in a mixture of dichloromethane and ethanol (1 : 4, v/v) or pure methanol (for CPD-B and 2B) by ultrasonication. The organic solvent was then evaporated under a vacuum of −0.1 MPa at 40–42 °C until dry. The obtained thin layer was washed and hydrated with sterile physiological saline (0.9% NaCl solution) to form CPD-3B@SOL micelles. These were stored at 4 °C and filtered with a 0.45 μm acetate fiber membrane (Zhejiang SORFA Medical Plastic, Deqing, China) to remove the undissolved residue. The optimal input ratios of Selen compounds and SOL were screened by determining the stability of the prepared micelles, which was monitored by observing the compound precipitation within 24 h at room temperature.

2.4 Encapsulation efficiency and drug loading

Encapsulation efficiency (EE%) was measured mainly based on the percentage of the compounds entrapped within the isolated micelles. Because Selen compounds have limited solubility in physiological saline or PBS (pH = 7.4; lower than 5 μg mL⁻¹), their concentrations are far lower outside the micelles than inside the micelles. Therefore, prepared Selen@SOL micelles were centrifuged at 3000 rpm for 10 min to remove visible precipitated compounds and then filtered through a 0.45 μm acetate fiber membrane to isolate the invisible Selen compounds. Then, the filtered micelles (0.2 mL) were disrupted by methanol (10–50 fold) and quantified by RP-HPLC as previously described.¹⁰ The EE% and drug loading (DL%) were calculated using eqn (1) and (2), respectively. All samples were analyzed three times to obtain the mean ± standard deviation (SD; n = 3).

2.5 Particle size and morphology observations

The average particle size (intensity) and zeta potential (ζ) of CPD-3B@SOL micelles or blank SOL micelles were measured by DLS using a Malvern system (Nano SZ, MAL1077746, Malvern Instruments, Worcestershire, UK). The polydispersity index (PDI) was determined for assessing the particle size distribution. The morphology of micelles was observed by TEM (JEM-1200EX, NEC, Japan).

2.6 X-ray powder diffraction

The crystalline states of CPD-3B, SOL, ground CPD-3B@SOL solid dispersed powders (beneath 200 mesh), and the CPD-3B@SOL physical mixture were determined by XRPD (D2 PHASER, Bruker AXS GMBH, Karlsruhe, Germany). On the disc of a diffractometer, the samples were tiled and exposed to Cu-Kα radiation under 40 kV and 25 mA over the 2θ range of 3–40 degrees, with a scanning speed of 0.03 degree per min. Diffractograms of the fresh CPD-3B@SOL dispersed powders and ones stored at 25 °C for about 1 year were compared.

2.7 Storage stability

The optimized CPD-3B@SOL micelles were stored at 4 °C for 1, 5, and 10 days (n ≥ 3). Then, the average particle size, PDI, EE%, and DL% were measured to optimize the storage conditions to achieve micelle stability.

2.8 In vitro release of CPD-3B

The dialysis method³⁵ was used to investigate the in vitro release behavior of CPD-3B from CPD-3B@SOL micelles. In short, 1–2 mL of CPD-3B@SOL micelles prepared with the optimal prescription were loaded into a dialysis bag with a molecular weight cut-off of 8000–14 000 Da and placed in 200 mL of PBS (pH = 7.4) mixed with 0.5% sodium dodecyl sulfate (SDS) as the release medium at 37 °C. The dialyzed bag was magnetically stirred at 100 rpm and continuously incubated at 37 °C for several days. At pre-determined time points, 5 mL of release medium was withdrawn from the system, and 5 mL of fresh medium was remedied. The amount of released CPD-3B was quantified by RP-HPLC to produce the release curve. Meanwhile, the CPD-3B vehicle prepared using a previously reported method⁹ was determined to obtain the comparative CPD-3B release profile.

2.9 In vitro antiproliferation assay

The in vitro anti-tumor activity of free CPD-3B (in PBS with 1% DMSO) and CPD-3B@SOL micelles was evaluated via an EZMTT-based cell proliferation assay using the liver cancer cell line H22 and the non-small cell lung cancer cell line A549.³⁶ Briefly, cells (4 × 10³ per well) were seeded in a plate for 4 h and then treated with a series dilution of a CPD-3B DMSO solution (0–10 μM final), CPD-3B@SOL micelles (0–10 μM final), and blank SOL micelles (<1% DMSO final) for 5 days. Viable cells were quantified using the absorbance of optical density at 450 nm (OD_450nm) after adding EZMTT reagents for 2–3 h incubation. The inhibition of specimens to tumor cells was calculated using eqn (3). The tests were repeated in triplicate in at least two independent experiments.

2.10 Cellular uptake of CPD-3B micelles

In a 96-well plate, H22 hepatoma cells were seeded (7.5 × 10⁴ per well) and grown in RPMI-1640 medium with 10% FBS in 5% CO₂ incubator at 37 °C. The cells were then treated with free CPD-3B (in 1% DMSO–PBS buffer), CPD-3B@SOL micelles (30 μM final), or blank SOL micelles in fresh medium for 0.5, 2, 8, 12, 24, and 48 hours. At each time point, the cells were collected by centrifugation to remove the culture media. They were then washed once with PBS (300 μL), resuspended in PBS (50 μL) and placed in new wells. The uptake of CPD-3B into H22 cells was observed based on the fluorescence intensity of CPD-3B in DAPI mode (excitation = 340–360 nm; emission = 450–490 nm) using a fluorescence microscope (Olympus, LB10W-4251, Japan). Meanwhile, the cells were captured in visual light or bright field (BF) mode.

2.11 In vitro stability in blood

The stability of the CPD-3B in blood was measured by the β-mercaptoethanol (BME) derivatization method.³⁷ Briefly, fresh heparin-containing mouse blood (200 μL) in 1.5 mL tubes was preheated at 37 °C, then treated with 1 mM of CPD-3B vehicle⁹ (5 μL; the vehicle contained 5% ethanol, 5% Tween80, 10% PEG400 and 3% F68 in PBS buffer and was used in the following experiments) or CPD-3B@SOL micelles (5 μL). After gentle mixing, it was incubated in a 37 °C water bath for 2 min, 5 min, 10 min, 30 min, 1 h, and 2 h. Aliquots of the blood mixtures were derivatized with 1 M of BME (18 μL) in 10 mM of KH₂PO₄ buffer (pH = 7.4; 100 μL), using Ebselen (1 mM final) as the inner standard. Ethyl acetate (700 μL) was used to terminate the reaction 3 h later and extract the BME derivatives of CPD-3B, along with the inner standard. The ethyl acetate extracts were dried and redissolved in methanol for HPLC quantitative analysis (detailed analytical data presented in Fig. S1, ESI†). Samples were tested in triplicate.

2.12 Stability in liver microsomes

The stability of CPD-3B in liver microsomes was tested according to the authors’ previous report,¹⁰ using coumarin as the positive control. Briefly, 50 μM of CPD-3B vehicle⁹ (CPD-3B@SOL micelles or coumarin; 10 μL) was preincubated with mouse liver microsomes (0.5 mg mL⁻¹) in PBS (100 μL, pH = 7.4) at 37 °C for 5 min. The reaction was then initiated by the addition of an NADPH-generating system (final: 3 mM NADPH, 7.2 mM MgCl₂, 6 mM G6P, and 3 units of G6PDH). Subsequently, the mixtures were incubated at 37 °C in a water bath for 5 min, 10 min, 30 min, 60 min, 2 h, and 4 h, respectively. Followed by 3 hours of BME derivatization, the inner standard was added to the mixtures and the reaction was terminated by ethyl acetate. The samples were stored at −20 °C until RP-HPLC analysis. The obtained half-time life (t_1/2) and intrinsic clearance (CL_int) were calculated using eqn (4) and (5), respectively.

In these equations, k_e is the slope of the relationship of ln C (compound concentration) and t (incubated time), and C_{microsomal protein} is the input concentration of microsomal protein. Experiments were performed in triplicate to obtain the mean and SD.

2.13 In vivo pharmacokinetics study

The in vivo pharmacokinetic studies were performed in male ICR mice weighing approximately 20 g. These mice were randomly divided into four groups (n = 3) for each time point and fasted for 12 h before drug administration with free access to water. The CPD-3B vehicle⁹ and CPD-3B@SOL micelles were intraperitoneally (IP) administered with a dose of 25 mg kg⁻¹ (CPD-3B) and intravenously (IV) by tail vein with 10 mg kg⁻¹. At predetermined intervals (2 min, 5 min, 10 min, 0.5 h, 1 h, 2 h, 4 h, 8 h, 12 h, and 24 h for IV; 15 min, 0.5 h, 1 h, 2 h, 4 h, 8 h, 12 h, and 24 h for IP), aliquots of blood were collected via the orbital venous plexus and allowed to drip freely into the micro-collection tube with heparin sodium. Then, the blood samples were treated with the BME derivatization system described in section 2.11 to extract and quantify CPD-3B in the blood. Data from the blood were analyzed for each mouse using DAS 2.0 (DASforeCDM, Shanghai, China). Non-compartmental analysis was performed, and the pharmacokinetic variables C_max (maximal drug concentration; μg mL⁻¹), T_max (time for maximal drug concentration; h), and AUC_(0–t) (area under the curve; μg h mL⁻¹) were generated. The elimination half-life (t_1/2β) was determined to be 0.693/k (where k is the elimination-rate constant obtained by the equation, dC/dt = −kC, in which C is for concentration and t for time). CL was calculated by dividing the dose by the AUC_0–24h. The triplicate experimented data were expressed as the mean ± SD.

2.14 In vivo antitumor evaluation

In vivo antitumor activity was evaluated using a xenograft liver cancer H22 mouse model. ICR male mice (approximately 20 g by weight; 5–7 weeks old) were divided into groups, with 6 mice per group. Diluted liver cancer H22 ascite tumor cells (5.0 × 10⁶ cells per mL; 0.2 mL) were subcutaneously transplanted into the right armpit of each mouse.¹⁰ After 24 h, the transplanted mice were treated via IV administration with CPD-3B@SOL micelles (3 mg mL⁻¹; 0.2 mL) and CPD-3B vehicle⁹ (1 mg mL⁻¹; 0.2 mL) once daily for 10 consecutive days. PBS vehicle⁹ (also seen in Section 2.11) and blank SOL micelles were IV administered as control vesicles. On day 11, animals in all groups were euthanized humanely to measure their body weight and collect tumors and blood.

2.15 Data analysis

All experiments were conducted three times, and all values were expressed as mean ± SD. Statistical analysis of significance was performed using SPSS 19.0 (SPSS Inc., USA). The differences between two groups were evaluated using the two-tailed Student's t-test, and values of p < 0.05 (*), p < 0.01 (**), and p < 0.001 (***) were considered statistically significant and extremely significant, respectively.

3. Results and discussion

3.1 Improved solubility of CPD-3B

To explore the possible SAR between solubility with SOL and the chain size of a Selen compound, the solubility of the compounds in water or SOL solution was measured using RP-HPLC. Additionally, the CLogPs of Selen compounds were calculated using the professional platform ALogPS 2.1 (Table 1). The four Selen molecules containing straight 2, 3, 4, or 6-carbon middle chains showed poor solubility in water (1–5 μg mL⁻¹), especially CPD-3B which contains a longer middle carbon linker and higher CLogP. This was the case even though CPD-3B solubility in DMSO was good, in the range of about 20–50 mg mL⁻¹. Interestingly, polymeric SOL significantly increased the solubility; the limited SAR showed that the longer the middle chain (from 2 to 6 carbon chains), the better the solubility by 20% SOL (solubility from 48 to 882 μg mL⁻¹). For example, with increasing amounts of SOL (from 0 to 20%), the solubility of CPD-3B increased nearly 400 times and reached 0.88 mg mL⁻¹. This indicated that the longer middle chain could produce higher hydrophobicity and could strongly interact with SOL; the encapsulation in the lipophilic core of the micellar system significantly enhanced the solubility of Selen compounds in aqueous solution.

Table 1 The CLogPs and solubility in water and Soluplus® solutions of Selen compounds (25 ± 2 °C)

Physicochemical index		CPD-B	CPD-1B	CPD-2B	CPD-3B
a ClogP: the calculated logP by the online program ALogPS 2.1 (http://www.vcclab.org/lab/alogps/). b The concentrations of 1%, 5%, 10% and 20% Soluplus® used were 10 mg mL^−1, 50 mg mL^−1, 100 mg mL^−1, 200 mg mL^−1, respectively.
CLogP^a		1.87	2.18	2.56	3.30
Water solubility (μg mL^−1)		2–3	4–5	1–3	1–2
Solubility in DMSO (mg mL^−1)		22	29	51	34
Solubility in Soluplus® solutions^b (μg mL^−1)	1%	4.7 ± 0.3	115 ± 7	42 ± 4	167 ± 26
	5%	13.9 ± 2.1	165 ± 6	116 ± 10	272 ± 22
	10%	15.2 ± 0.8	232 ± 13	246 ± 9	515 ± 8
	20%	48.2 ± 2.4	300 ± 17	575 ± 34	883 ± 25

---

3.2 Preparation and preliminary evaluation of Selen@SOL micelles

The thin layer dispersion method was used to prepare self-assembled micelles, since SOL significantly enhanced the solubility of Selen compounds (Fig. 2A). As shown in Fig. 2B, when a mass ratio of 1 : 10 (compound : SOL) was used, CPD-B, CPD-1B, and CPD-2B displayed low EE% (<10%) in the SOL micelles. However, when the mass ratio increased to 1 : 20 (compound : SOL), CPD-1B and CPD-2B displayed significantly improved EE% and the corresponding DL% values were in agreement with the EE%.

Fig. 2 The preparation of Selen@SOL micelles. (A) The preparation process of Selen@SOL micelles; (B) the encapsulation efficiency (EE) showing the percentage of the enclosed compound in SOL micelles and (C) drug loading (DL) showing the amount of the compound in each Selen@SOL micelle, indicating that a compound : Soluplus® (CPD : SOL) ratio between 1 : 10 and 1 : 20 might be the optimal condition (the input of Selen compound: 2 mg mL⁻¹ per vial).

CPD-3B showed good interaction with SOL as indicated by greater than 85% EE% at compound : SOL ratios of both 1 : 10 and 1 : 20. Even though 10% higher EE% was achieved with a 1 : 20 compound SOL ratio, double the amount of SOL used resulted in lower DL% in 1 : 20 SOL micelles. This demonstrated that SOL showed higher solubilizing and encapsulating capacity for CPD-3B through the preparation methods of the current study so that the resulting CPD-3B@SOL micelles were further optimized and used as the delivery system for cancer treatment.

3.3 Morphology characterization of CPD-3B@SOL micelles

For further optimizing the CPD-3B@SOL micelle preparation procedures, we varied the input compound and SOL concentration, but kept their ratio between 1 : 10 and 1 : 20. Even though CPD-3B@SOL micelles in both 1 : 10 and 1 : 20 achieved more than 85% (Table 2), when the input of SOL (1%) decreased, the encapsulating ability of CPD-3B was weakened which led to slight precipitation. When high concentration of SOL was used, the particle size and PDI of the CPD-3B@SOL micelles mildly increased. In Table 2, when the 10% (or 100 mg mL⁻¹) SOL was used, with or without the CPD-3B, the resulting micelles showed essentially the same sizes. Using 1–2% SOL thus resulted in smaller sizes at about 60–70 nm but the EE% was maintained at 85%–96%. Furthermore, the calculated aqueous solubility of CPD-3B reached 4.5 mg mL⁻¹ at a ratio of 1 : 20 (CPD-3B : SOL), which was about 3000-fold improved solubility in water.

Table 2 The particle size, polydispersity index, encapsulation efficiency, and appearance description of CPD-3B@SOL micelles at different mass ratios (n ≥ 3)

CPD-3B : SOL w/w	C CPD-3B (mg mL^−1)	C SOL (mg mL^−1)	Particle size (nm)	PDI	EE%	Description
Notes: SOL: Soluplus®; w/w: weight of CPD-3B/weight of SOL; CCPD-3B: the input content of CPD-3B; CSOL: the input content of Soluplus®; particle size: the average sizes of micelles; PDI: polydispersity index; EE: encapsulation efficiency.
0 : 20	0	100	77.7 ± 1.1	0.18 ± 0.02	—	Clear, opalescent
1 : 10	1	10	63.4 ± 1.4	0.05 ± 0.003	85.1 ± 1.9	Slight precipitation
1 : 15	1	15	65.8 ± 4.2	0.14 ± 0.02	95.9 ± 1.6	Clear, opalescent
1 : 20	1	20	64.3 ± 5.2	0.13 ± 0.002	95.6 ± 2.3	Clear, opalescent
1 : 20	5	100	77.9 ± 2.1	0.17 ± 0.02	94.3 ± 6.1	Clear, opalescent

---

Because of its low CMC, SOL quickly and spontaneously encapsulated CPD-3B into its hydrophobic core to form micelles after hydration in water or physiological saline. The prepared CPD-3B@SOL micelles with yellow transparent opalescence showed round and oval shapes with good uniformity under TEM (Fig. 3A and B). This was consistent with the results of DLS, which found that the average particle size of CPD-3B@SOL micelles was 60–80 nm and that PDI was less than 0.2 (Fig. 3C). The average potential close to 0 mV indicated that both the CPD-3B@SOL micelles and blank SOL micelles were essentially free of charge (Fig. 3D and H). Meanwhile, the particle size and PDI of both the blank micelles and CPD-3B@SOL micelles did not differ, which demonstrated that the self-assembled SOL micelles had excellent micellar compatibility with CPD-3B and could be used for further characterization and biological investigation.

Fig. 3 The particle characterization of CPD-3B@SOL micelles and blank SOL micelles. (A) At 25 ± 2 °C, 5 mg mL⁻¹ CPD-3B in CPD-3B@SOL micelles (SOL = 100 mg mL⁻¹) showed a bright yellow transparent opalescence; (B) TEM images of CPD-3B micelles; (C and D) CPD-3B micelles had average sizes of about 70–80 nm (C) with good distribution and zeta potential close to zero mV (D). (E) 100 mg mL⁻¹ SOL micelles had light blue transparent opalescence at 25 ± 2 °C; (F) images of blank SOL micelles by TEM; (G and H) average particle sizes at about 70–80 nm and zeta potential close to zero mV of blank micelles.

3.4 X-ray powder diffraction

To identify the powder state of the CPD-3B@SOL micelles, XRPD was performed. As shown in Fig. 4, crystalline CPD-3B showed a spectrum with multiple peaks, whereas the amorphous SOL solid featured two flat scattering peaks. CPD-3B@SOL (1 : 5) solid dispersion showed two peaks at 2θ angles of 10.796 ° and 18.049°; these peaks were similar to those of the physical mixture of CPD-3B@SOL, which indicated that inadequate SOL caused incomplete amorphous transformation of CPD-3B from the crystalline state. The mass ratio (CPD-3B : SOL) was then increased to 1 : 20. The peaks at these two 2θ angles disappeared, and the resulting amorphous peaks were essentially the same as the SOL powder. At a 1 : 20 mass ratio, the CPD-3B@SOL solid dispersion was stable at room temperature for about one year. Therefore, CPD-3B was verified to be highly compatible and stable with SOL in a solid dispersion.

Fig. 4 X-ray powder diffraction characterization. The tested samples included (1) crystalline CPD-3B, (2) Soluplus® powder, (3) CPD-3B@SOL physical mixture (PM), (4) and (5) fresh CPD-3B@SOL solid dispersion (CPD-3B@SOL SD) at respective mass ratios of 1 : 5 and 1 : 20, and (6) CPD-3B@SOL SD (w/w = 1 : 20) stored for 1 year.

3.5 Storage stability

When the CPD-3B@SOL micelles were stored in a 4 °C atmosphere protected from light for 10 days (Fig. 5), the micelles maintained an average size of 70–80 nm, a PDI lower than 0.2, and an average EE% and DL% of 93% and 4.5%, respectively. No significant difference was observed between the first and the tenth day, which demonstrated that the CPD-3B@SOL micelles were essentially stable under storage conditions.

Fig. 5 The storage stability of CPD-3B@SOL micelles. (A) The particle size and PDI, and (B) encapsulation efficiency and drug loading of CPD-3B@SOL micelles were tested in 10 days storage at 4 °C.

3.6 In vitro release

The in vitro release of free CPD-3B and CPD-3B@SOL micelles was studied in experiments and analyzed via the dialysis method using PBS with 0.5% SDS (0.5% SDS-PBS) at 37 °C as the release medium, and the releasing profiles are shown in Fig. 6. The free CPD-3B exhibited a fast release velocity and reached more than 80% cumulative release at 24 h, and nearly 100% over 120 h, while CPD-3B cumulatively released about 70% at 48 h and about 80% at 120 h from the CPD-3B@SOL micelles (Fig. 6). With the stable hydrophobic core of the polymeric micelles and increased solubility of CPD-3B, the CPD-3B@SOL micelles tended to show a sustained releasing profile, which might be advantageous in in vivo delivery and long circulation.

Fig. 6 The in vitro cumulative release profiles of free CPD-3B (5.4 ± 0.4 μg mL⁻¹ final; 100% release) and CPD-3B@SOL micelles (21 ± 2.7 μg mL⁻¹; final; 100% release) in 0.5% SDS-PBS (pH 7.4) at 37 °C.

3.7 Growth inhibition of CPD-3B@SOL micelles

Using EZMTT assay to measure the cellular NAD(P)H level,³⁶ the inhibitory activities of cancer cell growth by free CPD-3B (in PBS with 1% DMSO) and CPD-3B@SOL micelles were tested and compared (Fig. 7 and Table S2, ESI†). Blank SOL micelles did not show inhibition, even at concentrations above 30 μM, whereas both CPD-3B@SOL micelles and free CPD-3B achieved 100% inhibition of both H22 and A549 cell lines. As shown in Fig. 7, the growth inhibition curve showed that the CPD-3B@SOL micelles had slightly weaker (1–2 μM) activity than that of free CPD-3B, indicating that micelles did not reduce the potency of the compound. Although the internalization of CPD-3B from free CPD-3B and CPD-3B@SOL micelles into cancer cells might be different, we further investigated its cellular uptake by a CPD-3B compound fluorescence assay.

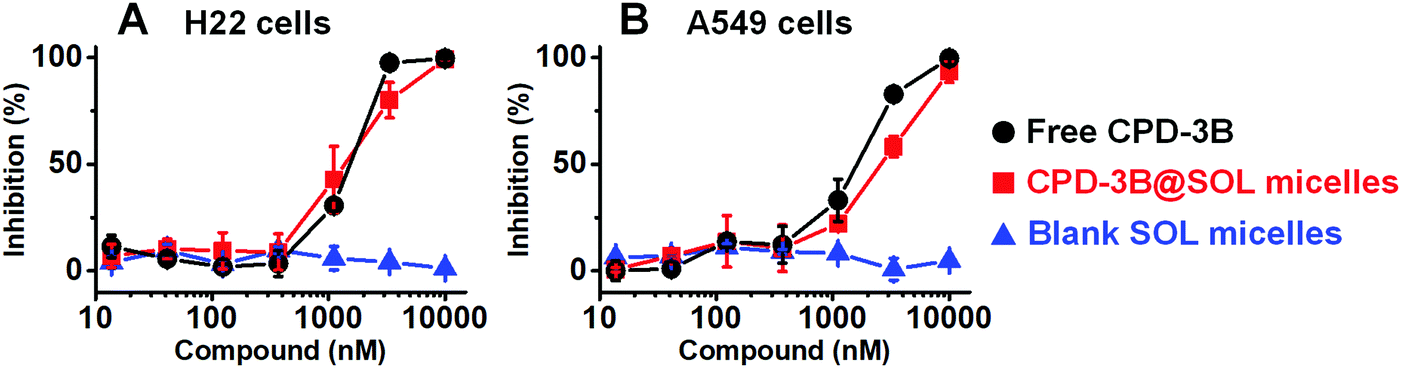

Fig. 7 The tumor cell growth inhibition of free CPD-3B, CPD-3B@SOL micelles, and blank SOL micelles. In (A) mouse liver cancer cell lines H22 and (B) human non-small lung cancer cell lines A549, inhibition of the free CPD-3B, CPD-3B@SOL micelles, and blank SOL micelles was compared using EZMTT assay.

3.8 The internalization of CPD-3B@SOL micelles in tumor cells

To further investigate if there is any difference in cellular uptake between free CPD-3B and CPD-3B@SOL micelles, fluorescence microscopy (DAPI and BF (bright field) modes) was used as a direct, quick, and intact method. The CPD-3B had endogenous emission fluorescence that could be observed under excitation light. As shown in Fig. 8, when the BF and fluorescence images were compared after 24 h incubation, H22 cells in the blank SOL micelles were basically round, with no fluorescence. When CPD-3B (in PBS with 1% DMSO) was added, cells with fluorescence emerged, and some cells showed damage. Interestingly, cells in the presence of the CPD-3B@SOL micelles (Fig. 8) showed stronger fluorescence than free CPD-3B, indicating that the CPD-3B@SOL micelles might be able to retain or stay within the cells more efficiently. The CPD-3B@SOL micelles showed 700 RFU fluorescence intensity in the H22 cell lines which was maintained over 400 RFU throughout the 24 hour incubation, whereas the free CPD-3B peaked at 350 RFU at 2 h and then decreased with time (Fig. 8M). This demonstrated that CPD-3B could be internalized directly to tumor cells, easily metabolized, and cleared. Moreover, SOL micelles might be able to enhance the stability of CPD-3B, which thus increased its uptake and prolonged its retention in H22 cells.

Fig. 8 Soluplus® micelles enhanced the internalization of CPD-3B in tumor cell lines H22 by fluorescence microscopy. At 2, 8, and 24 h, images of H22 cells incubated with (A, D, G and J) blank micelles, (B, E, H and K) free CPD-3B, and (C, F, I and L) CPD-3B@SOL micelles were captured on the modes of DAPI and bright field (BF); (M) during the 48 hours incubation, their fluorescence intensities were quantified and compared (n ≥ 3; *: p < 0.05; **: p < 0.01; ***: p < 0.001).

3.9 Stability of CPD-3B@SOL micelles in blood and liver microsomes

According to previous reports,³⁷ Selen compounds, such as Ethaselen and Ebselen, can cross-link with cellular proteins through cystein and selenocystein in plasma and blood.^38,39 Therefore, BME derivatization is required as a feasible way to isolate the compound. To investigate the stability of CPD-3B in blood and liver microsomes, the BME method was adapted and coupled with RP-HPLC for analysis and quantification (Fig. S1 and S2, ESI†).

After 2 h incubation in blood, the free CPD-3B and CPD-3B@SOL micelles showed remaining levels of CPD-3B of 64% and 80%, respectively, indicating that the CPD-3B@SOL micelles slowed down the metabolism of CPD-3B (Fig. 9A). After incubation in mouse liver microsomes for 4 h, 70% of the CPD-3B@SOL remained. This was significantly more than free CPD-3B (below 5%), showing that the micelles helped decrease the CL_int of CPD-3B (Fig. 9B and Table S3, ESI†). Therefore, the SOL micelles increased the stability of CPD-3B in blood and liver microsomes and may improve the in vivo delivery and circulation of CPD-3B via blood, decreasing the sensitivity and clearance of CPD-3B in the liver to realize longer circulation and improved bioavailability.

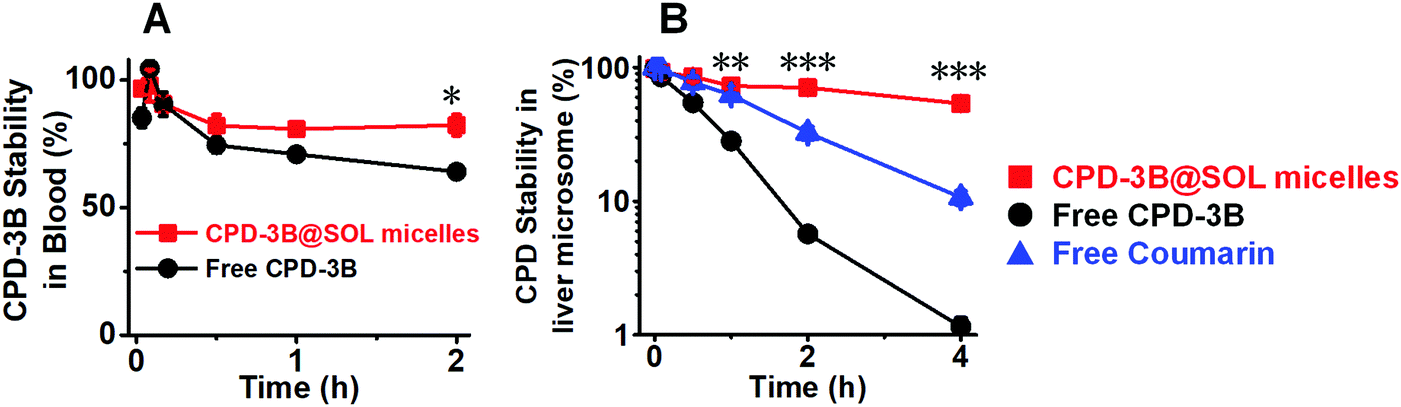

Fig. 9 Soluplus® micelles significantly improved the stability of CPD-3B in blood and liver microsomes. (A) The stability of free CPD-3B and CPD-3B@SOL micelles in blood; (B): the stability of Coumarin (positive control), free CPD-3B and CPD-3B@SOL micelles in mouse liver microsomes (n ≥ 3; *: p < 0.05; **: p < 0.01; ***: p < 0.001).

3.10 In vivo pharmacokinetics of CPD-3B@SOL micelles

Pharmacokinetics were performed through IP and IV administration using the CPD-3B vehicle and CPD-3B@SOL micelles to obtain AUC curves and pharmacokinetic parameters (Fig. 10 and Table 3). When IP administered with 25 mg kg⁻¹ dosage, the curves of the CPD-3B vehicle and CPD-3B@SOL micelles showed essentially no difference, while the AUC, C_max, and half-life time (t_1/2β) increased with slight significance. In the abdomen, the CPD-3B@SOL micelles may have been cleared or adhered by the lymphatic system and ascitic fluid, because 50–700 nm micelles are distributed and absorbed through the peritoneum and lymphatic duct.⁴⁰ Therefore, IP administration might have caused CPD-3B@SOL micelles to be retained in the peritoneal cavity, thus resulting in no significant enhancement of CPD-3B@SOL micelle concentration in the blood.⁴¹ This was consistent with early reports that nanoparticles and thermosensitive hydrogels are more suitable for peritoneal tumors.^42,43

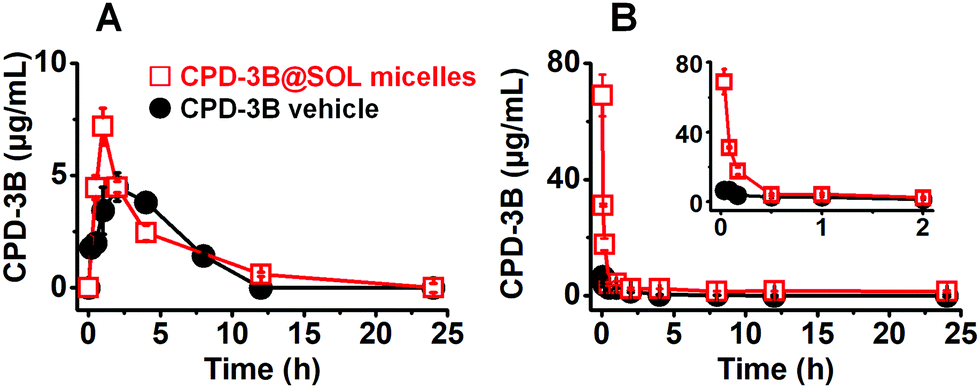

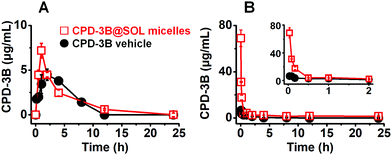

Fig. 10 The area under the curve (concentration-time) of the in vivo pharmacokinetics evaluation. The AUC curves of the CPD-3B vehicle and CPD-3B@SOL micelles were obtained by (A) intraperitoneal injection with 25 mg kg⁻¹; and (B) intravenous administration with 10 mg kg⁻¹.

Table 3 The in vivo pharmacokinetic parameters of CPD-3B vehicle and CPD-3B@SOL micelles via intraperitoneal and intravenous administration

PK parameters	CPD-3B vehicle		CPD-3B@SOL micelles
Administration	IP	IV	IP	IV
Notes: IP: intraperitoneal; IV: intravenous; AUC0–24h: the area under the curve from 0–24 h; Cmax: the maximum concentration of CPD in the blood; Tmax: the time that CPD concentration in the blood peaked; t1/2β: half-life time; CL: the clearance of CPD in the blood; Fr: the relative bioavailability: PK: pharmacokinetic (n ≥ 3; *: p < 0.05; **: p < 0.01; ***: p < 0.001)
Dose (mg kg^−1)	25	10	25	10
AUC0–24h (μg mL^−1 h)	28.0 ± 1.4	9.6 ± 1.1	34.0 ± 1.2*	48.4 ± 3.7**
C max (μg mL^−1)	4.5 ± 0.1	6.6 ± 0.7	7.2 ± 0.1*	68.9 ± 7.2**
T max (h)	2	0.033	1	0.033
t 1/2β (h)	2.2 ± 0.5	1.7 ± 0.01	4.0 ± 0.1*	16.4 ± 4.3***
CL (L h^−1 kg^−1)	0.87± 0.08	1.02 ± 0.12	0.71 ± 0.02	0.10 ± 0.04
F r (%)	—	—	121.8 ± 1.8	504.2 ± 19.4

---

After tail vein injection with dose of 10 mg kg⁻¹ (CPD-3B) for the CPD-3B vehicle, the CPD-3B was rarely detectable in the blood 8 h after the dose, with an AUC of 9.6 μg mL⁻¹ h, C_max of 6.6 μg mL⁻¹, and CL of 1.02 L h⁻¹ kg⁻¹. In contrast, the CPD-3B@SOL micellar system lasted for 24 h in blood, and the AUC and C_max increased to 48.4 μg mL⁻¹ h and 68.9 μg mL⁻¹, respectively. Moreover, due to the high C_max and long maintained concentration at about 1.4 μg mL⁻¹, the relative bioavailability of the CPD-3B@SOL micelles improved by 504% of the bioavailability of the CPD-3B vehicle. These results indicated that SOL relatively enhanced the in vivo bioavailability of CPD-3B and prolonged its circulation in the blood, probably due to the significant upgrade in aqueous solubility and blood stability.

3.11 In vivo tumor depression of CPD-3B micelles

The in vivo antitumor efficacy of the CPD-3B vehicle and CPD-3B@SOL micelles was compared via the intravenous (IV) administration route. A xenograft H22 tumor model in ICR mice was utilized for 10 days; the results are shown in Fig. 11. Using the mixture of PEG, Tween 80, and poloxamer 188 as the vehicles, the CPD-3B solution showed very poor solubility. The maximal dosage was 10 mg kg⁻¹, in which the mean tumor weight reduction showed no significance with the blank group via daily IV administration (Fig. 11A and C).

Fig. 11 The growth inhibition of H22 xenograft tumor via intravenous (IV) administration of the 10 mg kg⁻¹ CPD-3B vehicle (maximal concentration available) and 20 mg kg⁻¹ CPD-3B@SOL micelles. (A) Hepatoma H22 tumor weight; (B) body weight of mice; and (C) the image of H22 solid tumors of the mice in all treated groups (IV). (Blank@PBS: PBS vehicle; Blank@SOL: blank Soluplus micelles; 3B@PBS or CPD-3B@PBS: CPD-3B vehicle; 3B@SOL or CPD-3B@SOL: CPD-3B@SOL micelles; SOL: Soluplus®; n = 6; n.s.: no significance, p > 0.05; ***: p < 0.001).

When CPD-3B was encapsulated with SOL, the significant elevated solubility allowed doses of 20 mg kg⁻¹. At the dose of 20 mg kg⁻¹, tumors in the group that received IV-administrated CPD-3B@SOL micelles were significantly suppressed, with 54% tumor growth inhibition (TGI) compared to both PBS vehicle and blank SOL micelles (Fig. 11A). Therefore, the limited solubility in regular excipients limited the in vivo efficacy of CPD-3B, while the CPD-3B@SOL micelles achieved much better solubility and stability and better TGI. The improved in vivo efficacy could have benefited from the higher concentrations in the blood and the prolonged time of the CPD-3B micelles. Moreover, no significant difference was found between groups in terms of the weight of the mice (Fig. 11B), which implied that the prescribed CPD-3B@SOL micelles showed minimal toxicity in the animals.

4. Conclusions

The poor aqueous solubility of various KGA allosteric inhibitors limits their bioavailability and in vivo efficacy. To resolve this bottle-neck, this study explored various drug delivery excipients, such as polyethylene glycols, Tween, poloxamer, cyclodextrin, and SOL (Table S1 (ESI†) and Table 1). Most excipients showed only limited improvement. For example, the water-soluble hydropropyl-β-cyclodextrin (HP-β-CD) has been reported to increase the solubility of Ethaselen significantly by loading a suitably sized molecule into its hydrophobic cave.⁴⁴ However, CPD-3B contains a six-carbon chain in the middle and is more flexible and hydrophobic than Ethaselen, and HP-β-CD exhibited little solubility enhancement on CPD-3B.

In contrast, SOL significantly enhanced the water solubility of CPD-3B by 3000-fold. As a polyvinyl caprolactam–polyvinyl acetate–polyethylene glycol grafted molecule, SOL has a hydrophobic region that matches the hydrophobic hexyl chain and Selen groups well. Additionally, it has a hydrophilic region that strengthens the hydrophobic core to prevent the compound from precipitation in water; this “like-dissolve-like” feature might contribute a dramatic improvement to solubility.⁴⁵

SAR analysis showed that SOL exhibited a higher capability for dissolving Selen compounds with longer middle chains. The SOL-encapsulated CPD-3B formed stable, nano-sized micelles with good dispersity. Because of their excellent compatibility, the SOL/CPD-3B micelles were stable in aqueous solutions and amorphous solid dispersions. Furthermore, CPD-3B@SOL micelles enhanced the stability of CPD-3B in both mouse blood and liver microsomes and significantly increased the in vivo bioavailability of CPD-3B and pharmacokinetics via IV administration.

Most graft polymeric micelles including SOL micelles have been reported to increase cellular uptake and drug internalization.^22,35,45,46 In the present study, the fluorescence intensity of CPD-3B showed that CPD-3B@SOL micelles provided higher internalization and longer retention than free CPD-3B in H22 tumor cells. Perhaps due to the improved pharmacokinetic behaviors and cellular uptake, the CPD-3B@SOL micelles showed improved in vivo antitumor efficacy of CPD-3B in the H22 liver cancer mouse xenograft model. In contrast, the CPD-3B in PEG and Tween 80 vehicle showed very limited efficacy either by IV or IP administration.⁹

In conclusion, SOL demonstrated an impressive ability to solubilize hydrophobic CPD-3B. This biodegradable SOL not only increased the water solubility of CPD-3B by 3000 times, but also improved the compound's stability in storage, in blood, and under metabolic conditions. In combination with the enhanced cellular uptake, CPD-3B@SOL micelles achieved significant enhancement in in vivo anticancer efficacy for this novel selenium glutaminase inhibitor. The approach of this study provided an advantageous and practical method for improving the in vivo efficacy of potent hydrophobic allosteric glutaminase inhibitors.

Author contributions

Conception, design and writing, J. F. and B. H. R.; experimental performance and data analysis, J. F., Z. C., J. S., J. L., Y. H., W. H. and W. W. Funding acquisition: B. H. R. and W. H.

Abbreviations

KGA	Kidney-type glutaminase
DON	L-6-Diazo-5-oxonorleucine
BPTES	Bis-2-(5-phenylacetamido-1,2,4-thiadiazol-2-yl)ethyl sulfide
GLS	Glutaminase
GDH	Glutamate dehydrogenase
FDA	Food and Drug Administration
PVCap-PVA-PEG	Polyvinyl caprolactam-polyvinyl acetate-polyethylene glycol
CMC	Critical micellar concentration
APIs	Active pharmaceutical ingredients
BCS	Biopharmaceutical classification system
HACE	Hyaluronic acid-ceramide
Vitamin E TPGS	D-α-Tocopheryl polyethylene glycol 1000 succinate
Selen compounds	Selenazol-3(2H)-one dimers
SAR	The structure-solubility/activity relationship
ClogP	Calculated logP
DLS	Dynamic light scattering
TEM	Transmission electron microscopy
XRPD	X-Ray powder diffraction
FBS	Fetal bovine serum
G6P	Glucose-6-phosphate
G6PDH	Glucose-6-phosphate dehydrogenase
PBS	Phosphate buffer saline
RP-HPLC	Reversed phase high performance liquid chromatography
EE	Encapsulation efficiency
DL	Drug loading
PDI	Polydispersity index
SOL	Soluplus®
SDS	Sodium dodecyl sulfate
DMSO	Dimethyl sulfoxide
EZMTT	2-(3-(2-Methoxy-4-nitrophenyl)-2-(4-nitrophenyl)-2H-tetrazol-3-ium-5-yl)benzenesulfonate sodium salt
BF	Bright field
BME	β-Mercaptoethanol
NADPH	(Reduced) nicotinamide adenine dinucleotide phosphate
IV	Intravenous administration
IP	Intraperitoneal administration
AUC0–24h	Area under the curve from 0 to 24 h
C max	The maximum compound concentration in blood
T max	The time that compound concentration peaked in blood
t 1/2β	Half-life time
CL	The clearance of CPD in blood
F r	The relative bioavailability
w/w	Weight/weight
PM	Physical mixture
TGI	Tumor growth inhibition
HP-β-CD	Hydropropyl-β-cyclodextrin

Conflicts of interest

The authors declare no conflicts of interest in this work.

Acknowledgements

The authors appreciate the financial support from Start-up funding of Zhejiang University of Technology, China (number 414800129) and Natural Science Foundation of Zhejiang Province/General Project, China (number LY19H300002). We are also thankful for the kind help with transmission electron microscopy by senior engineer Hua Wang from Analysis Center of Agrobiology and Environmental Sciences, Zhejiang University, China.

References

1. K. Thangavelu, Q. Y. Chong, B. C. Low and J. Sivaraman, Structural basis for the active site inhibition mechanism of human kidney-type glutaminase (KGA), Sci. Rep., 2014, 4, 3827.
2. R. A. Shapiro, V. M. Clark and N. P. Curthoys, Inactivation of rat renal phosphate-dependent glutaminase with 6-diazo-5-oxo-l-norleucine. Evidence for interaction at the glutamine binding site, J. Biol. Chem., 1979, 254(8), 2835–2838.
3. R. D. Leone, L. Zhao, J. M. Englert, I.-M. Sun, M.-H. Oh, I.-M. Sun, M. L. Arwood, C. H. Patel, M. Arwood and J. Wen, et al., Glutamine blockade induces divergent metabolic programs to overcome tumor immune evasion, Science, 2019, 366(6468), 1013–1021.
4. S. Krupa, D. V. Ferraris, A. G. Thomas, M. Stathis, B. Duvall, G. Delahanty, J. Alt, R. Rais, C. Rojas and P. Gao, et al., Design, synthesis, and pharmacological evaluation of bis-2-(5-phenylacetamido-1,2,4-thiadiazol-2-yl)ethyl sulfide (BPTES) analogs as glutaminase inhibitors., J. Med. Chem., 2012, 55(23), 10551–10563.
5. M. J. Soth, K. Le, M. E. D. Francesco, M. M. Hamilton, G. Liu, J. P. Burke, C. L. Carroll, J. J. Kovacs, J. P. Bardenhagen, C. A. Bristow and M. Cardozo, et al., Discovery of IPN60090, a clinical stage selective glutaminase-1 (GLS-1) inhibitor with excellent pharmacokinetic and physicochemical properties, J. Med. Chem., 2020, 63(21), 12957–12977.
6. J. Li, L. Chen, B. GoyalG. Laidig, T. F. Stanton and E. B. Sjogren, Heterocyclic inhibitors of glutaminase, US Pat., 9938267B2, 2018.
7. A. Elgogary, Q. Xu, B. Poore, J. Alt, S. C. Zimmermann, L. Zhao, J. Fu, B. Chen, S. Xia and Y. Liu, et al., Combination therapy with BPTES nanoparticles and metformin targets the metabolic heterogeneity of pancreatic cancer, Proc. Natl. Acad. Sci. U. S. A., 2016, 113(36), E5328–E5336.
8. M. Zhu, J. Fang, J. Zhang, Z. Zhang, J. Xie, Y. Yu, J. J. Ruan, Z. Chen, W. Hou and G. Yang, et al., Biomolecular interaction assays identified dual inhibitors of glutaminase and glutamate dehydrogenase that disrupt mitochondrial function and prevent growth of cancer cells, Anal. Chem., 2017, 89(3), 1689–1696.
9. J. J. Ruan, Y. Yu, W. Hou, Z. Chen, J. Fang, J. Zhang, M. Ni, D. Li, S. Lu and J. Rui, et al., Kidney-type glutaminase inhibitor hexylselen selectively kills cancer cells via a three-pronged mechanism, ACS Pharmacol. Transl. Sci., 2019, 2(1), 18–30.
10. Z. Chen, D. Li, N. Xu, J. Fang, Y. Yu, W. Hou, H. Ruan, P. Zhu, R. Ma and S. Lu, et al., Novel 1,3,4-selenadiazole-containing kidney-type glutaminase inhibitors showed improved cellular uptake and antitumor activity, J. Med. Chem., 2019, 62(2), 589–603.
11. R. Schmid, Recent advances in the description of the structure of water, the hydrophobic effect, and the like-dissolves-like rule, Mon. Chem., 2001, 132(11), 1295–1326.
12. M. Valero, F. Castiglione, A. Mele, M. A. da Silva, I. Grillo, G. González-Gaitano and C. A. Dreiss, Competitive and synergistic interactions between polymer micelles, drugs, and cyclodextrins: The importance of drug solubilization locus, Langmuir, 2016, 32(49), 13174–13186.
13. S. S. Das, S. Alkahtani, P. Bharadwaj, M. T. Ansari, M. D. F. ALKahtani, Z. Pang, M. S. Hasnain, A. K. Nayak and T. M. Aminabhavi, Molecular insights and novel approaches for targeting tumor metastasis, Int. J. Pharmaceut., 2020, 585, 119556.
14. W. E. Rudzinski, A. Palacios, A. Ahmed, M. A. Lane and T. M. Aminabhavi, Targeted delivery of small interfering RNA to colon cancer cells using chitosan and PEGylated chitosan nanoparticles, Carbohydr. Polym., 2016, 147, 323–332.
15. R. Gannimani, P. Walvekar, V. R. Naidu, T. M. Aminabhavi and T. Govender, Acetal containing polymers as pH-responsive nano-drug delivery systems, J. Controlled Release, 2020, 328, 736–761.
16. A. Shah, M. S. Malik, G. S. Khan, E. Nosheen, F. J. Iftikhar, F. A. Khan, S. S. Shukla, M. S. Akhter, H. B. Kraatz and T. M. Aminabhavi, Stimuli-responsive peptide-based biomaterials as drug delivery systems, Chem. Eng. J., 2018, 353, 559–583.
17. C. Englert, J. C. Brendel, T. C. Majdanski, T. Yildirim, S. Schubert, M. Gottschaldt, N. Windhab and U. S. Schubert, Pharmapolymers in the 21st century: Synthetic polymers in drug delivery applications, Prog. Polym. Sci., 2018, 87, 107–164.
18. M. Cagel, F. C. Tesan, E. Bernabeu, M. J. Salgueiro, M. B. Zubillaga, M. A. Moretton and D. A. Chiappetta, Polymeric mixed micelles as nanomedicines: Achievements and perspectives, Eur. J. Pharm. Biopharm., 2017, 113, 211–228.
19. G. S. Kwon, Polymeric micelles for delivery of poorly water-soluble compounds, Crit. Rev. Ther. Drug Carrier Syst., 2003, 20(5), 357–403.
20. S. Aftab, A. Shah, A. Nadhman, S. Kurbanoglu, S. A. Ozkan, D. D. Dionysiou, S. S. Shukla and T. M. Aminabhavi, Nanomedicine: An effective tool in cancer therapy, Int. J. Pharmaceut., 2018, 540(1–2), 132–149.
21. A. S. Deshmukh, P. N. Chauhan, M. N. Noolvi, K. Chaturvedi, K. Ganguly, S. S. Shukla, M. N. Nadagouda and T. M. Aminabhavi, Polymeric micelles: Basic research to clinical practice, Int. J. Pharmaceut., 2017, 532(1), 249–268.
22. R. Pignatello and R. Corsaro, Polymeric nanomicelles of soluplus as a strategy for enhancing the solubility, bioavailability and efficacy of poorly soluble active compounds, Curr. Nanomed., 2019, 9(3), 184–197.
23. T. Obata, Y. Suzuki, N. Ogawa, I. Kurimoto, H. Yamamoto, T. Furuno, T. Sasaki and M. Tanaka, Improvement of the antitumor activity of poorly soluble sapacitabine (CS-682) by using Soluplus as a surfactant, Biol. Pharm. Bull., 2014, 37(5), 802–807.
24. N. Sachan, A. Bhattacharya, S. Pushkar and A. Mishra, Biopharmaceutical classification system: A strategic tool for oral drug delivery technology, Asian J. Pharm., 2009, 3(2), 76–81.
25. Q. Lin, Y. Fu, J. Li, M. K. Qu, L. Deng, T. Gong and Z. Zhang, A (polyvinyl caprolactam-polyvinyl acetate-polyethylene glycol graft copolymer)-dispersed sustained-release tablet for imperialine to simultaneously prolong the drug release and improve the oral bioavailability, Eur. J. Pharm. Sci., 2015, 79, 44–52.
26. A. Singh, A. Bharati, P. Frederiks, O. Verkinderen, B. Goderis, R. Cardinaels, P. Moldenaers, J. Van Humbeeck and G. Van den Mooter, Effect of compression on the molecular arrangement of Itraconazole-Soluplus solid dispersions: Induction of liquid crystals or exacerbation of phase separation?, Mol. Pharmaceutics, 2016, 13(6), 1879–1893.
27. Y. Zhang, Y. Liu, Y. Luo, Q. Yao, Y. Zhong, B. Tian and X. Tang, Extruded Soluplus/SIM as an oral delivery system: Characterization, interactions, in vitro and in vivo evaluations, Drug Delivery, 2016, 23(6), 1902–1911.
28. G. Quan, B. Niu, V. Singh, Y. Zhou, C. Y. Wu, X. Pan and H. Wu, Supersaturable solid self-microemulsifying drug delivery system: precipitation inhibition and bioavailability enhancement, Int. J. Nanomed., 2017, 12, 8801–8811.
29. Z. Ke, Z. Zhang, H. Wu, X. Jia and Y. Wang, Optimization and evaluation of oridonin-loaded Soluplus (R)-Pluronic P105 mixed micelles for oral administration, Int. J. Pharm., 2017, 518(1–2), 193–202.
30. Y. Zhong, G. Jing, B. Tian, H. Huang, Y. Zhang, J. Gou, X. Tang, H. He and Y. Wang, Supersaturation induced by Itraconazole/Soluplus (R) micelles provided high GI absorption in vivo, Asian J. Pharm. Sci., 2016, 11(2), 255–264.
31. I. Salah, Abou Shamat, M. Cook and M. T. Soluplus, solutions as thermothickening materials for topical drug delivery, J. Appl. Polym. Sci., 2019, 136(1), 1–9.
32. H. Wu, K. Wang, H. Wang, F. Chen, W. Huang, Y. Chen, J. Chen, J. Tao, X. Wen and S. Xiong, Novel self-assembled tacrolimus nanoparticles cross-linking thermosensitive hydrogels for local rheumatoid arthritis therapy, Colloids Surf., B, 2017, 149, 97–104.
33. A. Salawi and S. Nazzal, The physiochemical, mechanical, and adhesive properties of solvent-cast vitamin ESoluplus(R) films, Int. J. Pharm., 2018, 552(1–2), 378–387.
34. S. Y. Lee, J.-J. Lee, J.-H. Park, J.-Y. Lee, S.-H. Ko, J.-S. Shim, J. Lee, M. Y. Heo, D.-D. Kim and H.-J. Cho, Electrosprayed nanocomposites based on hyaluronic acid derivative and soluplus for tumor-targeted drug delivery, Colloids Surf., B, 2016, 145, 267–274.
35. Y. Su, K. Wang, Y. Li, W. Song, Y. Xin, W. Zhao, J. Tian, L. Ren and L. Lu, Sorafenib-loaded polymeric micelles as passive targeting therapeutic agents for hepatocellular carcinoma therapy, Nanomedicine, 2018, 13(9), 1009–1023.
36. W. Zhang, M. Zhu, F. Wang, D. Cao, J. J. Ruan, W. Su and B. H. Ruan, Mono-sulfonated tetrazolium salt based NAD(P)H detection reagents suitable for dehydrogenase and real-time cell viability assays, Anal. Biochem., 2016, 509, 33–40.
37. H. Y. Zhou, G. F. Dou, Z. Y. Meng, Y. Q. Lou and G. L. Zhang, High performance liquid chromatographic determination of 1.2-[bis(1,2-benzisoselenazolone-3(2H)-ketone)]-ethane (BBSKE), a novel organoselenium compound, in dog plasma using pre-column derivatization and its application in pharmacokinetic study, J. Chromatogr., B, 2007, 852(1–2), 617–624.
38. M. J. Capper, G. S. A. Wright, L. Barbieri, E. Luchinat, E. Mercatelli, L. McAlary, J. J. Yerbury, S. V. Antonyuk, L. Banci and S. S. Hasnain, et al., The cysteine-reactive small molecule Ebselen facilitates effective sod1 maturation, Nat. Commun., 2018, 9(1), 1693.
39. A. C. Terentis, M. Freewan, T. S. Sempértegui Plaza, M. J. Raftery, R. Stocker and S. R. Thomas, The selenazal drug ebselen potently inhibits indoleamine 2,3-dioxygenase by targeting enzyme cysteine residues, Biochemistry, 2010, 49(3), 591–600.
40. W. J. Shih, J. J. Coupal and H. L. Chia, Communication between peritoneal cavity and mediastinal lymph nodes demonstrated by Tc-99m albumin nanocolloid intraperitoneal injection, Proc. Natl. Sci. Counc. Repub. China B, 1993, 17(3), 103–105.
41. Q. Fu, D. Hargrove and X. Lu, Improving paclitaxel pharmacokinetics by using tumor-specific mesoporous silica nanoparticles with intraperitoneal delivery, Nanomedicine, 2016, 12(7), 1951–1959.
42. H. Cho, T. C. Lai and G. S. Kwon, Poly(ethylene glycol)-block-poly(ε-caprolactone) micelles for combination drug delivery: Evaluation of paclitaxel, cyclopamine and gossypol in intraperitoneal xenograft models of ovarian cancer, J. Controlled Release, 2013, 166(1), 1–9.
43. W. Zhang, T. Cui, L. Liu, Q. Wu, L. Sun, L. Li, N. Wang and C. Gong, Improving anti-tumor activity of curcumin by polymeric micelles in thermosensitive hydrogel system in colorectal peritoneal carcinomatosis model, J. Biomed. Nanotechnol., 2015, 11(7), 1173–1182.
44. H.-M. Cui and F.-L. Wu, Pharmacokinetics of Eb and its hydroxypropyl-β-cyclodextrin inclusion complex in rats, J. Chinese Pharm. Sci., 2010, 19, 52–58.
45. S. Kim, Y. Shi, J. Y. Kim, K. Park and J.-X. Cheng, Overcoming the barriers in micellar drug delivery: Loading efficiency, in vivo stability, and micelle–cell interaction, Expert Opin. Drug Delivery, 2010, 7(1), 49–62.
46. C. Deng, Y. Jiang, R. Cheng, F. Meng and Z. Zhong, Biodegradable polymeric micelles for targeted and controlled anticancer drug delivery: Promises, progress and prospects, Nano Today, 2012, 7, 467–480.

---

Footnotes

† Electronic supplementary information (ESI) available: Determined solubility of CPD-3B in different solvents, the clearance parameters of CPD-3B@SOL micelles in liver microsomes, and the regulated method validation of HPLC analysis and BME derivatization assay for CPD-3B. See DOI: 10.1039/d1cb00089f

‡ These authors contributed equally.

---
