Application of polyethylenimine-coated magnetic nanocomposites for the selective separation of Cs-enriched clay particles from radioactive soil

Abstract

The separation of Cs-enriched fine particles is a highly effective way to reduce the volume and radioactivity of contaminated soil. This work demonstrated the application of polyethylenimine (PEI)-coated Fe₃O₄ nanocomposites and a mesh filter for the selective separation of clay particles from Cs-contaminated soil. The PEI coating on the Fe₃O₄ nanoparticles enhanced the binding force between the magnetic nanoparticles and clay minerals via electrostatic attraction; thus, approximately 100% of the clay particles were magnetically separated from solution by Fe₃O₄-PEI nanocomposites at a low dose (0.04 g-nanocomposite per g-clay). In separation experiments with soil mixtures, clay- and silt-sized fine particles that had been magnetized by Fe₃O₄-PEI nanocomposites were selectively separated, and the separation efficiency improved when a mesh filter was added to exclude physically large particles. The combination of magnetic and sieving separation thoroughly separated fine particles from soil by reducing the volume of the magnetic fraction. We also evaluated the magnetic-sieving separation method for the selective removal of clay particles from ¹³⁷Cs-contaminated soil. The decrease in radioactivity in the treated nonmagnetic fraction, which accounted for 87.5% of the total soil, corresponded to a high decontamination efficiency of approximately 90%. The developed separation technology offers great potential for the efficient remediation of radioactive soil.

---

Introduction

After the Fukushima Daiichi Nuclear Power Plant accident in 2011, a large amount of radioactive cesium was released into the surrounding environment, resulting in severe soil contamination.¹ In particular, ¹³⁷Cs deposited in soil is the primary source of threat, because it has a relatively long half-life (30.1 years) and the potential for long-term exposure to gamma rays from increased ambient air dose rates or through ingestion of food products of the contaminated area.² Since most cesium remains within the top 10 cm of soil, topsoil scraping was an essential way to reduce the radioactivity in the contaminated area.³ A substantial amount of radioactive soil waste, with an estimated volume of approximately 18.7–28 million m³, is stored at temporary storage sites.³ Therefore, it is necessary to develop effective and efficient techniques to reduce the volume of Cs-contaminated soil waste.⁵

Generally, the migration and retention of Cs in soil are predominantly controlled by micaceous clay minerals.^6–11 In Fukushima soil, weathered biotite, an effective Cs sorbent, is a major component of various clay minerals.^12,13 Compared with other clay minerals, weathered biotite contains more Cs-specific sorption sites, such as interlayer or frayed edge sites (FES), revealing high Cs affinity via inner-sphere complexation.^11,14,15 The Cs adsorbed on FES diffuses into deeper into the interlayers by Cs dehydration and then readily exchanges with neighboring K. Consequently, this trapped Cs is difficult to remove from clay because it is tightly bound in between two tetrahedral sheets.^4,16,17

For the contaminated soil in Fukushima, it has been reported that the <5 μm size fraction accounts for approximately 7% of the topsoil (0–10 cm); the Cs distribution is higher in this fraction than in silt and sand, which make up the majority of the rest of the topsoil.¹⁸ For this reason, the removal of fine particles could lower radioactivity of the remaining soil. Nakanishi et al. (2016)¹⁹ reported that radioactivity was reduced by more than 80% after the separation of suspended clay from a mixed soil suspension. Therefore, the separation of clay containing a high concentration of Cs from soil can be an effective strategy for radioactive soil decontamination. Several chemical/physical methods have been reported for the separation of Cs-contaminated clay. For example, flotation technology was applied for the selective separation of Cs-contaminated clays. Said et al. (2019)²⁰ employed a continuous particulate froth flotation process using a cationic surfactant to separate negatively charged fine soil particles (<100 μm). Zhang et al. (2019)²¹ also studied the froth flotation method to selectively separate Cs-loaded clays from uncontaminated clays. In addition, magnetic separation has been used to separate contaminated clay. Igarashi et al. (2014)²² separated 2 : 1-type clay minerals with paramagnetic properties from soil particles using a superconducting magnet. Mallampati et al. (2015)²³ synthesized and applied Fe/Ca/CaO/[PO₄] nanocomposites for magnetic separation and immobilization of Cs in dry contaminated soil. To date, few techniques have been reported for the separation of clay particles from soil, and their practical applications are still limited in terms of separation efficiency (SE).

In our recent research,²⁴ we used Fe₃O₄ nanoparticles coated with cationic polymers for the selective separation of Cs-contaminated illite clay from soil based on the negative charge of the clay surface. Due to the selective sorption of the cationic Fe₃O₄ nanocomposites onto clay particles through electrostatic attraction, ¹³⁷Cs-contaminated clay could be effectively and readily separated from a soil mixture. However, clay particles and silt- or sand-sized particles with a low Cs concentration were also separated to some extent by the magnetic nanocomposites. Therefore, to increase the selectivity of clay particle separation, we added a mesh filter for physical separation. The combination of magnetic and sieving methods can more selectively separate clay particles by excluding larger magnetic particles from passing through the mesh filter. Thus, we investigated the effects of sieving and nanocomposite dose on the SE of fine particles based on the particle size distribution. In addition, the reduction in volume and radioactivity of ¹³⁷Cs-contaminated soil by magnetic separation were evaluated.

Materials and methods

Materials

Hydrobiotite (HBT) obtained from Sigma-Aldrich was used as the clay substrate after being ground in a milling machine and sieved through a 20 μm mesh. Other clay minerals, including illite (Yong Koong Illite Co., Korea), kaolinite (Sigma-Aldrich) and montmorillonite (Clay Minerals Repository, USA), were used for comparison. A soil sample was collected near the site of the Korea Atomic Energy Research Institute (KAERI), Daejeon, Korea, and was used after being sieved to a size of less than 2 mm and then dried at room temperature for one week.

Synthesis of Fe₃O₄-PEI nanocomposites

First, Fe₃O₄ nanoparticles were prepared by chemical coprecipitation.²⁵ FeCl₂·4H₂O (2.01 g) and FeCl₃ (3.34 g) were dissolved in 100 mL of DI water in a four-neck flask and heated at 80 °C under a nitrogen atmosphere. After the addition of 23 mL of NH₄OH (28–30%) into the solution, the mixture was stirred continuously for 30 min. The resulting magnetic nanoparticles were separated from the mixture using a permanent NdFeB magnet (0.38 T, 5 × 5 × 2.5 cm, JL Magnet, Korea) and then washed 5 times with DI water.

Then, PEI-coated Fe₃O₄ nanocomposites were synthesized by adding a 5 wt% PEI solution (M_w ≈ 25 kDa) to the Fe₃O₄ nanoparticles at a mass ratio of 0.1 : 1 g-PEI per g-Fe₃O₄ nanoparticles, and the mixture was sonicated for 1 h. The nanocomposites were collected from the solution using a permanent magnet and then washed 5 times with DI water. The Fe₃O₄-PEI nanocomposites were dispersed in DI water for further use.

Interaction between the Fe₃O₄-PEI nanocomposites and clay minerals

To magnetically separate clay minerals from solution, Fe₃O₄-PEI nanocomposites were mixed for 15 min with HBT (50 mg) at various mass ratios (0.005 : 1, 0.02 : 1, 0.04 : 1, 0.08 : 1, and 0.1 : 1 g-nanocomposite per g-clay mineral) in 17 mL of DI water in a 20 mL glass bottle. For comparison, Fe₃O₄-PEI nanocomposites were also mixed with kaolinite, montmorillonite, and illite at a mass ratio of 0.02 g-nanocomposite per g-clay mineral. After mixing, a permanent magnet was placed next to the bottle for 3 min to separate the nanocomposite–clay mineral complexes. The separation efficiency (SE%) of clay from solution was calculated using the equation SE% = [1 − (M_r/M_t)] × 100%, where M_r and M_t are the clay mass in the solution before and after magnetic separation. The weight of each clay particle in the solution was measured after being completely dried in a vacuum oven.

Selective separation of fine particles from a soil mixture

The magnetic separation experiments were performed using a soil mixture of 90% sand and 10% clay (HBT, mean size: 7 μm) in a 500 mL open acrylic chamber. To combine sieve separation with magnetic separation, a mesh filter (0.075 mm) was inserted vertically into the chamber. The Fe₃O₄-PEI nanocomposites were mixed for 10 min with 10 g of soil mixture in 250 mL of DI water at various mass ratios (0.04 : 1, 0.08 : 1, 0.12 : 1, and 0.16 : 1 g-nanocomposite per g-HBT). After mixing, the soil mixture containing the Fe₃O₄-PEI nanocomposites was separated under a magnetic field, and the particle size distributions of the nonmagnetic and magnetic soil fractions were analyzed. Each soil sample was divided into five fractions—sand (2.0–0.5, 0.5–0.2, and 0.2–0.075 mm), silt (0.075–0.038 mm), and silt–clay (<0.038 mm)—according to the AASHTO soil classification system.

To evaluate the efficiency of the reduction in radioactivity by magnetic-sieving separation, radioactive ¹³⁷Cs⁺-sorbed soil was prepared by mixing soil (100 g) with 1 L of an aqueous Cs⁺ solution (220 Bq L⁻¹) for 7 days at room temperature. The radioactivity of the ¹³⁷Cs⁺-sorbed soil was 2152 Bq kg⁻¹. Fine particles less than 0.038 mm accounted for approximately 8.5% of the contaminated soil. The experimental procedure was conducted at a mass ratio of 0.12 g-nanocomposites per g-fine particles by using the same procedures described above. The efficiency of the reduction in radioactivity in the ¹³⁷Cs⁺-sorbed soil was determined using the equation RE% = [1 − (R_n/R_i)] × 100%, where R_i and R_n are the radioactivity of the initial soil and nonmagnetic soil.

Analytical methods

The morphology of the Fe₃O₄-PEI nanocomposites and HBT–nanocomposite complexes was observed by ultracorrected energy-filtered transmission electron microscopy (UC-EF-TEM, Carl Zeiss, Germany). Thermogravimetric analysis (TGA, Mettler-Toledo, USA) was performed to confirm the amount of PEI coating using a LABSYS Evo (Setaram, France) under a nitrogen atmosphere at a heating rate of 30 °C min⁻¹. Attenuated total reflection Fourier transform infrared (ATR-FTIR) spectroscopy was also conducted using an iS5 spectrometer (Thermo, USA) to analyze the functional groups of the Fe₃O₄-PEI nanocomposites. For the zeta potential measurements, 10 mg sample was transferred to 10 mL DI water. The pH of the solution was measured with an Orion pH electrode (Thermo, USA) and adjusted by dropwise addition of 0.1 M HCl and NaOH. After adjusting the pH of the solution, the zeta potentials of the nanocomposites and clay minerals were analyzed by dynamic light scattering (DLS) using a Nano-Zs90 zetasizer (Malvern, UK). Each measurement was the average of 100 measurements and the entire experiment was conducted in triplicate. For measurement of radioactivity, initial and nonmagnetic soil samples were analyzed using gamma spectrometry with a multichannel analyzer (MCA; Canberra, USA) that has a high purity germanium (HPGe) detector. The specific activity of ¹³⁷Cs was determined by measuring its gamma-ray at 661.6 keV. The activity of ¹³⁷Cs in the samples was evaluated using the total net counts under the selected photopeak, applying gamma intensity of the radionuclide and weight of the sample. The radioactivity concentration was expressed as Bq kg⁻¹.

Results and discussion

Characteristics of the Fe₃O₄-PEI nanocomposites

Amino-functionalized magnetic nanocomposites were synthesized based on the surface characteristics of clay particles. A TEM image of the Fe₃O₄-PEI nanocomposites shows relatively uniform spherical morphologies and an average size of approximately 10 nm (Fig. 1a). Surface modification of the Fe₃O₄ nanoparticles with PEI was confirmed through FTIR analysis and TGA. As shown in Fig. S1,† strong adsorption peaks at 550 cm⁻¹ and 580 cm⁻¹, which are assigned to the vibration of Fe–O bonds, were observed in both the coated and naked magnetic nanoparticles.²⁶ In the Fe₃O₄-PEI nanocomposite data, the peaks at 3245 and 1460 cm⁻¹ correspond to N–H stretching vibrations,^27,28 while the bands at 2810 and 2915 cm⁻¹ confirm the presence of aliphatic C–H stretching vibrations.²⁸ Therefore, these results clearly confirm the introduction of a PEI layer on the surface of the Fe₃O₄ nanoparticles.

Fig. 1 TEM images of (a) Fe₃O₄-PEI nanocomposites and (b) Fe₃O₄-PEI nanocomposites adsorbed onto clay particles.

The TGA weight-loss curves in Fig. S2† also demonstrate that PEI was successfully introduced on the surface of the magnetic nanoparticles. The Fe₃O₄-PEI nanocomposites underwent a weight loss of 13.9%, which was approximately 10% greater than that of the naked Fe₃O₄ nanoparticles (3.6%). Accordingly, the difference in weight loss between the Fe₃O₄-PEI nanocomposites and naked Fe₃O₄ nanoparticles was consistent with a mass ratio of 0.1 g-PEI per g-Fe₃O₄ nanoparticles.

PEI has a large number of amino groups that can capture protons at different pH values, known as the “proton sponge” mechanism.²⁹ As shown in Fig. 2, the PEI coating allowed the Fe₃O₄ nanoparticles to have a positive charge in the pH range of 2–10. In contrast, the surface charge of the clay minerals, including HBT, illite, kaolinite and montmorillonite, was mostly negative over a wide pH range. These results suggest that the functionalized nanocomposites are likely to adsorb on the surface of clay minerals via electrostatic attraction under neutral conditions.

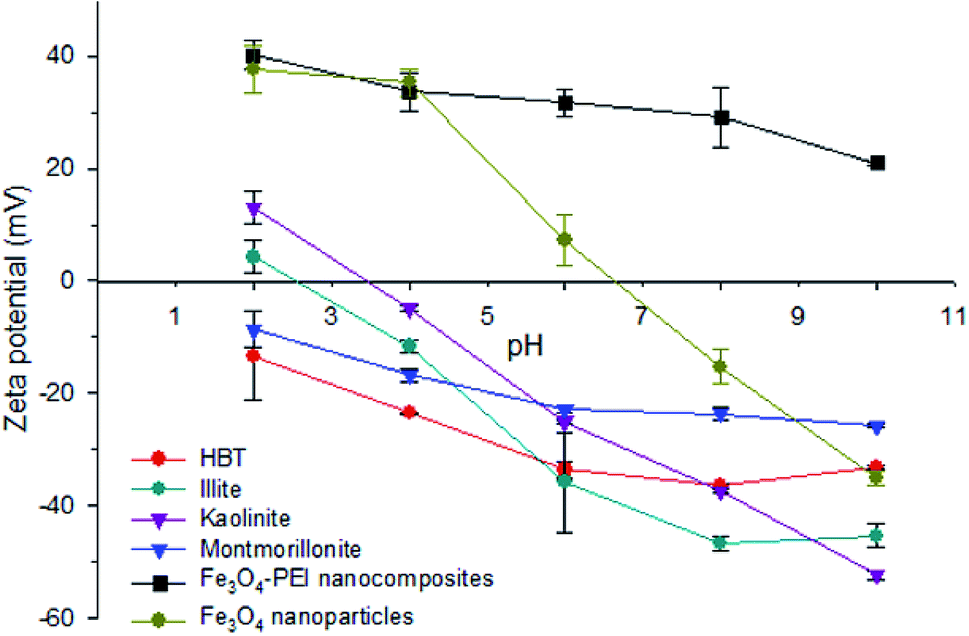

Fig. 2 Zeta potential of Fe₃O₄ nanoparticles, Fe₃O₄-PEI nanocomposites and clay minerals at different pH levels.

Interaction between the Fe₃O₄-PEI nanocomposites and clay minerals

Fig. 3 shows the SE of HBT from solution at mass ratios of the Fe₃O₄-PEI nanocomposites to HBT in the range of 0.005–0.100 at pH 7. The SE was 95.7% at 0.02 g-nanocomposite per g-clay, and the highest SE of approximately 100% was achieved when the mass ratio exceeded 0.04. Similarly, all clay minerals used for comparison showed a high SE of more than 95% at 0.02 g-nanocomposite per g-clay. These results suggested that the PEI coating improved the binding between the Fe₃O₄ nanoparticles and clay minerals, and thus, a high SE could be achieved at a low nanocomposite dose. A TEM image also clearly indicated that the Fe₃O₄-PEI nanocomposites were adsorbed on the surface of the clay particles (Fig. 1b).

Fig. 3 Separation efficiency (SE) of HBT at pH 7 as a function of the mass ratio of Fe₃O₄-PEI nanocomposites to clay mineral. Inset compares SE of other clay minerals at a 0.02 g-Fe₃O₄-PEI nanocomposites per g-clay mineral.

The interaction mechanism between the Fe₃O₄-PEI nanocomposites and clay minerals was elucidated on the basis of charge neutralization (or the electrostatic patch mechanism) and electrostatic bridging.^30–33 The interaction of cationic Fe₃O₄ nanoparticles with oppositely charged clay particles leads to neutralization of their charges and destabilization of the system. Generally, negatively charged clay particles in solution are stably dispersed due to the electrostatic repulsion between them (Fig. S3†). However, after mixing the Fe₃O₄-PEI nanocomposites with clay particles, the cationic Fe₃O₄ nanoparticles strongly adsorbed onto the oppositely charged clay particles via a neutralization mechanism. As a result, the electrostatic repulsion between clay particles decreased, causing destabilization and coagulation. Charge neutralization plays a major role in magnetic flocculation by Fe₃O₄-PEI nanocomposites. In addition, the nanocomposites may adsorb onto the surface of clay particles via a bridging mechanism. Cationic Fe₃O₄-PEI nanocomposites can interact with negatively charged clay particles via the formation of a bridge between them, resulting in the formation of flocs. Therefore, the aggregation of colloid clay particles can be achieved through such interaction mechanisms involving Fe₃O₄-PEI nanocomposites. In the absence of a permanent magnet, it was confirmed that the clay particles that had reacted with the Fe₃O₄-PEI nanocomposites settled faster (within 120 s) than those that had reacted with naked Fe₃O₄ nanoparticles (Fig. S3†) because of the floc formation by the former particles.

Selective separation of fine particles from a soil mixture

To assess the selective separation of fine particles from soil, Fe₃O₄-PEI nanocomposites were mixed with a soil mixture containing 10% HBT at a mass ratio of 0.04 g-nanocomposite per g-HBT. Magnetic separation was then carried out with and without a mesh filter to account for the effects of sieving and nanocomposite dose on the selective separation of fine particles (Fig. 4). The results of magnetic separation are presented in accordance with the particle size distribution of the magnetic and nonmagnetic fractions of soil.

Fig. 4 Photographs of magnetic separation (a) without a mesh filter and (b) with a mesh filter (magnetic field strength is 0.38 T).

As shown in Fig. 5, the raw soil consisted of a 14% silt- and clay-sized fraction (<0.075 mm) and an 86% sand-sized fraction (0.075–2 mm). Without the mesh filter, the separated magnetic soil fraction accounted for 18.9%, and this fraction was found to consist of 54.4% fine particles smaller than 0.038 mm, 7.7% silt-sized particles (0.038–0.075 mm) and 37.9% sand-sized particles. Although most of the fine particles were magnetically separated, some sand-sized particles were also present, so the addition of a mesh filter was expected to increase the SE; the results are shown in Fig. 5b. Upon the addition of the mesh filter, the fine particles in the magnetic soil fraction became the predominant fraction, with a proportion of 91.7%, because the sand-sized particles did not pass through the mesh filter. Moreover, the sand-sized fraction made up 98.1% of the nonmagnetic soil fraction, which suggests that most of the fine soil particles were collected in the magnetic part. Therefore, the combination of magnetic separation with a mesh filter enabled more thorough separation of fine particles from the soil mixture, ultimately reducing the volume of magnetic soil (i.e., Cs-enriched soil) from 18.9% to 11.2%.

Fig. 5 Particle size distributions after magnetic separation (a) without a mesh filter and (b) with a mesh filter.

In addition, the effects of different nanocomposite doses (0.04, 0.08, 0.12, and 0.16 g-nanocomposite per g-HBT) on the SE of fine particles are compared in Fig. 6. The SE increased slightly with an increase in the dose of Fe₃O₄-PEI nanocomposite, and the highest SE was approximately 99.3%, obtained at a mass ratio of 0.16 g g⁻¹. In the case of silt-sized particles (0.075–0.038 mm), the increase in SE with increasing nanocomposite dose was greater than that for the other particle sizes and remained above 0.12 g g⁻¹. Therefore, it was concluded that a nanocomposite dose of 0.12 g g⁻¹ is suitable for magnetic-sieving separation of silt- and clay-sized fine particles.

Fig. 6 The effect of Fe₃O₄-PEI nanocomposites dosage on separation efficiency of fine particles.

Evaluation of the ¹³⁷Cs radioactivity reduction in contaminated soil

To demonstrate the effect of magnetic-sieving separation on the remediation of radioactive soil, ¹³⁷Cs-contaminated soil was reacted with Fe₃O₄-PEI nanocomposites at a mass ratio of approximately 1.2% of the contaminated soil. The initial radioactivity of the ¹³⁷Cs-sorbed soil was 2152 Bq kg⁻¹. As shown in Fig. 7, to examine the particle size dependence of ¹³⁷Cs radioactivity, the raw soil was separated into four fractions: 2–0.5 mm, 0.5–0.2 mm, 0.2–0.075 mm, and <0.075 mm. The ¹³⁷Cs radioactivity distribution revealed a high Cs concentration in the fine fraction (17 400 Bq kg⁻¹ in the <0.075 mm portion). After magnetic-sieving separation, the treated nonmagnetic fraction, which accounted for 87.5% of the total soil, had a value of 224 Bq kg⁻¹ (10.4% of the total ¹³⁷Cs). These results suggest that a high decontamination efficiency of approximately 90% was achieved by simple physical separation of fine soil particles without additional chemical treatment.

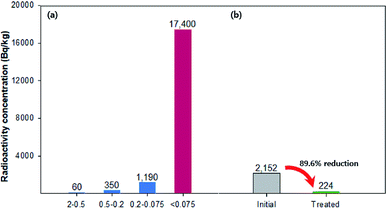

Fig. 7 A radioactivity of (a) the raw soil according to the four size fraction; 2–0.5, 0.5–0.2, 0.2–0.075, and <0.075 mm, (b) initial value and treated value using magnetic-sieving separation.

In Cs-contaminated soil from the nuclear accident sites of Chernobyl and Fukushima, the distribution of radioactivity among the various soil particle sizes was analyzed, and it was confirmed that higher radioactivity is found in smaller particles.^34,35 Therefore, methods to separate highly contaminated fine particles from soil are possible soil decontamination strategies. Although several studies have considered chemical separation alone using flotation or magnetic methods for Cs-contaminated soil treatment,^20–23 such methods cannot be implemented in practice (Table 1). Thus, our results have demonstrated that magnetic-sieving separation using Fe₃O₄-PEI nanocomposites is an effective method to decontaminate radioactive soil.

Table 1 Comparison of separation methods in Cs-contaminated soil treatment

Method	Object	Results	Advantages	Disadvantages	Reference
Magnetic separation with Fe3O4-PEI nanocomposites	Selective separation of Cs-fine particles from soil	Reduction of radioactivity: 89.6%	Simple operation, low energy consumption, high decontamination rate	High cost of nanocomposite synthesis	This study
		Reduction of volume: 80%
Magnetic separation with nano-Fe/Ca/CaO/[PO4] under dry condition	Separation and immobilization of Cs in contaminated soil	Reduction of radioactivity: 88.1%	High decontamination rate, no water use	High cost of nanocomposite synthesis	23
		Reduction of volume: 72.8%
Magnetic separation with superconducting magnet	Separation of 1 : 1 and 2 : 1 type clay mineral	Reduction of radioactivity: 20%	Simple process	Low separation efficiency, high energy consumption	22
Foam flotation with EDAB	Separation of Cs-clay from pristine clay (montmorillonite)	Separation efficiency of contaminated clay: 75%	Ease of scale up, high separation efficiency	Limitation of applicability, generation of wastewater	21
Foam flotation with TTAB	Selective separation of Cs-fine particles from soil	Separation efficiency: 55% of 2–20 μm, 58.5% of 20–50 μm, 47% of 50–100 μm	Ease of scale up, high separation efficiency	Poor separation efficiency of clay particles, generation of wastewater	20

---

Conclusion

The aim of this work was to increase the selectivity of the separation of Cs-enriched clay particles from contaminated soil by combining magnetic and sieving methods. Fe₃O₄-PEI nanocomposites were selectively adsorbed onto negatively charged clay particles via electrostatic interactions over a wide pH range. The synthesized functionalized nanocomposites enhanced the binding force between the Fe₃O₄ nanoparticles and clay minerals; thus, almost 100% of clay particles were separated from solution with a low nanocomposite dose. The combination of magnetic separation with a mesh filter also showed that fine particles could be more selectively separated from a soil mixture by excluding sand-sized particles. In addition, magnetic-sieving separation effectively led to a reduction in radioactivity of approximately 90% in ¹³⁷Cs-contaminated soil. Therefore, the combined application of Fe₃O₄-PEI nanocomposites and a mesh filter for the selective separation of clay particles may provide new insights for the design of novel practical technologies for the remediation of radioactive soil.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korean government, Ministry of Science and ICT (No. 2017M2A8A5015148).
