Nuclear vibrational theories based upon the Watson Hamiltonian are ubiquitous in quantum chemistry, but are generally unable to model systems in which the wavefunction can delocalise over multiple energy minima, i.e. molecules that have low-energy torsion and inversion barriers. In a 2019 Chemical Reviews article, Puzzarini et al. note that a common workaround is to simply decouple these problematic modes from all other vibrations in the system during anharmonic frequency calculations. They also point out that this approximation can be “ill-suited”, but do not quantify the errors introduced. In this work, we present the first systematic investigation into how separating out or constraining torsion and inversion vibrations within potential energy surface (PES) expansions affects the accuracy of computed fundamental wavenumbers for the remaining vibrational modes, using a test set of 19 tetratomic molecules for which high quality analytic potential energy surfaces and fully-coupled anharmonic reference fundamental frequencies are available. We find that the most effective and efficient strategy is to remove the mode in question from the PES expansion entirely. This introduces errors of up to +10 cm−1 in stretching fundamentals that would otherwise couple to the dropped mode, and ±5 cm−1 in all other fundamentals. These errors are approximately commensurate with, but not necessarily additional to, errors due to the choice of electronic structure model used in constructing spectroscopically accurate PES.
Arguably one of the most important ansatz choices is that of the coordinate system, because this impacts upon both the efficiency of PES construction schemes and the complexity of the nuclear vibrational Hamiltonian. As stressed by Sibert III et al., “exact implementations of the curvilinear and rectilinear descriptions are strictly equivalent. However, a key practical point is that they are not equivalent in low orders of approximation.”3 Usually, this is a choice between Scylla and Charybdis, because the kinetic energy operator is more concisely formulated in rectilinear coordinates, whereas molecular potential energy surface expansions converge faster in curvilinear coordinates.
Anharmonic Watson Hamiltonian models4,5 are widely used but share common limitations when it comes to describing large-amplitude vibrational motions. These limitations arise from the aperiodic nature and shape of rectilinear normal mode coordinates. Watson Hamiltonian models are strictly only suitable for semi-rigid molecules that undergo relatively low-amplitude vibrations from their equilibrium structures, and can yield strongly divergent results when applied to molecules that undergo large-amplitude motions such as torsion or inversion vibrations.
The simplest and most rigorous approximation to circumvent this involves enforcing the required condition of semi-rigidity by ignoring any coupling between the large-amplitude vibrations and all other vibrations. In a recent review, Puzzarini et al. pointed out that this “represents a crude approximation, which can be ill-suited in many situations.”6 However, to the best of our knowledge, the resultant errors have not been systematically investigated or quantified before.
If the large-amplitude vibration itself is of interest, one needs to account for its curvilinear nature using more sophisticated models.7 In some special cases, the Watson Hamiltonian is still suitable if the potential energy surface (PES) and wavefunction can be expanded about a saddle point connecting two symmetric minima. This approach has been used to compute tunnelling splittings for the inversion modes of H3O+ and NH3,8,9 but cannot be extended to other types of motions, such as torsions.9
A more general solution is to numerically map out the PES along one or two large-amplitude coordinates, constrained to remain orthogonal to the remainder of the PES. This idea forms the basis for a series of closely-related methods, including the Hougen–Bunker–Jones Hamiltonian,10 reaction path Hamiltonian,11 reaction surface Hamiltonian12 and internal coordinate path Hamiltonian13,14 models. However, the process of mapping out the PES along these special coordinates is far from routine, and a specialised set of basis functions are required in which to expand the wavefunction. This complicates the evaluation of kinetic and potential energy integrals, decreasing computational efficiency relative to methods based purely on the Watson Hamiltonian.
To investigate the limits of applicability of “pure” Watson Hamiltonian models, we will quantify how omitting or approximating PES-mediated coupling between torsion and inversion vibrations affects fundamental transition wavenumbers of other vibrational modes. In principle, the best way to assess the accuracy of any computational model is to directly benchmark against experimental data. However, in the context of vibrational spectroscopy, problems with this approach arise from both theoretical and experimental perspectives.
From the experimental side, it is not always possible to obtain high-resolution gas phase vibrational spectra and, even if the data is available, unique and unambiguous assignments are not always possible, particularly where there are strong resonances between fundamentals and overtones or combination bands. From the theoretical side, the main problem is that there are multiple sources of error that all contribute to the overall accuracy of the final predictions, including choice of electronic structure model used in constructing the potential energy surface, form and/or completeness of potential energy surface representation, and choice of nuclear vibrational model or form of nuclear vibrational Hamiltonian. It is important to carefully disentangle contributions from each potential source of error to ensure results are robust; i.e. when predictions align with experiment, they are right for the right reasons, not simply due to fortuituous error cancellation.15
Therefore, we will perform a thorough and systematic benchmarking study on a series of 19 tetratomic molecules for which high quality semi-global analytical potential energy surfaces and reference fundamental wavenumbers obtained using alternative nuclear vibrational models are available.16
However, the acid test of any computational model is ultimately its ability to predict and/or interpret experimental data. Informed by the tetratomic benchmarking results, we will construct Watson Hamiltonian models in which the computational sources of error are carefully controlled, and assess their accuracy against high-resolution experimental data for a series of pentatomic and hexatomic molecules, including the textbook example methanol.
In this work, we choose to use the PyPES and PyVCI program packages16,24 that utilise the Watson Hamiltonian4 in conjunction with sextic force field expansions of the potential energy. Although analytic force field expansions have gone out of fashion in variational calculations, in favour of m-mode grid-based representations of the PES,8,21 we choose to use PyPES because it conveniently offers all necessary tools: PyPES easily facilitates the utilisation of spectroscopically accurate PES compiled from the literature and newly ab initio-generated force fields, allowing theory-theory and theory-experiment benchmarking to be carried out within the same methodological framework. The required PES and wavefunction manipulations to separate out large-amplitude vibrations are trivial to implement in the context of force field-expanded PES and wavefunctions constructed from a basis of harmonic oscillator product functions. Sextic force field expansions in rectilinear normal mode (RNM) coordinates are obtained via coordinate transformation from quartic force fields in curvilinear normal mode (CNM) coordinates, following the formalism established by Allen and Császár.19 This takes advantage of the rapid convergence of force field expansions in CNM coordinates, and provides an efficient and numerically stable procedure for approximating 5th and 6th order RNM force constants.16 Constraints that restrict how force fields describe large-amplitude modes – or indeed, omit them entirely – may be applied in either CNM or RNM space. Because the truncation schemes trialled in this work depend on how the force fields are constructed, we will briefly summarise our approach here.16
![]() | (1) |
![]() | (2) |
Rectilinear normal mode coordinates (Q) are defined as linear combinations (L−1) of Cartesian displacements (X) that diagonalise the mass-weighted Hessian matrix:27
Q = L−1X. | (3) |
![]() | (4) |
With curvilinear normal mode coordinates thus defined, the PES can be expanded as a Taylor series in about equilibrium (unrestricted summation):
![]() | (5) |
Transforming the 4th order curvilinear normal mode force constants to 6th order rectilinear normal mode force constants F requires derivatives of
with respect to Q, to 5th order. These are computed via a two-step linear transformation from higher order analogues of the B matrix, using the L and R matrices defined above. Following a non-linear coordinate transformation procedure,19,29 the desired sextic force field in rectilinear normal mode coordinates is obtained (unrestricted summation):
![]() | (6) |
Possible sources of instability include:
(1) Unphysical divergences or “holes” in the potential arise along the torsion/inversion coordinate, reflecting the inability of the truncated Taylor series to correctly model the shape of the PES along the vibrationally-accessible region.
(2) The inability of 6th order expansions in RNM coordinates to correctly reproduce the shape of 4th order expansions in CNM coordinates, resulting in unphysical couplings between torsion/inversion coordinates and others within the RNM force field.
(3) Both of the above.
We therefore investigate three possible truncation schemes:
(1) Ṽharm: constraining the problematic coordinate to remain harmonic in the CNM PES expansion, and then transforming to RNM coordinates.
(2) Vdrop: dropping all terms involving the problematic coordinate in the RNM PES expansion, but retaining indirect coupling mediated through the curvilinear-to-rectilinear coordinate transformation process (see ref. 16).
(3) Ṽdrop: dropping all terms involving the problematic coordinate during CNM PES construction prior to transformation into rectilinear normal mode coordinates. This ensures that the dropped mode remains frozen (harmonic and geometrically uncoupled) in the RNM PES expansion. It may become necessary to modify the redundant coordinate set S, which underpins the curvilinear normal mode coordinates (see eqn (4)).
Transformation procedures used to obtain these truncated PES expansions are summarised in Table 1.
Name | Definition | Scaling |
---|---|---|
V ref |
V
(4)(![]() |
![]() |
Ṽ harm |
V
(4)(![]() ![]() |
![]() |
V drop |
V
(4)(![]() |
![]() |
Ṽ drop |
V
(4)(![]() ![]() |
![]() |
![]() | (7) |
The VCI wavefunction is formed as a linear combination of harmonic oscillator product functions:
![]() | (8) |
![]() | (9) |
VCI fundamentals are identified as those singly-excited states with the largest overlap to the corresponding harmonic oscillator fundamentals, and fundamental transition wavenumbers are computed from the energy difference between these and the VCI ground state.
Expt.a ref. | Electronic structure method | Nuclear vib. model | Comp. ref. | ||
---|---|---|---|---|---|
ICH: internal coordinate Hamiltonian, as implemented in TROVE77 and RVIB4.78 CVPTn: nth order Canonical Van Vleck perturbation theory, as implemented in VANVLK.79,80 VPTn: nth order vibrational perturbation theory, as implemented in SPECTRO.81 VCI: vibrational configuration interaction, as implemented in MULTIMODE.82a High- and low-resolution gas phase experimental data.b With effective core potential (ECP) on metal atom, refer to original reference for details.c Near-complete atomic orbital basis, refer to original reference for details. | |||||
(A) | |||||
NH3 | C 3v | 33–36 | CCSD(T)/CBS | ICH (TROVE) | 37 |
PH3 | C 3v | 38, 39 | CCSD(T)/CBS | ICH (TROVE) | 40 |
SbH3 | C 3v | 41 | CCSD(T)/aVQZb | ICH (TROVE) | 42 |
BiH3 | C 3v | 43 | CCSD(T)/aVQZb | ICH (TROVE) | 42 |
SiH3− | C 3v | CCSD(T)-R12/BS1c | CVPT6 | 44 | |
(B) | |||||
BF3 | D 3h | 45–47 | CCSD(T)/VTZ | VPT2 | 48 |
CF3+ | D 3h | CCSD(T)/VTZ | VPT2 | 48 | |
AlF3 | D 3h | CCSD(T)/VTZ | CVPT4 | 49 | |
SiF3+ | D 3h | CCSD(T)/VTZ | CVPT4 | 49 | |
SO3 | D 3h | 50, 51 | CCSD(T)/aV(Q+d)Z | VPT2 | 52 |
H2CO | C 2v | 53, 54 | CCSD(T)/aVQZ | ICH (TROVE) | 55 |
H2SiO | C 2v | CCSD(T)/aV5Z | ICH (RVIB4) | 56 | |
(C) | |||||
HOOH | C 2 | 57–61 | CCSD(T)-F12/aV7Z | ICH (RVIB4) | 62 |
DOOD | C 2 | 63 | CCSD(T)-F12/aV7Z | ICH (RVIB4) | 62 |
HSOH | C 1 | 64–66 | CCSD(T)/aV(Q+d)Z | ICH (TROVE) | 67 |
(D) | |||||
t-HNNH | C 2h | 68 | CCSD(T)/VTZ | VPT2 | 69 |
c-HSiOH | C s | CCSD(T)/aV5Z | VPT2 | 70 | |
t-HSiOH | C s | CCSD(T)/aV5Z | VPT2 | 70 | |
c-DSiOD | C s | CCSD(T)/aV5Z | VPT2 | 70 | |
t-DSiOD | C s | CCSD(T)/aV5Z | VPT2 | 70 | |
c-HOCO | C s | CCSD(T)/CBS | VCI | 71 | |
t-HOCO | C s | 72, 73 | CCSD(T)/CBS | VCI | 74, 75 |
c-DOCO | C s | CCSD(T)/CBS | VCI | 71 | |
t-DOCO | C s | 73, 76 | CCSD(T)/CBS | VCI | 74, 75 |
![]() | ||

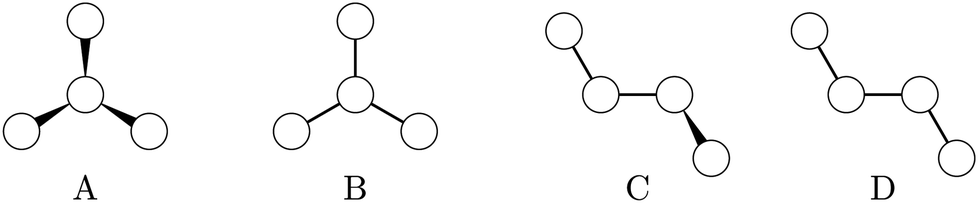

Fig. 2 Topologies of molecules contained within our benchmark set.28 |
Full dimensional sextic force fields in rectilinear normal mode coordinates (Vref) and their truncated analogues (Ṽharm, Vdrop and Ṽdrop) are obtained via analytical coordinate transformation from curvilinear normal mode quartic force fields, following the procedures outlined in Section 2.2. The force constants that define these CNM QFFs are themselves obtained by analytical differentiation of the reference PES implemented within PyPES.28
Anharmonic fundamental wavenumbers are computed using VCI at excitation levels (≡ maximum sum of vibrational quanta distributed amongst harmonic oscillator basis states) up to and including VCI(10). A complete set of computed fundamentals is reported in Table S1 of the ESI,† along with benchmark computational and experimental data compiled from the literature.
Because the computed fundamentals will be compared directly to experiment, it is important to ensure that the computed RNM QFF is as accurate as possible, to avoid the choice of electronic structure model being the dominant source of error. For this reason, we employ a “hybrid” force field approach, in which the entire PES is computed at a high level of theory for which analytic Hessians are available (fc-CCSD(T)/aVTZ) and the harmonic force constants replaced with values obtained at an even higher level of theory (fc-CCSD(T)-F12a/VTZ-F12). This strategy has been widely used and extensively validated in the vibrational spectroscopy literature.9,83–89 It provides an optimal balance between accuracy and computational cost, and typically reduces electronic structure model errors to <5 cm−1.9,83–89
Frozen-core (fc) CCSD(T) (coupled cluster singles doubles perturbative triples) analytic Hessian calculations90 are carried out in an augmented triple-zeta basis91,92 (fc-CCSD(T)/aVTZ) using the Cfour program package,93,94 version 1. Higher-level fc-CCSD(T)-F12a95/VTZ-F1296 harmonic force constants are computed using Molpro97,98 version 2018.1.
Anharmonic fundamental wavenumbers are computed at excitation levels up to and including VCI(9). A complete set of computed fundamentals is reported in Tables S4–S6 of the ESI,† along with benchmark computational and experimental data compiled from the literature.
Uncertainties in computed VCI(10) fundamental transition wavenumbers are computed as the difference between values obtained at VCI(9) and VCI(10):
δcvge(ν) = ν(10) − ν(9) | (10) |
In agreement with previous work,24νref values converge to within 1 cm−1 for most molecules, except those with large-amplitude torsion or inversion modes: NH3, DOOD and all non-deuterated molecules with large-amplitude torsions, i.e. HSiOH and HOCO, HSOH, and HOOH. The low-barrier, large-amplitude nature of these motions is evident spectroscopically, where tunnelling splittings arise due to wavefunction delocalisation over multiple minima. The largest errors occur in modes that can couple to these problematic modes by symmetry, where errors can propagate from poorly-described torsion/inversion modes into stretching and bending modes through mode coupling within the wavefunction.
The outliers in Fig. 3 (|δcvge(ν)| > 5 cm−1) arise due to resonance mixing with excited inversion/torsion states that cause state assignments to alternate as a function of VCI excitation level. Two examples of this behaviour are shown in Table 3, and the remainder reported in Table S2 of the ESI.† The most extreme example is the OSH bending fundamental of HSOH, which couples strongly to the first torsional overtone via Fermi resonance. Similarly, a large convergence error occurs in the OH stretching fundamental of t-HSiOH, where state assignments vary due to resonance mixing to the seventh torsional overtone.
V ref | VCI(8) | VCI(9) | VCI(10) | |
---|---|---|---|---|
HSOH | Fundamental | 1002.3 | 994.8 | 1016.3 |
P(ν4) | 87% | 48% | 52% | |
P(2ν6) | 8% | 39% | 37% | |
Resonant | 1040.4 | 1016.1 | 992.9 | |
P(ν4) | 9% | 40% | 44% | |
P(2ν6) | 72% | 24% | 44% | |
t-HSiOH | Fundamental | 3666.3 | 3651.0 | 3665.9 |
P(ν1) | 89 | 42% | 57% | |
P(3ν3 + ν4) | <1 | <1% | 2% | |
P(8ν6) | <1 | 21% | <1% | |
Resonant | 3675.7 | 3661.2 | ||
P(ν1) | 25% | 28% | ||
P(3ν3 +ν4) | 20% | 13% | ||
P(8ν6) | 11% | <1% |
Constraining torsion or inversion modes to remain harmonic in curvilinear normal mode coordinates (νref → harm in Fig. 3) decreases the frequency of outliers, but does not otherwise substantially alter the error distribution. The single outlier corresponds to the OH stretching fundamental of hydrogen peroxide, where a resonance mixing that does not directly involve the torsional mode causes state assignments to alternate as a function of VCI excitation level (see ESI,† Table S3).
From the trialled truncation schemes, the most robust and reliable way to ensure rapid and monotonic VCI convergence is to drop problematic modes entirely. This not only eliminates outliers that arise due to resonance mixing with excited torsion/inversion states, but also reduces all convergence uncertainties to <0.3 cm−1.
Taken together, the results presented in Fig. 3 indicate that force field instabilities are primarily due to using rectilinear coordinates to describe intrinsically curvilinear motions, rather than the accuracy of the force field expansion per se.
If anharmonicity along torsion or inversion modes were the dominant cause of force field instability, then uncertainty profiles for δcvge(harm) would be similar to those of δcvge(νdrop) or δcvge(
drop), because in both cases the energy is effectively constrained to change harmonically along the problematic mode. However, Fig. 3 shows that these uncertainty profiles are quite different, indicating significant off-diagonal coordinate-mediated coupling in Ṽharm that is rigorously absent from Vdrop and Ṽdrop. Fundamentally, this arises from the fact that potential energy surface expansions converge slowly in rectilinear normal mode coordinates, particularly when applied to intrinsically curvilinear motions such as torsions and inversions. This limitation in principle affects all PES models based upon rectilinear normal mode coordinates, including numerical m-mode representations.
Conversely, the fact that the δcvge(ref) and δcvge(
harm) error distributions are similar (excluding resonance-induced outliers) indicates that both models have equally well-behaved PES expansions along the large-amplitude coordinate. This suggests that our force field expansions have inherited appropriate long-range behaviour from the primitive set of internal coordinates from which our curvilinear normal mode quartic force fields are constructed.
Overall, dropping problematic modes is the most efficient and robust strategy for stabilising force field expansions, but also represents the most extreme approximation considered here. Thus, it is important to characterise how PES truncation schemes affect the accuracy of computed fundamentals.
δref(ν) = ν(10) − ν(10)ref | (11) |
![]() | ||

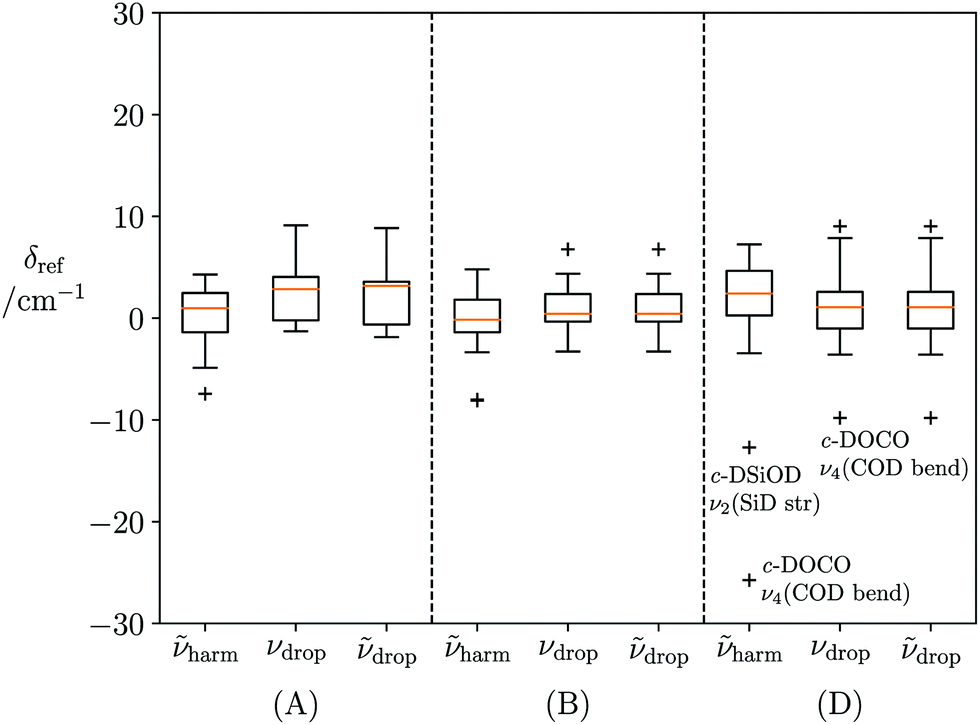

Fig. 4 Signed errors δref (see eqn (11)) in bending and stretching fundamentals due to applying harmonic constraints on or dropping the torsion/inversion are illustrated in boxplot format, aggregated according to molecular topology for each approximate force field model. Each box extends from the lower quartile to the upper quartile of the data, and whiskers extend out to twice the interquartile range. Outliers are marked with crosses (+) and each box is bisected by a line indicating the median. |
![]() | ||
Fig. 5 Signed errors δref (see eqn (11)) in bending and stretching fundamentals due to applying harmonic constraints on or dropping the torsion/inversion are illustrated in boxplot format, aggregated according to type of vibration (bending, high frequency X–H and other stretches) for each approximate force field model. Each box extends from the lower quartile to the upper quartile of the data, and whiskers extend out to twice the interquartile range. Outliers are marked with crosses (+) and each box is bisected by a line indicating the median. |
Fig. 4 reveals that error distributions are largely independent of molecule type, with all truncated models yielding maximum absolute errors <10 cm−1 in computed fundamentals for all modes except the labelled outliers. In these cases, strong Fermi resonances cause state assignments to vary between Vref, Ṽharm and Vdrop/Ṽdrop models, according to the VCI coefficient data shown in Table 4. However, situations like this can be readily detected by inspection of VCI coefficients, without recourse to reference calculations, and appropriate error bars applied. We suggest applying error bars that stretch between the predicted wavenumbers of the two near-degenerate VCI eigenstates. These outliers will not be included in any further analysis.
VCI(10) | V ref | Ṽ harm | Ṽ drop | |
---|---|---|---|---|
c-DOCO | Fundamental | 969.9 | 944.1 | 960.1 |
P(ν4) | 62% | 54% | 96% | |
P(2ν6) | 31% | 40% | — | |
Resonant | 933.7 | 982.3 | — | |
P(ν4) | 54% | 42% | — | |
P(2ν6) | 40% | 53% | — | |
c-DSiOD | Fundamental | 1375.0 | 1362.3 | 1374.8 |
P(ν2) | 50% | 55% | 55% | |
P(ν3 + ν5) | 41% | 36% | 36% | |
Resonant | 1359.0 | 1378.5 | 1358.9 | |
P(ν2) | 40% | 35% | 35% | |
P(ν3 + ν5) | 50% | 57% | 57% |
Although Fig. 4 suggests that all three truncated models are of approximately equal quality, there are subtle differences in their error distributions that are investigated in more detail by reanalysing the data according to vibrational mode type. Fig. 5 shows that the Ṽharm model tends to produce randomly distributed errors that are similar across all mode types. Mode-dropped models, on the other hand, systematically overestimate stretching wavenumbers, particularly in X–H stretching modes (X = B, C, N, O), which are generally overestimated by 5–10 cm−1. However, mode-dropped models are particularly accurate for bending modes, with randomly distributed errors always within ±5 cm−1. This suggests that neglect of geometric coupling between the dropped large-amplitude mode (e.g. XH torsion) and retained stretching mode (XH stretch) is one of the main accuracy-determining factors of torsion-dropped models.
Identical results can only be obtained if the dropped mode is completely uncoupled to other modes geometrically, because the chances of complete energetic decoupling are practically zero. For planar molecules, the large-amplitude mode is the only out-of-plane mode, so is geometrically orthogonal to all other modes by symmetry. Therefore, it is trivial to exclude the inversion (group B) or torsional (group D) internal coordinate and drop the corresponding vibrational mode without affecting any of the remaining coordinate definitions or vibrational wavenumbers. In these cases, Vdrop and Ṽdrop are rigorously identical. For non-planar molecules, non-trivial mappings between internal valence coordinates and curvilinear normal mode coordinates may arise, encoded within the R matrix that defines curvilinear normal mode coordinates as linear combinations of internals (see eqn (4)). Example R matrices for all molecular topologies are provided in the ESI,† Section S2 and computed fundamentals in Table S1.
For example, in ammonia (C3v), the symmetric stretching coordinate acquires substantial bending character after the inversion mode is dropped from CNM space. This is an artefact of redundancy in the internal coordinate basis when it is used to span a reduced CNM space, which leads to a deviation of 5.8 cm−1 between νdrop and drop for the symmetric stretching fundamental. In this case, Vdrop appears to be the more reliable model, because this redundancy problem is avoided.
For hydrogen peroxide (C2), although the torsion can couple to three other modes by symmetry, there is a close correspondence between the character of the internal and CNM coordinates, i.e. the torsional mode is defined almost exclusively by displacement along the torsional coordinate. Therefore, excluding the torsional internal coordinate (to ensure numerical stability) and dropping the torsional mode in CNM coordinates prior to coordinate transformation yields almost exactly the same RNM force field as obtained by dropping the torsional mode post-transformation. Hence, the fundamentals computed from Vdrop and Ṽdrop agree to within 0.1 cm−1.
Overall, it is safe to drop modes in CNM space if they are either rigorously orthogonal to other modes by symmetry or there is a (near) one-to-one mapping between the CNM mode to be dropped and a corresponding internal coordinate to be excluded from the internal coordinate basis. Mathematically, this is equivalent to stating that the R matrix must be exactly or very near block-diagonal, with the mode(s) to be dropped contained within its own block. We note that this approach trivially generalises to allow multiple mode-dropping in CNM coordinates, provided that appropriate sets of internal and CNM coordinates to be excluded can be identified separate as sub-blocks of the R matrix.
Fortunately, for many molecules in our data set, alternative reference values are available in the literature, obtained by using more complete and/or accurate representations of the potential energy surface and more appropriate and/or accurate methods for solving the nuclear vibrational Schrödinger equation. Cases in which literature values were obtained using second-order vibrational perturbation theory (VPT2) will be omitted from any further analysis.
Differences between computed VCI(10) fundamentals and literature reference values are defined as:
δlit(ν) = ν(10) − νlit, | (12) |
![]() | ||
Fig. 6 Mean absolute deviations 〈|δlit|〉 (see eqn (12)) between computed fundamentals and literature reference data, grouped by molecular topology for each different force field model used in this work. Molecules in groups C and D are partitioned into hydrogenated (-h) and deuterated (-d) isotopologues. |
For trigonal pyramidal and trigonal planar molecules (groups A and B), force field truncation errors generally increase with the extent of truncation:
|νref − νlit| < |![]() ![]() |
For hydrogenated molecules with rotatable bonds (groups C and D), νdrop and drop are universally more accurate approximations to νlit than either νref or
harm. This is because dropped-mode models rigorously eliminate instabilities in the PES both along the torsional mode and by removing coordinate-mediated coupling between the torsional mode and the remaining modes of interest. They have the added advantage of simplifying computed vibrational spectra by also eliminating artificial or mis-assigned resonances involving torsional modes, as found for νref and
harm.
Hydrogen peroxide represents a pathological case for Watson Hamiltonian models, with a particularly low-barrier torsional mode, energetic and geometric coupling between modes, and a number of (Fermi) resonances between vibrational states.57–61 As such, all models exhibit large deviations from literature reference values.62 Nonetheless, even in this case, the Vdrop and Ṽdrop models are the “best of the worst”, which implies that ignoring energetic coupling between modes is a reasonable trade-off to make to avoid the pitfalls listed above. On the whole, Fig. 6 shows that νref predictions tend to be about as accurate as harm, νdrop and
drop.
Methanol is a useful test case, because it exhibits particularly strong coupling between its low-barrier, large-amplitude torsional mode and other vibrational degrees of freedom. This is reflected in substantial tunnelling splittings (up to 20 cm−1, and inversion of sign) into states of A and E symmetry, as illustrated in Fig. 7.110–115,117–121 As a textbook example of such behaviour, methanol has been the subject of intensive experimental109–119 and computational13,120–126 investigations.
![]() | ||

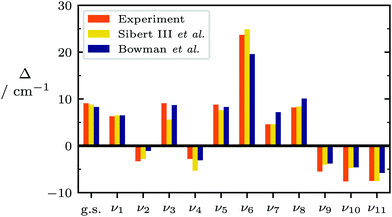

Fig. 7 Experimental110,112–115,117–119 and computed120,121 tunneling splittings (Δ = ν(E) − ν(A) + Δg.s.) for all vibrational modes of methanol except the torsion. Raw data is listed in Table S5 of the ESI.† |
![]() | ||

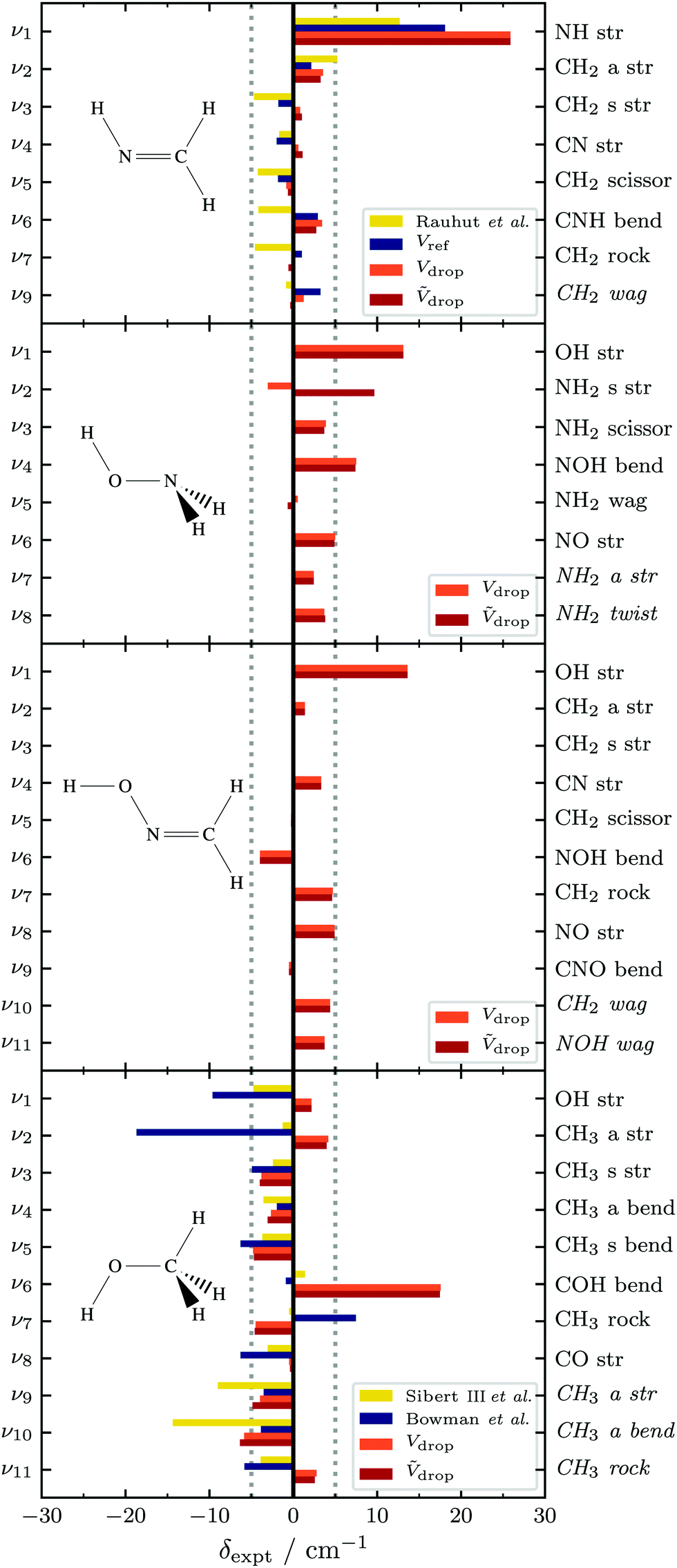

Fig. 8 Error to experiment (δexpt) for computed variational anharmonic fundamentals (this work and selected literature120,121,133) of methyleneimine (CH2NH),99–103 hydroxylamine (NH2OH),104 formaldoxime (CH2NOH)105–108 and methanol (CH3OH).110,113–115,117–119 Irreducible representations are encoded in the font, A′ normal and A′′ in italics. For methanol, computational and experimental data are averaged (E![]() ![]() ![]() ![]() |
At the other extreme, methyleneimine, is relatively rigid and rotationally restricted by the CN double bond. This makes it particularly amenable to computational interrogation, and several perturbative127–131 and variational132–134 anharmonic frequency calculations are reported in the literature.
Hydroxylamine and formaldoxime are intermediate in flexibility, capable of rotation about N–O single bonds. For hydroxylamine, perturbative135,136 and sub-space104 anharmonic frequency calculations have been performed. To the best of our knowledge, there are no anharmonic frequency studies on formaldoxime in the literature. Experimentally, no cis–trans delocalisation effects or tunneling splittings have been observed for either molecule.
δcvge(ν) = ν(9) − ν(8) | (13) |
In all cases, fundamentals converge to within 0.1 cm−1 with the exception of the symmetric NH2 stretch ν2 in NH2OH, which undergoes resonance mixing with the first overtone of the NH2 scissor 2ν3 and the second overtone of the NH2 wag 3ν5. Even in this case, fundamental wavenumbers converge to within 2 cm−1 for both Vdrop and Ṽdrop models.
More problematic is the fact that this resonance mixing leads to alternating state assignments between Vdrop and Ṽdrop models, as evidenced by the VCI mixing coefficients presented in Table 5. This is consistent with previous observations that resonance mixing is highly sensitive to even small changes in the underlying PES model, but that this can be readily detected by inspection of VCI coefficients.
VCI(9) | V drop | Ṽ drop | |
---|---|---|---|
NH2OH | Fundamental | 3291.2 | 3303.9 |
P(ν2) | 45% | 50% | |
P(3ν5) | 21% | 19% | |
P(2ν3) | 3% | 9% | |
Resonant | 3309.5 | 3282.9 | |
P(ν2) | 27% | 21% | |
P(3ν5) | 37% | 41% | |
P(2ν3) | 6% | <1% |
Aside from the ν2 mode of NH2OH, comparison of the Vdrop and Ṽdrop results in Fig. 8 reveals that these models otherwise agree to within 2 cm−1 for all other fundamentals, and are rigorously identical for modes that are orthogonal to the dropped torsional coordinate by symmetry. The largest errors occur in the CH2 wag of CH2NH and the NH2 wag of NH2OH, with deviations of 1.6 cm−1 and 1.2 cm−1, respectively – vibrations for which the curvilinear normal coordinate definitions change substantially upon dropping the torsional coordinate from the primitive internal basis.
For methyleneimine (top panel), all models agree well with experiment and each other, except for the NH stretch fundamental ν1, which the dropped-mode models overestimate by ∼26 cm−1. This is well outside the maximum +10 cm−1 overestimation error expected from the tetratomic benchmark. In this case, our full-dimensional data and reference computational results by Rauhut et al.133 suggest that this disagreement does not stem entirely from the torsion-dropping procedure, because these more rigorous models also significantly overestimate the predicted NH stretching fundamental, albeit to a lesser extent. Inspection of the VCI coefficients reported in Table S5 of the ESI,† reveals a Fermi resonance between ν1 (Vref: 3280.7 cm−1) and the CN stretching overtone 2ν4 (Vref: 3260.0 cm−1), despite the fact that only a single band centre (3262.6 cm−1) is observed experimentally, with very weak rovibrational infrared transitions.101 This raises the possibility that the 2ν4 overtone has been misassigned as the ν1 fundamental. We encourage experimental reinvestigation of this spectral region, perhaps using Raman spectroscopy, because NH stretches tend to be very Raman-active.
For hydroxylamine and formaldoxime (middle two panels), dropped-mode models comfortably reproduce experimental fundamentals to within 10 cm−1 for all modes except the O–H stretches. This even includes the NH2 stretching vibration of hydroxylamine that is strongly resonance-coupled to overtones of its NH2 scissor and NH2 wag. Indeed, in most cases, errors to experiment are within ±5 cm−1. O–H stretches are overestimated by ∼15 cm−1, consistent with previous observations from benchmarking tetratomics.
In methanol (bottom panel), the O–H stretching error-to-experiment is unexpectedly small, at ∼2 cm−1. However, this is almost certainly due to fortuituous error cancellation. Previous benchmark computational studies using full-dimensional electronic structure models for methanol with PES of approximately the same quality underestimate the O–H stretching fundamental by 5–10 cm−1.120,121 If this represents the error due to choice of electronic structure model used in constructing the PES, it suggests that mode-dropping incur an error of 7–12 cm−1, cancelling to give the observed 2 cm−1. The other obvious outlier in this data set is the COH bending mode ν6 that dropped-mode models overestimate by ∼17.5 cm−1. The fact that this fundamental is well modelled in previous full-dimensional studies120,121 suggests that this error is due to mode-dropping. This is supported by the spectroscopic analysis of Lees et al., who report strong resonance mixing between ν6 and torsional combitone states in methanol (ν7 + ν12 and ν8 + ν12).119 It is therefore unsurprising that the missing resonance with torsional combitone states leads to larger deviations for the ν6 fundamental.
Constraining the problematic mode to remain harmonic and uncoupled in curvilinear normal mode coordinates prior to transformation is not completely effective in stabilising the resultant sextic force field in rectilinear normal mode coordinates. This shows that problems with torsion and inversion modes are not just due to the shape of the potential energy surface along these coordinates, but are also an inherent problem that arises when curvilinear coordinates are expanded in a finite-order rectilinear normal mode basis. We note that this finding applies to all schemes in which potential energy surfaces are expanded or mapped out in rectilinear coordinates.
Removing large-amplitude torsions completely stabilises PES expansions in all cases, introducing errors of up to +15 cm−1 in coupled stretching modes and absolute errors in other fundamentals of ∼5 cm−1. Dropping problematic modes following coordinate transformation (Vdrop) is always numerically robust, but comes with no computational gain during PES construction. Although dropping modes prior to coordinate transformation (Ṽdrop) has the potential to reduce the computational cost of computing the requisite force constants ab initio, care must be taken to exclude matching coordinates from the internal coordinate basis or modify the basis to ensure that the process remains numerically stable. More generally, the R matrices that define curvilinear normal mode coordinates as linear combinations of internal coordinates provide a useful diagnostic of geometric separability of vibrational modes. We anticipate that this could be further utilised to break the “curse of dimensionality” associated with simulating IR spectra more generally by decomposing the full dimensional nuclear vibrational problem into a series of weakly coupled lower dimensional sub-problems.
The rigorous benchmarking procedures carried out in this work confirm the general applicability of the mode-dropping approach. Introduced errors in the remaining fundamentals are approximately commensurate with, but not necessarily additional to, errors associated with using CCSD(T) theory with at least a triple-zeta basis to construct “spectroscopically accurate” PES. Overall, the combined electronic and nuclear vibrational model error when comparing predicted fundamentals directly to experiment is around 5 cm−1 on average but can be up to 15 cm−1 for X–H stretches that couple geometrically to the dropped mode or slightly higher for modes that couple energetically to the dropped mode.
