Bioinorganic supplementation of calcium phosphate-based bone substitutes to improve in vivo performance: a systematic review and meta-analysis of animal studies

Abstract

Supplementation of CaP-based bone graft substitutes with bioinorganics such as strontium, zinc or silicon is an interesting approach to increase the biological performance in terms of bone regenerative potential of calcium phosphate (CaP)-based bone substitutes. However, the in vivo efficacy of this approach has not been systematically analyzed, yet. Consequently, we performed a systematic review using the available literature regarding the effect of bioinorganic supplementation in CaP-based biomaterials on new bone formation and material degradation in preclinical animal bone defect models and studied this effect quantitatively by performing a meta-analysis. Additional subgroup analyses were used to study the effect of different bioinorganics, animal model, or phase category of CaP-based biomaterial on bone formation or material degradation. Results show that bioinorganic supplementation increases new bone formation (standardized mean difference [SMD]: 1.43 SD, confidence interval [CI]: 1.13–1.73). Additional subgroup analysis showed that strontium, magnesium and silica significantly enhanced bone formation, while zinc did not have any effect. This effect of bioinorganic supplementation on new bone formation was stronger for DCPD or β-TCP and biphasic CaPs than for HA or α-TCP (p < 0.001). In general, material degradation was slightly hindered by bioinorganic supplementation (mean difference [MD]: 0.84%, CI: 0.01–1.66), with the exception of strontium that significantly enhanced degradation. Overall, bioinorganic supplementation represents an effective approach to enhance the biological performance of CaP-based bone substitutes.

---

1. Introduction

Bone is one of the most commonly transplanted tissues with over 2 million bone graft procedures performed annually worldwide.¹ However, bone regeneration is still a challenge for large defects or in patients with systemic diseases that negatively affect bone regeneration (e.g., osteoporosis² or diabetes mellitus³). Autografts, i.e. a patient's own bone, is the gold standard in treating bone defects resulting from e.g. trauma or tumor removal. However, this therapeutic approach shows many disadvantages, including low availability, additional surgical site for tissue harvest, and donor site morbidity.⁴ In order to overcome these problems, research has focused on synthetic bone grafts, which are off-the-shelf available and do not require a second surgical site. Amongst available synthetic alternatives for bone graft substitutes, calcium phosphate (CaP)-based bone substitutes are preferred due to their similarity in crystalline structure and chemistry to the inorganic phase of natural bone, which offers them excellent biocompatibility.^5,6 Depending on the Ca/P molar ratio, different CaP compounds can be distinguished, which have different physicochemical properties (Table 1). CaP-based bone substitutes are applied as bone substitute material in the form of granules, blocks or cements.

Table 1 Main CaP compounds used as bone substitutes and their Ca/P ratio^7–9

Compound and typical abbreviation	Chemical formula	Ca/P ratio
Dicalcium phosphate anhydrous (DCPA)	CaHPO4	1
Dicalcium phosphate dihydrate (DCPD)	CaHPO4·H2O	1
Amorphous calcium phosphate (ACP)	CaxHy(PO4)z·nH2O, n = 3–4.5; 15–20% H2O	1.2–2.2
α-Tricalcium phosphate (α-TCP)	α-Ca3(PO4)2	1.5
β-Tricalcium phosphate (β-TCP)	β-Ca3(PO4)2	1.5
Calcium deficient hydroxyapatite (CDHA)	Ca10−x(HPO4)x(PO4)6−x(OH)2−x	1.5–1.67
Hydroxyapatite (HA)	Ca10(PO4)6(OH)2	1.67
Tetracalcium phosphate (TTCP)	CaO·Ca3(PO4)2	2.0

---

The inorganic portion of bone primarily includes calcium phosphates with hydroxyapatite as the most abundant phase, and trace amounts of bioinorganics such as magnesium, zinc, strontium or fluorine.^10–12 Therefore, addition of bioinorganics to synthetic CaP-based bone substitutes is an interesting approach to improve their resemblance with the inorganic composition of bone and to potentially enhance the biological properties (e.g. increase bone regeneration potential). Multiple bioinorganics have been added to CaPs with variable biological effects. Among them, strontium, silicon, magnesium and zinc seem to be the most studied ones, and have been supplemented to CaPs mainly either by substitution of one atom by the other (e.g. Sr for Ca) or by physical entrapment in the lattice. Strontium (Sr) is an element chemically similar to calcium, and can substitute calcium ions in osteoblast-mediated processes.¹³ Multiple studies have shown that Sr has a beneficial effect on bone tissue by enhancing osteoblast activity, while inhibiting osteoclast-mediated resorption.^14–16 Silicon (Si) plays an essential role in bone formation, mineralization and crosslinking of collagen and proteoglycans during bone growth.^17–19 For example, the presence of Si in bioactive glasses, another widely used synthetic bone graft substitute, was described to benefit initial cell adherence, which in turn increases cell proliferation and differentiation.²⁰ Although different studies have shown that Si-supplementation of CaP-based bone substitutes enhanced osteoblast proliferation and differentiation,^21,22 others showed contradictory results.²³ Another effect of Si is, that when supplemented to CaP ceramics, it enhances their stability.^24,25 Magnesium (Mg) is one of the most abundant ions in the human body with >50% of the total Mg amount present within bone tissue. Mg improves bone metabolism by enhancing cell proliferation and differentiation and maintaining the normal function of parathyroid glands and metabolism of vitamin D.^26,27 Mg deficiency is a risk factor of osteoporosis.^28–31In vivo studies have shown that Mg-supplementation in CaP-based bone substitutes implanted in the maxillary sinus floor enhanced their biodegradation and improved their osteoconductivity compared to Mg-free controls.³² Zinc (Zn) is required for the growth, development and maintenance of healthy bones, in which it stimulates osteoblast activity, inhibits osteoclast's resorptive function, and enhances bone protein synthesis, leading to increased bone mass and growth.^33,34 Cultures of osteoblasts or osteoblast precursors in the presence of Zn ions have shown an upregulation of osteogenic marker gene expression, while Zn deficiency downregulated their expression.^35–37 In combination with CaP-based bone substitutes, Zn has shown to enhance osteoblast proliferation in vitro and enhance osteoconduction and osteoinduction in vivo.^38–42

In general, bioinorganic supplementation to CaP-based bone substitutes has been largely studied and many studies have explored the effect of bioinorganic supplementation on the physico-chemical characteristics and in vitro and in vivo behavior of the CaP-based bone substitutes. Specifically, mainly small animal models (i.e. rat or rabbit) have been considered, although some studies have included larger animals, such as sheep or dogs. However, the use in human patients has been limited and only CaPs with Mg^43–45 and Si^46–48 have been implanted. To further enhance their clinical applicability it is important to review the current available data of preclinical studies in order to set a direction for future preclinical and clinical studies. Further, in view of the ambiguous effects of bioinorganic supplementation of CaP-based bone substitutes, there is a clear need to create an overview of all relevant in vivo studies. To this end, in vivo studies using experimental animal bone defect models were retrieved from the literature to analyze the effect of bioinorganic supplementation of CaP-based bone substitutes on bone formation and material degradation. Studies including synthetic CaP-based bone substitutes supplemented with any bioinorganic were analyzed. For comparison reasons, it was important that the CaP-based bone substitute without the bioinorganic was also one of the studied groups and that only one bioinorganic was studied. To this end, the available literature was systematically reviewed for data on this topic and gathered data was used to perform a meta-analysis, where the main outcome measures were new bone formation (NBF) and remaining material (RM), both collected from histomorphometric data.

2. Methods

2.1. Search strategy

The study protocol was designed following SYRCLE (SYstematic Review Center for Laboratory animal Experimentation) guidelines (ESI Fig. S1†).⁴⁹ For identification of all original papers on the topic, we systematically searched PubMed and Embase (via OvidSP). The search was conducted on the 27^th November 2018 without any language restrictions and consisted of four main components: “bone regeneration”, “bone substitutes”, “bioinorganics” and “animal studies”. For each component, relevant thesaurus terms were collected and synonyms were identified for application in a title/abstract search [TiAb]. The full search strategies in PubMed and Embase are depicted in Tables S1 and S2,† respectively.

2.2. Paper selection

The selection process was carried out using SyRF (CAMARADES, UK) and divided into two phases. In the first phase, two reviewers (E-C. G., and J. B.) independently performed the paper selection based on title and abstract. Differences were resolved by a third reviewer (I. L. T.). In the second phase, the full text of the selected papers of the first phase was reviewed by two independent reviewers (I. L. T. and J. B). Differences were resolved by discussion until mutual agreement was reached. The inclusion and exclusion criteria for these two phases are depicted in Table S3.†

2.3. Data extraction and quality assessment

The study characteristics data were extracted by I. L. T. from each selected paper: animal species, strain, number of defects per group and time point, category of CaP-based biomaterial, bioinorganic supplement, number of relevant groups, surgical site, implantation period and main outcomes are presented in Table 2. This Table 2 shows a summary of all the study characteristics extracted (Table S4†). Bibliographic details (e.g. author, year of publication, and language), animal numbers/characteristics/medical condition, dose of bioinorganic and number of defects per animal and their size were also registered (Table S4†).

Table 2 Characteristics of the papers included in the systematic review. Papers where the outcome measure was only histology was not included in the meta-analysis

Paper ID	Species-strain (disease)	Material	Type of bioinorganic	Number of groups (relevant for SR)	Defects/group/time point	Surgical site	Implantation period	Outcome
AF: American foxhund; Ca: Californian; HL: Holland lop; JW: Japanese white; NZ: New Zealand; SDW: Spargue-Dawley; TC: texcel × continental; W: wistar; α/β-TCP: alpha/beta-tricalcium phosphate; ACP: amorphous calcium phosphate; DCPA: dicalcium phosphate anhydrous; CaP: calcium phosphate; CDA: calcium deficient apatite; CPC: calcium phosphate cement; CPP: calcium polyphosphate; HA: hydroxyapatite; TTCP: tetracalcium phosphate; PCL: poly(ε-caprolactone); NBF: new bone formation; RM: remaining material; BMD: bone mineral density.a Quantitative data available but not included in meta-analysis (boxplots or ratios, no SD or no sample number).b Only qualitative data available.c Not all groups same sample number for analysis.d Same animals were used for all timepoints; NA: not available.
Aparicio et al. (2016)^52	Rabbit-NZ	Ground CPC (brushite)	Si	6 (5)	3	Calvaria	8 weeks	NBF (%); RM (%)
Baier et al. (2013)^53	Rat-SDW (osteoporotic)	CPC (apatite)	Sr	2	10^c	Femur	1,3 and 6 months	NBF (%)
Bose et al. (2018)^54	Rat-SDW	β-TCP	Fe	3 (2)	NA	Femur	4, 8 and 12 weeks	NBF (%)^a
Bunpetch et al. (2018)^55	Rabbit-NZ	β-TCP	Si	3 (2)	7	Femur	8 and 16 weeks	NBF (%)
Cabrejos-Azama et al. (2014)^26	Rabbit-NZ	Crushed CPC (brushite)	Mg	4	3,5	Calvaria	8 weeks	NBF (%); RM (%)^a
Calasans-Maia et al. (2014)^56	Rabbit-NZ	HA cylinders	Zn	2	10	Tibia	1, 2 and 4 weeks	NBF (%)^a
Calvo-Guirado et al. (2015)^57	Rabbit-NZ	HA and β-TCP granules (4Bone)	Si	3 (2)	7	Calvaria	8 and 12 weeks	NBF (%); RM (%)
Camiré et al. (2006)^58	Rabbit-HL	CPC (apatite)	Si	2	6^d	Tibia	1, 2 and 3 weeks	Histology ^b
Cardemil et al. (2013)^59	Rat-SDW (healthy and osteoporotic)	HA granules	Sr	4	8	Femur	6 days and 4 weeks	NBF (%); RM (%)^a
Carmo et al. (2018)^60	Rat-W	Carbonated HA	Sr	2	5	Maxilla	1 and 6	NBF (%); RM (%)
Chandran et al. (2016)^61	Rat-W (osteoporotic)	HA granules	Sr	3 (2)	6	Femur	8 weeks	Regeneration efficiency ratio^a
Chandran et al. (2018)^62	Sheep (osteoporotic)	HA	Sr	4 (2)	2	Femur	2 months	Regeneration efficiency ratio
Cheng et al. (2014)^63	Rat-SDW (osteoporotic)	CPC	Sr	3 (2)	7	Femur	6 weeks	Histology ^b
Chissov et al. (2008)^64	Rat-W	HA granules	Si	6 (2)	3	Tibia	3, 6, 9, 12 weeks and 6 and 9 months	Histology ^b
Cho et al. (2014)^65	Rabbit-NZ	HA disks	Cl	2	8	Calvaria	4 weeks	NBF (%); implanted granules (%)
Chou et al. (2013)^66	Rat-W	β-TCP	Zn	3 (2)	10^d	Tibia	0, 4 and 8 weeks	BMD (mg cm^−3)
Costa et al. (2016)^67	Rat-W	β-TCP granules	Mg	6 (2)	6	Calvaria	1 and 6 months	NBF (%); RM (%); connective tissue (%)
Dagang et al. (2008)^68	Rabbit-NZ	CPC (apatite)	Sr	4 (3)	1	Femur	4, 8, 12 and 24 weeks	Resorption degree^a
Deng et al. (2017)^69	Goat-NA	Ha	Mg	3 (2)	4	Calvaria	4, 8, 12 weeks	NBF (%)
Elgali et al. (2016)^70	Rat-SDW	HA granules	Sr	3 (2)	6	Femur	12 h, 3 and 6 days	NBF (%)
Gong et al. (2016)^71	Rabbit-NZ	CPC	Si	3	14	Tibia	8 and 12 weeks	NBF and RM^a
Gu et al. (2001)^72	Rabbit-NZ	HA blocks	Sr	4 (3)	4	Mandible	1, 3 and 6 months	NBF (%)^a
Gu et al. (2013)^73	Rabbit-NZ	CPP	Sr	6 (2)	4	Radius	4, 8 and 16 weeks	NBF/RM ratio^a
Guo et al. (2018)^74	Rat-SDW (osteoporotic)	Nano-HA particles	Sr	2	10	Femur	4 and 8 weeks	NBF (%)
Hing et al. (2006)^75	Rabbit-NZ	HA cylinders	Si	5	4	Femur	1, 3, 6 and 12 weeks	Normalized NBF (%)
Inoue et al. (2005)^76	Rat-W	CDA	F	4	2	Tibia	1 and 2 weeks	NBF (%)
Inoue et al. (2011)^77	Rat-W	CDA	F	4	2	Tibia	1 and 2 weeks	Histology ^b
Kamitakahara et al. (2016)^78	Rat-W	α-TCP granules	Si	2	3	Femur	4, 8, 12 and 24 weeks	NBF (%); RM (%)
Kang et al. (2015)^79	Rabbit-JW (osteonecrotic)	CPP	Sr	3 (2)	6	Femur	4, 8 and 12 weeks	NBF^a
Kawamura et al. (2000)^40	Rabbit-NZ	TCP and TCP/HA ceramics	Zn	8	6	Femur	4 weeks	NBF (%)
Kawamura et al. (2003)^41	Rabbit-NZ	TCP/HA ceramic	Zn	2	6	Femur	2, 4, 6, 12, 24 and 60 weeks	NBF (%)
Kaygili et al. (2015)^80	Rabbit-NZ	HA	Sr	7 (6)	28	Tibia	4 weeks	NBF^a
Ke et al. (2017)^81	Rabbit-NZ	β-TCP microspheres	Si	4 (3)	8	Femur	6, 12 and 18 weeks	NBF (%); RM (%)
Kuang et al. (2015)^82	Rat-SDW	CPC	Sr	2	5	Femur	32 weeks	NBF (%); RM (%)^a
Laufer et al. (1988)^83	Dog-NA	CaP cylinders	F	4 (2)	5	Femur	8 months	Histology ^b
Li et al. (2009)^84	Rabbit-NZ	CPC (apatite)	Zn	2	6	Tibia	4 weeks	NBF (%)
Li et al. (2016a)^85	Rat-SDW (osteoporotic)	HA	Sr	2	13	Tibia	8 weeks	NBF (%)
Li et al. (2016b)^86	Rat-SDW	CPC	Li	2	10	Tibia	1 and 2 months	NBF (%)
Li et al. (2018)^87	Rabbit-JW	CPP	Cu	4 (2)	5	Tibia	4 and 8 weeks	NBF (%)
Liao et al. (2002)^88	Rabbit-NZ	HA	Sr	4 (3)	4	Mandible	1, 3 and 6 months	Histology ^b
Liu et al. (2013)^89	Rabbit-NZ	β-TCP	Si	4 (3)	6	Femur	4, 12 and 26 weeks	NBF (%); degradation rate (%)
Luo et al. (2018)^90	Rabbit-NZ	HA	Sr	3 (2)	NA	Calvaria	4, 8 and 12 weeks	NBF (%)^a
Machado et al. (2016)^91	Sheep-Santa Ines	HA microspheres	Sr	3 (2)	5	Tibia	30 days	NBF (%); RM (%)
Masaeli et al. (2016)^92	Rat-SDW	CPC (brushite)	Sr	3 (2)	10	Calvaria	4 weeks	Histology ^b
Maté-Sánchez de Val et al. (2012)^93	Rabbit-NZ	HA block	Si	3	20	Tibia	60 days	NBF (%)
Mohan et al. (2013)^94	Rabbit-NZ	HA	Sr	2	3	Ulna	4 and 12 weeks	NBF (%); RM (%)
Mueller et al. (2017)^95	Rat-SDW	CPP	Sr	3 (2)	NA	Calvaria	8 and 12 weeks	Histology ^b
Patel et al. (2002)^96	Rabbit-NZ	HA granules	Si	2	NA	Femur	23 days	NBF (%)^a
Patel et al. (2005)^97	Sheep-TC	HA granules	Si	3	4	Femur	6 and 12 weeks	NBF (%)
Pina et al. (2010)^98	Pig-NA	CPC (brushite)	Zn	3 (2)	1	Tarsal bone	1 month	NBF^a
Porter et al. (2003)^99	Sheep-TC	HA granules	Si	2	NA	Femur	6 and 12 weeks	Histology ^b
Preethanath et al. (2016)^100	Rabbit-NZ	HA granules	Si	4 (2)	8	Femur	8 weeks	NBF (%)
Reitmaier et al. (2018)^101	Sheep-Merino	CPC (apatite)	Sr	2	7	Femur and tibia	6 and 26 weeks	NBF (%); RM (%)
Rentsch et al. (2018)^102	Rat-W	CPC (brushite)	Cr	3	10	Tibia	3 and 6 months	NBF (%); RM (%)
Resende et al. (2013)^103	Rabbit-NZ	HA spheres	Zn	2	5	Tibia	26, 52 and 78 weeks	RM (%)
Roh et al. (2016)^104	Rat-SDW	MBCP™	Si	6 (2)	6^c	Calvaria	4 and 8 weeks	BMD (mg/cm3)
Salamanna et al. (2019)^105	Rat-SDW (osteoporotic)	HA nanocrystals	Sr	10 (6)	10^c	Vertebra	8 weeks	NBF (%)^a
Schendel et al. (2009)^106	Rabbit-NZ	CPC (apatite)	Mg	3 (2)	NA	Calvaria	2, 12 and 24 weeks	NBF^a
Suruagy et al. (2016)^107	Rabbit-NZ	HA discs	Zn	2	5	Calvaria	12 weeks	NBF (%); RM (%)
Tao et al. (2018)^108	Rat-SDW (osteoporotic)	CPC	Sr	4 (2)	5	Femur	8 weeks	NBF (%); RM (%)
Thormann et al. (2013)^109	Rat-SDW (osteoporotic)	CPC (apatite)	Sr	3 (2)	15	Femur	6 weeks	NBF (%)
Tian et al. (2009)^110	Rabbit-NZ	CPP	Sr	2	8	Radius	4, 8 and 16 weeks	NBF (%); RM (%)
Tripathi et al. (2018)^111	Rabbit-JW	β-TCP	Mg	2	4	Femur	4, 12 and 24 weeks	RM (%)
Vahabzadeh et al. (2015)^112	Rat-SDW	CPC (brushite)	Si	4	3	Femur	4, 8 and 12 weeks	NBF (%)
Valiense et al. (2016)^16	Rabbit-NZ	Carbonated HA granules	Sr	2	6	Maxilla	4 and 12 weeks	NBF (%); RM (%)
Velasquez et al. (2013)^113	Rabbit-NZ	α-TCP	Si	4 (3)	5	Tibia	2, 4 and 8 weeks	RM (%)^a
Vestermark et al. (2011)^114	Dog-AF	HA granules	Sr	2	10	Humerus	4 weeks	NBF (%)
Wang et al. (2012)^115	Rabbit-NZ	β-TCP scaffold	Si	4 (3)	5	Femur	4, 12 and 26 weeks	NBF (%), degradation rate (%)
Wei et al. (2010)^116	Rabbit-NZ	CPC (apatite)	Mg	4	6	Femur	1, 2, 3 and 6 months	NBF (%)
Wu et al. (2008)^117	Rabbit-NZ	CPC (apatite)	Mg	2	3	Femur	1, 2, 3 and 6 months	NBF (%)
Xu et al. (2008)^118	Rabbit-NZ	β-TCP disks	Si	2	4	Calvaria	4, 8 and 16 weeks	NBF (%); RM (%)
Yassuda et al. (2013)^119	Rat-W	β-TCP granules	Mg	3 (2)	5	Maxilla	1, 3 and 6 weeks	NBF (mm^3); RM (mm^3)^a
Yu et al. (2017)^120	Rat-SDW	ACP porous microspheres	Sr	3 (2)	12	Calvaria	8 weeks	NBF (%)
Zarins et al. (2018)^167	Rabbit-Ca (osteoporotic)	HA/TCP	Sr	4 (2)	7	Femur	12 weeks	Histology ^b
Zeng et al. (2012)^32	Rabbit-NZ	CPC (brushite)	Mg	6 (2–3)	6	Maxilla	2 and 8 weeks	NBF (%); RM (%)
Zhang et al. (2013)^121	Rabbit-NZ	CPC (brushite)	S	4 (2)	6	Femur	8 weeks	NBF (%)

---

Additionally, (histo-)morphometric data on bone formation and/or material degradation were extracted for meta-analysis. For all included papers, outcome data for experimental and control groups were extracted if mean, standard deviation (SD) or standard error (SE), and number of defects per group (n) were reported or could be recalculated. If (histo-)morphometric data were presented only graphically, data were remeasured using image analysis software (Fiji 1.51n, ImageJ, National Institutes of Health, Bethesda, MD, USA).⁵⁰

The risk of bias was assessed using SYRCLE's risk of bias tool.⁵¹ Each paper was subjected to 9 questions related to the general risk of bias and 3 questions related to quality of reporting of study quality items. The risk of bias was categorized as low, unclear, or high, the reporting quality as yes or no. Two independent reviewers (I. L. T. and R. K. G.) performed quality assessment of all included papers. Disagreements were resolved by discussion until mutual agreement was reached.

2.4. Data synthesis and statistical analysis

Data were meta-analyzed using Review Manager Version 5.3.2 (Copenhagen, The Nordic Cochrane Centre, The Cochrane Collaboration, 2012). Forest plots were used to display individual and overall effect sizes. New bone formation (NBF) and remaining material (RM) data were extracted from the included papers and standardized mean differences (SMD; for NBF) or mean differences (MD; for RM) and 95% confidence intervals (CIs) were calculated per study/comparison. Overall effect sizes were computed using a random effects model. Heterogeneity was assessed using I². When a paper included measurements at different implantation periods, the outcome was extracted at every time point. Exceptionally, when the same animals were used for measurements at all implantation periods (i.e. without sacrificing the animals at each time point), only the measurements of the sacrificial time point were considered. When a control group was used as comparison for different experimental groups, the number of defects in the control group was divided by the number of experimental groups to avoid multiple comparisons with the same defects.

To explore possible causes of heterogeneity and to assess the influence of several variables, subgroup analyses (post hoc analyses) were performed on the condition that three or more independent papers with five or more comparisons were available. The variables included in the subgroup analyses were ‘type of bioinorganic’, ‘animal species’ and ‘category of CaP-based bone substitute’.

3. Results

3.1. Paper identification and selection

The systematic literature search identified 1341 references in PubMed and 1094 references in Embase, leading to a total of 1943 references after removal of duplicates (Fig. 1). Of those, 1768 references were excluded in the title and abstract screening phase, leaving 175 papers for full-text evaluation. After full-text study, 99 papers were excluded based on exclusion criteria (Fig. 1) and 76 papers were included in the systematic review. Some papers were excluded for more than one exclusion criterion. One paper was not analyzed in the further steps of the review because it was in Japanese and there were no resources that allowed proper translation,¹²² one paper was retracted¹²³ and three papers were excluded because they used non-synthetic CaPs.^124–126 In the meta-analysis, 45 papers with 133 quantitative bone formation comparisons and 20 studies with 57 quantitative remaining material comparisons could be included.

Fig. 1 Flow diagram showing literature search and selection results. SR: systematic review; MA: meta-analysis; NBF: new bone formation; RM: remaining material.

3.2. Description of characteristic of included papers

The main characteristics of the included papers are listed in Table 2, ranked in alphabetical order of first author's surname. Further details of the characteristics (e.g. animal numbers/characteristics/medical condition, dose of bioinorganic and number of defects per animal and their size) are provided in Table S4.†

The included papers showed use of various animal species, including rabbits (40 papers), rats (27 papers), sheep (5 papers), dogs (2 papers), goats (1 paper) and pigs (1 paper), with predominantly healthy animals (65 papers, ∼85%). In 11 papers, animals (female) were subjected to bilateral ovariectomy-induced osteoporosis and in one paper animals were subjected to steroid-induced osteonecrosis. Bone defects were created in different sites, including femur (33 papers), tibia (17 papers), calvaria (14 papers), maxilla (4 papers), mandible (2 papers), radius (2 papers), humerus (1 paper), ulna (1 paper), vertebra (1 paper) and tarsal bone (1 paper). Regarding the CaP-based materials used, 44 papers used slow degrading ceramics (HA or α-TCP, from now on HA/α-TCP), 18 papers used fast degrading ceramics (DCPD or β-TCP, from now on DCPD/β-TCP), 5 papers used a combination of HA and β-TCP or a combination of TTCP and DCPA (from now on, biphasic CaPs) and 9 used other CaPs, including calcium polyphosphates (CPPs) or calcium phosphate cements (CPCs) with unknown exact composition. In addition, a wide range of bioinorganics were used; strontium (Sr, 31 papers), silicon (Si, 20 papers), magnesium (Mg, 9 papers), zinc (Zn, 8 papers), fluoride (F, 3 papers), chloride (Cl, 1 paper), chromium (Cr, 1 paper), copper (Cu, 1 paper), iron (Fe, 1 paper), lithium (Li, 1 paper) and sulfur (S, 1 paper). A graphical overview of these categories can be observed in Fig. S2.† In all papers that involved the use of diseased animals (either osteoporosis or osteonecrosis, 12 papers), CaP-based bone substitutes were supplemented with Sr. Further, the bioinorganics dose, defect size and implantation time widely varied among studies. Regarding publication date, Fig. 2 shows an increase in number of papers particularly over the last ten years. Trends in the use of bioinorganics are also clear: while Si was the most common bioinorganic used between 2000 and 2013, Sr became the most commonly used bioinorganic for supplementation after 2013.

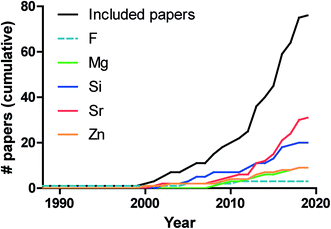

Fig. 2 Cumulative number of papers published per year that were included in the systematic review, as a whole, and depending on the type of bioinorganic used. After a single paper in 1988, the number of papers increased after 2000. Bioinorganics that were used in only one paper were not included (i.e. Cl, Cr, Cu, Fe, Li and S).

3.3. Risk of bias and quality of included studies

Fig. 3 presents the overall results of the risk of bias and reporting quality assessment of the 76 papers included in the systematic review. Overall, the reporting of quality items was poor. Randomization was mentioned in less than 50% of the included papers, blinding was seldom mentioned and only 3 papers addressed how the sample size was calculated. Additionally, only 5.3% of the included papers indicated the randomization method followed and this method was considered adequate and in as few as 2.6% of the papers the implant allocation was correctly concealed. In addition, 22.4% of the comprised papers registered low risk of bias regarding to performance bias items “random housing” and “blinding of the caregivers” and 26.3% were scored as low risk of bias for the detection bias item “random outcome assessment”. For this detection bias item, it is important to mention that even more than 70% of the studies showed an ‘unclear’ risk of bias, because bone formation is a rather slow process, the exact order of sacrifice is not critical. As a rule, studies where each animal had more than one group implanted, a low risk of bias was considered for “random housing” and “blinding of the caregivers” and “random outcome assessment”. Finally, 11.8% of the papers scored high risk of bias for the attrition bias item “incomplete outcome data” and 18.4% of the papers appeared to have other problems, mainly, an unclear number of animals or defects per animal or a low number of animals/time point/group. Although most studies showed poor reporting which led to unclear risk of bias, none of the papers was excluded based on its quality or risk of bias assessment.

Fig. 3 Risk of bias.

3.4. Meta-analysis of outcome measures

New bone formation (NBF) and remaining material (RM) were the outcome measures included in the meta-analysis (Fig. 4). Additional subgroup analyses were conducted for variables that likely influence bone formation and material degradation, i.e. type of bioinorganic, animal species, and category of CaP-based bone substitute (HA/α-TCP, DCPD/β-TCP, or biphasic CaP). To ensure reliability, subgroup analysis was only performed if at least five different comparisons from at least three different papers were available.

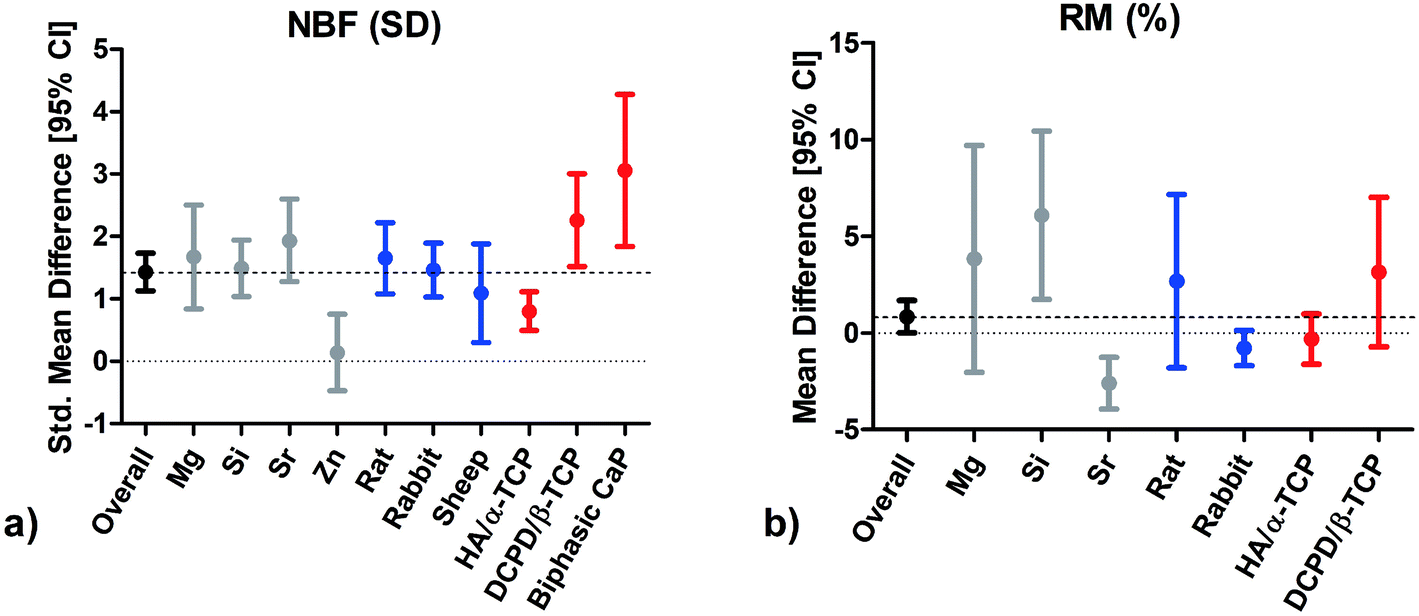

Fig. 4 Meta-analysis of (a) new bone formation (NBF; SD) and (b) remaining material (RM; %). For NBF (SD) the standardized mean difference [95% CI] is plotted and for RM (%) the mean difference [95% CI] is plotted. Black indicator represents the overall effect of bioinorganics supplementation to CaP-based bone substitutes. Subgroup analysis is shown in different colours; bioinorganics in grey, animal species in blue and CaP type in red. Dotted lines represent the ‘no effect’ value and the dashed lines represent the overall average effect.

New bone formation. Forty-five papers with 133 bone formation comparisons met the inclusion criteria for meta-analysis of NBF (expressed as number of SDs difference; hereafter: SD) (Table 3 & Fig. S3†). The analysis contained 134 experimental groups, including data of 1345 bone defects. The overall effect of bioinorganics on new bone formation (i.e. SMD intra-paper comparisons of CaP-based bone substitute supplemented with a bioinorganic vs. control CaP-based bone substitute) was 1.43 SD with 95% CI = [1.13, 1.73] and a relatively high heterogeneity of 71%. In 52 comparisons, the supplementation of bioinorganics significantly increased NBF, while only one comparison showed that bioinorganic supplementation significantly decreased NBF. Regarding the type of bioinorganic, supplementation with Mg, Si or Sr significantly increased NBF, while Zn showed to have no effect. Incorporation of Zn had significantly less effect on NBF than incorporation of any of the other bioinorganics (p < 0.001). Bioinorganic supplementation significantly enhanced NBF in all animal species and increased NBF regardless of the type of CaP-based bone substitute, but was particularly prominent for DCPD/β-TCP and biphasic CaPs (p < 0.001). In general, subgroup analysis decreased the heterogeneity, but this slight decrease does not explain the heterogeneity.

Table 3 Subgroup analysis of the included papers for outcome new bone formation (NBF; SD)

Subgroup	Number of comparisons	Number of defects	Effect estimate SMD [95% CI]	Heterogeneity (I^2)
Overall	134	1345	1.43 [1.13, 1.73]	71%
Magnesium, Mg	19	168	1.67 [0.83, 2.50]	66%
Silicon, Si	59	486	1.49 [1.04, 1.95]	57%
Strontium, Sr	27	393	1.93 [1.26, 2.59]	80%
Zinc, Zn	15	162	0.14 [−0.47, 0.76]	66%
Rat	38	417	1.65 [1.08, 2.23]	72%
Rabbit	76	736	1.46 [1.03, 1.89]	73%
Sheep	10	94	1.09 [0.30, 1.88]	50%
HA/α-TCP	85	811	0.87 [0.56, 1.18]	61%
DCPD/β-TCP	36	346	2.26 [1.52, 3.00]	75%
Biphasic CaP	7	96	3.06 [1.84, 4.28]	69%

---

Remaining material. Twenty papers with 57 remaining material comparisons met the inclusion criteria for meta-analysis of RM (%) (Table 4 & Fig. S4†). The analysis contained 57 experimental groups, including data of 616 bone defects. The overall effect of bioinorganic supplementation on RM (i.e. MD between CaP-based bone substitute and CaP-based bone substitute with bioinorganics) was 0.84% with 95% CI = [0.01, 1.66] and a very high heterogeneity of 100%. For interpretation of the results, it is important to understand that a ‘positive’ effect (MD > 0) means that there was more RM in bioinorganic supplemented materials than in control materials without bioinorganic. In 22 comparisons, bioinorganic supplementation significantly increased RM, while in 18 comparisons bioinorganic supplementation significantly decreased RM. Regarding type of bioinorganic, Si supplementation significantly increased RM, Mg did not have an effect, and Sr significantly decreased RM (p < 0.05 compared to Si and p > 0.001 compared to Mg). Bioinorganic supplementation did not have an effect in any animal species nor type of CaP-based bone substitute. Similarly to NBF, subgroup analysis decreased the heterogeneity, but the decrease does not explain the heterogeneity.

Table 4 Subgroup analysis of the included papers for outcome remaining material (RM;%)

Subgroup	Number of comparisons	Number of defects	Effect estimate MD [95% CI]	Heterogeneity (I^2)
Overall	57	616	0.84 [0.01, 1.66]	100%
Magnesium, Mg	6	60	3.83 [−2.03, 9.68]	93%
Silicon, Si	27	250	6.08 [1.72, 10.43]	97%
Strontium, Sr	15	180	−2.60 [−3.94, −1.27]	100%
Rat	13	138	2.68 [−1.80, 7.15]	86%
Rabbit	33	348	−0.78 [−1.69, 0.14]	100%
HA/α-TCP	20	202	−0.32 [−1.62, 0.99]	100%
DCPD/β-TCP	33	256	3.15 [−0.71, 7.02]	97%

---

4. Discussion

Supplementation of CaP-based bone substitutes with bioinorganics is a widely researched method to enhance their bone regenerative potential. While in the early 2000s and even before few papers on the topic were published, the past decade has shown a substantial increase in studies on the use of bioinorganics, probably related to an increasing need for effective synthetic bone substitutes. To date, however, no consensus exists regarding the efficacy of bioinorganic supplementation of CaP-based bone substitutes. Here, we systematically reviewed the literature to retrieve papers on the subject and utilized the reported data for a meta-analysis to quantitatively determine the effect of bioinorganic supplementation of CaP-based bone substitutes on bone formation and material degradation. Subgroup analyses were also done to determine the effect of individual bioinorganic supplementation, differences between different types of CaP-based bone substitutes, and animal model effects on these outcome parameters. Our main finding is that bioinorganic supplementation of CaP-based bone substitutes enhances bone formation and affects material degradation in a bioinorganic-compound-dependent manner. Subgroup analyses showed that Sr, Mg and Si significantly enhanced bone formation, while addition of Zn did not have an effect. Bone formation was most enhanced in the more degradable DCPD/β-TCP ceramics and biphasic CaPs, while the effect in the more stable HA/a-TCP was less pronounced. Finally, the effects of bioinorganic supplementation of CaP-based bone substitutes on bone formation and material degradation were similar in different animal models.

4.1. Type of bioinorganic

Bioinorganic supplementation of CaP-based bone substitutes is commonly performed by ionic substitution. Bivalent cations such as Sr²⁺, Mg²⁺ and Zn²⁺ can substitute Ca²⁺ ions within the crystal lattice of CaP, while CO₃²⁻ as well as SiO₄⁴⁻ can substitute the phosphate group (i.e. PO₄³⁻ or HPO₄²⁻) and F⁻ as well as Cl⁻ can replace the hydroxyl (OH⁻) group. Because these bioinorganic ions commonly have different ionic radii than the replaced ones, their supplementation can induce different conformational changes in the crystal lattice structure, which in turn, can lead to changes in crystal lattice stability, microstructure, crystallinity and solubility.¹²⁷ This change in the lattice structure can also lead to an increased calcium and/or phosphate release, and more generally, the ion exchange dynamics between the ceramic and a biological system, which can affect processes related to bone formation and remodeling.¹²⁸ Thus, the effect of bioinorganics supplementation of CaP-based bone substitutes on bone formation or material degradation is likely related to direct chemical effect of the bioinorganic compound used as well as to changes in the lattice structure of the CaP ceramic resulting from its incorporation. Most studies using bioinorganic supplementation did not show the release of bioinorganics in vivo, which leads us to infer that the enhancement in bone formation is also related to the conformational changes induced in the CaPs when supplemented with bioinorganics.²³

Regarding the effect of bioinorganic supplementation on bone formation, all bioinorganics included in this study improved bone formation, with the exception of Zn. While the exact reason for this positive effect can still not be fully explained, it may be partly related to previous findings that Si plays a role in the initiation of the mineralization process of bone,¹⁷ Mg can increase the alkaline phosphatase (ALP) activity¹²⁹ and Sr stimulates osteoblastic activity.¹³⁰ Zn, however, has demonstrated to have a concentration-dependent effect on bone formation both in vitro and in vivo.¹²⁷ Ikeuchi et al. observed that supplementation with 6.5 μg mL⁻¹ of Zn to the culture medium of human bone marrow cells induced mineralization, but higher Zn concentrations hindered it.¹³¹ Similarly, Ito et al. reported that CaP ceramics containing up to 1.3 wt% of Zn enhanced the proliferation of MC3T3 osteoblastic cells, while higher concentrations were cytotoxic.³⁸ In the included animal studies, a wide range of Zn concentrations was used (from 0.04 wt% to 5 wt%). Therefore, it is not surprising that, on average, Zn supplementation had no effect on bone formation due to the inhibitory effect of the higher concentrations. In agreement with this, Kawamura et al.⁴⁰ observed an increased bone formation when supplementing HA-based scaffolds with 0.316 wt% of Zn, but in scaffolds containing higher Zn concentration, an increased bone resorption was observed. Furthermore, the substitution of Zn towards Ca is restricted to about 15%,¹³² while other bioinorganics, such as Sr can fully substitute the Ca.¹³³ For example, Elgali et al. (2016) studied three levels of Ca substitution of HA by Sr, up to 50%.⁷⁰ Hence, it can be supposed that the effect of Zn is limited compared to Sr. It is important to mention that comparison between studies regarding the bioinorganic dose is complicated, as different authors express the amount of bioinorganics incorporated with different units (i.e. moles or degree of Ca substitution, among others) and, most importantly, many studies do not indicate the specific dose. On the other hand, Cruz et al. (2018) performed a qualitative systematic review on the effect of Zn supplementation into CaPs and concluded that Zn supplementation may be an interesting option for enhancing bone repair.¹³⁴

In vivo degradation of CaP materials can be achieved by two different routes: passive degradation by dissolution of the ceramic matrix or active degradation due to cellular interaction. Bioinorganics supplementation may fine-tune degradation by altering either or both of those routes. Our systematic analysis revealed that incorporation of Sr increased material degradation. Because it is known that Sr decreases osteoclast formation and osteoclast resorbing activity,^135,136 a delay in material degradation would be expected. Therefore, we assume that the enhancement of material degradation is related to a change in the lattice structure due to the smaller size of Sr ions compared to Ca.¹⁰ This change in the CaP lattice structure may reduce its stability and enhance the passive degradation of the CaP matrix.

The sub-group analysis revealed that supplementation with Si inhibited material degradation. This finding is in agreement with the hypothesized mechanism of action, as Si has been commonly supplemented to increase CaP stability.^25,137 Further, careful review of the included papers shows that the use of calcium silicate (CaSiO₃) was the preferred method for Si supplementation of the CaP ceramic, i.e. β-TCP.^89,115,118 While β-TCP or calcium silicate alone degrade relatively fast, the combination of both interfered with their degradation and was found to enhance bone formation. The authors hypothesized that the degradation of β-TCP or calcium silicate occurred too rapidly to provide adequate conditions for bone in-growth. Apparently, the combination of both created the appropriate environment for new bone formation, even when delaying CaP degradation.

Moreover, it was observed that Sr supplementation was used in all the papers dealing with osteoporotic animals, plausibly due to the fact that Sr has shown beneficial effects in the treatment of osteoporosis.^138,139 For example, Sr ranelate, is a commonly used anti-osteoporotic drug.^140,141

4.2. Type of animal model

An animal model in biomedical research is commonly chosen based on the 3Rs principles as well as practical issues.^142–144 Still, it is known that large animal models can more accurately mimic the clinical situation and, hence, are more adequate to assess the efficacy of bone substitutes.⁴ However, a low prevalence of large animal models was observed in the systematic review. Sheep were used in a sufficient number of papers to allow the meta-analysis of new bone formation, but the number of papers was too low for proper meta-analysis of remaining material. Dogs, goats and pigs were also used, but not enough data were available for meta-analysis. Apart from animal species, the defect characteristics are also important for the outcome and clinical relevance of a study. Defect size and defect site (cortical vs. trabecular bone) have been proven to affect the bone formation process. Cortical bone has been shown to regenerate slower than trabecular bone when biomaterials are used as graft substitutes.^145,146 Regarding defect size, it is important that the animal studies involve the use of “critical size defects”, which cannot heal spontaneously. For example, in case of a rat calvarial model, an 8 mm defect is generally considered critically-sized,¹⁴⁷ although smaller defects up to 5 mm have been also described as critical.^148,149 In the current review, it was observed that some studies used a 5 mm defect,^92,120 while others used a larger defect size of up to 10 mm.^67,95,104

4.3. Type of CaP-based bone substitute

Based on the classification suggested by LeGeros (2002), CaP-based bone substitutes can be categorized in different groups with different stability/solubility: (1) hydroxyapatite (HA) and α-tricalcium phosphate (α-TCP); (2) biphasic CaPs, and (3) dicalcium phosphate dihydrate (DCPD) and β-tricalcium phosphate (β-TCP).¹⁵⁰ Overall, we observed that bioinorganic supplementation had no effect on material degradation, but enhanced bone formation for all types of CaPs. This effect was more significant for DCPD/β-TCP and biphasic CaPs than for HA/α-TCP. This can be explained due to the faster degradation of DCPD/β-TCP and biphasic CaPs compared to HA/α-TCP.^151–153 Passive CaP degradation is determined by the chemistry and stability of the used calcium phosphate,^154,155 and hence faster degrading bone substitutes (i.e. DCPD/β-TCP and biphasic CaPs) release the bioinorganics earlier, which in turn enhances faster bone formation.

4.4. Limitations of the study and clinical relevance

Our search strategy allowed for inclusion of a large number of studies, which gave a detailed overview of the used approaches for supplementing bioinorganics to CaP-based bone substitutes. Moreover, the large number of papers enabled the performance of meta-analysis and sub-group analysis. However, this led to a high statistical heterogeneity, which is related to the considerable experimental variability.^156,157 Therefore, it has to be emphasized that the current findings should not be generalized as subgroup analysis did not reduce the heterogeneity. In order to compensate for experimental variability, a random effect model was used in the meta-analysis. Ideally, all experiments should be performed in a similar manner, but as previously observed in other systematic reviews using pre-clinical studies, this is difficult to achieve.^3,158,159 Another limitation of the systematic review is the low quality of reporting in pre-clinical papers. Study blinding was seldom reported and randomization was reported in less than half of the included papers. Most papers reported bone formation as a percentage of the defect area but, however, some articles reported it as BMD (mg cm⁻³) or as a regeneration efficiency ratio, which required to plot the NBF by means of the SMD (in SD, not %). Therefore, it is not known exactly to which extent the bone formation was enhanced (in %). Nevertheless, an estimate of ∼8% increase in bone formation would be expected.

Regarding the clinical application of supplementation of bioinorganics, a general screening of literature available was performed in PubMed using a similar search and the ‘Clinical Trial’ filter. This search showed that only Mg^{43–45,160–163} and Si^46–48 have been already supplemented to CaP materials for clinical applications and are being commercialized for oral and orthopedic surgical procedures.^164,165 Although both bioinorganics were shown to enhance bone formation compared to unfilled defects and to the similar extent as xenografts,^161,163 autografts showed a superior performance.^46,166

5. Conclusion

This systematic review and meta-analysis indicates a significant positive effect on new bone formation by supplementing CaP-based bone substitutes with bioinorganics compared to CaP-based bone substitutes without bioinorganics, especially when using strontium, silicon or magnesium. Moreover, the rapidly degrading DCPD/β-TCP ceramics and biphasic CaPs benefited from bioinorganic supplementation to a higher extent than the slowly degrading HA/α-TCP. Bioinorganic supplementation did not have an overall effect on material degradation, but strontium significantly enhanced and silicon inhibited degradation of synthetic CaP-based bone substitutes. Further research is needed to pinpoint whether these effects on new bone formation and material degradation are directly related to the biological properties of bioinorganics or to the structural changes in CaP-based bone substitutes resulting from supplementation by bioinorganics.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work is financially supported by Life Science & Health (project BONE-IP2), Dutch Ministry of Economic Affairs. P. H. gratefully acknowledges the Gravitation Program “Materials Driven Regeneration”, funded by the Netherlands Organization for Scientific Research (024.003.013). The authors want to thank Alice H. J. Tillema for the help with the systematic search strategy development. I. L. T wants to thank Ms Bing Wang, DDS for her help in the translation from Chinese of three of the included papers.

References

1. J. Van der Stok, E. M. M. Van Lieshout, Y. El-Massoudi, G. H. Van Kralingen and P. Patka, Bone substitutes in the Netherlands – A systematic literature review, Acta Biomater., 2011, 7(2), 739–750.
2. C. I. van Houdt, P. R. Gabbai-Armelin, P. M. Lopez-Perez, D. J. Ulrich, J. A. Jansen, A. C. M. Renno and J. J. van den Beucken, Alendronate release from calcium phosphate cement for bone regeneration in osteoporotic conditions, Sci. Rep., 2018, 8(1), 15398.
3. W. A. Camargo, R. de Vries, J. van Luijk, J. W. Hoekstra, E. M. Bronkhorst, J. A. Jansen and J. J. van den Beucken, Diabetes mellitus and bone regeneration: a systematic review and meta-analysis of animal studies, Tissue Eng., Part B, 2017, 23(5), 471–479.
4. R. Cancedda, P. Giannoni and M. Mastrogiacomo, A tissue engineering approach to bone repair in large animal models and in clinical practice, Biomaterials, 2007, 28(29), 4240–4250.
5. J. H. Shepherd, D. V. Shepherd and S. M. Best, Substituted hydroxyapatites for bone repair, J. Mater. Sci.: Mater. Med., 2012, 23(10), 2335–2347.
6. K. A. Hing, Bone repair in the twenty–first century: biology, chemistry or engineering?, Philos. Trans. R. Soc., A, 2004, 362(1825), 2821–2850.
7. E. Fernandez, F. Gil, M. Ginebra, F. Driessens, J. Planell and S. Best, Calcium phosphate bone cements for clinical applications. Part I: solution chemistry, J. Mater. Sci.: Mater. Med., 1999, 10(3), 169–176.
8. S. V. Dorozhkin, Calcium orthophosphate cements and concretes, Materials, 2009, 2(1), 221–291.
9. S. V. Dorozhkin and M. Epple, Biological and medical significance of calcium phosphates, Angew. Chem., Int. Ed., 2002, 41(17), 3130–3146.
10. R. Z. LeGeros, Calcium Phosphate-Based Osteoinductive Materials, Chem. Rev., 2008, 108(11), 4742–4753.
11. H. Skinner, Biominerals, Mineral. Mag., 2005, 69(5), 621–641.
12. H. Catherine and W. Skinner, In praise of phosphates, or why vertebrates chose apatite to mineralize their skeletal elements, Int. Geol. Rev., 2000, 42(3), 232–240.
13. J. Coulombe, H. Faure, B. Robin and M. Ruat, In vitro effects of strontium ranelate on the extracellular calcium-sensing receptor, Biochem. Biophys. Res. Commun., 2004, 323(4), 1184–1190.
14. S. Peng, X. S. Liu, T. Wang, Z. Li, G. Zhou, K. D. K. Luk, X. E. Guo and W. W. Lu, In vivo anabolic effect of strontium on trabecular bone was associated with increased osteoblastogenesis of bone marrow stromal cells, J. Orthop. Res., 2010, 28(9), 1208–1214.
15. E. Bonnelye, A. Chabadel, F. Saltel and P. Jurdic, Dual effect of strontium ranelate: Stimulation of osteoblast differentiation and inhibition of osteoclast formation and resorption in vitro, Bone, 2008, 42(1), 129–138.
16. H. Valiense, M. Barreto, R. F. Resende, A. T. Alves, A. M. Rossi, E. Mavropoulos, J. M. Granjeiro and M. D. Calasans-Maia, In vitro and in vivo evaluation of strontium-containing nanostructured carbonated hydroxyapatite/sodium alginate for sinus lift in rabbits, J. Biomed. Mater. Res., Part B, 2016, 104(2), 274–282.
17. E. M. Carlisle, Silicon: a possible factor in bone calcification, Science, 1970, 167(3916), 279–280.
18. K. Schwarz and D. B. Milne, Growth-promoting effects of silicon in rats, Nature, 1972, 239(5371), 333–334.
19. E. M. Carlisle, Silicon: a requirement in bone formation independent of vitamin D1, Calcif. Tissue Int., 1981, 33(1), 27–34.
20. A. Hoppe, N. S. Güldal and A. R. Boccaccini, A review of the biological response to ionic dissolution products from bioactive glasses and glass-ceramics, Biomaterials, 2011, 32(11), 2757–2774.
21. S. Zou, D. Ireland, R. A. Brooks, N. Rushton and S. Best, The effects of silicate ions on human osteoblast adhesion, proliferation, and differentiation, J. Biomed. Mater. Res., Part B, 2009, 90(1), 123–130.
22. K. Guth, T. Buckland and K. A. Hing, Silicon dissolution from microporous silicon substituted hydroxyapatite and its effect on osteoblast behaviour, Key Engineering Materials, Trans Tech Publ, 2006, pp. 117–120.
23. M. Bohner, Silicon-substituted calcium phosphates – A critical view, Biomaterials, 2009, 30(32), 6403–6406.
24. A. E. Porter, C. M. Botelho, M. A. Lopes, J. D. Santos, S. M. Best and W. Bonfield, Ultrastructural comparison of dissolution and apatite precipitation on hydroxyapatite and silicon-substituted hydroxyapatite in vitro and in vivo, J. Biomed. Mater. Res., Part A, 2004, 69A(4), 670–679.
25. I. M. Martínez, P. A. Velásquez and P. N. De Aza, Synthesis and stability of α-tricalcium phosphate doped with dicalcium silicate in the system Ca3(PO4)2−Ca2SiO4, Mater. Charact., 2010, 61(7), 761–767.
26. J. Cabrejos-Azama, M. H. Alkhraisat, C. Rueda, J. Torres, L. Blanco and E. López-Cabarcos, Magnesium substitution in brushite cements for enhanced bone tissue regeneration, Mater. Sci. Eng., C, 2014, 43, 403–410.
27. P. Reddy and L. R. Edwards, Magnesium supplementation in vitamin D deficiency, Am. J. Ther., 2019, 26(1), e124–e132.
28. R. K. Rude, Magnesium Deficiency: A Cause of Heterogenous Disease in Humans, J. Bone Miner. Res., 1998, 13(4), 749–758.
29. S. Galli, M. Stocchero, M. Andersson, J. Karlsson, W. He, T. Lilin, A. Wennerberg and R. Jimbo, The effect of magnesium on early osseointegration in osteoporotic bone: a histological and gene expression investigation, Osteoporosis Int., 2017, 28(7), 2195–2205.
30. A. Ismail and A. Thurston, How magnesium deficiency affects bone health, Osteoporosis Rev., 2010, 8, 9–12.
31. S. Castiglioni, A. Cazzaniga, W. Albisetti and J. Maier, Magnesium and osteoporosis: current state of knowledge and future research directions, Nutrients, 2013, 5, 3022–3033.
32. D. Zeng, L. Xia, W. Zhang, H. Huang, B. Wei, Q. Huang, J. Wei, C. Liu and X. Jiang, Maxillary sinus floor elevation using a tissue-engineered bone with calcium-magnesium phosphate cement and bone marrow stromal cells in rabbits, Tissue Eng., Part A, 2012, 18(7–8), 870–881.
33. M. Yamaguchi, M. Goto, S. Uchiyama and T. Nakagawa, Effect of zinc on gene expression in osteoblastic MC3T3-E1 cells: enhancement of Runx2, OPG, and regucalcin mRNA expressions, Mol. Cell. Biochem., 2008, 312(1–2), 157–166.
34. E. Gaffney-Stomberg, The impact of trace minerals on bone metabolism, Biol. Trace Elem. Res., 2019, 188(1), 26–34.
35. A. Cerovic, I. Miletic, S. Sobajic, D. Blagojevic, M. Radusinovic and A. El-Sohemy, Effects of zinc on the mineralization of bone nodules from human osteoblast-like cells, Biol. Trace Elem. Res., 2007, 116(1), 61–71.
36. M. Yamaguchi, M. Goto, S. Uchiyama and T. Nakagawa, Effect of zinc on gene expression in osteoblastic MC3T3-E1 cells: enhancement of Runx2, OPG, and regucalcin mRNA expressions, Mol. Cell. Biochem., 2008, 312(1–2), 157–166.
37. I. S. Kwun, Y. E. Cho, R. A. Lomeda, H. I. Shin, J. Y. Choi, Y. H. Kang and J. H. Beattie, Zinc deficiency suppresses matrix mineralization and retards osteogenesis transiently with catch-up possibly through Runx 2 modulation, Bone, 2010, 46(3), 732–741.
38. A. Ito, K. Ojima, H. Naito, N. Ichinose and T. Tateishi, Preparation, solubility, and cytocompatibility of zinc-releasing calcium phosphate ceramics, J. Biomed. Mater. Res., 2000, 50(2), 178–183.
39. M. Ikeuchi, A. Ito, Y. Dohi, H. Ohgushi, H. Shimaoka, K. Yonemasu and T. Tateishi, Osteogenic differentiation of cultured rat and human bone marrow cells on the surface of zinc-releasing calcium phosphate ceramics, J. Biomed. Mater. Res., Part A, 2003, 67(4), 1115–1122.
40. H. Kawamura, A. Ito, S. Miyakawa, P. Layrolle, K. Ojima, N. Ichinose and T. Tateishi, Stimulatory effect of zinc-releasing calcium phosphate implant on bone formation in rabbit femora, J. Biomed. Mater. Res., 2000, 50(2), 184–190.
41. H. Kawamura, A. Ito, T. Muramatsu, S. Miyakawa, N. Ochiai and T. Tateishi, Long-term implantation of zinc-releasing calcium phosphate ceramics in rabbit femora, J. Biomed. Mater. Res., Part A, 2003, 65(4), 468–474.
42. X. Luo, D. Barbieri, N. Davison, Y. Yan, J. D. de Bruijn and H. Yuan, Zinc in calcium phosphate mediates bone induction: in vitro and in vivo model, Acta Biomater., 2014, 10(1), 477–485.
43. A. Rebaudi, A. A. Maltoni, M. Pretto and S. Benedicenti, Sinus grafting with magnesium-enriched bioceramic granules and autogenous bone: a microcomputed tomographic evaluation of 11 patients, Int. J. Periodontics Restor. Dent., 2010, 30(1), 53.
44. R. Crespi, E. Mariani, E. Benasciutti, P. Capparè, S. Cenci and E. Gherlone, Magnesium-enriched hydroxyapatite versus autologous bone in maxillary sinus grafting: combining histomorphometry with osteoblast gene expression profiles ex vivo, J. Periodontol., 2009, 80(4), 586–593.
45. L. Canullo, F. Heinemann, T. Gedrange, R. Biffar and C. Kunert-Keil, Histological evaluation at different times after augmentation of extraction sites grafted with a magnesium-enriched hydroxyapatite: double-blinded randomized controlled trial, Clin. Oral Implants Res., 2013, 24(4), 398–406.
46. J. von Recum, J. Schwaab, T. Guehring, P.-A. Grützner and M. Schnetzke, Bone incorporation of silicate-substituted calcium phosphate in 2-stage revision anterior cruciate ligament reconstruction: A histologic and radiographic study, Arthroscopy, 2017, 33(4), 819–827.
47. L. Pimenta, L. Marchi, L. Oliveira, E. Coutinho and R. Amaral, A prospective, randomized, controlled trial comparing radiographic and clinical outcomes between stand-alone lateral interbody lumbar fusion with either silicate calcium phosphate or rh-BMP2, J. Neurol. Surg. A Cent. Eur. Neurosurg., 2013, 74(6), 343–350.
48. T. Lerner and U. Liljenqvist, Silicate-substituted calcium phosphate as a bone graft substitute in surgery for adolescent idiopathic scoliosis, Eur. Spine J., 2013, 22(2), 185–194.
49. R. B. de Vries, C. R. Hooijmans, M. W. Langendam, J. van Luijk, M. Leenaars, M. Ritskes-Hoitinga and K. E. Wever, A protocol format for the preparation, registration and publication of systematic reviews of animal intervention studies, Evidence-Based Preclin. Med., 2015, 2(1), 1–9.
50. J. Schindelin, I. Arganda-Carreras, E. Frise, V. Kaynig, M. Longair, T. Pietzsch, S. Preibisch, C. Rueden, S. Saalfeld and B. Schmid, Fiji: an open-source platform for biological-image analysis, Nat. Methods, 2012, 9(7), 676.
51. C. R. Hooijmans, M. M. Rovers, R. B. de Vries, M. Leenaars, M. Ritskes-Hoitinga and M. W. Langendam, SYRCLE's risk of bias tool for animal studies, BMC Med. Res. Methodol., 2014, 14, 43.
52. J. L. Aparicio, C. Rueda, A. Manchon, A. Ewald, U. Gbureck, M. H. Alkhraisat, L. B. Jerez and E. L. Cabarcos, Effect of physicochemical properties of a cement based on silicocarnotite/calcium silicate on in vitro cell adhesion and in vivo cement degradation, Biomed. Mater., 2016, 11(4), 045005.
53. M. Baier, P. Staudt, R. Klein, U. Sommer, R. Wenz, I. Grafe, P. J. Meeder, P. P. Nawroth and C. Kasperk, Strontium enhances osseointegration of calcium phosphate cement: a histomorphometric pilot study in ovariectomized rats, J. Orthop. Surg. Res., 2013, 8(1), 16.
54. S. Bose, D. Banerjee, S. Robertson and S. Vahabzadeh, Enhanced In Vivo Bone and Blood Vessel Formation by Iron Oxide and Silica Doped 3D Printed Tricalcium Phosphate Scaffolds, Ann. Biomed. Eng., 2018, 46(9), 1241–1253.
55. V. Bunpetch, X. Zhang, T. Li, J. Lin, E. P. Maswikiti, Y. Wu, D. Cai, J. Li, S. Zhang, C. Wu and H. Ouyang, Silicate-based bioceramic scaffolds for dual-lineage regeneration of osteochondral defect, Biomaterials, 2018, 192, 323–333.
56. M. Calasans-Maia, J. Calasans-Maia, S. Santos, E. Mavropoulos, M. Farina, I. Lima, R. T. Lopes, A. Rossi and J. M. Granjeiro, Short-term in vivo evaluation of zinc-containing calcium phosphate using a normalized procedure, Mater. Sci. Eng., C, 2014, 41, 309–319.
57. J. L. Calvo-Guirado, M. Garces, R. A. Delgado-Ruiz, M. P. Ramirez Fernandez, E. Ferres-Amat and G. E. Romanos, Biphasic β-TCP mixed with silicon increases bone formation in critical site defects in rabbit calvaria, Clin. Oral Implants Res., 2015, 26(8), 891–897.
58. C. L. Camiré, S. Jegou Saint-Jean, C. Mochales, P. Nevsten, J. S. Wang, L. Lidgren, I. McCarthy and M. P. Ginebra, Material characterization and in vivo behavior of silicon substituted α-tricalcium phosphate cement, J. Biomed. Mater. Res., Part B, 2006, 76(2), 424–431.
59. C. Cardemil, I. Elgali, W. Xia, L. Emanuelsson, B. Norlindh, O. Omar and P. Thomsen, Strontium-doped calcium phosphate and hydroxyapatite granules promote different inflammatory and bone remodelling responses in normal and ovariectomised rats, PLoS One, 2013, 8(12), e84932.
60. A. Carmo, S. C. Sartoretto, A. Alves, J. M. Granjeiro, F. B. Miguel, J. Calasans-Maia and M. D. Calasans-Maia, Alveolar bone repair with strontium- containing nanostructured carbonated hydroxyapatite, J. Appl. Oral Sci., 2018, 26, e20170084.
61. S. Chandran, S. Babu, H. Varma and A. John, Osteogenic efficacy of strontium hydroxyapatite micro-granules in osteoporotic rat model, J. Biomater. Appl., 2016, 31(4), 499–509.
62. S. Chandran, S. J. Shenoy, Suresh Babu S., R. P. Nair, Varma H. K. and A. John, Strontium Hydroxyapatite scaffolds engineered with stem cells aid osteointegration and osteogenesis in osteoporotic sheep model, Colloids Surf., B, 2018, 163, 346–354.
63. C. Cheng, V. Alt, L. Pan, U. Thormann, R. Schnettler, L. G. Strauss, M. Schumacher, M. Gelinsky and A. Dimitrakopoulou-Strauss, Preliminary evaluation of different biomaterials for defect healing in an experimental osteoporotic rat model with dynamic PET-CT (dPET-CT) using F-18-sodium fluoride (NaF), Injury, 2014, 45(3), 501–505.
64. V. Chissov, I. Sviridova, N. Sergeeva, G. Frank, V. Kirsanova, S. Achmedova, I. Reshetov, M. Filjushin, S. Barinov and I. Fadeeva, Study of in vivo biocompatibility and dynamics of replacement of rat shin defect with porous granulated bioceramic materials, Bull. Exp. Biol. Med., 2008, 146(1), 139–143.
65. J. S. Cho, D. S. Yoo, Y. C. Chung and S. H. Rhee, Enhanced bioactivity and osteoconductivity of hydroxyapatite through chloride substitution, J. Biomed. Mater. Res., Part A, 2014, 102(2), 455–469.
66. J. Chou, J. Hao, S. Kuroda, D. Bishop, B. Ben-Nissan, B. Milthorpe and M. Otsuka, Bone regeneration of rat tibial defect by zinc-tricalcium phosphate (Zn-TCP) synthesized from porous Foraminifera carbonate macrospheres, Mar. Drugs, 2013, 11(12), 5148–5158.
67. N. M. Costa, D. H. Yassuda, M. S. Sader, G. V. Fernandes, G. D. Soares and J. M. Granjeiro, Osteogenic effect of tricalcium phosphate substituted by magnesium associated with Genderm® membrane in rat calvarial defect model, Mater. Sci. Eng., C, 2016, 61, 63–71.
68. G. Dagang, X. Kewei and H. Yong, The influence of Sr doses on the in vitro biocompatibility and in vivo degradability of single-phase Sr-incorporated HAP cement, J. Biomed. Mater. Res., Part A, 2008, 86(4), 947–958.
69. L. Deng, D. Li, Z. Yang, X. Xie and P. Kang, Repair of the calvarial defect in goat model using magnesium-doped porous hydroxyapatite combined with recombinant human bone morphogenetic protein-2, Bio-Med. Mater. Eng., 2017, 28(4), 361–377.
70. I. Elgali, A. Turri, W. Xia, B. Norlindh, A. Johansson, C. Dahlin, P. Thomsen and O. Omar, Guided bone regeneration using resorbable membrane and different bone substitutes: Early histological and molecular events, Acta Biomater., 2016, 29, 409–423.
71. T. Gong, Z. Wang, Y. Zhang, Y. Zhang, M. Hou, X. Liu, Y. Wang, L. Zhao, N. D. Ruse and T. Troczynski, A comprehensive study of osteogenic calcium phosphate silicate cement: material characterization and in vitro/in vivo testing, Adv. Healthcare Mater., 2016, 5(4), 457–466.
72. Y. Gu, D. Liao and Z. Zhou, The experimental study of Sr-HAP on reconstructing mandibular bone defect, Zhonghua Kouqiang Yixue Zazhi, 2001, 36(4), 262–265.
73. Z. Gu, X. Zhang, L. Li, Q. Wang, X. Yu and T. Feng, Acceleration of segmental bone regeneration in a rabbit model by strontium-doped calcium polyphosphate scaffold through stimulating VEGF and bFGF secretion from osteoblasts, Mater. Sci. Eng., C, 2013, 33(1), 274–281.
74. X. Guo, S. Wei, M. Lu, Z. Shao, J. Lu, L. Xia, K. Lin and D. Zou, RNA-Seq investigation and in vivo study the effect of strontium ranelate on ovariectomized rat via the involvement of ROCK1, Artif. Cells, Nanomed., Biotechnol., 2018, 1–13.
75. K. A. Hing, P. A. Revell, N. Smith and T. Buckland, Effect of silicon level on rate, quality and progression of bone healing within silicate-substituted porous hydroxyapatite scaffolds, Biomaterials, 2006, 27(29), 5014–5026.
76. M. Inoue, H. Nagatsuka, H. Tsujigiwa, M. Inoue, R. Z. LeGeros, T. Yamamoto and N. Nagai, In vivo effect of fluoride-substituted apatite on rat bone, Dent. Mater. J., 2005, 24(3), 398–402.
77. M. Inoue, A. P. Rodriguez, N. Nagai, H. Nagatsuka, R. Z. LeGeros, H. Tsujigiwa, M. Inoue, E. Kishimoto and S. Takagi, Effect of fluoride-substituted apatite on in vivo bone formation, J. Biomater. Appl., 2011, 25(8), 811–824.
78. M. Kamitakahara, E. Tatsukawa, Y. Shibata, S. Umemoto, T. Yokoi, K. Ioku and T. Ikeda, Effect of silicate incorporation on in vivo responses of α-tricalcium phosphate ceramics, J. Mater. Sci.: Mater. Med., 2016, 27(5), 97.
79. P. Kang, X. Xie, Z. Tan, J. Yang, B. Shen, Z. Zhou and F. Pei, Repairing defect and preventing collapse of femoral head in a steroid-induced osteonecrotic of femoral head animal model using strontium-doped calcium polyphosphate combined BM-MNCs, J. Mater. Sci.: Mater. Med., 2015, 26(2), 80.
80. O. Kaygili, S. Keser, M. Kom, Y. Eroksuz, S. V. Dorozhkin, T. Ates, I. H. Ozercan, C. Tatar and F. Yakuphanoglu, Strontium substituted hydroxyapatites: synthesis and determination of their structural properties, in vitro and in vivo performance, Mater. Sci. Eng., C, 2015, 55, 538–546.
81. X. Ke, C. Zhuang, X. Yang, J. Fu, S. Xu, L. Xie, Z. Gou, J. Wang, L. Zhang and G. Yang, Enhancing the Osteogenic Capability of Core-Shell Bilayered Bioceramic Microspheres with Adjustable Biodegradation, ACS Appl. Mater. Interfaces, 2017, 9(29), 24497–24510.
82. G. M. Kuang, W. P. Yau, J. Wu, K. W. Yeung, H. Pan, W. M. Lam, W. W. Lu and K. Y. Chiu, Strontium exerts dual effects on calcium phosphate cement: Accelerating the degradation and enhancing the osteoconductivity both in vitro and in vivo, J. Biomed. Mater. Res., Part A, 2015, 103(5), 1613–1621.
83. D. Laufer, D. Ben-Shachar, E. Livne, G. Maor and M. Silbermann, Enhancing effects of fluoride-containing ceramic implants on bone formation in the dog femur, J. Cranio-Maxillofac. Surg., 1988, 16, 40–45.
84. X. Li, Y. Sogo, A. Ito, H. Mutsuzaki, N. Ochiai, T. Kobayashi, S. Nakamura, K. Yamashita and R. Z. LeGeros, The optimum zinc content in set calcium phosphate cement for promoting bone formation in vivo, Mater. Sci. Eng., C, 2009, 29(3), 969–975.
85. Y. Li, X. Shui, L. Zhang and J. Hu, Cancellous bone healing around strontium-doped hydroxyapatite in osteoporotic rats previously treated with zoledronic acid, J. Biomed. Mater. Res., Part B, 2016, 104(3), 476–481.
86. L. Li, Y. B. Qin, G. Ma and B. Li, Effect of a lithium-doped calcium phosphate cement in promoting tibial bone defect repair in rats. [Chinese], Nanfang Yike Daxue Xuebao, 2016, 36(6), 824–828.
87. Y. Li, J. Wang, Y. Wang, W. Du and S. Wang, Transplantation of copper-doped calcium polyphosphate scaffolds combined with copper(II) preconditioned bone marrow mesenchymal stem cells for bone defect repair, J. Biomater. Appl., 2018, 32(6), 738–753.
88. D. Liao, Z. Zhou, Y. Gu and D. Chen, A fundamental study on bioreactions of Sr-HA, Huaxi Kouqiang Yixue Zazhi, 2002, 20(3), 172–174.
89. S. Liu, F. Jin, K. Lin, J. Lu, J. Sun, J. Chang, K. Dai and C. Fan, The effect of calcium silicate on in vitro physiochemical properties and in vivo osteogenesis, degradability and bioactivity of porous β-tricalcium phosphate bioceramics, Biomed. Mater., 2013, 8(2), 025008.
90. Y. Luo, S. Chen, Y. Shi and J. Ma, 3D printing of strontium-doped hydroxyapatite based composite scaffolds for repairing critical-sized rabbit calvarial defects, Biomed. Mater., 2018, 13(6), 065004.
91. C. P. G. Machado, S. C. Sartoretto, A. T. N. N. Alves, I. B. C. Lima, A. M. Rossi, J. M. Granjeiro and M. D. Calasans-Maia, Histomorphometric evaluation of strontium-containing nanostructured hydroxyapatite as bone substitute in sheep, Braz. Oral Res., 2016, 30(1), e45.
92. R. Masaeli, T. S. J. Kashi, R. Dinarvand, V. Rakhshan, H. Shahoon, B. Hooshmand, F. M. Abbas, M. Raz, A. Rajabnejad and H. Eslami, Efficacy of the biomaterials 3 wt%-nanostrontium-hydroxyapatite-enhanced calcium phosphate cement (nanoSr-CPC) and nanoSr-CPC-incorporated simvastatin-loaded poly (lactic-co-glycolic-acid) microspheres in osteogenesis improvement: An explorative multi-phase experimental in vitro/vivo study, Mater. Sci. Eng., C, 2016, 69, 171–183.
93. J. E. Maté-Sánchez de Val, J. L. Calvo-Guirado, R. A. Delgado-Ruiz, M. P. Ramírez-Fernández, B. Negri, M. Abboud, I. M. Martínez and P. N. de Aza, Physical properties, mechanical behavior, and electron microscopy study of a new α-TCP block graft with silicon in an animal model, J. Biomed. Mater. Res., Part A, 2012, 100(12), 3446–3454.
94. B. G. Mohan, S. J. Shenoy, S. S. Babu, H. Varma and A. John, Strontium calcium phosphate for the repair of leporine (Oryctolagus cuniculus) ulna segmental defect, J. Biomed. Mater. Res., Part A, 2013, 101(1), 261–271.
95. W. E. Mueller, E. Tolba, M. Ackermann, M. Neufurth, S. Wang, Q. Feng, H. C. Schröder and X. Wang, Fabrication of amorphous strontium polyphosphate microparticles that induce mineralization of bone cells in vitro and in vivo, Acta Biomater., 2017, 50, 89–101.
96. N. Patel, S. Best, W. Bonfield, I. R. Gibson, K. Hing, E. Damien and P. Revell, A comparative study on the in vivo behavior of hydroxyapatite and silicon substituted hydroxyapatite granules, J. Mater. Sci.: Mater. Med., 2002, 13(12), 1199–1206.
97. N. Patel, R. Brooks, M. Clarke, P. Lee, N. Rushton, I. R. Gibson, S. Best and W. Bonfield, In vivo assessment of hydroxyapatite and silicate-substituted hydroxyapatite granules using an ovine defect model, J. Mater. Sci.: Mater. Med., 2005, 16(5), 429–440.
98. S. Pina, S. Vieira, P. Rego, P. Torres, O. da Cruz E Silva, E. da Cruz E Silva and J. Ferreira, Biological responses of brushite-forming Zn-and ZnSr-substituted beta-tricalcium phosphate bone cements, Eur. Cells Mater., 2010, 20, 162–177.
99. A. Porter, N. Patel, J. Skepper, S. Best and W. Bonfield, Comparison of in vivo dissolution processes in hydroxyapatite and silicon-substituted hydroxyapatite bioceramics, Biomaterials, 2003, 24(25), 4609–4620.
100. R. S. Preethanath, P. Rajesh, H. Varma, S. Anil, J. A. Jansen and J. J. van den Beucken, Combined Treatment Effects Using Bioactive-Coated Implants and Ceramic Granulate in a Rabbit Femoral Condyle Model, Clin. Implant Dent. Relat. Res., 2016, 18(4), 666–677.
101. S. Reitmaier, A. Kovtun, J. Schuelke, B. Kanter, M. Lemm, A. Hoess, S. Heinemann, B. Nies and A. Ignatius, Strontium(II) and mechanical loading additively augment bone formation in calcium phosphate scaffolds, J. Orthop. Res, 2018, 36(1), 106–117.
102. B. Rentsch, A. Bernhardt, A. Henss, S. Ray, C. Rentsch, M. Schamel, U. Gbureck, M. Gelinsky, S. Rammelt and A. Lode, Trivalent chromium incorporated in a crystalline calcium phosphate matrix accelerates materials degradation and bone formation in vivo, Acta Biomater., 2018, 69, 332–341.
103. R. F. Resende, G. V. Fernandes, S. R. Santos, A. M. Rossi, I. Lima, J. M. Granjeiro and M. D. Calasans-Maia, Long-term biocompatibility evaluation of 0.5% zinc containing hydroxyapatite in rabbits, J. Mater. Sci.: Mater. Med., 2013, 24(6), 1455–1463.
104. J. Roh, J. Y. Kim, Y. M. Choi, S. M. Ha, K. N. Kim and K. M. Kim, Bone Regeneration Using a Mixture of Silicon-Substituted Coral HA and β-TCP in a Rat Calvarial Bone Defect Model, Materials, 2016, 9(2), 97.
105. F. Salamanna, G. Giavaresi, A. Parrilli, P. Torricelli, E. Boanini, A. Bigi and M. Fini, Antiresorptive properties of strontium substituted and alendronate functionalized hydroxyapatite nanocrystals in an ovariectomized rat spinal arthrodesis model, Mater. Sci. Eng., C, 2019, 95, 355–362.
106. S. A. Schendel and J. Peauroi, Magnesium-based bone cement and bone void filler: preliminary experimental studies, J. Craniofacial Surg., 2009, 20(2), 461–464.
107. A. A. P. d. S. Suruagy, A. T. N. N. Alves, S. C. Sartoretto, J. d. A. Calasans-Maia, J. M. Granjeiro and M. D. Calasans-Maia, Physico-chemical and Histomorphometric Evaluation of Zinc-containing Hydroxyapatite in Rabbits Calvaria, Braz. Dent. J., 2016, 27(6), 717–726.
108. Z. Tao, W. Zhou, Y. Jiang, X. Wu, Z. Xu, M. Yang and J. Xie, Effects of strontium-modified calcium phosphate cement combined with bone morphogenetic protein-2 on osteoporotic bone defects healing in rats, J. Biomater. Appl., 2018, 33(1), 3–10.
109. U. Thormann, S. Ray, U. Sommer, T. ElKhassawna, T. Rehling, M. Hundgeburth, A. Henß, M. Rohnke, J. Janek and K. S. Lips, Bone formation induced by strontium modified calcium phosphate cement in critical-size metaphyseal fracture defects in ovariectomized rats, Biomaterials, 2013, 34(34), 8589–8598.
110. M. Tian, F. Chen, W. Song, Y. Song, Y. Chen, C. Wan, X. Yu and X. Zhang, In vivo study of porous strontium-doped calcium polyphosphate scaffolds for bone substitute applications, J. Mater. Sci.: Mater. Med., 2009, 20(7), 1505–1512.
111. G. Tripathi, Y. Sugiura, K. Tsuru and K. Ishikawa, In vivo stability evaluation of Mg substituted low crystallinity β-tricalcium phosphate granules fabricated through dissolution-precipitation reaction for bone regeneration, Biomed. Mater., 2018, 13(6), 065002.
112. S. Vahabzadeh, M. Roy and S. Bose, Effects of silicon on osteoclast cell mediated degradation, in vivo osteogenesis and vasculogenesis of brushite cement, J. Mater. Chem. B, 2015, 3(46), 8973–8982.
113. P. Velasquez, Z. B. Luklinska, L. Meseguer-Olmo, J. E. Mate-Sanchez de Val, R. A. Delgado-Ruiz, J. L. Calvo-Guirado, M. P. Ramirez-Fernandez and P. N. de Aza, αTCP ceramic doped with dicalcium silicate for bone regeneration applications prepared by powder metallurgy method: in vitro and in vivo studies, J. Biomed. Mater. Res., Part A, 2013, 101(7), 1943–1954.
114. M. T. Vestermark, E. M. Hauge, K. Soballe, J. E. Bechtold, T. Jakobsen and J. Baas, Strontium doping of bone graft extender: Effect on fixation of allografted experimental implants, Acta Orthop., 2011, 82(5), 614–621.
115. C. Wang, Y. Xue, K. Lin, J. Lu, J. Chang and J. Sun, The enhancement of bone regeneration by a combination of osteoconductivity and osteostimulation using β-CaSiO3/β-Ca3 (PO4) 2 composite bioceramics, Acta Biomater., 2012, 8(1), 350–360.
116. J. Wei, J. Jia, F. Wu, S. Wei, H. Zhou, H. Zhang, J.-W. Shin and C. Liu, Hierarchically microporous/macroporous scaffold of magnesium–calcium phosphate for bone tissue regeneration, Biomaterials, 2010, 31(6), 1260–1269.
117. F. Wu, J. Wei, H. Guo, F. Chen, H. Hong and C. Liu, Self-setting bioactive calcium–magnesium phosphate cement with high strength and degradability for bone regeneration, Acta Biomater., 2008, 4(6), 1873–1884.
118. S. Xu, K. Lin, Z. Wang, J. Chang, L. Wang, J. Lu and C. Ning, Reconstruction of calvarial defect of rabbits using porous calcium silicate bioactive ceramics, Biomaterials, 2008, 29(17), 2588–2596.
119. D. H. Yassuda, N. F. Costa, G. O. Fernandes, G. G. Alves, J. M. Granjeiro and G. d. A. Soares, Magnesium incorporation into β-TCP reduced its in vivo resorption by decreasing parathormone production, J. Biomed. Mater. Res., Part A, 2013, 101(7), 1986–1993.
120. W. Yu, T.-W. Sun, C. Qi, Z. Ding, H. Zhao, F. Chen, D. Chen, Y.-J. Zhu, Z. Shi and Y. He, Strontium-doped amorphous calcium phosphate porous microspheres synthesized through a microwave-hydrothermal method using fructose 1, 6-bisphosphate as an organic phosphorus source: application in drug delivery and enhanced bone regeneration, ACS Appl. Mater. Interfaces, 2017, 9(4), 3306–3317.
121. J. Zhang, H. Zhou, K. Yang, Y. Yuan and C. Liu, RhBMP-2-loaded calcium silicate/calcium phosphate cement scaffold with hierarchically porous structure for enhanced bone tissue regeneration, Biomaterials, 2013, 34(37), 9381–9392.
122. T. Nishino, Experimental study on hydroxyapatite soaked in sodium fluoride. With special reference to bone formation. [Japanese], J. Jpn. Orthop. Assoc., 1991, 65(12), 1199–1210.
123. P. N. De Aza, J. E. Mate-Sanchez de Val, C. Baudin, C. Perez Albacete-Martínez, A. Armijo Salto and J. L. Calvo-Guirado, Bone neoformation of a novel porous resorbable Si-Ca-P-based ceramic with osteoconductive properties: physical and mechanical characterization, histological and histomorphometric study, Clin. Oral Implants Res., 2016, 27(11), 1368–1375.
124. M. A. T. Aroni, G. de Oliveira, L. C. Spolidorio, O. Z. Andersen, M. Foss, R. A. C. Marcantonio and A. Stavropoulos, Loading deproteinized bovine bone with strontium enhances bone regeneration in rat calvarial critical size defects, Clin. Oral Invest., 2019, 23(4), 1605–1614.
125. R. Liu, W. Qiao, B. Huang, Z. Chen, J. Fang, Z. Li and Z. Chen, Fluorination Enhances the Osteogenic Capacity of Porcine Hydroxyapatite, Tissue Eng., Part A, 2018, 24(15–16), 1207–1217.
126. W. Qiao, R. Liu, Z. Li, X. Luo, B. Huang, Q. Liu, Z. Chen, J. K. H. Tsoi, Y. X. Su, K. M. C. Cheung, J. P. Matinlinna, K. W. K. Yeung and Z. Chen, Contribution of the in situ release of endogenous cations from xenograft bone driven by fluoride incorporation toward enhanced bone regeneration, Biomater. Sci., 2018, 6(11), 2951–2964.
127. P. Habibovic and J. Barralet, Bioinorganics and biomaterials: bone repair, Acta Biomater., 2011, 7(8), 3013–3026.
128. M. Bohner, Resorbable biomaterials as bone graft substitutes, Mater. Today, 2010, 13(1), 24–30.
129. W. F. Bosron, R. A. Anderson, M. C. Falk, F. S. Kennedy and B. L. Vallce, Effect of magnesium on the properties of zinc alkaline phosphatase, Biochemistry, 1977, 16(4), 610–614.
130. E. Canalis, M. Hott, P. Deloffre, Y. Tsouderos and P. J. Marie, The divalent strontium salt S12911 enhances bone cell replication and bone formation in vitro, Bone, 1996, 18(6), 517–523.
131. M. Ikeuchi, A. Ito, Y. Dohi, H. Ohgushi, H. Shimaoka, K. Yonemasu and T. Tateishi, Osteogenic differentiation of cultured rat and human bone marrow cells on the surface of zinc-releasing calcium phosphate ceramics, J. Biomed. Mater. Res., Part A, 2003, 67(4), 1115–1122.
132. F. Miyaji, Y. Kono and Y. Suyama, Formation and structure of zinc-substituted calcium hydroxyapatite, Mater. Res. Bull., 2005, 40(2), 209–220.
133. M. D. O'Donnell, Y. Fredholm, A. de Rouffignac and R. G. Hill, Structural analysis of a series of strontium-substituted apatites, Acta Biomater., 2008, 4(5), 1455–1464.
134. R. Cruz, J. Calasans-Maia, S. Sartoretto, V. Moraschini, A. M. Rossi, R. S. Louro, J. M. Granjeiro and M. D. Calasans-Maia, Does the incorporation of zinc into calcium phosphate improve bone repair? A systematic review, Ceram. Int., 2018, 44(2), 1240–1249.
135. T. Wu, S. Yang, T. Lu, F. He, J. Zhang, H. Shi, Z. Lin and J. Ye, Strontium ranelate simultaneously improves the radiopacity and osteogenesis of calcium phosphate cement, Biomed. Mater., 2019, 14, 035005.
136. E. Bonnelye, A. Chabadel, F. Saltel and P. Jurdic, Dual effect of strontium ranelate: stimulation of osteoblast differentiation and inhibition of osteoclast formation and resorption in vitro, Bone, 2008, 42(1), 129–138.
137. P. Velasquez, Z. B. Luklinska, L. Meseguer-Olmo, J. E. Mate-Sanchez de Val, R. A. Delgado-Ruiz, J. L. Calvo-Guirado, Ma. P. Ramirez-Fernandez and P. N. de Aza, A-TCP ceramic doped with dicalcium silicate for bone regeneration applications prepared by powder metallurgy method, in vitro and in vivo studies, J. Biomed. Mater. Res., Part A, 2013, 101, 1943–1954.
138. S. O'Donnell, A. Cranney, G. A. Wells, J. D. Adachi and J. Y. Reginster, Strontium ranelate for preventing and treating postmenopausal osteoporosis, Cochrane Database Syst. Rev., 2006, 18(4), CD005326.
139. S. J. Gallacher and T. Dixon, Impact of Treatments for Postmenopausal Osteoporosis (Bisphosphonates, Parathyroid Hormone, Strontium Ranelate, and Denosumab) on Bone Quality: A Systematic Review, Calcif. Tissue Int., 2010, 87(6), 469–484.
140. L. Cianferotti, F. D'Asta and M. L. Brandi, A review on strontium ranelate long-term antifracture efficacy in the treatment of postmenopausal osteoporosis, Ther. Adv. Musculoskeletal Dis., 2013, 5(3), 127–139.
141. S. O'Donnell, A. Cranney, G. A. Wells, J. Adachi and J. Y. Reginster, Strontium ranelate for preventing and treating postmenopausal osteoporosis, Cochrane Database Syst. Rev., 2006, 18(4), CD005326.
142. R. B. de Vries, P. Buma, M. Leenaars, M. Ritskes-Hoitinga and B. Gordijn, Reducing the number of laboratory animals used in tissue engineering research by restricting the variety of animal models. Articular cartilage tissue engineering as a case study, Tissue Eng., Part B, 2012, 18(6), 427–435.
143. R. B. de Vries, K. E. Wever, M. T. Avey, M. L. Stephens, E. S. Sena and M. Leenaars, The usefulness of systematic reviews of animal experiments for the design of preclinical and clinical studies, ILAR J., 2014, 55(3), 427–437.
144. A. J. Oerlemans, W. F. Feitz, E. van Leeuwen and W. J. Dekkers, Regenerative urology clinical trials: an ethical assessment of road blocks and solutions, Tissue Eng., Part B, 2012, 19(1), 41–47.
145. H. P. Frederik, R. D. Bushan, I. Hanna, H. Werner, L. Lars, P. M. Mørk and T. Magnus, Composite Biomaterial as a Carrier for Bone-Active Substances for Metaphyseal Tibial Bone Defect Reconstruction in Rats, Tissue Eng., Part A, 2017, 23(23–24), 1403–1412.
146. P. Jungbluth, M. Hakimi, J. P. Grassmann, J. Schneppendahl, A. Kessner, M. Sager, A. R. Hakimi, J. Becker, J. Windolf and M. Wild, The progress of early phase bone healing using porous granules produced from calcium phosphate cement, Eur. J. Med. Res., 2010, 15(5), 196–203.
147. P. P. Spicer, J. D. Kretlow, S. Young, J. A. Jansen, F. K. Kasper and A. G. Mikos, Evaluation of bone regeneration using the rat critical size calvarial defect, Nat. Protoc., 2012, 7(10), 1918.
148. D. Zou, Z. Zhang, J. He, S. Zhu, S. Wang, W. Zhang, J. Zhou, Y. Xu, Y. Huang, Y. Wang, W. Han, Y. Zhou, S. Wang, S. You, X. Jiang and Y. Huang, Repairing critical-sized calvarial defects with BMSCs modified by a constitutively active form of hypoxia-inducible factor-1α and a phosphate cement scaffold, Biomaterials, 2011, 32(36), 9707–9718.
149. M. S. Kang, N.-H. Lee, R. K. Singh, N. Mandakhbayar, R. A. Perez, J.-H. Lee and H.-W. Kim, Nanocements produced from mesoporous bioactive glass nanoparticles, Biomaterials, 2018, 162, 183–199.
150. R. Z. LeGeros, Properties of osteoconductive biomaterials: calcium phosphates, Clin. Orthop. Relat. Res., 2002, 395, 81–98.
151. M. Kamitakahara, C. Ohtsuki, M. Oishi, S. Ogata, T. Miyazaki and M. Tanihara, Preparation of porous biphasic tricalcium phosphate and its in vivo behavior, Key Engineering Materials, Trans Tech Publ, 2005, pp. 281–284.
152. S. V. Dorozhkin, Calcium orthophosphate bioceramics, Ceram. Int., 2015, 41(10), 13913–13966.
153. K. Sariibrahimoglu, J. G. Wolke, S. C. Leeuwenburgh, L. Yubao and J. A. Jansen, Injectable biphasic calcium phosphate cements as a potential bone substitute, J. Biomed. Mater. Res., Part B, 2014, 102(3), 415–422.
154. F. J. Buchanan, Degradation rate of bioresorbable materials: prediction and evaluation, Elsevier, 2008.
155. F. Driessens, Physiology of hard tissues in comparison with the solubility of synthetic calcium phosphates, Ann. N. Y. Acad. Sci., 1988, 523(1), 131–136.
156. F. Song, T. A. Sheldon, A. J. Sutton, K. R. Abrams and D. R. Jones, Methods for exploring heterogeneity in meta-analysis, Eval. Health Prof., 2001, 24(2), 126–151.
157. P. Glasziou and S. Sanders, Investigating causes of heterogeneity in systematic reviews, Stat. Med., 2002, 21(11), 1503–1511.
158. X.-Z. Yan, F. Yang, J. A. Jansen, R. B. de Vries and J. J. van den Beucken, Cell-based approaches in periodontal regeneration: a systematic review and meta-analysis of periodontal defect models in animal experimental work, Tissue Eng., Part B, 2015, 21(5), 411–426.
159. A. M. Basudan, M. Y. Shaheen, R. B. de Vries, J. J. van den Beucken, J. A. Jansen and H. S. Alghamdi, Antiosteoporotic Drugs to Promote Bone Regeneration Related to Titanium Implants: A Systematic Review and Meta-analysis, Tissue Eng., Part B, 2019, 25(2), 89–99.
160. L. Canullo, G. Wiel Marin, M. Tallarico, E. Canciani, F. Musto and C. Dellavia, Histological and Histomorphometrical Evaluation of Postextractive Sites Grafted with Mg-Enriched Nano-Hydroxyapatite: A Randomized Controlled Trial Comparing 4 Versus 12 Months of Healing, Clin. Implant Dent. Relat. Res., 2016, 18(5), 973–983.
161. R. Crespi, P. Cappare and E. Gherlone, Magnesium-enriched hydroxyapatite compared to calcium sulfate in the healing of human extraction sockets: radiographic and histomorphometric evaluation at 3 months, J. Periodontol., 2009, 80(2), 210–218.
162. R. Crespi, P. Cappare and E. Gherlone, Osteotome sinus floor elevation and simultaneous implant placement in grafted biomaterial sockets: 3 years of follow-up, J. Periodontol., 2010, 81(3), 344–349.
163. R. Crespi, P. Cappare and E. Gherlone, Comparison of magnesium-enriched hydroxyapatite and porcine bone in human extraction socket healing: a histologic and histomorphometric evaluation, Int. J. Oral Maxillofac. Implants, 2011, 26(5), 1057–1062.
164. B.I. Inc, Baxter Announces U.S. FDA Clearance of New Bone Graft Substitute, Actifuse Flow, Deerfield, Ill., USA, 2018.
165. F.F. S.p.A, Sintlife-Moldable bone substitute, Italy, https://www.finceramica.it/en/prodotti_servizi/chirurgia_ortopedica_e_spianle/sintlife_sostituto_osseo_malleabile.
166. R. Crespi, E. Mariani, E. Benasciutti, P. Cappare, S. Cenci and E. Gherlone, Magnesium-enriched hydroxyapatite versus autologous bone in maxillary sinus grafting: combining histomorphometry with osteoblast gene expression profiles ex vivo, J. Periodontol., 2009, 80(4), 586–593.
167. J. Zarins, M. Pilmane, E. Sidhoma, I. Salma and J. Locs, Immunohistochemical evaluation after Sr-enriched biphasic ceramic implantation in rabbits femoral neck: comparison of seven different bone conditions, J. Mater. Sci.: Mater. Med., 2018, 29(8), 119.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/d0bm00599a

---
