Development of 68Ga-labelled ultrasound microbubbles for whole-body PET imaging

Javier Hernández-Gil*a, Marta Bragab, Bethany I. Harrissa, Laurence S. Carrollb, Chee Hau Leowc, Meng-Xing Tangc, Eric O. Aboagye*b and Nicholas J. Long*a
aDepartment of Chemistry, Imperial College London, UK. E-mail: j.hernandez-gil@imperial.ac.uk; n.long@imperial.ac.uk
bDepartment of Surgery & Cancer, Imperial College London, UK. E-mail: eric.aboagye@imperial.ac.uk
cDepartment of Bioengineering, Imperial College London, UK

Received 8th February 2019 , Accepted 18th April 2019

First published on 1st May 2019


Microbubble (MB) contrast agents have revolutionalised the way ultrasound (US) imaging can be used clinically and pre-clinically. Contrast-enhanced US offers improvements in soft-tissue contrast, as well as the ability to visualise disease processes at the molecular level. However, its inability to provide in vivo whole-body imaging can hamper the development of new MB formulations. Herein, we describe a fast and efficient method for achieving 68Ga-labelling of MBs after a direct comparison of two different strategies. The optimised approach produces 68Ga-labelled MBs in good yields through the bioorthogonal inverse-electron-demand Diel–Alder reaction between a trans-cyclooctene-modified phospholipid and a new tetrazine-bearing HBED-CC chelator. The ability to noninvasively study the whole-body distribution of 68Ga-labelled MBs was demonstrated in vivo using positron emission tomography (PET). This method could be broadly applicable to other phospholipid-based formulations, providing accessible solutions for in vivo tracking of MBs.


Introduction

The development and further refinement of contrast agents plays a central role in the fields of anatomical and molecular imaging, acting as a driving force to overcome limitations inherent to existing imaging modalities.1 In ultrasound (US), the use of microbubbles (MBs, Scheme 1), which consist of a gas core stabilised by a phospholipid or polymer shell, has improved the poor ability of this technique to distinguish between tissues with similar acoustic responses.2 In the presence of an acoustic field, these compressible MBs produce strong nonlinear signals, which can be differentiated from the surrounding tissue, enhancing soft-tissue contrast and signal-to-noise ratios in regions of interest. The fact that MBs typically present sizes of 1–5 μm, and therefore are restricted to intravascular targets, alongside their ability to incorporate disease-targeted ligands, has recently oriented the use of US imaging towards detecting and monitoring vascular pathologies at the molecular level.2c In this regard, different preclinical studies have successfully demonstrated the capability of MBs to visualise receptors overexpressed in inflammation, angiogenesis and/or early tumour formation,3a–c and a phospholipid-based formulation has even recently entered first in-human clinical trials in various cancer types.3d,e These examples, together with the proven capacity of MBs to load drugs3f will further support the development of alternative MB agents for new diagnostic and therapeutic US applications in patients.
image file: c9sc00684b-s1.tif

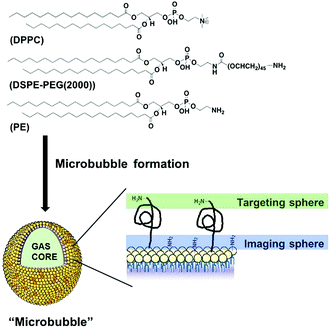

Scheme 1 Schematic structure/composition of the developed microbubbles (MBs), showing two surface conjugation sites (not to scale).

Clinical translation, however, is always a long, high-risk and expensive endeavour, and therefore, early evaluation of the biodistribution and/or pharmacokinetics of MBs could facilitate their (pre)clinical development.4a Whole-body imaging has long demonstrated utility in the evaluation of in vivo fates and/or possible off-target effects.4 Unfortunately, contrast-enhanced US is limited to local imaging. This limitation has created a demand for new MB formulations that can provide whole-body imaging and therefore, offer a better understanding of diagnostic and/or drug activity during the initial stages of MB development.

Nuclear imaging techniques, namely positron emission tomography (PET) and single-photon-emission tomography (SPECT), provide non-invasive and whole-body imaging with high sensitivity and unlimited penetration depth.5 Hence, a few groups have attempted to develop dual nuclear/US MB agents.6 Most of these studies, however, have used streptavidin-biotin interactions to radiolabel MBs and/or employed SPECT tracers (iodine-125, technetium-99m or indium-111).6a–d Although elegant and encouraging, these approaches face disadvantages: (i) immunogenic streptavidin-coated MBs are not recommended for human use and (ii) SPECT cannot provide quantitative analysis in vivo. PET, unlike SPECT, allows determination of tracer concentration in tissue with higher sensitivity and image quality. Despite these advantages, only one group has incorporated a 18F-labelled phospholipid onto MBs, allowing non-invasive assessment of the whole-body MB fates.6e However, 18F-labelling usually requires time-consuming multi-step synthesis, and more importantly, depends on expensive cyclotron facilities. So, there is an unmet need for a rapid and robust method to generate radiolabelled MBs using broadly accessible PET isotopes.

Gallium-68 (hereafter, 68Ga) is a radiometal that offers aqueous single-step and high-yielding complexations with high positron emission (89%) and on-site availability, allowing hospitals economical production of a high-quality and generator-produced PET isotope.7 In addition, its short half-life (67.7 min) enables the perfect monitoring of MBs, which have circulation times of around 10–20 minutes.2 However, the development of 68Ga-labelled MBs (hereafter, 68Ga-MBs) has never been attempted, which inspired us to focus on this particular problem in the field of US imaging. We reasoned that the optimised method should offer a fast, accessible and versatile way to radiolabel the shell components of MBs, as well as to provide reliable validation checkpoints with conventional To test this hypothesis, two 68Ga labelling strategies were initially devised: (i) direct conjugation of a metal chelator to the phospholipid head-groups and, (ii) bioorthogonal ‘click’ ligation between a chelator-based prosthetic group and a complementary functionalised-phospholipid (Scheme 2A and B). Through a direct comparison between both approaches, we have developed a rapid and efficient method for labelling ultrasound MB agents with a generator-produced PET isotope, offering accessible solutions for in vivo tracking of MBs.


image file: c9sc00684b-s2.tif
Scheme 2 (A) “Direct labelling approach”: conjugation of a metal chelator to the headgroup of PE and subsequent labelling and purification. (B) “Click labelling approach”: development of bioorthogonal components for ‘click’ ligation of a 68Ga-chelator-tetrazine and a trans-cyclooctene-modified phospholipid to yield 68Ga-labelled MBs.

Results and discussion

Design and preparation of microbubbles

Here, we focused on phospholipid-shelled MBs, which represent the most common and versatile US contrast agent.2,3 We recently demonstrated that a cyanine7.5-modified phospholipid could be successfully incorporated into a MB formulation of commercially available 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC) and 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[amino (poly-ethylene glycol)-2000] (DSPE-PEG(2000)) phospholipids.8a We reasoned that 1,2-distearoyl-sn-glycero-3-phosphoethanolamine (PE), which shares DSPE-PEG(2000) backbone without its PEGylated moiety, could therefore, be combined with DPPC and DSPE-PEG(2000), and thus offer an alternative anchor point for the PET tracer. The absence of a bulky PEG45 polymer on PE also facilitates the purification and characterisation of resulting products, while maintaining DSPE-PEG(2000) available for subsequent conjugation of targeting ligands (Scheme 1). With such a rationale in mind, we prepared a new formulation containing DPPC, DSPE-PEG(2000) and PE at 85[thin space (1/6-em)]:[thin space (1/6-em)]5[thin space (1/6-em)]:[thin space (1/6-em)]10 molar ratios, following standard protocols (Table S1).8 Optical microscopy was used to visualise the size and concentration of the new MB formulation and, as shown in Table S2, no significant difference was observed between PE-containing MBs and our previous formulation without PE. The stock MB solution containing 10% of PE yielded a mean bubble diameter of 2.10 ± 1.07 μm and a concentration of (1.22 ± 0.68) × 1010 MBs mL−1 while the unmodified formulation generated bubbles with a mean size of 2.18 ± 1.06 μm and a concentration of (8.02 ± 0.03) × 109 MB mL−1. The acoustic response of both MBs was also compared. The two formulations were diluted to a concentration of approximately 106 MBs mL−1 in a 2 L water tank and their US contrast enhancements quantified (Table S2). Both MBs produced a similar US contrast at 4.5 MHz, indicating that the new formulation can also be used for US imaging.

Both MBs produced a similar US contrast at 4.5 MHz, indicating that the new formulation can also be used for US imaging.

Evaluation of the first approach: direct conjugation of a metal chelator to the phospholipid head-groups

To test the feasibility of our first approach (Scheme 2A), we functionalised PE with three chelators of known affinity for 68Ga:7a 1,4,7-triazacyclononane-1,4,7-triacetic acid (NOTA), 1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid (DOTA) and 2-(4,7,10-tris(carboxymethyl)-1,4,7,10-tetraazacyclododecan-1-yl)- pentanedioic acid (DOTA-GA). PE-NOTA (1) and PE-DOTA (2) were prepared by conjugation of the primary amine headgroup of PE with a NHS-activated form of each chelator, whereas PE-DOTAGA (3) was obtained via reaction of a p-isothiocyanatobenzyl PE intermediate with an ethylendiamine-modified DOTAGA reagent. 1–3 were purified by preparative thin-layer chromatography (TLC) and obtained in high yields (Fig. 1A and ESI).

To examine whether 1–3 can efficiently chelate 68Ga, a fixed amount of generator-produced 68Ga3+ (∼2 MBq) was separately reacted with 1–3 over a range of phospholipid concentrations and two pH values (3.5 and 4.5). All reactions were incubated for 10 min at 90 °C and the radiochemical yields (RCYs) were measured using radioTLC. 1 demonstrated the highest labelling efficiency, with RCYs greater than 80% at moderately low chelator concentrations (10 μM) for both pH conditions, corresponding to molar activities of 1–2 MBq nmol−1 (Fig. 1B).


image file: c9sc00684b-f1.tif

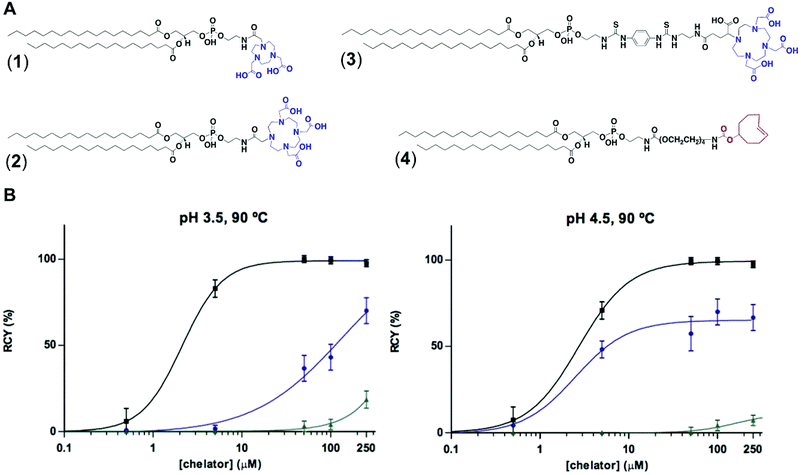

Fig. 1 (A) Structure of PE-NOTA (1), PE-DOTA (2), PE-DOTAGA (3) and PE-PEG4-TCO (4). (B) Radiochemical yields for the reaction of 68Ga3+ with 1 (black), 2 (green) and 3 (blue) under different phospholipid concentrations (0.05 to 250 μM) and pH values (3.5 and 4.5), after 10 min at 90 °C.

As previously reported, NOTA derivatives show better affinity for 68Ga3+ than DOTA conjugates as a consequence of the close fit of the relatively small Ga(III) metal ion in the pseudo octahedral cavity of the potentially six-coordinate 9-aneN3, with attached carbonyl and amide groups.9 We then selected 1 for optimising a 68Ga-labelling method under in vivo conditions. Purified 68GaCl3 (70–75 MBq) was reacted with 1 (∼20 nmol) in acetate buffer (0.1 M, pH 4.0) for 15 min at 90 °C. The RCY of [68Ga][Ga(1)], under these conditions, was >85% (non-isolated, estimated by radio-HPLC). Next, different solid-phase extraction (SPE) cartridges were used for [68Ga][Ga(1)] purification but, unfortunately all sorbents tested presented low recovery yields (Table S3). The best results were obtained with Oasis® HLB cartridges with an average eluted activity of 27 ± 5%. These all-purpose cartridges, with a strongly hydrophilic and reversed-phase polymer, allow acidic, basic and neutral analyte purifications from pH 0 to 14. Under our labelling conditions, pH = 3.5–4.0, [68Ga][Ga(1)] behaves as a zwitterionic phospholipid with a positively charged Ga-chelating moiety and a negatively charged phosphate group (pKa ∼1.5–2.5), meeting a priori the manufacturer requirements for high recovery yields. Phospholipids, however, are a major concern for LC-MS analysis of small molecules in biological matrices and many SPE cartridges (in our case, HybridSPE®, Oasis® Prime and Oasis® HLB cartridges) contain sorbents that can retain phospholipids. This effect was clearly observed when using Oasis® Prime cartridges, retaining 62 ± 15% of the initial loaded activity and, also noticeable with HybridSPE® and Oasis® HLB cartridges trapping 32 ± 7 and 17 ± 3%, respectively. Therefore, the sub-optimal purification yields obtained because of the lipid nature of 1 alongside its low molar activities prompted us to focus on the second approach.

Evaluation of the second approach: bioorthogonal ‘click’ ligation between a chelator-based prosthetic group and a complementary functionalised-phospholipid

For the second strategy (Scheme 2B), we hypothesised that a tetrazine-bearing radioconjugate could combine high molar activities and straightforward work-up procedures from small-sized chelators with high-yielding and fast reactivities from ‘click’ ligations. In this regard, our group and others have been designing new probes suited for bioorthogonal radiolabelling via the inverse-electron-demand Diels–Alder (iEDDA) cycloadditions between tetrazines and olefins.10 iEDDA reactions avoid the use of metal catalysts, which could compete with the far less abundant 68Ga3+ radiometal, as well as offer rapid kinetics at low concentrations, essential when working with short-lived radioisotopes.11 Thus, a trans-cyclooctene (TCO)-modified phospholipid was synthesised using a commercially available TCO-PEG4-NHS ester and PE. TCO was chosen because of its higher reactivity compared to other strained olefins.12 PE-PEG4-TCO (4) was purified by preparative-TLC and characterised by 1H NMR spectroscopy and MALDI-TOF mass spectrometry (Fig. 1a and ESI).

Compound 5, containing N,N′-bis[2-hydroxy-5-(carboxyethyl)- benzyl]ethylenediamine-N,N-diacetic acid (HBED-CC) and a tetrazine, was also prepared (Fig. 2 and ESI). In a six-step sequence, the desired product was ultimately obtained by in situ coupling HATU-activated [Fe(HBED-CC)] with (4-(6-methyl-1,2,4,5-tetrazin-3-yl)phenyl)methanamine. Here, we used HATU, which required a 15 minute activation, instead of the most common 2 day tetrafluorophenol/dicyclohexylcarbodiimide process.13 The formation of the iron complex assures the protection of coordinating phenolic and carboxylate groups while exposing the two propionic acid arms for amine conjugation. HBED-CC-tetrazine derivative 5 was purified by flash chromatography and its monosubstituted nature confirmed using 1H, 13C NMR spectroscopy and ESI mass spectrometry (see ESI). As a reference, a tetrazine-bearing DOTA-GA tracer (6), previously designed by our group,10b was prepared (Fig. 2 and ESI).


image file: c9sc00684b-f2.tif
Fig. 2 (A) Structure of HBED-CC-tetrazine (5) and DOTA-GA-tetrazine (6).

A head-to-head comparison of the 68Ga-chelating efficiency between 5 and 6 was performed (Fig. 3). At room temperature, the difference between both chelators was remarkable. Whilst 5 performed extremely well, 6 presented poor ability to coordinate 68Ga3+. This suggested that the labelling efficiency of 6 was limited by the higher kinetic barriers that macrocyclic-based chelators generally present compared to acyclic ligands.7a,14 5 also showed little pH-dependence, yielding near-quantitative RCYs at the low concentration of 5 μM for all pH values tested (based on radioTLC analysis of the reaction solution). At high temperature, both chelators exhibited a similar efficiency, with conversions higher than 90% at 5 μM. At lower concentrations, however, 5 again demonstrated better performance over 6. At 1 μM and pH values of 3.5 and 4.5, RCYs of [68Ga][Ga(5)] were near quantitative while RCYs of [68Ga][Ga(6)] were lower than 30%. This corresponded to maximum molar activities for 5 of 15–20 MBq nmol−1. Next, we selected 5 to evaluate its 68Ga-labelling efficiency under in vivo conditions. This time, [68Ga][Ga(5)], obtained after 10 min incubation at room temperature, could be successfully purified with conventional reverse-phase cartridges. The entire procedure was performed in less than 20 min, yielding purities >98% and RCYs >95% (determined by radio-HPLC analysis of the pure product).


image file: c9sc00684b-f3.tif

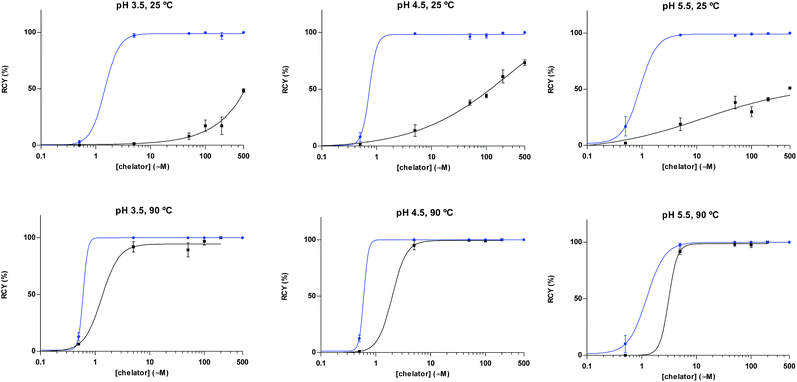

Fig. 3 Radiochemical yields for the reaction of 68Ga3+ with 5 (blue) and 6 (black) under different concentrations of chelator (0.05 to 500 μM), pH values (3.5, 4.5 and 5.5) and temperatures (25 and 90 °C), after 10 min.

Preparation of 68Ga-labelled MBs

Fig. 4A shows the chromatogram of purified [68Ga][Ga(5)] labelled at room temperature and pH 4.2 ± 0.3. As for other HBED-based chelators, 5 forms different geometric isomers when complexed to Ga3+.15 Although a mixture of species can potentially present different pharmaceutical profiles, a recent study measuring the cell binding and internalisation properties of [68Ga]Ga-PSMA-HBED-CC labelled at room temperature (containing a mixture of species) and at 95 °C (containing the thermodynamically most stable isomer) on PSMA-expressing LNCaP cells showed comparable results for both fractions, indicating a stereochemical independent receptor-interaction of the radioligand.16
image file: c9sc00684b-f4.tif

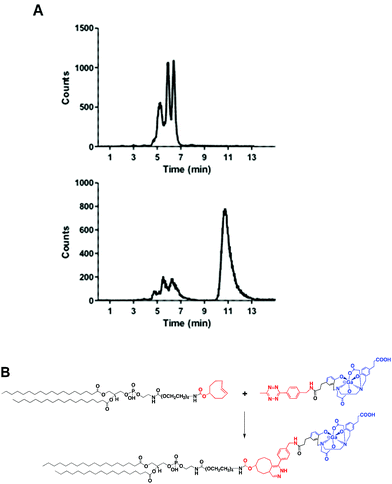

Fig. 4 (A) Radio-HPLC chromatograms of (top) [68Ga]Ga-HBED-CC-tetrazine precursor and (bottom) reaction between 4 and 5, after 15 min at 60 °C. (B) Scheme of the reaction between TCO-modified PE (4) and [68Ga]Ga-HBED-CC-tetrazine (5).

Next, we reacted a purified fraction of [68Ga][Ga(5)] (∼75 MBq) with PE-PEG4-TCO (0.107 μmol) at 60 °C (Fig. 4A). After 15 minutes, the radio-HPLC chromatogram showed the appearance of a new major peak at a slower retention time (τr = 10.8 min) than the labelled precursor (τr = 5.3–6.4 min), which corresponded to radiochemical conversions of the dihydropyridazine products of ∼80–85% (non-isolated, estimated by radio-HPLC) (Fig. 4A and B). Next, 68Ga-labelled PE (hereafter, 68Ga-PE) was combined with DPPC and DSPE-PEG(2000) and the resulting formulation was activated to form gas-filled MBs. Excess of unreacted [68Ga][Ga(5)] and free lipids were removed via a centrifugation/washing methodology.17 The RCY of purified 68Ga-MBs was around 40–50%, generating samples with ∼30–35 MBq and concentrations of (1.28 ± 0.68)·109 MB mL−1, in 40–50 minutes after 68Ga elution from the generator.

In vivo study of 68Ga-labelled MBs

Encouraged by the successful 68Ga-labelling of MBs, comparative dynamic PET imaging and biodistribution studies of [68Ga][Ga(5)], 68Ga-PE and 68Ga-MBs were undertaken on Balb/c nude mice (n = 5–6). The optimised labelling approach yielded MB stock solutions with high activity and concentration, allowing us to use concentrations of approximately 5 × 107 MB per injection with activities between 0.37–0.74 MBq. These MB concentration values are in the same order of typical diagnostic doses used in US imaging, suggesting that this strategy generates 68Ga-MBs that can also be exploited for complementary US studies.

Kinetic analysis showed that the MBs had a pharmacokinetic profile different from that of freely-injected PE and 5 (Fig. 5 and S6–S8). Following the injection of free [68Ga][Ga(5)], activity accumulated in the bladder, gallbladder and intestines within the first 5 minutes, which confirmed that [68Ga][Ga(5)] was characterised by a rapid tissue distribution and subsequent clearance through the urinary route. 68Ga-PE and 68Ga-MBs, on the contrary, presented longer circulation times in the animals, with high blood pool mean values persisting for the entire imaging period. Both formulations, however, presented differences in their biodistribution, which became more evident at later time points. Between 0 to 2 min post-injection (PI), 68Ga-PE and 68Ga-MBs were mainly present in the heart and liver, whereas at 5–20 min time interval, 68Ga-PE was mainly accumulated in the bladder and gallbladder, and 68Ga-MBs were present in the liver, gallbladder and spleen. The uptake in the liver and spleen reached equilibrium around 3 min PI at approximately 66 and 40% ID g−1, respectively. Previous studies have also indicated the liver and the spleen as the major organs for the accumulation of MBs with sizes around 1–10 μm.6a,b In addition, 68Ga-MBs showed an initial peak of activity in the lungs of 43 ± 12% ID g−1, which decreased to 20 ± 5% ID g−1 at 20 min, indicating that 68Ga-MBs were gradually redistributed into the systemic circulation after an initial accumulation in the lungs. Biodistribution data confirmed the PET results. At 20 min PI, both [68Ga][Ga(5)] and 68Ga-PE were mostly present in the urine (689 ± 64 and 146 ± 26% ID g−1, respectively), consistent with an efficient urinary excretion route. 68Ga-MBs, on the other hand, showed a more distributed uptake within the animal models, with accumulation of radioactivity mainly observed in the liver (47 ± 4% ID g−1), spleen (40 ± 2%ID g−1) and urine (57 ± 11% ID g−1).


image file: c9sc00684b-f5.tif

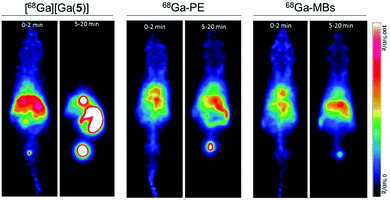

Fig. 5 Small-animal PET imaging of Balb/c nude mice after intravenous injection of [68Ga][Ga(5)] (left), 68Ga-labelled PE (middle) and, 68Ga-labelled MBs (right) at early (0–2 min) and late (5–20 min) time intervals.

Conclusions

In conclusion, we have developed an efficient method for labelling MBs with a generator-produced PET isotope using a rapid and clean ligation between a TCO-modified phospholipid and a 68Ga-HBED-CC-tetrazine tracer. Bioconjugation of TCO to phospholipids is simple and reproducible, and the new HBED-CC-tetrazine chelator provides efficient and high-yielding 68Ga-labelling, affording reproducible synthesis of 68Ga-MBs under mild conditions. This method offers real-time monitoring and the possibility of easily customising alternative phospholipid-based formulations. We also confirmed that the resulting 68Ga-MBs allow non-invasive study of the whole-body distribution of MBs in mice. As contrast-enhanced US has emerged as a promising imaging modality for clinical applications, we believe that this strategy is a favourable way of non-invasively evaluating the pharmacokinetics and off-target accumulation of new MB formulations in their initial stages of (pre)clinical development. Therefore, this strategy can be easily implemented across multiple centres and hospitals, accelerating MB evaluation and development. Future work will explore the incorporation of targeted-modified phospholipids into the MB formulation and compare 68Ga-labelled MB containing targeted and non-targeted vectors.

Experimental section

Materials

All the syntheses were carried out with the following commercially available reagents used without further purification: 4-(aminomethyl)benzonitrile hydrochloride (97%, Sigma Aldrich), di-tert-butyl dicarbonate (≥99%, Sigma Aldrich), nickel(II) trifluoromethanesulfonate (96%, Sigma Aldrich), hydrazine hydrate (50–60%, Sigma Aldrich), sodium nitrite (NaNO2, ≥97%, Sigma Aldrich), 3-(4-hydroxyphenyl)propionic acid (98%, Sigma Aldrich), sodium hydroxide (98.5–100.5%, VWR International), ethylenediamine-N,N′-diacetic acid (≥98%, Sigma Aldrich), formaldehyde (37 wt% in H2O, Sigma Aldrich), hydrochloric acid (37%, VWR International), trifluoroacetic acid (≥99.5%, Tokyo Chemical Industry Co., Ltd.), N,N-diisopropylethylamine (≥99%, Sigma Aldrich), iron(III) chloride (97%, Sigma Aldrich). 1-[Bis(dimethylamino)methylene]-1H-1,2,3-triazolo[4,5-b]pyridinium 3-oxid hexafluorophosphate,N-[(dimethylamino)-1H-1,2,3-triazolo-[4,5-b]pyridin-1-ylmethylene]-N-methylmethanaminium hexafluorophosphate N-oxide (HATU, 97%, Sigma Aldrich), glutaric anhydride (95%, Sigma Aldrich). Triethylamine (≥99%, Sigma Aldrich), N-hydroxysuccinimide (98%, Sigma Aldrich). N,N′-Dicyclohexylcarbodiimide (DCC, 99%, Sigma Aldrich), trans-cyclooctene-PEG4-NHS ester (TCO-PEG4-NHS, >95%, Jena Bioscience), trans-cyclooctene-NHS ester (E)-cyclooct-4-enyl-2,5-dioxo-1-pyrrolidinyl carbonate (TCO-NHS ester, >95%, Jena Bioscience), 4-nitroaniline (≥99%, Sigma Aldrich), p-phenylene diisothiocyanate (98%, Sigma Aldrich), 2,2′,2′′-(10-(4-((2-aminoethyl)amino)-1-carboxy-4-oxobutyl)-1,4,7,10-tetraazacyclododecane-1,4,7-triyl)triacetic acid (NH2-DOTA-GA, ChemMtech mdt), 2,2′,2′′-(10-(2-((2,5-dioxopyrrolidin-1-yl)oxy)-2-oxoethyl)-1,4,7,10-tetraazacyclododecane-1,4,7-triyl)triacetic acid (DOTA-NHS ester, ChemMtech mdt), 2,2′-(7-(2-((2,5-dioxopyrrolidin-1-yl)oxy)-2-oxoethyl)-1,4,7-triazonane-1,4-diyl)diacetic acid (NOTA-NHS ester, ChemMtech mdt), sodium acetate (≥99%, Sigma Aldrich), acetic acid (≥99%, Sigma Aldrich), ammonium acetate (≥98%, Sigma Aldrich), decafluorobutane (99%, FluorMed, L.P.), 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC, ≥99%, Avanti Polar Lipids), 1-palmitoyl-2-hydroxy-sn-glycero-3 phosphocholine (LPC, ≥99%, Avanti Polar Lipids), 1,2-distearoyl-sn-glycero-3-phosphoethanolamine (18:0 PE-NH2, ≥99%, Avanti Polar Lipids), 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[amino(polyethylene glycol)-2000] (ammonium salt) (DSPE-PEG(2000)-NH2, ≥99%, Avanti Polar Lipids), primuline (50%, Sigma Aldrich), propylene glycol (≥99.5%, Sigma Aldrich), glycerol (99%, Sigma Aldrich), Dulbecco's phosphate-buffered saline (10×, Sigma Aldrich). Solvents were HPLC grade and obtained from VWR Chemicals. Anhydrous chloroform and methanol were purified and dried according to standard methods prior to use and, anhydrous dimethyl sulfoxide was obtained from Sigma Aldrich (≥99.5%).

For experiments working with radioactive substances, water (Ultrapur, VWR) was used for preparation of buffers, HCl and NaCl solutions. 5.5 M HCl prepared by dilution of hydrochloric acid 37% (Emprove, VWR).

Methods

1D 1H and 13C NMR spectra were recorded on either a Bruker AV-500 or on a Bruker AV-400 spectrometer at room temperature using standard pulse programs. Chemical shifts (δ) are quoted in parts per million (ppm) and referenced to the appropriate residual solvent signal. Coupling constants (J) are reported to the nearest 0.5 Hz. Mass spectra (m/z) of phospholipids were run on a MALDI micro MX – TOF mass spectrometer from Waters. Samples were spotted 1[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v with a matrix solution (4-nitroaniline, 10 mg mL−1 in methanol) and measured in reflector mode. High resolution mass spectra (m/z) were recorded on either a VG platform II or VG AutoSpec spectrometers, with only molecular ions (M+, MH+, MNa+, MK+, MNH4+) and major peaks being reported. Flash chromatography (FC) was performed on silica gel (Merck Kieselgel 60 F254 320–400 mesh). Thin Layer Chromatography (TLC) was performed using TLC Silica Gel 60 F24 (aluminium sheets 20 × 20 cm for analytical runs and glass plates 20 × 20 cm for preparative TLC purifications of phospholipids) from Merck. Plates were visualised either by quenching of ultraviolet fluorescence (λ = 254 and 366 nm) or by charring with 10% KMnO4 in 1 M H2SO4. Phospholipids were additionally visualised by charring with 5% primuline in acetone[thin space (1/6-em)]:[thin space (1/6-em)]water (8[thin space (1/6-em)]:[thin space (1/6-em)]2 v/v), lipids appearing as.yellow spots under 365 nm wavelength. Flash purifications were carried out in a Isolera™ Spektra System using Biotage® SNAP Ultra C18 for reverse phase conditions (12, 30 and 60 g sizes) and, Biotage® SNAP Ultra C18 for normal phase conditions (25, 50 and 100 g sizes). Gradients are indicated throughout the text. Analytical HPLC chromatograms were run in a Waters AutoPurification™ System equipped with a 2489 UV/vis Dectector and a 3100 Mass Detector, using a Phenomenex Gemini C18 column (150 mm × 4.6 mm) at a flow rate of 1.2 mL min−1 and gradient A: (5–98% B over 12 min then 98% B for 3 min) buffer A = H2O (0.1% TFA), buffer B = MeCN (0.1% TFA). Supelco Iso-Disc™ Filters PFTE-4-4 (4 mm × 0.45 μm) from Sigma Aldrich were used for sample filtration prior injection.

The lipid-coated decafluorobutane-filled microbubbles (MBs) were produced using a modified formulation described previously.18 1 mL of the resulting lipid solution (refer to Section 4 in this document for further details) was sealed in a 2 mL glass vial and the headspace was then purged with decafluorobutane at room temperature. The microbubbles were produced via mechanical agitation using a dental HL-AH High Speed Digital Amalgamator Amalgam Capsule Blend Mixer HL-AH (4000 rpm for 30 s, two cycles). Particle size of non-radioactive MBs was measured on a bright-field microscope (Nikon Eclipse 50×i, 40× objective), 10 μL diluted samples (1[thin space (1/6-em)]:[thin space (1/6-em)]100 dilution factor from stock sample) were first introduced into a haemocytometer and then sized and counted according to our reported protocol.19 ζ-potential analyses of microbubbles in solution (1[thin space (1/6-em)]:[thin space (1/6-em)]1000 dilution factor from stock sample) were measured with a NanoSizer (Malvern Nano-Zs, UK) and using DTS1070 cuvettes. Alternatively, 68Ga-labelled MBs were counted and sized using a Countess II FL Automated Cell Counter from Life Technologies. Non-radioactive controls were run to confirm size and concentration of MBs presented non-significant differences from both methods used to count and size MBs. MBs were purified by centrifugation adapting a reported method using a ROTINA 35 R centrifuge from Hettich Zentrifugen.17

68Ga was eluted from an Eckert & Ziegler Radiopharma GmbH GalliaPharm® 68Ge/68Ga generator (Berlin, Germany) using a fully automated Modular-Lab system. Aqueous HCl solutions (0.1 M, 5 mL) was passed through the generator and the eluate was collected in a single fraction and used directly for 68Ga-labeling reactions (refer to radiochemistry section below for further details).

Different purification cartridges were used for radioactive experiments: silica-based strong cation exchange cartridge (Bond Elut-SCX, 100 mg, 1 mL) purchased from Agilent (further referred as SCX cartridge); Sep-Pack® Light tC18 cartridge (145 mg sorbent per cartridge), Sep-Pack® Plus Light C8 cartridge (145 mg sorbent per cartridge), Oasis® HLB cartridge (1cc/30 mg) and Oasis® Prime HLB cartridge Plus Light (100 mg) acquired from Waters. HybridSPE® – Phospholipid (30 mg/1 mL SPE Tubes) acquired from SUPELCO. iTLC experiments were measured on a Scan-RAM™ PET/SPECT radio-TLC Scanner from LabLogic using iTLC-SG – Glass microfibre chromatography paper impregnated with silica gel from Agilent Technologies. Analysis data was performed with Laura 3 software (LabLogic, Sheffield, UK). Radio-HPLC was carried out on an Agilent 1100 series HPLC system (Agilent Technologies, Stockport, UK) equipped with a γ-RAM Model 3 gamma-detector (IN/US Systems Inc., Florida, USA) and Laura 3 software (LabLogic, Sheffield, UK) was used for processing all analytical HPLC chromatograms. For tetrazine chelators, a Phenomenex Germini 5 u C18 (150 × 4.6 mm) was used and an acidic gradient: 5–95% B over 15 min, then 95% B for 5 min, where A = water (0.1% TFA) and B = acetonitrile (0.1% TFA). For phospholipids a Phenomenex Bondclone 10 C18 (150 × 3.90 mm) was used, as well as a neutral gradient: 5–95% B over 7 min, then 95% B for 8 min, where A = 100 mM ammonium formate (H2O) and B = methanol.

68GaCl3 was eluted from a GalliaPharm® 68Ge/68Ga Generator from Eckert & Ziegler Radiopharma GmbH (0.74 GBq) using a fully automated Modular-Lab system and an adapted NaCl based method reported previously.20 Briefly, 68GaCl3 was eluted in 5 mL of a 0.1 M HCl solution, which was subsequently trapped on a SCX cartridge (pre-conditioned with 1 mL 5.5 M HCl and 10 mL water) and the activity was then eluted, with minimal loss (2–5%), using a mixture of 12.5 μL of 5.5 M HCl and 500 μL of 5 M NaCl solution. This eluate was subsequently buffered for direct use in 68Ga-labelling experiments.

Organic syntheses

All the syntheses and experiments containing NHS ester compounds were performed under anhydrous conditions and an atmosphere of nitrogen in flame-dried glassware. All purified products were kept in the freezer and found to be stable for more than six months.
Synthesis of phospholipids.
Synthesis of PE-NOTA (1) and PE-DOTA (2). 18:0 PE-NH2 (7.5 mg, 10 μmol) was dissolved in 3 mL of a chloroform:methanol mixture (0.6[thin space (1/6-em)]:[thin space (1/6-em)]0.4 v/v) and triethylamine (50 μL). To this solution, either DOTA-NHS (10.0 mg, 13.1 μmol) or NOTA-NHS (10.0 mg, 15.2 μmol) was added and the mixture was left to stir for 5 h. After that, the crude was concentrated in rotavapour and purified by preparative-TLC. Rf for PE-DOTA = 0.10–0.19 (CHCl3[thin space (1/6-em)]:[thin space (1/6-em)]MeOH[thin space (1/6-em)]:[thin space (1/6-em)]H2O 6[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]0.2 v/v) and, Rf for PE-NOTA = 0.08–0.16 (CHCl3[thin space (1/6-em)]:[thin space (1/6-em)]MeOH[thin space (1/6-em)]:[thin space (1/6-em)]H2O 6[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]0.2 v/v).
PE-DOTA. 9.2 mg, 8.2 μmol, 82%.1H NMR (400 MHz, CDCl3): δ (ppm) 0.87 (t, CH3, 6H, 3JH–H = 6.5 Hz), 1.25 (s, CH2, 56H), 1.57 (m, CH2CH2CO, 4H), 2.27 (m, CH2CH2CO, 4H), 2.41–3.18 (m, NCH2CH2N + NCH2CH2N + NCH2COOH, 22H), 3.64–4.43 (m, CH2CH2N + CH2CH2N + PO4CH2CH + COOCH2COH + COCH2N, 10H), 5.17 (s, PO4CH2CH, 1H). MALDI (matrix: 4-nitroaniline); m/z for [C59H118N6O16PNa]+ ([M − H + NH4 + Na + CH3CH2OH]+) expected = 1220.8, found 1220.7 and [C59H117N6O16PNa2]+ ([M − 2H + NH4 + 2Na + CH3CH2OH]+) expected = 1242.8, found 1242.6.
PE-NOTA. 8.3 mg, 8.0 μmol, 80%. 1H NMR (400 MHz, CDCl3): δ (ppm) 0.87 (t, CH3, 6H, 3JH–H = 6.6 Hz), 1.25 (s, CH2, 56H), 1.56–1.90 (m, CH2CH2CO + NCH2CH2N + NCH2CH2N, 16H), 2.26 (m, CH2CH2CO, 4H), 2.64–2–92 (m, NCH2COOH, 6H), 3.25–3.45 (m, CH2CH2N, 2H), 3.56–4.41 (m, CH2CH2N + PO4CH2CH + COOCH2COH + 6H), 5.19 (s, PO4CH2CH, 1H). MALDI (matrix: 4-nitroaniline); m/z for [C55H109N5O14PNa] ([M − 3H + NH4 + Na + CH3CH2OH]) expected = 1117.8, found 1117.5 and [C55H110N5O14P] ([M − 2H + NH4 + CH3CH2OH]) expected = 1095.7, found 1095.4.

Synthesis of PE-isothiocyanate

18:0 PE-NH2 (50 mg, 66.9 μmol) was dissolved in 15 mL of a chloroform:methanol mixture (0.8[thin space (1/6-em)]:[thin space (1/6-em)]0.2 v/v) and triethylamine (10 μL). To this solution, a solution of p-phenylene diisothiocyanate (130 mg, 690.0 μmol, dissolved in 3 mL of chloroform) was dropwise added and the mixture was left to stir for 5 h. After that, the crude was concentrated in rotavapour and purified by flash column chromatography. Rf = 0.5 (CHCl3[thin space (1/6-em)]:[thin space (1/6-em)]MeOH[thin space (1/6-em)]:[thin space (1/6-em)]H2O 8[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]0.2 v/v). (57 mg, 60.2 μmol, 90%). 1H NMR (400 MHz, CDCl3): δ (ppm) 0.88 (t, CH3, 6H, 3JH–H = 6.5 Hz), 1.25 (s, CH2, 56H), 1.53 (m, CH2CH2CO, 4H), 2.26 (m, CH2CH2CO, 4H), 3.70–4.20 (m, CH2CH2N + CH2CH2N + trans-PO4CH2CH + COOCH2COH, 7H), 4.36 (s, cis-PO4CH2CH, 1H), 5.19 (s, PO4CH2CH, 1H), 7.09 (d, CH, 2H, 3JH–H = 8.3 Hz), 7.47 (m, CH, 2H). MALDI (matrix: 4-nitroaniline); m/z for [C51H93N3O9PS2]+ ([M + H + CH3CH2OH]+) expected = 986.6, found 986.6.

Synthesis of PE-iso-DOTA-GA (3)

PE-iso (7.0 mg, 7.45 μmol) was dissolved in 1 mL of a chloroform:methanol mixture (0.5[thin space (1/6-em)]:[thin space (1/6-em)]0.5 v/v) and triethylamine (50 μL). To this solution, 2,2′,2′′-(10-(4-((2-aminoethyl)amino)-1-carboxy-4-oxobutyl)-1,4,7,10 tetraazacyclododecane-1,4,7-triyl)triacetic acid (NH2-DOTA-GA, 10.0 mg, 19.28 μmol) was added and the mixture was left to stir for 5 h. After that, the crude was concentrated in rotavapour and purified by preparative TLC. Rf = 0.15–0.25 (CHCl3[thin space (1/6-em)]:[thin space (1/6-em)]MeOH[thin space (1/6-em)]:[thin space (1/6-em)]H2O 5[thin space (1/6-em)]:[thin space (1/6-em)]5[thin space (1/6-em)]:[thin space (1/6-em)]0.2 v/v). (6.8 mg, 4.65 μmol, 62%). 1H NMR (400 MHz, CDCl3): δ (ppm) 0.71 (t, CH3, 6H, 3JH–H = 6.5 Hz), 1.09 (s, CH2, 56H), 1.44 (m, CH2CH2CO, 4H), 1.69 (m, CH2CH2, 2H), 1.93–2.55 (m, NCH2CH2N + NCH2CH2N + CH2CH2CO, 20H), 2.58–2.73 (m, NCH2COOH, 6H), 2.88 (m, CH2CH2, 2H), 3.62–3.88 (m, CH2CH2N + CH2CH2N + PO4CH2CH + COOCH2COH + CH2CH2, 8H), 4.17–4.27 (m, CH2CH2, 2H), 5.06 (s, PO4CH2CH, 1H), 7.21 (s, CH, 4H). MALDI (matrix: 4-nitroaniline); m/z for [C72H132N10O18PS2Na2]+ ([M − 2H + NH4 + 2Na + CH3CH2OH]+) expected = 1565.9, found 1566.0; [C72H133N10O18PS2Na]+ ([M − H + NH4 + Na + CH3CH2OH]+) expected = 1543.9, found 1544.0.

Synthesis of PE-PEG4-TCO (4) and PE-TCO (7)

18:0 PE-NH2 (10 mg, 13.3 μmol) was dissolved in 7.5 mL of a chloroform[thin space (1/6-em)]:[thin space (1/6-em)]methanol mixture (0.56[thin space (1/6-em)]:[thin space (1/6-em)]0.44 v/v) and triethylamine (50 μL). To this solution, either a solution of TCO-PEG4-NHS (10 mg, 19.43 μmol dissolved in 0.3 mL chloroform) or TCO-NHS (5 mg, 18.71 μmol) was added and the mixture was left to stir for 5 h. After that, the crude was concentrated in vacuo and purified by preparative TLC. Rf for PE-PEG4-TCO = 0.45 (CHCl3[thin space (1/6-em)]:[thin space (1/6-em)]MeOH[thin space (1/6-em)]:[thin space (1/6-em)]H2O 8[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]0.2 v/v) and, Rf for PE-TCO = 0.50 (CHCl3[thin space (1/6-em)]:[thin space (1/6-em)]MeOH[thin space (1/6-em)]:[thin space (1/6-em)]H2O 8[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]0.2 v/v).
PE-PEG4-TCO. 13.5 mg, 11.63 μmol, 88%. 1H NMR (400 MHz, CDCl3): δ (ppm) 0.88 (t, CH3, 6H, 3JH–H = 6.5 Hz), 1.26 (s, CH2, 56H), 1.56–1.64 (m, 2× CH2CH2CO + 2× CH2, 8H), 1.66–1.74 (m, CH2, 2H), 1.90–1.98 (m, CH2, 2H), 2.25–2.30 (m, 2× CH2CH2CO, 4H), 2.33–2.40 (m, CH2, 2H), 2.41–2.52 (m, CH2, 2H), 3.46 (m, CH2CH2N, 2H), 3.52–3.84 (m, OCH2CH2O + OCH2CH2O, 18H), 4.00 (m, CH2CH2N + COOCH2COH, 4H), 4.14–4.21 (m, trans-PO4CH2CH, 1H), 4.23–4.30 (m, COOCH, 1H), 4.35–4.41 (m, cis-PO4CH2CH, 1H), 5.23 (m, PO4CH2CH, 1H), 5.37–5.48 (m, CH, 1H), 5.53–5.64 (m, CH, 1H). MALDI (matrix: 4-nitroaniline); m/z for [C62H122N3O16PN]+ ([M + NH4 + CH3OH]+) expected = 1195.9, found 1195.4.
PE-TCO. 12.0 mg, 12.13 μmol, 91%. 1H NMR (400 MHz, CDCl3): δ (ppm) 0.88 (t, CH3, 6H, 3JH–H = 6.5 Hz), 1.26 (s, CH2, 56H), 1.58 (m, 2× CH2CH2CO, 4H), 1.67 (m, CH2, 4H), 1.83–2.01 (m, CH2, 4H), 2.29 (m, CH2CH2CO, 4H + CH2, 2H), 3.33 (m, CH2CH2N, 2H), 3.85 (m, CH2CH2N + COOCH2COH, 4H), 4.15 (m, trans-PO4CH2CH, 1H), 4.30 (m, COOCH, 1H), 4.38 (m, cis-PO4CH2CH, 1H), 5.20 (m, PO4CH2CH, 1H), 5.53 (m, CH, 2H). MALDI (matrix: 4-nitroaniline); m/z for [C51H101N2O11P]+ ([M + NH4 + CH3OH]+) expected = 948.7, found 948.4.

Synthesis of bifunctional chelators

Synthesis of 3,3ʹ-(((ethane-1,2-diylbis((carboxymethyl)azanediyl))bis(methylene))bis(4-hydroxy-3,1-phenylene))dipropionic acid (HBED-CC). HBED-CC was synthesized by modifying a reported method:21

3-(4-Hydroxyphenyl)propionic acid (3.39 g, 20.8 mmol) was dissolved in 21 mL of a solution of methanol: water: 4.0 N NaOH (0.71[thin space (1/6-em)]:[thin space (1/6-em)]0.19[thin space (1/6-em)]:[thin space (1/6-em)]0.1 v[thin space (1/6-em)]:[thin space (1/6-em)]v[thin space (1/6-em)]:[thin space (1/6-em)]v). To this solution, ethylenediamine-N,N′-diacetic acid (1.80 g, 10.4 mmol) suspended in 5 mL of NaOH (2 N) was added. The pH of the mixture was adjusted to 6.7 and the solution was cooled in an ice bath. Then, formaldehyde (aqueous solution at 37%, 20.8 mmol, 1.5 mL) was added dropwise while keeping the pH of the solution at 6.7 by intermittent addition of NaOH (4 N) and, the suspension was refluxed for 4 h at 70 °C. After that, the solution was cooled to room temperature and methanol was removed on a rotary evaporator. The remaining aqueous solution was diluted with water (15 mL), acidified with HCl (4 N) to pH 5.5 and extracted with diethyl ether (15 mL × 3) to remove unreacted 3-(4-hydroxyphenyl)propionic acid. The aqueous phase was then adjusted to pH 3 with HCl (6 N) and unreacted ethylenediamine-N,N′-diacetic acid was filtered off. The filtrate was then brought to neutrality with NaOH (4 N) and concentrated in vacuo. The crude was allowed to flash chromatography using an Isolera™ Spektra System (Biotage® SNAP Ultra C18 60 g cartridge, A: H2O with 0.1% TFA, B: CH3CN with 0.1% TFA. Gradient: 2–40% B, 55 CV). (277 mg, 0.52 mmol, 6%). 1H NMR (400 MHz, dmso d6): δ (ppm) 2.45 (t, CH2CH2COOH, 3JH–H = 7.8 Hz, 4H), 2.70 (t, CH2CH2COOH, 3JH–H = 7.8 Hz, 4H), 3.20 (s, CH2N, 4H), 3.65 (s, CH2COOH, 4H), 4.02 (s, CH2N, 4H), 6.79 (d, CHarom, 3JH–H = 8.2 Hz, 2H), 7.07 (m, CHarom, 4H). 13C NMR (100 MHz, dmso- d6): δ (ppm) 29.5 (2C), 35.6 (2C), 49.5 (CH2N, 2C), 52.2 (2C), 52.7 (2C), 115.4 (2C), 118.7 (2C), 129.8 (2C), 131.4 (2C), 131.9 (2C), 154.5 (2C), 170.2 (2C), 173.8 (2C). HPLC/MS τr = 7.70 min (gradient A); m/z for [C26H33N2O10]+ ([M + H]+) expected = 533.2135, found 533.2142.

Synthesis of 3-(3-(((carboxymethyl) (2-((carboxymethyl) (2-hydroxy-5-(3-((4-(6-methyl-1,2,4,5-tetrazin-3-yl)benzyl)amino)-3-oxopropyl)benzyl)amino)ethyl)amino)methyl)-4-hydroxyphenyl)propanoic acid (HBED-CC-tetrazine, 5). Compound 5 was synthesized by modifying a reported method:13

HBED-CC (5.3 mg, 9.4 μmol) was dissolved in 0.7 mL of a mixture of H2O[thin space (1/6-em)]:[thin space (1/6-em)]CH3CN (50[thin space (1/6-em)]:[thin space (1/6-em)]50 v/v) containing 20 μL in N,N-diisopropylethylamine. To this solution, 190 μL of FeCl3 (0.1 M in water) was added and the reaction mixture was stirred for 1 h and then evaporated under reduced pressure to dryness. The resulting solid was dissolved in CH3CN and evaporated to dryness again to remove free water. 1.25 mL of anhydrous dmso was then added. To this solution, a solution of HATU (3.5 mg, 9.5 μmol) in 0.25 mL of anhydrous dmso and 0.050 mL N,N-diisopropylethylamine was added dropwise. After 15 min, (4-(6-methyl-1,2,4,5-tetrazin-3-yl)phenyl)methanamine (2.3 mg, 11.3 μmol) dissolved in 0.5 mL of anhydrous dmso was added dropwise and the reaction was left to react for 24 h. The reaction was then quenched with 2 mL of H2O and the solution was lyophilized. The remaining solid was dissolved in a mixture of H2O with 10–15% of dmso and purified by flash chromatography (Isolera™ Spektra System). Briefly, the crude was loaded in a Biotage® SNAP Ultra C18 30 g cartridge and flushed with 25 mL of HCl (1 M) and washed with 5 mL of H2O. The disappearance of the violet colour indicated the removal of iron(III) species. The remaining mixture was eluted with the following gradient: A: H2O with 0.1% TFA, B: CH3CN with 0.1% TFA. A to B: 2 to 30%, 30 CV, 30 to 70%, 5 CV and 70 to 98%, 5 CV. The purified product was lyophilized and the residue dried in vacuo to give a pink solid as 7 (1.5 mg, 2.1 μmol, 22%). The product was stable in the freezer for more than six months. 1H NMR (400 MHz, methanol-d4): δ (ppm) 6.82 (dd, CH, 3JH–H = 22.3, 8.4 Hz, 2H), 7.18–7.11 (m, CH, 4H), 7.23 (d, CH, 3JH–H = 8.2 Hz, 2H), 8.42 (d, CH, 3JH–H = 8.2 Hz, 2H), 4.42 (s, NHCH2C, 2H), 4.21 (s, NCH2C, 2H), 4.11 (s, NCH2C, 2H), 3.78 (s, NCH2COOH, 2H), 3.64 (s, NCH2COOH, 2H), 3.41 (s, NCH2CH2N, 2H), 3.02 (s, CH3, 3H), 2.91 (t, CH2CH2CONH, 3JH–H = 6.8 Hz, 2H), 2.81 (t, CH2CH2CONH, 3JH–H = 7.5 Hz, 2H), 2.59 (t, CH2CH2CONH, 3JH–H = 6.8 Hz, 2H), 2.59 (t, CH2CH2CONH, 3JH–H = 7.5 Hz, 2H). 13C NMR (100 MHz, methanol-d4): δ (ppm) 21.1, 31.0, 31.8, 36.9, 38.8, 43.5, 48.4, 48.6, 48.8, 49.0, 49.2, 49.4, 49.6, 51.1, 51.4, 54.2, 116.6, 119.9, 120.5, 128.9, 129.0, 131.7, 131.8, 132.2, 133.2, 133.3, 133.6, 133.7, 144.9, 156.0, 165.2, 168.7, 171.6, 172.0, 175.2, 176.7. HPLC: τr = 8.85 min (gradient A); ESI (negative mode): m/z for [C36H40N7O9] ([M − H]) expected = 714.2888, found 714.2893.

Synthesis of DOTA-GA-tetrazine (2,2′,2′′-(10-(1-carboxy-4-((2-(5-((4-(6-methyl-1,2,4,5-tetrazin-3-yl)benzyl)amino)-5-oxopentanamido)ethyl)amino)-4-oxobutyl)-1,4,7,10-tetraazacyclododecane-1,4,7-triyl)triacetic acid) (5) was carried out according to a method reported by our group, with some minor modifications:10b

Synthesis of tert-butyl (4-cyanobenzyl)carbamate. 4-(Aminomethyl)benzonitrile hydrochloride (5.0 g, 30.0 mmol) was dissolved in CH2Cl2 (4.0 mL), triethylamine (11.0 mL, 75.0 mmol) and di-tert-butyl dicarbonate (7.4 g, 33.0 mmol) were added and the resultant mixture stirred at room temperature for 16 h. The solvent was removed under reduced pressure, water added (100 mL) and the product extracted into DCM (3 × 100 mL). The organic layers were combined, washed with water (1 × 100 mL) and the solvent removed under reduced pressure to yield tert-butyl (4-cyanobenzyl)carbamate (5.8 g, 84% yield) as a white powder. 1H NMR (400 MHz, CDCl3): δ (ppm) 1.46 (s, COOC(CH3)3, 9H), 4.37 (d, CH2, 3JH–H = 6.1 Hz, 2H), 4.97 (sbr, NH, 1H), 7.38 (d, CHarom, 3JH–H = 8.4 Hz, 2H), 7.62 (d, CHarom, 3JH–H = 8.4 Hz, 2H). 13C NMR (100 MHz, CDCl3): δ (ppm) 28.5 (3C), 44.4 (1C), 80.2 (1C), 111.3 (1C), 118.9 (1C), 127.9 (2C), 132.6 (2C), 144.8 (1C), 156.0 (1C). ESI (positive mode): m/z for [C13H16N2O2] ([M + H]+) expected = 233.1290, found 233.1296.
Synthesis of tert-butyl (4-(6-methyl-1,2,4,5-tetrazin-3-yl)benzyl)carbamate. A high pressure reaction tube was treated with tert-butyl (4-cyanobenzyl)carbamate (464 mg, 2.0 mmol), CH3CN (1050 μL, 20.0 mmol), nickel(II) trifluoromethanesulfonate (356 mg, 1.0 mmol) and hydrazine hydrate (50–60% NH2NH2) (6.2 mL, 100.0 mmol). The tube was sealed and heated to 60 °C for 72 h, following which H2O (10 mL) and sodium nitrite (2.82 g, 40.0 mmol) were added to the mixture. HCl (1 M) was added dropwise until the pH reached 3 and gases stopped evolving, at which point the mixture had turned bright red. The product was extracted with EtOAc (3 × 40 mL), and the combined organic layers were washed with H2O (3 × 20 mL), dried over MgSO4, filtered and concentrated under reduced pressure. The bright pink crude solid was purified by flash column chromatography (DCM/Et2O gradient 100[thin space (1/6-em)]:[thin space (1/6-em)]0 v/v to 96[thin space (1/6-em)]:[thin space (1/6-em)]4 v/v) to give tert-butyl (4-(6-methyl-1,2,4,5-tetrazin-3-yl)benzyl)carbamate (0.37 g, 62% yield) as a bright pink solid. Rf = 0.39 (2% Et2O/DCM). 1H NMR (400 MHz, CDCl3): δ (ppm) 1.46 (s, COOC(CH3)3, 9H), 3.07 (s, CH3, 3H), 4.41 (d, CH2, 3JH–H = 5.6 Hz, 2H), 5.09 (sbr, NH, 1H), 7.47 (d, CHarom, 3JH–H = 8.4 Hz, 2H), 8.51 (d, CHarom, 3JH–H = 8.4 Hz, 2H). 13C NMR (100 MHz, CDCl3): δ (ppm) 21.2 (1C), 28.5 (3C), 44.5 (1C), 79.9 (1C), 128.1 (2C), 128.3 (2C), 130.9 (1C), 144.1 (1C), 156.1 (1C) 164.0 (1C), 167.3 (1C). ESI (positive mode): m/z for [C15H20N5O2] ([M + H]+) expected = 302.1617, found 302.1621.
Synthesis of (4-(6-methyl-1,2,4,5-tetrazin-3-yl)phenyl)methanamine. Tert-butyl (4-(6-methyl-1,2,4,5-tetrazin-3-yl)benzyl)carbamate (30.4 mg, 0.15 mmol) was treated with TFA/CH2Cl2 (1/1, v/v, 3 mL) and stirred for 1.5 h at room temperature. The solvent was removed under reduced pressure to yield the TFA salt of 4-(6-methyl-1,2,4,5-tetrazin-3- yl)benzylamine 3 (26.4 mg, 84% yield) as a bright pink solid. 1H NMR (400 MHz, methanol-d4): δ (ppm) 3.06 (s, CH3, 3H), 4.26 (s, CH2, 2H), 7.72 (d, CHarom, 3JH–H = 8.4 Hz, 2H), 8.62 (d, CHarom, 3JH–H = 8.4 Hz, 2H). 13C NMR (100 MHz, methanol-d4): δ (ppm) 21.1 (1C), 43.9 (1C), 129.4 (2C), 130.8 (2C), 134.3 (1C), 138.8 (1C), 164.9 (1C), 169.1 (1C). ESI (positive mode): m/z for [C10H12N5] ([M + H]+) expected = 202.1093, found 202.1083; m/z for [C12H15N6] ([M + H + CH3CN]+) expected = 243.138, found 243.1214.
Synthesis of 5-((4-(6-methyl-1,2,4,5-tetrazin-3-yl)benzyl)amino)-5-oxopentanoic acid. A dry flask was treated with (4-(6-methyl-1,2,4,5-tetrazin-3-yl)phenyl)methanamine (26.8 mg, 0.13 mmol), glutaric anhydride (76 mg, 10.67 mmol) and THF (2 mL), and the resultant mixture was heated to 70 °C for 4 h. The mixture was cooled to 50 °C, and was stirred at this temperature for a further 16 h. The solvent was evaporated in vacuo, to give the crude material as a pink oil. The product was purified by flash chromatography (Isolera™ Spektra System with a Biotage® SNAP Ultra C18 12 g cartridge) eluting with a gradient of 0–50% H2O/CH3CN (15 CV) to give 4 as a red solid (38.9 mg, 0.12 mmol, >90% yield). Rf = 0.2 (10% MeOH/CH2Cl2). HPLC: τr = 6.50 min (gradient A). 1H NMR (500 MHz, methanol-d4): δ (ppm) 1.94 (m, COCH2CH2, 2H), 2.35 (m, 2 × COCH2CH2, 4H), 3.03 (s, CH3, 3H), 4.49 (s, CH2NH, 2H), 7.54 (d, CH, 3JH–H = 8.8 Hz, 2H), 8.51 (d, CH, 3JH–H = 8.5 Hz, 2H). 13C NMR (126 MHz, methanol-d4) (2 Cquat not observed) δ (ppm) 21.0 22.3, 34.1, 36.0, 43.8, 129.0, 129.3, 132.4, 145.1, 165.2, 168.7, 175.5, 176.8. ESI (positive mode): m/z calcd for [C15H18N5O3]+ ([M + H]+) 316.1410, found 316.1414 and, calcd for [C15H17N5O3Na]+ ([M + Na]+) 338.1229, found 338.1278.
Synthesis of 2,2′,2′′-(10-(1-carboxy-4-((2-(5-((4-(6-methyl-1,2,4,5-tetrazin-3-yl)benzyl)amino)-5-oxopentanamido)ethyl)amino)-4-oxobutyl)-1,4,7,10-tetraazacyclododecane-1,4,7-triyl)triacetic acid (DOTA-GA-tetrazine, 6). To a stirred solution of 5-((4-(6-methyl-1,2,4,5-tetrazin-3-yl)benzyl)amino)-5-oxopentanoic acid (10.0 mg, 31.71 μmol) in anhydrous dmso (220 μL) and triethylamine (7 μL), was added a solution of N-hydroxysuccinimide (18.8 mg, 162.5 μmol) and N,N′-dicyclohexylcarbodiimide (33.5 mg, 162.5 μmol) in anhydrous dmso (80 μL). The resultant mixture was vigorously stirred for 16 h at room temperature in the absence of light. After that, the solution was passed through a 0.45 μm filter and added to a solution containing DOTA-GA-NH2 (17 mg, 32 μmol) in 100 μL of anhydrous dmso. The reaction was stirred for 5 h at room temperature in the absence of light. The crude was lyophilized and the residue dried in vacuo to give a pink oil as crude. The product was purified by flash chromatography using an Isolera™ Spektra System (Biotage® SNAP Ultra C18 12 g cartridge, A: H2O with 0.1% TFA, B: CH3CN with 0.1% TFA. Gradient: A to B: 2 to 30%, 40 CV, 30 to 70%, 5 CV and 70 to 98%, 5 CV), to yield 6 as a pink solid (19.6 mg, 24.10 μmol, 76% yield). HPLC: τr = 7.78 min (gradient A). The product was stable in the freezer for more than six months. 1H NMR (400 MHz, methanol-d4) 1.90–1.98 (m, COCH2CH2, 2H), 2.25 (t, COCH2CH2, 3JH–H = 7.6 Hz, 2H), 2.33 (t, COCH2CH2, 3JH–H = 7.6 Hz, 2H), 2.43–3.02 (m, 8H), 3.04 (s, CH3, 3H), 3.12–3.29 (m, 8H), 3.39–4.31 (m, 15H), 4.50 (s, NHCH2C, 2H), 7.55 (d, CHarom, 3JH–H = 8.8 Hz, 2H), 8.51 (d, CHarom, 3JH–H = 8.4 Hz, 2H). 13C NMR (125 MHz, methanol-d4) δ (ppm) 21.1, 23.2, 28.5, 30.7, 36.2, 36.3, 40.0, 40.2, 43.8, 49.6, 51.1, 54.3, 54.5, 56.2, 57.5, 129.1, 129.3, 132.4, 145.2, 165.2, 168.8, 175.5, 175.5, 175.6, 175.7, 175.7. ESI (positive mode): m/z calcd for [C36H54N11O11]+ ([M + H]+) 816.4004, found 816.4010.

Radiochemistry

68GaCl3 was eluted from a GalliaPharm® 68Ge/68Ga Generator from Eckert & Ziegler Radiopharma GmbH (0.74 GBq) using a fully automated Modular-Lab system and an adapted NaCl-based method previously reported.20 Briefly, 68GaCl3 was eluted in 5 mL of a 0.1 M HCl solution, which was subsequently trapped on a SCX cartridge (preconditioned with 1 mL 5.5 M HCl and 10 mL water) and the activity was then eluted, with minimal loss (2–5%), using a mixture of 12.5 μL of 5.5 M HCl and 500 μL of 5 M NaCl solution. This eluate was subsequently buffered for direct use in 68Ga-labelling experiments.
iTLC quantification. Chelators, freshly prepared from stock solutions for each experiment, were dissolved in aqueous solutions of sodium acetate (0.2 M) to provide solutions with chelator concentrations ranging from 0.05 to 500 μM (0.05, 0.5, 5, 50, 100, 250 and 500 μM). 68Ga (15 μL, approx. 2 MBq in 0.1 M aqueous HCl) was added to chelator solutions (100 μL) and the reaction solution was incubated at either 25 or 90 °C. The final pH of the reaction solutions was 3.5, 4.5 and 5.5. After 10 min, the reaction solution was analysed by iTLC (glass microfiber chromatography paper impregnated with silica gel, 100 × 10 mm). As controls, 68Ga3+ (15 μL, approx. 2 MBq in 0.1 M aqueous HCl) was mixed with 100 μL of sodium acetate (0.2 M) at the three tested pHs. The controls were incubated at either 25 or 90 °C for 10 min and then, analysed by iTLC and Laura 3 software (LabLogic, Sheffield, UK). The mobile phase used was ammonium acetate (1 M in methanol[thin space (1/6-em)]:[thin space (1/6-em)]water 80[thin space (1/6-em)]:[thin space (1/6-em)]20 v/v) for all chelators. [68Ga(PE-NOTA)] Rf = 0.66–0.76; [68Ga(PE-DOTA)] Rf = 0.67–0.78; [68Ga(PE-iso-DOTAGA)] Rf = 0.62–0.76; [68Ga(DOTAGA-Tetrazine)] Rf = 0.67–0.77 [68Ga(HBED-CC-Tetrazine)] Rf = 0.68–0.78; non-chelated 68Ga3+ Rf < 0.3. iTLC plates were imaged and quantified by digital autoradiography using instruments and software described above.
68Ga-labelling of 1. 68GaCl3 eluate (∼75 MBq) was added to a solution of 2 mL sodium acetate buffer (0.1 M, pH = 4.0) and 100 μL chelator (0.3 mg mL−1 in EtOH). During the labelling, the pH of the reaction mixture inside the reactor was determined to be 3.7 ± 0.2. After incubating the solution for 15 min at 90 °C, the reaction mixture was then diluted with 5 mL of water and passed through an Oasis® HLB (1cc/30 mg) cartridge (preconditioned with 10 mL ethanol and 10 mL water). The cartridge was washed with 5 mL of water and the labelled compound was eluted with 800 μL of pure ethanol. 1 gave radiochemical conversions >80%, and the product was obtained in >95% radiochemical purity, and in 20–30% isolated RCY (n.d.c.). The synthesis was finished within about 23 min.
68Ga-labelling of 5 and 6 . 68GaCl3 eluate (200–220 MBq) was added to a solution of 4.5 mL sodium acetate buffer (0.1 M, pH = 4.5) containing 30 μL chelator (1 mg mL−1 in DMSO). During the labelling, the pH of the reaction mixture inside the reactor was determined to be 4.2 ± 0.3. After incubating the solution for 10 min either at room temperature for 5 or at 90 °C for 6, the 68Ga chloride was quantitatively chelated to the precursor. The reaction mixture was then diluted with 5 mL of water and trapped on a Sep-Pack® Light tC18 cartridge (preconditioned with 10 mL ethanol and 10 mL water). The cartridge was washed with 5 mL of water and the labelled compound was eluted with 800 μL of pure ethanol. Both chelators gave radiochemical conversions >95%, and the product was obtained in >95% radiochemical purity, and in 70–80% isolated RCY (n.d.c.). The synthesis was finished within about 15 min.
Synthesis of 68Ga-labelled MBs. An aliquot of purified [68Ga][Ga(5)] (∼75 MBq) was added to a vial containing PE-PEG4-TCO (0.13 mg, 0.107 mol). The reaction vial was incubated for 20 min at 60 °C under a N2 stream. After that, the volume of the reaction was reduced to about 100 μL and a solution containing the rest of lipids was added (concretely, 0.62 mg of DPPC and 0.140 mg DSPE-PEG2000-NH2 dissolved in 1 mL of a solution of propylene glycol, glycerol, and phosphate-buffered saline (PBS) (15[thin space (1/6-em)]:[thin space (1/6-em)]5[thin space (1/6-em)]:[thin space (1/6-em)]80, v/v/v)). The vial was sealed and activated to form microbubbles (see in the next section the experimental details for this process).

In order to remove unreacted [68Ga][Ga(5)], microbubbles were purified by centrifugation adapting a reported method.17 The vial containing the 68Ga-labelled microbubbles was put upside down and centrifuged at 350 g during 2 min using a ROTINA 35 R centrifuge. Then, the microbubbles were collected into a concentrated cake on the top of the vial and the remaining suspension (infranatant), which contained unreacted precursor and residual lipids and vesicles, which did not form part of the microbubble shell, was discarded. The microbubble cake was re-dispersed to a 1 mL volume of 20 vol% glycerol solution in PBS and stored in the same vial with PFB headspace until further use. The washing step was repeated three times or until no activity was measured in the infranatant solution. 68Ga-labelled MBs were counted and sized on a Countess II FL Automated Cell Counter and stored in the same vial with PFB headspace until further use.

(*) An alternative dienophile-modified phospholipid without the PEG4 spacer, named PE-TCO (7), was also tested for reaction with [68Ga][Ga(5)]. Under the same conditions, 7 showed low conversions (approx. 10%), probably as a consequence of its poor solubility in ethanol (data not shown).

Microbubble production

The lipid-coated, decafluorobutane-filled microbubbles (MBs) were manufactured using a modified formulation.18 Matsunaga et al. prepared MBs containing a lipid mixture of 85 mol% 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC), 10 mol% 1-palmitoyl-2-hydroxy-sn-glycero-3 phosphocholine (LPC), and 5 mol% 1,2-dipalmitoyl-sn-glycero-3-phosphoethanolamine-N [methoxy(polyethylene glycol)-2000] (DSPE-PEG2000-NH2). In this paper, we studied the possibility of incorporating 1,2-distearoyl-sn-glycero-3-phosphoethanolamine (PE-NH2) lipid into the MB shell. For that reason, we prepared MBs having a final lipid mixture of 85 mol% DPPC, 10 mol%, (either PE-NH2 or PE-PEG4-TCO) and 5 mol% DSPE-PEG2000-NH2. In all cases, the total lipid concentration was between 0.86 and 0.88 mg mL−1. The mixture of lipids was first dissolved in chloroform, dried over nitrogen gas, and then further dried in vacuo overnight to remove residual solvent from the lipid films. Then, 1 mL of a solution of propylene glycol, glycerol, and phosphate-buffered saline (PBS) (15[thin space (1/6-em)]:[thin space (1/6-em)]5[thin space (1/6-em)]:[thin space (1/6-em)]80, v/v/v) was used to rehydrate the films. This created a lipid suspension, which was immediately stirred for 10 min at 50–60 °C and later, decanted in a sealed 2 mL glass vial. Prior to activation, the headspace was purged with decafluorobutane at room temperature and, MBs were produced via mechanical agitation.

Biology experimental procedures

All animal experiments were conducted by licensed investigators in accordance with the United Kingdom Home Office Guidance on the Operation of the Animals (Scientific Procedures) Act 1986 (HSMO, London, UK, 1990) and with the published guidelines for the Welfare of Use of Animals in Cancer Research Institute Committee on Welfare of Animals in Cancer Research.22
PET imaging. Dynamic PET imaging of [68Ga(5)], 68Ga-PE and 68Ga-MBs was performed in non-tumour bearing Balb/c mice (5–6 mice/cohort, 6–8 weeks) (Charles River UK Ltd.). Mice were anesthetized with 2.5% isoflurane/O2 and placed in a thermostatically controlled ring in a dedicated small animal Genisys4 PET scanner (SOFIE Biosciences, Culver City, USA). Following injection of radioactivity (0.74 MBq in the case of non-MB tracers, and between 0.37–0.74 MBq for 68Ga-labelled MB, keeping a constant value of 5 × 107 MB per injection) via lateral tail vein cannula, PET scans were acquired in a list-mode format over 0–30 min to give decay-corrected values of radioactivity accumulation in tissues. The collected data were ordered into 11 time frames (4 × 15 s, 4 × 60 s, 3 × 300 s) and reconstructed with a 3-dimensional maximum likelihood estimation method (3D ML-EM). Volumes of interest (VOIs) for each tissue were defined using Siemens Inveon Research Workplace software (Siemens Molecular Imaging Inc.l Knoxville, USA) and count densities (counts/min) were expressed as a percentage of the incubated dose (ID) of radioactivity and normalized to tissue weight. Tissue kinetics were calculated by averaging the count densities per timepoint.
Biodistribution. Biodistribution studies were carried out on the same cohort of animals after the end of PET scans (20 min after radioactivity injection). Tissue samples were quickly collected and radioactivity content was determined by γ-counting (LKB Wallac 1282 Compugamma laboratory γ-counter, PerkinElmer, Massachusetts, USA). Count densities (counts/min) were expressed as a percentage of the incubated dose (ID) of radioactivity and normalized to tissue weight.

Conflicts of interest

The authors have no conflicts of interest to declare.

Acknowledgements

This work was supported by the Cancer Research UK (CRUK Multidisciplinary Award – C53470/A22353).
