The role of cation and anion dopant incorporated into a ZnO electron transporting layer for polymer bulk heterojunction solar cells

Abstract

Doping is a widely-implemented strategy for enhancing the inherent electronic properties of charge transport layers in photovoltaic devices. A facile solution-processed zinc oxide (ZnO) and various cation and anion-doped ZnO layers were synthesized via the sol–gel method and employed as electron transport layers (ETLs) for inverted polymer solar cells (PSCs). The results indicated that all PSCs with doped ZnO ETLs exhibited better photovoltaic performance compared with the PSCs with a pristine ZnO ETL. By exploring the role of various anion and cation dopants (three compounds with the same Al³⁺ cation: Al(acac)₃, Al(NO₃)₃, AlCl₃ and three compounds with the same Cl⁻ anion: NH₄Cl, MgCl₂, AlCl₃), we found that the work function changed to favor electronic extraction only when the Cl anion was involved. In addition, the conductivity of ZnO was enhanced more with the Al³⁺ cation. Therefore, in inverted solar cells, doping with Al³⁺ and Cl⁻ delivered the best power conversion efficiency (PCE). The maximum PCE of 10.38% was achieved from the device with ZnO doped with Al⁺ and Cl⁻.

---

1. Introduction

Bulk heterojunction (BHJ) polymer solar cells (PSCs) have attracted substantial attention for their potential applications in large-area flexible devices due to their unique advantages, such as being inexpensive and easy to fabricate, low weight, and possessing mechanical flexibility.^1–4 After extensive studies on new conjugated polymers and new charge transport interlayers, single-junction PSCs have recently achieved an impressive power conversion efficiency (PCE) of over 15%.^5,6

In general, according to the hole and electron extraction direction, PSCs are classified as two types, conventional structure PSCs and inverted structure PSCs. Among them, the inverted structure has been preferred recently because it is known that inverted PSCs exhibit better stability.^33,34 The inverted PSCs are basically composed of sequential stacking of the electron transport layer (ETL), photoactive layer, and hole transport layer (HTL) between the transparent indium tin oxide (ITO) and top metal electrode. In these inverted PSCs, since we utilize the ITO as a cathode electrode, a noble metal with a high work function (WF) such as Ag or Au must be used as a top anode electrode. Between Ag and Au, the use of silver is preferred because of its cheap price and easy processability. However, Ag has a similar WF to ITO (WF of ITO ∼ 4.7 eV, WF of Ag ∼ 4.6 eV). Thus, the inverted PSC with an Ag anode has an insufficient electromotive force for photocurrents. Increasing the potential difference of inverted PSCs is another role of the HTL and ETL layers. Therefore, it is very important that the charge transport layer not only has a good conductivity but also has a proper WF value capable of producing a sufficient driving potential.^7,8,10

Various metal oxide materials have been utilized as charge transporting functional layers to date. Examples of metal oxide with good electron transport properties include ZnO,^11–15 TiO_x,^16–18 SnO₂,^19–21 and Zr(acac)₄.^22,23 Examples metal oxides with good hole transport properties include MoO_x,^15,24–26 V₂O₅,^26–28 NiO_x,^29,30 and WO_x.^31,32 Among ETLs, ZnO has been most widely used due to its high electron mobility, suitable work function, transparency, environmental stability, facile solution processing, low cost, and simple modification.^35,36 In the fabrication of organic solar cells, ZnO is mainly prepared using the sol–gel method. However, wet-chemically prepared ZnO shows relatively low conductivity. In addition, it easily forms trap states associated with defects, which may induce a reduction of the PCE.^35–37

To achieve higher performance by overcoming both the low conductivity and defect problem, either surface modification or doping with an ionic element have been applied. Several surface modification methods, including the insertion of self-assembled monolayers,^9,38 treatment with either amine or an alcohol polar solvent,^39,40 and the introduction of fullerene-based layers,^41,42 have been employed between the active layer and the ZnO ETL.

However, these methods affect only the surface of a ZnO layer. Thus, the intrinsic opto-electrical properties of ZnO are not substantially improved. As an alternative way to favorably change the properties of the bulk ZnO layer, element doping using aluminum,^43,44 indium,⁴⁵ magnesium,⁴⁶ chlorine,⁴⁷ and hydrogen⁴⁸ have been applied, resulting in significantly improved photovoltaic performance and stability by eliminating the defect states.

There are two kinds of vacancy defects in solution-processed ZnO. One is a Zn vacancy, and the other one is an oxygen vacancy. The Zn vacancy can be filled by cation dopants. For example, small radius Al³⁺ ions (0.54 Å) better occupy interstitial sites in a ZnO lattice compared with larger Zn²⁺ ions (0.74 Å).^49–51 On other hand, defects of oxygen vacancies in ZnO ETL possibly can be filled with small and medium-sized anions, such as fluoride, chloride, bromide, and iodide.^52–59 Until now, studies on ZnO doping have focused more on cation doping than on anion doping. Rather, non-excessive oxygen vacancies were expected to help with conductivity enhancement because the oxygen vacancy generally acts as an electron donor in metal oxides. In a study on ZnO ETLs, the relationship between oxygen vacancies and electrical properties has rarely been studied, and little is known about how oxygen vacancies affect the electrical properties of a solution-processed ZnO ETL.

In this study, we have systematically investigated the influence of the cation and anion dopants on the electrical properties of a ZnO ETL through the simultaneous doping of both cations and anions. To investigate the influence of anions, Al(acac)₃ (acac = acetylacetonate), Al(NO₃)₃, and AlCl₃ were introduced as dopants. These three dopants (Cl⁻, NO₃⁻, acac⁻) have the same number of different anions together with the same Al cation, thus they provide proper combinations to investigate the effects of different anions. The influence of cations was investigated using NH₄Cl, AlCl₃, and MgCl₂. In addition, these three dopants (Al³⁺, Mg²⁺, NH₄⁺) have different numbers of Cl anions, thereby we can collect information about the influence of the number of anions together. To eliminate concerns about the dependence on the photoactive material, the doped ZnO layer was applied on various solar cells fabricated with three different photoactive materials, PTB7-Th:PC₇₁BM, PTB7:PC₇₁BM, and P3HT:PC₇₁BM.

2. Results and discussions

2.1. Optoelectronic properties and morphology

Chemically synthesized nanoparticles or sol–gel driven ZnO thin films are commonly used for the ETL of PCSs. The nanoparticle method allows a lower annealing temperature compared with the sol–gel method, but it is difficult to simultaneously dope cations and anions in ZnO because the anion can be possibly removed during the centrifugal step. Thus, in this work, we prepared doped ZnO by the simple sol–gel method using Zn(CH₃COO)₂ in 2-methoxyethanol. The details are provided in the Experimental section.

2.1.1. Electrical properties of ZnO ETL. The resistivity of the ZnO ETL on ITO was characterized by the general 4-point van der Pauw method. The thicknesses of all ZnO samples were approximately 40 nm. The results are summarized in Table 1. Regardless of the type of dopant, whether small or large, doping in all cases led to a decrease in resistivity (increase in conductivity). In the case of same cation Al³⁺, the resistivity decreased following the decrease of anion diameter (acac⁻ > NO³⁻ > Cl⁻). A similar trend is observed in the case of the same anion Cl⁻, the resistivity was more decreased with a smaller size of cation dopant (Al³⁺ < Mg²⁺ < NH₄⁺). Note that, in this case, the cause is not clear because it can also be interpreted as the change in the number of Cl anions. A more interesting point involved the change in the work function by doping. Regardless of the cation, the work function was only changed when the Cl anion was involved. In addition, the work function change was constant regardless of the number of Cl ions.

Table 1 Resistance and work function of different ETLs

Layer	Mean resistance^a (Ω)	Sheet resistance^a (Ω per square)	Work function^b (eV)
a Mean and sheet resistances were characterized from 4-point measurements on 3 different points.b Work functions were characterized from the UPS.
ITO/ZnO	1.99 ± 0.14	9.01 ± 0.63	4.03
ITO/ZnO + Al(acac)3	1.85 ± 0.11	8.39 ± 0.50	4.01
ITO/ZnO + Al(NO3)3	1.58 ± 0.15	7.15 ± 0.68	4.06
ITO/ZnO + AlCl3	1.40 ± 0.12	6.33 ± 0.54	4.30
ITO/ZnO + NH4Cl	1.68 ± 0.15	7.61 ± 0.67	4.32
ITO/ZnO + MgCl2	1.57 ± 0.11	7.10 ± 0.49	4.35

---

2.1.2. XPS study. X-ray photoelectron spectroscopy (XPS) was used to characterize the elemental composition and bonding state of ZnO and doped ZnO layers. All samples show similar binding energies of Zn 2p peaks of ∼1021.7 eV, ∼1044.8 eV and O 1s of ∼530.2 eV (Zn–O), ∼531.8 eV (Zn–OH), respectively (see Fig. S2 and S3†). This result indicated that the bonding state and crystal structure of ZnO was not changed by doping. In the case of aluminum cation doping, Al(acac)₃, Al(NO₃)₃, and AlCl₃-doped ZnO exhibit Al 2p peaks at 78.39 eV, 78.17 eV and 78.23 eV, respectively (Fig. S4†). The shift of the Al 2p peak toward a higher binding energy compared with Al₂O₃ (note that the Al 2p peak in Al₂O₃ is revealed at ∼74.6 eV)⁴³ indicates the presence of Al³⁺ in the ZnO lattice. The C 1s peak of pristine ZnO and Al(acac)₃-doped ZnO are characterized in the energy range of 280–294 eV (Fig. 1a and S5†). Almost identical C 1s features were observed in both pristine ZnO and Al(acac)₃-doped ZnO samples at 284.9 eV and 289.3 eV, respectively. The C 1s peaks in pristine ZnO and Al(acac)₃-doped ZnO were probably derived from residual acetate, ethanolamine, and acetylacetonate. The ratios of C 1s(C–C, C–H)/C 1s(C=O, C–O) in pristine ZnO and Al(acac)₃ doped ZnO were 3.56 and 3.58, respectively. Just a small increase in the C of C–C and C–H indicated that there was a low presence of acetylacetonate in the ZnO layer, which means the influence of acetylacetonate on the ZnO layer seems to be negligible. A slight enhancement of the resistance in Al(acac)₃-doped ZnO seems to be mainly due to Al.

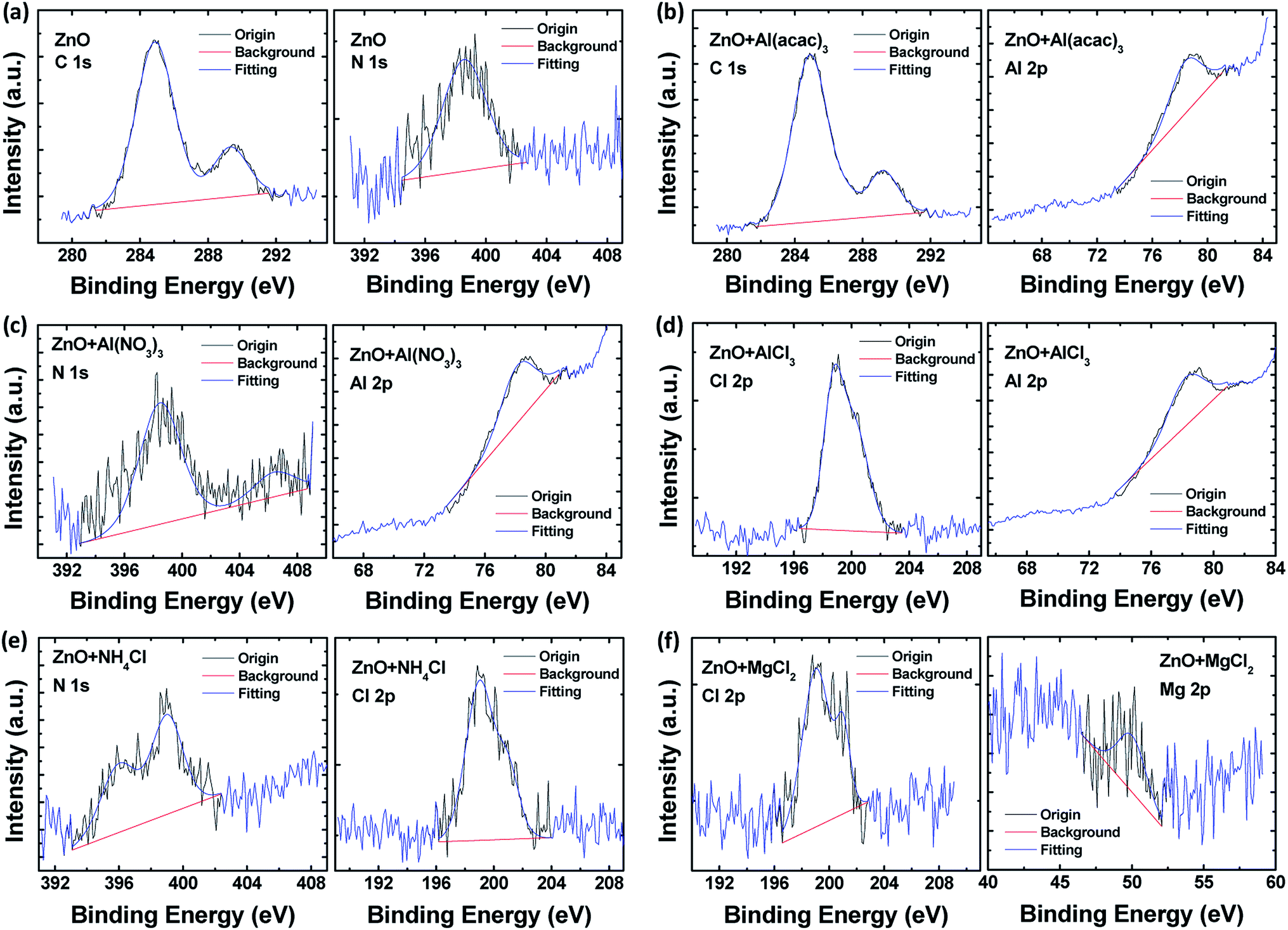

Fig. 1 XPS analysis for the selective elements of doped ZnO. (a) C 1s and N 1s bonds of pristine ZnO, (b) C 1s and Al 2p bonds of Al(acac)₃-doped ZnO, (c) N 1s and Al 2p peaks of Al(NO₃)₃-doped ZnO, (d) Cl 2p and Al 2p bonds of AlCl₃-doped ZnO, (e) N 1s and Cl 2p peaks of NH₄Cl-doped ZnO, (f) Cl 2p and Mg 2p bonds of MgCl₂-doped ZnO.

For the ZnO layer doped with Al(NO₃)₃, the N 1s peak was revealed in the energy range of 390–410 eV (Fig. 1c and S6†). The N 1s signal of Al(NO₃)₃-doped ZnO consists of two peaks at 398.5 eV and 406.4 eV, belonging to residual ethanolamine and nitrate, respectively. For the NH₄Cl-doped ZnO, the N 1s peaks were detected at 396.0 eV and 399.0 eV, which were attributed to ammonium and residual ethanolamine, respectively. The XPS spectra of AlCl₃-doped ZnO, NH₄Cl-doped ZnO and MgCl₂-doped ZnO showed metal chloride-Cl 2p peaks at 198.7 eV, 199.0 eV, and 199.0 eV, and nonmetal chloride–Cl 2p peaks at 200.3 eV, 201.0 eV and 201.0 eV, respectively (Fig. 1d–f and S7†). A slight shifting of the Cl 2p peak to a lower binding energy in AlCl₃-doped ZnO indicates that AlCl₃-doped ZnO has a better metallic property compared with the ZnO doped with NH₄Cl or MgCl₂. This result was consistent with the 4-point probe results in Table 1. AlCl₃-doped ZnO shows a better conductivity than NH₄Cl-doped ZnO and MgCl₂-doped ZnO.

2.1.3. Morphology study. To investigate the effect of doping on the morphology of the ZnO layer, atomic force microscopy (AFM) measurements were carried out, as shown in Fig. 2 (see also Fig. S8†). The pristine ZnO layer and ZnO layers doped with Al(acac)₃ or Al(NO₃)₃ showed a clear wrinkled structure. For the ZnO layer doped with AlCl₃, although the wrinkled structure was substantially blurred, it is still visible. However, such a wrinkled structure was more blurred in the ZnO layer doped with NH₄Cl, and it finally disappeared in the ZnO layer doped with MgCl₂.

Fig. 2 AFM images of ZnO ETLs. (a) Pristine ZnO, (b) ZnO doped with Al(acac)₃, (c) ZnO doped with Al(NO₃)₃, (d) ZnO doped with AlCl₃, (e) ZnO doped with NH₄Cl, (f) ZnO doped with MgCl₂.

In comparing the three ZnO films doped with identical cations (Al³⁺) and different anions (Cl⁻, NO₃⁻, acac⁻), the morphology of ZnO doped with Al(acac)₃ or Al(NO₃)₃ showed a morphology similar to the pristine ZnO ripple. However, the ZnO film doped with AlCl₃ showed a relatively homogeneous peak-to-peak structure and smoother surface, with a significantly reduced rms of 4.60 nm. These results clearly indicate that the Cl⁻ anion affected the ZnO morphology more strongly than acac⁻ and NO₃⁻, which might due to the easier occupation of oxygen vacancies by the smaller Cl⁻ anion relative to the larger acac⁻ and NO₃⁻ anions. Comparing the ZnO films doped with the identical Cl⁻ anion (Fig. 2d–f), NH₄⁺- and Mg²⁺-doped ZnO films showed a more smooth and flat surface structure with rms values of 2.30 nm and 1.67 nm, respectively. Although the wrinkled structure of ZnO delivered some enhancement of the light absorption via light scattering, the current homogeneity can be significantly disturbed at the interface between the photoactive and ZnO layers. Therefore, it is necessary to derive an appropriate optimal point between the morphology change by doping and the improvement of electric characteristics.

2.1.4. Workfunction study. To investigate the influence of dopants on the energy levels of ZnO, ultraviolet photoelectron spectroscopy (UPS) was performed (Table 1 and Fig. S10†). The energy band diagram deduced from the UPS results is shown in Fig. 3. Doped ZnO films with Al(acac)₃ and Al(NO₃)₃ showed a work function similar to a pristine un-doped ZnO film. With the same Cl⁻ dopant, AlCl₃-, NH₄Cl-, and MgCl₂-doped ZnO films showed a ∼0.3 eV deeper work function compared to the pristine undoped ZnO film. These results indicate that the low concentration of Al³⁺ did not distort the ZnO polycrystalline structure. The effects of defect occupation by acac⁻ and NO₃⁻ were almost negligible. In addition, doping with Mg²⁺ and NH₄⁺ also insignificantly affected the work function of the ZnO layer. Only doping with chlorides induced a modification of the work function of the ZnO film by effectively occupying the oxygen vacancies in the ZnO lattice.

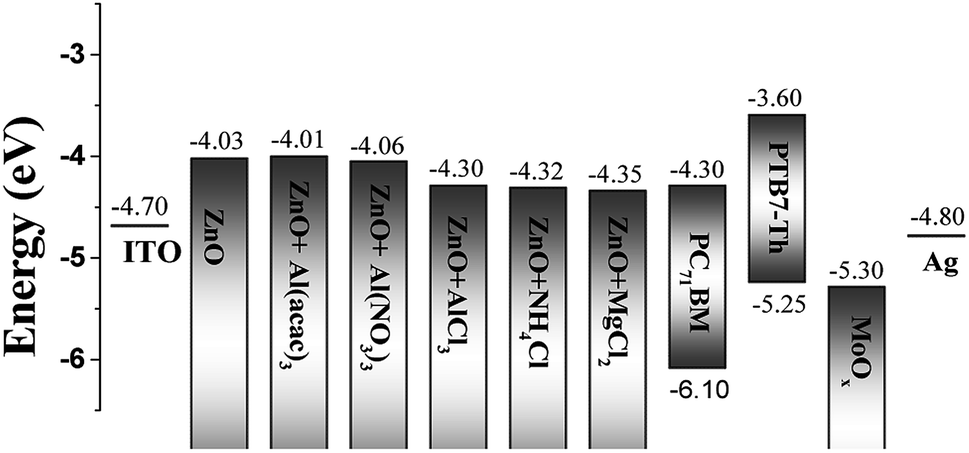

Fig. 3 Energy level diagram of doped ZnO layers obtained from the UPS study. Energy levels of active materials (PTB7-Th, PC₇₁BM) and MoO_x hole transport layer are presented together.

2.1.5. Electron mobility and EIS study. Electron mobilities (μ_e) along the vertical direction of the devices were measured using the space charge limited current (SCLC) method, as shown in Fig. 4. A device with a pristine ZnO layer exhibits a μ_e of 5.09 × 10⁻⁵ cm² V⁻¹ s⁻¹. The devices with Al(acac)₃, Al(NO₃)₃-, AlCl₃-, NH₄Cl-, and MgCl₂-doped ZnO layers exhibited better electron mobilities of 1.95 × 10⁻⁴ cm² V⁻¹ s⁻¹, 3.05 × 10⁻⁴ cm² V⁻¹ s⁻¹, 6.74 × 10⁻⁴ cm² V⁻¹ s⁻¹, 1.24 × 10⁻⁴ cm² V⁻¹ s⁻¹, and 2.97 × 10⁻⁴ cm² V⁻¹ s⁻¹, respectively. The device with an AlCl₃-doped ZnO layer showed the highest μ_e.

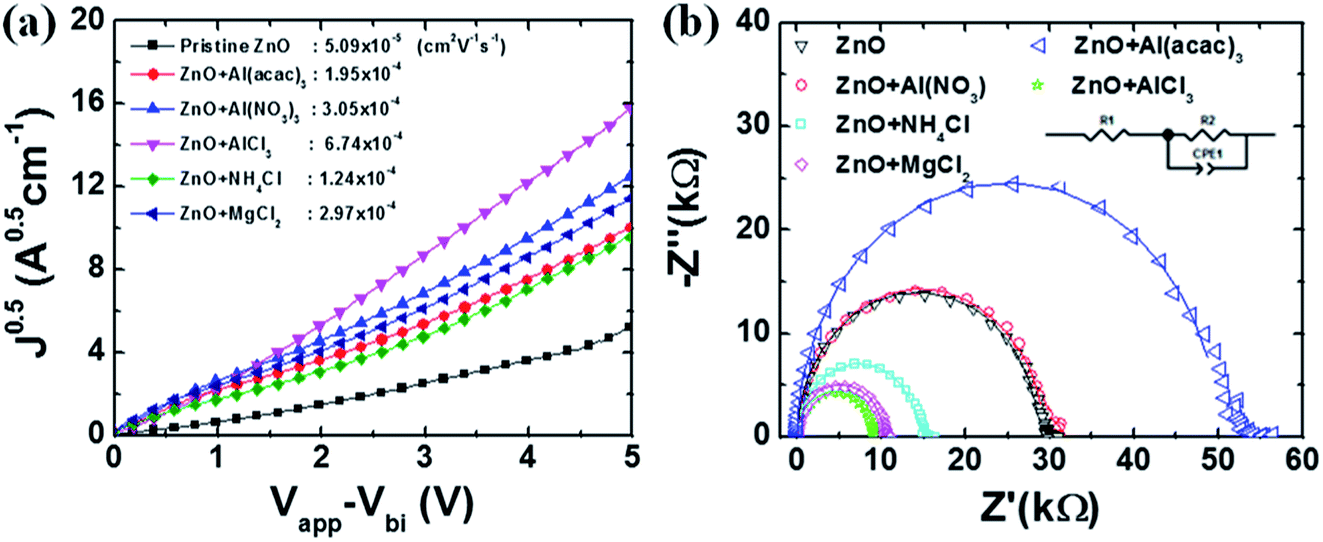

Fig. 4 (a) SCLC characteristics of PTB7-Th:PC₇₁BM electron only devices (device structures: Al/LiF/PTB7-Th:PC₇₁BM/ETLs/ITO), (b) Nyquist plots of PTB7-Th:PC₇₁BM with various ETLs.

Fig. 4b shows the Nyquist plots of impedance spectroscopy (EIS) measurements for PTB7-Th:PC₇₁BM solar cells with pristine ZnO or doped ZnO films measured at open circuit potentials (OCP) under the dark condition. All devices exhibited one semicircle without a transmission line. Series resistances (R_s) and shunt resistances (R_sh) are extracted from a fitting line and the results are summarized in Table S1.† In general, a low R_s and high R_sh are desired to obtain high-performance solar cells. The device with a pristine ZnO film and the devices with doped ZnO films all perform acceptably with a high R_sh of over 5.0 kΩ, which is adequate for solar cells. All doped ZnO devices exhibit a smaller R_s than a pristine undoped ZnO device and among them, the AlCl₃-doped ZnO device shows the lowest R_s.

2.2. Photovoltaic performance

2.2.1. The influence of a doped ZnO ETL on the photovoltaic performance. The effects of doped ZnO layers as ETLs on the photovoltaic performance were investigated using three common donor polymers, PTB7-Th, PTB7, and P3HT, all with a PC₇₁BM acceptor. The J–V characteristics of PTB7-Th devices with various ETLs are exhibited in Fig. 5a and b and the photovoltaic parameters are summarized in Table 2. The control PSC with a pristine ZnO ETL gives a PCE of 9.16%, which is similar to previous reports.^35,36 In comparison within different anion/same Al cation groups (Al(acac)₃, Al(NO₃)₃, AlCl₃), the devices with Al(acac)₃- or Al(NO₃)₃-doped ZnO ETLs showed enhanced PCEs of 9.71% and 9.79%, respectively. An even more enhanced PCE was observed in the solar cell with an AlCl₃-doped ZnO layer. The best efficiency of the device with an AlCl₃-doped ZnO layer was 10.38%. These results clearly indicate that the Cl dopant exhibited more dominant effects on the photovoltaic performance than acac or NO₃ dopants. However, when comparing the devices with ZnO layers doped with NH₄Cl, AlCl₃, or MgCl₂, even though NH₄Cl and MgCl₂ have the same Cl dopant, the measured PCEs were relatively lower than that of a device with an AlCl₃-doped ZnO layer. This result indicated that the Al³⁺ dopant has a better effect on the photovoltaic performance than NH₄⁺ or Mg²⁺ dopants.

Fig. 5 (a and b) J–V curves and (c and d) EQE spectra of devices with different electron transporting layers.

Table 2 Photovoltaic performances of the solar cells under AM 1.5G illumination at 100 mW cm⁻² with different electron transporting layers

ETL	PCE best (%)	PCE avg.^a (%)	FF (%)	Voc (V)	Jsc (mA cm^−2)	Jsc ^b (mA cm^−2)	Rs^c (Ω)
a The average PCE from more than 12 devices.b Calculated Jsc from EQE spectra.c Extraction from solar simulation program.d Surface modifying ETLs with PEIE.
ZnO	9.16	8.89	67.7	0.790	17.10	16.57	32.8
ZnO + Al(acac)3	9.71	9.44	68.8	0.796	17.68	17.15	25.8
ZnO + Al(NO3)3	9.79	9.57	69.0	0.799	17.74	17.32	26.5
ZnO + AlCl3	10.38	10.15	71.3	0.807	18.01	17.64	22.4
ZnO + NH4Cl	9.73	9.43	69.3	0.802	17.47	17.09	28.0
ZnO + MgCl2	9.83	9.68	69.1	0.803	17.70	17.23	28.2
ZnO/PEIE^d	10.14	9.76	70.2	0.804	17.94		26.1
ZnO + AlCl3/PEIE^d	10.48	10.18	71.8	0.809	18.03		25.8

---

Consequently, the combination of Al³⁺ and Cl⁻ dopants boost the doping effect, thereby enhancing the PCE from 9.16% to 10.38%. In the case of solar cells based on P3HT or PTB7 as a donor polymer, the highest PCE was also obtained in the PSC with an AlCl₃-doped ZnO ETL, as shown in Fig. S12, S13, Table S2 and S3.† Note that optimization details for a proper AlCl₃ doping concentration and an optimal thickness of the AlCl₃-doped ZnO ETL are presented in Fig. S14 and S15.† The optimal doping concentration and thickness are 2.5 mM and ∼120 nm, respectively.

In our solar cells results, all the solar cell parameters such as J_sc, FF, and V_oc were improved with doped ZnO. The increase in J_sc was considered to be a result of the improvement of the charge transport property of the doped ZnO ETL (Fig. 4a). In case of FF, it might be attributed to reduced charge recombination and reduced resistance (Fig. 4b). For the V_oc, slightly increase open circuit voltage was observed with doped ZnO ETL because of Fermi level shift. Generally, V_oc change is also related to the photon energy loss. Therefore, higher V_oc of the device with doped ZnO ETL was attributed to the reduction of both interfacial recombination and energy loss.

2.2.2. The influence of a doped ZnO ETL on exciton generation. A maximum exciton generation rate (G_max) can be obtained following the equation: J_sat = qLG_max, where q is the electron charge and L is the thickness of the active layer.⁶⁰ The photocurrent density (J_ph) plots as a function of the effective voltage (V_eff) are shown in Fig. S16.† The saturation photocurrent densities (J_sat) of pristine ZnO, Al(acac)₃-doped ZnO, Al(NO₃)₃-doped ZnO, AlCl₃-doped ZnO, NH₄Cl-doped ZnO, and MgCl₂-doped ZnO are 178.1 A m⁻², 183.7 A m⁻², 184.3 A m⁻², 187.2 A m⁻², 184.2 A m⁻², and 185.5 A m⁻², respectively. It is known that the interfacial interaction between an ETL and the active layer is one of the factors that can influence the value of G_max. A high G_max acts to reduce the recombination at the interface of the ETL and active layer. The calculated G_max values of pristine ZnO, Al(acac)₃-doped ZnO, Al(NO₃)₃-doped ZnO, AlCl₃-doped ZnO, NH₄Cl-doped ZnO, and MgCl₂-doped ZnO are 9.28 × 10²⁷ m⁻³ s⁻¹, 9.57 × 10²⁷ m⁻³ s⁻¹, 9.60 × 10²⁷ m⁻³ s⁻¹, 9.75 × 10²⁷ m⁻³ s⁻¹, 9.59 × 10²⁷ m⁻³ s⁻¹, and 9.66 × 10²⁷ m⁻³ s⁻¹, respectively, which are consistent with the J_sc values of the devices.

2.2.3. External quantum efficiency. The external quantum efficiency (EQE) spectra of devices with pristine ZnO and doped ZnO ETLs are shown in Fig. 5c and d. The EQE spectra of the devices have maximum efficiencies of 75%, 79%, 78%, 80%, 76%, and 78% for ZnO, Al(acac)₃-doped ZnO, Al(NO₃)₃-doped ZnO, AlCl₃-doped ZnO, NH₄Cl-doped ZnO, and MgCl₂-doped ZnO, respectively. The integral current density values calculated from the EQE spectra of all devices agree well with the J_sc values obtained from the J–V curves (maximum error < 3%).

2.2.4. Stability study. The stability of a PSC is a crucial factor for commercialized applications. It is a well-known fact that defects of ZnO cause a reduction in the long-term stability of inverted PSCs. Fig. 6 shows the long-term stabilities of PSCs with pristine ZnO ETLs and doped ZnO ETLs. The results unambiguously reveal that PSCs with doped ZnO ETLs show better stability than that of the pristine ZnO ETL. Particularly, solar cells with a ZnO layer doped with Cl dopant exhibited better stability. This was attributed to the fact that Cl⁻ fills the defects of a ZnO layer more efficiently. Although the efficiency was high in the device with an AlCl₃-doped ZnO layer, the stability was better in devices with an MgCl₂- or NH₄Cl-doped ZnO layer because the similar charge of Mg²⁺ and Zn²⁺ help to minimize the local charge in the ZnO lattice.

Fig. 6 Normalized PCEs of devices with different ETLs as a function of time monitored in an ambient atmosphere under the dark condition.

2.2.5. Further modification of AlCl₃ doped ZnO surface. As a final step, for further modification of the ZnO surface, we employed polyethylenimine ethoxylated (PEIE) to modify the ZnO ripple surface. PEIE is a well-known interfacial organic material, which can enhance the PCE by modifying the ETL surface in inverted PSCs.^61,62 Fig. 7a shows the J–V characteristics of PSCs with pristine ZnO and AlCl₃-doped ZnO ETLs, both with surfaces modified by PEIE. The PCE of the pristine ZnO ETL device significantly improved from 9.16% to 10.14% after spin-coating a PEIE layer. In the case of the AlCl₃-doped ZnO ETL, the PCE also increased from 10.38% (average PCE of 10.15%) to 10.48% (average PCE of 10.18%). However, the relative increase was smaller than that of pristine ZnO. This is probably because the quality of ZnO itself is already considerably improved by the doping process.

Fig. 7 (a) J–V curves of unit cells with PEIE-modified pristine ZnO and an AlCl₃-doped ZnO layer, (b) J–V curves of module devices with PEIE-modified pristine ZnO and AlCl₃-doped ZnO.

2.2.6. High-performance module device with a doped ZnO layer. Fig. 7b and Table 3 show the performances of inverted organic photovoltaic mini-modules with different electron transporting layers. The OPV module with a ZnO ETL yielded a PCE of 8.00%, with an FF of 58.7%, V_oc of 6.914 V, and J_sc of 1.973 mA cm⁻². On the other hand, the module device with an AlCl₃-doped ZnO ETL showed an enhanced PCE of 9.34% with FF = 66.4%, V_oc = 7.213 V, and J_sc = 1.950 mA cm⁻². The module with an AlCl₃-doped ZnO ETL showed an improvement of the series resistance (R_S) and FF compared with the ZnO ETL module. To further enhance the performance of the ZnO ETL module, PEIE was additionally employed and resulted in enhanced performance, especially for the FF and R_S. For the module with an AlCl₃-doped ZnO ETL, however, we obtained almost similar results before employing PEIE, which is commensurate with the previous cell results.

Table 3 Photovoltaic parameters of the module devices with different electron transporting layers

ETL	PCE (%)	FF (%)	Voc (V)	Jsc (mA cm^−2)	Rs (ohm)
ZnO	8.00	58.7	6.914	1.973	35.688
ZnO + AlCl3	9.34	66.4	7.213	1.950	24.319
ZnO/PEIE	8.66	66.9	7.027	1.843	22.818
ZnO + AlCl3/PEIE	9.36	67.6	7.207	1.922	21.965

---
