An aggregation-induced emission-based fluorescence turn-on probe for Hg²⁺ and its application to detect Hg²⁺ in food samples

Abstract

In this work, we presented a new tetraphenylethene-derived fluorescent probe TPE-M for Hg²⁺ detection in an aqueous solution. Probe TPE-M is molecularly dissolved in CH₃OH/PBS (20 mM, pH = 7.4) (3 : 7, v/v) mixed solution and is almost non-emissive. Reaction of TPE-M with Hg²⁺ leads to release of an AIE-active precursor 4, and results in a significant fluorescence enhancement. The Hg²⁺ recognition process has some distinct advantages including rapid response, high selectivity and sensitivity, strong anti-interference ability, and a low detection limit (4.16 × 10⁻⁶ M). Moreover, the probe is applicable to detect Hg²⁺ in real food samples such as shrimp, crab and teas, suggesting the practical applicability of TPE-M.

---

Introduction

Mercury ion (Hg²⁺), as a notorious toxic heavy metal ion, possesses significant influence on human health by accumulating in the body along with the skin, respiratory tract and food chain.¹ Hg²⁺ accumulation in the food chain is harmful to DNA and the central nervous system.^2,3 Therefore, effective detection of Hg²⁺ is of great significance.

So far, several effective methods for Hg²⁺ detection, including liquid chromatography (LC),⁴ atomic absorption spectrometry (AAS),⁵ atomic fluorescence spectrometry (AFS),⁶ and inductively coupled plasma-mass spectrometry (ICP-MS)⁷ have been established. However, these methods usually require expensive instruments, complicated sample preparations, tedious detection processes, and relatively professional operation techniques. Compared with the aforementioned methods, fluorescence techniques have received considerable attention due to their advantages such as simple operation, rapid response, high selectivity and sensitivity.^8–12 During the past few decades, a large number of Hg²⁺ selective fluorescent probes have been documented.^13–18 There are mainly two strategies for the design of fluorescent Hg²⁺ probes. One design method is based on Hg²⁺-chelation induced fluorescence changes of the probe,^19–21 however, some probes based on this strategy are prone to suffer from the interference of other metal ions (Cu²⁺, Co²⁺, Fe²⁺, and Pb²⁺),^22–25 or fluorescence quenching due to the heavy atom effect induced by the Hg²⁺ ion.^26–29 Another methodology is based on Hg²⁺-triggered specific reaction of the probe.^30–34 Compared with the chelation method, the specific chemical reactions triggered by Hg²⁺ can lead to unique spectral changes in fluorescence or absorbance, which makes the probes more advantageous in terms of selectivity and sensitivity. Whereas, the latter protocol sometimes may be affected by the aggregation-caused quenching (ACQ) effect of the reaction product with hydrophobic nature.^35,36 The discovery of aggregation-induced emission (AIE) phenomenon³⁷ provides an opportunity to address this limitation. Although there are some fluorescent Hg²⁺ probes based on AIE mechanism have been documented,^24,38–45 development of new AIE-based fluorescent Hg²⁺ probes with high selectivity and rapid response is still highly desirable.

Tetraphenylethene (TPE) is a well-known AIE-active luminogen, and a great number of TPE-based derivatives with distinct AIE properties have been established. However, the TPE aggregates have shorter emission wavelengths, and TPE-based fluorescent Hg²⁺ probes are still rare. One can envision that by extending the conjugation structure and incorporate a dithioacetal group on a TPE-based fluorogen, a new Hg²⁺ selective fluorescent probe with red-shifted emission based on AIE mechanism can be obtained. We herein synthesized a new TPE-derived Hg²⁺ selective fluorescent probe TPE-M by condensation of TPE-derived aldehyde 4 and 3-mercaptopropionic acid (Scheme 1). It is surmised that the Hg²⁺-triggered hydrolysis of dithioacetal in TPE-M will release its precursor 4, a potentially AIE-active compound, and thus can realize Hg²⁺ detection in an aqueous medium. The carboxylic acid-containing dithioacetal moiety doped in probe TPE-M can provide Hg²⁺ recognition site and enable good solubility of TPE-M in aqueous solution. Further studies demonstrate that probe TPE-M can detect Hg²⁺ in CH₃OH/PBS mixed solvent based on AIE mechanism.

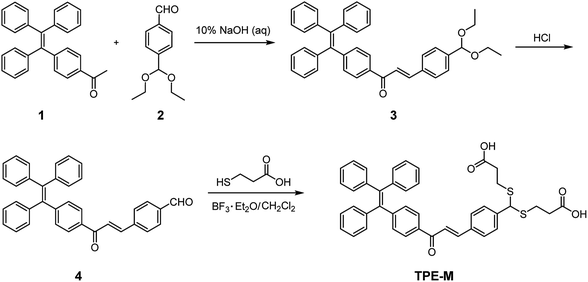

Scheme 1 Synthesis of probe TPE-M.

Experimental section

Materials and instruments

Unless otherwise specified, solvents and reagents were of analytical grade from commercial suppliers and used directly. Compound 1 (ref. 46) was synthesized according to literature method. ¹H NMR and ¹³C NMR spectra were measured on an Agilent 400-MR spectrometer. High resolution mass spectroscopy (HRMS) was recorded on an Agilent 1200 time-of-flight mass spectrometer (Bruker, microTOF-Q). Fluorescence measurements were performed on a Sanco 970-CRT spectrofluorometer (Shanghai, China). Dynamic light scattering (DLS) experiments were performed with a Malvern Zetasizer Nano-ZS90 DLS system (Malvern Instruments Ltd., Worcestershire, UK).

General procedure for spectroscopic analysis

Double distilled water was used throughout the experiments. Probe TPE-M was dissolved in CH₃OH/PBS (20 mM, pH = 7.4) (3 : 7, v/v) to afford the test solution (10 μM). Titration experiments were performed in 10 mm quartz cuvettes at 25 °C. Metal ions (as chloride or nitrate salts, 10 mM) were added to the host solution and used for the titration experiment.

Synthesis

Synthesis of compound 3. Compounds 1 (1.87 g, 5 mmol) and 2 (901 mg, 5 mmol) were dissolved in 10% NaOH (2 mL) in ethanol and stirred at room temperature for 24 h. After filtration, the solvent was evaporated under reduced pressure, and the crude product was purified by silica column chromatography (ethyl acetate/petroleum ether = 1 : 30, v/v) to give 3 as a yellow solid (1.35 g, yield 48%). Mp 49.9–51.8 °C. ¹H NMR (400 MHz, DMSO-d₆) δ 7.94 (d, J = 8.0 Hz, 2H), 7.90–7.85 (m, 3H), 7.70 (d, J = 15.6 Hz, 1H), 7.45 (d, J = 8.4 Hz, 2H), 7.18–7.12 (m, 11H), 7.02–6.98 (m, 6H), 5.52 (s, 1H), 3.59–3.45 (m, 4H), 1.15 (t, J = 7.0 Hz, 6H); ¹³C NMR (100 MHz, DMSO-d₆) δ 188.7, 148.7, 143.8, 143.2, 143.0, 142.5, 142.0, 140.1, 135.8, 135.0, 131.5, 131.1, 131.0, 129.1, 128.6, 128.4, 128.3, 127.4, 127.3, 122.4, 100.9, 61.3, 15.6. HRMS (ESI+): calcd for C₄₀H₃₇O₃ [M + H]⁺, 565.2743; found: 565.2972.

Synthesis of compound 4. To a solution of compound 3 (1.25 g, 2.21 mmol) in 30 mL ethanol, 2 mL of hydrochloric acid (1 M) was added at room temperature, and the reactant was further stirred for 2 h. The precipitates formed were collected by filtration and the filtrate was evaporated to dryness under reduced pressure. The residue was dissolved in CH₂Cl₂ and washed with water, the organic layer was dried over anhydrous Na₂SO₄. After filtration and removing the solvent under reduced pressure, the residue was combined with the collected precipitates, and the crude product was purified by silica gel column chromatography (ethyl acetate/petroleum ether = 1 : 20, v/v) to obtain 4 as pale yellow solids (890.47 mg, yield 82%). Mp 206.7–207.8 °C. ¹H NMR (400 MHz, DMSO-d₆) δ 10.04 (s, 1H), 8.09 (d, J = 8.0 Hz, 2H), 8.05 (d, J = 15.6 Hz, 1H), 7.98–7.95 (m, 4H), 7.76 (d, J = 15.6 Hz, 1H), 7.19–7.12 (m, 11H), 7.03–6.99 (m, 6H); ¹³C NMR (100 MHz, DMSO-d₆) δ 193.1, 188.6, 149.0, 143.2, 143.1, 143.0, 142.5, 140.7, 140.1, 137.4, 135.5, 131.6, 131.1, 131.0, 130.3, 129.9, 128.7, 128.4, 128.3, 127.4, 127.3, 125.2. HRMS (ESI−): calcd for C₃₆H₂₉O₄ [M + 2H₂O–H]⁻, 525.2066; found: 525.1789.

Synthesis of probe TPE-M. To an ice-cooled solution of compound 4 (800 mg, 1.63 mmol) in anhydrous dichloromethane (13 mL) under nitrogen atmosphere, a solution of 3-mercaptopropionic acid (259.5 mg, 2.45 mmol) and BF₃–Et₂O (1 mL) in 5 mL DMF was added dropwise, and the reaction mixture was stirred at room temperature for 12 h. After that, the reaction mixture was concentrated and extracted with ethyl acetate. The combined organic layer was successively washed with 1.0 M HCl and brine and dried over anhydrous Na₂SO₄. After removing the solvent under reduced pressure, the residue was purified by silica column chromatography (MeOH/DCM = 1 : 30, v/v) to obtain TPE-M as orange yellow solid (547.23 mg, yield 49%). Mp 74.1–75.2 °C. ¹H NMR (400 MHz, DMSO-d₆) δ 12.32 (br, 2H), 7.94 (d, J = 8.0 Hz, 2H), 7.90–7.85 (m, 3H), 7.69 (d, J = 15.2 Hz, 1H), 7.49 (d, J = 8.4 Hz, 2H), 7.16–7.14 (m, 11H), 7.03–6.99 (m, 6H), 5.32 (s, 1H), 2.78–2.71 (m, 2H), 2.67–2.61 (m, 2H) (proton signals for two CH₂ groups are overlapped with the peak of residue DMSO); ¹³C NMR (100 MHz, DMSO-d₆) δ 188.6, 173.3, 148.7, 143.6, 143.2, 143.0, 142.5, 140.1, 135.8, 134.6, 131.5, 131.1, 131.0, 129.6, 128.6, 128.4, 128.3, 127.4, 127.3, 122.5, 51.9, 34.5, 27.5. HRMS (ESI+): calcd for C₄₂H₃₆NaO₅S₂ [M + Na]⁺, 707.1902; found: 707.1011.

Result and discussion

AIE properties of intermediate 4

Based on the probe design principle, namely, probe TPE-M undergoes Hg²⁺-triggered hydrolysis to release AIE-active compound 4, the AIE characteristic of compound 4 was firstly examined. The changes in fluorescence behavior of 4 was examined in a mixed solvent of CH₃OH/PBS (20 mM, pH = 7.4) with different PBS contents (f_w) (Fig. 1). Compound 4 is non-emissive when f_w ranging from 0 to 50%. On further increase f_w to 60–70%, a greatly enhanced emission band centered at 537 nm can be observed. Further increase of f_w leads to partial fluorescence quenching. When illuminate the solution of 4 in CH₃OH/PBS (20 mM, pH = 7.4) (3 : 7, v/v) with a laser pointer, an obvious light path can be observed (Fig. S1†), indicating that compound 4 form aggregates. Dynamic light scattering (DLS) measurements showed an average particle size of 412 nm in diameter (Fig. S2†), indicating the formation of nano-aggregates of compound 4.

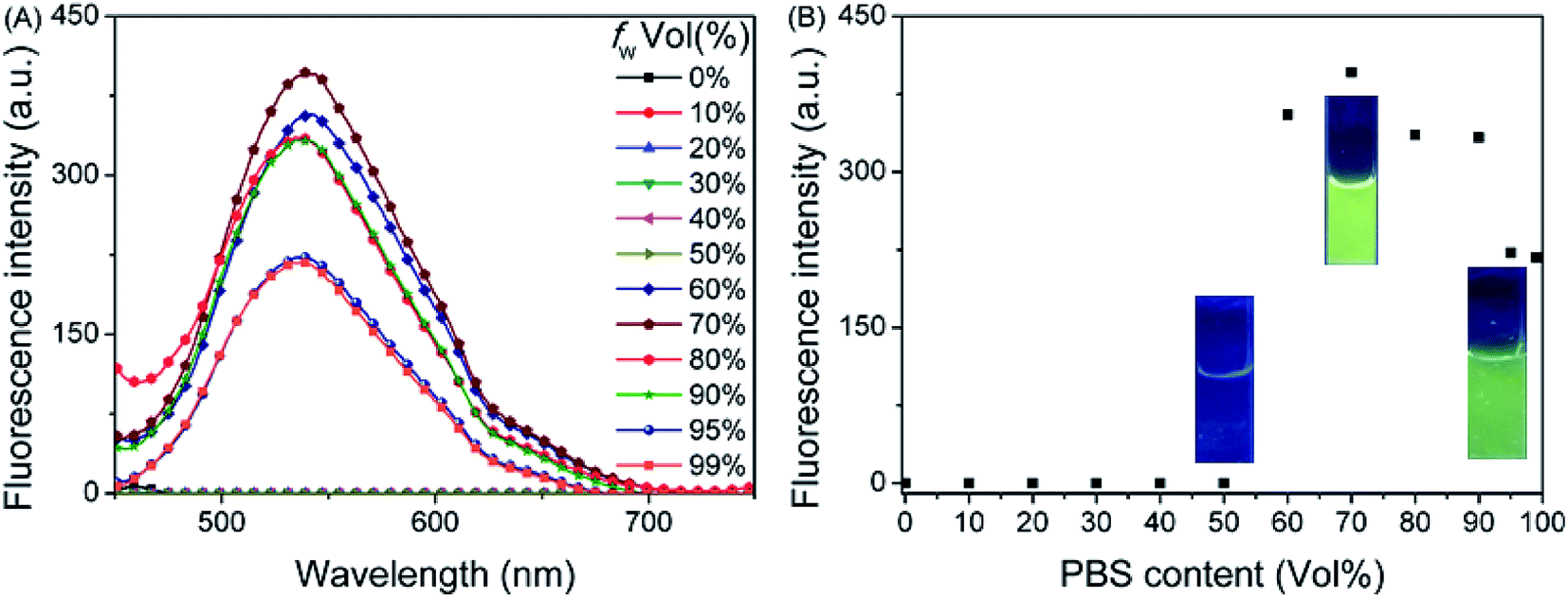

Fig. 1 (A) Fluorescence spectrum of 4 (10 μM) in CH₃OH/PBS (20 mM, pH = 7.4) with different PBS content; (B) changes in fluorescence intensity (537 nm) of 4 in CH₃OH/PBS (20 mM, pH = 7.4) with different PBS content.

Fluorescence recognition of TPE-M to Hg²⁺

Promoted by the AIE property of compound 4, we then explored the response of probe TPE-M toward Hg²⁺ ions in CH₃OH/PBS (20 mM, pH = 7.4) (3 : 7, v/v). In order to examine the solubility of TPE-M in the mixed solvent, the relationship between absorbance and probe concentration ranging from 4 to 14 μM was first investigated (Fig. S3†). The results provide a good linear relationship (R² > 0.99) between absorbance and probe concentration, demonstrating that all probes are molecularly dissolved. Then we detected the fluorescence response of probe TPE-M (10 μM) to different concentrations of Hg²⁺. As shown in Fig. 2, a gradually enhanced fluorescence emission band centered at 538 nm was observed upon stepwise addition of Hg²⁺ to the probe solution, and the fluorescence intensity leveled off after 1.5 equiv. of Hg²⁺ was used. The observed emission wavelength is quite similar to that of 4 in CH₃OH/PBS (20 mM, pH = 7.4) (3 : 7, v/v), suggesting the formation of aggregates of 4. DLS analysis of the Hg²⁺-treated TPE-M solution revealed the formation of aggregates with an average particle size of 419 nm (Fig. S4†), which is in good agreement with the DLS data of compound 4 solution. The titration results indicate that probe TPE-M has good sensing characteristics for Hg²⁺. Based on the titration curve, a satisfactory linear relationship (R² > 0.99) was obtained between the emission intensity (at 538 nm) and Hg²⁺ concentration (0 to 15 μM) (Fig. S5†). The detection limit of probe TPE-M for Hg²⁺ was estimated to be 4.157 × 10⁻⁶ M on the basis of signal to noise method (LOD = 3σ/k, σ is the standard deviation of the blank solution; k is the slope of the calibration curve). Time-course study shows that the response of probe TPE-M to Hg²⁺ (1.5 equiv.) is rapid and can be completed within 4 seconds (Fig. 3). The pseudo first-order reaction rate constant k is calculated to be 1.218 s⁻¹ according to the equation I_t = I_max + A × exp(−k × t) (I_t is the emission intensity at 538 nm at time t, and I_max is the maximum emission intensity at 538 nm),⁴⁷ indicating that probe TPE-M has potential real-time detection capability for Hg²⁺ ions.

Fig. 2 Changes of fluorescence spectrum of probe TPE-M (10 μM) in CH₃OH/PBS (20 mM, pH = 7.4) (3 : 7, v/v) on incremental addition of Hg²⁺ (0–15 μM). λ_ex = 395 nm.

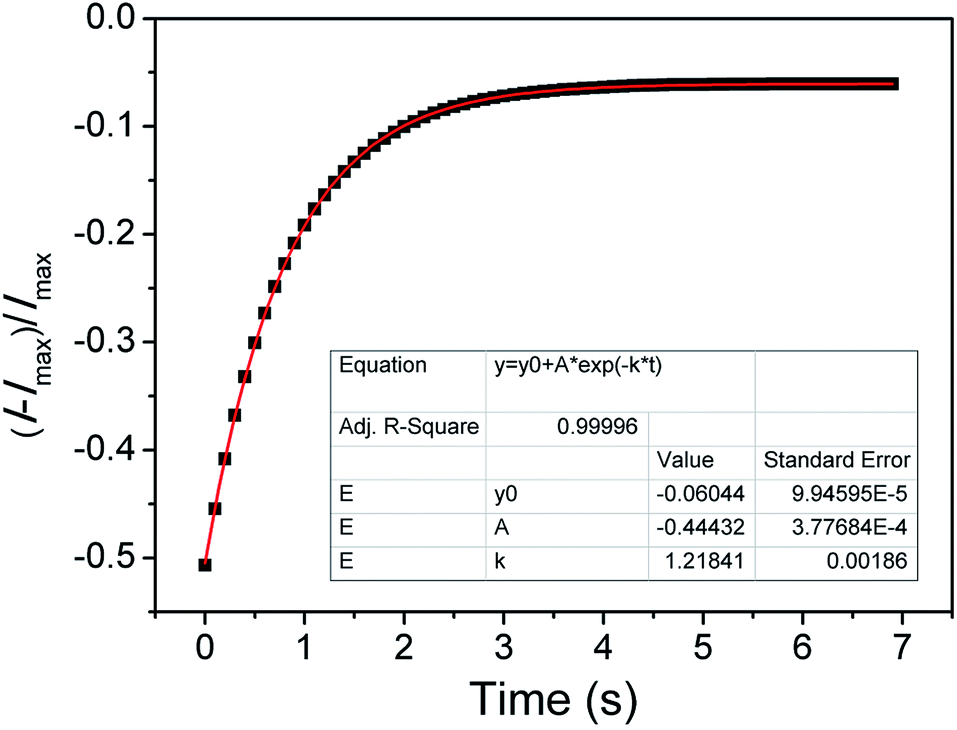

Fig. 3 Reaction kinetic study of TPE-M with Hg²⁺ under pseudo first-order conditions.

In order to further confirm the selectivity of probe TPE-M to Hg²⁺, the fluorescence spectra of probe TPE-M in the presence of different metal ions (including Cu²⁺, Co²⁺, Zn²⁺, Cd²⁺, Cr³⁺, Fe³⁺, Sr²⁺, Na⁺, Hg²⁺, Ag⁺, Pb²⁺, Mn²⁺, Al³⁺, K⁺, Ni²⁺, Ba²⁺, Mg²⁺, Fe²⁺ and Ca²⁺, 1.5 equiv. for each metal ion) were subsequently explored (Fig. 4). Except for Hg²⁺, other tested metal ions caused a minor or negligible fluorescence enhancement. It is noteworthy that addition of Ag⁺ or Pb²⁺ also elicits a slight fluorescence enhancement at 538 nm. The Ag⁺-induced fluorescence enhancement can be attributed to the Ag⁺-triggered hydrolysis of probe TPE-M, which is similar to our previous result.⁴⁴ Since Ag⁺ and Cl⁻ are prone to form insoluble AgCl, no Ag⁺ ion at the micromole level can be found under physiological conditions (containing Cl⁻ ions at the millimole level). The Pb²⁺-induced emission enhancement is most likely due to the Pb²⁺-triggered hydrolysis of TPE-M because of the sulfophilic property of Pb²⁺ ions.^48,49 Whereas, compared with the effect of Hg²⁺, the emission enhancement induced by Ag⁺ and Pb²⁺ are very weak. Therefore, the results suggest that probe TPE-M has excellent selectivity for Hg²⁺ over other tested metal ions.

Fig. 4 Fluorescence spectrum of probe TPE-M (10 μM) in CH₃OH/PBS (20 mM, pH = 7.4) (3 : 7, v/v) in the presence of 1.5 equiv. of various metal ions. λ_ex = 395 nm. Inset: fluorescence color changes of probe TPE-M before and after addition of Hg²⁺.

To get insight into the practical applicability of probe TPE-M, competitive experiments were them performed (Fig. 5). As shown in the Fig. 5, other coexisting metal ions did not significantly interfere with the recognition of Hg²⁺. We also investigated the effect of pH on the fluorescence intensity changes of TPE-M with and without Hg²⁺ (Fig. 6). Under alkaline conditions, significant fluorescence quenching of TPE-M + Hg²⁺ was observed, which may attributed to the generation of mercuric oxide coming from the reaction between OH⁻ and Hg²⁺,⁵⁰ this reaction prevented the Hg²⁺-triggered hydrolysis of dithioacetal group in the probe. The results show that probe TPE-M is suitable to detect Hg²⁺ under near neutral and weak alkaline conditions with pH range from 7.0 to 9.0.

Fig. 5 Change in fluorescence intensity of probe TPE-M (10 μM) in the presence of different metal ions (red bars) and further addition of Hg²⁺ (gray stripe). Metal ions were used as 15 μM.

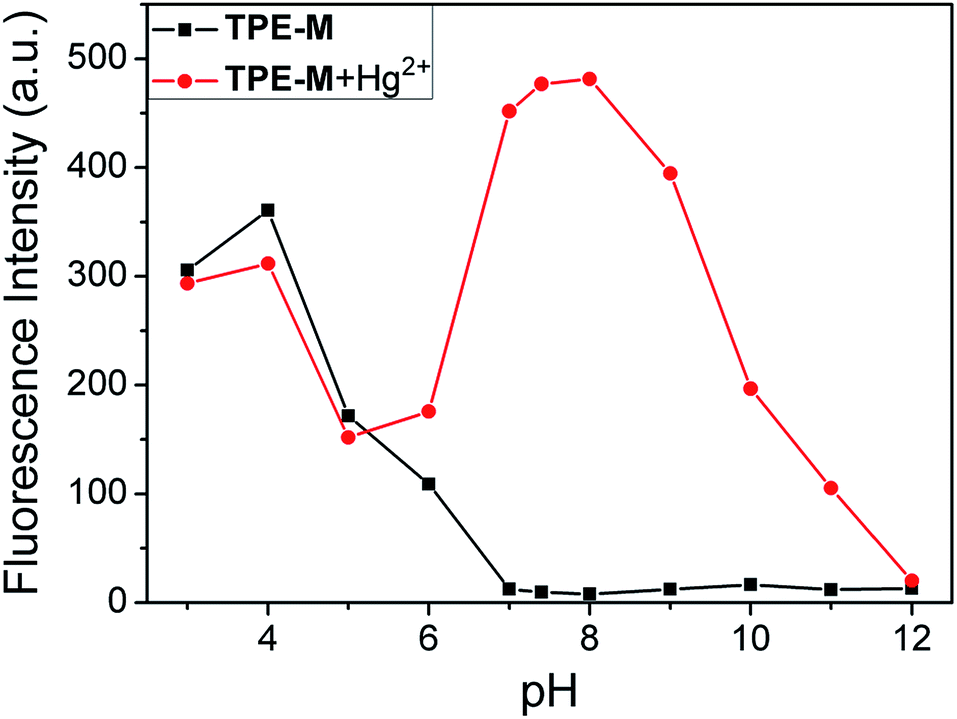

Fig. 6 Fluorescence intensity changes of probe TPE-M in the presence and absence of Hg²⁺ under different pH conditions.

Detection mechanism of TPE-M for Hg²⁺

To verify the proposed Hg²⁺-triggered hydrolysis of probe TPE-M to release compound 4, an additional reaction of TPE-M with Hg²⁺ was conducted, and the ¹H NMR spectrum of the separated product was compared with that of 4 (Fig. 7). The methine proton (H_b) signal of the dithioacetal moiety in TPE-M appeared at 5.31 ppm (Fig. 7C), this signal disappeared in the separated product (Fig. 7B). Concomitantly, a new proton signal appearing at 10.04 ppm (Fig. 7B) was observed, which is assignable to the aldehyde proton (H_a) of compound 4, and the aromatic proton signals (Fig. 7B) have a pattern similar to that compound 4 (Fig. 7A). The almost identical ¹H NMR spectra of the separated product and 4 demonstrate that reaction of TPE-M with Hg²⁺ indeed releasing 4. Another conclusive evidence for the formation of compound 4 was from the HRMS analysis of probe TPE-M + Hg²⁺ solution (Fig. S6†). The peak appearing at m/z = 713.4981 can be assigned to the species of [4 + 7CH₃OH–H]⁻ (calcd m/z = 713.3695), indicating the formation of compound 4. These results indicate that probe TPE-M is transformed into 4 on interaction with adding Hg²⁺ ions. The released AIE-active compound 4 aggregates in the detection medium, which is the reason for the observed fluorescence. The detection mechanism of probe TPE-M for Hg²⁺ is shown in Scheme 2.

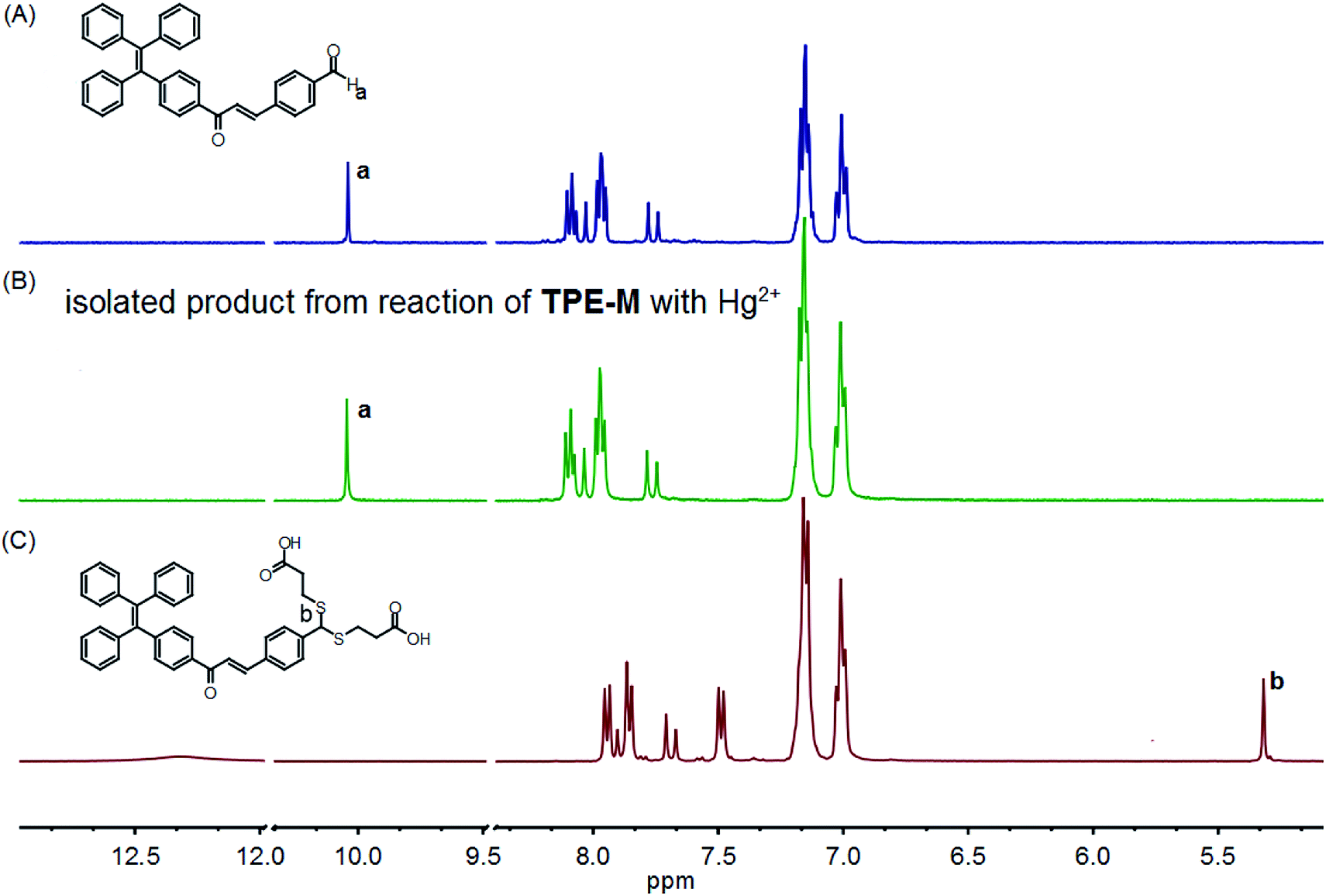

Fig. 7 Comparison of partial ¹H NMR spectra of compound 4 (A), isolated product from reaction of TPE-M with Hg²⁺ (B), and TPE-M (C) in DMSO-d₆.

Scheme 2 Detection mechanism of probe TPE-M for Hg²⁺.

Application of TPE-M for Hg²⁺ detection in real samples

To further explore the potential applicability of TPE-M, we examined its utility for Hg²⁺ detection in some food samples including crabs, shrimps and teas. Firstly, the pretreated shrimp or crab sample solution (the detailed procedures for sample pretreatment are described in ESI†) was mixed with methanol with 7 : 3 volume ratio, and spiked with different concentrations of Hg²⁺. Then 10 μM of probe TPE-M was added to the Hg²⁺ spiked solutions and the fluorescence spectra were measured. As shown in Fig. 8A, the fluorescence intensity of the samples displayed good linear relationships against the added Hg²⁺ concentration, and the relevant calculations are shown in Table 1. It can be seen that the recoveries measured are between 93.47% and 105.4%, and the relative standard deviations (RSDs) are less than 2%, and the relative errors are less than 6.53%. The addition amount of Hg²⁺ and the measured value reach a good consistency, indicating that the analysis of Hg²⁺ in the seafood samples is reliable and feasible.

Fig. 8 Detection of Hg²⁺ in crab and shrimp (A) and tea (B) samples by probe TPE-M.

Table 1 Application of TPE-M in determination of Hg²⁺ in seafood samples

Sample	Added (μM)	Detect (μM)	RSD (%)	Recovery (%)	Relative error (%)
Shrimp	5.0	4.67	1.45	93.47	6.53
	8.0	8.43	0.71	105.40	5.40
	15.0	14.53	2.00	96.85	3.15
Crab	5.0	5.20	1.20	104.10	4.10
	8.0	7.95	1.26	99.32	0.68
	15.0	15.33	1.52	102.20	2.20

---

Subsequently, each tea sample was mixed with methanol at 7 : 3 volume ratios, and different concentrations of Hg²⁺ were added thereto, and then detected by probe TPE-M. As shown in Fig. 8B, the fluorescence intensity of the probe in the real sample showed good linear relationships versus the spiked Hg²⁺ concentration, and the relevant calculations are shown in Table 2. The results show that the measured recoveries are between 95.44% and 109.35%, the relative standard deviations (RSDs) are less than 1.78%, and the relative errors are less than 9.35%. These results demonstrate that probe TPE-M can be used to detect Hg²⁺ in real tea samples.

Table 2 Application of TPE-M in determination of Hg²⁺ in tea samples

Sample	Added (μM)	Detect (μM)	RSD (%)	Recovery (%)	Relative error (%)
Tea 1	6.0	6.02	0.16	100.41	0.41
	9.0	8.59	0.27	95.44	4.56
	14.0	14.64	0.71	104.54	4.54
Tea 2	6.0	6.19	1.17	103.16	3.16
	9.0	8.95	0.50	99.49	0.51
	14.0	14.49	0.09	103.47	3.47
Tea 3	6.0	6.56	0.80	109.35	9.35
	9.0	9.46	1.78	105.08	5.08
	14.0	14.16	0.62	101.10	1.15

---

Conclusion

In summary, we reported a new tetraphenylethene-derived fluorescent probe TPE-M for Hg²⁺ detection in CH₃OH/PBS (20 mM, pH = 7.4) (3 : 7, v/v) solution. On treatment of non-emissive probe TPE-M solution with Hg²⁺, an AIE-active compound 4 is released and elicits a noticeable fluorescence enhancement. The Hg²⁺ recognition event holds the advantages of rapid response, high selectivity and sensitivity, strong anti-interference ability, and a low detection limit. In addition, TPE-M can be applied to detect Hg²⁺ in real food samples including shrimp, crab and teas, advocating the practical applicability of TPE-M.
