Synergistic degradation of PNP via coupling H₂O₂ with persulfate catalyzed by nano zero valent iron

Abstract

H₂O₂ and persulfate (PDS) activated by iron are attracting much attention due to their strong oxidation capacity for the effective degradation of organic pollutants. However, they face problems such as requiring an acidic reaction pH and difficulty of Fe²⁺ regeneration. In this study, the simultaneous activation of H₂O₂ and persulfate by nanoscaled zero valent iron (nZVI) was investigated for the degradation of p-nitrophenol (PNP). The nZVI/H₂O₂/PDS oxidation system exhibited significantly higher reactivity toward PNP degradation than the systems with a single oxidant. A synergistic effect was explored between H₂O₂ and PDS during nZVI-mediated activation, and the molar ratio of H₂O₂/PDS was a key parameter in optimizing the performance of PNP degradation. The nZVI/H₂O₂/PDS system could function well in a wide pH range, and even 95% PNP was removed at an initial pH 10, thus markedly alleviating the pH limitations of Fenton-like processes. Both hydroxyl radicals and sulfate radicals could be identified during H₂O₂/PDS activation, in which H⁺ produced during PDS decomposition promoted H₂O₂ activation. The increase of oxidant concentration could significantly enhance the PNP degradation, while the presence of HCO₃⁻ and HPO₄²⁻ exerted great inhibition. Furthermore, five degradation intermediates of PNP were detected and its degradation pathways in the nZVI/H₂O₂/PDS system were presented. This study reveals that the simultaneous activation of H₂O₂ and PDS by nZVI is a promising advanced oxidation tool as an alternative to typical Fenton processes for recalcitrant pollutant removal.

---

1. Introduction

Rapid industrial development produces huge amounts of wastewater containing lots of hazardous non-biodegradable pollutants. As a widely used raw chemical material, p-nitrophenol (PNP) is of high toxicity and difficult to biodegrade, meaning that it can remain in the environment for a long time.¹ Untreated emissions of PNP will definitely cause water pollution and bring serious risk to the ecosystem and human health.² Therefore, it is crucial to develop effective techniques for rapidly and efficiently eradicating PNP present in contaminated environments. Therein, Fenton and Fenton-like processes (AOPs) have been considered as effective pathways for the degradation of a variety of hazardous and bio-refractory organics during the last decades.^3,4

Zero valent iron (ZVI) is a well-known Fenton-like catalyst for the treatment of variety of refractory organics due to several benefits, such as cheap price and benign environmental nature.⁵ Typically, ZVI can provide Fe²⁺ ions to activate H₂O₂ generating hydroxyl radicals (·OH) through the routes presented by eqn (1)–(4). However, in case of micrometric ZVI powder applied,⁶ the reactions represented by eqn (1) and (2) are slow in nature because of the low material reactivity.⁷ Thus, to alleviate the limitation of ZVI/H₂O₂ system, a number of studies were carried out with incorporating additional setup such as ultrasound and heat^8,9 to speed up the electron transfer process. Besides, nano-scaled ZVI (nZVI) was also frequently studied as an alternative Fenton-like activator because of its much higher reactivity with versatile functions for contaminants removal.¹⁰ However, no matter micro- or nano-ZVI was applied, the activation of H₂O₂ should still be initiated under acidic conditions.

2Fe⁰ + O₂ + 2H₂O → 2Fe²⁺ + 4OH⁻ (1)

Fe⁰ + 2H⁺ → Fe²⁺ + H₂ (2)

Fe²⁺ + H₂O₂ → Fe³⁺ + ·OH + OH⁻ (3)

Fe³⁺ + H₂O₂ → Fe²⁺ + ·OOH + H⁺ (4)

Alternatively, the activation of persulfate (PDS) with production of sulfate radicals (SO₄˙⁻) has gained wide attentions in recent years. In comparison with H₂O₂-based Fenton-like processes, PDS can be effectively activated in a wide pH range as represented by eqn (5) and (6), and SO₄˙⁻ possesses a better selectivity on pollutants oxidation. However, unlike the ZVI/H₂O₂ system that the formed Fe³⁺ can get reduced to Fe²⁺ by H₂O₂ (eqn (4)), the Fe³⁺ generated in eqn (3) is quite more stable in ZVI/PDS system, which becomes the main cause of ceasing of activation reaction as well as the generation of more iron sludge.^11,12 Recently, some studies reported the simultaneous activation of H₂O₂ and PDS, which might exert synergistic effect to alleviate the faced drawbacks as they used alone. Monteagudo et al. studied the activation of persulfate in assistant of UV–Fe²⁺–H₂O₂, and found that the PDS activated by UV/Fe²⁺/H₂O₂ presented significantly higher efficiency for carbamazepine degradation compared to other systems including PDS/Fe²⁺, PDS/UV and H₂O₂/PDS.¹³ However, without the assistant of UV irradiation, the synergistic role between H₂O₂ and PDS would be greatly hindered, as reported by Dulova et al.,^14,15 that traditional Fenton process showed higher efficacy for the antibiotic degradation than the combined Fe²⁺/H₂O₂/PDS system. The possible radicals quenching might be induced by an excessive addition of ferrous ions. As an alternative, zero valent iron can act as an activator with capacity of controllable ferrous release. Li et al. investigated the coupling of micrometric Fe⁰ with H₂O₂/PDS for the degradation of p-nitrophenol, and their results supported the significantly higher efficacy of the combined Fe⁰/H₂O₂/PDS system than that obtained with single oxidant.¹⁶ As concluded, the promoted iron corrosion and also alleviated Fe⁰ passivation both contributed to the synergistic effect in the Fe⁰/H₂O₂/PDS process. However, the effect of solution pH and the role of PDS on radical generation was not fully evaluated. Since Fenton-like reactions were pH-dependent processes, the interplay between H₂O₂ and PDS with various ratio would be remarkably affected under different pH conditions. In addition, the catalytic performance of nano-scaled ZVI for simultaneous activation of H₂O₂ and PDS is necessary to be explored given that nZVI is extensively applied for water remediation and acts very different reactive feature compared to micrometric ZVI and ferrous ions.

S₂O₈²⁻ + Fe²⁺ → SO₄˙⁻ + Fe³⁺ + SO₄²⁻ (5)

2S₂O₈²⁻ + Fe⁰ → 2SO₄˙⁻ + Fe²⁺ + 2SO₄²⁻ (6)

In order to overcome the variety of limitations encountered both in nZVI/H₂O₂ and nZVI/PDS system, joint venture of nZVI/H₂O₂/PDS might be a possible solution providing synergetic degradation of organic by combining nZVI, H₂O₂ and persulfate. Furthermore, the role and catalytic mechanism of H₂O₂ and persulfate during simultaneous activation in the combined system should be further specified. Therefore, the objective of this study was to (1) explore and compare the performance evaluation of PNP degradation in nZVI/H₂O₂, nZVI/PDS, and the nZVI/H₂O₂/PDS systems; (2) to optimize key parameters involved in combined nZVI/H₂O₂/PDS process; (3) to reveal the synergistic effects existed in case of the combined nZVI/H₂O₂/PDS system; (4) to propose the possible degradation pathway of PNP as well as the mechanism involved in nZVI/H₂O₂/PDS combined system.

2. Materials and experimental procedure

2.1 Chemicals and reagents

NaBH₄, FeSO₄·7H₂O and p-nitrophenol were bought from Aladdin company. 5,5-Dimethylpyrroline-N-oxide (DMPO), sodium peroxydisulfate (PDS, Na₂S₂O₈) were supplied by Sigma-Aldrich. Methanol (MeOH) and acetic acid in HPLC-grade were obtained from Fisher Scientific, and other chemicals were provided by Sinopharm with analytical grade. All reagents were prepared by ultrapure water (18.2 MΩ cm⁻¹). The nano-scaled zero valent iron (nZVI) particles were fabricated by reducing FeSO₄·7H₂O with NaBH under nitrogen protection based on our previous report.¹⁷

2.2 Degradation experiments

To carry out the degradation experiments, a certain amount of PDS and H₂O₂ stock solution was spiked into p-nitrophenol (100 mL, 20 ppm, equal to 0.1438 mmol L⁻¹) in 250 mL glass conical flasks. The initial solution pH was adjusted using NaOH or H₂SO₄ to reach desired condition. The reactions were initiated by adding predetermined dosage of nZVI particles. The mixed reactants were stirred using a mechanical stirrer in fixed speed to maintain a good mixture. The effects of water matrices were investigated with addition of designated level of inorganic salts. At scheduled time intervals, 1 mL liquid samples were withdrawn from the reaction system, and well-mixed with 1 mL of methanol to stop the further p-nitrophenol oxidation initiated by reactive radicals. Then the mixed samples were immediately filtered through 0.45 μm syringe filters for HPLC measurement. To evaluate the production of hydroxyl radicals (·OH) during the reaction, benzoic acid (BA) was adopted as the substrate instead of PNP, and the generated p-hydroxybenzoic acid (p-HBA) was recorded as the ·OH indicator. As to monitor the aqueous concentration of iron ions, PDS and H₂O₂, samples were taken, filtered and analyzed immediately. Each batch test was carried out at least duplicate runs, while the average results and the standard deviations were calculated and presented in the figures.

2.3 Analytical procedures

The concentration of residual PNP was tested using RIGOL L-3000 HPLC system installed with a Compass C18 column (5 μm, 4.6 × 250 mm). Mobile phase was a mixture of methanol and 1% acetic acid at a ratio of 42 : 58 (v/v). The flow rate of mobile phase was fixed at 1.0 mL min⁻¹, and the λ_max of PNP was determined at 317 nm. The formed p-HBA was measured by HPLC at 270 nm applying a combination of 0.65% TFA and acetonitrile (65 : 35 v/v) as the mobile phase. In addition, the amounts of leached Fe ions were detected by atomic adsorption spectrometer. The concentration of H₂O₂ was analyzed at 405 nm on a spectrophotometer after chromogenic reaction with titanium sulfate.¹⁸ The total concentration of H₂O₂/PDS in the dual oxidants system or the concentration of PDS in single oxidant system was monitored using iodometric titration method at a detection wavelength of 350 nm because both PDS and H₂O₂ can oxidize iodide to iodine.¹⁹ Thus the residual amount of PDS in the nZVI/H₂O₂/PDS system was quantified as the difference value between H₂O₂/PDS and H₂O₂. As to determine reactive radicals generated by interaction between nZVI and oxidants, aqueous samples were immediately withdrawn and filtered from the reaction system, mixed with DMPO, and analyzed on an EPR (JES-FA200, Hitachi) spectrometer. The identification and quantitation of the PNP intermediates were performed on an LC tandem mass spectrometry Q Exactive™ Hybrid Quadrupole-Orbitrap™ (LC-HRMS, Thermo Scientific, Bremen, Germany) equipped with an ESI (electrospray ionization) mode. The mobile phase started with 5/95 (v/v) acetonitrile/water and a flow rate of 0.2 mL min⁻¹. The mass spectra were recorded in electron-impact (EI) mode in a range of 60–750 m/z for qualitative analysis.

3. Results and discussion

3.1 Characterization of nZVI particles

The morphology of as-prepared nZVI shows that the nZVI particles have rough spherical shape and are present in chain-like aggregated form in nanoscaled size range (Fig. S1†). The XRD technique was also applied in order to evaluate the degree of crystallinity as well as the speciation for as-prepared nZVI particles. The two dominant diffraction peaks (Fig. S2†) at 2θ position of 44.68° (110) and 65.03° (200) were assigned to the typical orientation of α-Fe, supporting the higher purity and crystalline structure of nZVI particles.

3.2 Application of nZVI for catalytic degradation of PNP

As presented in Fig. 1, the PNP degradation performance in the various systems, including H₂O₂/PDS alone, nZVI alone, nZVI/PDS, nZVI/H₂O₂ and nZVI/H₂O₂/PDS, were investigated during the batch experiments. It was noticed that negligible amount of PNP was degraded when H₂O₂/persulfate were applied alone without nZVI, demonstrating the poor oxidation ability of non-activated H₂O₂ or PDS.²⁰ In case of nZVI alone, almost 51% of total PNP removal was noticed which was attributed to reductive capability of as-prepared nZVI nanoparticles. The nitryl group of PNP was reduced to amino with generation of p-aminophenol.²¹ However, it was noted that the PNP removal rate achieved by nZVI alone was even higher than that obtained by nZVI/H₂O₂. A sudden removal of 24% of PNP by nZVI/H₂O₂ was observed in the first minute followed by rarely slow degradation within the rest reaction times. Since it is well-known that the activation of H₂O₂ by Fe²⁺ or Fe⁰ suffers the limitation of acidic reaction condition, the initial neutral condition in the present study may not be suitable to motivate the oxidative capability of the nZVI/H₂O₂.

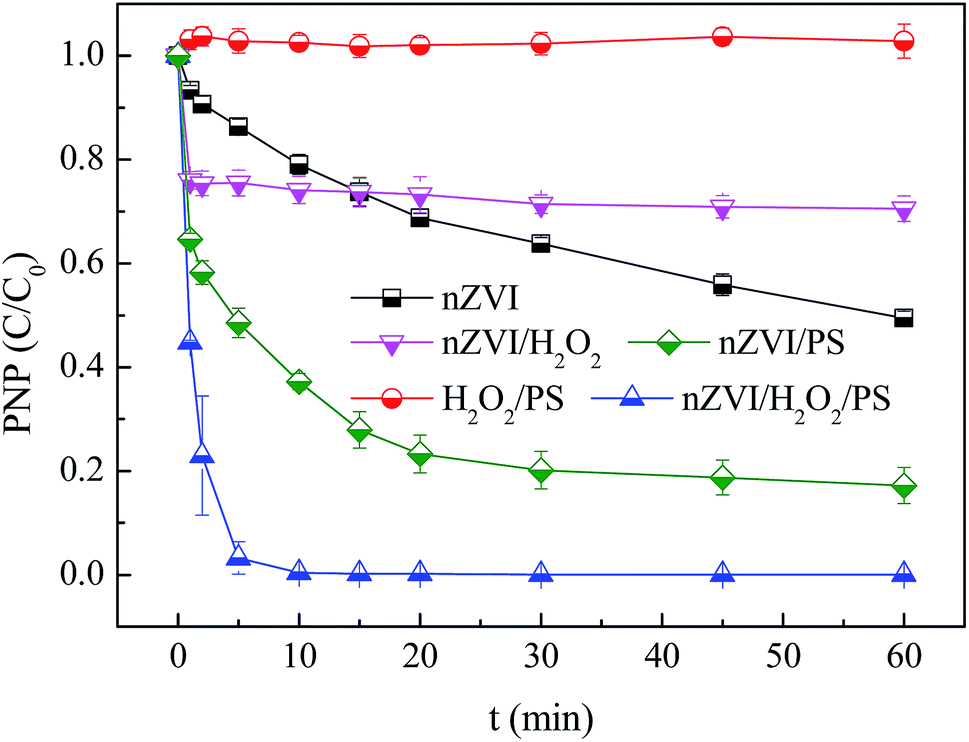

Fig. 1 Degradation of PNP in different reaction systems. Reaction condition: [PNP]₀ = 20 mg L⁻¹, [H₂O₂]₀ = 2 mmol L⁻¹, [PDS]₀ = 2 mmol L⁻¹, [H₂O₂/PDS]₀ = 2 mmol L⁻¹, [nZVI]₀ = 0.2 g L⁻¹, initial pH = 7. Note: in the nZVI/H₂O₂/PDS system, the molar ratio of H₂O₂/PDS was 1.

In comparison, relatively higher PNP degradation (83% in 60 min) was monitored in case of nZVI/PDS than nZVI/H₂O₂. This observation can be described by rapid formation of ROSs from PDS activation and sudden generation of ferric species (Fe³⁺) as prescribed by equations scheme given by eqn (5). Similar findings were reported in literatures which confirmed the higher effectiveness of PDS than H₂O₂ during ferrous ion-activated degradation of levofloxacin.²² On contrary, rapid and complete PNP degradation was accomplished in the reaction system combining nZVI with H₂O₂/PDS dual oxidants. These results supplied the evidence of the synergistic effect between H₂O₂ and PDS as they were activated by nZVI particles.

The residual concentration of oxidants applied during Fenton process was monitored for all nZVI/PDS, nZVI/H₂O₂ and nZVI/H₂O₂/PDS systems. As depicted in Fig. 2, significant amount of H₂O₂ was not consumed and remained in solution of the nZVI/H₂O₂ system. On the one hand, fewer of Fe²⁺ ions were produced on nZVI surface in neutral condition resulting in slower H₂O₂ decomposition mediated by ferrous.²³ On the other hand, since PNP was not effectively degraded by nZVI/H₂O₂ under the neutral conditions, H₂O₂ was only decomposed on the nZVI surface without generating reactive radical spices. In contrast, the oxidants detected in nZVI/PDS and nZVI/H₂O₂/PDS systems were consumed very fast and negligible amount of residual oxidants remained in solution after 10–15 min reaction. Additionally, it was noticed that the maximum consumption of oxidants occurred in presence of PDS which would decompose and generate H⁺ protons to accelerate nZVI corrosion and in turn promote H₂O₂ activation. This confirmed that both nZVI/PDS and nZVI/H₂O₂/PDS were more applicable over nZVI/H₂O₂ Fenton-like system under neutral conditions.

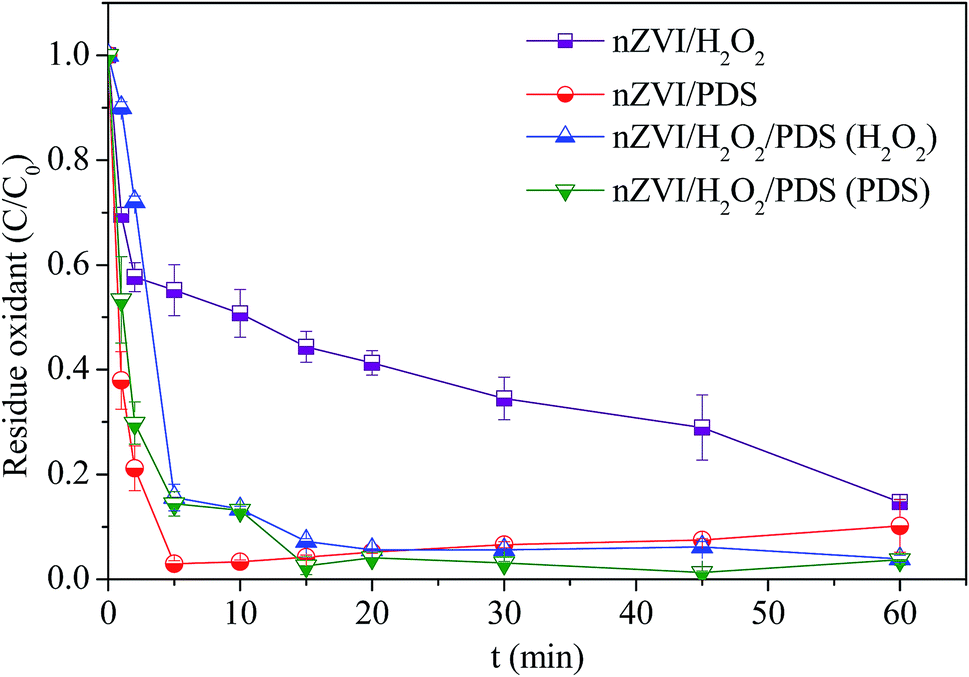

Fig. 2 Oxidants consumption in nZVI/H₂O₂, nZVI/PDS and nZVI/H₂O₂/PDS systems. Reaction condition: [nZVI]₀ = 0.2 g L⁻¹, [PNP]₀ = 20 mg L⁻¹, [PDS]₀ = [H₂O₂]₀ = 2 mM, [H₂O₂/PDS (1 : 1)]₀ = 2 mmol L⁻¹, initial pH = 7.

In order to distinguish different radicals generated in the nZVI/H₂O₂, nZVI/PDS and nZVI/H₂O₂/PDS systems, the EPR spectra were monitored by using DMPO as spin trap during the reactions. As given in Fig. 3(a), the formation of ·OH radicals was supported by strong DMPO-OH signal in nZVI/H₂O₂ system. However, for both nZVI/PDS and nZVI/H₂O₂/PDS systems, seven peaks referred to DMPOX adduct were detected, and significantly stronger spectrum intensity was observed in the dual oxidation system. DMPOX was the final adduct obtained as a result of SO₄˙⁻-assisted oxidation of DMPO or DMPO-OH, because DMPO/SO₄˙⁻ was highly unstable and directly converted to DMPOX. In addition, this DMPOX pattern in the dual oxidation system was not monitored before adding nZVI catalyst (Fig. S3†), indicating the essential role of nZVI for the production of reactive radicals. The DMPOX generated and remained strong during the first several minutes, but vanished after 10 min reaction. This was consistent with the variation of oxidants concentration as shown in Fig. 2 that most of H₂O₂/PDS were consumed after 10 min reaction. The formation of DMPOX supported the involvement of SO₄˙⁻ radicals generated as a result of PDS activation for PNP degradation route. The presence of ·OH in the nZVI/H₂O₂/PDS system was further evidenced using benzoic acid (BA) as the probe, which would transform to p-hydroxybenzoic acid (p-HBA) by reaction with ·OH. As displayed in Fig. S4,† the concentration of generated p-HBA increased notably along the time profile, implying the significant production of ·OH during simultaneous H₂O₂/PDS activation.

Fig. 3 (a) EPR spectra obtained for nZVI/H₂O₂, nZVI/PDS and nZVI/PDS/H₂O₂ systems; (b) degradation of PNP in the nZVI/PDS/H₂O₂ system with addition of MeOH and TBA. Reaction condition: [nZVI]₀ = 0.2 g L⁻¹, [PNP]₀ = 20 mg L⁻¹, [PDS]₀ = [H₂O₂]₀ = 2 mM, [H₂O₂/PDS (1 : 1)]₀ = 2 mmol L⁻¹, [MeOH or TBA]₀ = 1000 mmol L⁻¹.

To further ensure the role of ·OH and SO₄˙⁻ towards PNP degradation, quenching tests with chemical probes were further performed. In specific, tert-butyl alcohol (TBA) without α-hydrogen was added as a scavenger for ·OH radicals due to its tendency to react faster with ·OH than SO₄˙⁻ radicals. In addition, methanol (MeOH) with α-hydrogen is commonly utilized as a quenching reagent for both SO₄˙⁻ and ·OH radicals. As shown in Fig. 3(b), the great decrease in PNP degradation was noticed when 1000 mmol L⁻¹ alcohols (alcohol : PDS = 500 : 1) were added into the nZVI/H₂O₂/PDS system. MeOH exhibited a slightly higher inhibition rate on PNP degradation compared to TBA, indicating that both SO₄˙⁻ and ·OH were predominant radicals in the nZVI/H₂O₂/PDS system.

3.3 Effect of pH

The effect of initial pH on the removal efficiency of PNP was investigated based on different reaction systems, including nZVI/H₂O₂, nZVI/PDS and nZVI/H₂O₂/PDS with different molar ratio between H₂O₂ and PDS. As shown in Fig. 4, the pH range of 3–10 was adopted to evaluate the performance for all Fenton-like systems. The system of nZVI/H₂O₂ exhibited an extremely high efficiency for PNP degradation at initial pH 3 that complete PNP removal was achieved within 5 min reaction. However, its performance at pH 5, pH 7 and pH 10 was unsatisfied due to its intrinsic pH limitation.²⁴ On contrary, the PNP degradation by nZVI/PDS was slightly affected by the initial solution pH. Overall 80% of PNP could be removed within 60 min reaction in the nZVI/PDS system while changing initial pH from 3 to 10. These results were consistent with some early studies that persulfate oxidation of PNP was not sensitive to the variation of solution pH.^25,26 According to the above results, nZVI/H₂O₂ possessed a stronger oxidation ability towards PNP than that obtained by nZVI/PDS under optimized pH conditions (pH = 3). This might be due to the generation of different ROSs from nZVI/H₂O₂ and nZVI/PDS, resulting in dissimilar reactivity to PNP compound. For the combined system of nZVI/H₂O₂/PDS, PNP could be rapidly and completely degraded within the first 10 min in both acidic and neutral conditions, while this process became significantly slower in alkaline environment at pH 10. In addition, the maximum PNP removal was noticed when 1 : 1 ratio of H₂O₂–PDS was employed than others H₂O₂–PDS ratios such as 1 : 3 and 3 : 1 when different oxidants ratios were adopted. These results indicated that the simultaneous activation of H₂O₂ and PDS by nZVI exhibited better application potential for pH variation and synergistic effect on PNP degradation compared to the systems with single oxidant.

Fig. 4 PNP degradation in different oxidation systems with different initial pH (a) pH = 3, (b) pH = 5, (c) pH = 7, (d) pH = 10. Reaction condition: [nZVI]₀ = 0.2 g L⁻¹, [PNP]₀ = 20 mg L⁻¹, [H₂O₂]₀ = 2 mmol L⁻¹, [PDS]₀ = 2 mmol L⁻¹, [H₂O₂/PDS]₀ = 2 mmol L⁻¹.

Table 1 presents the value of solution pH before and after the reactions. It was noted that the pH value kept stable for the system of nZVI/H₂O₂, but decreased remarkably to the range of 3–4 for the system of nZVI/PDS no matter the initial pH was 3 or 10. This pH transformation was likely to promote the H₂O₂-based Fenton-like degradation of PNP in the nZVI/H₂O₂/PDS dual oxidants system. In neutral or alkaline conditions, PDS would be first activated by nZVI along with the decrease of solution pH to 3–4 at which H₂O₂ activation was sequentially initiated for further PNP oxidation. Therefore, the optimum ratio between H₂O₂ and PDS was a key parameter for PNP degradation in view of efficiency, economy as well as environmental safety point since replacement of PDS by H₂O₂ would reduce SO₄²⁻ discharge to receiving water bodies.

Table 1 Results summarized for PNP degradation at different initial pH in various reaction systems^a

Reaction systems	H2O2 concentration (mmol L^−1)	PDS concentration (mmol L^−1)	pH (average value)		Removal rate of PNP
			Initial	Final
a The initial concentration of nZVI and PNP was 0.2 g L^−1 and 20 mg L^−1 (equal to 0.1438 mmol L^−1), respectively.
nZVI/H2O2	2.0	—	3.0	4.9	100%
nZVI/PDS	—	2.0	3.0	3.22	84.5%
nZVI/H2O2/PDS (3 : 1)	1.5	0.5	3.0	3.89	100%
nZVI/H2O2/PDS (1 : 1)	1.0	1.0	3.0	3.74	100%
nZVI/H2O2/PDS (1 : 3)	0.5	1.5	3.0	3.48	99.5%
nZVI/H2O2	2.0	—	5.07	6.38	39.1%
nZVI/PDS	—	2.0	5.07	3.17	84.3%
nZVI/H2O2/PDS (3 : 1)	1.5	0.5	5.07	3.97	100%
nZVI/H2O2/PDS (1 : 1)	1.0	1.0	5.07	3.43	100%
nZVI/H2O2/PDS (1 : 3)	0.5	1.5	5.07	3.24	99.6%
nZVI/H2O2	2.0	—	7.01	6.94	29.4%
nZVI/PDS	—	2.0	7.01	2.88	82.8%
nZVI/H2O2/PDS (3 : 1)	1.5	0.5	7.01	4.44	100%
nZVI/H2O2/PDS (1 : 1)	1.0	1.0	7.01	3.59	100%
nZVI/H2O2/PDS (1 : 3)	0.5	1.5	7.01	3.02	99.9%
nZVI/H2O2	2.0	—	9.96	8.47	16.9%
nZVI/PDS	—	2.0	9.96	3.34	76.7%
nZVI/H2O2/PDS (3 : 1)	1.5	0.5	9.96	6.1	23.5%
nZVI/H2O2/PDS (1 : 1)	1.0	1.0	9.96	3.45	94.9%
nZVI/H2O2/PDS (1 : 3)	0.5	1.5	9.96	3.52	61.9%

---

The activation of H₂O₂ and persulfate on nZVI would also result in iron release in some extent. Thus the release of Fe ions from nZVI in different reaction systems at initial pH 7 was further investigated. As depicted in Fig. 5, less Fe ions were released in the ZVI/H₂O₂ system, while over 90 mg L⁻¹ Fe irons escaped in the ZVI/PDS system. The acidic nature of PDS would promote iron corrosion and lead to high Fe ions release. For the systems with dual oxidants, as high as 71.8 mg L⁻¹ aqueous Fe ions were detected in terms of higher PDS proportion (PDS : H₂O₂ = 3 : 1), but about 20 mg L⁻¹ Fe ions released as the PDS/H₂O₂ ratios was 1 : 1 and 1 : 3. This was attributed to fast conversion of generated Fe³⁺ into Fe²⁺ in the presence of H₂O₂. In fact, the formation of inactive iron species including ferric ions as well as oxyhydroxides not only lead to nZVI passivation but also result in scavenge of the formed ·OH and SO₄˙⁻. However, the introduction of H₂O₂ into PDS-based oxidation systems could alleviate this drawback to some extent. As a summary, for all pH values including pH 3, the combination of H₂O₂ with PDS system depicted higher PNP removal than nZVI/H₂O₂ and nZVI/PDS systems, confirming the synergistic effect of the dual oxidant due to more feasible pH variation and iron release.

Fig. 5 Concentration of leached iron in nZVI/H₂O₂, nZVI/PDS and nZVI/H₂O₂/PDS systems. Reaction condition: [nZVI]₀ = 0.2 g L⁻¹, [PNP]₀ = 20 mg L⁻¹, [H₂O₂]₀ = [PDS]₀ = 2 mM, [H₂O₂/PDS (1 : 1)]₀ = 2 mmol L⁻¹, initial pH = 7.

3.4 Effect of oxidant dosage

In order to investigate the effect of combined use of oxidants H₂O₂ and PDS for the degradation of PNP, the different dosages of dual oxidants were taken from 0.5 mM to 1.0 mM by keeping the ratio constant at 1 : 1. It was noticed that the increase of H₂O₂/PDS dosage accelerated the degradation of PNP, and complete PNP removal could be observed as the total H₂O₂/PDS concentration increased over than 1.5 mM (Fig. 6). Even though it was reported that H₂O₂ was able to enhance PDS oxidation of pollutants, in which the combined persulfate/H₂O₂ based advanced oxidation process was implemented for the treatment of landfill leachate.²⁷ However, the PDS/H₂O₂ couple hardly degraded PNP in the present study. Therefore, the increase of oxidants induce more ROSs for PNP degradation because more PDS/H₂O₂ was catalytically activated on nZVI.

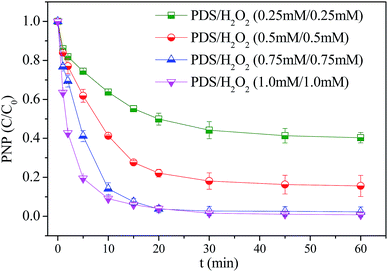

Fig. 6 PNP degradation in the nZVI/H₂O₂/PDS system with different oxidant dosage. Reaction condition: [nZVI]₀ = 0.2 g L⁻¹, [PNP]₀ = 20 mg L⁻¹, [H₂O₂]₀/[PDS]₀ = 1 : 1, initial pH = 7.

In comparison, different performances of nZVI/H₂O₂ and ZVI/PDS oxidation systems were observed with increasing oxidant dosage (Fig. S5†). Because of unavailable activation of H₂O₂ in neutral conditions, no improvement but decrease in PNP was monitored with the increase of H₂O₂ dosage in nZVI/H₂O₂ Fenton-like system. The maximum PNP removal was achieved when the H₂O₂ concentration was 0.5 mM. For the system of nZVI/PDS, the degradation of PNP was enhanced when the PDS dosage increased from 0.5 mM to 1.0 mM, but remained similar as further increase to 1.5 mM and 2.0 mM. It could be due to the limited ferrous and Fe⁰ active site to generate optimized or enough SO₄˙⁻ which boost up the PNP removal to some extent.

3.5 Effect of water matrices

The effect of inorganic ions normally available in real wastewater on PNP removal performance was investigated. The Cl⁻, HCO₃⁻, NO₃⁻, HPO₄²⁻ anions which were considered as most common water matrices were selected as probe ions. The experimental evidences revealed that HCO₃⁻ and HPO₄²⁻ anions were dominant water matrix affecting the PNP removal performance when compared with others anions encountered at optimized pH value 7. As shown in Fig. 7, unobvious change was noticed for PNP removal with the addition of Cl⁻ ions, indicating that Cl⁻ could not quench ·OH and SO₄˙⁻ species. Moreover, the slight decrease in PNP degradation was examined when NO₃⁻ was incorporated in the nZVI/H₂O₂/PDS dual oxidation system. Since NO₃⁻ ions was unable to form complexes with Fe²⁺/Fe³⁺ and also showed non-reactive nature for ·OH radicals.²⁸ This phenomenon could be assigned to the scavenging effect of NO₃⁻ on SO₄˙⁻ species given that they could react at a rate of 5.0 × 10⁴ M⁻¹ S⁻¹.^29,30 In case of HCO₃⁻, the profound inhibitory effect on PNP removal efficiency was monitored. This was attributed to scavenging reaction between ·OH/SO₄˙⁻ and HCO₃⁻, and also the nZVI passivation caused by precipitation with Fe²⁺/Fe³⁺. Similarly, for HPO₄²⁻ ions the remarkable inhibitory effect on PNP degradation was depicted because HPO₄²⁻ could complex with reactive Fe²⁺, therefore, competing the interaction with H₂O₂/PDS oxidants.³¹

Fig. 7 The effect of water matrices on PNP degradation in the nZVI/H₂O₂/PDS system. Reaction condition: [nZVI]₀ = 0.2 g L⁻¹, [PNP]₀ = 20 mg L⁻¹, [H₂O₂/PDS (1 : 1)]₀ = 2 mM.

3.6 Degradation pathways of PNP

Six intermediates were identified by LC-HRMS and their molecular structures were preliminarily speculated to further analyze the pathway of PNP decomposition. It can be seen from Table S1 and Fig. S6† that five corresponding byproducts were captured from the PNP oxidation via nZVI catalyzed H₂O₂/PDS. Fumaric acid, oxalic acid, 5-nitro-1,2,3-benzenetriol, p-nitrosophenol, 4-nitrocatechol, and 2,4-dinitrophenol were detected at the residence time of 2.02 min, 2.14 min, 3.70 min, 4.50 min and 8.33 min, respectively. Based on the above intermediates, the possible pathways of PNP degradation in the nZVI/H₂O₂/PDS system were proposed in Fig. 8. Firstly, hydroxyl radicals and sulfate radicals preferred to attack the nitro substituent on the benzene ring on account of high reaction rate and non-selectivity. It was postulated that PNP was denitrated with the production of phenol. However, phenol was not detected in the product, probably because the oxidation reaction was so fast that the formed phenols immediately attacked by residual free radicals in the system and converted to other products. Denitration reaction was accompanied by the generation of a large amount of nitro radicals, which further attacked the meta position of hydroxyl radicals on the benzene ring to form 2,4-dinitrophenol.^32,33 Secondly, in view of the strong electron-pushing ability and also the electrophilicity of hydroxyl radicals, it was more likely to undergo an additional hydroxylation reaction at the meta-position of the benzene ring, thereby producing 4-nitrocatechol. In addition, 4-nitrocatechol could further undergo electrophilic oxidation to form 5-nitro-1,2,3-benzenetriol. Furthermore, because of the strong reducing ability of nZVI, a part of the PNP in the reaction system could also be directly reduced on nZVI to form p-nitrosophenol. Finally, benzene rings of intermediates were opened and then oxidized to form small molecular organic acids, such as fumaric acid and oxalic acid, and finally mineralized into CO₂ and H₂O.

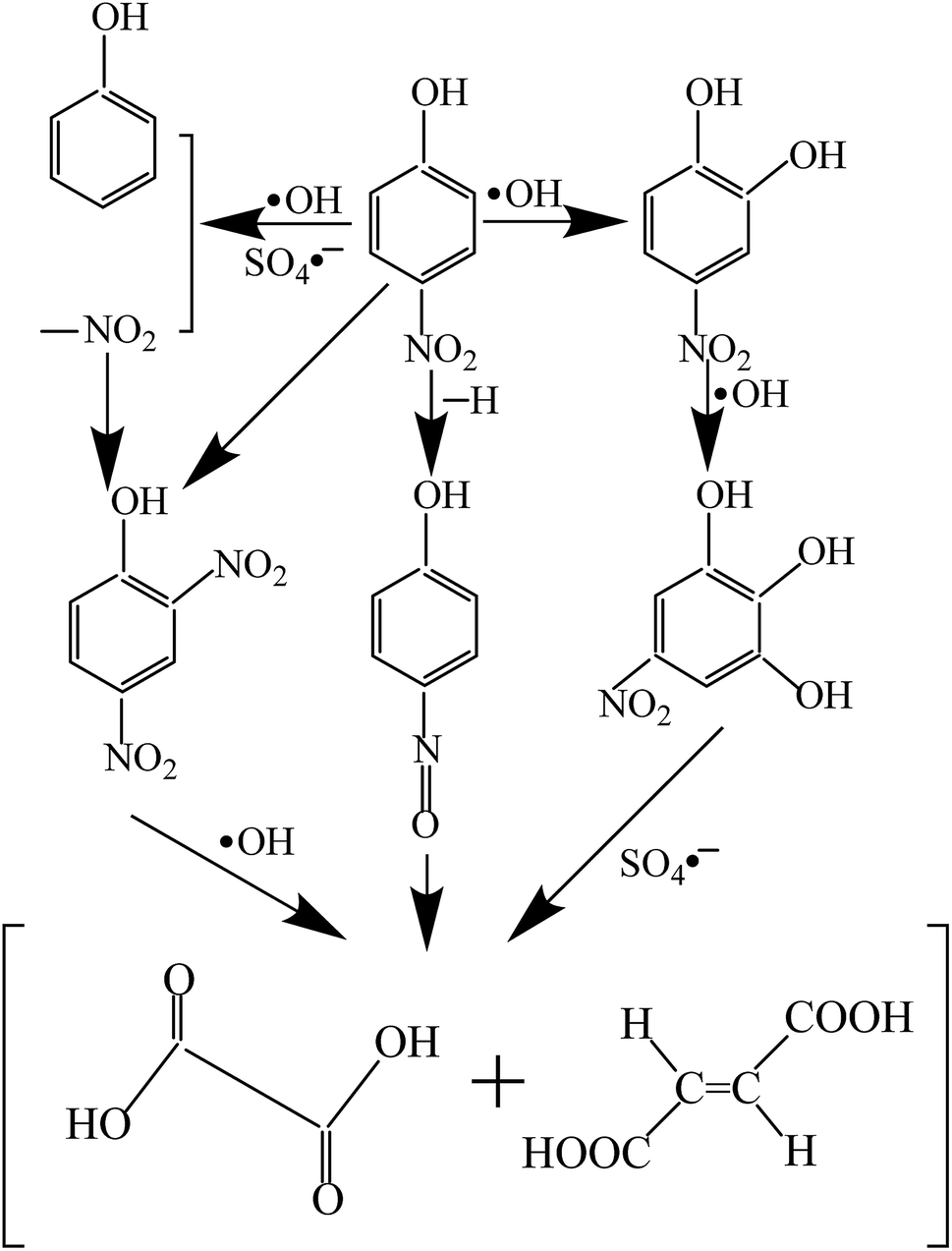

Fig. 8 Possible reaction pathways of PNP degradation in the nZVI/H₂O₂/PDS dual oxidation system.

3.7 Implications of the synergistic effect between H₂O₂ and PDS

The instructive implications of the present study will be beneficial for the improvement and optimization of typical H₂O₂-based or PDS-based advanced oxidation processes as elucidated in Fig. 9. As for the nZVI/H₂O₂ Fenton-like reaction, the oxidative degradation of recalcitrant pollutants by ·OH should be typically carried out in narrow pH conditions,³⁴ especially at pH 3. The reaction between nZVI and H₂O₂ under improper pH condition would result in invalid H₂O₂ decomposition. In contrast, the activation of PDS by nZVI with generation of SO₄˙⁻ could be conducted in a wide pH range, but producing too much H⁺ protons thus remarkably decrease the solution pH. Therefore, their distinct features comprised H₂O₂ and PDS as a complementary group.

Fig. 9 Proposed mechanisms for simultaneous activation of H₂O₂/PDS with nZVI as the activator.

At pH 3, both H₂O₂ and PDS could be easily activated by nZVI in the nZVI/H₂O₂/PDS system for the degradation of PNP. However, in neutral or alkaline conditions, nZVI/H₂O₂ could hardly run so that only PDS was activated during the initial stage. The H⁺ protons produced from catalytic PDS activation would decrease solution pH to acidic condition (pH 3–4) and facilitate further activation of H₂O₂ with ·OH formation. Meanwhile, the corrosion of nZVI induced by PDS oxidation was accompanied by the concomitant production of a mass of Fe³⁺. However, significant amount of these Fe³⁺ could be reduced to Fe²⁺ by H₂O₂ as evidenced in Fig. 5, in turn promoted the PDS or H₂O₂ activation.¹⁴

In addition, even though both ·OH and SO₄˙⁻ possess high oxidizing capacity, SO₄˙⁻ is more likely to degrade organic pollutants via electron transfer while ·OH prefers to nucleophilic attack by hydroxylation and H abstraction. For example, the degradation of PNP by ·OH mainly generated intermediates including hydroquinone, benzoquinone and multi-hydroxy benzene as reported previously.³ However, it was demonstrated that the processes of denitration and renitration were more frequently occurred during the SO₄˙⁻-mediated degradation of nitrobenzene.³⁵ Therefore, the coexistence of comparable amount of SO₄˙⁻ and ·OH from the simultaneous activation of H₂O₂ and PDS would initiate a multi-radical attack and resulted in a more efficient or complete PNP degradation.

4. Conclusion

This study investigated the simultaneous activation of H₂O₂ and PDS using nZVI as the activator for the degradation of PNP. Compared to nZVI, nZVI/H₂O₂ and nZVI/PDS systems, the nZVI/H₂O₂/PDS oxidation system exhibited significantly higher efficiency towards PNP degradation proving the synergistic effect between H₂O₂ and PDS. Effect of pH on PNP degradation indicated that the nZVI/H₂O₂ process could only successfully run at pH 3, while the nZVI/PDS system was not sensitive to pH variation. Conversely, the join of PDS accelerated the activation of H₂O₂ by producing H⁺, and enable the nZVI/H₂O₂/PDS system to proceed efficient in a wide initial pH range from 3 to 10. The best performance of nZVI/H₂O₂/PDS was achieved when the H₂O₂/PDS molar ratio was 1 : 1, and even 95% of PNP could be degraded within 60 min reaction even at pH 10. It was depicted that the activation of PDS would decrease solution pH and alleviate nZVI passivation, thus creating a favorable condition for subsequent H₂O₂ activation.

Water anions were significant interferential factors for the nZVI/H₂O₂/PDS system. The presence of carbonate and phosphate anions would remarkably inhibit PNP degradation and nitrate would exert slight inhibition. The EPR characterization and quenching tests suggested that both SO₄˙⁻ and ·OH played dominant role for the degradation of PNP. The identified intermediates behind PNP degradation in the nZVI/H₂O₂/PDS system suggested that nitro-reduction by nZVI, hydroxylation and denitration induced by radicals oxidation were main transformation routes. As a summary, the proposed nZVI/H₂O₂/PDS synergistic system should serve as an improved and efficient Fenton-like process with multi-radicals generation for recalcitrant organic pollutants removal.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The study was supported by the Natural Science Foundation of Hubei Province (2018CFB262), Fundamental Research Funds for the Central Universities of the China University of Geosciences (Wuhan) (No. CUG170646) and the Open Funds of Hubei Key Laboratory for Mine Environmental Pollution Control and Remediation (2014103).
