Thermodynamic, structural and dynamic properties of ionic liquids [C₄mim][CF₃COO], [C₄mim][Br] in the condensed phase, using molecular simulations

Abstract

In this work a series of thermodynamic, structural, and dynamical properties for the 1-butyl-3-methylimidazolium trifluoroacetate ([C₄mim][CF₃COO]) and 1-butyl-3-methylimidazolium bromide, ([C₄mim][Br]) ionic liquids (ILs) were calculated using Non-polarizable Force Fields (FF), parameterized using a methodology developed previously within the research group, for condensed phase applications. Properties such as the Vapor-Liquid Equilibrium (VLE) curve, critical points (ρ_c, T_c), Radial, Spatial and Combined Distribution Functions and self-diffusion coefficients were calculated using Equilibrium Molecular Dynamics simulations (EMD); other properties such as shear viscosities and thermal conductivities were calculated using Non-Equilibrium Molecular Dynamics simulations (NEMD). The results obtained in this work indicated that the calculated critical points are comparable with those available in the literature. The calculated structural information for these two ILs indicated that the anions interact mainly with hydrogen atoms from both the imidazolium ring and the methyl chain; the bromide anion displays twice the hydrogen coordination number than the oxygen atoms from the trifluoroacetate anion. Furthermore, Non-Covalent interactions (NCI index), determined by DFT calculations, revealed that some hydrogen bonds in the [C₄mim][Br] IL displayed similar strength to those in the [C₄mim][CF₃COO] IL, in spite of the shorter O⁻–H distances found in the latter IL. The majority of the calculated transport properties presented reasonable agreement with the experimental available data. Nonetheless, the self-diffusion coefficients determined in this work are under-estimated with respect to experimental values; however, by escalating the electrostatic atomic charges for the anion and cation to ±0.8e, only for this property, a remarkable improvement was obtained. Experimental evidence was recovered for most of the calculated properties and to the best of our knowledge, some new predictions were done mainly in thermodynamic states where data are not available. To validate the FF, developed previously within the research group, dynamic properties were also evaluated for a series of ILs such as [C₄mim][PF₆], [C₄mim][BF₄], [C₄mim][OMs], and [C₄mim][NTf₂] ILs.

---

Introduction

Ionic liquids (ILs) are molten salts composed of only cations and anions in a liquid state at temperatures below 100 °C.¹ In the last two decades these substances have attracted great interest because of their physicochemical properties such as low vapor pressure, thermal stability, decomposition at high temperatures, isothermal compressibilities similar to water, large electrochemical windows, wide range of shear viscosities, and suitability for applications as extracting agents, heat transfer fluids, electrolytes for batteries, lubricants, and catalysts.^2–6 ILs are considered as a green alternative for the replacement of Volatile Organic Compounds (VOCs) in many industrial processes without the necessity of major changes in the main flow sheet and equipment.⁷

It is known that by combining different cations and anions, it is possible to design ILs with specific properties for well-defined applications.⁸ Nevertheless, the experimental search for specific ILs can be an expensive and a time consuming task, therefore different economical alternatives need to be employed such as computer simulations. Molecular Dynamics simulations can describe molecular and atomic interactions to predict and evaluate a wide range of physicochemical properties of ILs. This allows the design of new solvents with unique physicochemical properties, and also the possibility of evaluating different properties at extreme conditions of pressure and temperature, conditions difficult to achieve experimentally.⁹ These simulations will approximate the experimental values of thermodynamic and transport properties only if the used Force Field (FF) describes accurately the energetic interactions between atoms and molecules.^10,11 Recent publications have stressed the existence of multiple shortcomings in some of the available classical FF, including inadequate solvent dynamics, errors in the prediction of hydrogen-bonding strength, inadequate mixture phase behavior, and errors in solvent structure and interactions.^12–15 Recent contributions have modified the atomic partial charges and Lennard-Jones parameters, in computer simulations by considering the dielectric constant as a target property in order to mimic the miscibility observed experimentally between two different liquids.^16,17

In the literature, there is a constant need for reliable and accurate IL FF^14,18,19 able to capture, among others, the local electrostatic properties,²⁰ microscopic dynamics,²¹ and vibrational spectra;²² as indicated by Maginn,¹⁸ many FFs already published have not been validated yet against reliable and sensitive properties such as enthalpy of vaporization, and dynamic properties. The lack of an accurate classical FF for predicting thermodynamic, structural, and transport properties for specific substances hinders the design of new ILs solvents for condensed applications. Different research groups^13,23–31 have developed classical FFs for different ILs and evaluated their capabilities to predict different properties such as: density, enthalpy of vaporization, surface tension, heat capacity at constant pressure, cohesive energy, structural properties, and in a reduced extent, properties such as: VLE curves, self-diffusion coefficients, dielectric constants, thermal conductivities, viscosities, etc. A comprehensive review regarding the prediction of thermodynamic, structural, and dynamic properties of ILs, using Molecular Dynamics simulations can be found in Batista et al.⁶ and references therein.

It is also known that ILs decomposed far below their critical temperature,³² nevertheless these hypothetical critical points are important for the development of thermodynamic equations-of-state and for elucidating their thermodynamic behavior.^32,33 Critical thermodynamic properties for ILs have been calculated by using both molecular simulations^32–34 and theoretical methods.^35–37 Experimental, theoretical, and simulated values for both thermodynamic and transport properties for the ILs studied in this work are presented in Tables 1 and 2. Also, in this work, dynamic properties for the [C₄mim][PF₆], [C₄mim][BF₄], [C₄mim][OMs] and [C₄mim][NTf₂] ILs were calculated, since these ILs have been studied extensively, particularly, these ILs have been tested as reaction media in condensed phase.^28,38–40 The developed FF for these ILs has been published in previous works.^24,41

Table 1 Simulated (sim), and theoretically estimated (es) critical properties reported in literature for the ILs studied in this work^a

IL	Critical temperature, Tc [K]		Critical density, ρc [g cm^−3]
	sim	es	sim	es
a For the [C4mim][PF6], [C4mim][BF4], and [C4mim][OMs] ILs, the critical properties were calculated in our previous work.^24
[C4mim][PF6]	1228.3 (ref. 24)	1187 (ref. 43)	0.268 (ref. 24)	0.373 (ref. 36)
	1105 ± 25 (ref. 42)	1102 (ref. 43)	0.227 ± 0.019 (ref. 42)
		719.4 (ref. 36)
[C4mim][BF4]	1267.7 (ref. 24)	1240 (ref. 43)	0.210 (ref. 24)	0.345 (ref. 36)
	1252 ± 4 (ref. 32)	1158 (ref. 43)	0.181 ± 0.002 (ref. 32)
		643.2 (ref. 36)
[C4mim][OMs]	1277.4 (ref. 24)	1054.8 (ref. 36)	0.228 (ref. 24)	0.334 (ref. 36)
[C4mim][NTf2]	1203 ± 4 (ref. 34)	1077 (ref. 43)	0.265 ± 0.006 (ref. 34)	0.424 (ref. 36)
	1216 ± 14 (ref. 33)	1012 (ref. 43)	0.250 ± 0.003 (ref. 33)
		1269.9 (ref. 36)
[C4mim][CF3COO]	N/A	1271 (ref. 37)	N/A	0.356 (ref. 36)
		826.8 (ref. 36)
[C4mim][Br]	N/A	834.9 (ref. 36)	N/A	0.376 (ref. 36)

---

Table 2 Experimental (exp), simulated (sim), and theoretically estimated (es) transport properties reported in literature for the ILs studied in this work at 300 K^a

IL	Shear viscosity, η [cP]		Self-diffusion coefficient, Di^b [10^−7 cm^2 s^−1]		Thermal conductivity, λ [W m^−1 K^−1]
	exp	sim	exp	sim	exp	sim	es
a Cation/anion.b At 298 K.c At 350 K.d At 353 K.e At 360 K.f At 298.15 K.g At 358.15 K.h At 5.74 mol L^−1 IL concentration in aqueous solution.i At 358 K.
[C4mim][PF6]	224.74 (ref. 44)	264.4 (ref. 13)^b	6.17/5.26 (ref. 44)^c	4.7/3.2 (ref. 29)^d	0.145 (ref. 50)	N/A	0.147 (ref. 53)
	228.81 (ref. 46)	39 (ref. 29)^d	6.43/5.14 (ref. 45)^c		0.145 (ref. 51)
	257.36 (ref. 46)	31.3 (ref. 49)^e			0.173 (ref. 52)
	450 (ref. 47)	231.3 (ref. 49)^e
	25.51 (ref. 44)^c
	27.08 (ref. 48)^c
	32.33 (ref. 46)^c
[C4mim][BF4]	90.61 (ref. 44)	97.8 (ref. 13)^b	10.21/10.2 (ref. 44)^c	9.7/8.2 (ref. 29)^d	0.169 (ref. 54)	N/A	0.167 (ref. 53)
	86.8 (ref. 46)	111.2 (ref. 31)^b	9.69/10.1 (ref. 45)^c		0.186 (ref. 55)
	107.32 (ref. 48)				0.190 (ref. 52)
	219 (ref. 47)^f
[C4mim][OMs]	31.25 (ref. 56)^g	N/A	5.48/4.89 (ref. 56)^g	N/A	N/A	N/A	0.171 (ref. 53)
[C4mim][NTf2]	46.24 (ref. 44)	537.8 (ref. 59)	14.06/11.23 (ref. 44)^c	4.91/3.35 (ref. 59)^c	0.126 (ref. 59)^f	0.107 (ref. 59)	0.123 (ref. 53)
	46.5 (ref. 46)	45 (ref. 11)^f	13.80/11.68 (ref. 45)^c	10.9/7.8 (ref. 29)^d	0.127 (ref. 61)
	46.44 (ref. 57)	72.09 (ref. 60)^f
	46.79 (ref. 58)	49.9 (ref. 13)^b
	69 (ref. 47)^f
[C4mim][CF3COO]	63.2 (ref. 62)	N/A	11.18/10.23 (ref. 44)^c	19.8/17.2 (ref. 29)^d	N/A	N/A	0.166 (ref. 53)
	70.02 (ref. 44)		11.1/9.76 (ref. 45)^c
[C4mim][Br]	200 (ref. 63)	231.1 (ref. 13)^b	2./N/A (ref. 66)^c	22/21.08 (ref. 68)^e	N/A	N/A	0.159 (ref. 53)
	230 (ref. 63)^b		19.8/N/A (ref. 67)^d
	161.05 (ref. 64)^b^,^h		9.1/N/A (ref. 68)^i
	1486.49 (ref. 65)^b

---

Tables 1 and 2 present both the experimental and simulated physicochemical properties available in the literature for the six ILs studied; and to the best of our knowledge, there is scarce reported data for the [C₄mim][OMs], [C₄mim][CF₃COO], and [C₄mim][Br] ILs.

The shear viscosity (η) the self-diffusion coefficient (D_i) and the thermal conductivity (λ) are called transport properties, and various Molecular Dynamics simulations reported in the literature tend either to underestimate or overestimate the experimental data.^6,59 Different types of developed FF in the literature such as all-atom AA, and united-atom UA, for the same IL, provide dissimilar results in the estimation of transports properties, as can be seen in Table 2. Transport properties of some ILs have been calculated by using the Green–Kubo formalism (based on Equilibrium Molecular Dynamics (EMD)), and Non-Equilibrium Molecular Dynamics (NEMD) simulations through both the SLLOD methodology and the Periodic Perturbation method (PPM).^6,18,59 Hess⁶⁹ published an article evaluating different methodologies including Green–Kubo, SLLOD, and the PPM for the calculation of the shear viscosity for water and a Lennard-Jones fluid. In their conclusions, Hess indicated that the PPM is the method of choice, because of its indifference with respect to the electrostatic treatment, and its efficiency compared with equilibrium methods. Several authors^69,70 in the literature have indicated that the Green–Kubo formalism requires the pressure tensor, presenting large fluctuations along the simulations, resulting in slow convergence for high viscosity systems such as IL,⁷¹ and displaying high statistical uncertainties due to the large simulation times needed to equilibrate the system.⁷²

An alternative technique to compute the shear viscosity is the non-equilibrium Periodic Perturbation Method (PPM). The PPM is a technique that introduces an external force by means of applying an acceleration to the system, producing a periodic velocity profile that is subsequently adjusted with a cosinoidal equation to obtain the shear viscosity.⁶⁹ By employing this methodology, Sprenger et al.¹¹ calculated the shear viscosity of several ILs using the General AMBER Force Field GAFF.⁷³ These same authors reported a shear viscosity value of 45 cP for the [C₄mim][NTf₂] IL at 298.15 K, in excellent agreement with experimental results. A specified value of 0.03 nm ps⁻² was chosen for the acceleration amplitude in their viscosity calculations, resulting in more accurate values in agreement with experimental data.

Liu et al.⁵⁹ developed an AA FF using GAFF parameters⁷³ and calculated the shear viscosity for the [C₄mim][NTf₂] IL by using the Green–Kubo formalism. They obtained a value of 537.80 cP at 300 K, which is an order of magnitude higher than the experimental value. Picálek and Kolafa⁴⁹ evaluated the capability of both UA FF³⁰ and AA FF²⁶ in determining the shear viscosity for the [C₄mim][PF₆] IL by using NEMD techniques. They found that the AA FF overestimated from 4–8 times the shear viscosity in comparison with the UA FF for a wide range of temperatures; the UA FF presented good agreement against experimental values. Indeed, several research groups in the literature stressed that both the FF quality and the methodology used to obtain the shear viscosity, play a significant role in the determination of accurate values for this property.^11,13,49,59

The self-diffusion coefficients for ILs can be calculated through EMD simulations by using the Velocity Auto Correlation Functions VACF, based on the Green–Kubo formalism, or by using the Mean Square Displacement MSD, along with the Einstein equation.^29,59 Ramya et al.⁷⁴ evaluated the effect of anion size in the structure and dynamics of a series of [C₆mim][X] IL (with X equals to Cl, Br, BF₄, PF₆, OTf, and NTf₂) by using molecular simulations. They found that IL containing smaller anions such as [Cl]⁻ and [Br]⁻ presented smaller diffusion coefficients compared to IL with larger anions such as [BF₄]⁻ and [NTf₂]⁻, as shown in Table 2. This behavior was explained by Fumino et al.⁷⁵ noticing that strong and directional hydrogen bonds introduced defects in the IL electrostatic network resulting in large ion mobilities. Since [Cl]⁻ and [Br]⁻ are anions formed by a single atom, their concentrated charge creates strong hydrogen bonds with cations, displaying asymmetry and thus non-directionality towards hydrogen atoms in the cation, causing slow mobility and presenting higher viscosities compared to ILs with large anions.

In order to improve the agreement between calculated and simulated dynamical properties, such as diffusion coefficients¹³ and viscosities,⁷⁶ some molecular simulations research groups have scaled the atomic charges of ILs, i.e. from ±1e to ±0.8e, since this mimics both the charge transfer and polarizability.⁷⁷ Zhang and Maginn⁷⁷ studied the effect of scaling charges in the calculation of a classical FF and its capability to predict some relevant thermodynamic properties. In their study they found that the reduced-charge scheme improved properties such as the diffusion coefficient and the enthalpy of vaporization in comparison with the full-charge scheme. However, properties such as density were underestimated by about 6%, in addition, properties such as Radial Distribution Function (RDF) and Spatial Distribution Function (SDF) were insensitive to charge scaling.

In a recent contribution, Doherty et al.¹³ carried a re-parametrization of their previously developed OPLS-2009 IL FF²⁸ validated against current and more reliable available experimental data, such as: densities, heats of vaporization, viscosities, diffusion coefficients, heat capacities, and surface tensions. These authors used a ±0.8e scaled-charge version of their original full-charge FF published in 2009.²⁸ Their results, showed that calculated properties with the scaled-charge FF such as enthalpy of vaporization, surface tension, and self-diffusion coefficients were remarkable improved compared with their previous calculations using the OPLS-2009 IL FF. On the other hand, properties such density, heat capacity at constant pressure, viscosities, and RDF were insensitive to this charge scaling.

The final transport property studied in this work, is the thermal conductivity, estimated by means of NEMD. It is a key property in the design of heat and mass transfer equipment in the chemical industry, metallurgy, fluid flow, etc.⁷⁸ Recently Zaripov et al.⁷⁸ indicated the necessity of new and enhanced heat transfers fluids in order to improve product quality, reduce operating costs and its environmental impact in industrial processes. ILs can be used as thermal fluids due to their various physicochemical properties such as negligible vapor pressure, liquid state, density, viscosity, heat capacity and thermal conductivity.^55,79 Liu et al.⁵⁹ calculated the thermal conductivity for a series of ILs based on the [NTf₂]⁻ anion, employing Reverse Non-Equilibrium Molecular Dynamics (RNEMD) techniques, by using the Müller-Plathe formalism.⁸⁰ They calculated a value of 0.107 W m⁻¹ K⁻¹ for thermal conductivity of the [C₄mim][NTf₂] at 300 K, these authors also reported an experimental value of 0.126 W m⁻¹ K⁻¹ at 298.15 K, presenting an error of 15%. The RNMED technique has also been used by Tenney et al.⁸¹ in the determination of reliable thermal conductivities for the [C₂mim][OMs] and the [C₂mim][CF₃COO] ILs. Chen et al.⁵³ also proposed a group contribution method to estimate the thermal conductivities of ILs.

The objective of this work is the determination of thermodynamic, structural and transport properties such as: critical points (ρ_c, T_c), radial, spatial and combined distribution functions, shear viscosities, self-diffusion coefficients, and thermal conductivities for the [C₄mim][CF₃COO] and [C₄mim][Br] ILs by using molecular simulations. These two ILs have been used experimentally in various condensed phase applications such as: extracting solvents for fluoridated compounds present in alkylated gasoline by a typical liquid–liquid extraction process,⁴¹ solvents for the capture of carbon dioxide^82,83 as reaction media^84,85 and applications in the food and health industry.⁸⁶

The simulations performed in this work, used AA FF previously developed within the research group,²⁴ validated for the prediction of thermodynamic properties such as: density, heat of vaporization, specific heat at constant pressure, dielectric constant, and surface tension for the [C₄mim][PF₆], [C₄mim][BF₄], [C₄mim][OMs], [C₄mim][NTf₂], [C₄mim][CF₃COO], [C₄mim][Br] ILs,^24,41 and validated also in the determination of structural properties for the [C₄mim][PF₆], [C₄mim][BF₄], and [C₄mim][OMs] ILs.²⁴ Experimental evidence was recovered for most of the calculated properties and some new predictions were done where data is not available. These calculated properties are necessary for the development of viscosity and self-diffusivity correlations using, for example, the Vogel–Fulcher–Tamman, VFT equation,⁴⁵ and the development of new thermodynamic equation-of-states, expanding the possible applications for these ILs studied, as heat transfer fluids, green solvents for the extraction of different substances, solvents as reaction media, condensed phase applications with high importance in the pharmaceutical, chemical and petrochemical industries.

Methodology

Force field development

The information corresponding to the classical FF developed previously within the research group, including their parameters can be found in the ESI section.† Fig. 1 displays a schematic representation of all the ILs studied in this work, along with their corresponding atomic labels.

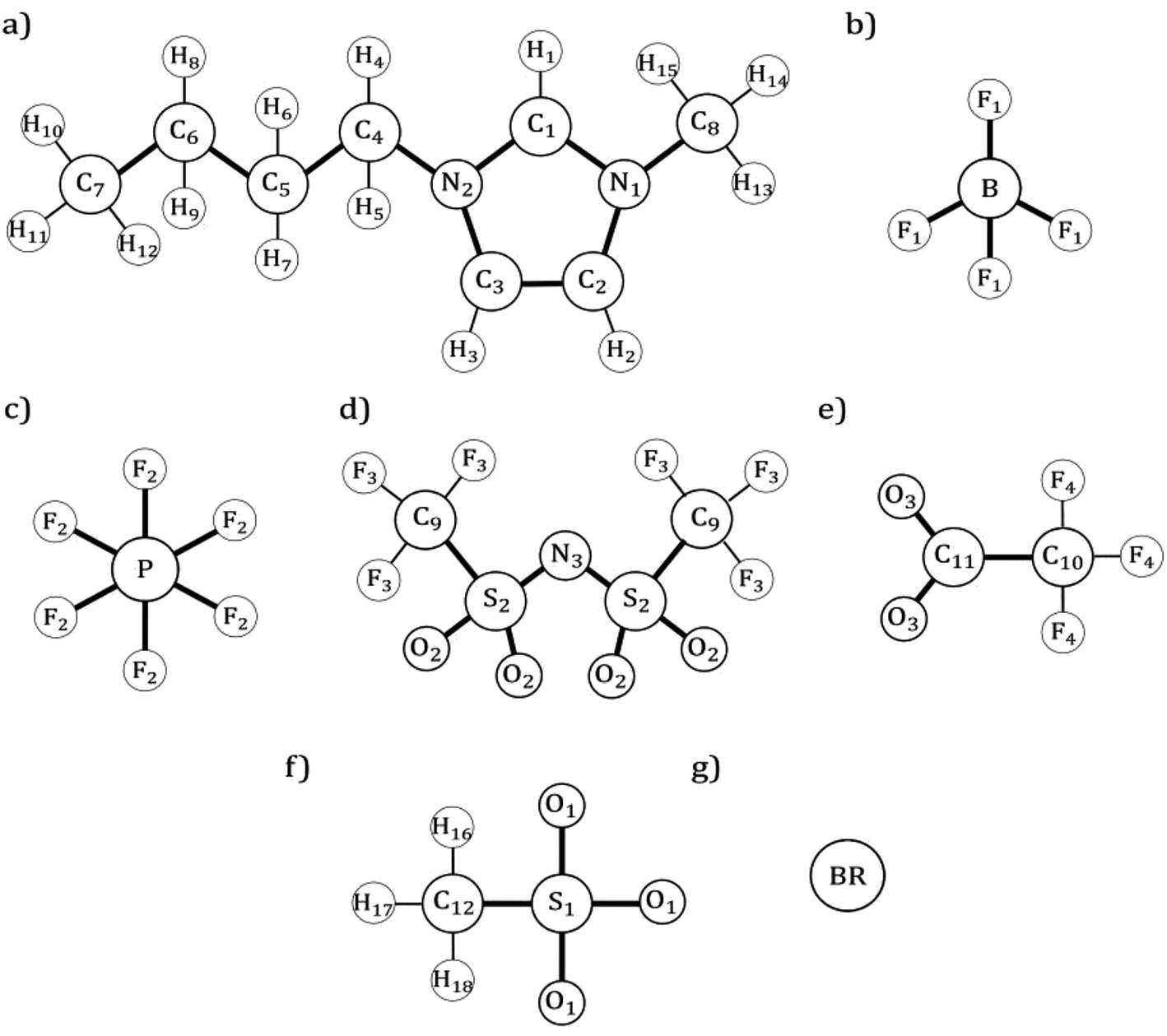

Fig. 1 Schematic representation for all ILs studied (a) 1-butyl-3-methylimidazolium cation [C₄mim]⁺ (b) tetrafluoroborate anion [BF₄]⁻ (c) hexafluorophosphate anion [PF₆]⁻ (d) bis(trifluoromethylsulfonyl)imide anion [NTf₂]⁻ (e) trifluoroacetate anion [CF₃COO]⁻ (f) mesylate anion [OMs]⁻ (g) bromide anion [Br]⁻.

VLE curve

The VLE curve for [C₄mim][NTf₂], [C₄mim][CF₃COO] and [C₄mim][Br] IL was obtained using well-established methodologies published in the literature.^87,88 A liquid configuration was placed in the center of an elongated parallelepiped box in the z-direction surrounded by vacuum, then NVT MD simulations are carried out; as the vapor phase starts to appear, molecules moved from the center of the box into the vacuum space in equilibrium with the liquid. The vapor and liquid densities are calculated by dividing the simulation box along the z-direction into different slabs of fixed length Δz, and then counting the average number of molecules N inside each slab during the MD production step, divided by the volume of each slab as in the following equation:^87,88where ρ_z, is the density along the largest box length, N is the number of molecules, and AΔz corresponds to volume of the slab.

The VLE curve was obtained with the GROMACS⁸⁹ software. The simulations consisted of 200 pair of ILs, Periodic Boundary Conditions (PBC) were applied, and a cutoff of 18 Å was used for all ILs systems for both LJ and electrostatics. Short-range electrostatics interactions were calculated in real-space using the above cutoffs, past this distance the Particle-Mesh-Ewald^90,91 (PME) was employed to calculate the long-range electrostatic interactions with an accuracy of 5 × 10⁻³ by using a Fourier grid spacing of 1.2 Å and a four-order interpolation. The time step for the equilibrium MD simulations was 1 fs. Temperature was maintained constant by means of the V-rescale⁹² thermostat with a coupling parameter of 1 ps. The size of the parallelepiped box for each IL system along the x, y, and z dimensions were 46 Å × 46 Å × 250 Å, 42 Å × 42 Å × 250 Å and 39 Å × 39 Å × 250 Å for [C₄mim][NTf₂], [C₄mim][CF₃COO], and [C₄mim][Br], respectively. The NVT simulations were carried out in a temperature range between 300 K to ∼1300 K, simulation times of 10 ns were used for each temperature. The first 3 ns were considered as equilibration stage and the remaining time as production stage, the atomic coordinates were saved every 500 fs during this latter stage. Saved coordinates from a 7 ns, previous NpT simulation at 300 K were used as input for the NVT simulations at 300 K. Rai and Maginn³⁴ calculated the VLE curve for a series of [C_nmim][NTf₂] ILs by using molecular simulations with system sizes ranging from 200 to 400 ion pairs, larger systems were used at higher temperatures, 400 ion pairs were used for simulations close to the critical point.

Shear viscosity

The shear viscosity was calculated using the PPM⁶⁹ technique. In this method an external periodic force is applied in one direction a_x(z), affecting only the x component of the velocity vector of the atoms. The Navier–Stokes equation under these conditions and in stationary state, reduces to:^11,13,69,93where a_x(z) and v_x are the applied acceleration and velocity. The applied acceleration a_x(z), has the following form:

a_x(z) = a₀ cos(kz) (3)

where a₀ is known as the acceleration amplitude and k = 2π/l_z, where l_z is the box length in the z-direction. Re-arranging eqn (2) gives:

The solution for this differential equation is as follows:

v_x(z,t) = v₀(1 − e^−t/τ)cos(kz) (5)

with τ = ρ/ηk², and v₀ is the velocity amplitude at stationary state. At large simulation times t ≫ τ, this equation reduces to:

v_x(z,t) = v₀ cos(kz) = a₀τ cos(kz) (6)

From eqn (4) and (6), the shear viscosity is obtained as follows:

The acceleration amplitude a₀ needs to be chosen carefully: a small value is needed for the system to remain close to equilibrium, avoiding a large temperature increase affecting the system density. On the other hand, this amplitude value needs to be large enough to avoid large signal to noise ratios.⁹⁴

The shear viscosities in this work, were calculated using the methodology proposed by Doherty et al.¹³ employing the same system size for reproducibility purposes, and performed with the GROMACS⁸⁹ computational package. Simulation boxes containing 500 IL pairs were used for each IL system, the same number of molecules that was used by Doherty et al., PBC and the minima image convention in three directions with a cutoff of 13 Å, were applied. The PME^90,91 scheme was applied for electrostatic interactions, and a time step of 1 fs was used for all simulations. The temperature and pressure were kept constant by means of a V-rescale⁹² thermostat and Berendsen⁹⁵ barostat, with coupling parameters of 1 ps. Before calculating shear viscosities, EMD simulations were performed with 10 ns of equilibration time followed by 40 ns of production time in the NpT ensemble for each IL. For all ILs studied, the temperature was 300 K with the exception of [C₄mim][OMs] IL (358 K). The viscosity of [C₄mim][PF₆] IL was also evaluated at 350 K. For all systems the pressure was maintained at 1 bar, and all the covalent hydrogen bonds X–H, were constrained using the LINCS⁹⁶ algorithm. Zhao et al.⁹³ used NEMD simulations with the PPM method to determine the shear viscosities of 1,4-butanediol, 1,3-butanediol, 1,2-butanediol, 2-methyl-1,3-propanediol and 1,2,4-butanetriol, using the OPLS FF and found that the acceleration amplitude value a₀, is the most important parameter in the calculation of the shear viscosity, compared with other parameters such as: box size, trajectories length, etc.

Regarding structural properties, Radial Distribution Function (RDF), Spatial Distribution Function (SDF), and Combined distribution Function (CDF), for the [C₄mim][CF₃COO] and [C₄mim][Br] ILs were calculated during the EMD production step by using the VMD⁹⁷ and TRAVIS⁹⁸ computational packages.

The coordinates from the NpT EMD production step were fed to the NEMD, using an acceleration amplitude range from 0.04 to 0.12 nm² ps⁻¹ for each IL. It is important to note that this amplitude range depends on the system size, temperature, and substance. All the NEMD simulations lasted 40 ns; the same simulation parameters as in the EMD simulations such as: temperature, pressure, time step, PBC, cutoff, thermostat, barostat, PME, and LINCS, were used. The last 20 ns were employed to calculate the shear viscosity, temperature, and their standard deviations via the block averaging technique.⁹⁹

It has been stressed that the dependence of the acceleration amplitude with the shear viscosity is complex, but a limited range of accelerations displays a linear relationship with the shear viscosity of the substance.⁹⁴ In this work we only consider those accelerations that do not cause an abrupt change in the temperature of the system. To determine the IL viscosity, the acceleration values and shear viscosities for each acceleration amplitude were fitted into a linear relationship by using a weighted least squares technique. These weights were equal to the reciprocal of the square standard deviation for the shear viscosity, those acceleration amplitudes that presented large shear viscosity deviations, contributed slightly to the viscosity calculation by having a very small weight.⁹³ This linear relationship allows the determination of zero shear viscosities by means of an extrapolation with the y-axis.

Self-diffusion coefficients

The self-diffusion coefficients D_i, can be calculated through the Einstein relation as follows:⁵⁹where 〈⋯〉 is the Mean Square Displacement MSD, for the specie i (cation or anion). Due to the low mobility of ILs at certain temperatures, large simulation times were employed.^29,70 EMD simulations were carried out to calculate the self-diffusion coefficients within the GROMACS⁸⁹ simulation package. First, an equilibration step of 50 ns in the NpT ensemble was performed at 350 K and 1 bar, in order to obtain the correct density and well-equilibrated configuration for each IL, followed by a production step of 50 ns in the NVT ensemble at the same temperature. PBC and the minima image convention in the three directions were used, a cutoff of 18 Å, and PME was used to efficientize the electrostatic calculation with a grid of 0.12 nm, a spline of 4,^90,91 and a time step of 1 fs. The Nosé–Hoover^100,101 thermostat and Parinello–Rahman¹⁰² barostat, with coupling parameters of 1 ps were applied. For the [C₄mim][OMs] IL the temperature was set to 358.15 K for both equilibration and production steps. The MSD was evaluated using the center-of-mass (COM) for each ion during the last 5 ns, in the NVT production step.

In order to assure that we are in the diffusive regime, the β(t) factor was calculated during the simulations by using:⁷⁰

Values of β(t) ≈ 1 assure that the IL system is in the diffusive regime, necessary to obtain reliable results, while values of β(t) < 1 indicate a sub-diffusive regime.⁷⁰

Thermal conductivity

The thermal conductivity λ, for each IL presented in Table 2, were calculated using the RNEMD technique proposed by Müller-Plathe.⁸⁰ In this method a heat flux is imposed in the system generating a temperature gradient and thus allowing their calculation by means of the following two equations:where J_z(t) is the imposed heat flux along the z-direction at a certain time interval t; v_c and v_h are the cold and hot atom velocities, L_x and L_y are the box dimensions along x and y axis, and ∂T/∂z is the average temperature gradient in the z-direction. For a detailed description of the Müller-Plathe method the reader is referred to the original work.⁸⁰

The thermal conductivities were calculated using the LAMMPS¹⁰³ simulation package, for the reason, that the Müller-Plathe technique is not implemented within the GROMACS simulation package. The FF parameters and the input coordinates from GROMACS were translated into LAMMPS inputs with the aid of the INTERMOL¹⁰⁴ software.

The thermal conductivities were obtained after three equilibration steps: first NpT simulations at 300 K for 2 ns, followed by NVT at 300 K for 3 ns, and finally 1 ns in the NVE ensemble. Subsequently, a production period of 1 ns in the NVE ensemble was carried out. The thermal conductivities were computed during this production step. All simulation boxes were orthorhombic, PBC were used in three dimensions with a cutoff of 18 Å, and a time step of 1 fs. To account for long-range electrostatics, the Particle–Particle–Particle–Mesh¹⁰³ (PPPM) technique was used with a real-space cutoff of 18 Å. The temperature was kept constant at 300 K with the Nosé–Hoover^100,101 thermostat with a coupling parameter of 100 fs. The pressure was maintained at 1 bar with the Nosé–Hoover¹⁰³ barostat with a coupling parameter of 1 ps. In the last two NVE steps the simulation box was divided in 20 blocks or slabs forcing kinetic (velocity) exchanges between hot and cold atoms every 10 fs. The data was saved every 1 ps during the NVE production step, and the thermal conductivity was calculated employing the block averaging technique.⁹⁹

Results

IL structure

RDFs, SDFs, and CDFs, were calculated in this work for the [C₄mim][CF₃COO] and [C₄mim][Br] ILs at 300 K. RDFs for ion–ion interactions are shown in Fig. 2. The RDF for the [C₄mim][CF₃COO] IL is shown in Fig. 2a. The [CF₃COO]⁻–[CF₃COO]⁻ interaction, red line in Fig. 2a, presents two well defined peaks at 5.15 and 8.65 Å. The [CF₃COO]⁻–[C₄mim]⁺ interaction presents a well-defined peak at 5.05 Å and a second blunt peak at 11.75 Å, with intensities of g(r) ∼2.1 and 1, respectively. Finally, the cation–cation interaction in this IL displays peaks at 8.35 Å and 15.05 Å, with intensities around ∼1. The RDF integration for the [CF₃COO]⁻–[C₄mim]⁺ interaction until the minimum located at ∼8.1 Å, gives a coordination number of 6.68 molecules, this means that in the first solvation layer the cation is surrounded and interacting approximately with 6.7 anions in average.

Fig. 2 RDFs for [C₄mim][CF₃COO] and [C₄mim][Br] ILs at 300 K. (a) [C₄mim][CF₃COO] IL. (b) [C₄mim][Br] IL. Anion–anion RDFs are colored in blue, anion–cation RDFs are colored in red, and cation–cation RDFs are colored in green. Continuous lines represent the results obtained with our developed FF, dashed lines represent results obtained with the FF by Doherty et al.¹³ The atomic labels N2, C10 and BR are displayed in Fig. 1, and were used to determine the ion–ion RDFs.

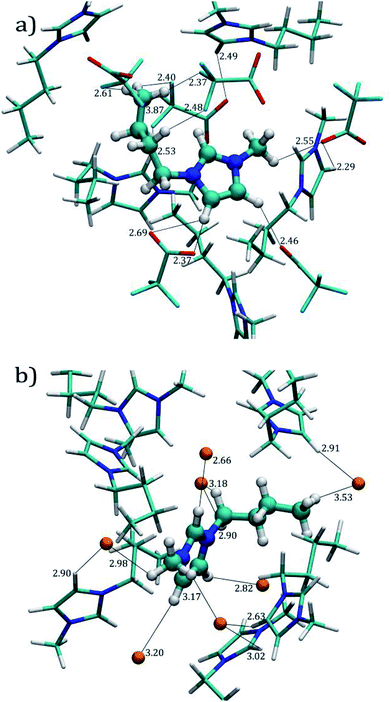

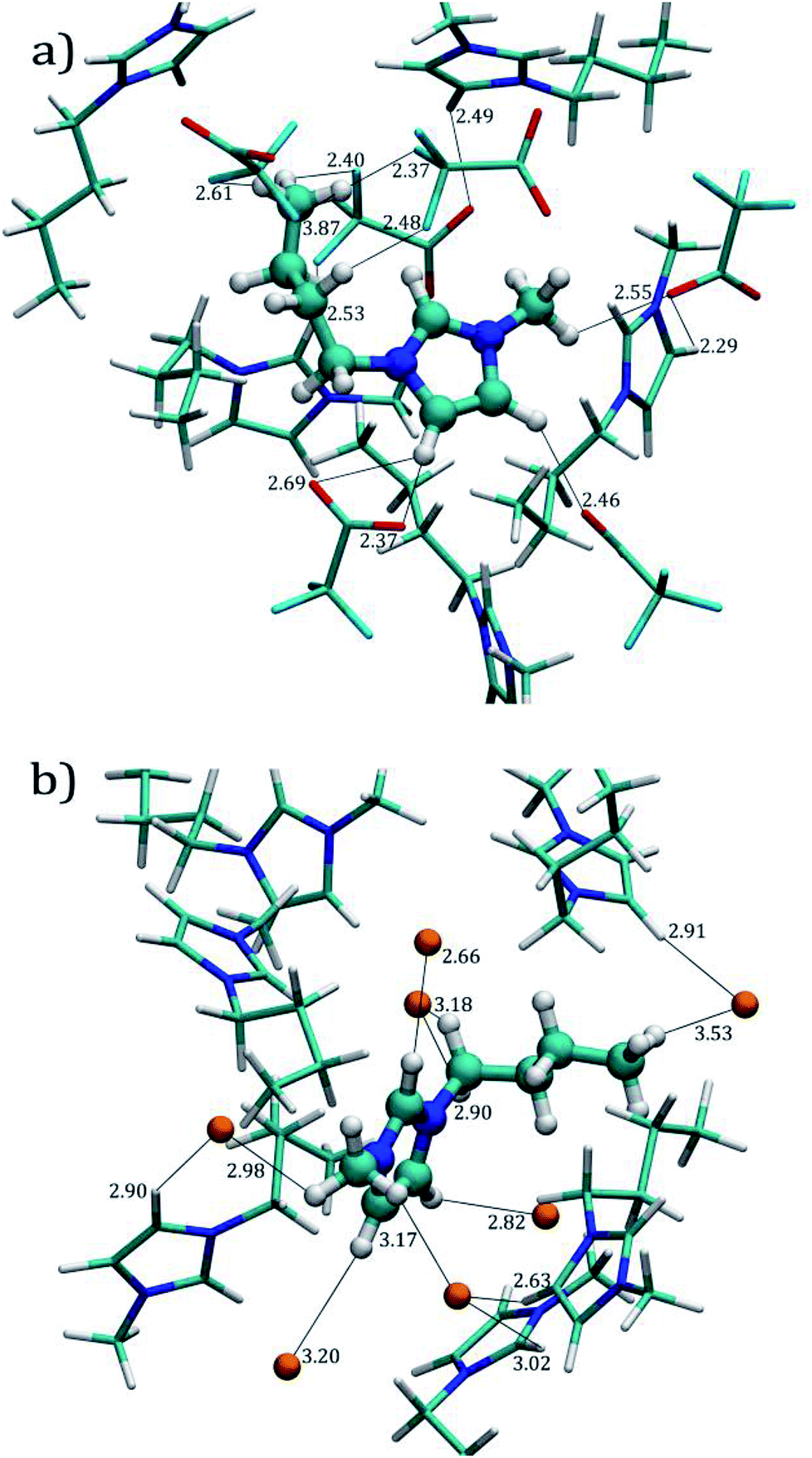

Fig. 3a and b display the molecular environment around ILs (solvation layer and close contacts) obtained from the last MD trajectory frame, for both [C₄mim][CF₃COO] and [C₄mim][Br] ILs, respectively.

Fig. 3 Close molecular environment for a selected cation at 300 K. (a) [C₄mim][CF₃COO] IL. (b) [C₄mim][Br] IL. The selected cation is displayed using a ball and stick representation. The color for the atoms is as follows: blue/nitrogen, cyan/fluorine, grey/carbon, orange/bromine, red/oxygen, and white/hydrogen. All distances are in Å.

The RDFs for the [C₄mim][Br] IL are shown in Fig. 2b. The RDFs obtained by employing the FF developed by Doherty et al.,¹³ labeled as [C₄mim][Br]-Doherty, are also plotted in the same figure for comparison purposes as dashed lines. The [Br]⁻–[Br]⁻ interaction using our developed FF presents a first peak at 7.25 Å, and a second peak at 13.4 Å. The [C₄mim][Br]-Doherty FF displays a blunt peak in the 6–8.7 Å range, and a second peak located at 13.05 Å for the same interaction. Furthermore, the [Br]⁻–[C₄mim]⁺ RDF for both our developed FF and the FF developed by Doherty et al. are very similar to each other, displaying peaks at ∼4.2, 5.85, 10.20 and 16.35 Å, with intensities of 3.5, 1.5 and ∼1, respectively. For the [C₄mim]⁺–[C₄mim]⁺ RDF our FF presents a well-defined peak at 8.05–8.15 Å, with intensity around 1.2, while the [C₄mim][Br]-Doherty FF presents a blunt peak located in the 6.55–8.3 Å range with the same intensity. The coordination number for our FF found by integrating the anion–cation RDF gave a value of 5.9 molecules until the minimum located at ∼7.35 Å (Table 3). These integrations were also carried out for the anion–cation by using the [C₄mim][Br]-Doherty FF and 5.96 molecules were found until the same first minimum. Despite the RDF differences between [C₄mim][Br]-Doherty and the FF developed within the research group, the calculated density values are very similar: 1.277 and 1.271 g cm⁻³, respectively at 300 K. Comparison for different properties such as: heat of vaporization, heat at constant pressure, and dielectric constant between these FFs can be found in ref. 41.

Table 3 Calculated coordination numbers N_coord, at minimum RDF distances (Å) for anion–cation and H-anion RDFs for [C₄mim][CF₃COO] and [C₄mim][Br] IL^a

LI	RDF	Rcoord	Ncoord
a See Fig. 2 and 5 for RDF graphs. Atoms H13,14,15 are labeled as Hmethyl. See Fig. 1 for atomic labels.b Atoms located at the COM for the ions have been used to calculate the anion–cation RDF.
[C4mim][CF3COO]	C10–N2^b	7.10	6.68
	O3–H1	3.95	1.17
	O3–H2,3	3.65	1.30
	O3–Hmethyl	6.65	8.02
	F4–H1	6.95	4.11
	F4–H2,3	6.25	6.10
	F4–Hmethyl	7.85	18.01
[C4mim][Br]	BR–N2^b	7.35	5.9
	BR–H1	4.75	1.91
	BR–H2,3	4.00	2.23
	BR–Hmethyl	5.95	10.56

---

The SDFs display the most probable spatial regions for finding a molecule around a reference molecule in a three dimensional space.⁹⁸ SDFs were calculated for the [C₄mim][CF₃COO] and [C₄mim][Br] ILs using the TRAVIS⁹⁸ software and visualized with VMD,⁹⁷ as shown in Fig. 4; the [C₄mim]⁺ cation was used as reference molecule. In Fig. 4a, the anion isosurfaces for the [C₄mim][CF₃COO] IL are displayed in red color with a value of 8.1 particles per nm⁻³, while the cation isosurfaces are displayed in blue color with a value of 3.7 particles per nm⁻³. The [CF₃COO]⁻ anion prefers to occupy the regions close to the H₁, H₂, and H₃ hydrogens in the imidazolium ring as well as the H₄ and H₅ hydrogens from the butyl chain (see Fig. 1 for atomic labels). On the other hand, the [C₄mim]⁺ cation prefers to be positioned in front of the imidazolium ring favoring π–π interactions. This π–π stacking has been related with the dimer IL stability, since this geometric arrangement increases the interaction energy of the dimer.¹⁰⁵

Fig. 4 Top (left) and side (right) views of the Spatial Distribution Functions SDFs at 300 K. The anions are displayed in red color and the cations in blue color, around a reference cation for the following ILs: (a) [C₄mim][CF₃COO] IL, (b) [C₄mim][Br] IL and (c) [C₄mim][Br]-Doherty.

The SDFs for the [C₄mim][Br] IL are displayed in Fig. 4b. The isosurface values for the anion and cation are 12 and 4.72 particles per nm⁻³, respectively. The [Br]⁻ occupies all the top cation region, differing with respect to the [C₄mim][CF₃COO] IL, and also preferring regions closed to hydrogens in both the imidazolium and in the alkyl chains closed to the ring (H_1–5,H_13–15). The cation presents the same behavior as in the [C₄mim][CF₃COO] IL. Kohagen et al.⁶⁸ reported the SDF for the [C₄mim][Br] IL by using the OPLS AA FF, while Ramya et al.⁷⁴ reported the SDF for the [C₆mim][Br] IL by using the AA FF developed by Tsuzuki et al.²⁷ The SDF obtained here using our developed FF displays good agreement with respect to the SDF reported by these same authors.

In a different contribution, Izgorodina and MacFarlane¹⁰⁶ studied the [C₂mim][Cl] IL by using ab initio and the Symmetry Adapted Perturbation Theory¹⁰⁷ (SAPT) calculations, and they found that the anion–cation interactions characterized by placing the anion on top or below the imidazolium ring plane are energetically similar to in plane conformations where the anion forms hydrogen bonds with the hydrogen atom from the imidazolium ring along the C₂–H₁ direction. These observations are consistent with the behavior displayed by the SDF red isosurfaces obtained in this work for both [C₄mim][CF₃COO] and [C₄mim][Br] ILs. For comparison purposes we have also computed the SDF for the [C₄mim][Br] IL by using the FF developed by Doherty et al.¹³ at 300 K, shown in Fig. 4c. These last results show a good agreement with those SDFs calculated using our developed FF.

Fumino et al.⁷⁵ indicated that the strong and directional hydrogen bonds in IL can disrupt the Coulombic network, reducing the electric charge effect that any ion feels from other ions, increasing the ions mobility (diffusion coefficients) and decreasing their viscosities.

To elucidate further the hydrogen bonding in [C₄mim][CF₃COO] and [C₄mim][Br] ILs, individual RDFs between negative atoms from anions with hydrogen atoms from the cation, were calculated as shown in Fig. 5.

Fig. 5 Atomic pair RDFs between X⁻–H for [C₄mim][CF₃COO] and [C₄mim][Br] ILs at 300 K. (a) RDFs between hydrogen atoms (H₁, H_2,3, H_methyl and H_terminal) and the O⁻ atom within the [C₄mim][CF₃COO] IL. (b) RDFs between hydrogen atoms and the F⁻ atom within the [C₄mim][CF₃COO] IL. (c) RDFs between hydrogens atoms and the [Br]⁻ anion within the [C₄mim][Br] IL. H₁₃, H₁₄ and H₁₅ atoms are labeled as H_methyl. H₁₀, H₁₁, and H₁₂ atoms are labeled as H_terminal, as displayed in Fig. 1a.

Fig. 5a shows the RDFs obtained by pairing O[CF3COO]−− (O3 in Fig. 1c) with H1, H2,3 (also known as HW), Hmethyl (i.e. H13, H14, and H15, see Fig. 1a) and Hterminal, (i.e. H10, H11, and H12). It can be observed that acidic hydrogen atoms from imidazolium ring exhibit the main interaction with oxygen atoms from the [CF3COO]− anion showing a peak at ∼2.45 Å for both H1 and H2,3 atoms, these distances are in agreement with the distances shown in Fig. 3a. The coordination numbers Ncoor, for hydrogen atoms around the oxygen atoms are 1.17 and 1.30 atoms for O3–H1 and O3–H2,3 respectively, as indicated in Table 3. The hydrogen bonds with Hmethyl are also significant, the RDF peak appears at a slightly larger distance than the acidic hydrogen atoms ∼2.65 Å with a coordination number of 8.02 atoms until 6.65 Å. Our results indicate that the RDF for O3–Hterminal presents a weaker intensity of around 2 as compared to intensities of 5.9 for O3–H1, and 3.5 for O3–H2,3 interactions.

The same hydrogen RDFs were calculated for F[CF3COO]−− (F4), and are shown in Fig. 5b. As seen the first peak appears at a similar distance ∼2.8 Å, for all interactions but with a remarkable lower g(r) intensity value compared with O3–H RDFs displayed in Fig. 5a. At distances of ∼2.8 Å, the interactions between F[CF3COO]−− and Hterminal, black line in Fig. 5b, present higher intensities than the O3–Hterminal interactions, as seen in Fig. 3a. The coordination number for these interactions are presented in Table 3.

Fig. 5c presents the [Br]⁻–H RDF for [C₄mim][Br] IL. Unlike O₃–H interactions, the RDFs for [Br]⁻ display similar behavior towards H₁ and H_2,3 hydrogen atoms, presenting higher probabilities of finding bromide atoms around these hydrogens atoms, as seen in Fig. 3b, at average distances of ∼2.85 Å. The coordination number until the first well-defined minimum distance for both interactions were 1.91 and 2.23 hydrogen atoms for H₁ and H_2,3, respectively as presented in Table 3.

The [Br]⁻–H_methyl RDF presents a well-defined peak at ∼3 Å, at similar distances with respect to the hydrogen atoms in the imidazolium ring, but with a lower intensity; in Fig. 3b we can visualize these interactions within the same distances found in the RDFs. The N_coor for [Br]⁻–H_methyl interaction until the first well-defined minimum is 10.56 hydrogen atoms. Finally the [Br]⁻–H_methyl RDF shows the same behavior as [C₄mim][CF₃COO] IL with a blunt peak around 5 Å and a g(r) value close to 1.0 indicating the absence of a specific local arrangement for these interactions.

In order to obtain additional information with respect to the hydrogen bonding behavior in [C₄mim][CF₃COO] and [C₄mim][Br] ILs, CDFs were calculated between acidic hydrogen atoms and negative atoms from anions, by monitoring both the X⁻–H₁ radial and the C₁–H₁–X⁻ angular distributions (with X⁻ equals O⁻ or [Br]⁻ atoms) for [C₄mim][CF₃COO] and [C₄mim][Br] ILs, as shown in Fig. 6. A higher occurrence for the X⁻–H₁ CDF for both cases is associated with their RDF peaks shown in Fig. 5a and c for [C₄mim][CF₃COO] and [C₄mim][Br] IL, respectively. In the case of [C₄mim][CF₃COO] IL there is a region of high occurrence located around ∼2.1 to ∼3 Å and in a range of ∼100 to 150°, as displayed in Fig. 6c. A similar behavior is observed in the case of [C₄mim][Br] IL displayed in Fig. 6d, however, the distance of high occurrence is slightly larger than [C₄mim][CF₃COO] IL ∼2.9 Å, and with angles from 90 to 150°. In this same figure we can observe a second region of high occurrence located at 6.3 Å and ∼40° for the [C₄mim][Br] IL. Based on the localization of the anion given by CDF, the cation is expected to be placed either above or below the imidazolium ring plane as shown by Doherty et al. for [C₂mim]⁺ cations in [C₂mim][DCA] IL, i.e. with an angle of 0 or 180° from their center of rings.

Fig. 6 Combined distribution functions for the X⁻–H₁ distance versus the C₁–H₁–X⁻ angle at 300 K. (a) [C₄mim][CF₃COO] IL. (b) [C₄mim][Br] IL. X⁻ equals to O⁻₃ or [Br]⁻ respectively. The color bar displays the relative event occurrence.

The CDF was also calculated by using the geometric center-of-ring (COR) between two cations in both [C₄mim][CF₃COO] and [C₄mim][Br] ILs. This CDF monitors the distance and the angle formed between the COR–COR vector and a COR-Normalized vector COR-NV, perpendicular to the imidazolium ring plane, as shown in Fig. 7a. Similar agreement with their corresponding SDF shown in Fig. 4 is presented for the cation–cation CDF, where the preferred angle is located around 0 to 40°, corresponding to the underneath position with respect to the imidazolium ring plane, and 140 to 180°, corresponding to the above position in the same plane,¹⁰⁵ with distances around of ∼4 Å.

Fig. 7 Combined distribution function for the Center of Ring (COR) distances versus the COR–COR–NV angle at 300 K, NV corresponds to a normalized vector perpendicular to the imidazolium ring plane. (a) [C₄mim][CF₃COO] IL. (b) [C₄mim][Br] IL. The color bar displays the relative event occurrence.

Regarding hydrogen bonds, Tang et al.¹⁰⁸ indicated that not only the geometric configurations are important but also their electronic densities. They found by using the theory of Atoms in Molecules that hydrogen bond lengths varied from 1.15 to 3.01 Å and the electronic density at the bond critical point ranged from 0.0033 to 0.168 a.u. In a different contribution, Contreras-García et al.^109–111 developed a methodology to map the non-covalent interactions between atoms in a system by analyzing its electronic density (ρ) and its reduced gradient (s).

The analysis developed by Contreras-García et al. is called Non-Covalent Interaction (NCI) index, and it can be carried out by using the NCIplot¹¹⁰ program. The analysis is based on a s vs. ρ plot which reveals the magnitude of typical interactions such as hydrogen bonds, weak interactions, and steric clashes.¹⁰⁹ To distinguish between attractive and repulsive interactions, it is necessary to resort to the sign of the second eigenvalue (λ₂): Sign(λ₂), of the electronic density Hessian matrix.¹¹¹ By plotting Sign(λ₂)ρ not only the magnitude of the interaction is reveled but also the nature of such interaction: hydrogen bonds are characterized by negative values of Sign(λ₂)ρ, i.e. −0.05 < Sign(λ₂)ρ < −0.005 a.u.; weak interactions are related to near zero values of Sign(λ₂)ρ, i.e. Sign(λ₂)ρ > −0.005 a.u.; and steric repulsions shows positive values for Sign(λ₂)ρ.¹⁰⁹ The NCI index can be also visualized with the VMD⁹⁷ package as colored gradient isosurfaces corresponding to the nature of the interaction; blue, green, and red colors are related to hydrogen bonds, weak interactions, and steric repulsions, respectively. The electronic density for the molecular configurations shown in Fig. 3 was calculated by using Density Functional Theory with the M06 (ref. 112)/6-311+G(d,p) functional/basis set employing the Gaussian09 (ref. 113) package. These molecular configurations were obtained from the last saved frame during the EMD production step for the shear viscosity calculations.

Plots of electronic density against its reduced gradient are shown in Fig. 8a and b for [C₄mim][CF₃COO] and [C₄mim][Br] IL, respectively. As can be seen, both IL show weak hydrogen bonds since the peaks are located at Sign(λ₂)ρ ≥ −0.015 a.u. Presenting weak hydrogen bonds at ∼ −0.015, −0.014 a.u. and a series of weaker interactions around ∼0.012 a.u along the Sign(λ₂)ρ axis. Peaks corresponding to weak hydrogen bonds in Fig. 8a and b are related to isosurfaces colored in blue in Fig. 8c and d for [C₄mim][CF₃COO] and [C₄mim][Br] IL, respectively. The density scale used for the NCI calculations (−0.02 < ρ < 0.02 a.u), displayed in Fig. 8, conceals the visualization of steric repulsions present at density values larger than 0.05 au. By using a larger density scale of −0.10 < ρ < 0.10 a.u., the relevant steric repulsion appeared within the imidazolium ring for both ILs, as displayed in Fig. S2 in the ESI section.†

Fig. 8 Plots of reduced density gradient (s) vs. the electron density multiplied by the sign of the second Hessian eigenvalue Sign(λ₂)ρ at 300 K. (a) and (c) Results correspond to the [C₄mim][CF₃COO] IL; (c) and (d) are results for the [C₄mim][Br] IL. Attractive interactions are displayed in blue color, weak interactions in green color, and steric repulsions in red color. The isosurfaces correspond to a cutoff for s of 0.5 a.u. The density color scale varies from −0.020 < ρ < 0.020 a.u. Steric repulsions can only be observed within the ring interactions by incrementing the density color scale to −0.10 < ρ < 0.10 a.u, as displayed in Fig. S2 of the ESI section.†

In the case of [C₄mim][CF₃COO] IL the weak interactions mentioned above were labeled as A, B, C, and D ranging from (strongest to weakest): darkest blue (A), dark blue (B), light blue (C), to darkest green (D). As can be observed, the main interactions A and B, correspond to hydrogen bonds from hydrogen atoms in symmetric carbons as expected from its RDF, as seen in Fig. 5a.

In the case of [C₄mim][Br] IL a weak hydrogen bond for every [Br]⁻ anion labeled as A is displayed, followed by a series of slightly weaker hydrogen bonds labeled as B, for the same [Br]⁻ anion, continuing with weaker hydrogen bonds labeled as C and D. The number of interactions in the [C₄mim][Br] IL anion is related with the RDF coordination numbers presented in Table 3. The larger the number of interaction for a single anion, the weaker the interaction strength,¹¹⁴ as observed in Fig. 8d and N_coord in Table 3. According to the findings by Fumino et al.⁷⁵ it could be expected, that since the [C₄mim][Br] IL shows less localized and directional hydrogen bonds, this IL would present less fluidity in comparison to [C₄mim][CF₃COO] IL.

VLE curve

The VLE curves for the ILs [C₄mim][NTf₂], [C₄mim][CF₃COO], and [C₄mim][Br] are shown in Fig. 9. It is important to notice that the gas densities are considered only approximations, since it is difficult to quantify the number of molecules in this phase with the current methodology. It is recommended the use of larger systems and longer simulation times in order to obtain more accurate results for the vapor phase. The calculated critical points in Table 4 and displayed in Fig. 9 were obtained with the law of rectilinear diameters and the density scaling law¹¹⁵ with a critical scaling factor of 0.32. Results from Rane and Errington³³ and Rai and Maginn³⁴ for the [C₄mim][NTf₂] IL were added to Fig. 9a for comparison. For the [C₄mim][NTf₂] IL the calculated critical temperature is in agreement with the value reported by Rai and Maginn³⁴ and differs only by ∼10 K with respect to the value reported by Rane and Errington,³³ as shown in Fig. 8a and Table 4.

Fig. 9 VLE curve for [C₄mim][NTf₂], [C₄mim][CF₃COO], and [C₄mim][Br] ILs simulated in this work. (a) Vapor and liquid densities calculated in this work for the [C₄mim][NTf₂] IL are displayed as black colored circles. Purple squares and orange diamonds are the results obtained from Rane and Errington³³ and Rai and Maginn,³⁴ respectively. (b) Vapor and liquid densities obtained in this work for [C₄mim][CF₃COO] and [C₄mim][Br] ILs are displayed as red and blue colored circles, respectively.

Table 4 Critical points ρ_c and T_c (g cm⁻³, K) calculated by NVT EMD simulations for [C₄mim][NTf₂], [C₄mim][CF₃COO], and [C₄mim][Br] ILs^a

LI	ρc	ρc,sim	ρc,es	Tc	Tc,sim	Tc,es
a ρc, ρc,sim and ρc,es refer to calculated values in this work, simulated values (from literature), and theoretically estimated values (from literature), respectively. Simulated and theoretically estimated values were taken from their corresponding references. Tc, Tc,sim and Tc,es the subindices are the same as those in density.
[C4mim][NTf2]	0.273	0.250 ± 0.003 (ref. 33)	0.424 (ref. 36)	1205.4	1216 ± 14 (ref. 33)	1077 (ref. 43)
		0.265 ± 0.006 (ref. 34)			1203 ± 4 (ref. 34)	1012 (ref. 43)
						1269.9 (ref. 36)
[C4mim][CF3COO]	0.213	N/A	0.356 (ref. 36)	1233.4	N/A	1271 (ref. 37)
						826.8 (ref. 36)
[C4mim][Br]	0.234	N/A	0.376 (ref. 36)	1308.2	N/A	834.9 (ref. 36)

---

The calculated critical temperature for the [C₄mim][CF₃COO] IL is 1233.4 K, displayed in Fig. 9b, presented a difference of only ∼40 K with respect to the estimated value of 1271 K by Fang et al.³⁷ obtained with a modified Eötvos equation. Finally, the critical temperature for the [C₄mim][Br] IL was calculated at 1308.2 K as displayed in Fig. 9b, presenting the highest critical temperature of all the ILs studied in this work. For this IL, Valderrama et al.³⁶ obtained an estimated value of 834.9 K using a group contribution method. The difference between the critical temperatures of [C₄mim][CF₃COO] and [C₄mim][Br] ILs could be related to the number of hydrogen bonds needed to be broken in [C₄mim][Br] IL, in order for the system to change its physical phase.

Shear viscosities

The shear viscosities calculated with eqn (7) are presented in Table 5 for all ILs studied in this work. Fig. S3a in the ESI section† displays the shear viscosity against the acceleration amplitude a₀, for the [C₄mim][OMs] IL. Small a₀ values generate large fluctuations in the viscosity presenting large standard deviations, on the other hand, large a₀ values increase the temperature considerably. Both of them, small and large amplitude points, were discarded from the viscosity linear relationship adjustment.¹¹⁶ From Fig. S3b,† it can be observed that acceleration amplitude values higher than a₀ = 0.11 nm ps⁻² do not deviate the temperature considerably from the dotted line, in this same figure only one standard deviation within each viscosity point was plotted.

Table 5 Shear viscosities η (cP), obtained by NpT NEMD simulations for the ILs studied at 300 K^a

LI	η	ηexp	ηsim	Δη^b (%)
a η, ηexp and ηsim refer to calculated values in this work, experimental values (from literature), and simulated values (from literature), respectively. Experimental and simulated values were taken from their corresponding references.b Δη = (η − ηexp)/ηexp.c At 350 K.d At 298 K.e At 353 K.f At 360 K.g At 298.15 K.h At 358.15 K.i At 5.74 mol L^−1 IL concentration in aqueous solution.
[C4mim][PF6]	163.86	224.74 (ref. 44)	264.4 (ref. 13)^d	−27.09
		228.81 (ref. 45)		−28.39
		257.36 (ref. 46)		−36.33
		450 (ref. 47)		−63.59
	38.4^c	25.51 (ref. 44)^c	39 (ref. 29)^e	50.53
		27.08 (ref. 48)^c	31.3 (ref. 49)^f	41.08
		32.33 (ref. 46)^c	231.3 (ref. 49)^f	18.33
[C4mim][BF4]	84.49	90.61 (ref. 44)	97.8 (ref. 13)^d	−6.75
		86.8 (ref. 46)	111.2 (ref. 31)^d	−2.66
		107.32 (ref. 48)		−21.27
		219 (ref. 47)^g		−61.42
[C4mim][OMs]	52.81^h	31.25 (ref. 56)^h	N/A	68.99
[C4mim][NTf2]	53.67	46.24 (ref. 44)	537.80 (ref. 59)	16.07
		46.5 (ref. 46)	45 (ref. 11)^g	15.42
		46.44 (ref. 57)	72.09 (ref. 60)^g	15.57
		46.79 (ref. 58)	49.9 (ref. 13)^d	14.7
		69 (ref. 47)^g		−22.22
[C4mim][CF3COO]	58.22	63.2 (ref. 62)	N/A	−7.88
		70.02 (ref. 44)		−16.85
[C4mim][Br]	160.14	200 (ref. 63)	231.1 (ref. 13)^d	−19.93
		230 (ref. 63)^d		−30.37
		161.05 (ref. 64)^d^,^i		−0.57
		1486.49 (ref. 65)^d		−89.23

---

The calculated standard deviations for the shear viscosity simulations were used as weights (1/σ²) in the linear regression fitting as shown in Fig. S3a.† Extrapolating the y-axis up to a zero amplitude allows the determination of the zero shear viscosity. Zhao et al.⁹³ noticed the existence of a linear correlation between certain acceleration amplitude values and shear viscosities by using a weighted linear regression fitting. The calculated standard deviations for the shear viscosity simulations were used as weights (1/σ²) giving less importance to those points having large standard deviations in the weighted least square fitting. Furthermore, Sprenger et al.¹¹ calculated the shear viscosity for a series of ILs using only a single value for the acceleration amplitude (a₀ = 0.03 nm ps⁻²) and obtained good agreement against experimental values, with a maximum error of 34%.

In this work the obtained shear viscosities are related strongly with an acceleration amplitude value of a₀ = 0.5 nm ps⁻²; for example for the [C₄mim][OMs] IL, the shear viscosity evaluated at this amplitude gave a value of 61.26 cP, compared to the value of 52.81 cP obtained with the weighted regression adjustment, both results presented a difference of 16%. With the exception of the [C₄mim][OMs] IL, giving the largest deviation against experimental values, our developed FFs predicted shear viscosities in agreement with experimental values presenting errors in the range of 0.5 to 36%. The temperature dependence was also captured in the simulations for the [C₄mim][PF₆] IL at two different temperatures, i.e., 300 and 350 K, where the zero shear viscosity decreased by a factor of four.

The following trend is observed for the experimental viscosities from higher to lower IL viscosity values: [C₄mim][PF₆] ∼ [C₄mim][Br] > [C₄mim][BF₄] > [C₄mim][CF₃COO] > [C₄mim][NTf₂] > [C₄mim][OMs] > [C₄mim][PF₆](350 K); this same trend was captured using our developed FFs. As indicated previously, the O₃–H₁ hydrogen bond formed in the [C₄mim][CF₃COO] corresponds to a coordination number N_coord, of 1.17 atoms, compared with the BR–H₁ hydrogen bond with N_coord of 1.91 atoms. According to the findings by Fumino et al.⁷⁵ we could expect a smaller viscosity for [C₄mim][CF₃COO] IL (higher mobility) compared with [C₄mim][Br] IL, due to the existence of more hydrogen bonds.

Self-diffusion coefficients

The self-diffusion coefficients were calculated in this work at 350 K by using the Einstein eqn (8). The calculated self-diffusion coefficients and the calculated β(t) factor are shown in Table 6. From this table it can be observed that the β(t) factor is less than 1 indicating that even after long simulation times, the system is still in the sub-diffusive regime.

Table 6 Self-diffusion coefficients D_i (10⁻⁷ cm⁻² s⁻¹), calculated by NVT EMD simulations for the ILs studied at 350 K^a

LI	Di	β(t)	Di,exp	Di,sim	ΔDi^b (%)
a Cation/anion. Di, Di,exp and Di,sim refer to calculated values in this work, experimental values (from literature), and simulated values (from literature), respectively. Experimental and simulated values were taken from their corresponding references.b ΔDi = (Di − Di,exp)/Di,exp for cation/anion.c At 353 K.d At 358.15 K.e Obtained by scaling the atomic partial charges to give ±0.8e. The list of charges can be found in Table S2 of the ESI section.f At 358 K.g At 360 K.
[C4mim][PF6]	1.68/0.71	0.90/0.87	6.17/5.26 (ref. 44)	4.7/3.2 (ref. 29)^c	−72.77/−86.50
			6.43/5.14 (ref. 45)		−73.87/−86.19
[C4mim][BF4]	3.57/2.26	0.97/0.91	10.21/10.20 (ref. 44)	9.7/8.2 (ref. 29)^c	−65.03/−77.84
			9.69/10.10 (ref. 45)		−63.16/−77.62
[C4mim][OMs]	0.90/0.55^d	0.80/0.84^d	5.48/4.89 (ref. 56)^d	N/A	−83.58/−88.75
	3.98/3.40^d^,^e	0.88/0.94^d^,^e			−27.37/−30.47^e
[C4mim][NTf2]	4.6/2.46	0.88/0.87	14.06/11.23 (ref. 44)	4.91/3.35 (ref. 59)	−67.28/−78.09
			13.80/11.68 (ref. 45)	10.9/7.8 (ref. 29)^c	−66.67/−78.94
	8.33/5.32^e	0.95/0.86^e			−40.75/−52.63^e
					−39.64/−54.45^e
[C4mim][CF3COO]	3.59/3.03	0.84/0.97	11.18/10.23 (ref. 44)	19.8/17.2 (ref. 29)^c	−69.58/−70.38
			11.10/9.76 (ref. 45)		−67.66/−68.95
	9.68/8.23^e	0.97/0.90^e			−17.97/−19.55^e
					−12.79/−15.68^e
[C4mim][Br]	0.51/0.32	0.82/1	2./N/A (ref. 66)	22/21.08 (ref. 68)^g	−74.50/—
			19.8/N/A (ref. 67)^c		−97.42/—
			9.1/N/A (ref. 68)^f		−94.40/—
	2.20/1.96^e	0.87/0.95^e			10/—^e
					−88.89/—^e
					−75.82/—^e

---

The self-diffusion coefficients obtained with our developed FF underestimate the experimental values by an average of 77%. Experimental evidence indicates that the cation diffuses faster than the anion, a quality that is captured by our developed FF. The experimental self-diffusion coefficients trend, using the experimental value reported by Seyedlar et al.⁶⁶ for the [C₄mim][Br] IL is: [C₄mim][NTf₂] > [C₄mim][CF₃COO] to [C₄mim][Br]; this same trend was captured by our simulations.

Doherty et al.¹³ noticed that by scaling the charges by factor of 0.8, the self-diffusion coefficients increased presenting a better agreement with respect to the experimental values. In their work, for example, the self-diffusion coefficients without scaling charge, i.e. ±1e, for the [C₄mim][BF₄] IL at 425 K were 7.3 × 10⁻⁷ and 6.6 × 10⁻⁷ cm² s⁻¹ for the cation and anion, respectively; after scaling the charges, to give a total charge of ±0.8e, the self-diffusion coefficients increased to 43.1 × 10⁻⁷ and 42.9 × 10⁻⁷ cm² s⁻¹, respectively, in agreement with experimental predictions. Under this premise the original charges of the ILs studied in this work, were scaled by employing different scaling factors in order to obtain total charges of ±0.8e for the cation and anion in the [C₄mim][OMs], [C₄mim][NTf₂], [C₄mim][CF₃COO], and [C₄mim][Br] ILs, as indicated in Tables S1 and S2 in the ESI section.† This scaling scheme was used only during the self-diffusion calculations, improving the self-diffusion coefficients considerably with respect to the experimental values, as seen in Table 6, reducing the error from 76% to 36% for this set of ILs. A good agreement with experimental values was obtained for both the [C₄mim][CF₃COO] and [C₄mim][Br] ILs, the latter case is observed when it is compared with the reported value by Seyedlar et al.⁶⁶ These estimations can be considered reliable since the β(t) factor for each anion in IL is near ∼1.

For comparison purposes, we have also calculated the self-diffusion coefficient for the [C₄mim][Br] IL, using the FF developed by Doherty et al.¹³ This FF labeled as [C₄mim][Br]-Doherty, was used at the same simulation conditions employed in this work. This FF gave values of 1.14 × 10⁻⁷/1.54 × 10⁻⁷ cm² s⁻¹ for the cation/anion diffusivities, with an error around −43%/— when it was compared against the experimental value of Seyedlar et al.⁶⁶

Doherty et al.¹³ showed that some calculated thermodynamic properties are insensitive to the charge scaling scheme, such as: densities, RDFs, SDFs, heat capacities at constant pressure, and viscosities. For example, our calculated densities for [C₄mim][OMs], [C₄mim][NTf₂], [C₄mim][CF₃COO] and [C₄mim][Br] IL change from 1.132, 1.425, 1.161, and 1.232 g cm⁻³ (with original charges) to 1.110, 1.407, 1.145, and 1.211 g cm⁻³ (with scaled charges) at the same operating conditions displayed in Table 6, respectively.

Thermal conductivities

The thermal conductivities for the ILs studied in this work were calculated with the aid of eqn (10) and (11) at 300 K. The calculated values are presented in Table 7. Fig. S4a in the ESI section† shows the thermal conductivity for [C₄mim][Br] and its fluctuations during the 1 ns production step within the NVE ensemble, plotted every 1 ps, along with a time averaged value. The symmetric temperature profile in the z-direction is displayed in Fig. S4b.† As observed, the average temperature increased during this production step by 40 K, however, it has been reported in the literature that the thermal conductivities for ILs within the temperature range of 294 to 353 K, present a weak temperature dependence.^{50,51,54,55,59,61} The calculated thermal conductivity value for the [C₄mim][Br] IL was 0.115 W m⁻¹ K⁻¹, and to the best of our knowledge there are no experimental values reported in the literature for comparison, only an estimated value could be obtained from the literature that differs around 28%.⁵³

Table 7 Thermal conductivities λ (W m⁻¹ K⁻¹), calculated by NVE RNEMD simulations for the ILs studied at 300 K^a

LI	λ	λexp	λsim	λes	Δλ^b (%)
a λ, λexp, λsim and λes refer to calculated values in this work, experimental values (from literature), simulated values (from literature), and theoretically estimated values (from literature), respectively. Experimental and simulated values were taken from their corresponding references.b Δλ = (λ − λexp)/λexp.c 298.15 K.
[C4mim][PF6]	0.108 ± 0.004	0.145 (ref. 50)	N/A	0.147 (ref. 53)	−25.52
		0.145 (ref. 51)			−25.52
		0.173 (ref. 52)			−37.57
[C4mim][BF4]	0.138 ± 0.006	0.169 (ref. 54)	N/A	0.167 (ref. 53)	−18.34
		0.186 (ref. 55)			−25.81
		0.190 (ref. 52)			−27.37
[C4mim][OMs]	0.161 ± 0.007	N/A	N/A	0.171 (ref. 53)	—
[C4mim][NTf2]	0.108 ± 0.003	0.126 (ref. 59)^c	0.107 (ref. 59)	0.123 (ref. 53)	−14.29
		0.127 (ref. 61)			−14.96
[C4mim][CF3COO]	0.132 ± 0.006	N/A	N/A	0.166 (ref. 53)	—
[C4mim][Br]	0.115 ± 0.004	N/A	N/A	0.159 (ref. 53)	—

---

The values of the thermal conductivities in this work underestimated the experimental values from 14% to 37%. Nevertheless these calculations captured the experimentally available trend, with low thermal conductivities values for the [C₄mim][PF₆] and [C₄mim][NTf₂] ILs. The [C₄mim][OMs] IL presents the highest thermal conductivity with a value of 0.161 ± 0.007 W m⁻¹ K⁻¹, in agreement with an estimated value obtained with the methodology proposed by Chen et al.⁵³ The thermal conductivity value for the [C₄mim][NTf₂]IL is in agreement with the simulated value obtained by Liu and Maginn.⁵⁹ In the case of the [C₄mim][CF₃COO] IL a value of 0.132 W m⁻¹ K⁻¹ was obtained for the thermal conductivity, differing by 20% with respect to the value estimated using the methodology by Chen et al.⁵³

The exhibiting trend for the calculated thermal conductivities in this work is as follows: [C₄mim][OMs] > [C₄mim][BF₄] ∼ [C₄mim][CF₃COO] > [C₄mim][Br] > [C₄mim][PF₆] ∼ [C₄mim][NTf₂], this trend agrees with the values obtained with the methodology proposed by Chen et al., presented in Table 6. Additionally Tenney et al.⁸¹ calculated the thermal conductivities for a series of ILs, including [C₂mim][OMs] and [C₂mim][CF₃COO] by using RNEMD simulations with both scaled and non-scaled atomic partial charges. They found that the non-scaled versions of the FF overestimated the experimental values of the thermal conductivities, with values of 0.28 and 0.22 W m⁻¹ K⁻¹ for the [C₂mim][OMs] and [C₂mim][CF₃COO] IL, respectively.

In order to consider ILs for thermal fluid applications,⁵⁵ it is necessary to understand how the energy is transferred in its bulk. Therefore Prandt numbers , were calculated for these ILs studied at 300 K, as indicated in Table 8, using previously calculated values for the heat capacity at constant pressure.^24,41 The calculated Pr for these ILs are much larger than 1, indicating that the heat transfer mechanism is dominated by convective forces, in similitude with engine oils.^81,117

Table 8 Prandt number Pr, calculated for the ILs studied at 300 K^a

LI	Pr
a The heat capacities at constant pressure were taken from previous works within the research group ref. 24 and 41.
[C4mim][PF6]	2222.87
[C4mim][BF4]	1117.68
[C4mim][NTf2]	769.39
[C4mim][CF3COO]	871.78
[C4mim][Br]	2158.48

---

Conclusions

Thermodynamic, structural and dynamics properties for the [C₄mim][CF₃COO] and [C₄mim][Br] ILs such as: VLE, critical points, RDF, SDF, CDF, NCI index analysis, zero shear viscosities, self-diffusion coefficients, and thermal conductivities were calculated in this work by using equilibrium and non-equilibrium MD simulations. These properties were calculated using our previously developed FF focused on condensed phase applications for ILs, such as extracting solvents for toxic substances, solvents for capturing greenhouse gases, as catalysts, or as solvents used for reaction media.

Structural information was obtained by using RDF, SDF, CDF, coordination number, and NCI interaction index, evaluating not only the ion–ion interactions but also the hydrogen bonding present in the [C₄mim][CF₃COO] and [C₄mim][Br] ILs. It was found that hydrogen bonds in both IL are formed through interactions mainly with H₁ and H_2,3 from the imidazolium ring. The hydrogen coordination number for the oxygen atoms in the [C₄mim][CF₃COO] IL indicate a one-to-one relationship, in contrast with a hydrogen coordination number of two atoms (H₁ and H_2,3) surrounding the bromide anion in the [C₄mim][Br] IL. The NCI analysis revealed that in spite of [C₄mim][Br] IL presenting a larger number of hydrogen bond interactions, these interactions have similar strength compared to those found in the [C₄mim][CF₃COO] IL.

The CDF distributions allowed the monitoring of the hydrogen bonds between the atoms within the anions and the acidic hydrogen from the imidazolium ring, indicating a single preferred region with angles for these interactions of 90–150° and distances from 2–3 Å for the [C₄mim][CF₃COO] IL; in the case of [C₄mim][Br] the CDF showed for these same interactions two preferred regions, the first region is located at angles of 90–150° with distances from 2–3 Å and the second region is located at angles 30–45° and distances from 6–7 Å. On the other hand, the CDF for the geometric center of ring for the cation presented the same behavior in both the [C₄mim][CF₃COO] and [C₄mim][Br] IL.

The calculated critical points presented good agreement in comparison with simulations from other research groups. The [C₄mim][Br] IL, possess a higher critical temperature with respect to the [C₄mim][NTf₂] and [C₄mim][CF₃COO] ILs.

Zero shear viscosities were calculated for the following five ILs at 300 K: [C₄mim][PF₆], [C₄mim][BF₄], [C₄mim][NTf₂], [C₄mim][CF₃COO], and [C₄mim][Br], at 358.15 K for the [C₄mim][OMs] IL, and at 350 K for the [C₄mim][PF₆] IL. The calculated viscosities presented, in general, good agreement against experimental values. Also our developed FFs were capable of capturing the temperature dependence of the viscosity for the [C₄mim][PF₆] IL at 300 K and 350 K, with viscosity values decreasing by a factor of four.

The self-diffusion coefficients for the ILs studied were calculated at 350 K, without applying a scaling factor for the atomic charges, these diffusivities under-estimated the experimental values within an average of 77%. After scaling the individual atomic charges into a total of ±0.8e charge for the anion and the cation, the error against the experimental diffusivity values was reduced from 77% till 37% for the [C₄mim][NTf₂], [C₄mim][CF₃COO], and [C₄mim][Br] ILs.

The experimental thermal conductivities for some of the ILs studied in this work are scarcely available in the literature, nevertheless the calculated thermal conductivities values from our simulations presented a reliable agreement with the experimental values available. We also calculated the Prandt number for the studied ILs in this work and we found the heat transfer mechanism in ILs is dominated by convective forces, in similitude with engine oils. The calculated Prandt number for ILs ranged from 770 to 2223.

Experimental evidence was recovered for most of the calculated properties and some new predictions were done where data is not available. The results obtained in this work, expand the possible applications for the ILs studied, as heat transfer fluids, green solvents for the extraction of contaminated and toxic substances, solvents as reaction media, condensed phase applications with high importance in the pharmaceutical, chemical and petrochemical industries, where the accuracy of the FF is very important.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

J. S.-B. acknowledges a doctoral fellowship from CONACyT; J. S-B. and M. G. thankfully acknowledge computer resources, technical advice and support provided by Laboratorio Nacional de Supercomputo del Sureste de México (LNS), a member of the CONACYT national laboratories, with project no. 201801051N. M. G. also acknowledges the High Performance Computational Resources provided by ACARUS at the University of Sonora. J. S.-B. and M. G. thankfully acknowledge the help and advice provided by Prof. Orlando Acevedo and his research group regarding the shear viscosity calculations.

References

1. R. D. Rogers and K. R. Seddon, Science, 2003, 302, 792–793.
2. J. L. Anthony, J. F. Brennecke, J. D. Holbrey, E. J. Maginn, R. A. Mantz, R. D. Rogers, P. C. Trulove, A. E. Visser and T. Welton, Physicochemical Properties of Ionic Liquids, in Ionic Liquids in Synthesis, ed. P. Wasserscheid and T. Welton, Wiley-VCH Verlag, Weinheim, 2002, pp. 41–126.
3. T. Welton, Biophys. Rev., 2018, 10, 691–706.
4. F. van Rantwijk and R. A. Sheldon, Chem. Rev., 2007, 107, 2757–2785.
5. T. Welton, Chem. Rev., 1999, 99, 2071–2083.
6. M. L. S. Batista, J. A. P. Coutinho and J. R. B. Gomes, Curr. Phys. Chem., 2014, 4, 151–172.
7. Z. Lei, C. Dai and B. Chen, Chem. Rev., 2014, 114, 1289–1326.
8. L. C. Branco, G. V. S. M. Carrera, J. Aires-de-Sousa, I. Lopez-Martin, R. Frade and C. A. M. Afonso, Physico-Chemical Properties of Task-Specific Ionic Liquids, in Ionic Liquids: Theory, Properties, New Approaches, ed. A. Kokorin, InTech, Croacia, 2011, pp. 61–94.
9. L. F. Vega, O. Vilaseca, E. Valente, J. S. Andreu, F. Llovell and R. M. Marcos, Using Molecular Modelling Tools to Understand the Thermodynamic Behaviour of Ionic Liquids, in Ionic Liquids: Theory, Properties, New Approaches, ed. A. Kokorin, InTech, Croatia, 2011, pp. 303–328.
10. D. Frenkel and B. Smit, Molecular Dynamics Simulations, in Understanding Molecular Simulation. From Algorithms to Applications, Academic Press, San Diego, 2002, pp. 62–107.
11. K. G. Sprenger, V. W. Jaeger and J. Pfaendtner, J. Phys. Chem. B, 2015, 119, 5882–5895.
12. B. Doherty, X. Zhong and O. Acevedo, J. Phys. Chem. B, 2018, 122, 2962–2974.
13. B. Doherty, X. Zhong, S. Gathiaka, B. Li and O. Acevedo, J. Chem. Theory Comput., 2017, 13, 6131–6145.
14. P. A. Hunt, Mol. Simul., 2006, 32, 1–10.
15. T. Méndez-Morales, J. Carrete, O. Cabeza, L. J. Gallego and L. M. Varela, J. Phys. Chem. B, 2011, 115, 6995–7008.
16. A. Pérez de la Luz, G. A. Méndez-Maldonado, E. Núñez-Rojas, F. Bresme and J. Alejandre, J. Chem. Theory Comput., 2015, 11, 2792–2800.
17. N. E. de Jesús-González, A. Pérez de la Luz, J. López-Lemus and J. Alejandre, J. Chem. Eng. Data, 2018, 63, 1170–1179.
18. E. J. Maginn, J. Phys.: Condens. Matter, 2009, 21, 373101.
19. V. Kempter and B. Kirchner, J. Mol. Struct., 2010, 972, 22–34.
20. C. Krekeler, J. Schmidt, Y. Y. Zhao, B. Qiao, R. Berger, C. Holm and L. D. Site, J. Chem. Phys., 2008, 129, 174503.
21. F. Dommert, J. Schmidt, B. Qiao, Y. Zhao, C. Krekeler, L. D. Site, R. Berger and C. Holm, J. Chem. Phys., 2008, 129, 224501.
22. T. Köddermann, K. Fumino, R. Ludwing, J. N. Canongia Lopes and A. A. H. Pádua, ChemPhysChem, 2009, 10, 1181–1186.
23. J. N. Canongia Lopes and A. A. H. Pádua, Theor. Chem. Acc., 2012, 131, 1129.
24. S. Hernández-Ríos, J. Sánchez-Badillo, M. Gallo, P. López-Albarran, J. Gaspar-Armenta and R. González-García, J. Mol. Liq., 2017, 244, 422–432.
25. T. I. Morrow and E. J. Maginn, J. Phys. Chem. B, 2002, 106, 12807–12813.
26. Z. Liu, S. Huang and W. Wang, J. Phys. Chem. B, 2004, 108, 12978–12989.
27. S. Tsuzuki, W. Shinoda, H. Saito, M. Mikami, H. Tokuda and M. Watanabe, J. Phys. Chem. B, 2009, 113, 10641–10649.
28. S. V. Sambasivarao and O. Avecedo, J. Chem. Theory Comput., 2009, 5, 1038–1050.
29. X. Zhong, Z. Liu and D. Cao, J. Phys. Chem. B, 2011, 115, 10027–10040.
30. S. M. Urahata and M. C. C. Ribeiro, J. Chem. Phys., 2004, 120, 1855–1863.
31. Z. Liu, X. Wu and W. Wang, Phys. Chem. Chem. Phys., 2006, 8, 1096–1104.
32. N. Rai and E. J. Maginn, J. Phys. Chem. Lett., 2011, 2, 1439–1443.
33. K. S. Rane and J. R. Errington, J. Phys. Chem. B, 2014, 118, 8734–8743.
34. N. Rai and E. J. Maginn, Faraday Discuss., 2012, 154, 53–69.
35. J. O. Valderrama and R. E. Rojas, Ind. Eng. Chem. Res., 2009, 48, 6890–6900.
36. J. O. Valderrama and P. A. Robles, Ind. Eng. Chem. Res., 2007, 46, 1338–1344.
37. D.-W. Fang, F. Zhang, R. Jia, W.-J. Shan, L.-X. Xia and J.-Z. Yang, RSC Adv., 2017, 7, 11616–11625.
38. V. H. Jadhav, H.-J. Jeong, S. T. Lim, M.-H. Sohn and D. W. Kim, Org. Lett., 2011, 13, 2502–2505.
39. J. R. Pliego Jr, J. Mol. Liq., 2017, 237, 157–163.
40. F. D'Anna, S. La Marca and R. Noto, J. Org. Chem., 2008, 73, 3397–3403.
41. A. D. Miranda, M. Gallo, J. M. Domínguez, J. Sánchez-Badillo and R. Martínez-Palou, J. Mol. Liq., 2019, 779–793.
42. V. C. Weiss, J. Mol. Liq., 2015, 209, 745–752.
43. L. P. N. Rebelo, J. N. Canongia Lopes, J. M. S. S. Esperanza and E. Filipe, J. Phys. Chem. B, 2005, 109, 6040–6043.
44. H. Tokuda, S. Tsuzuki, M. A. B. H. Susan, K. Hayamizu and M. Watanabe, J. Phys. Chem. B, 2006, 110, 19593–19600.
45. H. Tokuda, K. Hayamizu, K. Ishii, M. A. B. H. Susan and M. Watanabe, J. Phys. Chem. B, 2004, 108, 16593–16600.
46. J. Jacquemin, P. Husson, A. A. H. Padua and V. Majer, Green Chem., 2006, 8, 172–180.
47. J. G. Huddleston, A. E. Visser, W. M. Reichert, H. D. Willauer, G. A. Broker and R. D. Rogers, Green Chem., 2001, 3, 156–164.
48. W. Li, Z. Zhang, B. Han, S. Hu, Y. Xie and G. Yang, J. Phys. Chem. B, 2007, 111, 6452–6456.
49. J. Picálek and J. Kolafa, Mol. Simul., 2009, 35, 685–690.
50. D. Tomida, S. Kenmochi, T. Tsukada, K. Qiao and C. Yokoyama, Int. J. Thermophys., 2007, 28, 1147–1160.
51. C. A. Nieto de Castro, M. J. V. Lourenco, A. P. C. Ribeiro, E. Langa and S. I. C. Vieira, J. Chem. Eng. Data, 2010, 55, 653–661.
52. Y. Zhao, Y. Zhen, B. P. Jelle and T. Boström, J. Therm. Anal. Calorim., 2017, 128, 279–288.
53. Q.-L. Chen, K.-J. Wu and C.-H. He, Ind. Eng. Chem. Res., 2014, 53, 7224–7232.
54. D. Tomida, S. Kenmochi, T. Tsukada and C. Yokayama, Heat Tran. Asian Res., 2007, 36, 361–372.
55. M. E. van Valkenburg, R. L. Vaughn, M. Williams and J. S. Wilkes, Thermochim. Acta, 2005, 425, 181–188.
56. A. Stark, A. W. Zidell, J. W. Russo and M. M. Hoffman, J. Chem. Eng. Data, 2012, 57, 3330–3339.
57. M. Vranes, S. Dozic, V. Djeric and S. Gadzuric, J. Chem. Eng. Data, 2012, 57, 1072–1077.
58. M. Vranes, N. Zec, A. Tot, S. Papovic, S. Dozic and S. Gadzuric, J. Chem. Thermodyn., 2014, 68, 98–108.
59. H. Liu, E. Maginn, A. E. Visser, N. J. Bridges and E. B. Fox, Ind. Eng. Chem. Res., 2012, 51, 7242–7254.
60. E. G. Blanco-Díaz, E. O. Castrejón-González, J. F. J. Alvarado, A. Estrada-Baltazar and F. Castillo-Borja, J. Mol. Liq., 2017, 242, 265–271.
61. R. Ge, C. Hardacre, P. Nancarrow and D. W. Rooney, J. Chem. Eng. Data, 2007, 52, 1819–1823.
62. J. M. Crosthwaite, M. J. Muldoon, J. K. Dixon, J. L. Anderson and J. F. Brennecke, J. Chem. Thermodyn., 2005, 37, 559–568.
63. P. N. Tshibangu, S. N. Ndwandwe and E. D. Dikio, Int. J. Electrochem. Sci., 2011, 6, 2201–2213.
64. W. Liu, L. Cheng, Y. Zhang, H. Wang and M. Yu, J. Mol. Liq., 2008, 140, 68–72.
65. K.-S. Kim, B.-K. Shin and H. Lee, Korean J. Chem. Eng., 2004, 21, 1010–1014.
66. A. O. Seyedlar, S. Stapf and C. Mattea, J. Phys. Chem. B, 2017, 121, 5363–5373.
67. B. Aoun, M. A. González, M. Russina, D. L. Price and M.-L. Saboungi, J. Phys. Soc. Jpn., 2013, 82, SA002.
68. M. Kohagen, M. Brehm, Y. Lingscheid, R. Giernoth, J. Sangoro, F. Kremer, S. Naumov, C. Iacob, J. Kärger, R. Valiullin and B. Kirchner, J. Phys. Chem. B, 2011, 115, 15280–15288.
69. B. Hess, J. Chem. Phys., 2002, 116, 209–217.
70. E. J. Maginn, Acc. Chem. Res., 2007, 40, 1200–1207.
71. M. H. Kowsari, S. Alavi, M. Ashrafizaadeh and B. Najafi, J. Chem. Phys., 2009, 130, 014703.
72. C. Rey-Castro and L. F. Vega, J. Phys. Chem. B, 2006, 110, 14426–14435.
73. J. Wang, R. M. Wolf, J. W. Caldwell, P. A. Kollman and D. A. Case, J. Comput. Chem., 2004, 25, 1157–1174.
74. K. R. Ramya, P. Kumar and A. Venkatnathan, J. Phys. Chem. B, 2015, 119, 14800–14806.
75. K. Fumino, A. Wulf and R. Ludwig, Angew. Chem., Int. Ed., 2008, 47, 8731–8734.
76. M. Chen, R. Pendrill, G. Widmalm, J. W. Brady and J. Wohlert, J. Chem. Theory Comput., 2014, 10, 4465–4479.
77. Y. Zhang and E. J. Maginn, J. Phys. Chem. B, 2012, 116, 10036–10048.
78. Z. I. Zaripov, F. M. Gumerov, V. F. Khairutdinov, M. Musial, E. Zorebski, M. Dzida and I. M. Abdulagatov, Fluid Phase Equilib., 2019, 485, 135–145.
79. Y. U. Paulechka, J. Phys. Chem. Ref. Data, 2010, 39, 033108.
80. F. Müller-Plathe, J. Chem. Phys., 1997, 106, 6082–6085.
81. C. M. Tenney, M. Massel, J. M. Mayes, M. Sen, J. F. Brennecke and E. J. Maginn, J. Chem. Eng. Data, 2014, 59, 391–399.
82. P. J. Carvhalho, V. H. Álvares, B. Schröder, A. M. Gil, I. M. Marrucho, M. Aznar, L. M. N. B. F. Santos and J. A. P. Coutinho, J. Phys. Chem. B, 2009, 113, 6803–6812.
83. A. Yokozeki, M. B. Shiflett, C. P. Junk, L. M. Grieco and T. Foo, J. Phys. Chem. B, 2008, 112, 16654–16663.
84. X. Hu, C. Ngwa and Q. Zheng, Curr. Org. Synth., 2016, 13, 101–110.
85. A. Zare, A. Hasaninejad, A. Parhami, A. R. Moosavi-Zare, F. Khedri, E. Parsaee, M. Abdolalipoor-Saretoli, M. Khedri, M. Roshankar and H. Deisi, J. Serb. Chem. Soc., 2010, 75, 1315–1324.
86. C. Li, J. Zhang, C. Zhao, L. Yang, W. Zhao, H. Jiang, X. Ren, W. Su, Y. Li and J. Guan, R. Soc. Open Sci., 2018, 5, 180133.
87. J. Alejandre, J. L. Rivera, M. A. Mora and V. de la Garza, J. Phys. Chem. B, 2000, 104, 1332–1337.
88. J. Alejandre, D. J. Tildesley and G. A. Chapela, J. Chem. Phys., 1995, 102, 4574–4583.
89. M. J. Abraham, T. Murtola, R. Schulz, S. Páll, J. C. Smith, B. Hess and E. Lindahl, Software X, 2015, 1–2, 19–25.
90. U. Essmann, L. Perera, M. L. Berkowitz, T. Darden, H. Lee and L. G. Pedersen, J. Chem. Phys., 1995, 103, 8577–8592.
91. T. Darden, D. York and L. Pedersen, J. Chem. Phys., 1993, 98, 10090–10092.
92. G. Bussi, D. Donadio and M. Parrinnello, J. Chem. Phys., 2007, 126, 014101.
93. L. Zhao, X. Wang, L. Wang and H. Sun, Fluid Phase Equilib., 2007, 260, 212–217.
94. L. Zhao, T. Cheng and H. Sun, J. Chem. Phys., 2008, 129, 144501.
95. H. J. C. Berendsen, J. P. M. Postma, W. F. van Gunsteren, A. DiNola and J. R. Haak, J. Chem. Phys., 1984, 81, 3684–3690.
96. B. Hess, H. Bekker, H. J. C. Berendsen and J. G. E. M. Fraaije, J. Comput. Chem., 1997, 18, 1463–1472.
97. W. Humphrey, A. Dalke and K. Schulten, J. Mol. Graphics, 1996, 14, 33–38.
98. M. Brehm and B. Kirchner, J. Chem. Inf. Model., 2011, 51, 2007–2023.
99. A. R. Leach, Computer Simulation Methods, in Molecular Modelling Principles and Applications, Prentice Hall, 2nd edn, New York, 2001, pp. 303–352.
100. S. Nosé, J. Chem. Phys., 1984, 81, 511–519.
101. W. G. Hoover, Phys. Rev. A, 1985, 31, 1695–1697.
102. M. Parrinello and A. Rahman, Appl. Phys., 1981, 52, 7182–7190.
103. S. Plimpton, J. Comput. Phys., 1995, 117, 1–19.
104. M. R. Shirts, C. Klein, J. M. Swails, J. Yin, M. K. Gilson, D. L. Mobley, D. A. Case and E. D. Zhong, J. Comput.-Aided Mol. Des., 2017, 31, 147–161.
105. R. P. Matthews, T. Welton and P. A. Hunt, Phys. Chem. Chem. Phys., 2014, 16, 3238–3253.
106. E. I. Izgorodina and D. R. MacFarlane, J. Phys. Chem. B, 2011, 115, 14659–14667.
107. B. Jeziorski, R. Moszynsli and K. Szalewicz, Chem. Rev., 1994, 94, 1887–1930.
108. T.-H. Tang, E. Deretey, S. J. K. Jensen and I. G. Csizmadia, Eur. Phys. J. D, 2006, 37, 217–222.
109. E. R. Johnson, S. Keinan, P. Mori-Sánchez, J. Contreras-García, A. J. Cohen and W. Yang, J. Am. Chem. Soc., 2010, 132, 6498–6506.
110. J. Contreras-García, E. R. Johnson, S. Kainan, R. Chaudret, J.-P. Piquemal, D. N. Beratan and W. Yang, J. Chem. Theory Comput., 2011, 7, 625–632.
111. J. Contreras-García, R. A. Boto, F. Izquierdo-Ruiz, I. Reva, T. Woller and M. Alonso, Theor. Chem. Acc., 2016, 135, 242.
112. Y. Zhao and D. G. Truhlar, Acc. Chem. Res., 2008, 41, 157–167.
113. M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, G. Scalmani, V. Barone, B. Mennucci, G. A. Petersson, H. Nakatsuji, M. Caricato, X. Li, H. P. Hratchian, A. F. Izmaylov, J. Bloino, G. Zheng, J. L. Sonnenberg, M. Hada, M. Ehara, K. Toyota, R. Fukuda, J. Hasegawa, M. Ishida, T. Nakajima, Y. Honda, O. Kitao, H. Nakai, T. Vreven, J. A. Montgomery, Jr, J. E. Peralta, F. Ogliaro, M. Bearpark, J. J. Heyd, E. Brothers, K. N. Kudin, V. N. Staroverov, R. Kobayashi, J. Normand, K. Raghavachari, A. Rendell, J. C. Burant, S. S. Iyengar, J. Tomasi, M. Cossi, N. Rega, J. M. Millam, M. Klene, J. E. Knox, J. B. Cross, V. Bakken, C. Adamo, J. Jaramillo, R. Gomperts, R. E. Stratmann, O. Yazyev, A. J. Austin, R. Cammi, C. Pomelli, J. W. Ochterski, R. L. Martin, K. Morokuma, V. G. Zakrzewski, G. A. Voth, P. Salvador, J. J. Dannenberg, S. Dapprich, A. D. Daniels, Ö. Farkas, J. B. Foresman, J. V. Ortiz, J. Cioslowski, and D. J. Fox, Gaussian09, Wallingford CT, Gaussian, Inc., 2009.
114. J. M. C. Marques, J. L. Llanio-Trujillo, M. Albertí, A. Aguilar and F. Pirani, J. Phys. Chem. A, 2013, 117, 8043–8053.
115. L. Vega, E. de Miguel, L. F. Rull, G. Jackson and I. A. McLure, J. Chem. Phys., 1992, 96, 2296–2305.
116. Y. Song and L. L. Dai, Mol. Simul., 2010, 36, 560–567.
117. J. Qu, J. J. Truhan, S. Dai, H. Luo and P. J. Blau, Tribol. Lett., 2006, 22, 207–214.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c9ra02058f

---
