ELDOR-detected NMR beyond hyperfine couplings: a case study with Cu(II)-porphyrin dimers

Abstract

The pulse EPR method ELDOR-detected NMR (EDNMR) is applied to two Cu(II)-porphyrin dimers that are suitable building blocks for molecular wires. One of the dimers is meso–meso singly linked, the other one is β, meso, β-fused. We show experimentally and theoretically that EDNMR spectra contain information about the electron–electron couplings. The spectra of the singly linked dimer are consistent with a perpendicular arrangement of the porphyrin planes and negligible exchange coupling. In addition, the resolution is good enough to distinguish ⁶³Cu and ⁶⁵Cu in frozen glassy solution and to resolve a metal-ion nuclear quadrupole coupling of 32 MHz. In the case of the fused dimer, we observe so far unreported signal enhancements, or anti-holes, in the EDNMR spectra. These are readily explained in a generalized framework based on [Cox et al., J. Magn. Reson., 2017, 280, 63–78], if an effective spin of S = 1 is assumed, in accordance with SQUID measurements. The positions of the anti-holes encode a zero-field splitting with |D| = 240 MHz, which is about twice as large as expected from the point-dipole approximation. These findings demonstrate the previously unrecognized applicability and versatility of the EDNMR technique in the quantitative study of complex paramagnetic compounds.

---

1 Introduction

Electron–electron double resonance (ELDOR)-detected NMR (EDNMR) is a pulse EPR technique that was introduced by Schosseler et al. in 1994.¹ It is intended for the measurement of hyperfine couplings to nuclei in the vicinity of unpaired electrons and works best for moderately sized couplings that are not resolved in EPR spectra, but may also be hard to access by electron spin echo envelope modulation (ESEEM) or electron nuclear double resonance (ENDOR) techniques. For weakly coupled, low-γ nuclei (e.g.¹⁴N), EDNMR is most useful at high fields and high frequencies, e.g. at W-band frequencies (≈95 GHz),² and became popular only relatively recently.^3–5 It proved to be an invaluable tool, for example, in the study of the oxygen-evolving complex of photosystem II⁶ and the spectroscopic investigation of ATP turnover in ABC exporters.⁷ EDNMR was also applied to investigate Mn(II) complexes inside cells.⁸ Only in a few cases was the technique applied at Q-band frequencies (≈35 GHz).^9–12

In contrast to their widespread use for ligand nuclei, hyperfine techniques have only in a few cases been applied to gain information about the central ions of metal complexes.^9,13–19 Only the last two studies cited here made use of EDNMR, although it might be more sensitive than ENDOR if the lines are mainly inhomogeneously broadened – which is often the case for metal hyperfine couplings.

Several groups have introduced modifications and extensions in order to increase the information content of EDNMR spectra. An additional microwave (mw) or radio-frequency (rf) source is employed in the triple resonance techniques 2D-EDNMR²⁰ and THYCOS,²¹ respectively, that correlate hyperfine couplings of several nuclei coupled to the same paramagnetic center. Alternatively, the nuclear frequency spectrum can be correlated to the EPR spectrum in order to gain information about the relative orientation of the tensors.² With arbitrary waveform generator (AWG)-controlled spectrometers, it is possible to detect the complete hole pattern in one shot by the use of chirp pulses.²² In this context, it was also shown that it is possible to obtain hyperfine sublevel correlation (HYSCORE)-type information with hole burning experiments. The latter experiment can also be performed in a classical EDNMR fashion without chirp pulses.

In this study we highlight, on the example of two Cu(II)-porphyrin dimers, that even the basic form of EDNMR can provide more information than generally appreciated, in particular, on metal-ion nuclear quadrupole and on electron–electron couplings.

Porphyrins are suitable components for molecular wires that mediate long distance charge transport, because of their large delocalized π-systems, small HOMO–LUMO gaps, rigid frameworks, and small reorganization energies.^23–27 The edge-fused porphyrin tapes, pioneered by Osuka and coworkers,^28–30 exhibit particularly strong electronic coupling, leading to highly conductive molecular wires.³¹ Here we report an EDNMR investigation of two copper porphyrin dimers: the edge-fused dimer f-CuP2 and the meso–meso singly linked dimer CuP2; see chemical structures in Fig. 1. The dimers f-CuP2 and CuP2 are very similar to copper porphyrin dimers reported previously,^29,32 except that the compounds investigated here have bulky 3,5-bis(trihexylsilyl)phenyl substituents to provide high solubility and prevent aggregation.³³ Previous crystallographic studies^29,32 have shown that the Cu–Cu distance in both of these dimers is in the range of 8.3–8.4 Å, and that the planes of the two porphyrin units are almost perpendicular in CuP2, whereas they are coplanar in f-CuP2. DFT studies of CuP2 revealed that the rigidity is much higher compared to ethyne or butadiyne-linked structures.³⁴ The twisted conformation of CuP2 prevents orbital overlap between the π-systems of the porphyrin units.²⁷ In a different study it was demonstrated that copper(II)-porphyrin dimers, similar to f-CuP2 and CuP2, exhibit anti-ferromagnetic coupling between the metal centers.³⁵ Variable-temperature magnetic susceptibility measurements in the range 2–300 K on the fused dimer revealed that the value of χT drops sharply at temperatures below 20 K, and a Bleaney–Bowers fit to these data gave a J value of 1.43 cm⁻¹ (for Ĥ = 2JS⃑₁S⃑₂). Recently, it was also shown that a doubly fused Cu(II)-porphyrin dimer exhibits electrocatalytic properties for hydrogen evolution.³⁶

Fig. 1 Chemical structures of the Cu(II)-porphyrin dimers investigated in this study.

Here we demonstrate that the EDNMR spectra of CuP2 are consistent with a small exchange coupling between the Cu(II) centres and a perpendicular orientation of the porphyrin planes. The strong orientation selection of the experiment leads to a striking resolution of the copper hyperfine peaks and makes it possible to resolve the isotopes ⁶³Cu and ⁶⁵Cu at natural abundance in glassy frozen solution. Additionally, we determine the copper quadrupole coupling in a similar way as previously shown for nitroxides.³⁷ A recently proposed fast simulation algorithm⁴ quantitatively reproduces the experiment in spectral regions where only copper signals contribute to the spectrum. In the case of a relatively strong exchange coupling in f-CuP2 (79 GHz for JS⃑₁S⃑₂, corresponding to 1.32 cm⁻¹ for 2JS⃑₁S⃑₂), we observe anti-holes or signal enhancements in the EDNMR spectra. These anti-holes are in line with our previous general description of polarization changes in hole burning²² and their correlation to the EPR spectrum can be simulated with a generalized algorithm that can treat arbitrary spin systems. The correlation confirms the expected orientation of the dipolar coupling tensor with respect to the g- and A-tensors of the Cu(II)-porphyrin subsystems. In addition, the magnitude of the dipolar coupling is found to be significantly larger than expected from a simple point-dipole approximation, contradicting previous interpretations of the CW EPR spectra of similar Cu(II)-porphyrin dimers.^35,36 Since the information content of the experiment goes beyond the nuclear frequencies, the NMR in ELDOR-detected NMR can be misleading.

2 Theory

2.1 Description of ELDOR-detected NMR

The pulse sequence for ELDOR-detected NMR is shown in Fig. 2. A high turning angle (HTA) pulse burns a hole into an inhomogeneously broadened EPR line. The hole burned at ν_HTA = ν_Obs is referred to as the central hole. This central hole obscures side holes at low frequencies. If a transition irradiated by the hole burning pulse shares a level with another transition that is either fully or weakly allowed, the polarization of the latter transition is changed and a side hole (or side anti-hole) is created. Anisotropic hyperfine couplings of the same order of magnitude as the nuclear Zeeman frequency lead to weakly allowed electron–nuclear transitions that correspond to side holes offset by the nuclear frequencies. By changing the frequency of the HTA pulse in a stepwise fashion, one can obtain the spectrum of the side holes if the variable echo intensity is plotted against ν_HTA–ν_Obs. This experiment is usually applied for the detection of nuclear frequencies, hence the name EDNMR. The standard description of EDNMR uses a two-spin system consisting of one electron and one nucleus,^4,5 usually also of spin-1/2. This four-level system corresponds to the subsystem {|1〉, |2〉, |3〉, |4〉} in Fig. 3. If the HTA pulse drives, for example, the transition (|1〉 → |4〉), which is formally forbidden, then the polarization, and thus the signal, of the formally allowed transitions (|1〉 → |3〉) and (|2〉 → |4〉) is also decreased. This results in the mentioned side holes offset by the NMR frequencies. In an inhomogeneously broadened EPR line, any of the allowed or forbidden EPR transitions in the mentioned subsystem can be driven by the HTA pulse. In this case, the peak intensity (i.e., the hole depth h) is described aswhere I_a and I_f are the transition probabilities of the allowed and forbidden transitions, respectively, and β₀ is the nominal flip angle. This description is suitable to explain the basic phenomenon of EDNMR as well as some quantitative aspects, but it is restricted to systems with a single electron spin with spin-1/2. The same description is applied to some high-spin systems, such as Mn²⁺ (S = 5/2), by considering only the central (|−1/2〉 → |1/2〉) transition and treating it as a fictitious spin-1/2. However, this approximation does not generally hold for high-spin systems or systems of several moderately coupled electron spins. If several unpaired electrons are present in a system, there are always allowed transitions that share a common level. An example for such a system is shown in Fig. 3. Some of the three-level subsystems relevant for hole burning²² behave like those in a usual electron–nuclear two-spin system (as discussed before), but the complete level system cannot be reduced only to subsystems of this kind. For example, the inversion of the allowed transition (|1〉 → |3〉) will lead to an enhancement of transition (|3〉 → |5〉), which is also allowed. Additionally, inverting the forbidden transition (|1〉 → |4〉) will decrease the polarization of (|1〉 → |3〉) and (|2〉 → |4〉), but it will increase the polarization of (|4〉 → |6〉). Clearly, the current understanding of EDNMR is insufficient to describe such systems. In a general description, all transitions could be observed, all transitions could be pumped, and all levels are potentially connected.

Fig. 2 Pulse sequence for EDNMR. Usually, a long and weak high turning angle pulse burns a hole at ν_HTA. A spin echo (or alternatively, an FID) is detected at ν_Obs. The latter frequency is kept fixed in the center of the resonator, while ν_HTA is swept. If ν_HTA–ν_Obs matches the difference between two allowed or weakly allowed transitions sharing a level, the echo intensity changes.

Fig. 3 Energy level diagram of a system where allowed transitions share a common level. The subsystem {|1〉, |2〉, |3〉, |4〉} is typically discussed in the context of EDNMR. Connected allowed transitions, e.g. (|1〉 → |3〉) and (|3〉 → |5〉) are usually ignored.

In the case of several unpaired electrons, the side holes and anti-holes will also contain information about the electron–electron coupling, or, if this coupling is very large, about the zero-field splitting. In these cases, we simply denote the method as ELDOR instead of ELDOR-detected NMR.

ELDOR was used before for the quantification of electron spectral diffusion.³⁸ However, in this context, no anti-holes were observed, and the high concentration (10–40 mM) that was used makes electron spectral diffusion a bulk property, whereas we focus on interactions of isolated systems. Note that the pulse sequence is the same, but the parameters for the hole burning pulse are vastly different. Measurements of electron spectral diffusion are carried out with HTA pulses of about 100 ms, EDNMR normally uses pulses of about 5–50 μs, and some of the spectra shown in this work were even acquired with pulses as short as 50 ns.

Interestingly, the signal enhancement by inversion pulses on connected transitions that correspond to the anti-holes has already been used as a means of sensitivity enhancement in NMR³⁹ and EPR.^40,41 However, to the best of our knowledge, this kind of signal enhancement has not been used to date as a spectroscopic tool.

2.2 Simulation algorithm

The simulation algorithm used in this work is based on earlier work by Cox et al.⁴ Before we discuss our extensions, we need to recapitulate the important steps and comment on the validity of the approximations.

1. Generate the Hamiltonian Ĥ₀ for a particular orientation.

2. Diagonalize Ĥ₀ to get the energy levels and transition frequencies.

3. Calculate transition probabilities between the eigenstates of the system.

4. Introduce orientation selection by weighting the transitions according to a Gaussian function centered at the detection frequency.

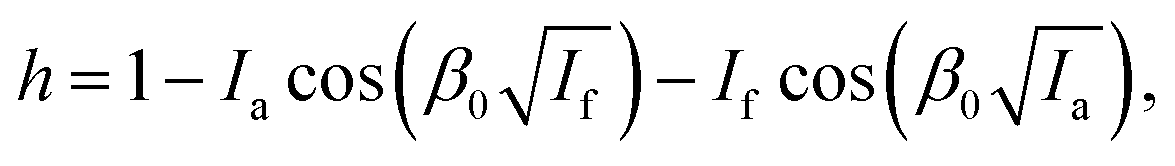

5. Calculate the inversion efficiency of each transition by assuming selective excitation by the HTA pulse and using a Bloch picture.

6. Check which transitions share a common level and calculate the intensity change of the observed transitions due to the polarization transfer induced by the HTA pulse.

7. Build the spectrum by adding up all possible peaks and orientations.

The approach is valid as long as the excitation is transition-selective within each three-level subsystem and spectral diffusion processes are negligible. It is orders of magnitudes faster than a full quantum-mechanical calculation of spin dynamics employing the Liouville–von Neumann equation. While EDNMR spectra including some ^63,65Cu signals have been interpreted before taking into account off-resonance effects and relaxation,^20,42 we will show here that the above algorithm can quantitatively reproduce our experimental EDNMR spectra.

In addition to the spin system, one needs to provide the program with the length and amplitude of the HTA pulse, t_HTA and ν₁, the phase memory time of the electron spins, T_m, and the quality factor of the resonator, Q_res. These parameters can be determined experimentally.

The published implementation of Cox et al. cannot be used to simulate arbitrary spin systems, because it makes implicit assumptions about the structure of the Hamiltonian, namely the m_S sub-blocks. Signal enhancements are not possible. In the general case, m_S is not necessarily a good quantum number. Additionally, the published version only considers (m_S = −1/2 → m_S = 1/2) transitions, which does not exist at all in the case of f-CuP2. Therefore, we extended the published algorithm to an electron–nuclear spin system that may contain more than one unpaired electron. A more detailed description is given in the ESI† (see Section S.5) and the code is available online.

2.3 Description of the spin system

The structures of the compounds investigated in this work are shown in Fig. 1. While there are many nuclei with nuclear spin I > 0, we focus on the copper nuclei and the unpaired electrons, which contribute the dominating interactions.⁴³

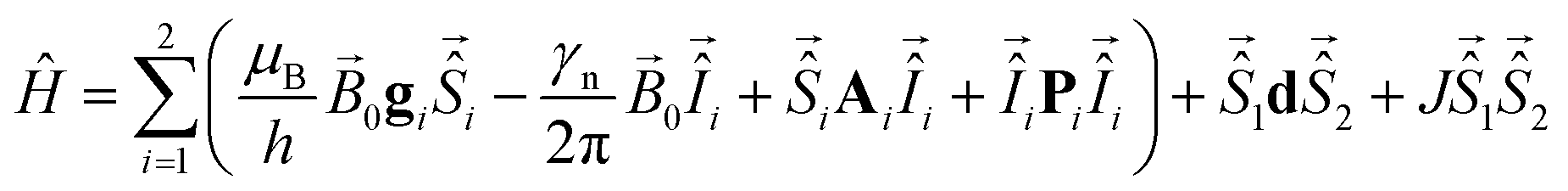

The Hamiltonian that describes a system of two electrons S₁ = S₂ = 1/2 and two nuclei I₁ = I₂ = 3/2, with zero hyperfine coupling between S₁ and I₂ as well as between S₂ and I₁, reads in linear frequency units

The first term describes the electron Zeeman interaction, where μ_B is the Bohr magneton, h the Planck constant, B⃑₀ the external static magnetic field and g the electron g-tensor. The second term describes the nuclear Zeeman interaction, where γ_n is the gyromagnetic ratio of the respective nucleus. A_i denotes the hyperfine coupling between electron i and nucleus i. The last term in parentheses is the nuclear quadrupole interaction, which is given in its principal axis system by⁴⁴withThe term e²qQ/h is also known as the quadrupole coupling constant (Sys.Q in EasySpin⁴⁵) and is related to the electric field gradient at the position of the nucleus (eq = V_zz = ∂²V/∂z²). The nuclear quadrupole moment enters via the term eQ. The asymmetry parameter is given by η = (V_xx − V_yy)/V_zz. The tensor d contains the symmetric electron–electron coupling. If the only contribution to d is the dipole–dipole coupling, and the point-dipole approximation is valid, then this interaction is given in its principal axis system byThe constant μ₀ is the vacuum permeability and r₁₂ the distance between the unpaired electrons. For r₁₂ = 1 nm, the prefactor amounts to . The term describes the isotropic exchange coupling between the electron spins. Note that several other conventions exist in the literature. In this convention, J describes the energetic singlet–triplet separation, and a positive J describes an anti-ferromagnetic coupling with the singlet state at lower energy than the triplet state.

2.3.1 Limit of large exchange coupling. If the exchange coupling J is large, a system with several electron spins is best described in a coupled representation. For simplicity, we focus here on a system with two electron spins. Extension to a system with more than two unpaired electrons is straightforward. For two electron spins, the energy levels are split into a singlet and a triplet state (separated by J for ). The singlet is EPR-silent, and the triplet state can be described by an effective spin 1.⁴⁶ The effective hyperfine coupling in the triplet manifold is halved compared to the uncoupled case (see also Section 3.5, ESI†vide infra), but the effective electron spin couples to any nucleus with non-zero hyperfine coupling to one of the electron spins in the uncoupled representation, in the present case to both copper nuclei. The dipolar coupling in the uncoupled basis manifests itself as a zero-field splitting (ZFS) in the coupled basis with the Hamiltonian

D = 3/2D_z E = (D_x − D_y)/2 (8)

Further contributions to the ZFS may arise from spin–orbit coupling. If the dipole–dipole coupling is the only contribution to the ZFS and the point-dipole approximation is valid, then E = 0 and

2.3.2 Orientations of interaction tensors. All interaction tensors above are given in their respective principal axis frames. In addition, the orientations between the tensors need to be known. In principle, the orientation of each tensor is characterized by three Euler angles, but we make a set of reasonable simplifying assumptions for the copper porphyrin dimers investigated in this work. First, because of the C₄ pseudosymmetry of the individual copper centres, we assume that the g, P and A-tensors on the same porphyrin unit are collinear and axial, and that the unique axis of each of these tensors is parallel to the normal vector of the corresponding porphyrin plane. Second, we can choose the x-axes of the two g-tensors to be collinear without loss of generality, since for axial tensors the x-axes can be chosen in any direction perpendicular to the unique z-axis. This leaves one free parameter for the relative orientation of the two porphyrin units, namely the angle θ_p between the two z-axes of the g-tensors, see Fig. 4. Taking into account the assumptions above, we can immediately fix the orientation of the unique axis of the dipolar tensor denoted as z_D in Fig. 4, along the x-axes of the other tensors. For the ZFS tensor, this is a good approximation if the dipolar component dominates. The situation would be considerably more complicated if rhombic tensors were involved.

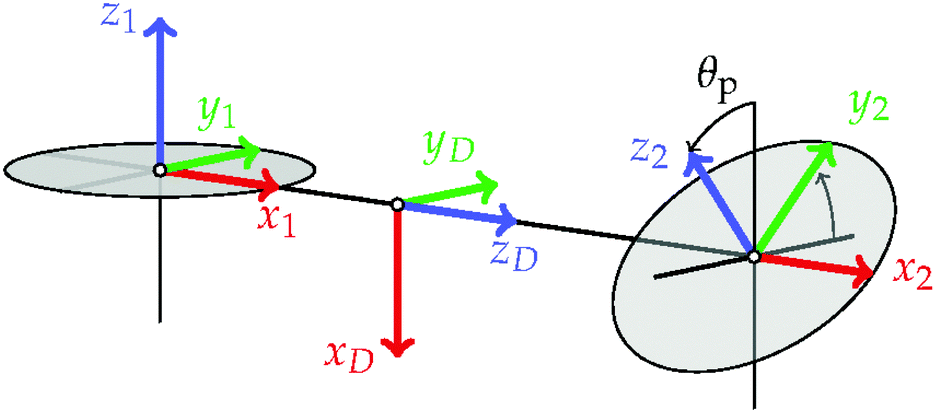

Fig. 4 Illustration of the relative orientations of the different interaction tensors and the porphyrin planes. The subscripts 1, 2, and D stand for the g-tensors on porphyrin 1 and 2, and the dipolar/ZFS tensor, respectively. Gray discs illustrate the porphyrin planes which are twisted by an angle θ_p with respect to each other. More details are given in the main text.

3 Results and discussion

The synthesis of CuP2 and f-CuP2 is described in the ESI† (see Section S.1). The samples were dissolved in toluene to give a final concentration of about 1 mM. We verified that the rather high concentration does not affect the EDNMR measurements by checking representative spectra at a concentration of 0.2 mM (see the ESI,† Section S.10). For both samples, 40 μl of solution was transferred to a 3 mm (outer diameter) quartz tube. A 3 mm Q-band resonator with large bandwidth (Q_res ≈ 110) was used for the EDNMR measurements. Further details on the EPR spectrometers are presented in the ESI† (see Section S.2). A detailed description of the parameters and where to find the raw data is given for each figure at the end of the ESI† (see Section S.15).

Note that the results for the copper hyperfine and quadrupole couplings are specified for the slightly more abundant isotope ⁶³Cu. The parameters were scaled according to the natural constants (gyromagnetic ratio and quadrupole moment of the nucleus) of ⁶⁵Cu to calculate the spectra of isotopologues. Isotope effects beyond this scaling were neglected. Natural isotope abundance was assumed.

3.1 CuP2: small exchange coupling

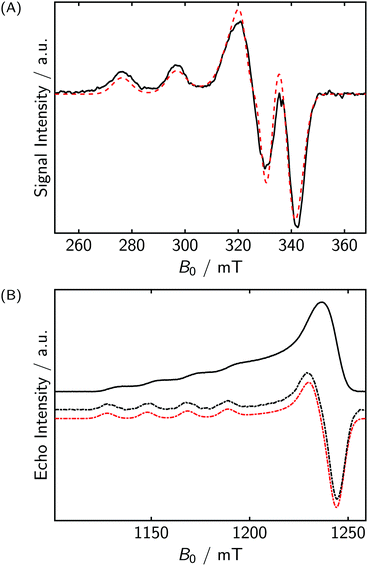

The X-band continuous wave (CW) spectrum and the Q-band echo-detected field sweep (EDFS) spectra of CuP2 are shown in Fig. 5(A and B). The spectra are typical for axially symmetric Cu(II) compounds. The nitrogen hyperfine couplings are not resolved. For simulating the spectra, we only included a single copper nucleus. No further hyperfine couplings or electron–electron couplings were included. Nevertheless, a rather good estimate of the g-values and of A_‖,Cu (≈610 MHz) can be obtained. By including more parameters in the simulation, such as the nitrogen couplings and the exchange coupling, the fit could most likely be improved.⁴³ However, the rather featureless character of the spectrum makes it difficult to assign quantitatively and confidently precise values to the different interactions, as all of these additional parameters only contribute to field-dependent line broadening in the present case. Note that similar, butadiyne-linked, compounds,⁴³ exhibit an exchange coupling of about 50 MHz. But if the two porphyrin planes of CuP2 are perpendicular to each other, consistent with X-ray and DFT studies of similar compounds, the exchange coupling is expected to be close to zero. In this case, it is also reasonable to model the EDNMR spectra (vide infra) by only considering a single, isolated copper site.

Fig. 5 Field-swept EPR spectra of CuP2. (A) Experimental (solid black) and simulated (dashed red) X-band CW EPR spectrum. Recorded at 20 K. (B) Experimental Q-band echo-detected field-swept spectrum (solid black), smoothed numerical derivative (dashed black) and corresponding simulation (dashed red). Recorded at 15 K. Parameters: one electron S = 1/2, one copper I = 3/2 (both isotopologues). g = [2.048, 2.19], A_Cu = [−80, −613] MHz.

Q-band EDNMR spectra obtained at the low-field edge of the spectrum are shown in Fig. 6(A). The high resolution and information content of these spectra was surprising. In order to simulate the spectra quantitatively, it was necessary to include both copper isotopes (⁶³Cu/⁶⁵Cu, nat. abund. ≈ 70/30%, γ₆₃/γ₆₅ = 0.934) and also a substantial quadrupole coupling of e²qQ/h = 32 ± 7 MHz. The uncertainty is an estimate based on the linewidth of the peaks. The standard deviation σ of a Gaussian is related to the full width at half maximum Γ by , and for these spectra Γ ≈ 15 MHz. The quadrupole tensor was assumed to be axial, but because of the rather low resolution in the high-field region, the fitting is not very sensitive to the asymmetry parameter η. The quadrupole coupling of the metal center is of considerable interest, as it gives information about the coordination environment. Since it depends on total electron density, particularly the charge distribution, rather than on spin density, we expect that computation with quantum chemical approaches is more reliable than that of metal hyperfine couplings. While quadrupole interactions of copper have been determined before, the approach used in the literature relied on second order shifts in the EPR spectra⁴⁷ usually of single crystals.^48,49 In the latter case, also ENDOR was used.⁵⁰

Fig. 6 EDNMR spectra of CuP2 together with the corresponding simulations that neglect electron–electron couplings. The stick spectra are the direct output of the simulation. The absolute intensities and linewidths were then fitted to the experimental spectra. Natural isotope abundance was assumed. (A) Spectra at the low-field edge of the EPR spectrum. The splitting induced by the quadrupole interaction of the copper nucleus is substantial. Parameters: one electron S = 1/2, one copper I = 3/2 (both isotopologues). g = [2.048, 2.19], A_Cu = [−80, −613] MHz. e²qQ/h = 32 MHz, η = 0, ν_Obs = 35.5 GHz, ν₁ ≈ 2.2 MHz (resonator center), t_HTA = 20 μs, T_m = 1.5 μs, Q_res = 112. The hole depth for all spectra is between one and two percent. (B) EDNMR spectra of CuP2 acquired at various field positions spanning the whole EPR spectrum. The central hole and peaks due to nitrogens and protons are grayed out and scaled down. This part was not used to fit the linewidths and absolute intensities of the spectra. Parameters: same as in (A), but with t_HTA = 10 μs and ν₁ ≈ 1 MHz. The hole depth of the copper peaks increases from around one percent at 1164 mT to about five percent at 1236 mT. The fitted linewidth increases accordingly from about 18 MHz to nearly 50 MHz. The spectrum at 1164 mT shows a feature at >300 MHz that we consider an artifact arising from the low signal-to-noise ratio at this field.

The approach used here to determine the quadrupole coupling is analogous to that employed for nitroxides at W-band, where the coupling can be determined by analyzing a series of spectra at the high-field edge of the EPR spectrum.³⁷ An energy level diagram for our particular situation is shown in the ESI† (see Section S.7.1). Note that the spectra are asymmetric with respect to zero offset because the detection is selective with respect to the copper hyperfine components. In this particular case, there are no peaks at positive offsets at all, because there are no forbidden transitions at higher frequencies than the observed allowed transitions. The surprising resolution of the two copper isotopes is a result of the large and strongly anisotropic hyperfine coupling combined with the strong orientation selection of EDNMR.

EDNMR spectra acquired at various field positions spanning the whole EPR spectrum are shown in Fig. 6(B). A slightly shorter and softer HTA pulse was used because the effective nutation frequency is larger for EDNMR peaks at smaller resonator offsets. The strong correlation of the g-tensor to the A-tensor is clearly visible from the strong shift of the copper peaks when changing the field position. In regions where the copper peaks are isolated, the agreement between experiment and simulation is quantitative. If the copper peaks overlap with the proton and nitrogen peaks or with the central hole (shown in gray and scaled down for clarity), the agreement is worse. The main discrepancy is actually a slight asymmetry of the overall intensity between the right-hand side (RHS) and the left-hand side (LHS) of the spectrum. Note that we fitted the linewidth in the simulated spectra (excluding the gray part of the spectra) and found that it is correlated with the field position. The resolution decreases by going from the low-field to the high-field edge. We tentatively assigned this to the different effective microwave powers at higher offsets and increased spectral diffusion at the maximum of the EPR spectrum. Additionally, the neglected electron–electron coupling could influence the observed linewidth. Note that the model we used here, i.e. only a single electron and a single copper nucleus, fits the EDNMR data better than the CW data, especially those recorded at X-band frequencies. This is due to the reduced number of parameters that influence the copper EDNMR peaks. The nitrogen nuclei and the exchange coupling have nearly no influence on these EDNMR peaks, in contrast to their significant influence on the EPR spectrum.

Again, the spectra are asymmetric with respect to the central hole because the detection selects specific hyperfine components of the EPR spectrum. This is illustrated in Fig. 7(A), where we show only the left-hand side of the EDNMR spectrum for simplicity. The contributions of the different Cu-hyperfine components to the EPR or EDNMR spectrum at a particular field position are indicated. In this case, the m_I = +3/2 component is not observed at all. Note that the different hyperfine components that are selected by the observer sequence have also different orientations with respect to the external magnetic field (see top right panel). In principle, the orientation selection is slightly different for the different isotopes, but this difference is very small here. The splitting induced by the nuclear quadrupole coupling and the nuclear Zeeman interaction depends on m_I. Therefore, the contribution of the m_I = +1/2 component (in red) to the EDNMR spectrum does not show any resolved splitting. The nuclear Zeeman interaction and the nuclear quadrupole interaction nearly cancel each other in this particular case.

Fig. 7 (A) Orientation selection in the EDNMR spectra of CuP2. ν_Obs = 35.5 GHz, B₀ = 1175 mT. The contributions of the different Cu-hyperfine components to the total EDNMR spectrum are shown. Top left inset: Contributions to the EPR spectrum. Top right inset: Observed orientations corresponding to the Gaussian in the top left panel. θ refers to the angle between the external magnetic field and the unique axis of the g-tensor. (B) Influence of the electron–electron coupling and relative porphyrin plane orientation on the EDNMR spectra of CuP2. The same parameters as in Fig. 6 were used for the simulation, but the blue spectra were simulated for a dimer including J = 50 MHz and d = 85 MHz.

We also simulated some of the spectra assuming two copper sites and including a dipolar coupling of and an exchange coupling with a somewhat arbitrary but illustrative value of J = 50 MHz. For a perpendicular orientation of the porphyrin planes, i.e. θ_p = 90°, no significant difference was found compared to a monomer simulation, see Fig. 7(B). On the other hand, if the porphyrin planes are assumed to be parallel (θ_p = 0°), the simulated EDNMR spectra look very different. In case of a non-parallel arrangement, the two copper centers have different effective g-values, and the perturbation by the electron–electron coupling is reduced compared to a parallel arrangement. In summary, the effect of the electron–electron couplings on the EDNMR spectra is strongly dependent on the other interactions present in the system. In the case of CuP2, the effect is marginal, which is in line with X-ray crystallography studies and DFT calculations demonstrating a perpendicular orientation and high rigidity of the two porphyrin planes.

3.2 f-CuP2: large exchange coupling

The X-band continuous wave (CW) spectrum and the Q-band EDFS spectrum of f-CuP2 are shown in Fig. 8(A and B). They clearly differ from the spectra of CuP2, with several additional splittings appearing. Nevertheless, the Q-band spectrum still indicates an axial g-tensor. In this case, both copper centers were included in the simulation and an effective spin-1 was assumed. This is justified if the exchange coupling constant J is much bigger than both the hyperfine coupling and the electron Zeeman anisotropy, or more precisely, if there is no significant singlet–triplet mixing. Agreement of the EPR spectrum with a simulated spectrum assuming the absence of singlet–triplet mixing poses a lower bound on the exchange coupling. This will be discussed below. The g- and A-values were assumed to be the same as for the CuP2 compound (apart from the fact that A has to be halved if the system is treated as a triplet). This is justified by the same local structure of the copper centers up to the third coordination sphere. The normal vectors of the two porphyrin planes were assumed to be parallel, implying θ_p = 0.

Fig. 8 Field swept EPR spectra of f-CuP2. (A) Experimental (solid black) and simulated (dashed red) X-band CW EPR spectra. Recorded at 20 K. (B) Experimental Q-band echo-detected field swept spectrum (solid black), numerical derivative (dashed black) and simulation (dashed red). Recorded at 15 K. Parameters: S = 1, two copper nuclei. g = [2.048, 2.19], A_Cu = [−40, −306] MHz (for both nuclei). D = −240 MHz, and the full D-tensor is rotated 90° around the y-axis with respect to the g- and A-tensors. The inset shows a simulation with only one isotope and reduced linewidth to illustrate the eight-line pattern which arises from two septets that are split by the ZFS (the blue and green lines are due to EPR transitions with different lower m_S values). We can currently not assign the feature marked with an asterisk (only visible in the numerical derivative), but the position does not match with the splitting of the other low-field peaks.

A ZFS with |D| = 240 MHz had to be included in the simulation to obtain a satisfactory agreement with the experimental data. This value is about a factor of two higher than the expectation based on the dipole–dipole approximation (eqn (9)), which would be around 130 MHz for a distance of 8.4 Å. Note that the unique axis of the D-tensor is assumed to be collinear with the x-axes of the g-tensors, see Fig. 4.

Interestingly, because the ZFS splitting is roughly the same as the copper hyperfine splitting, one obtains an eight-line pattern along the parallel direction, clearly visible in the simulated Q-band spectrum and the inset. This is in contrast to the seven-line pattern expected if the ZFS is either much smaller or much larger than the hyperfine coupling. It is hard to claim the magnitude and orientation of the ZFS tensor from the field-swept spectra alone, since the signal-to-noise ratio of the low-field peaks is not sufficient in either case. However, we will provide additional support for the ZFS parameters by analysis of the field-correlated ELDOR spectra below.

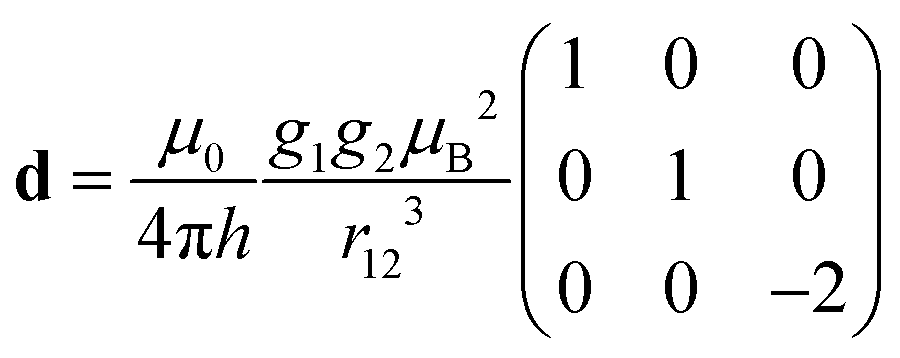

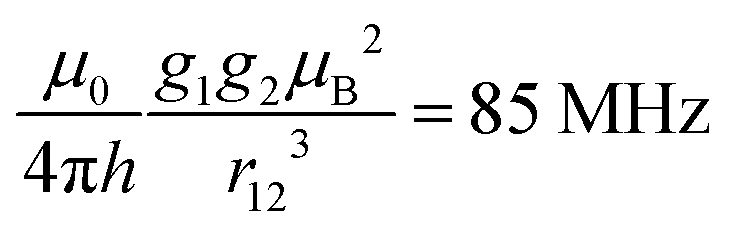

In principle, one can gain additional information about the dipolar coupling and the relative orientation of the two copper centers by investigating the intensity and shape of the half-field transition.⁵¹ In the present case, the sample concentration we had available (1 mM) was only sufficient to just about distinguish the half-field transition from the noise. A reliable quantification was not possible (see the ESI,† Section S.8.1). This is consistent with the observation by Ikeue et al.³⁵

The field-correlated ELDOR spectrum of f-CuP2 is shown in Fig. 9(A). Two features are striking compared to CuP2. First, the resolution is much worse, and second, there are clear signal enhancements (or anti-holes) visible (blue areas). Because we assign positive intensity to EDNMR side holes in agreement with previous work, the anti-holes correspond to negative intensities. In the spectrum shown in Fig. 9(A), the poor resolution could be ascribed to the settings used. The hole burning pulse was relatively short and strong, compared to the usual settings of EDNMR, where one generally uses long and soft pulses. Interestingly, softer and longer pulses did not lead to a better resolution (see the ESI,† Section S.8.2). The poor resolution is thus intrinsic to the spin system at hand, where the large exchange coupling leads to many side holes close to each other as verified by simulations (see the ESI,† Section S.12, for simulated single-orientation spectra, which are surprisingly complicated). Note that, in this case, the hole burning pulse predominantly excites allowed or only weakly disallowed transitions, in stark contrast to the usual EDNMR situation, where the side holes correspond to rather strongly disallowed transitions.

Fig. 9 Field-correlated ELDOR spectra of f-CuP2. (A) Experimental 2D spectrum, with the first derivative of the echo-detected field-swept spectrum displayed on top. (B–F) Simulated 2D spectra. Experimental (black) and simulated (red) echo-detected field-swept spectra displayed on top (numerical derivative). The arrows highlight deviations from the experimental data. Parameters: g, Q, and A-values the same as for CuP2. In the case of S = 1, the hyperfine coupling constants were halved, but both copper nuclei were equivalent. ν_Obs = 35.5 GHz, ν₁ ≈ 20 MHz (resonator center), t_HTA = 50 ns, T_m = 1.5 μs, Q_res = 110.

The positive part of the spectrum (red ridges) corresponds to side holes that increase in offset when going from higher to lower fields. These ridges roughly indicate the effective copper hyperfine coupling at a given field, similar to what is seen in the EDNMR spectra of CuP2. We find both ‘single quantum’ ridges, corresponding to an offset around 300 MHz (≈A_Cu/2) near the low-field edge and ‘double quantum’ ridges, corresponding to an offset around 600 MHz (≈A_Cu). In between these hole ridges, one can see signal enhancements or anti-holes (blue), which are due to the moderate ZFS and the exchange coupling. The strong anti-holes at positive and negative offsets around 1240 mT are due to the ZFS, which, for these orientations, is much larger than the hyperfine coupling.

The simulation program that we developed on the basis of the algorithm of Cox et al.⁴ was used to generate spectra for a multitude of possible spin Hamiltonian parameters, see Fig. 9(B–F). The comparison between the experimental spectrum and the simulated spectra led to the conclusions that (1) there must be a significant exchange coupling (>15 GHz). For lower exchange couplings, the splittings in the CW spectrum do not fit the experimental ones. (2) The ZFS is about |D| = 240 MHz, which is approximately twice as much as expected from the point-dipole approximation. If one assumes a smaller ZFS, again the splittings in the CW spectra do not match. On top of this, the strong anti-holes at the high-field edge in the 2D correlation plots are shifted to smaller offsets (see Fig. 9(E and F) at around 1240 mT). Note that changing the sign of the ZFS does not change the outcome of the simulations. However, if the ZFS is dominated by the dipole–dipole contribution, as we assume here, its sign is known. Note that it is difficult to predict the appearance of the field-correlated ELDOR spectra of f-CuP2 in an intuitive way, because the ZFS and the hyperfine couplings are in the same range. For the interested reader, we also simulated simpler model systems, and displayed the spectrum in Fig. 9(B) in terms of the individual EPR transitions, see the ESI,† Section S.11.

The agreement between experimental data and simulation obtained for our best parameter set is not as good as in the case of CuP2, but it is at the very least semi-quantitative. The main features are very well reproduced. The lower bound of the exchange coupling can be estimated with certainty, especially if the field-correlated ELDOR spectra and the CW spectra are inspected together. While the uncertainty in the ZFS is rather high (around 20 MHz, judged only by visual inspection of a range of simulations), it is still clear that the ZFS is much larger than estimated from the point-dipole approximation. This is not unexpected, since the large exchange coupling (vide infra) indicates significant spin density in the π-system in between the copper atoms. In all cases, we assumed that E = 0, and we did not obtain better fitting simulations by including a non-zero E.

We would like to emphasize that using CW EPR alone can lead to wrong conclusions regarding the spin Hamiltonian parameters. Ikeue et al.³⁵ measured the exchange coupling of a very similar fused dimer by variable-temperature magnetometry, but they ignored the ZFS/dipolar coupling, stating that it is not resolved in the EPR spectrum. Accordingly, their fit gave very different g-values for the fused and the singly-linked dimer. Our ELDOR spectra contradict this interpretation. Khusnutdinova et al.³⁶ investigated a fused dimer that was fused only at two points instead of three (the meso-position of one porphyrin was coupled to a β-position of the other porphyrin and vice versa, and the two porphyrin moieties were slightly shifted with respect to each other). They did not consider any dipolar electron–electron coupling and obtained a very different and rhombic g-tensor and approximately halved copper hyperfine constants. They also observed the shoulder at the high-field edge of the X-band CW spectrum, but did not reproduce it in their simulation (Khusnutdinova et al.,³⁶Fig. 1(a) therein). We expect that similar problems will arise in other multi-nuclear complexes. ELDOR can give valuable information in these cases, where many parameters have to be fitted to a single spectrum and several local minima are possible.

3.3 Comparison of CuP2 and f-CuP2

Here we highlight the differences in the field-correlated ELDOR spectra of CuP2 and f-CuP2. Fig. 10 shows the two spectra as filled contour plots side by side. (1) As mentioned above, the resolution is much better in the case of CuP2 compared to f-CuP2. A contour plot is not the optimal representation for showing the high resolution for CuP2 (Fig. 10(A)). This can be judged from Fig. 6. (2) The ELDOR spectra of f-CuP2 show anti-holes, while the CuP2 spectra only show holes. This is due to the difference in electron spin state (S = 1 vs. S = 1/2). (3) The side holes arising from the Cu-hyperfine coupling are more pronounced in the case of f-CuP2, although the nominal flip angle of the hole burning pulse was smaller. For example, we could observe clear double-quantum peaks in the case of f-CuP2 (seen around ±600 MHz at the low-field edge), while we could not detect any double quantum peaks at all in the case of CuP2. This is due to the S = 1 spin state of f-CuP2: in the strong coupling regime, the transition moments for the forbidden transitions in the S = 1/2 case go towards zero if |A| ≫ |ν_I|, because the quantization axes of the nuclear spin in the two different electron spin manifolds are approximately (anti-)parallel to each other. The same is not true in the S = 1 case, because there is no hyperfine contribution in the M_S = 0 manifold. This means that even if |A| ≫ |ν_I|, the quantization axes of the M_S = ±1 and the M_S = 0 manifold are not parallel and therefore the transition moments of the forbidden transitions do not vanish. A detailed discussion can be found in the ESI† (Section S.13). In addition to these considerations, the effective electron spin in f-CuP2 couples to two equivalent nuclei, which makes the holes more intense.

Fig. 10 Comparison of the field-correlated ELDOR spectra of CuP2 (A) and f-CuP2 (B). The data underlying (A) are the same as in Fig. 6(B). The asterisk indicates a field-independent spurious frequency which leads to a small and very sharp peak that is not visible in (B) because a larger step size was used.

3.4 SQUID magnetometry

So far, all arguments regarding the exchange coupling of f-CuP2 were given on the basis of EPR data, but only a lower bound of roughly 15 GHz (or 0.5 cm⁻¹) could be inferred that way. Additionally, we conducted SQUID magnetometry measurements of f-CuP2 and a corresponding Cu(II) monomer (see the ESI† for the structure). The data for the temperature-dependent susceptibility per mole Cu shown in Fig. 11 clearly show a maximum at about 2.4 K in the case of f-CuP2, which indicates an anti-ferromagnetic coupling of 79 GHz (for JS₁S₂, corresponding to 1.32 cm⁻¹ for 2JS₁S₂). This is consistent with the measurements of Ikeue et al.³⁵ The magnetization observed by SQUID is also consistent with thermal excitation of the triplet state at the temperatures of our EPR measurements. For a more accurate determination of J, lower temperatures would be needed. A detailed description of the SQUID measurements is given in the ESI† (see Section S.4).

Fig. 11 Magnetic susceptibilities per mole Cu of f-CuP2 (red) and the corresponding monomer (black). The experimentally measured points are shown together with the EasySpin simulation using the function curry. The maximum at around 2.4 K for f-CuP2 indicates an anti-ferromagnetic coupling of 79 GHz (for JS₁S₂, corresponding to 1.32 cm⁻¹ for 2JS₁S₂).

3.5 A comment on ENDOR of CuP2 and f-CuP2

It is a well known fact that, in the case of a system with large exchange coupling, the apparent hyperfine coupling is halved.^46,52 Interestingly, this does not lead to different ENDOR spectra, as the spectra displayed in Fig. 12 clearly show.

Fig. 12 Q-band ENDOR spectra of CuP2 and f-CuP2 obtained at two different field positions corresponding to different orientations of the g-tensor. The signals are due to strongly coupled ¹⁴N nuclei. A naive interpretation of the spectra could lead to the assumption that the exchange couplings of the two compounds do not significantly differ. However, the ENDOR spectra are theoretically expected to be the same in the weak and strong exchange coupling limits.

This was surprising to us at first and led us to the wrong assumption that the exchange coupling of f-CuP2 is of the order of a few hundred MHz at the most. On closer inspection, we found that the ENDOR spectra indeed do not change when going from the uncoupled to the strongly coupled case. In fact, this is straightforward to see, if one notes that ENDOR transitions inside the |αα〉 (T₁ substate) and |ββ〉 (T₋₁ substate) manifolds of the electron spins are untouched by the exchange coupling, which mixes only the |αβ〉 with the |βα〉 state. Since, in the weak and strong exchange limits, ENDOR transitions are always within one M_S manifold, ENDOR spectra for the |αα〉 and |ββ〉 electron spin states must be the same in the two limiting cases. In the strong exchange limit, the T₀ triplet substate should, in principle, give rise to peaks at nuclear frequencies without hyperfine couplings (nuclear Zeeman and nuclear quadrupole), but for strongly hyperfine-coupled nuclei, the peaks in the other triplet substates will be much more intense due to hyperfine enhancement. A more detailed discussion is presented in the ESI† (see Section S.14).

4 Conclusion and outlook

We applied ELDOR-detected hole burning experiments to two Cu(II)-porphyrin dimers and interpreted the results with a generalization of the algorithm introduced by Cox et al.⁴ In the case of the singly-linked dimer with small exchange coupling and perpendicular orientation of the porphyrin planes, the EDNMR description is fully adequate and the experiment could resolve the two isotopes of copper as well as the nuclear quadrupole coupling constant in frozen solution. The simulation algorithm quantitatively reproduces these highly resolved experimental spectra. In the case of the fused dimer with large anti-ferromagnetic exchange coupling, anti-holes were observed in the ELDOR experiment. These anti-holes are due to allowed transitions that share a level. They are also well reproduced by simulations with the extended algorithm. From these experiments alone, a lower bound for the exchange coupling of about 15 GHz could be derived. SQUID measurements confirmed the presence of a significant exchange coupling of 79 GHz (singlet–triplet separation) at a distance of about 8.4 Å between the copper ions, in line with Ikeue et al.³⁵ The EPR data also revealed a previously neglected dipolar coupling, which manifests as a ZFS in this strongly exchange-coupled system. The determined dipolar coupling is about twice as large as that expected based on a point-dipole approximation.

Both findings, the large exchange and the large dipolar coupling, point to substantial spin delocalization and are thus consistent with an interaction of the copper d-orbitals with the delocalised π-system. The detailed experimental data presented here could serve as a starting point for in-depth quantum-chemical studies of the spin distribution in the fused system.

Our findings suggest that ELDOR experiments are even more useful than generally assumed: they can reveal more than “just” hyperfine and nuclear quadrupole couplings. By applying the extended simulation algorithm, a detailed understanding of systems with strong exchange and dipolar couplings can be achieved. Careful optimization of experimental parameters is needed, as much information comes from the connections between allowed transitions, i.e. much shorter pulses should be used compared to the usual setup of EDNMR.

Nevertheless, the interactions have to be accessible inside the resonator bandwidth, which might prevent the elucidation of very large ZFS or dipole–dipole couplings. This is where non-resonant setups, such as HiPER⁵³ could have a dramatic advantage, provided they are combined with ultra-wideband frequency generation. While the bandwidth has to be large, the power does not need to be.

Surprisingly, anti-holes have not been reported before in EDNMR studies on Mn(II), although the polarization enhancement of the central transition by inversion of satellite transitions⁴⁰ is based on the same effect. We can only speculate on the cause. For large ZFS and, accordingly, substantial second-order broadening, the anti-holes may be so strongly broadened that they go unnoticed or are considered baseline artefacts. In addition, they are less prominent compared to the nuclear-frequency holes if the flip angle of the hole-burning pulse is very high. Here we worked with lower nominal flip angles and shorter hole-burning pulses to enhance the anti-holes.

The emergence of anti-holes in exchange-coupled systems with rather large dipolar couplings also implies that ELDOR-detected NMR or related sequences with additional pulses might be useful to study biradicals with moderately strong dipole–dipole and exchange couplings that are commonly employed in dynamic nuclear polarization (DNP) experiments and are difficult to characterize only via their CW EPR spectra.⁵⁴
