Topological free volume and quasi-glassy dynamics in the melt of ring polymers

Abstract

Motivated by recent observations that non-concatenated ring polymers in their dense solution exhibit a glass-like dynamics, we propose a free volume description of the motion of such rings based on the notion of topological volume. We first construct a phenomenological free energy which enables one to quantify the degree of topological crowding measured by the coordination number. Then we pinpoint a key role of the cooperative dynamics of neighboring rings, which is responsible for an anomalous dependence of the global structural relaxation (diffusion) time on ring length. Predictions on molecular weight dependence of both static (ring size, coordination number) and dynamic (relaxation time, diffusion coefficient) quantities are in very good agreement with reported numerical simulations. Throughout the discussion, the entanglement length N_e is assumed to be a unique characteristic length for the topological constraint, and hence, all the physical quantities are universally described in terms of the rescaled chain length N/N_e. Finally, we discuss how the dense solution of rings is analogous to yet different from ordinary glassy systems.

---

1 Introduction

Despite their ubiquity in biology and potential applicability in materials science, the behavior of ring polymers remains largely mysterious in many respects, understanding of which lags far behind that of the linear polymer counterpart.^1,2 The main source of difficulty arises from the inevitable constraint that a topological state on inter-ring concatenation and intra-ring knotting has to be rigorously conserved at any later stage unless bond breakage occurs. Recent experiments and simulations have raised several puzzles in the dynamics of a dense solution of non-concatenated rings,^3–5 hinting at some analogy to the glass transition.^6,7 The conceived state, dubbed as topological glass, however, seems to be very different from ordinary glass in that the large scale dynamical anomaly entails essentially no motional restriction at the scale of constituents (monomers). Here, we propose a viewpoint that qualifies rings as ultra-soft particles, whose effective volume arises from the topological constraint (TC). In dilute solution, two rings in unlinked topology feel an entropic repulsion upon close approach, since the unlinking (non-concatenation) TC reduces the number of available conformations (Fig. 1(a)). In a dense solution of unlinked rings, we are naturally led to think of the free volume of the effective volume of topological origin; as we shall see this topological free volume is intimately connected to the coordination number of rings. Bringing these concepts together, we set up a stage for statistical mechanical analysis, which yields various predictions in remarkable agreement with reported observations. It unveils a rational scenario through which the large scale cooperative dynamics of rings emerges; the physical picture indeed bears some similarity with ordinary glassy dynamics, but with a cardinal difference originating from the ultra soft nature of rings.

Fig. 1 Schematics of the system of non-concatenated rings. (a) For two rings close to each other (bottom), the number of their possible configurations is reduced from the free state (top) due to the non-concatenation TC. This produces an entropic repulsion between them.¹⁰ (b) Length scales in the system. The central dot is the center of mass (COM) of a reference ring, whose spatial size R is indicated by a dotted circle. Other black dots inside the dotted circle denote the COMs of rings overlapping with the reference ring, which defines the number of overlapping rings X, i.e., coordination number. A shaded circle represents the effective size R̃ of a ring due to the TC. In a particle picture, the average distance r between COMs of neighboring rings is a key quantity to control the global structural relaxation. In contrast to (c) the short ring case N < N_e, (d) the TC for a longer ring N > N_e imposes severe crowding (larger X, thus, higher topological volume fraction Ψ) in such a way that any ring is caged by its surroundings. As in ordinary crowded systems, the global structural relaxation requires cage breaking realized by the passage of a ring through its “gate”, but the solitary motion of any single ring is ineffective. However, the gate opening could be achieved by a cooperative motion of M(N) neighboring rings.

2 Topological constraint in linear vs. ring polymers

To make the nature of the TC in the ring polymer system clear, let us recall the phenomenon of entanglement in a linear polymer melt, which is also a consequence of the TC. Consider a melt of flexible polymers, each of which consists of N monomers of size a. Because of the screening of excluded-volume interactions, the size of individual linear polymers is R ∼ aN^1/2, and hence the number of overlapping polymers with any reference polymer defined as

X ∼ R³/(Na³) (1)

is evaluated as X ∼ N^1/2.⁸ A consequence is that the entanglement is inevitable in a dense solution of long polymers. The modern development of rheology of entangled polymers is based on the geometrical picture, where a polymer is confined in a virtual tube made up of the surrounding polymers. The reptation model describes the motion of the polymer in the tube, where the chain ends play a pivotal role, emphasizing the transient (though long-lived) nature of the TC.^8,9

In the ring polymer counterpart, there are now a large number of indications that the size is much more compact characterized by the smaller exponent; R ∼ N^ν with ν = 1/3 for large N, but with a prefactor substantially larger than a, i.e., R/(aN^1/3) ≫ 1.^11–17 This results in X ∼ const.(≫1) indicative of a qualitatively different TC from the classical entanglement picture of heavily overlapping threads. Rather it implies a soft particle-like behavior, which allows some degree of overlapping. Indeed, as might be intuitively clear, the TC endows any reference ring with entropic repulsion against surrounding rings which are unlinked to it¹⁰ (Fig. 1(a)). One can then define the length

r ∝ R/X^1/3, (2)

which measures the average distance between the neighboring rings (Fig. 1(b)). This is analogous to the inter-particle distance r ∝ b/ψ^1/3 in the system of rigid particles (with size b and particle volume fraction ψ). Such a consideration suggests an interesting possibility to investigate the problem of dense ring polymers under the TC with the concepts developed in the liquid and glass transition physics.^6,7 Unlike the rigid particle case r > b, however, one admits here a strong overlapping r < R reflecting the ultra-soft nature of the ring (Fig. 1). Note that numerical and experimental observations suggest that the exponent ν = 1/3 is realized only for very long rings, and many of the practical cases may fall into a broad crossover characterized by some effective exponent bounded as 1/3 < ν_eff < 1/2.

3 Free energy in terms of the topological volume fraction

The primal control parameter in the problem is the ring length N, which plays a similar role to the temperature T in the ordinary glass transition phenomenology. For a systematic study, one therefore needs a framework, which describes how R and X depend on N. Here, we utilize the phenomenological free energy, which is constructed based on the following two observations; (i) as rings behave like soft particles due to the TC, there should be an associated topological volume, and (ii) the TC in rings becomes relevant above some characteristic length scale N_e,^18,19 which implies the ideal chain statistics on a smaller scale, thus

X_e ≡ X(N = N_e) ∼ R_e³/(N_ea³) ∼ N_e^1/2, (3)

where R_e ∼ aN_e^1/2 is the spatial extent of the N_e-strand. Note that the second observation is akin to an empirical fact admitted in the entanglement effect in linear polymers,^8,9 which is the reason we employed the symbol N_e for the characteristic chain length. The simplest free energy in accordance with the above observations is^14,15,20where X_c represents the maximum number of overlapping rings achieved in the large N limit, and ν₀ ≃ 0.588 is a critical exponent describing the size of the self-avoiding chain (see the Appendix for more discussion on the proposed free energy). The quantity Ψ ≡ X/X_c may be regarded as a topological volume fraction. To motivate such a usage, let us rewrite eqn (2) for the inter-ring distance asNow Ψ is bounded as Ψ ≤ 1 by definition, and the comparison with the rigid particle case qualifies R̃ = RX_c^−1/3 and Ψ as the effective size and the corresponding volume fraction associated with the TC. The first term in eqn (4) takes a form from the celebrated van der Waals theory, which represents the reduction in the free volume, in the present context, reflecting the entropic repulsion due to the non-concatenation TC. This term favors a smaller Ψ, and thus leads to ring shrinkage. Contrary to this is the second term, which represents an entropic penalty associated with squeezing a ring while maintaining the unknotting constraint, and can be derived from the standard scaling argument (see the Appendix).

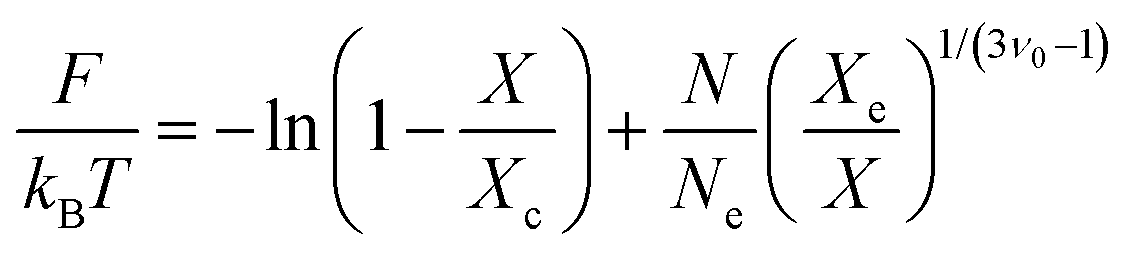

Free energy (4) has a desired property F ∼ k_BT at N = N_e with a supplement Ψ_e ≡ X_e/X_c ≃ 0.5, ensuring the onset of the TC at this length scale in accordance with the above observation (ii). For longer rings, the optimum X as a function of N can be derived by minimizing eqn (4). We are thus led to a generic form X(N) = X_e[capital G, script](N/N_e) with a function [capital G, script](x) → 1 at x = 1 and [capital G, script](x) → X_c/X_e at x ≫ 1. From this, the ring size follows as R(N) ≃ R_e(N/N_e)^1/3[[capital G, script](N/N_e)]^1/3. In Fig. 2, we compare predictions from our free energy (with Ψ_e = 0.5) with three sets of numerical simulation data. Here we adopt the spanning distance R^(s) (root mean-square distance between monomers N/2 apart) as a measure of the spatial size of rings, so that X is the average number of surrounding rings, whose centers of mass (COMs) are located within the distance R^(s) from the COM of the reference ring. Note that the R_e and X_e values are evaluated from the numerical data in ref. 4, 11 and 12 (see Table 1), which play the role of rescaling factors in the master plot. While the resultant R_e values reasonably accord with the theoretical expectation (Appendix), it is striking that all the data sets point to almost the same value for X_e ≃ 8 despite different simulation models and conditions employed. The same conclusion is reached if we measure the ring size with the radius of gyration R^(g), in which case X_e ≃ 1.4 is found (Appendix, Fig. 4). Hence, besides the quantitative predictability of the proposed free energy, we find that the coordination number serves as a robust measure for the TC. In particular, the onset of the TC can be identified by X_e, whose precise value is independent of the system details. The crossover towards the compact statistic regime for longer rings is quantified by the function [capital G, script](x), which describes a gradual increase of the coordination number from X_e towards X_c.

Fig. 2 Comparison of free energy prediction (solid line) with numerical simulation data for spatial size R and coordination number X of rings in their non-concatenated melt of dense solution. As a measure of the ring size, we adopt here the spanning distance R ≡ R^(s). Numerical data are obtained from the literature (squares,¹¹ circles,¹² triangles⁴) (a) plot of R/R_e as a function of N/N_e. Before reaching the asymptotic compact scaling with ν = 1/3, there exists a broad crossover up to N/N_e → N_c/N_e ∼ 30 (see the Appendix for the estimation of N_c). (b) Plot of X/X_e as a function of N/N_e. See Table 1 for details of simulation models and the estimated values of R_e and X_e.

Table 1 A summary of methods and numerical values employed in or extracted from simulations (l_p: persistence length). The values R_e² and X_e are obtained by inter-(or extra-)polating the data in references. All lengths are measured in units of lattice size (MC) or bead diameter (MD)

	Vettorel^11	Halverson^12	Michieletto^4
Method	MC on cubic lattice	MD	MD
Stiffness	No angle potential	l p ≃ 1.5–2	l p ≃ 5
Volume fraction	0.5	0.85	0.1
N e	175	28	40
(R^(s)e)^2	75	18	88
X e|R=R^(s)	7.7	8.4	7.8
(R^(g)e)^2	26	6.1	30
X e|R=R^(g)	n/a	1.4	1.3

---

Here it is instructive to draw a connection of the particle-like behavior of non-concatenated rings in their dense solution with the argument based on random packing. For the assembly of particles to be mechanically stable, Maxwell's criterion claims that the minimum coordination number X_iso = 2d_f is required, where d_f is the number of degrees of freedom determined by the symmetry of the constituent particles.⁷ With d_f = 6 for a generally shaped particle in 3 dimensions, we see an impressive consonance of X_iso with X_e and X_c = X_e/Ψ_e when we adopt the spanning distance R^(s) as a measure of the ring size. Note also that the range of the value X ∈ (X_e,X_c) in this case corresponds to the so-called Kavassalis–Noolandi number to mark the onset of the entanglement effect in dense linear polymer solutions.^8,21 This suggests the fundamental role of X in describing the TC in polymer systems. We also emphasize that the function [capital G, script](x) is universal in the sense that it does not depend on the system parameters (Appendix).

4 Cooperative mechanism for global structural relaxation

To discuss the consequences of topological volume on ring dynamics in dense solution, let us recall a topological length N = N_e. It indicates Rouse dynamics for a shorter scale, thus introducing a time scale τ_e ∼ τ₀N_e² for the relaxation of the N_e-strand (with τ₀ being a monomeric time scale), which plays the role of an elementary time scale for larger scale dynamics, where the TC matters. Here, while recent rheological measurements have evidenced a self-similar stress relaxation process without the sign of a rubber plateau,^22,23 the neutron spin-echo experiment detected glassy dynamics of rings' COM.³ A connection between these two observations remains unsolved. A hint comes from a detailed analysis of numerical simulation data, which indicates that while the stress relaxation is correlated with the internal conformational reorganization, whose characteristic time scales as τ⁽¹⁾ ≃ τ_e(N/N_e)^z₁ with z₁ ≃ 2.2, the diffusion would be much slower, that is to say, τ ≫ τ⁽¹⁾ for large N, where τ is the time scale for global structural relaxation during which the ring travels its own size.²⁴ It is likely that a reason for such a self-diffusion slower than expected lies in a cooperative dynamics, which is necessary for the global structural relaxation.

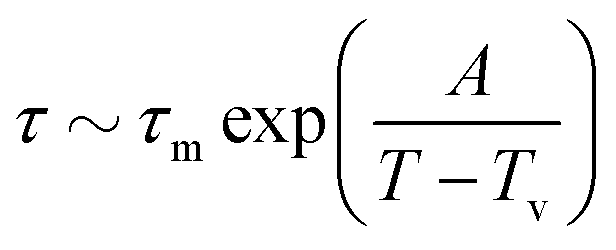

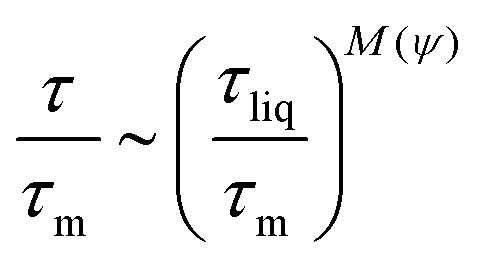

As a prototype, we begin with reviewing a minimal description of cooperative dynamics in glass transition.²⁶ Consider an assembly of particles of radius b with volume fraction ψ such that the average interparticle distance r ∝ bψ^−1/3. The mechanism for structural relaxation would depend on the average size Δ ∼ r − 2b of the gate, through which each particle escapes from its cage. Two characteristic interparticle distances r_c and r_v can be conceived; while the latter corresponds to the kinetic arrest point r_v ≃ 2b, the former r_c(>r_v) signals the onset of the crowding effect so that, at higher concentration (r < r_c), cage breaking requires the cooperative motion of adjacent particles. Since the missing space for gate opening is r_c − r, and the space created by the cooperative motion of M − 1 neighboring particles is (M − 1)Δ, it follows

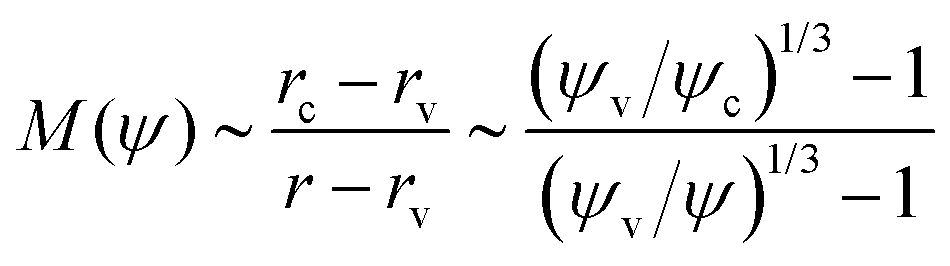

where ψ_c ∝ (b/r_c)³ and ψ_v ∝ (b/r_v)³ are volume fractions corresponding, respectively, to r_c and r_v. From this, the structural relaxation time τ (in units of molecular time scale τ_m) iswhere τ_liq is a typical liquid-like relaxation time at ψ = ψ_c, indicating a drastic slowing down of dynamics due to the crowding at ψ > ψ_c towards a sharp divergence of τ at ψ = ψ_v. To recast eqn (7) in the form of temperature dependence, one usually invokes the thermal expansion of materials, which is assumed to be described by ψ(T) ≃ ψ_v[1 + α(T_v − T)] in the range (ψ_c, T_c) to (ψ_v,T_v). Combining this with eqn (6) and (7), one obtains the Vogel–Fulcher–Tammann (VFT) relationwith A = (T_c − T_v)ln(τ_liq/τ_m).

Applying the above picture of the cooperative dynamics to the slow diffusion of rings under the TC, the notion of topological volume invites a correspondence ψ → Ψ. The cooperative onset ψ_c then naturally corresponds to the TC onset Ψ_e at N_e with the replacement of characteristic time scales τ_m → τ_e and τ_liq → τ⁽¹⁾. We then set r_v → 0, which amounts to saying that there is no spontaneous kinetic arrest due to the ultra-softness of rings, i.e., their COMs can indeed overlap in space. Such a translation leads to the growing cooperativity M(N) ∼ (Ψ(N)/Ψ_e)^1/3 = [[capital G, script](N/N_e)]^1/3 with N, hence, the global structural relaxation time

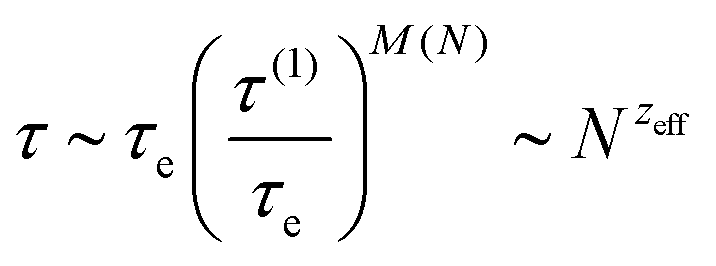

where the exponent z_eff = z₁ × [[capital G, script](N/N_e)]^1/3 increases from z₁ at N_e towards z_∞ = z₁[X_c/X_e]^1/3 ∼ 3 in the long chain asymptote (Appendix, Fig. 5). Notice that the Ψ–N relation (or equivalently X–N relation shown in Fig. 2(b)) determined by our free energy plays an analogous role to the ψ–T relation (thermal expansibility) in the context of the derivation of the VFT relation in particle systems.

As demonstrated in Fig. 3, eqn (9) captures all the essential features observed in numerical simulations. In addition to the semi-quantitative prediction for τ and its departure from τ⁽¹⁾, it provides the diffusion coefficient D(N) ∼ R(N)²/τ(N), whose scaling with N remarkably agrees with numerical observations^4,24 (Fig. 3 (inset); see also Appendix, Fig. 5). Compared to previous predictions based on the conventional estimation D⁽¹⁾ ∼ R(N)²/τ⁽¹⁾(N),^19,27 this improvement on D once again sets forth the notion of slow diffusion due to the cooperative structural relaxation. Yet noticeable is the absence of VFT-like divergence in τ despite invoking mandatory cooperative motion for cage breaking. In our description, this traces back to the ultra-soft nature of rings r_v → 0, thus no divergence in the cooperativity M. Still, there is a small build up in M at N > N_e, and combined with the slowing down of single ring dynamics τ⁽¹⁾, it acts as a multiplicative factor in the exponent, leading to an unconventional, i.e., faster than power-law, increase in τ with N.

Fig. 3 Internal (τ⁽¹⁾) and global (τ) structural relaxation times as a function of N/N_e compared with MD simulation data²⁴ with τ_e = 120τ₀. Also plotted is the stress relaxation time τ_sr (multiplied by a factor c = 0.4) evaluated in ref. 19 using the data in ref. 24. Here, we adopted z₁ = 7/3 suggested in ref. 19. (inset) Diffusion coefficient. Here the line with [R^(s)]²/τ is compared with the diffusion coefficient measured in MD simulations.²⁴ See also ref. 25 for very similar numerical data on the separation between τ⁽¹⁾ and τ.

5 Conclusions

To summarize, we have proposed a cooperativity scenario for slow dynamics in a dense solution of non-concatenated ring polymers motivated by some analogy between soft colloids and rings. While we have shown that many of the puzzling observations could be resolved by introducing the notion of topological volume, it should be recognized as a minimal description in the sense that we only look at the COM degrees of freedom of the rings to evaluate the cooperativity M, which is mirrored in a small M_c = (X_c/X_e)^1/3 ∼ 1.3 in the large N limit. A more realistic picture would be that a larger number of neighboring rings behave collectively not only by the COM translation but also by internal deformation modes to create a gate for structural relaxation. Our discussion yields several challenges and future directions. (i) Quantifying the degree and the nature of the cooperativity in ring solutions – it should help with a possible refinement of our current description. (ii) Clarifying the relation with the threading picture^4,28 – there seems to be some correspondence between our structural relaxation time τ and the ring dethreading time possibly responsible for the slow mode in stress relaxation.²⁸ (iii) Elucidating the analogy with soft colloids – they are known to be strong glass formers,²⁹ and rings could be viewed as the softest “particle” ever known. Compared, for instance, to star polymers,³⁰ the energy scale of the effective repulsive pair potential is much lower (on the order of k_BT), and the COMs of different rings can spatially overlap rather easily. A quantitative comparison with a dense solution of the soft core (such as the Gaussian core) model may yield useful insights.³¹ (iv) An apparently similar soft colloidal picture (with comparable energy scale) is known to describe the linear polymer systems as well.³² Unlike the ring polymer systems, however, it has nothing to do with the conformation of individual chains, and the correlation hole (or effective repulsion) becomes weaker with the chain length. Nonetheless, some anomalous feature in the diffusive dynamics of COMs,^3,4,24 which is not captured by the reptation theory, may be described by the cooperative mechanism scenario proposed here. (v) Building a microscopic foundation for the proposed description should be a fundamental problem. Some attempts for coarse-graining of ring polymer systems indicate the crucial effect of the TC.^33,34 (vi) Exploring a novel depletion effect³⁵ – the notion of topological volume indicates an associated depletion effect. This would be related to the recent prediction on the promotion of phase separation in the blend of ring polymers with dissimilar molecular weights,^20,36 and may have non-trivial effects in confined spaces, e.g. in the cell nucleus.

Conflicts of interest

There are no conflicts to declare.

Appendix

Some discussion on free energy associated with the TC

Entropic penalty due to the non-concatenation constraint. A unique feature in the system of unlinked rings compared to the standard particle system is that constituents have freedom to adjust their spatial size to reduce the repulsive interaction (here originated from the non-concatenation TC among neighboring rings). In the free energy (4), it is accounted for through the van der Waals term F_unlink/k_BT = −ln(1 − Ψ) based on the free volume concept.

Let c denote the number concentration of rings in the melt. From free energy F_unlink per ring, we obtain the free energy density f_unlink = cF_unlink as

where we have used the relation c ≡ N_ring/Ω = ϕ/(Na³) (N_ring is the total number of rings in the system volume Ω, and the monomer volume fraction ϕ ∼ 1 in the melt state), and the definition of the coordination number X given as eqn (1). The final expression is obtained by the expansion into a virial series, which identifies the virial coefficients B₂ ≃ R³/X_c, B₃ ≃ R⁶/2X_c², etc. Note that the second virial coefficient is in line with the effective ring size R̃ invoked in eqn (5), i.e., B₂ ≃ R̃³, that is, the soft nature of the ring is linked with X_c = X_e/Ψ_e, hence with N_e. It is instructive to compare our free energy F_unlink with that conjectured by Cates and Deutsch long ago. They suggested the form F_unlink/k_BT ∼ R³/(Na³) ∼ X.³⁷ In light of the present discussion, their free energy corresponds to the second virial approximation (which amounts to setting B_n = 0 for integer n > 2) neglecting the softness factor X_c (thus B₂ ∼ R³). Therefore, it fails to capture the many-body effect responsible for the compact statistics (ν = 1/3) in the long N limit, and lacks N_e as a unique characteristic length in the problem.

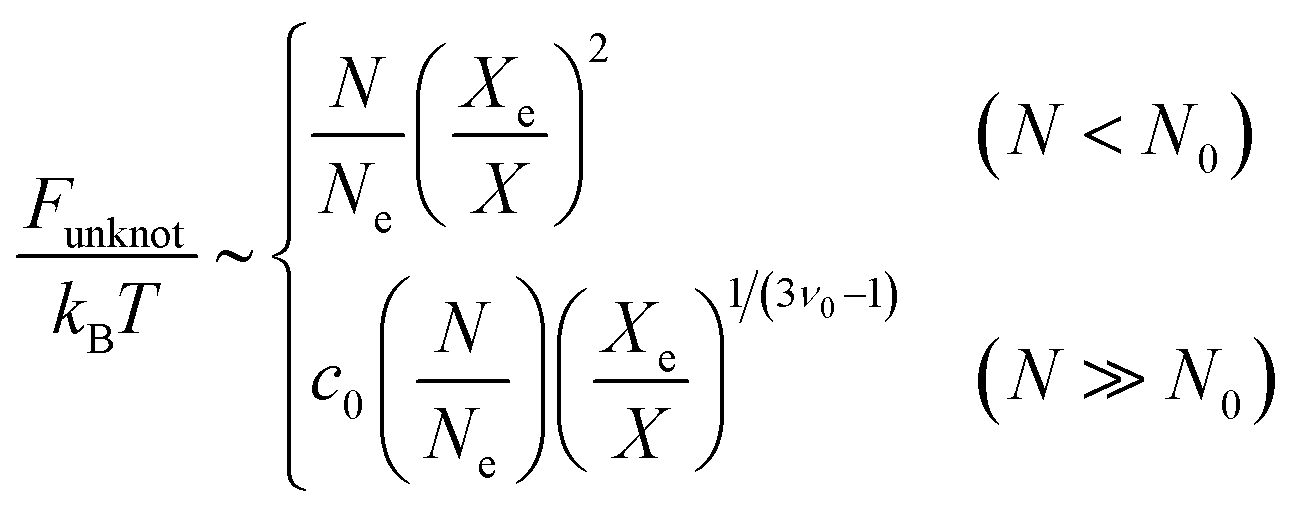

Entropic penalty due to the unknotting constraint. The free energy F_unlink(Ψ) due to the non-concatenation constraint favors a smaller Ψ, and hence the ring shrinkage. With more shrinkage, however, another TC associated with unknotting within individual rings becomes more relevant. Here we briefly outline the derivation of the entropic penalty due to the unknotting TC (second term in eqn (4)) following the discussion in ref. 20.†

According to the standard scaling argument, the entropic cost of squeezing a polymer into the size R is evaluated as

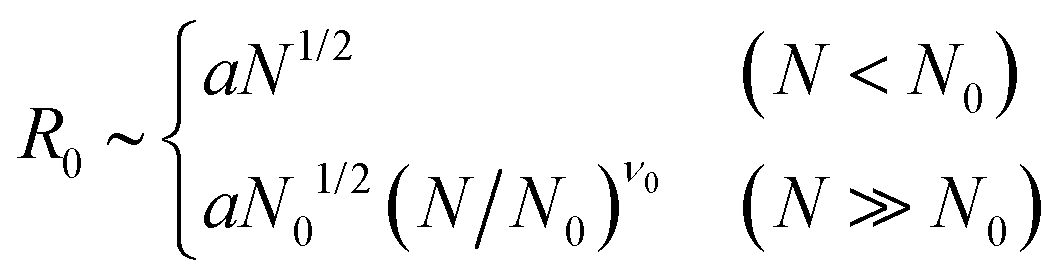

where R₀ is the size of a ring in the reference state.⁹ In the present problem, a ring in the reference state can be prepared by hypothetically switching off the non-concatenation TC among different rings, i.e., it is free from the ordinary excluded-volume effect (i.e., screened in melt), and not perturbed by the non-concatenation TC, but constrained to maintain the unknot topology. Such a ring is essentially identical to an ideal, but non-phantom unknot ring in dilute solution, whose size is given bywhere N₀ (∼300 for a flexible ring) is a characteristic length beyond which the ring (without excluded volume) swells due to the unknotting TC.³⁸ It has been shown that this topological swelling is characterized by the excluded volume exponent ν₀.

To determine the exponent β in eqn (11), we require the squeezing free energy to be an extensive quantity; F_unknot(kN,kR³) = kF_unknot(N,R³) for an arbitrary positive number k. This leads to β = 6 for N < N₀ or β = 3/(3ν₀ − 1) for N ≫ N₀.³⁹ With this exponent and the definition of X (eqn (1)) and X_e (eqn (3)), the free energy (11) is rewritten as

where a factor c₀ = (N₀/N_e)^{3(1–2ν₀)/[2(3ν₀)−1]} of order unity arises since the two characteristic topological lengths N₀ and N_e are generally different (though their relation is not well understood yet). In all the calculation in the main text, we adopted the free energy form for N ≫ N₀ with c₀ = 1. It would be more accurate to interpolate the two expressions for F_unknot as a function of N, but we have carefully checked that this does not cause any essential change in the results presented in the main text.‡ As long as F_unknot is written in the form ∼(N/N_e)(X_e/X)^{1/(3[small nu, Greek, tilde]−1)}, the result of free energy minimization is insensitive to the value of [small nu, Greek, tilde] (either ν₀ or 1/2; the latter case corresponds to the first line of eqn (13), that is F_unknot with N < N₀).§

Dependence of the coordination number on the measure of the ring size

The coordination number X ∼ R³/N has an arbitrariness in its quantitative evaluation depending on how we measure the ring size R. In the main text, we adopt R ≡ R^(s), where R^(s) is the spanning distance between monomers N/2 apart along the ring. Here, we repeat the same analysis by adopting the gyration radius as a measure, i.e., R ≡ R^(g). The dependence of R^(g) on N is measured in simulations.^4,11,12 These data are plotted in Fig. 4(a) along with the theoretical prediction given in the main text. Similarly, the dependence of the R^(g)-based coordination number X|_R=R^(g) on N is measured in simulations,^4,12 and compared with the theoretical master curve in Fig. 4(b). The plot of Fig. 4(a) is virtually indistinguishable from that of Fig. 2(a) in the main text. The plot of X measured in simulations in Fig. 4(b) is slightly off from the free energy prediction compared with the excellent match seen in Fig. 2(b) in the main text. The latter point may be related to the smallness of the numerical value X|_R=R^(g), i.e., X_e|_R=R^(g) ∼ 1.3–1.4 (see Table 1 in the main text), indicating the sensitivity to sampling fluctuation. Yet, the deviation is at most on the order of 10 percent, and the general agreement on the N dependence is still remarkable. Therefore, we conclude that as expected from theory, the results are insensitive to the size measure upon appropriate rescaling. This highlights the importance of the notion of topological length scale N_e and associated coordination number X_e in the problem. We also note that the estimated numerical values for the rescaling factors R_e and X_e listed in Table 1 in the main text are consistent with the assumption on the onset of the TC, i.e., the ideal chain statistics applies up to the chain length N_e (see the discussion in the Section Effect of chain stiffness and concentration in this Appendix).

Fig. 4 Comparison of free energy prediction (solid line) with numerical simulation data for spatial size R and coordination number X of rings in their non-concatenated melt. Unlike in Fig. 2 in the main text, here the measure of the ring size is the gyration radius R = R^(g). Numerical data are obtained from the literature (squares,¹¹ circles,¹² triangles⁴). (a) Plot of R/R_e as a function of N/N_e. (b) Plot of X/X_e as a function of N/N_e. See Table 1 in the main text for details of simulation models and the estimated values of R_e and X_e.

The comparison done here indicates that, for most practical purposes (numerical or theoretical analysis), it would be more useful to adopt the definition of X in terms of R^(s) rather than R^(g); the numerical value is more robust against the sampling fluctuation, and fits in well with that expected from the general packing problem as discussed in the main text.

Onset of compact statistics

In the main text, we have shown that the effective exponent ν_eff(N) for the size R ∼ N^ν_eff of the ring continuously decreases before reaching the asymptotic compact statistics regime with ν = 1/3 (Fig. 2 in the main text). Here we give a rough estimate for the ring length N_c, which signals the onset of the compact statistics regime. For convenience, we rewrite the free energy given as eqn (1) in the main text as F = F_unlink(Ψ) + F_unknot(Ψ;N), where F_unlink(Ψ)/k_BT = −ln[1 − Ψ] and F_unknot(Ψ;N)/k_BT = (N/N_e)(Ψ_e/Ψ)^{1/(3ν₀−1)}.

First, we note that the limit Ψ(≡X/X_c) → Ψ_c ≃ 1 signals the onset of the compact statistics. In other words, X_c is the maximum coordination number, which can be achieved in dense ring polymer solutions. To deal with this limit, let us introduce a number S ≫ 1 such that F_unlink(Ψ_c)/k_BT = S, thus Ψ_c = 1 − e^−S. The free energy balance indicates F_unknot(Ψ_c;N_c)/k_BT ≃ S, which leads to N_c/N_e ≃ [(1 − e^−S)/Ψ_e]^{1/(3ν₀−1)}S ≃ Ψ_e^{1/(1−3ν₀)}S.

We determine the value S from the following observation. If we count the number of the pair of overlapping rings at N = N_c, it is evaluated as X_c/2 per ring. Given that k_BT is the natural energy scale, it would be plausible to say that the energetic penalty of k_BT for each overlap at the maximum coordination provides an appropriate energetic measure for the Ψ → 1 limit, which yields S ≃ X_c/2.

We thus find . With Ψ_e ≃ 0.5 and X_c = 15–20, the above argument provides the estimate N_c/N_e ∼ 30. Here, from the consonance with the packing picture discussed in the main text (last part of Section 3), we adopt the coordination number defined in terms of the spanning distance as the measure of the ring size. Although crude, this discussion indicates a broad range for the crossover N_c/N_e ∼ 30 (between ideal and compact statistics regimes) in agreement with the numerical simulation results.

In Fig. 5, we plot the prediction on the evolution of various effective exponents with the increase in N during the crossover regime.

Fig. 5 (a) Effective size exponent ν_eff defined as R(N) ∼ N^ν_eff. (b) Effective exponents of global relaxation time z_eff and diffusion coefficient γ_eff defined, respectively, as τ(N) ∼ N^z_eff and D(N) ∼ N^−γ_eff.

Note that while ideally ν_eff → 1/2 for N → N_e + 0 is expected, Fig. 5(a) shows a slightly smaller value. This may be associated with the mean-field nature of the theory. In fact, around the onset of the TC N ∼ N_e, the free energy due to TC is comparable to the thermal energy, and therefore, the value determined by free energy minimization does not necessarily correspond to the actual value.

Finally we mention that although most of recent works admit the asymptotic size exponent ν = 1/3, there is another claim against it.⁴⁰ If ν > 1/3 in the long chain limit, it implies that the coordination number M grows with N without saturation, and hence the dynamical and diffusion exponents z and γ keep increasing with N.

Effect of chain stiffness and concentration

Topological length scale N_e. Consider a dense solution of rings with segment volume fraction ϕ, in which individual rings are composed of N beads of size a. There is a bending potential introducing the directional persistence of bonds such that the segment length l > a. For short rings with N < N_e, the ideal chain statistics implies the ring size R ∼ lM^1/2 = ap^1/2N^1/2, where M = aN/l is the number of segments and p = l/a is the segment aspect ratio. The coordination number is X ∼ R³ϕ/(Mv_seg) ∼ R³ϕ/(Na³), where v_seg ∼ a²l is the segment volume. At the onset of the TC, we have X_e ∼ R_e³ϕ/(N_ea³) with R_e ∼ ap^1/2N_e^1/2, which is converted towhere the proportionality constant depends on the definition of the measure of the ring size (R^(s) or R^(g)etc.). This is very similar to the entanglement criterion in a dense solution of linear polymers due to Kavassalis–Noolandi.^8,21 The observation of constant X_e (see the main text) indicates the concentration and stiffness dependence of the topological length scale N_e ∼ ϕ⁻²p⁻³, the systematic investigation of which in dense solution of ring polymers would be very interesting. Note that in the “genuine” semidilute regime ϕ ≲ p⁻³, the correlation effect will alter the dependence as N_e ∼ ϕ^{1/(1−3ν₀)}p^{3(2–3ν₀)/(1–3ν₀)} ∼ ϕ^−5/4p^−3/4 with the SAW exponent ν₀, where the final expression is obtained by the Flory approximation ν₀ ≃ 3/5.

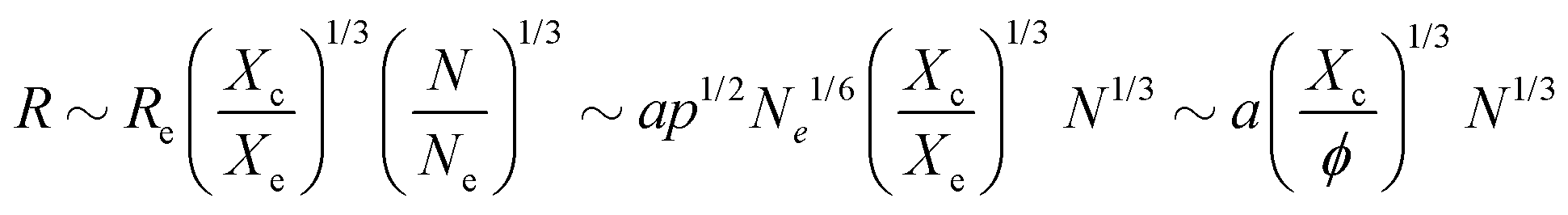

Ring size. From the definition of the coordination number, the ring size is written as R ∼ a(NX/ϕ)^1/3. For long rings, N ≫ N_e, the equilibrium X is determined by the free energy discussed in the main text. Since the free energy is constructed based on the coordination number, it is independent of ϕ and p. Bearing this point in mind, let us rescale the ring size in units of R_e ∼ ap^1/2N^1/2. After some arrangement, we findwhere the function g(x) follows from the free energy, and thus, is independent of ϕ and p, too, with the asymptotic behaviors discussed in the main text. Therefore, the dependence on ϕ and p is absorbed in rescaling factors R_e and N_e, and one can collapse various data sets with different system parameters onto the master curve as demonstrated in the main text.

In the long chain limit N ≫ N_e, the ring size is

where eqn (14) is used in the last relation.

Quantitative evaluation of R_e. Since the ideal chain statistics without the TC applies for short rings with N < N_e, it is possible to provide a quantitative estimate for R_e. In terms of mean square size, we findfor spanning size R^(s) and the gyration radius R^(g), respectively, at the onset of the TC. With p ≃ 2l_p/a expected for a worm-like chain, one can see that the values used in Fig. 2(a) in the main text and Fig. 4(a), which are summarized in Table 1 in the main text, are indeed reasonable. In addition, the relation (R^(s)_e)²/(R^(g)_e)² = 3 indicates the ratio X_e|_R=R^(s)/X_e|_R=R^(g) ≃ 3^3/2 ≃ 5.2 between the coordination numbers based on two different measures for the ring size. As seen in Table 1 in the main text, this is almost the case within statistical accuracy.

Acknowledgements

This work was supported by KAKENHI (No. JP16H00804, “Fluctuation and Structure”) from MEXT, Japan, and JST, PRESTO (JPMJPR16N5). T. S. thanks D. Michieletto for the enlightening discussion and providing numerical data in ref. 4.

References

1. T. McLeish, Science, 2002, 297, 2005–2006.
2. T. McLeish, Nat. Mater., 2008, 7, 933–935.
3. A. R. Bras, S. Gooßen, M. Krutyeva, A. Radulescu, B. Farago, J. Allgaier, W. Pyckhout-Hintzen, A. Wischnewski and D. Richter, Soft Matter, 2014, 10, 3649–3655.
4. D. Michieletto and M. Turner, Proc. Natl. Acad. Sci. U. S. A., 2016, 113, 5195–5200.
5. D. Michieletto, N. Nahali and A. Rosa, Phys. Rev. Lett., 2017, 119, 197801.
6. L. Berthier and G. Biroli, Rev. Mod. Phys., 2011, 83, 587–645.
7. A. Liu and S. Nagel, Annu. Rev. Condens. Matter Phys., 2010, 1, 347–369.
8. M. Rubinstein and R. Colby, Polymer Physics, Oxford University Press, Oxford, 2003.
9. P.-G. de Gennes, Scaling concepts in polymer physics, Cornell University Press, Ithaca [u.a.], 1979, p. 324 S.
10. M. D. Frank-Kamenetskii, A. V. Lukashin and A. V. Vologodskii, Nature, 1975, 258, 398–402.
11. T. Vettorel, A. Grosberg and K. Kremer, Phys. Biol., 2009, 6, 025013.
12. J. Halverson, W. Lee, G. Grest, A. Grosberg and K. Kremer, J. Chem. Phys., 2011, 134, 204904.
13. J. Suzuki, A. Takano, T. Deguchi and Y. Matsushita, J. Chem. Phys., 2009, 131, 144902.
14. T. Sakaue, Phys. Rev. Lett., 2011, 106, 167802.
15. T. Sakaue, Phys. Rev. E: Stat., Nonlinear, Soft Matter Phys., 2012, 85, 021806.
16. A. Rosa and R. Everaers, Phys. Rev. Lett., 2014, 112, 118302.
17. S. Obukhov, A. Johner, J. Baschnagel, H. Meyer and J. P. Wittmer, Europhys. Lett., 2014, 105, 48005.
18. J. D. Halverson, J. Smrek, K. Kremer and A. Grosberg, Rep. Prog. Phys., 2014, 77, 022601.
19. T. Ge, S. Panyukov and M. Rubinstein, Macromolecules, 2016, 49, 708–722.
20. T. Sakaue and C. Nakajima, Phys. Rev. E, 2016, 93, 042502.
21. T. A. Kavassalis and J. Noolandi, Phys. Rev. Lett., 1987, 59, 2674–2677.
22. M. Kapnistos, M. Lang, D. Vlassopoulos, W. Pyckhout-Hintzen, D. Richter, D. Cho, T. Chang and M. Rubinstein, Nat. Mater., 2008, 7, 997–1002.
23. Y. Doi, K. Matsubara, Y. Ohta, T. Nakano, D. Kawaguchi, Y. Takahashi, A. Takano and Y. Matsushita, Macromolecules, 2015, 48, 3140–3147.
24. J. Halverson, W. Lee, G. Grest, A. Grosberg and K. Kremer, J. Chem. Phys., 2011, 134, 204905.
25. E. Lee, S. Kim and Y. Jung, Macromol. Rapid Commun., 2015, 36, 1115–1121.
26. T. Salez, J. Salez, K. Dalnoki-Veress, E. Raphaël and J. Forrest, Proc. Natl. Acad. Sci. U. S. A., 2015, 112, 8227–8231.
27. J. Smrek and A. Y. Grosberg, J. Phys.: Condens. Matter, 2015, 27, 064117.
28. D. G. Tsalikis, V. G. Mavrantzas and D. Vlassopoulos, ACS Macro Lett., 2016, 5, 755–760.
29. J. Mattsson, H. Wyss, A. Fernandez-Nieves, K. Miyazaki, Z. Hu, D. Reichman and D. Weitz, Nature, 2009, 462, 83–86.
30. C. N. Likos, H. Löwen, M. Watzlawek, B. Abbas, O. Jucknischke, J. Allgaier and D. Richter, Phys. Rev. Lett., 1998, 80, 4450–4453.
31. A. Ikeda and K. Miyazaki, Phys. Rev. Lett., 2011, 106, 015701.
32. A. A. Louis, P. G. Bolhuis, J. P. Hansen and E. J. Meijer, Phys. Rev. Lett., 2000, 85, 2522–2525.
33. A. Narros, A. J. Moreno and C. N. Likos, Soft Matter, 2010, 6, 2435–2441.
34. A. Narros, C. N. Likos, A. J. Moreno and B. Capone, Soft Matter, 2014, 10, 9601–9614.
35. S. Asakura and F. Oosawa, J. Chem. Phys., 1954, 22, 1255–1256.
36. Y. Kobayashi, Y. Doi, S. S. Abdul Rahman, E. Kim, T.-H. Kim, A. Takano and Y. Matsushita, Macromolecules, 2018, 51, 1885–1893.
37. M. Cates and J. M. Deutsch, J. Phys., 1986, 47, 2121–2128.
38. A. Y. Grosberg, Phys. Rev. Lett., 2000, 85, 3858–3861.
39. T. Sakaue and E. Raphaël, Macromolecules, 2006, 39, 2621–2628.
40. M. Lang, J. Fischer and J.-U. Sommer, Macromolecules, 2012, 45, 7642–7648.

---

Footnotes

† In ref. 14 and 15, this term has the form (N/N_e)(X_e/X)², which amounts to setting ν₀ = 1/2, but it was corrected later to account for the swelling of the unknotted ring due to the TC;²⁰ see the discussion below.

‡ Even if we use the first line of eqn (13) instead of the second in the free energy minimization calculation, the results basically agree with those in Fig. 2 with the deviation being smaller than the symbol size there.

§ In Cates and Deutsch's argument, they adopted as a competing term with F_unlink the free energy of squeezing an ideal chain into a narrow space of size R (which may be regarded as a proxy of F_unknot here).³⁷ This amounts to setting β = 2 in eqn (11), which is not compatible with the extensivity requirement discussed in the text; see ref. 39 for the scaling structure of confining a (non-ideal) chain in a closed space.

---
