Development of online-storage inner-recycling counter-current chromatography for the preparative separation of complex components of alkylphenols from sarcotesta of Ginkgo biloba L.

Daijie Wanga, Xiangyun Songa, Huijiao Yana, Mengmeng Guob, Ruiming Fua, Hailong Jianga, Heng Zhua and Xiao Wang*a
aKey Laboratory of TCM Quality Control, Shandong Analysis and Test Center, Qilu University of Technology (Shandong Academy of Sciences), Jinan, Shandong 250014, People's Republic of China. E-mail: wxjn1998@126.com; Tel: +86-0531-8260-5304
bCollege of Food Science and Engineering, Shandong Agricultural University, Taian, Shandong 271018, People's Republic of China

Received 1st July 2018 , Accepted 6th August 2018

First published on 5th October 2018


High-speed counter-current chromatography (HSCCC) is becoming an effective and non-absorptive separation method from natural products. Due to the insufficient separation efficiency, it is challenging to separate complex components, especially for compounds with similar KD values. In this study, a novel and effective online-storage inner-recycling CCC method was used to separate alkylphenols from the sarcotesta of Ginkgo biloba L. A two-phase solvent system of n-heptane/ethyl acetate/methanol/acetic acid (5[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v) was used for HSCCC separation of 500 mg crude extracts. After the inner-recycling of two fractions coupled with pre-HPLC, five main ginkgolic acids (C13:0, C15:1, C17:2, C15:1, C17:1) coupled with bilobol (C15:1) and a mixture were obtained from a non-stop separation using a storage loop and two six-way valves. This novel method was also evaluated and predicted by formula derivation. This method could be an effective, rapid, and simple approach to separate alkylphenols from the sarcotesta of G. biloba.


1 Introduction

Ginkgo biloba L., one of the most famous medicinal plants in the world, is considered as a living fossil and has existed on Earth for over 200 million years.1 As a famous medicine and dietary supplement, extracts obtained from the leaves and seeds of G. biloba have played an important role in the treatment of Alzheimer's dementia, protecting the hippocampal neurons and improving cognitive performance and social function.2,3 In previous studies, the main medicinal components of Ginkgo biloba have been identified as terpene trilactones (ginkgolides A, B, and C and bilobalide) and flavonoids (quercetin, kaempferol, and isorhamnetin).4 Its alkylphenols, mainly ginkgolic acids (GAs), on the other hand, are considered to be toxic, mutagenic, and allergenic at levels of less than 10 μg g−1.5 Recently, pharmacological research on alkylphenols has attracted more attention. Alkylphenols show beneficial effects, including anti-cancer, anti-parasitism, anti-bacterial, and molluscicidal activity,6–9 and most especially enzyme-inhibiting functions, such as of HIV protease, fatty acid synthase, tyrosinase, glycerol-3-phosphatase, and dehydrogenase, as well as protein SUMOylation.10–12 Alkylphenols are abundant in G. biloba, especially in the sarcotesta of ginkgo seeds (over 4% GAs, w/w).13 Due to the broad pharmacological effects, abundant resources, and quality control of G. biloba, it is necessary to establish an efficient method for the isolation and purification of these alkylphenols.

Alkylphenols are recovered as mixtures of a series of homologues. They bear C13–C17 hydrophobic chains at the 6-position and 0–3 side-chain double bonds (Fig. 1).14 Because of the long chains, alkylphenols are low polarity with high hydrophobicity. There have been several reports on the separation of alkylphenols by silica gel or silicone oil chromatography, C18–Ag(I)-loaded cation-exchange chromatography, and reversed-phase C18 and C18 HPLC.15–17 The traditional silica gel separation method is tedious and time-consuming and requires large amounts of solvents. The separation is thus expensive, and rigorous sample preparation is required. Moreover, molecules with long hydrophobic chains are liable to be strongly adsorbed on reversed-phase columns. Therefore, an efficient isolation and purification method is urgently needed for improved separation of alkylphenols.


image file: c8ra05618h-f1.tif

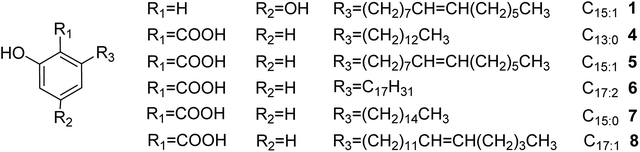

Fig. 1 Chemical structures of the separated alkylphenols.

High-speed counter-current chromatography (HSCCC) is a continuous liquid–liquid partition technique that does not require a solid support. As a novel chromatographic technique, it has many advantages, such as the elimination of irreversible adsorption, high sample recovery, low risk of sample denaturation, and large preparative capacity.18,19 Recently, it has gradually become a useful tool for the preparative isolation and purification of various natural products.20,21

There are also some disadvantages in HSCCC, such as insufficient understanding of its principles, complex selection of solvent system, difficulty in gradient elution and insufficient number of theoretical plates. Especially due to the insufficient number of theoretical plates compared with HPLC, it is difficult to separate similar compounds, especially those with similar KD values, by 1D HSCCC. The traditional approach for separating compounds with similar KD values has been to increase the separation time, resulting in increased peak broadening and unacceptable consumption of organic solvents. Recently, 2D/multi-D HSCCC methods have been developed to increase peak resolution. The various modes available to date include tandem HSCCC,22 off-line 2D/multi-D CCC,23 on-line inner-recycling CCC,24 and online-storage recycling CCC.25 Inner-recycling CCC provides an excellent solution for the separation of compounds with similar KD values. It can greatly reduce the amount of solvent used. Coupled with the online-storage mode, it is suitable for the separation of complex components in natural products with similar KD values. Herein, an online-storage recycling CCC method is introduced for the separation of alkylphenols with long hydrophobic chains obtained from the sarcotesta of G. biloba. To the best of our knowledge, this is the first report on the use of the online-storage and inner-recycling CCC technique for separating such alkylphenols (Fig. 1).

2 Materials and methods

2.1 Reagents and materials

n-Hexane, n-heptane, ethyl acetate, methanol, acetic acid and petroleum ether (60–90 °C) used for the preparation of crude extract and CCC separations were analytical grade (Sinopharm Chemical Reagent Co., Ltd, Shanghai, China). HPLC-grade methanol and acetic acid were purchased from the Fisher Company (Fairlawn, NJ, USA). The water used was deionized by an osmosis Milli-Q system (Millipore, Bedford, MA, USA). Reverse osmosis Milli-Q water (Millipore, USA) was used.

Fresh sarcotesta of G. biloba was obtained from ginkgo trees in the city of Jinan (Shandong, China) and identified by Dr Jia Li (College of Pharmacy, Shandong University of Traditional Chinese Medicine). A voucher specimen (2016100701) has been deposited at Shandong Analysis and Test Center.

2.2 Apparatus

The HSCCC equipment was a TBE-300C (Shanghai, Tauto Biotech, China) with three multilayer coil separation columns of 300 mL (the diameter of the PTFE tube was 2.6 mm) as well as a 20 mL manual sample loop. The HSCCC apparatus was equipped with four other instrument modules, including a TBP-5002 constant-flow pump (Tauto Biotechnique, Shanghai, China), a 8823A-UV Monitor at 254 nm (Beijing Emilion Technology, Beijing, China), a Model 3057 portable recorder (Yokogawa, Sichuan Instrument Factory, Sichuan, China), and a DC-0506 low constant temperature bath (Tauto Biotechnique, Shanghai, China) to maintain the temperature at 25 °C. HPLC separation was performed on a Waters 600 system consisting of a Waters 600 pump, a Photodiode Array Detection (PDA) detector, and an automatic sample injection with Waters Symmetry C18 column (250 mm × 4.6 mm, i.d. 5 μm, USA). The storage loop was a Teflon pipeline with an inner diameter and outer diameter of 2 mm and 3 mm, respectively.

2.3 Preparation of crude extract

The fresh sarcotestas were firstly separated from seeds and dried in the shade at room temperature. Then 1.5 kg of dry sarcotesta was extracted three times with petroleum ether (10 L). The combined extracts were concentrated under reduced pressure at 40 °C to obtain the crude extract (74 g).

2.4 Selection of solvent system

In the present study, a series of two-phase solvent systems in various ratios were tested for their partition capabilities. The partition coefficients (KD-values) of the target compounds were determined by HPLC as follows. Five milliliters of each phase of the equilibrated two-phase solvent system was added to approximately 10 mg of the crude extract. The test tube was shaken vigorously for 1 min. After the upper and lower phase had separated fully, 1 mL of each layer was removed and dried with nitrogen. The residue was dissolved in 1 mL methanol and analyzed by HPLC. The KD-values of the target compounds were calculated according to the equation K = AU/AL, where AU was the peak area of the target compound in the upper phase, while AL was that of the lower phase.

2.5 Preparation of solvent systems and sample solutions

For HSCCC separation, a two-phase solvent system consisting of n-heptane/ethyl acetate/methanol/acetic acid (5[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v) was placed in a separating funnel. After shaking vigorously, the solution was left to stand for a few minutes and divided into two phases for the experiment. The upper layer served as the stationary phase, while the lower layer served as the mobile phase. A sample of crude extract (500 mg) was dissolved in 20 mL of a mixture of the upper and lower phases (1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v).

2.6 Separation procedure

2.6.1 Online-storage inner-recycling CCC structure. The online-storage inner-recycling CCC set-up is shown in Fig. 2. Two additional six-way valves and a storage loop were added compared with conventional CCC. Six-way valve 1 was introduced between the pump and the solvent bottle to enable switching between collection and inner-recycling modes. Six-way valve 2 was introduced between the detector and the first six-way valve to enable switching to online storage. There were three stages, namely collection, online-storage, and inner-recycling. In the first stage, the six-way valve was in the position for collection (Fig. 2A). This stage encompassed establishing the hydrodynamic equilibrium, sample solution loading, and sample eluent collection. In the second stage of online storage (Fig. 2B), the target sample eluent was fully collected in the storage loop. The third stage involved the inner-recycling mode (Fig. 2C).
image file: c8ra05618h-f2.tif

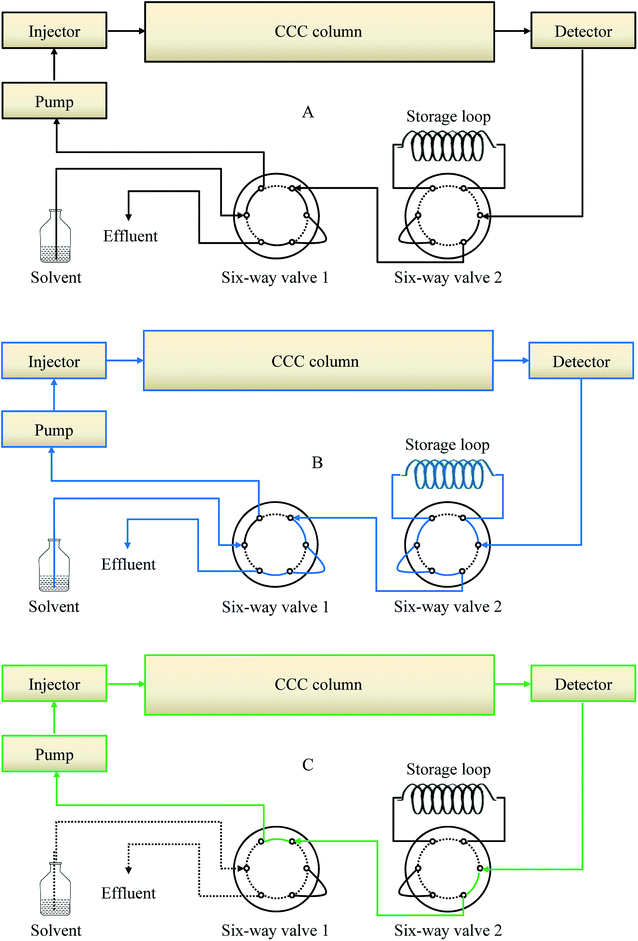

Fig. 2 Schematic diagrams of the online-storage inner-recycling CCC separation. (A) Schematic diagrams; (B) online-storage mode; (C) inner-recycling separation mode.
2.6.2 Conventional CCC separation. For conventional CCC separation, the six-way valve was switched to enable the collection mode (Fig. 2A). The column of the CCC instrument was first completely filled with the upper phase at 20 mL min−1 in head-to-tail elution mode. The sample solution of the GAs extract was then injected with the manual sample loop. The lower phase was pumped into the head of the CCC column at 2.0 mL min−1, during which the apparatus was rotated at 800 rpm in a clockwise manner. The separation temperature was set at 25 °C. The effluents were continuously monitored at 254 nm by means of a portable recorder. Four fractions (Fr.) were obtained in the one-step separation. In Fr. III, the three compounds 4, 5, and 6 with similar KD values were co-eluted, and compounds 7 and 8 were co-eluted in Fr. IV.
2.6.3 Online-storage recycling CCC separation. Until the time when Fr. III was introduced into the storage loop, the process was the same as that of conventional CCC separation (Fig. 4A and B). When the sample eluent of Fr. III was at the tail end of CCC, the separation mode was switched to the online-storage mode (Fig. 4C). After all of the target fractions had been collected in the storage loop, the six-way valve was turned so as to enable the inner-recycling mode (Fig. 4D). In this stage, target compounds 7 and 8 were completely separated through six inner-recycling procedures. Six-way valve 1 was then switched to enable the collection mode. Compounds 4 and 5 were collected in test tubes. The final step was to separate Fr. III. Six-way valves 1 and 2 were switched and Fr. III was guided to be subjected to the inner-recycling mode (Fig. 4E). In this stage, the target compounds were separated through nine inner-recycling procedures and collected in test tubes. The retention of the stationary phase was defined as the stationary phase relative to the total column capacity after separation.
image file: c8ra05618h-f3.tif

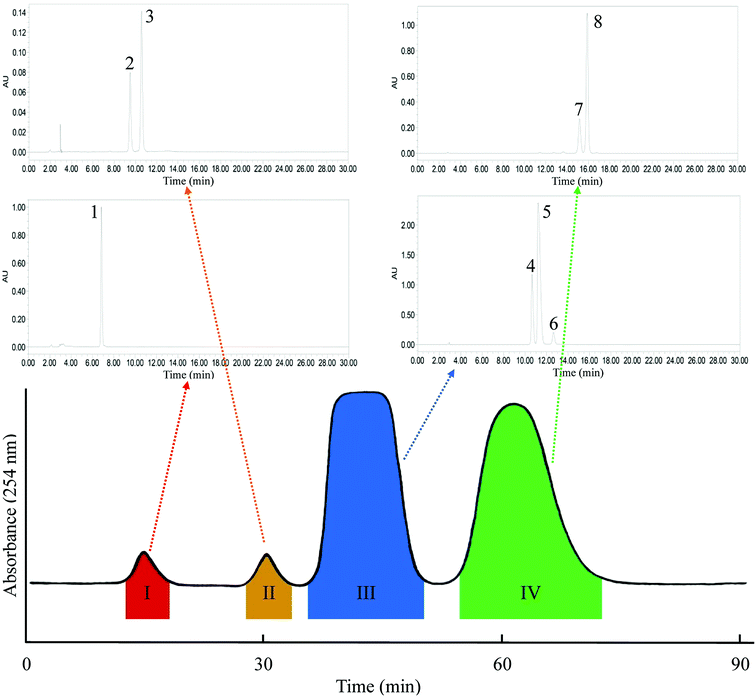

Fig. 3 HSCCC chromatogram of one-step separation mode. Solvent system: n-heptane/ethyl acetate/methanol/acetic acid (5[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v); flow-rate: 2.0 mL min−1, detection wavelength: 254 nm.

image file: c8ra05618h-f4.tif

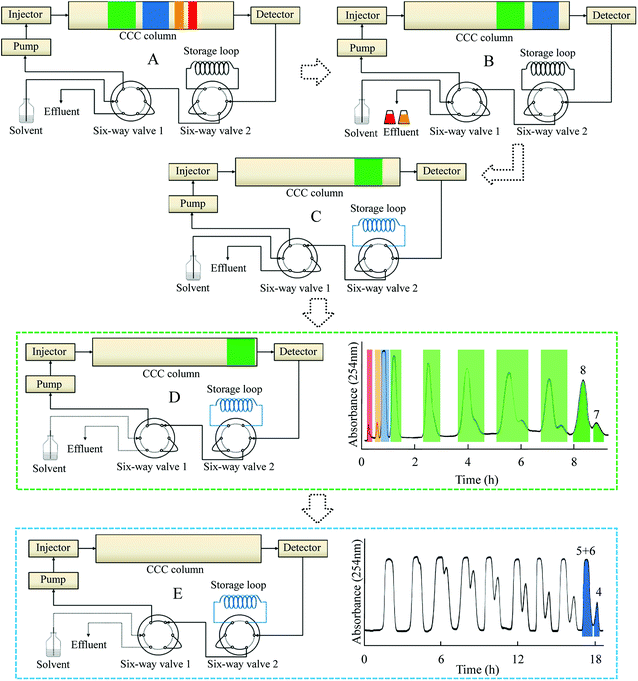

Fig. 4 Schematic diagram of online-storage inner-recycling CCC separation procedure. Solvent system: n-heptane/ethyl acetate/methanol/acetic acid (5[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v); flow-rate: 2.0 mL min−1, detection wavelength: 254 nm. (A) Separation procedure, (B) separation of Fr. I and II in Fig. 3, (C) online-storage of Fr. III, (D) inner-recycling separation of Fr. IV, (E) inner-recycling separation of Fr. III.

2.7 HPLC analysis

HPLC analyses of the extract and CCC fractions were performed on Waters 600 HPLC equipment with a C18 column (Waters Symmetry, 5 μm, 4.6 mm × 250 mm, i.d.). The mobile phase was methanol and 0.5% aqueous solution of acetic acid (92[thin space (1/6-em)]:[thin space (1/6-em)]8, v/v) with a flow-rate of 1.0 mL min−1 and a wavelength of 310 nm.

2.8 Structural identification

The separated compounds were identified by ESI-MS and 1H and 13C NMR spectrometries. ESI-MS analyses were performed on an Agilent 6520 Q-TOF instrument (Agilent, Santa Clara, CA, USA). NMR spectra were performed on a Bruker AV-400 spectrometer (Bruker BioSpin, Rheinstetten, Germany) with CDCl3 as solvent, and chemical shifts (δ) are expressed in parts per million (ppm) coupled with constant (J) in Hz.

3 Results and discussion

3.1 Selection of the HSCCC solvent systems

For HSCCC separation, a suitable two-phase solvent system was crucial. A suitable solvent system requires an appropriate partition coefficient as well as good sample solubility.26 Generally, the most suitable range of KD values in HSCCC separation is between 0.5 and 2. A higher KD value may lead to excessively broad peaks and extended elution times, whereas a lower KD value might lead to poor peak resolution. Additionally, the separation factor (α) (α = K2/K1, K2 > K1) is an important parameter. If the α value is greater than 1.5, adjacent chromatographic peaks can be completely separated.27 A series of mixed-solvent systems was tested, including ethyl acetate/n-butanol/water (4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]5, v/v), n-hexane/ethyl acetate/methanol/water (5[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]5[thin space (1/6-em)]:[thin space (1/6-em)]2, v/v), chloroform/methanol/water (4[thin space (1/6-em)]:[thin space (1/6-em)]3[thin space (1/6-em)]:[thin space (1/6-em)]2, v/v), and n-heptane/ethyl acetate/methanol/water (5[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v). When ethyl acetate/n-butanol/water (4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]5, v/v) and n-hexane/ethyl acetate/methanol/water (5[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]5[thin space (1/6-em)]:[thin space (1/6-em)]2, v/v) were used, the GAs were mainly distributed in the upper phase, giving KD values far greater than 1, making them difficult to elute. When chloroform/methanol/water (4[thin space (1/6-em)]:[thin space (1/6-em)]3[thin space (1/6-em)]:[thin space (1/6-em)]2, v/v) was used, the GAs were mainly distributed in the chloroform of the lower phase, such that they would be rapidly eluted with no peak resolution. When n-heptane/ethyl acetate/methanol/acetic acid (5[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v) was used, appropriate KD values in the range 0.89 to 1.53 were obtained (Table 1). However, as also shown in Table 1, the KD values of GA 13:0, GA 15:1, and GA 17:2 were 0.96, 0.89, and 0.90, respectively. The separation factors K3/K2 and K1/K2 were 1.01 and 1.08. The KD values of GA 15:0 and GA 17:1 were 1.53 and 1.41, and the separation factor K4/K5 was 1.09. These close KD values indicate that the relevant compounds would be difficult to separate in conventional one-step separation mode. Thus, online-storage recycling CCC mode was used for further HSCCC separation.
Table 1 The KD-values of GAs in HSCCC separation with different solvent systems
Solvent system KD-values of GAs
13:0 15:1 17:2 15:0 17:1
EtOAc/n-BuOH/H2O (4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]5, v/v) 267.3 238.0 181.7 205.2 301.1
n-hexane/EtOAc/MeOH/H2O (5[thin space (1/6-em)]:[thin space (1/6-em)]2[thin space (1/6-em)]:[thin space (1/6-em)]5[thin space (1/6-em)]:[thin space (1/6-em)]2, v/v) 25.3 29.6 43.1 61.6 69.6
CHCl3/MeOH/H2O (4[thin space (1/6-em)]:[thin space (1/6-em)]3[thin space (1/6-em)]:[thin space (1/6-em)]2, v/v) <0.01 <0.01 <0.01 <0.01 <0.01
Heptane/EtOAc/MeOH/HOAc (5[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v) 0.96 0.89 0.90 1.53 1.41


3.2 Separation of the alkylphenols

According to basic chromatographic theory, a longer CCC column would result in a higher number of theoretical plates. This may be expressed by the following equation:

(R1/R2)2 = N1/N2 = L1/L2 (1)
where R is the resolution, N is the total number of theoretical plates, and L is the length of the column.28

For a particular CCC instrument, the number of theoretical plates in a one-step separation is limited. Compared with HPLC, the number of theoretical plates of HSCCC is low, resulting in inferior separation. Inner-recycling CCC is an improvement on conventional HSCCC, whereby a six-way valve is designed to form a closed loop. Coupled with one or more storage loops, it becomes very convenient to separate complex constituents, especially compounds with similar structures and KD values in natural products. Compared with the conventional one-step separation mode, it has many advantages, such as much lower organic solvent consumption and enhanced numbers of theoretical plates and peak resolution, while retaining a simple set-up and ease of operation.

Fig. 3 shows a one-step HSCCC separation with the solvent system n-heptane/ethyl acetate/methanol/acetic acid (5[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v), and the result is consistent with the KD values listed in Table 1. The main GAs in G. biloba were enriched in two fractions. Fr. III contained three GAs, namely C13:0 (peak 4 in Fig. 3), C15:1 (peak 5 in Fig. 3), and C17:2 (peak 6 in Fig. 3). Fr. IV contained C15:1 (peak 7 in Fig. 3) and C17:1 (peak 8 in Fig. 3). The resolution (Rs) of Fr. III and IV was 1.40 as calculated with eqn (3). However, the Rs of the main compounds within the two fractions was much less than 1 for the subsequent inner-recycling separation. Additionally, two minor components of Fr. I and Fr. II were obtained. Fr. I (10.2 mg) was finally identified as bilobol (C15:1) with purity >98%, as determined by HPLC. Fr. II was identified as a mixture of two compounds, with molecular weights of m/z 344 and 370, as determined by HPLC-TOF-MS.

Fig. 4A shows a schematic diagram of the online-storage inner-recycling CCC process. Initially, Fr. I and Fr. II were collected in test tubes in a one-step separation (Fig. 4B). Fr. III was then introduced into the storage loop by switching the six-port valve 2 (Fig. 4C). After all of Fr. III had been collected, six-port valve 2 was turned back and six-port valve 1 was switched to enable inner-recycling CCC separation of Fr. IV (Fig. 4D). After six cycles of separation with the solvent system n-heptane/ethyl acetate/methanol/acetic acid (5[thin space (1/6-em)]:[thin space (1/6-em)]4[thin space (1/6-em)]:[thin space (1/6-em)]1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v), 56.8 mg of compound 7 and 16.4 mg of compound 8 were obtained, each with purity >98%, as determined by HPLC (Fig. 5). Fig. 4E shows the inner-recycling CCC separation of Fr. III by switching six-port valves 1 and 2. After nine cycles of separation, 19.7 mg of compound 4 and a mixture of compounds 5 and 6 were obtained.


image file: c8ra05618h-f5.tif
Fig. 5 HPLC chromatograms of the crude extract and the isolated alkylphenols. (A) Crude extract, (B) bilobol (15[thin space (1/6-em)]:[thin space (1/6-em)]1), (C) Fr. II in Fig. 3, (D) ginkgoneolic acid (GA 13:0), (E) ginkgolic acid (GA 15:1), (F) ginkgolic acid C17:2 (GA 17:2), (G) hydroginkgolic acid (GA 15:0), (H) ginkgolic acid C17:1 (GA 17:1). Experimental conditions: waters symmetry C18 column (5 μm, 4.6 mm × 250 mm, i.d.,); Mobile phase: methanol/0.5% aqueous solution of acetic acid (92[thin space (1/6-em)]:[thin space (1/6-em)]8, v/v). flow rate: 1.0 mL min−1; detection: 310 nm.

The mixture of compounds 5 and 6 was further purified by preparative HPLC, eluting with methanol/0.5% aqueous acetic acid (92[thin space (1/6-em)]:[thin space (1/6-em)]8, v/v) at a flow rate of 3.0 mL min−1 with monitoring at 310 nm. Compounds 5 (53.8 mg) and 6 (10.9 mg) were thereby obtained, each with purity >98%, as determined by HPLC (Fig. 5).

Fig. 5 shows the HPLC chromatograms of the crude extract and the isolated compounds. As shown in the amplification of Fig. 5A, peak 3 and peak 4 were eluted at nearly the same time in the HPLC column. This means that these two compounds were not well separated in pre-HPLC due to their similar polarities. As a liquid–liquid partition chromatography, HSCCC can separate alkylphenols in different dimensions. The inner-recycling CCC mode has many advantages, including low solvent consumption, high separation efficiency, and simple set-up. Its main drawback is peak broadening after many cycles of inner-recycling separation. If the front peak and the peak behind it are closely connected, this can be solved by releasing the eluents from the front and end of the peaks. We then turned to evaluating the inner-recycling CCC mode and the prediction of its efficacy by formula derivation.

3.3 Structure identification

3.3.1 Compound 1 (peak 1 in Fig. 5B). ESI-MS m/z: 317 [M − H]. 1H NMR (400 MHz, CDCl3): δH 6.23 (2H, d, J = 2.3 Hz, H-4, 6), 6.17 (1H, d, J = 2.3 Hz, H-2), 5.35 (2H, m, CH[double bond, length as m-dash]CH), 2.46 (2H, m, H-1′), 2.01 (4H, m, C[H with combining low line]2–CH[double bond, length as m-dash]CH–C[H with combining low line]2), 1.55 (2H, m, H-2′), 1.29 (16H, m), 0.87 (3H, t, J = 6.7 Hz, CH3). 13C NMR (CDCl3, 100 MHz): δC 156.8 (C-1, 3), 146.0 (C-5), 130.0, 107.9 (C-4, 6), 100.2 (C-3), 35.9 (C-1′), 31.8, 31.1 (C-2′, 3′), 29.8, 29.7, 29.4, 29.3, 29.2, 29.0, 27.2 (CH2), 22.7 (C-14′), 14.1 (C-15′). Thus, the structure of 6 was determined as bilobol (15[thin space (1/6-em)]:[thin space (1/6-em)]1) by comparison of its MS, 1H and 13C NMR data with literature data.29
3.3.2 Compound 4 (peak 4 in Fig. 5D). ESI-MS m/z: 319 [M − H]. 1H NMR (400 MHz, CDCl3): δH 7.34 (1H, dd, J = 8.2, 7.4 Hz, H-4), 6.85 (1H, d, J = 8.2 Hz, H-3), 6.75 (1H, d, J = 7.4 Hz, H-5), 2.96 (2H, t, J = 7.8 Hz, H-1′), 1.59 (2H, m, H-2′), 1.25 (20H, m), 0.88 (3H, t, J = 6.8 Hz, CH3). 13C NMR (CDCl3, 100 MHz): δC 174.7 (COOH), 163.6 (C-2), 147.5 (C-6), 134.9 (C-4), 122.5 (C-5), 115.7 (C-3), 110.8 (C-1), 36.5 (C-1′), 32.1, 31.9 (C-2′, 3′), 29.8, 29.7, 29.6, 29.5, 29.4 (CH2), 22.7 (C-12′), 14.1 (C-13′). Thus, the structure of 2 was determined as ginkgoneolic acid (GA 13:0) by comparison of its MS, 1H and 13C NMR data with literature data.30
3.3.3 Compound 5 (peak 1 in Fig. 5E). ESI-MS m/z: 347 [M − H]. 1H NMR (400 MHz, CDCl3): δH 7.35 (1H, dd, J = 8.2, 7.4 Hz, H-4), 6.86 (1H, d, J = 8.2 Hz, H-3), 6.76 (1H, d, J = 7.4 Hz, H-5), 2.95 (2H, t, J = 7.6 Hz, H-1′), 1.60 (2H, m, H-2′), 1.26 (24H, m), 0.88 (3H, t, J = 6.8 Hz, CH3). 13C NMR (CDCl3, 100 MHz): δC 175.7 (COOH), 163.5 (C-2), 147.4 (C-6), 134.8 (C-4), 122.6 (C-5), 115.6 (C-3), 110.6 (C-1), 36.5 (C-1′), 32.0, 31.8 (C-2′, 3′), 29.8, 29.7, 29.7, 29.5, 29.4 (CH2), 22.6 (C-14′), 14.0 (C-15′). Thus, the structure of 5 was determined as ginkgolic acid (GA 15:1) by comparison of its MS, 1H and 13C NMR data with literature data.30
3.3.4 Compound 6 (peak 1 in Fig. 5F). ESI-MS m/z: 345 [M − H]. 1H NMR (400 MHz, CDCl3): δH 7.34 (1H, dd, J = 8.2, 7.4 Hz, H-4), 6.86 (1H, d, J = 8.2 Hz, H-3), 6.76 (1H, d, J = 7.4 Hz, H-5), 5.35 (2H, m, CH[double bond, length as m-dash]CH), 2.97 (2H, m, H-1′), 2.01 (4H, m, C[H with combining low line]2–CH[double bond, length as m-dash]CH–C[H with combining low line]2), 1.59 (2H, m, H-2′), 1.29 (16H, m), 0.87 (3H, t, J = 6.8 Hz, CH3). 13C NMR (CDCl3, 100 MHz): δC 175.8 (COOH), 163.5 (C-2), 147.7 (C-6), 135.2 (C-4), 130.3, 129.9 (C[double bond, length as m-dash]C), 122.7 (C-5), 115.8 (C-3), 110.8 (C-1), 36.4 (C-1′), 32.0, 31.8 (C-2′, 3′), 29.8, 29.7, 29.4, 29.3, 29.0, 27.2 (CH2), 22.7 (C-14′), 14.1 (C-15′). Thus, the structure of 1 was determined as ginkgolic acid C17:2 (GA 17:2) by comparison of its MS, 1H and 13C NMR data with literature data.30
3.3.5 Compound 7 (peak 1 in Fig. 5G). ESI-MS m/z: 373 [M − H]. 1H NMR (400 MHz, CDCl3): δH 7.33 (1H, dd, J = 8.2, 7.4 Hz, H-4), 6.87 (1H, d, J = 8.2 Hz, H-3), 6.77 (1H, d, J = 7.4 Hz, H-5), 5.34 (2H, m, CH[double bond, length as m-dash]CH), 2.98 (2H, m, H-1′), 2.01 (4H, m, C[H with combining low line]2–CH[double bond, length as m-dash]CH–C[H with combining low line]2), 1.60 (2H, m, H-2′), 1.30 (20H, m), 0.89 (3H, t, J = 6.7 Hz, CH3). 13C NMR (CDCl3, 100 MHz): δC 176.2 (COOH), 163.5 (C-2), 147.8 (C-6), 135.3 (C-4), 129.9, 129.8 (C[double bond, length as m-dash]C), 122.7 (C-5), 115.8 (C-3), 110.9 (C-1), 36.5 (C-1′), 32.0, 31.8 (C-2′, 3′), 29.80, 29.76, 29.69, 29.64, 29.59, 29.53, 29.35, 29.01, 27.24 (CH2), 22.7 (C-16′), 14.1 (C-17′). Thus, the structure of 4 was determined as hydroginkgolic acid (GA 15:0) by comparison of its MS, 1H and 13C NMR data with literature data.30
3.3.6 Compound 8 (peak 1 in Fig. 5H). ESI-MS m/z: 371 [M − H]. 1H NMR (400 MHz, CDCl3): δH 7.31 (1H, dd, J = 8.2, 7.4 Hz, H-4), 6.85 (1H, d, J = 8.2 Hz, H-3), 6.75 (1H, d, J = 7.4 Hz, H-5), 5.35 (4H, m, CH[double bond, length as m-dash]CH), 2.95 (2H, m, H-1′), 2.77 (2H, m, [double bond, length as m-dash]CH–C[H with combining low line]2–CH[double bond, length as m-dash]), 2.03 (4H, m, C[H with combining low line]2–CH[double bond, length as m-dash]CH–CH2–CH[double bond, length as m-dash]CH–C[H with combining low line]2), 1.57 (2H, m, H-2′), 1.32 (14H, m), 0.88 (3H, t, J = 6.7 Hz, CH3). 13C NMR (CDCl3, 100 MHz): δC 176.8 (COOH), 163.3 (C-2), 147.4 (C-6), 135.0 (C-4), 130.2, 130.1, 128.0, 127.9 (2C[double bond, length as m-dash]C), 122.6 (C-5), 115.7 (C-3), 110.1 (C-1), 36.4 (C-1′), 32.0, 31.5, 29.8, 29.7, 29.4, 29.4, 29.3, 27.2, 27.2 (CH2), 25.6 ([double bond, length as m-dash]CH–CH2–CH[double bond, length as m-dash]), 22.6 (C-16′), 14.1 (C-17′). Thus, the structure of 3 was determined as ginkgolic acid C17:1 (GA 17:1) by comparison of its MS, 1H and 13C NMR data with literature data.30

3.4 Evaluation and prediction of inner-recycling CCC mode by formula derivation

According to basic chromatographic theory, the partition efficiency of a separation column may be evaluated by computing the number of theoretical plates (N) for each peak and the resolution (Rs) between the peaks according to the following equations:

N = (4tR/W)2 (2)

Rs = 2(tR2tR1)/(W1 + W2) (3)
where tR is the retention time and W is the baseline peak width.

In HSCCC separation, the separation factor (α) and stationary phase retention (Sf) can be described by eqn (4) and (6), respectively:


α = K2/K1 (4)

VC = VM + VS (5)

Sf = VS/VC (6)

VS = SfVC (7)

tR = VM + KiVS (8)
where K1 and K2 are the KD values of the adjacent chromatographic peaks in HSCCC (K2 > K1), and VM, VS, and VC are the volumes of the mobile phase and stationary phase and the total volume of the CCC column, respectively. Ki is the KD value of any peak i. Eqn (6) can be transformed to eqn (7).

A = αn = (K2/K1)n (9)

RS = 2(tR2tR1)/(W1 + W2) (10)

RS = 2(K2K1)VS/(W1 + W2) (11)
where A is the separation factor after n cycles of CCC separation. Eqn (10) can be transformed into eqn (11) by combining it with eqn (6). Considering the expansion coefficient (a) of the peak broadening, the expression for resolution (Rs) was finally transformed into eqn (12).

RS = [2SfVC(αn − 1)K1n]/[(W1 + W2)an] (12)

For successful accomplishment of the inner-recycling CCC mode, the width of peak 1 (W1) plus peak 2 (W2) must be less than or equal to the total volume (VC). When the width of peak 1 (W1) plus peak 2 (W2) is equal to the total volume (VC), eqn (12) can be transformed into eqn (13) and eqn (3) into eqn (14).


RS = 2Sf(αn − 1)K1n/(an) (13)

RS = 2n(tR2tR1)/[(W1 + W2)an−1] (14)

If RS = 1, the adjacent chromatographic peaks can be 98% separated. They may be completely separated with a resolution of 1.5. As can be seen from eqn (14), RS depends on the expansion coefficient (a) and the number of separation cycles (n).

As can be seen in Table 1, A1 = α1n = (K3/K2)n = (0.90/0.89)n = 1.01n, A2 = α2n = (K1/K3)n = (0.96/0.90)n = 1.07n, and A3 = α3n = (K4/K5)n = (1.53/1.41)n = 1.09n. In view of the base numbers in A1, A2, and A3, it would be difficult to separate compounds 2 and 3.

4 Conclusion

A novel and effective online-storage inner-recycling CCC method for separating complex compounds with similar KD values has been applied to the sarcotesta of G. biloba. Through a combination of online-storage and recycling modes, coupled with preparative HPLC, ginkgolic acids have been successfully separated with high purity. This novel method has been evaluated and predicted by formula derivation. It has the advantages of low solvent consumption and enhanced separation efficiency compared with the conventional one-step CCC mode, making it especially well-suited for the separation of complex natural products.
