Selective adsorption and decomposition of pollutants using RGO-TiO₂ with optimized surface functional groups

Abstract

Reduced graphene oxide (RGO) samples with optimized types of surface functional groups were hybridized with TiO₂ to achieve the selective adsorption and removal of various pollutants. A high ratio of hydroxyl groups was found to be remarkably advantageous for the adsorbtion and decomposition of rhodamine-B (and similar pollutants), while a high ratio of carboxyl groups was found to promote the ability to adsorb and decompose phenol. Moreover, the presence of carboxyl groups on the RGO edge provides a pre-condition to form a close chemical connection with TiO₂, which has been proven by the obtained electron paramagnetic resonance (EPR) curve, infrared spectroscopy (IR) and electron lifetime. The resulting composite photocatalysts display excellent photocatalytic activities under both UV- and visible-light illumination, indicating that the well-designed surface micro-circumstances of the RGO are quite significant.

---

Introduction

Graphene assisted TiO₂ composite photocatalysts have attracted increasing attention because of their significantly enhanced performances compared with those of the bare semiconductors.^1–7 Based on previous reports, the advantages of adopting graphene as a modifier can be detailed by the following four points.⁴ Firstly, the large theoretical Brunauer–Emmett–Teller (BET) area of graphene makes this two-dimensional material a promising additive to enhance the absorption of pollutants, and also improves the corresponding decomposition rate constant. Secondly, graphene is deemed to act as a fast transport channel for photo-induced electrons to depress the recombination of electron–hole pairs in the TiO₂ because of its outstanding intrinsic electrical properties.⁸ Thirdly, the semimetal property of graphene endows it as a perfect sensitizer to provide a visible-light activity for the resulting composite photocatalysts.⁹ Lastly, the combination of graphene and traditional semiconductor materials is convenient, and the hydrothermal method is widely employed to achieve the hybridization.^8,9 In the past decade, some research on graphene assisted TiO₂ composite photocatalysts has been carried out, and the significant studies have been reviewed.⁶ Zhang et al. studied the photocatalytic performance of a reduced graphene oxide (RGO)-TiO₂ photocatalyst under UV- and visible-light illumination. The authors found that the corresponding photocatalytic mechanism was similar to that of other carbon material assisted TiO₂ composite photocatalysts.¹ Chen et al. fabricated visible-light responsive graphene oxide (GO)-TiO₂ photocatalysts and suggested that the GO acts as a sensitizer in the composite.² Although the resulting photocatalytic performances of these composites were much higher than that of the pure TiO₂, the obtained decomposition rate constants are still much lower than those predicted.

In order to further improve the photocatalytic activities of the graphene-TiO₂ photocatalysts, some optimizations have been made. Zhai et al. adopted titanate nanotubes to replace TiO₂ nanoparticles to combine with the RGO, and the BET area increased by approximately ten times (400 m² g⁻¹), which gave a better adsorption ability to the resulting photocatalysts.¹⁰ Our group made some attempts to optimize the quality of the adopted graphene to improve the separation ability of the photo-induced electron–hole pairs.⁹ First of all, high quality three-dimensional graphene networks (3DGNs) prepared by the chemical vapor deposition method were adopted as the modifier to reduce the recombination centers (defects) of the electron–hole pairs. 3DGNs are superior not only due to the low defect density but also their large BET area (>600 m² g⁻¹). However, the resulting photocatalytic performances were much lower than the predicted results (comparable with that of the RGO modified samples). After careful analysis, Hu's group and our group found that the poor wettability between the graphene basal plane and TiO₂ leads to a degraded performance as a result of a high Schottky barrier at the interface which resists the transport of photo-generated electrons.³ Most recently, we found that the defects on the surface of the 3DGNs can play the part of a bridge to promote electron transport at the interface.⁵ Considering the balance between good wettability and the high intrinsic electrical properties, the defect density of the 3DGNs must be accurately designed.¹¹ However, the control process for a limited defect density is rather complex, and a strict gas flow amount and severe cool rate are needed.^5,11 Therefore, the mass manufacture of 3DGNs-TiO₂ is difficult.

In contrast, for the RGO-TiO₂ composite photocatalysts, a close contact between the graphene basal plane and the TiO₂ nanoparticles can be achieved easily through the surface functional groups of the RGO, which has been proven by previous reports.^8,12 Moreover, the total amount of functional groups can be controlled facilely by adjusting the reduction agent and time. However, the type of functional group (hydroxyl, carboxyl and epoxy groups) plays a vital role in enhancing the interface contact, which is not yet fully understood. With the development of a RGO preparation technique, a high-quality sample with a large BET area and a designed morphology can be achieved.⁸ Therefore, making a further improvement to the electron transport at the interface between the RGO and TiO₂ to improve the resulting photocatalytic performances of the composite photocatalysts has promising prospects for practical applications.

In this study, the RGO samples with an optimized total amount and selected type of surface functional groups were prepared and adopted as the modifier for composite photocatalysts. The effects of each functional group in the adsorption and decomposition of various pollutants are revealed, and are proven by electron paramagnetic resonance (EPR), the decomposition rate constant and adsorption experiments. The results indicate that the selected adsorption and decomposition of specific pollutants can be achieved by optimizing the adopted RGO. Moreover, the interface contact (chemical bond strength) between the graphene basal plane and TiO₂ is closely related to the functional group type, which determines the photo-generated electron transport ability at the interface, as well as the photocatalytic performance. Lastly, the resulting photocatalysts display satisfactory stabilities for high photocatalytic performances under both UV- and visible-light irradiation.

Results and discussion

SEM images of the composite photocatalysts based on various RGO samples are shown in Fig. 1, and all of the specimens display similar appearances. The uniformly distributed TiO₂ nanoparticles can be observed from the RGO (h, e)-TiO₂ rather than from other specimens, implying that the aggregation behavior of TiO₂ is closely related to the adopted RGO (the major difference is the functional groups). X-ray diffraction (XRD) curves of the RGO samples and as-prepared composite photocatalysts are listed in Fig. 2. The fingerprint peaks belonging to TiO₂ are labeled in the patterns, while the corresponding signals from the RGO cannot be seen from the composite photocatalysts, which is in line with previous reports.^13,14 This interesting phenomenon can be explained by the small average size and discontinuous periodic structure of the graphene basal plane in the RGO. Raman spectroscopy was utilized to further detect the distinctions between these adopted RGO samples. As a nondestructive tool, Raman spectroscopy is a powerful method to obtain the thickness, average size and defect density of graphite-like materials (based on the features of the G, D and 2D bands). Therefore, the value of I_D/I_G is directly proportional to the defect density of the graphene samples (Table 1, Fig. S1, ESI†).^15,16 Two kinds of defects appear in the RGO samples, structural defects (carbon atom vacancy) and surface functional groups. XPS can be used to obtain the ratios of carbon atoms in various chemical states. Based on our recent study, the reduction degrees and proportions of various functional groups of these adopted RGO samples were abstracted (the values of m_C : m_O and m_element : m_functional were used as the criteria, Table 1) using XPS (Fig. S2, ESI†), which is in agreement with the Raman results (I_D/I_G).¹⁷ The corresponding XPS curves of the TiO₂ are supplied in the ESI (Fig. S2,† only Ti and O atoms are contained in the TiO₂), and all of the C–OH, C–OOH and C=O functional groups result from the RGO modifier.

Fig. 1 SEM images of (a) TiO₂ (b) GO (c) RGO (h, e)-TiO₂ (d) RGO (x, h)-TiO₂ (e) RGO (h, h)-TiO₂ and (f) RGO (x, e)-TiO₂.

Fig. 2 XRD curves of RGO samples and resulting composites.

Table 1 The functional groups distribution of the prepared RGO samples

Samples	Parameters
	mC/mO	Celement/Cfunctional	Celement : Chydroxyl : Cepoxy : Ccarboxyl	ID/IG
RGO (h, e)	1.19 : 1	1.94 : 1	66 : 5 : 0 : 29	0.412
RGO (h, e)–OOH	1.07 : 1	1.86 : 1	65 : 0 : 0 : 35	0.405
RGO (h, h)	5.77 : 1	11.5 : 1	92 : 2 : 1 : 5	0.306
RGO (x, e)	1.59 : 1	1.63 : 1	62 : 28 : 1 : 9	0.382
RGO (x, h)	9.38 : 1	15.7 : 1	94 : 4 : 0 : 2	0.258

---

The photocatalytic abilities of these composites are estimated by the decomposition of Rhodamine-B (RB), methyl orange (MO) and phenol, and the resulting performances are shown in the Fig. 3a–c (UV-light illumination, which are much better than those obtained from pure TiO₂). As can be seen, the corresponding photocatalytic performances display remarkable distinctions, although the mass fractions and reduction degrees of these employed RGO are identical. Moreover, the specific photocatalytic activities are dependent on the adopted pollutant. The above phenomena indicate that the type of functional groups present on the RGO are closely related to the resulting photocatalytic performances. In other words, the selective decomposition of pollutants can be achieved by adjusting the type of functional groups. In this study, the superior photocatalytic performance could be due to two possible reasons: an enhanced adsorption ability and a depressed recombination ratio of the electron–hole pairs. The TGA curves of these as-prepared composite photocatalysts are shown in the inset of Fig. 3a, and similar weight loss stages can be seen from the RGO (h, e) and RGO (x, e) assisted samples (the mass fractions of all of the RGO modifiers are identical, 5 wt%). The first significant stage ranging from 100–180 °C is caused by the evaporation of the adsorbed water on the surface (∼10 wt%), while the second weight loss stage located at 240–290 °C is attributed to the removal of the residual functional groups from the RGO modifier (∼2 wt%). On the contrary, this stage almost disappears from the curves of the RGO (h, h) and RGO (x, h) modified specimens, confirming that the majority of the functional groups on them have been removed by using hydrazine, which is in line with the XPS results. Furthermore, the differential scanning calorimetry (DSC) curves of the composite photocatalysts are displayed in the inset of Fig. 3b, and the corresponding signal peaks coincide with the results of the TGA curves. As for the adsorption abilities, the residual amounts of various pollutants after using the as-prepared photocatalysts are shown in Fig. 3d–f, and the selective adsorption based on the specific structures of the pollutants and functional groups types of the RGO can be abstracted (the error bars are marked). The RGO (h, e)-TiO₂ and RGO (x, e)-TiO₂ display better adsorption abilities compared to that of the RGO (h, h)-TiO₂ and RGO (x, h)-TiO₂ when the phenol is used as the adsorbate. Similarly, when RB is utilized, the RGO (x, e)-TiO₂ and RGO (h, e)-TiO₂ show better adsorption abilities. However, the order changes from RGO (h, e)-TiO₂ > RGO (x, e)-TiO₂ > RGO (h, h)-TiO₂ > RGO (x, h)-TiO₂ for adsorbing phenol, to RGO (x, e)-TiO₂ > RGO (h, e)-TiO₂ > RGO (x, h)-TiO₂ > RGO (h, h)-TiO₂ for adsorbing RB. Moreover, all of the photocatalysts display similar adsorption abilities for the MO. It is reasonable to explain these results when the chemical structures of these pollutants are taken into account. Phenol molecules contain a hydroxyl group, therefore, an enhanced adsorption ability can be observed when the photocatalyst has more carboxyl groups (RGO (h, e) possesses the most carboxyl groups among all the samples, Table 1). In order to confirm this point, the hydroxy groups of the RGO sample were translated into carboxyl groups, and the adsorption ability was enhanced further (named RGO (h, e)–OOH, Table 1). The presence of the carboxyl group in the RB molecular leads to a better adsorption performance from the RGO (x, e)-TiO₂ specimen which possesses the most hydroxyl groups (the schematic diagram is shown in Fig. 4). All of the photocatalysts display similar adsorption abilities for the MO because no hydroxyl or carboxyl groups were contained in the pollutant. Therefore, these photocatalysts display similar adsorption abilities due to their similar BET areas (Table 2). In order to further prove the selective adsorption of the composite photocatalysts, a mixed aqueous solution containing various pollutants was used as the adsorbate. The mixed solution includes phenol (15 mL phenol solution, 60 mg L⁻¹), RB (15 mL RB solution, 10 mg L⁻¹) and MO (20 mL MO solution, 10 mg L⁻¹), and the corresponding residual amounts of various pollutants after the adsorption equilibrium are shown in Fig. 3g. By using the RGO (h, h) and RGO (x, h) assisted samples, the residual concentrations of the various pollutants are similar. On the other hand, the concentration changes to the phenol (RB) are more remarkable than those of the MO for the RGO (h, e) (RGO (x, e)) based photocatalyst, indicating the prior adsorption of pollutants that possess hydroxyl (carboxyl) groups. By carefully comparing the residual amounts of various pollutants, the phenol and RB were determined to be the favored adsorbates for the RGO (h, e)-TiO₂ and RGO (x, e)-TiO₂, respectively. These obtained results manifest that designating the type of functional groups for the RGO (x, e) and RGO (h, e) modifiers imposes a significant influence on the adsorption order of various adsorbates, confirming the selective adsorption of the as-prepared composite photocatalysts. Moreover, the influence of temperature on the resulting adsorption abilities are revealed (Fig. 3h–j). Although a relatively high temperature promotes the diffusion rate of the dye molecules and reduces the adsorption barrier, the heating process leads to a high cost.

Fig. 3 Decomposition of (a) phenol (b) RB (c) MO by using various photocatalysts under UV-light illumination, and the corresponding adsorption abilities for (d) phenol (e) RB (f) MO and (g) mixed pollutions are also displayed, (h)–(j) displays the relationship between the adsorption abilities and the varying temperatures.

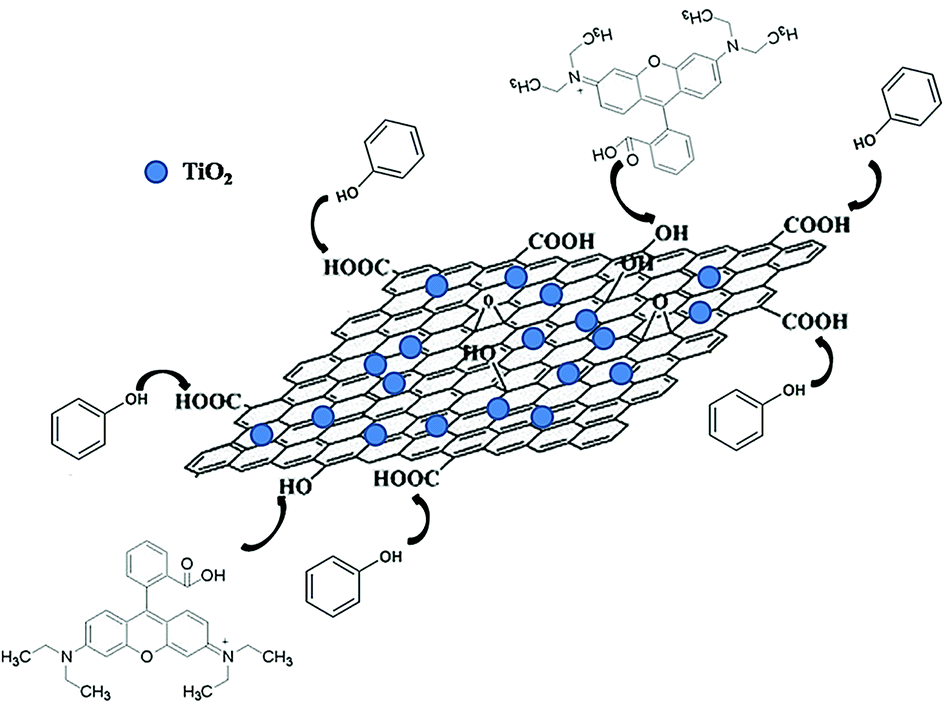

Fig. 4 Schematic diagram of the adsorption process of the composite photocatalysts for phenol and RB.

Table 2 Decomposition rate constants of various pollutants by using the different photocatalysts

Samples	Parameters
	BET area (m^2 g^−1)	Decomposition rate constant (× 10^−3 min^−1)
		UV-light irradiation			Visible-light irradiation
		RB	phenol	MO	RB	phenol	MO
Pure TiO2	51.447	48.9	4.71	39.6	∼0	∼0	∼0
RGO (h, h)-TiO2	108.268	72.2	7.57	57.3	44.6	3.67	26.2
RGO (x, h)-TiO2	114.732	80.4	7.80	54.2	48.9	4.34	28.4
RGO (x, e)-TiO2	116.719	132	8.86	54.2	65.8	4.71	29.2
RGO (h, e)-TiO2	108.691	85.6	10.2	58.3	56.2	5.11	27.8

---

In addition to the adsorption ability, the utilization of photo-induced electrons exerts a significant influence on the observed photocatalytic performances. The electron loss results from three parts in the composites: RGO, TiO₂ and their interface area. The corresponding losses in the RGO and TiO₂ of all the photocatalysts can be deemed as identical because of the similar defect density of the adopted RGO and the same TiO₂ raw material. Therefore, the distinctions between the electron loss ratios among these composites are due to the influence from the different interface conditions. As is already known, some hydroxyl groups appear on the TiO₂ surface due to the oxygen vacancies, which can form a strong chemical contact with the carboxyl groups.¹⁸ Therefore, the RGO (h, e) and TiO₂ should possess the closest interface contact for electron transport. In order to confirm this point, infra-red (IR) curves were recorded (Fig. 5a). As for the pristine TiO₂, the low frequency absorption below 1000 cm⁻¹ was assigned to the T–O–Ti vibration, while the broad absorption from 3000 to 3700 cm⁻¹ is attributed to the O–H stretching vibration.^1,19 After combining with various RGO samples, a new absorption around 1600 cm⁻¹, which was ascribed to the skeletal vibration of the graphene basal plane, can be seen.²⁰ Moreover, the signal belonging to the Ti–O–Ti vibration becomes wider in the composite photocatalysts. According to previous reports, the broader peak contains the Ti–O–C vibration, manifesting the formation of a chemical bond between the RGO and TiO₂.¹⁰ The corresponding peak intensity from the RGO (h, e)-TiO₂ is much stronger than that of the other specimens, which is in line with the decomposition experiments. Although IR spectroscopy is a useful tool to analyze functional groups of various organic matters, detailed information on the functional groups of the RGO is difficult to abstract because the corresponding total amount is limited (IR spectroscopy is more suitable for use with organic matter rather than inorganic substances).

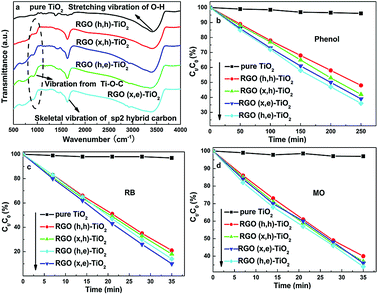

Fig. 5 (a) IR curves of the various samples, decomposition of (b) phenol (c) RB and (d) MO by using various photocatalysts under visible-light irradiation.

Photo-induced electron lifetime (which is defined as the average time span from the generation to annihilation of the photo-induced electrons) is the key parameter for the resulting photocatalytic performance, and a long lifetime implies a low recombination rate of the electron–hole pairs. All of the composite photocatalysts display a relative long electron lifetime compared with that of the origin TiO₂ because the presence of graphene acts as an electron tank to depress the recombination process. Therefore, the RGO (h, e)-TiO₂ displays the highest value (which is 26% higher than the corresponding value for the pure TiO₂, Fig. 6a), indicating that the improved interface contact between the RGO and TiO₂ imposes a positive effect on the electron lifetime (as well as the photocatalytic performance). According to the photocatalytic mechanism,^3,10 the photo-generated electrons and holes will react with O₂ and OH⁻ to yield oxygen free radicals (O₂⁻) and a superoxide anion (OH˙), which act as the oxidizing agents to decompose the pollutants.^9,10 Therefore, the total amounts of O₂⁻ and OH˙ determine the resulting photocatalytic performances of the composites, which can be detected by EPR (5,5-dimethyl-1-pyrroline-N-oxide, DMPO is adopted as the capture agent). As shown in Fig. 6b, some obvious signals belonging to the DMPO-OH˙ can be seen for all the specimens under UV-light irradiation, and the corresponding intensities from composite photocatalysts are much stronger than that of the pristine TiO₂. Therefore, the RGO (h, e)-TiO₂ displays the strongest intensity, which is in line with the electron lifetime results.

Fig. 6 (a) Electron lifetime and (b) EPR profiles of various photocatalysts.

In addition to the excellent UV-light activity, visible-light performances of the as-prepared composite photocatalysts are quite important for their practical applications. Under visible-light irradiation, the corresponding photocatalytic performances of these samples are listed in Fig. 5b–d. Pure TiO₂ showed a poor activity for all of the pollutants due to its wide band gap (∼3.2 eV). Moreover, all the composite photocatalysts displayed different photocatalytic performances for specific pollutants. A similar case is observed under UV-light irradiation, indicating that the type of surface functional groups plays a vital role in both the UV- and visible-light irradiation. As we know, graphene can act as a sensitizer in the composite under visible-light irradiation, and the interface condition determines the electron transport ability from graphene to TiO₂. According to the results of our previous study, a Schottky barrier appears at their interface, and the height and width of the barrier determines the electron transport process.^3,5 The width depends on the graphene thickness, while the height is determined by the interface contact. Therefore, a strong chemical bond between the graphene basal plane and TiO₂ is important for the visible-light activity of the photocatalysts. In order to further confirm that the visible-light activity results from the sensitization effect rather than carbon atom doping, the UV-visible diffuse scattering spectra were recorded. In all of the curves, the significant increase in the absorption at the wavelength of ∼390 nm results from the intrinsic band gap of TiO₂ (Fig. S3, ESI†). After adding the RGO modifier, no obvious shift can be seen in the absorption edge, indicating that no impurity energy level appears, which is in agreement with previous reports.^3,5,10

Based on the above discussion, optimizing the types of functional groups for the adopted RGO has a significant effect on the resulting composite photocatalysts. After careful optimization, the recommend RGO modifiers with a controlled reduction degree and functional group types were proposed for different target pollutants, and the corresponding decomposition rate constants are listed in Table 2. The increased decomposition rate constants of RB, MO and phenol reached ∼26, ∼6 and ∼39% compared with the specimen that had not undergone the optimizing process. In fact, similar results can be obtained for congeneric pollutants. Lastly, the photocatalytic stabilities of these composite were tested, and all of the samples showed good performances after 20 cycles (Fig. 7, the decomposition rate constants are maintained at more than 92% compared with that obtained on the first use), manifesting the prospect of potential applications.

Fig. 7 Photocatalytic performance stabilities of the (a) RGO (h, e)-TiO₂ under UV-light illumination and (b) RGO (x, e)-TiO₂ under visible-light illumination.

Experimental

Materials

Nanoscale TiO₂ was purchased from Shanghai Jianghu industrial Co., Ltd and was sintered at 400 °C for 2 h to remove organics and dust before subsequent experiments. Natural graphite power was obtained from Alfa Aesar Co. Rhodamine-B (RB), methyl orange (MO), trichloroiminocyanuric acid (TCCA), sodium bromide, chloroacetic acid, phenol and sodium dodecyl sulfate (SDS) were obtained commercially from the Beijing Chemical Reagent Plant. Deionized water (resistivity 18 MΩ cm) was utilized to prepare all aqueous solutions and to rinse the specimens.

Preparation

The GO samples were prepared using a modified Hummers' method and the approach reported by Zhang et al., and the obtained GO products were labeled as GO (h) and GO (x), respectively.^21,22 The major surface functional groups of the GO (h) and GO (x) were carboxyl and hydroxyl, respectively.¹⁷ Two methods were used to reduce the GO samples and achieve the designated reduction degree and type of functional group in the resulting RGO. In the first method, alcohol was used as the reduction agent to react with the GO (h) and GO (x). Briefly, a certain amount of GO sample was dispersed in 50 mL of ethylene glycol and a 60 min sonication treatment was performed. Then, the suspension was heated to 160 °C for 5 h under vigorous stirring. After a subsequent centrifuge process (1 h), the sample was washed using deionized water three times. Lastly, the obtained paste was dried at 60 °C in a vacuum oven (named RGO (h, e) and RGO (x, e)). By using ethylene glycol, the epoxy groups were almost removed, while partial hydroxyl and carboxyl groups were retained. In the second method, hydrazine was employed to reduce the GO samples. Briefly, 2 mL hydrazine was added to a 30 mL GO solution (2 mg mL⁻¹) dropwise at 98 °C for a certain time (4 h, the obtained products named RGO (h, h) and RGO (x, h)). By using hydrazine as the reducing agent, all of the functional groups were removed simultaneously. According to our previous study, the ratio of C_element : C_functional can be adjusted from 0.72 to 13.7 when the reduction time changes from 0 h to 12 h.²³ Moreover, in order to precisely adjust the ratio of the carboxyl to hydroxyl groups, partial hydroxyl groups can be converted into carboxyl groups by using the NaOH and chloroacetic acid.²⁴ Briefly, an aqueous suspension of GO was sonicated in a water bath for 1 h to obtain a solution. NaOH (1.2 g) and chloroacetic acid (1 g) were added into the suspension with sonication treatment to achieve the conversion of the hydroxyl groups to carboxyl groups. Recently, RGO samples with designated types and total amounts of surface functional groups have been prepared by our group.²⁵ Preparation of the RGO-TiO₂ composite photocatalysts has been described in our previous reports.^9,13,26 The mass fraction of RGO in the resulting photocatalysts was 5 wt% (according to our previous study, this mass fraction is an optimized ratio).⁹

Characterization

Morphology images of the prepared samples were recorded using scanning electron microscope (SEM) (FEI Sirion 200 scanning electron microscope working at 5 kV). Raman curves were performed using a LabRam-1B Raman microspectrometer at 514.5 nm (Horiba Jobin Yvon, France). XPS measurements were performed on a RBD upgraded PHI-5000C ESCA system (PerkinElmer). BET surface areas of the photocatalysts were measured on a Nova 100 using N₂ as the adsorption gas. EPR results were recorded on an EPR-8 (Bruker BioSpin Corp., Germany). IR spectroscopy curves were measured on an IR Prestige-21 system (PerkinElmer). XRD patterns were recorded on a Bruker D8 Advance (Cu Kα radiation 0.154 nm). The lifetimes of the photo-generated electrons were measured on a QM4CW (Photo Technology International). UV-vis diffuse reflectance spectra were recorded on a TU-1901 UV-vis spectrophotometer. Thermogravimetric analysis (TGA) was measured with a Pyris I TGA instrument (PerkinElmer, USA). Differential scanning calorimetry (DSC) curves were obtained using the Diamond DSC (PerkinElmer, USA).

The photocatalytic reaction system consists of a 500 W xenon lamp and a cutoff filter (1 mol L⁻¹ NaNO₂ solution in an enclosed vessel, λ > 400 nm). Photocatalytic activities of all photocatalysts were evaluated by the degradation of phenol, MO and RB. In a typical process, 15 mg of the photocatalyst was immersed into 50 mL phenol solution (60 mg L⁻¹) and 50 mL RB (or MO) solution (10 mg L⁻¹) with stirring for 30 min in the dark to reach an adsorption balance. The resulting solution was irradiated under the photocatalytic reaction system, and 2 mL solution was taken to analyze the concentration of phenol (or MO, RB) at specified time intervals.

Conclusions

A series of graphene based composite photocatalysts with controlled types and ratios of surface functional groups were prepared to reveal the corresponding influences of the resulting photocatalytic performances from the interface contact. Based on the adsorption ability tests and pollutant decomposition experiments, the types of surface functional groups on the RGO exert a significant influence on the chemical adsorption ability and photocatalytic activities of the resulting composite photocatalysts, which is proven by the EPR results. Moreover, the presence of carboxyl groups of the RGO is beneficial to forming a close chemical bond with the TiO₂ nanoparticles, which promotes the electron transport ability at their interface and prolongs the photo-induced electron lifetime. These as-prepared photocatalysts possess high performances under both UV- and visible-light irradiation (as well as a high stability for cycle use), implying promising prospects for their practical application.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work is supported by the National Natural Science Foundation of China (No. 51506012, 61401297, 51574044 and 61701333), the Natural Science Foundation of Jiangsu Province (No. BK20150266), the Foundation of Key Laboratory in Science and Technology Development Project of Suzhou city (No. SZS201609), the Natural Science Foundation of the Higher Education Institutions of Jiangsu Province (No. 17KJB120011), and the Science and Technology Projects Fund of Suzhou City (No. SYG201708).

Notes and references

1. H. Zhang, X. J. Lv, Y. M. Li, Y. Wang and J. H. Li, ACS Nano, 2010, 4, 380–386.
2. C. Chen, W. M. Cai, M. C. Long, B. X. Zhou, Y. H. Wu, D. Y. Wu and Y. J. Feng, ACS Nano, 2010, 4, 6425–6432.
3. G. X. Hu and B. Tang, Mater. Chem. Phys., 2013, 138, 608–614.
4. M. Rostami, RSC Adv., 2017, 7, 43424–43431.
5. B. Tang, H. Q. Chen, Y. F. He, Z. W. Wang, J. Zhang and J. P. Wang, Compos. Sci. Technol., 2017, 150, 54–64.
6. R. Giovannetti, E. Rommozzi, M. Zannotti, C. A. D'Amato, S. Ferraro, M. Cespi, G. Bonacucina, M. Minicucci and A. Di Cicco, RSC Adv., 2016, 6, 93048–93055.
7. Z. Y. Zhu, F. Zhou, S. Zhan, Y. Tian and Q. C. He, Appl. Surf. Sci., 2018, 430, 116–124.
8. B. Tang, G. J. Ji, Z. W. Wang, H. Q. Chen, X. F. Li, H. G. Yu, S. Li and H. Liu, RSC Adv., 2017, 7, 45280–45286.
9. Y. F. Sun, X. B. Wang, B. Tang, J. M. Ban, Y. F. He, C. B. Tao, H. Luo and J. D. Sun, Mater. Lett., 2017, 189, 54–57.
10. Q. Q. Zhai, B. Tang and G. X. Hu, J. Hazard. Mater., 2011, 198, 78–86.
11. B. Tang, H. Q. Chen, Y. F. Sun, M. G. Li, Z. W. Wang, H. G. Yu, T. T. Ma and S. Li, RSC Adv., 2018, 8, 27811–27817.
12. J. Zhang, S. Li, B. Tang, Z. W. Wang, G. J. Ji, W. Q. Huang and J. P. Wang, Nanoscale Res. Lett., 2017, 12, 457–461.
13. H. C. Lee, W. W. Liu, S. P. Chai, A. R. Mohamed, A. Aziz, C. S. Khe, N. M. S. Hidayah and U. Hashim, RSC Adv., 2017, 7, 15644–15693.
14. P. A. Gokturk, N. Kakenov, C. Kocabas and S. Suzer, Appl. Surf. Sci., 2017, 425, 1130–1137.
15. B. Tang, S. L. Wang, J. Zhang, Z. W. Wang, Y. F. He and W. Q. Huang, Int. Mater. Rev., 2018, 63, 204–225.
16. B. Tang, Z. W. Wang, W. Q. Huang, S. Li, T. T. Ma, H. G. Yu and X. F. Li, Nanoscale Res. Lett., 2017, 12, 527–533.
17. Y. F. Sun, Y. F. He, B. Tang, C. B. Tao, J. M. Ban and L. Jiang, RSC Adv., 2017, 7, 55790–55795.
18. M. R. Hoffmann, S. T. Martin and W. Y. Chol, Chem. Rev., 1995, 95, 69–96.
19. B. Neumann, P. Bogdanoff, H. Tributsch, S. Sakthivel and H. Kisch, J. Phys. Chem. B, 2005, 109, 16579–16586.
20. Q. Xiao, J. Zhang and C. Xiao, Sol. Energy, 2008, 82, 706–713.
21. W. S. Hummers and R. E. Offeman, J. Am. Chem. Soc., 1958, 80, 1339.
22. G. X. Zhang, Y. Q. Xu, L. Wang and X. M. Sun, Sci. China Mater., 2015, 58, 534–543.
23. Y. F. Sun, B. Tang, W. Q. Huang, S. L. Wang and Z. W. Wang, Appl. Therm. Eng., 2016, 103, 892–900.
24. R. L. White, C. M. White, H. Turgut, A. Massoud and Z. R. Tian, J. Taiwan Inst. Chem. Eng., 2018, 85, 18–28.
25. B. Tang, H. G. Yu, H. P. Peng, Z. W. Wang, S. Li, T. T. Ma and W. Q. Huang, RSC Adv., 2018, 8, 29220–29227.
26. B. Tang, H. Q. Chen, H. P. Peng, Z. W. Wang and W. Q. Huang, Nanomaterials, 2018, 8, 104–131.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c8ra05345f

---
