Layer charge robust delamination of organo-clays

Abstract

To date delamination of organo-clays is restricted to highly charged, vermiculite-type layered silicates (e.g. n-butylammonium vermiculites) while – counterintuitively – low charged, smectite-type layered silicates do not delaminate although their Coulomb interactions are much weaker. Guided by previous findings, we now identified organo-cations that allowed for extending the delamination of organo clays to charge densities in the regime of low charged smectites as well. Upon intercalation of protonated amino-sugars like N-methyl-D-glucamine (meglumine) robust delamination of 2 : 1 layered silicates via repulsive osmotic swelling in water is achieved. This process is stable over a wide range of charge densities spanning from smectites (layer charge x ∼ 0.3 charges per formula unit Si₄O₁₀F₂, p.f.u.) to vermiculites (x ∼ 0.7 p.f.u.). It is evidenced that a combination of first, a sufficiently large charge equivalent area (bulkiness) of meglumine with second, a significant hydrophilicity of meglumine leads to swelling above a threshold d-spacing of ≳17.5 Å in moist air (98% r.h.). Hereby, electrostatic attraction is critically weakened, causing the onset of repulsive osmotic swelling which leads to utter delamination. Moreover, meglumine renders delamination tolerant to charge heterogeneities typically found in natural and synthetic clays.

---

Introduction

For artificial nacre materials^1–3 or high-end gas-barriers,^4–6 highly-filled nanocomposites of well oriented nanosheets perform best. Self-assembly into such textured films requires strict control of layer thickness. The same applies to the fabrication of heterostructures.^7–10 For charged 2-dimensional (2D) materials this kind of control of delamination is feasible via osmotic swelling.^11–13 This type of thermodynamically favoured disintegration of a 1D-crystalline stack of layers leads to nanosheets of structure-inherent thickness. Osmotic swelling is reported for 2D-materials of different electronic^14–16 and magnetic^17–20 properties like clay minerals,^21–25 lepidocrocite-type titanates^26–28 or layered antimony phosphates.²⁹ During osmotic swelling the lateral extension of the nanosheets is inherited from the lateral dimension of the parent material. Thus the aspect ratio α (ratio of lateral dimensions to height) of the resulting nanosheets is maximized, which is particular advantageous for gas barrier applications where permeability is expected to decrease by α².³⁰ The aspect ratio can be increased by exfoliation and maximized by delamination³¹ and the degree of exfoliation influences the properties of polymer nanocomposites with layered materials.^6,32–37

Unfortunately, the viability of osmotic swelling is highly sensitive to the charge density of the layered material. For instance, for Na-hectorite (Na_0.5^inter.[Mg_2.5Li_0.5]^oct.〈Si₄〉^tetr.O₁₀F₂, Na-Hec) superb charge homogeneity has to be assured by a melt synthesis being followed by a lengthy high temperature annealing.^12,38 Only then a clay is obtained that spontaneously and utterly delaminates upon immersion into water delivering high aspect ratio nanosheets. This filler in turn warrants superior gas barrier properties of nanocomposites.³⁹ Even slight variations of the charge density will lead to domains with a charge above the established upper limit (x > 0.55 per formula unit Si₄O₁₀F₂, p.f.u.)⁴⁰ for osmotic swelling and these domains might pin the stacks together by the strong Coulomb interactions.¹² Therefore, melt-synthesized Na-hectorites that have not been homogenized by annealing do not delaminate completely.^38,41

More recently and despite the even stronger Coulomb-attraction, we could show that more highly charged vermiculite-type clays (Na-Verm) can be utterly delaminated after ion-exchange with selected bulky and hydrophilic organo-cations.⁴² Besides the organo-cation being sufficiently hydrophilic, a threshold separation has to be achieved at which the counterion translational entropy and hydration may dominate over the Coulomb attraction. To accomplish that separation, the ratio of charge equivalent area of the interlayer cation (A_I, area that is occupied by a flat lying cation) and the charge equivalent area of the clay (A_C, area per charge as calculated by the charge density), A_I/A_C should be ≳1, to yield a sufficient steric demand upon hydration.

Unfortunately, all organo-cations that were tested so far only delaminate highly charged vermiculites but failed to osmotically delaminate low charged, smectite-type clays like Na-Hec. Organo-cations that do the job for a broad range of charge densities would, however, be highly desirable in the light of charge heterogeneities observed for natural smectites like montmorillonite,^43,44 for natural vermiculites, or for non-annealed synthetic Na-Hec.

Therefore, we extended and intensified our screening for a charge robust delamination agent. And in this work we introduce two ammonium-sugars that are capable to trigger osmotic swelling for charge densities ranging from smectite-type clays (x ∼ 0.3 p.f.u.) all the way to vermiculite-type clays (x ∼ 0.7 p.f.u.) and that moreover are tolerant to heterogeneities in charge density.

Experimental

Synthesis and characterization of the clays

A highly charged Na-fluorohectorite Na_0.75Mg_2.25Li_0.75Si₄O₁₀F₂ with a nominal charge density in the range of vermiculites (Verm) and a medium charged Na-fluorohectorite Na_0.5Mg_2.5Li_0.5Si₄O₁₀F₂ (Hec) with a nominal charge density in the range of smectites were prepared by melt synthesis according to a published procedure followed by annealing (6 weeks, 1045 °C) to improve charge homogeneity and phase purity.^38,42 For the as synthesized hectorite of the nominal composition Na_0.5Mg_2.5Li_0.5Si₄O₁₀F₂ the annealing step after melt synthesis was left out. Instead to get rid of soluble sidephases, it was washed with Na₄EDTA (0.5 M, 50 mL per 1 g of Hec_pri) six times at 60 °C for 48 h followed by washing two times with Millipore-water untill pH = 6.5 is achieved to obtain the sample Hec_pri.

The synthesis is carried out in gas tight molybdenum crucibles. The educts NaF (99.995%, Alfa Aesar), LiF (>99.9%, ChemPur), MgF₂ (>99.9%, ChemPur), MgO (99.95%, Alfa Aesar) and SiO₂ (Merck, fine granular quartz, purum) are mixed according to the nominal composition. The crucible was ramped to 1750 °C (15 °C min⁻¹), held at this temperature for 70 min, cooled to 1300 °C (55 °C min⁻¹) and then to 1050 °C (10 °C min⁻¹). Finally, it was quenched by switching of the power.

Synthesis of charge reduced clays: 5 g of Hec were exchanged 7 times with 400 mL of 2 M MgCl₂-solution. The resulting Mg-exchanged hectorite was washed with water till the chloride-test (with AgNO₃) of the supernatant solution was negative. The suspension was dried at 80 °C. The dried powder was heated at 250 °C for 24 h for charge reduction (obtained sample: LCR1).⁴⁵ 50% of the LCR1 sample were again exchanged 7 times with 400 mL of 2 M MgCl₂-solution. The resulting Mg-exchanged hectorite was washed with water till the chloride-test of the supernatant solution was negative. The suspension was dried at 80 °C. The dried powder was heated at 250 °C for 24 h for charge reduction (obtained sample: LCR2).

The cation exchange capacity was determined according to DIN ISO 11260 using BaCl₂ and the layer charge was determined according to Lagaly.^46,47

Powder X-ray diffraction

Powder X-ray diffraction (PXRD) patterns of as-synthesized clays were recorded on a STOE Stadi P powder diffractometer using Cu Kα₁ radiation. The samples were placed in a glass capillary. Prior to measurement samples were equilibrated for one week over saturated K₂CO₃-solution (43% relative humidity, r.h.) to obtain the one water layer hydrate. After equilibration, the capillaries were sealed. All other PXRD were measured with textured samples in Bragg–Brentano geometry on a PANalytical X'pert Pro equipped with an X'Celerator Scientific RTMS detector (Cu Kα radiation). PXRD patterns at fixed relative humidities were recorded in a temperature-humidity chamber (Anton Paar temperature humidity chamber driven by a VTI corp. RH-200 humidity generator) mounted on the PANalytical Xpert Pro. Dry samples were obtained by drying at 110 °C under vacuum for 24 h and PXRDs of the hot samples were measured within 2 min each after removal from the vacuum furnace.

Microprobe analysis

The chemical composition of Hec and Verm was determined by wavelength dispersive X-ray spectroscopy on single crystals with flat lying surfaces on a carbon tape using an electron microprobe (Jeol JXA-8200, Bayerisches Geoinstitut, Bayreuth). The settings were 15 kV acceleration voltage, 15 nA initial beam current, a beam spot diameter of 10 μm, 10 s counting time at the peak position and 5 s counting time at each side of the peak.

Inductive-coupled plasma atomic emission spectroscopy (ICP-AES)

The lithium and magnesium content of Hec and Verm was determined by ICP-OES. Samples of about 20 mg of dry clay were weighed into clean Teflon flasks of 15 mL volume. After addition of 1.5 mL 30 wt% HCl (Merck), 0.5 mL of 85 wt% H₃PO₄ (Merck), 0.5 mL 65 wt% HNO₃ (Merck) and 1 mL of 48 wt% HBF4 (Merck) the sample was digested in a MLS 1200 Mega microwave digestion apparatus for 6.5 min and heated at 600W (MLS GmbH, Mikrowellen-Labor-Systeme, Leutkirch, Germany). The closed sample container was cooled to room temperature and the clear solution was diluted to 100 mL in a volumetric flask and analyzed on a Vista-PRO radial spectrometer.

Cation-exchange with meglumine

200 mg of the dry, pristine clays were suspended in 50 mL of a 1 M solution of N-methyl-D-glucamine (meglumine, in its protonated form, pH = 7, > 125-fold excess of the CEC, delamination is prevented by the high ionic strength). The procedure was repeated 5 times. Finally, the obtained organo-clays were washed free of chloride-ions (AgNO₃-test) with Millipore-water. Gels were concentrated by centrifugation between the washing cycles. The organo-clays were finally washed one times with acetone and dried at 60 °C.

CHN-analysis

A PerkinElmer 2400 CHN equipped with a combustion tube filled with tungsten(VI)-oxide-granules was used at a combustion temperature of 1050 °C. Samples were dried at 110 °C and vacuum for 24 h and stored in a glovebox prior to measurement.

Scanning electron microscopy and energy dispersive X-ray spectroscopy (SEM-EDX)

SEM-EDX was measured on a Zeiss 1530 with a EDX INCA 400 unit (Oxford). Samples were prepared on a carbon tape and sputtered with 10 nm carbon.

Small angle X-ray scattering (SAXS)

SAXS data were measured using a “Double Ganesha AIR” system (SAXSLAB, Denmark). The X-ray source of this laboratory-based system is a rotating anode (copper, MicroMax 007HF, Rigaku Corporation, Japan) providing a micro-focused beam. The data are recorded by a position sensitive detector (PILATUS 300K, Dectris). Samples were prepared by adding a defined amount of millipore-water to the dry organo-clay. After equilibration for one week SAXS-patterns were recorded in 1 mm glass capillaries.

Atomic force microscopy (AFM)

AFM was done in tapping mode using a Dimension 3100 NanoScope IV-unit equipped with OTESPA-R3 (Bruker) silicon tips. Samples were prepared by dropping a very dilute aqueous dispersion (5 mg L⁻¹) in millipore water onto silicon wafers.

Results and discussion

Synthesis and characterization of the clays

Clays with layer charges in the range 0.75 > x > 0.3 p.f.u. have been synthesized. Highly charged Verm Na_0.75^inter.[Mg_2.25Li_0.25]^oct.〈Si₄〉^tetr.O₁₀F₂ (x = 0.75 p.f.u. nominally) and medium charged Hec Na_0.5^inter.[Mg_2.5Li_0.5]^oct.〈Si₄〉^tetr.O₁₀F₂ (x = 0.5 p.f.u. nominally) are directly accessible via melt synthesis. Both were homogenized post-synthesis by long term-annealing in a gas tight crucible to prevent loss of volatile fluorides at elevated temperatures.^38,42 Their analysis is recapitulated briefly. As reported before, PXRDs (Fig. S1†) indicate a crystalline hydrate for both clays with one layer of water molecules in the interlayer space at 43% relative humidity (r.h.) (d₀₀₁ = 12.5 Å).⁴⁸ The patterns can be indexed in C2/m (no. 12) and the diffractograms can be completely indexed; least squares refined lattice parameters for Verm are a = 5.26(1) Å, b = 9.07(2) Å, c = 12.48(4) Å, β = 95.22(4)° and for Hec a = 5.20(1) Å, b = 9.10(1) Å, c = 12.48(4) Å, β = 95.44(4)°. The chemical composition was determined by microprobe analysis. Microprobe analysis is insensitive to Li. Therefore, the Mg/Li-ratio was derived from ICP-OES analysis by assuming a complete occupancy of the tetrahedral positions (Si = 4) and by normalizing stoichiometric coefficients of octahedral and interlayer cations to match the 22 negative charges of the anionic sublattice (O₁₀F₂). This way compositions of Na_0.71(4)Mg_2.28(4)Li_0.72(4)Si₄O₁₀F₂ and of Na_0.52(2)Mg_2.51(4)Li_0.46(2)Si₄O₁₀F₂ were obtained for annealed Verm and annealed Hec, respectively.

Lower charged clays that are not directly accessible via melt synthesis,⁴⁵ were obtained by layer charge reduction (LCR) of annealed Hec by an anti-Hofmann–Klemen-effect: In doing so, Hec is first ion exchanged with Mg²⁺ followed by annealing at 250 °C whereupon octahedral Li⁺ and interlayer Mg²⁺ exchange sites. With increasing incorporation of Mg²⁺ into the octahedral layer, concomitantly the permanent negative charge of the silicate layers is reduced.⁴⁵ These samples were named LCR1 and LCR2 corresponding to one and two cycles of charge reduction.

Moreover, a pristine Na-hectorite that has not been homogenized by annealing was included as a reference (Hec_pri) (Fig. S2†). The composition was determined as Na_0.55(1)^inter.[Mg_2.48(2)Li_0.49(2)]^oct.〈Si₄〉^tetr.O₁₀F₂.

The cation exchange capacities (CEC) were determined by the BaCl₂-method were found to be 185 meq/100 g for Verm, 129 meq/100 g for Hec, 103 meq/100g for LCR1, 75 meq/100 mg for LCR2 and 116 meq/100g for Hec_pri.

Owing to side phases without cation exchange capability, the experimentally determined CEC of Hec_pri (116 meq/100 g) is significantly lower than of the annealed Hec (129 meq/100g).

The layer charge density was determined experimentally by the method of Lagaly^46,47 where interlayer ions are exchanged with n-alkylammonium (C_nH_2n+1NH₃⁺, Fig. 1). For these organo-cations the equivalent area per charge is known for a dense packing of either mono- (d = 13.3 Å, dotted line) or bilayers (d = 17.6 Å, dashed line). The onset of the transition of mono- to bilayer- or from bilayer to pseudo-trilayer arrangement with increasing chain length was converted into upper limits of charge densities (Table S1†).

Fig. 1 Layer charge determination according to Lagaly. Interlayer ions are exchanged with n-alkylammonium ions of different chain length (C_nH_2n+1NH₃⁺) for which the equivalent area per charge is known for a dense packing of either mono- (d = 13.3 Å, dotted line) or bilayers (d = 17.6 Å, dashed line). (A) Verm, (B) Hec, (C) LCR1, (D) LCR2, (E) Hec_pri.

For high charged Verm n = 9 represents the longest alkylammonium chain that is still capable to balance the charge density in a bilayer (d = 17.6 Å). Slightly increasing the equivalent area to n = 10 some pseudo-trilayers have to be mixed in to warrant charge balance as evidenced by a shift of the d-spacing (Fig. 1 A) which indicates 0.67 ≤ x ≤ 0.73 p.f.u.

In a similar way, for the lower charged clays, the charge densities were derived from the transition of mono- to bilayers. with limiting chain length of n = 5 (Hec, Fig. 1B), n = 8 (LCR1, Fig. 1C) and n = 11 (LCR2, Fig. 1D) corresponding to 0.50 ≤ x ≤ 0.56 p.f.u., 0.37 ≤ x ≤ 0.40 p.f.u. and 0.29 ≤ x ≤ 0.31 p.f.u. for Hec, LCR1 and LCR2, respectively (Table S1†). Interestingly, for LCR2 with n = 12 two maxima are observed indicating a certain degree of charge heterogeneity. Apparently, the charge reduction process does not happen in a perfectly homogeneous way. This fact has previously been documented by a broadening of micropore size distributions of microporous organically pillared silicates derived from charge reduced hectorites.⁴⁹

Similarly to LCR2, for Hec_pri (0.50 ≤ x ≤ 0.56 p.f.u., Fig. 1E) charge heterogeneity is reflected by a non-uniform increase in d-spacing at longer chain length (n = 10) in comparison to Na-Hec (compare Fig. 1E and B). In particular, with n = 10 for Hec_pri d-spacings were observed that are significantly shifted to higher values as compared to Hec. This indicates that Hec_pri not only is more heterogeneous but also at least parts of the sample have a higher layer charge as compared to Hec. Please note, that this two phase behaviour of the layer charge density probably is inherent to the melt synthesis conditions and is therefore an intrinsic problem that needs to be solved by a layer charge robust delamination process: pseudo-binary alkaline and earth alkaline silicate system show pronounced immiscibility regions⁵⁰ and the critical temperature might even increase upon addition of fluoride.^41,51

Swelling behaviour of organo-clays

All clays were ion-exchanged with a hydrophilic but bulky ammonium-sugar (protonated N-methyl-D-glucamine, referred to as meglumine). The expected meglumine contents (in mmol/100 g) as calculated from the Ba-CEC (Table S2†) are in fair agreement with meglumine contents as determined by CHN analysis. Verm, Hec, LCR1, LCR2 and Hec_pri contained 138, 104, 90, 69 and 89 mmol meglumine/100 g, (expected: 140, 105, 87, 66 and 97 mmol/100 g, respectively). The Na-content of Na-Verm, Na-Hec and Na-Hec_pri was below the detection limit of EDX (Fig. S3†). Which indicates that ion-exchange is complete within analytical accuracy.

The swelling of meglumine-clays is significant (Fig. 2) even in humid air (98% r.h.). The d-spacings increase from 16.8 Å to 24.4 Å (Verm), 14.1 to 22.8 Å (Hec), 13.7 to 18.7 Å (LCR1), 13.4 to 18.2 Å (LCR2) and from 14.0 Å to 23.6 Å (Hec_pri). Furthermore, the significant increase in d-spacing upon swelling of Δd = 7.6 Å (Verm), 8.7 Å (Hec), 5.0 Å (LCR1), 4.8 Å (LCR2) and 9.6 Å (Hec_pri) may be attributed to the steric pressure of meglumine upon hydration as explained in the following:

Fig. 2 PXRD of meglumine-clays (dry, red trace and at 98% r.h., blue trace). (A) Verm, (B) Hec, (C) LCR1, (D) LCR2, (E) Hec_pri.

With Jmol⁵² a charge equivalent area of the interlayer cation meglumine as high as A_I = 77 Ų can be estimated for a flat lying meglumine cation (van-der-Waals extensions 13.5 Å × 5.7 Å). Consequently, even in case of low charged LCR2 (x ∼ 0.3 p.f.u., corresponding to a charge equivalent area of the clay of A_C = 79 Ų/charge) charge balance requires a densely packed monolayer of meglumine (A_I/A_C ∼ 1).

In the dry state no significant voids are available that could accommodate water molecules. Therefore, upon hydration of the hydrophilic interlayer cation at elevated r.h., expansion of the d-spacing is compulsory. The maximum d-spacings of meglumine-clays after water uptake from humid air are >17.5 Å for all clays of varying charge density (Fig. 2). This d-spacing was suggested to be required for rendering the interaction of adjacent silicate layers repulsive once immersed into liquid water due to contributions of repulsive counter ion translational entropy at large layer separations and critical weakening electrostatic attraction.⁴²

Meglumine therefore is the first organo-cation that fulfils all necessary requirements postulated for allowing repulsive osmotic delamination of organo-clays even for low charged ones.⁴² Most importantly, the requirements are met for a broad range of charge densities ranging from low-charged smectites all the way to highly charged vermiculite-type charges.

And indeed, repulsive osmotic swelling could be confirmed for all clays, also for low charged, smectite-type clays where other organo-cations investigated previously failed: when immersing meglumine-clays into water homogeneous gels consisting of one dimensional liquid crystals are obtained for all layer charges (Fig. 3, left). Their structure is explained by SAXS-data as follows:

Fig. 3 Left: SAXS-pattern of Verm (A, 5.9 vol%), Hec (B, 6.7 vol%), LCR1 (C, 6.3 vol%), LCR2 (D, 7.1 vol%) and Hec_pri (E, 7.6 vol%). Right: The slope of d vs. 1/ϕ is 8.4 Å (Verm, A), 8.8 Å (Hec, B), 8.9 Å (LCR1, C), 10.5 Å (LCR2, D) and 10.7 Å (Hec_pri, E).

Due to the repulsive nature of adjacent like-charged silicate layers, these layers are separated to their maximum distance which is defined by the clay in water-volume fraction (φ, Fig. 3, right). Even at quite low clay content, the platelets cannot freely rotate because of the typical lateral dimension (>10 μm) are orders of magnitude larger than the separation of adjacent clay platelets. This separation can therefore be observed in the SAXS patterns as a series of 00l reflections with d-spacings of 140 Å (Verm, Fig. 3A, left), 132 Å (Hec, Fig. 3B, left), 133 Å (LCR1, Fig. 3C, left), 158 Å (LCR2, Fig. 3D, left) and 141 Å (Hec_pri, Fig. 3E, left) at concentrations of 5.9 vol% (Verm), 6.7 vol% (Hec), 6.3 vol% (LCR1), 7.1 vol% (LCR2) and 7.6 vol% (Hec_pri). (For details of conversion of wt% into vol% see ESI†).

At clay contents >3 vol%, the d-spacing is indirect proportional to φ.^11,12 Taking into account the thickness of the silicate layer (t = 9.6 Å) the separation of adjacent layers is given by d = t/f. For the given vol%, d-values of 163 Å (Verm), 143 Å (Hec), 152 Å (LCR1), 135 Å (LCR2) and 127 Å (Hec_pri) are expected, respectively. These values are in fair agreement with observed d-spacings for all clays. This is a first indication that the gels consist of domains of lamellar liquid crystals with a homogeneous separation of adjacent silicate layers.

This is furthermore corroborated by studying the increase of d-spacings of adjacent silicate layers upon increasing the water content (Fig. 3, right). A linear slope was found as expected according to d = t/f. The experimentally determined slopes are 8.4 Å (Verm, Fig. 3A, right), 8.8 Å (Hec, Fig. 3B, right), 8.9 Å (LCR1, Fig. 3C, right), 10.5 Å (LCR2, Fig. 3D, right) and 10.7 Å (Hec_pri, Fig. 3E, right) which is in good agreement with the expected value of 9.6 Å. Utter osmotic swelling to homogeneous, mono-phase gels is therefore concluded for all meglumine-clays with various charge densities.

Hec_pri represents a perfect test case for demonstrating the robustness and tolerance towards charge density variations for repulsive osmotic delamination with meglumine. Contrary to Na-Hec (d = 112 Å, 8.4 vol%, expected d-spacing: 114 Å), Na-Hec_pri does not delaminate completely when immersed into liquid water although the charge density of both Na-clays is comparable (Fig. 4). Moreover, swelling of Na-Hec_pri is limited to a crystalline hydrate (two water layer hydrate, 15 Å,^53–56 Fig. 4A), although a minor fraction (<5 wt% of total solid content) probably delaminates upon immersion in water, as indicated by the formation of a birefringent suspension between crossed polarizers (Fig. S4†). Anyhow, while most of Hec_pri forms a non-birefringent sediment upon immersion in water. Its heterogeneity is emphasized by the already mentioned partial delamination. However, it should be highlighted, that meglumine exchanged Hec_pri delaminates completely (Fig. 3E) in contrast to Na-Hec_pri indicating its robustness against charge heterogeneities. Quite pleasing, this spares us the lengthy annealing procedure which so far was required to “activate” Na-Hec_pri for osmotic swelling.³⁸

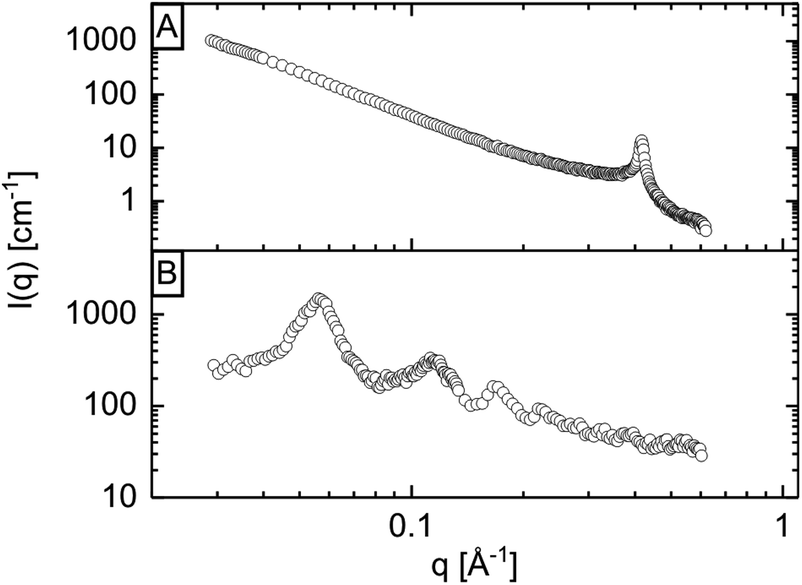

Fig. 4 SAXS-patterns. (A) For Na-Hec_pri only a crystalline hydrate (two water layer hydrate, 15 Å) is found, while (B) Na-Hec swells osmotically in water (d = 112 Å, 8.4 vol%, expected d-spacing: 114 Å).

All diluted aqueous suspensions of meglumine-clays show birefringence as expected for a lyotropic texture between crossed-polarizers at ∼0.25 vol% due to the formation of a nematic sol (Fig. 5).

Fig. 5 Upon dilution to ∼0.25 vol% the aqueous meglumine-clay suspensions show birefringence between crossed polarizers due to the formation of a nematic sol (left), in case isotropic dispersions of 10⁻⁴ vol% are dropped on a Si-wafer and dried, platelets are found by AFM (middle) with the height of a single-clay layer (right). (A) Verm, (B) Hec, (C) LCR1, (D) LCR2 and (E) Hec_pri.

Upon further dilution (∼10⁻⁴ vol%) delamination into single platelets is evidenced by casting the then isotropic dispersions on a silicon wafer. With AFM only platelets with a height of ∼1 nm were found in good agreement with the thickness of one silicate layer (9.6 Å).

Meglumine is not unique. Other bulky and hydrophilic ammonium-sugars like glucosamine (∼72 Ų, A_I/A_C = 0.9 for LCR2) also have the potential of delaminating clays with broadly varying layer charge densities (Fig. S5†).

Conclusions

We have previously proposed that organo-cations that are capable of osmotic swelling in a given clay mineral are characterized by two features: they should be bulky (A_I/A_C ≳ 1) and sufficiently hygroscopic. The hygroscopicity is expressed by significant swelling when going from 0% to 98% r.h. (Δd ≳ 3.5 Å). If then at 98% r.h. a basal threshold separation (d ≳ 17.5 Å) of the corresponding organo-clay is accomplished, the gain in counter-ion translational entropy contributes to repulsive delamination upon immersion in water.

Based on the above empirical recipe, we extended our screening to ammonium-sugars. These are considerably bulkier than for instance TRIS (Tris(hydroxymethyl)ammoniummethane, A_I = 37 Ų) used before for vermiculites. This way we ensure A_I/A_C ≳ 1 is met. At the same time their hydrophilicity is high due to a large number of OH-groups. Therefore, we were able to extend osmotic swelling of organo-clays into the regime of low-charged organo-smectites, which was so far only feasible for highly charged ones.

Moreover, the approach proves tolerance to charge heterogeneities. This is important from a practical point of view since natural clays like montmorillonite suffer from pronounced charge density heterogeneity. Therefore, delamination of clays by meglumine is robust in respect to a broad range of charge densities.

The results furthermore suggest, that repulsive osmotic delamination may be applied generally to charged two dimensional materials irrespective of their charge density.
