A first-principles study on Si₂₄ as an anode material for rechargeable batteries

Abstract

Due to its intriguing geometry, possessing an open-channel structure, Si₂₄ demonstrates potential for storing and/or transporting Li/Na ions in rechargeable batteries. In this work, first-principles calculations were employed to investigate the phase stability and Li/Na storage and transport properties of the Si₂₄ anode to evaluate its electrochemical performance for batteries. The intercalation of Li and Na into the Si₂₄ structure could deliver a capacity of 159 mA h g⁻¹ (Li₄Si₂₄ and Na₄Si₂₄), and the average intercalation potentials were 0.17 V (vs. Li) and 0.34 V (vs. Na). Moreover, the volume change of Si₂₄ upon intercalation proved very small (0.09% for Li, 2.81% for Na), indicating its “zero-strain” properties with stable cycling performance. Li⁺ and Na⁺ can diffuse along the channels inside the Si₂₄ structure with barrier energies of 0.14 and 0.80 eV respectively, and the ionic conductivity of Li_2.66Si₂₄ was calculated to be as high as 1.03 × 10⁻¹ S cm⁻¹ at 300 K. Our calculations indicate that the fast Li-ionic conductivity properties make the Si₂₄ structure a novel anode material for both lithium and sodium ion batteries.

---

Introduction

Rechargeable lithium ion batteries (LIBs) and sodium ion batteries (SIBs) have been proven to be efficient energy storage devices.^1–5 However, with the wide use of electric vehicles and energy storage systems for renewable energy, the energy density, cycling stability, safety and cost issues of current rechargeable batteries cannot meet the increasingly high requirements. Accordingly, abundant, low-cost, nontoxic, stable and low-strain novel electrode materials must be developed for better batteries.

As a great number of new materials have been synthesized at high pressure,^6,7 novel materials for rechargeable batteries could also be found using high-pressure technology. Moreover, high-pressure induced phase transformations of several electrode materials, e.g., Li_xMPO₄ (M = Fe and Co),^8,9 LiMn₂O₄,^10–12 Li₁₅Si₄,¹³ V₂O₅,¹⁴ and superoxide LiO₂,¹⁵ have been reported. Some of these high-pressure polymorphs have revealed a higher Li⁺ ion diffusion coefficient than their normal-pressure phase and demonstrated potential as electrode materials for batteries.¹⁶ In addition to these high-pressure polymorphs of current electrode materials, many novel alkali compounds with an open-channel structure have been derived at high pressure.^12,17–19 It has been proven that these channels likely provide a diffusion path for the alkali ions and lead to high ionic conductivities.^12,18 Although these materials have potential application for batteries, related investigations are rare. Therefore, it is necessary to exploit their potential as electrode materials for LIBs and SIBs.

Recently, a novel Na–Si compound structure (Na₄Si₂₄), which has the same structure as Eu₄Ga₈Ge₁₆ with open channels along the [100] direction, was found at a pressure above 8 GPa.^19,20 In this structure, the inside channels are constructed from sp³-bonded Si atoms and filled with Na atoms. These Na atoms in the channels can be entirely removed by a thermal “degassing” process to form a new orthorhombic Si allotrope, namely Si₂₄.²⁰ Si₂₄ with open channels for ionic storage and diffusion displays potential as an electrode material for LIBs or SIBs. Consequently, a thorough investigation of this material is warranted and its electrochemical performance as an electrode material should be evaluated. During the revision of this manuscript, Arrieta et al. published their theoretical research on Na_xSi₂₄ (1 ≤ x ≤ 4) for SIBs and believe it is a possible anode material. However, they did not consider its potential use for LIBs and Li⁺/Na⁺ conductivity properties.²¹ In this work we performed a systematic investigation of Si₂₄ properties for use as an anode material for LIBs and SIBs with first-principles theoretical insight.

Computational details

First-principles calculations were executed using the Vienna Ab Initio Simulation Package (VASP) based on the density functional theory (DFT).^22,23 The projected augmented wave (PAW) potentials²⁴ were used to deal with the electronic exchange–correlation interaction along with the PBE-GGA functional.²⁵ A plane wave representation for the wave function with a cutoff energy of 600 eV was applied. Geometry optimizations were performed using a conjugate gradient minimization until all the forces acting on the ions were less than 0.01 eV Å⁻¹ per atom. A k-point mesh with a spacing of ca. 0.03 Å⁻¹ was adopted. The Li⁺ and Na⁺ migration barrier energy was calculated by the CINEB method.²⁶ A larger supercell of 3 × 1 × 1 containing 84 atoms for Li₄Si₂₄ and Na₄Si₂₄ was used for our simulation. For the large supercell adopted in the CINEB calculations, only the Γ point was adopted for k-point sampling to reduce the computational cost. The convergence check indicated that a denser k-mesh did not affect our conclusion.

In molecular dynamic calculations, 3 × 1 × 1 supercells of Li_2.66Si₂₄ and Na_2.66Si₂₄ were employed. The energy cutoff was reduced to 400 eV and Brillouin zone sampling was performed at the Γ point. An equilibration step was first carried out in the canonical ensemble (constant N, V, T) using a Nosé thermostat.²⁷ In general, the model system was thermally equilibrated for 2 ps first, followed by a MD run at different temperatures (400 to 1800 K) for 20 ps. The time average mean square displacements (MSD)²⁸ of the different atoms were generated using the atomic configuration information from every finite MD time step, defined as:

where, is the displacement of the ith Li or Na ion at time t, and N is the total number of Li or Na ions in the system. In practice, D is obtained by a linear fit to the time dependence of the average MSD. The obtained D at various temperatures can be fitted with the Arrhenius equation:where ΔH is the activation enthalpy, A is a pre-exponential factor, k is the Boltzmann constant, and T is the temperature. The electrical conductivity is calculated on the basis of the diffusion coefficients and the Nernst–Einstein equation:where σ is the electrical conductivity, f is a numerical factor approximately equal to unity, D is the diffusion coefficient, c is the concentration of Li⁺ or Na⁺, q is the electrical charge, k is the Boltzmann constant, and T is the temperature.

Results and discussion

Phase stability and intercalation potential

A unit cell of Si₂₄ with four channels along the [100] direction is shown in Fig. 1a. It was reported that sodium atoms can be accommodated in the middle of the channels to form Na₄Si₂₄ (Fig. 1c), which was synthesized at high-pressure and is stable at ambient pressure and temperature.^19,20 In our simulations, lithium atoms were placed in the same positions as sodium to construct the initial Li₄Si₂₄ structure (Fig. 1b) and then derive the final lithiation phase by structural relaxation. In this way, a total of 4 Li/Na atoms can be encapsulated in a Si₂₄ unit cell, while delivering a theoretical capacity of 159 mA h g⁻¹. In this work, the Li₄Si₂₄ and Na₄Si₂₄ phases are considered the fully lithiated and sodiated states of Si₂₄ hereafter, respectively.

Fig. 1 Crystal structures of (a) Si₂₄, (b) Li₄Si₂₄ and (c) Na₄Si₂₄. Blue, green and yellow spheres represent the Si, Li and Na atoms, respectively.

To evaluate the performance of Si₂₄ as an electrode material for LIBs and SIBs, the phase stability of Si₂₄ after Li/Na intercalation was investigated first. The stability of Si₂₄ with different Li or Na contents is determined by the formation energy of the M_xSi₂₄ (M = Li and Na; 1 ≤ x ≤ 4) alloy, defined as:

E_form = E(M_xSi₂₄) − E(Si₂₄) − xE(M). (4)

The calculated formation energies of all the M_xSi₂₄ (M = Li and Na; 1 ≤ x ≤ 4) phase are negative and decrease with increasing Li/Na content, which means the Li and Na intercalation process is energetically favorable as shown in Fig. 2a. On the basis of the formation energies, the Li₄Si₂₄ and Na₄Si₂₄ phase can form during the charging process. For Na₄Si₂₄, it is synthesized at high pressure and is stable at ambient temperature and pressure. For Li₄Si₂₄, it might be synthesized by either chemical lithiation from Si₂₄ or an ion exchange method from Na₄Si₂₄. These stabilized Li or Na rich materials could demonstrate promising applications for compensating Li/Na loss during the formation of a solid electrolyte interphase (SEI) or pair with cathode materials without a Li/Na component such as V₂O₅ and some organic cathode materials, which are much cheaper than Li/Na rich cathode materials.^29–32

Fig. 2 (a) Formation energies and (b) intercalation potentials of Li_xSi₂₄ and Na_xSi₂₄ (1 ≤ x ≤ 4) upon Li/Na insertion into the Si₂₄ structure.

The average Li/Na intercalation potential is a critical parameter for electrode materials, which is related to the difference in the Gibbs free energy between the charged and discharged states, and can be determined by the following equation:

where G is the Gibbs free energy, and x is the number of Li/Na atoms. The calculated Li and Na intercalation potentials of Si₂₄ are exhibited in Fig. 2b, which clearly shows that the potential variations are very limited below 0.4 V upon Li/Na intercalation. The average intercalation potentials of Li_xSi₂₄ and Na_xSi₂₄ (1 ≤ x ≤ 4) are 0.17 V (vs. Li) and 0.34 V (vs. Na), respectively. Such low and flat potentials can substantially benefit the energy density when it is used as a battery anode.

Volume change

It is known that significant volume expansion happens during the lithiation process of conventional silicon-based anode materials, leading to a poor cycling performance (Table S1†).^33,34 However, our calculation results demonstrate that the volume changes of Si₂₄ during Li/Na intercalation is very small. As shown in Fig. 3, the volume expansion of Si₂₄ after Li intercalation is only 0.09%, which is negligible compared with the volume expansion of commercialized graphite (∼10%) and cubic silicon (∼300%) anode materials. The volume change after Na intercalation is larger because of the larger ionic radius of Na. However, the 2.81% volume change is still quite small compared with Li₄Ti₅O₁₂ (12.5%) and other metal or metalloid anode materials (>200%) for SIBs.^35–38 Due to the very small volume changes of Si₂₄ during Li/Na intercalation, the good cycling stability of Si₂₄ could be expected when used as anode material for both LIBs and SIBs.

Fig. 3 Normalized volume changes of Si₂₄ upon Li/Na intercalation.

Next the cell parameters were examined after Li/Na intercalation. As shown in Table 1, the cell parameter a is elongated while b and c are compressed during Li/Na intercalation. The increase of a is 4.16% for Li and 9.35% for Na, while the decrease of b and c is 0.74% and 1.73% for Li and 2.42% and 4.40% for Na. These parameter changes show limited influence on the ionic preferential diffusion along the b-axis and/or c-axis in the Si₂₄ structure.

Table 1 The cell parameters and volume of Si₂₄, Li₄Si₂₄ and Na₄Si₂₄

Compound	a (Å)	b (Å)	c (Å)	Volume (Å^3)
Si24	3.85	10.75	12.74	527.28
Li4Si24	4.01	10.67	12.52	528.11
Na4Si24	4.21	10.49	12.18	537.90

---

Electronic structure

The electronic conductivity is very important in electrode materials. To evaluate the electron conductivity change after Li/Na intercalation in Si₂₄, the band structures of Si₂₄, Li_xSi₂₄ and Na_xSi₂₄ (1 ≤ x ≤ 4) were calculated and compared in Fig. S1 and S2,† and the band gaps (direct and indirect) are shown in Table 2. From our calculations, Si₂₄ with an indirect band gap of 0.44 eV exhibits a semiconductor-like property. When Li/Na atoms intercalate, the band gaps decrease significantly to 0.18 eV for Li₄Si₂₄ and 0 eV for Na₄Si₂₄, which suggests that the electronic conductivity can be greatly enhanced after Li/Na intercalation. The improvement of electronic conductivity by Li/Na doping will certainly benefit the electron transport property of the electrode and improve its rate performance during the charge and discharge process.

Table 2 The indirect and direct electronic band gaps of Si₂₄, Li_xSi₂₄ and Na_xSi₂₄

MxSi24	Li (eV)		Na (eV)
	Indirect	Direct	Indirect	Direct
0	0.44	0.54	0.44	0.54
1	0.29	0.46	0.14	0.28
2	0.29	0.29	0.15	0.28
3	0.23	0.34	0.16	0.32
4	0.18	0.23	0	0

---

Li/Na ion transport

In addition to electronic conductivity, the Li/Na ion transport properties of electrode materials are also essential to the battery performances such as power density, over potential, and rate performance. Therefore, thoroughly understanding the Li/Na ion transport properties of an electrode material is necessary. Using the CINEB method, we calculated the barrier energies of Li⁺ and Na⁺ migration in Si₂₄. There are two possible ion diffusion paths in Si₂₄ as shown in Fig. 4a. Path 1 is along the channel direction (a-axis), and path 2 is between the channels along the b-axis. The calculated barrier energies of Li⁺ and Na⁺ along path 1 are 0.14 and 0.80 eV, respectively (Fig. 4b). Along path 2, the barrier energies are 0.87 eV for Li⁺ and 2.98 eV for Na⁺ (Fig. 4c). It is obvious that path 1 (a-axis) is the most favorable migration path with dramatically lower energy barriers for both Li⁺ and Na⁺ ionic migration. Accordingly, from an activation energy perspective, the diffusion of Li⁺ in Si₂₄ framework can mainly proceed along the a-axis with a plausible fast ionic diffusion kinetic for such a low energy barrier. While for the Na ion, the migration barrier energy of 0.80 eV is a little bit higher than normal electrode material. This can be a drawback of Si₂₄ as an anode for SIBs.

Fig. 4 (a) Possible migration paths for Li⁺ and Na⁺ in Si₂₄ and the calculated barrier energy of Li⁺ and Na⁺ along (b) path 1 and (c) path 2. Normalized volume changes of Si₂₄ upon Li/Na intercalation.

The diffusion properties and ionic conductivity of Li⁺/Na⁺ in Si₂₄ were subsequently investigated by a first-principles molecular dynamic (FPMD) method at high temperature. For Li₄Si₂₄ and Na₄Si₂₄, no measurable net MSD results for Li⁺/Na⁺ diffusion were seen up to the utmost temperature before melting (Fig. S3†). This result signals that the ideal crystal M₄Si₂₄ (M = Li and Na) does not provide enough space for Li⁺/Na⁺ diffusion because all the possible positions in the channels are occupied by Li/Na atoms. However, in reality, for electrode materials, ion diffusion happens before the fully lithiated/sodiated state. It means the ionic conductivity of M₄Si₂₄ (M = Li and Na) with Li/Na vacancies could be considered in electrode material. To assess this case, 4 Li/Na vacancies were created in a 3 × 1 × 1 supercell corresponding to M_2.66Si₂₄ (M = Li and Na), with a total of 80 atoms in the supercell. In these partially lithiated/sodiated states, Li/Na ions diffusion was observed at the temperature before melting, as shown in Fig. 5a and b. The one-dimensional Li⁺/Na⁺ transport property was also confirmed by the simulated trajectories (Fig. 5a and b) and MSD (Fig. S4†). At high temperature, the diffusion effect becomes pronounced with the trajectory of the Li/Na ions distributing inside all the channels, indicating potentially high ionic conductivity. With an increase in the simulated temperature, the MSD of the Si ions also starts to increase with time (Fig. S5†), which signals the melting of the entire crystal. Based on our simulation results, Li_2.66Si₂₄ and Na_2.66Si₂₄ start to melt at temperatures above 1000 and 1500 K, respectively.

Fig. 5 Trajectories of (a) Li⁺ (small green bullets) at 400, 600, 700, and 1000 K and (b) Na⁺ (small yellow bullets) at 900, 1100, 1200, and 1500 K for 20 ps viewed from (001) plane.

The diffusion coefficients of Li/Na ions can be deduced from the simulated MSD over time at different temperatures. The convergence of the diffusion coefficients is achieved with approximately 20 ps of MD simulations because of the relatively fast Li⁺/Na⁺ diffusion in this material (Fig. S6†). The diffusion coefficients are fitted through the Arrhenius equation at temperatures varying from 400 to 1000 K for Li and 900 to 1500 K for Na, respectively (Fig. 6), from which the migration enthalpies of 0.031 eV for Li⁺ and 0.239 eV for Na⁺ were derived. Using the Nernst–Einstein equation, we calculated the Li/Na ions conductivity in Li_2.66Si₂₄ and Na_2.66Si₂₄ and plotted it in Fig. 7. The extrapolated Li⁺ and Na⁺ conductivities at 300 K are 1.03 × 10⁻¹ and 1.26 × 10⁻⁸ S cm⁻¹. Due to the very low activation enthalpy for Li⁺ migration in Si₂₄, the Li⁺ conductivity is quite high at room temperature. The fast Li⁺ migration path along the channels of Si₂₄ makes it a superionic conductor at room temperature, which is favorable for use as an anode material for LIBs that can be charged and discharged at a very high rate. On the contrary, the Na⁺ conductivity changes a lot with temperature and exhibits high ionic conductivity at higher temperatures. The ionic conductivity of Na⁺ in Si₂₄ is a little bit low at room temperature, although it can be a Na⁺ superionic conductor at high temperature. It is worth to note that Si₂₄ with a preferential orientation along b-axis and/or c-axis could be used to decrease the Na⁺ diffusion distance and promote the rate performance of the electrode.

Fig. 6 The diffusion coefficients of (a) Li⁺ and (b) Na⁺. The linear fitted results are shown by the green dashed line. The crystal structures begin melting at 1000 K for Li_2.66Si₂₄ and 1500 K for Na_2.66Si₂₄ (red areas).

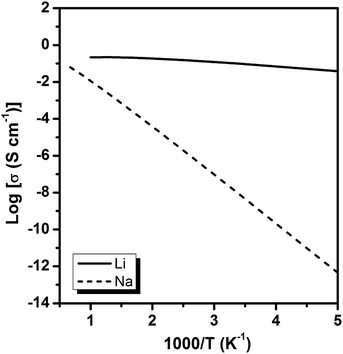

Fig. 7 The calculated Li⁺ and Na⁺ conductivity in Li_2.66Si₂₄ and Na_2.66Si₂₄.

Conclusions

Si₂₄ with an open-channel structure was thoroughly investigated by a first-principles method to evaluate its performance as an anode for LIBs and SIBs. Various properties of Si₂₄, including its phase stability, theoretical capacity, intercalation potentials, volume changes, electronic structures, and ionic transport property were calculated. Based on the calculation results, the advantages of Si₂₄ as an anode material for lithium/sodium ion batteries are summarized as follows:

(i) Li/Na can be stored in the channels of Si₂₄ to form Li₄Si₂₄/Na₄Si₂₄, which is stable and energetically favorable.

(ii) The theoretical capacity of Si₂₄ is 159 mA h g⁻¹, and the average intercalation potentials of Li_xSi₂₄ and Na_xSi₂₄ are 0.17 V (vs. Li) and 0.34 V (vs. Na), respectively. The flat and low intercalation potentials can benefit its energy density.

(iii) Si₂₄ shows little volume change during Li/Na intercalation, which is favorable for cycling stability.

(iv) The electronic conductivity of Si₂₄ can be improved by Li/Na intercalation. This property can lead to a high-rate performance.

(v) The ionic conductivity of Li_2.66Si₂₄ is very high, reaching 1.03 × 10⁻¹ S cm⁻¹ at 300 K, whereas the ionic conductivity of Na_2.66Si₂₄ is a little bit low at room temperature. However, this difficulty can be overcome by using a nanoscale material or a material with a preferential orientation along the b-axis and/or c-axis.

Due to the advantages described above, Si₂₄ has great capability for use as an anode material in both LIBs and SIBs. In addition, M₄Si₂₄ (M = Li and Na) can also be used as lithium or sodium-rich anode materials to reduce the cost of batteries.
