Effect of R-site element on crystalline phase and thermal stability of Fe substituted Mn mullite-type oxides: R₂(Mn_1−xFe_x)₄O_10−δ (R = Y, Sm or Bi; x = 0, 0.5, 1)

Abstract

Combining experimental and theoretical studies, we investigate the role of R-site (R = Y, Sm, Bi) element on the phase formation and thermal stability of R₂(Mn_1−xFe_x)₄O_10−δ (x = 0, 0.5, 1) mullite-type oxides. Our results show a distinct R-site dependent phase behavior for mullite-type oxides as Fe is substituted for Mn: 100% mullite-type phase was formed in (Y, Sm, Bi)₂Mn₄O₁₀; 55% and 18% of (Y, Sm)₂Mn₂Fe₂O_10−δ was found when R = Y and Sm, respectively, for equal Fe and Mn molar concentrations in the reactants, whereas Bi formed 54% O10- and 42% O9-mixed mullite-type phases. Furthermore, when the reactants contain 100% Fe, no mullite-type phase was formed for R = Y and Sm, but a sub-group transition to Bi₂Fe₄O₉ O9-phase was found for R = Bi. Thermogravimetric analysis and density functional theory (DFT) calculation results show a decreasing thermal stability in O10-type structure with increasing Fe incorporation; for example, the decomposition temperature is 1142 K for Bi₂Mn₂Fe₂O_10−δ vs. 1217 K for Bi₂Mn₄O₁₀. On the other hand, Bi₂Fe₄O₉ O9-type structure is found to be thermally stable up to 1227 K. These findings are explained by electronic structure calculations: (1) as Fe concentration increases, Jahn–Teller distortion results in mid band-gap empty states from unstable Fe⁴⁺ occupied octahedra, which is responsible for the decrease in O10 structure stability; (2) the directional sp orbital hybridization unique to Bi effectively stabilizes the mullite-type structure as Fe replaces Mn.

---

1. Introduction

Functional materials based on transition metal oxides with mullite-type crystalline structure, R₂M₄O_10−δ (R = Y, rare-earth or Bi; M = transition metal), have gained much attention due to their interesting magnetic and multiferroic properties.^1,2 Recently, these compounds show great promise in energy applications, e.g. in solid oxide fuel cells,³ as photocatalysts,⁴ and NO_x oxidation catalysts,^5–7 and are considered as a potential alternative to platinum group metals. R₂M₄O_10−δ adopts the orthorhombic crystal structure of space group Pbam and consists of infinite chains of edge-sharing MO₆ octahedra along the c-direction (Fig. S1, ESI†). The structure can be classified according to two sub-groups depending on the oxygen concentration: R₂Mn₄O₁₀ (O10) and R₂M₄O₉ (O9). The two sub-groups differ in the MO_x (4h Wyckoff site) units that link the MO₆ (4f Wyckoff site) octahedral chains: edge-shared distorted MO₅ square pyramid in the O10-type (Fig. S1b, ESI†) or vertex-sharing MO₄ tetrahedra along the ab-direction in the O9-type (Fig. S1c, ESI†). The R atoms, which are in 3+ oxidation state, are located in the structural channels running parallel along the c-axis (Fig. S1a, ESI†).^8–12 It is clear that the transition metal (M) atoms, which occupy both the 4f- and 4h-Wyckoff sites, will strongly affect the structure formation and stability;^10,12 however, the role of R-site elements is less obvious.

Mn–Fe mullite-type oxides have been studied owing to their interesting magnetic behavior. As the ionic radii of Fe³⁺ and Mn³⁺ are similar, substituting Mn with Fe should not cause much lattice distortion.^12–19 However, because Fe⁴⁺ exhibits strong Jahn–Teller distortion and causes structure instability, sub-group transition from R₂Mn₄O₁₀ O10-type to R₂Fe₄O₉ O9-type is expected. Curiously, experimental studies reported such a sub-group transition in R = Bi Mn–Fe compounds,^12,19 but only the O10-type structure has been observed when R = Y or rare earth elements.^13–18 In addition, except for Bi, no pure R₂Mn₂Fe₂O₁₀ mullite-type phase has been successfully synthesized with other R-site elements; impurity phases corresponding to perovskite or binary oxides or both are found in these compounds upon calcination at high temperatures and under high oxygen pressure.^13–17 Moreover, there are significant differences and conflicting reports on the maximum Fe concentration that supports the structure stability in Fe–Mn mullites.^12,19 Published literature reported the experimental observation, but lacked the fundamental understanding on the role of R-site elements on mullite-type phase formation and stability or why Bi compounds forms the stable mullite-type structure for all Mn–Fe compositions.

While R-site elements are trivalent, their electronic structure can differ significantly. Here, we carry out combined experimental and theoretical studies to understand the role of R-site elements on phase formation and thermal stability of R₂(Mn_1−xFe_x)₄O_10−δ (R = Y, Sm, and Bi; x = 0, 0.5, 1) compounds. The three R-site elements are chosen because Y³⁺ has a closed shell, Sm³⁺ representing a lanthanide analogue with unpaired electrons, and Bi³⁺ with sp³ hybridization. These compounds were synthesized by co-precipitation-calcination method. The crystalline phases were characterized using X-ray diffraction (XRD) and structure refinement was carried out by Rietveld method. The oxidation states of R, Mn, and Fe were determined by X-ray photoelectron spectroscopy (XPS). The thermal stability and phase transformation during decomposition was studied by thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC). To explain the differences observed experimentally, we performed density functional theory (DFT) calculations with energy correction methodology previously employed to calculate the thermal stability of different R₂Mn₄O₁₀ compounds.²⁰ In addition, electronic structures were investigated to explain the R-site dependence as a function of Fe substitution. The insight gained through such combined experimental and theoretical studies will advance the design of mullite-type oxides with desired properties.

2. Experimental methods

2.1. Synthesis and characterization

R₂Mn₄O₁₀ (R : Mn = 1 : 2), R₂Mn₂Fe₂O_10−δ (R : Mn : Fe = 1 : 1 : 1), and R₂Fe₄O₉ (R : Fe = 1 : 2) were synthesized using analytical grade R(NO₃)₃·6H₂O, Mn(CH₃CO₂)₂·4H₂O, and Fe(NO₃)₃·9H₂O precursors by co-precipitation method.²¹ The precipitate obtained was then filtered and dried at 378 K overnight. The dried samples were ground and calcined at 773 K for 8 h in air to eliminate organic materials, followed by a second calcination step at high temperatures. For 100% Mn compounds, the calcination was carried out at 1373 K, 1273 K, and 1073 K for Y, Sm, and Bi, respectively, in air to obtain single-phase materials. For 50% Fe/50% Mn and 100% Fe samples, the calcination was carried out at 1073 K in air. This temperature was chosen to obtain mullite-type phase in all three R-site compounds. For Bi compounds, temperatures higher than 1073 K are too close to their decomposition temperatures; for Y or Sm compounds, the mullite-type phase cannot form below 1073 K. Thus, to get a meaningful comparison, synthesis conditions were kept constant.

X-ray diffraction data were collected two ways. First, the crystalline phases of the reaction products were characterized using powder Rigaku Ultima III X-ray diffractometer equipped with Ni-filtered Cu K_α1,2 radiations (λ_Kα1 = 0.15406 nm, λ_Kα2 = 0.15444 nm).²² The patterns were collected over a 2θ range from 20° to 60° with a step size of 0.02° and a scan speed of 0.2° per min. The measured diffraction patterns were compared to the powder diffraction files to identify the crystalline phases. To obtain accurate phase compositions and lattice parameters, X-ray powder diffraction data were also collected with a Bruker D8 Advance powder diffractometer operating at 40 kV/30 mA equipped with a LYNXEYE XE detector and a Cu Kα source (λ_Kα1 = 0.15406 nm, λ_Kα2 = 0.15444 nm) with a 0.06 mm incident beam and a 5.0 mm receiving slit with a Ni filter. Ground polycrystalline powders were placed on a low-background holder. X-ray diffraction data were collected over a 2θ range from 10° to 80° with a step size of 0.02° and an exposure time of 2 s rotating at five rotations per minute. The crystalline phases were first identified by comparing with reported crystal structure. Multi-phase Rietveld refinement was performed using DIFFRAC PLUS TOPAS 4.2 (Bruker AXS, Karlsruhe, Germany). For the Rietveld model, λ_Kα1 = 0.15406 nm wavelength was used.

X-ray photoelectron spectra were measured using a PHI5000 Versa Probe II (Physical Electronics Inc.) using a monochromatic Al Kα X-ray source (1486.6 eV). Peak fitting was performed using Multipak software as reported in our previous work.²¹ The estimated error in binding energy measurements is ± 0.01 eV.

To measure the decomposition temperature, TGA and DSC measurements were carried out at a heating rate of 2 K min⁻¹ from room temperature to 1273–1473 K in air (Q600, TA Instruments). To study the phase changes observed in the TGA-DSC measurements and to identify the crystalline phases of the decomposed products, we simulated the reactions by heating a different aliquot of the same sample in a muffle furnace (KSL-1100X, MTI Corporation) to obtain enough decomposed material for XRD measurements.

3. Theoretical methodology

Density functional theory (DFT) with the spin-polarized generalized gradient approximation (GGA) embedded in Vienna ab initio simulation package (VASP) was employed.^23–26 The plane-wave basis based projector augmented-wave pseudopotentials were used in the calculation. The valence-electron configurations used in the pseudopotentials are as follows: 4s²4p⁶4d¹5s² for Y, 5s²5p⁶4f¹6s² for Sm, 5d¹⁰6s²6p³ for Bi, 3p⁶3d⁵4s² for Mn, 3d⁶4s² for Fe, and 2s²2p⁴ for O. To achieve a better description of the systems' total energy and electronic structures, GGA + U method^23,24 and hybrid DFT with Heyd–Scuseria–Ernzerhof approach (HSE06)²⁷ were applied. All structures in our calculations were relaxed until a force convergence criterion of 0.001 eV nm⁻¹ was fulfilled. High 450 eV energy cut-off and a Monkhorst–pack k-space sampling mesh with a density of 0.003 nm⁻¹ (GGA + U) or 0.01 nm⁻¹ (HSE06) for each direction was used to assure an accurate total energy for all the simulated systems. Furthermore, to determine the most likely magnetic state, the structures were relaxed with consideration of all possible spin states. The mullite structure was found to be most stable in a high-spin ferromagnetic state after relaxation. All results shown below are performed in this spin state.

Formation enthalpy calculated by the GGA or GGA + U method still includes significant errors.²⁸ Therefore, we used corrections on the total energies to improve the accuracy of the ternary compounds' formation enthalpies. Eqn (1) has been used to make the corrections in our calculations.

where E^GGA+U_RMO is the DFT calculated total energy from GGA + U method, n_i is the number of atom species i in the structure, ζ denotes to all of elements in the calculated compound, M represents the transition metal elements of the U value, and E_i contributes to the pure element energy per atom calculated by GGA method, i.e. the metallic form of Bi, Sm, Y, Mn, Fe or oxygen molecule, O₂. Energy adjustment ΔE_i was introduced to correct for the inconsistency between the GGA and GGA + U methods following the procedure proposed by Jain et al.²⁶ To maintain the self-consistency within the simulation, energy adjustments (ΔE_i) and effective interaction parameters (U_eff = U − J) were calculated (Table S1, ESI†). The formation enthalpy calculated through this method is at 0 K. Here, configuration differences brought about from zero-point effects are not considered, making this calculation an approximation. However, such contributions have been considered negligible in previous studies.^29,30 To predict the thermal stability of the R₂(Mn_1−xFe_x)₄O_10−δ compounds, we calculated the temperature of the decomposition as detailed in our previous work.²⁰

4. Results and discussion

4.1. Mullite-type phase formation with Fe substitution

4.1.1. R = Y, Sm. We first present experimental results of Y and Sm compounds made with three different transition metal compositions: 100% Mn, equal Fe and Mn (50% Fe/50% Mn), and 100% Fe. The multi-phase Rietveld refinement was carried out to determine the phase purity. For the 100% Mn compounds, the crystalline reflections of both R = Y (Fig. 1a, black) and Sm (Fig. 1b, black) corresponds to mullite phase (O10), indicating the formation of Y₂Mn₄O₁₀ and Sm₂Mn₄O₁₀ with an orthorhombic unit cell, respectively.²⁰ Both samples are phase-pure with no additional reflections in the XRD patterns.²⁰ With equal molar concentrations of Fe and Mn in the reactants, the XRD pattern of R = Y sample (Fig. 1a, red) shows the characteristic (121) and (211) reflections (purple inverted triangles) of the mullite-type phase. However, there are additional reflections (green dumbbell) indicating the presence of impure phases in the sample. The phase composition obtained from the Rietveld refinement (Fig. S2a & Table S2, ESI†) indicates that the sample consists of 55% O10 mullite-type phase¹⁴ while the weak reflections correspond to the presence of YFeO₃ ³¹ (21%), Mn₂O₃ (16%), and YMnO₃ ³² (7%) impure phases, respectively. For R = Sm, the XRD pattern (Fig. 1b, red) does show weak reflections corresponding to the mullite-type phase (purple inverted triangles), however, the phase purity is only 18%. The primary phases are found to be SmFeO₃ (47%) and Mn₂O₃ (35%), respectively (Fig. S2c & Table S2, ESI†). Munoz et al. reported the presence of perovskite impurity phase in their Y₂Mn₂Fe₂O₁₀ compound, but found that the mullite phase purity can be increased by annealing at 1173 K for 12 h under high oxygen pressure of 200 bar.¹⁴ Thus, one possibility for the presence of the non-mullite-type phases in our samples is the low oxygen partial pressure in the annealing atmosphere. However, as previously reported, complete elimination of the non-mullite-type phase in R₂Mn₂Fe₂O₁₀ compounds is not possible for R = Y, Sm, Er, Yb, and Tb, even when the thermal treatments are carried out at high oxygen pressure or when synthesized under mechanical milling.^13–17 The lattice parameters obtained from the refinements for the mullite-type phase are listed in Table S3 (ESI†).

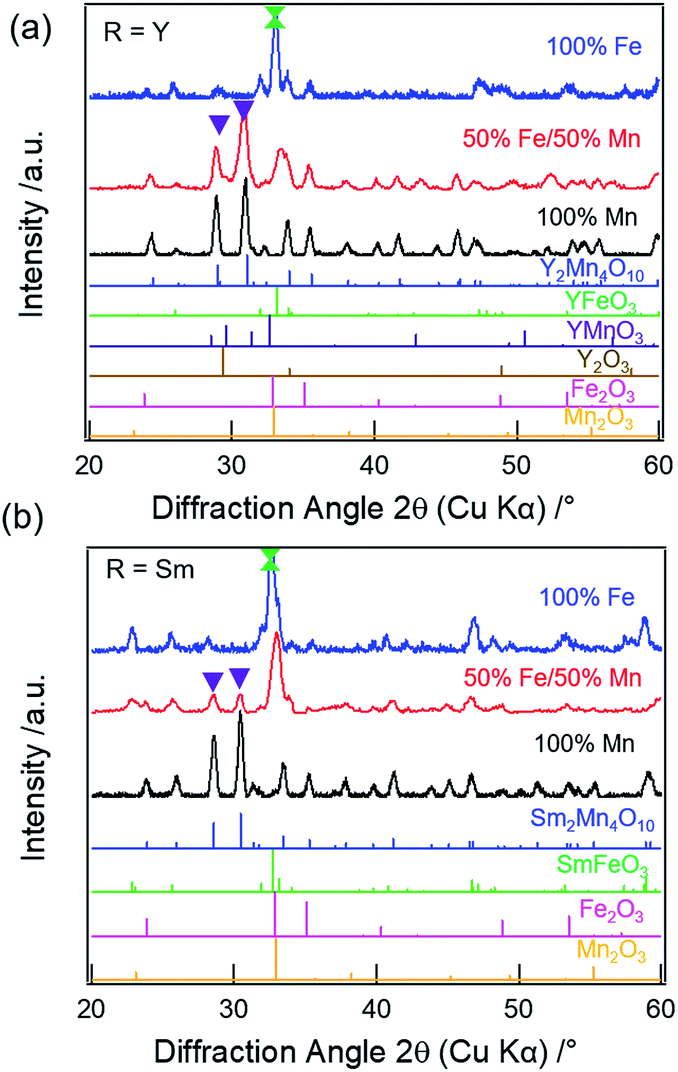

Fig. 1 XRD patterns of (a) R = Y and (b) R = Sm for 100% Mn (black), 50% Fe/50% Mn (red), and 100% Fe (blue). Purple inverted triangles represent the two most intense reflections (121) and (211) of the mullite-type phase and green dumbbell represents the secondary phases.

On full replacement of Mn with Fe (100% Fe), XRD patterns of both Y (Fig. 1a, blue) and Sm (Fig. 1b, blue) compounds show no reflections corresponding to mullite phase. The perovskite (YFeO₃ (57%) or SmFeO₃ (72%)) is found to be the primary phase, along with Y₂O₃ or Sm₂O₃, respectively, and Fe₂O₃ secondary phases. The refined patterns for Y (Fig. S2b†) and Sm (Fig. S2d†) are shown in the ESI.† Thus, mullite-type phase formation is found to be unfavorable when R = Y or Sm at higher Fe concentration.

4.1.2. R = Bi. Fig. 2a shows the XRD patterns of Bi compounds for 100% Mn, 50% Fe/50% Mn, and 100% Fe. The XRD pattern of Bi₂Mn₄O₁₀ (Fig. 2a, black) presents no additional reflections indicating 100% pure mullite-type (O10) phase with an orthorhombic unit cell.²⁰ For 50% substitution of Mn with Fe, the preliminary XRD pattern of Bi₂Mn₂Fe₂O_10−δ (Fig. 2a, red) shows reflections corresponding to mullite-type phase. However, the (210), (201), (002), and (202) reflections exhibit significant broadening compared to the 100% Mn and 100% Fe samples. The XRD results are consistent with the existence of two phases, as Rietveld refinements (Fig. 2b) indicates the presence of Bi₂Mn₂Fe₂O₁₀ O10-type (54%),⁹ Bi₂Fe₄O₉ O9-type (42%),¹⁹ and Mn₂O₃ (4%) (detailed phase compositions are given in Table S2, ESI†). However, since Mn and Fe are very similar, definitive site assignments based on XRD alone are difficult. The XRD pattern (Fig. 2a, blue) of 100% Fe corresponds to Bi₂Fe₄O₉ O9 mullite-type compound that can be indexed to the orthorhombic unit cell.¹⁹ The mullite phase purity from the refinement (Fig. S3, ESI†) is found to be 95% along with minor impurity phases of Bi₂O₃ ³³ (4%) and BiFeO₃ ³⁴ (1%). Thus, a sub-group transition from O10- to O9-type structure is observed for R = Bi when Fe concentration increases from 50% to 100% unlike R = Y or Sm.

Fig. 2 (a) XRD patterns of R = Bi for 100% Mn (black), 50% Fe/50% Mn (red), and 100% Fe (blue), respectively. Respective reference diffraction data are shown. (b) Experimental (blue), calculated (red), and difference (grey) patterns for Bi compound with 50% Fe/50% Mn in the reactants.

The refined lattice parameters for the mullite-type compounds are listed in Table S3 (ESI†). The unit cell volume as a function of Fe concentration for R = Y (blue solid circles), Sm (red solid squares), and Bi (black solid triangles) compounds are depicted in Fig. 3. In general, the unit cell volume systematically decreases with the substitution of a smaller R ions (Y³⁺ < Sm³⁺ < Bi³⁺) in the O10-type phase, consistent with Vegard's law. Up to 50% Fe in the mullite-type structure, only a small change in the unit cell volume is observed. This observation is consistent with that Fe primarily substitutes for Mn³⁺ in the square pyramidal (4h) sites and given similar ionic radii of Fe³⁺ (0.058 nm) and Mn³⁺ (0.058 nm),³⁵ cell dimensions do not change significantly upon full substitution in these sites. As Fe concentration exceeds 50% and all Mn³⁺ have been replaced, Fe must substitute on the octahedral (4f) sites. We then observed a significant increase in unit cell volume for Bi₂Fe₄O₉ (∼9%, black solid diamond), which is attributed to the replacement of smaller Mn⁴⁺ (0.053 nm)³⁵ by larger Fe³⁺ ions (0.065 nm)³⁵ in the octahedral sites. These results show a distinct R-site dependent phase behaviour of mullite-type oxides: only Bi is found to form a stable mullite-type structure at all Mn–Fe compositions. In order to understand this unique behaviour of Bi compared to Y or Sm, we study formation enthalpy and electronic structure using DFT (see Section 4.4 below). Since neither Y nor Sm could form stable Fe substituted mullite-type structures, we carried out the XPS and decomposition studies focusing on Bi O10 and O9-type compounds.

Fig. 3 Experimental (solid symbols) and simulated (open symbols) unit cell volume as a function of Fe in R₂(Mn_1−xFe_x)₄O_10−δ for R = Y (blue circles), Sm (red squares), and Bi (black triangles) O10-type and Bi₂Fe₄O₉ (black diamonds) O9-type structures, respectively.

4.2. XPS of Bi₂(Mn_1−xFe_x)₄O_10−δ compounds

XPS studies were carried out on Bi₂Mn₄O₁₀, Bi₂Mn₂Fe₂O_10−δ, and Bi₂Fe₄O₉ stable structures to probe whether there are changes in the oxidation states of Mn and Fe. The measured and fitted XPS spectra of Mn 2p and Fe 2p core-levels are shown in Fig. 4. The Mn 2p spectrum of Bi₂Mn₄O₁₀ (Fig. 4a, black) can be deconvoluted into two peaks at 641.2 eV and 641.8 eV, corresponding to the binding energies of 2p_3/2 Mn³⁺ (pink dashed line) and Mn⁴⁺ (blue dashed line), respectively, in good agreement with the literature.³⁶ On the other hand, the Mn 2p spectrum of Bi₂Mn₂Fe₂O_10−δ (Fig. 4a, red) exhibits only a single peak at 641.9 eV, corresponding to the binding energy of 2p_3/2 Mn⁴⁺.³⁶ No peak corresponding to Mn³⁺ is found, indicating that 4h square pyramidal sites are fully replaced by Fe. The Fe 2p spectra for Bi₂Mn₂Fe₂O_10−δ (Fig. 4b, red) and Bi₂Fe₄O₉ (Fig. 4b, blue) is fitted to a single peak. The binding energy of Fe 2p_3/2 at 710.3 eV (Fig. 4b, green dashed line) corresponds to 3+ oxidation state.³⁶ No peaks corresponding to Fe⁴⁺ (712.5 eV)³⁷ are found in either structure. The XPS results are consistent with Rietveld refinement of the XRD results for this sample, which shows the co-existence of Bi₂Mn₂Fe₂O₁₀ and Bi₂Fe₄O₉. Mn ions in Bi₂Mn₂Fe₂O₁₀ are exclusively in the 4f sites, i.e. 4+, and Fe ions occupy the 4h sites, i.e. 3+, while Fe in both sites of Bi₂Fe₄O₉ have 3+ oxidation state. We further calculated the Fe/Mn and (Mn + Fe)/Bi ratios of the Bi₂Mn₂Fe₂O_10−δ sample following Gesing et al. in order to understand which metal is enriched on the surface layers.³⁸ The surface Fe/Mn ratio is found to be 0.73 ± 0.13, indicating that the surface is enriched with Mn, while (Mn + Fe)/Bi is found to be 1.61 ± 0.11 compared to the formula ratio of 2. These results indicate that the Fe composition is intrinsic to the bulk phase rather than only on the surface. Combined XRD and XPS results show that Fe³⁺ ions preferentially occupy 4h square-pyramidal and Mn⁴⁺ occupy 4f octahedral sites in Bi₂Mn₂Fe₂O_10−δ. While in Bi₂Fe₄O₉, Fe³⁺ ions are distributed in tetrahedral and octahedral sites, respectively.

Fig. 4 XPS spectra of (a) Mn 2p core levels in Bi₂Mn₄O₁₀ (black) and Bi₂Mn₂Fe₂O_10−δ (red) samples, respectively. (b) Fe 2p core levels in Bi₂Mn₂Fe₂O_10−δ (red) and Bi₂Fe₄O₉ (blue) samples, respectively. The pink, blue, and green dashed lines show the binding energies for Mn³⁺, Mn⁴⁺, and Fe³⁺ signals, respectively.

4.3. Thermal stability and decomposition reaction of Bi₂(Mn_1−xFe_x)₄O_10−δ

We further carried out TGA-DSC measurements of Bi₂(Mn_1−xFe_x)₄O_10−δ compounds to study their thermal stability. 100% Mn compound, i.e. Bi₂Mn₄O₁₀, is found to be thermally stable until 1217 K as reported in our previous work.²⁰ Fig. 5a shows the TGA-DSC data of calcined Bi₂Mn₂Fe₂O_10−δ sample heated from room temperature to 1273 K in air. We observe a clear weight loss in TGA (Fig. 5a, black) and a corresponding endothermic peak in DSC (Fig. 5a, red), which may be attributed to the thermal decomposition of the sample. The temperature associated with the thermal event is 1142 K, determined from the onset of weight loss. In order to establish that the observed weight loss corresponds to thermal decomposition in the sample and to determine the decomposed product(s) using XRD, we mimicked the TGA experiment by heating the calcined Bi₂Mn₂Fe₂O_10−δ sample in a furnace from room temperature to 1173 K in air without dwell time at the final temperature. Note that a different aliquot of the same sample used in the TGA-DSC experiment was used here. The XRD pattern of the sample heated above the decomposition temperature (Fig. 5b, red) shows no diffraction peak corresponding to the mullite-type phase (Fig. 5b, purple inverted triangles) when compared to the XRD pattern of the as-synthesized sample (Fig. 5b, black). On further examining the diffraction pattern (Fig. 5b, red), we find that the mullite-type phase decomposes primarily to BiFeO₃ perovskite along with Bi₂O₃, Fe₂O₃, and Mn₂O₃ secondary phases; no reflections corresponding to the BiMnO₃ perovskite phase are found. Based on the decomposed products, we propose the decomposition reaction for Bi₂Mn₂Fe₂O_10−δ compound in eqn (2):

Fig. 5 (a, c) Zoom in view of TGA (black) and DSC (red) curves of Bi₂Mn₂Fe₂O_10−δ and Bi₂Fe₄O₉, respectively. (b) XRD patterns of as-synthesized Bi₂Mn₂Fe₂O_10−δ (black) and decomposed (red) samples, respectively. (d) XRD patterns of as-synthesized Bi₂Fe₄O₉ (blue) and decomposed (red) samples, respectively. Respective reference diffraction data are shown. Purple inverted triangles represent the two most intense reflections (121) and (211) of mullite-type phase.

Attributing the weight loss in TGA at 1142 K (Fig. 5a, black) to the oxygen loss upon decomposition, we find δ = 0.6. When compared to the decomposition temperature of Bi₂Mn₄O₁₀, incorporation of 50% Fe in the mullite-type structure lowers the thermal stability by ∼75 K. Moreover, in contrast to Bi₂Mn₄O₁₀, where only binary oxides were found upon decomposition,²⁰ the formation of BiFeO₃ perovskite is found in Bi₂Mn₂Fe₂O_10−δ decomposition. Note that this sample exhibits a second thermal event at ∼1190 K, which has no associated weight loss. Having two decomposition temperatures are consistent with the sample having two phases: the mixed Fe–Mn O10 phase decomposes at lower temperature and the Fe O9 phase decomposes at higher temperature (see below).

Heating the already calcined Bi₂Fe₄O₉ sample from room temperature to 1273 K in the TGA-DSC experiment results in a small weight loss (Fig. 5c, black) along with an endothermic peak (Fig. 5c, red), which may correspond to the thermal decomposition of Bi₂Fe₄O₉ phase. The weight loss at this temperature (Fig. 5c, black) is small compared to Bi₂Mn₂Fe₂O_10−δ sample, 0.05% vs. 0.8% (Fig. 5a, black). To investigate this transition, we heated the calcined Bi₂Fe₄O₉ sample from room temperature to 1273 K in air without dwell time at the final temperature. The XRD pattern (Fig. 5d, red) confirms the thermal decomposition of the Bi₂Fe₄O₉ as no characteristic reflections of mullite-type phase (Fig. 5d, purple inverted triangles) are found when compared to the diffraction pattern of the as-synthesized sample (Fig. 5d, blue). The decomposition results primarily in the formation of the BiFeO₃ perovskite phase along with Bi₂O₃ and Fe₂O₃ secondary phases. We therefore propose the decomposition reaction for Bi₂Fe₄O₉ as given in eqn (3):

As eqn (3) shows, this decomposition reaction does not release oxygen, consistent with very small weight loss observed in TGA. One possibility is that the decomposition may be caused by the vaporization of Bi₂O₃ which is reported to occur above 1100 K, thus resulting in a small weight loss during decomposition.^39,40 The second possibility is the creation of oxygen vacancies in the decomposed Bi₂O₃ and Fe₂O₃ as shown in the DFT calculations (Section 4.4.3); the small amount of oxygen loss (0.03 oxygen atom) during decomposition can be attributed to the creation of oxygen vacancies in the decomposition products. These results show that Bi₂Mn₄O₁₀ and B₂iFe₄O₉ are thermally more stable than Bi₂Mn₂Fe₂O_10−δ. To explain the experimentally observed differences, we present DFT calculation results below.

4.4. DFT calculations

4.4.1. Formation enthalpy. To elucidate the role of R-site elements on mullite-type phase formation, we used DFT modelling to calculate the formation enthalpy of compounds with varying Fe/Mn ratios. Ground state structures are obtained by examining various Fe substitution configurations in a single unit cell. In our simulation, less negative formation enthalpy indicates that the structure is energetically less favourable. Therefore, we could identify the most stable structure by examining the structure with the most negative formation enthalpy. The change in formation enthalpy with respect to R₂Mn₄O₁₀ (ΔH) for R = Y (Fig. 6, blue open circles), Sm (Fig. 6, red open squares), and Bi (Fig. 6, black open triangles) O10-type compounds is found to monotonically increase with Fe content in the structure. For low Fe concentration (x < 0.6), ΔH is small (∼0.1 eV at x = 0.5) indicating stable mullite-type structures can be formed independent of R-site elements. This is due to Fe substitution into the 4h pyramidal sites being more stable than the substitution of Fe into the 4f octahedral sites. Although the simulation indicates that stable mullite-type structures can be formed for R = Y, Sm, or Bi with 50% Fe and 50% Mn in the reactants, experimentally pure mullite-type phases could only be formed for Bi (Fig. 2a, red), not for Y (Fig. 1a, red) and Sm (Fig. 1b, red). As the Fe concentration increases past x = 0.6, a stronger dependence on the R-site element is seen, along with a large change in the formation enthalpy indicating that the O10-type structure becomes less stable. Since all 4h sites are occupied, a further increase in the Fe concentration forces the remaining Fe into the 4f octahedral sites. Consequently, the structure becomes unstable as Fe in the octahedral site of the O10-type structure is 4+ with a large Jahn–Teller distortion. Thus, a sub-group transition occurs as Fe increases to 100% (Fig. 6, black open diamond). Consequently, the octahedral site's charge state is reduced, hence allowing Fe³⁺ substitution in the chain, consistent with XPS result (Fig. 4b, blue) where only Fe³⁺ was found. Additionally, the reduction in O content leads to changing from MO₅ square pyramidal (Fig. S1b, ESI†) to MO₄ tetrahedral units (Fig. S1c, ESI†). We further summarize the obtained ground state structure and lattice parameter for (Y, Sm, Bi)₂(Mn_1−xFe_x)₄O_10−δ O10-type and Bi₂Fe₄O₉ O9-type compounds in Table S3 (ESI†). The calculated lattice parameters, hence unit cell volumes (Fig. 3, open symbols), are found to increase with an increase in Fe incorporation in the mullite-type structure and are in good agreement with the experimental values.

Fig. 6 Calculated change in formation enthalpy for R₂(Mn_1−xFe_x)₄O_10−δ O10-type compounds for R = Y (blue open circles), Sm (red open squares), and Bi (black open triangles) with increasing amount of Fe in the structure. Bi₂Fe₄O₉ (x = 1) O9-type phase is also stable and shown as black open diamond.

4.4.2. Electronic structure. We calculated the electronic structures to elucidate why (1) Bi₂Fe₄O₉ (O9) is stable while Bi₂Fe₄O₁₀ (O10) is not, and (2) why mullite-type structure forms over the entire Mn–Fe compositions only when R = Bi.

To answer the first question, we show the Fe and Mn density of states (DOS) in both 4f octahedral and 4h tetrahedral sites for O9 and O10-type structure in Fig. S4 & S5 (ESI†). We found that Fe⁴⁺ in the 4f octahedral sites of O10-type structure causes large Jahn–Teller distortion, which results in mid band-gap empty states, thus violating Hund's rule through the exchange interaction. This does not occur in the O9-type structure. Therefore, the Bi₂Fe₄O₁₀ O10-type structure becomes unstable.

Although Y, Sm, and Bi are all in 3+ oxidation states, mullite-type structure is found only for R = Bi compounds at high Fe concentrations, indicating Bi mullite-type compounds have lower structural destabilization with increasing Fe substitution compared to other R-site compounds. In order to understand this phenomenon, we considered the R-site contribution to the electronic structure. In Fig. 7a & b, the projected-DOS of Bi in stable O10 and O9-type structures, respectively are illustrated. Significant sp orbital hybridization for Bi is observed in O9-type (Fig. 7b) near the Fermi level. Bi–O sp-antibonding states near the Fermi surface hybridizing with Bi p-electrons help stabilize the crystal structure.⁴¹ Such hybridization is only limited to near the Fermi level in the O10-type structures (Fig. 7a) due to the high oxidation state of Bi in the local crystal fields. In contrast, due to the shift of p and s orbitals towards the Fermi level in the DOS, more p-electron contribution is found in the hybridization below the Fermi surface in the O9-type structure (Fig. 7b). This is shown by the almost identical and overlapping s and p orbitals right below the Fermi level. As shown in Fig. 7c, we find that excessive p-electrons promote sp hybridization, which further stabilize Bi orbital energy. The outcome of the enhanced sp hybridization is shown to be the directional polarization of Bi electrons (Fig. 7d). In this case, a repulsive force between the Bi atoms could be introduced, thus maintaining the structure's framework along the ab-plane. The polarization resulted in elongation of the crystal lattice in a–b direction (Bi–Bi length was prolonged from 0.37 nm to 0.42 nm) further facilitate Fe forming MO₄ tetrahedral polyhedral without any distortion.

Fig. 7 Projected-DOS of Bi in (a) Bi₂Mn₄O₁₀ (O10) and (b) Bi₂Fe₄O₉ (O9). (c) Scheme of Bi–O bonding orbital energy levels in O10 (left) and O9-type (right) structures. (d) Projected charge distribution of sp-hybridization in O10 and O9-type structures (the two-charge distribution are drawn in the same isosurface for detailed comparison). (e) Projected-DOS for R = Y and Sm in R₂Mn₄O₁₀ (as a representative of O10-type structures) and R₂Fe₄O₉ (as a representative of O9-type structures). Each figure is labelled according to the species and its corresponding structures.

Unlike Bi, electronic structures of Sm and Y compounds (Fig. 7e) show that the extra charge from the O10 to O9-type transition would fill up 4d orbital in Y and the 4f orbital in Sm. These orbitals are compact and do not hybridize, thus failing to form the necessary directional polarization that is required to maintain a stable structure. Hence, Y and Sm cannot form stable O9-type phase while Bi can. Since O10-type is unstable due to the Jahn–Teller distortion of Fe⁴⁺ at high Fe content and no sp hybridization exists to stabilize the O9-type structure, compounds with R = Y or rare earth elements do not form mullite-type structures at these temperatures.

4.4.3. Thermal stability. The effect of R-site elements on the thermal stability of mullite-type compounds is further examined by calculating the decomposition temperature as a function of Fe. For R = Y (Fig. 8a, blue open circles), Sm (Fig. 8b, red open squares), and Bi (Fig. 8c, black open triangles) O10-type show similar trend where the decomposition temperature decreases with increase in Fe concentration. For example, Bi₂Mn₂Fe₂O_10−δ has lower decomposition temperature compared to Bi₂Mn₄O₁₀ (1150 K vs. 1213 K) in agreement with experimental result (1142 K vs. 1217 K) as shown in Fig. 8c (black solid triangle). However, simulations reveal that different R-site elements yield different decomposition temperature for the same amount of Fe in the structure. For example, at x = 0.5, the stable temperature limit for Y and Sm is predicted to be 1358 K (Fig. 8a, blue open circle) and 1346 K (Fig. 8b, red open square), respectively. Experimentally, the compound with R = Y and equal Fe and Mn in the reactants (although not pure mullite-type phase) is found to be thermally stable up to 1358 K and decomposes primarily to YFeO₃ along with Y₂O₃, Fe₂O₃, and Mn₃O₄ secondary phases (Fig. S6a & b, ESI†). On the other hand, Bi has a lower thermal stability of 1150 K (Fig. 8c, black open triangle) when compared to Y and Sm for the same amount of Fe (50%), which is consistent with the experimental result (Fig. 8c, black solid triangle).

Fig. 8 Simulated decomposition temperature as a function of Fe for (a) R = Y O10 (blue open circles) and O9-type (blue open dumbbells). (b) R = Sm O10 (red open squares) and O9-type (red open pentagons). (c) R = Bi O10 (black open triangles) and O9-type (black open diamonds); experimental O10 (black solid triangles) and O9-type (black solid diamond) are shown. Pink dashed line indicates the calcination temperature employed. (d) Thermal stability diagram of Bi₂Fe₄O₉ showing the stable region and decomposition temperature. Yellow solid circle represents the decomposing products corresponding to BiFeO₃ (black), Bi₂O₃ (red), and Fe₂O₃ (blue) at 1230 K.

As we further increase the Fe concentration (x ≥ 0.6), the decomposition temperature of O10-type structure falls below the calcination temperature (Fig. 8a–c, pink dashed line). Consequently, the O10-type structure cannot be formed for all R-site elements studied in this report. Thus, combined experimental and theoretical results show that the thermal stability of O10-type structures decreases with increasing Fe concentration. With respect to the calcination temperature used in this report (1073 K), the substitution limit for Fe in R = Y and Sm O10-type compounds are predicted to be x ≤ 0.6. However, simulation predicts O10 structures, if formed, to have higher thermal stability for Y and Sm than Bi compound.

Considering the thermal stability of O9-type structures, Y (Fig. 8a, blue open dumbbells) and Sm (Fig. 8b, red open pentagons) are found to be thermodynamically unstable for all Fe/Mn ratios. On the other hand, Bi O9-type is calculated to have a distinct decomposition temperature in Fe rich structures (Fig. 8c, black open diamonds). The decomposition temperature is found to increase with Fe concentration, but for x < 1, the decomposition temperature is below the calcination temperature (Fig. 8c, pink line), hence unable to form O9-type structure. The decomposition temperature for Bi₂Fe₄O₉ (at x = 1) is calculated to be 1230 K, which is higher than Bi₂Mn₂Fe₂O_10−δ (1150 K) and in good agreement with the experimental result.

Fig. 8d shows the change in total energy as a function of temperature for Bi₂Fe₄O₉. The solid lines define the boundaries where precipitation of the compound begins under the simulated Bi₂Fe₄O₉ calcination conditions. The blue shaded region (Fig. 8d) represents the phase space where Bi₂Fe₄O₉ is stable in the system. The upper limit of the stable region is confined by Fe₂O₃ (Fig. 8d, blue line) while the lower limit is governed by Bi₂O₃ (Fig. 8d, red line) and BiFeO₃ (Fig. 8d, black line) phases. The temperature at which BiFeO₃, Bi₂O₃, and Fe₂O₃ converge defines the limit of the Bi₂Fe₄O₉ stable region, predicted to be 1230 K (Fig. 8d, yellow circle), in agreement with the experimental value of 1227 K. Further increasing the temperature will result in decomposition to BiFeO₃, Bi₂O₃, and Fe₂O₃ phases, as in the experimental decomposition products (Fig. 5d, red).

Since the formation enthalpy of Bi₂Fe₄O₉ is ∼0.6 eV higher than that of Bi₂Mn₄O₁₀ (Fig. 6), one would expect the decomposition temperature of Bi₂Fe₄O₉ to be much lower than that of Bi₂Mn₄O₁₀. Examining the stereochemical activity of Bi lone electron pair also lead to the same conclusion.⁴² In contrast, experimentally we observed the reverse, 1227 K for Bi₂Fe₄O₉ vs. 1217 K for Bi₂Mn₄O₁₀. The reason is that the decomposition products of Bi₂Fe₄O₉ are also less stable than those for Bi₂Mn₄O₁₀, with 0.8 eV per formula unit higher energy. In addition, examining the stability of oxygen vacancies in Fe₂O_3, Bi₂O₃, and BiFeO₃, we find that these oxygen deficient phases are more stable than their stoichiometric oxides. More oxygen vacancies are expected in Bi₂O₃ because its formation enthalpy only increases by 0.58 eV per unit cell for one oxygen vacancy, vs. 2.78 eV and 2.97 eV increase in the formation enthalpy for one oxygen vacancy in Fe₂O₃ and BiFeO₃, respectively. Oxygen vacancy formation in the decomposition products could explain the observed non-zero weight loss during the decomposition of Bi₂Fe₄O₉ (Fig. 5c, black), although we cannot rule out the vaporization of Bi₂O₃. In Fig. 8d, both Fe₂O₃ and Bi₂O₃ were plotted with small vacancy amounts as required to cause decomposition. After taking into account everything discussed above, we calculated Bi₂Fe₄O₉ to have a higher decomposition temperature than Bi₂Mn₄O₁₀ (1230 K vs. 1213 K), as borne out by experiments.

5. Conclusions

In summary, we investigated R-site dependent phase formation and thermal stability of R₂(Mn_1−xFe_x)₄O_10−δ compounds. For the Mn compounds, Y, Sm, and Bi analogues are found to form pure O10 mullite-type phase with an orthorhombic unit cell. However, with 50% Fe and 50% Mn in the reactants, only 55% and 18% of the products when R = Y and Sm consists of (Y, Sm)₂Mn₂Fe₂O_10−δ mullite-type phase, respectively, whereas Bi forms a mixed phase of O10-(Bi₂Mn₂Fe₂O_10−δ, 54%) and O9-(Bi₂Fe₄O₉, 42%) type structures. Furthermore, when the reactants contain 100% Fe, the mullite-type structure completely destabilizes for Y and Sm, but a sub-group transition to Bi₂Fe₄O₉ (O9) phase is found for R = Bi. From XPS, we determine that the Mn and Fe exists in 4+ and 3+ oxidation states in Bi₂Mn₂Fe₂O_10−δ, respectively, indicating Mn⁴⁺ and Fe³⁺ are ordered in 4f octahedra and 4h square pyramids. While in Bi₂Fe₄O₉, only Fe³⁺ is found, consistent with Fe⁴⁺ destabilizing O10-type structure. The thermal stability shows a decreasing decomposition temperature with increasing Fe concentration in O10-type structures (1142 K for Bi₂Mn₂Fe₂O_10−δ vs. 1217 K for Bi₂Mn₄O₁₀) while Bi₂Fe₄O₉ is found to decompose at the highest temperature (1227 K). Our DFT simulation confirms distinctly different phase behaviors among R = Y, Sm, and Bi compounds as observed experimentally and predicts Fe substitution limits for R = Y and Sm for the formation of mullite-type structure to be x < 0.6. The R-site dependent phase behaviors arise from the combination of unstable Fe⁴⁺ Jahn–Teller distortion in MO₆ octahedra and orbital hybridization of R-site element. While Fe inevitably destabilizes the O10-type structure with increasing Fe concentration, we find that the directional sp orbital hybridization in Bi effectively stabilizes the O9 mullite-type structure. Y and rare earth elements do not have sp hybridization, and hence are unable to form O9-type structure. Our work provides a fundamental understanding for the unique phase behavior of Bi Mn–Fe mullite-type compounds previously reported in the literature without explanation.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We thank J. M. Kweun, M. Cho, Y. Y. Kim for helpful discussions at the initial stage of this research. This work was funded in part by a grant (AT-1843) from the Welch Foundation and a funding from International Energy Joint R & D Program (No. 20168510011350) of the Korea Institute of Energy Technology Evaluation and Planning (KETEP) grant funded by the Ministry of Knowledge Economy. J. Y. C acknowledges NSF-DMR #1700030 for partial support. J. W. P. H acknowledges the Texas Instruments Distinguished Chair in Nanoelectronics.
