The structure and properties of Co substituted Bi₇Ti₄NbO₂₁ with intergrowth phases

Abstract

Multiferroic complex oxides with intergrowth aurivillius phases are gaining more and more attention due to the potential to greatly adjust their ferroelectricity (FE) and ferromagnetism (FM) using non-integer layer numbers. In this work, the 2 + 3 aurivillius intergrowth phases of Bi₇Ti_4−2xCo_xNb_1+xO₂₁ were successfully synthesized via a solid reaction method. X-ray diffraction (XRD) and high angle annular dark field scanning transmission electron microscopy (HAADF-STEM) analyses clearly demonstrated that Co substituted Bi₇Ti_4−2xCo_xNb_1+xO₂₁ keeps an intergrowth phase structure when x ≤ 0.3. A new analysis method that maps the linear brightness in HAADF images was used to give the clear Bi atom position, and this revealed that the lattice shrinkage in the c direction caused by Co substitution mainly occurred at the (BiTiNbO₇)²⁻ block in the (Bi₃TiNbO₉) layer, which was also confirmed by an investigation using Raman spectroscopy. Polarization–electric field (P–E) investigations and pulsed polarization positive-up negative-down (PUND) measurements indicated that Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0.1, 0.2, and 0.3) presents much enhanced properties compared with non-substituted Bi₇Ti₄NbO₂₁. For example, 2E_c = 135.23 kV cm⁻¹ and 2P_r = 9.33 μC cm⁻² can be achieved when x = 0.3. Also with Co substitution, Bi₇Ti₄NbO₂₁ changed from diamagnetic (χ < 0) to paramagnetic (χ ≈ 7 × 10⁻⁵). The calculated effective magnetic moments in the Bi₇Ti_4−2xCo_xNb_1+xO₂₁ samples have similar values, suggesting that the cobalt atoms in the materials have almost the same efficient moment.

---

Introduction

Ferroelectric and/or ferromagnetic co-existing layered bismuth complex oxides with an aurivillius structure (LBOA) have recently been attracting considerable interest because of their amazing layered crystalline structures, valuable coupled physical properties, and potential applications in multiple-state storage, transducers, amplitude modulators, and optical wave devices.^1–9 Normally, the crystalline structures of LBOAs can be generally formulated as (Bi₂O₂)²⁺ (A_m−1B_mO_3m+1)²⁻ in which the (Bi₂O₂)²⁺ fluorite-type layers alternate with (A_m−1B_mO_3m+1)²⁻ perovskite slabs, where A is a mono-, di-, or tri-valent ion, such as Na⁺, K⁺, Pb²⁺, Ba²⁺, Sr²⁺, Bi³⁺, or a mixture of them; B represents a small sized cation with tetra-, penta-, or hexa-valence, such as Ti⁴⁺, Nb⁵⁺, Ta⁵⁺, or W⁶⁺; and m, usually an integer, is the number of mono-octahedral layers between the (Bi₂O₂)²⁺ layers.¹⁰ As their crystalline structures, chemical stability, as well as dielectric and ferroelectric properties can be affected by m, the intergrowth of LBOA compounds with two constituent structures (generally m and m + 1) alternating along the common c-axis, such as Bi₂WO₆–Bi₃TiNbO₉, Bi₃TiNbO₉–Bi₄Ti₃O₁₂, and Bi₄Ti₃O₁₂–Bi₅Ti₃FeO₁₅,^10–19 was designed and synthesized to enable further tailoring of their properties. It is generally believed that these compounds with intergrowth aurivillius phases show better properties compared with non-intergrowth LBOAs. For example, the remanent polarization (2P_r) of Bi₃TiNbO₉–Bi₄Ti₃O₁₂ is ∼20.1 μC cm⁻² at 423 K, much larger than the values of Bi₃TiNbO₉ (∼11 μC cm⁻²) and Bi₄Ti₃O₁₂ (∼16 μC cm⁻²).¹⁰ In general, the majority of such materials investigated before were ferroelectric.

In the ferroelectric Bi₃TiNbO₉–Bi₄Ti₃O₁₂ (Bi₇Ti₄NbO₂₁) system shown in Fig. 1, for example, 3-layered (Bi₂Ti₃O₁₀)²⁻ and 2-layered (BiTiNbO₇)²⁻ arrange alternately between the neighbouring (Bi₂O₂)²⁺ layers. The theoretical and property studies of these amazing structures of Bi₇Ti₄NbO₂₁ have attracted much attention.^10,12 Moreover, to intensively modulate the properties of Bi₇Ti₄NbO₂₁, many types of A-site substitution, such as La, W, Er and Na, were adapted, and the properties of some of these were obviously improved.^{12,14,16,18,19} Unfortunately, although it may trigger another regulating factor in the properties, substituting the magnetic ions in the B-sites to generate a multiferroic has rarely been studied in the intergrowth of Bi₇Ti₄NbO₂₁.

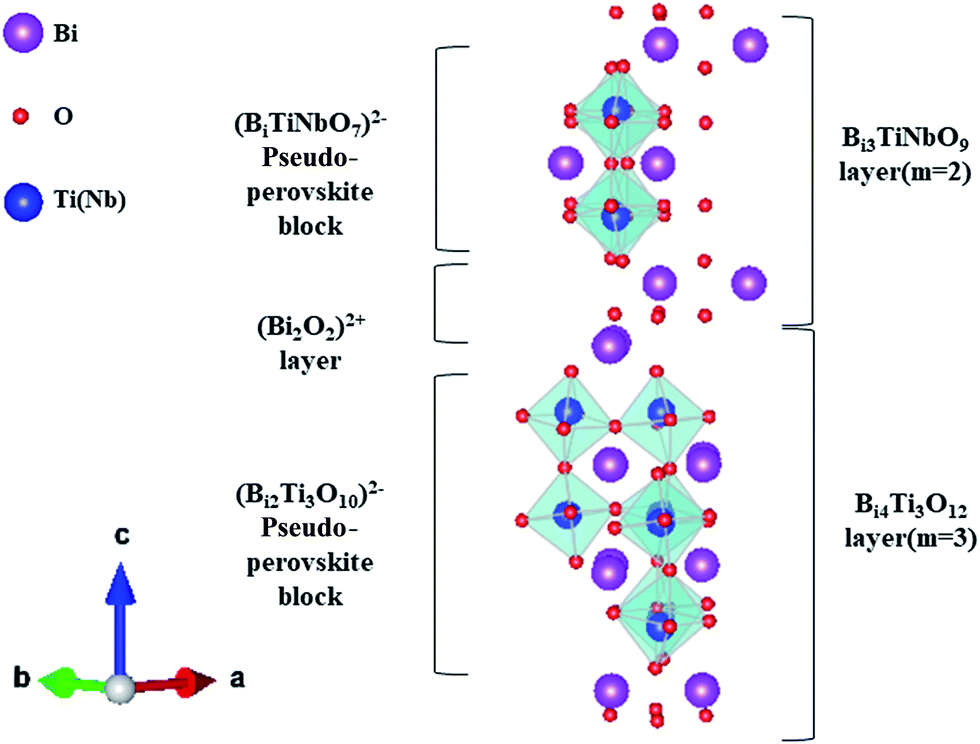

Fig. 1 A schematic representation of the crystalline structure of Bi₇Ti₄NbO₂₁.

In this work, Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0, 0.1, 0.2, 0.3, and 0.4) specimens were successfully synthesized via a solid state reaction. The amounts of the Ti and Nb ions changed simultaneously with Co substitution to keep the charge balance. The effect of Co substitution on the structure of Bi₇Ti_4−2xCo_xNb_1+xO₂₁ was investigated in detail, and the ferroelectric and ferromagnetic properties of Bi₇Ti_4−2xCo_xNb_1+xO₂₁ were also studied as functions of the Co content.

Experimental section

Polycrystalline Co-substituted Bi₇Ti₄NbO₂₁ powders were prepared via a conventional solid-state reaction. Appropriate amounts of Bi₂O₃ (99.99% purity, Jiangsu Gold Wall Reagent Co., China), TiO₂ (99.71% purity, Sinopharm Chemical Reagent Co., China), Nb₂O₅ (99.5% purity, Sinapharm Chemical Reagent Co., China), and Co₂O₃ (99.98% purity, Jiangsu Gold Wall Reagent Co., China) were mixed in an agate jar, blending with agate balls for more than 24 hours in ethanol. An excess of 5 mol% Bi₂O₃ was used to compensate for the volatilization of bismuth oxide during the calcination process. After drying at 70 °C for 24 h, the milled powders were heated at 900 °C for 7 h. To fabricate ceramic pellets, the Bi₇Ti₄NbO₂₁ powders were cold-pressed into disks that were 12 mm in diameter and 0.9 mm thick at a pressure of 150 MPa, and then sintered at 1180 °C for 4 h in air to prepare dense Bi₇Ti_4−2xCo_xNb_1+xO₂₁ ceramics.

The crystalline structures of the Bi₇Ti_4−2xCo_xNb_1+xO₂₁ samples were investigated using powder X-ray diffraction (XRD) with Cu-Kα radiation (TTR-III, Japan). The atomic structures of the samples were visualized using high angle annular dark field aberration corrected scanning transmission electron microscopy (HAADF-STEM, JEM-ARM200F, JEOL, Japan). The microstructures of the fractured samples were observed using scanning electron microscopy (SEM) (JEOL, JSM-6400). Raman spectra were obtained with a SPEX-1403 Laser Raman spectrometer using a 514.5 nm Ar+ laser as an excitation source (LabRamHR, France). For the ferroelectric and dielectric measurements, the pellets were polished to about 0.3 mm in thickness, and then Ag was evaporated on both of the surfaces, which would act as electrodes. Ferroelectric measurements were conducted using a Precision LC ferroelectric analyzer at an applied frequency of 50 Hz (Radiant Technology, USA). The magnetic properties of the samples were characterized by a vibrating sample magnetometer option of the Quantum Design physical property measurement system (PPMS-VSM, Quantum Design, USA).

Results and discussion

XRD and HAADF-STEM

Fig. 2(a) shows the room-temperature XRD patterns of the Bi₇Ti_4−2xNb_1+xCo_xO₂₁ (x = 0, 0.1, 0.2, 0.3, and 0.4) pellets sintered at 1180 °C. When x ≤ 0.3, all the XRD diffraction peaks match well to those of Bi₇Ti₄NbO₂₁with a space group symmetry of I2cm,¹⁰ indicating that no secondary phase was detected, whereas the Bi₃TiNbO₉ phase precipitated when x was set as 0.4. Therefore, in this work, to eliminate the effects from impurities, the properties of Bi₇Ti_4−2xNb_1+xCo_xO₂₁ (BTNC) were studied when x ≤ 0.3.

Fig. 2 (a) The RT XRD patterns of Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0, 0.1, 0.2, 0.3, and 0.4). (b) The magnified sections of the XRD patterns in the 2θ range of 28.5–31.0°. (c) The refined lattice parameters vs. the Co content in Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0, 0.1, 0.2, and 0.3). (d) The XRD patterns of the Bi₇Ti_3.6Co_0.2Nb_1.2O₂₁ powders calcined at different temperatures.

Enlarged views of the XRD spectra near the main peak (018) are shown in Fig. 2(b) for the BTNC samples (x ≤ 0.3). It can be clearly seen that the main peak shifts toward the higher angle when increasing the Co content, indicating the reduced lattice parameter c. Rietveld refinements of the XRD patterns were performed with the Material Studio 6.0 program and the refined cell parameters are listed in Table 1 and also shown in Fig. 2(c) as a function of the Co content. It can be clearly seen that all the lattice parameters reduce with an increase of the Co content. Considering the ionic radii of Co³⁺ (54.5 pm), Nb⁵⁺ (64.0 pm) and Ti⁴⁺ (60.5 pm), the shrinkage of the lattice parameters should result from the smaller average radius of Co³⁺ and Nb⁵⁺ (59.25 pm), which are substituted as a pair to keep the charge balance.

Table 1 The refined lattice parameters of Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0, 0.1, 0.2, and 0.3)

x	Lattice parameter (Å)			Unit cell volume (Å^3)	Rwp	Rp
	a	b	c
0	5.4408 (3)	5.4076 (7)	57.9292 (31)	1704.40 (71)	8.26%	15.35%
0.1	5.4309 (8)	5.3964 (1)	57.7439 (70)	1692.34 (91)	8.78%	18.44%
0.2	5.4224 (7)	5.3852 (1)	57.6039 (00)	1682.10 (20)	9.64%	19.91%
0.3	5.4098 (7)	5.3798 (9)	57.5475 (79)	1680.71 (60)	9.43%	18.37%
Bi3TiNbO9 (ref. 20)	5.4394	5.3985	25.13
Bi4Ti3O12 (ref. 16)	5.45	5.41	32.84

---

To illustrate the formation process for its 2 + 3 intergrowth structure, the crystalline structures of Bi₇Ti_3.6Co_0.2Nb_1.2O₂₁ powders calcined at different temperatures were also investigated. As shown in Fig. 2(d), when calcined at 900 °C, the spectra corresponding to Bi₃TiNbO₉, Bi₄Ti₃O₁₂ and Bi₇Ti₄NbO₂₁ based oxides can be clearly identified. With the enhancement of the calcination temperatures, the peaks corresponding to Bi₃TiNbO₉ and Bi₄Ti₃O₁₂ recede and become invisible when calcined at 1180 °C, suggesting that Bi₃TiNbO₉ and Bi₄Ti₃O₁₂ based oxides react to form Bi₇Ti₄NbO₂₁ based complex oxides. It should be noted that the detailed formation procedure for how Bi₃TiNbO₉ inserts into the Bi₄Ti₃O₁₂ lattice (or inverse) to form Co substituted Bi₇Ti₄NbO₂₁ is still unclear and needs intensive investigation.

The HAADF-STEM images of the Bi₇Ti_4−2xCo_xNb_1+xO₂₁ powders (x = 0 and 0.2) are shown in Fig. 3. It is well known that the brightness of the atoms in the HAADF-STEM images depends on the atomic number. Therefore, the spots representing the Bi atoms are much brighter than those representing all the other atoms. As shown in Fig. 3(a), 2 and 3 layers of the Bi atoms (bright spots) are sandwiched by two closely stacked Bi layers, which present in an orderly and alternating manner, indicating the intergrowth of the two pseudo-perovskite blocks (as indicated in Fig. 1).

Fig. 3 (a) The HAADF-STEM image of the Bi₇Ti_3.6Nb_1.2xCo_0.2O₂₁ ceramic specimen; (b) the STEM image of the Bi₇Ti₄NbO₂₁ (x = 0) sample along with its brightness map scanned at lines 1 and 2; (c) the STEM image of the Bi₇Ti_3.6Nb_1.2xCo_0.2O₂₁ (x = 0.2) sample and its brightness map scanned at lines 1 and 2.

To indicate the substitution effect on the atomic structure, enlarged views of the HAADF-STEM images for the x = 0 and x = 0.2 samples are shown in Fig. 3(b) and (c), respectively.³³ To this end, a new method to map the brightness scanned along two lines (indicated in the images) is applied to give the clear Bi atom positions. Shown in Fig. 3(b), line 1 (along the c direction) in the Bi₇Ti₄NbO₂₁ sample starts from the Bi atom in the (Bi₂O₂)²⁺ layer and passes through the Bi atoms in the (Bi₂Ti₃O₁₀)²⁻ block (indicated in Fig. 1); yet, when entering the neighbouring (Bi₂O₂)²⁺ layer, line 1 goes between the two adjacent Bi ions caused by the shifted position of Bi in the [Bi₂O₂]²⁺ layer, which makes line 1 pass through the dark spots corresponding to the B site ions, such as Ti, Nb, and Co atoms, in the following (BiTiNbO₇)²⁻ block, and therefore, the brightness corresponding to line 1 presents 4 strong peaks and then two weak peaks. It should be noted that the two Bi ions in [Bi₂O₂]²⁺ only present one peak with a small tail caused by the shifted position of the neighbouring Bi ions. From the peak position along the line, the layer distance in each block can be calculated as c/2 ≈ 2.899 nm, very close to the simulated value of c (c/2 = 5.79292/2 ≈ 2.8965 nm). Importantly, the Bi–Bi distance in the Bi₄Ti₃O₁₂ layer is found to show great dependence on the positions, suggesting different lengths of the oxygen octahedral along the c direction. As shown in Fig. 3(b), the lengths of the oxygen octahedral are about 0.471 when located close to the (Bi₂O₂)²⁺ layer and 0.422 nm when located in the centre of the (Bi₂Ti₃O₁₀)²⁻ block.

Similarly, line 2 starts from the (Bi₂O₂)²⁺ layer and goes between the Bi atoms in the (Bi₂Ti₃O₁₀)²⁻ block and passing through the Bi atoms in the neighbouring (Bi₂Ti₃O₁₀)²⁻ block caused position shifts of Bi³⁺ in the (Bi₂O₂)²⁺ layer. Accordingly, the brightness of line 2 presents four weak peaks at first and then three strong peaks. Therefore, the Bi–Bi distance in the c axis can be measured as 0.509 nm in the (BiTiNbO₇)²⁻ block, indicating a much longer oxygen octahedral along the c direction than that in the (Bi₂Ti₃O₁₀)²⁻ block.

While for Bi₇Ti_3.6Co_0.2Nb_1.2O₂₁, the Bi–Bi distances in the c axis can be measured as 0.487 nm in the (BiTiNbO₇)²⁻ based block and 0.470 and 0.432 nm in the (Bi₂Ti₃O₁₀)²⁻ based block, respectively, illustrated in Fig. 3(c). Compared to Bi₇Ti₄NbO₂₁, the main change in the Bi–Bi distance occurs in the (BiTiNbO₇)²⁻ block, shrinking from 0.509 to 0.487 nm. This result seems to imply that Co with an ionic radius of 54.5 pm mainly incorporates into the (BiTiNbO₇)²⁻ block. One thing to be noted is that the value of c/2 measured in Fig. 3(c) is 2.883 nm for Bi₇Ti_3.6Co_0.2Nb_1.2O₂₁, very close to that simulated from the XRD spectra (c/2 ≈ 2.8802 nm). This result further indicates the credibility of this brightness map method.

Raman analysis

Raman spectroscopy was used to investigate the Co substitution effect on the structure of Bi₇Ti₄NbO₂₁. As shown in Fig. 4, for Bi₇Ti₄NbO₂₁ (x = 0), the Raman modes at 117, 234, 267, 323, 356, 530, 573, 815 and 865 cm⁻¹ can be clearly observed. Previous studies^11,21,31,32 indicated that the bands below 200 cm⁻¹ should originate from the vibration of the heavy mass Bi³⁺ ions, and the bands above 200 cm⁻¹ are ascribed to the TiO₆ and NbO₆ octahedrals.^23,29 Therefore, the 117 cm⁻¹ bands should result from the vibration of the Bi³⁺ ions at the A-sites in the perovskite-like layer;²³the modes at 234 and 267 cm⁻¹ represent the twisting vibrations of the O–Ti–O or O–(Ti, Nb)–O structures; the 323 and 356 cm⁻¹ modes correspond to the different directions of the O–Ti–O or O–(Ti, Nb)–O bending in the a–b plane;^24,28 the modes located at 530 and 573 cm^{−1 21} are attributed to the relative vibration of the O atoms at the top of the TiO₆ octahedral; and the bands at 815 and 865 cm⁻¹ represent the symmetric stretching of the (Ti, Nb)O₆ and TiO₆ octahedrals, respectively.^{11,24,28–30}

Fig. 4 The Raman spectra of Bi₇Ti_4−2xCo_xNb_1+xO₂₁.

For the Co-doped specimens, the Raman spectra have similar shapes to that of Bi₇Ti₄NbO₂₁, of which the original peaks still exist in spite of the little peak shifts or intensity changes. A new mode at 726 cm⁻¹ appears and increases substantially with the increase of the Co content in the Bi₇Ti_4−2xCo_xNb_1+xO₂₁ samples. This mode may be caused by the vibration of the CoO₆ octahedra, which can be observed in the Raman spectra of LaCoO₃ and La_0.8Sr_0.2CoO_3. This result clearly indicates that the Co ions have entered the perovskite slab.²² It should also be noted that the two modes above 800 cm⁻¹ show different dependence on the Co substitution: the mode at 815 cm⁻¹ shifts to higher frequency, while the mode at 865 cm⁻¹ does not shift obviously. This result may suggest that cobalt substitution in the specimens mainly impacts the (Ti, Nb)O₆ octahedral in the [Bi₃TiNbO₉] layer instead of the TiO₆ octahedral in the Bi₄Ti₃O₁₂ lattice. This result is in good agreement with the HAADF-STEM image analysis.

The SEM results of Bi₇Ti_4−2xNb_1+xCo_xO₂₁ (x = 0, 0.1, 0.2, and 0.3) are shown in Fig. 5. It can clearly be seen that all the samples are dense and suitable for later ferroelectric and ferromagnetic study.

Fig. 5 The fractured microstructure of Bi₇Ti_4−2xNb_1+xCo_xO₂₁ with (a) x = 0, (b) x = 0.1, (c) x = 0.2, and (d) x = 0.3.

Ferroelectric properties

The room-temperature polarization–electric field (P–E) hysteresis loops of all the Bi₇Ti_4−2xCo_xNb_1+xO₂₁ samples are shown in Fig. 6(a), and the resulting remanent polarization (2P_r) and coercive field (2E_c) measured under a field of 150 kV cm⁻¹ are shown in Fig. 6(b) as a function of the Co content (x) in the samples.

Fig. 6 (a) The P–E hysteresis loops of Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0, 0.1, 0.2, and 0.3) at 150 kV cm⁻¹; (b) the dependence of 2E_c and 2P_r on the Co content (x); and ΔP (c) and 2P_r (d) of Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0, 0.1, 0.2, and 0.3) measured in different electrical fields.

Measured at 150 kV cm⁻¹, the remanent polarization (2P_r) of x = 0 is ∼2.57 μC cm⁻², which has good consistency with the previous report.³⁴ As shown in Fig. 6(b), with the increase of the Co content, both 2P_r and the coercive fields (2E_c) increase sharply first, then slowly, and reach about 9.33 μC cm⁻² and 135.23 kV cm⁻¹ for x = 0.3, larger than those of Bi_5.5Nd_1.5Ti₄NbO₂₁ (2P_r ∼ 8 μC cm⁻² and 2E_c ∼ 90 kV cm⁻¹).³⁴

To exclude a possible artificial polarization from the contribution of leakage current, pulsed polarization positive-up negative-down (PUND) measurements were performed and the results are shown in Fig. 6(c). The pulsed remanent polarizations ΔP (switched polarization − non-switched polarization) of the samples have similar Co-content (x) dependence with 2P_r determined from the P–E loops (shown in Fig. 6(d)). Measured at 150 kV cm⁻¹, the values of ΔP are 2.42 and 6.98 μC cm⁻² for x = 0 and x = 0.2, respectively, in good accordance with those values of 2P_r. This result indicates that the polarization of the samples arises mainly from the intrinsic materials and rarely from leakage current contributions.^25,26 As a result of this, the increase of the 2P_r value with cobalt incorporation should be attributed to the structural evolution (lattice shrinkage). As indicated in Table 1, with Co substitution in Bi₃TiNbO₉–Bi₄Ti₃O₁₂, the lattice of Bi₇Ti_4−2xNb_1+xCo_xO₂₁ shrinks greatly, to have much lower lattice parameters than those of pure Bi₃TiNbO₉ (ref. 20) and Bi₄Ti₃O₁₂.¹⁶ Considering that Co is mainly incorporated into the (Bi₃TiNbO₉) layer, a large amount of tension will be applied to the (Bi₄Ti₃O₁₂) layer to make the lattice shrink accordingly. This will introduce large lattice distortion and should be the main reason for the observed enlarged values of P_r and E_c in the ferroelectric measurements.

Magnetic properties

Fig. 7(a) shows the magnetic hysteresis loops of the Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0, 0.1, 0.2, 0.3) ceramics measured at 10 K. When x = 0, a diamagnetism characteristic is observed; while in the case of the Co-doped specimens, the loops show magnetic nature, which increases with the Co content. The temperature dependence of magnetization for the Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0, 0.1, 0.2, and 0.3) samples is shown in Fig. 7(b). It can be clearly seen that the magnetic moment increased with the heavily Co doped samples. There was no phase transition or glass state appearing within the measured temperature range.

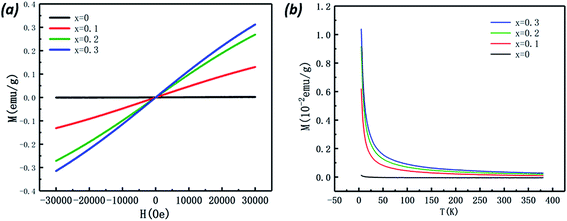

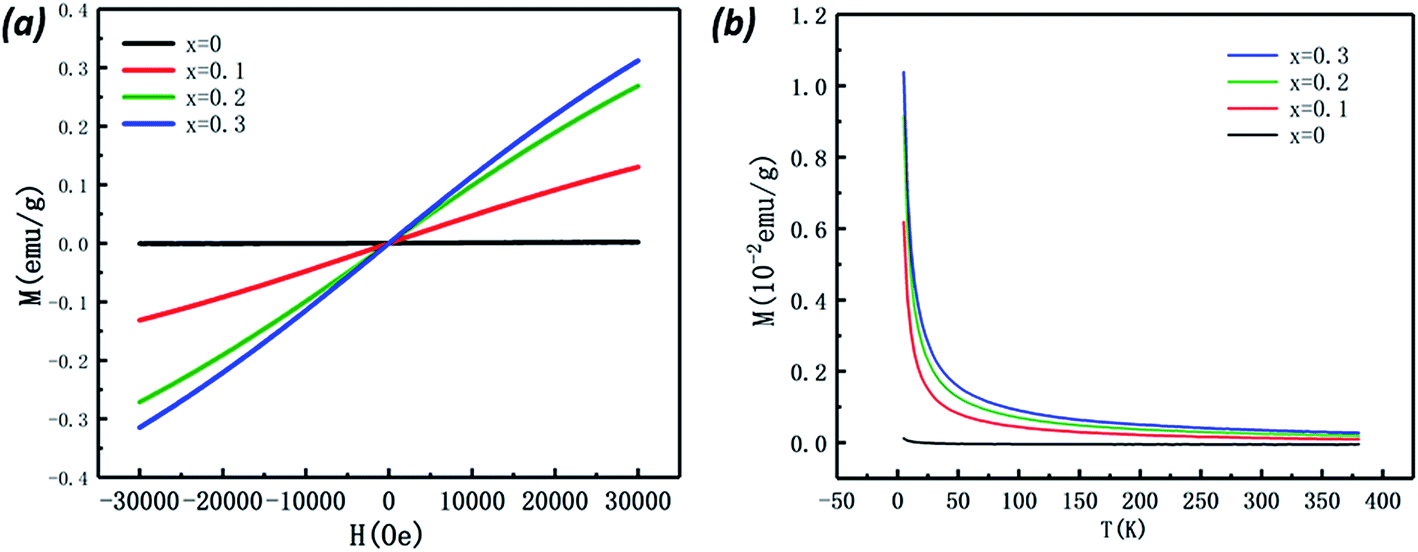

Fig. 7 (a) The magnetic hysteresis loops of the Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0, 0.1, 0.2, and 0.3) ceramics at 10 K. (b) The temperature dependence of magnetization of the samples in the ZFC–FC modes measured at 500 Oe.

To get more information about the magnetic properties of the Co-doped specimens, we use the Curie–Weiss law to explore the magnetic interaction and effective magnetic moment (M_eff) of the samples.^25–27 According to the Curie–Weiss law, the magnetic susceptibility (χ) of a paramagnetic substance complies with the following formula (1):

where χ, c, T, and Θ_c represent the magnetic susceptibility, Curie–Weiss constant (c > 0), temperature and Curie point, respectively. So, the values of 1/χ and T have a linear relationship, shown in eqn (2). We fit the 1/χ–T curves of all the samples, as shown in Fig. 7, and then the slope (1/c) can be calculated from the linear dependence about 1/χ and T. The Curie–Weiss constant (c) can also be regarded as a function of the spin angular momentum (S), as shown in eqn (3).where empirical constant g = 2; μ_B and k_B indicate the Bohr magnon and Boltzmann constants, respectively; and N indicates the number of cobalt atoms in each cell (N = 0.1, 0.2, and 0.3).

The effective magnetic moment is the function of the spin angular momentum and therefore can be related to the Curie–Weiss constant, as shown in eqn (4):

According to Fig. 8 the effective magnetic moment can be calculated as 1.12 μ_B, 1.12 μ_B, and 1.14 μ_B in the x = 0.1, 0.2, and 0.3 specimens, respectively. The similar M_eff values suggest that the cobalt atoms in the materials have almost the same efficient moment in those samples.

Fig. 8 The temperature dependence of magnetization of Bi₇Ti_4−2xCo_xNb_1+xO₂₁ with x = 0.1 (a), 0.2 (b), and 0.3 (c) measured in the FC modes at 500 Oe. The relevant inverse magnetic susceptibility (1/χ) versus temperature (T) in the FC mode and the fitted curves (blue line) according to the Curie–Weiss Law for the sample are also present.

Conclusions

(1) Co atoms can be a substitution for Ti atoms in the Bi₇Ti₄NbO₂₁ lattice without destroying the structure.

(2) Because of the different radii of the Co, Nb and Ti ions, the lattice of the 2 + 3 intergrowth aurivillius complex oxide shrinks after Co insertion, which mainly occurs in the (BiTiNbO₇)²⁻ slab.

(3) The ferroelectric properties of Co substituted Bi₇Ti₄NbO₂₁ improve dramatically, with 2P_r increasing from 2.57 μC cm⁻² (x = 0) to more than 9.33 μC cm⁻² (x = 0.3).

(4) The original Bi₇TI₄NbO₂₁ was a diamagnetic compound. With Co substitution, Bi₇Ti_4−2xCo_xNb_1+xO₂₁ (x = 0.1, 0.2, and 0.3) presents paramagnetic property.
