The recycle of red mud as excellent SCR catalyst for removal of NO_x

Abstract

The development of new routes for the utilization of red mud (RM) waste is very urgent due to its huge accumulation and potential environmental harm. By taking advantage of its Fe–Al–Si–Ti composition and excellent plasticity, we developed a ball milling and acid–base neutralization method to reuse the RM waste as Fe-based denitration catalysts. The resulting RM catalysts demonstrate excellent catalytic activity and stability with >90% NO conversion above 400 °C in the presence of SO₂ and H₂O, which is even much better than that of a commercial V–W–Ti catalyst. Characterization data reveal that our treatment eliminates poisonous alkaline metal elements and increases dispersion of RM particles, making the RM active for denitration reactions. The formation of ferric sulfate species with more reducible Fe³⁺/Fe²⁺ active sites by a SO₂ activation method can further enhance the denitration activity. Moreover, NH₃-TPD and in situ IR results demonstrate that the NH₃-SCR reaction over the RM catalyst follows the Eley–Rideal mechanism at high temperature and the increased absorption of NH₃ for alkaline metal-eliminated or SO₂-activated samples accounts for its high DeNO_x efficiency. The demonstrated feasibility for reusage of the RM as DeNO_x catalyst has promising industrial prospects for its extremely low cost, no toxicity, and high efficiency.

---

1. Introduction

Red mud (RM) is the solid waste residue from digestion of bauxite ores with caustic soda during production of alumina (Al₂O₃).¹ It is estimated that about 30 million tons of RM is produced annually in China. Due to its high alkalinity (pH 10–12.5), large amounts of iron oxides and other toxic trace metal elements, this large quantity of RM waste has caused serious environmental problems including soil contamination, groundwater pollution, and even marine pollution. Moreover, storage of RM in lakes or ponds occupies huge areas of land, and air-dried RM can also lead to dust pollution which is a serious health problem for people living near RM storage ponds. Over the years, extensive work has been done by researchers worldwide to develop various economic ways for utilizing RM, such as a stabilization material, adsorbents, and ironmaking raw materials.^2–5 However, utilized RM only takes up 10% of the total amount up to now. Therefore, it is very urgent to develop new routes for the utilization of RM with innovative technologies.

Selective catalytic reduction (SCR) of nitrogen oxides (NO_x) is one of the most effective technologies to reduce NO_x emission from industrial flue gas, in which DeNO_x catalysts play a key role to achieve good DeNO_x performance as well as low investment costs. Although commercial V-based catalysts have achieved great success in the temperature range of 320–400 °C, their high price, toxicity, and sublimation of VO_x still restrict their industrial applications.⁶ Meanwhile, V₂O₅/TiO₂ catalysts could not be applied at high temperatures, especially as temperatures of flue gas exceeding 400 °C result in sintering and deactivation of the catalyst. Alternatively, Fe-based catalysts have recently aroused intense research interests owing to their low cost and non-toxicity, especially high DeNO_x activity in a high temperature range.^7,8

Considering the composition and good plasticity of RM, our idea is to explore the reuse of the RM waste as a Fe-based denitration catalyst. In China, the demand for SCR catalyst exceeds 4 × 10⁴ m³/a, which will provide an effective way to utilize the RM.⁹ The proposed technical route will possess great advantage in terms of its very low cost, non-toxicity, and good activity at high temperatures. However, the high alkali metal content, low specific surface, and serious agglomeration of hematite will cause great difficulty if using RM as a DeNO_x catalyst directly, which will still be a challenging work.

In this work, RM-based catalysts were obtained by a simple ball milling and acid–base neutralization method; they exhibit comparable catalytic performance with commercial V–W–Ti catalyst at high temperatures. Multiple characterizations (XRF, XRD, SEM, TEM, BET) were performed to analyze composition and structure transformations from RM waste to RM-based catalysts. Furthermore, TG, XPS, H₂-TPD, NH₃-TPD and in situ FT-IR were executed to reveal structural features and adsorption/reaction behaviors of active sites for RM-based catalysts. This work will demonstrate feasibility for the reusage of RM waste as an efficient DeNO_x catalyst at high temperatures.

2. Experiments

2.1 Materials

Raw RM was collected from Shandong Aluminum Industry Company, China and it exhibits strong alkalinity (pH = 12–14) due to the existence of sodium oxide in it. The sample was dried and ground for further utilization. The supports of SiO₂, Al₂O₃, and TiO₂ are from Aladdin with specific surface areas of 250, 198, and 55 m² g⁻¹, respectively. Other chemicals including ferric nitrate, ammonium metavanadate, ammonium metatungstate, HNO₃, NaOH, and deionized water were of reagent grade and used without any pretreatment.

Additionally, commercial V–W–Ti catalyst (denoted as DF) from Chengdu Dongfang KWH Environmental Protection Catalyst Co., Ltd (China) was used as a reference sample. Prior to DeNO_x evaluation, this monolithic honeycomb catalyst was cut and crushed into powder.

2.2 Synthesis of catalysts

Fig. 1 shows the route for synthesis of RM-based catalysts by the ball milling and acid–base neutralization method. First, RM was digested with 20 wt% HNO₃ aqueous (HNO₃/RM = 0.5, 1, 2, 3) in a ball mill for 6 h; then the resulting slurry was aged overnight. Second, the slurry was neutralized by adding NaOH aqueous solution dropwise under stirring until the pH increased to 6; the slurry was washed several times with distilled water to remove residual Na, K, Ca, and Mg to form Fe₂O₃–TiO₂/(H₂SiO₃–Al(OH)₃) precipitate. Lastly, the obtained filter cake was dried for 10 h at 120 °C, and calcined for 3 h at 500–600 °C to obtain RM-based catalysts.

Fig. 1 Schematic diagram for preparation of the RM-based catalyst by the ball milling and acid–base neutralization method.

The supported Fe₂O₃ catalysts on different supports (SiO₂, Al₂O₃, TiO₂, and their physical mixtures) were prepared by the conventional incipient wetness impregnation method using ferric nitrate as an iron source. Moreover, the VWTi catalyst without inactive additives was prepared by mixing ammonium metavanadate, ammonium metatungstate, and TiO₂ powder with 30 wt% water to form a uniform sludge. All samples were dried for 10 h at 120 °C, and calcined for 3 h at 550 °C to obtain corresponding catalysts.

2.3 Catalytic test

Catalytic activity measurements for SCR of NO by NH₃ were conducted in a quartz fixed bed reactor of 11.5 mm in internal diameter under atmospheric pressure. In the present work, the tested catalyst was crushed with particle sizes of 0.3–0.4 mm. The feed gas consisted of 500 ppm NO, 500 ppm NH₃, 500 ppm SO₂, 5% O₂, and 10 vol% H₂O balanced with N₂. The total flow rate through the reactor was kept at 6 L min⁻¹ (STP) to give a Gas Hourly Space Velocity (GHSV) of 60 000 h⁻¹. Measurements were performed at fixed temperatures per 50 °C from 300 to 450 °C and kept for 60 min at each stage. Feed and product concentrations were continually monitored using a Horiba PG250 on-line flue gas analyzer (Horiba, Kyoto, Japan). The NO conversion was calculated according to measured inlet and outlet NO concentrations.

2.4 Sample characterization

Chemical compositions of RM-based samples were determined with an Axios X-ray fluorescence (XRF) spectrometer (PANalytical X'pert, Almelo, Netherlands). Their X-ray diffraction (XRD) patterns were obtained in the range of 2θ from 10° to 90° on a D/Max-RB diffractometer (Rigaku Corp., Tokyo, Japan) with Cu Kα radiation. Nitrogen adsorption/desorption isotherms were recorded on an ASAP 2020 (Micromeritics Instrument Corp., Norcross, USA) at 77 K. The Brunauer–Emmett–Teller (BET) equation was used to calculate the specific surface area (S_BET), and pore size distributions were calculated from the adsorption branch using the Barret–Joyner–Halenda (BJH) model. Composition and oxidation states of the elements were recorded by X-ray photoelectron spectroscopy (XPS) with an ESCALAB 250Xi electron spectrometer from Thermo Fisher Scientific Corp. (New York, USA). Reported binding energy values were all corrected by referring to the binding energy of C 1s, that is, 284.8 eV. Morphology of RM-based samples was observed using JSM-7001F scanning electron microscopy (SEM, JEOL Ltd., Tokyo, Japan) at an accelerating voltage of 10 kV, and JEM-2100 of JEOL transmission electron microscope (TEM) at 200 kV, respectively. Formation of surface sulfate species was investigated by thermogravimetry (TG) measurements that were carried out on an Exstar TG/DTA 7300 (Seiko Instrument Inc., Tokyo, Japan) under argon atmosphere and a heating rate of 20 °C min⁻¹ from 30 °C to 1000 °C.

NH₃-TPD and H₂-TPR experiments were performed on an AutoChem II-2920s V5.02 from Micromeritics Instrument Corp. (Norcross, USA). First, 0.1 g of sample was loaded in a quartz U-tube and heated from room temperature to 300 °C at 10 °C min⁻¹, maintained for 60 min in helium atmosphere, and cooled to room temperature. After pre-absorption of 10 vol% NH₃ for 60 min and purging with He for 30 min at room temperature, the NH₃-TPD test was performed by heating the samples to 750 °C at 10 °C min⁻¹ in He atmosphere. For the H₂-TPR test, the pre-processing sample was heated to 1000 °C at 10 °C min⁻¹ in 10 vol% H₂ atmosphere. Released NH₃ and H₂ were detected continuously by a TCD detector. All the flow rates in this experiment were 50 mL min⁻¹.

In situ DRIFTS experiments were performed on a FTIR spectrometer (Bruker, Tensor 27) equipped with a Harrick DRIFT cell containing ZnSe/KBr windows and a MCT detector. Prior to each experiment, the sample was pre-treated at 500 °C for 1 h in a flow of nitrogen. The background spectrum was collected in flowing nitrogen at 30, 100, 200, 300, 350, and 400 °C, respectively. For the desorption test, the sample was exposed in the flow of NH₃ (or NO + O₂) for 20 min, purged by nitrogen for 40 min at 30 °C, and then heated to the target temperature of 30, 100, 200, 300, 350, and 400 °C for 20 min to record the spectrum, respectively. In the transient studies, the catalyst was first pre-exposed to a flow of NH₃ (or NO + O₂) for 20 min, then purged with nitrogen for 40 min at 350 °C, subsequently in the flow of NO + O₂ (or NH₃) to get the time dependent changes of the DRIFT spectra. All IR spectra were obtained by collecting 50 scans with a resolution of 4 cm⁻¹.

3. Results and discussion

3.1 The performance of RM-based catalysts

Fig. 2 displays the NH₃-SCR performance of RM-based catalysts after different treatments. It can be observed from Fig. 2A that the original RM sample shows nearly no denitration activity even at 450 °C. After being treated by HNO₃ with a HNO₃/RM ratio of 1, the RM sample becomes active for the NH₃-SCR reaction with above 45% NO conversion. Increased washing times can promote catalytic activity. The close activity curves for the washed-twice/thrice samples indicate that washing two times will be enough to remove the poisonous elements to a level useful for the SCR reaction. The optimization of HNO₃/RM ratio was also investigated in our work. As shown in Fig. 2B, an increase of HNO₃/RM ratio to 2 can notably improve the catalytic activity with a 75% NO conversion at 450 °C, but the increase of HNO₃/RM ratio to 3 only exerts a slight promotion effect for DeNO_x activity at low temperature. The study of calcination temperature for the treated RM sample (Fig. 2C) manifests that catalytic activity increases with reduced calcination temperature and the sample calcinated at 500 °C has the best activity with 80% NO conversion. Most remarkably, it can be found that the activation of RM catalyst by SO₂ can significantly improve the NO conversion close to 100% above 400 °C (Fig. 2D). In addition, N₂O was also detected during the catalytic test as shown in Fig. S1.† It can be seen that the increased washing times, high ratio of HNO₃/RM, and low calcination temperature can lower the generation of N₂O and increase DeNO_x selectivity. In brief, by treating the original RM waste through nitric acid digestion, washing, and activation processes, the RM waste can be used as a low cost and effective denitration catalyst at high temperature.

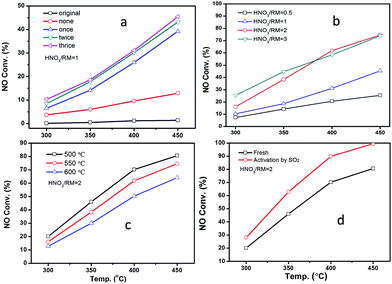

Fig. 2 The performance of RM-based catalysts with different treated methods: (a) treated by different washing times, (b) treated by different ratios of HNO₃/RM, (c) treated by different calcination temperatures, and (d) activation by SO₂. The ratio of NH₃/NO was 1.

As a comparison, the DeNO_x performances of supported Fe₂O₃ catalysts on different supports (SiO₂, Al₂O₃, TiO₂, and their physical mixture) are shown in Fig. S2A.† It can be seen that the activity follows the order of Fe₂O₃/SiO₂ < Fe₂O₃/Al₂O₃ < Fe₂O₃/SiO₂–Al₂O₃–TiO₂ < Fe₂O₃/TiO₂, indicating the merit of the composite support. However, the activity of RM catalysts is even comparable with the Fe₂O₃/TiO₂ catalyst, which may result from the homogeneity of composite oxides in chemical levels.

In real flue gas, high contents of SO₂ and H₂O may have a great effect on the catalytic activity. The impact of SO₂ and H₂O was studied as shown in Fig. 3. The introduction of SO₂ and H₂O can notably decrease the catalytic activity for both RM-based catalyst and commercial vanadium-based catalyst under GHSV at 60 000 h⁻¹ (Fig. 3a). The VWTi catalyst, without inactive additives as comparison, is also exhibited in Fig. S2B.† Notably, although the vanadium based catalyst has better denitration activity at a medium temperature range of 300–350 °C, the RM-based catalysts have comparable, or even high catalytic activity, at a high temperature range above 350 °C. The results demonstrate the great advantage of a RM-based catalyst for its application in the denitration of high-temperature flue gas. Moreover, the stability of RM-based catalyst was further investigated in different gas compositions as shown in Fig. 3b at the temperature of 450 °C. After 500 ppm SO₂ and 10% H₂O is introduced, the NO conversion reduces about ten percentage point, but can maintain stable catalytic activity even with 1000 ppm SO₂ and 10% H₂O. It is interesting that cutting off SO₂ can't recover the catalytic activity, but simultaneously cutting off H₂O will have the same NO removal efficiency as with the initial value. These results show that the catalytic activity of RM catalyst was mainly inhibited by H₂O in the flue gas, which should be a result from the competitive adsorption of H₂O on active sites. The demonstrated stability of the RM-based catalyst implies its promising application prospects for purification of real flue gas.

Fig. 3 The activity comparison between SO₂-activated RM and commercial DF catalysts (a), and catalytic stability of RM catalysts with/without SO₂ and H₂O at 450 °C (b).

3.2 Composition and structure of RM-based catalysts

To better understand the above excellent denitration activity of the RM-based catalysts, their basic compositions and structures were studied and are reported in detail here. Table 1 shows XRF results of the different RM samples. In the original RM, the main components are Fe₂O₃ (37.87 wt%), Al₂O₃ (24.02 wt%), SiO₂ (16.65 wt%), and TiO₂ (7.63 wt%), which exactly constitute the active component (iron oxide) and supports a denitration catalyst. However, the original sample has very high Na₂O content (11.16 wt%) and other alkaline-earth metals, such as CaO and MgO, which can severely poison and inactivate the denitration catalyst. Acid treatment of RM and the subsequent washing process dramatically decreases the alkali metal to a very low level. Increased washing times from none to thrice gradually decreased the alkali oxides contents, but the amount of alkaline earth oxides still maintained a high value after washing more than two times for the cases of HNO₃/RM ratios at 0.5 and 1. As the HNO₃/RM ratio goes above 1, the content of both of alkali oxides and alkaline earth oxides decreases greatly to a very low level. These results manifest that the alkali/alkaline-earth metal elements can be removed to a limit with the HNO₃/RM ratio exceeding 1 after washing above two times, which should eliminate the poisoning effect of alkali/alkaline-earth metal elements on catalytic activity for NH₃-SCR reactions.

Table 1 XRF results of the original and treated RM samples

Samples	Fe2O3	Al2O3	SiO2	TiO2	Na2O	CaO	K2O	MgO
Original	37.87	24.02	16.65	7.63	11.16	1.24	0.09	0.11
Washed-none	41.54	24.63	16.47	7.95	6.74	1.59	0.06	0.12
Washed-once	44.00	26.83	17.80	8.45	0.51	1.35	0.05	0.09
Washed-twice	44.97	25.69	18.13	8.82	0.36	0.97	0.04	0.09
Washed-thrice	44.98	25.99	17.97	8.70	0.36	0.97	0.05	0.08
HNO3/RM = 0.5	44.72	26.36	17.29	8.51	0.60	0.99	0.18	0.10
HNO3/RM = 1	44.98	25.99	17.97	8.70	0.36	0.97	0.05	0.08
HNO3/RM = 2	44.96	26.02	16.07	7.75	0.13	0.35	0.04	0.07
HNO3/RM = 3	44.42	25.51	16.10	7.79	0.12	0.36	0.04	0.10

---

The XRD patterns in Fig. S3† demonstrate that all the RM samples have their main diffraction peaks at 24.2, 33.3, 35.8, 41.2, 49.8, 54.2, 62.7, and 64.2° belonging to hematite (Fe₂O₃) phase (JCPDS 33-0664). Anatase TiO₂ can also be observed at 25.5 and 48.1° according to JCPDS 21-1272. The original RM sample (Fig. S3a†) has a notable diffraction peak at 14.0°, which can be assigned to zeolite-like sodium silicoaluminate (JCPDS 40-0101). After acid treatment without washing (Fig. S3b†), the sodium salt is converted to albite sodium silicoaluminate at 28.1° (JCPDS 10-0393). And this peak disappeared after the washing process or increased HNO₃/RM ratio (Fig. S3c–f†), indicating the cleaning of sodium element in RM samples after the acid treatment and washing process. Meanwhile, no silicon and aluminium oxide species are observed in the XRD patterns in Fig. S3,† indicating they are in the amorphous form. In addition, the increased calcination temperature will not cause an obvious change in RM samples (Fig. S3g and h†). The shown structure transformation of different RM samples is well consistent with the composition change of XRF data in Table 1. In combination with the catalytic results in Fig. 1, it can be concluded that the elimination of alkaline elements by the acid treatment and washing process makes the RM waste active for NH₃-SCR reactions.

The morphology features of these RM samples were characterized by SEM and TEM as shown in Fig. 4. In the case of the original RM sample, many bulky grains can be observed with a micron grade size (Fig. 4A and B). After the acid treatment and washing process, the particles of the RM samples become more dispersed in a nanoscale range of 50–800 nm (Fig. 4C). High resolution TEM can clearly observe the lattice fringe phase of α-Fe₂O₃ (104) crystal face with the lattice distance of 0.27 nm (Fig. 4D), which is in accord with the XRD results in Fig. S3.† For a sufficiently SO₂ activated sample, the particles become much smaller than the corresponding fresh sample (Fig. S3E†). Moreover, the lattice fringe phase of Fe₂(SO₄)₃ (113) crystal face with a lattice distance of 0.36 nm is observed except with the α-Fe₂O₃ phase, indicating the conversion of part α-Fe₂O₃ to Fe₂(SO₄)₃ after the activation by SO₂.

Fig. 4 SEM and TEM images of the original RM sample (A, B), the typical fresh RM catalyst (C, D), and the SO₂-activated RM catalyst (E, F) together with their high resolution TEM images (the insert).

To have deep insight into the change of surface area and pore-size distribution after treatment, a BET test was performed. Fig. 5 displays the N₂ adsorption–desorption isotherm and the corresponding pore size distribution curve for different RM samples. All the samples exhibit the typical IV isotherm with a H3-type hysteresis loop (P/P₀ > 0.4), indicating the mesoporous characteristics of these RM-based catalysts (Fig. 5A).¹⁰ In combination with the quantitative data summarized in Table 2, it can be found that the acid treatment and washing process has great impact on surface area and pore-size distribution. The surface area is as low as 26.8 m² g⁻¹ for the original RM. In contrast, the acid treatment and washing process can dramatically increase their surface area with a maximum of 134.1 m² g⁻¹ as the ratio of HNO₃/RM increased to 2, which may derive from an increased dispersity of the amorphous silicon and aluminium oxide species. But the further elevated HNO₃/RM ratio to 3 inversely decreased the value of the surface area. Moreover, elevating the calcination temperature to 600 °C decreased the BET area owing to the sintering of RM particles. The mesoporous features are shown in Fig. 5B. The original RM has few pores with a very small pore volume (0.09 cm² g⁻¹). The acid treatment and washing process results in a pore distribution between 1 and 10 nm and 10–100 nm with obviously increased pore volume. Similarly, with the change of BET area, the pore volume increases to its maximum value (0.32 cm² g⁻¹) at a HNO₃/RM ratio of 2 and then decreases. The increased calcination temperature at 600 °C also decreases the pore volume but the washing process can remarkably increase it.

Fig. 5 The N₂ adsorption–desorption isotherms curves (A) and the corresponding pore size distributions calculated from the desorption branch of the RM-based samples (B): (a) the original sample, (b) the sample of HNO₃/RM = 0.5, (c) the sample of HNO₃/RM = 1 without washing, (d) the sample of HNO₃/RM = 1 washed twice, (e) the sample of HNO₃/RM = 2, (f) the activated sample of (e, g) calcination of (e) at 600 °C, and (h) the sample of HNO₃/RM = 3.

Table 2 Summary BET data of the RM-based samples

Samples	BET surface areas (m^2 g^−1)	Pore volume (cm^3 g^−1)	Pore size (nm)
Original	26.8	0.09	19.5
HNO3/RM = 0.5	69.5	0.14	10.6
HNO3/RM = 1, washed-none	65.2	0.16	13.3
HNO3/RM = 1, washed-twice	113.8	0.23	17.5
HNO3/RM = 2	134.1	0.32	9.6
HNO3/RM = 2, 600 °C	106.3	0.22	9.8
HNO3/RM = 2, SO2 activated	127.2	0.20	10.4
HNO3/RM = 3	101.1	0.25	12.6

---

As shown by the above XRF and XRD results, the original RM sample is mainly composed of Fe₂O₃, TiO₂, and aluminum silicate sodium. The added HNO₃ can dissolve part of the Fe₂O₃ and aluminum silicate sodium, and the subsequent neutral reaction by NaOH forms a colloidal turbid liquid as observed during the preparation process. The colloidal turbid liquid may contain ferric hydroxide, alumina/silica sol, and undissolved TiO₂ and other RM components. Meanwhile, alkali/alkaline-earth metal elements are released and eliminated by the washing process. The RM-based catalysts are obtained by drying the colloidal turbid liquid and following the calcination process. Based on the physicochemical change during the preparation process, the increased BET area and abundant pore structure of RM-based catalysts can be attributed to dissolution and precipitation of RM constituents during the acid–alkali treatment process. On the other hand, the release of sodium element from aluminum silicate salt may also contribute to increasing the surface area and enriching the pore structure. But too much HNO₃ may destroy the skeletal aluminum silicate structure, resulting in the decreased BET area and pore volume. The calcination at high temperature enhances the agglomeration of RM particles and also decreases the surface area and pore volume. Most notably, the catalytic activity in Fig. 2 is highly relevant to the BET area of RM samples listed in Table 2, revealing that the dispersion of RM particles is another key factor to determine their catalytic activity. For a SO₂ activated sample, although it has a slightly decreased BET area and pore structure compared with its fresh sample, its activity still improved significantly as shown in Fig. 2D. The reason will be discussed in the following text.

For a better understanding of the significant promotion effect of SO₂ activation on the catalytic performance of RM-based catalysts, detailed structures of the activated catalysts were studied by TG, XRD, and XPS analysis. For the TG results in Fig. 6A, the fresh RM sample has no weight lost above 200 °C. But the SO₂ activated catalyst shows 7.6 wt% weight lost between 550 °C and 700 °C, which can be assigned to be the decomposition of Fe₂(SO₄)₃ in contrast with the TG curve of pure Fe₂(SO₄)₃. Correspondingly, its XRD patterns show an extra small peak at 24.8° compared with the fresh one (Fig. 6B), which can be assigned to the Fe₂(SO₄)₃. These results are quite consistent with the lattice fringe phase of Fe₂(SO₄)₃ observed by HRTEM. These evidences readily confirm the formation of an Fe₂(SO₄)₃ phase on the surface of RM-based catalysts after activation by SO₂. Moreover, the formation of Fe₂(SO₄)₃ also changes the XPS signals as shown for Fe 2P and S 2p spectrogram in Fig. 5C and D. Fresh RM catalyst exhibits the Fe 2p_1/2 and 2p_3/2 signals at 712.5 eV and 724.8 eV, respectively, which can be assigned to Fe₂O₃.¹¹ The corresponding Fe 2p peak for the SO₂ activated catalyst obviously moves towards high binding energy about 0.2 eV, owing to the more polarized electron feature in Fe₂(SO₄)₃ than Fe₂O₃. Compared with the fresh sample, a strong S 2p XPS signal is detected for a SO₂ activated RM sample, which can also evidence the existence of sulfate species. In consideration of the significantly increased catalytic activity for the SO₂ activated RM catalyst in Fig. 2 and some literature reports,¹² the generated Fe₂(SO₄)₃ species may form new active sites in the RM catalyst for the NH₃-SCR reaction.

Fig. 6 The TG (A), XRD (B), Fe 2p XPS (C) together with the S 2p XPS (D) data of the fresh and SO₂-activated RM catalysts.

In brief, it can be concluded that the clearing of alkali/alkaline-earth metal elements in the original RM sample by the ball milling and acid–base neutralization method can eliminate their poisoning effect and thus makes the RM waste active for the denitration reaction. Meanwhile, increased particle dispersion and BET area of RM by a proper HNO₃/RM ratio and calcination temperature can improve their catalytic activity by exposing more active sites. In addition, formation of Fe₂(SO₄)₃ for the SO₂-activated catalyst will serve as a new active species and further enhance its denitration activity.

3.3 Adsorption/reaction features of catalytic active sites

3.3.1 The H₂-TPR and NH₃-TPD study. The results of H₂-temperature programmed reduction (H₂-TPR) over three RM-based catalysts (washed-none, washed-thrice and activated by SO₂) are given in Fig. 7. Two reduction peaks are observed at around 400 °C and 650 °C, which can be assigned to reduction of the Fe₂O₃ species to FeO and Fe, respectively.^8,13,14 For the sample activated by SO₂, the shoulder peak (463 °C) close to the main peak (430 °C) may be assigned to the reduction of iron sulfate species on the surface of the catalyst observed in Fig. 7. Compared with the washed-none sample, the significantly increased peak area shows more Fe₂O₃ species can be reduced for the washed-thrice sample, which may be due to its decreased content of alkali metal. After being activated by SO₂, the peak area at the low-temperature range obviously increases, indicating easy reducibility for the generated ferric sulfate species. For Fe-based catalysts, the valence change of Fe³⁺/Fe²⁺ plays a key role in the NH₃ SCR reaction, and more reducible ferric oxide species always have more active sites with high catalytic activity.^7,14 In our cases, more reducible Fe₂O₃ species between 350–500 °C for washed-thrice and SO₂-activated samples mean the exposure of more active iron sites for the NH₃ SCR reaction in the high-temperature region, which may be relevant with the observed enhanced activity in Fig. 2.

Fig. 7 The H₂-TPR (A) and NH₃-TPD (B) curves for the RM-based samples.

Temperature programmed desorption of ammonia (NH₃-TPD) experiments were further carried out to evaluate the acidity of RM-based catalysts as shown in Fig. 7B. It can be seen that the adsorption capacity of NH₃ increases significantly for the treated RM sample compared with the original one, which may result from the strong active acid sites on the surface of amorphous silicon and aluminum oxides after acid treatment. All the three samples (washed-none, washed-thrice, and SO₂ activated) exhibit the NH₃ desorption peaks at 100 °C and 380 °C, respectively. For the washed-thrice sample, the NH₃ adsorption capacity obviously increases compared with the washed-none sample owing to the elimination of alkaline elements. Moreover, NH₃ adsorption capacity of the SO₂ activated sample increases dramatically for both the low and high temperature peaks, indicating increased acidity derived from the generation of ferric sulfate species. As the main reaction molecule, the NH₃ desorption features will have great impact on their catalytic behavior as discussed in the following text.

3.3.2 The reaction mechanism study by in situ IR. For better understanding properties of active sites, the adsorption and reaction process were studied by an in situ IR method over an HNO₃/RM = 2 sample, and the results are shown in Fig. 8. For NH₃ desorption from 30–400 °C (Fig. 8A), the peak around 1440 cm⁻¹, can be ascribed to NH₄⁺ species on Brønsted acid sites.¹⁵ Meanwhile, little peaks assigned to Lewis acid sites (such as ∼1600 cm⁻¹ and 1220 cm⁻¹) can be observed.¹⁶ These results reveal that the RM-based catalysts contain mainly Brønsted acid sites. As the temperature elevates from 30 to 400 °C, the peak at 1440 cm⁻¹ becomes weak gradually with the desorption of NH₃ adsorbed at Brønsted acid sites. At 400 °C, only a very weak peak at 1440 cm⁻¹ indicated the desorption of most of the adsorbed NH₃ at this temperature, which is in accordance with the high-temperature desorption peak at ∼400 °C as shown in NH₃-TPD results in Fig. 7B.

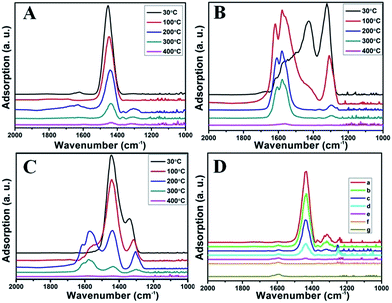

Fig. 8 The in situ IR results for NH₃ desorption (A), NO desorption (B) and co-desorption of NH₃ and NO at different temperature (C); the reaction process for NH₃-SCR at 350 °C (D): (a–f) the time-dependent changes of absorbed NH₃ in a flow of NO + O₂ for 0 min, 1 min, 2 min, 3 min, 4 min, and 5 min, respectively, (g) the adsorption of NO + O₂.

Fig. 8B illustrates the DRIFT desorption spectra of NO + O₂ on the RM catalyst at different temperatures. Several distinct peaks appear at 1610, 1580, 1555, 1425, and 1322 cm⁻¹, which can be ascribed to adsorbed NO₂ (1610 cm⁻¹), bidentate nitrate (1580 cm⁻¹), monodentate nitrate (1554 cm⁻¹), linear nitrate (1425 cm⁻¹), and M–NO₂ nitro species (1322 cm⁻¹), respectively.^17–20 From 30 to 100 °C, the linear nitrate (1425 cm⁻¹) and M–NO₂ (1322 cm⁻¹) get weak together with the increase of strongly adsorbed NO₂ (1610 cm⁻¹) and bidentate nitrate (1580 cm⁻¹). These results imply the easy oxidation of NO by O₂ to NO₂ on RM catalyst at low temperatures, which is a key step for the “fast SCR” reaction.²¹ As the temperature increased, the NO₂ (1610 cm⁻¹) and bidentate nitrate (1580 cm⁻¹) were rapidly desorbed and little adsorbed species are observed at 400 °C.

Fig. 8C shows the co-desorption curves of NH₃ and NO + O₂ over the RM catalyst at different temperatures. Compared with the independent desorption of NH₃ and NO + O₂, the adsorbed NO₂ (1610 cm⁻¹) decreased dramatically from 30 to 300 °C, indicating the reaction of adsorbed NO₂ and NH₃ species through a “fast SCR” route to reduce the generated NO₂.^21–23 However, the surface species of bidentate nitrate (1580 cm⁻¹) from absorbed NO and NH₄⁺ (1440 cm⁻¹) from absorbed NH₃ simultaneously exist on the RM catalyst from 200 to 300 °C. Generally, the NH₃ SCR may follow a Langmuir–Hinshelwood or Eley–Rideal mechanism as follows, in which M is the metal active site.^6,24–26 Based on the Langmuir–Hinshelwood mechanism, the results clearly reveal that the RM catalysts are very inactive for a NH₃-SCR reaction through the Langmuir–Hinshelwood mechanism at relatively low temperatures (<300 °C). In combination with the TPR results in Fig. 7A, the low activity may be due to the difficult conversion for Fe³⁺/Fe²⁺ active sites below 300 °C. The further increase of temperature to 400 °C removed all the absorbed species by desorption or inter-reaction.

The Langmuir–Hinshelwood mechanism:

The Eley–Rideal mechanism:

To further make clear the reaction mechanism of RM-based catalysts at high temperature, more DRIFT spectra were collected to observe the reaction details at 350 °C in Fig. 8D. The relatively high temperature of 350 °C was chosen to avoid the interference of low signal to noise ratio owing to the weak absorbed signal at a high temperature. Fig. 8D(a–f) presents the time-dependent changes of the in situ DRIFT spectra of the RM catalyst in a flow of NO and O₂ after the catalyst was pre-exposed to a flow of NH₃ at 350 °C. A strong peak assigned to absorbed NH₄⁺ can be clearly seen at 1440 cm⁻¹ after being pre-exposed to a flow of NH₃ at 350 °C (Fig. 8D(a)). Notably, the absorbed NH₄⁺ disappeared gradually but very fast (within 5 min) after the introduction of NO + O₂ over the NH₃ pre-exposed catalyst (from Fig. 8D(b–f)), which shows the fast reaction rate between absorbed NH₄⁺ and the introduced NO + O₂. On the other hand, little surface species can be observed after pre-exposure of the catalyst over NO + O₂ flow at 350 °C (Fig. 8D(g)), suggesting a very weak absorption of NO on the catalytic surface at 350 °C. According to the Eley–Rideal mechanism, NH₃ is first absorbed on the acid sites and then reacts with the gaseous NO. These comparative results clearly demonstrate that the NH₃-SCR reaction over RM catalyst follows the Eley–Rideal reaction mechanism above 350 °C, whose reaction scheme is shown in Scheme S1.† In the reaction mechanism, NH₃ is absorbed to form NH₄⁺ species on acid sites, then interact with the Fe³⁺ based redox sites, and further capture gaseous NO to generate N₂ and H₂O. Meanwhile, the Fe³⁺ species is converted to its Fe²⁺ state and then recovered by reaction with gaseous O₂ to finish the catalytic cycle. Moreover, it can be seen that absorption of NH₃ and conversion between Fe³⁺ and Fe²⁺ will play the key role in catalytic efficiency at high temperatures.

In brief, both NH₃ and NO have strong absorption on the RM catalytic surface below 300 °C. The difficult conversion for Fe³⁺/Fe²⁺ at low temperatures may prevent the reaction of co-absorption NH₃ and NO species following the Langmuir–Hinshelwood mechanism, but the NH₃-SCR may still react slowly through the “fast SCR” route owing to the generation of absorbed NO₂. But at the high temperature of 350 °C, only NH₃ species (but not NO) are absorbed on the catalytic surface and react with gaseous NO and O₂, confirming that the high-temperature SCR reaction follows the Eley–Rideal mechanism over RM catalysts. The absorbed NH₃ plays a key role in the Eley–Rideal mechanism. The high catalytic activity for RM catalyst at high temperatures is due to the strong and abundant acid sites together with the easy conversion for Fe³⁺/Fe²⁺ active sites on the catalytic surface.

4. Conclusions

In summary, this work demonstrates the successful reusage of RM waste as effective catalysts for a high-temperature NH₃-SCR reaction by the ball milling and acid–base neutralization method, whose activity can further be enhanced by SO₂ activation. The resulting RM-based catalysts have comparable catalytic activity and stability with the commercial V–W–Ti catalyst above 350 °C in the presence of SO₂ and H₂O. Structure characterization data (XRF, XRD, SEM, TEM, BET, XPS, TG, and H₂-TPR) reveal that the eliminated poisonous alkaline metal elements together with the increased dispersion of RM particles make RM waste active for a denitration reaction, and the formation of ferric sulfate species with more reducible Fe³⁺/Fe²⁺ active sites by the SO₂ activation process can further enhance their denitration activity. The study by NH₃-TPD and in situ IR further demonstrates that the NH₃-SCR reaction over the RM-based catalyst follows the Eley–Rideal mechanism at high temperatures and the absorption of NH₃ plays a key role in catalytic performance. The elimination of alkaline metal elements and SO₂ activation process increases the absorption of NH₃ and thus the DeNO_x activity. The demonstrated reusage of RM waste as effective DeNO_x catalysts in this work will possess great application prospects for both resource utilization of RM waste and development of low cost DeNO_x catalysts.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors are grateful for the financial support of Science and Technology Service Network Initiative of China (KFJ-SW-STS-149), International Science and Technology Cooperation Program of China (2016YFE0128300), Natural Science and Foundation of China (Grant 21601192) and Postdoctoral Fellowship of Japan Society for the Promotion of Science (JSPS by P15758).
