Non-isocyanate poly(hydroxyurethane)s (PHUs) made by reacting bis(cyclic carbonate)s and amines are important alternatives to conventional polyurethanes. In this work, a series of PHUs was synthesized using a solvent-free, catalyst-free method from bis(2,3-dihydroxypropyl)ether dicarbonate and 1,3-diaminopropane using differing molar ratios of dimethyl succinate to change selected properties of each PHU. The obtained PHUs were characterized by FT-IR, 1H NMR and 13C NMR spectroscopy and their thermal properties and viscosities were determined. We report the use of the obtained PHUs as wood adhesives and the work of adhesion data determined using Owens–Wendt method. The mechanical properties (strength) of different PHU–wood joints were compared. It was found that the addition of dimethyl succinate increases the hydrophobicity of coatings by increasing the water contact angle and decreasing the polar component of the surface free energy of the PHU coatings. PHUs with urethane and amide backbones were stronger than those without.
There are various ways to make PHUs. The reaction between cyclic carbonates and polyfunctional amines is the most promising method of obtaining these polymers.11–18 The advantages of this synthesis over others are that contaminants are eliminated, toxic compounds are not used and carbon dioxide emissions are lower. In contrast to isocyanates, straight derivatives of cyclic carbonates such as, ethylene and propylene carbonate are non-toxic and biodegradable. In addition, they are characterized by their resistance to water, so no unwanted foaming occurs during synthesis. Using cyclic carbonates and polyfunctional amines is a progressive and competitive way to produce PHUs on an industrial scale.10
PHUs are characterized by the presence of primary and secondary hydroxyl groups in the macromolecule, which allows to create intra- and intermolecular hydrogen bonding. This results in an increase in mechanical and chemical strength.19 However, PHUs show reduced sensitivity to moisture and organic solvents due to the presence of these hydroxyl groups. In previous work, we have shown that the use of PHUs is limited by their hydrophilic properties.20 PHU coatings obtained from bis(2,3-dihydroxypropyl)ether dicarbonate and various aliphatic amines absorb water, so they should not be used in high humidity atmospheres.
Most studies of PHUs have been limited to their synthesis, characterization by spectroscopy validation and their thermal properties. Apart from a few reports, there is a lack of information about using PHUs as adhesives or coatings.20–24 Cornille et al. elaborated on PHUs by investigating the step growth polymerization of cyclic carbonates derived from commercial epoxy compounds and commercial diamines.21 These PHUs, which were used as adhesives in wood joints, exhibited greater strength than conventional PUs.21 Leitsch et al. synthesized a PHU/PU hybrid material with enhanced mechanical properties that were similar to those of typical PU adhesives.22 Zhang et al. presented a series of poly(amide-hydroxyurethane)s with elevated tensile strength properties.23
Nanclares et al. presented novel segmented polyurethanes synthesized via a non-isocyanate route and characterized by a relatively high tensile strength.24
The literature describes hybrid materials of PHU and conventional PU that modify the properties of PHU,22 but the synthesis requires the use of harmful isocyanates. In this work, the modification of PHU coatings using biodegradable esters is shown. In our opinion, the incorporation of an amide backbone should decrease the coatings' affinity to water, so PHU coatings will be able to be used in applications where they are exposed to high humidity. The high hydrophilicity of PHU compounds, due to the pendant hydroxyl groups, greatly limits their use in large-scale applications. Because of the great potential of PHU compounds – their environmentally friendly synthesis and mechanical properties – researchers should focus on chemical modifications to increase their hydrophobicity.

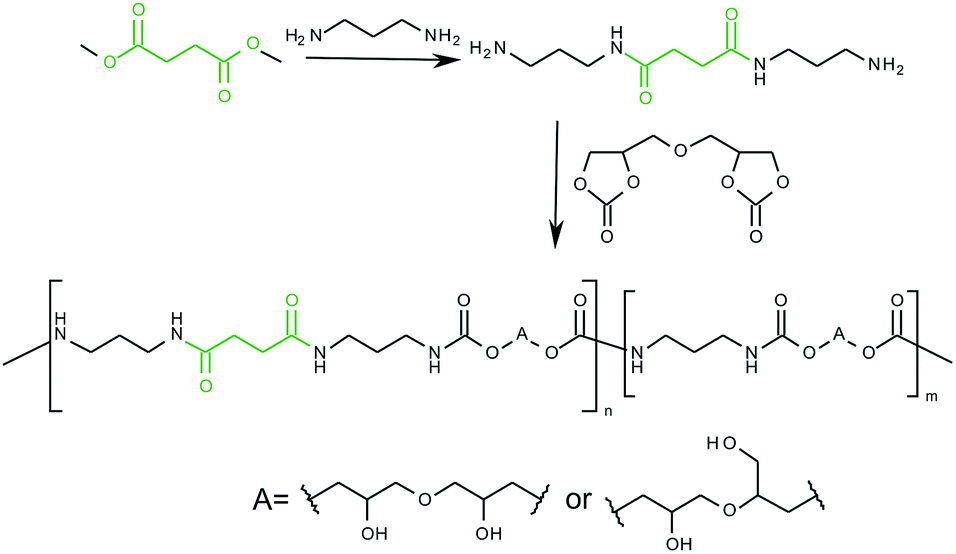

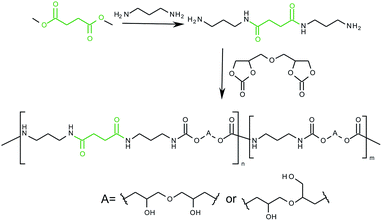

We present new types of PHUs containing both urethane and amide backbones. The PHUs were derived from bis(2,3-dihydroxypropyl)ether dicarbonate and 1,3-diaminopropane. To improve the properties of the PHUs, dimethyl succinate was added in various molar ratios. As shown in Scheme 1, we propose an innovative synthetic route to PHUs with a urethane and an amide backbone. The spectral, thermal and rheological properties of the obtained polymers are presented. Moreover, a new potential application of obtained PHUs as a wood adhesive is presented.
Bis(2,3-dihydroxypropyl)ether dicarbonate was synthesized from a commercially available diglycerol as described in previous work.25
To perform contact angle measurements, diiodomethane was used as a dispersive liquid (purity 99%, CAS no. 75-11-6, Sigma-Aldrich), while distilled water was used as a polar liquid.
1H NMR and 13C NMR spectra were recorded on a Varian VXR 400 MHz spectrometer using tetramethylsilane as an internal standard and deuterated solvents (CDCl3, DMSO-d6) and analysed using MestReNova v.6.2.0e7238 (Mestrelab Research S.L.) software.
Calorimetric studies of the obtained PHUs were carried out using differential scanning calorimetry (DSC) on TA Instruments Q2000 apparatus and thermogravimetric analysis (TGA) was carried out on TA Instruments SDT Q600 apparatus, employing a heating rate (in both cases) of 10 K min−1.
Polymer viscosity measurements were performed on a Malvern Kinexus Pro rheometer (Malvern, England) using a parallel plate geometry (gap 0.4 mm, spindle diameter 10 mm). A standard mass of the sample (0.3 g) was placed symmetrically in the centre of the plate. The shear stress was measured at a constant shear rate, γ = 4 s−1 in 2 min. The measurements were carried out twice with new sampling at 120 °C.
The contact angle of water and diiodomethane were recorded and analysed at room temperature using a DSA 30E drop shape analysis system (Krüss, Germany). Smooth and horizontal sessile drops of the liquids (water, diiodomethane) were deposited on a solid surface (the PHU coatings). Needles of 0.5 mm diameter were used for both liquids. The contact angle was measured on static drops. Drop shape analysis was performed using Tangent method 1. The reported contact angle values for water and diiodomethane are the mean of six drops deposited on two separate coating samples. The values of contact angles were measured 5 s after deposition. The contact angle deviation was less than ±1.5°.
Mechanical tensile testing of the adhesive properties of obtained PHUs was performed using Instron, model 5566 (Instron Co., Canton, MA). Specimens were gripped by two screw-type flat-plate grips and pulled at a strain speed of 10 mm min−1 with a load of 10 kN. The results are an average of the measurements performed on three samples.
In the first step, the reaction of dimethyl succinate with 1,3-diaminopropane was carried out. The 1,3-diaminopropane was placed in 250 mL round-bottomed flask equipped with mechanical stirrer and argon inlet. Then, the dimethyl succinate was added drop-wise at a rate of 5 mL h−1 using a dosing pump. The mixture was stirred at 45 °C until the carbonyl bond absorption band at 1760 cm−1 disappeared.
In the second step, bis(cyclic carbonate) was placed in a 100 mL round-bottomed flask equipped with a mechanical stirrer and a nitrogen inlet. The solid was melted at 80 °C under a nitrogen atmosphere. Then a mixture of 1,3-diaminopropane and dimethyl succinate was added. Because of the rapidly increasing viscosity of the reaction mixture preventing effective mixing, the temperature of the mixture was increased gradually to 150 °C. The reaction was controlled by FT-IR spectroscopy. A by-product of the reaction was methanol, which was evaporated off. The obtained PHUs were analysed without further purification. The yields of reactions were quantitative.
The quantities of reagents together are shown in Table 1.
PHU | Diglycerol carbonate (mol) | Diamine (mol) | Dimethyl succinate (mol) | Additive (%mol) |
---|---|---|---|---|
MK | 0.047 | 0.056 | — | 0 |
0.8-MK | 0.100 | 0.106 | 0.002 | 0.8 |
1.8-MK | 0.092 | 0.099 | 0.003 | 1.8 |
2.7-MK | 0.092 | 0.100 | 0.005 | 2.7 |
3.0-MK | 0.066 | 0.065 | 0.004 | 3.0 |
3.6-MK | 0.070 | 0.076 | 0.005 | 3.6 |
The adhesive was applied to the surfaces of wood according to European Standard EN 311:2002. Two pieces of wood (birch wood, Betula L.) were coated with the obtained PHU melted at a temperature of 130 °C. The two pieces of wood were subjected to hot pressing at 1.18 MPa for 30 min. The specimens were then cooled to solidify the adhesive. The bonding area of all samples measured 18 × 25 mm.
All coatings and adhesives were kept under an inert gas atmosphere prior to contact angle and mechanical measurements.

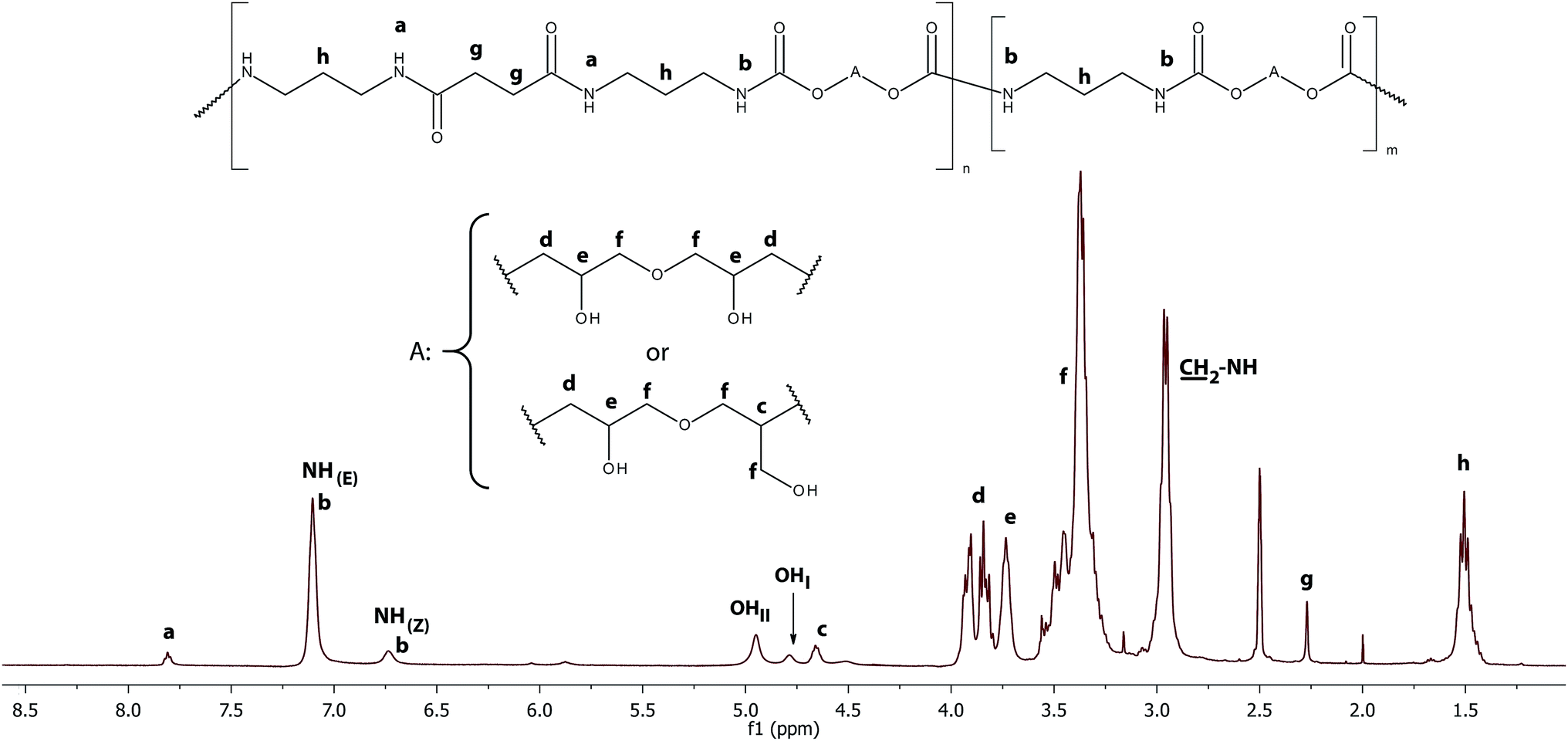

The chemical structures of obtained PHUs were confirmed using 1H NMR and 13C NMR. We presented a detailed description of 1H NMR and 13C NMR spectra of PHUs based on diglycerol carbonate and aliphatic amines.25 Fig. 2 shows the repeating units region of the 1H NMR spectrum typical of all of the synthesized PHUs. The signal of the urethane group N–H was observed as two singlets at 7.11 and 6.64 ppm due to the hindered rotation of the (CO)–N bond.25 Furthermore, the free hydroxyl groups appear in the range 4.89–4.95 ppm as two broad separate signals for secondary and primary OH groups. On the other hand, for 3.0-MK and 3.6-MK the OH protons appear as single broad peaks. The intensity of the methylene protons (CH2–CH2) in the succinate group increases with an increasing amount of additive (see Fig. 2S, ESI†). The other diglycerol unit peaks appear as a multiplet in the range 3.21–3.98. The typical 13C NMR of obtained PHU is shown on Fig. 3S (ESI†).
The molecular weight and molecular weight distributions were not determined by GPC because of the lack of solubility of the polymers in typical solvents.
PHU | Tg (°C) | Td,5% (°C) | Td max (°C) | η (Pa s) |
---|---|---|---|---|
MK | 18.8 | 197 | 258 | 11.3 |
0.8-MK | 28.9 | 219 | 244 | 72.2 |
1.8-MK | 26.4 | 221 | 243 | 87.3 |
2.7-MK | 27.2 | 214 | 248 | 83.0 |
3.0-MK | 26.1 | 192 | 238 | 70.0 |
3.6-MK | 26.4 | 191 | 251 | 32.9 |
W12 = γ1 + γ2 − γ12 | (1) |
(2) |
Term | Liquid | |
---|---|---|
Water | Diiodomethane | |
a γT – total surface tension, γD – dispersive component, γP – polar component of surface tension. | ||
γT | 72.80 | 50.80 |
γD | 21.80 | 48.50 |
γP | 51.00 | 2.30 |
The contact angle measurements, the determined values of interfacial free energy and work of adhesion are presented in Table 4.
PHU | CA water (°) | CA diiodomethane (°) | γD | γP | γT | γ12 | W12 |
---|---|---|---|---|---|---|---|
MK | 19.9 | 31.2 | 43.7 | 31.0 | 74.7 | 23.4 | 87.2 |
0.8-MK | 24.3 | 25.7 | 45.9 | 28.2 | 74.1 | 21.2 | 88.7 |
1.8-MK | 29.6 | 30.5 | 44.0 | 26.9 | 71.0 | 19.9 | 86.8 |
2.7-MK | 25.7 | 31.1 | 43.7 | 28.8 | 72.5 | 21.5 | 86.9 |
3.0-MK | 22.9 | 30.0 | 44.2 | 29.7 | 73.9 | 22.3 | 87.4 |
3.6-MK | 24.0 | 29.9 | 44.3 | 29.2 | 73.5 | 21.9 | 87.4 |
Wood | 113.1 | 48.3 | 35.2 | 0.6 | 35.8 |
The contact angles (see Table 4) show that the obtained PHU coatings have mostly hydrophilic surface properties, which result from the presence of hydroxyl and urethane functional groups in the macromolecules of the PHUs. Moreover, lower values of the contact angle of water relate to a greater wettability of the coating. In previous work, we have shown that the PHU coatings absorb water.20 The SFE of obtained PHU coatings changes slightly with the addition of dimethyl succinate. The highest values of SFE are observed for the MK coating without the addition of dimethyl succinate. The lowest values of SFE are observed for the 1.8-MK coating.
Adhesion between liquid and solid surface is spontaneous only if the SFE of the substrate (solid phase) is greater than the surface tension of the liquid. The SFEs of 1.8-MK and MK PHUs are 70.97 and 74.72 mJ m−2 respectively. The SFE of wood (35.81 mJ m−2) is lower than the SFEs of the PHUs, therefore, it can be expected that the adhesion between PHUs and wood would not be spontaneous.
Optimum adhesion can be achieved when the following conditions are fulfilled: maximum of work and adhesion (W12) minimum of SFE of interphase (γ12) and equality of SFE of both phases (γ1 = γ2). Considering only the work of adhesion parameter, it can be concluded that the best adhesion should be observed in the 0.8-MK–wood joint. The worst adhesion should be observed for the 1.8-MK–wood joint.
PHU | Strain at break (%) | Tensile strength | Young's module |
---|---|---|---|
MK | 9.7 | 0.12 | 1.26 |
0.8-MK | 11.4 | 0.38 | 3.77 |
1.8-MK | 14.4 | 0.67 | 5.42 |
2.7-MK | 15.1 | 0.70 | 4.66 |
3.0-MK | 12.5 | 0.41 | 3.36 |
3.6-MK | 9.2 | 0.33 | 3.63 |
Fig. 3 compares SFE, adhesion parameters, tensile strength and Young's modulus. The adhesive joints showing the highest values of tensile strength and Young's modulus are characterized by lower values of adhesion parameters – for example 1.8-MK. However, the values of W12 are quite high. It might be concluded that in PHU–wood joints the cohesive forces of PHUs play the more significant role and not the adhesives forces between PHU and wood.
Fig. 3 Changes in surface free energy (yellow), work of adhesion (blue), tensile strength (●) and Young's module (▲) of the obtained PHUs. |
The obtained PHUs were used as wood adhesives. The work of adhesion and the mechanical properties of PHU–wood joints were discussed. Dimethyl succinate increases the hydrophobicity of coatings by increasing the water contact angle and decreasing the polar component of the PHU coatings. Furthermore, the changes in hydrophilicity of PHU coatings are related to the changes in the mechanical properties of the adhesive joints. The obtained PHUs exhibited high thermal stability accompanied by good mechanical properties. Hence, PHU materials based on bis(cyclic carbonate), 1,3-diaminoprapone and dimethyl succinate are promising candidates as binders and in bonding applications.
