Preparation of TiO₂/Ti₃C₂T_x hybrid nanocomposites and their tribological properties as base oil lubricant additives

Abstract

TiO₂/Ti₃C₂T_x hybrid nanocomposites were successfully prepared by a facile liquid phase synthesis technology. The phase structure and morphology of as prepared samples were analyzed by means of X-ray diffraction and scanning electron microscopy. The results revealed that uniform TiO₂ particles were distributed within the surface and edge of Ti₃C₂T_x nanosheets. Subsequently, the tribological properties of the TiO₂/Ti₃C₂T_x hybrid nanocomposite as lubricant additive in base oil were evaluated with a UMT-2 ball-on-disc tribotester, and the morphologies of worn steel surfaces were investigated using a scanning electron microscope and non-contact optical profile testing instrument. The results of the friction tests showed that base oil with 1 wt% TiO₂/Ti₃C₂T_x hybrid nanocomposite under optimal load had excellent friction reduction. The morphology of the worn surface analyzed by SEM and non-contact optical profile testing confirmed that the hybrid nanocomposites mended the scratched surface and formed a uniform tribofilm, thereby helping to improve the tribological properties of the base oil. Furthermore, this work shows the promising applications of TiO₂/Ti₃C₂T_x hybrid nanocomposites in the field of tribology.

---

1. Introduction

In recent decades, ternary nanolaminated hexagonal ceramics M_n+1AX_n, where M is an early transition metal, A is an A-group element (mostly IIIA and IVA), and X is C and/or N, n = 1, 2, 3…,^1–5 have attracted great attention owing to their interesting properties and prospective applications.^6,7 As an important representative member of M_n+1AX_n, Ti₃AlC₂ has excellent ceramic and metallic properties, such as low coefficient of friction, excellent thermal and electrical conductivity, easy machinability, high elastic modulus, chemical stability, good thermal stability and oxidation resistance,^8–13 and has drawn mounting attention from researchers.

The laminated structure of Ti₃AlC₂ is comprised by alternative stacking of hexagonal TiC layers and congested edge-sharing bidimensional Al atomic layers along the c-axis, in which the bonding between Ti and C is firmly covalent, but the metallic bonding between Ti and Al is comparatively weak and therefore more susceptible to chemical reaction.^14–16

Lately, Naguib et al.^17,18 reported to fabricate two-dimensional Ti₃C₂(OH)₂ nanosheets by selectively etching the Al layers with hydrofluoric acid (HF), following a similar process, other MAX phases have also been successfully exfoliated into the two-dimensional transition metal nanocarbides and nanonitrides named Mxenes,^19–21 theoretical and experimental investigation revealed that their properties distinct from those of their 3D MAX counterparts.^22–29

Over the past decades, TiO₂, as a typical member of inorganic transition metal dioxides, has aroused numerous studies due to its attractive functional properties and promising applications. Furthermore, various hybrid modifications including surface modification, coupling with porous materials, and carbon coating have been executed to TiO₂ nanostructures in order to improve the properties. At present, several attempts have been made in the syntheses and properties of TiO₂ hybrid nanostructures. Soraya Hosseini et al.³⁰ studied the mesoporous carbon and TiO₂ photoanodes synthesized by sol–gel spin coating onto a glassy substrate, and found that the enhanced humic acid removal of TiO₂/C/C/TiO₂ photoanodes was due to the highest photocurrent density generated. Hong Z et al.³¹ fabricated the TiO₂@C–rGO hybrid nanostructures through in situ growth of oriented self-assembly of TiO₂ mesocrystals on GO route, the hybrid nanostructures display a high reversible capacity, superior rate capability, and long term cycling stability, which is largely attributed to the strong architecture of well-dispersed carbon-coated mesoporous TiO₂ mesocrystals anchored on conductive graphene network. Wongaree M et al.³² prepared CNT/TiO₂ nanofibers by spinning CNT/poly(vinyl pyrrolidone) (PVP) solution followed by the removal of PVP, the synergistic effects of the larger surface area and lower band gap energy of CNT/TiO₂ nanofibers were presented as robust adsorption ability and greater visible light adsorption. Qian L et al.³³ produced biomorphic charcoal/TiO₂ composites from moso bamboo templates, the C/TiO₂ composites were exhibited lower geometrical density, better thermostability, and favorable microwave absorptive properties. Naguib M³⁴ and Gao³⁵ et al. fabricated TiO₂/C nanohybrids by mild oxidation of Ti₃C₂, the obtained samples were exhibited extremely high cycling rates when tested as anodes and good photocatalytic activity. However, TiO₂/Ti₃C₂T_x hybrid nanostructures and their application in the tribiological field have rarely been reported.

In this work we report a simple method to prepare TiO₂/Ti₃C₂T_x via immersing Ti₃C₂T_x powders in distilled water assisted hydrothermal reaction. Moreover, the tribological properties of TiO₂/Ti₃C₂T_x composites as additives in the base oil were also investigated. This study will be useful for Mxene practical application in the future.

2. Experimental

2.1 Synthesis of TiO₂/Ti₃C₂T_x composites

To fabricate the Ti₃AlC₂ powders, commercially powders of Ti (99.0 wt% purity, 40 μm), Al (99.97 wt% purity, 75 μm), and graphite (99.85 wt% purity, <30 μm), Sn (>99.0 wt% purity, 40–75 μm) were mixed with the stoichiometric ratios of 3Ti/1Al/1.8C/0.2Sn, the specific preparing procedure was detailed in our previous study.³ Briefly, powders in the appropriate proportion were magnetic stirring in absolute alcohol at 70 °C. After being dried and sieved, the powders were cold-pressed at 30 Mpa and then heated at 1450 °C under Ar for 20 min in a tube furnace, then taken out after cooling down to room temperature. The obtained Ti₃AlC₂ was crushed and sieved through a 300 mesh sieve.

To exfoliate the Ti₃AlC₂ to Ti₃C₂T_x (Mxenes), 5 g Ti₃AlC₂ powders was immersed in a 40 wt% aqueous hydrofluoric acid solution, and magnetically stirring for 100 h at room temperature. Afterwards the etched powder mixtures were filtered and washed with ethanol and distilled water several times, and dried to obtain Ti₃C₂T_x powders.

TiO₂/Ti₃C₂T_x hybrid nanostructures were synthesized using a hydrothermal process. The prepared Ti₃C₂T_x was added to distilled water and stirring evenly, then the solution was transferred to a Teflon-lined autoclave and placed in an electric oven heated at 200 °C for different time. After the hydrothermal process, the as-prepared product was washed with distilled water and ethanol for several times and then dried at 60 °C for 12 h. Finally, black powders were obtained.

2.2 Characterisation of samples

The X-ray diffraction (XRD) experiments on the TiO₂/Ti₃C₂T_x were performed on a Bruker D8 advance diffractometer under CuKa radiation. The 2θ range used in the measurement was from 7 to 70°, data analysis with Jade software. The morphologies and structures were investigated using a JSM-7001F scanning electron microscope (SEM). All the measurements were carried out at room temperature.

2.3 Tribological properties of TiO₂/Ti₃C₂T_x as lubrication additive

The as-prepared TiO₂/Ti₃C₂T_x hybrid nanocomposites were scattered to the base oil by mass fraction of 0.6 wt%, 1 wt%, 3 wt% and 5 wt%. Solid powders were uniformly dispersed in the base oil with ultrasonic generator and formulated into turbid liquid samples. Tribological properties of the base oil and mixed oil samples containing different mass fractions of additives were studied with a universal ball on disc micro-tribotester (UMT-2, Center for Tribology Inc, USA). The friction and wear tests were conducted at a rotary speed of 150 rpm and ambient temperature of about 25 °C for 10 min. The load was in the range from 5 N to 50 N. The stainless steel ball with a diameter of 10 mm and a hardness of 62 HRC was made of 440C stainless steel and the counterpart is 45 steel disc of Φ 30 mm × 3 mm in size. The friction coefficients were recorded automatically and the grinding cracks were measured by a JSM-5600LV scanning electron microscope (SEM) and a BRUKER ContourGT non-contact 3D optical profile testing instrument.

3. Results and discussion

The XRD patterns of the initial 3Ti/1Al/1.8C/0.2Sn mixture after heated at 1450 °C for 20 min. (Fig. 1a) show that the synthesized powders mainly contain Ti₃AlC₂ with small amounts of TiC as a secondary phase. The characteristic diffractions of Ti₃AlC₂ were detected around 9.5° and 39.0°, respectively, corresponding to the (002) and (104) planes, which are consistent with the previous literature²⁸ and the data in the standard card (JCPDS: 52-0875) for Ti₃AlC₂. According to the calculation from the XRD pattern, the purity of the sample is upto 96.7 wt%.

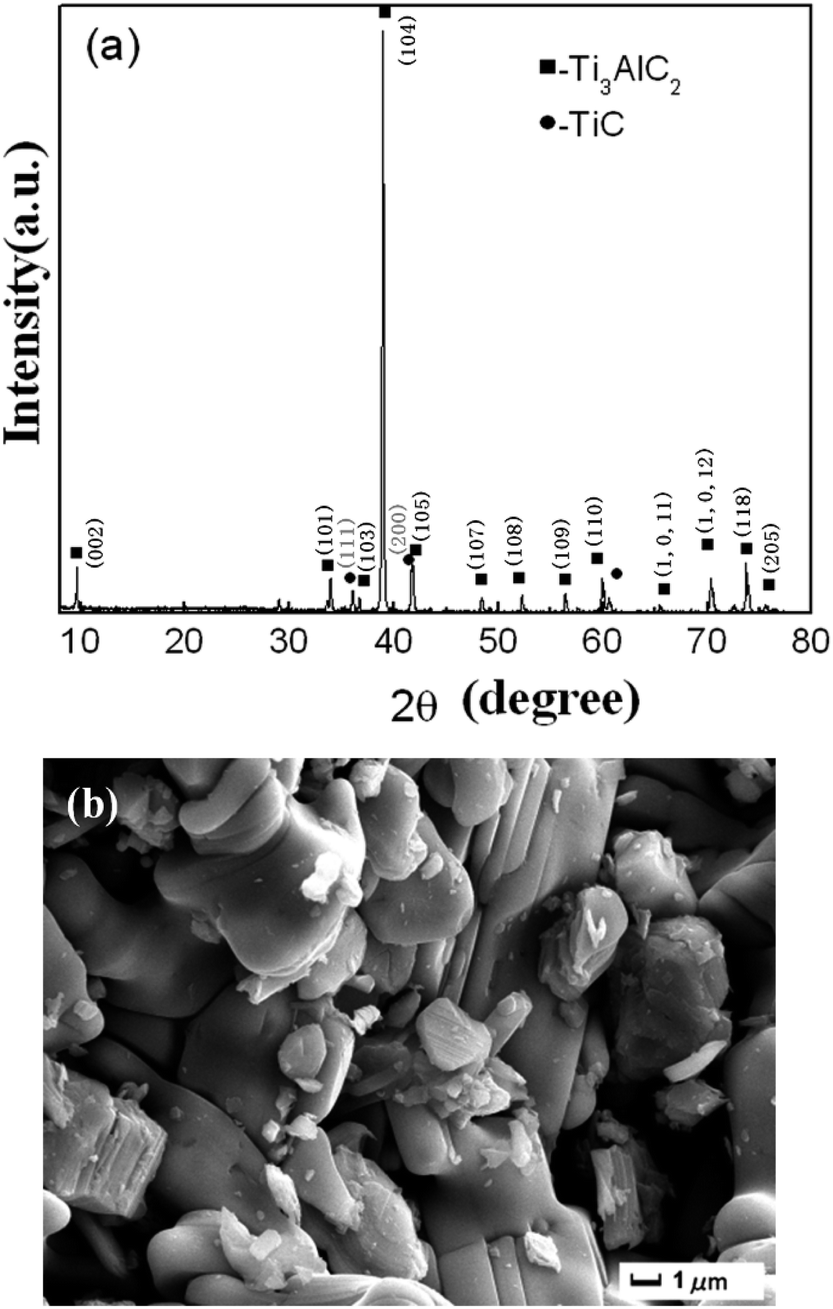

Fig. 1 XRD pattern and SEM morphology of Ti₃AlC₂.

The size and morphology of Ti₃AlC₂ sample were identified by SEM. Fig. 1b shows the SEM images of the as-prepared Ti₃AlC₂ sample. Fig. 1b reveals that the sample consists of a lot of densely aligned laminated-like structure and smooth surface. Further observation shows that the particles have melting imprint, indicating the formation of liquid phase at high temperature,³ the result indicating that high-yield and good morphology of Ti₃AlC₂ could be readily achieved through this approach.

Fig. 3I gives the XRD patterns of the exfoliated Ti₃C₂T_x powders obtained by 40% HF treatment. After HF treatment, the labelled diffraction peaks in Fig. 3I can be indexed to those of the phase of Ti₃C₂T_x and TiC,¹⁷ the peaks indexed to Ti₃AlC₂ have clearly vanished. The XRD patterns of product verify the formation of Ti₃C₂T_x phase.^28,36,37 The strong peaks were found around 9.0° and 18.2° corresponding to (002) and (004) of Ti₃C₂T_x, which shift to lower 2θ angles contrasting to the diffraction of Ti₃AlC₂, manifesting the expansion along c-axis. Owing to the weak metallic bonding between Ti and Al, the Al layer is exfoliated by selective etching off Ti₃AlC₂.²⁸ SEM images (Fig. 2) show that the obtained samples are uniform separated layers with an average thickness of about 10 nm.

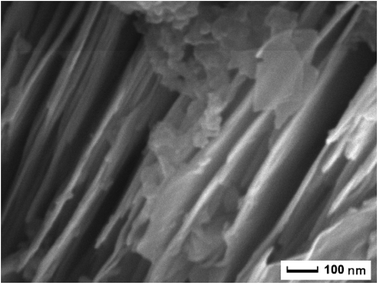

Fig. 2 A typical SEM morphology of the synthesized multilayers Ti₃C₂T_x.

Fig. 3 gives the X-ray diffractograms of Ti₃C₂T_x before and after hydrothermal treatment in distilled water at 200 °C. The XRD patterns of the products of Ti₃C₂T_x after treatment at 200 °C for 12 h can be indexed for both TiO₂ and Ti₃C₂T_x, in addition, it also can be clearly seen that the intensity of TiO₂ peaks increased as the reaction time increasing, while the fraction of not oxidized Ti₃C₂T_x was greatly reduced. This reveals the kinetics of the oxidation process as a carbide consuming mechanism.³⁴

Fig. 3 XRD patterns of Ti₃C₂T_x before and after hydrothermal treatment at 200 °C for 12 h and 24 h.

Fig. 4 exhibits a typical SEM images for Ti₃C₂T_x sample treated at 200 °C for 24 h. It can be seen from Fig. 4a that there are many uniform oxide particles distributing within the surface and edge of the thinner layers, while the original microstructure of Ti₃C₂T_x is separately layered structure (Fig. 2). The magnified SEM image (Fig. 4b) further gives the details of hybrid nanocomposite. There are significant amounts of TiO₂ co-exist with Ti₃C₂T_x, the size of TiO₂ particles is about 100 nm.

Fig. 4 SEM images of Ti₃C₂T_x after hydrothermal treatment in water at: (a) 200 °C for 24 h, and (b) zoom in on the region framed in (a).

In order to discuss the evolutions of the friction coefficients of TiO₂/Ti₃C₂T_x hybrid nanocomposites, the concentration of the nanocomposites in the lubricant was studied. Several concentrations in the range from 0.6 wt% to 5 wt% were chosen. And the tests were carried out with 20 N, 150 rpm, 600 s and the room temperature, respectively. The friction coefficients of the tests are offered in Fig. 5a. It can be seen that under base oil lubrication, the friction coefficient has a decreasing trend over 300 s, and then stabled with an average value of 0.103. The base oil with 0.6 wt% TiO₂/Ti₃C₂T_x hybrid nanocomposites lubrication has the same trend with the base oil lubrication, maintained a friction coefficient of approximately 0.075 after 300 s sliding. The base oil with 1 wt% TiO₂/Ti₃C₂T_x lubrication showed the lowest friction coefficient of 0.073 with a slight decreasing trend. This may be because, with the continuous sliding, more and more TiO₂/Ti₃C₂T_x were adhered to the friction surfaces creating a tight layer between the two contact surfaces, leading to a reducing friction coefficient. However the friction coefficient of base oil with 3 wt% concentration became erratic and lifted along sliding time after 150 s sliding. When the base oil formulated with 5 wt% TiO₂/Ti₃C₂T_x, the friction coefficient rose observably over 0.16 and an increasing trend with sliding time.

Fig. 5 Friction coefficient as a function of sliding time lubricated with different concentrations TiO₂/Ti₃C₂T_x hybrid nanocomposites in base oil (a) and base oil mixed with 1.0 wt% TiO₂/Ti₃C₂T_x additive under different loads (b).

When the concentration of TiO₂/Ti₃C₂T_x hybrid nanocomposites is 1 wt%, the best antifriction performance is achieved. The remarkable tribological property may due to their TiO₂ nanoparticles and thin laminated structure. Furthermore, the nanoparticles can readily enter into the boundary with base oil and form a uniform shielded film, so the behavior of friction coefficient is more steady than others, but too much higher concentration of the nanoparticles revealed vast agglomeration, could not enter the contact area easily,^38,39 also could damage the consistency of the gluey system of the base oil.⁴⁰ So, the optimum concentration of the TiO₂/Ti₃C₂T_x hybrid nanocomposites as an additive in base oil is proposed to be 1 wt%.

Fig. 5b reveals the change of friction coefficient of 1 wt% TiO₂/Ti₃C₂T_x hybrid nanocomposites as an additive of lubricant under different loads, respectively. It can be observed that there is a trend that the friction coefficient of nanocomposites decreases firstly and then increases as the load increases, also, the curves of 30 N and 50 N have higher undulation than the curves of 5 N and 20 N. We can get the ideal load for friction display at 20 N. Within the scope of certain pressure, TiO₂/Ti₃C₂T_x hybrid nanocomposites is delaminated readily at the contact region and precipitate a tribofilm, which can reduce shearing stress and generate a low friction coefficient. When the applied load is 5 N, TiO₂/Ti₃C₂T_x cannot be compacted on the friction surface to repair grinding crack, so the protective film was not shaped. Otherwise, if the applied load is too high, the protective film at the region will be damaged, finally inducing high undulation and friction coefficient.

With the aim of study the wear resistance performance of TiO₂/Ti₃C₂T_x hybrid nanocomposites as lubricant oil additives, the grinding cracks of plate after friction were examined by SEM and BRUKER ContourGT non-contact 3D optical profile testing apparatus.

SEM photographs of the worn scar lubricated by base oil with different concentrations of TiO₂/Ti₃C₂T_x hybrid nanocomposites under 20 N are given in Fig. 6 and 7a. Fig. 6a presents that the rubbed surface lubricated by the pure base oil is quite rough with lots of wide and deep furrows along the sliding direction because of contact fatigue. In Fig. 6b and 7a, the worn surface lubricated with base oil added 0.6 and 1.0 wt% TiO₂/Ti₃C₂T_x hybrid nanocomposites is smoother than that lubricated with pure base oil. The furrows are shallower and subtler on the worn surface of steel disc under the lubrication of base oil with 0.6 and 1.0 wt% TiO₂/Ti₃C₂T_x, meanwhile, a thin tribofilm is formed on the substrate. However, the wear scar becomes obviously rough and the plastic deformation is severe when 3.0 wt% and 5.0 wt% TiO₂/Ti₃C₂T_x were added into the base oil, which is well corresponded to the unstable and higher friction coefficient, as shown in Fig. 5a. It can be inferred that the tribological properties of the base oil could be significantly improved by adding the TiO₂/Ti₃C₂T_x hybrid nanocomposites as additives, though the content of TiO₂/Ti₃C₂T_x must be controlled at a reasonable level. Too much TiO₂/Ti₃C₂T_x may act as superfluous abrasive particles and result in the deterioration of the friction conditions.

Fig. 6 SEM images of the grinding cracks lubricated by base oil with different concentrations 0 wt% (a), 0.6 wt% (b), 3.0 wt% (c), and 5.0 wt% (d) hybrid nanocomposites.

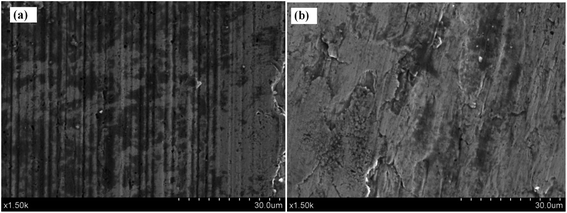

Fig. 7 SEM images of the grinding crack lubricated by base oil with 1.0 wt% TiO₂/Ti₃C₂T_x hybrid nanocomposites under (a) 20 N and (b) 50 N.

The morphology of the grinding crack lubricated by base oil with 1 wt% TiO₂/Ti₃C₂T_x hybrid nanocomposites under 20 N and 50 N was observed using SEM, as revealed in Fig. 7. This SEM image in Fig. 7a shows that the friction surface lubricated by the base oil with 1 wt% TiO₂/Ti₃C₂T_x hybrid nanocomposites under 20 N is glossy. The furrows are shallow and no distinct mechanical damage on the worn surface of steel disc, meanwhile, a light tribofilm is shaped on the substrate. However, under the load 50 N, as shown in Fig. 7b, the worn surface proves clearly coarse and the plastic deformation is rigorous, which is consistent with the higher and labile friction coefficient, as shown in Fig. 5b.

Fig. 8 illustrates grinding crack of the base oil with 1 wt% TiO₂/Ti₃C₂T_x hybrid nanocomposites at 150 rpm for 600 s under the load of 20 N and 50 N. It can be distinct observed that the grinding crack under 20 N is composed of glossy and shallow furrows along the sliding direction (Fig. 8a), and the grinding crack caused by under 50 N (Fig. 8b) is wider and distributed irregular pits. From the images we can see that the depth and width of the wear scar for 20 N are about 30 μm and 280 μm respectively, while those for 50 N are about 35 μm and 400 μm. This manifests that the base oil with TiO₂/Ti₃C₂T_x hybrid nanocomposites under 20 N shown better anti-wear ability than 50 N.

Fig. 8 Non-contact 3D optical profile testing instrument images of the grinding crack of the base oil with 1 wt% TiO₂/Ti₃C₂T_x hybrid nanocomposites under (a) 20 N and (b) 50 N.

The tribological tests and morphology of the grinding crack results suggest that the 1 wt% TiO₂/Ti₃C₂T_x nanocomposites with the optimal load (e.g., 20 N) aids to form continuous and uniform tribofilm on the rubbing surface leading to friction reduction.

The tribological mechanism between the rubbing surfaces in base oil with TiO₂/Ti₃C₂T_x hybrid nanocomposites is iconically presented in Fig. 9. It is believed that the suitable content of TiO₂/Ti₃C₂T_x hybrid nanocomposites under appropriate load could enter in the gap between the friction surfaces easily. During sliding, the desquamated TiO₂ particles can mending the scratched surface to decrease the contact of rough between the friction surfaces, meanwhile the exfoliated Ti₃C₂T_x sheets adsorb onto the rubbing surface and form a tribofilm, which can decrease shearing stress and the direct contact of tribopair, this is the main mechanism for improving the tribological behavior of TiO₂/Ti₃C₂T_x hybrid nanocomposites.

Fig. 9 Tribological mechanism model of the base oil with TiO₂/Ti₃C₂T_x hybrid nanocomposites.

4. Conclusion

In brief, TiO₂/Ti₃C₂T_x hybrid nanocomposites were prepared by a liquid-phase reaction route. At a lower concentration (1 wt%) with the optimal load (e.g., 20 N), TiO₂/Ti₃C₂T_x hybrid nanocomposites could effectively improve the tribological properties of base oil by synergistic effects of mending the scratched surface and formation of a uniform tribofilm on the surface, which prevent the direct contact between counterparts during the friction process. This study suggests TiO₂/Ti₃C₂T_x hybrid nanocomposites exhibit a potential application as oil-based lubricant additives.
