An efficient route for design of luminescent composite materials based on polyethylene containing europium dibenzoylmethanate

Abstract

Luminescent composite materials based on linear polyethylene doped by a well dispersed tetrakis dibenzoylmethanate europium complex have been developed. The anion of the latter serves as an efficient light harvesting antenna and possesses the desired photophysical properties. The targeted modification of the Eu complex, namely introduction of a long hydrocarbon chain into the tetraalkylammonium cation [RNEt₃]⁺, has ensured the compatibility of the complex with the polyethylene matrix. The [RNEt₃]⁺ cation has been obtained by using long-chained 1-iodoalkanes synthesized via the Nd-catalyzed ethylene oligomerization process. The photophysical properties and the homogeneity of the obtained composites have been controlled by optical spectroscopy, luminescence intensity mapping as well as scanning electron microscopy.

---

Introduction

The use of lanthanide complexes in the development of new optical materials has markedly increased in the last few decades. Due to the unique photophysical properties,^1–3 coordination and organometallic compounds of f-elements are important for the design of new luminescent materials for optical amplifiers for telecommunication networks,⁴ light-emitting devices,⁵ lasers,⁶ luminescent films,⁷ and organic light emitting diodes.⁸ Unlike organic compounds possessing similar characteristics, lanthanide complexes have low extinction coefficients, which ensure transparency in the visible region. Owing to high quantum yields, monochromatic emission (the line width does not exceed 10 nm), and long luminescence lifetimes, lanthanide complexes with organic ligands can serve in the development of luminescent labels⁹ and anti-counterfeiting taggants.¹⁰

Lanthanide complexes with organic ligands providing an “antenna effect”⁹ have a great Stokes shift, which allows one to effectively convert UV radiation (200–400 nm) to visible light. Therefore, such complexes can be successfully used to prepare optical materials.¹¹ Radiation converters that transform the UV part of the solar spectrum to visible radiation are of considerable interest. In particular, increasing the proportion of red light in the spectra of light sources used in agriculture can intensify green plant growth. In this case, Eu(III) chelate complexes with the emission maximum at 610–620 nm are appropriate for the purpose.¹²

Of particular interest are luminescent composite materials based on various polymers. When homogeneous distribution of luminescent materials in the polymer matrix is achieved, the intensity and efficiency of luminescence can be substantially increased.^13,14 Moreover, the composite materials based on polymers doped by the lanthanide complexes are very attractive for different applications since a high luminance of the composite can be achieved by relatively low concentrations of complexes that remarkably decreases the cost of such materials.

The most intriguing challenge is to obtain luminescent composite materials based on polyethylene, which possesses the excellent photostability under UV/blue irradiation required from modern luminescent materials.¹³ Besides, obtaining a homogenous distribution of a luminescent complex in the polyethylene matrix is associated with well-known difficulties.^8,15–17

The known luminescent polymer composites fabricated, for example, using polyvinylpyrrolidone,¹⁸ polyvinylpyridine and the polyethylene methacrylate copolymer,¹⁹ and silicone rubber²⁰ either do not utilize polyethylene, or use a polyethylene as a surface coating for luminescent materials rather than as a matrix in which they are distributed.²¹ There is only one reported example of formation of polyethylene composites based on europium complexes, including hexanoic, octanoic, lauric, and stearic acid salts.²² The composites thus obtained showed the typical Eu luminescence; however, the authors did not elucidate the degree of homogeneity of the europium distribution in the polyethylene matrix.

Compatibility of the matrix materials and lanthanide complex is the key problem arising in the design of hybrid materials composed of polymers doped by the lanthanide complexes. In particular, the well known brightly luminescent complex Na[Eu(tta)₄], (Htta is 2-thenoyltrifluoroacetone) is sparingly soluble in low-polarity polymers like polystyrene, and is well compatible only with more polar polyesters (e.g. PMMA).²³ The presence of perfluorinated substituents may induce the aggregation and phase separation of the complex in the matrix.

We here report a straightforward and efficient route for design of luminescent composite materials based on linear polyethylene (PE) (Scheme 1), including the synthesis of three tetrakis-Eu complexes containing dibenzoylmethane (1,3diphenylpropane-1,3-dione (Hdbm)): Na[Eu(dbm)₄] (1),²⁴ [(C₁₂H₂₅NMe₃)]₂[Eu(dbm)₄]I (2), and [(RNEt₃)] [Eu(dbm)₄] (3).

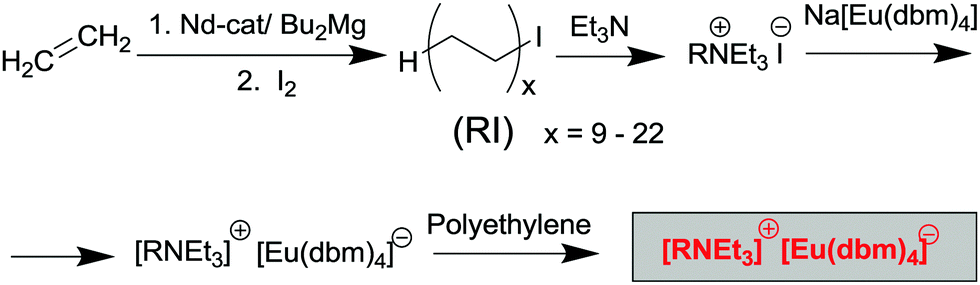

Scheme 1

Dibenzoylmethane is known as the ligand serving as the efficient light harvesting antenna for the Eu ion. Also, the dibenzoylmethanate complexes of europium exhibit both photoluminescent and triboluminescent properties.^25–27 The anionic tetrakis-type of complex was determined by the general assumption that the use of a luminescent complex containing two parts, namely the luminescent anion and cation with a long hydrocarbon chain can prevent the separation of the polymer and complex and ensure homogeneity of the composite. The introduction of a long chain cation into the tetrakis complexes 2 and 3 should lead to better distribution of these complexes into PE. The photophysical properties of both the tetrakis complexes and composites containing these complexes were studied systematically by optical spectroscopy. The homogeneity of the distribution of the luminescent centres in the polymer matrix was controlled by luminescence intensity mapping and scanning electron microscopy.

Results and discussion

The tetraalkylammonium salt, (RNEt₃)I, was prepared by the reaction of RI with triethylamine.²⁸ Hereinafter, R designates a set of C_nH_2n+1 oligomers with n = 18–44, where n is an even number (with the weight-average molecular weight corresponding to n = 30–32). The sample of RI 1-iodoalkanes used to prepare the ammonium salt was synthesized by catalytic oligomerization of ethylene followed by treating the reaction mixture with iodine²⁸ (Scheme 2).

Scheme 2

Our preliminary experiments demonstrated excellent compatibility of polyethylene (PE) with the tetraalkylammonium salt (RNEt₃)⁺I. The [(RNEt₃)]⁺[Eu(dbm)₄]⁻ complex, consisting of the tetraalkylammonium cation compatible with the polyethylene matrix and the [Eu(dbm)₄]⁻ anion was expected to provide high luminescence.

In order to evaluate the advantages and the scope of the method applicability, we used three sorts of luminescent complexes for composite preparation, namely, three europium tetrakis-β-diketonate complexes: Na[Eu(dbm)₄] (1),²⁴ [(C₁₂H₂₅NMe₃)]₂[Eu(dbm)₄]I (2), and [(RNEt₃)] [Eu(dbm)₄] (3). Complex 1, which served as a precursor for compounds 2 and 3, was used for comparison as a standard europium complex with ligands that provide an “antenna effect”. Complex 2 was an individual compound, intended to be used as a model of 3 for verification and subsequent optimization of all procedures en route from the europium complex to the polyethylene-based composite. Compound 3 was not a single compound, but a mixture of europium dibenzoylmethanate complexes with the [(RNEt₃)]⁺ cations (R = C_nH_2n+1, n = 18–44).

Synthesis of europium complexes

Complex 1 was prepared by a known procedure,²⁴ compounds 2 and 3 were synthesized by the reactions of 1 with the ammonium salts (C₁₂H₂₅NMe₃)⁺I⁻ (4) and (RNEt₃)⁺I⁻ (5), which were prepared by the reaction of dimethyldodecylamine with CH₃I and by the reaction of the oligomeric RI mixture with triethylamine, respectively (Scheme 2). The structure of (C₁₂H₂₅NMe₃)⁺I⁻ was established by X-ray diffraction (see structural studies for details).

It was found that the reaction of the oligomeric iodoalkane RI mixture does not proceed to 100% conversion under typical conditions of tertiary amine quaternization with alkyl halides²⁹ even upon considerable increase in the reaction time and with a large excess of Et₃N (8 to 20 equivalents). Therefore, samples of the (RNEt₃)⁺I⁻ salt contained higher iodoalkanes RI as an irremovable impurity.

Compounds 2 and 3 were synthesized by ion exchange between complex 1 and the corresponding ammonium salts upon refluxing in THF. The reaction of 1 with the (C₁₂H₂₅NMe₃)⁺I⁻ salt did not give the expected compound, [(C₁₂H₂₅NMe₃)][Eu(dbm)₄], but yielded its ate-complex with the initial ammonium salt, [(C₁₂H₂₅NMe₃)]₂[Eu(dbm)₄]I (2) instead (according to elemental analysis and ¹H NMR data) (Scheme 3). The NMR spectrum of the resulting ate-complex was quite informative, despite the presence of the paramagnetic Eu³⁺ cation. It is interesting that the [Eu(dbm)₄]⁻ anion behaves as a shift-reagent relative to the (C₁₂H₂₅NMe₃)⁺ cation, inducing only a slight line broadening and a small downfield signal shift. As compared with the initial ammonium salt, (C₁₂H₂₅NMe₃)⁺I⁻, the (CH₃)₃N– signals in the Eu complex 2 have more pronounced downfield shifts (4.81 ppm vs. 3.47 ppm) than the (CH₃)₃N–CH₂– signals (4.44 ppm vs. 3.63 ppm). The presence of iodide ions was confirmed by HRMS data (negative ion m/z = 126.9051). A twofold increase in the reaction time (from 40 to 80 hours) did not change the composition of the reaction products.

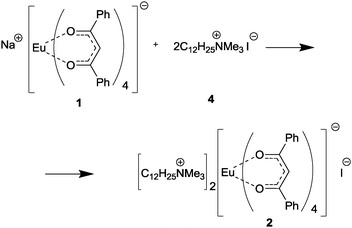

Scheme 3

The reaction of (RNEt₃)I (5) with complex 1 (Scheme 4) was also carried out by refluxing in THF. The RI impurity present in the (RNEt₃)⁺I⁻ salt can also react with complex 1 (see S2, ESI†). To control the completeness of reaction between 5 and 1, the reaction time was varied from 50 to 100 hours. After 50 hours of refluxing, the composition of the reaction products remained unchanged, according to the chemical analysis data.

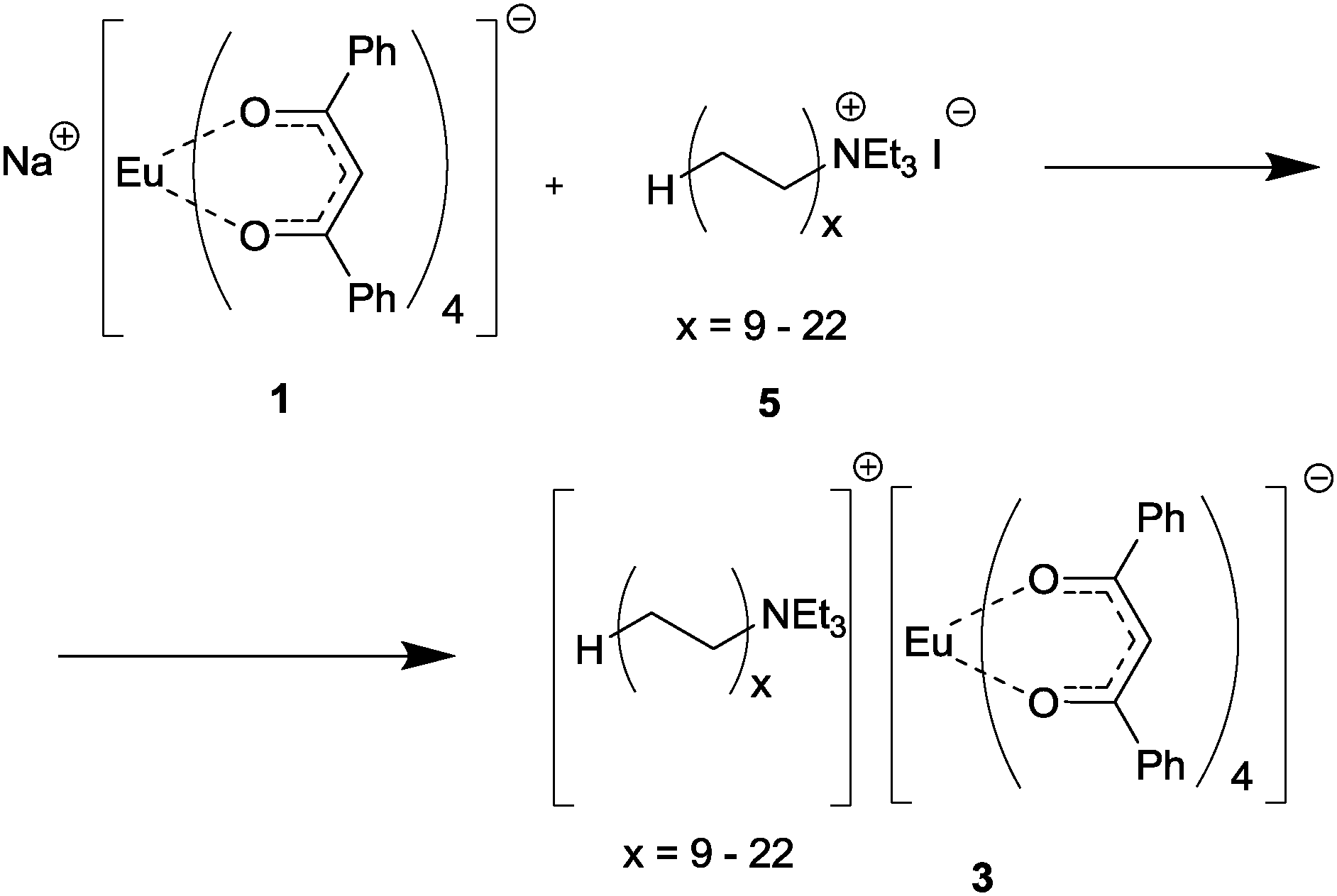

Scheme 4

Structural studies

Although all attempts to obtain single crystals of 2 were unsuccessful we were able to analyze the crystal structures of 1 (Na⁺(EtOH)₂[Eu(dbm)₄]⁻) (Fig. 1) and 4 (C₁₂H₂₅NMe₃)⁺I⁻.

Fig. 1 The general view of 1 in the representation of atoms by thermal ellipsoids (p = 50%). The sodium and ethanol molecules with occupancies equal to 0.32 are omitted for clarity.

The europium cation in 1 is eight-coordinated and adopts the distorted square antiprism polyhedron. Its distortion and variation of Eu–O bond lengths 2.346(2)–2.401(2) Å is clearly the consequence of the cation⋯anion interactions in crystal. Indeed, salt 1 crystallizes as the contact ion pair in which the coordination number of the sodium cation is equal to five and its sphere is composed of three oxygen atoms of the dbm ligand that correspond to the same base of the europium antiprism polyhedron (the Eu(1)⋯Na(1) distance is 3.381(2) Å), and of two oxygen atoms of ethanol molecules. The Na⋯O distances for oxygen atoms of dbm ligands and ethanol vary in the ranges 2.339(3)–2.620(4) and 2.246(5)–2.251(6) Å, respectively.

It should be noted that for oxygen atoms of dbm that are involved in additional coordination with sodium, the Eu–O distances are systematically longer (av. 2.40 Å) than for those which are not (av. 2.37 Å).

The above contact ion pairs are assembled in the crystal into infinite chains by means of O–H⋯O hydrogen bonds with the O⋯O separation being equal to 2.806(5) and 2.831(6) Å. (Fig. 2).

Fig. 2 The general view of the H-bonded chain directed along crystallographic axis b in the crystal of 1.

In the crystal of 4 (Fig. 3), cations form a typical packing, namely, chains in which the neighboring cations are arranged in a head-to-tail pattern and are assembled by means of weak C–H⋯I contacts with H⋯I distances of ca. 3.0 Å. The C12-chain is characterized by almost all trans-conformations, although some of the C–C–C–C torsion angles are as small as 130–140°.

Fig. 3 The cation⋯anion interactions in the crystal of 4.

To some extent, the crystal data for 1 and 4 shed some light on the possible structure of the ate-complex 2. For example, in both salts, contact ion pairs are formed via the Na⋯O and C–H⋯I interactions. Analysis of the CSD^30,31 demonstrates that ammonium salts of lanthanide-containing anions form similar contact ion pairs, in which the alkyl substituents at nitrogen are involved in C–H⋯O contacts with oxygens of β-diketonate ligands, CSD refcodes: (FIDNIP01),³² (FIDNOV),³³ (LOLWEQ), (LOLWIU), (LOLWAM)²⁷ and (GUVWAW).³⁴ The iodide anion in complex 2 can also (by analogy with salt 4) be involved in the additional cation binding, which should considerably change the charge distribution in the lanthanide coordination sphere and, hence, should affect the luminescent characteristics of the lanthanide ion.

Preparation of composite films

For the preparation of Eu-containing composites, samples 1–3 were mixed with PE in a 1 : 10 ratio (w/w) by the melt mixing technique using a laboratory micro-extruder. A 0.3 mm-thick film was formed from the composite materials obtained. The subsequent measurements were performed with film samples.

Initially, samples of compounds 2 and 3 were investigated by TGA and DSC for their thermal stability. According to TGA, compound 3 is stable up to 200 °C and undergoes reversible phase transition in the temperature range of 45–90 °C (Fig. S8, ESI†). Compound 2, which was isolated as an ate-complex [(C₁₂H₂₅NMe₃)]₂[Eu(dbm)₄]I⁻, starts to decompose at 138 °C (Fig. S9, ESI†). Since the film is formed at a higher temperature, evidently, a substantial part of complex 2 may decompose and contaminate the composite with the products of thermolysis. Therefore, compound 2, which was initially intended for the investigation of the behavior of europium complexes in the polymer matrix, is inapplicable for modeling of the composite luminescence base, because of low thermal stability. However, the obtained results are suitable for evaluation of the limitations of this approach.

For the luminescent compound introduced into the matrix, we chose the complex [(RNEt₃)]⁺[Eu(dbm)₄]⁻, consisting of the tetraalkylammonium cation, which meets the compatibility requirement with the polyethylene matrix, and the [Eu(dbm)₄]⁻ anion, which is expected to ensure high luminescence.

Metal-centered luminescence of tetrakis complexes

The luminescence spectra of the europium complexes 1–3 were recorded from both ligand-centered excitation at 380 nm and metal-based excitation at 465 nm, which gives rise to similar characteristic Eu³⁺ emission peaks (Fig. 4). These spectra show the typical narrow bands corresponding to the Eu^{3+ 5}D₀ → ⁷F_J (J = 0–4) transitions. Generally the intensities and Stark splittings of the ⁵D₀ → ⁷F_J transitions are influenced by the strength and symmetry of the ligand field. A forbidden ⁵D₀ → ⁷F₀ transition (region 570–585 nm) of the Eu³⁺ ion is presented by a weak symmetric single line in all cases which indicates the presence of only one type of Eu environment. Moreover all the luminescence decays of the excited ⁵D₀ level of the Eu ion were treated as a single exponential function and the corresponding lifetimes confirm the presence of only one type of luminescence center for every complex as well (Table 1 and Fig. 5).

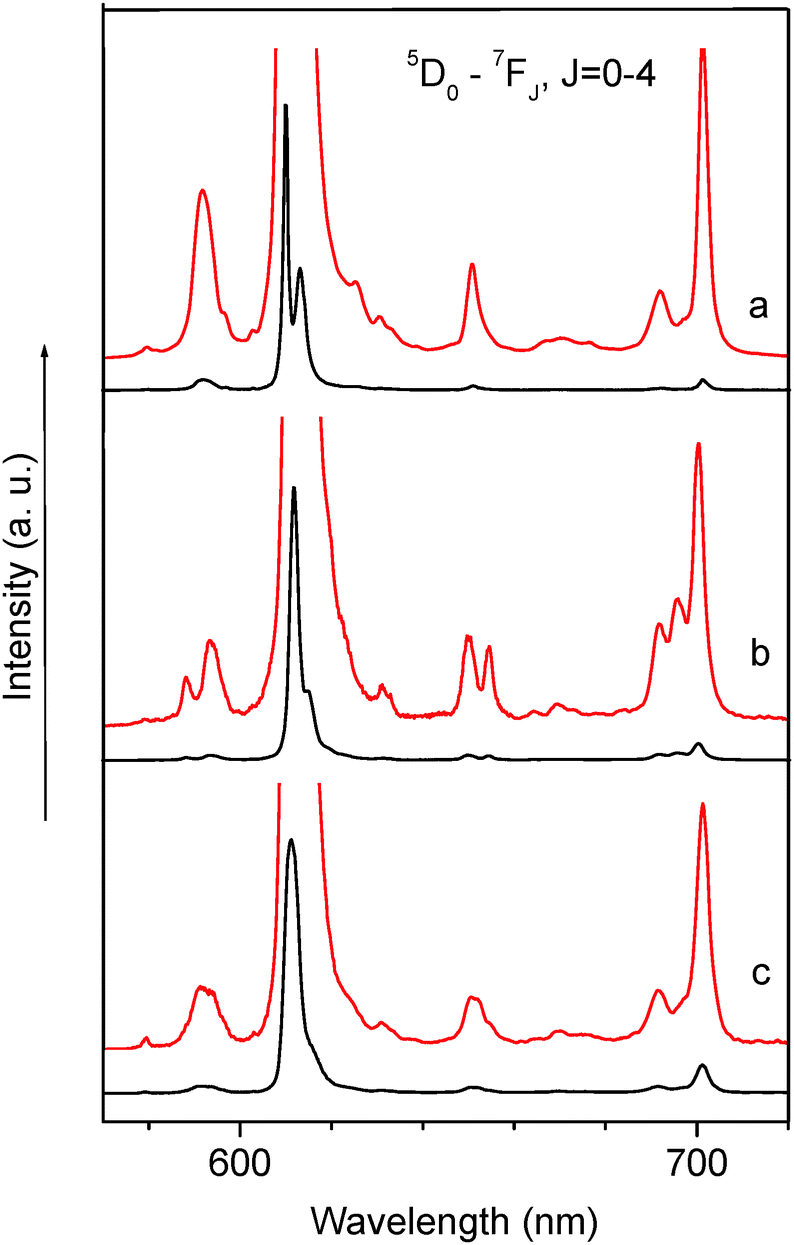

Fig. 4 Luminescence spectra of complexes 1 (a), 2 (b) and 3 (c) at 300 K, λ_exc = 380 nm.

Table 1 Integrated intensity ratios I_{⁵D0–⁷FJ}/I_{⁵D0–⁷F1} of electronic transitions (J = 1, 2, 4) in the luminescence spectra of complexes 1–3 as well as ratios I_tot/I_MD,0, lifetimes and Eu^III quantum yields

Complex	^5D0–^7F0	^5D0–^7F2	^5D0–^7F4	I tot/IMD,0	τ obs (ms^−1)	Q ^EuEu ± 2%	Q ^LigEu ± 5%
1	0.04	15	1	18	0.54 ± 0.02	49	26
2	0.1	28	3	33	0.26 ± 0.01	42	2.5
3	0.04	21	3	26	0.49 ± 0.02	63	10

---

Fig. 5 Photoluminescence decay curves for complexes 1, 2, 3 (λ_em = 615 nm, λ_ex = 380 nm, T = 300 K).

The integrated intensity of this transition is the maximum in the case of complex 2 (Table 1 and Fig. 5). The electric dipole ⁵D₀ → ⁷F₂ transition (region 600–620 nm) is extremely sensitive to the symmetry of the europium surroundings and is called hypersensitive and so the ratio of the integrated intensity of the ⁵D₀ → ⁷F₂ transition to the one of the ⁵D₀ → ⁷F₁ transition is a measure of the symmetry of the coordination sphere. In a centrosymmetric environment the magnetic dipole ⁵D₀ → ⁷F₁ transition is predominant and above the ratio <1 while the distortion of the symmetry around the ion causes an intensity enhancement of the ⁵D₀ → ⁷F₂ transition. In these complexes this ratio equals 15, 28 and 21 for complexes 1–3, respectively, and indicates relatively strong deviation of the Eu³⁺ site symmetry from the inversion center as well as a highly polarizable chemical environment around the ion. The maximum value obtained for complex 2 (28) along with the maximum value of integrated intensity discussed for the ⁵D₀ → ⁷F₀ transition evidences the strongest deviation of site symmetry of the Eu ion from the inversion center. The comparison performed on integrated intensities together with analysis of the fine structure of the luminescence spectra as well as the lifetime of the ⁵D₀ level of the europium ion point out a similar site symmetry of the Eu³⁺ ion in complexes 1 and 3. The difference observed for all these parameters for complex 2 can be explained by the fact that this complex exists as an ate-complex [(C₁₂H₂₅NMe₃)]₂[Eu(dbm)₄]I (2) and contains two [RNR₃′]⁺, cations and additional anion (I⁻). As was discussed above, the ammonium salts of lanthanide anions can form tight ion pairs, in which the alkyl substituents linked with nitrogen atom form C–H⋯O short contacts with oxygen atoms of the β-diketonate. Previously we have shown that noncoordinated anions (chlorides and triflates) can effect Stark splittings of the electronic transitions of the Eu ion as well as the formation charge transfer states which are involved in Eu luminescence sensitization.^35–37

The high intensity of the first Stark component of the ⁵D₀ → ⁷F₂ transition at 300 K potentially can be successfully used for obtaining a relatively high color purity (for example in complex 1 the line at 610 nm, ∼45% of total integrated intensity, fwhm (full width-at-half-maximum) = 34 cm⁻¹).

The efficiency observed of the energy transfer processes in the tetrakis complexes has been estimated by the calculation of the intrinsic quantum yield of the europium centered emission, Q^Eu_Eu, by means of Werts' formula.³⁸ In the considered europium complexes 1–3 the value of the intrinsic quantum yield is quite similar and equal to 49%, 42% and 63%, respectively (Table 1) which indicates the intense dependence on nonradiative deactivation processes as well as on structural peculiarities as was discussed above. The highest value of the intrinsic quantum yield observed in 3 is also in line with the lowest site symmetry of the europium surroundings. The overall absolute quantum yield Q^L_Ln upon ligand excitation was measured and for the most luminescent complex 1 it amounts to 26 ± 0.3% and so the efficacy with which electromagnetic energy is transferred from the surroundings onto the Eu ion (η_sens) amounts to ∼55%.

The excitation spectra of the europium complexes 1–3 measured at 300 K display in addition to the narrow f–f transitions ⁵D_4,2,1,0 ← ⁷F₀, (Fig. 6), a broad band expanded in the range 250–500 nm with a broadened vibronic structure (a case of medium electron–phonon interaction). The longest wavelength maximum of this band in the case of complexes 1 and 3 is centered at 400 nm and assigned to the S₁ state of the dbm ligand. Vibronic satellites appearing in the excitation spectra of complexes 1 and 3 are assigned to the symmetric vibration of the β-diketonate chelating ring with a large contribution of the C=O bond stretching with a frequency of 1470 cm⁻¹. The longest wavelength band is slightly blue shifted in the case of complex 2 up to 390 nm. It is worth mentioning that a broad pedestal is found in the region 420–500 nm, which is most clearly observed in the excitation spectrum of complex 3. This covered weak band can be tentatively assigned to the charge transfer state. Generally the energy of the charge transfer state is determined by such parameters as the optical electronegativity of the ligand and so the higher the energy of the charge transfer state the higher the value of this parameter. Taking into account the structural peculiarities of the complexes one can conclude that the presence of two ammonium cations due to C–H⋯O interactions and the steric repulsion in complex 2 promotes the elongation of the Eu–Ligand bonds. As a result the optical electronegativity of dbm is the highest in complex 2.^37,39,40 The relatively low energy of this charge-transfer band (its long wavelength edge is ∼20 500 cm⁻¹) can be the reason for the not very high value of the overall absolute quantum yield Q^L_Ln.

Fig. 6 Luminescence excitation spectra of complexes 1 (a), 3 (b) and 2 (c) at 300 K, λ_reg = 612 nm.

All prepared polyethylene films exhibit a characteristic luminescence of the Eu³⁺ ion with a maximum at 610 nm (Fig. 7).

Fig. 7 Luminescence spectra of PE films doped by 10% of complexes 2 (a), 3 (b) and 1 (c) at 300 K.

The luminescence spectra of these polyethylene films differ from the spectra of initial complexes. The observed spectra suggest that the composite formation has induced some changes in the coordination sphere of the Eu ion but the nature of the changes will be the subject of further studies.

Of most interest was to elucidate the homogeneity of the europium distribution in the polymer matrix. Luminescence intensity mapping experiments (Fig. 8a) demonstrated a homogeneous distribution of the luminescence centers in the PE matrix.

Fig. 8 Images of luminescence intensity mapping (λ_em = 620 nm, λ_ex = 375 nm), sample sizes 80 × 80 μm. Composite films: (a) PE – 3 (10%), (b) PE – 3 (1%), (c) PE – 1 (10%), (d) PE – 2 (10%).

Comparison of the luminescence intensity mapping results (Fig. 8) for films made of the three composite materials (PE–3 (a), PE–1 (c), PE–2 (d)) indicates that the most homogeneous distribution of the luminescent dopant in PE has been attained for the composite based on 3 (Fig. 8(a)). The use of inorganic complex 1 (Fig. 8(c)) gives rise to a considerable film inhomogeneity, while the use of 2 (Fig. 8(d)) results in the formation of aggregates in which the luminescent dopant is concentrated. The latter may be attributable to the formation of micelle-like aggregates in the composite containing 2. In the composite doped with 3, the formation of such aggregates is prevented by the inhomogeneity of the [RNEt₃]⁺ cations, which differ in the chain length of the organic group R, or because their hydrocarbon chain is (on average) much longer. One more possible reason for the inhomogeneous distribution of 2 is its noticeable thermal decomposition during the film formation caused by the low thermal stability of the complex. The film with a lower europium content (1% of 3) obtained by dilution of the PE–10% 3 was also characterized by a homogeneous distribution of luminescence centers over the film area (Fig. 8(b)).

The SEM images of the composite film surfaces (Fig. 9) also show a marked inhomogeneity of the composites prepared using 1 or 2, as compared with the film made of the composite doped with 3.

Fig. 9 SEM images of composite films: (a) PE – 3 (10%), (b) PE – 1 (10%), (c) PE – 2 (10%).

Conclusions and outlooks

To find a straightforward route to the PE-compatible complexes of rare earths, the reaction of alkylammonium iodides (RNR′₃)⁺I, (R = C_nH_2n+1, n = 18–44) with Na[Eu(dbm)₄] was applied and led to the exchange of sodium with the organic cation, containing a long linear hydrocarbon chain.

The chosen approach allows one to introduce a long linear hydrocarbon chain into the lanthanide complex, possessing the desired photophysical properties. This finding provided a high compatibility with polyethylene and allowed us to obtain polyethylene based optical composite materials with pre-determined properties.

A high degree of homogeneity in the distribution of the luminescent centers in polyethylene has been achieved by the proposed method. The developed procedure opens up the route to obtain composite materials emitted in different regions of the spectrum from visible (Tb, Sm, Dy ions) to the NIR part (Nd, Yb, Er ions) by using different lanthanide ions. Moreover, the unlimited row of existed lanthanide complexes also allows optimizing the optical properties of forthcoming luminescent composite materials based on polyethylene and that is very attractive for practical applications, these materials containing a small amount of lanthanide complexes (10 mol%) can be highly luminescent.

To improve the photophysical characteristics of the composite within the proposed methodology, it is necessary to optimize the synthesis of the alkylammonium salt used, and to test other lanthanide complexes concerning the thermostability of the luminescent compound.

Experimental

General details

Tetrahydrofuran and diethyl ether were predried over NaOH and distilled from potassium/benzophenone ketyl. Hexane was distilled from the Na/K alloy. Na[Eu(dbm)₄](C₂H₅OH)₂ (1),²⁴ was prepared according to literature procedures, synthesis of the oligomer mixture “RI” was performed according to the published procedure²⁸ with some modifications, as described in the ESI† (S1). The matrix polymer used to prepare the composite was PE, M_w = 3 × 10⁵, M_n = 1 × 10⁵, d = 0.940 g cm⁻³, Mp. = 126 °C. Metal analyses were performed by direct complexometric titrations with EDTA-disodium salt, using a Xylenol Orange indicator. TGA analyses were conducted using the TGA/DSC1 Mettler Toledo system at a rate of 10 K min⁻¹ under an argon flow of 10 mL min⁻¹ in the range from 303 K to 673 K. Standard differential scanning calorimetry (DSC) thermograms were recorded on a DSC823 Mettler Toledo system at a rate of 10 K min⁻¹ under an argon atmosphere in the range from 293 K to 553 K. The ¹H NMR spectra were recorded with Bruker AV400 (400 MHz) or Bruker AV600 (600 MHz) instruments in CDCl₃. MALDI mass spectra were recorded with a Bruker autoflex speed instrument in positive ion reflectron mode using a solid-state UV-laser (λ = 355 nm). ESI mass spectra were recorded with a MALDI-TOF Bruker ultraflex III.

X-ray crystallography

X-ray diffraction data were collected on a APEX II DUO CCD diffractometer using molybdenum radiation [λ(MoKα) = 0.71072 Å, ω-scans] for 1 and 4. The substantial redundancy in data allowed empirical absorption correction to be applied with SADABS by multiple measurements of equivalent reflections. The structures were solved by direct methods and refined by the full-matrix least-squares technique against F² in the anisotropic-isotropic approximation. Assuming the proximity of the β angle in 1 to 90° upon the refinement it was treated as the merohedral twin (monoclinic cell emulating the orthorhombic one). The usage of the TWIN −1 0 0 0 −1 0 0 0 1 instruction led to the BASF parameter being equal to 0.39832 and to a significant decrease of the R1 value. In the case of 4 despite the pseudosymmetry (P2₁/m space group) we have solved and refined it in P2₁. The choice of the latter space group was due to the significant deviation from planarity for the C₁₂-chain (see torsion angles) as well as due to the unrealistic anisotropic displacement parameters of carbon atoms in the case of the P2₁/m space group.

The positional and anisotropic displacement parameters of the disordered Na(HOC₂H₅)₂ fragment in 1 (see Fig. S1 in ESI†) were refined with constraints on the O–C and C–C bond length (DFIX) and anisotropic displacement parameters (EADP).

The occupancies for Na(1) and Na(1′) atoms were equal to 0.680(3) and 0.320(3) respectively. C–H hydrogen atoms in all structures were placed in calculated positions and refined within the riding model. Hydroxy H-atoms in 1 were located from the Fourier density synthesis. All calculations were performed with the SHELXTL software package.⁴¹ Crystal data and structure refinement parameters are listed in Table 2. Crystallographic data for the structures reported in this paper have been deposited in the Cambridge Crystallographic Data Centre as CCDC 1567021 (for 1) and 1567020 (for 4).†

Table 2 Crystal data and structural refinement parameters for 1 and 4

	1	4
Brutto formula	C64H56EuNaO10	C15H34IN
Formula weight	1160.03	355.33
T/K	120	120
Space group	P21/c	P21
Z(Z′)	4(1)	2(1)
a/Å	25.835(2)	5.7367(6)
b/Å	8.3357(8)	7.4012(8)
c/Å	25.370(2)	21.041(2)
β/°	90.1060(19)	91.012(2)
Volume/Å^3	5463.3(9)	893.25(17)
ρ calc/g cm^−3	1.410	1.321
μ/cm^−1	12.16	17.79
F(000)	2376	368
2θmax, °	58	17.79
Reflections collected (Rint)	55473 (0.0554)	14807 (0.0378)
Independent reflections	14499	4748
Reflections with I > 2σ(I)	12081	4266
Parameters	710	160
R 1 [I > 2σ(I)]	0.0381	0.0276
wR2	0.0824	0.0622
GOF	0.977	1.040
Residual electron density, e Å^−3 (ρmin/ρmax)	−1.001/1.336	−0.460/0.752

---

Syntheses

n-C₁₂H₂₅NMe₃I. Vacuum distilled n-C₁₂H₂₅NMe₂ (6.438 g, 30.17 mmol), freshly distilled CH₃I (11.0 mL, 177 mmol), and anhydrous ethanol (100 mL) were placed into a 250 mL round-bottomed flask. The reaction mixture was stirred under reflux for 15 h under argon. An additional amount of CH₃I (5.0 mL, 80 mmol) was added. The mixture was then stirred under reflux for 10 h. CH₃I and ethanol were removed on a rotary evaporator. Water (80 mL) was added to the solid residue. The product was extracted with dichloromethane (6 × 50 mL). The organic layer was dried over anhydrous Na₂SO₄. Almost all CH₂Cl₂ was removed on a rotary evaporator. The precipitate formed was separated from the solution and washed with diethyl ether (2 × 15 mL), hexane (30 mL), recrystallized from dry ethanol and dried under dynamic vacuum for 30 min. The yield was 10.350 g (96%).

MS MALDI-TOF [m/z (I/I₀)]: found for C₁₅H₃₄N⁺: 228.26 (100%), 229.27 (22%), 230.28 (2%). Calcd.: 228.27 (100.0%), 229.27 (17%), 230.28 (1%). NMR ¹H (600 MHz, CDCl₃), δ: 0.88 (t, 3H, –CH₂CH₃), 1.26 (br. s, 14H, –NC₃H₆ –C₈H₁₆–CH₃), 1.28 (m, 2H, –NC₂H₄–CH₂–C₈H₁₇), 1.77 (m, 2H, –NCH₂CH₂–) 3.47 (s, 9H, –N(CH₃)), 3.63 (m, 2H, –NCH₂–).

RNEt₃I. RI (3.288 g), Et₃N (2.80 mL, 20.1 mmol), and anhydrous ethanol (150 mL) were placed into a 250 mL round-bottomed flask and stirred under reflux for 12 h under an argon atmosphere. Et₃N (2.80 mL, 20.1 mmol), and anhydrous ethanol (50 mL) were added. The reaction mixture was stirred at reflux for an additional 10 h under argon. The solvent was removed on a rotary evaporator. The residue was washed with diethyl ether (2 × 15 mL), (30 mL), hexane (3 × 60 mL), and dried under vacuum. The yield was 1.819 g. According to the ¹H-NMR spectrum ca. 70% conversion of RI was observed.

MALDI-TOF detected ions Et₃N⁺(CH₂–CH₂)_nH with n = 9–22 (with the highest peaks for n = 13–16). M_n = 526, M_w = 536. (Fig. S10, ESI†) NMR ¹H (400 MHz, CDCl₃), δ: 0.85 (t. –CH₂CH₃), 1.24 (br. s –(CH₂)_n–CH₃), 1.39 (t, –N(CH₂–CH₃)₃), 1.70 (m, –NCH₂–CH₂–), 1.80 (m., 4H, I–CH₂–CH₂–), 3.17 (t, I–CH₂–), 3.25 (br. m, –N–CH₂–), 3.50 (q., –N(CH₂–CH₃)₃).

The product may contain an admixture of linear low molecular weight polyethylene, which is difficult to trace due to overlapping of signals at the NMR-spectrum.

[C₁₂H₂₅NMe₃]₂[Eu(dbm)₄]I. Na[Eu(dbm)₄](C₂H₅OH)₂ (0.575 g 0.5 mmol), (C₁₂H₂₅NMe₃)I (0.176 g 0.5 mmol), dry THF (50 mL) were placed in a 100 mL Schlenk flask and stirred under reflux for 40 h in an argon. The solution was evaporated under vacuum and the solid residue was extracted with CH₂Cl₂. The extract was filtered through a celite pad and evaporated under vacuum. The residue was stirred with 20 mL of hexane and then centrifuged. The residual solids were dried under vacuum, and yielded 0.442 g (2) C₉₀H₁₁₂EuIN₂O₈ (1628.73) calculated: C, 66.37; H, 6.93; N, 1.72; Eu, 9.33; found: C, 62.77; H, 5.83; N, 1.21; Eu, 10.10.

ESI-MS [m/z (I/I₀)]: (+ve) 228.268 (100%) (C₁₅H₃₄N⁺), 338.341(6%), 449.127 (7%)

ESI-MS [m/z (I/I₀)]: (−ve) 126.905 (100%) (I⁻), 223.076 (13%), 255.233 (15%), 281.248 (10%), 355.095 (11%).

¹H NMR (500 MHz, CDCl₃), δ: 0.92 (br. s, 6H, –CH₂CH₃), 1.31 (br. s, 28H, –NC₄H₈–C₇H₁₄–CH₃), 1.43 (br. s, 4H, –NC₃H₆–CH₂–C₈H₁₇), 1.61 (br. s, 4H, –NC₂H₄–CH₂–C₉H₁₉), 2.19 (br. s, 4H, –NCH₂–CH₂–), 4.44 (br. m, 4H, –NCH₂–), 4.81 (br. s, 18 H, –N(CH₃)), 7.00–7.20 (m. 20H), 7.35–7.60, (m. 20H); ¹³C NMR (150.9 MHz, CDCl₃), δ: 13.7, 22.2, 23.3, 26.1, 28.9, 29.2, 31.5, 54.8, 67.6, 125.5, 125.9, 126.7, 128.2, 130.2, 181.3, 185.3.

[RNEt₃][Eu(dbm)₄]. Na[Eu(dbm)₄](C₂H₅OH)₂ (1.045 g 0.90 mmol), RNEt₃I 0.652 g (approx. 0.98 mmol), dry THF (50 mL) were placed in a 100 mL Schlenk flask and the reaction mixture was stirred under reflux for 50 h under argon. The solution was evaporated under vacuum and the solid residue was extracted with CH₂Cl₂. The extract was filtered through the celite pad and evaporated under vacuum. The solid residue was triturated with hexane and dried under vacuum. 0.915 g of 3 were obtained as a yellowish powder.

ESI MS detected ions Et₃N⁺(CH₂–CH₂)_nH with n = 12–20 (the highest peaks for n = 15–16), negative range: ESI-MS [m/z (I/I₀)]: (−ve) 126.905 (100%) (I⁻), 223.076 (13%), 255.233 (15%), 281.248 (10%), ESI-MS and NMR spectra are presented in Fig. S13, S6 and S7 (ESI†), respectively. Elemental analysis: Found: C, 63.70; H, 6.98; N, 0.56; Eu, 9.48, the difference in the results of the analysis between samples from two independent synthetic experiments did not exceed 0.5%.

Preparation of the composite and composite films

Composites PE-1, PE-2 and PE-3 were prepared by single-stage mixing in a melt under the action of shear stress. The laboratory twin-screw micro-extruder HAAKE MiniLab Rheomex CTW5 was loaded with PE 4.500 g and 0.500 g of the corresponding europium complexes. The mixing was carried out at a temperature of 155 °C and at a screw speed of 100 rpm for 15 minutes. The composite with a lower content of Eu (1% of 3) was obtained by “diluting” of PE-3 Eu with polyethylene to the required concentration. After unloading from the extruder, the composites were pressed on a press with heating plates at a temperature of 155 °C and a pressure of 5 MPa for 5 minutes, and then were cooled in air. Composite films with a diameter of ca. 5 cm and a thickness of 0.3 mm were obtained.

Scanning electron microscopy

A target-oriented approach was utilized for the optimization of the analytic measurements.⁴² Before measurements the samples were mounted on a 25 mm aluminum specimen stub, fixed by conductive silver paint and coated with a thin film (15 nm) of carbon. The observations were carried out using a Hitachi SU8000 field-emission scanning electron microscope (FE-SEM). Images were acquired in backscattered electron mode at 15 kV accelerating voltage and at a working distance of 10–11 mm. The morphology of the samples was studied taking into account the possible influence of the carbon coating on the surface.

Photo-physical study

The luminescence measurements (spectra and lifetimes) were recorded on a Fluorolog FL 3-22 spectrometer from Horiba-Jobin-Yvon-Spex at 300 K. Lifetimes (τ) were measured on samples put into quartz capillaries; they are averages of at least three independent measurements, which were achieved by monitoring the decay at the maxima of the emission spectra. The single or biexponential decays were analyzed with Origin 7.0. Quantum yields (Q) of Eu-centered luminescence were determined by an absolute method with a specially designed integration sphere(G8, GMP SA, Switzerland). The calculation of the intrinsic quantum yield of the europium centered emission, Q^Eu_Eu, has been performed by means of the Werts' formula
where A_MD,₀ is a constant spontaneous emission probability (14.65 s⁻¹ for Eu^III), n the refractive index, I_tot the total area of the emission spectrum (⁵D₀ → ⁷F_J, J = 0–6), and I_MD,0 the ⁵D₀ → ⁷F₁ band area.³⁸ The refractive index was taken as 1.5 for all cases. Luminescence intensity mapping experiments were carried out with the use of a MicroTime 200 time-correlated single photon counting system (PicoQuant, Germany) coupled to an inverted fluorescent microscope IX71 (Olympus, Japan). The samples of flat films were placed on the microscope stage and excited by a PDL 828 pulsed laser (376 nm emission, 50 ps pulse duration, 100 kHz pulse repetition rate). The emission spectral band was selected by interference band-pass filters (Chroma, USA) with a bandwidth of 10 nm. The filter band was centered at 620 nm. The luminescent signal was acquired by a τ-SPAD photon-counting avalanche photodiode and a PicoHarp 300 correlation system of MicroTime 200. The horizontal positioning accuracy of the piezopositioner mounted into the microscope stage was about 10 nm. Spatial resolution of 300 nm was achieved with the use of the confocal scheme together with a UPlanSApo 100 microscope objective. The maximum size of the region of interest (ROI) was 80 × 80 microns.
