Monocore vs. multicore magnetic iron oxide nanoparticles: uptake by glioblastoma cells and efficiency for magnetic hyperthermia

Gauvin Hemery a, Coralie Genevois b, Franck Couillaud b, Sabrina Lacomme c, Etienne Gontier c, Emmanuel Ibarboure a, Sébastien Lecommandoux a, Elisabeth Garanger *a and Olivier Sandre *a
aLaboratoire de Chimie des Polymères Organiques (LCPO), UMR 5629 CNRS, Univ. Bordeaux, Bordeaux-INP, ENSCBP 16 avenue Pey Berland, 33607 Pessac, France. E-mail: elisabeth.garanger@enscbp.fr; olivier.sandre@enscbp.fr
bImagerie Moléculaire et Thérapies Innovantes en Oncologie (IMOTION), EA 7435-Univ. Bordeaux, 33706 Bordeaux, France
cBordeaux Imaging Center (BIC), UMS 3420 CNRS, Univ. Bordeaux UBS–US4 INSERM, F-33000 Bordeaux, France

Received 21st July 2017 , Accepted 3rd November 2017

First published on 3rd November 2017


PEGylated magnetic iron oxide nanoparticles (IONPs) were synthesised with the aim to provide proof of concept results of remote cancer cell killing by magnetic fluid hyperthermia. The IONPs were produced by the polyol synthetic route also called the “forced hydrolysis pathway”, yielding highly superparamagnetic, readily-dispersible, and biocompatible IONPs. As shown previously, adjusting the parameters of the reaction led to either monocore or multicore IONPs, with an on-demand morphology and magnetic properties. Polyethylene glycol (PEG) was grafted onto the nanoparticles in a single final step, using a phosphonic acid-terminated PEG synthesised separately, a strategy named “convergent”. The magnetic properties of the IONPs were preserved in physiological media, thanks to this biocompatible shell. The interaction of the PEGylated IONPs with a glioblastoma cell line was studied, from the stability of IONPs in an appropriate cell culture medium to the remotely magnetically triggered cell death. Cellular internalisation of the IONPs was studied, along with their fate after application of an alternating magnetic field (AMF). This investigation highlights the superior efficiency of multicore (nanoflowers) vs. monocore (nanospheres) IONPs for magnetic hyperthermia, leading to 80% cancer cell death in medically translatable conditions.



Design, System, Application

Iron oxide nanoparticles (IONPs) are under intense scrutiny by many research groups for multiple biomedical applications going from bio-imaging (as MRI contrast agents) to newly designed therapeutic nanodevices making use of their magnetic responsiveness. To impart IONPs with other (e.g. optical or nuclear) imaging modalities or a biological function (e.g. tumour targeting), the grafting of biological ligands at their surface or their conjugation with dyes or chemo toxic drugs is most often realized by a multi-step or “divergent” functionalization route. However, their superparamagnetic properties impede the use of NMR spectroscopy to verify if the molecular design was successful and optimal. In this work, we developed a “convergent” strategy consisting of the preliminary modification of molecules to be grafted, as shown with poly(ethyleneglycol) chains and a near infrared dye, followed by a final one-pot step of “grafting onto” the IONPs. The desired functionality was assessed through the study of the interaction of those PEGylated IONPs with human glioblastoma cells by five techniques including optical and electron microscopy, revealing their internalisation pathway in intracellular vesicles (lysosomes). In view of their future therapeutic potential against cancer by magnetic hyperthermia, the effect of an alternating magnetic field (AMF) application on cell viability was demonstrated, showing 80% cellular death after 24 hours at an iron oxide concentration as low as 100 μg mL−1.

Introduction

Cancer is a major cause of death in developed countries, and is the second cause of death in the US and Europe.1 Among the different types and locations of cancer, malignant brain tumours show lower incidence compared to the more common breast, prostate or liver cancers, with an annual global age-standardised incidence of 2.6 and 3.7 per 100[thin space (1/6-em)]000 individuals, for females and males respectively.2 However, brain tumours of high grade (glioblastoma) are aggressive and have very poor prognosis. They are exceedingly complicated to treat due to their deep implantation in the cranial cavity, limiting the ease of treatment, and to the vital role of the brain limiting tumour resection by surgery. Patients suffering from glioblastoma have a median survival of 14 months,3 with survival chance depending on various parameters, such as the size and location of the tumour, patient age, and administrated treatment.4 Standard existing solutions to treat cancers by resection, when possible, radiotherapy and chemotherapy, have to be combined into a multi-modal treatment line yet with generally poor prognosis,4 marginal benefits and only a few survival months.3 In the search for a more efficient cure, magnetic fluid hyperthermia (MFH) coupled with conventional radiotherapy proved to be a promising alternative, well-tolerated by patients, with little to no side effects.5 In a phase 3 clinical trial, intra-tumour MFH combined with X-rays enabled prolonging the median survival time from 14.6 to 23.2 months,6 and is now authorised in clinics. In parallel, different pre-clinical models were developed to test the conditions of MFH application in vitro on different cell lines or in vivo on small animals (mostly rodents). Emphasis was placed in particular on the type of magnetic nanoparticles used to generate heat and on the characteristics of the alternating magnetic field (AMF).7 Magnetic iron oxide nanoparticles (IONPs) are in this sense promising internal heating agents for magnetic hyperthermia, due to their inherent biocompatibility and because they can reach sufficiently high values of specific absorption rates (SAR) to elevate temperature up to 51.2 °C in glioblastomas by intra-tumour injection.6 Among the different synthesis pathways yielding IONPs (alkaline co-precipitation, hydrothermal treatment, thermal decomposition...),8 we chose in this study the polyol route introduced by Caruntu et al.9 as this synthesis is robust, up-scalable and enables producing either monocore or multicore IONPs. Also called “nanoflowers”, the latter are among the synthetic IONPs with the highest reported SAR values, of ∼1 kW g−1 or more,10–12 yet at AMF conditions that moderately exceed the “Brezovich criterion” on the product of AMF frequency and intensity, i.e. by a factor ∼10 only (f × H < 5 × 109 A m−1 s−1), as proposed by Dutz and Hergt.13 As reported in the literature,14–16 higher specific heating rates of multicore IONPs compared to single core IONPs are ascribed to “spin glass” dynamics of the magnetic moments within a cluster, strongly correlated with the exchange interaction. This collective behaviour enhances the magnetic susceptibility, i.e. magnetic response at low magnetic field strength (DC or AC), once the applied field overcomes the intrinsic anisotropy field. The present study aims to compare the efficacy of these two morphologies (monocore vs. multicore) for treating human glioblastoma cells in vitro. The surfaces of these two types of IONPs were functionalised with a dense polymer brush of poly(ethylene glycol) (PEG) as a stabiliser for bringing longer blood circulation lifetime in vivo. The “convergent” grafting strategy uses a phosphonic acid group at one end of the chains, a ligand known to provide a strong chelating effect at the surface of IONPs. Phosphonates and bis-phosphonates were already used as chain end-groups for IONP pegylation.17 In previous reports studying stealth IONPs in vitro or in vivo, phosphonic acid anchors were instead grafted along the polymer backbone, either in a block structure with PEG18,19 or as a statistical copolymer with PEG sidechains.20 Other types of anchoring moieties are also used for IONP pegylation, like nitrodopamine21 or silanes.22,23 In the present study, the near infrared (NIR) fluorescent dye DY700 that is stable under in vitro conditions and has low cytotoxicity24 was also grafted using the phosphonate pre-functionalisation strategy in order to easily track the IONPs incubated with cells. A U87 human glioblastoma cell line, genetically modified to overexpress the bioluminescent reporter gene firefly luciferase (Fluc), was used to provide a convenient way to monitor the time course of cell viability by bioluminescence imaging (BLI) and to quantify the IONPs' performances in terms of magnetically-induced toxicity.25,26 The internalisation pathway was studied both by transmission electron microscopy (TEM) of cell microtomes and by confocal laser scanning microscopy (CLSM) of living cells, showing that the IONPs were internalised inside intracellular compartments, more precisely in lysosomes. The quantities of IONPs internalised inside the cells for several conditions of incubation were determined by flow cytometry and fluorescence imaging, showing good correlation with the IONP concentration during incubation. Their efficiency to induce U87 glioblastoma cell death by MFH was assessed by BLI measurements, as luciferase expression is ATP-dependent and thus serves as a quantitative and direct read-out of cell viability.27 We observed noticeable differences between monocore and multicore IONPs, regarding their internalisation and the magnetically-induced cytotoxicity effects.

Results and discussion

Monocore and multicore IONPs were synthesised by the forced hydrolysis route in a mixture of polyol and poly(hydroxy)amine with controlled addition of water during the reaction, as previously described elsewhere.12 The batches of monocore and multicore IONPs selected for this study presented specific absorption rates (SAR) of 134 and 265 W g−1, respectively (Fig. S3), in AMF conditions (755 kHz, 10 kA m−1) which, due to the use of a different generator, were not the same as the ones used later on for the biological experiments (473 kHz, 12 kA m−1). Their surface was chemically modified by grafting 6000 MW PEG chains in order to provide steric repulsion and ensure colloidal stability in physiological media. The PEG was primarily modified at one end by introducing a phosphonic acid anchor group, which was subsequently used to tether the chains at the surface of IONPs in a single reaction step (Fig. 1). The number of PEG chains per IONP was adjusted to form a dense repulsive brush. A NIR fluorescent probe (DY700-NHS ester, Dyomics GmbH, Jena) was simultaneously grafted at the IONP surface using a similar strategy. The one-step grafting of the dye and the PEG chains was thought to be more efficient than a multistep grafting of individual components (i.e. phosphonate anchor, cross-linker, PEG or dye) on the surface of the IONPs. Individual components of the molecules were thus conjugated separately to access a phosphonic acid-containing version of DY700 (AEP-DY700) (Fig. S6) and PEG (AEP-GMBS-PEG) (Fig. S4), thereby enabling their one-pot single-step grafting onto the IONP surface. Synthetic intermediates were isolated and analysed using common techniques such as 1H NMR (Fig. S5) or thin layer chromatography (TLC) (Fig. S7): such chemical characterisation would not have been feasible if the molecules were successively grafted onto the magnetic cores. The yield of the DY700–AEP coupling reaction was evaluated at 80% for by TLC (Fig. S8), the same value being found also for AEP–GMBS–PEG by integrating the protons on the 1H NMR spectrum. The single step grafting strategy has also the major advantage of taking place under aqueous weakly acidic conditions, wherein IONPs are fully stable and well-dispersed. This ensures the modification of the whole surface area, compared to the difficult homogeneous coating of clustered nanoparticles or aggregates. The IONPs were stirred with AEP–DY700 for 1 h and then with AEP–GMBS–PEG in acidic water (pH = 2.5) for 2 h, before neutralising the pH with Tris 50 mM and purifying IONPs by centrifugation–redispersion cycles (Fig. S9). The ratio of PEG to IONP was calculated to form a dense PEG layer. In order to obtain a grafting density sufficient to reach the “brush regime” so that the tethered chains were neither too far from each other (“mushroom regime”) nor too extended, we used the criterion established by Brittain and Minko28 comparing the chain-to-chain distance D between the grafting points to the gyration radius RG of the free chains in solution through the reduced grafting density, Σ = πR2G/D2. In this dense brush regime defined by Σ > 5,28 the IONPs are stabilised by maximal steric repulsions. The surface modification of the IONPs was assessed by dynamic light scattering (DLS), measuring the hydrodynamic diameters and polydispersity index (PDI) of the IONPs in suspension: For the bare nanoparticles (at pH = 2.5 in dilute HNO3), the Z-average diameter is 21.3 nm for the monocore IONPs (PDI = 0.16) and 37.6 nm for the multicores (PDI = 0.19), which increases to 47.5 nm (PDI = 0.37) and 57.8 nm (PDI = 0.33), respectively after coating (50 mM Tris at pH 7) due to the formation of an organic shell. Efficient PEG coating was also shown by photographs of the resulting stable suspensions in aqueous media at neutral pH (Fig. S11).
image file: c7me00061h-f1.tif
Fig. 1 TEM micrographs of a) monocore and b) multicore IONPs of diameters 14.5 ± 3.4 and 29.1 ± 4.4 nm, respectively, as measured on histograms (Fig. S1 and S2). The scale bar length is 50 nm. c) Grafting of the fluorescent probe DY700 and PEG onto the surface of an IONP in a simple one-step “convergent strategy” after their prior modification by a phosphonate anchor, in contrast to multiple successive grafting steps.

The NIR fluorescent probe AEP-DY700 was coupled directly onto the surface of IONPs resulting in a very likely shielding of the dye by the PEG layer. The proximity of the fluorescent DY700 to the surface of the semi-conducting iron oxide was expected to lead to partial quenching of the fluorescence signal. This phenomenon may occur through two separate mechanisms: i) by IONP/fluorophore interactions29 and/or ii) by fluorophore/fluorophore self-quenching due to a high local concentration of the dye. The amount of dye to graft was therefore limited to 1% w/w, to guarantee a sufficient fluorescence signal for detection as well as to avoid covering the IONP surface with a hydrophobic molecule. Using a spacer to increase the distance between the IONP surface and the dye as well as the distance between fluorophores was another option. However, we considered that the DY700 conjugation close to the IONP surface would prevent undesirable hydrophobic interactions with the environment (biological fluids, cells, etc.). The DY700 characteristic wavelengths are respectively λexc = 650 nm for excitation and λem = 700 nm for emission (Fig. S9 and S10). These values are in the NIR region of the electromagnetic spectrum, a range of minimum absorption of biological fluids and tissues, also far from the shorter wavelength radiation that is strongly absorbed by IONPs.

The interactions between cells and IONPs were investigated, using a U87 human glioblastoma cell line, genetically modified to overexpress a bioluminescent reporter gene (Fluc) under the transcriptional control of the constitutive CMV promoter. The luciferase expressed by cells is an enzyme which catalyses D-luciferin oxidation to produce photons. Emitted light is correlated with the dioxygen- and ATP-dependent activity of luciferase, which is itself correlated with cell viability (O2 and ATP content) and cell numbers (luciferase amount) in the samples.27 Following the addition of D-luciferin in the culture medium, light emission was monitored non-invasively, by bioluminescence imaging (BLI). This property was further used as a viability assay when evaluating the effect of IONPs on cells under magnetic field hyperthermia. U87 cells were incubated with IONPs for 24 h. The blue fluorescence signal of the Hoechst dye was specifically located in the nuclei, revealing the position of the cells in the sample (Fig. 2). A strong red fluorescent signal ascribed to DY700 was detected, showing the presence of the IONPs. Images captured at different confocal section planes showed that the IONPs were located inside the cytoplasm and particularly in the vicinity of the nucleus. The aspect and range of sizes of fluorescent spots suggested an endocytosis internalisation pathway, and most likely corresponds to lysosomes. Therefore the green fluorescent Lysotracker™ dye was used to confirm this hypothesis. The green fluorescent signal was observed inside cells when incubated with the IONPs, while no lysosomes were detected for non-treated control cells. The red fluorescence spots of IONPs were exclusively co-localised with the green fluorescent signal of lysosomes, resulting in yellow fluorescent spots. The same image analysis tool used by Connord et al. to prove the utmost important role played by lysosomes in intracellular MFH30 also led here to high dye co-localization coefficients (Fig. S24). This finding further suggests that the degradative enzymes contained within the lysosomes were unable to alter the fluorescence signal of the DY700 NIR dyes.


image file: c7me00061h-f2.tif

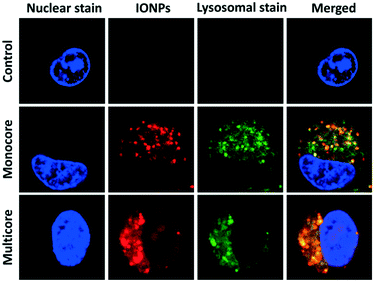

Fig. 2 Intracellular distribution of IONPs in U87 glioblastoma cells. Cells were incubated with IONPs conjugated to DY700 (red) for 24 h at 100 μg mL−1. They were visualised by fluorescence confocal microscopy at 63× magnification. The nucleus (blue) was stained with Hoechst 33342 (2 μg mL−1), and the lysosomes (green) with Lysotracker™ green (100 nM). Red–green dye co-localization was quantified (Fig. S24).

The cells incubated with monocore or multicore IONPs were detached from the surface of the culture plate for flow cytometry analysis. Under optical bright field microscopy, the cell membrane, nuclear membrane and nucleolus were visible for the control U87 cell, along with smaller un-resolved structures in the cytoplasm (Fig. 3a). Spherical structures with high contrast appeared when the cells were incubated with either monocore (Fig. 3b) or multicore IONPs (Fig. 3c). These structures most likely correspond to lysosomes encapsulating the IONPs, leading to dark-coloured objects. The observation of these microscopic structures was complemented by flow cytometry analyses on a large number of cells (100[thin space (1/6-em)]000) providing statistically relevant results. The 2D multi-parametric plots of the forward scatter channel (FSC) that is proportional to the cell size vs. the side scatter channel (SSC) representing the granularity and structural complexity inside the cells were compared among the different conditions. Control U87 cells (Fig. 3d) and U87 cells incubated with monocore IONPs (Fig. 3e) exhibited similar 2D dot plots, while U87 cells incubated with multicore IONPs (Fig. 3f) had a broader and larger distribution of SSC values. In all three cases, the cell sizes were similar, as confirmed by bright field microscopy, while the internal granularity of the U87 cells incubated with multicore IONPs was more diverse and complex, leading to a stronger side scattering of the laser light. Comparison of flow cytometry 2D plots thus suggests a higher internalisation of multicore IONPs compared to monocore IONPs, with, possibly, a higher density of lysosomes. The total fluorescence in the DY700 channel of each of the cell cultures was measured by defining using polygon gate selections on the 2D plots, integrating the signal of each individual cell and reporting the total counts on single-parameter histograms (Fig. 3g–i). Control U87 cells exhibited a low auto-fluorescence level and behave as a single homogeneous population on the selected polygon gate, while U87 cells incubated with IONPs exhibited a high fluorescence intensity that increased by increasing the IONP concentration. Histograms representing single populations in all cases hinted that the internalisation happens in small fractions, and that all the cells incubated with IONPs have internalised them as they are all fluorescent. The integrated fluorescence levels of samples at different incubation IONP concentrations (Fig. 3j) show a linear behaviour, until reaching a plateau value. This plot also showed around four-fold higher internalisation of the multicore IONPs compared to monocore IONPs at a given incubation concentration. The same ratio was found between the plateaus of maximal IONP mass internalised per cell, for both types of IONP morphologies.


image file: c7me00061h-f3.tif

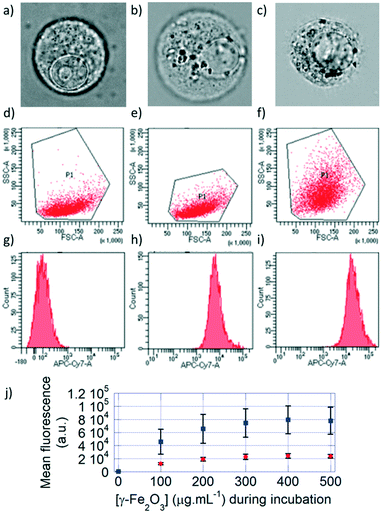

Fig. 3 Bright field microscopy images of a) control U87 cells, and U87 cells incubated with either b) monocore or c) multicore IONPs. Flow cytometry 2D plots of d) U87 cells, U87 cells incubated with e) monocore and f) multicore IONPs. Fluorescence histograms of g) U87 cells, U87 cells incubated with h) monocore and i) multicore IONPs. j) Mean fluorescence of cells as a function of IONP concentration during incubation for monocore (red circles) and multicore (blue squares) IONPs. Error bars represent statistical scatter.

The fluorescence of the DY700-labelled IONPs taken up by the cells was also detected directly on the culture plates by fluorescence reflectance imaging (FRI), a non-destructive technique complementary to flow cytometry that corresponds to spatial visualisation of the fluorescence signal on a camera. As for flow cytometry measurements, six different conditions of incubation for 24 h at increasing IONP concentrations were tested (Fig. 4a). The fluorescence signal in each well was relatively homogeneous, as the cells spread over the whole surface available. Visually, the fluorescence intensity of cells incubated with monocore IONPs (Fig. 4b) was lower than with multicore IONPs (Fig. 4c). The average fluorescence signal at each incubation condition was quantified on a selected region of interest (ROI) and plotted vs. the incubated IONP concentration (Fig. 4d). The signal is initially proportional to the IONP concentration, before plateauing. Like in flow cytometry results, multicore IONPs (squares) exhibited higher cellular internalisation compared to the monocore ones (circles). This intensity of the FRI signal can be correlated to the total amount of IONPs contained in each well using pre-determined calibration curves. The relationships between the FRI levels on the images and the total IONP weights per well are reported in the ESI: the FRI intensities are well fitted by power laws of the IONP quantities expressed in μg per well both for multicore (Fig. S12d) and monocore IONPs (Fig. S13d). In both flow cytometry (Fig. 3j) and FRI (Fig. 4d) measurements, the fluorescence signal reached a plateau which could indicate saturation of the cells with IONPs. However, when plotting the total quantity of IONPs taken up by cells in each well vs. the incubated IONP concentration (Fig. 4e), a more linear relationship was obtained than expected from the raw fluorescence levels, after taking into account the calibration curves, well-fitted by power laws for both morphologies. The plateaus observed in the fluorescence levels measured by the two methods were therefore more likely ascribed to signal self-quenching rather than to saturation of the cells with IONPs. Considering the constant number of 5000 cells per well, the IONP mass taken up per U87 cell after 24 h incubation at 500 μg mL−1 corresponded respectively to ∼300 pg per cell for monocore IONPs and ∼800 pg per cell for multicore IONPs. These values seemed much larger than the 40 pg per cell value reported in the pioneering work by Wilhelm et al. on IONP endocytosis in the HeLa cell line.31 However, when taking into account the difference of IONP diameters (8.7 nm for the work of Wilhelm et al., 14.5 nm for the monocore and 29.1 nm for the multicore IONPs here, the calculated numbers were found in a similar range of values, i.e. 23, 38 and 12 millions of IONPs per cell, respectively. In a recent work by Blanco-Andujar et al., loading rates similar to ours (up to 400 pg per cell) were measured for IONPs of 17 nm diameter.32


image file: c7me00061h-f4.tif

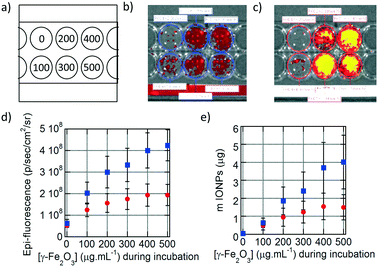

Fig. 4 a) Scheme representing the concentration of IONPs (μg mL−1) in the wells during cell incubation. Fluorescence measurement of b) monocore and c) multicore IONPs internalised in U87 cells 24 hours after incubation. d) Epi-fluorescence of the cells for monocore (red circles) and multicore (blue square) IONPs. e) Quantity of monocore (red circles) and multicore (blue squares) IONPs internalised in the cells deduced by prior fluorescence calibration with known IONP amounts.

The U87 cells were also analysed by transmission electron microscopy (TEM) to observe the sub-cellular localisation of the IONPs. TEM provides histological cross-sections at much higher resolution than confocal microscopy. U87 cells incubated with monocore (Fig. 5a–c) or multicore IONPs (Fig. 5d–f) were imaged after microtome preparation. The nanostructures of the cells were well observable thanks to the small thickness of the sample section (65 nm) and to staining with an osmium complex to enhance the contrast to electrons. With compartmentalisation being the main feature of eukaryotes, various membrane-bound organelles were indeed revealed inside the cytoplasm. The cell-membrane, mitochondria, nuclear membrane, nucleus and nucleolus were easily recognisable from their specific morphologies and localisation. The structure of the cells was bipolar, with a nucleus on one side and the organelles on the other side, while large portions of cytoplasm were left without apparent content. Lysosomes were recognisable by their spherical morphology and diameter of the order of 1 μm. They were also located on one side of the nucleus, in agreement with confocal microscopy images where blue nuclei and red lysosomes formed dipolar structures. The electron scattering contrast of the lysosomes depended on the quantity of IONPs contained inside, and on the lysosome ageing. Early endocytic compartments had a clear shade of grey while the later ones were darker due to the fusion with other endocytic structures. Lysosomes were in greater numbers and encapsulated larger quantities of IONPs in the case of cells incubated with multicore IONPs. This observation correlated well with the data obtained by flow cytometry: with both monocore and multicore IONPs, the sizes of the cells were similar, but the cell granularity and the aspect of organelles appeared significantly different. The internalisation pathway could be observed in three micrographs (Fig. 5g–i), offering a glimpse of the successive stages when IONPs enter inside cells. A certain number of IONPs were also found outside the cells, although likely bond to them. As the preparation of the sample for TEM required several washes, IONPs outside cells were visible only in the close vicinity of the cell membrane. This suggests that there might be already an interaction between the cell surface and the IONPs, likely via decoration of polysaccharide chains linked to the plasma membrane (glycocalix) by the IONPs. The morphology adopted by the plasma membrane was similar to the macropinocytosis or phagocytosis pathways described in reviews and textbooks,33 appearing as a large budded portion of the plasma membrane towards the outer medium that curved back to engulf the NPs together with a volume of the outer aqueous medium.31,34 This explains also why clear spherical structures having the same electron contrast as the outer medium of the cells were observed close to the inside of the membrane, while darker ones were observed closer to the nucleus, suggesting that the endocytic compartments travel from the boundaries of the cell towards its centre, becoming more and more dense along the process.35 In each case, the morphology and size of the IONPs were not modified inside the cells, meaning that the reported mechanisms of IONP degradation and iron metabolism did not start to occur within the 24 h incubation period.36


image file: c7me00061h-f5.tif
Fig. 5 U87 cell incubated with a–c) monocore or d–f) multicore IONPs. g–i) Internalisation pathways of IONPs in U87 cells.

After studying extensively the internalisation of IONPs in U87 glioblastoma cells, we focused on treating them by applying an alternating magnetic field (AMF), with a generator (DM100) and a 2-coil inductor (DM3) from the nanoscale Biomagnetics (nB) Company (Zaragoza, Spain), specially designed for biological in vivo experimentation (Fig. 6a). The sample (16-well microscopy glass slide) was placed inside of a Helmoltz-like induction coil pair, thermalized at 37.5 °C using a water jacket. The 2-coil configuration of the inductor helped to observe the wells containing the cells while performing magnetic hyperthermia for 30 min. The viability of the U87 cells was assayed by BLI readout based on luciferase activity,27 enabling testing of the cytotoxicity of IONPs, either happening during IONP internalisation or after applying an external AMF to perform magnetic hyperthermia. Circular regions of interests (ROIs) were integrated on BLI images of U87 cells taken 24 h after AMF treatment to quantify the bioluminescence signal, for monocore (Fig. 6b) or multicore (Fig. 6d) IONPs. The cell viability was compared at varying IONP concentrations during incubation, before (blue) or after (red) the AMF application for 30 min, for either monocore (Fig. 6c) or multicore (Fig. 6e) IONPs. For both morphologies, the cytotoxicity without the AMF application remained at a low level over the whole range of incubation concentrations explored.


image file: c7me00061h-f6.tif

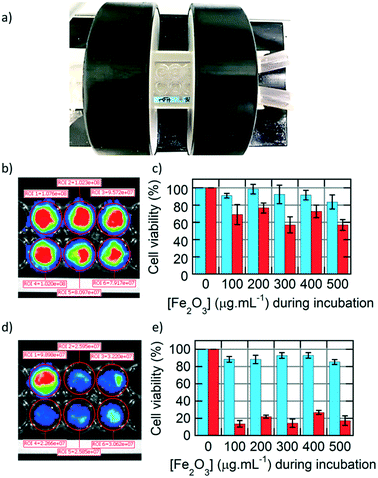

Fig. 6 a) DM3 inductor for applying an alternating magnetic field (AMF) on U87 glioblastoma cells. b) Bioluminescence imaging of U87 cells incubated at different concentrations of monocore IONPs after AMF application, and c) viability assay obtained from the BLI signal integrated in the ROIs (circles) before (blue) and after AMF application (red). d) BLI of U87 cells incubated at different concentrations of multicore IONPs after AMF application, and e) viability assay before (blue) and after AMF application (red).

On the opposite, the AMF treatment caused a significant decrease of cell viability, with a death after 24 h of approximately 40% of the cells with monocore IONPs, whatever the incubated IONP concentration. In the case of multicore IONPs, cytotoxicity determined 24 h after magnetic hyperthermia was even more pronounced, leading to the death of the majority (80–90%) of the cells. Looking at these results, the multicore IONPs appeared more efficient compared to monocore IONPs for the same conditions in a strategy of treatment of glioblastoma cells by magnetic hyperthermia. This result can be explained by several reasons. The first reason is the higher internalised quantity of the multicore IONPs, as observed by TEM, confocal microscopy, fluorescence imaging, and flow cytometry. Such higher mass of internalised heating agents leads theoretically to higher elevation of temperature, although a real temperature increase inside the cells induced by MFH is still a subject of debate in the community, due to their too small size for the heating power to compensate the dominant thermal losses into the surrounding environment.37

Non-thermal effects are also hypothesised to contribute to the cytotoxicity in cellular MFH, like for example a direct mechanical destabilisation of the cell membranes (the plasma membrane during IONP internalisation and later the lysosome membrane): also called “nanoflowers” as ascribed to their morphology, multicore IONPs exhibit a pronounced surface roughness that might cause membrane deformation and tearing, when comparing the high magnification TEM view of lysosomes loaded with multicore IONPs (Fig. S23) to the micrograph of a lysosome filled with monocore IONPs (Fig. S20). Another often-reported non-thermal effect is the Fenton reaction by which residual Fe2+ cations on the iron oxide surface can produce reactive oxygen species (ROS) oxidising phospholipids and causing the lysosome membrane rupture, as shown in several recent articles to be the main cause of intra-cellular MFH.38–40 With nanoflowers having a specific surface area typically 60% higher than smooth spherical IONPs,12 such a non-thermal oxidative contribution to MFH would also be larger. The second reason is the highest SAR of the multi-core IONPs (expressed in W g−1), meaning that they induce higher heating power efficiencies at equal iron oxide concentrations compared to monocore spherical IONPs. Taking into account the two effects – SAR and internalised concentration of 265 W g−1 and 800 pg per cell for multicore IONPs compared respectively to 134 W g−1 and 300 pg per cell for monocore IONPs – the heating power is more than five times higher for multicore compared to monocore IONPs. The higher cytotoxicity at 24 h after 30 min treatment under an AMF with multi-cores (80–90% compared to 40%) can be directly correlated to their more efficient heating power, maybe also combined with a mechanical disruption of the plasma and lysosomal membranes induced by their surface roughness.

Experimental

IONP synthesis

Magnetic iron oxide nanoparticles were synthesised by the polyol route, adapting the reaction conditions reported by Caruntu et al.,9i.e. by adding controlled fractions of water in the polyol reaction medium to drive the morphology of the IONPs obtained, as reported recently by our group.12 The NHS-ester modified DY700 fluorescent probe (Dyomics, Germany) was reacted with 1.5 equiv. of 2-aminoethylphosphonic acid (AEP) (Sigma Aldrich) in DMSO for 24 h at room temperature and under orbital agitation, before long-term storage at −20 °C. Poly(ethylene glycol) methyl ether thiol (mPEG-SH, average molar mass Mn = 6000 g mol−1, Sigma Aldrich) was reacted with 1 equiv. of Tris(2-carboxyethyl)phosphine hydrochloride (TCEP) (98%, ACROS Organics) in 50 mM phosphate buffer (PB) pH 7.4 for 24 h to reduce the disulphide bonds and (mPEG-S)2 dimer content, thus leading to reactive free thiol groups. In parallel, 5 equiv. AEP was reacted with 1 equiv. N-succinimidyl 4-maleimidobutyrate (GMBS, TCI Europe) in PB for 24 h in an ice bath. Both solutions were then mixed and let to react for 24 h, and finally purified by dialysis against MilliQ water for 72 h, using a 5 kDa membrane, and replacing 6 times with MilliQ water. 1% w/w equiv. AEP-DY700 was then grafted onto IONPs in water acidified to pH = 2.5 with dilute nitric acid. After 1 h, 30% (16%) w/w of AEP-GMBS-PEG was added to the dispersion of monocore or multicore IONPs. These proportions led to theoretical grafting densities of σ = 1/D2 = 0.64 molecular chains per nm2 or reduced tethered densities Σ = πR2G/D2 = 15 according to our calculations, using scaling laws reported by Devanand41 (RG(nm) = 0.0215[thin space (1/6-em)]·[thin space (1/6-em)]M0.583n) or by Le Coeur et al.42 (RG(nm) = 0.066466[thin space (1/6-em)]·[thin space (1/6-em)]M0.45224n), which are different but both lead to the same value RG = 3.4 nm for PEG of Mn = 6000 g mol−1. After 2 h of reaction, the pH was neutralised with Tris 50 mM and the solutions were purified from the excess of AEP–GMBS–PEG and AEP–DY700 by 3 cycles of centrifugation-redispersion (18[thin space (1/6-em)]000g, 1 h at 25 °C, 30 min at 1 °C to increase viscosity and avoid pellet dispersion before removing the supernatant).

Cell line generation and culture

U87 human glioma cell line was procured from the American Tissue Culture Collection (ATCC, Manassas, Virginia). The bioluminescent U87-CMV-lucF cell line generation was previously reported.26 Cells were cultivated in Dulbecco's modified Eagle's medium (DMEM, Invitrogen, Carlsbad, California) supplemented with 10% foetal bovine serum (FBS, Invitrogen), 1% antimycotic–antibiotic mix (PSA, Invitrogen), 1% nonessential amino acid (MEM NEAA, Invitrogen) and 50 μg mL−1 hygromycin B (Euromedex, Souffelweyersheim, France). The Cell line was maintained in a humidified 5% CO2 incubator at 37 °C.

Incubation of cells with IONPs

Cells (5000 cells per well) were plated in 16-well Nunc™ Lab-Tek® microscopy chambers (Thermo Fisher Scientific) 24 h before experiments. They were then incubated with 100 μL of determined concentrations of IONPs (0, 100, 200, 300, 400 or 500 μg mL−1) in supplemented DMEM for 24 h. They were finally washed 2 times with 100 μL of PBS and 100 μL of fresh supplemented DMEM.

Laser scanning confocal microscopy (LSCM)

Cells (22[thin space (1/6-em)]500 cells per well) were plated in 24-well plates 24 h before experiments and then incubated with IONPs conjugated to the NIR fluorescent probe DY700 (Dyomics GmbH) for 24 h at 100 μg mL−1. They were washed with PBS, and their nucleus was stained with the blue fluorescent probe Hoechst 33342 (Thermo Fisher Scientific) at a concentration of 2 μg mL−1 for 5 min at 37 °C. Finally, the lysosomes were specifically tagged with the green fluorescent probe Lysotracker™ at a concentration of 100 nM for 1 min at RT. The cells were harvested with trypsin for 5 min at RT, suspended in PBS and centrifuged for 5 min at 300g. They were re-suspended in 200 μL of PBS-EDTA 2 mM supplemented with 0.5% of FBS, and kept on ice to prevent adhesion, before visualisation. Laser scanning confocal microscopy (LSCM) images were acquired on an inverted Leica TCS SP5 microscope equipped with an HCX PL APO 63× NA 1.4 oil immersion objective in fluorescence mode. Samples (≈15 μL) were injected in a homemade chamber that was sealed to prevent evaporation. The laser outputs are controlled via the acousto-optical tunable filter (AOTF) and the three collection windows using the acousto-optical beam splitter (AOBS) and photomultiplicator (PMT) detectors as follows: blue Hoechst 33342 was excited with a laser diode at 405 nm (3%) and measured with emission setting at 410–510 nm, green Lysotracker™ was excited with a DPSS diode at 561 nm (50%) using a window at 570–650 nm and red DY700 was excited with a helium–neon laser at 633 nm (80%) using a window at 640–770 nm. LSCM images were collected using the microscope in sequential mode to avoid overlapping of the emissions between the channels with a line average of 4 and a format of 1024 × 1024 pixels. The transmission mode images were provided from the helium–neon laser at 633 nm (10%). PMT gain and offset configurations were set up on control cells so as to correct images from green and red auto-fluorescence.

Flow cytometry

Cells (22[thin space (1/6-em)]500 cells per well) were plated in 24-well plates 24 h before experiments and then incubated with 450 μL of determined concentrations of IONPs (0, 100, 200, 300, 400 or 500 μg mL−1). After 24 h incubation, the cells were washed 2 times with PBS, harvested with trypsin and washed with PBS. Cells were re-suspended in 200 μL of PBS-EDTA 2 mM supplemented with 0.5% of FBS and analysed by flow cytometry using a BD FACSCanto™ setup (BD Biosciences). Samples were analysed using an excitation laser at 633 nm, absorption with the APC-Cy7 canals at 680 nm, the forward scatter channel (FSC) voltage being fixed at 160 V and the side scatter channel (SSC) voltage fixed at 160 V.

Fluorescence and bioluminescence imaging

Fluorescence reflectance imaging (FRI) and bioluminescence imaging (BLI) were performed at Vivoptic (UMS 3767 – Univ. Bordeaux) by using a Lumina LT instrument (Perkin Elmer Inc., Boston, MA, USA). For BLI, the cells were incubated for 5 min with a 0.6 mM solution of D-luciferin in PBS (Promega, Madison, WI, USA). Bioluminescence images (1 min, 4 × 4 binning) and photographs (100 ms) were acquired successively. Fluorescence images (1 s, excitation at 640 nm, 695–770 nm filter emission, 4 × 4 binning) and photographs (100 ms) were acquired successively. Images were analysed using Living Image software by defining regions of interests (ROI) and integrating all the FRI or BLI photons coming from inside. The intensities were converted into absolute units of radiance (photons s−1 cm−2 sr−1) by internal calibration of the manufacturer.

Transmission electron microscopy (TEM)

Glial U87 cells were cultivated on 16-well optical glass supports (Nunc™ 178599 Lab-Tek® Chamber Slide™ System, glass, volume: 0.1–0.2 mL, culture area: 0.4 cm2 per well). After incubation (24 h) with the IONPs, cells were washed two times with PBS, fixed with 1.6% (v/v) paraformaldehyde 2% (v/v) glutaraldehyde in 0.08 M cacodylate buffer (pH 7.4) for 30 min minimum at room temperature (RT), washed with 0.1 M cacodylate buffer (pH 7.4) and then post-fixed in a mix of 1% osmium tetroxide (v/v)/1% potassium ferricyanide K3Fe(CN)6 (p/v) in 0.1 M cacodylate buffer for 2 hours on ice in the dark. After washing in water, samples were stained in block in 0.5% (p/v) aqueous uranyl acetate solution for 30 min, in the dark, at RT. Subsequently, cells were washed in water then dehydrated through a series of graded ethanol and embedded in a mixture of pure ethanol and epoxy resin (Epon 812, Delta Microscopies, Toulouse, France) 50/50 (v/v) for 2 h and then in 100% resin overnight at RT. The polymerisation of the resin was carried out over a period between 24–48 h at 60 °C. Samples were then sectioned using a diamond knife (Diatome, Biel-Bienne, Switzerland) on an ultramicrotome (EM UCT, Leica Microsystems, Vienna, Austria). Ultrathin sections (65 nm) were picked up on copper grids and then stained with Uranyless (Delta Microscopies, Toulouse, France) and lead citrate. Grids were examined with a transmission electron microscope (H7650, Hitachi, Tokyo, Japan) at 80 kV in high contrast mode.

Magnetic field hyperthermia (MFH)

The applied radiofrequency AMF was generated using a DM3 applicator for in vivo MFH (nB nanoScale Biomagnetics, Zaragoza, Spain). Cells were thermalized at 37.5 °C using a water bath connected to a water tubing jacket. The temperature of the sample was monitored using a fibre optic sensor (Neoptix™, Québec city, Canada). The alternating magnetic field was set on a frequency of 473 kHz, 12 kA m−1 of amplitude, and applied for 30 min. The cells were put back in the incubator at 37 °C/5% CO2 and observed by bioluminescence and fluorescence imaging 24 h later.

Conclusions

In this article, we reported the surface modification of IONPs of two different sizes and morphologies (monocores or multicores with outer diameters of 14.5 and 29.1 nm, respectively), with two molecules: a NIR fluorescent probe (DY700) to allow tracking of the nanoparticles in cells, and a 6000 MW PEG stabilising brush. This molecular design was completed through a one-pot convergent strategy, in aqueous conditions, and on stable IONPs, i.e. individually dispersed. The modified IONPs obtained were readily dispersed in water, and could be purified by a simple centrifugation–redispersion process. The interaction of these IONPs with cancerous cells was investigated using a bioluminescent human glioblastoma cell line, genetically modified to express the luciferase enzyme as a convenient read-out of cell viability. IONPs accumulated in lysosomes, as firstly observed by confocal microscopy, using the Lysotracker™ green dye. There was a direct correlation between the quantity of IONPs internalised and the concentration of IONPs during incubation, as shown by flow cytometry and fluorescence imaging. The number of IONPs internalised in 24 h in each cell was evaluated to be around a few tens of millions, in agreement with the literature. With much higher resolution, TEM images show that the morphology of the IONPs was conserved after incubation, even after 24 h, meaning that such PEGylated IONPs are fairly insensitive to the mechanisms of degradation occurring inside of the lysosomes and keep their heating efficiencies, at least at this time scale. The ability of these IONPs to kill cells by magnetic field hyperthermia was studied using a commercial DM3 set-up (nB) by applying an AMF amplitude, frequency, and duration of application suitable for medical applications. The cell viability was assessed quantitatively based on the bioluminescence signal of cells 24 h after the AMF application. The higher efficiency of the multicore IONPs compared to the monocore IONPs was shown by an increased cytotoxicity that appeared also to be independent of the iron oxide dose. Therefore, multicore IONPs or nanoflowers are particularly suitable agents for magnetic hyperthermia treatment of cancerous cells, and a lot of research is currently on-going in our group and others to design molecular coatings providing further functionalities such as cancer cell targeting,43 or anticancer drug delivery activated by the AMF application.44
