The effect of gme topology on multicomponent adsorption in zeolitic imidazolate frameworks

Abstract

We employ a simulation approach to study the adsorption of single, binary and ternary mixtures on eight gme Zeolitic Imidazolate Frameworks (ZIFs) at 298 K. Four adsorbate fluids were considered; carbon dioxide, methane, nitrogen and water. We compute the high pressure adsorption density profiles inside the micropore channels of each crystal. The profiles are compared directly for the different structures and adsorbate components and used to highlight the influence of the imidazolate ligands on pure and competitive adsorption. ZIFs with long ligands reveal an additional, accessible to the fluid space detected for the first time. This is a wedged volume on one direction of the pore walls, shaped thus because the long ligands tilt in order to be connected. We estimate the pressure required for water to become the dominating competing adsorbate within different crystal cavities. The simulated data for CO₂ adsorption in ZIF69 strongly correlate with a set of Raman spectroscopy intensity values that correspond to the same adsorbate–adsorbent system.

---

1 Introduction

Zeolitic Imidazolate Frameworks (ZIFs) are synthesized microporous crystals, composed of tetrahedral fragments with metal and functional imidazolate units. The synthesis of such crystals can be achieved by making suitable substitutions or combinations of imidazolate units to produce materials with different chemical compositions, physical properties and porosities.¹ This kind of synthesis control makes ZIFs an interesting class of porous crystallite as it provides a significant opportunity to create “designer adsorbents”, whose properties are optimized for specific industrial separation processes,² like carbon dioxide capture and sequestration, natural gas purification, hydrogen storage, water desalination and separation of liquid petroleum gases.^3–8 A critical advantage of ZIFs over other organic–inorganic frameworks (i.e. MOFs) is that, both in powder and in membrane forms, they exhibit excellent chemical and thermal stability and resistance in humid environments.

ZIFs are classified into isoreticular groups comprising frameworks that inherit a particular topology. Almost all metal–imidazolate networks have topologies that have already occurred in natural zeolites and are named after them. gme ZIFs are a class of ZIF materials having the topology of gmelinite zeolite.⁹ This class lists 8 samples that are synthesized with Zn metal atoms and an equimolar mixture of 2-nitroimidazole (nIm) and another functionalized imidazole linker. The second linker may be either an imidazole (Im) or a benzo-imidazole (bIm) molecule, having different functionalities which affect the chemistry of the crystal surface.¹⁰ The molecular lengths of the mixing linkers control the spatial arrangement of metal nodes inside the framework. gme ZIFs have nanocavities with similar sizes and apertures, because of the comparable lengths of the imidazolate ligands used in crystallization. This particular feature of gme ZIF porosity makes these crystals exhibit adsorption and selectivity properties exceeding those of other crystallized adsorbents.^11,12

Probably the most representative gme ZIF crystal is ZIF69. It is crystallized using chlorobenzoimidazole (cbIm) as a second linker. In a recent study, Kontos et al. detected the CO₂–cbIm coupling using Raman spectroscopy on ZIF69 with different loadings of CO₂.¹³ They performed Raman spectroscopy in a cell chamber that contained the sample under CO₂ pressure and gave experimental evidence of fluid–ligand interactions at intermediate bulk pressures. An important effort of molecular simulation is that it contributes in the interpretation of the relevant results and exemplifies many physical and chemical properties of such materials. The adsorption in gme ZIF structures has been extensively studied using modelling methods at various scales.^14–24 Babarao et al. studied the adsorption behaviour of CO₂, N₂ and CH₄ in ZIF68 and ZIF69, by blocking groups of pore channels of the model frameworks in order to reproduce adsorption experiments.²⁵ Fluid–ligand interactions have been computed with density functional theory and presented with probability densities, for many probe fluids in most ZIFs having gme, rho and other topologies.^26–31 In most cases it is essential to concern high pressure systems and include crowded pores where packing effects are important specifically when competitive adsorbate components are simultaneously present.³²

In nearly all industrial applications of interest the feed stream contains water vapor, which interferes with the mechanisms involved in the adsorption of CO₂ and other gases. Water adsorption proceeds with the formation of clusters of water particles which eventually block the entrance of the remaining adsorbate components of the mixture.^33,34 The desorption of water has sufficient energy cost and therefore it is crucial to concern water behaviour specifically in order to design regeneration strategies which can cope with water.³⁵

In this work we use the grand canonical (constant volume, chemical potential and temperature) Monte Carlo method to study the adsorption of single and mixture components in eight gme isoreticular ZIFs. We use binary mixtures containing equimolar pair components of CO₂, N₂ and CH₄. We also use ternary adsorbate mixtures, which contain water in trace levels additional to the previous components. One feature of the gme topology is the formation of three types of nano-channels that constitute the porous network. We present high pressure density profiles to describe specifically the adsorption within these channels. The profiles for the eight structures and for the different fluid components are compared directly and the discrepancies are attributed to the different functionalized imidazole molecules used in each framework. The use of density profiles enables us to quantify the adsorption isotherms within the nanocavities associated with the particular topology. Following this approach we display, in a simple way, the pore filling of the water adsorbate component inside the gme ZIF pores.

2 Materials and methods

gme ZIFs are a particular class of synthesized ZIF materials named after the gme topology which was first found in the tiling of the zeolite gmelinite.¹¹ As seen in Fig. 1, they are hexagonal crystal systems, that feature hpr-, gme- and kno-type channels. They are crystallized using an equimolar mixture of nIm and functionalized Im or bIm linkers (linker substitutes). The nIm linkers and the linker substitutes are connected to Zn atoms in a tetrahedral arrangement. The nIm linkers occupy the shared edges between the hexagonal and rectangular rings of the topology network. The linker substitutes occupy the remaining edges. The linker substitutes are either aligned along the directional axis of the channels or directed radially inside the kno cage with their functional groups pointing to the void of the cavity.¹⁰ The eight gme ZIF structures are shown in Fig. 2, where the formation of the gme topology can be easily recognised. In Fig. 2 we display the framework carbon atoms and only the atoms on the functionalities inside the kno cavity. The remaining non-carbon atoms are hidden for clarity. It is interesting to note that the lengthier bIm ligands like nbIm of ZIF78 or mbIm of ZIF79, when connected to the backbone of the structure, attain a slightly tilted orientation. This is shown in Fig. 2, where the projected image of the ligand substitutes, on the walls of gme or hpr fragments of ZIF78 and ZIF79, is thicker than that of the respective ligands of the remaining crystals.

Fig. 1 gme ZIF tiles, structured by hpr, gme and kno fragments. Black edges denote nIm ligands, the remaining edges denote the ligand substituent.

Fig. 2 The structure of 8 gme ZIF crystals, showing the carbon atoms (black) of a framework and the atoms on the functional groups within a kno cavity; Cl (green), O (red), N (blue) and Br (brown).

The different linker substitutes are tabulated in Table 1. In the same table, we list various structural characteristics of gme ZIFs which were computed using the poreblazer code of Sarkisov and Harrison.³⁶ In this case, we used universal force fields (uff) for all atoms. In the surface area computations, we used N₂ as a van der Waals sphere with diameter σ = 3.14 Å. The effective diameter listed in Table 1 refers to the largest sphere that can fit inside the particular cavity without overlapping the van der Waals sphere of any atom in the framework. In order to compute the effective diameter of the kno (or gme) cavity we manually inserted massless spheres with σ = 10 Å along the central axis of gme (or kno) cavities. Within this concept we blocked artificially the cavities of a specific type and explored the rest of the pore volume. In the simulations, we treated gme and hpr channels as identical, because in practice the free space confined by the rectangular rings of gme fragments, is insufficient to accommodate adsorbate particles. Therefore the total pore volume of ZIF crystals consists solely of the volumes provided by gme- and kno-type confinements.

Table 1 Structural characteristics of ZIF models

		ZIF68	ZIF69	ZIF70	ZIF78	ZIF79	ZIF80	ZIF81	ZIF82
a 2 × 2 × 2 cell, α = β = γ = 90°. b Poreblazer calculations.
Cell width^a (Å)	a	53.28	51.98	54.02	52.23	51.85	52.61	51.98	52.88
	b	46.14	45.02	46.78	45.22	44.88	45.56	45.02	45.79
	c	36.98	39.4	39.4	38.98	39.27	38.72	39.4	37.93

---

Linker	nIm +	bIm	cbIm	Im	nbIm	mbIm	dclIm	brbIm	cnIm
Pore volume^b (cm^3 g^−1)		0.484	0.391	0.756	0.303	0.363	0.465	0.334	0.568
Surface area^b (m^2 g^−1)		930	793	1730	450	597	991	658	1308
kno diameter^b (Å)		10.18	7.69	14.58	6.78	8.81	12.05	7.15	11.47
gme (or hpr) diameter^b (Å)		8.38	8.34	9.14	6.62	6	9.04	8.25	8.69

---

The Lennard-Jones (LJ) parameters for ZIF atoms and adsorbate particles used in the following simulations are reported in the ESI.† We used the refined potentials for the atoms on ZIFs, obtained by Liu and Smit¹⁷ and Li et al.²⁸ We used the uff potential parameters for Br atoms on ZIF81. CH₄ adsorbate was treated as a single-center LJ molecule. We used TraPPE models for CO₂, N₂ and O₂,^37–39 and we used the Jorgensen's TIP3P popular model for the definition of water, due to the low computational cost.⁴⁰ The partial charge computations were carried out using the Gaussian program, using the CHELPG scheme, the basis set of 6-311G(d,p) and the wB97XD functional. The atomic charges of ZIFs along with the eight Im–Zn–nIm fragments are tabulated in the ESI.† The model structures are given in the MOFomics database and were used without any further geometry optimization.⁴¹

Grand Canonical Monte Carlo (GCMC) simulations for single and multicomponent gas adsorption were performed using the multipurpose simulation code (MUSIC).⁴² All GCMC simulations included 10⁷ steps. The first 40% of the data were skipped to ensure thermal equilibration of the resulting configurations. We implemented random trial moves of adsorbate particles, namely translation, insertion and deletion. We performed rotation for the nonspherical particles and exchanging of particles for binary or ternary mixture adsorption simulations. All types of moves for each adsorbate occurred with equal probability. The atoms on the solid framework were immobile. The simulation cell contained 2 × 2 × 2 unit cells with periodic boundary conditions applied in all three dimensions. We used the minimum image and a spherical cut-off radius of 16 Å for all interacting atoms. We used Ewald summations for the Coulombic interactions, with wide (w = 6.7 Å) Gaussians, and low end cutoffs at 10⁻¹⁰. All intermolecular distances were measured from the centre of their masses (com). We used pre-tabulated potential energy maps to calculate solid–fluid interaction energies. The energy maps were set on a (1 × 1 × 2) unit cell over a grid with an interval of 0.2 Å, probed with a unit charge or the appropriate set of LJ parameters. Each isotherm contained 60 fugacity steps. The simulations for different adsorbate(s)–adsorbent systems were submitted as job arrays in a multi-CPU workstation where each job was executed serially.

The bulk experimental pressure was related to the vapour fugacity required in GCMC simulations, using the Peng–Robinson equation of state (EoS). The excess adsorbed amount, N_ex, was calculated from the absolute adsorbed amount N_abs obtained directly from the single component simulations according to: N_ex = N_abs − ρ_bulkV_p, where ρ_bulk is the EoS density of the bulk gas phase and V_p is the pore volume of the ZIF taken from Table 1. The isotherms of excess densities were fitted using the Langmuir adsorption model; n_ads = n_inf × KP/(1 + KP), where n_ads is the adsorption density, n_inf is the isotherm's asymptote, P is the pressure and K is the Langmuir (or the Henry) constant. The isosteric heats of adsorption were calculated using the fluctuations of adsorbate particles during a GCMC run.⁴³ If U is the intermolecular energy and N the number of adsorbed molecules in a configuration, the isosteric heat is given by: . The angle brackets denote averages in the grand canonical ensemble. In the following section we note the solid–fluid (sf) noncoulombic (nc) energy contribution to the isosteric heat. This value is computed from the expression of the isosteric heat, taking the averages of U^nc_sf instead of the total energy U.

To compute the adsorbate density profiles in the channels of ZIFs, we used the density maps resulting from the simulations in the following procedure.⁴⁴ We divided the ZIF channels into concentric regions of equal thickness δr and recorded the number of particles δN(r), located inside the regions [r + δr]. The density distributions result from the fraction p(r) = δN(r)/(2πrδr). We set the radius of kno channels r_kno = 11 Å, while for hpr or gme channels, we set r_gme = 7 Å.

3 Results and discussion

3.1 Single component adsorption

The pure component adsorption isotherms of CO₂, CH₄ and N₂ of gme ZIFs at 298 K are shown in Fig. 3. ZIFs derived diverse capacities of CO₂, some of which were adequately high for carbon capture. This was attributed to specific CO₂ interactions with the ligands and ligand substitutes, especially with those with cyano- and oxygen-containing functional groups.⁴⁵ CH₄ adsorbed densities were low compared to CO₂, because of the exclusion of the electrostatic contributions in the computation of CH₄ adsorption energy. N₂ adsorbed density was essentially smaller than CO₂ or CH₄ at 298 K due to the weak LJ interactions of N₂. As it can be seen in the ESI,† our calculations agree with several sets of previously reported, experimental and simulated adsorption data at low pressures.^{10,13,16,17,25,26,28}

Fig. 3 Isotherms of CO₂, CH₄ and N₂ adsorption in gme ZIFs at 298 K.

The Langmuir parameters for the single component simulated isotherms of gme ZIFs are listed in Table 2. Low coverage calculated isosteric heats of CO₂ adsorption are given in Table 3. In most cases the calculations agree with values reported in the literature.

Table 2 Langmuir adsorption isotherm parameters of gme ZIFs at 298 K. K in bar⁻¹, n_inf in cc g⁻¹

		ZIF68	ZIF69	ZIF70	ZIF78	ZIF79	ZIF80	ZIF81	ZIF82
CO2	K	0.129	0.18	0.049	0.289	0.194	0.066	0.241	0.11
	n inf	313	277	372	216	145	413	169	390
CH4	K	0.045	0.053	0.021	0.085	0.11	0.037	0.113	0.019
	n inf	268	237	556	180	202	305	206	474
N2	K	0.038	0.033	0.0173	0.029	0.053	0.017	0.038	0.013
	n inf	76	91	165	133	71	202	103	301

---

Table 3 Calculated isosteric heats of CO₂ adsorption in ZIFs at low coverage, (kJ mol⁻¹)

	ZIF68	ZIF69	ZIF70	ZIF78	ZIF79	ZIF80	ZIF81	ZIF82
a Liu & Smit (sim.).^17 b Liu et al. (sim.).^26 c Kontos et al. (exp.).^13 d Rankin et al. (sim.).^12 e Li et al. (sim.).^28 f Ding & Yazaydin (sim.).^22
q ^ncsf non coul, solid–fluid	16.9	17.41	17.46	21.23	20.62	15.92	20.22	19.17
q ^allst total isosteric	22.9	22.19	20.77	26.2	23.46	20.97	22.94	21.11
Reference values (total)	23,^a 23^b	26.7,^a 17,^c 25.9^f	21^d	25.7^e	26.1^e

---

The dissimilarities between the isotherm curves can be better interpreted with the correlation set values displayed in Fig. 4. CO₂ Langmuir constants of adsorption (Table 2) and the noncoulombic CO₂–ZIF term of isosteric heat (Table 3) were associated. ZIFs with an aromatic functionality on the substituted imidazolate obtained ≃2 times steeper CO₂ isotherms at low pressures. Presumably the aromatic rings provide additional sites for strong interactions with CO₂. CH₄ adsorption was correlated with the surface area of the structure. Being supercritical at 298 K, CH₄ can be adsorbed mainly in a monolayer formation, and therefore the coverage of the specific adsorbate is proportional to the accessible surface area of the solid. ZIFs with short ligands achieve enhanced adsorption capacities of CH₄.

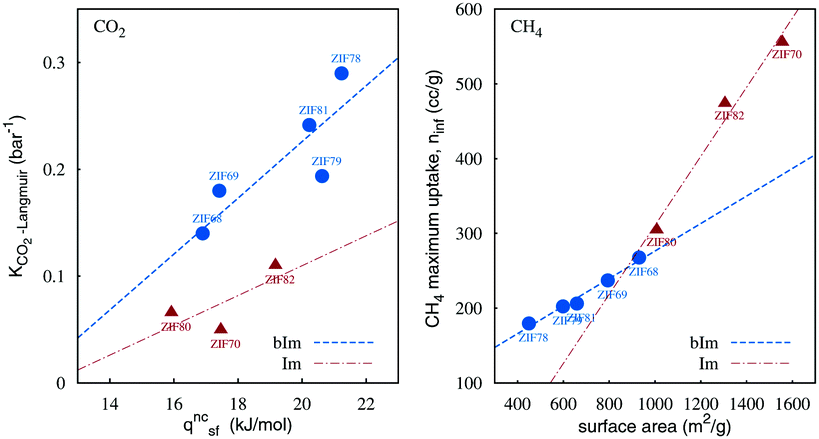

Fig. 4 Gas adsorption related to the structural properties of gme ZIFs, with (bIm) and without (Im) benzene rings on ligand substituents. Trend-lines can be used as guidelines.

3.2 Multicomponent adsorption

3.2.1 Adsorption density profiles. In the multicomponent adsorption simulations the binary mixtures were equimolar. Ternary mixtures contained 0.5 ‰ vapour water and the rest of the components were equimolar. In an attempt to describe the adsorption of multicomponent phases within the channels associated with the gme topology, we computed the density profiles inside the distinct pores of the gme ZIF samples as resulting from GCMC adsorption simulations at a fugacity of 20 bars.

Fig. 5 shows the CO₂ adsorption distributions within the kno cavities. In the kno channels of ZIF68, there is a sharp CO₂ adsorption layer at the pore center, and a broader one at the distance of the effective radius. In ZIF69, the second layer is observed close to the aromatic rings of the Cl-containing ligands. The adsorption in ZIF70 takes place totally within the effective pore radius, as beyond this line the remaining space is narrow. In ZIF78, CO₂ particles were more concentrated between the functionalized ligands than in the center of kno. This space, due to O₂N-electrostatics, is also highly hydrophilic as the water content results in a great reduction of CO₂ densities. The layer of CO₂ particles in ZIF79 is observed in front of the methyl groups and not at the pore center due to its narrow confinement. In ZIF80 we observe a broad adsorption layer which traverses the borderline of chlorine atoms up to the walls of the cavity. The adsorption in ZIF81 takes place almost exclusively behind Br atoms, in the aperture direction of the cage. In ZIF82, the enhanced interaction energy of –CN groups with CO₂, along with the large effective diameter of the particular cavity, result in high densities and broad CO₂ adsorption layers. However the presence of water in the pore interior of ZIF82, decreases the CO₂ adsorption capacity essentially.

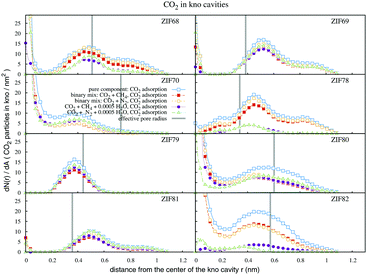

Fig. 5 Profiles of CO₂ density within the kno channels, for single and multicomponent adsorption simulations. The bulk pressure is 20 bar. The effective pore radii are given in Table 1.

In Fig. 6 we present the CO₂ adsorption density distributions within the gme channels. ZIFs with groups of benzoimidazolate type (like ZIF69, ZIF-78, ZIF-79 and ZIF81) gave sharp CO₂ profiles in the center of the gme cavities. Apart from the center, the CO₂ profiles are flat indicating that the adsorption is not ordered there. The profiles inside the gme cage of Im ZIFs are single layered, they peak at the center and cover the entire size of the cavity. It is interesting to note that for ZIF78 and ZIF79, an extra space is revealed around ≃0.6 nm from their gme pore center. This space is formed because the large bIm groups, when connected to the framework backbone, are slightly tilted, shaping small wedges along the aperture direction of gme channels.

Fig. 6 Profiles of CO₂ density within the gme and hpr channels, for single and multicomponent simulations. The bulk pressure is 20 bar. The effective pore radii are given in Table 1.

The CH₄ and N₂ adsorption profiles within the kno channels of ZIFs are presented in Fig. 7. We note low N₂ adsorption densities in all samples. In general all profiles peak at the same position inside the pores. However in ZIF78, because of the strong electrostatic contribution of O₂N-functionality, N₂ adsorbate particles move closer to the aromatic ring of the ligand as compared to CH₄. The opposite is observed for the corresponding profiles of ZIF79, where the ligands repulse N₂ more than CH₄, towards the center of the cavity. In most cases N₂ and CH₄ densities almost vanish in water containing adsorbate mixtures at 20 bars, indicating that water, even in minute amounts, is the dominating adsorbate for such systems.

Fig. 7 Profiles of CH₄ and N₂ densities within the kno channels, for single and multicomponent simulations. The bulk pressure is 20 bar. The effective pore radii are given in Table 1.

The density profile curves of CH₄ and N₂ within the gme channels are shown in Fig. 8. Particles have been adsorbed in the wedge found at ≃0.6 nm for ZIF78 and ZIF79 although the pore filling process has not yet been completed in the rest of the particular cavity. This implies that the confinement formed by the tilted ligands along the gme surface, provides additional adsorption sites with stronger interaction energy than the common sites within this cavity.

Fig. 8 Profiles of CH₄ and N₂ densities within the gme and hpr channels, for single and multicomponent simulations. The bulk pressure is 20 bar. The effective pore radii are given in Table 1.

Fig. 9 shows a configuration snapshot of CO₂ adsorbed on ZIF78, where we gradually set the focus at the arc of a gme pore surface. The tilted orientation of the nbIm ligands and the wedge can be seen when we look at the gme surface from its axial direction.

Fig. 9 Configuration of CO₂ particles within the (a) crystal (b) a gme pore and (c and d) an arc of a gme pore surface. The blue borderlines in (a) and (b) denote the focus area that we set at the next figure.

3.2.2 Multicomponent adsorption isotherms. The adsorption isotherms of CO₂ obtained explicitly within the gme and kno channels of ZIF69 can be directly compared in Fig. 10. The CO₂ constituent isotherms for the multicomponent mixtures are presented along with the single component isotherms. The densities correspond to the particles we enumerated inside the particular cavities during the simulations. The particles inside the kno and gme pores sum up to the particles of the entire crystal since the ZIF crystals consist solely of kno and gme (&hpr) type confinements. The isotherm curves in a cavity coincide at low pressures because at an inadequate surface coverage, the adsorption of different components is noncompetitive. At intermediate pressures, because of the increased intermolecular interactions, the adsorption densities of the multi- and single-component systems start deviating from each other. For water containing mixtures, CO₂ obtains a maximum density value, which in some cases is conserved in a broad pressure range. For the same mixtures at high pressures the CO₂ density decreases continuously. The maximum CO₂ density is observed because water adsorption dominates inside the cavities making any insertion of a different type of molecule highly improbable. For a specific mixture, the water partial fugacity required to obtain the maximum CO₂ density (maximum water dosage) in the crystal or in the distinct crystal cavities, is listed in Table 4. In all ZIFs, the maximum water dosage is smaller in the gme than in the kno cavities, presumably due to the narrower pore size and the surface hydrophilicity. ZIFs with highly hydrophilic ligands like ZIF78 and ZIF82 need small water dosages to have their pores filled. In contrast, ZIF79 and ZIF81 with mbIm and BrbIm ligands, respectively, may support, concerning the kno channels, almost 15 mbar of maximum water dosage. Plots of multicomponent isotherms for other ZIFs are given in the ESI.†

Fig. 10 CO₂ adsorption in the unit cell and the kno and gme channels of ZIF69, for single and multicomponent systems.

Table 4 Water partial pressure (mbar) to obtain maximum CO₂ density, corresponding to the ternary mixture: (50% CO₂ + 50% CH₄ + 0.5 ‰ H₂O)

	ZIF68	ZIF69	ZIF70	ZIF78	ZIF79	ZIF80	ZIF81	ZIF82
Entire crystal	8.38	10.22	13.40	4.89	12.15	9.73	13.12	5.86
kno channel	9.33	13.61	13.86	4.89	15.54	14.09	15.06	6.34
gme channel	7.34	9.25	6.43	4.41	5.38	6.34	3.92	2.96

---

The simulated isotherm densities of single component CO₂ adsorption in ZIF69 were strongly correlated with a set of Raman spectroscopy intensity data presented in the work of Kontos et al.¹³ The experiment was performed in a cell chamber containing ZIF69 with different CO₂ loadings. Kontos et al. quantified the adsorbed amount of CO₂ by detecting the CO₂–cbIm interactions from such spectra. In Fig. 10 we include the scaled Raman spectroscopy intensity values as a function of CO₂ pressure. The experimental data are scaled suitably in order to be compared directly with the pure component CO₂ simulated isotherms with respect to the entire crystal, and the kno and gme cavities. The correlation coefficients of the simulated and experimental isotherms are also listed in Fig. 10. The Raman spectroscopy isotherm is most strongly correlated with the isotherm of kno cavities. The cbIm ligands protruding from the surface inside the particular cavities are 360° degrees accessible to the CO₂ adsorbate. In this respect the detected CO₂–cbIm interactions have a greater impact on the adsorption energy within the kno than the other cavities.

4 Conclusions

We simulated multicomponent adsorption in eight gme zeolite imidazole frameworks at 298 K, using the GCMC method. We considered the adsorption of carbondioxide, methane and nitrogen, of their pair mixtures and of their ternary mixtures which also contained minute amounts of water. We presented adsorption density profiles regarded explicitly within the distinct pore channels of gme crystals, namely the kno and gme cavities. The profiles were with respect to high pressure systems where the adsorbate components are competitive. Using the profiles we detected an additional adsorption volume, which features strong interaction energies. This volume is found behind the surface of gme cavities only for the ZIFs with the longest ligands. Long ligands are connected to the framework in a slightly tilted orientation and are in a wedged shaped space in the axial direction of the gme cavity. The multicomponent isotherms were de-convoluted and compared directly in the kno and gme cavities of the samples. In all cases water prevailed in the adsorbed phase prohibiting different adsorbate components to enter the pore. The simulated CO₂ adsorption isotherm of ZIF69 was compared with a set of Raman spectroscopy intensity values obtained for different CO₂ loadings on the same sample. The Raman spectroscopy data and the kno CO₂ isotherm were more correlated compared to the rest of the de-convoluted simulation isotherms. This was expected because Raman isotherm is based on the detection of CO₂–ligand couplings and the ligands specifically within the kno channels are more exposed to the fluid.
