BODIPY appended copper(II) complexes for cellular imaging and singlet oxygen mediated anticancer activity in visible light

Abstract

Copper(II) complexes of N,N,N-donor dipicolylamine ligands, viz. [Cu(L¹)Cl₂] (1), [Cu(L²)Cl₂] (2) and [Cu(L³)Cl₂] (3) with L² and L³ having BODIPY (borondipyrromethene) moieties were synthesized, characterized and their photocytotoxicity studied. Complex 1 was structurally characterized by X-ray crystallography. It has copper(II) in a distorted square-pyramidal geometry (τ = 0.11) with two chloride ligands in axial-equatorial cis-disposition. The one-electron paramagnetic and redox active complexes are non-electrolytic in DMF. They behave as 1 : 1 and 1 : 2 electrolytes in 1 : 1 and 1 : 9 (v/v) DMF–H₂O. The BODIPY complexes 2 and 3 show respective visible bands at 501 nm and 535 nm in DMF. Complex 2 displays an emission band at 515 nm in DMF (λ_ex = 465 nm) with a quantum yield (Φ_F) value of 0.14. This complex, as a fluorogenic probe for cellular imaging, shows cytosolic localisation of the complex in HeLa and MCF-7 cancer cells. Complex 3 having a diiodo BODIPY unit in L³ is non-emissive but acts as an efficient photosensitizer showing a significant PDT effect with apoptotic cell death forming singlet oxygen as ROS (ϕ_Δ = 0.53) and giving respective IC₅₀ values of 0.15 ± 0.02 and 0.17 ± 0.03 μM in HeLa and MCF-7 cancer cells in visible light of 400–700 nm, while being less toxic in the dark.

---

Introduction

Photodynamic therapy (PDT) has emerged as a non-invasive therapeutic modality to treat cancer.^1–5 PDT causes selective damage only to the photoexposed cancer cells thus not affecting the unexposed healthy cells. The primary requirements of PDT are a photosensitizer, molecular oxygen and a light source. The PDT drug Photofrin upon red light activation generates singlet oxygen (¹O₂) as the reactive oxygen species (ROS) via a type-II pathway.⁶ Photofrin is known to localize in the mitochondria of the cells.⁷ Mitochondrial localization circumvents the drawbacks associated with the nuclear targeting chemotherapeutic drugs like cisplatin.^8,9 Photofrin, however, suffers from two major drawbacks: (i) skin photosensitivity for a long period and (ii) oxidative degradation of haemoglobin leading to formation of bilirubin causing jaundice.^10,11 Recent reports have shown that transition metal complexes can be suitably designed for efficient and targeted PDT activity.^12–20 The present work stems from our interest to incorporate 4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (BODIPY) dyes as photosensitizers into the ligand framework for synthesis of the metal complexes.^21–25 BODIPY dyes were studied as potent PDT agents due their singlet oxygen generation ability and for their novel spectroscopic properties.^26–30 The dyes alone in general show poor aqueous solubility. Binding to a metal ion could enhance their bioavailability. Besides, BODIPY dyes can be suitably modified and their fluorescence and photosensitizing abilities can be tuned by simple chemical modifications.^26,27 For example, with heavy atom substitution in the central indacene core, one can convert it to an excellent photosensitizer with enhanced ability to generate singlet oxygen.²⁸ In addition, due to their inherent emissive nature, BODIPY dyes without heavy atom are suitable for cellular imaging. Although there are several reports of using BODIPY dyes as potential PDT agents, the virtually unexplored coordination complexes having BODIPY as a photosensitizer could make a significant advancement in PDT.^{21–25,31–35}

Herein, we present copper(II) complexes, viz. [Cu(L¹)Cl₂] (1), [Cu(L²)Cl₂] (2) and [Cu(L³)Cl₂] (3), where L² and L³ are dipicolylamine based non-iodinated and iodinated BODIPY ligands and L¹ is benzyldipicolylamine (Fig. 1, Schemes S1 and S2, ESI†). Complex 1 is used as a control to study the role of the BODIPY moieties in 2 and 3 in showing any PDT activity. Complex 1 with a similar core structure as that of 2 and 3 is structurally characterized by X-ray crystallography. Copper as a bioessential metal ion is chosen for its affinity to form stable complexes with the N,N,N-donor ligands thus preventing any leaching of this metal into the biological medium. Complex 2 having the emissive BODIPY ligand L² is used for cellular imaging. Complex 3 having the diiodo BODIPY ligand L³ is used as a photosensitizer and the complex displayed remarkable photocytotoxic effect in HeLa (human cervical carcinoma) and MCF-7 (human breast adenocarcinoma) cancer cells giving IC₅₀ values in the nanomolar range while remaining less toxic in the dark.

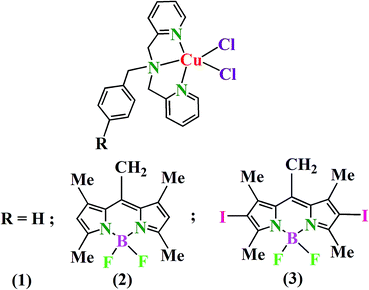

Fig. 1 Chemical structures of the complexes 1–3.

Results and discussion

Synthesis and general aspects

Complexes 1–3 were synthesized in good yields by reacting CuCl₂·2H₂O with respective dipicolylamine ligands in anhydrous methanol and acetonitrile. The complexes were characterized from the elemental analysis and spectral data. The selected physicochemical data are presented in Table 1. The ESI-MS spectra in MeOH gave essentially a single peak corresponding to [M − Cl]⁺ [Fig. S1–S3, ESI†]. The mass spectral data indicate rapid loss of one chloride ligand. The UV-visible spectra in DMF showed bands assignable to the intraligand transition of the BODIPY ligands (Fig. 2(a)). Complex 1 displayed a band at 246 nm. Complexes 2 and 3 showed respective intense band at 501 and 535 nm involving the BODIPY moiety (Fig. 2(a) and S4, ESI†).³⁶ The metal centred weak d–d bands were observed for the complexes within 600–800 nm. The absorption maximum for complex 1 was located at 747 nm which is blue shifted to 677 nm and 676 nm for complexes 2 and 3 respectively (Fig. S6, ESI†). Emissive properties of the complexes were investigated in DMF. Complex 1 in absence of any fluorophoric moiety did not show any emissive property. Complex 2 having fluorescent BODIPY moiety showed an emission maximum at 515 nm when excited at 465 nm with a fluorescence quantum yield (Φ_F) of 0.14. Complex 3 having photosensitizer BODIPY moiety showed emission maximum at 560 nm (λ_ex = 510 nm) with a very low quantum yield value of 0.01 (Fig. 2(b)). A significant decrease in the fluorescence quantum yield of the di-iodo BODIPY appended Cu(II) complex provides an indirect evidence of its better photosensitizing ability compared to the non-iodinated counterpart. The FT-IR spectra in solid state displayed characteristic aromatic C–H stretching vibrations near 3000 cm⁻¹ and aromatic C=C stretching vibrations between 1400–1500 cm⁻¹ for all the complexes. The strong band near 1610 cm⁻¹ is assignable to the ν_(C=N) of the pyridine rings of the dipicolylamine ligands (Fig. S7–S9, ESI†). The complexes are redox active showing cyclic voltammograms in DMF-0.1 M [ⁿBu₄N](ClO₄) for the Cu(II)/Cu(I) redox couple near −0.1 V (Fig. S10–S13, ESI†). Complex 2 showed an additional quasi-reversible peak near −1.1 V due to reduction of the BODIPY moiety which was found to be shifted to −0.85 V in complex 3 as a result of iodination in the BODIPY core. Complexes 1–3 are one-electron paramagnetic giving a μ_eff value of ∼1.8μ_B for the d⁹ copper(II) ion.

Table 1 Selected physicochemical data and DNA binding parameters of the complexes 1–3

Complex	λmax^a/nm (ε/dm^3 mol^−1 cm^−1)	λem^a/nm (λexc/nm) [ϕF]^b	Ef^c/V (ΔEp/mV)	ΛM^d/S m^2 mol^−1		μeff^e/μB	Kf^f/M^−1	Kb^g/M^−1	ΔTm^h/°C
				DMF	DMF : H2O (1 : 1 v/v)
a Spectra recorded in DMF.b Fluorescence quantum yield values measured in DMF using fluorescein in 0.1 M NaOH as standard (ϕ = 0.79).c In DMF-0.1 M TBAP, Ef = 0.5(Epa + Epc), ΔEp = (Epa − Epc), where Epa and Epc are the anodic and the cathodic peak potentials respectively. The potentials are vs. SCE. Ferrocene as standard. Scan rate = 100 mV s^−1.d Molar conductivity data.e Magnetic moment at 298 K using solid powdered samples of the complexes.f Formation constant measured in 1 : 1 H2O : MeOH.g Intrinsic equilibrium binding constant with ct-DNA.h Change in ct-DNA melting temperature in presence of the complexes.i All values in {} are the data for the corresponding ligand system (L^1/L^2/L^3) only.
1	246(42 000), {267(51 350)}^i, 747(280)	—	−0.16(140)	24	72	1.80	1.3 × 10^5	3.5 × 10^5	2.0
2	501(70 300), {500(73 650)}^i, 677(230)	515(465), [0.14], {510(465), [0.55]}^i	−0.1(185), −1.1(90), {−1.12(133)}^i	21	77	1.82	9.6 × 10^6	8.0 × 10^5	4.3
3	535(56 300), {533(59 200)}^i, 676(230)	560(515), [0.01], {564(510), [0.01]}^i	−0.09(165), −0.84(116), {−0.84(103)}^i	18	46	1.83	4.1 × 10^6	7.6 × 10^5	4.2

---

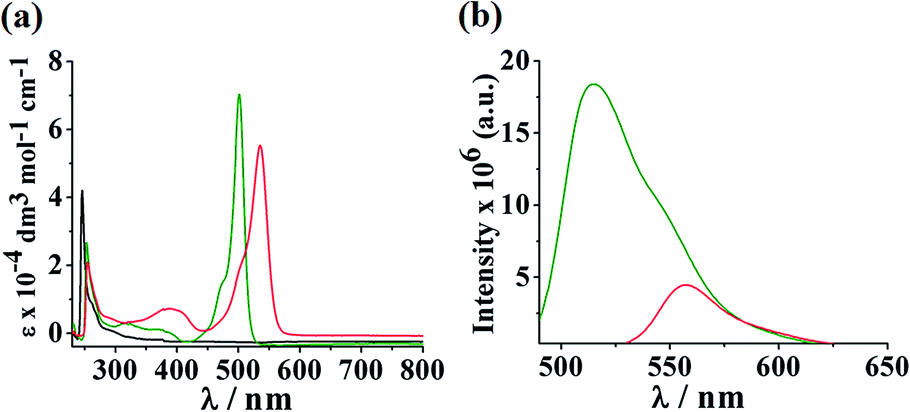

Fig. 2 Absorption spectra of the complexes 1–3 (a) and emission spectra of 2 and 3 (b) recorded in DMF. Colour codes: complex 1 – black, complex 2 – green, complex 3 – red.

Complex 1 was characterized by single crystal X-ray crystallography. A perspective view of the complex along with the atom labelling scheme is shown in Fig. 3.³⁷ Selected crystallographic parameters, bond distances and angles are given in Tables S1 and S2 (vide ESI†). Complex 1·0.5 Et₂O crystallizes in P2₁/n space group of monoclinic crystal system with diethyl ether as solvent of crystallization (Fig. S14, ESI†). The complex has a mononuclear structure with the metal in a distorted square pyramidal geometry where three nitrogen atoms from benzyldipicolylamine ligand and one chloride ligand are in the equatorial plane with the second chloride ligand occupying the axial position giving a CuN₃Cl₂ core. There is minor distortion from the square-pyramidal geometry as evidenced from the τ value of 0.11 [τ = 0 for ideal square pyramid (C_4v) and τ = 1 for trigonal bipyramid (D_3h) structure].³⁸

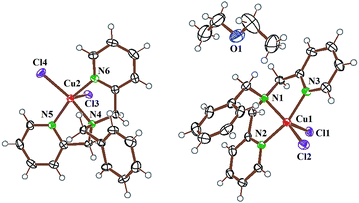

Fig. 3 An ORTEP view showing two independent molecules of 1 and one Et₂O with 50% probability thermal ellipsoids and the atom labelling scheme. Colour codes: copper, red; nitrogen, green; oxygen, blue; carbon, black; chlorine, violet and hydrogen, grey.

Conductivity and stability

All the complexes were found to be soluble in common polar organic solvents. They were insoluble in hydrocarbons. Interestingly, complexes 1 and 2 showed significant solubility in water. Complex 3 having the diiodinated BODIPY moiety showed only moderate aqueous solubility possibly due to its molecular weight with di-iodination compared to complex 2, which are otherwise structurally similar. The aqueous solubility of complexes 2 and 3 are significant considering poor aqueous solubility of L² and L³. The results are of importance making the BODIPY appended Cu(II) complexes better suitable for PDT activity than the dyes alone.

The molar conductance study for 1–3 in different solvents gave varied conductance values (Tables 1 and S3, ESI†). The complexes are non-conducting in DMF, DMSO and acetonitrile. In MeOH, the complexes behaved as 1 : 1 electrolyte with a loss of one Cl⁻ ligand, as evidenced from the mass spectral data. In dry DMF, complexes were found to be non-conducting. On gradual addition of water to DMF, both 1 : 1 and 1 : 2 electrolytic behaviours were observed. It is likely that the loss of chloride ligand(s) results to [M(L)Cl(H₂O)]⁺ and [M(L) (H₂O)₂]²⁺ species, where L is the dipicolylamine ligand. Complexes 1 and 2 behave as 1 : 1 electrolytes in 50% aq. DMF, while complex 3 shows similar 1 : 1 electrolytic behaviour only at higher water content. Only complexes 1 and 2 displayed 1 : 2 electrolytic properties in 90% aq. DMF. Time dependent UV-visible absorption spectral studies for 1–3 revealed the solution stability of the complexes (Fig. S15–S17, ESI†). The spectra recorded in PBS buffer (pH = 7.2) containing 10% DMSO up to 48 h did not show any significant spectral change suggesting their stability. The formation constants for complexes 1–3 were determined by UV-visible absorption spectral titration using the method of constant total concentration (Table 1, Fig. S18–S20, ESI†). Complex 1 has the stability constant (K_f) value of 1.3 × 10⁵ mol⁻¹. The values for complexes 2 and 3 were 9.6 × 10⁶ and 4.1 × 10⁶ mol⁻¹, respectively. The high K_f values significantly reduces the possibility of any leaching of Cu(II) in the biological media.

Theoretical studies

DFT computational studies were performed using B3LYP hybrid functional and LANL2DZ basis-set for all the atoms, as incorporated in Gaussian 09 software package for a better understanding of the molecular structure and electronic nature of the complexes.^39–41 To ascertain the stationary points, frequency tests were performed after optimisation of the ground-state structures. Energy optimised structures for complexes 1–3 showed distorted square pyramidal geometry of Cu(II) where all the three nitrogen atoms from respective dipicolylamine ligand lie on the basal plane with one chloride ligand, while the second chloride ligand occupies the axial position giving a Cu^IIN₃Cl₂ core (Fig. 4, Tables S5–S7, Fig. S21 and S22, ESI†). The energy minimized structures are in accordance with that of the crystal structure of complex 1. For complex 1 the HOMO resides on the orbital of the metal coordinated chloride ligands and the LUMO is on the benzyldipicolylamine moiety. The HOMO and LUMO for 2 and 3 were on the central BODIPY core suggesting the important role of the BODIPY moiety on the photophysical properties of the complexes.

Fig. 4 Energy optimized structures and frontier molecular orbitals of complexes 2 and 3. Colour codes: copper, red; nitrogen, dark green; carbon, black; boron, purple; chlorine, violet; fluorine, light green and hydrogen, grey.

Cellular studies

In vitro cytotoxicity of the complexes was measured from the IC₅₀ values using 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay in human cervical carcinoma HeLa cells and human breast adenocarcinoma MCF-7 cells in dark and on visible light (400–700 nm) exposure (Fig. 5, S23–24, ESI†). The IC₅₀ values of selected metal–BODIPY complexes and non-BODIPY Cu(II) complexes are listed in Tables 2 and S4 (vide ESI†).^21,24,42 Complex 1 gave IC₅₀ values of 16.7 and 9.1 μM in HeLa cells in dark and visible light, respectively. Complex 2 having a fluorophoric BODIPY moiety (in L²) gave IC₅₀ values of 12.4 μM in dark and 5.4 μM in light in HeLa cells and 15.6 μM in dark and 6.3 μM in visible light in MCF-7 cells. Complex 3 with an iodinated BODIPY moiety which acts as a photosensitizer showed a remarkable light to dark ratio giving IC₅₀ value of 0.15 μM in light and 11 μM in dark in HeLa cells and 0.17 μM in light and 12.1 μM in dark in MCF-7 cells. The photocytotoxicity of complex 3 in HeLa and MCF-7 cells is remarkable with its nanomolar activity that is about 30 times higher than the FDA approved drug Photofrin®.⁴³ The complexes with IC₅₀ values of ∼10 μM in the dark, however, showed some dark toxicity possibly due to reduction of copper(II) by cellular thiols thus producing ROS. In addition, the dichlorocopper(II) complexes on loss of two chloride ligands can act as DNA crosslinking agents by covalently binding to DNA.

Fig. 5 MTT assay in HeLa (a) and MCF-7 cells (b) treated with complex 3 for 4 h and 1 h incubation in the dark (black symbol) or on exposure to visible light (400–700 nm, red symbol).

Table 2 The IC₅₀ values (μM) of complexes 1–3 in HeLa and MCF-7 cells along with some related compounds^a

Entry	HeLa		MCF-7
	Light^b	Dark	Light^b	Dark
a The structures of the BODIPY metal complexes and non-BODIPY-Cu(II) complexes are shown in Table S4 (vide ESI). The non-PDT Cu(II) complexes reported by Palaniandavar et al. (ref. 42b) and Reedijk et al. (ref. 42c) have IC50 values 3.2 ± 0.3 μM in SiHa cells and 8.6 μM in L1210 cells in dark, respectively.b Visible light of 400–700 nm (dose = 10 J cm^−2).c Data from ref. 42a.d Data from ref. 21 (635 nm LED light) in LLC cells.e Data from ref. 24 (400–700 nm visible light).f Data from ref. 43 (633 nm red light).
1	9.1 ± 0.3	16.7 ± 0.2	10.9 ± 0.3	16.7 ± 0.3
2	5.4 ± 0.2	12.4 ± 0.3	6.3 ± 0.1	15.6 ± 0.3
3	0.15 ± 0.02	11.0 ± 0.2	0.17 ± 0.02	12.1 ± 0.2
[Pt-BODIPY]^c	—	27.4 ± 1.1	—	12.1 ± 2.4
[Ir(II)-BODIPY]^d	2.58	9.81	—	—
[Cu(cur) (BODIPY)]^e	3.8 ± 0.2	32.1 ± 0.4	—	—
Photofrin®^f	4.3 ± 0.2	>41	—	—

---

The emissive property of complex 2 was used to study its cellular uptake and localization in the HeLa and MCF-7 cells by confocal microscopy. Hoechst 33 342 was used as a nuclear staining dye to ascertain any nuclear uptake of the complexes. The complex (2 μM) showed significant accumulation in the HeLa and MCF-7 cells within 2 h and was retained up to 4 h. The uptake in 4 h was found to be more than that in 2 h. From the merged image, consisting of the green fluorescence of the complex [panels (c and h)] and blue fluorescence of Hoechst 33342 [panels (a and f)], complex 2 was seen to localize mainly in the cytoplasm [panels (d and i)] (Fig. 6 and S25, ESI†). The nuclear morphology of the cells remained intact indicating less toxic nature of the complexes in the dark. The results are indeed of significance since the complexes could serve the dual purpose of imaging the tumor for its detection while remain passive within the cells in absence of light and become cytotoxic on photo-irradiation. Cytoplasmic localization of the complex was further studied using mitochondria tracker red (MTR) in HeLa and MCF-7 cells [panels (b and g)]. The complex did not seem to target mitochondria as evident from lack of any co-localization of the complex and MTR (panels (e and j)) (Fig. 6 and S26, ESI†).

Fig. 6 Fluorescence microscopic images of HeLa and MCF-7 cells treated with complex 2 (2 μM) and nuclear staining Hoechst 33342 dye (5 μg ml⁻¹) and MitoTracker Red (MTR, 0.05 μM) for 2 h incubation: panels (a and f) showing blue emission of Hoechst dye; panels (b and g) display red fluorescence of MTR; panels (c and h) show green emission of 2; panels (d and i) are the merged images of 2 and Hoechst dye and panels (e and j) are the merged images of 2 and MTR. Merge images show cytosolic localization of 2 with partial mitochondrial localization [scale bar = 10 μm].

Annexin-V-FITC/PI assay was performed to study the nature of cell death. Annexin V is a class of phospholipid binding protein which is known to bind phosphatidylserine. The onset of apoptosis mediated cell death results in the flipping of the cell membrane, exposing phosphatidylserine which mainly remains in the inner leaflet of lipid bilayer in healthy cells to the outer leaflet due to a change in the phospholipid asymmetry. This morphological change in cell membrane can then be detected using Annexin-V labelled with FITC in flow cytometry. The red emitting propidium iodide (PI) dye was used as a second marker which is cell membrane impermeable and intercalates to nuclear DNA. Cells undergoing early apoptosis were identified as single positive population for FITC, while necrotic cell population was stained only by PI. The double positive population comprised cells in late apoptosis having compromised cell membrane. To study whether complex 3 is capable of inducing any apoptosis upon visible light irradiation, HeLa cells were treated with 3 (0.2 μM, 4 h incubation) followed by photo-irradiation (1 h) with visible light of 400–700 nm and the assay was performed after 16 h of photo-irradiation. The results are shown in Fig. 7(a). Complex 3 induced apoptosis in ∼29% of HeLa cells upon light irradiation while no significant apoptosis was observed in the dark.

Fig. 7 (a) Annexin V-FITC/PI coupled flow cytometric analysis showing complex 3 (0.2 μM) induced apoptosis on visible light (400–700 nm) exposure. (b) Flow cytometry to detect ROS using DCFDA assay for complex 3 (0.3 μM): cells alone, grey; cells + DCFDA, black; cells + DCFDA + 3 (in dark), blue; and cells + DCFDA + 3 (in light of 400–700 nm), red. The greater shift in fluorescence intensity implies a higher amount of ROS.

2′,7′-Dichlorofluorescein diacetate (DCFDA) assay was performed to detect formation of any intracellular reactive oxygen species (ROS) in the presence of the complexes. DCFDA is a non-fluorescent and cell permeable dye which on cleavage and oxidation by intracellular esterases and ROS generates fluorescent and cell membrane impermeable DCF. HeLa cells were incubated with complex 3 (0.3 μM) for 4 h in the dark followed by 1 h in visible light (400–700 nm) to perform the experiment. The amount of ROS generated by living cells was then quantified using flow cytometric analysis by measuring the green fluorescence of DCF [λ_em = 525 nm]. The results indicate a significant shift in ROS production inside the live cells in presence of complex 3 on light exposure, while ROS generated was insignificant in the dark (Fig. 7(b)). To explore the effect of appended iodinated BODIPY moiety, DCFDA assay was also performed with complex 1 (10 μM) which showed only insignificant amount of DCF formation very similar to that generated by DMSO itself after light irradiation (Fig. S27, ESI†). Thus, from the Annexin-V-FITC/PI assay and DCFDA assay data, it can be inferred that the light triggered production of ROS could be responsible for the apoptosis mediated cellular damage highlighting the importance of the photosensitizing BODIPY moiety in 3.

DNA binding and cleavage

DNA binding ability of the complexes was studied with calf thymus (ct) DNA at pH of 7.2 (Tris–HCl buffer, 5 mM) using spectral and hydrothermal methods. The change in absorbance in the UV-visible spectra of the complexes 1–3 was monitored at the respective ligand centred bands with increasing concentration of ct-DNA to determine the intrinsic DNA binding constant (K_b) of the complexes. The data are given in Table 1 (Fig. S28–S30, ESI†).^44,45 The DNA binding strength of the complexes follows the order: 2 ≥ 3 > 1. The presence of planar BODIPY core in 2 could facilitate its intercalation using π-stacking interaction between the complex and DNA duplex. Complex 3 having the iodinated BODIPY showed similar binding propensity. Complex 1 which is devoid of the BODIPY moiety showed only moderate DNA binding strength due to absence of any planar moiety with extended conjugation and possibly interacting via groove binding mode.

To further investigate the DNA binding mode of the complexes, viscometric titrations were carried out and (η/η₀)^1/3 vs. [complex]/[DNA] ratio was plotted where η and η₀ indicate the relative specific viscosity of ct-DNA in presence and absence of the complexes (Fig. 8(a)).⁴⁶ The results were compared with that of ethidium bromide (EB) as a classical DNA intercalator which increases the relative viscosity of DNA significantly on binding. Groove binding Hoechst dye did not show any change in the specific viscosity of the DNA solution. It can be inferred from the plot that complexes 2 and 3 have mainly intercalative mode of binding while complex 1 is DNA groove binder. Thermal denaturation studies were performed with ct-DNA to find out DNA melting temperature (T_m) in presence and absence of the complexes. At melting temperature, DNA duplex unwinds to form single strand resulting an increase in absorbance at 260 nm as the base pairs get separated from each other. Binding of the metal complex to DNA normally increases the stability of double helix as a result of additional attractive interactions taking place between the complex and DNA. Intercalating molecules result in better stability to duplex DNA than groove binders and provide a larger positive shift in melting temperature (ΔT_m). The ΔT_m values for 1–3 are 2.0, 4.3 and 4.2, respectively, suggesting groove binding nature of complex 1 while 2 and 3 are partial DNA intercalators (Fig. 8(b)).

Fig. 8 (a) Plots of (η/η₀)^1/3 vs. [complex]/[DNA] of the complexes 1–3, ethidium bromide (EB) and Hoechst 33258 dye on the relative solution viscosities of ct-DNA (180 μM) at 37.0(±0.1) °C in 5 mM Tris–HCl buffer (pH 7.2). (b) Derivative plots showing dA₂₆₀/dT vs. Temperature (T) for 180 μM calf thymus DNA alone and on addition of the complexes 1–3.

Photo-induced DNA cleavage activity of the complexes was studied using supercoiled (SC) pUC19 DNA (30 μM, 0.2 μg) in Tris–HCl/NaCl (50 mM, pH = 7.2) buffer (Fig. 9a, b and S31, ESI†). Gel electrophoresis was done in agarose gel to estimate the extent of nicked circular (NC) DNA formation from the SC DNA in presence of the copper(II) complexes.⁴⁷ Monochromatic visible light source of 514 nm (40 mW power) was used from a tuneable continuous-wave (CW) Ar–Kr mixed-gas ion laser. The wavelength chosen for DNA photocleavage is based on the presence of ligand centred electronic spectral band of the complexes 2 and 3 near 500 and 535 nm respectively. Each sample, after treating with the DNA solution in Tris–HCl buffer medium, was kept for 1 h in the dark, followed by 1 h exposure to 514 nm laser light. Complex 1 (20 μM) did not show any significant DNA cleavage in dark and light forming respective 11% and 27% NC DNA from SC DNA, while complex 2 (20 μM) and 3 (5 μM) showed excellent DNA photocleavage activity giving 84% and 91% cleavage of SC DNA to its NC form (Fig. 9(a)). Complexes 2 and 3 did not show any significant DNA cleavage activity in the dark. BODIPY ligands L² and L³ alone under similar conditions showed 40% and 49% formation of NC DNA on photoactivation, while the values were 10% and 11% respectively in the dark. The results highlight the essential role of Cu(II) in the formation of DNA adducts and the cleavage. The chemical nuclease activity of complexes 1–3 (10 μM) was studied (Fig. 9(a)) in presence of glutathione (GSH, 500 μM). The choice of GSH as reducing agent was based on the presence of a Cu(II)/Cu(I) redox couple in complexes 1–3. All the complexes showed formation of NC DNA ranging from ∼26% to ∼31%. The mechanistic aspects of the DNA photocleavage reactions were probed in the presence of different singlet oxygen quenchers, hydroxyl radical scavengers and SOD as superoxide radical scavenger (Fig. 9(b) and S31, ESI†). Singlet oxygen quenchers NaN₃ and TEMP showed inhibition in the DNA photocleavage activity, while there was no significant inhibition in presence of hydroxyl radical (DMSO, KI, catalase) and superoxide radical (SOD) scavengers. The data indicate primarily formation of singlet oxygen as the ROS via type-II process.

Fig. 9 (a) Gel diagram showing SC pUC19 DNA (0.2 μg, 30 μM base pair) cleavage by 1–3 in dark and visible light (514 nm, 40 mW, 1 h exposure): lanes 1 and 2, DNA control in dark and light; lanes 3–5, DNA + L¹/L²/L³ in dark, respectively; lanes 6–8, DNA + L¹/L²/L³ in light, respectively; lanes 9, 10, DNA + 1 in dark and light; lane 11, 12, DNA + 2 in dark and light; lanes 13, 14, DNA + 3 in dark and light. Chemical nuclease activities of complexes 1–3 (10 μM) in presence of GSH (500 μM) (1 h incubation in dark): lane 15, DNA + GSH (in dark); lanes 16–18, DNA + respective 1/2/3 + GSH (in dark) [NC, nicked circular DNA; L¹, L², complexes 1 and 2 of 20 μM; L³ and complex 3 of 5 μM]. (b) Bar diagram showing photocleavage of pUC19 DNA (0.2 μg, 30 μM base pair) for 2 and 3 in visible light (514 nm; 1 h exposure) on addition of different additives: KI/NaN₃/TEMP, 4 mM; DMSO, 4 μl; catalase and SOD, 4 units; D₂0, 16 μl (total volume = 20 μl). The bars are: (i) DNA, (ii) DNA + complex + KI, (iii) DNA + complex + DMSO, (iv) DNA + complex + catalase, (v) DNA + complex, (vi) DNA + complex + NaN₃, (vii) DNA + complex + TEMP, (viii) DNA + complex + SOD.

Singlet oxygen as ROS

The possibility of production of singlet oxygen was further explored using diphenylisobenzofuran (DBPF) as a standard.⁴⁸ UV-visible spectral titration was carried out and the change in absorbance of DPBF at ∼414 nm was monitored as a function of time after photoexposure to broadband 400–700 nm light (10 J cm⁻² dose) for 5 s each time in presence of a constant concentration of complex 3 (0.1 μM) (Fig. 10). Significant and gradual decrease in the absorption intensity of DPBF indicated photo-induced production of singlet oxygen from complex 3. Singlet oxygen quantum yield measurements were made by an indirect method using Rose Bengal as standard in DMSO (ϕ_Δ = 0.76).⁴⁹ A solution of DPBF was photo-irradiated with 3 and the dye separately using a long pass of 530 nm over a time period of 1–10 s.⁵⁰ The singlet oxygen quantum yield value for 3 (ϕ_Δ) was found to be 0.53 while it is 0.88 for the iodinated BODIPY ligand (L³) as control (Fig. S32, ESI†). The results support the involvement of cytotoxic singlet oxygen in cellular death by the copper(II) complexes and highlights the importance of the diiodinated BODIPY moiety as a photosensitizer.

Fig. 10 (a) Absorption spectral traces of diphenylisobenzofuran (DPBF) and complex 3 (0.1 μM) on exposure to light (400–700 nm, 10 J cm⁻²) for exposure time of 5 s. (b) Plot showing change in absorbance of DPBF at 415 nm with time on light exposure with complex 3, showing a linear decrease of the DPBF absorbance.

Experimental section

Materials

Cells used for the biological studies were obtained from the National Centre for Cell Science (NCCS) in Pune, India. Supercoiled (SC) pUC19 DNA (cesium chloride purified) was purchased from Bangalore Genie (India). Calf thymus (ct) DNA, catalase, superoxide dismutase (SOD), 2,2,6,6-tetramethyl-4-piperidone (TEMP), 2,7-dichlorofluorescein diacetate (DCFDA), Hoechst dyes, ethidium bromide (EB), propidium iodide (PI), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT), Dulbecco's modified eagle medium (DMEM), Dulbecco's phosphate buffered saline (DPBS) and fetal bovine serum (FBS) were obtained from Sigma (USA). MitoTracker® Deep Red FM (MTR, Cat. no. M22426) was purchased from Invitrogen Bio Services, India.

Synthesis

Preparation of complex 1. Benzyldipicolylamine ligand L¹ (0.253 g, 0.875 mmol, 1 eq.)⁵¹ dissolved in 15 ml of dry MeOH was added drop-wise to a methanol solution of CuCl₂·2H₂O (0.156 g, 0.875 mmol, 1 eq.) at 27 °C and allowed to stir overnight. The solvent was then evaporated under reduced pressure and the resulting residue was collected, washed with diethyl ether and dried in vacuum over P₄O₁₀ to get a bluish green solid (yield: 0.341 g, 92%). Anal calc. for C₁₉H₁₉N₃Cl₂Cu: C, 53.84; H, 4.52; N, 9.91. Found: C, 53.71; H, 4.57; N, 9.82. ESI-MS (m/z in MeOH) calculated for [M − Cl]⁺: 387.0564; found: 387.0531. UV-visible data in DMF [λ/nm (ε/dm³ mol⁻¹ cm⁻¹)]: 246 (42 000), 787 (280). IR data (cm⁻¹): 3360 (w, br), 3027 (w, br), 2935 (w, br), 2217 (w), 2064 (w), 1950 (w), 1613 (s), 1478 (m), 1438 (s), 1285 (m), 1155 (m), 1025 (m), 865 (m), 753 (s), 702 (m), 650 (m), 509 (m), 480 (m), 425 (m) [w, weak; m, medium; s, strong; br, broad]. Molar conductivity in DMF [Λ_M/S cm² mol⁻¹]: 24. μ_eff at 298 K: 1.80μ_B.

Preparation of complex 2. The BODIPY ligand L² (0.241 g, 0.451 mmol, 1 eq.)^24,52 was dissolved in 20 ml dry ethanol and then added drop-wise to an ethanol solution of CuCl₂·2H₂O (0.080 g, 0.451 mmol, 1 eq.) and allowed to stir for 3 h at 27 °C. Solvent was then removed in a rotary evaporator and the residue thus obtained was washed with diethyl ether and dried in vacuum over P₄O₁₀ to get the complex as a greenish black solid (yield: 0.27 g, 90%). Anal calc. for C₃₂H₃₂N₅BCl₂F₂Cu: C, 57.37; H, 4.81; N, 10.45. Found: C, 57.26; H, 4.77; N, 10.52. ESI-MS (m/z in MeOH) calculated for [M − Cl]⁺: 633.1703; found: 633.1745. UV-visible data in DMF [λ/nm (ε/dm³ mol⁻¹ cm⁻¹)]: 253 (26 700), 372 (1120), 501 (70 300), 677 (230). IR data (cm⁻¹): 3410 (w, br), 3353 (w, br), 2923 (w, br), 2180 (w), 2006 (w), 1973 (w), 1613 (w), 1540 (m), 1506 (s), 1469 (s), 1440 (s), 1405 (s), 1368 (m), 1307 (s), 1262 (m), 1193 (s), 1153 (s), 1070 (m), 1049 (s), 1028 (m), 975 (s), 839 (m), 812 (s), 753 (s), 707 (s), 648 (m), 584 (m), 475 (s), 420 (s). Molar conductivity in DMF [Λ_M/S cm² mol⁻¹]: 21. μ_eff at 298 K: 1.82μ_B.

Preparation of complex 3. Iodinated BODIPY ligand L³ (0.15 g, 0.19 mmol, 1 eq.)²⁴ taken in minimum volume of dry CH₃CN was added to an acetonitrile solution of CuCl₂·2H₂O (0.032 g, 0.190 mmol, 1 eq.) and stirred for 4 h at 27 °C. A pink red solid thus obtained after solvent evaporation was washed with diethyl ether and dried in vacuum to get complex 3 (yield: 0.16 g, 90%). Anal calc. for C₃₂H₃₀N₅BCl₂F₂I₂Cu: C, 41.70; H, 3.28; N, 7.60; found: C, 41.52; H, 3.24; N, 7.51. ESI-MS (m/z in MeOH) calculated for [M − Cl]⁺: 884.9636; found: 884.9502. UV-visible data in DMF [λ/nm (ε/dm³ mol⁻¹ cm⁻¹)]: 255 (20 900), 389 (7200), 535 (56 300), 676 (230). IR data (cm⁻¹): 3421 (w, br), 3387 (w, br), 3046 (w, br), 2913 (w, br), 2205 (w), 2083 (w), 2041 (w), 1960 (w), 1610 (m), 1522 (s), 1441 (s), 1397 (s), 1343 (s), 1302 (s), 1260 (m), 1171 (s), 1117 (s), 1060 (s), 993 (s), 855 (m), 817 (m), 762 (s), 706 (s), 653 (m), 589 (s), 524 (s), 484 (m), 422 (m). Molar conductivity in DMF [Λ_M/S cm² mol⁻¹]: 18. μ_eff at 298 K: 1.83μ_B.

Cellular measurements

Cell culture. HeLa (human cervical carcinoma) and MCF-7 (human breast adenocarcinoma) cells were maintained in DMEM supplemented with 10% FBS, 100 IU ml⁻¹ of penicillin, 100 mg ml⁻¹ of streptomycin and 2.0 mM of Glutamax at 37 °C in a humidified incubator at 5% CO₂. The adherent cultures were grown as monolayer and were passaged once in 4–5 days by trypsinizing with 0.25% trypsin–EDTA.

Cell viability (MTT) assay. Approximately 1 × 10⁴ HeLa and MCF-7 cells were plated in each well of a 96-well culture plate in DMEM supplemented with 10% fetal bovine serum (10% DMEM) and cultured overnight. The MTT assay was done using standard protocols that are reported earlier.⁵³ Each of the complexes 1–3 was dissolved in 1% DMSO and was added to the cells at varying concentrations and incubation was continued for 4 h in the dark with subsequent photo-irradiation for 1 h in visible light (400–700 nm) using Luzchem Photoreactor (Model LZC-1, Ontario, Canada) equipped with Sylvania make 8 white fluorescent tubes giving an overall fluence rate of 2.4 mW cm⁻² to provide a total dose of 10 J cm⁻². The intensity of formazan formed was then estimated by measuring its absorbance in DMSO at 540 nm using an ELISA microplate reader (BioRad, Hercules, CA, USA). Cytotoxicity of each sample was calculated as the percentage ratio of the absorbance of the treated cells over the untreated controls. The IC₅₀ values in the dark and in light were determined using nonlinear regression analysis method by plotting “log(inhibitor) vs. normalised response (variable slope)” using GraphPad Prism version 5.1.⁵⁴ The errors were calculated by taking the average of the deviation obtained by repeating the experiment three times.

Confocal microscopy experiments. HeLa and MCF-7 cells (about 4 × 10⁴ cells per mm²), plated on cover slips, were incubated with complex 2 (2 μM) for 2 and 4 h in the dark, fixed with 4% paraformaldehyde for 10 min at room temperature and washed with PBS. This was followed by staining with Hoechst 33342 dye for 10 min at 25 °C. The cells were washed, mounted in 90% glycerol solution containing Mowiol, an anti-fade reagent, and sealed. The images were acquired using confocal scanning electron microscope (Leica, TCS SP5 DM6000) at 63× magnification. For sub-cellular localization of the complex, HeLa cells (4 × 10⁴ cells per mm²) were incubated with 2 μM of complex 2 for 2 and 4 h in the dark. The cells were then treated with 0.5 mmol of mitotracker red (MTR) for 30 min at 37 °C. The cells were washed with PBS, mounted on slides and sealed with nail paint. The images were acquired using Leica TCS (SP5 DM6000) laser scanning confocal microscope at 63× magnification. Diode laser of 405 nm was used for excitation of Hoechst 33342 dye and the emission was measured at 460 nm. For the excitation of complex 2 having absorption maxima at ∼500 nm, argon laser of 488 nm was used and emission was monitored at 520 nm. MTR (λ_max = 579 nm) was excited with red He–Ne laser to detect its emission at 599 nm.

Annexin-V/FITC and PI assay. HeLa (4 × 10⁵ cells per ml) cells were treated with complex 3 (0.2 μM) in 10% DMEM and kept in the dark for 4 h, followed by irradiation to visible light (400–700 nm, dose 10 J cm⁻²) for 1 h. The cells were then cultured for 16 h in complete medium, harvested and washed twice with chilled PBS at 4 °C. The cells were re-suspended in 100 μl Annexin-V binding buffer (100 mM HEPES/NaOH, pH 7.4 containing 140 mM NaCl and 2.5 mM CaCl₂), stained with Annexin-V FITC and propidium iodide (PI), and incubated for 15 min at 25 °C in the dark. A 400 μl of binding buffer was added to the cells after incubation and analysed immediately using flow cytometry.⁵⁵

DCFDA assay for ROS detection. HeLa cells were incubated with complexes 1 (10 μM) and 3 (0.2 μM) for 4 h followed by photo-exposure to visible light (400–700 nm) for 1 h in PBS. Cells were harvested by trypsinization. Single cell suspension of 1 × 10⁶ cells per ml was prepared. The suspension was then treated with 10 μM DCFDA solution in DMSO and kept in the dark for 5 min at 25 °C. Flow cytometry was performed for distribution of the HeLa cells stained with DCFDA.⁵⁶

Conclusions

New BODIPY appended dipicolylamine dichloro copper(II) complexes are designed and prepared as dual action PDT agents. Complex 2 with a green emissive BODIPY unit served as a cellular imaging agent and showed selective cytoplasmic localisation of the complex in the cancer cells. This is important as the nuclear localising chemotherapeutic agents are known to suffer for reduced activity due to NER mechanism to be operative at the nucleus. The present BODIPY complexes thus mimic the cellular localisation properties of the PDT drug Photofrin®. Complex 3 having a diiodinated BODIPY moiety as a photosensitizer exhibited remarkable photocytotoxicity in HeLa and MCF-7 cells. It was found to be ∼30 times more photocytotoxic than Photofrin®. The mechanistic studies revealed apoptotic cell death by 3 on light activated generation of ¹O₂ as the ROS. The results are of significance in the chemistry of PDT exemplifying metal complexes having BODIPY moieties suitable for cellular imaging and apoptotic cell death on suitable modification of the ligand structure.

Conflict of interest

The authors declare no competing interests.

Acknowledgements

We thank the Department of Science and Technology (DST, Government of India) for financial support (SR/S5/MBD-02/2007; EMR/2015/000742). A. R. C. thanks the DST for J. C. Bose national fellowship. We are thankful to the Alexander von Humboldt Foundation for donation of an electrochemical system and DST for a CCD diffractometer facility. We thank Dr Sanjoy Mukherjee for his help in the computational studies. We are thankful to Dr D. Ramaiah, Dr J. Joseph and Mr M. Sanmugasundaram of NIIST, Trivandrum, for help in ¹O₂ quantum yield measurements. A. B. thanks Council for Scientific and Industrial Research (CSIR), New Delhi, for research fellowship. A. D. thanks the University Grants Commission (UGC), New Delhi, for a research fellowship. S. B. thanks IISc, Bangalore, for postdoctoral fellowship. The FACS facility supported by Department of Biotechnology (DBT), Government of India, is acknowledged.
