Spatially branched CdS–Bi₂S₃ heteroarchitecture: single step hydrothermal synthesis approach with enhanced field emission performance and highly responsive broadband photodetection

Abstract

This report explores the controlled hierarchical synthesis of CdS nanostructure branches on Bi₂S₃ nanorod cores via a facile single step hydrothermal route. Morphological and structural studies reveal the formation of CdS–Bi₂S₃ heteroarchitecture with excellent stoichiometry between the constituent elements. The growth of CdS over Bi₂S₃ strongly depends on optimization of the reaction conditions, especially low PVP concentration. Furthermore, the as-synthesized CdS–Bi₂S₃ heteroarchitecture demonstrates multifunctionality in field emission and photoresponse. Interestingly, the CdS–Bi₂S₃ heteroarchitecture shows enhanced field emission properties such as low turn-on field (∼1.8 V μm⁻¹ for 10 μA cm²), high emission current density and better current stability in comparison to Bi₂S₃ and other nanostructures. The as-synthesized CdS–Bi₂S₃ heteroarchitecture exhibits considerable response and recovery times, ∼207 ms and 315 ms, respectively in comparison to bare Bi₂S₃ nanostructures (∼655 ms and 678 ms). The present results demonstrate CdS–Bi₂S₃ heteroarchitecture as a potential candidate for future optoelectronic device applications.

---

Introduction

Shape controlled growth of one-dimensional (1D) semiconductor heterostructures through a hierarchical assembly process has attracted significant scientific attention lately, because of the size, shape, and morphology dependent properties of nanomaterials that are key to various applications.^1–8 It is further recognized that such interesting properties also depend strongly on the synthesis, processing methods and interfaces at the individual counterparts. Therefore, development of precise heteroarchitecture with well defined morphology remains an important research endeavour. In this context, it is necessary to explore a facile, large scale, low-cost route enabling synthesis of novel heteroarchitectures possessing high crystallinity and clean surfaces. Among the various synthesis methods, hydrothermal routes offer a distinct advantage over the others, because their specific high pressure (superheating) growth character is expected to generate the desired morphologies of the heteroarchitectures in a single step.

Although, hydrothermal method has been widely used to synthesize Bi₂S₃, nanostructures with different morphologies, research on well-defined Bi₂S₃ heterostructures via the facile hydrothermal approach is sparse. Recently, Panmand and co-workers⁸ had attempted decoration of CdS nanoparticles on Bi₂S₃ nanowires using solvothermal route for visible light photo catalyst application. Also, Fang et al.² have reported photocatalytic activity of CdS nanoparticles on Bi₂S₃ nanowire obtained by wet chemical method performed at higher temperature.

In the present study, single step hydrothermal approach is effectively used to obtain CdS–Bi₂S₃ heteroarchitecture possessing unique morphology. Interestingly, the CdS–Bi₂S₃ heteroarchitecture exhibits enhanced field electron emission (FE) behaviour and photodetection with excellent response in a broadband wavelength region, owing to tuning of the properties of individual counterpart, and high electron mobility.^9,10 The superior FE characteristics and photoresponse behaviour is attributed due to enhancement in the aspect ratio due to unique morphology of the heteroarchitecture and modulation of electronic properties at the interface.

Experimental

Materials

Bismuth nitrate (Bi(NO₃)₃·5H₂O), thiourea ((NH₃)₂CS), cadmium nitrate (Cd(NO₃)₂·4H₂O), and polyvinylpyrrolidone (PVP) all of analytical grades were used without further purification for synthesis of Bi₂S₃ nanostructures and CdS–Bi₂S₃ heteroarchitecture.

Synthesis method

In a typical hydrothermal synthesis of Bi₂S₃ nanostructures, Bi (NO₃)₃·5H₂O (0.970 g) and (NH₃)₂CS (0.6089 g) were dissolved in 80 ml mixture of distilled water (DW) and ethylene glycol (EG) with volume ratio as 3 : 1. The mixture was transferred into 100 ml Teflon-lined autoclave which was kept at 130 °C for 9 h followed by natural cooling to room temperature. The obtained black precipitate then washed with distilled water and absolute ethanol for a number of times, and then kept for drying at 60 °C for 2 h.

In the next set of experiments, the synthesis of CdS–Bi₂S₃ heteroarchitecture was carried out. For this, 0.970 g of Bi(NO₃)₃·5H₂O and 0.6089 g of (NH₃)₂CS were dissolved in 20 ml EG and 30 ml DW, respectively. In another glass beaker, 0.128 g of Cd(NO₃)₂ and 0.005 g of PVP were dissolved in 30 ml DW. Both these solutions were mixed and stirred for 20 min. Further, hydrothermal process followed is similar to Bi₂S₃ nanostructures.

Material characterizations

The structural analysis of the as-synthesized the Bi₂S₃ nanostructures and CdS–Bi₂S₃ heteroarchitecture was carried out using an X-ray diffractometer (XRD, D8 advance, Bruker AXS), where as for surface morphological studies, a field-emission scanning electron microscope (FESEM, Hitachi S-4800) was used. Furthermore, structural and morphological investigations were performed using transmission electron microscopy (FEI TITAN 300 KV, equipped with FEG source) and (Technai G2 U20 Twin, FEI) operated in high resolution (HR) mode. The optical properties were investigated by using (UV-visible-NIR spectrophotometer-Model-JASCO 670).

The field emission current density versus applied electric field (J–E) and emission current versus time (I–t) characteristics were measured in a planar ‘diode’ configuration in an all-metal vacuum chamber evacuated to base pressure of 1 × 10⁻⁸ mbar. In a typical ‘diode’ configuration, a semitransparent cathodoluminescent phosphor screen (diameter ∼ 50 mm) was held parallel to the cathode. For material(s) synthesized in powder form, the cathode is obtained by sprinkling very small quantity of the powder onto a piece of UHV compatible conducting carbon tape (∼0.25 cm²). This piece of carbon tape (with sprinkled powder) was pasted on copper rod connected to a linear motion drive, facilitating variation in cathode–anode separation. The FE measurements were carried out at a constant cathode–anode separation of 2 mm, the emission current was acquired on Keithley electrometer (6514) by varying the applied voltage between the cathode and anode with a step of 40 V (0–40 kV, Spellman, U.S.). The details of vacuum processing and FE measurements are described elsewhere.¹¹

Device fabrication

In device fabrication part we have used ITO (tin doped indium oxide) as substrate and made a 'rectangular' scratch (notch) on the conducting surface. An appropriate amount of Bi₂S₃ and CdS–Bi₂S₃ powders were dispersed (separately) into N-methyl-2-pyrrolidone (NMP) followed by ultrasonication for 10 min. Then, the samples subsequently drop casted onto the scratched regions. The devices were dried in vacuum furnace at 120 °C to improve the adhesion of the sample with substrate.¹²

Photodetection

The photodetection experiments were carried out using different LED's such as blue, green, orange, yellow and red. We have also used white light source for the photoresponse study. All the photodetection measurements were carried out at room temperature.

Results and discussion

XRD

Fig. 1 depicts a typical XRD pattern of the as-synthesized Bi₂S₃ nanostructures (black color) and CdS–Bi₂S₃ heteroarchitecture (red color) obtained under hydrothermal conditions. The XRD patterns exhibit a set of well defined diffraction peaks implying crystalline nature of the as-synthesized products. The observed diffraction peaks were indexed to orthorhombic phase of Bi₂S₃ (a = 11.11, b = 11.25, and c = 3.91 Å, (JCPDS card no. 75-1306)). The intensities of the diffraction peaks due to CdS are noticed to be relatively weaker than that of Bi₂S₃. This is due to the variation in amount of materials present in the heterostructure. Interestingly, no diffraction peaks due to other phases or impurities were observed, suggesting formation of pure CdS–Bi₂S₃ phase under the prevailing experimental conditions.

Fig. 1 XRD patterns of the Bi₂S₃ nanoflowers (black color) and CdS–Bi₂S₃ heteroarchitecture (red color).

Surface morphology

The surface morphology of the as-synthesized Bi₂S₃ nanostructures and CdS–Bi₂S₃ heteroarchitecture is depicted in Fig. 2. The Fig. 2(a) shows the FESEM images of the pristine Bi₂S₃ urchin-like nanoflowers with average size in the range of 1–3 μm. A magnified image (inset of Fig. 2(a)) reveals that the flower is comprised of smooth Bi₂S₃ nanorods with average length of ∼1 μm and diameter in the range of 50–100 nm. The surface morphology of the CdS–Bi₂S₃ heteroarchitecture (Fig. 2(b) to (d)) is characterized as presence of pine tree like hierarchical structures. The Bi₂S₃ nanorods act as a backbone for the growth of CdS nanostructures and the overall heteroarchitecture resembles to the leaves of a pine tree. There are rows of Bi₂S₃ nanorods and most of the CdS nanostructures grow in the direction perpendicular to the surface of Bi₂S₃ nanorods. The secondary CdS branches (mostly nanorods) developed on the Bi₂S₃ nanorods have length of 20–50 nm and diameter in the range of 20–30 nm (Fig. 2(d)). A careful observation of the high magnification image reveals that the CdS nanostructures exhibit four-fold symmetry around the Bi₂S₃ nanorod axis. The energy dispersive X-ray analysis (EDAX) of as synthesized products is depicted in Fig. S1.† It is worth mentioning here that under the optimized set of process variables, CdS–Bi₂S₃ heteroarchitecture possessing pine tree leaves like morphology has been obtained via single-step hydrothermal approach.

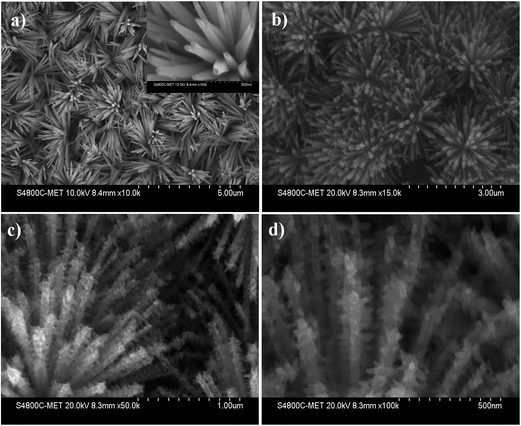

Fig. 2 FESEM images of (a) as-synthesized Bi₂S₃ nanoflowers with high magnification image as inset, and (b–d) CdS–Bi₂S₃ heteroarchitecture.

The detailed structural and crystalline characteristics of these nanostructures have been carried out with the help of TEM analysis. Fig. 3(a) and (b) shows a typical TEM image of separated Bi₂S₃ nanorods from the Bi₂S₃ nanoflowers. The average diameter and length of nanorods are estimated to be 15–20 nm and 1 μm, respectively. The high resolved TEM image (Fig. 3(c)) shows inter-planar distance of ∼0.5 nm, which corresponds to (120) plane of Bi₂S₃. Furthermore, the selected area electron diffraction pattern (Fig. 3(d)) confirms single crystalline nature of Bi₂S₃ nanostructures which is in good agreement with the XRD analysis.

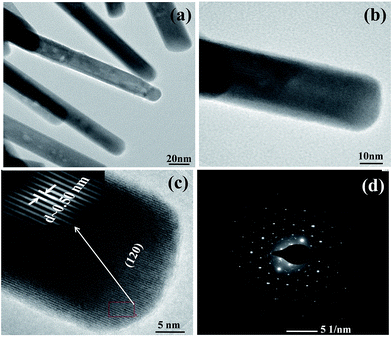

Fig. 3 TEM images (a and b) low and high magnification, (c) HRTEM, and (d) SAED pattern of corresponding Bi₂S₃ nanoflowers.

Fig. 4(a) and (b) show the TEM image of CdS–Bi₂S₃ heteroarchitecture which clearly reveals the well decoration of CdS nanostructures (branches) on the Bi₂S₃ nanorods (stem). The length of CdS nanostructures is estimated to be ∼10–15 nm. The TEM results support the FESEM analysis. The Fig. 4(c) depicts HRTEM image of the CdS–Bi₂S₃ heteroarchitecture consisting of two different lattice spacing (d). The observed ‘d’ values, ∼0.5 and 0.31 nm correspond to the (120) plane of orthorhombic Bi₂S₃ and (101) plane of hexagonal CdS, respectively. The SAED pattern of CdS–Bi₂S₃ heteroarchitecture (Fig. 4(d)) reveals its polycrystalline nature. The scanning transmission electron microscope – high angle annular dark field (STEM-HAADF) image, shown in Fig. S2,† indicates the elemental distribution maps of the Bi, S, and Cd, the constituents of CdS–Bi₂S₃ heteroarchitecture. Furthermore, in order to understand the optical properties of as-synthesized materials, UV-Vis spectra were recorded at room temperature, and shown in Fig. S3.†

Fig. 4 TEM images (a and b) low and high magnification, (c) HRTEM (d) SAED pattern of CdS–Bi₂S₃ heteroarchitecture.

Field emission

The FE current density versus applied field (J–E) characteristics of the pristine Bi₂S₃ nanoflowers and CdS–Bi₂S₃ heteroarchitecture emitters are depicted in Fig. 5(a). Before recording the J–E observations, a pre-conditioning in terms of removal of surface asperities and contaminants by residual gas ion bombardment was carried out. For this, the emitter was kept at 2 kV with respect to the anode for 5 min duration. In the present studies, the applied field (E) is defined as E = V/d, where V is the applied voltage and d is the separation between the emitter and the anode. The emission current density (J) is estimated as J = I/A, where I is the measured value of emission current and A is the actual (total) area of the emitter surface. From the observed J–E characteristics, the values of the turn-on field, defined as field required draw an emission current density of 10 μA cm⁻², were found to be 2.9 and 1.8 V μm⁻¹, for the pristine Bi₂S₃ nanoflower and CdS–Bi₂S₃ heteroarchitecture emitters, respectively. The emission current density varying rapidly (exponentially) with gradual increments in the applied field indicates that the emission is as per the Fowler–Nordheim theory.¹³ An emission current density of 181 μA cm⁻² has been drawn at an applied field of 4.1 V μm⁻¹ from the pristine Bi₂S₃ emitter. Interestingly, at relatively lower applied field of 3.1 V μm⁻¹, the CdS–Bi₂S₃ heteroarchitecture emitter delivers large emission current density of 677 μA cm⁻². The present results are compared to the earlier reports on other semiconductor nanostructures and heteroarchitecture emitters, depicted in Table 1.^14–20 The dependence of FE current density over applied field (J–E) is theoretically explained by the modified Fowler–Nordheim (F–N) equation,²¹
where, J is the emission current density, E is the applied electric field, a and b are constants, typically 1.54 × 10⁻⁶ A eV V⁻² and 6.83 eV^−3/2 V nm⁻¹, respectively. ϕ is the workfunction of the emitter material, λ_M is the macroscopic pre-exponential correction factor, ν_F is value of the principal Schottky–Nordheim barrier function (a correction factor), and β is the field enhancement factor. The observed J–E characteristic further is analyzed by plotting a graph of ln(J/E²) versus, (1/E) known as the Fowler–Nordheim (F–N) plot. The Fig. 5(b) shows the corresponding F–N plots, which exhibit overall nonlinear behaviour over the entire range of the applied field, indicating semiconducting nature of the emitters. Similar nonlinear F–N plots have been reported for other semiconductors.^14–20,22

Fig. 5 (a) Plot of field emission current density versus applied field (J–E), (b) Fowler–Northeim plot of Bi₂S₃ nanoflower and CdS–Bi₂S₃ heteroarchitecture emitters, (c) and (d) field emission current versus time (I–t) plots of Bi₂S₃ nanoflower and CdS–Bi₂S₃ heteroarchitecture, respectively, with the field emission pattern as inset.

Table 1 Comparison between earlier reports on inorganic semiconductor nanostructures field emitter with present study

Sr. no.	Morphology	Turn-on field^a (V μm^−1)	Threshold field (V μm^−1)	Reference
a The turn-on field, defined as field required draw an emission current density of 10 μA cm^−2.
1	Bi2S3 nanoflowers	—	2.2 (90 μA cm^−2)	14
2	Bi2S3 nanoflowers	7.45	—	15
3	Bi2S3 nanowires	—	3.52 (63 μA cm^−2)	16
4	In2Se3 nanowires	4.17	—	17
5	Cu2O–ZnO nanobrush	6.5	10.5 (∼425 μA cm^−2)	18
6	Cu2S–ZnO nanoflowers	2	—	19
7	CeO2–ZnO heteroarchitectures	1.8	3.2 (∼364 μA cm^−2)	20
8	CdS–Bi2S3 heteroarchitectures	1.8	3.1 (∼677 μA cm^−2)	Present study

---

The mechanism of field enhancement is suggested to be essentially different in this case because of hierarchical architectures. The superior emission behaviour exhibited by the CdS–Bi₂S₃ heteroarchitecture emitter can be attributed to combined effect due to:

(I) Unique morphological pattern of an emitter: in such hierarchical emitter, the epitaxial grown CdS nanorods (branches) on the Bi₂S₃ nanorods (stem) play a vital role in 'local' field enhancement. According to ‘two-stage’ approach, the ‘first’ enhancement in the local field occurs due to ‘stem’. This field is further enhanced at the ‘branches’ owing to their high aspect ratio.²³

(II) Increase in the number of emission sites: the growth of CdS nanorods over the Bi₂S₃ nanorods remarkably increase the number of ‘potential’ emission sites in comparison with the pristine Bi₂S₃ nanorods, as the strength of ‘local’ electric field at the apex of the CdS nanostructures will be higher than that of Bi₂S₃ nanorods.

(III) Modulation of work function: the electronic properties of the hierarchical emitter are modulated by the ‘interface’ between the two nanostructures. A schematic of the energy band diagram obtained using Anderson rule for n–n type semiconductor junction is depicted below. Both the CdS and Bi₂S₃ are n-type semiconductors possessing charge carrier concentration (at room temperature) ∼1.19 × 10¹⁹ and 3 × 10¹⁸ cm⁻³, respectively.^24,25 It indicates that the conduction band minimum of CdS will lie slightly below that of Bi₂S₃, when the Fermi levels are aligned. Under the application of applied field, at the interface charge transfer (electron transport via tunnelling) is expected to take place from conduction band of Bi₂S₃ to conduction band of CdS. Thus the enhanced charge carrier density in conduction band of CdS rationally contributes to the emission current density drawn from the heteroarchitecture emitter (Scheme 1).

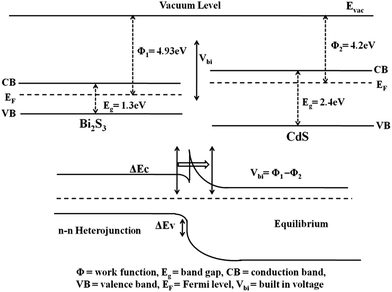

Scheme 1 Energy band diagram CdS–Bi₂S₃.

Along with the emission characteristics, the field emission current stability is one of the important parameters in the context of practical applications as cold cathode. The emission current versus time (I–t) plots corresponding to the preset values of 1 and 5 μA, recorded at a base pressure of 1 × 10⁻⁸ mbar with a sampling time of 10 s for more than 3 hours duration are shown in Fig. 5(c) and (d). The CdS–Bi₂S₃ heteroarchitecture emitter exhibits better emission stability as compared to the pristine Bi₂S₃, and the current fluctuations are observed to be within ±10% of the average value. The current fluctuations may be due to adsorption, desorption of the residual gas atoms/molecules on the emitter surface. The field emission images are shown in inset of the Fig. 5(c) and (d). The image shows a number of tiny bright spots, corresponding to the emission from the most protruding nanostructures on the emitter surface. We have also studied the post field emission surface morphology of the emitters, and interestingly the SEM images (not depicted here for sake of brevity) show no noticeable deterioration of the emitter surface indicative of robust nature of the CdS–Bi₂S₃ heteroarchitecture.

Photodetection

The as synthesized Bi₂S₃ nanoflowers and CdS–Bi₂S₃ heteroarchitecture were also tested for different LED and broadband light photodetection. Fig. 6(a) shows I–V characteristics of Bi₂S₃ nanoflowers based photosensor under light illumination for different LED's at applied voltage of 5 V. It is clear from the plots that resistance of the material decreases with the illumination of light. Fig. 6(c) and (e) shows the typical I–t plot for the Bi₂S₃ nanoflowers based sensor upon illumination of blue and red LEDs for applied bias of 2 V. The response time of the sensor can be defined as the time taken to reach 90% of the maximum current value observed under illumination. Similarly, the recovery time is defined as the time taken by the sensor when the photocurrent value drops to 10% of its maximum value.²⁶ The response and recovery times for the Bi₂S₃ nanoflowers based sensor under the illumination of blue and red LEDs are given in the Table 2. The Fig. 6(b) shows I–V characteristics of the CdS–Bi₂S₃ heteroarchitecture based photosensor studied under the illumination of different LED's at an applied voltage of 5 V. The plot 6(b) shows increment in the photocurrent due to the decoration of CdS nanostructures over the Bi₂S₃ nanoflowers. The Fig. 6(d) and (f) shows the typical I–t plot for the CdS–Bi₂S₃ heteroarchitecture based photosensor upon illumination of blue and red LED, respectively. Table 2 represents comparison of the response and recovery times of both the photosensor under illumination of blue, red LED's at an applied bias of 2 V. The I–t plots for green, yellow and orange LED are given in S4.

Fig. 6 Photo response characteristics of the Bi₂S₃ photosensor (a) under dark and illumination of various LEDs, (c) and (e) typical (I–t) plots for blue, red LED's, respectively. Photo response characteristics of the CdS–Bi₂S₃ photosensor (b) under dark and illumination of various LEDs, (d) and (f) typical (I–t) plots for blue, red LED's, respectively.

Table 2 Comparison between the calculated values of response and recovery time for the Bi₂S₃ and CdS–Bi₂S₃ photosensor under the light illumination of blue, red LED's and white light with an applied bias of 2 V

LED types	Bi2S3 photosensor		CdS–Bi2S3 photosensor
	Response time (sec)	Recovery time (sec)	Response time (sec)	Recovery time (sec)
Blue	1.6	4.5	4.42	4.8
Red	1.6	4.53	4.1	4.6
White light	655 (ms)	678 (ms)	207 (ms)	315 (ms)

---

The typical I–V plots corresponding to white light illumination of the Bi₂S₃ and CdS–Bi₂S₃ photosensors, recorded at an applied voltage of 5 V, are depicted in Fig. 7(a) and (b), respectively. It is clearly seen from the I–V plots that white light illumination leads to generation of large photocurrent, in both the photosensors, as compared to the LEDs illumination. The typical I–t plots for the Bi₂S₃ and CdS–Bi₂S₃ photosensors measured at bias voltage of 0.5 V are shown in Fig. 7(c) and (d). Fig. 7(e) and (f) represent the I–t behaviour of both the photosensors corresponding to a single photo-switching cycle. The response and recovery times for both of the sensors for white light detection, calculated from the Fig. 7(e) and (f), are observed to be lower than that of different LEDs. Furthermore, the CdS–Bi₂S₃ heteroarchitecture photosensor exhibits lower values of response and recovery time as compared to Bi₂S₃ photosensor (Table 2).

Fig. 7 Photo response characteristics of the Bi₂S₃ photosensor under white light illumination (a) (I–V) curve, (c) (I–t) plot for multiple cycles of illumination, and (e) (I–t) plot for for single cycle. Photo response characteristics of the CdS–Bi₂S₃ photosensor under white light illumination (b) (I–V) curve, (d) (I–t) plot for multiple cycles of illumination, and (f) (I–t) plot for single cycle.

The light detection mechanism of the photosensors can be explained using photoconductivity effect.²⁷ when light incident on the surface of Bi₂S₃ nanoflowers then electrons present in the material forms excitons which then are detached and accelerated by an external applied voltage leads to generation of photocurrent. In order to generate photocurrent the required condition is the energy of the incident photon should be greater than the band gap of the material. In case of CdS–Bi₂S₃ heteroarchitecture we observed large photocurrent as compared to Bi₂S₃ nanoflowers because of lowering in bandgap value. There are many reports on the photodetector based on 2D layered materials such as MoS₂,^28,29 WS₂,³⁰ MoSe₂,³¹ WSe₂,^32,33 SnS₂,³⁴ black phosphorous³⁵ etc. exhibits superior photocurrent generation with good response and recovery time. Our results also show better response and recovery time like 2D layered materials.

Conclusion

In conclusion, we have successfully synthesized Bi₂S₃ nanoflowers and CdS–Bi₂S₃ heteroarchitecture by using single step hydrothermal method. We also report here Bi₂S₃ nanoflowers and CdS–Bi₂S₃ heteroarchitecture based field emitters and photodetector. In the field emission investigation the turn-on value to extract current density of 10 μA cm⁻² was found to be ∼2.9 V μm⁻¹ and ∼1.8 V μm⁻¹ for Bi₂S₃ nanoflowers and CdS–Bi₂S₃ heteroarchitecture, respectively. The broadband photodetection study reveals that as synthesized materials are highly responsive and possesses better response and recovery time under the illumination of visible light. The Bi₂S₃ nanoflowers based photodetector shown response and recovery time of ~655 ms and 678 ms respectively. Similarly, CdS–Bi₂S₃ heteroarchitecture based photodetector possesses response and recovery time of ~207 ms and 315 ms respectively. Our results open up new windows for the as synthesized materials in various nanoelectronic and optoelectronic devices such as FET, humidity sensor, gas sensor etc.

Conflict of interest

The author declares no competing financial interest.

Acknowledgements

P. K. Bankar acknowledges SPPU and DST for the financial support. Prof. M. A. More would like to thank the BCUD, of Savitribai Phule Pune University for the financial support provided for the field emission work under CNQS-UPE-UGC program activity. S. S. Warule gratefully acknowledges the financial support from BCUD, SPPU, Pune. The research work was supported by Department of Science and Technology (Government of India) under Ramanujan Fellowship to Dr D. J. Late (Grant No. SR/S2/RJN-130/2012), NCL-MLP project grant 028626, DST-SERB Fast-track Young scientist project Grant No. SB/FT/CS-116/2013, Broad of Research in Nuclear Sciences Grant No. 34/14/20/2015 (Government of India) and the partial support by INUP IITB project sponsored by DeitY, MCIT, Government of India. Authors would like to thank Director, C-MET, Pune for Characterization of samples.
