Mirror symmetry breaking in fluorinated bent-core mesogens

Abstract

Spontaneous chirality synchronization in the LC phases of achiral bent-core molecules, the so called dark conglomerate mesophases (DC^[*] phases), is a challenging task with significant importance for fundamental scientific research and potential applications. Here we report the synthesis and investigation of two new series of achiral bent-core mesogens derived from 4-bromoresorcinol and 4-chlororesorcinol with 2,3-difluorinated azobenzene-based side arms. The self-assembly of these materials was characterized by DSC, polarizing microscopy, X-ray diffraction investigations (XRD) and electro-optical studies. Depending on the type of halogen substituent at the central resorcinol core and on the terminal alkyl chain length different types of mesophases were observed, where 4-bromoresocinol derived compounds predominately show helical nanocrystallite phases, (HNC phases), representing conglomerates of chiral domains (DC^[*]), whereas the related 4-chlororesorcinol based compounds form smectic C phases with a polar domain structure (SmC_sP_AR). Comparison with related compounds provides information about the influence of core fluorination on the mesophase behaviour and DC^[*] phase formation, thus providing a step forward in uncovering the molecular design principles of LC materials capable of mirror symmetry breaking.

---

1. Introduction

Since the first report by Niori et al.,¹ about polar order in liquid crystalline (LC) phases formed by molecules with a non-linear bent shape, the so-called bent-core liquid crystals (BCLCs), extensive research has been done by several research groups on these fascinating materials.² In recent years BCLCs have received great attention due to their remarkable and unique mesophases, especially the development of macroscopic polar order (ferroelectricity) and spontaneous mirror symmetry breaking, though the molecules themselves are achiral. This phenomenon is of general interest for fundamental soft matter science as well as for potential applications. Mirror symmetry breaking is a basic feature of living matter which was in the recent two decades also observed in some cases of LC phases.^2–15 Dark conglomerate phases (DC^[*] phases) represent one class of such spontaneously mirror symmetry broken mesophases exhibited by BCLCs.^3,16–19 They are optically isotropic and therefore characterized by completely dark appearance between crossed polarizers, whereas under slightly uncrossed polarizers chiral domains of opposite handedness can be observed. Related chiral domains were recently also observed in some nematic phases of dimesogens with odd-numbered spacers (twist bend nematic phases (N_TB)),^9–11,20 in SmC phases formed by some azobenzene-based BCLCs,²¹ in bicontinuous cubic phases²² and even in isotropic liquids formed by some polycatenar molecules.^6,23,24 Also trimesogen can show N_TB phases and soft crystalline DC^[*] phases.²⁵ The DC^[*] phases of BCLCs are classified into three major types (Fig. 1), including the deformed smectic LC phases with sponge like structure,^16,26–36 the helical nano-filament phases (HNF phases or B4 phases) where the molecules are arranged in arrays of helical nano-scale filaments,^17,37–44 and the third type of DC^[*] phases being the helical nano-crystallites phases (HNC phases) which were recently observed for some azobenzene based BCLCs (see Scheme 1).^45–49

Fig. 1 The three major types of dark conglomerate (DC^[*]) phases.⁴⁸

Scheme 1 Chemical structures of previously reported BCLCs with azobenzene-based wings with and without peripheral fluorine substitution.^45–47,49 Abbreviations: Cr = crystalline solid; DC^[*] = dark conglomerate phases (HNC phases) composed of chiral domains with opposite handedness; N = nematic phase; SmCP_A = antiferroelectric switching smectic phase.

Herein we report two new series of BCLCs derived from 4-bromoresorcinol and 4-chlororesorcinol central cores, respectively,⁵⁰ with laterally 2,3-difluorinated azobenzene side arms (compounds BrF₂n and ClF₂n, see Scheme 2). The 4-bromoresorcinol based compounds with medium alkyl chain lengths form helical nanocrystallite phases (HNC phase), representing optically isotropic soft crystalline phases forming conglomerates of chiral domains (DC^[*] phases) which for the longest homologue are replaced by a smectic C phase composed of ferroelectric domains with antipolar correlation (SmC_sP_AR).⁵¹ The other series of compounds, which is derived from 4-chlororesorcinol, shows no HNC phases, but exclusively monotropic SmC phases which represent SmC_sP_AR phases of a slightly different type. These compounds are compared with previously reported compounds without fluorine substitution or with a reduced number of fluorines in the side arms.^47,49

Scheme 2 Synthetic route to the bent-core mesogens under investigations.

2. Experimental

2.1. Synthesis

The synthesis of the target BCLCs BrF₂n and ClF₂n was carried out as shown in Scheme 2 by acylation reaction of the 4-halogenated resorcinol V with two equivalents of the benzoyl chlorides IVn²⁴ in the presence of triethylamine as base and pyridine as a catalyst. The final crude bent-core compounds BrF₂n and ClF₂n were purified by column chromatography using dichloromethane followed by recrystallization from ethanol/chloroform (1 : 1) mixture to yield the desired materials. Detailed procedures and the analytical data of the newly synthesised compounds BrF₂n and ClF₂n are reported in the ESI.† All compounds are thermally stable as confirmed by the reproducibility of thermograms in several heating and cooling cycles.

2.2. Methods

The thermal behaviour of all synthesized compounds was studied by polarizing optical microscopy (POM) and differential scanning calorimetry (DSC). For polarizing microscopy a Mettler FP-82 HT hot stage and control unit in conjunction with a Nikon Optiphot-2 polarizing microscope was used. DSC-thermograms were recorded on a Perkin-Elmer DSC-7 with heating and cooling rates of 10 K min⁻¹. Electro-optical switching characteristics were examined in 6 μm polyimide coated ITO cells (EHC Japan) using the triangular-wave method.⁵² XRD patterns were recorded with a 2D detector (Vantec-500, Bruker). Ni filtered and pin hole collimated CuK_α radiation was used. The exposure time was 15 min and the sample to detector distance was 8.95 and 26.7 cm for small angle and wide angle scattering experiments, respectively. Alignment was attempted by slow cooling (rate: 1 K min⁻¹ to 0.1 K min⁻¹) of a small droplet on a glass plate.

3. Results and discussion

3.1. Dark conglomerate phases of compounds BrF₂n with n ≤ 14

Depending on the terminal chain length, compounds BrF₂n with a 4-bromoresorcinol central core form different types of mesophases. The shortest derivative BrF₂8 with n = 8 forms a birefringent crystalline solid with melting point T = 104 °C, whereas compounds BrF₂10–BrF₂14 with medium chain length exhibit monotropic highly viscous optically isotropic phases which, once formed, do not crystallize even after storage for one year at room temperature (see Table 1). Under crossed polarizers, these isotropic phases appear completely dark between crossed polarizers and on rotating the analyzer by a small angle (∼10°) out of the crossed position i.e. from the 90° position with respect to the polarizer, uniform dark and bright domains appear, indicating the presence of chiral domains (DC^[*] phases, see Fig. 2). That the distinct regions represent chiral domains with opposite handedness was confirmed by rotating the sample itself between crossed polarizers in different directions, where no change in the dark texture was observed.

Table 1 Phase transition temperatures (T/°C), mesophase types, and transition enthalpies [ΔH/kJ mol⁻¹] of compounds BrF₂n^a

Compound	n	Heating T/°C [ΔH/kJ mol^−1]	Cooling T/°C [ΔH/kJ mol^−1]
a The phase transition temperatures (peak temperatures) were taken from the second heating and second cooling scans at 10 K min^−1; abbreviations: Cr = crystalline solid; DC^[*^] = dark conglomerate phases (HNC phases) composed of chiral domains with opposite handedness; SmCsPAR = polarization randomized smectic phase composed of SmCsPF domains and showing two polarization current peaks; Iso = isotropic liquid.
BrF28	8	Cr1 96 [6.6] Cr2 104 [27.5] Iso	Iso 86 [28.5] Cr
BrF210	10	Cr 101 [37.6] Iso	Iso 85 [20.4] DC^[*^]
BrF212	12	DC^[*^] 97 [10.1] Cr 103 [10.9] Iso	Iso 90 [21.0] DC^[*^]
BrF214	14	DC^[*^] 98 [11.9] Cr 103 [7.8] Iso	Iso 92 [21.6] DC^[*^]
BrF216	16	Cr 97 [26.5] Iso	Iso 96 [6.2] SmCsPAR 85 [20.2] Cr

---

Fig. 2 Textures of the DC^[*] phase of compound BrF₂12 at T = 60 °C: (b) under crossed polarizers; (a) after rotating the analyzer by 10° from the crossed position with respect to the polarizer in clock-wise direction and (c) in anticlockwise direction, showing dark and bright domains, indicating the presence of areas with opposite chirality sense.

The DC^[*]-Iso transitions are associated with transition enthalpies values around ΔH ∼ 21 kJ mol⁻¹ in the cooling cycles (see Fig. 3 and Table 1), similar to their related analogues with only one fluorine substituent in each of the outer rings of the bent-core structure (compounds BrFn in Scheme 1).⁴⁷ On heating the DC^[*] phases become instable and crystallize with formation of a birefringent crystalline phase. This crystallization is immediately followed by the melting of this crystalline phase, leading to the typical “double peak” in the heating scans (see Fig. 3). Similar to the DC^[*] phases exhibited by related BCLCs with two azobenzene wings (IFn, Brn, BrFn and Men, see Scheme 1),^45–47,49 no current peak could be observed in these DC^[*] phases in electro-optical experiments. Moreover, no birefringence is induced in any of the DC^[*] phases under an applied triangular wave voltage up to 200 V_pp in a 6 μm ITO cell; this is typical for soft crystalline DC^[*] phases.

Fig. 3 DSC heating and cooling scans of BrF₂12 with a rate of 10 K min⁻¹.

The XRD pattern of the DC^[*] phase exhibited by compound BrF₂10 at 50 °C as a representative example is shown in Fig. 4a and b. A single strong scattering in the small angle region is observed. The d-value of 4.33 nm is between half of the molecular length and the full molecular length (L_mol = 5.2 nm in the most extended conformation with all-trans alkyl chains). This diffraction pattern is in line with a lamellar organization with d = 4.33 nm where the molecules are organized in a single layer structure with the involved molecules tilted by a certain angle (the maximum tilt estimated from d/L_mol = 0.83 is ∼33°) with respect to the layer normal. The relatively large difference between d and L_mol is different from HNF phases having very small difference between the d-value and L_mol.^17,38 In the 2D patterns all scatterings form closed rings with uniform intensity distribution as a very typical feature of all DC^[*] phases. This is due to the randomized orientation of the nanocrystallites, leading to the optical isotropic properties, giving rise to the dark appearance between crossed polarizers (see Fig. 4a). Fig. 4b shows the 2θ scan over the diffraction pattern of BrF₂10. Beside the strong layer reflections very weak and relatively broad scattering maxima are observed in the medium and wide angle region. This pattern distinguish this DC^[*] phase from the fluid sponge-type DC^[*] phases, which exhibit only one completely diffuse wide angle scattering besides the layer reflection,²⁶ as well as from the HNF phases (B4 phases) characterized by sharper and more intense wide angle scatterings.^17,38 The results obtained for BrF₂10 prove that the DC^[*] phases formed by compounds BrF₂n belong to the helical nanocrystallite phases (HNC phases). Only the number, intensities and positions of the medium- and wide-angle scatterings are distinct, indicating that the fine structure of the local crystal lattice should be a bit different from the previously reported HNC phases of the related azobenzene derived apex-halogenated bent-core compounds.^45,47,48 For example, Fig. 4c shows the 2θ-scans of the DC^[*] phase of the related compound BrF12 with only one lateral fluorine substituent in each azobenzene wing and having the chain length n = 12 (Scheme 1).

Fig. 4 (a) 2D XRD pattern of the DC^[*] phase of BrF₂10 at T = 50 °C, the inset shows the small angle region; 2θ-scans over this XRD pattern of the DC^[*] phase for (b) compound BrF₂10 at T = 50 °C and (c) compound BrF12 at T = 90 °C.⁴⁷

3.2. SmC phase of the long chain compound BrF₂16

The optically isotropic DC^[*] phase is completely removed for the longest derivative in the series BrF₂n with n = 16. On cooling BrF₂16 from the isotropic liquid state a birefringent schlieren texture is observed below T = 96 °C in a homeotropic cell (Fig. 5a) and a fan texture is observed in a planar cell where the dark extinctions are inclined by an angle of about 28°, indicating a synclinic tilted smectic phase (SmC_s phase, see Fig. 5b). XRD investigation of this phase was not possible due to the rapid crystallization of the monotropic phase. In electro-optical investigations two polarization current peaks in each half period of an applied triangular wave voltage were observed (Fig. 5c and d). The two polarization peaks are weak and widely separated at the Iso–SmC_s transition, growing in intensity and coming a bit closer to each other on further cooling, reaching a polarization values P = 290 nC cm⁻². The mode of appearance of the polarization peaks, their shape and the relatively small polarization values are typical for SmC_sP_AR phases with randomized polar order, described in detail for 4-cyanoresorciol based BCLCs.⁵¹ Therefore, the LC phase of compound BrF₂16 is assigned as SmC_sP_AR phase. In this smectic phase ferroelectric domains with synclinic and antipolar correlation form a field induced SmC_sP_F state which relaxes at reduced voltage back to a macroscopically antipolar structure. The position of the dark extinctions does not change, indicating the relaxation and switching take place by rotation around the molecular long axis (see Fig. S11†).

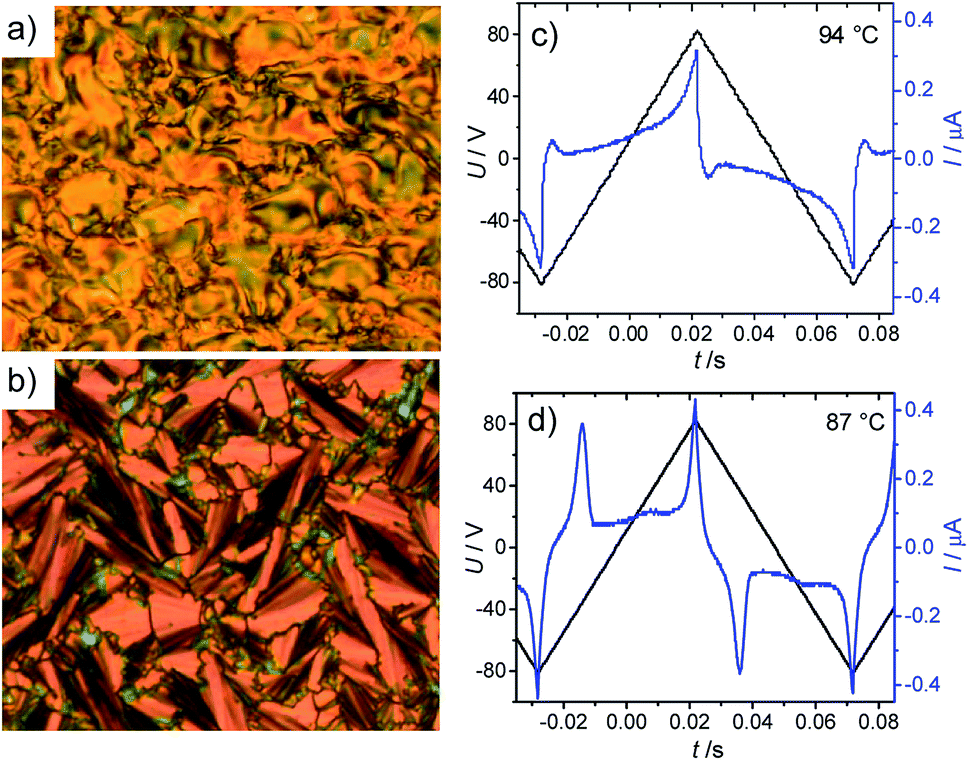

Fig. 5 Textures and polarization current response curve of the SmC_sP_AR phase of compound BrF₂16: textures as observed at T = 93 °C (a) in a homeotropic cell; (b) in a 6 μm coated ITO cell with planar alignment; (c) and (d) switching current response curves in the same ITO cell as recorded under a triangular wave voltage 160 V_pp (10 Hz, 5 kΩ) at the indicated temperatures.

3.3. Investigation of mixtures of compounds BrF₂n with 5-CB

It is well known that the two different types of soft crystalline DC^[*] phases (HNF and HNC) behave differently upon mixing with 4′-n-pentyl-4-cyanobiphenyl (5-CB). The chirality of HNF phases can be retained even at high dilution with a nematic LC host (>95%),⁵³ while the HNC phases can be diluted only by a small amount (to ∼50%) of a nematic LC (5-CB) without loss of the DC^[*] phase and chirality.^45–47 The mixtures of selected compounds BrF₂n with 5-CB were investigated and compared with the results obtained for their related monofluorinated analogues BrFn (see Table 2).

Table 2 Phase transition temperatures and mesophase types of 1 : 1 mixtures of 5-CB and compounds BrF10–BrF14 and comparison with related 4-bromoresorcinol derivatives BrF10–BrF14^a46

Mixture	Heating T/°C	Cooling T/°C
a Transition temperatures were taken from the observed textures using the polarized optical microscopy; abbreviations: N = nematic phase; Cr^[*] = crystalline phase composed of a conglomerate of chiral domains; for other abbreviations please see Table 1.
BrF210 + 5-CB	Cr 68 Iso	Iso 47 N 39 Cr
BrF212 + 5-CB	DC^[*] 60 Iso	Iso 56 DC^[*]
BrF214 + 5-CB	DC^[*] 58 Iso	Iso 54 DC^[*]
BrF10 + 5-CB	Cr 54 Iso	Iso 42 N 33 Cr
BrF12 + 5-CB	Cr^[*] 40 DC^[*] 55 Iso	Iso 53 DC^[*] 38 Cr^[*]
BrF14 + 5-CB	Cr 38 DC^[*] 64 Iso	Iso 46 DC^[*] 35 Cr

---

The DC^[*] phase of the pure compound BrF₂10 is removed in its 1 : 1 mixture with 5CB and a direct transition from the crystalline state to the isotropic liquid takes place at 68 °C on heating (Table 2). On cooling the same mixture from the isotropic liquid state a monotropic nematic phase is formed which crystallizes at T ∼39 °C without the formation of DC^[*] phase. The next two homologues BrF₂12 and BrF₂14 behave differently; DC^[*] phases are formed in their 1 : 1 mixtures with 5CB as room temperature mesophases and no crystallization takes place either on heating or cooling (see Fig. 6). Similar to the other HNC phases, only a limited amount of 5-CB can be mixed into the HNC phase of BrF₂n and any further increase of the amount of 5-CB removes the DC^[*] phases. Comparing the results obtained for BrF₂n compounds with their monofluorinated analogues (compounds BrFn, see Table 2)⁴⁷ indicate that both types of compounds behave similarly in their mixed systems, which further confirms the similarity of the HNC phases exhibited by the azobenzene based bent-core mesogens.

Fig. 6 Textures of the DC^[*] phase of 1 : 1 mixture of compound BrF₂14 with 5CB at T = 45 °C: (a) after rotating one polarizer by 10° from the crossed position in clock-wise direction and (b) in anticlockwise direction, showing dark and bright domains, indicating the presence of areas with opposite chirality sense.

3.4. Compounds ClF₂n with chlorine at the apex

The effect of replacing bromine by a smaller chlorine on the mesophase type has been investigated with the 4-chlororesorcinol derived compounds ClF₂n (see Table 3 for data and Fig. 7 for DSC traces for ClF₂14). Unlike series BrF₂n, compounds ClF₂n do not show any DC^[*] phase; instead they form monotropic smectic C phases. On cooling the shorter homologues with n = 8 and 10 from the isotropic liquid state a birefringent SmC phase is observed at the same temperature T = 86 °C for both derivatives. The investigations of these SmC phases was not possible due to the rapid crystallization starting directly after the appearance of the SmC and for the same reason the value of transition enthalpy for the Iso–SmC transition cannot be separated from that of SmC–Cr transition. For the next homologues with n ≥ 12 the SmC phases are formed in a sufficient temperature range enabling electro-optical investigations. The temperature range of the SmC phases in the series ClF₂12–ClF₂16 is increasing with increasing the chain length (see Table 3). Fig. 8a and b shows the textures observed for the SmC phase of compound ClF₂16 upon cooling from the isotropic liquid state, where a birefringent schlieren texture is observed in a homeotropic cell (Fig. 8a). A broken fan texture with the dark extinctions inclined by an angle of 26°, indicating a synclinic tilted smectic phase (SmC_s phase) is observed in a planar cell (Fig. 8b).

Table 3 Phase transition temperatures (T/°C), mesophase types, and transition enthalpies [ΔH/kJ mol⁻¹] of compounds ClF₂n^a

Compound	n	Heating T/°C [ΔH/kJ mol^−1]	Cooling T/°C [ΔH/kJ mol^−1]
a The phase transition temperatures were measured as mentioned in Table 1. b The value of Iso–SmC transition enthalpy cannot be separated from SmC–Cr transition value. Abbreviations: SmCx = smectic C phase with unknown polar structure, most likely also representing SmCsPAR phases; for other abbreviations see Table 1.
ClF28	8	Cr 98 [33.1] Iso	Iso 86 [30.7] Cr + SmCx^b
ClF210	10	Cr 101 [35.9] Iso	Iso 86 [35.7] Cr + SmCx^b
ClF212	12	Cr 101 [25.7] Iso	Iso 94 [6.3] SmCsPAR 80 [18.5] Cr
ClF214	14	Cr 101 [37.9] Iso	Iso 98 [8.6] SmCsPAR 83 [27.5] Cr
ClF216	16	Cr 105 [35.7] Iso	Iso 100 [7.5] SmCsPAR 75 [37.2] Cr

---

Fig. 7 DSC heating and cooling scans of ClF₂14 with a rate of 10 K min⁻¹.

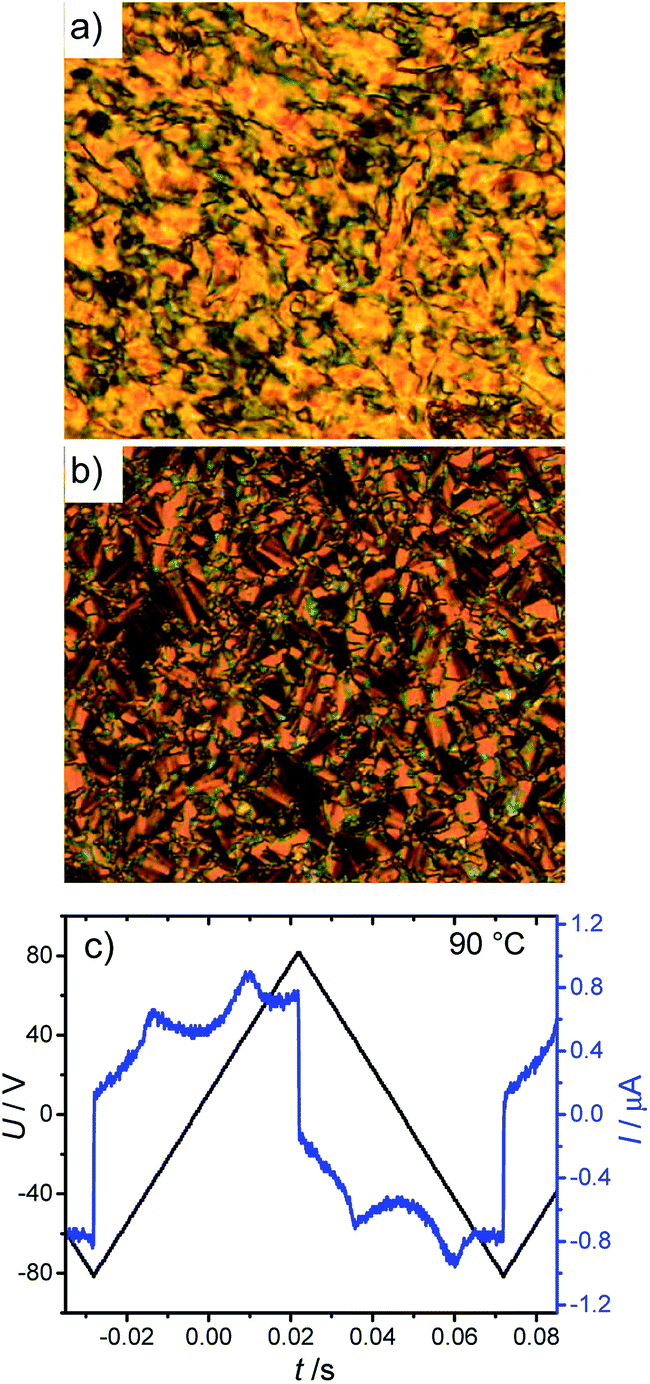

Fig. 8 Textures and polarization current response curve of the SmC_sP_AR phase of compound ClF₂16 at T = 90 °C: (a) texture as observed in a homeotropic cell; (b) texture observed in a 6 μm coated ITO cell with planar alignment and (c) switching current response curve in the same ITO cell as recorded under a triangular wave voltage 160 V_pp (10 Hz, 5 kΩ).

Under an applied triangular wave voltage of 160 V_pp in a 6 μm ITO cell two broad polarization peaks per half period of the applied voltage appears in the SmC phase of all investigated ClF₂n compounds with n = 12–16 with a polarization value P ∼ 100 nC cm⁻² (see Fig. 8c for ClF₂16). Based on the textures and the shape of the polarization curves, the SmC phases exhibited by these materials are assigned as SmC_sP_AR phases, but the shape and the polarization values are very distinct from that of the analogous bromine substituted compound BrF₂16. The broad diffuse shape of the polarization current peaks is similar to that observed for previously reported SmAP_AR phase showing Langevin-type switching.⁵⁴ Therefore, we conclude that the switching of the chlorine substituted compounds is also typically Langevin type,⁵⁵ meaning that small polar domains grow under the electric field and then can be switched between two polar states. This means that the polar domains in the SmC phase of ClF₂16 might have a broader size distribution than those observed in the SmC_sP_AR phase of BrF₂16 and grow to larger domains under the applied field. There is a larger threshold voltage for polar switching of BrF₂16 compared to ClF₂16 though the magnitude of polarization is higher (280 vs. 100 nC cm⁻²). Probably there is larger polarization in the ferroelectric domains of BrF₂16 but also a stronger antipolar correlation between these domains. It appears that bromine substitution favours polar packing compared to the smaller chlorine, though it could be expected that the bend of the bromine substituted compound might be a bit smaller than that of the chlorine substituted,^50a and additionally, the bulkier bromine is expected to reduce the core packing density for steric reasons. This effect might possibly be attributed to the higher polarizability of bromine and the C–Br bond.

3.5. Comparison with related compounds

Table 4 shows a comparison between azobenzene derived BCLCs with 4-bromoresorcinol and 4-chlororesorcinol cores and n = 12 chain length, but with different number of peripheral fluorine substituents. Before discussing the effect of fluorine substitution, it is mentioned here that the larger bromine atom (cv ∼ 33 nm³, crystal volumes cv of Immirzi)⁵⁶ in the 4-position at the resorcinol core favours the formation of HNC phase in all cases compared to the smaller chlorine (cv ∼ 27 nm³),⁵⁶ indicating that the size of the substituent at the apex and the degree of molecular twist induced by this substituent are important for layer distortion and chirality synchronization required for DC^[*] phase formation.⁴⁷ For the BCLCs with 4-bromoresorcinol central core, peripheral fluorination removes the nematic phase and stabilizes the HNC phase, most probably by increasing the attractive π–π interactions by reduction of the electron density of the aromatics. However, inserting an additional fluorine atom in the meta position with respect to the terminal alkyl chain (compound BrF₂12) reduces the HNC phase stability (reduced transition temperature Iso-DC) and favours crystallization. Reduction of HNC phase stability is probably due to the steric effect of the additional fluorine, reducing the packing density. The increased melting points are attributed to the improved π–π-stacking ability caused by the further reduction of the electron density by the additional electron withdrawing fluorine.

Table 4 Phase transition temperatures (T/°C) and mesophase types for different types of 4-bromoresorcinol and 4-chlororesorcinol derived BCLCs with azobenzene wings and the effect of peripheral F-atoms (Y, Y′ = H, F)^a

Comp.	X	Y	Y′	T/°C	Ref.
a Abbreviations: N = nematic phase; SmCaPA = anticlinic antiferrelectric switching SmC phase (B2 phase); for other abbreviations see Table 1.
Br12	Br	H	H	DC^[*] 93 (N 83) Iso	49
BrF12	Br	F	H	DC^[*] 106 Iso	47
BrF212	Br	F	F	Cr1 97 Cr2 103 (DC^[*] 90) Iso
Cl12	Cl	H	H	Cr1 90 Cr2 103 (N 97) Iso	49
ClF12	Cl	F	H	Cr 115 (SmCaPA 97) Iso	47
ClF212	Cl	F	F	Cr 101 (SmCsPAR 97) Iso

---

In the case of the compounds derived from 4-chlororesorcinol the core fluorination removes the nematic phase, too, but in this case it leads first to a macroscopically polar (SmC_aP_A) and then, after addition of the next fluorine, to a locally polar tilted smectic phase (SmC_sP_AR, see Table 4). The mesophase stability of the LC phases is apparently not affected by fluorination, but the introduction of the second fluorine in m-position removes the long range polar order achieved for the monofluorinated compound (two sharp polarization peaks, P_s ∼ 500 nC cm⁻², see Fig. S11† in ref. 47) and replaces this by a local polar domain structure (two diffuse polarization peaks, P_s ∼ 100 nC cm⁻², Fig. 8c). Simultaneously the additional F substituents change the tilt correlation in the smectic phase from anticlinic in ClF12 to synclinic in ClF₂12 and the switching process from rotation on the tilt-cone for ClF12 (Fig. S10† in ref. 47) to a reorganization around the long axis in the case of ClF₂n (Fig. S11†). This is most probably an effect of the reduced packing density, favoured by the increased bulkiness of the rod-like wings with two adjacent fluorines in each azobenzene wing. Overall, there seems to be a delicate balance of the influence of the two competing effects. It appears that the packing density is increased most efficiently by the electron accepting 3-fluorination adjacent to the 4-alkyloxy chain, whereas 2-fluorination in meta position to the alkyloxy chain contributes more to the unfavourable steric effect of fluorine, thus reducing the packing density. Besides the steric and electronic effects of fluorination, fluorine substitution can also have an effect on the conformation of the Ar–O–CH₂ linkage by influencing orbital interactions⁵⁷ and by strengthening weak intra-and intermolecular hydrogen bonding involving C–H bonds,⁵⁸ thus supporting the twisting of the molecules and the formation of DC^[*] phases.

4. Summary and conclusions

Two series of new bent-core liquid crystalline materials combining 4-bromoresorcinol or 4-chlororesorcinol cores with two 2,3-difluorinated and 4-alkoxy substituted azobenzene side arms have been synthesized and investigated. Depending on the size of the halogen atom in 4-position of the central bent core unit (Cl vs. Br) and on the length of the terminal alkyl chains different types of mesophases were observed. It was found that the majority of 4-bromoresorcinol derived compounds (n = 10–14) form HNC-type DC^[*] phases which are replaced by a SmC_sP_AR phase upon chain elongation (n = 16). For the 4-chlororesorcinol derivatives only SmC phases, but no DC^[*] phases were observed. The investigated SmC phases represent SmC_sP_AR type polar domain phases. The SmC_sP_AR phase of the chlorine substituted compound is distinct from that of the related bromine derivative by the significantly broader polarization peaks and the smaller polarization values, indicating a Langevin-type switching (field-induced growth of the polar domains) for the chlorinated compound and a more superparaelectric type of switching⁵⁹ (fusion of already existing polar domains) for the brominated compound. The DC^[*] phases exhibited by these materials represent helical nano-crystallites phases (HNC) but with a different local structure if compared with the HNC phases of the related azobenzene compound without peripheral fluorine or with only one fluorine.^47,49 Though, core fluorination can favour HNC phase formation and modifies the precise phase structure, it cannot induce DC phases if the core unit would not also support its formation. It also cannot fundamentally change the structure of the DC^[*] phase to HNF or fluid DC phases. Introduction of the first fluorine adjacent to the alkoxy chains obviously favors layer formation and DC^[*] phase formation (removal of N phases) and development of polar order, most probably by increasing the attractive π–π interactions by reduction of the electron density of the aromatics. The second fluorine appears to reduce the DC^[*] phase stability a bit and appears to reduce the coherence length of local polarization, probably due to its steric effect, reducing the packing density a bit. Thus fluorination is a tool for tailoring HNC phase ranges and the fine structure of the HNC phases. Future work will be devoted to a more detailed analysis of the HNC phases by imaging methods and the investigation of the effects of photoisomerization of the azobenzene units incorporated in the molecular structure of these BCLCs by polarized and nonpolarized light. This could lead to additional possibilities for phase modulation and chirality modulation, which could result in potentially useful applications.

Acknowledgements

The work was supported by the DFG (Grant Ts 39/24-1). M. Alaasar is grateful to the Alexander von Humboldt Foundation for the research fellowship at the Martin-Luther University Halle-Wittenberg, Germany.
