DOI: 10.1039/C6RA17223G (Paper) RSC Adv., 2016, 6, 72096-72106

Site-specific orthometallation via C–H bond activation and syntheses of ruthenium(III) organometallics: studies on nitric oxide (NO) reactivity and photorelease of coordinated NO†

Rajan Kumar, Sushil Kumar, Manju Bala, Anand Ratnam, U. P. Singh and Kaushik Ghosh*
Department of Chemistry, Indian Institute of Technology Roorkee, Roorkee – 247667, Uttarakhand, India. E-mail: ghoshfcy@iitr.ernet.in; Fax: +91-1332-275547

Received 5th July 2016 , Accepted 18th July 2016

First published on 18th July 2016

Abstract

A new family of σ-aryl ruthenium(III) complexes [Ru(L1–4)(PPh3)2Cl] (1–4) (where L1H2 = N-(quinolin-8-yl)benzamide for 1, L2H2 = 4-chloro-N-(quinolin-8-yl)benzamide for 2, L3H2 = 4-nitro-N-(quinolin-8-yl)benzamide for 3, L4H2 = 3-nitro-N-(quinolin-8-yl)benzamide for 4 and H = dissociable protons) derived from bidentate ligands having amide bonds was synthesized through C–H bond activation. These organometallic ruthenium(III) complexes were treated with nitric oxide (NO) to afford the nitrosyl complexes [Ru(NO2L1–4)(PPh3)2(NO)](ClO4) (1a–4a) (where NO2L1H2 = N-(5-nitroquinolin-8-yl)benzamide for 1a, NO2L2H2 = 4-chloro-N-(5-nitroquinolin-8-yl)benzamide for 2a, NO2L3H2 = 4-nitro-N-(5-nitroquinolin-8-yl)benzamide for 3a, NO2L4H2 = 3-nitro-N-(5-nitroquinolin-8-yl)benzamide for 4a and H = dissociable protons). All ruthenium complexes were characterized by various spectroscopic techniques. An X-ray crystallographic study afforded the molecular structure of complex 4a and the site-specific orthometallation was scrutinized. The coordinated NO molecule was found to be photolabile under visible and UV light.

Introduction

Plenty of literature is available on ruthenium(II) and ruthenium(III) organometallic complexes because of their immense importance for organometallic and organic syntheses.1–5 There has been considerable current interest in the design and synthesis of nitric oxide releasing molecules (NORM) for target specific and on demand delivery of nitric oxide (NO).6–17 A marked feature of ruthenium chemistry is the formation of nitric oxide complexes;18 however, organometallic complexes used for nitric oxide (NO) donation are scarce in the literature.19–22 Investigation of the chemistry of ruthenium nitrosyls clearly indicated the stability of complexes having a {RuNO}6 (according to Enemark Feltham notation)6 moiety. Among several routes, synthetically this could be achieved by a combination of a Ru(III) centre and NO. Hence, recently we have communicated Ru(III) organometallics and studied their reactivity with NO. Our previous reports clearly indicated that a bidentate ligand having Nimine and Ophenol donors (LH2 and L′H2) (shown in Schemes 1 and 2) afforded C–H bond activation and orthometallation.20–23 There are two important aspects of our previous results in terms of the synthesis of NORM derived from organometallic ruthenium complexes which were taken into account for the design and synthesis of new ligands achieving the synthesis of Ru(III) organometallics and corresponding ruthenium nitrosyls. First, synthesis of Ru(III) organometallics via C–H bond activation using a Ru(II) precursor complex and consequently conversion of bidentate ligands to tridentate ligands, hence donor atoms present in bidentate ligands are extremely important. Second, reactivity of nitric oxide with ruthenium(III) organometallics and the role of the trans directing effect of carbanion for the coordination and photolability of NO. These results prompted us to design and synthesize new bidentate ligands which would enhance the oxidation of ruthenium centre (II to III) and concomitant Ru–C bond formation via C–H bond activation and the synthesis of new Ru(III) organometallics.
image file: c6ra17223g-s1.tif
Scheme 1 Donors (X and Y) in bidentate ligands.

image file: c6ra17223g-s2.tif
Scheme 2 Schematic drawing of ligands LH2, L′H2 and L1–4H2.

Hence we designed bidentate ligands with Npyridine and Namide donors (L1–4H2) (shown in Scheme 2) and ligands were reacted with Ru(II) precursor complex. Deprotonated carboxamido nitrogen is known to stabilize the higher oxidation state of metal centre.34 Moreover, amide nitrogen exhibits trans effect and is known for coordination and photolability of nitric oxide.7,35

Herein, we designed bidentate ligands having amide bond and synthesized ligands LnH2 (where n = 1–4). A new family of σ-aryl ruthenium(III) complexes [Ru(L1)(PPh3)2Cl] (1), [Ru(L2)(PPh3)2Cl] (2), [Ru(L3)(PPh3)2Cl] (3) and [Ru(L4)(PPh3)2Cl] (4) (Scheme 3) (where L1H2 = N-(quinolin-8-yl)benzamide, L2H2 = 4-chloro-N-(quinolin-8-yl)benzamide, L3H2 = 4-nitro-N-(quinolin-8-yl)benzamide, L4H2 = 3-nitro-N-(quinolin-8-yl)benzamide and H = dissociable protons) were synthesized from these bidentate ligands containing carboxamido group (Scheme 2). Cyclometalated complexes were characterized by various spectroscopic techniques and the site-specific cyclometalation during C–H bond activation will be described in this report.


image file: c6ra17223g-s3.tif

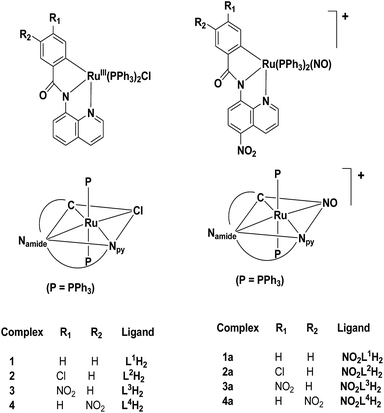

Scheme 3 Schematic drawings of cyclometalated ruthenium complexes.

The reactivity study of NO with ruthenium(III) complexes (1–4) was performed to afford cyclometalated ruthenium nitrosyl complexes [Ru(NO2L1)(PPh3)2(NO)](ClO4) (1a, where NO2L1H2 = N-(5-nitroquinolin-8-yl)benzamide and H = dissociable protons), [Ru(NO2L2)(PPh3)2(NO)](ClO4) (2a, where NO2L2H2 = 4-chloro-N-(5-nitroquinolin-8-yl)benzamide and H = dissociable protons), [Ru(NO2L3)(PPh3)2(NO)](ClO4) (3a, where NO2L3H2 = 4-nitro-N-(5-nitroquinolin-8-yl)benzamide and H = dissociable protons) and [Ru(NO2L4)(PPh3)2(NO)](ClO4) (4a, where NO2L4H2 = 3-nitro-N-(5-nitroquinolin-8-yl)benzamide and H = dissociable protons) (Scheme 3). The molecular structure of 4a was determined by X-ray crystallography. The redox properties of the metal centre in all the complexes were investigated. The photolability of coordinated NO was performed by UV-Vis spectral studies and liberated NO was trapped by reduced myoglobin. Photoreleased NO was estimated by a Griess reagent using visible as well as UV light. The role of –NO2 group (electron-withdrawing group) on the phenyl ring, chelated to the metal centre via σ-aryl bond, will be discussed in this paper.

Experimental section

Materials

All the chemicals used were of reagent grade. RuCl3·3H2O was purchased from Loba Chemie Pvt. Ltd., Mumbai, India. Analytical grade reagents sodium nitrite, benzoic acid, 4-chlorobenzoic acid, 4-nitrobenzoic acid, 3-nitrobenzoic acid, naphthylethylenediamine dihydrochloride (NED), sulfanilamide, sodium perchlorate monohydrate, sodium nitrite (Himedia Laboratories Pvt. Ltd., Mumbai, India), quinoline-8-amine (Sigma Aldrich, Steinheim, Germany) were used as obtained. Triphenylphosphine (SRL, Mumbai, India), disodium hydrogen phosphate anhydrous (RFCL Ltd. New Delhi, India) and sodium dihydrogen phosphate (Chemport India Pvt. Ltd. Mumbai, India) were used as obtained. Double distilled water and distilled solvents were used in during the experiments. Equine skeletal muscle myoglobin was obtained from Sigma Aldrich, Steinheim, Germany.

Physical measurements

Infrared spectra were obtained as KBr pellets with Thermo Nicolet Nexus FT-IR spectrometer, using 16 scans and were reported in cm−1. Electronic absorption spectra of all the complexes were recorded in dichloromethane solvent with an Evolution 600, Thermo Scientific (Shimadzu) UV-vis spectrophotometer. 1H and 31P NMR spectra were recorded on Bruker AVANCE, 500.13 MHz spectrometer in the deuterated solvents. Cyclic voltammetric studies were performed on a CH-600C electroanalyzer in dichloromethane with 0.1 M tetrabutylammonium perchlorate (TBAP) as supporting electrolyte. The working electrode, reference electrode and auxiliary electrode were glassy carbon electrode, Ag/AgCl electrode and Pt wire respectively. The concentration of the compounds was in the order of 10−3 M. The ferrocene/ferrocenium couple occurred at E1/2 = +0.54(70) V vs. Ag/AgCl (scan rate 0.1 V s−1) in dichloromethane under the same experimental conditions.

Syntheses of ligands

Synthesis of N-(quinolin-8-yl)benzamide (L1H2). The benzoic acid (0.61 g, 5.0 mmol) was taken in 15–20 mL dimethylformamide solution and then cooled on an ice bath. To this solution, 1.48 g (11.0 mmol) of 1-hydroxybenzotriazole (HOBT) as well as 1.13 g (5.5 mmol) of dicyclohexylcarbodiimide (DCC) were added directly and mixture was stirred for half an hour at 0 °C. Now a batch of quinoline-8-amine 0.72 g (5.0 mmol) was added to the reaction mixture with stirring for next 2 hours on the same ice bath. After, the ice bath was removed and the stirring was continued overnight at room temperature. By removing the white precipitate of N,N′-dicyclohexylurea through filtration, the solvent was concentrated to 10 mL. Within 3–4 days, a light yellowish crystalline solid of ligand L1H2 was settled down on the bottom of beaker which was filtered and washed with methanol and diethyl ether. Yield: 52%. Anal. calcd for C16H12N2O (248.29): C, 77.40; H, 4.87; N, 11.28. Found: C, 77.48; H, 4.38; N, 11.41. IR (KBr disk, cm−1): 1674 (νCO, –CONH), 3350 (νN–H). UV-Vis (CH2Cl2; λmax, nm (ε, M−1 cm−1)): 242 (24[thin space (1/6-em)]166), 270 (6975), 325 (7333). 1H NMR (CDCl3, 500 MHz): δ 10.76 (s, 1H), 8.95 (t, 1H), 8.86 (s, 1H), 8.19 (d, 1H), 8.09 (t, 2H), 7.61–7.56 (m, 5H), 7.5 (t, 1H) ppm.
Synthesis of 4-chloro-N-(quinolin-8-yl)benzamide (L2H2). Ligand L2H2 was synthesized from the reaction of p-chloro benzoic acid with quinoline-8-amine by following the same procedure as for ligand L1H2. Yield: 61%. Anal. calcd for C16H11ClN2O (282.72): C, 67.97; H, 3.92; N, 9.91. Found: C, 66.90; H, 3.64; N, 9.98. IR (KBr disk, cm−1): 1665 (νCO, –CONH), 3350 (νN–H). UV-Vis (CH2Cl2; λmax, nm (ε, M−1 cm−1)): 242 (23[thin space (1/6-em)]030), 275 (4970), 324 (6060). 1H NMR (CDCl3, 500 MHz): δ 10.68 (s, 1H), 8.89–8.82 (m, 2H), 8.15 (q, 1H), 8.01–7.98 (m, 2H), 7.58–7.44 (m, 5H) ppm.
Synthesis of 4-nitro-N-(quinolin-8-yl)benzamide (L3H2). Ligand L3H2 was prepared from the reaction of p-nitro benzoic acid with quinoline-8-amine by using the same procedure as for ligand L1H2. Yield: 68%. Anal. calcd for C16H11N3O3 (293.28): C, 65.53; H, 3.78; N, 14.33. Found: C, 65.38; H, 3.46; N, 14.43. IR (KBr disk, cm−1): 1675 (νCO, –CONH), 3350 (νN–H). UV-Vis (CH2Cl2; λmax, nm (ε, M−1 cm−1)): 242 (25[thin space (1/6-em)]017), 335 (6084). 1H NMR (CDCl3, 500 MHz): δ 10.81 (s, 1H), 8.91–8.86 (m, 2H), 8.39–8.36 (m, 2H), 8.24–8.21 (m, 3H), 7.63–7.50 (m, 3H) ppm.
Synthesis of 3-nitro-N-(quinolin-8-yl)benzamide (L4H2). Ligand L4H2 was obtained from the reaction of m-nitro benzoic acid and quinoline-8-amine through the same procedure as for ligand L1H2. Yield: 71%. Anal. calcd for C16H11N3O3 (293.28): C, 65.53; H, 3.78; N, 14.33. Found: C, 65.38; H, 3.43; N, 14.52. IR (KBr disk, cm−1): 1670 (νCO, –CONH), 3307 (νN–H). UV-Vis (CH2Cl2; λmax, nm (ε, M−1 cm−1)): 242 (23[thin space (1/6-em)]734), 262 (9769), 325 (8146). 1H NMR (CDCl3, 500 MHz): δ 10.79 (s, 1H), 8.89–8.85 (m, 3H), 8.42–8.37 (m, 2H), 8.19 (q, 1H), 7.73 (t, 1H), 7.61–7.48 (m, 3H) ppm.

Syntheses of cyclometalated ruthenium complexes

The precursor complex [Ru(PPh3)3Cl2] was prepared by using the reported procedure.20–22,36

Caution: perchlorate salts of metal complexes with organic ligands are potentially explosive. Only a small amount of material should be prepared and handled with caution.

Synthesis of [Ru(L1)(PPh3)2(Cl)] (1). To a 30 mL methanolic solution of L1H2 (0.034 g, 0.12 mmol) was added directly ruthenium precursor complex [Ru(PPh3)3Cl2] (0.0958 g, 0.10 mmol) and mixture was refluxed at 85 °C for 10–12 h on an oil bath to afforded a light brown crystalline solid at room temperature and was washed with cold methanol and diethyl ether. Yield: 48%. Anal. calcd for C52H40ClN2OP2Ru (907.13): C, 68.83; H, 4.44; N, 3.09. Found: C, 68.48; H, 4.38; N, 3.12. IR (KBr disk, cm−1): 1558 (νCONH), 746, 692, 520 (νPPh3) cm−1. UV-Vis (CH2Cl2; λmax/nm (ε, M−1 cm−1)): 270 (17[thin space (1/6-em)]280), 335 (4041), 445 (1942).
Synthesis of [Ru(L2)(PPh3)2(Cl)] (2). Complex 2 was synthesized through the reaction of [Ru(PPh3)3Cl2] with the ligand L2H2 by following the same procedure as for 1. Yield: 58%. Anal. calcd for C52H39Cl2N2OP2Ru (941.10): C, 66.32; H, 4.17; N, 2.97. Found: C, 66.24; H, 4.09; N, 2.88. IR (KBr disk, cm−1): 1635 (νCONH), 746, 694, 522 (νPPh3) cm−1. UV-Vis (CH2Cl2; λmax/nm (ε, M−1 cm−1)): 262 (17[thin space (1/6-em)]596), 365 (2804).
Synthesis of [Ru(L3)(PPh3)2(Cl)] (3). Complex 3 was prepared with the help of ligand L3H2 through the same procedure as for 1. Yield: 68%. Anal. calcd for C52H39ClN3O3P2Ru (952.12): C, 65.58; H, 4.13; N, 4.41. Found: C, 65.43; H, 4.08; N, 4.50. IR (KBr disk, cm−1): 1632 (νCONH), 744, 694, 515 (νPPh3) cm−1. UV-Vis (CH2Cl2; λmax/nm (ε, M−1 cm−1)): 274 (28[thin space (1/6-em)]626), 460 (5042).
Synthesis of [Ru(L4)(PPh3)2(Cl)] (4). Complex 4 was obtained by using ligand L4H2 by using the same procedure as for 1. Yield: 62%. Anal. calcd for C52H39ClN3O3P2Ru (952.12): C, 65.58; H, 4.13; N, 4.41. Found: C, 65.38; H, 4.10; N, 4.52. IR (KBr disk, cm−1): 1625 (νCONH), 742, 692, 514 (νPPh3) cm−1. UV-Vis (CH2Cl2; λmax/nm (ε, M−1 cm−1)): 274 (25[thin space (1/6-em)]615), 365 (10[thin space (1/6-em)]570), 460 (4966).
Synthesis of [Ru(NO2L1)(PPh3)2(NO)](ClO4) (1a). A batch of (0.090 g, 0.1 mmol) of complex 1 was taken in 30 mL of dichloromethane to obtain a yellow colored solution in round bottom flask of 100 mL. Now 25 mL acidified distilled water was layered over this solution. Sodium nitrite (0.3 g, 4.3 mmol) was added to the bilayer solution and the mixture was stirred at room temperature for 2 h to get reddish yellow colored solution of complex 1a. The dichloromethane layer was separated out and NaClO4 (in excess) with 10 mL of methanol was added to this solution. Stirring of this solution was continued for another 2 hour. The solvent mixture was evaporated to get reddish yellow solid. To remove excess of NaClO4, this solid was further dissolved in 10 mL of dichloromethane and was filtered out. Now 10 mL of hexane was added to the filtrate to obtain a reddish yellow precipitate of complex 1a. Yield: 48%. Anal. calcd for C52H39ClN4O8P2Ru (1046.10): C, 59.69; H, 3.76; N, 5.35. Found: C, 59.39; H, 3.84; N, 5.28. IR (KBr disk, cm−1): 1880 (νNO), 1635 (νCONH), 1092, 620 (νClO4), 730, 692, 530 (νPPh3) cm−1. UV-Vis (CH2Cl2; λmax/nm (ε, M−1 cm−1)): 326 (21[thin space (1/6-em)]370). 1H NMR (CDCl3, 500 MHz): δ 9.42 (d, 1H), 9.09 (d, 1H), 8.20 (s, 1H), 7.71 (s, 2H), 7.69–7.53 (m, 17H), 7.45–7.39 (m, 9H), 7.33–7.31 (m, 5H), 7.17–6.95 (m, 2H), 6.52 (s, 1H), 6.13 (d, 1H) ppm. 31P NMR (CDCl3, 500 MHz): δ 29.71 ppm.
Synthesis of [Ru(NO2L2)(PPh3)2(NO)](ClO4) (2a). Complex 2a was obtained from complex 2 by following the same procedure as for 1a. Yield: 51%. Anal. calcd for C52H38Cl2N4O8P2Ru (1080.06): C, 57.79; H, 3.54; N, 5.18. Found: C, 57.56; H, 3.62; N, 5.09. IR (KBr disk, cm−1): 1870 (νNO), 1585 (νCONH), 1092, 612 (νClO4), 746, 692, 522 (νPPh3) cm−1. UV-Vis (CH2Cl2; λmax/nm (ε, M−1 cm−1)): 324 (29[thin space (1/6-em)]668). 1H NMR (CDCl3, 500 MHz): δ 9.62 (d, 1H), 9.29 (d, 1H), 8.39 (d, 1H), 7.86 (s, 2H), 7.65–7.51 (m, 14H), 7.45–7.34 (m, 11H), 7.24–7.08 (m, 8H), 6.29 (d, 1H) ppm. 31P NMR (CDCl3, 500 MHz): δ 29.73 ppm.
Synthesis of [Ru(NO2L3)(PPh3)2(NO)](ClO4) (3a). Complex 3a was prepared from the complex 3 through the same procedure as for 1a. Yield: 56%. Anal. calcd for C52H38ClN5O10P2Ru (1091.08): C, 57.23; H, 3.51; N, 6.42. Found: C, 57.14; H, 3.56; N, 6.36. IR (KBr disk, cm−1): 1830 (νNO), 1645 (νCONH), 1092, 612 (νClO4), 746, 694, 520 (νPPh3) cm−1. UV-Vis (CH2Cl2; λmax/nm (ε, M−1 cm−1)): 282 (27[thin space (1/6-em)]107), 434 (20[thin space (1/6-em)]867). 1H NMR (CDCl3, 500 MHz; J/Hz): δ 10.21 (d, 4.50, 1H), 8.89 (d, 9.00, 1H), 8.50 (d, 9.00, 1H), 8.13 (d, 9.00, 1H), 7.90 (d, 6.50, 5H), 7.65 (d, 8.00, 1H), 7.43–7.31 (m, 15H), and 7.10–7.06 (m, 13H) ppm. 31P NMR (CDCl3, 500 MHz): δ 22.63 ppm.
Synthesis of [Ru(NO2L4)(PPh3)2(NO)](ClO4) (4a). Complex 4a was synthesized from complex 4 by using the same procedure as for 1a. Yield: 62%. Anal. calcd for C52H38ClN5O10P2Ru (1091.08): C, 57.23; H, 3.51; N, 6.42. Found: C, 57.18; H, 3.60; N, 6.30. IR (KBr disk, cm−1): 1845 (νNO), 1655 (νCONH), 1090, 614 (νClO4), 742, 692, 514 (νPPh3) cm−1. UV-Vis (CH2Cl2; λmax/nm (ε, M−1 cm−1)): 288 (30[thin space (1/6-em)]266), 424 (14[thin space (1/6-em)]372). 1H NMR (CDCl3, 500 MHz; J/Hz): δ 10.15 (d, 4.50, 1H), 8.89 (d, 9.00, 1H), 8.54 (d, 9.00, 1H), 8.19 (d, 9.00, 1H), 7.97–7.76 (m, 3H), 7.53 (s, 2H), 7.37–7.21 (m, 18H), and 7.11–7.07 (m, 12H) ppm. 31P NMR (CDCl3, 500 MHz): δ 22.35 ppm.
Transfer of NO to myoglobin. 50 mM phosphate buffer solution of 6.8 pH was prepared by adding 0.4192 g of NaH2PO4·2H2O and 0.3283 g of anhydrous Na2HPO4 to 50 mL of Milli-Q water and making the volume to 100 mL in a volumetric flask. 5 mg equine skeletal muscle myoglobin was dissolved in 5 mL of the above prepared buffer solution.
Griess reagent assay. The photodissociation of nitric oxide from nitrosyl complexes 1a–4a was also confirmed by estimating its amount using the Griess reagent (GR). The reagent was freshly prepared by mixing equal volumes of 1% sulphanilamide in 5% orthophosphoric acid and 0.1% naphthylethylenediamine dihydrochloride (NED) in distilled water. The estimation of NO or nitrite (NO2−) ion was measured by observing the increase in the absorbance at ∼538 nm due to the formation of azo dye.22,37
Quantum yield measurements. Standard ferrioxalate actinometer (0.006 M solution of potassium ferrioxalate in 0.1 N H2SO4) was used to determine the intensity of the UV light (λirr = 365 nm). Quantum yields (ΦNO) of NO photorelease for nitrosyl complexes 1a–4a were determined from the decrease in its electronic absorption band with λmax near 326 nm, 324 nm, 434 nm and 424 nm, respectively when irradiated with the light of a UV lamp (λirr = 365 nm) and were calculated by following the procedure reported earlier.22 The cuvette was kept 3 cm away from the UV source to measure the quantum yields.
X-ray crystallography. Crystal of complex 4a·CH2Cl2 (reddish yellow) was obtained via layering of hexane over a solution of dichloromethane/methanol mixture which is suitable for diffraction study. The X-ray data collection and processing for complex 4a·CH2Cl2 was performed with Bruker Kappa Apex-II CCD diffractometer by using graphite monochromated Mo-Kα radiation (λ = 0.71073 Å) at 296 (2). Crystal structure was solved by direct method. Structure solutions, refinement and data output were carried out with the SHELXTL program.38,39 All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were placed in geometrically calculated positions and refined using a riding model. Image was created with the DIAMOND program.40

Results and discussion

Syntheses

All the ligands L1–4H2 were obtained in high yield by condensation reaction of different aromatic acids with quinoline-8-amine in dimethylformamide in the presence of 1-hydroxybenzotriazole (HOBT) and dicyclohexylcarbodiimide (DCC).41 The solid precursor [Ru(PPh3)3Cl2] was added to a hot methanol solution (30 mL) of the corresponding ligand L1–4H2 then we obtained the ruthenium(III) complexes [Ru(L1–4)(PPh3)2Cl] (1–4) (shown in Scheme 3). The complexes 1 and 2 were yellowish brown in color but complexes 3 and 4 were reddish brown and green in color, respectively. Complexes 1–4 were highly soluble in dichloromethane, dimethylformamide and dimethylsulphoxide but less soluble in water. The complexes [Ru(NO2L1–4)(PPh3)2(NO)](ClO4) (1a–4a) were derived from the complexes 1–4, respectively (shown in Scheme 3). The dichloromethane solutions of all the complexes 1–4 were treated with acidified nitrite (NaNO2) solution with continuous stirring for 2 h and formation of a reddish-yellow color was observed. Then a methanolic solution of NaClO4 was added for the counter anion. All the nitrosyl complexes were found to be reddish yellow in color and were highly soluble in organic solvents like dichloromethane, acetonitrile, dimethylformamide. A dichloromethane/hexane (50[thin space (1/6-em)]:[thin space (1/6-em)]50) mixture was used for recrystallization of nitrosyl complexes 1a–4a. The synthetic procedures described above have been summarized in Scheme 4.
image file: c6ra17223g-s4.tif
Scheme 4 Synthetic routes for cyclometalated ruthenium complexes 1–4 and 1a–4a.

Spectroscopic studies

The infrared (IR) spectra of all the ligands and ruthenium complexes have been recorded by using KBr pellets. In the IR spectrum of ruthenium complexes 1–4, the (–CONH–) stretching frequency (νCONH) (due to the presence of carbonyl group of carboxamide moiety) was observed near 1558 cm−1, 1635 cm−1, 1632 cm−1 and 1625 cm−1 for complexes 1, 2, 3 and 4 respectively,42–44 which was observed red shifted as compare to the νCONH values of the free ligands (for L1H2, νCONH = 1674 cm−1; for L2H2, νCONH = 1665 cm−1; for L3H2, νCONH = 1675 cm−1; for L4H2, νCONH = 1670 cm−1) (shown in Fig. S1–S8 and Table S1†). This red shift indicated the coordination of deprotonated ligands in these cyclometalated complexes and three peaks near 746–742, 694–692 and 520–515 cm−1 were examined due to the presence of PPh3 groups (Table S1†).20–22 On the other hand, the presence of the {Ru–NO}6 moiety in all the nitrosyl complexes was confirmed by the characteristic peaks in the infrared spectra. In the IR spectra, the N–O stretching frequencies (νNO) of nitrosyl complexes 1a, 2a, 3a and 4a were observed around 1880 cm−1, 1870 cm−1, 1830 cm−1 and 1845 cm−1 respectively, which were expected for {Ru–NO}6 species in the nitrosyl complexes (shown in Fig. S9–S16 and Table S1†).20–22,42–44 In the literature, the range of N–O stretching frequencies (νNO) was reported 1820–1960 cm−1 for {Ru–NO}6 species.38 These data were also supported by representative X-ray crystal structure of complex 4a (vide infra). The values of –CONH– group were found around 1635 cm−1, 1585 cm−1, 1645 cm−1 and 1655 cm−1 for complexes (1a–4a), respectively.42–44 The values of stretching frequencies due to PPh3 groups (νPPh3) were observed in the range near 746–730 cm−1, 694–692 cm−1 and 530–522 cm−1 for the ruthenium nitrosyl complexes 1a–4a (Table S1†).20–22

The UV-Vis spectra of ruthenium(III) complexes 1–4 were displayed in Fig. S17.† In complexes 1–4, we observed charge transfer band with λmax near 445 nm as well as 335 nm for complex 1, 365 nm for complex 2, 460 nm for 3 and 460 as well as 365 nm for 4 (shown in Fig. S17†). These bands were probably due to the result of ligand-to-metal charge transfer (LMCT) transition.32,33,45 In all the complexes 1–4, a charge transfer band was also found around 270 nm which was considered as ligand based transition (Table S2†).30,31

All the nitrosyl complexes 1a–4a were found reddish yellow in color and their electronic spectra were displayed in Fig. S18.† The electronic spectrum of 1a–4a gave rise to charge-transfer band near 326 nm, 324 nm, 434 nm, and 424 nm, respectively which was recognized to a metal to ligand charge transfer (MLCT) transition dπ(Ru) → π*(NO) type and this transition has been responsible for the photolability of the {RuNO}6 moiety.6,7,46 In the complexes 3a and 4a, we also found a charge transfer band near 282 nm and 288 nm, respectively (Table S2†).

All the ruthenium nitrosyl complexes 1a–4a were found to be diamagnetic which were confirmed by 1H and 31P NMR spectral studies. The 1H and 31P NMR spectra of nitrosyl complexes 3a and 4a were displayed in Fig. S19–S26.† In all the ligands, we observed a peak near 10.75 ppm which was due to the presence of carboxamido (–CONH–) proton. But in the nitrosyl complexes, no peak was obtained around 10.75 ppm which indicated the absence of –NH– proton of carboxamido (–CONH–) group in these nitrosyl complexes and we obtained other expected multiple signals near 10.20–7.00 ppm range (Table S3†).41 We obtained a single peak near 30.0 ppm (for 1a, 2a) and 22.0 ppm (for 3a, 4a) in 31P NMR spectra which indicated the presence of trans PPh3 groups in all the nitrosyl complexes 1a–4a (Table S3†).20–22 These 31P NMR data were also consistent with X-ray crystal structure (vide infra).

We would like to mention here that we were unable to generate a good 1H NMR spectra for 1a and 2a although the same for complexes 3a and 4a were reasonable. 31P NMR data are ∼22 ppm for 1a and 2a whereas ∼30 ppm for 3a and 4a. This prompted us to have a closer look to νNO and 31P NMR data along with 1H NMR spectra (Table S4 in ESI†). These data clearly express that complexes 1a and 2a are having one type of electronic structure and complexes 3a and 4a possess a different type of electronic structure. All the complexes contain {Ru–NO}6 moiety6 and {RuII–NO+}6 description was suggested.6 However {RuII–NO+}6 description predicts complete transfer of electron density from NO to ruthenium. This may vary for different complexes depending upon the other ligands present in the complex. Presence of –NO2 group in the ligand frame probably facilitates complete transfer and formation of diamagnetic {RuII–NO+}6 (for complexes 3a and 4a). The substituents are different (–H and –Cl) for complexes 1a and 2a and hence they have different electronic structure. These are the probable reasons for the bad 1H NMR signals and shift in 31P NMR spectra for 1a and 2a.

Description of molecular structure

The molecular structure of the complex [Ru(NO2L4)(PPh3)2(NO)](ClO4)·CH2Cl2 (4a·CH2Cl2) is depicted in Fig. 1. The selected bond lengths and bond angles of complex 4a·CH2Cl2 are given in Table 1. Crystal data collection and refinement detail of the structure of complex 4a·CH2Cl2 is summarized in Table 2.

In the crystal structure of 4a·CH2Cl2, the equatorial plane was involved of carbanion (C2), Cl(1), pyridine nitrogen (N2) and NO. We observed that both the phosphine groups were trans to each other which was supported by 31P NMR spectral data. The ruthenium center adopted a distorted-octahedral geometry. The nitrogen atom of carboxamido (–CONH) ligand was coordinated to the metal center and the ruthenium-carboxamido nitrogen (Ru(1)–N(2)) bond distance (2.042(2) Å) was found to be closer to the reported values.42,44,47 The Ru–C(53) (2.068(3) Å) distance was also consistent with the values reported in the literature22,30 and found to be very close to the bond length reported by Pal and coworkers.31 In this structure, the carboxamido nitrogen atom (–CONH–) was bound to the metal center so there was no peak of amide hydrogen atom in the 1H NMR spectrum.


image file: c6ra17223g-f1.tif
Fig. 1 ORTEP diagram (30% probability level) of the cation of the [Ru(NO2L4)(PPh3)2(NO)](ClO4)·CH2Cl2 (4a·CH2Cl2). All hydrogen atoms, solvent molecule and all the phenyl rings of PPh3 groups are omitted for clarity.
Table 1 Selected bond lengths (Å) and bond angles (deg.) of complex 4a·CH2Cl2
Bond lengths (Å) Bond angles (°)
Ru(1)–C(53) 2.068(3) N(2)–Ru(1)–N(3) 174.69(9)
Ru(1)–N(1) 2.176(2) N(2)–Ru(1)–C(53) 79.63(10)
Ru(1)–N(2) 2.040(2) N(1)–Ru(1)–N(2) 76.66(8)
Ru(1)–P(1) 2.4710(7) N(3)–Ru(1)–P(1) 92.51(7)
Ru(1)–P(2) 2.4647(7) N(3)–Ru(1)–P(2) 91.53(7)
Ru(1)–N(3) 1.759(2) P(1)–Ru(1)–P(2) 175.52(2)
N(3)–O(1) 1.139(3) O(1)–N(3)–Ru(1) 175.3(2)

Table 2 Summary of crystal data and structural refinement parameters for complex 4a·CH2Cl2
a GOF = [∑[w(Fo2 − Fc2)2]/M − N]1/2 (M = number of reflections, N = number of parameters refined).b R1 = ∑||Fo| − |Fc||/∑|Fo|.c wR2 = [∑[w(Fo2 − Fc2)2]/∑[(Fo2)2]]1/2.
Empirical formula C53H40Cl3N5O10P2Ru
Formula weight 1176.26
Temperature/K 296(2)
λ (Å) (Mo-Kα) 0.71073
Crystal system Triclinic
Space group P[1 with combining macron]
A (Å) 12.0096(5)
B (Å) 12.6429(5)
C (Å) 19.2406(8)
α (°) 81.340(2)
γ (°) 64.743(2)
β (°) 86.300(2)
V (Å3) 2612.02(19)
Z 2
ρcalc (g cm−3) 1.496
F(000) 1196
Theta range 1.07–28.34
Index ranges −11 < h < 16, −16 < k < 16, −25 < l < 25
Data/restraints/par. 13[thin space (1/6-em)]031/0/668
GOFa on F2 1.211
R1b [I > 2σ(I)] 0.0456
R1 [all data] 0.0567
wR2c [I > 2σ(I)] 0.1458
wR2 [all data] 0.1631

Quinoline shows the chemistry of benzene as well as pyridine and electrophilic substitution occurs at the benzene ring whereas nucleophilic substitution takes place at the pyridine ring.48 It is well known in the literature49 that nuclear nitration for simple aromatic compounds proceeds via electrophilic pathway. So ligand nitration (–NO2) was found on the phenyl ring of quinoline containing the amine function and the site of nitration was trans to the amine group.

In the nitrosyl complex, Ru–NNO (1.759(2) Å)20–22 and N–O (1.139(2) Å)20,22 bond distances were obtained similar to the reported values in the literature. The N–O stretching frequency and N–O distance along with Ru–N–O angle (∼175°) clearly expressed {RuII–NO+}6 description of {Ru–NO}6 moiety in the nitrosyl complex.20–22 These data were supported through IR spectroscopic studies and the presence of trans-phosphine groups were also indicated by 31P NMR data. Ru–N(1) (pyridine nitrogen) and Ru–P distances were also close to the values already reported.20,22

Site specific orthometallation: a reaction model

The reaction of Ru(PPh3)3Cl2 with ligands having amide bond afforded cyclometalated ruthenium complexes via C–H bond activation and orthometallation. During this reaction, we observed that the orthometallation happened in the phenyl ring of benzoic acids. However it is important to note here that in case of m-nitrobenzoic acid, there are two probable sites accessible for C–H bond activation and orthometallation. This is a situation similar to our previous results.22 After the completion of reaction, we observed only a single orthometallated product. In resultant ruthenium organometallics, the nitro group was found to be at a para position with respect to orthometallated carbon. According to the literature, at the time of orthometallation, the metal centre could act as a nucleophile or an electrophile.22,50–52

In the present study the precursor ruthenium complex contains Ru(II) centre and coordination of deprotonated amide nitrogen will stabilize Ru(III). In higher oxidation state metal centre behaves as an electrophile and Ru–C bond is formed via C–H bond activation.

Investigation of literature50,53 revealed that different reaction pathways were proposed for C–H bond activation and metal–carbon bond formation. Electrophilic aromatic substitution (SEAr) and concerted metalation–deprotonation (CMD) are the two important reaction pathways that have received most attention in this regard.53 In the SEAr mechanism, reaction proceeds via formation of Wheland intermediate. In Wheland intermediate a metal ion is bound to the carbon atom of the arene via a covalent bond and metal–carbon bond is formed before the C–H bond is cleaved. In a CMD transition state, metal bound chloride ion abstracts a proton from C–H bond while, at the same time, a metal carbon bond is being formed. Hence we propose a possible reaction model in Scheme 5.


image file: c6ra17223g-s5.tif
Scheme 5 Proposed reaction model for cyclometalation.

Electrochemistry

We have investigated the redox properties of ruthenium center in complexes 1–4 and 1a–4a with the help of cyclic voltammetric studies. In the voltammograms of precursor the complexes (1–4), we found quasi-reversible redox couples with E1/2 values near +0.56 V (for 1), +0.60 V (for 2), +0.92 V (for 3) and +0.92 V (for 4) vs. Ag/AgCl which were attributed to Ru(III)/Ru(IV) couples (Fig. 2).22,30,31 In case of complexes 3 and 4, we also obtained quasi-reversible redox couples near −0.37 V and −0.32 V vs. Ag/AgCl respectively which were assigned as Ru(III)/Ru(II) couple (Fig. 2).22,31,32 The results obtained for precursor complexes (1–4) clearly indicated better stability of Ru(III) center in case of complexes 3 and 4. This happened probably due to the presence of electron withdrawing group (–NO2) in the ligand frame. In case of complex 4, slightly less E1/2 value of Ru(III)/Ru(II) response was found as compare to the E1/2 value of complex 3 indicated that the presence of –NO2 with respect to carbanion (para or meta) could not be ignored (Fig. 2). In case of ruthenium nitrosyl complexes 1a and 2a, we did not observe any redox couple but found only cathodic peak near −1.09 V and −0.96 V, respectively (Fig. 3). Lahiri and coworkers explained ligand (nitric oxide) centered reduction of (RuII–NO+)6/(RuII–NO˙)7 and then second reduction for the appearance of such type of peaks at negative potentials.54 In the cyclic voltammogram of complex 3a, we obtained two redox couples near −0.68 V and −1.00 V vs. Ag/AgCl. In case of complex 4a, two redox couples were also exhibited near −0.67 V and −1.02 V vs. Ag/AgCl (Fig. 3). In the negative potential quasi-reversible couples (RuIII/RuII) for nitrosyl complexes were reported by Mascharak and coworkers.44,55
image file: c6ra17223g-f2.tif
Fig. 2 Cyclic voltammograms of 10−3 M solutions of (a) complex 1, (b) complex 2, (c) complex 3, (d) complex 4 in dichloromethane in presence of 0.1 M tetrabutylammonium perchlorate (TBAP) using working electrode, glassy-carbon; reference electrode, Ag/AgCl; auxiliary electrode, platinum wire and scan rate, 0.1 V s−1.

image file: c6ra17223g-f3.tif
Fig. 3 Cyclic voltammograms of 10−3 M solutions of (a) complex 1a, (b) complex 2a, (c) complex 3a, (d) complex 4a in dichloromethane in presence of 0.1 M tetrabutylammonium perchlorate (TBAP) using working electrode, glassy-carbon; reference electrode, Ag/AgCl; auxiliary electrode, platinum wire and scan rate, 0.1 V s−1.

Photolysis experiments for ruthenium nitrosyl complexes

All the nitrosyl complexes 1a–4a were found to be photolabile under light and the photolability of coordinated NO of nitrosyl complexes was performed under visible as well as UV light.

In dark condition, there was no color change observed. On the other hand in the presence of light we observed a color change from reddish-yellow to reddish brown. In the presence of visible light (100 watt tungsten lamp), we did not observed much change in the UV-Vis spectra of nitrosyl complexes. However, rapid spectral changes were observed when the solutions were exposed to low intensity light of the UV lamp (λirr = 365 nm). A dichloromethane solution of complex 1a was exposed to low intensity UV light and we observed the disappearance of a peak near 326 nm. These results are indicative of photolability of coordinated NO (Fig. 4(a)). In case of complex 2a, we also observed the same disappearance of a peak near 324 nm (shown in Fig. S27†). When a solution of complex 3a was illuminated under UV light, we obtained a decrease in peak intensities near 435 as well as 282 nm and we found two isosbestic points near 482 nm and 350 nm (shown in Fig. S28†). The spectral changes were also observed with complex 4a in the dichloromethane solution. In this case, we also found a decrement in peak intensities near 424 nm as well as 288 nm under UV light (Fig. 4(b)).


image file: c6ra17223g-f4.tif
Fig. 4 Photodissociation of NO from complexes (a) 1a (∼1.5 × 10−5 M) and (b) 4a (∼1.2 × 10−5 M) in dichloromethane solutions under illumination with a UV light (λirr = 365 nm). Repetitive scans were taken in 5 seconds intervals for 1a and in 4 minutes intervals for 4a. Inset: changes in absorbance with time at λ = 326 nm and λ = 424 nm for 1a and 4a respectively at room temperature.

Trapping of photoreleased NO by reduced myoglobin

The photocleavage of coordinated NO from ruthenium nitrosyl complexes was also confirmed by trapping the liberated NO by reduced myoglobin (Mb) using low intensity UV lamp in phosphate buffer (pH ∼ 6.8).22 In electronic absorption spectra, we obtained an intense band at 409 nm (Soret band) for oxidized myoglobin (Mb). In the same solution, the sodium dithionite was added in excess and then we obtained an intense band near ∼433 nm in the UV-Vis spectra due to the reduced myoglobin. Acetonitrile solution of nitrosyl complexes were added to a solution containing reduced myoglobin and no reaction was obtained under dark conditions. However, when the same solution was illuminated with UV light (λirr = 365 nm) for 2–3 minutes then absorption spectra at near 420 nm (for 1a near 421, for 2a near 424 (Fig. S29†) and for 3a 420 (Fig. 5(a))) clearly indicated the formation of Mb–NO adducts.20–22 However in case of 4a, the same solution mixture was kept under exposure to the light of UV lamp for 10–11 minutes then we observed a band near 424 nm in UV-Vis spectra indicating the formation of Mb–NO adduct (Fig. 5(b))20–22 with a longer exposure to light.
image file: c6ra17223g-f5.tif
Fig. 5 Electronic spectra for conversion of reduced Mb to Mb–NO adducts upon reaction with 3a and 4a in buffer solutions (50 mM phosphate buffer, pH 6.8) under exposure of UV light (λirr = 365 nm). Red line, oxidized Mb (intense band at ∼409 nm); blue line, reduced Mb (at ∼433 nm, with excess of sodium dithionite). (a) Black line, Mb–NO adduct (at ∼420 nm), obtained by Mb and solution of 3a (∼10−5 M) exposed to UV light for 2–3 minutes. (b) Black line, Mb–NO adduct (at ∼424 nm) obtained by Mb and solution of complex 4a (∼4.3 × 10−5 M) exposed to UV light for 10–11 minutes.

Estimation of photoreleased NO by Griess reaction

We estimated the amount of photoliberated NO from ruthenium nitrosyl complexes in the presence of UV light (λirr = 365 nm) by using Griess reagent assay.22,34,37 The photolability of NO in complexes 1a–4a was further observed through increasing in optical density of the produced azo dye at ∼538 nm in the presence of ultraviolet light. In dark conditions, a little amount of NO was found to be released. When the solutions of complexes 1a–4a (50 μM) with Griess reagent were exposed with UV light for 15 minutes then the amount of NO was liberated ∼5.2 μM (for 1a), ∼4.6 μM (for 2a, Fig. S30†), ∼6.3 μM (for 3a, Fig. 6(a)) and ∼5.0 μM (for 4a, Fig. 6(b)). The change in absorbance spectra of produced azo dye was found to be small under visible light (100 watt tungsten lamp) (Fig. S31† and Table 3). The results of estimated NO from our nitrosyl complexes were compared with the data obtained from sodium nitroprusside (SNP), a standard nitric oxide (NO) donor6,56,57 in same experimental conditions. In ultraviolet light (low intensity), 50 μM solution of sodium nitroprusside released ∼3.4 μM of nitric oxide (Table 3). These data gave rise to the formation of NO and the amount of photoreleased NO form complexes 1a–4a was found to be close to the amount of NO released by SNP under UV light. Interestingly 4a gave rise to roughly similar amount of NO under visible as well as UV light (Fig. S32†). This is probably due to extended delocalization of charge from NO → Ru → phenyl ring → NO2 (para with respect to carbanion).
image file: c6ra17223g-f6.tif

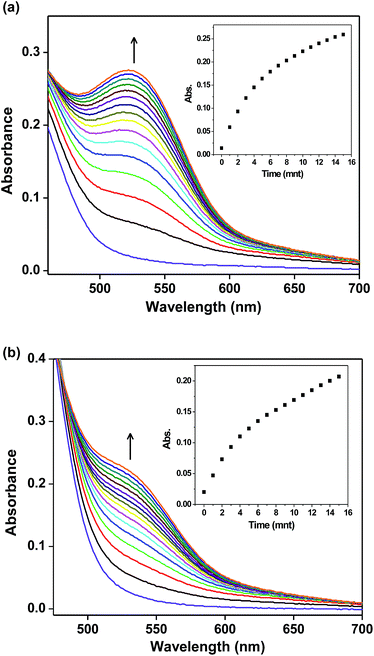

Fig. 6 Electronic spectra of dye formation when Griess reagent (100 μL) was treated with complexes (a) 3a (50 μM) (b) 4a (50 μM) in the presence of UV light (λirr = 365 nm). Repetitive scans were taken in 1 minute intervals. Inset: time dependent changes in absorbance at λirr = 538 nm at room temperature.
Table 3 Estimation of NO production from 1a, 2a, 3a, 4a and sodium nitroprusside (SNP) in Griess reagent assay
Complex Complex conc. NO produceda (μM)
Griess reaction
Dark Visible light UV light
a Average of three experiments.
1a 50 μM 0.42 2.4 5.2
2a 50 μM 0.50 3.6 4.6
3a 50 μM 0.30 3.1 6.3
4a 50 μM 0.48 5.8 5.0
SNP 50 μM 0.04 0.2 3.4

Conclusions

The following are the major findings of the present study. First, a different combination of donor atoms (pyridyl nitrogen and amide nitrogen) were utilized to investigate the C–H bond activation and the bidentate ligand was converted to a tridentate one with the formation of Ru–C bond. These data and our previous results clearly indicate that the presence of at least one Ru(III) stabilizing donor in the ligand frame was necessary to afford orthometallation and synthesis of Ru(III) organometallic complexes. Second, new family of ruthenium(III) cyclometalate complexes [Ru(L1–4)(PPh3)2Cl] (1–4) were obtained via C–H bond activation and were characterized by different spectroscopic studies. The ligand frame utilized in this report is related to the works by Chatani and coworkers.4 and in the proposed mechanism they have mentioned the formation of Ru–C bond via C–H activation (intermediate 32, in Scheme 1 in ref. 4) during C–C bond formation. To the best of our knowledge there is no structural characterization of intermediate 32. Hence this is the first example of structurally characterized intermediate which clearly shows the site specific C–H activation. Third, nitric oxide (NO) reactivity studies previously gave rise to the coordination of NO in trans position to carbanion. Here, two groups present in the ligand are carboxamido (–CONH–) and carbanion groups, which exhibit trans effect. We found the dissociation of chloride ion from the metal centre which was situated in trans position to deprotonated nitrogen of carboxamido group and then NO was coordinated to the metal centre to afford ruthenium nitrosyl complexes [Ru(NO2L1–4)(PPh3)2(NO)](ClO4) (1a–4a) and these nitrosyl complexes were characterized by spectroscopic studies. The molecular structure of representative complex 4a was examined by X-ray crystallography. Fourth, ligand nitration was also observed in the activated phenyl group containing –NH2 function in the quinoline moiety. Fifth, resultant nitrosyl complexes were found to be photosensitive under visible as well as UV light and we have also investigated the liberation of NO by trapping experiment with the help of reduced myoglobin. We have quantified the amount of photoreleased nitric oxide (NO) by using Griess reaction. Sixth, we have observed that the complexes 1a, 2a and 3a released nitric oxide easily under visible as well as UV light and the amount of NO released under UV light was more as compare to NO released under visible light. Complex 4a provided roughly same amount of NO under UV and visible light. We are trying to modify the ligand to observe photorelease of NO in the desired range 700–1000 nm and work is under progress.

Acknowledgements

KG is thankful to CSIR, New Delhi, India for financial assistance no. (01(2720)/13/EMR-II dated 17-04-2013). RK, SK and MB are thankful to CSIR, New Delhi and AR is thankful to MHRD for their fellowships.

Notes and references

  1. P. B. Arockiam, C. Bruneau and P. H. Dixneuf, Chem. Rev., 2012, 112, 5879 CrossRef CAS PubMed.
  2. V. Ritleng, C. Sirlin and M. Pfeffer, Chem. Rev., 2002, 102, 1731 CrossRef CAS PubMed.
  3. P. G. Bomben, K. C. D. Robson, B. D. Koivisto and C. P. Berlinguette, Coord. Chem. Rev., 2012, 256, 1438 CrossRef CAS.
  4. Y. Aihara and N. Chatani, Chem. Sci., 2013, 4, 664 RSC.
  5. Y. Zhao and C. Snieckus, Adv. Synth. Catal., 2014, 356, 1527 CrossRef CAS.
  6. M. J. Rose and P. K. Mascharak, Coord. Chem. Rev., 2008, 252, 2093 CrossRef CAS PubMed and references therein.
  7. N. L. Fry and P. K. Mascharak, Acc. Chem. Res., 2011, 44, 289 CrossRef CAS PubMed , and references therein.
  8. U. Schatzschneider, Eur. J. Inorg. Chem., 2010, 1451 CrossRef CAS.
  9. P. C. Ford, Nitric Oxide, 2013, 34, 56 CrossRef CAS PubMed.
  10. N. L. Fry and P. K. Mascharak, Dalton Trans., 2012, 41, 4726 RSC.
  11. S. Sarkar, B. Sarkar, N. Chanda, S. Kar, S. M. Mobin, J. Fiedler, W. Kaim and G. K. Lahiri, Inorg. Chem., 2005, 44, 6092 CrossRef CAS PubMed.
  12. P. De, B. Sarkar, S. Maji, A. K. Das, E. Bulak, S. M. Mobin, W. Kaim and G. K. Lahiri, Eur. J. Inorg. Chem., 2009, 2702 CrossRef CAS.
  13. A. D. Chowdhury, P. De, S. M. Mobin and G. K. Lahiri, RSC Adv., 2012, 2, 3437 RSC.
  14. M. G. Sauaia, R. G. de Lima, A. C. Tedesco and R. S. da Silva, J. Am. Chem. Soc., 2003, 125, 14718 CrossRef CAS PubMed.
  15. M. G. Sauaia, R. G. de Lima, A. C. Tedesco and R. S. da Silva, Inorg. Chem., 2005, 44, 9946 CrossRef CAS PubMed.
  16. F. Roncaroli, M. Videla, L. D. Slep and J. A. Olabe, Coord. Chem. Rev., 2007, 251, 1903 CrossRef CAS.
  17. M. Sieger, B. Sarkar, S. Zalis, J. Fiedler, N. Escola, F. Doctorovich, J. A. Olabe and W. Kaim, Dalton Trans., 2004, 1797 RSC.
  18. F. A. Cotton and G. Wilkinson, Advanced inorganic chemistry, Wiley, New York, 5th edn, 1930 Search PubMed.
  19. H. Hadadzadeh, M. C. DeRosa, G. P. A. Yap, A. R. Rezvani and R. J. Crutchley, Inorg. Chem., 2002, 41, 6521 CrossRef CAS PubMed.
  20. K. Ghosh, S. Kumar, R. Kumar, U. P. Singh and N. Goel, Inorg. Chem., 2010, 49, 7235 CrossRef CAS PubMed.
  21. K. Ghosh, S. Kumar, R. Kumar, U. P. Singh and N. Goel, Organometallics, 2011, 30, 2498 CrossRef CAS.
  22. K. Ghosh, S. Kumar, R. Kumar and U. P. Singh, Eur. J. Inorg. Chem., 2012, 929 CrossRef CAS.
  23. K. Ghosh, R. Kumar, S. Kumar, M. Bala and U. P. Singh, Transition Met. Chem., 2015, 40, 831 CrossRef CAS.
  24. G. K. Lahiri, S. Bhattacharya, M. Mukherjee, A. K. Mukherjee and A. Chakravorty, Inorg. Chem., 1987, 26, 3359 CrossRef CAS.
  25. G. Venkatachalam and R. Ramesh, Tetrahedron Lett., 2005, 46, 5215 CrossRef CAS.
  26. G. Venkatachalam, R. Ramesh and S. M. Mobin, J. Organomet. Chem., 2005, 690, 3937 CrossRef CAS.
  27. S. Kannan, R. Ramesh and Y. Liu, J. Organomet. Chem., 2007, 692, 3380 CrossRef CAS.
  28. P. Ghosh, A. Pramanik, N. Bag, G. K. Lahiri and A. Chakravorty, J. Organomet. Chem., 1993, 454, 237 CrossRef CAS.
  29. P. Munshi, R. Samanta and G. K. Lahiri, J. Organomet. Chem., 1999, 586, 176 CrossRef CAS.
  30. R. Raveendran and S. Pal, J. Organomet. Chem., 2007, 692, 824 CrossRef CAS.
  31. R. Raveendran and S. Pal, J. Organomet. Chem., 2009, 694, 1482 CrossRef CAS.
  32. K. Nagaraju and S. Pal, J. Organomet. Chem., 2013, 737, 7 CrossRef CAS.
  33. K. Nagaraju and S. Pal, J. Organomet. Chem., 2013, 745–746, 404 CrossRef CAS.
  34. K. Ghosh, R. Kumar, S. Kumar and J. S. Meena, Dalton Trans., 2013, 42, 13444 RSC.
  35. K. Ghosh, A. A. Eroy-Reveles, B. Avila, T. R. Holman, M. M. Olmstead and P. K. Mascharak, Inorg. Chem., 2004, 43, 2988 CrossRef CAS PubMed.
  36. T. A. Stephenson and G. J. Wilkinson, J. Inorg. Nucl. Chem., 1966, 28, 945 CrossRef CAS.
  37. K. Ghosh, R. Kumar, K. Kumar, A. Ratnam and U. P. Singh, RSC Adv., 2014, 4, 43599 RSC.
  38. G. M. Sheldrick, Acta Crystallogr., Sect. A: Found. Crystallogr., 1990, 46, 467 CrossRef.
  39. G. M. Sheldrick, SHELXTL-NT 2000 version 6.12, Reference Manual, University of Gottingen, Pergamon, New York, 1980 Search PubMed.
  40. B. Klaus, DIAMOND, Version 1.2 c, University of Bonn, Germany, 1999 Search PubMed.
  41. K. Ghosh, S. Kumar, R. Kumar and U. P. Singh, J. Organomet. Chem., 2014, 750, 169 CrossRef CAS.
  42. A. K. Patra, M. J. Rose, K. A. Murphy, M. M. Olmstead and P. K. Mascharak, Inorg. Chem., 2004, 43, 4487 CrossRef CAS PubMed.
  43. N. L. Fry, B. J. Heilman and P. K. Mascharak, Inorg. Chem., 2011, 50, 317 CrossRef CAS PubMed.
  44. M. J. Rose, A. K. Patra, E. A. Alcid, M. M. Olmstead and P. K. Mascharak, Inorg. Chem., 2007, 46, 2328 CrossRef CAS PubMed.
  45. K. Ghosh, S. Kumar and R. Kumar, Eur. J. Inorg. Chem., 2014, 1454 CrossRef CAS.
  46. K. Ghosh, S. Kumar and R. Kumar, Inorg. Chim. Acta, 2013, 405, 24 CrossRef CAS.
  47. N. L. Fry, M. J. Rose, D. L. Rogow, C. Nyitray, M. Kaur and P. K. Mascharak, Inorg. Chem., 2010, 49, 1487 CrossRef CAS PubMed.
  48. J. Clayden, N. Greeves, S. Warren and P. Wothers, Organic Chemistry, Oxford University Press, 2001 Search PubMed.
  49. S. Chattopadhyay, K. Ghosh, S. Pattanayak and A. Chakravorty, Dalton Trans., 2001, 1259 RSC and references therein.
  50. N. Chitrapriya, V. Mahalingam, M. Zeller and K. Natarajan, Polyhedron, 2008, 27, 1573 CrossRef CAS.
  51. R. L. Brainard, W. R. Nutt, T. R. Lee and G. M. Whitesides, Organometallics, 1988, 7, 2379 CrossRef CAS.
  52. R. Cordone, W. D. Harman and H. Taube, J. Am. Chem. Soc., 1989, 111, 2896 CrossRef CAS.
  53. S. I. Gorelsky, Coord. Chem. Rev., 2013, 257, 153 CrossRef CAS.
  54. S. Maji, B. Sarkar, M. Patra, A. K. Das, S. M. Mobin, W. Kaim and G. K. Lahiri, Inorg. Chem., 2008, 47, 3218 CrossRef CAS PubMed.
  55. A. K. Patra and P. K. Mascharak, Inorg. Chem., 2003, 42, 7363 CrossRef CAS PubMed.
  56. A. A. Eroy-Reveles, Y. Leung, C. M. Beavers, M. M. Olmstead and P. K. Mascharak, J. Am. Chem. Soc., 2008, 130, 4447 CrossRef CAS PubMed.
  57. C. Xin Zhang and S. J. Lippard, Curr. Opin. Chem. Biol., 2003, 7, 481 CrossRef.

Footnote

† Electronic supplementary information (ESI) available. CCDC 1404108. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c6ra17223g
