Carbon dioxide affects the phase transition of poly(N-isopropylacrylamide)

Abstract

The effects of atmospheres of CO₂ and N₂ on the lower critical solution temperature (LCST) of poly(N-isopropylacrylamide) (PNIPAAm) in aqueous solution have been investigated using high-pressure differential scanning calorimetry (HP-DSC). In the absence of CO₂ and N₂, the phase transition—from the hydrated to dehydrated state—of PNIPAAm in aqueous solution was characterized by an endothermic peak near 30.5 °C, namely the LCST. This endothermic peak shifted to relatively lower temperature upon increasing the pressure of CO₂, but shifted slightly to higher temperature under a higher pressure of N₂. This behavior appears to be associated with the CO₂ molecules displacing the H₂O molecules from around the amide groups of PNIPAAm upon increasing the pressure, thereby enhancing the formation of intramolecular hydrogen bonds between the amide groups; in contrast, increasing the N₂ pressure strengthened the interactions of H₂O with the apolar isopropyl and amide groups. Despite the difference in the effects of CO₂ and N₂ on the LCST, higher pressures of CO₂ and N₂ both led to more positive changes in enthalpy (ΔH) for the phase transition per mole of NIPAAm units. The higher values of ΔH at higher CO₂ pressures presumably resulted from the formation of strong intramolecular hydrogen bonds. For a given CO₂ pressure, the value of ΔH was less positive at higher concentrations of PNIPAAm, suggesting a lesser degree of disruption of hydrogen bonds during its HP-DSC heating scans. Under a given pressure of CO₂, the addition of a salt (NaCl, KCl, KBr) led to a further decrease in the LCST and the value of ΔH of the aqueous PNIPAAm solution, due to the salt ions coordinating H₂O molecules.

---

Introduction

Poly(N-isopropylacrylamide) (PNIPAAm) is soluble in water and adopts a coil conformation at relatively low temperature, whereas it is insoluble and has a globule conformation at temperatures higher than its lower critical solution temperature (LCST, ca. 32 °C).^1–5 The coil–globule phase transition of PNIPAAm in aqueous solution at the LCST is an endothermic process that can be observed in DSC heating curves;^6,7 it results from dehydration of ordered H₂O molecules around the polar amide and apolar isopropyl groups. The Maeda⁸ and Sun⁹ groups used Fourier transform infrared (FTIR) spectroscopic analyses to investigate the dehydration of the isopropyl groups at higher temperatures, observing the shift to lower wavenumbers of the asymmetric C–H stretching band of the isopropyl groups. Maeda et al.⁸ also found that dehydration of the polar amide groups occurred at temperatures above the LCST, but most of the C=O functionalities (ca. 87%) in the amide groups of PNIPAAm in the globule state remained hydrogen-bonded with H₂O molecules while the others (ca. 13%) formed intra- or interchain hydrogen bonds with the N–H units of PNIPAAm. The addition of metal halide salts (e.g., NaCl, KCl, KBr, KI) can expedite the dehydration, thereby lowering the LCST of PNIPAAm in aqueous solutions.^8,10 These hygroscopic substances are commonly used as salting-out agents to separate less-hydrophilic molecules from H₂O.

The C=O groups in polymers can interact specifically with CO₂ molecules, leading to much more significant dissolution of CO₂ in these polymers than that of N₂, which does not interact with C=O groups.^11–13 The presence of CO₂ around the C=O groups of PNIPAAm in aqueous solutions might, therefore, displace H₂O molecules from around the apolar isopropyl groups and/or the polar amide groups, thereby decreasing the LCST of PNIPAAm. In this study, we used high-pressure differential scanning calorimetry (HP DSC) to monitor the effect of CO₂ on the LCST behavior of PNIPAAm aqueous solutions with respect to the CO₂ pressure. For comparison, we also examined the effects of the N₂ pressure and hygroscopic salts (metal halides) on the phase transitions of PNIPAAm aqueous solutions.

Experimental section

PNIPAAm

The PNIPAAm polymer was prepared through free radical polymerization of NIPAAm monomer (Tokyo Kasei) using azobis(isobutyronitrile) (AIBN, Aldrich) as the free radical initiator. To prepare low-molecular-weight PNIPAAm, the purified NIPAAm monomer and AIBN (molar ratio: 50 : 1) were dissolved in MeOH and heated at 55 °C for 2 h under a N₂ atmosphere; the total concentration of NIPAAm and AIBN was 2.2 M. To prepare high-molecular-weight PNIPAAm, a homogeneous reactant mixture (NIPAAm/AIBN molar ratio: 40 : 1) was loaded in an 8 mL vial and then placed in a 200 mL high-pressure vessel. CO₂ was loaded into the high-pressure vessel and the free radical polymerization of NIPAAm was conducted under a CO₂ pressure of 27.6 MPa at 55 °C for 8 h. After polymerization, the vessel was depressurized and the settled product inside the vial was subjected to purification as described previously.¹⁴ Using an Ubbelohde viscometer, the intrinsic viscosity ([η]) was measured; the molecular weight was calculated using the equation¹⁵

[η] = 2.99 × 10⁻²M^0.64_w

The calculated molecular weights of the low- and high-molecular-weight PNIPAAm samples were 3.90 × 10⁵ and 1.13 × 10⁶ g mol⁻¹, respectively.

HP-DSC measurements of phase transitions of aqueous PNIPAAm solutions

Certain amounts of PNIPAAm were dissolved in deionized water to prepare aqueous PNIPAAm solutions having concentrations of 1.5, 5, and 10 wt%. A portion (ca. 5 mg) of the aqueous solution was taken (micropipette) and placed into an aluminum sample pan and weighed; the pan loaded without a lid was into the heating chamber of a HP-DSC apparatus (HP DSC-Q20p, TA Instruments). The chamber was then purged with CO₂ for 5 min before heating under CO₂ at pressures of 0.69, 1.38, 2.07, 2.76, 3.45, and 4.14 MPa while increasing the temperature from 20 to 40 °C at a rate of 2 °C min⁻¹. For comparison, the HP-DSC apparatus was also purged with N₂ for 5 min before heating under N₂ at pressures of 1.38 and 2.76 MPa while increasing the temperature from 20 to 40 °C at a rate of 2 °C min⁻¹. The peak temperature and area of the endothermic peak in the first heating curve of each sample were recorded and taken to be the LCST and enthalpy, respectively, of the phase transition of the PNIPAAm aqueous solution. A 5 wt% PNIPAAm aqueous solution containing 1 wt% of a salt (KBr, KCl, or NaCl) was also heated under CO₂ at various pressures in the HP-DSC apparatus to investigate the effects of salts on the phase transitions of aqueous PNIPAAm solutions.

Results and discussion

Effects of CO₂ and N₂ on LCST behavior of aqueous PNIPAAm solutions

Fig. 1 and 2 present the HP-DSC first heating curves for aqueous PNIPAAm solutions of 1.5, 5, and 10 wt% in CO₂ and N₂, respectively, at various pressures. An endothermic peak appears in every heating scan, corresponding to the coil-to-globule phase transition¹⁶ of the aqueous PNIPAAm solution from the dissolved state to the turbid state.^6,7 For PNIPAAm solutions with different concentrations without CO₂, the peaks were ca. 30.5 °C and the peak in Fig. 1(A)–(C) shifted to lower temperatures upon increasing the CO₂ pressure; in contrast, it remained almost unchanged upon increasing the pressure of N₂, as revealed in Fig. 2(A)–(C). In other words, the LCST of aqueous PNIPAAm solutions could decrease upon increasing the CO₂ pressure, but slightly increase upon increasing the N₂ pressure.

Fig. 1 (A–C) HP-DSC first-heating curves (2 °C min⁻¹) of (A) 1.5, (B) 5, and (C) 10 wt% aqueous PNIPAAm solutions under CO₂ at pressures of (a) 0, (b) 0.69, (c) 1.38, (d) 2.07, (e) 2.76, (f) 3.45, and (g) 4.14 MPa. (D) Summary of the corresponding LCSTs and values of ΔH.

Fig. 2 (A–C) HP-DSC first-heating curves (2 °C min⁻¹) of (A) 1.5, (B) 5, and (C) 10 wt% aqueous PNIPAAm solutions under N₂ at pressures of (a) 0, (b) 1.38, and (c) 2.76 MPa. (D) Summary of the corresponding LCSTs and values of ΔH.

Because the C=O groups in polymers can interact specifically with CO₂,¹¹ but not with N₂, the dissolution of CO₂ in such polymers can be much greater than that of N₂.^12,13 Fig. 1(D) reveals that the LCSTs of the aqueous PNIPAAm solutions clearly decreased upon increasing the pressure of CO₂ at various concentrations. In contrast, the LCST increased slightly upon increasing the N₂ pressures, as displayed in Fig. 2(D). This behavior can be attributed to CO₂, but not N₂, displacing the H₂O molecules around the apolar isopropyl groups and/or the polar amide groups in PNIPAAm. Upon increasing the CO₂ pressure, the displacement of H₂O molecules increased and the formation of intramolecular hydrogen bonds between the amide groups in PNIPAAm was, thereby, promoted, leading to a decrease in its LCST. Upon increasing the N₂ pressure, the increase in the LCST might be attributable to the pressure effect of N₂: enhancing the interactions of H₂O with the apolar isopropyl and polar amide groups of PNIPAAm and, thereby, promoted the solvation and/or hydrogen bonding of these groups with H₂O, leading to an increase in the LCST. Scheme 1 summarizes the possible interactions of PNIPAAm in aqueous solutions under N₂ and CO₂.

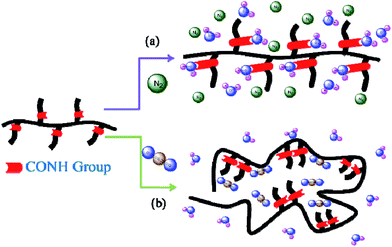

Scheme 1 Cartoon representation of the possible interactions of PNIPAAm under (a) N₂ and (b) CO₂ atmospheres.

Effects of CO₂ and N₂ on value of ΔH of phase transition of PNIPAAm solution

Fig. 1(D) and 2(D) and Table S1† summarize the enthalpy changes (ΔH) and LCST behavior of the coil-to-globule phase transitions of aqueous PNIPAAm solutions at three different concentrations, as measured through HP-DSC under various pressures of CO₂ and N₂, respectively. The coil-to-globule phase transition of PNIPAAm in H₂O upon heating is an endothermic process resulting from disruption of the interactions of H₂O with the apolar isopropyl groups and the hydrogen bonds of H₂O with the polar amide groups. Despite the difference in the effects of the pressure of CO₂ and N₂ on their LCST as discussed above, relatively high pressures of CO₂ and N₂ both led to more positive values of ΔH for the phase transition per mole of NIPAAm units. Because the LCST of the aqueous PNIPAAm solution decreased upon increasing the pressure of CO₂, we were surprised that a higher CO₂ pressure provided a more positive value of ΔH for the phase transition of PNIPAAm. This finding suggests that although the displacement of H₂O molecules by CO₂ molecules led to a decrease in LCST, the formation of intramolecular hydrogen bonds among the amide groups was promoted under CO₂, thereby increasing the value of ΔH upon increasing the CO₂ pressure. For a given pressure of CO₂ or N₂, the endothermic value of ΔH was lower at higher concentrations of PNIPAAm, as is evident in Fig. 1(d) and 2(d). This behavior might be associated with less disruption of the hydrogen bonds during the heating of PNIPAAm at higher concentrations.

Effect of salts on LCST and value of ΔH of phase transition of PNIPAAm solution

NaCl, KCl, and KBr are hygroscopic salts that can be used as salting-out agents to separate less-hydrophilic molecules from H₂O. They are soluble in H₂O and dissociate into their constituent anions and cations, which interact strongly with the positive and negative ends, respectively, of H₂O dipoles, leading to hygroscopicity in air and rapid dissolution in H₂O. Fig. 3 displays the variations in the LCSTs of 5 wt% PNIPAAm solutions containing 1 wt% of KBr, KCl, or NaCl, plotted with respect to the pressure of CO₂. The LCST of each sample decreased upon the addition of each salt at each CO₂ pressure. This behavior is consistent with these salts coordinating to H₂O molecules and, thereby, decreasing the solvation power of H₂O molecules to the apolar isopropyl groups and the hydrogen bonding of H₂O molecules to the polar amide groups of PNIPAAm. In the absence of CO₂, the solvation power and/or hydrogen bonding of H₂O decreased the most in the presence of NaCl, followed by KCl and, to the least extent, KBr. This sequence suggests that NaCl absorbs H₂O the most and KBr the least, with KCl in between the two extremes. A Na⁺ cation is smaller than a K⁺ cation, and a Cl⁻ anion is smaller than a Br⁻ anion. Because the weight concentration of each added salt was 1 wt%, a smaller cation or anion would give a higher molar concentration of the dissociated ions and, thus, a higher ionic strength, resulting in greater absorption of H₂O molecules.

Fig. 3 LCSTs and values of ΔH for the phase transitions of 5 wt% aqueous PNIPAAm solutions containing 1 wt% of a salt (KBr, KCl, or NaCl), determined from HP-DSC first-heating scans (2 °C min⁻¹) under CO₂ at various pressures.

Fig. 3 and Table S2† also summary the values of ΔH for the phase transitions of aqueous PNIPAAm solutions in the presence of these salts. For a given pressure of CO₂, the endothermic value of ΔH decreased upon the addition of a salt. NaCl, with its greatest ionic strength, caused the greatest decrease in the value of ΔH, while KBr, of lowest ionic strength, induced the lowest decrease. Upon the addition of a salt, the decrease in the value of ΔH for the phase transition of PNIPAAm in aqueous solution indicated greater disruption of the interactions/hydrogen bonds of H₂O with the apolar isopropyl groups and the polar amide groups of PNIPAAm, suggesting that the H₂O molecules around the apolar isopropyl groups and the polar amide groups had been absorbed by the added salt. Thus, the decreases in the LCST of PNIPAAm induced by CO₂ or the salts arose through different mechanisms: the CO₂ molecules displacing H₂O molecules and the salts absorbing H₂O molecules from around the apolar isopropyl groups and the polar amide groups of PNIPAAm.^17,18

Effect of molecular weight of PNIPAAm on CO₂-dependent LCST

Two PNIPAAm polymers having different weight-average molecular weights (M_w) were used to investigate the effect of molecular weight on the CO₂-dependent LCST and values of ΔH as shown in Table S3.† Fig. 4 reveals that, for both polymers, the LCST decreased and the value of ΔH increased upon increasing the pressure of CO₂. The higher-M_w polymer provided the lower LCST at any CO₂ pressure observed through HP-DSC. The lower LCST for the higher-M_w PNIPAAm may have arisen from greater entanglement, more intrachain hydrogen bonds, and more hydrophobic interactions; similar phenomena have been reported previously.^19–25 The greater degree of intrachain hydrogen bonding and hydrophobic interactions in the higher-M_w PNIPAAm should lead to less intermolecular hydrogen bonding between PNIPAAm and H₂O at any CO₂ pressure; if so, less heat would be required to disrupt the intermolecular hydrogen bonds during the phase transition at the LCST. Indeed, the enthalpy change (ΔH = 3.44 kJ mol⁻¹) for the phase transition at the LCST for the higher-M_w PNIPAAm was lower than that (ΔH = 4.09 kJ mol⁻¹) for the lower-M_w PNIPAAm.

Fig. 4 LCSTs and values of ΔH for the phase transitions of 5 wt% aqueous PNIPAAm solutions [weight-average molecular weights: 0.39 × 10⁶ (low M_w) and 1.13 × 10⁶ (high M_w) g mol⁻¹], determined from HP-DSC first-heating scans (2 °C min⁻¹) under CO₂ at various pressures.

Conclusions

The interactions of CO₂ with the C=O units of PNIPAAm can displace H₂O molecules from around the amide groups of PNIPAAm in aqueous solution leading to a decrease in the LCST of the polymer. In contrast, under N₂, which does not interact with the C=O units of PNIPAAm, the H₂O molecules can interact more strongly with the apolar isopropyl and polar amide groups of PNIPAAm in aqueous solution, resulting in an increase in the LCST of the polymer. Despite the difference in the effects of CO₂ and N₂ on the shifting LCST, higher pressures of CO₂ and N₂ both led to increases in the endothermic value of ΔH for the phase transition of PNIPAAm. The addition of salts (NaCl, KCl, KBr) further decreased the LCST of PNIPAAm in aqueous solution at any CO₂ pressure, due to the absorption of H₂O by the salts in addition to the displacement of H₂O molecules by CO₂ molecules.

Acknowledgements

We thank the Ministry of Science and Technology of Taiwan for supporting this study financially under contract MOST 103-2221-E-390-030.
