Highly efficient dye-sensitized solar cell performance from template derived high surface area mesoporous TiO₂ nanospheres

Abstract

High surface area mesoporous anatase TiO₂ spheres are synthesized using ethylene glycol as a template by a solvothermal method. Electron microscopy studies revealed the formation of smooth surfaced mesoporous spheres with uniform size. A high surface area of 221.52 m² g⁻¹ is obtained for the titanium tetraisopropoxide concentration of 0.5 mL. X-Ray diffraction and Raman analyses revealed the formation of anatase phase TiO₂. Uniform deposition of a mesoporous film for a photoanode was achieved by an optimized spray deposition method. The effects of the ruthenium dye-sensitizer N719 and indoline dye-sensitizer D205 on the dye sensitized solar cell performance are investigated. Maximum efficiencies of 8.96 and 9.02% are achieved using the sensitizers N719 and D205, respectively; from the mesoporous anatase TiO₂ sphere coated DSSC. IPCE analyses revealed that the mesoporous spheres efficiently collected the incident photons and achieved a conversion efficiency over 80% by internal reflections and a scattering process.

---

1. Introduction

Dye-sensitized solar cells (DSSCs) have attracted significant attention because of their potential in achieving efficient low-cost solar energy conversion, compared with silicon and group III–group V solar cells.^1–6 DSSCs typically consist of a fluorine-doped tin oxide (FTO) layer, photoanode, dye, electrolyte, and counter electrode.^7–10 Wide-band gap semiconductors such as ZnO and TiO₂ are well suited to and frequently used as photoanode materials. TiO₂ has a good affinity for organic molecules and a similar band alignment with common dyes. Therefore it is a preferred photoanode material over ZnO.^11–13 The highest reported DSSC energy conversion efficiency of 13% has been achieved using a TiO₂ nanoparticle film as the photo anode material.¹⁴ Several factors are responsible for cell performance. Increasing the light harvesting efficiency will enhance the energy conversion efficiency. Semiconductor oxides with mesoporous structures have higher internal surface areas than the ones with nanocrystalline structures.^15–19

Much effort has been made to modify the structure of photoanode materials. Sung Hoon et al.²⁰ prepared mesoporous TiO₂ films using graft co-polymers as a template, achieving a maximum efficiency of 4.6%. Satyanarayana Reddy et al.²¹ used a soft template method for preparing mesoporous TiO₂ by employing various cationic surfactants as structure-directing and pore-forming agents. They achieved an efficiency of 7.5%. Hun-Gi Jung et al.²² synthesized mesoporous TiO₂ spheres by a urea-assisted hydrothermal process. The resulting mesoporous TiO₂ electrode exhibited a higher efficiency (7.54%) than a commercial P25 TiO₂ electrode (5.69%). Xiaohuan et al.²³ had prepared mesoporous anatase TiO₂ microspheres by solvothermal process using phenol as a solvent. The average diameter of the synthesized spheres was 3 μm with the surface area of 168 m² g⁻¹. It yielded the conversion efficiency of 7.94%. Yuli Xiong²⁴ and his co-workers prepared highly ordered anatase 2D hexagonal mesoporous titania particles by ultrasonication method. Pluronic P123 was used as a surfactant template and HCl, H₂SO₄ as an acidic catalyst. It has the surface area of 121 m² g⁻¹ and the device exhibited the efficiency of 4.93%. Jia-de-peng et al.²⁵ synthesized mesoporous TiO₂ spheres by hydrothermal method with an average diameter of 500 ± 60 nm with the surface area of 108.1 m² g⁻¹. The photoanode made of these spheres yielded the cell efficiency of 6.18%. Juti et al.²⁶ had synthesized the mesoporous anatase TiO₂ spheres by facile microwave assisted hydrothermal method. The average sizes of the spheres were around 800 nm with the surface area of 222 m² g⁻¹. The cell yielded the efficiency of 5.72%. Peter Chen et al.²⁷ prepared mesoporous anatase TiO₂ spheres by microwave assisted hydrothermal method. The size of the spheres was in the range of 400–600 nm with the surface area of 132.49 m² g⁻¹. The efficiency of the cell is 5.43%. Under the optimum condition with the scattering layer, the conversion efficiency was increased to 6.92%. Chang Soo et al.²⁸ prepared mesoporous anatase TiO₂ spheres by facile non hydrothermal method, synthesizing bulk calcinations process in which polymer ethyl cellulose were used a structure directing agent. Nanocrystalline layer exhibits the cell efficiency of 5.0%, when the mesoporous TiO₂ spheres were used as a scattering layer the efficiency was increased to 6.1%. Luo Tu et al.²⁹ fabricated the DSSC using mesoporous TiO₂ microspheres. The average size of the spheres was 1.1 μm with the surface area of 137 m² g⁻¹. The cell yielded the efficiency of 6.6%. Hui Tong³⁰ and his coworkers synthesized mesoporous TiO₂ microspheres by sol–gel method. The average diameter of the spheres was about 0.5 μm. They had investigated the surface area and pore size of the spheres without template (123 m² g⁻¹, 6.2 nm), with template Pluronic F127 as a template (148 m² g⁻¹, 5.4 nm) and TiO₂ aggregates (107 m² g⁻¹, 10.6 nm). TiO₂ aggregates with higher pore size gives good efficiency of 5.6% whereas the cell efficiency for without and with template were reported as 3.6% and 4.1%.

Photoanode materials consisting of mesoporous frameworks lead to good efficiencies. Their large surface area and interconnected network facilitate dye loading, charge transport, and light scattering.³¹ Moreover, the high surface area with interconnected mesoporous TiO₂ spheres is required to obtain the high efficiency in DSSC. In this study, mesoporous anatase TiO₂ spheres with high surface area were solvothermally prepared using ethylene glycol as a templating agent. The effect of the titanium tetraisopropoxide (TTIP) precursor concentration on the formation and functional properties was investigated. The mesospheres were used to prepare photoanodes by spray deposition method. The effects of the sensitizers N719 and D205 on dye-sensitized solar cells performance were investigated.

2. Experimental method

2.1 Solvothermal growth of mesoporous TiO₂ spheres

All chemicals were purchased from Wako Chemicals (Japan) and were used without further purification. Two steps were typically followed to prepare the TiO₂ mesospheres.

2.1.1 Formation of titania glycolate spheres. Titanium tetraisopropoxide (0.5, 1.0, 1.5 and 2.0 mL) was added to ethylene glycol (50 mL). The solution was stirred for 5 h at room temperature, and then added to acetone bath (150 mL) containing trace water. The solution was stirred for 2 h to form a white suspension which was collected by centrifugation, thoroughly washed with distilled water and ethanol to remove impurities, and dried at 80 °C for 10 h. The samples were termed as S1 (0.5 mL), S2 (1.0 mL), S3 (1.5 mL) and S4 (2.0 mL), respectively.

2.1.2 Formation of mesoporous TiO₂ spheres. The titania glycolate spheres were dispersed in an equal volume of water and ethanol (30 mL), and stirred for 2 h. The white solution was transferred to a 100 mL Teflon-lined stainless steel autoclave, and heated at 150 °C for 12 h. The resulting product was collected and annealed at 300 °C for 2 h.

2.2 Characterization

Surface morphologies were observed by field-emission scanning electron microscopy (FESEM) with a JEOL JSM 7001F microscope. Transmission electron microscopy (TEM) images were recorded using a JEOL JEM 2100F microscope at an accelerating voltage of 200 kV. Crystalline phases were determined by X-ray diffraction (XRD), using a Rigaku diffractometer (RINT-2200, Japan, CuK_α radiation) with a 0.02° s⁻¹ scan rate. Raman spectra were obtained using a JASCO NR-1800 spectrometer. Ultraviolet-visible (UV-vis) absorption spectra were measured using a Shimadzu 3100 PC spectrophotometer (Japan). Fourier transform infrared (FTIR) spectra were recorded using a JASCO MFT 2000 spectrometer from KBr pellet samples. Current density and voltage (I–V) characteristics were measured at an air mass of AM 1.5 (100 mW cm⁻² of simulated sunlight) by a JASCO solar simulator equipped with a Keithley picoammeter. Impedance analysis was performed using Solartron (model no. 1280C) Electrochemical Test System.

2.3 Dye-sensitized solar cell fabrication

The fabrication procedure was adopted from our previous report.³¹ Mesoporous TiO₂ powder was dispersed in ethanol, and ground for 30 min using an ultrasonic processor. Five drops of triton-X were added to the solution as a binder. The solution was sprayed on FTO glass (Nippon Sheet Glass, 8.7 Ω sq.⁻¹, 80% transparency in the visible range) at 150 °C by spray pyrolysis. The TiO₂ films were annealed at 450 °C for 2 h. The resulting photoanodes were soaked in an ethanol solution containing 0.03 M di-tetrabutylammonium cis-bis(isothiocyanato)bis(2,2′′-bipyridyl-4,4′-dicarboxylato)ruthenium(II) (N719) for 12 h. The photoanode was clamped with a Pt-coated FTO counter electrode to form a sandwich-type cell. A redox electrolyte solution was filled between the electrodes by capillary action to form the cell. The electrolyte consisted of 0.6 M dimethylpropylimidazolium iodide, 0.1 M lithium iodide, 0.01 M iodine, and 0.5 M tetrabutylpyridine in acetonitrile (FUNCHEM, Tomiyama electrolyte company, Japan).

3. Results and discussion

Fig. 1–4 show FESEM and TEM images of the titania glycolate and TiO₂ spheres. The TTIP concentrations used in the preparations were 0.5, 1.0, 1.5 and 2.0 mL for Fig. 1–4, respectively. Fig. 1–4(a) show typical FESEM images of the titania glycolate spheres, which exhibited an average size of 100–200 nm and very smooth surfaces. Porous TiO₂ spheres were formed after solvothermal treatment, as shown in Fig. 1–4(b). TEM images of the porous TiO₂ spheres are shown in Fig. 1–4(c). The formation of the spherical structure depended on the precursor concentration. When the TTIP concentration was 0.5 mL, the resulting TiO₂ spheres exhibited good interconnectivity and defined boundaries as shown in Fig. 1(c). As the TTIP concentration increased to 1.0, 1.5 and 2.0 mL, the morphology of the products became progressively more irregular. Defined boundaries were not observed in Fig. 2(c). High-magnification TEM images of products prepared from TTIP concentrations of 0.5, 1.0, 1.5 and 2.0 mL are shown in Fig. 1–4(d), respectively. High-resolution TEM (HRTEM) images are shown inset. The prepared materials exhibited good crystallinity with an average particle size of 5–8 nm. Thus, the TiO₂ mesosphere morphology could be tuned by the concentration of the TTIP precursor.

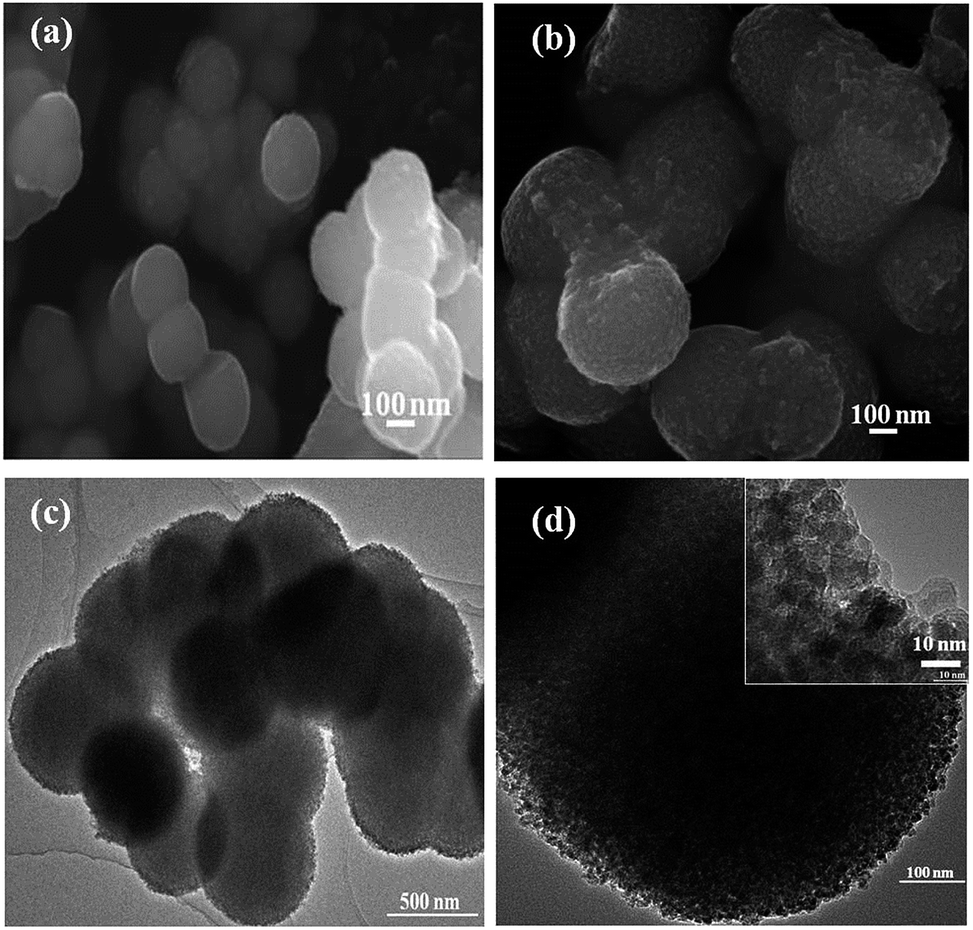

Fig. 1 FESEM images of (a) titania glycolate spheres and (b) mesoporous TiO₂ spheres, (c)–(d) TEM images of mesoporous TiO₂ spheres (inset shows a HRTEM image) of S1.

Fig. 2 FESEM images of (a) titania glycolate spheres and (b) mesoporous TiO₂ spheres, (c)–(d) TEM images of mesoporous TiO₂ spheres (inset shows a HRTEM image) of S2.

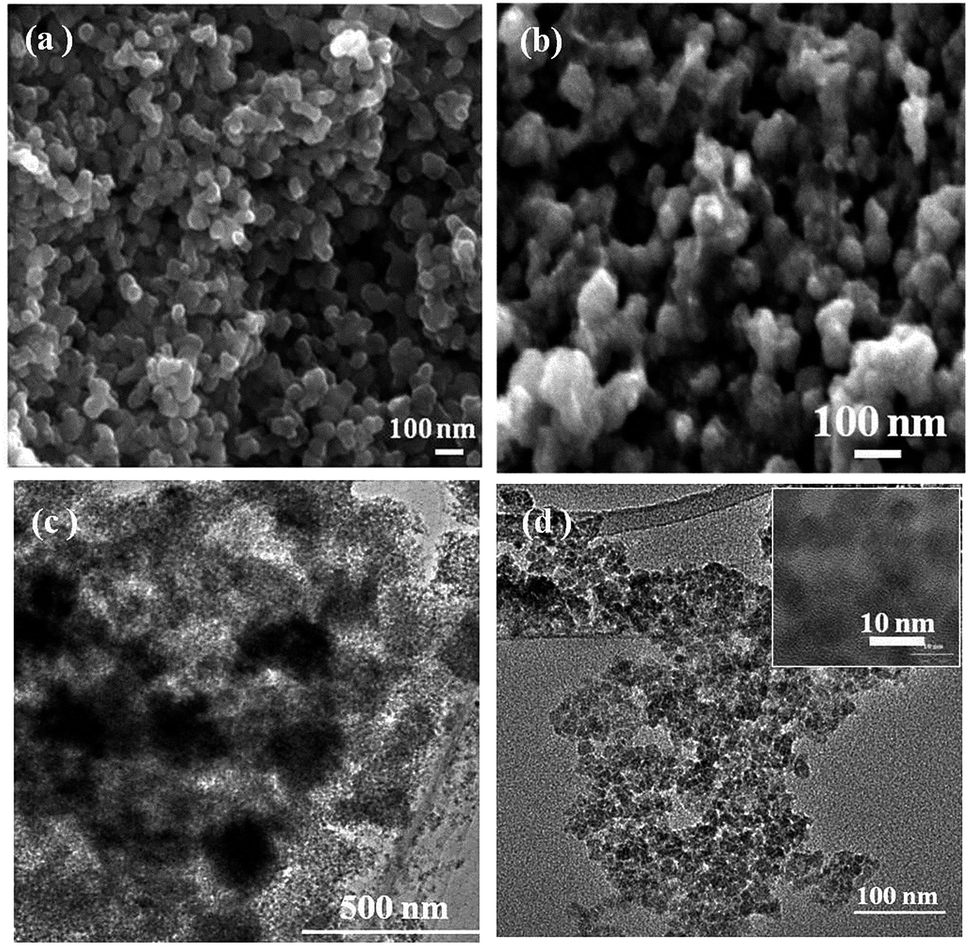

Fig. 3 FESEM images of (a) titania glycolate spheres and (b) mesoporous TiO₂ spheres, (c)–(d) TEM images of mesoporous TiO₂ spheres (inset shows a HRTEM image) of S3.

Fig. 4 FESEM images of (a) titania glycolate spheres and (b) mesoporous TiO₂ spheres. (c)–(d) TEM images of mesoporous TiO₂ spheres (inset shows a HRTEM image) of S4.

Brunauer–Emmett–Teller (BET) analysis was performed to determine the surface area of the TiO₂ spheres, and to better understand their mesoporous frameworks.³³ Fig. 5(a) shows N₂ adsorption–desorption isotherms and pore size distributions estimated using the Barrett–Joyner–Halenda (BJH) analysis. Fig. 5(b) shows that all isotherms exhibited type IV behavior with H1 hysteresis loops, which is characteristic of mesoporous structures. The surface area of the samples prepared from various TTIP concentrations were determined from BET analysis. A TTIP concentration of 0.5 mL resulted in a surface area of 221.52 m² g⁻¹. TTIP concentrations of 1.0, 1.5 and 2.0 mL resulted in surface areas of 169.60, 166.52 and 133.68 m² g⁻¹, respectively. Thus, an increasing TTIP concentration resulted in decreased BET surface areas. This was in good agreement with the TEM results, which showed a similar trend.

Fig. 5 (a) N₂ sorption isotherms and (b) BJH pore size distribution of the mesoporous TiO₂ spheres and (c) schematic formation mechanism of the mesoporous TiO₂ spheres.

The formation process of the mesoporous TiO₂ is shown in Fig. 5(c). Titanium metal oxides contain moisture-sensitive alkoxide groups, so TTIP tends to hydrolyze during titania synthesis. A high hydrolysis rate leads to non-uniform products, so it is necessary to slow this process. Branched alkoxy ligands sterically suppress hydrolysis, so ethylene glycol was chosen to suppress hydrolysis by the nucleophilic substitution mechanism. The alkyl chain of ethylene glycol coordinates with TiO₂ nuclei to form titania glycolate,³² according to:

Ti(OiPr)₄ + 2HO(CH₂)₂OH → Ti((OCH₂)₂)₂ + 4iPrOH (1)

Titania glycolate was treated with acetone to enhance the hydrolysis of the glycolate precursor, and a solvothermal process was employed to synthesis the mesoporous anatase TiO₂ spheres. During this process, coordination between the alkyl chain of ethylene glycolate and titania was broken. Releasing the alkoxy group from the product resulted in the mesoporous TiO₂. TEM indicated that the increased TTIP concentration affected the structure of the TiO₂ spheres. The number of TiO₂ nuclei was proportional to the number of alkoxy groups released from ethylene glycol. Increasing the TTIP concentration from 0.5 to 2.0 mL increased the number of TiO₂ nuclei in solution. The alkyl chain content of ethylene glycol is constant, so the resulting imbalance in coordination bonds was responsible for the formation of the different surface morphology. Thus, the TTIP concentration played an important role in determining the particle morphology. 0.5 mL of TTIP evidently provided favorable coordination between TiO₂ nuclei and alkyl chains, because defined interconnected structures were observed when comparing with higher TTIP concentration products.

Fig. 6(a) shows XRD patterns of the samples. Peaks at 25.19, 37.8, 48.1, 53.5, 55.1, 62.3, 70.2 and 75.2° corresponded to reflections from the (101), (004), (200), (105), (204), (220) and (215) crystal planes, respectively. All these diffraction peaks were assigned to anatase TiO₂ (JCPDS card no. 21-1272). No peaks related to other phases such as rutile and brookite were observed. The broadening of the diffraction peaks indicated that the TiO₂ mesoporous spheres were composed of smaller particles. Fig. 6(b) shows the Raman spectrum of the mesoporous TiO₂ spheres. According to factor group theory, anatase TiO₂ has six Raman active modes (A_1g + 2B_1g + 3E_g). Oshaka et al. reported that these six allowed bands were consistent with the first-order Raman spectrum.³⁴ These bands were observed at 144 (E_g), 197 (Eg), 399 (B_1g), 513 (A_1g), 519 (B_1g) and 639 (E_g) cm⁻¹.^35,36 In the current study, Raman bands of the TiO₂ mesospheres at 148, 400, 518, and 640 cm⁻¹ corresponded to the anatase phase. The observed bands were in agreement with the bands of anatase TiO₂. The E_g and B_1g bands were shifted to a slightly higher wavenumber. Choi et al. attributed this shift to two main factors. The first was a contraction of nanoparticle volume caused by the radial pressure, which tends to increase the force constant (k). The second was the effect of contraction, which decreases the vibrational amplitude of associating neighbor bonds, because of increased static disorder.³⁷ The shift in Raman peaks occurred because of the decrease in particle size, because the TiO₂ sample consisted of small particles as shown by HRTEM.

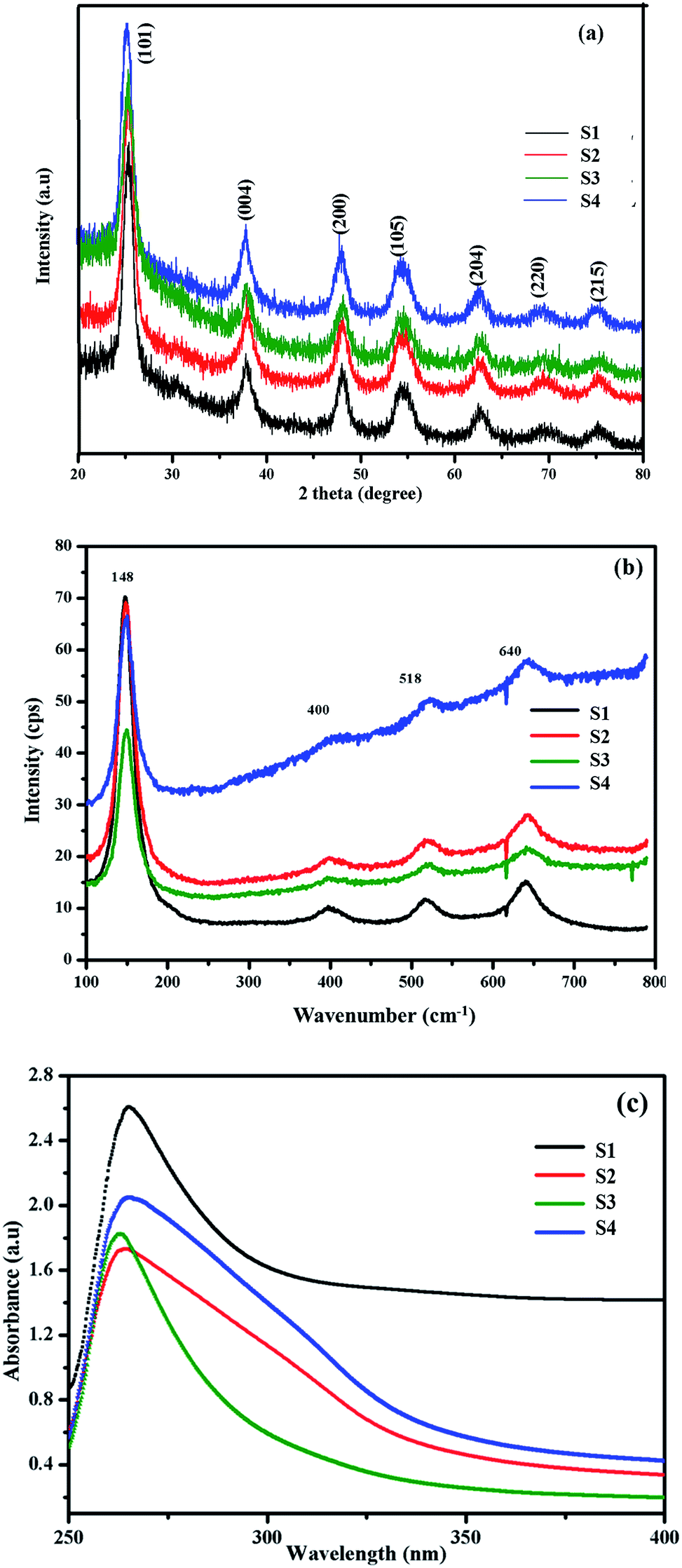

Fig. 6 (a) XRD patterns, (b) Raman spectra and (c) optical absorption spectra of the mesoporous TiO₂ spheres.

Fig. 6(c) shows UV-vis absorption spectra of the samples. All samples exhibited a significant absorption onset at wavelength less than 400 nm. This is attributed to the intrinsic band gap absorption of TiO₂. An optical absorption onset in the visible region was expected, because the mesospheres possess significant light scattering capability. The TiO₂ mesospheres facilitated visible photon absorption by the dye, and enhanced light harvesting during DSSC performance. TiO₂ mesospheres (0.5 mL of TTIP) exhibited higher absorbance compared to other samples which indicated that it possessed excellent optical properties.

The obtained TiO₂ mesospheres coated photoanode (0.5 mL TTIP) was cleaved to identify the nature of the deposition, interface of FTO:TiO₂ mesospheres and morphology of TiO₂ mesospheres. Fig. 7(a) and (b) shows the FESEM images of cross-section and top views of photoanode, respectively. The TiO₂ mesospheres were well-deposited on the FTO layers and possessed the mesoporous sphere morphology as shown in the inset of the figure. Top view of the photoanode revealed that the TiO₂ mesospheres were deposited uniformly without any cracks and the good interconnectivity of the mesospheres which enhances the dye adsorption and electron transport.

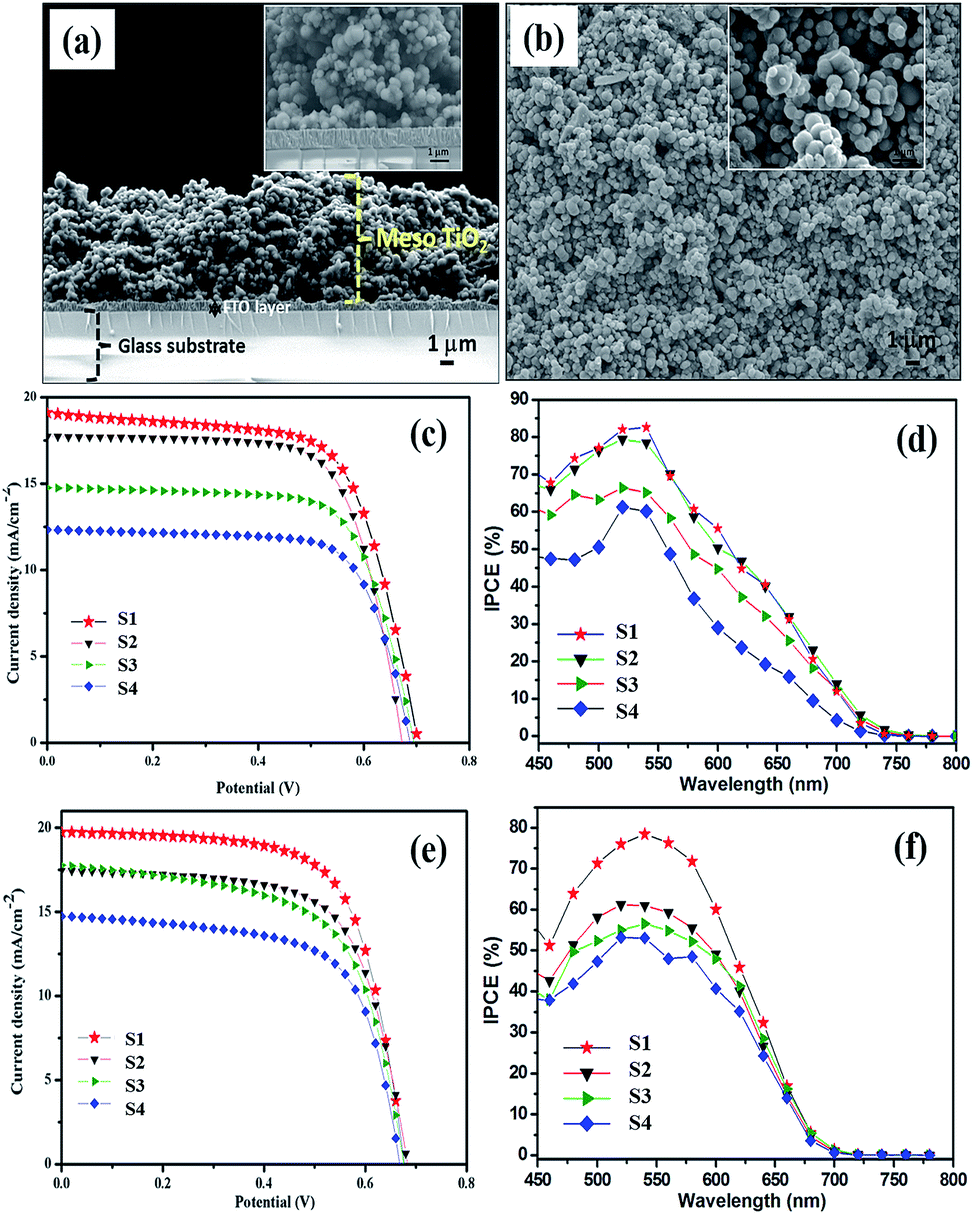

Fig. 7 FESEM images of (a) cross-section, (b) top views of mesoporous TiO₂ spheres (0.5 mL TTIP) coated photoanode (inset: magnified regions), (c) J–V (N719 dye), (d) IPCE characteristic curves of DSSCs (N719 dye), (e) J–V (D205 dye) and (f) IPCE characteristics of DSSCs (D205 dye).

Fig. 7(c) shows I–V curves of N719 sensitized DSSCs. Their photovoltaic parameters are summarized in Table 1. The DSSC containing the electrode fabricated with TiO₂ mesospheres (0.5 mL of TTIP) exhibited a high energy conversion efficiency of 8.96%, because of its higher J_sc value of 19.09 mA cm⁻². The DSSCs containing electrodes prepared with 1.0, 1.5 and 2.0 mL of TTIP exhibited gradually decreasing J_sc values of 17.72, 14.77 and 12.32 mA cm⁻², yielding efficiencies of 8.43, 7.22 and 6.05%, respectively. Moreover, amount of the dye adsorptions on the photoanodes were obtained using the UV visible absorption spectrometer by soaking dye-sensitized photoanodes in 1 M NaOH solution. The obtained results are tabulated in Table 1. The TiO₂ mesospheres (0.5 mL of TTIP) coated dye-sensitized photoanodes exhibited a value of 1.95 × 10⁻⁷ mol cm⁻² and this is higher than that of other photoanodes. From the above results, it is evident that the TiO₂ mesospheres (0.5 mL of TTIP) has high surface area, well-defined interconnected mesoporous network and high dye-adsorption and thus facilitated the high efficiency compared to other samples such as 1.0, 1.5 and 2 mL concentration of TTIP.

Table 1 Photovoltaic performance of DSSCs prepared using mesoporous TiO₂ spheres sensitized by N719 dye at AM 1.5 (100 mW cm⁻²)

Device	S1	S2	S3	S4
Thickness (μm)	16 ± 0.5	16 ± 0.5	16 ± 0.5	16 ± 0.5
FF	0.66	0.70	0.70	0.71
Voc (V)	0.70	0.67	0.69	0.68
Jsc (mA cm^−2)	19.09	17.72	14.77	12.32
EFF (%)	8.96	8.43	7.22	6.05
Amount of adsorbed dye (10^−7 mol cm^−2)	1.95	1.68	1.33	1.07
BET surface area (m^2 g^−1)	221.52	169.60	166.52	133.68
IPCE (%)	83.13	79.68	66.87	61.68
Rp (Ω)	3.2	9.2	64.4	148.8

---

The incident photon to current conversion efficiency (IPCE) provide further evidence for the excellent electron transport property of mesoporous TiO₂. Fig. 7(d) shows the IPCE spectra of N719 dye sensitized device prepared using 0.5, 1.0, 1.5 and 2.0 mL of TTIP as photoanode material. The wavelength of N719 sensitized devices is usually observed at a wavelength of 530–550 nm, the IPCE values is observed as 83.13% for 0.5 mL. The increase in the concentration of TTIP to 1.0, 1.5 and 2.0 mL led to the decrease in IPCE value to 79.68, 66.87 and 61.68%. The steady decrease in IPCE value is attributed to the decrease in I_sc by increased concentration of TTIP.^38,39 The improved in IPCE performance was due to enhanced charge generation efficiency, inhibition of electron recombination and high dye loading.^40,41

Metal-free D205 was also used as a sensitizer, in place of the Ru-containing N719 dye, and the performances of the resulting devices were studied. Fig. 7(e) shows the I–V curves of the D205-sensitized devices and the parameters are tabulated in Table 2. Similarly to the results for the N719-sensitized DSSCs, a higher energy conversion efficiency was obtained for the TiO₂ mesospheres (0.5 mL of TTIP) coated DSSC. The conversion and J_sc were 9.02% and 19.74 mA cm⁻², respectively. The J_sc values were 17.77, 17.40 and 14.74 mA cm⁻², and the efficiencies were 7.92, 7.43 and 6.44% for the DSSCs prepared from 1.0, 1.5 and 2.0 mL of TTIP, respectively. The highest efficiencies of 8.96% for N719 and 9.02% for D205 were obtained when 0.5 mL of TTIP was used to prepare the TiO₂ mesospheres. 0.5 mL TTIP concentration resulted in good interconnectivity and defined boundaries, which enhanced dye adsorption and facilitated electron transport, compared with the other TTIP concentrations. Fig. 7(f) shows the incident photon to current conversion efficiency (IPCE) measured was performed on the mesoporous TiO₂. D205 sensitized device has a broad absorption peak covering almost the entire visible spectra from 450–600 nm, the IPCE values is observed as 78.70% for 0.5 mL. With further increase in the concentration of TTIP to 1.0, 1.5 and 2.0 mL led to the decrease in IPCE value to 61.67, 57.26 and 53.71%. To understand the interfacial charge transfer and the recombination process the electrochemical impedance spectra (EIS) were taken in the range of (0–20 kHz). Fig. 8(a) and (b) shows the EIS spectra of the device sensitized by N719 and D205 dye sensitizers, respectively. The charge transfer resistance of the semiconductor electrolyte interface (R_p) can be calculated from the semicircles of the spectrua. Accordingly the device using N719 as a sensitizer, the R_p value is observed as 3.2 Ω for 0.5 mL. Whereas, it increases with higher concentration as 9.2 Ω (1.0 mL), 64.4 Ω (1.5 mL) and 148.8 Ω (2.0 mL). Similarly, in the case of D205 it is noted as 3.0 Ω for 0.5 mL and 6.0 Ω (1.0 mL), 60.5 Ω (1.5 mL) and 120.8 Ω (2.0 mL). In general, the decrease in the R_p value represents the enhancement in the dye adsorption.^42,43 Thus it is worthy to note in both the cases of N719 and D205 as sensitizers the R_p value is lower for the 0.5 mL. It has the good agreement with the TEM and I–V measurements.

Table 2 Photovoltaic performance of DSSCs prepared using mesoporous TiO₂ spheres sensitized by D205 dye at AM 1.5 (100 mW cm⁻²)

Device	S1	S2	S3	S4
Thickness (μm)	16 ± 0.5	16 ± 0.5	16 ± 0.5	16 ± 0.5
FF	0.67	0.66	0.61	0.65
Voc (V)	0.67	0.68	0.67	0.68
Jsc (mA cm^−2)	19.74	17.40	17.77	14.74
EFF (%)	9.02	7.92	7.43	6.44
IPCE (%)	78.70	61.67	57.26	53.71
Rp (Ω)	3.0	6.0	60.5	120.8

---

Fig. 8 EIS spectra of DSSCs prepared using the mesoporous TiO₂ spheres sensitized by (a) N719 and (b) D205 dyes.

4. Conclusions

High surface area mesoporous anatase TiO₂ nanospheres were synthesized by solvothermal growth using ethylene glycol as a template. The effect of the precursor TTIP concentration on the morphology, structure, and optical properties of the mesoporous TiO₂ nanospheres was investigated. TiO₂ nanospheres were characterized by FESEM, TEM, N₂ sorption measurements, XRD, Raman spectroscopy and UV-vis absorption spectrophotometry. A TTIP concentration of 0.5 mL resulted in excellent interparticle connection with well-defined boundaries, compared with higher TTIP concentrations (1.0, 1.5 and 2.0 mL). The TiO₂ mesospheres were used to prepare photoanodes, and the performances of the resulting DSSCs were studied. The effect of the sensitizers N719 and D205 on device performance was investigated. A maximum efficiency of 8.96% was achieved when using N719, and that of 9.02% was achieved when using D205, at a TTIP concentration of 0.5 mL for a thickness of 16 μm.
