An ultra-low bandgap diketopyrrolopyrrole (DPP)-based polymer with balanced ambipolar charge transport for organic field-effect transistors

Abstract

A new A₁–A₂ type polymer pDTDPP–TTF containing diketopyrrolopyrrole (DPP) and 2-ethylhexyl-3-fluorothieno[3,4-b]thiophene-2-carboxylate (TTF) as the main electron-accepting building blocks has been synthesized via Suzuki cross-coupling polycondensation. The introduction of TTF as an additional electron-deficient unit significantly lowers the LUMO energy level of this DPP containing polymer to −4.37 eV which is beneficial for efficient electron injection and transport. The pDTDPP–TTF polymer shows an ultra narrow optical bandgap of 1.06 eV with a broad absorption spectra covering the visible to near infrared region of up to 1300 nm. Solution-processed OFET devices with pDTDPP–TTF as the active semiconducting layer have been fabricated with the configurations of both bottom-gate bottom-contact (BG–BC) and top-gate bottom-contact (TG–BC). The BG–BC devices with SiO₂ as a dielectric exhibit ambipolar behavior with a hole and electron mobility of 1.85 × 10⁻⁴ and 3.55 × 10⁻⁵ cm² V⁻¹ s⁻¹, respectively. Improved OFET performance has been achieved in TG–BC devices by using PMMA as the dielectric; balanced ambipolar charge transport is obtained with a hole and electron mobility of 6.17 × 10⁻³ cm² V⁻¹ s⁻¹ and 3.13 × 10⁻³ cm² V⁻¹ s⁻¹, respectively. To the best of our knowledge, our work is among the very few examples of ultra-low bandgap semiconducting polymers with balanced ambipolar charge transport properties.

---

1. Introduction

Over the past few decades, organic field effect transistors (OFETs) based on semiconducting polymers have been extensively studied and developed for potential applications in flexible displays,^1–4 radio-frequency identification (RFID) tags⁵ and sensors^6,7 etc., due to advantages such as low cost, large area, light weight and mechanical flexibility. Since the first report on polymer based OFET devices was published in 1986,⁸ rapid progress with impressive charge-carrier mobilities (the typical figure of merit) has recently been demonstrated in this field.^9,10 In addition, ambipolar polymer semiconductors, in which both hole and electron charge carriers are demonstrated in a single active layer, have attracted considerable attention for their application in complementary metal–oxide semiconductor (CMOS) digital integrated circuits^11,12 and light-emitting field-effect transistors (LEFETs).^13,14 Although several polymer semiconducting materials exhibited highly efficient ambipolar charge transport performance with mobilities in excess of 1 cm² V⁻¹ s⁻¹,^10,15–17 the balance of ambipolar transport properties remains an important issue to solve.

In general, polymer semiconductors exhibit pronounced ambipolar charge transport behavior when a favorable energetic alignment is achieved such that both hole and electron transport is permitted. This is typically observed in polymer materials that possess a HOMO (highest occupied molecular orbital) energy level higher than ∼−5.5 eV (relative to the vacuum level) and a LUMO (lowest unoccupied molecular orbital) energy level lower than ∼−4.0 eV.¹⁷ Therefore, only relatively low bandgap, at least below 1.5 eV will allow for potential ambipolar transport. Presently, a general approach to achieve ambipolar conjugated polymer semiconductors is to design the polymer framework by involving alternating electron donor (D) and electron acceptor (A) building blocks.^18,19 Highly efficient charge transport capability is often observed for these D–A type polymeric materials primarily due to the presence of efficient orbital overlap along the polymer backbone, which can facilitate intramolecular charge transport.²⁰ Among electron acceptor building blocks, diketopyrrolopyrrole (DPP) has gained vast interest in the past few years for the construction of high charge mobility OFET devices,^{16,17,20–23} primarily due to its planar, conjugated, bicyclical structure and remarkable aggregating properties, which leads to strong π–π interactions with polar carbonyl groups capable of hydrogen bonding.^24–27 Currently, low bandgap DPP-based polymers have been widely studied in ambipolar OFET applications, several of which display some of the highest charge mobilities recorded to date.^15,23 For instance, pTDPPSe–SiC5 (ref. 23) with an optical bandgap of 1.25 eV exhibits the highest electrical performance in optimized conditions with high hole and electron mobilities of 8.84 and 4.34 cm² V⁻¹ s⁻¹, respectively. However, most DPP-based D–A type semiconductors exhibit a significantly higher hole- than electron-transport performance.^28–32 And as such DPP-based D–A type polymer semiconductors with balanced hole and electron charge transport mobilities are rarely reported. This is mainly due to difficulties for reaching a LUMO energy level below −4.0 eV which is necessary for facile injection and efficient transport of electrons in DPP-based D–A type semiconductors.^22,33

In an effort to lower the LUMO energy level of DPP polymers, incorporation of another electron-deficient unit to the polymer backbone would be desirable.^34,35 Herein, we designed and synthesized a new ultra low bandgap A₁–A₂ type polymer pDTDPP–TTF via a Suzuki cross-coupling polycondensation reaction between two electron-deficient units: 3,6-di(2-(4,4,5,5-tetramethyl-[1,3,2]dioxaborolan-2-yl)thien-5-yl)-2,5-di(2-decyltetradecyl)-pyrrolo[3,4-c]pyrrole-1,4-dione (DTDPP) and 2-ethylhexyl-4,6-dibromo-3-fluorothieno[3,4-b]thiophene-2-carboxylate (TTF) (Scheme 1). The polymer exhibited an ultra-narrow bandgap of 1.06 eV and showed a broad and strong absorption spectrum extending to ∼1300 nm. The strategy of molecular design on A₁–A₂ type DPP polymer successfully enables the balanced ambipolar behavior of pDTDPP–TTF in solution-processed OFET devices with both of the BG–BC and TG–BC configurations.

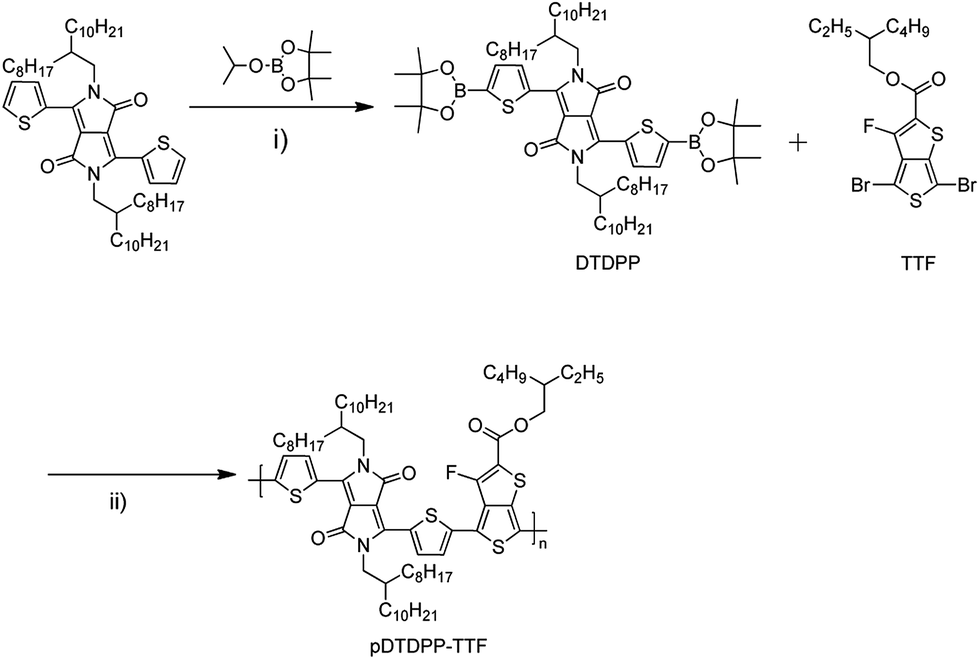

Scheme 1 Synthetic route for the copolymer pDTDPP–TTF. Reagents and conditions: (i) LDA, THF, −25 °C under N₂, 2 h, 72%; (ii) Pd₂(dba)₃/P(o-tol)₃, K₃PO₄, Aliquat 336, toluene/H₂O, 95 °C for 48 h, 50%.

2. Results and discussion

2.1 Monomers and polymer synthesis

As shown in Scheme 1, pDTDPP–TTF was feasibly synthesized by conventional Suzuki cross-coupling polycondensation between 3,6-di(2-(4,4,5,5-tetramethyl-[1,3,2]dioxaborolan-2-yl)thien-5-yl)-2,5-di(2-decyltetradecyl)-pyrrolo[3,4-c]pyrrole-1,4-dione (DTDPP) and 2-ethylhexyl-4,6-dibromo-3-fluorothieno[3,4-b]thiophene-2-carboxylate (TTF), synthetic details can be found in the experimental section. After removing the impurities and low-molecular-weight oligomers of the resultant polymer by Sohxlet extraction (methanol, (6 h) acetone (6 h), and hexane (6 h)), the residue was extracted with chlorobenzene to afford the target polymer with moderate number-average molecular weights (M_n = 16 kg mol⁻¹) and reasonable polydispersity indexes (PDIs = 2.2), as listed in Table 1. The polymer structure was characterized by a combination of ¹H NMR spectroscopy (as shown in ESI of Fig. S1†) as well as elemental analysis which was in agreement with the predicted values. The polymer pDTDDP–TTF showed reasonable solubility in common organic halogenated solvents, such as chloroform, chlorobenzene and 1,2-dichlorobenzene, likely due to the long alkyl branched side chains on the DPP and TTF repeat units.

Table 1 Characteristics of the copolymer pDTDPP–TTF

Polymer	Mn/Mw (kDa)	λabs,max^a (nm)	λonset^b (nm)	Eg^c (eV)	HOMO^d (eV)	LUMO^e (eV)
a Measured in dilute CHCl3 solution and thin neat film (parentheses).b Measured at film state.c Eg was calculated from the onsets of the UV-vis spectra in neat film, Eg = 1240/λonset.d HOMO was measured by cyclic voltammetry.e Calculated from the equation LUMO = HOMO + Eg.
pDTDPP–TTF	16/36	830 (940)	1166	1.06	−5.43	−4.37

---

2.2 Thermal stability

The thermal properties of pDTDPP–TTF were examined by differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) measurements. No clear thermal transitions within the range of 25 to 300 °C were detected from the DSC curves for the polymer. From the TGA curves in Fig. 1, the polymer pDTDPP–TTF exhibited good thermal stability with a decomposition temperature (5% weight loss) of 379 °C.

Fig. 1 TGA curve of the copolymer pDTDPP–TTF measured within the range from 25 to 600 °C at a heating rate of 20 °C min⁻¹ under a nitrogen atmosphere.

2.3 Optical properties

The UV-vis absorption spectra of pDTDPP–TTF in dilute chloroform solution and thin films are shown in Fig. 2 and the corresponding absorption properties are summarized in Table 1. In solution, pDTDPP–TTF exhibited a strong, broad and featureless absorption band spanning the visible to near infrared range (600 to 1100 nm), arising from π–π* transitions in the polymer backbone.

Fig. 2 UV-vis absorption spectra of pDTDPP–TTF in neat film (normalized, black) and in 10⁻⁵ M of CHCl₃ solution with molar absorptivity (ε) (red).

Moreover, at the maximum absorption wavelength of 830 nm, pDTDPP–TTF exhibited a very high molar extinction coefficient of ε = 3.24 × 10⁴ M⁻¹ cm⁻¹. In comparison, the thin film UV-vis absorption spectra of pDTDPP–TTF was red-shifted by approximately 110 nm. We attribute this shift to the longer wavelength region upon solidification to aggregation and solid state packing effects. The optical bandgap (E^opt_g) of pDTDPP–TTF was estimated to be ∼1.06 eV from the absorption onset in the solid state. The ultra-low bandgap of pDTDPP–TTF is comparable or even lower than traditional single crystal silicon (1.11 eV), due to the introduction of two electron-deficient units in the polymer backbone. To the best of our knowledge, the E_g is among the lowest values ever reported for potential ambipolar semiconducting polymers in the literature.^30,31,35,36

2.4 Film morphology

Since film morphology and crystallinity are known to be key parameters for device performance, polymer thin films were analyzed using atomic force microscopy (AFM) and GIWAXS measurements. As depicted in the AFM images shown in Fig. 3(a), the root mean-square surface roughness (RMS) of pDTDPP–TTF thin films is 0.60 nm for 5 μm × 5 μm scan area. XRD analysis was performed on pDTDPP–TTF thin films spin-casted from chloroform solution onto a Si wafer. As shown in Fig. 3(b), the GIWAXS pattern is fairly featureless compared to other high mobility polymer semiconductors.^23,35 Only a single order preferentially in-plane alkyl stacking peak at q = 0.29 Å⁻¹ (d = 2.2 nm) and a broad π–π stacking peak in the out-of-plane direction at q = 1.71 Å⁻¹ (d = 0.37 nm) were observed.

Fig. 3 (a) Topography (left) and phase (right) AFM images. Scale 5 μm × 5 μm (up) and (b) GIWAXS Pattern of pDTDPP–TTF thin film (bottom).

2.5 Electrochemical properties

The electrochemical properties of pDTDPP–TTF were investigated by cyclic voltammetry (CV) in acetonitrile (MeCN) solution. As shown in Fig. 4, the polymer exhibited quasi-reversible oxidation and undetectable reduction behavior. The onset of the oxidation potential (E_onset) of pDTDPP–TTF occured at 1.06 eV, from which the HOMO energy level is calculated to be −5.43 eV based on the equation of HOMO = −(4.4 + E_onset).³⁷ The LUMO energy level can be obtained from the difference between optical bandgap (E_g) and HOMO using the equation LUMO = (HOMO + E_g), which was determined to be −4.37 eV.

Fig. 4 Cyclic voltammetry of pDTDPP–TTF film in 0.1 mol L⁻¹ n-Bu₄NPF₆ of acetonitrile solution, with a scan rate of 100 mV s⁻¹.

2.6 Density functional theory calculation

Fig. 5 shows the electron-state-density distribution of the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) of geometrically optimized structures determined by density functional theory (DFT)³⁸ at the B3LYP³⁹ hybrid functional level using a 6-31G* basis set. In order to simplify the calculations and minimize the computational cost, the polymer model was simplified by dimeric systems and the long alkyl substituted side chains in the polymer molecular skeleton were replaced by methyl groups. As shown in Fig. 5, two dihedral angles were evaluated, where the first between the DPP unit and the adjacent thiophene ring (θ₁), and the second between thiophene and the adjacent TTF unit (θ₂). The θ₁ and θ₂ values obtained from the dimmers of pDTDPP–TTF were calculated to be 0.17° and 6.02°, respectively. From the side view of the optimized geometry, a relatively planar backbone structure is predicted for pDTDPP–TTF, which is in agreement with other dithienyl-DPP containing copolymers reported in the literature.^10,15,21 It is implied that pDTDPP–TTF may exhibit strong π–π stacking due to the planarity of the polymer backbone.

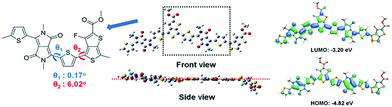

Fig. 5 DFT calculations on the optimized geometries and molecular orbitals for a DTDPP–TTF dimer (B3LYP/6-31G*).

Both the HOMO and LUMO energy levels were mainly delocalized through the entire molecular skeleton. The calculated HOMO and LUMO energy levels for the dimer of pDTDPP–TTF were −4.82 and −3.20 eV, respectively. It should be noted that slight differences between the absolute values of the computationally derived and experimentally determined results is acceptable to exist and can be attributed to the inherent limitations of DFT to accurately predict the behavior of organic semiconducting polymer as well as the intrinsic discrepancy in the dimeric and polymeric molecular skeleton.⁴⁰ However, both the DFT and CV methods revealed similar trends in the energy levels suggesting the low bandgap nature and the potential ambipolar charge transport behaviour of pDTDPP–TTF polymer.

2.7 Field-effect transistor characteristics

The appropriate HOMO and LUMO energy level alignment of pDTDPP–TTF encouraged us to investigate the charge transport properties of the polymer material. Therefore, OFET devices with a bottom-gate, bottom-contact (BG–BC) configuration were initially fabricated. Gold (Au) source-drain electrodes were prepared by photolithography on the SiO₂/Si⁺⁺ substrates. Then the substrates were passivated with DTS before the polymer films were deposited onto the substrates by spin-coating from a chloroform-based solution. Fig. 6(a) shows the representative transfer and output characteristics of BG–BC OFET devices based on spin-coated films of pDTDPP–TTF after annealing at 180 °C. It is seen that pDTDPP–TTF exhibited typical V-shaped ambipolar behavior. The device performance data are summarized in Table 2. Though the BG–BC devices with SiO₂ as dielectric demonstrated ambipolar transport, the mobility for both holes and electrons was rather low. The average hole and electron mobilities were measured to be 1.85 × 10⁻⁴ and 3.55 × 10⁻⁵ cm² V⁻¹ s⁻¹, respectively. To further improve the OFET performance, top-gate bottom-contact (TG–BC) devices using PMMA as dielectric were then fabricated, since PMMA is generally known as a good dielectric for efficient electron transport. 1,2-Dichlorobenzene was selected as the solvent because the high-boiling point solvent may yield higher performance.⁴¹ In the PMMA-based OFETs, balanced ambipolar transport with significantly enhanced performance was obtained. The extracted hole and electron mobilities was measured to be 6.17 × 10⁻³ and 3.13 × 10⁻³ cm² V⁻¹ s⁻¹, respectively, which was over one order of magnitude higher than the values in the BG–BC devices. It is expected that further enhanced mobility is allowed to achieve by optimization of the HOMO/LUMO energy levels alignment with the work function of electrodes.

Fig. 6 Typical transfer and output plot of pDTDPP–TTF OFETs in (a) BG–BC and (b) TG–BC device structures. The devices were annealed at 180 °C. For the BG–BC devices the solvent for pDTDPP–TTF is chloroform while for the TG–BC devices the solvent is 1,2-dichlorobenzene.

Table 2 Summary of field-effect mobilities for the copolymer over 4 devices

Devices	Mobility (cm^2 V^−1 s^−1)		Threshold voltage (V)		On/off ratio
	Hole	Electron	Hole	Electron
(BG–BC)	(1.85 ± 0.15) × 10^−4	(3.55 ± 0.34) × 10^−5	−7.4 ± 3.2	24.9 ± 9.1	(7.8 ± 1.2) × 10^3
(TG–BC)	(6.17 ± 0.59) × 10^−3	(3.13 ± 0.50) × 10^−3	−9.0 ± 0.5	23.2 ± 3.7	(1.5 ± 0.7) × 10^3

---

3. Conclusions

In conclusion, we have designed and synthesized a new ultra-low bandgap polymer material pDTDPP–TTF with ambipolar charge transport properties via a Suzuki cross-coupling polycondensation reaction. Molecular design strategy on the introduction of A₁–A₂ type monomer has been successfully conducted to significantly lower the LUMO level of DPP based polymer to as low as −4.37 eV, which is potentially suitable for efficient electron injection and transport. The polymer exhibited a broad and featureless absorption spectrum ranging from visible to up to 1300 nm, with a narrow bandgap of ∼1.06 eV. Ambipolar transport behaviour has been achieved in solution-processed OFET devices based on pDTDPP–TTF active layers in both the BG–BC and TG–BC configurations. Relatively balanced ambipolar charge transport with a hole and electron mobility of 6.17 × 10⁻³ cm² V⁻¹ s⁻¹ and 3.13 × 10⁻³ cm² V⁻¹ s⁻¹ respectively has been obtained when PMMA was used as dielectric. The results indicate the potential of A₁–A₂ type copolymers as active materials for polymer solar cells, near infrared photodetectors and/or other organic electronic devices. And the synthetic route on the introduction of an additional acceptor unit to construct A₁–A₂ type polymer provides molecular design strategy to lower the LUMO energy levels for balanced ambipolar ultra-low bandgap semiconducting polymers.

4. Experimental

4.1 Materials

All of the reagents were obtained from commercial suppliers and used without further purification, unless stated otherwise. THF and toluene were dried over Na/benzophenoneketyl and freshly distilled prior to use. 3,6-Dithien-2-yl-2,5-di(2-decyltetradecanyl)-pyrrolo[3,4-c]pyrrole-1,4-dione (M1) was prepared according to established literature procedures,^42,43 and the monomer TTF (M2) was purchased from Suna Tech Inc.

4.2 Measurements and characterization

¹H NMR spectra was measured on a Bruker DRX-400 spectrometer in CDCl₃ using tetramethylsilane as the internal reference. Mass spectra were measured on Bruker autoflex matrix-assisted laser desorption/ionization time-of-flight (MALDI–TOF). Elemental analysis of carbon, hydrogen and nitrogen was performed on a Vario EL III microanalyzer. UV-vis absorption spectra were recorded on a Shimadzu UV-2500 recording spectrophotometer. Differential scanning calorimetry (DSC) was performed on a NETZSCH DSC 200 PC unit at a heating rate of 10 °C min⁻¹ from 25 to 300 °C, under argon. Thermogravimetric analysis (TGA) was undertaken with a NETZSCH STA 449C instrument. The thermal stability of the samples under a nitrogen atmosphere was determined by measuring their weight loss at a heating rate of 20 °C min⁻¹ from 25 to 600 °C. The electrochemical cyclic voltammetry was conducted on a CHI voltammetric analyzer, in a 0.1 mol L⁻¹ acetonitrile solution of tetrabutylammonium hexafluorophosphate (n-Bu₄NPF₆) at a potential scan rate of 100 mV s⁻¹, along with an Ag/AgCl reference electrode and a platinum wire counter electrode. The polymer sample was coated on the platinum sheet of working electrode. The reference electrode was checked versus ferrocene as internal standard as recommended by IUPAC. Atomic force microscopy (AFM) was conducted on SPA300HV in tapping mode using an SPI3800 controller, Seiko Instruments Industry, Co., Ltd. GIWAXS measurements were done in a helium environment at the Advanced Light Source beamline 7.3.3.⁴⁴ Sample-to-detector distance was 300 mm, calibrated by an AgB standard, and data was collected at an incident angle of 0.14°. The organic field effect transistor (OFET) device characteristics were measured using an Agilent 4155B semiconductor parameter analyzer. The mobility was determined in the saturation regime by using the equation I_DS = (μWC_i/2L)(V_G − V_T)2, where I_DS is the drain-source current, μ the field-effect mobility, W the channel width, L the channel length, C_i the capacitance per unit area of the gate dielectric layer and V_T the threshold voltage.

4.3 Device fabrication and measurements

Bottom-gate, bottom-contact (BG–BC) devices were fabricated on SiO₂/Si⁺⁺ substrates. The source/drain electrodes were patterned by standard photolithography. The substrates were then passivated with DTS by immersing them into the solution (DTS : toluene = 1 : 1000). Top-gate, bottom-contact (TG–BC) devices were fabricated on glass substrates. Gold source and drain electrodes (20 nm) were patterned by standard photolithography with a channel length L = 20 μm and width W = 1 mm. All the spin-coating processes were done in nitrogen filled glovebox. The polymer was spin-coated from a chloroform solution or 1,2-dichlorobenzene (5 mg mL⁻¹) solution at 1000 rpm. For TG–BC devices, a 500 nm thick PMMA was spin-coated on the polymer film and annealed at 80 °C for 30 min. The PMMA was dissolved in an orthogonal solvent of n-butyl acetate which prevents dissolving the underneath semiconducting layers. Finally, a 20 nm thick gold gate electrode was deposited by shadow-mask evaporation. Devices were annealed in glovebox for 10 min at a temperature of 180 °C before the electrical test.

4.4 Synthesis of pDTDPP–TTF

To a 50 mL Schlenk tube, M1 (327 mg, 0.3 mmol), 3-fluorothieno[3,4-b]thiophene-2-carboxylate (TTF) M2 (155 mg, 0.3 mmol), Pd₂(dba)₃ (9 mg, 0.01 mmol), P(o-tol)₃ (12 mg, 0.04 mmol) and 2 drops Aliquant 336 were added. The tube was then charged with Ar through a freeze–pump–thaw cycles for three times. Then K₃PO₄ (425 mg, 2 mmol) in toluene (5 mL) with demineralized water (1 mL) were added under an argon atmosphere. The mixture was stirred for 48 h at 95 °C. After cooling down to room temperature, the highly viscous black gel was precipitated to 200 mL of methanol containing 20 mL of distilled water and then stirred for 3 h. The resulting polymer was collected by filtration and washed with methanol (100 mL) and acetone (100 mL). The crude product was further purified by Soxhlet extraction with methanol (6 h), acetone (6 h), hexane (6 h), and finally CB (6 h). A free-standing film was obtained after removing CB solvent (245.8 mg, 0.21 mmol, 70% yield).

¹H NMR (CDCl₃, 400 MHz), δ (ppm): 9.17 (br, 2H), 7.26 (br, 2H), 4.35 (br, 6H), 1.9 (br, 3H), 1.44–1.02 (br, 72H), 0.81 (br, 18H); anal. calcd: C, 70.72; H, 8.86; N, 2.39% found: C, 70.60; H, 8.66; N, 2.35%. GPC: M_n = 16 kDa, M_w = 36 kDa, PDI = 2.2.
