DOI:
10.1039/C6RA13314B
(Paper)
RSC Adv., 2016,
6, 63613-63623
Direct access to stabilized CuI using cuttlebone as a natural-reducing support for efficient CuAAC click reactions in water†
Received
23rd May 2016
, Accepted 24th June 2016
First published on 28th June 2016
Abstract
Cuttlebone@CuCl2 has efficiently catalyzed the one-pot azidonation of organic bromides, followed by a regioselective azide-alkyne 1,3-dipolar cycloaddition (CuAAC) reaction to produce the corresponding 1,4-disubstituted 1,2,3-triazole derivatives in excellent yields, in water. Importantly, cuttlebone is not only used for successful immobilization of CuCl2 in order for its heterogenation, but it is also utilized as a natural-reducing platform which can reduce CuII to the click-active stabilized CuI. This mild three component synthetic approach avoids handling of hazardous and toxic azides, because of their in situ generation. Moreover, the catalyst has the advantages of being ligand-free, leaching-free, thermally stable, easy to synthesize from inexpensive commercially available precursors, environmentally friendly and recyclable for at least seven times without a significant decrease in its activity and selectivity.
1. Introduction
Copper(I)-catalyzed Huisgen 1,3-dipolar cycloaddition of organic azides and alkynes (click reaction) which was pioneered by Sharpless and co-investigators,1 has received impressive attention in the green chemistry scope due to the mild reaction conditions, as well as the high efficiency involved.2 Accordingly, a great deal of methods have prospered around this reaction to afford the corresponding 1,2,3-triazoles.3 These compounds are predominant building blocks of the numerous classes of nitrogen-containing heterocyclic compounds4 and are widely used as a powerful tool in several fields of chemistry such as pharmaceuticals, agrochemicals, dyes, corrosion inhibitors, photostabilizers and photographic materials.5 In spite of providing excellent yields and good regioselectivity of the products obtained through the Cu(I)-catalyzed click reaction, thermodynamic instability and also formation of undesired alkyne–alkyne coupling by-product restricted the use of Cu(I) catalysts, directly.6 Instead, the favorable approach is the in situ generation of Cu(I) species through the reduction of Cu(II) salts,7 oxidation of Cu(0) metals,8 and Cu(II)/Cu(0) comproportionation9 or using Cu(I) salts in the presence of bases and/or ligands which protect Cu(I) intermediates from oxidation and disproportionation, and hamper undesired side-product formation.10 However, most of the existing methods involve handling of unstable, toxic organic azides and using homogeneous catalysts which cannot be separated easily from the reaction media.8,11
In this context, to promote the existing synthetic protocols, many efforts have been made on the heterogeneous copper based catalytic systems and the in situ generation of organic azides from suitable precursors which would avoid the difficulties associated with the hazardous and explosive nature of the azides. Using heterogeneous catalysts is accompanied with several advantages such as fast and efficient recyclability of the catalyst, as well as facile separation of the products. Consequently, the number of steps and time involved in the reaction strategy would be diminished. For this purpose, immobilization of Cu(I) species on various supports such as alumina,12 polymers,13 Amberlyst,14 zeolites,15 activated charcoal,16 titanium dioxide,17 silica-supported N-heterocyclic carbene,18 clay,19 magnetic materials,20 and aluminum oxyhydroxide nanofibers,21 has received a remarkable attention in the Huisgen 1,3-dipolar cycloaddition. Additionally, solid supported CuII species as heterogeneous catalytic systems without employing any reducing agents or additives have been reported in alkyne–azide cycloaddition reaction.22 In accordance with our previous study on cuttlebone23 and to continue our research interest in developing new efficient and environmentally benign heterogeneous catalysts,24 herein, we are willing to report synthesis and characterization of cuttlebone@CuCl2 as an efficient heterogeneous catalyst for the first time (Scheme 1). The catalytic activity of this newly synthesized catalyst was proved for the one-pot synthesis of 1,4-disubstituted 1,2,3-triazoles via a three-component reaction between terminal alkynes, organic bromides, and sodium azide, in water (see Scheme 2).
 |

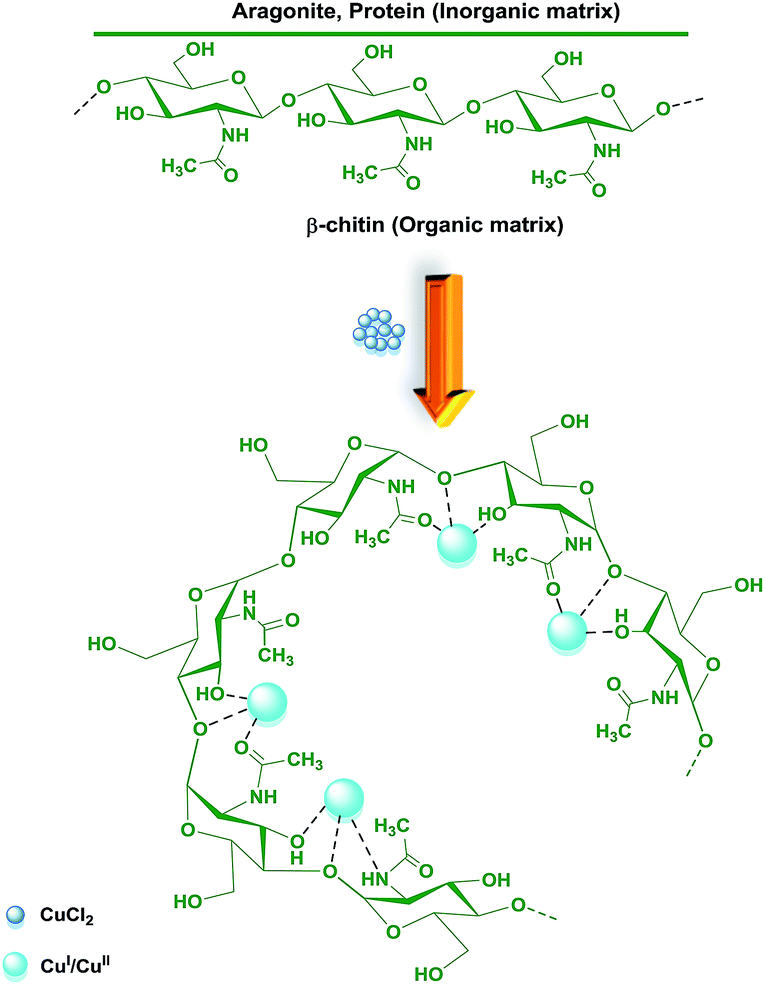

| Scheme 1 Preparation of catalyst. | |
 |

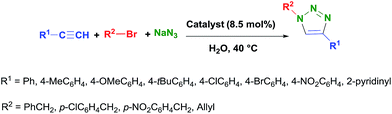

| Scheme 2 One-pot synthesis of 1,4-disubstituted 1,2,3-triazoles using catalyst. | |
2. Experimental
2.1. Materials
All chemical reagents and solvents were purchased from Merck and Sigma-Aldrich chemical companies and were used as received without further purification. Cuttlebone was taken out from cuttlefish (Sepia esculenta),25–28 which is commonly found in saltwater beaches like Persian Gulf in Iran.
2.2. Instrumentation analysis
The purity determinations of the products and the progress of the reactions were accomplished by TLC on silica gel polygram STL G/UV 254 plates. The melting points of the products were determined with an Electrothermal Type 9100 melting point apparatus. The FT-IR spectra were recorded on pressed KBr pellets using an AVATAR 370 FT-IR spectrometer (Therma Nicolet spectrometer, USA) at room temperature in the range between 4000 and 400 cm−1 with a resolution of 4 cm−1, and each spectrum was the average of 32 scans. NMR spectra were recorded on a NMR Bruker Avance spectrometer at 400 and 300 MHz in CDCl3 as solvent in the presence of tetramethylsilane as the internal standard and the coupling constants (J values) are given in Hz. Elemental analyses were performed using a Thermo Finnigan Flash EA 1112 Series instrument (furnace: 900 °C, oven: 65 °C, flow carrier: 140 mL min−1, flow reference: 100 mL min−1). Mass spectra were recorded with a CH7A Varianmat Bremem instrument at 70 eV electron impact ionization, in m/z (rel%). Elemental compositions were determined with an SC7620 energy-dispersive X-ray analysis (EDX) presenting a 133 eV resolution at 20 kV. Surface analysis spectroscopy of the catalyst was performed in an ESCA/AES system. This system was equipped with a concentric hemispherical (CHA) electron energy analyzer (Specs model EA10 plus) suitable for X-ray photoelectron spectroscopy (XPS). Inductively coupled plasma (ICP) was carried out on a Varian, VISTA-PRO, CCD, Australia and 76004555 SPECTRO ARCOS ICP-OES analyzer. All yields refer to isolated products after purification by recrystallization.
2.3. Pre-preparation of cuttlebone
In order to remove pollution on the surface of cuttlebone, it was powdered, washed with distilled water and dried at 100 °C, for 2 h.
2.4. Preparation of catalyst
In a round-bottom flask, cuttlebone (5.0 g) was mixed with CuCl2 (1.5 g, 0.011 mol) in deionized water (50 mL). The mixture was stirred at room temperature for 10 h. The catalyst was filtered and washed with water and ethanol several times (to remove excess of copper salt), and then was dried at 50 °C for 12 h.
2.5. Typical procedure for preparation of 1-benzyl-4-phenyl-1,2,3-triazole
Catalyst 0.048 g (8.5 mol%) was added to a solution of phenyl acetylene (1 mmol), benzyl bromide (1 mmol) and sodium azide (1.2 mmol), in H2O (5 mL). The reaction mixture was stirred at 40 °C and monitored by TLC until total conversion of the starting materials. After 5 min, the reaction mixture was cooled to room temperature. The catalyst was separated by simple filtration and washed with water, ethanol and EtOAc, successively and then was dried at 60 °C, for 3 h. Afterwards, water (10 mL) was added to the resulting reaction mixture, followed by extraction with EtOAc (3 × 15 mL). The recovered catalyst was used directly in the next cycle. The organic phase was washed with water and dried with Na2SO4. Solvent was removed under vacuum and the crude product was purified by a simple crystallization from ethanol to provide the corresponding triazole (1-benzyl-4-phenyl-1H-1,2,3-triazole) as a white solid (0.222 g, 95% isolated yield).
3. Results and discussion
An extremely porous hard tissue in the cuttlefish (Sepia esculenta), which acts as a rigid buoyant tank in the animal is called “cuttlebone”.29 It is a natural material which has the multifunctional properties of high flexural stiffness, high porosity and compressive strength.30 Cuttlebone framework is an inorganic–organic composite consist of aragonite, protein and β-chitin.29 The principal component of the organic matrix derived from the cuttlebone framework is β-chitin.29 However, an attractive application of cuttlebone-derived organic matrix, that has not yet received much attention, is related to its application as a reducing agent for the preparation of metal nanoparticles and a scaffold for their assembly, which will lead to a new class of functional materials.29 β-Chitin as the main component of the cuttlebone-derived organic matrix is a natural carbohydrate (polysaccharide) composed of parallel arranged poly[2-acetamido-2-deoxy-(1,4)-β-D-glucopyranose].29 Recently, carbohydrates (including monosaccharide, oligosaccharides and polysaccharides) as biodegradable, renewable natural materials, have been employed as stabilizers or reducing agents for the green providing of nanomaterials and nanocomposites.29 Hence, cuttlebone can be used as a natural platform for immobilization of CuCl2, which subsequently reduced CuII to the click-active stabilized CuI. Fascinatingly, the resulted CuI was long-term stabilized in the cuttlebone network. On the other hand, during the reaction, when the catalyst has been treated with sodium azide, Cu2+ has reduced to Cu1+ oxidation state, much more than before.31 Then, this newly synthesized heterogeneous catalyst was characterized by different techniques such as Fourier transform infrared spectroscopy (FT-IR), energy-dispersive X-ray analysis (EDX), X-ray photoelectron spectrum (XPS) and inductively coupled plasma (ICP).
3.1. Characterization of catalyst
3.1.1. FT-IR spectroscopy. The FT-IR spectrum of the cuttlebone was shown in Fig. 1a. It is worth to note that the observed absorption bands for aragonite phases (calcium carbonate) in cuttlebone structure are related to the planar CO32− ions. As can be seen, there are four main vibrational modes in the free CO32− ions.32 The peak appearing at about 1082 cm−1 is assigned to the symmetric stretching vibration of the carbonate ion. The peak positioned at about 857 cm−1 is ascribed to out-of plane bending vibration of carbonate ion. Moreover, the asymmetric stretching vibration at about 1400–1500 cm−1 and the split in-plane bending vibration at about 700 cm−1 are clearly demonstrate the free CO32− ions of the cuttlebone structure. Also, the FTIR spectrum of cuttlebone shows the absorption bands at 3448 and 3318 cm−1, which are attributed to the OH and NH stretching vibrations of the β-chitin segment in cuttlebone, respectively. The absorption bands in the range of 2977–2855 cm−1 were corresponded to the symmetric stretching vibrations of CH, CH3 and the asymmetric stretching vibrations of CH2 in the cuttlebone structure. Furthermore, the CH bending, CH3 symmetric deformation and CH2 wagging bands were appeared at 1384 to 1312 cm−1. In the FTIR spectrum of cuttlebone@CuCl2 (Fig. 1b and c), the peaks positioned at 442, 453 and 428 cm−1 are assigned to the Cu–Cl,33 Cu–O24a,33 and Cu–N24a stretching vibrations, respectively.
 |
| Fig. 1 FT-IR spectrum of (a) cuttlebone; (b) catalyst; (c) 7th recovered catalyst. | |
3.1.2. EDX analysis. Energy-dispersive X-ray analysis (EDX) indicates the presence of C, O, Ca, Cl and Cu elements in the cuttlebone structure (Fig. 2). This analysis confirms the successful immobilization of copper on the cuttlebone surface.
 |
| Fig. 2 EDX analysis of the catalyst. | |

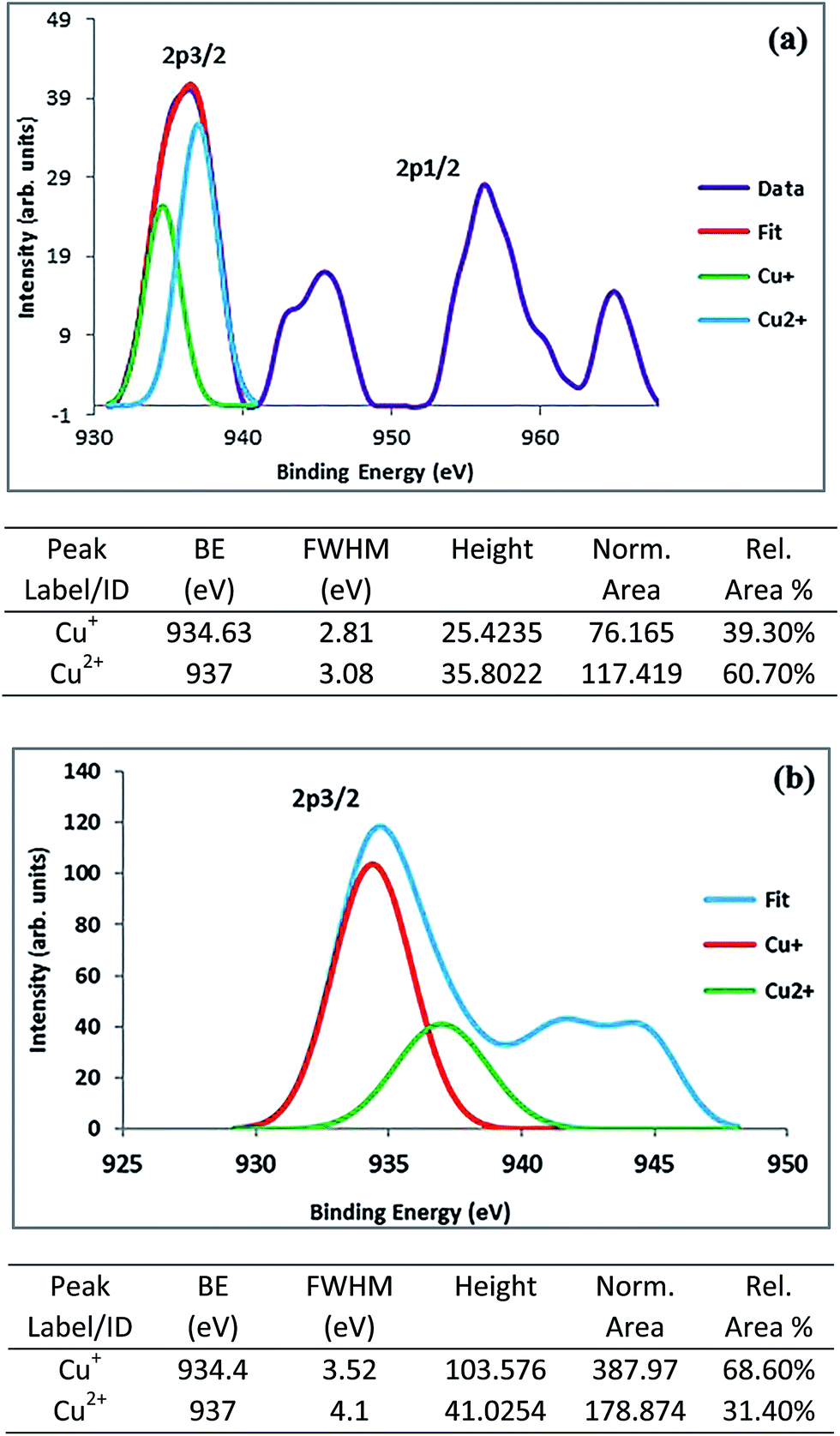

3.1.3. XPS characterizations of the catalyst. Fig. 3 shows the high resolution narrow X-ray photoelectron spectra (XPS) for fresh catalyst and the 7th recovered catalyst. As observed in Fig. 3 binding energy peaks at 937 eV and 956.5 eV can be attributed to 2p3/2 and 2p1/2 spin–orbit split-doublets, respectively, which are characteristic of Cu in +2 oxidation state.31a,34 However, binding energy peaks at 934.6 eV and 954.6 eV can be attributed to 2p3/2 and 2p1/2 spin–orbit split-doublets, respectively, which are characteristic of Cu in +1 oxidation state.34 These results led us to conclude that after the immobilization of CuCl2 on the cuttlebone as a reducing stabilizer support, CuII was partially reduced to CuI state and thus is present as CuII/CuI mixed valency dinuclear species, but with the predominance of CuII (Fig. 3a).
 |
| Fig. 3 (a) XPS spectrum of fresh catalyst. (b) XPS spectrum of 7th recovered catalyst. | |
On the other hand, as proved by XPS analysis, it is evident that the treatment of catalyst with sodium azide during the reaction, leads to reduction of Cu2+ to Cu1+ oxidation state, much more than before. Thus, meanwhile the click reaction the dominant species would be Cu1+ (Fig. 3b).
3.2. Catalytic synthesis of 1,4-disubstituted 1,2,3-triazoles
After the successful preparation and full characterization of catalyst, to evaluate this novel synthesized catalyst efficiency, its catalytic activity was examined for the mild one-pot synthesis of 1,4-disubstituted 1,2,3-triazoles, by the reaction between terminal alkynes and the in situ generated substituted azides from their corresponding organic bromides, in water (Scheme 2).
Initially the 1,3-dipolar cycloaddition reaction between phenyl acetylene, benzyl bromide and sodium azide, was selected as a model reaction to optimize the different reaction conditions. The obtained results were represented in Table 1. The in situ generated azide from the reaction mixture of benzyl bromide and NaN3 reacted well with phenyl acetylene and the desired 1-benzyl-4-phenyl-1H-1,2,3-triazole was obtained through a one pot procedure. However, when the model reaction was performed at 100 °C in aqueous media, in the absence of any catalyst, no desired product was formed, even after a prolonged reaction time (Table 1, entry 1). It was observed that the click reaction occurred smoothly in the presence of several different catalysts including cuttlebone, Cu(SO4)2, Cu(OAc)2, CuCl2, cuttlebone@Cu(SO4)2, cuttlebone@Cu(OAc)2 and cuttlebone@CuCl2.
Table 1 Catalyst optimization studies for one-pot synthesis of 1-benzyl-4-phenyl-1H-1,2,3-triazole, under different reaction conditionsa
Entry |
Catalyst |
Solvent |
Temperature (°C) |
Time (min) |
Isolated yield (%) |
Reaction conditions: phenyl acetylene (1 mmol), benzyl bromide (1 mmol), NaN3 (1.2 mmol), catalyst (0.048 g) in H2O (5 mL). |
1 |
None |
H2O |
100 |
15 h |
0 |
2 |
Cuttlebone |
H2O |
r.t |
2 h |
45 |
3 |
Cuttlebone |
H2O |
100 |
30 |
65 |
4 |
Cu(SO4)2 |
H2O |
100 |
40 |
80 |
5 |
Cu(OAc)2 |
H2O |
100 |
20 |
89 |
6 |
CuCl2 |
H2O |
100 |
10 |
89 |
7 |
CuCl2 |
H2O |
r.t |
60 |
70 |
8 |
Cuttlebone@Cu(SO4)2 |
H2O |
100 |
20 |
90 |
9 |
Cuttlebone@Cu(OAc)2 |
H2O |
100 |
10 |
95 |
10 |
Cuttlebone@CuCl2 |
H2O |
100 |
5 |
95 |
11 |
Cuttlebone@CuCl2 |
H2O |
r.t |
40 |
72 |
12 |
Cuttlebone@CuCl2 |
MeOH |
Reflux |
30 |
75 |
13 |
Cuttlebone@CuCl2 |
MeOH/H2O(1 : 1) |
60 |
30 |
87 |
14 |
Cuttlebone@CuCl2 |
THF |
Reflux |
60 |
Trace |
15 |
Cuttlebone@CuCl2 |
CH3CN |
Reflux |
60 |
20 |
16 |
Cuttlebone@CuCl2 |
DMSO |
100 |
60 |
Trace |
17 |
Cuttlebone@CuCl2 |
Acetone |
Reflux |
60 |
25 |
18 |
Cuttlebone@CuCl2 |
Neat |
100 |
30 |
70 |
19 |
Cuttlebone@CuCl2 |
H2O |
40 |
5 |
95 |
20 |
Cuttlebone@CuCl2 |
H2O |
50 |
5 |
95 |
Thermal evaluation of the reaction revealed that the higher the temperature, the greater the reaction progress. Among the different catalysts screened, cuttlebone@CuCl2 in water, was found to be excellent for this tandem reaction. Other protic solvents such as MeOH and a solution of MeOH/H2O (1
:
1, v
:
v) have proved to be less suitable for such a click reaction (Table 1, entries 12 and 13). On the other hand, aprotic solvents like THF, CH3CN, DMSO and acetone were ineffective for this transformation (Table 1, entries 14–17). Similarly, the improvement of the reaction was not promising by using neat condition (Table 1, entry 18). The obtained results confirmed that cuttlebone@CuCl2 catalyst renders a promising catalytic activity in water, at 40 °C, with enhanced regioselectivity towards the desired 1,4-disubstituted 1,2,3-triazole product (Table 1, entry 19).
Having identified cuttlebone@CuCl2 as the most efficient catalyst for the Huisgen 1,3-dipolar cycloaddition reaction in H2O at 40 °C, as the optimized reaction conditions, the catalyst and also sodium azide amounts were next investigated for the representative phenyl acetylene, benzyl bromide and sodium azide reaction (Table 2). This reaction gives high yields of the corresponding 1-benzyl-4-phenyl-1H-1,2,3-triazole, in the presence of 0.048 g (8.5 mol%) of the present catalyst and 1.2 mmol of sodium azide (Table 2, entry 2).
Table 2 Copper-catalyzed azide–alkyne cycloaddition with different amounts of NaN3 and catalysta
Entry |
Catalyst (mol%) |
NaN3 (mmol) |
Time (min) |
Isolated yield (%) |
Reaction conditions: phenyl acetylene (1 mmol) and benzyl bromide (1 mmol) in H2O (5 mL) at 40 °C. |
1 |
9.5 |
1.2 |
5 |
95 |
2 |
8.5 |
1.2 |
5 |
95 |
3 |
7.5 |
1.2 |
15 |
90 |
4 |
6.5 |
1.2 |
20 |
80 |
5 |
10.5 |
1.2 |
5 |
95 |
6 |
8.5 |
1.1 |
10 |
70 |
7 |
8.5 |
1.4 |
5 |
95 |
With the optimal conditions in hand, the scope of this methodology has been explored using a variety of organic bromides and terminal alkynes. The results are illustrated in Table 3. It was found that the electron-rich, electron neutral and electron-poor phenyl acetylenes reacted with organic bromides and NaN3 successfully to provide the desired products in good to excellent yields. Aliphatic alkynes also underwent the successful coupling reactions with the in situ generated corresponding azide from the reaction mixture of benzyl bromide and NaN3 (Table 3, entries 9 and 10).

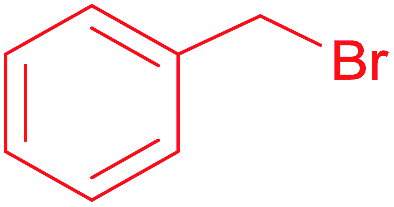

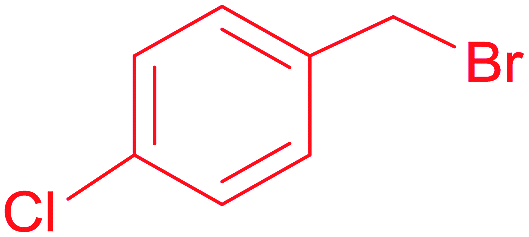

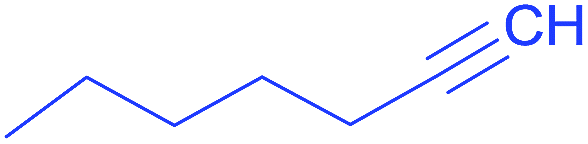

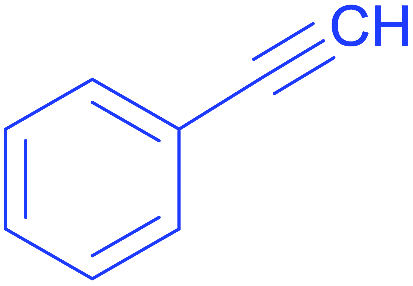

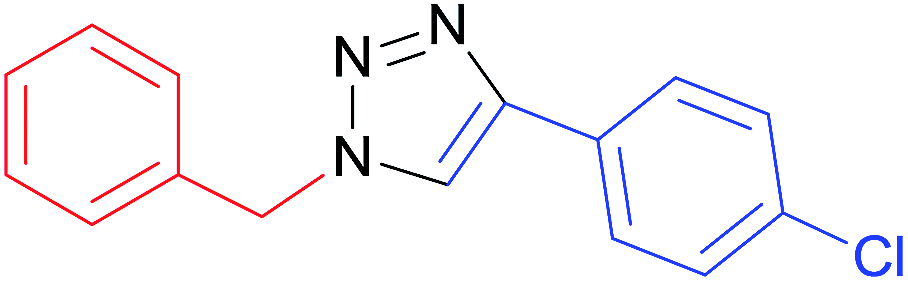

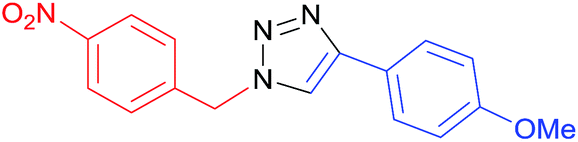

Table 3 One-pot click reaction between a variety of acetylenes, organic bromides and sodium azide by using the present catalyst

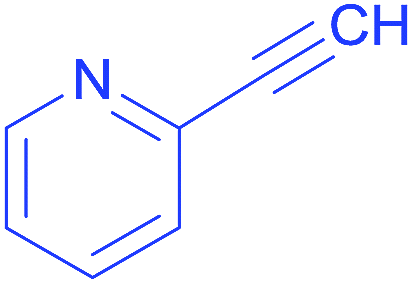

Moreover, 2-ethynylpyridine as a heteroaryl substituted acetylene was converted to the corresponding triazoles, efficiently (Table 3, entries 5, 15 and 20). In an attempt to develop the scope of our methodology, the model reaction was accomplished with a range of substituted benzyl bromides (Table 3, entries 11–20). As it is evident from Table 3, in all cases the clean reactions were performed to produce the corresponding triazoles, smoothly. Afterwards, we focused our attention on using allyl bromide instead of benzyl bromide. Similarly, the Huisgen 1,3-dipolar cycloaddition reactions of terminal alkynes and allyl bromide were clean and high-yielding (Table 3, entries 21–24).
Also, to investigate the on water effect on the reaction progress of polar propargyl alcohol and 2-bromo ethanol, the model reactions were performed in the presence of catalyst (Table 3, entry 9 and 25). As can be observed, using polar alkynes and alkyl bromides reduced the reaction efficiency. Although, nonpolar organic compounds have more interactions together in the aqueous media and would increase the effective efficiency of the reaction, as well as reducing the reaction time as a result of their lack of solubility in water (water solvation effect), in contrast due to the solubility of propargyl alcohol and 2-bromo ethanol in the aqueous media, the efficiency of the corresponding reactions reduced.
As it was expected, by using this methodology in the reaction of sodium azide, benzyl or allyl bromides with different terminal alkynes, only one of the possible regioisomers was produced, through an efficient three-component click reaction.
All of the obtained triazoles were known and their physical (color, melting points) and spectral (mass spectrometry) data found to be identical with those of authentic compounds. The selected compounds were further identified by elemental analysis, FT-IR, 1H NMR and 13C NMR spectroscopy, which compared with literature data. In the FT-IR spectra of the products, the disappearance of the absorption bands related to C
C and
C–H stretching bands (at about 2250–2100 and 3300 cm−1, respectively) along with the appearance of the characteristic bands corresponding to the out-of plane bending vibrations of the
C–H in the triazole ring (at about 815 cm−1), were document for the formation of 1,4-disubstituted 1,2,3-triazoles. Moreover, the FT-IR spectra of all products show absorption bands at about 1293–1217 cm−1 (due to N–N
N–) related to the triazole ring. Structural assignments of triazoles were made by comparison of the 1H and 13C NMR spectra with those reported, previously. In fact, the click condensations were confirmed by the appearance of a singlet resonating at around 8.5–7.5 ppm in 1H NMR spectra, which corresponds to the hydrogen on 5-position of triazole ring and corroborates the regioselective preparation of 1,4-disubstituted triazole regioisomers (see ESI†).
To evaluate the regioselectivity of this click reaction towards the 1,4-disubstituted triazole regioisomers instead of 1,5-disubstituted triazole regioisomers, and since 1HNMR and 13CNMR spectra could not conclusively distinguish between such two isomers, the structure of 1-benzyl-4-phenyl-1H-1,2,3-triazole (a) was investigated through the NOE technique.
Fig. 4 shows the NOESY 1HNMR spectrum of 1-benzyl-4-phenyl-1H-1,2,3-triazole. As it is evident from the spectrum, cross-peak is obtained due to the interaction between benzyl protons (Hb) and (Hx) of triazole ring (see the encircled area in Fig. 4). However, if the product was 1-benzyl-5-phenyl-1H-1,2,3-triazole (b), no cross-peak should have appeared due to the lack of spatial vicinity between Hx and Hb (lack of interaction between benzyl protons (Hb) and (Hx) of triazole ring). According to the results of NOESY 1HNMR spectrum, it has been proved that 1-benzyl-4-phenyl-1H-1,2,3-triazole is the only isomer obtained from the click reaction in our study.
 |
| Fig. 4 NOESY 1HNMR spectrum of the 1-benzyl-4-phenyl-1H-1,2,3-triazole isomer in the presence of the catalyst. | |
By analogy with our investigation and based on reports in the literature,22b a possible mechanism for the click synthesis of 1,4-disubstituted 1,2,3-triazoles catalyzed by using the present catalyst is proposed in Scheme 3. The 1,2,3-triazole formation proceeds through the formation of copper acetylide (I), which then followed by the coordination of the in situ generated organic azide to the copper center of acetylide. Subsequently, Huisgen 1,3-dipolar cycloaddition reaction between organic azide and copper acetylide (I) leads to the formation of complex (II).
 |
| Scheme 3 Plausible mechanism of one-pot CuAAC protocol using present catalyst. | |
Finally, the desired 1,2,3-triazole was obtained by copper exchange with the acidic hydrogen which has been generated in the first step and then the re-generated catalyst re-enters the catalytic cycle. It is worth to note that, the formation of complex (II) would be proceed through an “on water” effect, because of the insolubility of organic azides and terminal acetylenes in aqueous media.22f,35 Further studies to elucidate the details of the mechanism are ongoing.
One of the principal advantages of a heterogeneous catalyst is its ease of separation and possible reusability in the further runs. Thus, the recyclability of the catalyst was examined in a one-pot synthesis of 1-benzyl-4-phenyl-1H-1,2,3-triazole, under the optimized reaction conditions. The catalyst was separated easily from the reaction mixture by simple filtration, followed by washing with water, ethanol and EtOAc, successively. Afterwards, the catalyst was dried at 60 °C, for 3 h. The recovered catalyst was then utilized directly in the next cycle. The results revealed that this simple separation method could be repeated for seven consecutive runs and the recovered catalyst showed remarkably constant catalytic activity in all seven cycles (Fig. 5).
 |

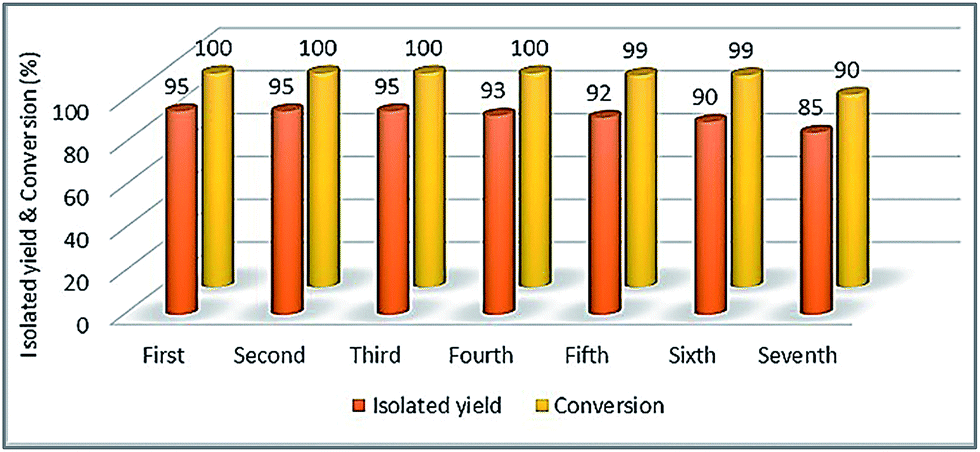

| Fig. 5 Recycling of the catalyst, in the click synthesis of 1-benzyl-4-phenyl-1H-1,2,3-triazole. | |
The copper content of freshly prepared cuttlebone@CuCl2 which was acquired by inductively coupled plasma (ICP) was 1.77 mmol of Cu per 1.000 g of the catalyst, whereas ICP illustrates that the 7th reused cuttlebone@CuCl2 contains 1.54 mmol of Cu per 1.000 g of 7th reused catalyst. It means that, the amount of leached metal from the surface of catalyst is very low.
To confirm the presence of contaminant copper ions in the reaction medium after extraction with organic solvent, ICP-OES technique was employed for the selected products including 1-allyl-4-(p-tolyl)-1H-1,2,3-triazole and 1-benzyl-4-(4-nitrophenyl)-1H-1,2,3-triazole, and the exact amounts of contaminant copper ions was measured (90 ppm; 75 ppm), in the reaction medium. Moreover, ICP-OES technique was employed for the isolated triazole compounds including 1-allyl-4-(p-tolyl)-1H-1,2,3-triazole, 1-benzyl-4-(4-nitrophenyl)-1H-1,2,3-triazole, and 1-benzyl-4-(4-(tert-butyl)phenyl)-1H-1,2,3-triazole (the exact amounts of contaminant copper ions was measured to be 43 ppm; 37 ppm; 46 ppm, respectively), and the minimum copper contamination was detected in the corresponding compounds. These results can rule out almost any contribution of leached copper ions in to the reaction medium, as well as the isolated triazole compounds, and confirms that the presented catalyst is heterogeneous.
As can be seen in the FT-IR spectrum of the 7th recovered catalyst (Fig. 1c), all of the characteristic peaks are well preserved in terms of shape, position and relative intensity.
These results demonstrate no significant changes have been occurred on the chemical structure of functional groups and the hydrogen bonding network of the catalyst.
The present catalyst was exhibited much more catalytic efficiency compared with some of the catalysts used for this transformation, previously. To prove the superiority of the present catalyst over some of the reported catalysts in the literature, its catalytic activity in the synthesis of 1-benzyl-4-phenyl-1H-1,2,3-triazole, was compared with various reported catalyst (Table 4). Although, other copper catalysts afford high yield of the product, some of these methods suffer from one or more of the following drawbacks, such as using organic solvents,18,36,37 higher temperatures,18,24f,37–41 certain and difficult conditions as mw irradiation39,41 or ball-milling,22d and some additives or reducing agents37 and require longer reaction times to achieve reasonable yields. However, compared to these catalysts, the present catalytic system, offered higher activity with lower amount of catalyst, without using any reducing agents or additives, under mild conditions for the synthesis of 1-benzyl-4-phenyl-1H-1,2,3-triazole, in water (Table 4, bold in entries). These findings significantly confirm the high efficiency of the present catalyst in three-component click synthesis of the desired triazole.
Table 4 Comparison of catalytic activity of the present catalyst with some other reported methods in the click reaction of phenyl acetylene, benzyl bromide and sodium azide
Entry |
Catalyst (mol%) |
Reaction conditions |
Yield (%) |
Ref. |
Copper(I) on 3-aminopropyl functionalized silica. CuII immobilized on guanidinated epibromohydrin functionalized γ-Fe2O3@TiO2. Fe3O4–silica-coated@functionalized 3-glycidoxypropyltrimethoxysilane. Polyethylene glycol of molecular weight 2000. CuAAC between 3-azidopropanol and phenylacetylene for the synthesis of 1-(3-hydroxypropyl)-4-phenyl-1,2,3-triazole. Copper turnings (CuT). CuAAC between 4-nitrophenyl azide and phenylacetylene for the synthesis of 1-(4-nitrophenyl)-4-phenyl-1H-1,2,3-triazole. |
1 |
Silica–APTS–Cu(I),a (5) |
EtOH, 78 °C, 24 h |
92 |
18 |
2 |
Cu/Al2O3, 10 |
Ball-milling, 1 h |
92 |
22d |
3 |
γ-Fe2O3@TiO2–EG–CuII,b (4) |
H2O, 50 °C, 5 min |
94 |
22f |
4 |
Cu NP, (5) |
MeOH, r.t, 8 h |
93 |
36 |
5 |
MNPs@FGly,c (0.5) |
H2O/t-BuOH; (3/1), 55 °C, 2 h |
99 |
37 |
6 |
CuFe2O4, (5) |
H2O, 70 °C, 3 h |
93 |
38 |
7 |
MNP–CuBr, (1.46) |
H2O/PEG, 80 °C, mw, 0.3 h |
96 |
39 |
8 |
Copper nanoparticles on charcoal, (1) |
H2O, 100 °C, 0.6 h |
91 |
40 |
9 |
Cu/SiO2, (10) |
H2O, 70 °C, mw, 10 min |
92 |
41 |
10 |
CuI, (1) |
PEG2000,d 70 °C, 0.5 he |
97 |
42 |
11 |
CuNP, (1) |
PEG2000, 70 °C, 0.5 he |
90 |
42 |
12 |
CuT,f (40) |
PEG2000, 70 °C, 6 he |
95 |
42 |
13 |
Nanoporous Au/TiO2, (2 mg) |
H2O, r.t, 20–30 min |
91 |
43 |
14 |
Zn/C, (10) |
DMF, 50 °C, 15 hg |
91 |
44 |
15 |
Cuttlebone@CuCl2, (8.5) |
H2O, 40 °C, 5 min |
95 |
Present study |
4. Conclusion
In summary, cuttlebone@CuCl2 as a novel and efficient heterogeneous catalyst was synthesized and characterized by different techniques such as, FT-IR, EDX, XPS, and ICP. The newly synthesized catalyst revealed a privileged catalytic efficiency towards the highly efficient and economical synthesis of 1,4-disubstituted 1,2,3-triazoles, through a one-pot Huisgen 1,3-dipolar cycloaddition reaction. The present protocol involves a rapid formation of 1,4-disubstituted 1,2,3-triazoles via a shorter reaction pathway, as well as easy workup and also avoids the isolation of unstable and toxic azides, by using recyclable and reusable catalyst, in water as a green solvent. Mildness of the reaction conditions, compatibility with a wide range of substrates with high functional group tolerance, high yields of the products, ligand-free and leaching-free feature of the catalyst, along with its ease of preparation and handling, make this protocol very attractive and environmentally compatible process for the regioselective synthesis of a variety of 1,2,3-triazoles. Most importantly, this approach does not require additional reducing agent, since cuttlebone as a natural-reducing platform can reduce CuII to the click-active stabilized CuI, in the freshly prepared catalyst, which would be followed by more reduction of CuII species while the catalyst treated with NaN3 during the reaction.
Acknowledgements
The authors gratefully acknowledge the partial support of this study by Ferdowsi University of Mashhad Research Council (Grant no. p/3/39490).
Notes and references
- H. C. Kolb, M. G. Finn and K. B. Sharpless, Angew. Chem., Int. Ed., 2001, 40, 2004–2021 CrossRef CAS.
-
(a) V. K. Tiwari, B. B. Mishra, K. B. Mishra, N. Mishra, A. S. Singh and X. Chen, Chem. Rev., 2016, 116, 3086–3240 CrossRef CAS PubMed;
(b) G. Franc and A. K. Kakkar, Chem. Soc. Rev., 2010, 39, 1536–1544 RSC;
(c) Ch. Wanga, D. Ikhlef, S. Kahlalb, J.-Y. Saillard and D. Astruc, Coord. Chem. Rev., 2016, 316, 1–20 CrossRef;
(d) J. E. Hein and V. V. Fokin, Chem. Soc. Rev., 2010, 39, 1302–1315 RSC.
- For reviews, see:
(a) V. D. Bock, H. Hiemstra and J. H. van Maarseveen, Eur. J. Org. Chem., 2006, 2006, 51–68 CrossRef;
(b) M. Meldal and C. W. Tornøe, Chem. Rev., 2008, 108, 2952–3015 CrossRef CAS PubMed;
(c) P. Appukkuttan and E. Van der Eycken, Eur. J. Org. Chem., 2008, 2008, 1133–1155 CrossRef;
(d) C. O. Kappe and E. Van der Eycken, Chem. Soc. Rev., 2010, 39, 1280–1290 RSC.
- C. Zhou, J. Zhang, P. Liu, J. Xie and B. Dai, RSC Adv., 2015, 5, 6661–6665 RSC.
-
(a) W. Xi, T. F. Scott, C. J. Kloxin and C. N. Bowman, Adv. Funct. Mater., 2014, 24, 2572–2590 CrossRef CAS;
(b) W. Tang and M. L. Becker, Chem. Soc. Rev., 2014, 43, 7013–7039 RSC;
(c) X. Xiong and H. Chen, Chin. J. Org. Chem., 2013, 33, 1437–1450 CrossRef CAS;
(d) P. Thirumurugan, D. Matosiuk and K. Jozwiak, Chem. Rev., 2013, 113, 4905–4979 CrossRef CAS PubMed;
(e) G. C. Tron, T. Pirali, R. A. Billington, P. L. Canonico, G. Sorba and A. A. Genazzani, Med. Res. Rev., 2008, 28, 278–308 CrossRef CAS PubMed;
(f) M. K. Singh, R. Tilak, G. Nath, R. S. K. Awasthi and A. Agarwal, Eur. J. Med. Chem., 2013, 63, 635–644 CrossRef CAS PubMed;
(g) M. Whiting, J. Muldoon, Y. C. Lin, S. M. Silverman, W. Lindstrom, A. J. Olson, H. C. Kolb, M. J. Fine, K. B. Sharpless, J. H. Elder and V. V. Fokin, Angew. Chem., Int. Ed., 2006, 45, 1435–1439 CrossRef CAS PubMed;
(h) Z. Ke, H. F. Chow, M. C. Chan, Z. Liu and K. H. Sze, Org. Lett., 2012, 14, 394–397 CrossRef CAS PubMed;
(i) Y. Hua and A. H. Flood, Chem. Soc. Rev., 2010, 39, 1262–1271 RSC.
-
(a) V. Aucagne and D. A. Leigh, Org. Lett., 2006, 8, 4505–4507 CrossRef CAS PubMed;
(b) P. Siemsen, R. C. Livingston and F. Diederich, Angew. Chem., Int. Ed., 2000, 39, 2632–2657 CrossRef CAS.
- For some selected examples, see:
(a) V. V. Rostovtsev, L. G. Green, V. V. Fokin and K. B. Sharpless, Angew. Chem., Int. Ed., 2002, 41, 2596–2599 CrossRef CAS;
(b) C. W. Tornoe, C. Christensen and M. Meldal, J. Org. Chem., 2002, 67, 3057–3064 CrossRef CAS PubMed;
(c) J. Y. Kim, J. C. Park, H. Kang, H. Song and K. H. Park, Chem. Commun., 2010, 46, 439–441 RSC;
(d) C. Shao, X. Wang, J. Xu, J. Zhao, Q. Zhang and Y. Hu, J. Org. Chem., 2010, 75, 7002–7005 CrossRef CAS PubMed;
(e) C. Deraedt, N. Pinaud and D. Astruc, J. Am. Chem. Soc., 2014, 136, 12092–12098 CrossRef CAS PubMed;
(f) K. B. Mishra and V. K. Tiwari, J. Org. Chem., 2014, 79, 5752–5762 CrossRef CAS PubMed;
(g) H. K. Akula and M. K. Lakshman, J. Org. Chem., 2012, 77, 8896–8904 CrossRef CAS PubMed;
(h) J. T. Fletcher and J. E. Reilly, Tetrahedron Lett., 2011, 52, 5512–5515 CrossRef CAS PubMed;
(i) S. Dörner and B. Westermann, Chem. Commun., 2005, 2852–2854 RSC;
(j) Y. Jiang, D. Kong, J. Zhao, Q. Qi, W. Li and G. Xu, RSC Adv., 2014, 4, 1010–1014 RSC;
(k) A. Pathigoolla, R. P. Pola and K. M. Sureshan, Appl. Catal., A, 2013, 453, 151–158 CrossRef CAS;
(l) M. Arslan, G. Yilmaz and Y. Yagci, Polym. Chem., 2015, 6, 8168–8175 RSC.
-
(a) R. Huisgen, Angew. Chem., Int. Ed. Engl., 1963, 2, 565–598 CrossRef;
(b) L. D. Pachón, J. H. van Maarseveen and G. Rothenberg, Adv. Synth. Catal., 2005, 347, 811–815 CrossRef;
(c) G. Molteni, C. L. Bianchi, G. Marinoni, N. Santo and A. Ponti, New J. Chem., 2006, 30, 1137–1139 RSC;
(d) A. Sarkar, T. Mukherjee and S. Kapoor, J. Phys. Chem. C, 2008, 112, 3334–3340 CrossRef CAS;
(e) D. Raut, K. Wankhede, V. Vaidya, S. Bhilare, N. Darwatkar, A. Deorukhkar, G. Trivedi and M. Salunkhe, Catal. Commun., 2009, 10, 1240–1243 CrossRef CAS;
(f) P. Cintas, A. Barge, S. Tagliapietra, L. Boffa and G. Cravotto, Nat. Protoc., 2010, 5, 607–616 CrossRef CAS PubMed;
(g) E. D. Pressly, R. J. Amir and C. J. Hawker, J. Polym. Sci., Part A: Polym. Chem., 2011, 49, 814–819 CrossRef CAS PubMed.
-
(a) S. Quader, S. E. Boyd, I. D. Jenkins and T. A. Houston, J. Org. Chem., 2007, 72, 1962–1979 CrossRef CAS PubMed;
(b) P. Appukkuttan, W. Dehaen, V. V. Fokin and E. Van der Eycken, Org. Lett., 2004, 6, 4223–4225 CrossRef CAS PubMed.
- For some selected examples, see:
(a) A. Marra, A. Vecchi, C. Chiappe, B. Melai and A. Dondoni, J. Org. Chem., 2008, 73, 2458–2461 CrossRef CAS PubMed;
(b) S. Ozçubukçu, E. Ozkal, C. Jimeno and M. A. Pericas, Org. Lett., 2009, 11, 4680–4683 CrossRef PubMed;
(c) I. Cano, M. C. Nicasio and P. J. Pérez, Org. Biomol. Chem., 2010, 8, 536–538 RSC;
(d) J. Garcıa-Álvarez, J. Dıez and J. Gimeno, Green Chem., 2010, 12, 2127–2130 RSC;
(e) T. R. Chan, R. Hilgraf, K. B. Sharpless and V. V. Fokin, Org. Lett., 2004, 6, 2853–2855 CrossRef CAS PubMed;
(f) W. G. Lewis, F. G. Magallon, V. V. Fokin and M. G. Finn, J. Am. Chem. Soc., 2004, 126, 9152–9153 CrossRef CAS PubMed;
(g) V. O. Rodionov, S. I. Presolski, S. Gardinier, Y. H. Lim and M. G. Finn, J. Am. Chem. Soc., 2007, 129, 12696–12704 CrossRef CAS PubMed;
(h) V. O. Rodionov, S. I. Presolski, D. Diaz Diaz, V. V. Fokin and M. G. Finn, J. Am. Chem. Soc., 2007, 129, 12705–12712 CrossRef CAS PubMed;
(i) S. Dĺez-González and S. P. Nolan, Angew. Chem., Int. Ed., 2008, 47, 8881–8884 CrossRef PubMed;
(j) S. Dĺez-González, Catal. Sci. Technol., 2011, 1, 166–178 RSC;
(k) S. Guo, M. H. Lim and H. V. Huynh, Organometallics, 2013, 32, 7225–7233 CrossRef CAS;
(l) H. D. Velázquez, Y. R. García, M. Vandichel, A. Madder and F. Verpoort, Org. Biomol. Chem., 2014, 12, 9350–9356 RSC.
-
(a) R. Huisgen, G. Szeimies and L. Moebius, Chem. Ber., 1965, 98, 4014–4021 CrossRef CAS;
(b) R. Huisgen, Pure Appl. Chem., 1989, 61, 613–628 CrossRef CAS.
-
(a) M. L. Kantam, V. S. Jaya, B. Sreedhar, M. M. Rao and B. M. Choudary, J. Mol. Catal. A: Chem., 2006, 256, 273–277 CrossRef CAS;
(b) T. Katayama, K. Kamata, K. Yamaguchi and N. Mizuno, ChemSusChem., 2009, 2, 59–62 CrossRef CAS PubMed.
- A. Coelho, P. Diz, O. Caamaño and E. Sotelo, Adv. Synth. Catal., 2010, 352, 1179–1192 CrossRef CAS.
- C. Girard, E. Nen, M. Aufort, S. Beauvire, E. Samson and J. Herscovici, Org. Lett., 2006, 8, 1689–1692 CrossRef CAS PubMed.
-
(a) S. Chassaing, A. S. S. Sido, A. Alix, M. Kumarraja, P. Pale and J. Sommer, Chem.–Eur. J., 2008, 14, 6713–6721 CrossRef CAS PubMed;
(b) S. Chassaing, M. Kumarraja, A. S. S. Sido, P. Pale and J. Sommer, Org. Lett., 2007, 9, 883–886 CrossRef CAS PubMed.
- B. H. Lipshutz and B. R. Taft, Angew. Chem., Int. Ed., 2006, 45, 8235–8238 CrossRef CAS PubMed.
- K. Yamaguchi, T. Oishi, T. Katayama and N. Mizuno, Chem.–Eur. J., 2009, 15, 10464–10472 CrossRef CAS PubMed.
- T. Miao and L. Wang, Synthesis, 2008, 3, 363–368 Search PubMed.
- I. Jlalia, H. Elamari, F. Meganem, J. Herscovici and C. Girard, Tetrahedron Lett., 2008, 49, 6756–6758 CrossRef CAS.
- A. Megia-Fernandez, M. Ortega-Muñoz, J. Lopez-Jaramillo, F. Hernandez-Mateo and F. Santoyo-Gonzalez, Adv. Synth. Catal., 2010, 352, 3306–3320 CrossRef CAS.
- I. S. Park, M. S. Kwon, Y. Kim, J. S. Lee and J. Park, Org. Lett., 2008, 10, 497–500 CrossRef CAS PubMed.
-
(a) A. N. Prasad, B. M. Reddy, E. Y. Jeong and S. E. Park, RSC Adv., 2014, 4, 29772–29781 RSC;
(b) M. Tajbakhsh, M. Farhang, S. M. Baghbanian, R. Hosseinzadeh and M. Tajbakhsh, New J. Chem., 2015, 39, 1827–1839 RSC;
(c) K. Namitharan, M. Kumarraja and K. Pitchumani, Chem.–Eur. J., 2009, 15, 2755–2758 CrossRef CAS PubMed;
(d) N. Mukherjee, S. Ahammed, S. Bhadra and B. C. Ranu, Green Chem., 2013, 15, 389–397 RSC;
(e) Y. Masuyama, K. Yoshikawa, N. Suzuki, K. Hara and A. Fukuoka, Tetrahedron Lett., 2011, 52, 6916–6919 CrossRef CAS;
(f) R. Jahanshahi and B. Akhlaghinia, RSC Adv., 2016, 6, 29210–29219 RSC.
- S. S. E. Ghodsinia and B. Akhlaghinia, RSC Adv., 2015, 5, 49849–49860 RSC.
-
(a) N. Razavi and B. Akhlaghinia, RSC Adv., 2015, 5, 12372–12381 RSC;
(b) M. Zarghani and B. Akhlaghinia, Appl. Organomet. Chem., 2015, 29, 683–689 CrossRef CAS;
(c) Z. Zarei and B. Akhlaghinia, Chem. Pap., 2015, 69, 1421–1437 CAS;
(d) M. Zarghani and B. Akhlaghinia, RSC Adv., 2015, 5, 87769–87780 RSC;
(e) N. Razavi and B. Akhlaghinia, New J. Chem., 2016, 40, 477–457 RSC;
(f) R. Jahanshahi and B. Akhlaghinia, RSC Adv., 2015, 5, 104087–104094 RSC;
(g) N. Yousefi Siavashi, B. Akhlaghinia and M. Zarghani, Res. Chem. Intermed., 2016, 42, 5789–5806 CrossRef;
(h) E. Karimian, B. Akhlaghinia and S. S. E. Ghodsinia, J. Chem. Sci., 2016, 128, 429–439 CrossRef CAS;
(i) M. Zarghani and B. Akhlaghinia, RSC Adv., 2016, 6, 31850–31860 RSC.
- J. D. Birchall and N. L. Thomas, J. Mater. Sci., 1983, 18, 2081–2086 CrossRef CAS.
- S. Vogel, J. Biosci., 2006, 31, 309–322 CrossRef CAS PubMed.
- J. Cadman, Y. Chen, Sh. Zhou and Q. Li, Adv. Mater. Res., 2010, 123, 295–298 CrossRef.
- N. Jothi and R. Kunthavai Nachiyar, Global J. Biotechnol. Biochem., 2013, 8, 1–7 CAS.
- X. Jia, W. Qian, D. Wu, D. Wei, G. Xu and X. Liu, Colloids Surf., B, 2009, 68, 231–237 CrossRef CAS PubMed.
- J. Cadman, S. Zhou, Y. Chen, W. Li, R. Appleyard and Q. Li, Acta Mech. Sin., 2010, 26, 27–35 CrossRef.
-
(a) Sh. Mohammeda, A. K. Padala, B. A. Dar, B. Singh, B. Sreedhar, R. A. Vishwakarma and S. B. Bharate, Tetrahedron, 2012, 68, 8156–8162 CrossRef;
(b) Y. Jiang, D. Kong, J. Zhao, W. Zhang, W. Xu, W. Li and G. Xu, Tetrahedron Lett., 2014, 55, 2410–2414 CrossRef CAS.
- B. Plavsic, S. Kobe and B. Orel, KZLTET, 1999, 33, 517–521 CAS.
- C. Sarkar and S. K. Dolui, RSC Adv., 2015, 5, 60763–60769 RSC.
- R. E. Loehman, in Characterization of Ceramics, ed. R. E. Loehman and L. E. Fitzpatrick, Momentum Press, LLC, New York, 2010, vol. 6, p. 107 Search PubMed.
- H. X. Siyang, H. L. Liu, X. Y. Wu and P. N. Liu, RSC Adv., 2015, 5, 4693–4697 RSC.
- L. Huang, W. Liu, J. Wu, Y. Fu, K. Wang, C. Huo and Z. Du, Tetrahedron Lett., 2014, 55, 2312–2316 CrossRef CAS.
- F. Matloubi Moghaddam and S. E. Ayati, RSC Adv., 2015, 5, 3894–3902 RSC.
- S. P. Anil Kumar, K. H. V. Reddy, B. Madhav, K. Ramesh and Y. V. D. Nageswar, Tetrahedron Lett., 2012, 53, 4595–4599 CrossRef.
- X. Xiong and L. Cai, Catal. Sci. Technol., 2013, 3, 1301–1307 CAS.
- H. Sharghi, R. Khalifeh and M. M. Doroodmand, Adv. Synth. Catal., 2009, 351, 207–218 CrossRef CAS.
- C. S. Radatz, L. d. A. Soares, E. f. R. Vieira, D. Alves, D. Russowsky and P. H. Schneider, New J. Chem., 2014, 38, 1410–1417 RSC.
- I. Billault, F. Pessel, A. Petit, R. Turgisa and M.-Ch. Scherrmann, New J. Chem., 2015, 39, 1986–1995 RSC.
- M. Boominathan, N. Pugazhenthiran, M. Nagaraj, Sh. Muthusubramanian, S. Murugesan and S. Bhuvanesh, ACS Sustainable Chem. Eng., 2013, 1, 1405–1411 CrossRef CAS.
- X. Meng, X. Xu, T. Gao and B. Chen, Eur. J. Org. Chem., 2010, 2010, 5409–5414 CrossRef.
Footnote |
† Electronic supplementary information (ESI) available: General information, spectral data of organic compounds. See DOI: 10.1039/c6ra13314b |
|
This journal is © The Royal Society of Chemistry 2016 |
Click here to see how this site uses Cookies. View our privacy policy here.
