Cyclodextrin grafted calcium carbonate vaterite particles: efficient system for tailored release of hydrophobic anticancer or hormone drugs

Abstract

Porous CaCO₃ microparticles have been used earlier for sustained drug release of hydrophilic drugs but have certain drawbacks for use with hydrophobic drugs. Hence, to overcome these drawbacks, a novel composite of CaCO₃ along with cyclodextrin (CD–CaCO₃) for the delivery of hydrophobic drugs was developed. Cyclodextrins (CDs), when incorporated within CaCO₃, increased the porosity and surface area of microparticles thereby enhancing the encapsulation efficiency of hydrophobic drugs (5-Fluorouracil or Na-L-thyroxine) by forming inclusion complexes with cyclodextrin. Thermogravimetric and FTIR studies confirmed the interaction between the cyclodextrin and CaCO₃ microparticles. Raman spectra confirmed the peak of vaterite crystals before and after loading of hydrophobic drugs within the composite. In vitro release studies when performed at pH 4.8 (5-Fu) and pH 1.2 (Na-L-thy) showed release at low pH as CaCO₃ is soluble at acidic pH unlike slower release at basic pH. Release kinetics followed a Higuchi kinetic model at pH 4.8 (5-Fu) and pH 1.2 (Na-L-thy) respectively.

---

1. Introduction

One of the major challenges being faced by the pharmaceutical industry is the development of efficient drug carriers for the delivery of hydrophobic drugs. Drug delivery systems (DDS) play an important role by enhancing the efficacy of drugs, their biodistribution and bioavailability. Various delivery systems have been developed to encapsulate hydrophobic drugs, such as hydrogel polymer micelles, membrane lipids, dendrimers,¹ liposomes, polymeric micro/nanoparticles etc.^2–4 Most of these systems have limited usage because of instability, toxicity, undesirable release profiles, the requirement of high salt concentrations, low loading capacity and poor biodegradability.⁵

Recently, porous inorganic mesoporous particles such as silica, calcium carbonate and calcium phosphate have emerged as potential drug delivery systems for hydrophobic drugs. These DDS have also been extensively studied for biomedical applications like gene delivery, biomedical analysis and bioimaging. Inorganic porous materials are favoured over other existing DDS in many areas, since they offer higher drug encapsulation irrespective of the nature of the drugs, high mechanical and chemical stability under physiological conditions,⁵ good biocompatibility and ease of synthesis even under scale up.⁶ CaCO₃ is considered as one of the best drug carriers not only for the reasons listed above, but also for its biodegradability. Microparticles can be prepared by simple mixing of the Ca²⁺ and CO₃²⁻ precursors in a co-precipitation method without any toxic organic solvents unlike silica particles. Still, research on the application and modification of CaCO₃ has not been fully explored.⁷ In particular there is a lot of room to explore CaCO₃ microparticles in combination with additives or other materials such as polymers, surfactants, liposomes and micelles.^8,9 The CaCO₃ porous particles are soluble at mildly acidic pH and hence the delivery system can be triggered to release the encapsulated drug at low physiological pH, which is generally favourable for drug release in cancer cells.^10,11

CaCO₃ mainly exists in different polymorphs namely, calcite, aragonite and vaterite. Calcite is the most stable phase whereas aragonite and vaterite are mostly metastable and readily transforms into stable state over time. Vaterite is the least stable state; it recrystallizes in water to form calcite.^12,13 An ability to form stable porous microparticles with large surface areas that disintegrate easily when exposed to mild acidic conditions makes vaterite an ideal selection for drug delivery systems.¹¹

Many efforts have been made to prepare stable vaterite or porous spherical CaCO₃ particles containing additives such as proteins,^14,15 dendrimers,¹⁶ surfactants,¹⁷ and charged polymer.¹⁸ In particular better porosity, morphology and particle size distribution is required. Svenskaya et al. recently demonstrated the loading efficiency of photosensitizer in vaterite micro-and nano carriers for the development of novel photodynamic therapy (PDT).¹⁹ Vaterite microspheres along with an additive, BSA have also been studied as a promising drug delivery for anticancer drug, camptothecin.²⁰ As mentioned previously, most of the available drugs in the pharmaceutical industry suffer from hydrophobicity, lower biodistribution and agglomeration in the body fluids. Hence, there is an urgent demand for development of novel drug carriers to increase the solubility and stability of drugs for target delivery. Calcium carbonate microspheres having phospholipids molecules entrapped in the porous structure have already been reported to load hydrophobic drugs.⁸

Cyclodextrins (CDs) are oligosaccharides with a hydrophobic cavity inside and hydrophilic exterior. Cyclodextrins have been used as a solubilising agent to improve the solubility and stability of hydrophobic drugs. CDs can interact with molecules to form total or partial inclusion complexes with macromolecular drugs.²¹ The preformed inclusion complexes have been used in the formation of nanocapsules or nanoparticles using nanoprecipitation techniques.²² Inclusion complexes have also been incorporated within various polymers as delivery systems.^23,24 In addition, cyclodextrins have been incorporated with polymers,^25,26 micelle,²⁷ liposomes,²⁸ hydrogels,²⁹ and dendrimers.³⁰

We recently, developed a composite cyclodextrin and CaCO₃ (CD–CaCO₃) porous spherical micro particle system using co-precipitation and demonstrated that these hybrid porous particles are potential candidates for delivery of hydrophobic small size hydrophobic drugs using model fluorescent hydrophobic dyes such as nile red (NR) and coumarin.³¹ We showed the controlled release of the encapsulated hydrophobic model drugs in acidic pHs, where the drug release was triggered by the phase transformation of vaterite or porous crystals to rhombohedral or calcite crystals. However, we did not previously study the application of these hybrid porous particles for controlled delivery of therapeutic hydrophobic drugs and there in vitro cytotoxicity in mammalian cells.

5-Fu is an important chemotherapy drug, which is a pyrimidine analogue that inhibits DNA synthesis by competitive inhibition of thymidylate synthetase and therefore has a broad spectrum activity against solid tumours.³² However, delivery of 5-Fu is limited, since it has a short biological half-life (20 to 30 min) due to rapid metabolism. Complicating delivery is the fact that it has a poor oral absorption, toxic side effects on bone marrow and the gastrointestinal tract, and rapid clearance.³³ Thus, extending the blood circulation time of 5-Fu will increase its efficiency, and various drug delivery system has been developed to this effect.³⁴

On other hand, thyroxine, is secreted by thyroid gland and are essential for development of several organs including central nervous system, heart, intestine, skeletal muscle and sensory organs.³⁵ There are several diseases related to deficiency or resistance to thyroid hormone that is an inherited endocrine human disease. Resistance to thyroid hormone is usually associated by a mutation in the TRβ gene.³⁶ Na-L-thyroxine, is a hydrophobic drug and is associated with solubility and stability. In our previous work, formation of inclusion complex with cyclodextrin in the presence of thyroxine was demonstrated and reported.³⁷ Microparticles have already been shown to improve the bioavailability, increase residence time and control release of drugs in the body under certain conditions. Since most DDs are designed for the delivery of a specific drug, the utilization of one DDs for different types of drugs has rarely been reported.

Thus, we extended our exploration of hybrid cyclodextrin-modified CaCO₃ porous particles (CD–CaCO₃) for controlled delivery of potential chemotherapeutic drugs like 5-fluorouracil (5-Fu) as well as hormone drugs like Na-L-thyroxine. In vitro drug release studies and cytotoxic assay have been studied using mammalian liver cancer cells. The hydrophobic drugs can be loaded by forming a supramolecular inclusion complex with cyclodextrin entrapped in CaCO₃ particles. It provides a novel way to create a new hybrid drug delivery system.

2. Materials and methods

2.1 Materials

β-Cyclodextrin and γ-cyclodextrin was procured from Walker Chemie (Munich, Germany). Na₂CO₃ and CaCl₂ (anhydrous), 5-fluorouracil and Na-L-thyroxine were purchased from Sigma-Aldrich (Germany) and all the chemicals were used without further purification. Deionized (DI) water was used throughout the experiment.

2.2 Synthesis of CaCO₃ spherical microparticles

The CaCO₃ spherical microparticles were prepared using well-known co-precipitation method.³⁸ In a typical synthesis, 0.33 M Na₂CO₃ was rapidly added into equal volume of 0.33 M CaCl₂ solution under magnetic agitation for 2 min, the white precipitate was filtered off, similar to CD–CaCO₃ particles, thoroughly washed with DI water and dried in air.

2.3 Fabrication of calcium carbonate microparticles containing cyclodextrin (β or γ) CD–CaCO₃

The hybrid CD–CaCO₃ porous microparticles were prepared using the co-precipitation method in the presence of β or γ-cyclodextrin according to our previous method.³¹ Firstly, 25 mL aqueous suspension of β-CD or γ-CD (10 mg mL⁻¹) was prepared under magnetic stirring followed by the addition of 0.33 M CaCl₂ solution to the suspension of cyclodextrin to form supersaturated Ca²⁺–CD complex and the agitation was continued for 30 min to disperse the Ca²⁺–CD complex.

Secondly, 25 mL of a 0.33 M Na₂CO₃ solution was added to the above complex resulting in the formation of a β-CD–CaCO₃ or γ-CD–CaCO₃ white precipitate under continuous agitation for 2 min. As prepared, hybrid particles were filtered using cellulose membrane filter (0.2 μm pore size), thoroughly washed with DI water to remove free CDs and dried for 1 h at 50 °C. β-CD–CaCO₃ or γ-CD–CaCO₃ was used for loading of 5-fluorouracil or Na-L-thyroxine respectively leading to the formation of β-CD–CaCO₃ + 5-Fu or γ-CD–CaCO₃ + Na-L-thy microparticles.

To confirm the entrapment of CDs in porous CD–CaCO₃ particles, a small amount of fluorescent coumarin (5 mL of 5 mg mL⁻¹ in ethanol) was added into the ‘Ca²⁺–CD’ co-chelate suspension under vigorous agitation for 25 min, followed by addition of 0.33 M CO₃²⁻ solution. The co-precipitation reaction was ceased after 2 min and particles were rinsed first with ethanol–water mixture and then dried in oven at 50 °C for 1 h.

2.4 Loading of 5-fluorouracil and Na-L-thyroxine into CD–CaCO₃ microparticles

The loading of 5-Fu or Na-L-thy was carried out by adding a solution of 5-Fu in DMSO (5 mg mL⁻¹) or Na-L-thy in methanol (5 mg mL⁻¹) to β-CD–CaCO₃ or γ-CD–CaCO₃, respectively and then allowing the solution to stir for 24 h. The suspensions were then centrifuged and the amounts of the loaded 5-Fu and Na-L-thy in CD–CaCO₃ were determined using UV-Vis analysis. Subsequently, 5-Fu and Na-L-thy loaded microparticles were collected by centrifugation, washed with DMSO or methanol to remove the adsorbed drug on the external surface, followed by washing with chloroform and drying in an oven at 50 °C. Loading efficiency of 5-Fu and Na-L-thy was found to be approximately 20 and 10% respectively.

To evaluate the amount of drug got entrapped inside CD–CaCO₃ microparticles, 1 mg of 5-Fu or Na-L-thy loaded CD–CaCO₃ microparticles were added separately to DMSO or methanol for 24 h. After centrifugation, the 5-Fu and Na-L-thy concentration in the supernatant was determined by UV-Vis spectroscopy (UV-Vis Shimadzu 2450) with the help of calibration curve describing the absorbance–concentration relationship.

3. Characterization techniques

3.1 Scanning electron microscopy

Scanning Electron Microscopy (SEM) was used to evaluate the morphology of CaCO₃, CD–CaCO₃, β-CD–CaCO₃ + 5-Fu and γ-CD–CaCO₃ + Na-L-thy microparticles on VEGA TESCAN at an accelerating voltage of 20 kV. Samples were dropped on a silicon wafer and dried overnight under ambient conditions. A thin layer of gold coating was applied prior to analysis.

3.2 Raman spectroscopy

The Raman spectra of CaCO₃, CD–CaCO₃, β-CD–CaCO₃ + 5-Fu and γ-CD–CaCO₃ + Na-L-thy microparticles were obtained using Raman microscope (Perkin Elmer Raman Micro 200) equipped with a cool charged couple device (CCD) detector set at −50 °C and an Olympus BX51M confocal microscope. A 785 nm high-performance line-narrowed laser was used as the excitation light source. Spectra were collected over the range of 800–1200 cm⁻¹. Background was subtracted for all the spectra.

3.3 Thermogravimetric analysis

The thermal properties and stability of CaCO₃ and CD–CaCO₃ microparticles were assessed using a Perkin Elmer TGA (400) analyser with a heating rate of 10 °C min⁻¹ using a temperature range of 25 to 800 °C under a nitrogen atmosphere.

3.4 Brunauer–Emmett–Teller (BET) analysis

The surface area, pore size and pore volume of CaCO₃ and CD–CaCO₃ were calculated based on BET theory. For BET analysis, Micrometrics ASAP 2020 Surface area and Porosity Analyser software was utilised and the samples were degassed prior to the determination of the surface area.

3.5 Mathematical modelling

To analyse the drug release from β-CD–CaCO₃ + 5-Fu and γ-CD–CaCO₃ + Na-L-thy loaded microparticles, different kinetic models (i.e. zero order, first-order, Higuchi, Hixson–Crowell cube root and Korsemeyer–Peppas model) were used to describe the release of drug from the formulations. The following graphs were plotted: cumulative % drug release versus time (zero order model), log cumulative of % drug remaining versus time (first order kinetic model), cumulative % drug release versus square root of time (Higuchi model), log cumulative % drug release versus log time (Korsemeyer–Peppas model) and cube root of drug% remaining versus time (Hixson–Crowell cube root law).

3.6 Cell study

The A549 cancer cell line (ATCC: HTB 53) was used throughout this study and grown to 85% confluence in 25 mL complete Roswell Park Memorial Institute (RPMI, Life Technologies, RSA, Gibco 3060301), which was supplemented with 10% (v/v) FBS (Gibco Invitrogen Corporation, 10106), 1% (v/v) penicillin–streptomycin (PAA Laboratories GmbH, P11-010) and 1 μg mL⁻¹ amphotericin B (PAA Laboratories GmbH, P11-001) in an 85% humidified atmosphere at 37 °C and 5% CO₂. For experiment purposes, A549 cells were seeded at a final concentration of 1 × 10⁵ in 3.4 cm² diameter culture dishes and incubated for 4 h to allow the cells to attach. The induced cellular effects of β-CD–CaCO₃, 5-Fu and their combination at three different concentrations (25, 50 and 100 μM mL⁻¹) were investigated 24 h after cell treatment.

3.6.1 Cellular viability: trypan blue exclusion assay. The trypan blue exclusion assay was used to determine the percentage viability after treatment. The trypan blue dyes are successfully taken up through the cell membrane of damaged cells and have a distinctive blue appearance under the microscope while intact and clear appearing cells do not take the dye.

Ten microlitres of cell suspension was added to 90 μL of 0.4% trypan blue (Sigma Aldrich, T8154) in HBSS (1 : 10 dilution) and carefully mixed. Then ten microlitres of the mixture was transferred to both counting chambers on either side of a Bright-Line™ hemocytometer by placing a pipette tip at the edge of the coverslip and allowing each chamber to fill by capillary action. Cells were viewed using a microscope (Olympus, CKX41) and total number of cells was counted and the percentage viability was determined by multiplying the average number of cells per square by 10⁵ (dilution factor × 10⁴) and the fraction of the number of viable cells over the total number of cells by 100.

3.6.2 Cellular proliferation: adenosine triphosphate (ATP) luminescence. ATP is the cellular energy currency and its quantity is an indication of the state of cells. The ATP luminescence assay was performed to determine the cell proliferation rate using the CellTiter-Glo® luminescent cell proliferation assay (Promega, G7570).

Fifty microliters of ATP CellTiter-Glo® reagent was added to an equal volume of cell suspension for each different treatment in an opaque-walled 96 well plate (BD Biosciences, 353296). Thereafter, the plate was mixed on an orbital shaker at 250 rpm (Heidolph Polymax Orbital, Labotec, 1040) for 2 min to induce lysis and incubated for 10 min at room temperature in the dark. This resulted into the production of a luminescent signal that was measured using a Multilabel Counter (Perkin Elmer, VICTOR3™, 1420) in relative light units (RLU). The value of the background (50 μL of media) was deducted from all experimental sample wells.

3.6.3 Cellular cytotoxicity: lactate dehydrogenase (LDH) membrane integrity assay. LDH reacted to convert a tetrazolium salt (in the reconstituted reagent, oxidised form) into a quantifiable red-formazan product (reduced form) in a NADH dependent reaction. The product of this enzymatic reaction is proportional to the intensity of damaged suffered by the cells. The CytoTox96® nonradioactive cytotoxicity assay (Promega, G400) assay was performed to evaluate the degree of membrane integrity and level of cytotoxicity by quantifying the level of LDH released from the cytosol due to membrane damage. Fifty microliters of reconstituted reagent was added to an equivalent volume of culture media in a 96 well plate and incubated in the dark at room temperature for 30 min. The colorimetric compound was measured spectrophotometrically at 490 nm using a Multilabel Counter (Perkin Elmer, VICTOR3™, 1420).

4. Results and discussion

4.1 Scanning electron microscopy (SEM)

The surface morphology of CaCO₃ (Fig. 1A), CD–CaCO₃ (Fig. 1B), β-CD–CaCO₃ + 5-Fu (Fig. 2A and B) and γ-CD–CaCO₃ + Na-L-thy (Fig. 2C and D) was examined using SEM. The average size of bare CaCO₃ microparticles was found to be around 3 to 5 μm obtained by measuring 100 randomly selected microparticles. Microparticles obtained were found to be spherical porous structures. The cross-sectional SEM images of broken microparticles revealed porous channel-like structures obtained due to aggregation of CaCO₃ nanoparticles during the process of co-precipitation. The average size of CD–CaCO₃ microparticles was 4 to 6 μm again by measuring 100 randomly selected microparticles. Interestingly, CD–CaCO₃ microparticles were found to be more porous than CaCO₃ microparticles and the reason for this could be hybridization of CDs to CaCO₃ microparticles during the process.

Fig. 1 (A) and (B) shows low and high magnification SEM images of bare CaCO₃ particles and (D) and (E) CD–CaCO₃ hybrid microparticles and (C) and (F) shows size distribution of CaCO₃ and CD–CaCO₃ microparticles.

Fig. 2 (A) and (B) show low and high magnification SEM images of 5-Fu encapsulated β-CD–CaCO₃ hybrid microparticles, (C) and (D) show low and high magnification SEM images of Na-L-thy encapsulated γ-CD–CaCO₃ hybrid microparticles.

4.2 Raman spectroscopy

Raman spectra of bare CaCO₃ showed a sharp band in between 1050 and 1100 cm⁻¹ that is a characteristic of vaterite particles as shown in Fig. 3A.¹² The same characteristic vaterite band is also seen in the CD–CaCO₃ (Fig. 3B), 5-Fu loaded CD–CO₃ (Fig. 3C) and Na-L-thy loaded CD–CaCO₃ (Fig. 3D) microparticles. Hence, Raman spectra of the CD–CaCO₃ microparticles before and after drug loading are identical, corresponding to the presence of vaterite in the microparticles.

Fig. 3 Raman spectra of bare (A) CaCO₃ microparticles, (B) CD–CaCO₃ hybrid microparticles, (C) β-CD–CaCO₃ + 5-Fu and (D) γ-CD–CaCO₃ + Na-L-thy.

4.3 Thermogravimetric analysis

Thermogravimetric analysis (TGA) was used to find the amount of β-CD present in the CaCO₃ hybrid particles. Fig. 4 shows a typical TGA analysis of the CaCO₃ microparticles, prepared in the presence of β-CDs (red colour plot) (CD–CaCO₃) versus those with CaCO₃ only (black colour plot). An additional weight loss step is seen in the CD–CaCO₃ particles (around 320 °C) compared to pure CaCO₃, which is due to desorption or decomposition of β-CDs present in the matrix of CD–CaCO₃ particles, compared to pure β-CDs at higher temperature can be attributed to strong interaction between the calcium carbonate nanoparticles and β-CDs in hybrid particles. The hybrid particles contain approximately ∼1.0% (by weight) β-CD in the porous matrix of hybrid CD–CaCO₃ microparticles as shown in inset in Fig. 4.

Fig. 4 TGA analysis of bare CaCO₃ (black colour), CD–CaCO₃ microparticles (red colour) and change in the weight between CD–CaCO₃ and bare CaCO₃ is shown as a percentage of the total weight in inset.

4.4 Brunauer–Emmett–Teller (BET) analysis

The specific area, pore size and pore volume distributions of the CaCO₃ and CD–CaCO₃ microparticles were investigated using Brunauer–Emmett–Teller analysis under standard temperature and pressure (Table 1). The BET surface area of CD–CaCO₃ was 4.5 m² g⁻¹, which is slightly higher than that of the CaCO₃ microparticles (4.4 m² g⁻¹). Moreover the pore size of CD–CaCO₃ also shows a slightly wider distribution of about 441 Å, which is larger than that of the CaCO₃ microparticles (421 Å). In either case, porosity is important in the delivery of hydrophobic drugs as it affects the rate of particle disintegration and payload release.

Table 1 BET surface, pore volume and pore size measurements of CaCO₃ and CD–CaCO₃ particles

Parameter	CaCO3	CD–CaCO3
BET surface	4.4 m^2 g^−1	4.5 m^2 g^−1
Pore volume	0.046 cm^3 g^−1	0.049 cm^3 g^−1
Pore size	421 Å	441 Å

---

4.5 Release studies

CaCO₃ porous (vaterite) particles are pH-sensitive as mentioned earlier in our study.^31,39 The particles are soluble in acidic media below pH 5 due to the faster dissolution of the CaCO₃ microparticles but they are not soluble at neutral pH.¹¹ The transformation of stable calcite crystals from spherical vaterite particles in aqueous medium is associated with decrease in particle size.⁶ This favours their use as pH responsive drug delivery systems. We therefore studied the release profile of 5-Fu loaded β-CD–CaCO₃ microparticles at pH 4.8 (similar to the acidic pH in many tumour tissues) and pH 7.4 (physiologically neutral pH). Under “normal” neutral cellular conditions, less than 15% of the 5-Fu is released even after 120 h whereas about 40% release is released at pH 4.8 during the same time (Fig. 5A).⁶ Thus it suggests that the drug delivery system should have smaller toxicity at pH 7.4 for normal tissue cells as compared to pH 4.8. In the case of Na-L-thyroxine loaded γ-CD–CaCO₃ microparticles, the release profiles were studied at pH 1.2 (acidic pH in stomach) and pH 7.4 (neutral pH), and the results are shown in Fig. 5B. At pH 1.2, the entire drug was released within 12 h, whereas at neutral pH only 30% was released in double the time, this is due to quick recrystallization of γ-CD–CaCO₃ porous vaterite particles into calcite crystals in high acidic pH. In the acidic pH medium, the porous γ-CD–CaCO₃ particles dissolved and recrystallizes slowly into its most stable form calcite or rhombohedral form as shown in Fig. 6A and C.⁴⁰ During the recrystallization process, the entrapped CDs and drug molecules are released out. But these CaCO₃ particles are stable in the basic or neutral pH (Fig. 6B and D).^11,41 This pH-dependent release of hydrophobic drugs from porous CD–CaCO₃ particles makes these particles potential drug carriers for pH triggered release of hydrophobic drugs in localized acidic areas as in a solid tumour and intracellular endosome as explained schematically in Fig. 7.²⁰

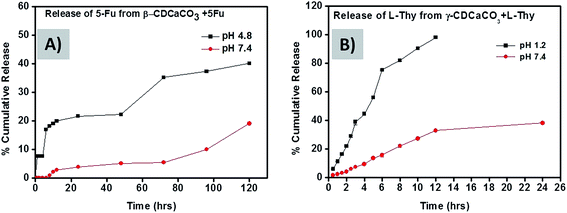

Fig. 5 (A) Shows the release profiles of 5-Fu loaded β-CD–CaCO₃ particles at pH 7.4 (red colour) and at pH 4.8 (black colour). (B) Shows release profiles of Na-L-thyroxine loaded γ-CD–CaCO₃ particles at pH 7.4 (red colour) and at pH 1.2 (black colour) (values present mean of three measurements ± standard error).

Fig. 6 (A) and (B) show the SEM images of the 5-Fu loaded β-CD–CaCO₃ particles after drug release for 120 h at pH 4.8 and 7.4 respectively; (C) and (D) shows Na-L-thy loaded γ-CD–CaCO₃ particles after drug release for 24 h at pH 1.2 and 7.4 respectively.

Fig. 7 Schematic representation of the release mechanism for 5-Fu loaded particles (β-CD–CaCO₃ + 5-Fu) (A) where carriers are in a pure vaterite phase loaded with 5-Fu at pH 7.4 (B) whereas recrystallization in the cancerous cells is observed at slightly acidic pH 4.8 (C).

4.6 Mathematical modelling

Drug release data was modelled against a zero order, first order, Higuchi model, Hixson–Crowell and Korsemeyer–Peppas model for β-CD–CaCO₃ + 5-Fu and γ-CD–CaCO₃ + Na-L-thy (Tables 2 and 3).

Table 2 Statistical parameters of various formulations of β-CD–CaCO₃ + 5-Fu at pH 4.8 and pH 7.4

pH	Zero order (r^2)	First order (r^2)	Higuchi (r^2)	Korsemeyer–Peppas (r^2)	Hixson–Crowell (r^2)
4.8	0.875	0.676	0.999	0.752	0.994
7.4	0.971	0.954	0.971	0.902	0.975

---

Table 3 Statistical parameters of various formulations of γ-CD–CaCO₃ + Na-L-thy at pH 1.2 and pH 7.4

pH	Zero order (r^2)	First order (r^2)	Higuchi (r^2)	Korsemeyer–Peppas (r^2)	Hixson–Crowell (r^2)
1.2	0.947	0.765	0.986	0.850	0.986
7.4	0.815	0.498	0.932	0.619	0.920

---

Eqn (1) is based on the zero order kinetics, indicating uniform drug release from the matrix with respect to the time. It is represented by the following equation:

Zero order kinetics: describes release from porous matrices.⁴²

where is the fractional drug release, K₀ is the zero-order kinetic constant and t is the time.

First order kinetics: describes systems for which the rate of the drug release is dependent on the drug concentration. It is represented by following equation:

where K₁ is the apparent release rate constant or first order release constant that is fitted according to the experimental data.⁴³

Higuchi model⁴⁴ describes drug release from a matrix as diffusion process based on Fick's law which represented as the square root of a time dependent process.⁴⁵ The equation for the Higuchi model is as follows:

where is the fraction drug release, and K_H is the Higuchi constant.

Hixson–Crowell cube root model: is based on the mechanism of drug release depends upon the change in surface area or particle size.⁴⁶

M₀^1/3 − M_t^1/3 = K_HCt (4)

where M₀ is the initial amount of drug in the carrier, M_t is the amount of the drug released at time t, and K_HC is kinetic constant.

Korsemeyer–Peppas model: represents power law release kinetics which follows non-Fickian release mechanism used to describe drug release that has an exponential relationship with respect to time.

where K_P is a constant incorporating the structural and geometric characteristics of the drug dosage form, n is the release exponent (e.g. first order release when n = 1) indicative of the drug release mechanism at time t. This mechanism is not well understood especially when more than one type of release phenomena are involved.⁴⁷

For the 5-Fu loaded microparticles (β-CD–CaCO₃ + 5-Fu), the correlation coefficient (r) values of the Higuchi model was found to be higher than other models r² = 0.999 and 0.9716 at pH 4.8 and 7.4 respectively. Similarly, for Na-L-thy loaded microparticles (γ-CD–CaCO₃), the Higuchi model showed the best fit with r² = 0.986 and 0.932 at pH 1.2 and 7.4 respectively. Thus the fraction of the drug released is proportional to the square root of time.

For CD–CaCO₃ microparticles, the release rate is higher in acidic pH (1.2 or 4.8) than in phosphate buffer solution (7.4), this phenomenon is being explained by higher swelling degree of polymer networks at pH 1.2 or 4.8 compared to that at pH 7.4, due to the presence of the cyclodextrin in the microparticle structures. The hydrophilicity of CDs acts as a surfactant which helps to lower interfacial tension between the drug and the hydrophobic cavity enhancing the wettability of drug by forming inclusion complex.⁴⁸ CDs serve as molecular valves to switch the ON/OFF release of payload from microparticle hybrid system.

4.7 Cell internalization

The number of internalized particles per cell was evaluated after 24 h incubation by counting the particles inside A549 cells via fluorescence microscopy and subsequent image analysis. The live cells were immediately analyzed by confocal imaging, using a multiphoton microscope. The A549 cells were stained with a green Cell Tracker (FITC) prior to the imaging. The cells were fluorescently stained and the co-localization of the fluorescently labelled CD–CaCO₃ microparticles within the cytoplasm was evaluated with z-stack images as depicted in Fig. 8.

Fig. 8 Orthogonal view of β-CD–CaCO₃ microparticles from different planes (x/y, x/z or y/z) of the confocal microscope images used to analyze the particle uptake. Co-localization of fluorescently labelled β-CD–CaCO₃ microparticles were FITC labelled. Scale bars correspond to 20 μm.

4.8 Cellular viability

The ability of cells to take up the trypan blue dye is used as an indication of cell damage. As shown in Fig. 9, when compared to untreated A549 cells, cells treated with 100 μM mL⁻¹ of 5-Fu and those treated under all three concentrations of β-CD–CaCO₃ + 5-Fu led to a significant decrease in cell viability. This decreased was concentration dependent with estimated an IC50 of 200 μM mL⁻¹. 5-Fu has been reported to induce apoptosis and cell death.⁴⁹ The combination of MTX and 5Fu, was previously reported to be more effective therapy against gastric cancer cells.⁵⁰ In our current study, the combination of 5-Fu and CD–CaCO₃ led to improved therapeutic effects of the 5-Fu in lung cancer cells.

Fig. 9 Trypan blue percentage viability of A549 cells on β-CD–CaCO₃, 5-Fu and β-CD–CaCO₃ + 5-Fu with different concentrations (25, 50 and 100 μM mL⁻¹). Decrease in cell viability was observed with the β-CD–CaCO₃ + 5-Fu when compared to 5-Fu or untreated control and significant differences (p < 0.05*) (p < 0.01**) were noted

4.9 Cell proliferation

In the present study, the rate of proliferation of A549 cells after treatment with different formulations is studied (Fig. 10). Treated cells with 5-Fu and β-CD–CaCO₃ + 5-Fu resulted in a decreased proliferation rate when compared to untreated control cells. In another study, 5-Fu significantly inhibited both cell proliferation and DNA synthesis in keloid fibroblasts, which later led to significant cell apoptosis.⁵¹ 5-Fu at a concentration of 100 μM mL⁻¹ was able to induce a significant decrease in cell proliferation. Upon its conjunction with CD–CaCO₃, a greater decrease in cell proliferation was detected when compared to the decreased seen when 5-Fu alone was used. Cell death is the ultimate process before the cell ceases to perform its function. For cell death to occur both structure damage as well as decrease (cessation) activity (caused by decrease ATP) has to happen before cell death. The structure further determines its ability to perform any function. The combination has to have a better therapeutic effect in lung cancer cells.

Fig. 10 ATP luminescence assay of A549 cells on β-CD–CaCO₃, 5-Fu and β-CD–CaCO₃ + 5-Fu with different concentration (25, 50 and 100 μM mL⁻¹). Decrease in ATP levels was observed with most of β-CD–CaCO₃ + 5-Fu treated cells when compared to the untreated control and significant differences (p < 0.05*) (p < 0.01**) (p < 0.001***) were noted.

4.10 Cell cytotoxicity

The CytoTox96® nonradioactive cytotoxicity assay was performed on cells treated with β-CD–CaCO₃, 5-Fu, or β-CD–CaCO₃ + 5-Fu at different concentration as shown in Fig. 11. All the concentrations of 5-Fu and CDCO₃ + 5-Fu led to significant increase in the level of LDH and cytotoxicity. The anticancer drug, 5-Fu is well known for its cytotoxic effects and nuclear damage. The study confirmed the ability of 5-Fu to induce damages in cancer cells. In another study, the potent cytotoxic effects of 5-fluorouracil (5-Fu) on human HeLa (uterine cervical cancer), MCF-7 (mammary cancer), WI-38 CT-1 (embryonic lung fibroblasts), KMM-1 (myeloma) and Raji (Burkitt's lymphoma) were already demonstrated.⁵² The current results indicated a possibility that combined therapy of certain types of anticancer drugs with CDCO₃ may be effective in treatment of cancer patients.

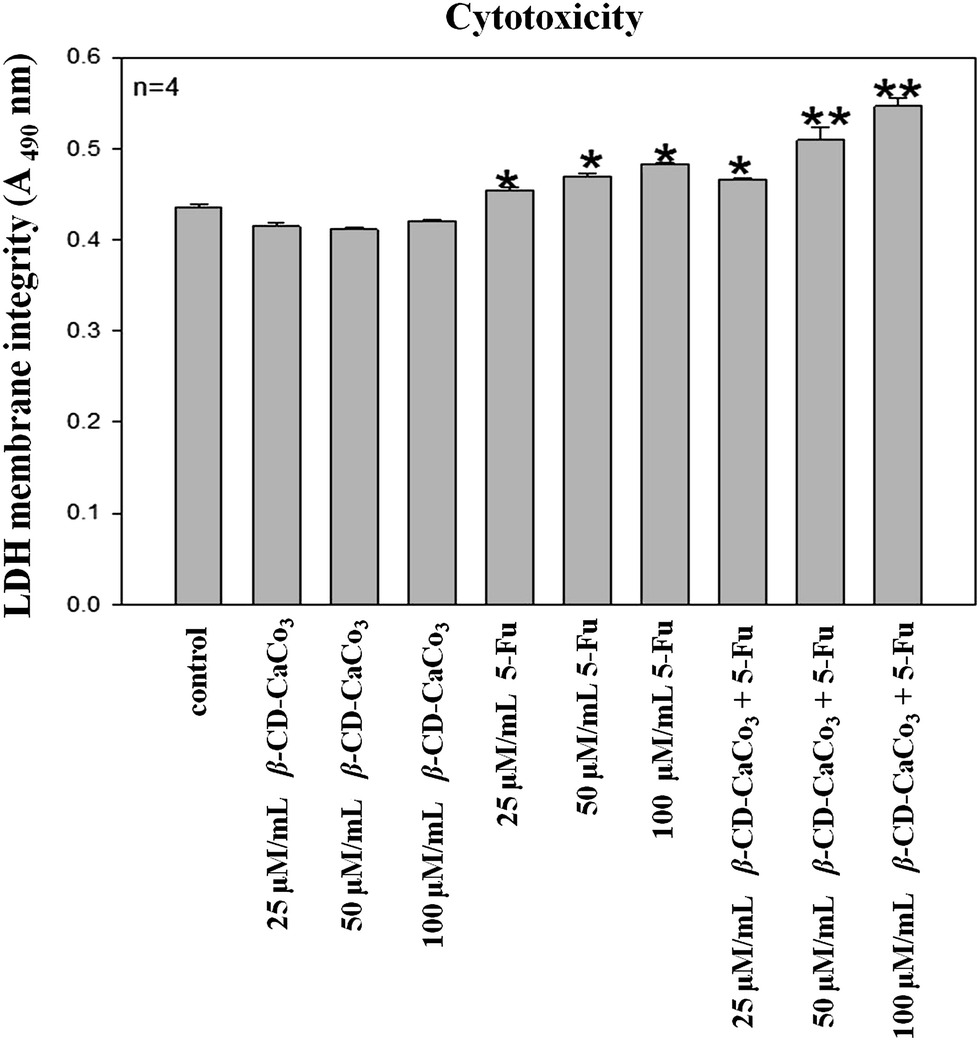

Fig. 11 LDH cytotoxicity assay after A549 cells were subjected to various treatments. At a concentration of 100 μM mL⁻¹ β-CD–CaCO₃ + 5-Fu led to significant increase in cytotoxicity when compared to untreated control.

5. Conclusions

In the present paper, a new approach to the encapsulation of an anticancer drug or hormone with polymeric microparticles has been described. It utilizes the ability of CD–CO₃ microparticles, formed by the CD in calcium chloride and sodium carbonate solution to formation inclusion complex of hydrophobic drugs by entrapped CD within the porous microparticles. The suggested method makes it possible to circumvent some problems which are associated with hydrophobic drugs as compared to other available encapsulation drug delivery systems.
