Stoichiometry-controlled cycloaddition of nitrilimines with unsymmetrical exocyclic dienones: microwave-assisted synthesis of novel mono- and dispiropyrazoline derivatives

Abstract

Microwave-assisted 1,3-dipolar cycloaddition of (E,E)-1,3-bisarylidenetetral-2-ones with nitrilimines, generated in situ by dehydrohalogenation of the corresponding hydrazonoyl chlorides, affords a series of spiropyrazolines in good to excellent yields. The presence of a second exocyclic C=C bond also allows the preparation of dispiropyrazolines. The cycloaddition proceeds with high chemo-, regio- and diastereoselectivity. The structure of the spiranic adducts has been established on the basis of their spectroscopic data and elemental analyses. The stereochemistry of these N-heterocycles has been confirmed by two X-ray diffraction studies. The luminescence properties and fluorescence quantum yields of these heterocyclic compounds have been investigated revealing that some of them are fluorescent in solution.

---

Introduction

Pyrazolines are fascinating scaffolds which constitute the core structure of a wide range of medicinally relevant compounds exhibiting numerous important bioactivities including anti-inflammatory,¹ antimicrobial,² anticancer,³ antitubercular,⁴ antiproliferative,⁵ antidepressant⁶ and antifungal properties⁷ (Fig. 1). Moreover, pyrazoline derivatives represent an important class of organic materials of great significance widely used as fluorescent probes⁸ and materials⁹ due to their high hole-transport efficiency, strong fluorescence and excellent blue-emitting properties with high quantum yield.¹⁰ These nitrogen-heterocycles have also found industrial applications, for example, they are used as whitening and brightening agents for optical bleaching of paper, plastics and textiles.¹¹

Fig. 1 Selected pyrazolines with biological activity.

The significance of the pyrazoline architecture with regard to their wide range of biological and photophysical properties has stimulated a great demand for their efficient synthetic methods.¹² Among the numerous developed strategies, the 1,3-dipolar cycloaddition reaction of nitrilimines with alkenes has been proven to be a robust method to build up the pyrazoline scaffold in a highly regio- and stereoselectivity fashion.¹³ Thereby, exocyclic enones have been occasionally applied as dipolarophiles for the synthesis of spiropyrazoline derivatives (Scheme 1).¹⁴ However, a survey of the literature reveals that there are only two examples by A. S. Girgis and co-workers¹⁵ describing symmetrical exocyclic dienones as the reaction partner with nitrilimines (Scheme 1). However, these cycloadditions occur with relative low chemoselectively, providing a mixture of mono-and dispiropyrazoline products.

Scheme 1 Profile of 1,3-dipolar cycloadditions for exocyclic enones and dienones across nitrilimines.

In light of the limited study of these interesting bis-exocyclic double bond systems, we were prompted to investigate the chemical activity of unsymmetrical exocyclic dienones for [3 + 2] cycloaddition reactions (Scheme 1), not reported till to date.

Thus, it appeared to be highly desirable to explore this kind of reaction which could constitute a promising strategy for the synthesis of diverse mono- and dispiropyrazolines.

In view of the challenge using unsymmetrical exocyclic dienones as dipolarophiles and in continuation of our ongoing investigation on the synthesis of spiroheterocycles,¹⁶ we herein report the first microwave-assisted chemo-, regio- and diastereoselective 1,3-dipolar cycloaddition between (E,E)-1,3-bisarylidenetetral-2-ones and in situ generated nitrilimines stemming from their corresponding hydrazonoyl chlorides. This reaction provides an efficient and practical access to mono- and dispiro-containing pyrazoline cores with hitherto unreported substitution pattern. Furthermore, we demonstrate the role of stoichiometry-controlled cycloaddition in modulating the chemoselectivity of the 1,3-dipolar cycloaddition reaction. Finally, we report on the luminescence properties of some selected heterocyclic compounds of this family.

Results and discussion

Synthesis of mono- and dispiropyrazolines

The dienones chosen for our study as dipolarophiles have been prepared by the acid-catalysed condensation of β-tetralone with various benzaldehydes. As confirmed by NMR spectroscopy, these alkenes display an (E,E)-configuration in accordance with the literature data.¹⁷ These dipolarophiles have two activated exocylic double bonds. The C=C double bond at the 3-position is expected to be more reactive than the second double bond due to the reduced steric hindrance (Fig. 2). To prove this hypothesis, we chose to study at the onset the reaction between (E,E)-1,3-bisbenzylidenetetral-2-one 1a and the nitrilimine generated in situ by dehydrohalogenation of the corresponding hydrazonoyl chloride 2a in 1 : 1.5 molar ratio (Scheme 2).

Fig. 2 Reactivity of the two exocyclic double bonds towards 1,3-dipoles.

Scheme 2 Reaction of (E,E)-1,3-bisbenzylidenetetral-2-one 1a with hydrazonoyl chloride 2a.

In order to optimize the reaction conditions, a range of solvents with different polarities such as toluene, acetonitrile and dichloromethane were explored (Table 1).

Table 1 Optimization of the 1,3-dipolar cycloaddition of dipolarophile 1a with hydrazonoyl chloride 2a^a

Entry	Solvent	Conditions	Ratio 3a/4a	Yield^c (%)
a Reaction conditions: 1a (1 mmol), 2a (1.5 mmol), Et3N (3 mmol), solvent (5 mL).b Product ratios were determined by analysis of the ^1H NMR spectrum of the crude reaction mixture.c Isolated yield after purification by column chromatography on silica gel.d Inseparable mixture of products.
1	PhCH3	rt, 76 h	100 : 00	32
2	PhCH3	110 °C, 24 h	—	—^d
3	CH3CN	rt, 73 h	100 : 00	35
4	CH3CN	82 °C, 24 h	—	—^d
5	CH2Cl2	rt, 48 h	80 : 20^b	54/8
6	CH2Cl2	MW (100 W, 50 °C, 10 m)	90 : 10^b	75/12
7	CH2Cl2	MW (100 W, 60 °C, 15 m)	90 : 10^b	78/5
8	CH2Cl2	MW (100 W, 80 °C, 15 m)	90 : 10^b	85/7

---

As shown in Table 1, when carrying out the reaction in toluene or acetonitrile at room temperature, the desired product 3a is obtained with poor yield (Table 1, entries 1 and 3). Raising the reaction temperature to reflux for 24 h led to an inseparable mixture of products (Table 1, entries 2 and 4). Performing in dichloromethane at room temperature, the reaction proceeded smoothly affording a mixture of monospiropyrazoline 3a and dispiropyrazoline 4a in a 80 : 20 ratio (Table 1, entry 5) with a moderate yield (Table 1, entry 5). Next, the reaction was examined under microwave irradiation (Table 1, entries 6–8). Under this condition, an enhanced reactivity and high selectivity compared to the above reactions was noticed. The best results are observed at 80 °C to afford the pyrazoline 3a in excellent yield (85%) within 15 min (Table 1, entry 8). The drastic reduction in the reaction time with enhanced yield, high chemo- and regioselectivity makes this strategy the most advantageous.

To address a possible influence of the electronic propensity of the substituent at the para-position of the aryl group of dipolarophiles and dipoles-1,3 on the yield and regiochemical outcome of the reaction, a variety of dienones 1a–f and hydrazonoyl chlorides 2a, b with both electron-donating and electron-withdrawing substituent were treated under the optimized conditions (Scheme 3 and Table 2).

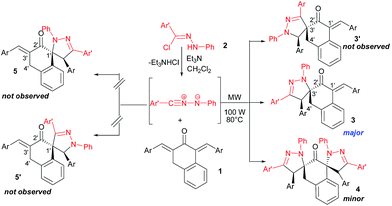

Scheme 3 1,3-Dipolar microwave-assisted cycloaddition reactions for the synthesis of monospiropyrazoline derivatives 3.

Table 2 Stoichiometry-controlled synthesis of mono and dispiropyrazoline derivatives 3 and 4

Entry	Compounds	Ar	Ar′	1/2 with 1 : 1.5 molar ratio (reaction time 15 m)		1/2 with 1 : 3 molar ratio (reaction time 30 m)
				Ratio 3/4^a	Yield^b (%)	Ratio 3/4^a	Yield^b (%)
a The relative ratios were determined by analysis of the ^1H NMR spectra of the crude reaction mixture.b Isolated yield after purification by column chromatography on silica gel.
1	3a/4a	Ph	Ph	90 : 10	85/7	10 : 90	10/75
2	3b/4b	p-MeC6H4	Ph	86 : 14	73/14	14 : 86	18/73
3	3c/4c	p-MeOC6H4	Ph	83 : 17	82/14	17 : 83	14/82
4	3d/4d	p-ClC6H4	Ph	90 : 10	77/11	10 : 90	11/77
5	3e/4e	p-CNC6H4	Ph	85 : 15	83/13	13 : 87	10/73
6	3f/4f	Ph	p-MeC6H4	87 : 13	73/10	12 : 82	13/70
7	3g/4g	p-MeC6H4	p-MeC6H4	82 : 12	70/13	10 : 90	14/77
8	3h/4h	p-MeOC6H4	p-MeC6H4	90 : 10	77/14	10 : 90	10/75
9	3i/4i	p-ClC6H4	p-MeC6H4	90 : 10	75/10	16 : 84	11/72
10	3j/4j	p-CNC6H4	p-MeC6H4	84 : 16	72/11	15 : 85	15/79

---

As shown in Table 2, the reaction proceeds with high chemoselectivity as it occurs preferentially on the exocyclic C=C double bond at 3-position of dipolarophiles 1, affording the mono-spiropyrazolines 3 as the major product. This reaction also proceeds with high regioselectivity with the carbon of the dipole adding to the β-position of C=C double bond. The resulting adducts were obtained as single diastereoisomers (Scheme 3). Similar tendency has been recently observed in other 1,3-dipolar cycloadditions involving EWG-substituted ethylene derivatives.¹⁸ The yields of the produced pyrazolines 3 were marginally affected by the substituent present on the aromatic ring of the dienones and 1,3-dipoles (Table 2).

Next, we explored the reaction under similar conditions with one equivalent of dipolarophiles 1 and three equivalents of hydrazonoyl chloride 2, precursor of the in situ generated 1,3-dipole, under microwave irradiation (Scheme 4 and Table 2).

Scheme 4 Reaction of (E,E)-1,3-bisarylidenetetral-2-ones 1 with 3 eq. of hydrazonoyl chlorides 2.

Interestingly, upon running the reaction for 30 min and increasing the temperature to 120 °C, the chemoselectivity of the reaction is modulated and we obtained the dispiropyrazolines 4 as the major product with good yields (Table 2).

Spectroscopic and crystallographic characterization of the mono- and dispiropyrazoline derivatives

The structure and the relative configuration of the mono- and dispiropyrazoline were deduced from their spectroscopic data and from two X-ray structure determinations performed on cycloadducts 3b and 4c. Selected chemical shift of pyrazolines 3b and 4c are depicted in Fig. 3 and 4, respectively.

Fig. 3 ¹H and ¹³C chemical shifts of pyrazoline 3b.

Fig. 4 ¹H and ¹³C chemical shifts of pyrazoline 4c.

The ¹H NMR spectrum of compound 3b (Fig. 3) reveals two mutually coupled doublets at δ 2.76 ppm and 3.93 ppm (J = 15.3 Hz) corresponding to the H-4′ methylene protons proving the chemoselectivity of the cycloaddition reaction. If the hypothetical alternative isomers 5 or 5′ (Scheme 3) would have been formed, the H-4'protons should give rise to a doublet. The appearance of the singlet at δ 4.47 is consistent with the pyrazoline-4H proton (typically δ 4.7–5.1)^15,19 and not with the pyrazoline-5H proton in 3′b (Scheme 3). The latter should resonate at a δ value >5.6 ppm.²⁰

In addition, the ¹³C NMR spectrum exhibits a signal at δ 75.2 ppm attributed to spiranic carbon C-5 in accordance with the literature.²¹ Therefore, these results data confirm the existence of regioisomer 3b and rule out the alternative structure 3′b (Scheme 3).

The ¹H NMR spectrum of compounds 4c show two singlets at δ 4.86 and 5.01 ppm corresponding to pyrazolinic protons H-4 and H-4′ indicating the formation of two pyrazolinic rings. The geminal protons H-4′′ give rise to two doublets at 3.25 ppm and 3.43 ppm. Of particular significance is the absence of signals at about 7.19 ppm corresponding to an olefinic proton. Furthermore, the ¹³C NMR spectrum of compound 4c displays two signals at 73.9 ppm and 83.3 ppm corresponding to two spiranic carbons C-5 and C-5′, which is close to analogous reported simple structures.²¹ These data support the pyrazoline structure 4 and rule out the formation of isomeric compound 4′ (Scheme 4).

Single-crystal X-ray diffraction analysis of 3b (Fig. 5) confirmed the regio-isomeric structure assigned to this product, and indicated the retention of primary E-configuration of diplarophile which confirms one-step cycloaddition mechanism.²² Moreover, it precises that the molecule presented in Fig. 5 (from asymmetric unit) has a (1S, 7S) configuration. Since the space group of crystallization of 3b (P2₁/c) bears the symmetry centres, the second enantiomer (R, R) is also present in the lattice. The relative configuration of this dispiropyrazoline was assigned as (9S, 10S) and (7R, 15R) for the enantiomer of cycloadduct 4c shown in Fig. 6 (note the labelling of the carbon atoms for the X-ray structures is different from that used for assignment of the NMR data). The examination of this structure reveals a cis-relationship between the N-phenyl of the nitrilimine part and the C=O group of the tetralone ring. Thus, the cycloadduct 4 is formed via the approach of the dipole from the bottom side of the C=C double bond of cycloadduct 3.

Fig. 5 Ball and Sticks plot of the structure of 3b in the crystal at 115 K. For clarity, only stereo-chemically significant hydrogen atoms are shown. Selected bond lengths (Å) and angles (°): C1–C2 1.544(3), C2–C3 1.492(3), C2–O1 1.216(3), C3–C32 1.351(3), C3–C4 1.466(3), C4–C5 1.404(3), C5–C6 1.520(3), C6–C1 1.526(3), C1–N2 1.476(3), N2–N1 1.377(3), N1–C8 1.290(4), C8–C7 1.523(3); C1–C2–C3 115.01(19), C2–C3–C4 116.65(19), C2–C1–C7 105.73 (18), C4–C5–C6 117.4(2), C5–C6–C1 109.05(18), C6–C1–C7 114.97(19), C1–C7–C8 110.20(19), C7–C8–N1 113.7(2), C8–N1–N2 109.5(2), N1–N2–C1 112.3(2).

Fig. 6 Ball and Sticks plot of the structure of 4c in the crystal at 173 K. For clarity, only stereo-chemically significant hydrogen atoms are shown. Selected bond lengths (Å) and angles (°): C1–C2 1.540 (4), C2–C3 1.533(4), C1–O1 2.208 (4), C3–C8 1.391(4), C3–C4 1.383(5), C4–C5 1.378(5), C5–C6 1.378(5), C8–C7 1.393(5), C1–C10 1.539(4), C2–N2 1.464(4), N2–N1 1.3865(4), N2–C17 1.2953(4), N3–N4 1.390(4), N3–C10 1.503(4), N4–C39 1.287(4); C1–C2–C3 110.61(3), C2–C3–C4 122.23(4), C2–C1–C10 117.9(3), C4–C5–C6 119.7(4), C9–C10–C1 112.4(3), C1–C2–N1 111.6(3), C2–N1–N2 111.2(3), N1–N2–C17 109.7(3), C38–C10–N3 99.5(2), C10–N3–N4 110.8(3), N3–N4–C39 109.8(3).

This approach should be more favourable, whereas the formation of the other diastereoisomer 6 is less favourable due to steric repulsion between the phenyl groups of the tetralone and the N-phenyl rings (Fig. 7). This, in turn, also explains the facial diastereoselectivity encountered during the second cycloaddition. These findings show again that this 1,3-dipolar cycloaddition occurs with interesting molecular diversity and high diastereoselectivity.

Fig. 7 Plausible approach of the nitrilimine towards the C=C bond of cycloadduct 3.

Electronic properties

The absorption and emission spectral data obtained for compounds 3 and 4 are summarized in Table 3.

Table 3 Absorption and emission data for compounds 3 and 4^a

Compound	λabs (nm) (log(ε) M^−1 cm^−1)	λexcit^b (nm)	λem^c (nm)	ϕ^d (%)
a Values of absorption maximum (λabs.) and their associated molar extinction coefficient (ε).b λexcit.: excitation wavelength.c λem.: emission wavelength.d ϕ: fluorescence quantum yield (±8%).
3a	240 (4.21); 341 (4.16)	350	453	0.67
3b	234 (4.34); 356 (4.32)	330	407 (sh); 429	1.20
3c	237 (4.23); 356 (4.21)	350	454	0.88
3d	240 (4.21); 349 (4.19)	350	427	0.91
3f	243 (4.23); 347 (4.22)	350	434	0.76
3g	245 (4.22); 351 (4.23)	350	410	0.97
3h	249 (4.21); 355 (4.20)	350	427	0.74
3i	251 (4.19); 347 (4.17)	340	403	0.82
3j	245 (4.26); 335 (4.04)	340	452	1.04
4a	239 (4.56); 349 (4.37)	330	408	1.47
4b	232 (4.61); 346 (4.29)	350	420	1.68
4c	244 (4.60); 347 (4.37)	330	402	1.52

---

All absorption spectra have a similar appearance. For comparison, the superposition of the electronic absorption spectra of representative compounds 3b and 4b measured with a concentration around 2 × 10⁻⁵ M at 298 K using dichloromethane as solvent are shown in Fig. 8.

Fig. 8 UV-visible absorption recorded for compounds 3b and 4b in CH₂Cl₂ at 293 K.

However, one can note that the absorption intensities between the two bands around 234 and 356 nm of the two compounds are different. Increasing the number of phenyl groups in compound 4b in comparison with 3b results an increase of the molar coefficients extinction of the bands at strong energy (Table 3). These two absorption bands can be attributed to transitions between π, π* states, whereas the very broad absorption bands around 370 nm are due to a mixture of π, π* and n, π* characters.

The superposition of the emission spectra of compounds 3b and 4b (ca. 1.2 × 10⁻⁶ M) measured at 298 K in degassed dichloromethane are shown in Fig. 9. After excitation of compounds 3b and 4b at 330 nm and 350 nm, the emission maxima are observed at 407 and 429 nm, respectively.

Fig. 9 Emission recorded for compounds 3b and 4b in CH₂Cl₂ at 293 K.

The emission spectra have a low symmetry like that of the band to weak energy of the absorption spectra (Fig. 9).

Both measurements recorded in the presence of oxygen or the increase of the concentration lead to similar emission spectra. These findings allow to exclude a deactivation from a triplet state or an emission stemming from a excimer in solution. Indeed, the broad fluorescence bands observed for 3b and 4b can safely be assigned to a π, π* state, it follows that the absorption transition is belonging to a higher π, π* state or to a state different character, e.g. a charge transfer state. Either way, the lowest energy singlet state S₁ → S₀ (the one seen in fluorescence) must be hidden beneath the more intense S₂ → S₀ band.²³ Fluorescence quantum yields Ø_F of compounds 3 (0.67 to 1.2) and 4 (1.47 to 1.68) were determined using cresyl violet as a fluorescence quantum yield standard.²⁴ Generally, these values are relatively low compared with other spiro-compounds reported in the literature,²⁴ but follow a similar trend reported for some other molecules of this family.²⁵

Conclusion

The microwave-assisted 1,3-dipolar cycloaddition of nitrilimine with (E,E)-1,3-bisarylidenetetral-2-ones provides to be a straightforward entry to mono- and dispiropyrazolines. The reaction proceeds with high chemo-, regio- and diastereoselectivity, affording adducts with high to excellent yields. The study of the luminescence properties of spiropyrazolines 3 and 4 revealed that some of them are fluorescent in solution. Because of the unique structure of the pyrazolines and the easiness and advantages of this microwave-assisted protocol, such as greater reactivity, mild condition, and high selectivity and a broad substrate scope, we believe that this method could be very useful for drug discovery and development. Therefore, the biological activities of our spiropyrazoline derivatives deserve investigation. Further research is also in progress to extend the scope of these reactions and to analyze/understand theoretically the approach between dipole and dipolarophile by means of DFT computing. Notably the possibility to construct novel heterocyclic systems by cycloaddition of other dipoles such as organic azides RN₃ on the remaining reactive exocyclic C=C bond of 3 appears as an interesting objective for forthcoming studies.

Experimental

General methods

NMR spectra were recorded with a Bruker-Spectrospin AC 300 spectrometer operating at 300 MHz for ¹H and 75 MHz for ¹³C relative to TMS as internal standard. CDCl₃ was used as solvent. Splitting patterns are designated as follows: s, singlet; d, doublet; m, multiplet. Chemical shift (δ) values are given in parts per million and coupling constants (J) in Hertz. IR spectra were recorded on a Perkin-Elmer Spectrum TwoTM FT-IR in the ATR mode. Melting points were determined by using an Electro-thermal 9100 digital melting point apparatus. Materials: thin layer chromatography TLC plates (Merck, Silca gel 60 F₂₅₄ 0.2 mm 200 × 200 mm) substances were detected using UV-light at 254 nm. UV-vis spectra were measured with a VARIAN-Cary 100 spectrophotometer and emission spectra were recorded on a Jobin-Yvon Fluoro Log 3.2.2 spectrofluorometer. Small-scale microwave-assisted synthesis was carried out in a StartSynth multimode microwave instrument producing controlled irradiation at 2.45 GHz (Milestone S.r.l., Sorisole, Italy). The instrument is equipped with an industrial magnetron and a microwave diffuser located above the microwave chamber, with continuous microwave output power from 0 to 1400 W. Reaction times refer to hold times at the temperatures indicated, not to total irradiation times. The synthesis of hydrazonoyl chlorides was accomplished by reacting the corresponding N-phenyl-N′-arylhydrazines with triphenylphosphine and carbon tetrachloride in acetonitrile at room temperature following the procedure of A. S. Shawali et al.²⁶

General procedure for the synthesis of spiropyrazoline derivatives 3

A mixture of 1,3-bis(arylidene)-2-tetralones 1 (1 mmol), hydrazonoyl chloride (1.5 eq.) 2 and Et₃N (3 eq.) in dichloromethane (5 mL), was stirred in a microwave reactor at 80 °C for 15 m. Then the mixture was washed with a brine solution and extracted three times with dichloromethane. The organic layer was dried over MgSO₄ and concentrated in vaccuo. The spiroadducts were separated by using column chromatography on silica gel using petroleum ether/acetone (8 : 2) as eluent, and then crystallized from ethanol.

General procedure for the synthesis of spiropyrazoline derivatives 4

Compounds 4 were obtained under comparable reaction conditions regardless of the stoichiometry of hydrazonoyl chloride (3 eq.) 2 and NEt₃ (6 eq.). Spectroscopic data for all compound are presented in the ESI.†

X-ray structure studies

A colourless single-crystal of 3b has been mounted on a Nonius Kappa Apex II diffractometer and the intensity data have been collected at 115 K with MoKα radiation (λ 0.71073 Å). These data were further treated with the SAINT V8.27B program suite (Bruker AXS Inc., 2012) and within the OLEX2 frame.²⁷ The structure has been solved by direct methods with SHELXS-97 and refined using SHELXL-97.²⁸ There is a disorder over two positions of C-9 through C-14 phenyl ring bound to the C8 atom of the main molecular core of 3b. The occupancies of both sites have been refined to some 0.7 for the major structure (A) and to 0.3 for a minor phenyl (B). This disorder of one phenyl ring in the crystal of 3b has no influence on the stereochemistry of the molecule.

The crystal structure determinations of 4c was accomplished on an Oxford Diffraction Xcalibur Sapphire 3 diffractometer; data collection: CrysAlis CCD (Oxford Diffraction, 2013); cell refinement: CrysAlis RED (Oxford Diffraction, 2013); data reduction: CrysAlis RED; absorption correction: multi-scan (CrysAlis RED; Oxford Diffraction, 2013). The structure was solved by applying direct methods (ShelXS) and refined with ShelXL²⁸ using OLEX2.²⁷ Furthermore, the crystal structure of 4c contains disordered solvent molecules which were removed from the model using the solvent mask function of OLEX2.²⁹

All non-hydrogen atoms in both structures were refined anisotropically. The hydrogen atoms where introduced within a riding model and refined with isotropic temperature factors set to U_iso(H) = 1.5U_eq.(C) for hydrogen atoms on sp³ carbons and to U_iso(H) = 1.2U_eq.(C) for those ridden on sp² carbons.

Crystallographic data (excluding structure factors) for the structures of 3b and 4c have been deposited at CCDC with deposition number (1412290 and 1471593).

Crystal data for 3b. C₃₉H₃₂N₂O; M = 544.67; crystal system: monoclinic; space group P2₁/c, a = 18.2934(4) Å, b = 9.6683(2) Å, c = 18.2645(3) Å, β = 115.433(1)°, V = 2917.3(1) ų, Z = 4, λ(Mo-K_α) = 0.71073 Å, F(000) = 1152, μ(Mo-K_α) = 0.074 mm⁻³, T = 115(2) K. 13 943 reflections collected, 7201 unique and 5049 with I > 2σ(I). Final agreement factors: R(F) = 0.1095 (all reflections) and 0.0757 with I > 2σ(I). Final residuals ρ_max = 0.637, ρ_min = −0.379 e⁻ Å⁻³. GOF = 1.024.

Crystal data for 4c. C₅₂H₄₂N₄O₃; M = 770.89; crystal system: monoclinic; space group P2₁/n, a = 14.523(1) Å, b = 21.192(2) Å, c = 15.121(2) Å, β = 104.68(1)°, V = 4501.8(7) ų, Z = 4, λ(Mo-K_α) = 0.71073 Å, F(000) = 1624, μ(Mo-K_α) = 0.071 mm⁻³, T = 173(2) K. 7909 reflections collected, 7909 unique and 3888 with I > 4σ(I). Final agreement factors: R(F) = 0.1387 (all reflections) and 0.0736 with I > 2σ(I). Final residuals ρ_max = 0.45, ρ_min = −0.31 e⁻ Å⁻³. GOF = 0.951.
