Golf ball-like architecture fabricated by supramolecular self-assembly of naphthalene diimide

Abstract

In this manuscript we demonstrate a simple procedure for the fabrication of wrinkled surface golf ball-like nanostructures in a 3D fashion using naphthalene diimide (NDI-S) derivatives. The golf ball-like microsphere morphology was obtained by mixing NDI-S in 45% hexane with a CHCl₃ solution. The structural formation was visualised by scanning electron microscopy (SEM), transmission electron microscopy (TEM), while DLS, UV-vis absorption and fluorescence were used to determine the mode of aggregation.

---

Supramolecular self-assembled materials are of considerable interest due to their promising applications in optoelectronics, chemosensors, nanotechnology, biotechnology and biomedicines.^1–3 Controlled supramolecular structures such as nanowires, nanoribbons, nanotubes, nano/micro-belts, nanosheets, and nano/micro-flowers from small aromatic π-conjugated functional molecules have even more promising properties and potential applications.^4–10 Currently several methods exist for the synthesis and preparation of supramolecular assemblies and their sub-units. This offers controlled self-assembly methods for fabricating versatile soft materials from simple organic molecules. Amongst the reported self-assembly methods stimuli response is one of the most promising methods in the supramolecular chemistry and self-assembly. Hydrogen bonding mediated supramolecular self-assemblies of small aromatic π-conjugated systems has been investigated for the construction of nano/micro-meter functional materials.^11–13

In recent years continuous efforts have been focused on the fabrication of colloidal particle assemblies of the organic molecules because of their potential applicability in the field of photocatalysis, superhydrophobic (non-wetting) materials for water treatment, toxic ion removal, trace detection biosensors, environmental gas sensing, explosives detection materials, optoelectronic materials as well as their biological and biomedical applications.¹⁴ However, a only few examples illustrate formation of golf ball-like structures from conjugated aromatic molecules and/or polymers.^15–22 Furthermore, the fabrication of such golf ball-like nanostructures often requires complicated procedures that change the smooth surface appearance of spheres to wrinkled appearance and are infancy and not yet fully explored in terms of organic functional molecules.

Among aromatic molecules, naphthalene diimide (NDI) have been used in many areas such as supramolecular chemistry, solar cell, medicinal chemistry, ion channel and material chemistry due to their excellent n-type conductivity and has been widely studied in organic electronics.^23,24 The fabrication of various nanostructures such as nanotubes, nanobelts, nanoparticles, organogels, hydrogels, and synthetic ion channels was achieved via supramolecular self-assembly based on NDIs.^25–30 Recently, we have reported self-assembly of NDI amphiphile and bolaamphiphile into variety of nanostructures such as well-defined interwoven fibres, ladder-type network, complex fractal nanostructures, nanobelts, vesicles, chiral assembly, worm-like structures, nanoparticles and microflowers.^31–35 Although the previous methods successfully employed to construct various complex nanostructures, a method for fabrication of golf-ball-shaped microspheres having wrinkles on their surface, based on NDI, has not yet been reported. Therefore, developing a supramolecular self-assembly method to fabricate golf ball-like microspheres remains a challenge and is significant both in fundamental and applied research.

Herein, we demonstrate a simple method based on supramolecular self-assembly of NDI bearing dipeptide at one end of imide position (NDI-S) and amine head group at the other end (Fig. 1) for the preparation of uniform golf ball-like microspheres with wrinkled surfaces which require no post treatment. The supramolecular golf-ball like architectures described herein is the first to be formed from small π-conjugated molecule. In this case, NDI-S possesses three important features that result in the formation of controlled golf ball-like morphology: (i) the core of the NDI which allows molecule to arrange through π–π interactions and (ii) the amine functionality at one end of imide interacts with another molecule via strong hydrogen-bonding (H-bonding) and (iii) the hydrophobic ester on the other side of NDI interact with another molecule through van der Waals forces. We believe such special amphiphilic structures of NDI-S, having both hydrophilic and hydrophobic group, prevent the crystallisation and direct the golf ball-like morphology as illustrated in Fig. 1.

Fig. 1 NDI-S molecule self-assembled into golf-ball like morphology via H-bonding, π–π stacking and van der Waals interactions. The seed in the microsphere formation start by aggregating the molecules in the hydrophilic end in increasing hydrophobic solvent mixture such as hexane.

The detail synthesis of NDI-S is outlined in ESI.†³⁶ The supramolecular self-assembly of NDI-S was studied in CHCl₃/hexane (0–50%) mixture. The UV-vis absorption of NDI-S (1 × 10⁻⁵ M) in CHCl₃ showed two well resolved absorption peaks at 370 nm and 355 nm along with a small shoulder at 347 nm, which is characteristic of the S₀ → S₁ transition attributed to π–π* transition (Fig. 2a). The UV-vis absorption spectra of NDI-S significantly changed in the higher concentration of hexane (0–50%) in CHCl₃. Fig. 2a clearly shows that increasing hexane fraction a reduction of absorption peak intensities with significant red shifts. These results demonstrate that under the influence of a non-polar solvent, resulted supramolecular self-organisation of NDI-S, similar J-type of aggregates shown for other examples.^37,38

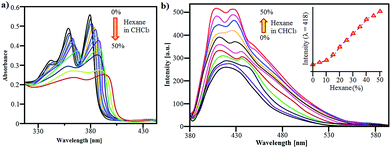

Fig. 2 Solution based self-assembly. (a) & (b), UV-vis absorption and emission changes of NDI-S (1 × 10⁻⁵ M) in CHCl₃/hexane (0–50%), respectively.

The fluorescence emission spectra of NDI-S in CHCl₃ showed well resolved peak at 425 nm (λ_ex = 365 nm) (Fig. 2b). Interestingly, the emission of NDI-S increases with two distinct peaks with maxima at 400 nm and 438 nm with increasing percentage of hexane as shows in Fig. 2b. The fluorescence spectroscopy results clearly suggest that NDI-S exhibits strong fluorescence emission upon aggregation such effect so called aggregation induced emission enhancement (AIEE).^39,40

The absorption and emission spectroscopy results attributed to the formation of aggregates via H-bonding, face-to-face π-stacks of NDI chromophores and van der Waals interactions. To gain further insight into morphology of NDI-S, Field Emission Scanning Electron Microscopy (FE-SEM) technique was employed. A solution of NDI-S (1 × 10⁻⁴ M) was prepared in CHCl₃/hexane (f_h = 45%) and allowed to reach equilibrium. FE-SEM measurements were performed by drop-casting on silicon wafer substrate and then were air dried. Fig. 3(A) and (B) images showing golf ball-like microspheres with a wrinkled surface with an average in several micrometers diameter. Fig. 3B is the 3D hierarchical magnifying image of golf balls morphology of NDI-S with wrinkled surface. SEM images clearly showed that the golf-ball like microspheres consists of wrinkled surface along with some dents (ESI Fig. S21†). We presume that the dent formation may be due to release of solvent from the microspheres.^19–21 The microspheres formed by the aggregation of NDI-S to form cores of the microspheres followed by further growth up to 1–2 μm. It appears that the aging of these spherical aggregates result in smaller and larger particle than the initial ones. The smooth surface changes to wrinkle at the last stage because of instability in thermodynamics due to hydrophobicity difference of the two head groups of NDI-S like a golf ball.

Fig. 3 SEM micrographs of NDI-S in CHCl₃/hexane (45%, v/v): (A) microspheres and (B) showing the high magnification image of the golf ball-like microsphere with wrinkled surface by Ostwald ripening process.⁴¹

To understand the mode of aggregation in self-assembly through the solvophobic effect, transmission electron microscopy (TEM) was performed. TEM analysis clearly shows well-defined spherical aggregates with varying sizes with range from 250 nm to 1.5 μM from CHCl₃/hexane (45%, v/v) as shown in Fig. 4a. Initially, the smaller spheres (∼250–400 nm) formed by the aggregation of NDI-S followed by further growth up to 1–2 μm in size. TEM image (inset of Fig. 4a) clearly shows the core and shell of the particular aggregates, we believe such core-curvature seen in TEM analysis is due to wrinkle morphology on to the surface of the microsphere. Furthermore, dynamic laser scattering (DLS) measurements confirmed the formation of spherical aggregates in CHCl₃/hexane (f_h = 45%) solution (Fig. 4b). The NDI-S gives an average sizes (hydrodynamic sizes) of 1300 nm and 350 nm. The size of the NDI-S aggregates in DLS is similar to that of golf ball superstructures measured using SEM and TEM microscopy.

Fig. 4 (a) TEM analysis and (b) DLS analysis of NDI-S in the CHCl₃/hexane (f_h = 45%), respectively. Inset of (“a”) a zoomed image showing clear microsphere with core–shell. The scale bar is 1 μM, respectively.

Density functional theory (DFT) calculations using Gaussian 09 suite of programs and geometry optimization at B3LYP/6-311G level of theory of the NDI-S molecule gave a HOMO → LUMO gap of (4.796 eV) 258.5 nm.⁴² The electron density of the HOMO, HOMO−1 and HOMO−2 are concentrated on the benzene ring moiety of the molecule structure, and the LUMO, LUMO+1, and LUMO+2 are concentrated on the NDI core constituting the electron acceptor moiety (see Fig. 5 and ESI S22†).

Fig. 5 Electron density map of HOMO and LUMO orbitals of NDI-S.

In summary, a supramolecular self-assembly method was developed to fabricate golf ball-like microstructures with wrinkled surface in organic solvents. The formation of golf ball-like microstructures have been well characterised by SEM and DLS analysis. The hydrogen bonding along with π-stacking is the driving force for formation of spherical structures. We believe that the amine functional groups at one imide end of NDI-S play an important role to construct golf ball-like structures with wrinkled surface. The development of this simple method of fabricating golf ball-like microspheres may stimulate further advances in supramolecular self-assembly theory with potential applications in material and biomedical applications. Furthermore, NDI-S induce enhancement of emission upon aggregation which could be used as a potential fluorescent material within sensors.
