Esterase-responsive polymeric prodrug-based tumor targeting nanoparticles for improved anti-tumor performance against colon cancer

Abstract

We report on the fabrication of a multifunctional polymeric prodrug covalently linked with an anticancer drug (bufalin, BUF) and tumor-targeting peptide (RGD) and investigate its anticancer performance against colon cancer in mice. The polymerizable monomer, 3-((2-(methacryloyloxy)ethyl) thio)propanoic acid (BSMA), was synthesized first. Atom radical transfer polymerization (ATRP) of BSMA and oligo(ethylene glycol) monomethyl ether methacrylate (OEGMA) afforded random copolymers, P(OEGMA-co-BSMA). The polymeric prodrug of BUF, P(OEGMA-co-BUF), was obtained by an esterification reaction between the carboxyl groups of P(OEGMA-co-BSMA) and the hydroxyl group of BUF. Finally, a tumor-targeting polymeric prodrug, P(OEGMA-co-BUF-co-RGD), was obtained via an aminolysis reaction of P(OEGMA-co-BUF) in the presence of RGD and the final drug content was determined to be ∼32.9 wt%. In aqueous media, P(OEGMA-co-BUF-co-RGD) self-assembles into micelles and the hydrodynamic diameter (D_h) of the micelles was determined to be ∼33.0 (±2.5) nm by dynamic laser light scattering (LLS). It was demonstrated that the tumor-targeting polymeric prodrug showed improved anticancer performance both in vitro and in vivo in comparison with that of free BUF.

---

1. Introduction

Colon cancer is one of the most incident malignant tumors and its therapy has remained a formidable challenge in the past several decades.¹ As one of the most widely used tools, chemotherapy plays an important role in treating colon cancer and has attracted more and more attention in recent years. However, traditional small molecular anticancer drugs often suffer from intrinsic limitations such as poor water solubility, unsatisfactory pharmacokinetic processes (e.g., short circulation time and improper biodistribution), and severe side effects, which dramatically impact their therapeutic efficacy.^2,3 For instance, bufalin (BUF), the major component of the traditional Chinese medicine Chan'su, exhibits significant activities against a broad spectrum of tumors including colon cancer.^4–11 However, its poor water solubility and severe adverse effects such as high cardiac toxicity, allergic shock, ardent fever, and sinus bradycardia limit its further clinical applications.^10,11

To address the intrinsic limitations associated with small molecular anticancer drugs various strategies have been developed including physically encapsulating drugs into polymeric assemblies (e.g., micelles, nanogels, and vesicles) and covalently linking drugs onto polymer backbones or side chains.^12–14 Among various nanocarriers, polymer-drug conjugates (PDCs) or polymeric prodrugs have received worldwide research interest as a promising drug delivery system.^12–15 In polymeric prodrug systems, small molecular anticancer drugs were covalently attached onto the polymers, which can effectively overcome the shortages of nanomedicines based on non-covalent strategies such as premature drug release, low drug content, and unsatisfactory pharmacokinetic processes. Unfortunately, many traditional polymeric prodrugs were achieved via chemically stable covalent bonds, which often lead to too slow drug release and sometimes even reduced anticancer activity.

Recently, a variety of chemical strategies have been utilized to covalently anchor chemotherapeutic drugs onto the polymer backbones and/or side chains via cleavable or degradable linkages.^2,16–32 Allen et al. reported an amphiphilic polyethylene glycol–docetaxel (PEG–DTX) conjugate by attaching PEG with DTX through esterase responsive β-thioester bond.¹⁵ Shen and co-workers developed a novel amphiphilic esterase-responsive prodrug by linking hydrophilic short oligomer chain of PEG (OEG) with hydrophobic anticancer drug camptothecin (CPT) through β-thioester bond.³³ Amphiphilic phospholipid-mimicking prodrugs, OEG–CPT and OEG–(CPT)₂ were obtained by conjugating one or two CPT molecule(s) to OEG, possessing as high as ∼40 wt% or ∼58 wt% drug content without burst drug release. Interestingly, the prodrugs released CPT quickly once inside cells, exhibiting enhanced anticancer activity both in vitro and in vivo. Wooley et al. attached paclitaxel onto block copolymers via β-thioester bond and investigated its controlled release in vitro.³⁴ However, it should be mentioned that the biomedical application especially in vivo investigation of β-thioester bond-based prodrugs is still not fully explored although some responsive polymeric prodrugs have been synthesized.

In the current work, we tentatively introduced β-thioester bond into the design of novel polymeric prodrug of BUF with the aim of improving its anticancer performance against colon cancer (Scheme 1). Nuclear magnetic resonance (NMR), dynamic laser light scattering (LLS), and gel permeation chromatography (GPC) were employed to characterize the polymeric prodrugs and prodrug-based nanoparticles. Typical malignant colon cancer cell line LoVo cells were used to evaluate the anticancer performance of the obtained polymeric prodrugs. Flow cytometry and fluorescence imaging were employed to evaluate the capability of entering into cells for the polymeric prodrugs. Then in vivo fluorescence imaging was utilized to evaluate the biodistribution of the polymeric prodrugs. In vivo anticancer experiments were conducted to probe the feasibilities and capabilities of the polymeric prodrugs.

Scheme 1 Schematic illustration for the fabrication of tumor targeting micellar nanoparticles via self-assembly of drug-containing amphiphilic copolymers, P(OEGMA-co-BUF-co-RGD), covalently attached with tumor-targeting peptide (RGD). The micellar nanoparticles enter into cells via receptor-mediated endocytosis and release pristine active drug bufalin (BUF) in endo/lysosomes.

2. Materials and methods

2.1 Materials

Oligo(ethylene glycol) monomethyl ether methacrylate (OEGMA, M_n = 500 g mol⁻¹, mean degree of polymerization, DP, is 8–9) purchased from Aladdin (Shanghai, China) was passed through a neutral alumina column to remove the inhibitor and then stored at −20 °C prior to use. 2-Mercaptoethanol (99%, Sigma-Aldrich) and tert-butyl acrylate (99%, Aladdin) were dried over calcium hydride (CaH₂), distilled at reduced pressure, and then stored at −20 °C prior to use. Methacryloyl chloride (99%, Aladdin) was distilled at reduced pressure and then stored at −20 °C prior to use. N,N,N′,N′′,N′′-Pentamethyl diethylenetriamine (PMDETA, 98%) and copper(I) bromide (CuBr, 98%) were purchased from Sigma-Aldrich and used as received. Bufalin (BUF, 99%) was purchased from Chengdu PuRuiFa Technology Development Co. Ltd. (Chengdu, China) and used as received. Cyclic RGD (cRGD, shortened as RGD in the subsequent sections) was purchased from Chinese Peptide Company (Hangzhou, China) and used as received. Cyanine5 amine (Cy5, Lumiprobe, Florida, USA), esterase solution (porcine liver, 5 KU, Sigma-Aldrich), 4% paraformaldehyde solution (Beyotime Biotech, Shanghai, China), 4,6-diamidino-2-phenylindole (DAPI, Beyotime Biotech), cholecystokinin (CCK-8) assay kit (Beyotime Biotech), 3,3′-diamino-benzidine (Vector, Burlingame, CA, USA), and hematoxylin and eosin (H&E, Thermo Fisher Scientific, Waltham, MA, USA) were used as received. Fetal bovine serum (FBS), penicillin, streptomycin, and RPMI-1640 medium were purchased from Thermo Fisher Scientific and used as received. N,N′-Dicyclohexylcarbodiimide (DCC), N-hydroxysuccinimide (NHS, 99%), trifluoroacetic acid (TFA), 4-dimethylaminopyridine (DMAP), and all other reagents were purchased from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China) and used as received. Triethylamine (TEA) and dichloromethane (CH₂Cl₂) were dried over CaH₂ and distilled just prior to use. Small molecular ATRP initiator (benzyl 2-bromo-2-methylpropanoate) and tert-butyl-3-((2-hydroxyethyl) thio)propanoate were synthesized according to literature procedures.^35,36

2.2 Sample synthesis

Synthetic schemes employed for the preparation of multifunctional polymeric prodrug, P(OEGMA-co-BUF-co-RGD), covalently linked with anticancer drug (BUF) and tumor targeting peptide (RGD) are shown in Scheme 2. All NMR spectra were recorded on a Bruker AV300 NMR spectrometer (resonance frequency of 300 MHz) operated in the Fourier transform mode. CDCl₃ and DMSO-d₆ were used as the solvent. ESI-MS experiment was performed on Agilent 6460 Triple Quadruple mass spectrometer equipped with an ESI source, and exact masses were measured using a Thermo Scientific LTQ Orbitrap Mass Spectrometer equipped with an electrospray interface. The number-average molecular weight (M_n) and molecular-weight dispersity (Đ_M = M_w/M_n, where M_w represents weight-average molecular weight) were determined by GPC equipped with Waters 1515 pump and Waters 2414 differential refractive index detector (set at 30 °C), employing a series of two linear Styragel columns (HR2 and HR4) at an oven temperature of 45 °C. The eluent was DMF at a flow rate of 1.0 mL min⁻¹. A series of low Đ_M polystyrene standards were employed for calibration.

Scheme 2 Synthetic routes employed for the fabrication of (a) polymerizable monomer BSMA and (b) multifunctional polymeric prodrug, P(OEGMA-co-BUF-co-RGD), covalently linked with anticancer drug (bufalin, BUF) and tumor targeting peptide (RGD).

Synthesis of tert-butyl-3-((2-hydroxyethyl)thio)propanoate. tert-Butyl-3-((2-hydroxyethyl)thio)propanoate was synthesized according to literature procedures.³⁶ Briefly, TEA (9.47 g, 93.6 mmol) and tert-butyl acrylate (10.0 g, 78 mmol) were dissolved in anhydrous CH₂Cl₂ (50 mL) and cooled to 0 °C in an ice-water bath. 2-Mercaptoethanol (6.1 g, 78 mmol) in anhydrous CH₂Cl₂ (20 mL) was added dropwise over 30 min. Then the reaction mixture was stirred at ambient temperature overnight. The mixture was washed with saturated NH₄Cl solution (3 × 100 mL) and NaCl solution (100 mL), sequentially. The organic layer was collected and dried over anhydrous Na₂SO₄. After filtration, the filtrate was evaporated to dryness on a rotary evaporator. After drying in a vacuum oven overnight a colorless oil was obtained (14.20 g, yield: 88.2%). ¹H NMR (CDCl₃, δ, ppm, TMS; Fig. S1†): 3.70–3.77 (2H, HOCH₂CH₂–), 2.70–2.79 (4H, –SCH₂CH₂OOC–), 2.50–2.55 (2H, HOCH₂CH₂S–), 2.18 (1H, HO–), and 1.46 (9H, –C(=O)OC(CH₃)₃).

Synthesis of 2-((3-(tert-butoxy)-3-oxopropyl)thio)ethyl methacrylate. TEA (2.83 g, 28 mmol) and tert-butyl-3-((2-hydroxyethyl)thio)propanoate (5.0 g, 24 mmol) were dissolved in anhydrous CH₂Cl₂ (40 mL) and cooled to 0 °C in an ice-water bath. Methacryloyl chloride (2.63 g, 25 mmol) in anhydrous CH₂Cl₂ (15 mL) was then added dropwise over 30 min. The reaction mixture was stirred at 0 °C for 2 h and then overnight at room temperature. The mixture was filtered off, washed with saturated NaHCO₃ and further purified by neutral alumina column chromatography using CH₂Cl₂ as the eluent. After drying in a vacuum oven overnight a colorless oil was obtained (5.75 g, yield: 75.4%). ¹H NMR (CDCl₃, δ, ppm, TMS; Fig. S2†): 5.57–6.11 (2H, CH₂=C(CH₃)–), 4.30 (2H, –OCH₂CH₂–), 2.80 (4H, –SCH₂CH₂OCO–), 2.53 (2H, –COOCH₂CH₂S–), 1.94 (3H, CH₂=C(CH₃)–), and 1.46 (9H, –C(=O)OC(CH₃)₃). ¹³C NMR (CDCl₃, δ, ppm; Fig. S3†): 170.78 ppm, 167.30 ppm, 136.03 ppm, 125.89 ppm, 81.00 ppm, 63.80 ppm, 36.05 ppm, 30.59 ppm, 28.23 ppm, and 18.09 ppm. MS spectrum of tert-butyl-3-((2-hydroxyethyl)thio)propanoate was shown in Fig. S4a:† m/z 188 (calculated for C₉H₁₀O₂S: 188).

Synthesis of 3-((2-(methacryloyloxy)ethyl)thio)propanoic acid (BSMA). 2-((3-(tert-Butoxy)-3-oxopropyl)thio)ethyl methacrylate (3.0 g, 11 mmol) was dissolved in anhydrous CH₂Cl₂ (5 mL). Then TFA (5 mL) was added. The reaction mixture was stirred at room temperature for 5 h and then evaporated to dryness on a rotary evaporator to afford BSMA (1.95 g, yield: 65.0%). ¹H NMR (CDCl₃, δ, ppm, TMS, Fig. S5†): 5.57–6.11 (2H, CH₂=C(CH₃)–), 4.30 (2H, –OCH₂CH₂–), 2.81–2.90 (4H, –SCH₂CH₂COOH), 2.70 (2H, –C(=O)OCH₂CH₂S–), and 1.94 (3H, CH₂=C(CH₃)–). ¹³C NMR (CDCl₃, δ, ppm; Fig. S6†): 177.84 ppm, 167.27 ppm, 136.04 ppm, 126.29 ppm, 63.79 ppm, 34.49 ppm, 30.58 ppm, 26.67 ppm, and 18.08 ppm. MS spectrum of BSMA was shown in Fig. S4b:† m/z 132 (calculated for C₅H₈O₂S: 132).

Synthesis of P(OEGMA-co-BSMA). Atom radical transfer polymerization (ATRP) was employed to synthesize the random copolymers P(OEGMA-co-BSMA). Typically, OEGMA (1.16 g, 23.5 mmol), BSMA (513 mg, 23.5 mmol), DMF (3 mL), benzyl 2-bromo-2-methylpropanoate (12 mg, 47 μmol), and PMDETA (8.1 mg, 47 μmol) were charged into a glass ampoule equipped with a magnetic stirring bar. The ampoule was degassed by three freeze–pump–thaw cycles, and then CuBr (6.7 mg, 47 μmol) was introduced under the protection of nitrogen (N₂) before freezing and sealing under vacuum. After thermostating at 60 °C in an oil bath and stirring for 3 h the reaction was terminated by quenching into liquid N₂, exposed to air, and diluted with methanol. The mixture was then purified by dialysis (cellulose membrane; molecular weight cutoff, MWCO, is 3500 Da) against deionized water for 48 h to afford P(OEGMA-co-BSMA) (1.22 g, yield: 72.5%). The M_n and Đ_M of P(OEGMA-co-BSMA) were determined to be 25.0 kDa and 1.29, respectively, by GPC using DMF as the eluent (Table S1†). The conversion of OEGMA and BSMA were determined to be ∼65% and ∼79%, respectively, based on ¹H NMR analysis of the crude product of P(OEGMA-co-BSMA). And the DP of P(OEGMA-co-BSMA) was determined to be ∼72 by ¹H NMR analysis (Fig. S7†). Thus, the polymer was denoted as P(OEGMA_0.45-co-BSMA_0.55)₇₂ and shortened as P(OEGMA-co-BSMA) in the subsequent sections.

Synthesis of P(OEGMA-co-BUF). P(OEGMA-co-BSMA) (200 mg, 0.32 mmol COOH moieties), DCC (78 mg, 0.38 mmol), and DMAP (4 mg) were dissolved in anhydrous CH₂Cl₂ (5 mL) and cooled to 0 °C in an ice-water bath. BUF (112 mg, 0.29 mmol) and NHS (3.5 mg, 0.03 mmol) in anhydrous CH₂Cl₂ (5 mL) was then added dropwise over 10 min. The reaction mixture was stirred at 0 °C for 2 h and then 48 h at room temperature. After filtration the mixture was purified by dialysis (cellulose membrane; MWCO is 3500 Da) against methanol for 8 h to afford P(OEGMA-co-BUF) (205 mg, yield: 65.0%). GPC analysis revealed and M_n of 37.7 kDa and Đ_M of 1.21 (Table S1†). BUF content in the polymer was determined to be ∼46 mol% by UV-vis spectroscopy (Unico UV/vis 2802PCS) in ethanol by using BUF as the calibration standard, which is in accordance with the result calculated by ¹H NMR analysis (Fig. S8†). Thus, the polymer was denoted as P(OEGMA_0.45-co-BUF_0.46-co-NHS_0.09)₇₂ and shortened as P(OEGMA-co-BUF) in the subsequent sections.

Synthesis of P(OEGMA-co-BUF-co-RGD). P(OEGMA-co-BUF) (80 mg, 2 μmol) and TEA (0.6 μL, 4 μmol) were dissolved in DMF (5 mL). RGD (2.4 mg, 4 μmol) was then added and the reaction mixture was stirred at ambient temperature overnight. The mixture was purified by dialysis (cellulose membrane; MWCO is 3500 Da) against water for 8 h to afford P(OEGMA-co-BUF-co-RGD) (57 mg, yield: 71.3%). The M_n and Đ_M of P(OEGMA-co-BUF-co-RGD) were determined to be 38.9 kDa and 1.32, respectively (Table S1†). Thus, the polymer was denoted as P(OEGMA_0.45-co-BUF_0.46-co-NHS_0.062-co-RGD_0.028)₇₂ and shortened as P(OEGMA-co-BUF-co-RGD) in the subsequent sections. BUF content was determined to be ∼32.9 wt% by UV-vis method. Following similar procedures, P(OEGMA_0.45-co-BUF_0.46-co-NHS_0.048-co-RGD_0.028-co-Cy5_0.014)₇₂ (M_n = 39.0 kDa, Đ_M = 1.31, Table S1†) and P(OEGMA_0.45-co-BUF_0.46-co-NHS_0.076-co-Cy5_0.014)₇₂ (M_n = 39.1 kDa, Đ_M = 1.30, Table S1†) were obtained and shortened as P(OEGMA-co-BUF-co-RGD-co-Cy5) and P(OEGMA-co-BUF-co-Cy5), respectively, in the subsequent sections. Cy5-labeled polymeric prodrugs showed strong infrared fluorescence emission as revealed by fluorescence characterization (Hitachi F-4600, Japan; Fig. S10†).

2.3 Preparation of micelles

Micelles assembled from polymeric prodrugs were prepared via the co-solvent approach. In a typical example, P(OEGMA-co-BUF-co-RGD) (10 mg) was dissolved in DMF (1 mL) and added into 9 mL deionized water under vigorous stirring. Then the solution was dialyzed against deionized water to remove organic solvent. Finally, the colloidal dispersion was diluted to the desired concentrations for further experiments.

2.4 Determination of hydrodynamic diameter (D_h) and zeta potential (ζ)

Malvern Zetasizer Nano ZS (Malvern Instruments, Malvern, UK) was used to characterize the hydrodynamic D_h and ζ of the micellar nanoparticles with 632 nm set at a scattering angle of 173°. The solution was first sonicated for ∼30 s and then the measurements were performed in disposable sizing cuvettes or zeta-potential measurement cells. Each measurement was performed in triplicate. The micelles were characterized in PBS buffer (10 mM, pH 7.4) at a concentration of 0.5 g L⁻¹.

2.5 In vitro drug release measurements

Approximately 100 μL of aqueous dispersion of drug-containing micelles (1.0 g L⁻¹) was transferred to a dialysis cell with molecular weight cutoff of 2.0 kDa and then dialyzed against 3.4 mL of PBS buffer (pH 7.4) in the absence and presence of 10 U esterase at 37 °C. The BUF concentration in the dialysate was quantified by measuring the absorption of BUF at 298 nm by HPLC (LC-20AD Series, Shimadzu Corporation, Kyoto, Japan) against a standard calibration curve.

2.6 Cell culture

The human colon cancer cell line LoVo cells were purchased from Cell Bank of Type Culture Collection of Chinese Academy of Sciences (Shanghai, China) and cultured in RPMI 1640 medium supplemented with FBS (10%), penicillin (100 units per mL), and streptomycin (100 μg mL⁻¹) at 37 °C humidified atmosphere with 5% CO₂.

2.7 In vitro cytotoxicity evaluation

LoVo cells were employed for in vitro cytotoxicity evaluation via the CCK-8 assay. Briefly, LoVo cells were first cultured for 2 days. For cytotoxicity assay, LoVo cells were seeded in a 96-well plate at an initial density of ∼10 000 cells per well in complete RPMI 1640 medium (200 μL). After incubating 24 h, 1640 medium was replaced with fresh medium, and the cells were treated with P(OEGMA-co-BSMA), free BUF, P(OEGMA-co-BUF), and P(OEGMA-co-BUF-co-RGD) at varying concentrations. The cells were then incubated for another 24 h. Subsequently, 10 μL of CCK-8 assay agents were added to the culture medium, and the cells were incubated for 1 h. Absorbance was measured at 450 nm by a microplate reader (Thermo Fisher Scientific). Each experiment condition was done in quadruple and the data are shown as the mean value plus a standard deviation (±SD).

2.8 Cellular uptake of nanoparticles via flow cytometry

LoVo cells were seeded in 24-well plates at ∼10⁵ cells per well in 1 mL supplemented 1640 medium. After 24 h incubation, cells were treated with P(OEGMA-co-BUF-co-RGD-co-Cy5) and P(OEGMA-co-BUF-co-Cy5) at a final Cy5 concentration of 3.0 × 10⁻⁶ M for 4 h. Afterwards, the culture medium was removed and cells were washed three times with PBS and harvested with trypsin. After being fixed by 4% paraformaldehyde solution, the cells were suspended in 500 μL of PBS. The quantitative uptake was recorded by a flow cytometry (Calibur, BD, USA).

2.9 Fluorescence imaging

LoVo cells were first cultured in 1640 medium at 37 °C in a CO₂/air (5 : 95) incubator for 24 h. Then, LoVo cells were stained with P(OEGMA-co-BUF-co-RGD-co-Cy5) ([Cy5] = 3.0 × 10⁻⁶ M) and P(OEGMA-co-BUF-co-Cy5) ([Cy5] = 3.0 × 10⁻⁶ M) for 4 h and DAPI (the concentration of DAPI was employed according to the protocols provided by Beyotime Biotech) for 15 min at 37 °C. The cells were washed with PBS for three times and then fixed with 4% formaldehyde for 20 min at room temperature. DAPI and Cy5 were excited at 405 and 633 nm, respectively. And the fluorescence emissions were collected between 420–460 nm and 660–700 nm, respectively, by ZEISS710 confocal microscope (Carl Zeiss AG, Germany) at 37 °C. Images were taken by using the lasers sequentially with a 63× objective lens.

2.10 Establishment of a tumor model

Subcutaneous tumors were established in nude mice (BALB/c, female, 4–6 weeks old) by injecting LoVo cells (∼5 × 10⁶ cells in 0.2 mL PBS) into their left armpits. All experiments were carried out according to the Guidelines of the Laboratory Protocol of Animal Handling (affiliated Putuo Hospital of Shanghai University of Traditional Chinese Medicine) and approved by the Institutional Animal Care and Use Committee of Shanghai University of Traditional Chinese Medicine. Tumor size was measured using a caliper and the tumor-bearing mice were classified into six groups (n = 10): blank, free BUF, P(OEGMA-co-BSMA), P(OEGMA-co-RGD), P(OEGMA-co-BUF), and P(OEGMA-co-BUF-co-RGD).

2.11 Bio-distribution of polymeric prodrugs

Fluorescent dye Cy5-labeled polymeric prodrugs, P(OEGMA-co-BUF-co-RGD-co-Cy5) and P(OEGMA-co-BUF-co-Cy5), were employed to evaluate their tumor targeting capability in LoVo colon cancer xenograft tumors. P(OEGMA-co-BUF-co-RGD-co-Cy5) (200 μL, 0.3 mg mL⁻¹, [Cy5] = 7.9 × 10⁻⁶ M) and P(OEGMA-co-BUF-co-Cy5) (200 μL, 0.3 mg mL⁻¹, [Cy5] = 7.9 × 10⁻⁶ M) were injected through the vena caudalis (tail vein) into the tumor-bearing xenografted mice. Fluorescence imaging of the tumor-bearing mice was performed at varying time intervals after injection by using a small animal in vivo fluorescence imaging system (LB 983; Berthold Technologies GmbH and Co KG, Bad Wildbad, Germany). After 48 h, the nude mice were sacrificed. Tumor and organs including heart, liver, spleen, lung, and kidney were collected for ex vivo distribution examination with an in vivo imaging system.

2.12 In vivo study of the therapeutic efficacy in mice

The mice were classified into six groups on the basis of the solutions they were administered: normal saline (NS, 13.5 mL kg⁻¹), P(OEGMA-co-BSMA) (24.5 mg kg⁻¹), P(OEGMA-co-RGD) (24.5 mg kg⁻¹), free BUF (1 mg BUF per kg), P(OEGMA-co-BUF) (1 mg BUF per kg), and P(OEGMA-co-BUF-co-RGD) (1 mg BUF per kg), by intravenous injection through the vena caudalis every 2 days. The remaining mice in each group were killed and the tumors were collected for further examination.

2.13 Histological examination of tumor tissues

The removed xenograft tumors were fixed with 4% neutral buffered paraformaldehyde and embedded in paraffin before making tissue sections. 4 μm tissue sections were prepared and stained with H&E for histological examination.

2.14 Immunohistochemical staining

After deparaffinization and dehydration, microwave antigen retrieval was performed for 5 min before peroxidase quenching with 3% H₂O₂ in PBS for 15 min. Subsequently, the sections were blocked with 5% bovine serum albumin (BSA) for 30 min and then incubated, respectively, with the primary antibodies overnight at 4 °C with a dilution ratio of 1 : 100 in PBS. The primary antibody anti-CD31 monoclonal antibody was used for microvessel density (MVD) analysis and anti-mouse Ki-67 monoclonal antibody was used for cell proliferation analysis. After washed with PBS, sections were then incubated with biotinylated secondary antibody for 30 min and then stained with 3,3′-diamino-benzidine for 2–5 min. Slides were counterstained with hematoxylin for 2–3 min, mounted, and examined.

3. Results and discussion

The main aim of this study was to prepare and characterize a novel type of polymeric prodrug of BUF to enhance its anticancer performance. Typical colon cancer cell line LoVo cells were used as a model to examine its cellular uptake, biodistribution, and anticancer activity both in vitro and in vivo.

3.1 Synthesis and characterization of polymeric prodrug

General routes employed for the synthesis of polymerizable monomer, BSMA, and polymeric prodrug, P(OEGMA-co-BUF-co-RGD), are shown in Scheme 2. BSMA was synthesized at first. The Michael addition reaction of tert-butyl acrylate with 2-mercaptoethanol leads to hydroxyl-containing tert-butyl-3-((2-hydroxyethyl)thio)propanoate with a yield of ∼88.2%. The structure was confirmed by ¹H NMR spectrum in Fig. S1,† which was consistent with literature results.³⁶ It was followed by the esterification reaction with an excess of methacryloyl chloride in the presence of TEA, affording 2-((3-(tert-butoxy)-3-oxopropyl)thio)ethyl methacrylate. Its structure was proved by ¹H NMR, ¹³C NMR, and MS spectra shown in Fig. S2, S3, and S4a.† The obtained compound was hydrolyzed by TFA to afford the final compound, BSMA. The disappearance of resonance signal at ∼1.46 ppm for ¹H NMR spectrum and ∼81.00 ppm for ¹³C NMR spectrum implied the successful hydrolysis of tert-butyl ester (Fig. S5 and S6†). And the MS spectrum of BSMA was shown in Fig. S4b.† Random copolymers, P(OEGMA-co-BSMA), were fabricated via the ATRP technique in the presence of BSMA and OEGMA using benzyl 2-bromo-2-methylpropanoate as initiator. The M_n and Đ_M of P(OEGMA-co-BSMA) were determined to be 25.0 kDa and 1.29, respectively, by GPC characterization (Table S1†). The DP of P(OEGMA-co-BSMA) was calculated to be ∼72 by ¹H NMR analysis (Fig. S7†). The conversion of OEGMA and BSMA were ∼65% and ∼79%, respectively, based on ¹H NMR analysis of the crude product. P(OEGMA-co-BUF) was obtained by the esterification reaction between the carboxyl groups of P(OEGMA-co-BSMA) and the hydroxyl group of BUF with M_n of 37.7 kDa and Đ_M of 1.21 (Table S1†). ¹H NMR characterization further confirmed the successful linkage of BUF onto the polymers as shown by the appearance of characteristic peaks (peaks f, g, h, i) ascribed to BUF (Fig. S8†). Tumor-targeting polymeric prodrug, P(OEGMA-co-BUF-co-RGD), was then obtained via the reaction of P(OEGMA-co-BUF) with RGD. Typical ¹H NMR peaks (j and k) of RGD indicated the successful linkage of RGD on the polymeric prodrug (Fig. S9†). GPC analysis revealed an M_n of 38.9 kDa and a Đ_M of 1.32 (Table S1†). And BUF content was determined to be ∼32.9 wt%. Following similar procedures, P(OEGMA-co-BUF-co-RGD-co-Cy5) (M_n = 39.0 kDa, Đ_M = 1.31; Table S1†) and P(OEGMA-co-BUF-co-Cy5) (M_n = 39.1 kDa, Đ_M = 1.30; Table S1†) were obtained. Fluorescence characterization of P(OEGMA-co-BUF-co-RGD-co-Cy5) indicated a strong infrared fluorescence emission peak at around ∼665 nm (Fig. S10†).

In aqueous media at pH 7.4, P(OEGMA-co-BSMA) tend to exist as unimers as shown in Fig. 1a. However, by introducing hydrophobic BUF onto the polymer backbone P(OEGAM-co-BUF) formed typical nanoparticles with intensity-average hydrodynamic D_h of ∼34.7 (±1.7) nm. And the dispersity index (μ₂/Γ²) of nanoparticles was ∼0.18 (Fig. 1b). The ζ was determined to be −13.4 (±1.82) mV, exhibiting slightly negatively charged characteristics presumably due to the ionization of unreacted carboxyl groups. The D_h and μ₂/Γ² of P(OEGMA-co-BUF-co-RGD) was determined to be ∼33.0 (±2.5) nm and ∼0.15, respectively, showing little change in comparison with that of P(OEGMA-co-BUF) (Fig. 1c). The ζ was determined to be −15.0 (±1.4) mV.

Fig. 1 Intensity-average hydrodynamic diameter, D_h, and distribution, f(D_h), of 0.5 g L⁻¹ (a) P(OEGMA-co-BSMA), (b) P(OEGMA-co-BUF), and (c) P(OEGMA-co-BUF-co-RGD).

3.2 In vitro drug release

We then examined the in vitro drug release characteristics from micellar nanoparticles of P(OEGMA-co-BUF-co-RGD) and the results are shown in Fig. 2. Under simulated physiological condition (PBS, pH 7.4, 37 °C), only ∼20% cumulative BUF release was observed over the period of 42 h, which is in accordance with the fact that β-thioester bond is relatively stable at neutral conditions.^15,33 However, upon addition of 10 U esterase which is abundant in cytosol and lysosomes approximately ∼82% cumulative release of BUF was observed over the same period.³³ In the first 2 h, the BUF release rate was quite fast possibly due to the fast hydrolysis of β-thioester bond catalyzed by esterase. Whereas, after 2 h the release rate decreased gradually, this should be ascribed to the depletion of prodrugs.

Fig. 2 In vitro BUF release profiles (37 °C, 10 mM PBS, pH 7.4) from polymeric micelles of P(OEGMA-co-BUF-co-RGD) in the (a) presence and (b) absence of 10 U esterase.

The relatively stable linkage between BUF and polymer backbone let the nanoparticles effectively circumvent drug burst release and premature release during circulation period. At the same time, the presence of esterase leads to fast release of BUF, endowing the nanoparticles with triggered release capability after entering into cancer cells. In addition, the introduction of tumor-targeting moiety RGD is assumed to enhance the accumulation of drugs in the cancerous tissue via active targeting effect, which will be investigated in the subsequent sections.

3.3 In vitro cytotoxicity

Typical malignant colon cancer cell line LoVo cells were employed as a model to evaluate the anticancer performance of the obtained polymeric prodrug. The polymeric carrier P(OEGMA-co-BSMA) was firstly examined. As shown in Fig. 3A, at a concentration of as high as ∼200 μg mL⁻¹ of P(OEGMA-co-BSMA) LoVo cells still showed over 85% viability, implying the good biocompatibility of the polymer. While by treating LoVo cells with P(OEGMA-co-BUF) dramatically decreased cell viability was observed, showing improved anticancer efficacy compared with that of free BUF (Fig. 3B). The improved anticancer efficacy of P(OEGMA-co-BUF) might be caused by the fact that more than one BUF molecule can enter into cells simultaneously with the help of the nanostructure of the polymeric prodrug. It was calculated that there were ∼33.1 BUF molecules per polymer chain based on the BUF content (∼32.9%) in polymeric prodrug. In addition, it is well-recognized that one polymeric micelle is often consisted of several hundreds and even thousands polymer chains. So, it is reasonable to assume that with the internalization of one single nanoparticle more than one thousand BUF molecules entered into cells. That might explain the higher anticancer efficacy of P(OEGMA-co-BUF) than free BUF.

Fig. 3 (A) Viability of LoVo cells after incubation for 24 h in the presence of P(OEGMA-co-BSMA) at varying concentrations. (B) In vitro cytotoxicity of (a) free BUF, (b) P(OEGMA-co-BUF), and (c) P(OEGMA-co-BUF-co-RGD) against LoVo cells after incubating 24 h at varying BUF concentrations.

Moreover, by introducing targeting peptide, RGD in this case, to P(OEGMA-co-BUF) further enhanced anticancer efficacy was achieved. As shown in Fig. 3B, at a BUF concentration of ∼80 nM, free BUF caused the cell viability dropped to ∼55.8%. However, when treated with P(OEGMA-co-BUF) at the same BUF dosage the cell viability decreased to ∼46.4%, lower than free BUF. And the cell viability further decreased to ∼34.1% when treated with P(OEGMA-co-BUF-co-RGD). This result implies that modifying RGD onto the polymeric prodrug might play an important role in improving the anticancer activity of BUF. In combination with literature reports about the role of RGD in drug delivery systems, the underlying mechanism might be receptor-mediated endocytosis mechanism.^10,37

3.4 Cellular uptake

As described above, tumor-targeting polymeric prodrug showed improved anti-proliferation effect which was assumed partly due to active targeting to the LoVo cells. Currently, fluorescent dye Cy5-labeled polymeric prodrugs, P(OEGMA-co-BUF-co-RGD-co-Cy5) and P(OEGMA-co-BUF-co-Cy5), were employed to visualize the cellular uptake of polymeric prodrugs by confocal laser scanning microscopy. LoVo cells were cultured with nanoparticles assembled from P(OEGMA-co-BUF-co-RGD-co-Cy5) and P(OEGMA-co-BUF-co-Cy5) for 4 h, respectively, before examination. The cell nuclei stained with DAPI is blue; the red color represents nanoparticles in cells. As shown in Fig. 4, RGD modified nanoparticles, P(OEGMA-co-BUF-co-RGD-co-Cy5), exhibited much stronger fluorescence emission than that of P(OEGMA-co-BUF-co-Cy5), indicating the stronger cell entering capabilities assisted by RGD. By adding an excess of free RGD (20-fold relative to the concentration of RGD moieties of targeting prodrugs) into the culture before staining with P(OEGMA-co-BUF-co-RGD-co-Cy5), dramatic fluorescence decrease can be observed, which confirmed the importance of RGD in enhancing the cellular uptake of nanoparticles (Fig. S11†).¹⁰ Flow cytometry experiment further confirmed the result that the introduction of RGD at the hydrophilic coronas of nanoparticles dramatically facilitated the endocytosis of nanoparticles (Fig. 5).

Fig. 4 Typical confocal microscopy fluorescence images recorded for LoVo cells after incubating at 37 °C with (top panels) P(OEGMA-co-BUF-co-Cy5) ([Cy5] = 3.0 × 10⁻⁶ M) and (bottom panels) P(OEGMA-co-BUF-co-RGD-co-Cy5) ([Cy5] = 3.0 × 10⁻⁶ M) for 4 h. (a and d) The red channel was excited at 633 nm and collected between 660 and 700 nm. (b and e) The cell nuclei were stained by DAPI: the blue channel was excited at 405 nm and collected between 420 and 460 nm. (c and f) Overlay of the blue and red channels.

Fig. 5 Flow cytometric analysis of cellular uptake of (a) P(OEGMA-co-BUF-co-Cy5) ([Cy5] = 3.0 × 10⁻⁶ M) and (b) P(OEGMA-co-BUF-co-RGD-co-Cy5) ([Cy5] = 3.0 × 10⁻⁶ M) by LoVo cells upon incubation for 4 h.

3.5 In vivo biodistribution examination

To further study the targeting efficiency of the prodrug-based nanoparticles in vivo we examined the biodistribution of Cy5-labeled P(OEGMA-co-BUF-co-RGD-co-Cy5) and P(OEGMA-co-BUF-co-Cy5) after intravenous injection. As shown in Fig. 6, two independent fluorescence imaging experiments for both P(OEGMA-co-BUF-co-RGD-co-Cy5) and P(OEGMA-co-BUF-co-Cy5) were conducted. After 5 min post injection, nanoparticles were distributed around the body and no significant difference can be observed between the two samples. However, after 6 h post injection, the fluorescence intensity in the tumor region for P(OEGMA-co-BUF-co-RGD-co-Cy5) sample was significantly stronger than that of P(OEGMA-co-BUF-co-Cy5), implying the accumulation of drugs in tumor tissues. After 24 and 30 h post injection, the fluorescence intensity in the tumor region for P(OEGMA-co-BUF-co-RGD-co-Cy5) sample became further stronger. While after 48 h post injection, the fluorescence intensity decreased slightly, possibly due to the degradation and drug release of nanoparticles. On the other hand, the fluorescence intensity in tumor region for P(OEGMA-co-BUF-co-Cy5) sample did not increase throughout the period, implying non-targeting effect for RGD-missing polymeric prodrug, P(OEGMA-co-BUF-co-Cy5). These results indicate that the introduction of RGD onto the nanoparticles resulted in better tumor targeting as well as prolonged retention time in the tumor region.

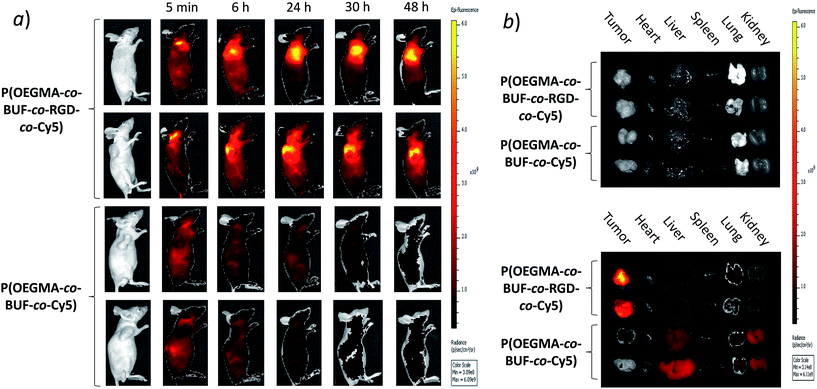

Fig. 6 (a) In vivo fluorescence imaging of tumor-bearing mice at various time (5 min, 6 h, 24 h, 30 h, and 48 h) after intravenous injection of 200 μL of P(OEGMA-co-BUF-co-RGD-co-Cy5) (0.3 mg mL⁻¹, [Cy5] = 7.9 × 10⁻⁶ M) and P(OEGMA-co-BUF-co-Cy5) (0.3 mg mL⁻¹, [Cy5] = 7.9 × 10⁻⁶ M). (b) Fluorescence images of tumor and the internal organs after anatomy for mice treated with P(OEGMA-co-BUF-co-RGD-co-Cy5) and P(OEGMA-co-BUF-co-Cy5) for 48 h. The bars correspond to the detected fluorescence intensity.

3.6 In vivo anticancer activity in human colon xenograft tumors

P(OEGMA-co-BUF-co-RGD) nanoparticles showed significant improved antitumor activity in the LoVo tumor model. As illustrated in Fig. 7, P(OEGMA-co-BSMA) and P(OEGMA-co-RGD) showed no cytotoxic effect to mice as compared with control group. When the same dose of BUF was administered into the mice, the tumor inhibiting effect was much more obvious in the P(OEGMA-co-BUF) and P(OEGMA-co-BUF-co-RGD) treated groups than that of free BUF treated group. The tumor size was significantly smaller in the P(OEGMA-co-BUF-co-RGD) group than in the other groups after 4 weeks treatment probably due to increased accumulation of drug in tumor tissues via RGD-mediated active targeting and macromolecular-based EPR effects.¹⁰ This indicates the treatment efficiency on colon cancer-bearing mice is significantly enhanced via BUF conjugated polymer compared with free BUF. Besides, this therapeutic efficacy can be further improved through RGD targeting modification.

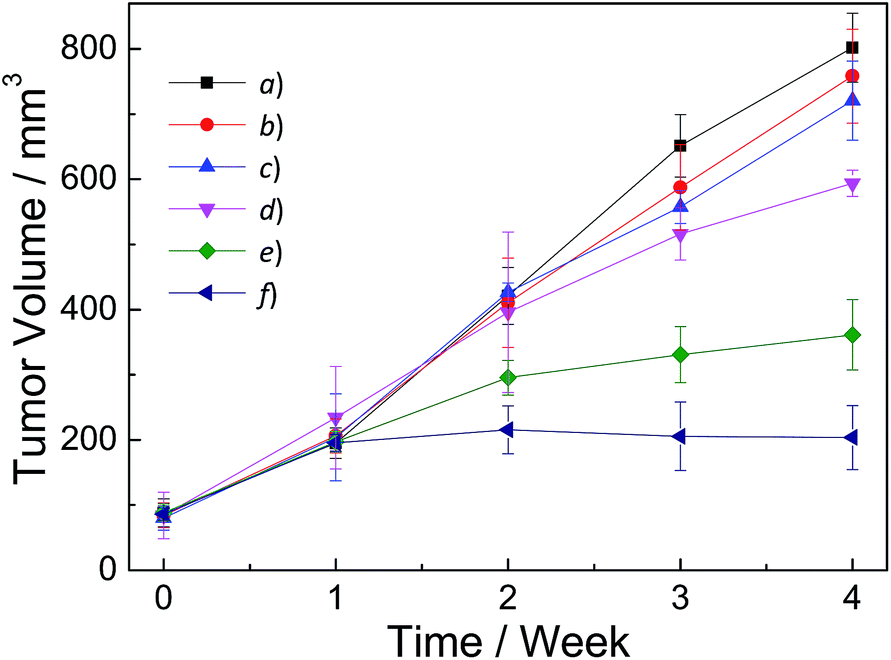

Fig. 7 Changes of the tumor size after intravenous injection of (a) saline, (b) P(OEGMA-co-BSMA), (c) P(OEGMA-co-RGD), (d) free BUF, (e) P(OEGMA-co-BUF), and (f) P(OEGMA-co-BUF-co-RGD).

3.7 Histological analysis of xenograft tumors

HE-staining, MVD and Ki-67 analysis were conducted to examine the anticancer efficacy of targeting nanoparticles. As shown in Fig. 8A, tumor tissues treated with saline, P(OEGMA-co-BSMA), and P(OEGMA-co-RGD) showed relatively full and complete cytoplasm or nuclei, indicating little necrosis occurred. However, free BUF-treated tumor tissues exhibited significant nucleus pyknosis and disappearance of the cell morphology. Considering that deformation of the nucleus is a typical sign of apoptotic cells it is reasonable to say that BUF combats colon cancer via apoptosis of tumor cells.^38,39 In addition, polymeric prodrugs, P(OEGMA-co-BUF) and P(OEGMA-co-BUF-co-RGD) resulted in further increased voids compared with free BUF and P(OEGMA-co-BUF-co-RGD) led to the largest void. The presence of voids within the tumor mass could be ascribed to the loss of the dead cells.⁴⁰ This result was in accordance with previous in vivo anticancer results.

Fig. 8 (A) HE staining, (B) MVD analysis, and (C) Ki-67 analysis of tumor tissue sections after receiving the treatment of saline, P(OEGMA-co-BSMA), P(OEGMA-co-RGD), free BUF, P(OEGMA-co-BUF), and P(OEGMA-co-BUF-co-RGD) for 4 weeks.

In addition, angiogenesis in tumor tissues was examined by the MVD assay. The increase of MVD represents the growth of new microvessel in tumor tissues. As shown in Fig. 8B, large numbers of microvessel was observed in control group. And upon treated with P(OEGMA-co-BSMA) and P(OEGMA-co-RGD) the MVD of tumor tissue sections exhibited little change in comparison with that of control group. However, significant reduction in tumor MVD can be observed when treated with free BUF and polymeric prodrugs, implying that the angiogenesis of tumor can be effectively inhibited by BUF. By carefully comparing the MVD staining of the three groups, free BUF, P(OEGMA-co-BUF), and P(OEGMA-co-BUF-co-RGD), we can observe that P(OEGMA-co-BUF-co-RGD) exhibited much more effective angiogenesis inhibition effect than that of free BUF and P(OEGMA-co-BUF). This indicates that RGD-modified polymeric prodrug can effectively inhibit the angiogenesis in tumor in addition to causing cell apoptosis.

Finally, the effect of polymeric prodrugs on tumor cell proliferation was assessed by immunohistochemical staining for Ki-67. The increase of Ki-67 positive cells indicates the proliferation of tumor cells. As shown in Fig. 8C, saline, P(OEGMA-co-BSMA), and P(OEGMA-co-RGD) treated tumor resulted in a large number of Ki-67 positive cells in tumor tissue section, indicating the fast cell proliferation in tumor tissues. Reduced Ki-67 positive cells were observed in the tumor tissue section treated with free BUF. Fewer Ki-67 positive cells were observed for tumor tissue section treated with P(OEGMA-co-BUF) in comparison with that of free BUF. And further decreased Ki-67 positive cells were observed for P(OEGMA-co-BUF-co-RGD) treated tumor tissue section. Overall, tumor-targeting polymeric prodrug exhibited improved cell apoptosis, angiogenesis inhibition, and anti-proliferation effect in comparison with that of free BUF.

4. Conclusions

In summary, we fabricated a novel type of multifunctional polymeric prodrug and its anticancer performance against colon cancer both in vitro and in vivo was investigated. The employment of β-thioester bond to link BUF and the polymer backbone effectively circumvents burst/premature drug release which often exists in conventional physical encapsulation method. β-Thioester bond can be cleaved in the presence of esterase which is abundant in cytosol and endo/lysosomes, exhibiting controlled release characteristics. In addition, the introduction of targeting peptide, RGD, endows the polymeric prodrug good active targeting capability to tumor tissues in addition to passive targeting. In vitro cytotoxicity experiment showed enhanced anticancer effect for P(OEGMA-co-BUF-co-RGD). In vivo anticancer experiment demonstrated that P(OEGMA-co-BUF-co-RGD) exhibited excellent specific accumulation and prolonged retention time in tumor tissues as well as dramatically improved antitumor efficacy. Histological and immunochemical analysis demonstrated that P(OEGMA-co-BUF-co-RGD) exhibited improved cell apoptosis, angiogenesis inhibition, and anti-proliferation effect in comparison with that of free BUF. The reported tumor-targeting polymeric prodrug synergistically integrated with cancer targeted drug delivery and controlled release argues well for their potential applications as nanomedicine systems.

Author contributions

Pan G, Bao YJ and Xu J contributed equally to this work; Liu T, Yin PH and Cao YJ designed the research; Pan G, Liu T, Bao YJ, Xu J, Liu C, Qiu YY, Shi XJ, Yu H, Yuan ZT, Jia TT and Yuan X performed research; Liu T wrote the paper. All authors approved the final version of the article to be published.

Acknowledgements

Project supported by “Xinglin Scholar Program” of Shanghai University of Traditional Chinese Medicine (No. B-X-72), “12th Five-Year Key Discipline: integrated Chinese and western medicine and general practice training of traditional Chinese medicine” of traditional Chinese medicine of State Administration of Traditional Chinese Medicine, “Academic Leader Candidate of 315 Program” of the Health and Family Planning Commission System of Putuo District of Shanghai (No. 14Q-RC-08), and “Hospital-Supported Special Project” of Putuo Hospital of Shanghai University of Traditional Chinese Medicine (No. 2013ZD194I).
