Structural discrimination of nanosilica particles and mixed-structure silica by multivariate analysis applied to SAXS profiles in combination with FT-IR spectroscopy

Abstract

The structural characteristics of silica nanoparticles with functional properties can be investigated using Fourier transform infrared (FT-IR) and small-angle X-ray scattering (SAXS) techniques. Herein, principal component analysis (PCA) and hierarchical cluster analysis (HCA) were used to analyze the variance and to detect similarities between spectroscopic and scattering data. To analyze its potentiality, nanosilica and mixed-structure silica samples were synthesized by a sol–gel process using several reagents, such as SiCl₄, octadecylamine, Pluronic®L-31, and Tween®80, to modify the surfaces of silica nanoparticles. Additionally, the quantities of these reagents used in synthesis of the different particle types were studied at distinct levels. A total of 168 measurements (IR spectra and X-ray scatterings) were performed using 28 samples. The FT-IR/SAXS/multivariate analysis results suggest that samples can be separated into two major groups associated with the incorporation of organic groups into the silica network and the organizational structures of aggregates in the low-q region, which separated the surface fractals (3.0 < P_L < 3.8, class I) from the mass fractals (1.7 < P_L < 2.8, classes II and III). It was determined that only two principal components carried over 96.5 and 89.7% of variance (FT-IR and SAXS, respectively) within the sample set. The organic groups in the hybrid mixed-structure silicas created more compact and denser silicas, increased the aggregate radii, decreased D_pBJH and S_BET, and shifted the halo toward higher 2θ angles due to the changes in the densities of the silicas. We demonstrate that the FT-IR and SAXS techniques combined with multivariate analysis can simplify the interpretation of changes in the structural properties of mesoporous silica materials.

---

1 Introduction

Spherical SiO₂ nanoparticles have been used in several areas, including electrochemistry,¹ catalysis,² coatings,³ chromatography⁴ and controlled drug release.⁵ The sol–gel process leads to the production of monodisperse SiO₂ microspheres with remarkable characteristics, such as large surface areas, small particle sizes, high mechanical and thermal stabilities, superior functional properties, and controllable hydrophilicity or hydrophobicity, with low cost.⁶

Currently, sol–gel materials have been synthesized by several methods, including the Stöber route using TEOS,⁷ an acid-basic route using SiCl₄ (ref. 8) and an alternative route using surfactants.⁹ Silica nanoparticles from the Stöber process have been used to fabricate rough surfaces and create superhydrophobic surfaces with micro- and nano-scale structures simulating the self-cleaning function of a lotus leaf surface.¹⁰ Starting from SiCl₄, the attachment of Si–Cl groups onto a surface has been used to functionalize particles or modify their properties for chromatographic applications.^8,11 Surfactants and block copolymers are widely used to control the template synthesis of mesoporous silica. These materials are effective in washing hydrophobic organic soils, e.g., removing tetrachloroethylene (PCE).¹² Thus far, there are no studies that focus on the synthesis of nanosilicas on a micrometer silica surface, thus generating a mixed-structure silica, which combines the nanoscale and microscale properties. This approach could enhance the thermal stability of photocatalysts¹³ and may overcome a few of the size limitations due to the reuse of nanoscale photocatalysts.¹⁴

To design silica particles with functional characteristics, structural analysis of this material is important because the interaction between the molecules (e.g., inorganic SiCl₄ or organic block copolymers) and the silica network surface is critical for the performance of this material.¹⁵ The structure can be investigated, for instance, by the Fourier transform infrared (FT-IR) and small-angle X-ray scattering (SAXS) methods. The FT-IR method can effectively provide a ‘fingerprint’ for the sample: characteristic spectral bands that can be used to determine parameters of the silica network, such as the function of the siloxane ring structure ((SiO)₆) with respect to the nanosilica porosity.¹⁶ SAXS is a powerful and sensitive technique used to identify structural changes in materials when studying nanoparticles, thus allowing for the direct characterization of a system without requiring any pretreatment. Additionally, the SAXS offers structural information on size, polydispersity, and fractal structure.^17,18 Due to its nature, the SAXS measurements reach the entire sample used in the experiment; thus, their results are statistically reliable because a large number of nanoparticles are probed during the experiment.¹⁹

Recently, multivariate analyses have resulted in modeling the chemical and physical properties of simple and complex systems from spectroscopic data.^20–22 For instance, Veras et al.²³ and Mueller et al.²⁰ applied a principal component analysis (PCA) and hierarchical cluster analysis (HCA) to NIR spectroscopy for the unsupervised pattern recognition of biodiesel samples. Furthermore, FT-IR spectroscopy combined with multivariate data reduction has been used in the food industry, agriculture, and material characterization.^24,25 PCA is sensitive to the presence of outliers and therefore to the presence of gross errors in datasets, which has led to several attempts to define robust variants of PCA.²⁶ Multivariate analysis has several specific advantages: it is rapid and simple, provides qualitative and quantitative results and can help reduce vast amounts of data to a scale where a relationship between the spectral features and the chemical composition can be formed.²⁷ However, there are no studies in the literature that combine the SAXS profiles with multivariate analysis. The association of the SAXS curves with other physicochemical characterization techniques via multivariate data analysis may provide a broader view of the entire system and a deeper understanding of the sample properties.

Hence, this is the first report correlating the structural characteristics (molecular and multi-organization hierarchical) of five types of silica nanoparticles and mixed-structure silica samples through simultaneous multivariate data analyses (PCA and HCA) applied using techniques with different principles, such as SAXS curves and FT-IR spectra. In this study, we monitored structural changes in different silica-based materials using several reagents, such as tetraethoxysilane, SiCl₄, octadecylamine, Pluronic®L-31, and Tween®80, as modifiers of the nanoparticle surfaces.

2 Experimental

2.1 Materials

The silica sols were prepared using tetraethoxysilane (TEOS, >98%, Sigma-Aldrich) and ethanol (99.5%, Nuclear) as the solvent. An ammonium hydroxide solution (29%, Nuclear) was used as a catalyst. Silicon tetrachloride (SiCl₄, 99%, Sigma Aldrich) was used to chemically modify the silica sols. Octadecylamine (ODA, 97%), Pluronic®L-31 (M_n ∼ 1100 Da, PEG, 10 wt%), and Tween®80 (M_n ∼ 1310 Da) were supplied by Sigma-Aldrich. Sylopol-948 (S_M, Grace) was used as the micrometric silica. All reagents were used as received.

2.2 Synthesis of standard, chemically modified, and hybrid nanosilicas

Five different methods were used to prepare the silica nanoparticles via the hydrolysis of TEOS using the sol–gel process described in the literature.¹⁸ The routes were labeled as follows: standard method (SG), chemical modification method with SiCl₄ (Cl), and hybrid method using ODA, Pluronic®L-31, and Tween®80 as the surfactant (Da, Pu and Tw, respectively). In the SG method, two solutions were prepared as follows: the first (A) was a mixture of 0.5 M TEOS dissolved in 15.0 mL of absolute ethanol, and the second (B) was a mixture of 0.5 M NH₄OH solution dissolved in 5.0 mL of ethanol and 3.0 mL of water. Then, solution B was added dropwise to solution A at a rate of 0.2 mL min⁻¹ and stirred for 3 h at room temperature. At the end of the reaction, silica nanoparticles were obtained in suspension.⁷ The TEOS/ethanol molar ratios were 0.03, 0.07 and 1.0.

In the Cl method, chemically modified silica nanoparticles (S_NCl) were prepared using TEOS/SiCl₄ at molar ratios ranging from 0.1–8.0. The Cl followed the same steps as the SG method but included the addition of SiCl₄ to mixtures A and B 3 h after the beginning of the reaction, which was followed by additional stirring for 1 h. In the Da method, hybrid nanosilicas (S_NDa) were obtained by the addition of ODA, which was previously dissolved in 15 mL of ethanol, stirred for 1 h at room temperature and mixed with TEOS in solution A. The Pu and Tw methods were used to synthesize the hybrid nanosilicas S_NPu and S_NTw, respectively, using Pluronic®L-31 and Tween®80. The amount of surfactants used in the syntheses of the hybrid materials was 0.0028 and 0.0056 mol for comparative purposes.

2.2.1 Synthesis of mixed-structure silicas using the sol–gel process. In this procedure, similar solutions (A and B) were prepared using the same steps performed during the synthesis of silica nanoparticles using methods SG, Cl, Da, Pu, and Tw. However, in the first solution (A), 0.2 g of Sylopol-948 (commercial microscale silica (S_M)) was mixed with 15.0 mL of absolute ethanol for 0.5 h. Then, 0.5 M TEOS was dissolved in solution A, which was then stirred for 1 h at room temperature. Subsequently, solution B was added dropwise to solution A at a rate of 0.2 mL min⁻¹ and stirred for 3 h at room temperature. At the end of the reaction, a suspension of mixed-structure silica (S_MS_N) was obtained by the formation and growth of monodisperse nanosilicas on the surface of S_M. Chemically modified mixed-structure silicas were prepared with SiCl₄ and denoted by S_MS_NCl; hybrid mixed-structure silicas resulting from syntheses with ODA, Pluronic®L-31 and Twenn®80 were labeled as S_MS_NDa, S_MS_NPu, and S_MS_NTw, respectively.

The dispersions of the nanoscale and mixed-structure microscale silicas were centrifuged at 13 300 rpm for 30 minutes. Then, the samples were washed three times with ethanol (3 × 20.0 mL). Lastly, the nanosilica particles were dried at 110 °C in an oven for 24 h and milled to obtain an extremely fine powder (approximately 50 μm in diameter). Scheme S1† depicts the steps involved in the synthesis of the nanosilica particles and mixed silicas. For example, S_MS_N7Cl50 refers to S_MS_NCl prepared with a TEOS/ethanol molar ratio of 0.07 and a TEOS/SiCl₄ molar ratio of 5.0 (Scheme S1b†), and S_MS_N7Da28 refers to S_MS_NDa prepared with a TEOS/ethanol molar ratio of 0.07 and an ODA molar amount of 0.0028 (Scheme S1d†). A nested design²⁸ was used as the experimental approach for the syntheses of the silica samples. Details of the preparation are provided in Scheme S2.†

2.3 Characterization

Nitrogen adsorption isotherms were measured on a Micromeritics TriStar II 3020 in the partial pressure range of 0.01 < P·P₀⁻¹ < 0.25. The specific surface area for each sample (S_BET) was calculated using the Brunauer–Emmett–Teller method (BET),²⁹ and the pore diameter (D_pBJH) and pore volume (V_pBJH) were calculated using the cumulative desorption curve by the Barrett–Joyner–Halenda (BJH) algorithm.³⁰ Dynamic light scattering (DLS) measurements were performed on the samples in the liquid phase using a Zetasizer-Nano ZS90 (Malvern Instruments). The zeta potentials (ZP) of the particles in dispersion (approximately 10 mg L⁻¹) were measured using a Zetamaster (Malvern Instruments). The chloride distributions of the S_NCl and S_MS_NCl particles were obtained using a scanning electron microscopy-energy dispersive X-ray spectroscopy (SEM-EDX) on a JEOL JSM-5800 with an accelerating potential of 20 kV. Thermogravimetric analyses (TGA) were performed on an SDT Q600 thermal analyzer Q20 (TA Instruments) at a scanning rate of 20 °C min⁻¹ from 25 to 600 °C. X-ray diffraction (XRD) measurements were obtained on a Rigaku DMAX 2200 equipped with a Cu-Kα (λ of 1.54 Å) tube. Scanning electron microscopy (SEM) images were collected on an EVO-50 (Carl Zeiss, Inc.) equipped with an Everhart–Thornley secondary electron (ETSE) detector at 0.2 to 30 kV. Transmission Electronic Microscopy (TEM) images were obtained using a JEOL JEM-2010 transmission electron microscope operating at 200 kV with a lattice resolution of 0.14 nm and a point-to-point resolution of 0.25 nm.

A diffuse reflectance infrared Fourier transmission spectroscopy (DRIFTS) was performed on a Shimadzu FTIR 8300 spectrometer equipped with a diffuse reflectance accessory. All spectra were collected in the frequency range of 4000 to 400 cm⁻¹ in the absorbance mode at a resolution of 4 cm⁻¹. Approximately 600 scans were averaged and rationed against the same number of scans for the background (finely ground KBr, FTIR grade) to obtain a suitable signal-to-noise ratio. Multiple spectra (triplicate) were acquired for each sample to determine the reproducibility. Sample preparation for DRIFTS analysis consisted of the grinding of a mixture of KBr and silica sample in appropriate weight proportions to spectral absorbance, after the mixture was pelletized using a hydraulic press. OriginPro 8.5.0 SR1 (Northampton, MA 01060 USA, OriginLab Corporation) was used to assign the wavenumber using the Screen Reader tool. The characteristic spectral bands of the harmonic vibrations of the silica material networks [ν_as(Si–O(–Si))] were studied using the FT-IR method in the region of 1300–1000 cm⁻¹.^18,31 The structural parameters, such as the percentage of six-fold siloxane rings ((SiO)₆), longitudinal-optical (LO) percentage (% LO), and proportion of silanol groups% (Si–OH) in the silica network, were estimated using eqn (S1)–(S3)† according to the literature.^16,31

Small-angle X-ray scattering (SAXS) measurements were performed on the D1B-SAXS1 beamline at the National Synchrotron Light Laboratory (LNLS, Campinas, Brazil). The scattered X-ray beam presented a wavelength (λ) of 1.488 Å and was detected on a Pilatus 300k detector. The scattering intensity I(q) was plotted as a function of the modulus of the scattering vector q (q = 4π/λ) sin θ; 2θ = scattering angle. To reduce the limit detection, the incident beam was detected at two different sample-to-detector distances (0.5 and 3.0 m) to extend the q vector collecting range (from 0.04 nm⁻¹ to 5 nm⁻¹). The SAXS scattering patterns from the two distance measurements were merged using Wolfram Mathematica®9 to obtain the resulting merged SAXS profiles for each sample in triplicate. Silver behenate was measured under the same conditions to calibrate the sample-to-detector distance, detector tilt and direct beam position. Each powder sample was prepared in triplicate, and they had been previously fixed in a sampler (covered by Kapton™ foil). Using Beaucage's model,^32,33 a multi-level unified fit was used to establish multi-hierarchical structures of the particles from the scattering data.^18,34 The I(q) vs. q scattering profiles were fit by the Irena evaluation routine,³⁵ and the equation can be used to fit the data for each structural region as follows:

where R_g is the radius of gyration for the particles in each region, in which the subscript indicates the structural region of the SAXS scattering profile, i.e., R_gL for the low-q region, R_gM for the mid-q region and R_gH for the high-q region; R_p is the radius of the particle; G is the Guinier prefactor; B is a multiplicative factor specific to the type of power-law regime; and P is defined based on the regime in which the power-law exponent decays, i.e., P_H = 4.0 in the high-q region.^19,32 The principal parameters obtained from eqn (1) are the power-law regime (P) and the radius of gyration of the particles (R_g). The particle radius (R_p) was calculated as R_p = R_g × (5/3)^(1/2).

2.4 Multivariate data processing

Principal component analysis (PCA) is a statistical multivariate technique used to analyze the variance-covariance structure of a set of data.²¹ It projects data in a reduced hyperspace defined by a set of orthogonal vectors known as principal components.³⁶ These are non-correlated linear combinations of the original variables ordered by the amount of variance explained in the component directions.³⁶ Thus, the first principal component has the largest variance, the second principal component has the second largest variance, and so on. This method reduces the complexity of the input variables when addressing large datasets. The data are transformed into a small number of principal components (PCs).³⁷ These PCs allow for the variability in the dataset to be studied in parts and permit a different interpretation that is occasionally not possible from direct observation of the dataset.²¹

The coefficients of variables used to determine the principal components are stored in the loading matrix. Given a set of I samples and J variables arranged in a two-dimensional matrix X (I × J), the loadings are coefficients for each PC and can be calculated using the singular value decomposition (SVD) of the covariance matrix C as follows:³⁶

where Z (J × J) is an orthogonal matrix; S (J × J) is a diagonal matrix with the nonzero singular values on its diagonal; L (J × J) is the loading matrix, which collects the coefficients of the J variables for defining the j-th principal component in each j-th column (eigenvector); and Λ is the diagonal matrix, which contains the nonnegative eigenvalues of decreasing magnitude (λ₁ ≥ λ₂ ≥ … λ_J ≥ 0).³⁶

Hierarchical cluster analysis (HCA) detects similarities in the structural characteristics between samples and defines groups, clusters, or hierarchies in data based on sample similarities.^22,36 Similarities among samples are estimated by measuring the distances between points (samples) in the measurement space; similar samples are characterized by small distances, and vice versa for dissimilar samples.³⁶ HCA calculates the distances using a defined metric, such as the Euclidean distance or Manhattan distance,³⁸ and the results are typically displayed as a dendrogram. The dendrogram depicts the merging of samples into clusters at various stages of analysis and the similarities at which the clusters merge, where the clustering is displayed hierarchically.²²

All the FT-IR spectra in the region of 2000–400 cm⁻¹ and the SAXS profiles in the region of 0.04 to 5 nm⁻¹ were treated by multivariate analysis tools using hierarchical cluster analysis (HCA) and principal component analysis (PCA).³⁹ The mean centered data and the standard normal variate (SNV) were used as pre-processing tools for the multivariate analyses.²⁰ MATLAB® 7.11.0 software (The Math Works, Natick, MA, USA) and the PLS-Toolbox 6.0 package (Eigenvector Research, Copenhagen, Denmark) were used.

3 Results and discussion

The surface and textural characterizations of the silica nanoparticles and the mixed-structured silicas were performed using nitrogen porosimetry. Fig. 1 illustrates one typical nitrogen adsorption/desorption isotherm of synthesized S_N7Da28 and S_MS_N7Da28 using the ODA. These materials display a type IV isotherm and exhibit hysteresis, which is typical of mesoporous materials.⁴⁰ For clarity, only data concerning the specific surface area (S_BET),²⁹ specific pore volume (V_pBJH), and pore diameter (D_pBJH)³⁰ of the materials using a TEOS/ethanol molar ratio of 0.07 are presented in Table 1. The results of all five methods for different TEOS/ethanol and TEOS/SiCl₄ molar ratios and the amount (mol) and type of surfactant are listed in Table S1.†

Fig. 1 Comparison of the N₂ adsorption–desorption isotherms between S_NDa, S_MS_NDa, and S_M. Inset: BJH pore size distributions (D_pBJH).

Table 1 BET isotherm parameters (S_BET, V_p, and D_pBJH) and multi-organizational parameters of the SAXS profiles (R_gH, P_H = 4, R_gM and P_M, and P_L) obtained through a unified fit, and the correlation between the structural parameters% (SiO)₆, % LO and (% Si–OH) is derived by deconvolution of the FT-IR spectra

Sample	SBET (m^2 g^−1)	VpBJH (cm^3 g^−1)	DpBJH (nm)	High-q region		Mid-q region			Low-q region	(SiO)6 (%)	LO (%)	(Si–OH) (%)
				RgH^a (nm)	RpH^b (nm)	RgM (nm)	RpM (nm)	PM^c	PL
a Rg is the radius of gyration of the particles in each region: RgH in the high-q region, RgL in the low-q region, and RgM in the mid-q region.b Rp the radius of the particle, PH = 4.0 at high-q region.c P the power-law exponent decay extracted in each region, PH = 4.0 at high-q region.d Cl30 corresponds to a TEOS/SiCl4 molar ratio of 3.0.
SM	272	1.47	15.7	1.1	1.4	5.7	7.4	4.2	2.3	42.6	73.8	12.5
SN7	369	0.96	9.3	0.4	0.5	7.3	9.4	3.9	2.8	23.7	66.3	11.6
SMSN7	313	0.87	9.4	0.4	0.5	7.5	9.7	3.9	2.9	49.9	51.0	13.1
SN7Cl30^d	714	0.17	2.6	0.8	1.0	3.0	3.9	4.0	3.8	65.9	56.2	16.3
SN7Cl50	522	0.11	2.6	0.4	0.5	2.4	3.0	4.0	3.8	46.9	51.5	20.0
SMSN7Cl30	567	0.25	4.3	0.4	0.6	5.4	7.0	3.6	3.3	51.9	45.9	20.9
SMSN7Cl50	231	0.74	9.5	0.8	1.1	5.7	7.4	4.0	3.3	50.3	47.3	18.1
SN7Da28	286	0.42	5.0	0.3	0.4	8.2	10.6	3.6	3.0	26.1	64.5	10.8
SMSN7Da28	179	0.35	7.1	0.3	0.3	10.3	13.3	3.9	2.5	45.4	41.1	15.6
SMSN7Da56	212	0.72	10.1	2.0	2.6	6.4	8.3	3.7	2.2	69.0	42.7	21.1
SN7Tw28	39	0.17	14.6	0.9	1.2	22.2	28.6	3.9	2.4	34.8	45.2	14.9
SMSN7Tw28	150	0.60	12.6	0.8	1.0	8.0	10.3	3.6	2.4	44.1	38.9	29.2
SMSN7Tw56	127	0.64	16.4	0.7	0.8	16.9	21.8	3.9	1.7	47.5	36.1	10.4
SN7Pu28	204	1.21	19.5	0.9	1.2	10.9	14.1	3.7	2.7	47.1	52.4	8.2
SMSN7Pu28	153	0.60	11.9	0.7	0.8	6.6	8.5	3.5	2.2	55.2	40.0	3.5
SMSN7Pu56	138	0.75	14.2	0.4	0.5	13.8	17.8	4.0	2.8	53.6	37.2	12.4

---

From Table 1, functionalized nanosilicas (S_N7Cl50 and S_N7Cl30) achieved larger surface areas (522–714 m² g⁻¹, respectively, Table 1) with smaller pore sizes. The presence of organic groups from the surfactants on the silica nanoparticles decreases the specific surface area (e.g., compare S_N7, 369 m² g⁻¹ and S_N7Da28, 286 m² g⁻¹ with S_N7Pu28, 204 m² g⁻¹). The synthesized nanosilica particles have an effect on the surface characteristics of S_M. The specific surface area of S_M increases, and the pore shape changes due to the presence of nano- or functionalized nanosilicas (e.g., compare S_MS_N7, 313 m² g⁻¹, S_MS_N7Cl30, 567 m² g⁻¹ with S_M, 272 m² g⁻¹).¹⁸ Otherwise, S_BET decreases for hybrid mixed-structure silicas when the surfactant concentration is enhanced (from S_MS_N7Tw28, 150 m² g⁻¹ to S_MS_N7Tw56, 127 m² g⁻¹). Eltejaei et al.⁴¹ reported that large molecular surfactants affect S_BET.

The presence of organic molecules in the hybrid particles was verified using TG analysis, as indicated in Fig. S1a in the ESI.† The decrease in mass between 363 °C and 476 °C was 17% for S_MS_N7Pu28, which may be due to the thermal decomposition of organic molecules from Pluronic®L-31. XRD analysis was used to study the amorphous structure of the hybrid mixed-structure silicas, as indicated in Fig. S1b.† The diffractograms of the hybrid particles presented a halo in the 2θ region between 18 and 27°, which is characteristic of an amorphous silica structure.⁴² The particle diameter (d_XRD) estimated by Scherer's equation varied between 3.6 and 3.9 Å. The results indicated a shift towards higher 2θ angles for the hybrid systems compared to that of S_M. This behavior suggested that the incorporation of organic molecules resulted in the formation of a compact and denser silica particle, which is in agreement with the results obtained by Yu et al.⁴³

3.1 Molecular structural characteristics

The FT-IR spectra of the synthesized materials have a few common bands, which display only slight changes in their relative intensities, as depicted in Fig. 2. The proposed band assignments are summarized in Table S2† and are based on values from the literature.^16,31,44

Fig. 2 FT-IR spectra of (a) S_N7Tw28 and S_MS_N7Tw28 and (b) of S_N7Pu28 and S_MS_N7Pu28 in the region of 4000–400 cm⁻¹. The spectra were normalized to the maximum of the ν_as(Si–O(–Si)) band. Resolution: 4 cm⁻¹.

Based on Fig. 2a, the FT-IR spectra of S_N7Tw28 and S_MS_N7Tw28 exhibit an absorption band at 1732 cm⁻¹ and 1728 cm⁻¹, respectively, attributed to the symmetric stretching C=O of the ester bond.^43,45 The two bands at 1651 cm⁻¹ (S_N7Tw28) and 1645 cm⁻¹ (S_MS_N7Tw28) are attributed to –COO⁻.⁴⁶ The FT-IR spectra of S_N7Pu28 and S_MS_N7Pu28 are illustrated in Fig. 2b, which present certain bands equal to the synthesized silicas using Tween®80. The band assignment was compared with previously published reports from Yu et al.,⁴³ Liu et al.,⁴⁵ and Macher et al.⁴⁶ Fig. 2 illustrates that the bands and shows that their intensities vary based on each system.

The spectra provide relevant information on the arrangements of the structural units ((SiO)₄) in the silica network through the vibrational modes of [ν_as(Si–O(–Si))] found in the 1300–1000 cm⁻¹ region.^15,16 The structural parameters were expressed as a six-fold ring ((SiO)₆) and longitudinal-optical (LO) mode percentages as well as the proportion of silanol groups. These parameters were estimated using eqn (S1)–(S3)†.^16,31 The (SiO)₆, (LO), and (Si–OH) percentages are summarized in Table 1.

Nanosilicas (S_N) tend to organize themselves into cyclical siloxane arrangements, (SiO)₄ (23.7% (SiO)₆), which are tensioned structures (θ ≈ 125°)³¹ When silica nanoparticles interact with a halogen, such as Cl, or an organic group from a molecular surfactant (ODA, Tween®80 and Pluronic®L-31), they form functionalized (S_NCl) or hybrid (S_NDa, S_NTw e S_NPu) nanosilicas. Therefore, the silica network is modified to the most thermodynamically stable structure⁴⁷ with a larger number of six-member cyclic units (26.1 to 65.9% (SiO)₆), as indicated in Table 1. The longitudinal vibrational modes become sensitive to the incorporation of the Cl atoms and organic groups;⁴⁸ hence, the percentage of LO varied from 45.1 to 64.5%.

The mixed-structure materials, either functional (S_MS_NCl) or hybrid (S_MS_NDa, S_MS_NTw, and S_MS_NPu), revealed that the structure of the silica matrix interacted with the silanol groups on the surface of S_MS_N, as indicated in Table 1. These interactions depended on the synthesis method and generated materials with different molecular properties (42.6–69% of (SiO)₆, 38.9–47.3% of LO, and 15.6–29.2% of Si–OH). The larger organic molecular groups of the surfactants demonstrate a tendency to form six-membered rings in previous studies, which most likely allows them to be accommodated within the network.^16,31 The presence of distinct groups (such as C=O, –CH₂, C=C, and Si–Cl) on the surface of S_M increased the amount of six-member siloxane rings ((SiO)₆) by 38%, raised the LO mode by 23% and increased the quantity of Si–OH by 37%. Additionally, an increase in the organic groups decreased the Si–O–Si angle in the silica network of the hybrid materials, which reduced the long-range Coulomb interactions and displaced the LO components to higher wavenumbers.^48,49

3.2 Multi-scale organization and fractal structure

For each sample, the multi-hierarchical organization of the particles, radius of gyration (R_g), organizational state of the fractals of the particles (P_L for the low-q region and P_H in the high-q region) and shape were investigated using the unified approach^32,33 in the Guinier and power-law regions. Fig. 3 depicts the experimental SAXS curves (Δ, ○, and □) and their corresponding best fits (solid lines), with Sylopol-948 (S_M), functionalized nanosilica particles (S_N7Cl30), hybrid silica nanoparticles (S_N7Tw28), and mixed-structure silicas (S_MS_N7Cl30 and S_MS_N7Tw28) as examples.

Fig. 3 (a) SAXS profiles of S_M (Δ, green), S_N7Cl30 (○, red), and S_MS_N7Cl30 (□, blue); and (b) SAXS profiles of S_M (Δ, green), S_N7Tw28 (○, red), and S_MS_N7Tw28 (□, blue). The corresponding fits (solid lines) assume a homogeneous spherical model.

Based on Fig. 3, the unified set of the SAXS data reveals that the samples are arranged in a multi-hierarchical structure. Using Beaucage's model,^32,33 it was possible to establish a multi-hierarchical structure of the particles using eqn (1) to fit the data for each structural region. The results of the unified approach applied to the SAXS curves from the particles are provided in Table 1.

Based on Fig. 3a, smaller silica nanoparticles are obtained when SiCl₄ is used to chemically modify the surface of the nanosilicas (e.g., compare S_N7Cl30, R_pM = 3.9 nm and S_N7Cl50, 3.0 nm with S_N7, 9.4 nm, see Table 1). We observed that the size of the nanosilica particles increases as the SiCl₄ concentration increases; simultaneously, the surface potential decreases, i.e., S_N7Cl50 reaches a higher surface charge (ZP = −22.9 mV) compared to S_N7Cl30 (ZP = −10.6 mV) when the SiCl₄ concentration is low (Table S3†).⁵⁰ Eventually, the repulsive barrier becomes large enough to prevent the coagulation (or further growth) of particles.⁵¹ Our data are in agreement with those obtained by Parfitt et al.,⁵² Brinker et al.,^47,53 and Ma et al.,⁵⁴ if the sol contains particles that vary in size, i.e., smaller particles may aggregate with larger particles.

Furthermore, the incorporation of organic groups from surfactants on the surface of nanosilicas increases the size of the particles, as indicated in Fig. 3b (for example, S_N7Tw28, R_pM = 28.6 nm). However, it is possible that the organic groups may be trapped between the primary particles, thus forming a secondary particle size. Park et al.⁵⁵ reported that when more spherical particles have to be packed within the same volume of solution at high polymer concentrations, the distance between the particles is further reduced. We observed that larger polymer chains increase the particle radii (e.g., compare S_N7Da28, 10.6 nm with S_N7Tw28, 28.6 nm), and the organizational structure of clusters is predominately mass fractals based on the results of the power law, (1.7 < P_L < 3.0).

The size distribution of the particles influences the textural characteristics of the materials: if the particles increase in size (R_p), S_BET decreases.¹⁸

The growth of the silica nanoparticles on the surface of S_M, which resulted in a mixed-structure silica, affected the organizational structure of the functionalized mixed-structure silicas (S_MS_NCl) by generating surface fractals (3.3 < P_L <3.8). Regarding the hybrid mixed-structure silicas, the radii of the aggregated particles increased due to the presence of nanosilica particles, and the volume and pore diameter decreased (e.g., compare S_MS_N7Pu56, R_pM = 17.8 nm, V_pBJH = 0.75 cm³ g⁻¹, D_pBJH = 14.7 nm and S_MS_N5Tw56, 21.8 nm, 0.64 cm³ g⁻¹, 16.4 nm with S_M, 7.4 nm, 1.47 cm³ g⁻¹, 15.7 nm).

3.3 Multivariate correlation analysis between FT-IR and SAXS

The FT-IR spectra and SAXS scattering curves of the samples were subjected to multivariate analyses to determine the most important information and significant correlations between the molecular structural characteristics and the multi-hierarchical organization of the particles.²¹ Fig. 4a depicts the dendrogram obtained from the FT-IR spectra whereas Fig. 4b presents the scatter profiles.

Fig. 4 Dendrogram obtained from HCA applied to the FT-IR spectra (a) and the SAXS profiles (b) for all 28 samples.

Hierarchical clustering analysis (HCA) was applied to the FT-IR spectra in the region of 2000–400 cm⁻¹ and demonstrated that the materials are divided into two primary groups, A and B, as indicated in Fig. 4a. Group A is further divided into two classes, class I, which consists of particles functionalized with chlorine atoms on the surface (similarity of 85.6%), and class II, which is composed of hybrid mixed-silicas obtained from ODA and Tween®80 (similarity of 73.4%). Group B consists of nanosilicas, hybrid nanosilica particles, mixed-structure silicas (S_MS_N), and the hybrid mixed-structure (S_MS_NPu) using Pluronic®L-31, which has a similarity of 78.4%.

In parallel, as indicated in Fig. 4b, HCA of the SAXS data revealed that the multi-scale structures of these materials are different and can be divided into two primary groups, A and B. Group A consists of the functionalized particles (nano- and mixed-structure) with an 88.5% similarity. Group B is divided into two classes. Class II, with an 84.6% similarity, consists of the hybrid mixed-structure silicas using ODA and Tween®80; this class is in agreement with the FT-IR spectra dendrogram. Class III, with an 86.2% similarity, consists of hybrid silica nanoparticles S_MS_N, and S_MS_NPu using Pluronic®L-31. This class is in agreement with class III (78.4%) from the FT-IR spectra, as indicated in Fig. 4a.

The molecular structural characteristics from the FT-IR spectra and the multi-scale organizational structure and fractal from the SAXS scattering (Fig. 4a and b, respectively) allowed us to classify all of the synthesized materials into classes I, II, and III with good agreement. Essentially, the data suggest that the separation of groups (A and B) for the SAXS profiles is based on the incorporation of organic groups in the silica network of particles and the organizational structure of aggregates in the low-q region. Functionalized particles with chlorine atoms (S_NCl and S_MS_NCl) depicted higher similarities (85.6% and 88.5%) and were separated from the other classes (II and III) because these particles organized as mass fractals (3.0 < P_L < 3.8).³³

3.4 Assessment of structural differences by PCA

Principal component analysis (PCA) presents the treatment of the FT-IR spectra and SAXS curves in a two-dimensional space to verify the separation of groups of materials based on their characteristics, as depicted in Fig. 5a and b, respectively.^20,22

Fig. 5 Scores obtained from PCA applied to the FT-IR spectra (a) and SAXS profiles (b) for the data from all samples (N = 28).

Based on Fig. 5a, 89.5% of the variations in the FT-IR spectra in the region of 2000–400 cm⁻¹ were explained by analyses of the principal component (PC1). In this case, the samples in group A, which are divided into class I and class II (similar to Fig. 4a), are represented by negative values of PC1 whereas the samples in group B are denoted by positive values. This behavior can be attributed to two factors as follows: (i) the percentage of silanol groups 10.4 < Si–OH < 29.2% on the surfaces of the particles from classes I and II are greater than those on the surfaces of the particles in class III (shown in Table 1);¹⁶ and (ii) a smaller peak intensity [ν_(OH)] at 3416–3443 cm⁻¹ in the spectra of the functionalized particles resulting from the reaction of the surface hydroxyl groups on S_N with SiCl₄.⁵⁶

The loading graph for PC2, with a 7% variation, was better suited to separate materials with organic groups incorporated into the silica network as positive values on the PC2 axis, as indicated in Fig. 5a. The presence of organic groups in the hybrid mixed-structure silica decreased D_pBJH and S_BET (Table 1). It appears that the organic molecules interact with both the surface and the pores of S_M; they fill the empty spaces between the nanosilicas and the microparticles, thus creating a more compact and denser silica, which decreases the amount of pores available for the N₂ gas adsorption. Due to the pore blockage, the pore size distribution of S_M becomes larger, and D_pBJH decreases (e.g., compare D_pBJH for S_MS_N7Da28, 7.1 nm, S_MS_N7Tw28, 12.6 nm, and S_MS_N7Pu28, 11.9 nm with that of S_M, 15.7 nm).

Based on the SAXS curves, the loading plot for PC1 (Fig. 5b) reveals that 70.0% of the variation in the scattering vector (q) is given by the organizational structure of the clusters. This separates the surface fractals (3.0 < P_L <3.8), i.e., S_MS_NCl and S_NCl in group A (class I), from the mass fractals (1.7 < P_L < 2.8), i.e., nanosilicas, hybrid silica nanoparticles, mixed-structure silicas, and hybrid mixed-structure particles that belong to group B (classes II and III).

3.5 Effects of nanosilica particles on the morphological characteristics of mixed-structure silica

The TEM was used to evaluate the particle morphology and the sizes of the silica nanoparticles in the dispersions. High-magnification images (40 000×) of the nanosilicas, S_N, are depicted in Fig. 6a whereas S_NPu is illustrated in Fig. 6b.

Fig. 6 TEM images of (a) nanosilica, S_N, and (b) hybrid nanosilicas, S_NPu; and SEM images of (c) Sylopol-948, S_M, hybrid mixed-structure silicas using Tween®80 (d and e), and Pluronic®L-31 (f).

Based on Fig. 6, sol–gel synthesis influenced the morphology of the nanosilica particles. S_N consists of spherical nanosilica particles that are approximately 20 nm in diameter and exhibit a tendency to agglomerate whereas the S_NPu sample contains smaller deformed monodispersed particles. As indicated in Fig. 6c, S_M is a micrometric silica with a rough surface, which is consistent with the hierarchical parameter (P_L ≈ 2.3) obtained from the SAXS data (Table 1).

It is possible to evaluate the morphology and investigate the effects of incorporating spherical nanoparticles of silica on the S_M surface. At high magnification, Fig. 6d illustrates the surface of S_MS_N7Tw28 with a large number of spherical hybrid S_MS_N7Tw28 with a large number of spherical hybrid nanoparticles of silica that favor aggregation. Fig. 6e (low magnification) reveals that S_MS_N7Tw28, which used Tween®80, exhibits a larger surface that is completely covered by nanosilica particles. Furthermore, a similar behavior was observed with S_MS_N7Pu28, which used Pluronic®L-31 (Fig. 6f). The small nanoparticles of silica on the surface of S_MS_N7Tw28 compared with those on the surface of S_MS_N7Pu28 are most likely due to the Tween®80 possessing polymer chains that are larger and more complex than the Pluronic®L-31, as indicated in the SAXS results (R_pH, Table 1).

Based on Fig. 6e and f, it is possible to synthesize hybrid mixed silicas from the growth and self-assembly of synthesized nanosilicas on the surfaces of microscale particles, thus allowing for the formation of a mixed-single system.

The above morphological evidence, particularly the size and shape of the nanosilicas, suggests that nanosilicas played a role in enhancing the surface heterogeneity of S_M while also forming pores, as demonstrated by the textural characteristics (Table 1).

Based on Fig. 7a and b, the large pore diameters (D_pBJH = 15.7 nm) of S_M can be observed as white voids, in agreement with the textural characterizations. It is possible to observe the existence of porosity in S_MS_NTw28, as displayed in Fig. 7c and d, although their pores are partially hidden by the presence of the surfactant, Tween®80. The S_MS_NTw28 porosity can be better observed in the SEM image, as indicated in Fig. 6d. S_MS_NTw28 is a relatively more compact silica than S_M.

Fig. 7 TEM images of Sylopol-948, S_M (a and b) and hybrid mixed-structure silica using Tween®80, S_MS_N7Tw28 (c and d).

Based on the TEM and SEM results, the model depicted in Scheme 1 was proposed to describe the formation of hybrid mixed-structure silicas. The model considers the interactions between the silica nanoparticles (S_NDa) and the commercial micrometer silica S_M and uses a single method of synthesis as an example.

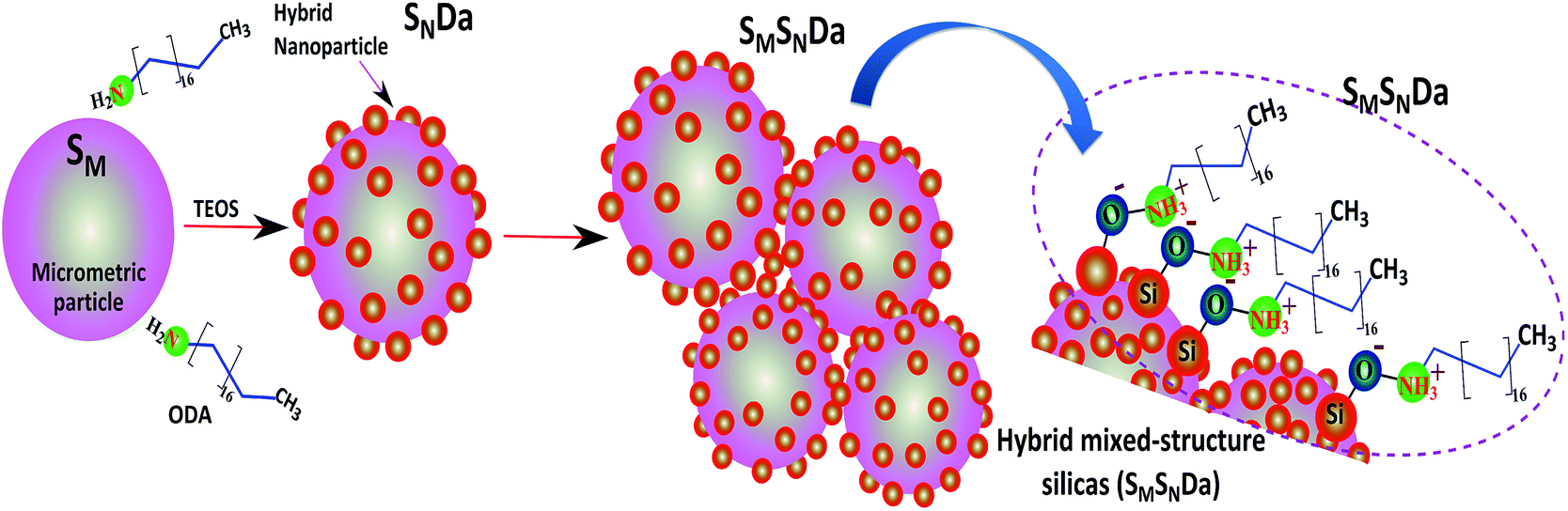

Scheme 1 Suggested model for the formation of S_MS_NDa from S_NDa and S_M.

4 Conclusions

The molecular structural characteristics (FT-IR spectra) and multi-scale organizational structure and fractal (SAXS scattering) properties were correlated with the results of multivariate analyses, including HCA and PCA. It was determined that only two principal components accounted for over 96.5 and 89.7% of variance (FT-IR and SAXS, respectively) within the sample set. The aspects that most influenced the separation of samples by groups were: (i) the incorporation of organic molecules in the silica network of particles; (ii) the organizational fractal structure of aggregates at a low-q; and (iii) the percentage of silanol groups on the surface of particles. The functionalized particles with chlorine atoms depicted high degrees of similarity (85.6% from FT-IR spectra and 88.5% from SAXS curves). As demonstrated in this study, FT-IR/SAXS/multivariate analysis showed excellent agreement in characterizing changes in the structural properties of mesoporous silica materials, and this new methodology can serve as a reliable and faster approach for practical applications that require high precision and accuracy.

Acknowledgements

This project was partially financed by the Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq). Y. P. Moreno is grateful for the grant provided by CAPES. Furthermore, the authors would like to thank the LNLS (Project SAXS1-17056) for the SAXS beamline measurements as well as the Center for Nanoscience and Nanotechnology (CNANO) and the Electron Microscopy Center (CME) of UFRGS for the SEM measurements and the TEM measurements, respectively.
