Eduardo Guisasola
ab,
Alejandro Baezaab,
Marina Talellia,
Daniel Arcosab and
María Vallet-Regí*ab
aDepto. Química Inorgánica y Bioinorgánica. Instituto de Investigación Sanitaria Hospital 12 de Octubre i+12, Universidad Complutense de Madrid, Plaza Ramon y Cajal s/n, Spain. E-mail: vallet@ucm.es
bCentro de Investigación Biomédica en Red de Bioingeniería, Biomateriales y Nanomedicina (CIBER-BBN), Av. Monforte de Lemos, 3-5. Pabellón 11. Planta 0 28029, Madrid, Spain
First published on 25th April 2016
Stimuli-responsive devices are novel tools widely studied in the nanomedicine research field. In this work, magnetic-responsive mesoporous silica nanoparticles (MMSNs) were coated with an engineered thermoresponsive co-polymer. Magnetic cores are used as heating sources when they are exposed to an alternating magnetic field. The polymer structure suffers a change from hydrophilic to hydrophobic state when the temperature is raised above the lower critical solution temperature (LCST) or volume phase transition temperature (VPTT), acting as a gate-keeper of a model drug trapped inside the silica matrix. Fluorescein departure can be tuned employing two different polymer structures on the silica surface which exhibit the same transition temperature (42 °C) but a different grafting density: one of them being a dense crosslinked polymer network and the other one a hairy linear polymer layer. The release profile reveals to be the opposite between these two different coatings, allowing suitable drug release behavior for different clinical situations.
For crosslinked polymer shell coatings (CPS), the hydrophobic stacking of the polymer chains above the volume phase transition temperature (VPTT) leaves free spaces in the polymer network that allows the release of fluorescein (Scheme 1a).26 In the case of hairy polymer conformation (HP), the linear to globular transition that occurs in the surface of the mesoporous silica sterically hinders the pore opening, causing the retention of the cargo (Scheme 1b).27 Overall, it is demonstrated that coating with the same polymer but with a different grafting structure highly affects the fluorescein release behavior, rendering opposite profiles.
![]() | (1) |
:
5). The product was subjected to a successive extraction with Na2HCO3 (5% wt), NaHSO4 (5% wt) and brine, dried with MgSO4 and the solvent evaporated under reduced pressure at 20 °C to give an 85% purity product by 1H NMR.1H-NMR (250 MHz, CDCl3), δ (ppm): 6.22 (s, 1H), 6.04 (s, 1H), 3.81 (q, J = 7.0 Hz, 12H), 3.33–3.14 (m, 4H), 2.52–2.08 (m, 8H), 1.74 (s, 3H), 1.69 (s, 3H), 1.66–1.59 (m, 4H), 1.22 (t, J = 7.0 Hz, 18H), 0.68–0.57 (m, 4H).
:
15 NIPAM to NHMA ratio, 1 g (8.8 mmol) of NIPAM and 355.6 μL (1.55 mmol) of NHMA were placed in vial A and 17.7 mg (0.024 mmol) of ABCVA-APTES initiator were placed in vial B. The monomer mixture and the initiator were purged by nitrogen flow prior to the addition of 6 mL and 0.5 mL of dry DMF respectively to each vial. The solutions were bubbled with N2 for 15 min. Vial A was stirred in a heated oil bath at 80 °C for 2 min before the fast addition of vial B solution (400
:
1 monomer to initiator ratio) and allowed to stir for 16 h. A maximum 2 mL of the reaction mixture were added dropwise to 45 mL of EtO2 in a centrifugation tube obtaining a white precipitate. The precipitate was washed three times with 45 mL of diethylether and dried at ambient temperature. The white solid was dissolved in H2O and lyophilized.
000 rpm, 30 min) and washed three times with 50 mL of EtOH to be dried under vacuum overnight. In a 100 mL three-neck round-bottom flask, 150.9 mg (1.33 mmol) of NIPAM, 12 mg of MBA (0.078 mmol), 49.4 μL of NHMA (0.148 mmol), 3.6 mg of CTAB and 5 mg of Na2CO3 were added to 45 mL of H2O (mQ). The solution was stirred under N2 bubbling at 70 °C for 30 min to remove oxygen. Then, the solution was kept under N2 and 50 mg of MMSNPs redispersed in 5 mL of EtOH (99.5%) were added to the monomer solution and stirred for 15 min more. To initiate the monomer polymerization 0.2 mL of a 25 mg mL−1 APS solution in H2O (mQ) previously deoxygenated were added to the reaction mixture. 20 min before the initiator addition appears a brown solid precipitate and the reaction mixture was allowed to cool down to room temperature and kept at that temperature for 6 h. The mixture was centrifuged and washed three times with H2O to remove the unreacted monomers and be dried under vacuum overnight.
000 rpm, 30 min) and washed three times with 30 mL of EtOH to be dried under vacuum overnight. The brown solid so-obtained was purged by nitrogen flow and then dispersed in 5 mL of deoxygenated EtOH (99.5%) with 269.2 mg of NIPAM and 116.5 μL of NHMA. Once the nanoparticles were well suspended and heated to 80 °C, 100 μL of a second solution of ABCVA (17 mg mL−1) in DMF was added and the mixture was stirred overnight. The product was washed with 30 mL of EtOH (99.5%) three times and dried over vacuum.![]() | ||
| Scheme 2 Synthesis path for polymer shell coated MMSN@CPS (Route A) and hairy polymeric coated nanoparticles MMSN@HP (Route B). | ||
Based on previous results about the heating power of our SPIONs mentioned above, diverse polymer transition temperatures were obtained by radical polymerization using different NIPAM/NHMA monomer feed ratios to find the desired polymer transition temperature range above physiological temperature (41 °C to 43 °C). Polymer transition temperatures were measured by UV-Vis spectroscopy finding that the 90
:
10 NIPAM/NHMA ratio (PL10, Fig. S2†), determined by 1H-NMR integration of NIPAM/NHMA signals corresponds to a LCST at 42 °C. To obtain an anchoring moiety in the thermoresponsive polymer chains, a silylated initiator was synthesized by reacting 4,4′-azobis(4-cyanovaleric acid) (ABCVA) with 3-aminopropyl triethoxysilane (APTES) and characterized by 1H-NMR and 1H-COSY (Fig. S3 and S4†). This monomer ratio was used for both polymer coatings, with the introduction of N,N-methylenebis(acrylamide) (MBA) as a cross-linking agent for the shell coating.
Prior to the polymer coating step, it is necessary to achieve a suitable colloidal stability in order to yield an efficient and homogeneous thermosensitive polymer layer on the particle surface. Several hydrophilic polymers can be used for this aim, e.g. polyethyleneglycol (PEG) through silica surface passivation29 or PVP as an external stabilizing agent.31 In this work, two different surface decorations were used to achieve the appropriate nanoparticle precursor prior to the polymerization step, dependent on the aimed small molecule release behavior. To obtain a higher cargo release at temperatures above the VPTT, the passivation process to confer colloidal stability was carried out with silylated PEG (PEG-Si), followed by the surface decoration with methacrylate moieties (MPS) that leads to the first precursor MMSN-PEG/MPS. For a reverse release profile, i.e. higher cargo release below LCST, functionalization of the silica surface was carried out with the addition of a preformed linear thermoresponsive silylated copolymer (TP-Si) added after the nanoparticle growth. Then, methacrylate moieties were attached to the silica surface to obtain the second precursor MMSN-TP/MPS (Scheme 2).
Once obtained the respective stable nanoparticle systems, two different synthetic pathways were used in order to achieve the desired release profile. First one, a dense polymeric shell coating (MMSN@CPS) was obtained employing the MBA cross-linker addition (Route A, Scheme 2). The polymerization was performed on the silica surface of MMSN-PEG/MPS with NIPAM, NHMA and APS as initiator in aqueous media. The addition of the cationic surfactant CTAB in the polymerization step reveals critical to yield an effective polymeric coating. It is hypothesized that the electrostatic interactions between the negative charged silica surface and the cationic head of CTAB improves the approach of the non-charged monomers to the nanoparticle surface, as they would be in between the hydrophobic tail of CTAB. To prove this point, sodium dodecyl sulfate (SDS) anionic surfactant was used in the polymerization step instead of CTAB and no polymeric coating was observed by thermogravimetric analysis or FTIR spectroscopy (data not shown). In the case of the hairy polymeric coating (MMSN@HP) the polymerization was carried out in EtOH solution of the monomers NIPAM and NHMA with ABCVA as initiator (Route B, Scheme 2).
Finally, the devices were loaded with fluorescein sodium salt as a model drug. The release experiments were carried out in a Corning® Transwell® inset where 5 mg of material were dispersed in 1 mL of PBS. The samples were incubated at 37 °C and 50 °C respectively, monitoring the fluorescein release by fluorescence spectroscopy during 24 h. The release profile of MMSN@CPS shows a higher fluorescein amount of the sample placed at 50 °C, while MMSN@HP sample at the same temperature shows only 20% of fluorescein departure. The samples placed at 37 °C work in the opposite manner, where MMSN@CPS undergo less fluorescein release than MMSN@HP, that loses its cargo because the polymer chains are not able to block the pore opening (Fig. 1).
Different characterization techniques have been used to have a deeper knowledge about the relation of the polymer structure and its behavior. The superparamagnetic behavior of the MMSNs provided by the iron oxide nanocrystals trapped in the silica matrix was confirmed by vibrating sample magnetometer (VSM), showing a magnetization curve with no hysteresis loop (Fig. 2). The maximum magnetization of the final polymer coated nanoparticles reaches values up to 10% of the initial SPIONs (inset of Fig. 2). The fact that both systems present similar maximum magnetization values is in good agreement with the quantity of magnetite NPs incorporated within MMSNs, taking into account that the organic mass losses (34%) by TGA are the same for the final devices MMSN@CPS and MMSN@HP (Fig. S5†), besides the silica matrix growth on the thermoseeds follows the same process to obtain both precursors.
![]() | ||
| Fig. 2 Vibrating sample magnetometer measurements of MMSNs with crosslinked polymer shell (MMSN@CPS) and hairy polymer (MMSN@HP) coatings. | ||
Before MPS functionalization, the amount of polymer attached by in situ co-condensation in MMSNs was 5% in both cases (data not shown). Then, TGA also reveals a functionalization with methacrylate moieties of 3% for the MMSN-PEG/MPS which means a 25% of final polymer attachment in MMSN@CPS (Fig. S5a†). The low amount of MPS groups show to be enough for polymer attachment, probably due to the assistance of the CTAB surfactant mentioned above. For MMSN-TP/MPS precursor, a 13% of organic mass loss was assigned to the MPS functionalization and a 16% assigned to the thermoresponsive final decoration (Fig. S5b†). In the case of MMSN@HP polymer grafting method, the amount of attached linear polymer determines the correct device operation. Therefore, if the density of linear polymer chains is low, the effective capping is compromised and thus does not prevent the fluorescein release when the polymer chains are shrunk. The presence of MPS for both precursors is confirmed by infrared spectroscopy (FTIR). In the case of MMSN-PEG/MPS, FTIR spectra shows a low intensity OC
O stretching band at 1700 cm−1 that corresponds to methacrylate moiety, and the Csp3–H stretching band at 2900 cm−1. Once the crosslinked polymer shell coating MMSN@CPS is obtained, the methacrylate band is not observable by FTIR, but two new bands become clearly visible at 1640 cm−1, 1535 cm−1 which can be assigned to secondary amide C
O stretching bonds (amide I and II bands). A broad band at 3300 cm−1 correspond to N–H bending from the amide groups of the polymer coating and an increase of the Csp3–H asymmetric stretching band is attributed to the polymer backbone. The main bands at 1100 cm−1 and 800 cm−1 correspond to Si–O stretching and Si–O–Si bending respectively from the silica mesoporous matrix (Fig. 3a). The FTIR spectra of MMSN-TP/MPS is slightly different than the crosslinked polymer shell precursor due to the OC
O stretching band of MPS ester moiety is more intense, according with a higher amount of methacrylate groups obtained by TGA measurements. Besides, a second band at 1662 cm−1 was found for this precursor which is in agreement with the presence of the NC
O stretching amide band from the thermoresponsive polymer chains attached during the MMSNs synthesis prior to the MPS functionalization.
![]() | ||
| Fig. 3 Fourier transform infrared spectroscopy of (a) MMSN@CPS and its precursor, and (b) MMSN@HP and its precursor. | ||
The hairy polymer coating MMSN@HP obtained by linear radical polymerization has a similar FTIR spectra with MMSN@CPS which is expected because both coatings shares the same chemical nature. It is notable that the band corresponding to the methacrylate moiety has not completely disappeared after the polymerization step on the silica precursor surface (Fig. 3b). This finding could mean that the linear polymer chains are formed mainly in the liquid phase and then, they are randomly attached on the particle through the methacrylate groups present on the surface. Therefore, many methacrylate groups remain unreacted due to steric hindrance of the grafted polymers. This fact is in agreement with the lower grafted polymer in comparison with MMSN@CPS according with TGA.
The zeta potential values measured for MMSN@HP and MMSN@CPS were −25.0 mV and −6.33 mV, respectively. Considering that the feed ratio of NIPAM/NHMA is the same in both samples the polymer structure should play a role in the difference in zeta potential. The dense cross-linked polymer network of MMSN@CPS could be responsible of blocking the negative charge of the silanol groups from the silica surface and provoking the higher zeta potential than the MMSN@HP sample, which are also in agreement with the previously discussed TGA an FTIR results. The lower zeta potential of MMSN@HP also suggests that the polymer layer on the surface is thin enough to expose the silanol groups along with the OH from the polymer structure. The BET surface area, pore volume and pore size measurements show high values for both the uncapped precursors, but low values and pore size absence for the polymer capped ones (Fig. S6†). These findings reveal that the pore network blocking was achieved successfully by the polymer structures. The polymer coated magnetic mesoporous silica nanoparticles were obtained with 105 nm (Fig. 4a) of hydrodynamic diameter measured by dynamic light scattering (DLS) and confirmed by TEM images, which also reveal a good particle size, rounded shape (Fig. 4b and c, bottom image) and good porosity in the MMSNs precursors (Fig. 4b and c, upper image). The polymerization process slightly affects the particle aggregation in the case of MMSN@HP probably due to the high concentration of particles in the reaction media. The concentration in the linear polymeric coating step is crucial due to higher concentrations leads to gelification whereas lower concentrations do not yield an efficient nanoparticle coating (data not show). In the polymer shell coating process, lower nanoparticle aggregation is achieved thanks to the CTAB stabilization and higher dilution of the reaction medium (1 mg mL−1). The TEM micrographs show that the PS coating is thicker than the HP decoration (Fig. 4b and c, bottom) by staining the nanoparticle hybrids with 1% w/v solution of uranyl acetate (UA), as could be expected for a coating designed to be a dense polymer shell below the VPTT.
![]() | ||

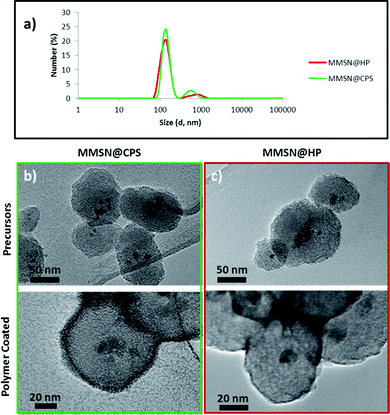

| Fig. 4 a) Hydrodynamic size for polymer coated nanoparticles. TEM micrographs of (b) MMSN@CPS precursor (up) and MMSN@CPS (bottom). (c) MMSN@HP precursor (up) and MMSN@HP (bottom). | ||
The different grafting density and crosslinked nature of both systems determine the different fluorescein release behavior. On one hand when these polymers are in the hydrated state, the dense and highly crosslinked polymer shell present in MMSN@CPS act as a diffusion barrier which hampers the fluorophore departure, whereas the hairy polymer present in MMSN@HP cannot avoid the fluorescein leakage. In the latter system, when the polymer chain is in its hydrated state it does not present enough steric hindrance to produce an efficient pore closure but, if the temperature exceeds the LCST, its globular state clogs the pore entrance avoiding the departure of the housed molecules. These polymer coatings ensure the colloidal stability of the device, which reveals critical for biomedical applications.32
In this work, we have developed two hybrid devices that demonstrate opposite release profiles taking advantage of the same hydrophilic to hydrophobic transition at 42 °C. To that end, a tightly-packed crosslinked polymer shell was necessary to obtain a higher fluorescein release when heated above the VPTT. The heating power by an AC magnetic field through iron oxide thermoseeds of this kind of devices have been already tested and evidences the capacity of effectively addressing the local temperature required to trigger the cargo release.30 An opposite release manner was obtained by the attachment of a linear thermosensitive copolymer on the silica nanoparticle surface. This reverse release behavior could be used in hyperthermia treatment taking advantage of the enhanced nanoparticle extravasation caused by the temperature increase33 followed by the release of the drug trapped inside the pore walls only when the heating treatment is finished.
