Simple and signal-off electrochemiluminescence immunosensor for alpha fetoprotein based on gold nanoparticle-modified graphite-like carbon nitride nanosheet nanohybrids

Abstract

A simple, signal-off electrochemiluminescence (ECL) immunosensor for sensitive and selective detection of alpha fetoprotein (AFP) was developed based on gold nanoparticle (AuNPs) modified graphite-like carbon nitride nanosheet (g-C₃N₄ NSs) nanohybrids (Au-g-C₃N₄ NHs). Compared to the g-C₃N₄ NS modified glassy carbon electrode (GCE), the ECL intensity is more obvious at the Au-g-C₃N₄ NH modified GCE due to the fact that AuNPs can promote electron transfer and electrocatalytic reduction of S₂O₈²⁻ to produce large amounts of hole donor (SO₄˙⁻). Results demonstrated that the ECL signal of the g-C₃N₄ NSs decreased due to the interaction between antibody and antigen on the modified electrode. Thus, an ECL immunosensor for the detection of AFP was realized by monitoring the ECL intensity change of g-C₃N₄ NSs. The factors influencing the performance of the immunosensor were investigated in detail. Under optimal conditions, the proposed biosensor achieved a wide line from 0.001 to 5.0 ng mL⁻¹ with a detection limit of 0.0005 ng mL⁻¹. Furthermore, the ECL immunosensor was successfully applied to the determination of AFP in serum samples, providing a promising effective strategy for AFP detection.

---

1. Introduction

Sensitive and accurate detection of tumor markers is critical to early diagnosis, point-of-care and portable medical supervision, as well as screening for many serious diseases.¹ The levels of tumor markers in serum, tissue, or saliva can be indicative of the physiological state of a cancer at a specific time.² As a tumor marker, alpha fetoprotein (AFP) is a plasma protein produced by the yolk sac and the liver during fetal life.³ However, it may also be found at high levels in the sera of adults with certain malignancies. An elevated AFP concentration in adult plasma is widely considered as an early indication of hepatocellular carcinoma or endodermal sinus tumor.⁴ Thus, it is of great significance to develop rapid and sensitive analytical methods to identify and quantify of AFP for early discovery, early diagnosis and early treatment. Immunological method has become the predominant analytical tool for quantitative monitoring of low-abundance tumor marker by the sophisticated techniques involving enzyme-linked immunosorbent assay,^5,6 surface plasmon resonance,^7,8 electrochemistry,^9,10 photoluminescence,^1,11 fluorescence immunoassay¹² and electrochemiluminescence (ECL).¹³ Among these methods, ECL as a powerful analytical technique with high sensitivity, low background signal, well reproducibility, easy controllability and wide dynamic response range has been widely applied in the detection of biomolecules, clinical diagnostics, environmental and food monitoring.^14,15 Up to now, ECL emitters can be either dissolved in a homogenous phase or immobilized in the solid state for analytical applications.¹⁶ The type of solid-state ECL, which immobilizes an ECL emitter as a sensing substrate at the electrode surface, has attracted considerable attention due to its regenerability, simplicity, portability and low cost.

A series of materials including Ru complexes, luminol, metallic oxide semiconductors and quantum dots have been used to design ECL sensors.¹⁶ Of two-dimensional (2D) nanomaterials, graphitic-like carbon nitride (g-C₃N₄) with a stacked 2D structure, has recently been proved to be an effective ECL emitter.¹⁷ Compared with traditional luminophores, g-C₃N₄ presents many charming advantages, such as easy preparation, metal-free, nontoxic, low cost, excellent biocompatibility. More importantly, several reports demonstrated the ultrathin g-C₃N₄ nanosheets (g-C₃N₄ NSs) have better ECL efficiency and stability than bulk g-C₃N₄.^18,19 So far, g-C₃N₄ NSs have been used as the emitter for the constructed of ECL signal-off or on type sensor for sensitive determination of dopamine,²⁰ carcinoembryonic antigen,²¹ bisphenol A in the presence of persulfate (S₂O₈²⁻) or triethylamine as coreactant. However, at present based on the ECL property of g-C₃N₄ NSs to determination AFP is scarce now.

Recent years, various nanomaterials have been widely employed to improve the performance of electrode interface.^22,23 The small size, high surface-to-volume ratio, good biocompatibility and unusual target binding characteristics can markedly improve the sensitivity and specificity of analyte detection, making nanomaterials particularly appealing for use as chemical and biosensors.^24–26 Metal nanoparticles, especially gold nanoparticles (AuNPs), have been commonly utilized as intermediator to immobilize antibody on the electrode.²⁷ The advantages that AuNPs bring to biosensors are presented as follows but not limited to: enlarging the active areas, accelerating electron transfer between electrodes and detection species, and behaving as biocompatible scaffolds for biomolecule immobilization.^28,29 As the conductivity of the g-C₃N₄ NSs is low, a conducting nanomaterial such as AuNPs needs to be introduced for accelerating the electron transfer process.^30,31 Moreover, AuNPs could improve and stabilize the cathodic ECL intensity of g-C₃N₄ NSs and have the excellent property of electrocatalytic reduction of S₂O₈²⁻ into hole donor (SO₄˙⁻).²¹ The latter studies highlight the potential of using AuNPs modified electrode in ECL immunosensor to detect AFP. Thus, the integration of AuNPs and g-C₃N₄ NSs would exhibit promising application prospect in the ECL immunosensor.

Herein, a solid-state ECL immunosensor was developed with AuNPs modified g-C₃N₄ NSs nanohybrids (named as Au-g-C₃N₄ NHs) as sensing substrate to detect AFP. On the basis of steric hindrance from bio-recognition reactions, has enabled the development of a signal-off ECL sensing strategy via the insulation of attached biomacromolecule.^32–34 After immobilization of alpha fetoprotein antibody (anti-AFP) on the modified electrode, the detection of AFP was realized by monitoring the ECL intensity change of g-C₃N₄ NSs resulting from the antigen–antibody reaction. The proposed strategy for the immunosensor is unique and advantageous for the following reasons: (1) Au-g-C₃N₄ NHs was immobilized in the solid state, where the electrode has good stability and reproducibility; (2) the synthesis method of Au-g-C₃N₄ NHs is simple and the ECL immunosensor is easily fabricated due to excellent film-forming ability of g-C₃N₄ NSs and remarkable reactivity between the thiol (or primary amine) groups of biomolecules and AuNPs; (3) the proposed detection strategy is completely label-free because of the bio-recognition reactions of antigen–antibody. More details about preparation of the electrode we proposed, and its relevant ECL detection and analysis were presented.

2. Experimental

2.1. Materials and reagents

AFP and anti-AFP were purchased from Beijing Biosynthesis Biotechnology Co., Ltd. HAuCl₄·4H₂O (99.9%), sodium borohydride (NaBH₄, 96.0%), trisodium citrate (99.9%), and bovine serum albumin (BSA) were purchased from Sigma-Aldrich. Potassium persulfate (K₂S₂O₈) and carbamide were purchased from Sinopharm Group Chemical Reagent Co. Phosphate buffer saline (PBS) solution with various pH were prepared by mixing the stock solution of 1/15 M Na₂HPO₄ and KH₂PO₄ in appropriate ratios. The supporting electrolyte was 0.1 M KCl. PBS (pH 7.4) solution containing 0.1 M K₂S₂O₈ was used as the electrolyte in ECL analysis. All aqueous solutions were prepared with ultrapure water (≥18 MΩ cm⁻¹), which was obtained from a Milli-Q water purification system. PBS (pH 7.4) solution was used for preparation of the antibody and antigen solution, washing buffer solution, and blocking buffer solution which contained 2% (w/v) BSA.

2.2. Apparatus

Transmission electron microscopic (TEM) images were obtained from a Hitachi H-600 microscope (Japan). The Fourier transform infrared (FT-IR) spectra were recorded on a NEXUS-670 FT-IR Spectrometer (Nicolet, USA). The phase characterization was performed by X-ray diffraction (XRD) using a D8 advance diffractometer system equipped with Cu-Kα radiation (Bruker Co., Germany). The UV-visible spectrum was recorded by a Shimadzu UV-2550 UV-visible spectrophotometer. Electrochemical impedance spectroscopy (EIS) was measured in the frequency region of 10⁵ to 10⁻¹ Hz with a voltage excitation amplitude of 5 mV on the IM6ex electrochemical workstation (ZAHNER, Germany). ECL measurements were carried out on an ECL detection system (MPI-B Remex Electronic Instrument Co., Xi'an, China) using modified glassy carbon electrode (GCE, Φ = 4 mm) as the working electrode, Ag/AgCl electrode as the reference electrode, and platinum wire as the auxiliary electrode in PBS (pH 7.4) solution containing 0.1 M K₂S₂O₈.

2.3. Preparation of the g-C₃N₄ NSs

First, the bulk g-C₃N₄ was prepared by polymerization of carbamide molecules under high temperature. In detail, 10.0 g of carbamide powder was heated in an alumina crucible in a muffle furnace at 550 °C for 2.5 h under air condition with a ramp rate of about 5 °C min⁻¹ of the heating and then cooling to room temperature. The obtained yellow product was the g-C₃N₄ powder.³⁵ Second, the g-C₃N₄ NSs were obtained by liquid exfoliating of as-prepared bulk g-C₃N₄ in ultrapure water. In detail, 100 mg of bulk g-C₃N₄ powder dispersed in 100 mL ultrapure water, and then ultrasound for about 18 h. The initial formed suspension was then centrifuged at about 8000 rpm to remove the residual unexfoliated g-C₃N₄ nanoparticles and then the supernatant was collected and concentrated on a rotary evaporator at 75 °C under reduced pressure and result in a milk-like suspension (g-C₃N₄ NSs) for further study.

2.4. Synthesis of Au-g-C₃N₄ NHs

AuNPs were synthesized according to the standard sodium citrate reduction method.³⁶ Briefly, 0.04 g of HAuCl₄·4H₂O was added into 100 mL ultrapure water and heated to boil under stirring, then 10 mL trisodium citrate (38.8 mM) solution were mixed rapidly with the boiling solution to induce particle formation. During prolonged heating under reflux for 15 min, the color of the solution turned to ruby red. This AuNPs aqueous dispersion was used without further purification in the following procedure. The Au-g-C₃N₄ NHs was prepared by a facile chemisorption method. AuNPs aqueous dispersion and g-C₃N₄ NSs suspension were mixed in different volume ratio, and then stirred at room temperature overnight. At this point, the obtained nanohybrid materials were collected by centrifugation and washed three times with ultrapure water and then redispersed into 0.5 mL of ultrapure water.

2.5. Fabrication of the ECL immunosensor

The ECL immunosensor was fabricated on a GCE. Briefly, the GCE was polished successively with 0.3, 0.05 μm alumina slurry, followed by rinsing thoroughly with ultrapure water. The fabrication procedure of the immunosensor is shown in Scheme 1. First, 10 μL of Au-g-C₃N₄ NHs was applied onto the surface of the cleaned GCE with a microsyringe and allowed to dry at room temperature to obtain Au-g-C₃N₄ NHs modified GCE (Au-g-C₃N₄ NHs/GCE). After the Au-g-C₃N₄ NHs/GCE was washed with PBS (pH 7.4) solution to remove free Au-g-C₃N₄ NHs. Then, the anti-AFP were introduced onto the Au-g-C₃N₄ NHs/GCE by dropping 50 μL antibody (2.5 μg mL⁻¹) dissolved in PBS (pH 7.4) solution onto the electrode and allowing it to incubate at 4 °C for 12 h. After being rinsed with PBS solution thoroughly to remove physically adsorbed anti-AFP and then incubated with 50 μL of 2% BSA solution at 37 °C for 60 min to block nonspecific binding sites. Subsequently, the electrode was rinsed with PBS solution and used as an ECL immunosensor, and incubated in 50 μL of different concentrations of AFP at 37 °C for 60 min. Finally the electrode was rinsed with PBS solution and ready to be used.

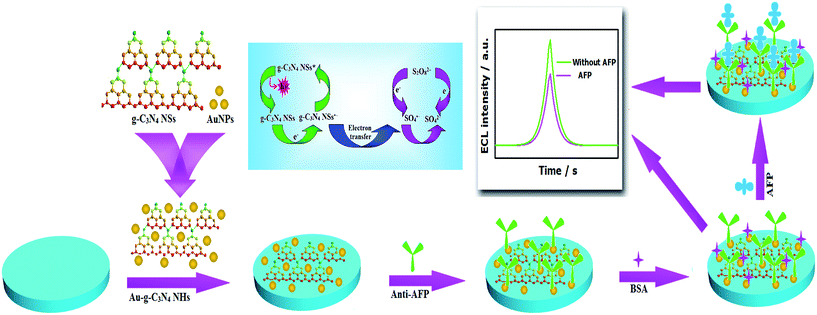

Scheme 1 Schematic representation of the fabricating procedures of the proposed ECL immunosensor.

3. Results and discussion

3.1. Characterization of g-C₃N₄ NSs and Au-g-C₃N₄ NHs

The phase structure of the as-synthesized g-C₃N₄ NSs sample was identified by XRD measurement. The XRD patterns of bulk g-C₃N₄ and g-C₃N₄ NSs are shown in Fig. 1A. In the case of bulk g-C₃N₄, the strong diffraction peak at 27.4° and the weak peak at 13.1° which correspond to the characteristic interlayer stacking reflection of conjugated aromatic systems and the inter-layer structural packing, respectively, which is in consistence with the reported g-C₃N₄.^37–39 Remarkably enough, after exfoliation, the intensity of this two diffraction peaks significantly decreases, clearly demonstrating that the layered g-C₃N₄ has been successfully exfoliated as we expected. The chemical structure of the g-C₃N₄ NSs was further confirmed by the FT-IR spectra shown in Fig. 1B. The broad peaks around 3252 cm⁻¹ originating from the N–H stretches can be clearly observed,⁴⁰ suggesting the partial hydrogenation of some nitrogen atoms in the nanosheets. The band at 815 cm⁻¹ belonged to the characteristic breathing mode of triazine ring and the set of peaks between 1647 and 1204 cm⁻¹ were characteristic of aromatic carbon nitride heterocycles.⁴¹ The peak at 2150 cm⁻¹ is attributed to cyano terminal groups C≡N.⁴⁰ Clearly, the FT-IR spectrum of g-C₃N₄ NSs is similar to that of bulk g-C₃N₄, indicating that the exfoliated nanosheets keep the same chemical structure as their parent bulk g-C₃N₄. Combined with the results of the XRD and FT-IR analyses, it is seen that the g-C₃N₄ NSs has been successfully prepared.

Fig. 1 XRD patterns (A) and FT-IR spectra (B) of g-C₃N₄ NSs and bulk g-C₃N₄. The UV-vis spectrum (C) of g-C₃N₄ NSs (a), AuNPs (b), Au-g-C₃N₄ NHs (c). The TEM image of g-C₃N₄ NSs (D) and Au-g-C₃N₄ NHs (E).

UV-vis spectroscopy was used to confirm the combination of g-C₃N₄ NSs and AuNPs. As shown in Fig. 1C, the g-C₃N₄ NSs solution has an obvious absorption peak at 320 nm (curve a). The UV-vis absorption spectrum (curve b) of AuNPs shows a characteristic absorption for the surface plasmon resonance absorption at 520 nm. Au-g-C₃N₄ NHs (curve c) shows both the typical absorption features of g-C₃N₄ NSs and AuNPs and the absorption peaks had no shift, which indicated the intrinsic properties of g-C₃N₄ NSs and AuNPs have been maintained. The morphology of the g-C₃N₄ NSs and Au-g-C₃N₄ NHs were observed by TEM measurement, as shown in Fig. 1. From Fig. 1D, it is apparent that the g-C₃N₄ NSs shows a typical layered structure with sheet-like morphology, which means g-C₃N₄ NSs consisted of graphite planes stacking along the c-axis.⁴² In the TEM image of the Au-g-C₃N₄ NHs (Fig. 1E), we could find that the AuNPs were well-dispersed on the g-C₃N₄ NSs surface, again with little or no aggregation. This due to g-C₃N₄ NSs can be easily manipulated post-functionalization or elementally doped. The results above further confirming the formation of AuNPs on the g-C₃N₄ NSs.

3.2. The effect of AuNPs on the ECL behaviors of g-C₃N₄ NSs

In order to investigate the effect of AuNPs on the ECL behaviors of g-C₃N₄ NSs, the g-C₃N₄ NSs and Au-g-C₃N₄ NHs were modified onto the surface of GCE, respectively. The ECL was tested in PBS (pH 7.4) solution containing 0.1 M K₂S₂O₈ at the potential range from 0 to −1.1 V with a scan rate of 100 mV s⁻¹ and the results are shown in Fig. 2A. It is noted that the g-C₃N₄ NSs/GCE (curve b) has a strong ECL intensity in the S₂O₈²⁻ system, this is due to the strong high-energy annihilation between electrons (injected into the conduction band of g-C₃N₄ NSs by the anodic electrode) and holes (injected into the valence band of g-C₃N₄ NSs by the electrogenerated SO₄˙⁻ from S₂O₈²⁻).⁴³ Compared to the g-C₃N₄ NSs/GCE, the ECL intensity is more obvious at the Au-g-C₃N₄ NHs/GCE (curve c). The AuNPs electrocatalytic reduction of S₂O₈²⁻ produce more abundant hole-donor (SO₄˙⁻) can be considered an essential reason for the enhanced ECL intensity. In addition, the effect of the AuNPs in the proportion of Au-g-C₃N₄ NHs on the ECL intensity was also investigated. As shown in Fig. 2B, when AuNPs increases from 0.37 wt% to 8.95 wt%, the ECL intensity gradually increases (0.37 wt% to 1.79 wt%) and then declines (1.79 wt% to 8.95 wt%). Therefore, 1.79 wt% AuNPs was employed for the determination to maximize the sensitivity.

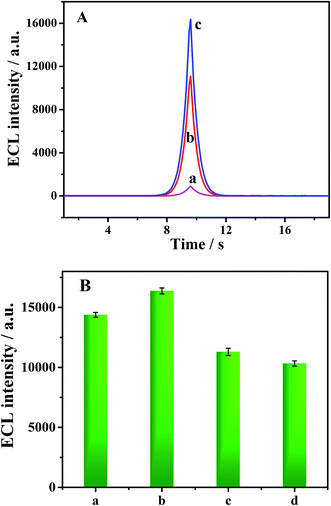

Fig. 2 (A) The ECL responses of (a) bare GCE, (b) g-C₃N₄ NSs/GCE, (c) Au-g-C₃N₄ NHs/GCE. (B) Effect of the AuNPs in the proportion of Au-g-C₃N₄ NHs on the ECL intensity. (a–d): 0.37 wt%; 1.79 wt%; 4.47 wt%; 8.95 wt%. Error bars represent standard deviation (n = 5).

3.3. Optimization of experimental conditions

To increase the sensitivity and selectivity of the biosensor, the optimization of the incubation time of the anti-AFP modified electrode in AFP solution was investigated. The AFP incubation time is an important parameter affecting the analytical performance of biosensor. At room temperature, the ECL signal for AFP (0.05 ng mL⁻¹) decreased with the reaction time up to 60 min and then leveled off after 60 min (Fig. 3A), which showed the saturated bind between the anti-AFP and AFP. Therefore, 60 min of incubation time was used for the detection of AFP.

Fig. 3 (A) Optimization of the incubation time of AFP. (B) Dependence of the ECL intensity of Au-g-C₃N₄ NHs/GCE on the concentration of S₂O₈²⁻ (M): (a) 0.03, (b) 0.05, (c) 0.1, (d) 0.15.

The ECL intensity is also affected by the concentration of coreactant. Fig. 3B shows that the ECL intensity increases with the concentration of S₂O₈²⁻ in the range of 0.03–0.15 M. Under the condition of the same technical parameters, when the concentration higher than 0.15 M the ECL intensity was over the test range since the ECL intensity obtained in 0.15 M S₂O₈²⁻ reaches the upper detection limit of the instrument. Therefore, the 0.1 M S₂O₈²⁻ was used to ensure a suitable sensitivity.

3.4. Characterization of the immunosensor

To probe the feature of the modified electrode surface, the modification of GCE surface was characterized by EIS and ECL signals at each immobilization steps were recorded to monitor the construction of the immunosensor. The impedance spectrum includes a semicircle portion and a linear portion. The semicircle portion observed at high frequencies corresponds to the charge-transfer limited process (R_ct), a line portion observed at low frequencies by diffusion process. As shown in Fig. 4A, the bare GCE showed a very small semicircle domain with the R_ct of 91.78 Ω, the characteristics of a mass diffusional limiting electron-transfer process (Fig. 4A, curve a), indicating a very fast charge-transfer process of [Fe(CN)₆]^3−/4−. After Au-g-C₃N₄ NHs film was deposited on the GCE, the value of R_ct increased to 135.4 Ω (Fig. 4A, curve b), this is due to the g-C₃N₄ NSs is semiconductor, thus restricted the electron transfer of [Fe(CN)₆]^3−/4− to the GCE. Subsequent surface was modified with anti-AFP, the value of R_ct increased to 293.9 Ω (Fig. 4A, curve c). These results attributed to the antibodies hindered the electron transfer of [Fe(CN)₆]^3−/4− on the interface of the modified electrode. After blocking the residual nonspecific binding sites on the fabricated immunosensor with BSA leaded to a more obvious increase of R_ct to 566.3 Ω (Fig. 4A, curve d), which was attributed to the fact that BSA (acted as an inert electron layer) could hinder the electrochemical probe from getting close to the electrode interface. Finally, owing to the antigen–antibody complex blocking layer, the AFP immobilization on the electrode greatly increased of R_ct to 814.8 Ω (Fig. 4A, curve e). To give more detailed information about the impedance of the modified electrode, the Randles circuit (the inset plot of Fig. 4A) is further chosen to fit the impedance data obtained in the experiments. Fig. 4B illustrates the ECL intensity of different modified electrodes in PBS (pH 7.4) solution containing 0.1 M K₂S₂O₈. It was clearly observed that the successive modification steps, i.e., the conjugation of anti-AFP (Fig. 4B, curve b), BSA (Fig. 4B, curve c), and AFP (Fig. 4B, curve d), result in the gradual decreases in ECL intensity. Compared with the Au-g-C₃N₄ NHs/GCE, the ECL intensity of anti-AFP/Au-g-C₃N₄ NHs/GCE, BSA/anti-AFP/Au-g-C₃N₄ NHs/GCE and AFP/BSA/anti-AFP/Au-g-C₃N₄ NHs/GCE were decreased by 21.98%, 28.93% and 63.33%, respectively. This could be explained by the fact that the immobilization of these non-conductive bioactive substances on the Au-g-C₃N₄ NHs/GCE surface forming a barrier for electron transfer and hindered the diffusion of ECL coreactant to the electrode surface. These results were in accordance with those obtained from EIS results. All these experimental results demonstrated that the immunosensor has been successfully fabricated.

Fig. 4 (A) The EIS for (a) bare GCE, (b) Au-g-C₃N₄ NHs/GCE, (c) anti-AFP/Au-g-C₃N₄ NHs/GCE, (d) BSA/anti-AFP/Au-g-C₃N₄ NHs/GCE and (e) AFP/BSA/anti-AFP/Au-g-C₃N₄ NHs/GCE in 0.1 M KCl solution containing 1.0 mM [Fe(CN)₆]^3−/4− with the frequencies swept from 10⁵ Hz to 10⁻¹ Hz. Inset is the Randles circuit model for the modified electrodes in the cell. (B) The ECL responses of (a) Au-g-C₃N₄ NHs/GCE, (b) anti-AFP/Au-g-C₃N₄ NHs/GCE, (c) BSA/anti-AFP/Au-g-C₃N₄ NHs/GCE and (d) AFP/BSA/anti-AFP/Au-g-C₃N₄ NHs/GCE at the AFP concentration of 0.1 ng mL⁻¹.

3.5. ECL detection of AFP

Under the optimal conditions, the ECL immunosensor was applied to quantify the concentration of target. AFP standards with concentrations from 0.001 to 5.0 ng mL⁻¹ were tested, with five measurements each in parallel. As shown in Fig. 5A, the ECL signal decreases gradually with an increase in the concentrations of AFP. The inhibition ratio (I₀ − I)/I₀ of ECL intensity was found to be proportional to the logarithm of AFP concentration in range from 0.001 to 5.0 ng mL⁻¹ (where I₀ and I represented the ECL intensity of BSA/anti-AFP/Au-g-C₃N₄ NHs/GCE incubated without AFP and with 50 μL of different concentrations of AFP, respectively). The corresponding linear function is (I₀ − I)/I₀ = 0.6191 + 0.1830 lg c (ng mL⁻¹, R² = 0.9953) (Fig. 5B). The detection limit (S/N = 3) also evaluated to be as low as 0.0005 ng mL⁻¹ for AFP. Additionally, the analytical performance of the ECL immunosensor for AFP detection was compared with those of other reported methods (Table 1). The comparison indicates that the ECL aptasensor is one of the most excellent sensors for AFP detection.

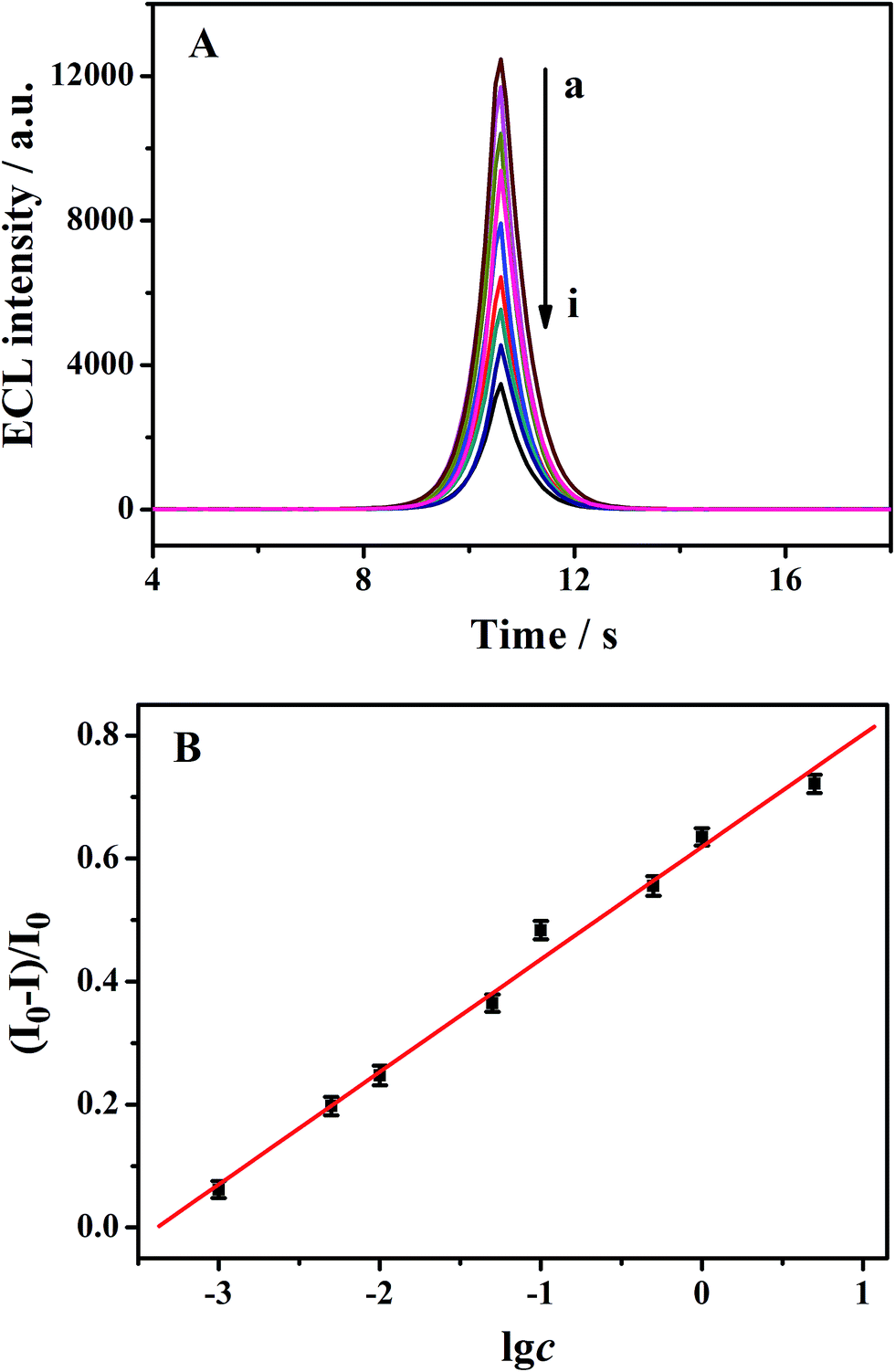

Fig. 5 (A) ECL responses of the immunosensors with increasing concentration of AFP (ng mL⁻¹) from (a) to (i): (a) 0, (b) 0.001, (c) 0.005, (d) 0.01, (e) 0.05, (f) 0.1, (g) 0.5, (h) 1.0 and (i) 5.0. (B) Calibration curve of the immunosensor for detection of AFP in the range between 0.001 and 5.0 ng mL⁻¹. Error bars represent standard deviation (n = 5).

Table 1 Comparison of different methods for the detection of AFP

Method	Linear range (ng mL^−1)	Detection limit (ng mL^−1)	Reference
Electrochemiluminescence	0.05–50	0.03	44
Horseradish peroxidase based immunosensor	0.02–4.0	0.01	45
Label-free electrochemical immunosensor	0.02–50	0.01	46
Sandwich-type electrochemical immunosensor	0.01–60	0.0016	47
Sandwich-type immunosensor	0.01–40	0.0023	48
Label-free electrochemical immunosensor	0.01–12	0.005	49
Photoelectrochemical immunosensor	0.05–50	0.04	50
Electrochemiluminescence	0.001–5	0.0005	This work

---

3.6. Selectivity, reproducibility and stability of the ECL immunosensor

To evaluate the selectivity of the ECL immunosensor, we challenged the immunosensor with other possible interferences such as human IgG (HIgG), luteotropic hormone (LH), L-cysteine (L-Cys), and L-glutamate (L-Glu) and carcinoembryonic antigen (CEA) in the same conditions. And the results are exhibited in Fig. 6. When the immunosensor was incubated with 20 ng mL⁻¹ HIgG, LH, L-Cys, L-Glu and CEA solution, respectively, no apparent signal change was observed compared to the blank test (no target molecular) in the same testing conditions. However, when AFP was coexistence with the interferences, the signal change was almost the same as that with only AFP. All these results indicating that the proposed immunosensor has a good selectivity for AFP.

Fig. 6 Selectivity of the proposed ECL immunosensor. The mixture is containing HIgG (20 ng mL⁻¹), LH (20 ng mL⁻¹), L-Cys (20 ng mL⁻¹), CEA (20 ng mL⁻¹) and AFP (1.0 ng mL⁻¹). Error bars represent standard deviation (n = 5).

To evaluate the reproducibility of the immunosensor, we investigated the immunosensor through the coefficient of variation of the intra- and interassays. When the immunosensor was investigated by using five electrodes to test the same concentration of AFP (0.1 ng mL⁻¹) at the same conditions, the relative standard deviation (RSD) was 3.7%. When a same electrode was used to test repetitively for five times at a certain concentration of AFP (0.1 ng mL⁻¹), the RSD was 4.8%. In addition, when the immunosensor was stored in PBS (pH 7.4) solution at 4 °C, over 90% of the initial ECL intensity remained after a storage period of two weeks. These results showed acceptable reproducibility and good stability of our proposed method.

3.7. Application of the immunosensor

As the practical applications, the developed immunosensor was explored to detect AFP in real serum sample. We evaluated the recovery in different concentrations of AFP solutions diluted in the serum sample (Table 2). The serum sample was diluted with PBS (pH 7.4). The obtained results showed satisfactory recoveries in the range of 100.2% to 105.3%. The results suggested that the biosensor has a promising potential application for the detection of AFP in clinical analysis.

Table 2 Determination of AFP added in serum sample (n = 3) with the proposed immunosensor

Serum sample	Concentration of AFP added (ng mL^−1)	Concentration obtained with immunosensor (ng mL^−1)	Recovery (%)	RSD (%)
1	0.01	0.01053	105.3	2.8
2	0.1	0.1047	104.7	3.6
3	0.5	0.5012	100.2	4.1
4	1.0	1.005	100.5	5.3
5	2.0	2.017	100.9	3.9

---

4. Conclusions

This work demonstrated a facile pathway to fabricate a solid-state ECL immunosensor utilizes Au-g-C₃N₄ NHs as the substrate material. The introduction of the AuNPs, on the one hand, as antibody capture substrate can be combined with antibodies and immobilization antibody on the surface of electrode, on the other hand, can promote electron transfer and electrocatalytic reduction of S₂O₈²⁻ to produce large amounts of hole donor (SO₄˙⁻), effectively enhance the ECL intensity. The fabrication of the ECL immunosensor is easy, inexpensive and completely label-free. The resulting immunosensor for quantitative detection of AFP possesses high sensitivity, selectivity, good reproducibility, and long-term stability. This proposed method can be expanded readily for detecting other cancer biomarkers. In view of the above advantages, we anticipate that this high sensitive and selective method has potential to be applied in clinical applications.
