An NHC silver(I) macrometallocycle: synthesis, structure and selective recognition of iodide anions

Abstract

A bis-benzimidazolium salt with oligoether-linker LH₂·(PF₆)₂ and its 13-membered N-heterocyclic carbene silver(I) crown ether 1 have been synthesized and characterized. The coordination geometry of the silver(I) ion of 1 is nearly linear with a C(7)–Ag(1)–C(23) bond angle of 179.6(1)°. In the crystal packing of 1, a 2D supramolecular layer is formed by π–π stacking interactions from benzimidazole rings. In particular, the selective recognition of I⁻ using 1 as a receptor was studied on the basis of fluorescence and UV/vis spectroscopic titrations.

---

Introduction

Molecular recognition is a process where a host binds selectively to a guest to produce a specific function.¹ A traditional covalent bond is the main force between hosts and guests. However, non-covalent forces, such as van der Waals forces, hydrogen bonds and electrostatic interactions, also play important roles. The recognition of anionic species is a thriving field of research due to the significance of this in biology, medicine and the environment.² The detection, isolation and identification of anions have shown broad application prospects in membrane transport carriers, chemical sensing and imitation-enzyme-catalyzed organic synthesis.³ Some anionic receptors that can selectively identify alkaline ions (like fluoride ions and acetate ions) and other anions have been reported.^4–6 Iodine is a trace element in human beings, and it has an important influence on brain function, cell growth, nerve activity, metabolism and thyroid function. A deficiency or excess of iodine in the human body can cause goiter, hypothyroidism, hyperthyroidism and some other diseases.⁷ Additionally, iodine has also been widely used in the synthesis of drugs.⁸ Thus, the analysis and detection of iodide anions is of great importance in daily life. Common detection methods of iodide anions are GC, capillary electrophoresis and atomic absorption spectroscopy.⁹ In general, it is difficult to bind iodide anions to receptors due to their spherical structure and weak alkaline characteristics. Up to now, only several receptors that can bind iodide selectively have been reported.¹⁰ Therefore, the design and synthesis of iodide receptors with relatively simple structures are still a challenge in host–guest chemistry.

During the course of searching for receptors, we became interested in N-heterocyclic carbene (NHC) metal crown ethers. In this paper, we report the synthesis and structure of a new N-heterocyclic carbene silver(I) crown ether silver-{C,C′-1,1′-[1,2-ethanediyl-bis(oxy-1,2-ethanediyl)]-bis(3-ⁿpropyl-benzimidazolium-1-yl)} hexafluorophosphate (1). In particular, the selective recognition of I⁻ using 1 as a receptor was studied on the basis of fluorescence and UV/vis spectroscopic titrations.

Results and discussion

Synthesis and general characterization of bis-benzimidazolium salt LH₂·(PF₆)₂ and NHC silver(I) crown ether 1

As shown in Scheme 1, benzimidazole as a starting material was alkylated with 1-bromopropane, followed by quaternization with 1,2-bis(2-chloroethoxy)ethane in the presence of NaI to afford bis-benzimidazolium salt, 1,1′-[1,2-ethanediyl-bis(oxy-1,2-ethanediyl)]-bis(3-ⁿpropylbenzimidazolium-1-yl) diiodide (LH₂·I₂). Then anion exchange was carried out with ammonium hexafluorophosphate in methanol to give LH₂·(PF₆)₂. Precursor LH₂·(PF₆)₂ is stable to air and moisture, and soluble in organic solvents such as dichloromethane and acetonitrile, and scarcely soluble in diethyl ether, petroleum ether and water. The structure of LH₂·(PF₆)₂ was confirmed by ¹H NMR and ¹³C NMR spectroscopy and elemental analysis. In the ¹H NMR spectra of LH₂·(PF₆)₂, the benzimidazolium proton signal (NCHN) appears at δ = 9.58 ppm, which is consistent with the chemical shifts of the known benzimidazolium salts.¹¹

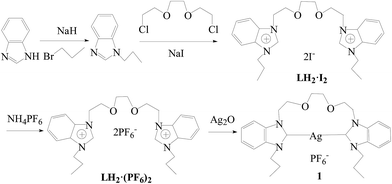

Scheme 1 Preparation of the bis-benzimidazole salt LH₂·(PF₆)₂ and complex 1.

Reaction of precursor LH₂·(PF₆)₂ with Ag₂O in CH₂Cl₂ afforded an N-heterocyclic carbene silver(I) complex silver-{C,C′-1,1′-[1,2-ethanediyl-bis(oxy-1,2-ethanediyl)]-bis(3-ⁿpropyl-benzimidazolium-1-yl)} hexafluorophosphate (1). Complex 1 is soluble in DMSO and CH₃CN, and almost insoluble in diethyl ether. Complex 1 is slightly light-sensitive in solution, but light-stable as a solid. In the ¹H NMR spectra of 1, the resonance for the benzimidazolium proton (NCHN) disappeared, and the chemical shifts of other protons are similar to those of the corresponding precursor LH₂·(PF₆)₂. In the ¹³C NMR spectra of 1, the signal of the carbene carbon was not observed. The absence of the carbene carbon resonance is not unusual, this phenomenon has been reported for some silver(I)-carbene complexes, and may result from the fluxional behavior of NHC complexes.¹²

Structure of NHC silver(I) crown ether 1

The formation of silver(I) carbene complex 1 was confirmed by ¹H NMR and ¹³C NMR spectroscopy and X-ray crystallography. Crystals of 1 suitable for X-ray diffraction were obtained by slow evaporation of CH₂Cl₂ in air. The cation of complex 1 contains a 13-membered NHC silver crown ether formed by a silver(I) ion and a chelate biscarbene ligand with a flexible linkage as shown in Fig. 1. The benzimidazole rings within each molecule form a dihedral angle of 16.5°, and the two n-propyl group chains point in contrary directions. The coordination geometry on the silver(I) ion is nearly linear with a C(7)–Ag(1)–C(23) bond angle of 179.5(8)°. The Ag–C_carbene bond distance is 2.090(3) Å. The internal ring angle (N–C–N) at the carbene center is 106.3(3)°. These values are similar to the corresponding values of other reported NHC silver complexes.¹³ The Ag⋯O separations are 3.344(3) Å and 3.533(3) Å, respectively, which shows that Ag⋯O interactions can be neglected (sum of van der Waals radii of silver and oxygen = 3.10 Å).

Fig. 1 Perspective view of 1 and anisotropic displacement parameters depicting 50% probability. All hydrogen atoms are omitted for clarity. Selected bond lengths (Å) and angles (deg): N(1)–C(7) 1.353(6), N(2)–C(7) 1.355(4), N(4)–C(23) 1.348(6), N(3)–C(23) 1.351(5), Ag(1)–C(7) 2.090(3), Ag(1)–C(23) 2.087(9); N(1)–C(7)–N(2) 106.3(1), N(3)–C(23)–N(4) 105.9(9), C(7)–Ag(1)–C(23) 179.5(8).

In the crystal packing of 1, a 2D supramolecular layer (Fig. 2) is formed by π–π stacking interactions of benzimidazole rings with a face-to-face distance of 3.479(4) Å (the center-to-center distance being 4.276(7) Å).¹⁴

Fig. 2 2D supramolecular layer of complex 1 via π–π stacking interactions. All hydrogen atoms are omitted for clarity.

Recognition of iodide anions by NHC silver(I) crown ether 1

The selective recognition of some anions (F⁻, Cl⁻, Br⁻, I⁻, H₂PO₄⁻, HSO₄⁻, OAc⁻ and NO₃⁻, with their cation being tetrabutyl ammonium (TBA⁺)) using 1 as a receptor was investigated by fluorescence and UV/vis titrations in acetonitrile at 25 °C. As shown in Fig. 3, receptor 1 displays an emission at 362 nm (λ_ex = 235 nm, excitation and emission slits: 3 nm and 3 nm), which is attributed to the emission of benzimidazole. Upon the addition of 15 equiv. of F⁻, Cl⁻, Br⁻, H₂PO₄⁻, HSO₄⁻, OAc⁻ and NO₃⁻, respectively, the fluorescence emission intensity of 1 does not obviously change, whereas the addition of the same amount of I⁻ causes a great decrease of the emission intensity at 362 nm.

Fig. 3 Fluorescence spectra of 1 (1.0 × 10⁻⁵ mol L⁻¹) upon addition of different tetrabutyl ammonium salts (15.0 equiv.) in acetonitrile (λ_ex = 235 nm).

As shown in Fig. 4, upon the titration of I⁻ into a solution of 1, the fluorescence intensities at 362 nm decrease gradually as the concentration of I⁻ increases. As shown in the inset of Fig. 4, when the ratio of C_I⁻/C₁ is below 1 : 1, the fluorescence intensity decreases sharply with the increasing concentration of I⁻. When the ratio is in the range of 1 : 1 to 20 : 1, the inclination of the fluorescence intensity decrease becomes slow. When the ratio exceeded 20 : 1, higher C_I⁻ will not lead to a further emission decrease. The Stern–Volmer constant K_SV (ref. 10q–s) was calculated to be 2.3 × 10⁴ M⁻¹ (R = 0.994) using the conventional Stern–Volmer relationship in acetonitrile at 25 °C (eqn (1), Fig. S1†).

F₀/F = 1 + K_SVC_I⁻ (1)

Where F and F₀ are the fluorescence intensities of 1 in the presence and absence of I⁻, respectively; C_I⁻ is the concentration of I⁻; K_SV is the Stern–Volmer constant. From the changes in the iodide-dependent fluorescence intensity, the detection limit is estimated to be 6.1 × 10⁻⁷ mol L⁻¹ (Fig. S2†).¹⁵

Fig. 4 Fluorescence titration spectra of 1 (1.0 × 10⁻⁵ mol L⁻¹) in the presence of different concentrations of I⁻ in acetonitrile at 25 °C. C_I⁻ for curves 1–16 are 0, 0.25, 0.33, 0.8, 1.5, 1.75, 2.0, 4.0, 5.0, 7.0, 9.0, 12.0, 15.0, 18.0, 21.0, and 24.0 × 10⁻⁵ mol L⁻¹. Inset: F/F₀ at 362 nm of 1 as a function of C_I⁻/C₁ (λ_ex = 235 nm).

In UV/vis titration experiments (Fig. 5), the UV/vis absorption spectra of 1 increased gradually with the enhancement of the molar fraction of I⁻. In addition, a red shift at 201–210 nm with increasing concentration of I⁻ was observed, which indicates that the π–π transition energy of the benzene rings in 1 decreased due to the interactions between 1 and I⁻.¹⁶ It is notable that a 1 : 1 complexation stoichiometry for 1·I⁻ was established by Job’s plot analysis at 205 nm (inset of Fig. 5),¹⁷ where the products (χΔA) between molar fractions and the discrepancy of the absorption bands were plotted against the molar fractions (χ) of 1. When the molar fraction of 1 was 0.5, the χΔA values for 1·I⁻ reach a maximum.¹⁸ The stability constant K for 1·I⁻ calculated from the plot of A₀/ΔA versus 1·I⁻ based on the standard Benesi–Hildebrand method is 1.18 × 10⁵ M⁻¹ (R = 0.999) (eqn (2), Fig. S3†).

A₀/(A₀ − A) = [ε_r/(ε_r − ε_c)](1/KC_I⁻ + 1) (2)

Where A₀ is the absorption of the host 1 in the absence of I⁻, and A₀ − A is the discrepancy of absorption between the absence and presence of I⁻; ε_r and ε_c are the molar extinction coefficients of 1 and 1·I⁻, respectively; C_I⁻ is the concentration of I⁻. The stability constant K is given by the ratio of intercept/slope.¹⁹

Fig. 5 Absorption spectra of 1 (1.0 × 10⁻⁵ M) upon titration of I⁻ in acetonitrile. C_I⁻ for curves 1–18 are: 0, 0.04, 0.11, 0.17, 0.25, 0.33, 0.43, 0.67, 1.0, 1.5, 2.4, 3.0, 4.0, 6.0, 9.0, 12.0, 15.0, and 20.0 × 10⁻⁵ mol L⁻¹. Inset: the Job’s plot for a 1·I⁻ complex at 205 nm. χ is the molar fraction of 1.

In order to further explore the special selective ability of I⁻ using 1 as a receptor, competition experiments were conducted. Receptor 1 (1.0 × 10⁻⁵ mol L⁻¹) is firstly mixed with 5 equiv. of various anions (F⁻, Cl⁻, Br⁻, H₂PO₄⁻, HSO₄⁻, OAc⁻ and NO₃⁻), and then 5 equiv. of I⁻ are added. Fluorescence spectra are exploited to monitor the competition events. As displayed in Fig. S4,† only H₂PO₄⁻ causes the fluorescence intensity to increase by about 20% compared with that in the presence of I⁻ alone. The fluorescence intensities of other anions are similar to that in the presence of I⁻ alone. The results show that host 1 can discriminate between I⁻ and other anions.

A fluorescence decrease similar to that shown in Fig. 3 was also observed after the addition of other iodide salts (15.0 × 10⁻⁵ mol L⁻¹) with different countercations (K⁺, Na⁺, NH₄⁺, Cu⁺ and Hg²⁺) to 1 (1.0 × 10⁻⁵ mol L⁻¹) (Fig. S5†). Thus, the different cations had no obvious influence on the binding between 1 and iodide anions.

Interactions of 1 with I⁻

From the structure of 1, we can see that the silver(I) ion is the most likely binding site for I⁻ via Ag⋯I interactions. To obtain detailed information on the binding mode between 1 and I⁻, ¹H NMR titration experiments were carried out in DMSO-d₆. The spectral differences are depicted in Fig. 6 (whole ¹H NMR spectra are given in Fig. S6 in ESI†). The signals of Hd, Hg, He and Hf of benzimidazole shifted upfield by 0.03–0.04 ppm upon the addition of 1 equiv. of I⁻, and the signals of Hc and Hh of the CH₂ around benzimidazole (Scheme 2) shifted upfield by 0.05 ppm upon the addition of 1 equiv. of I⁻. These changes should be attributed to the interactions between I⁻ and Ag⁺. As expected, these observations show that an iodide anion is captured by Ag⁺ via Ag⋯I interactions. In addition, the signals of the above-mentioned protons do not obviously change upon the addition of further equivalents of I⁻ (Fig. 6(c) and (d)). This indicates that 1 and I⁻ have 1 : 1 complexation. In high-resolution mass spectrometry (HRMS) analysis of 1·I⁻ (Fig. S7†), an M⁺ (669.07) of 1·I⁻ is observed, which provides additional evidence for the formation of a 1 : 1 complex between 1 and I⁻. These results are consistent with the results of the UV/vis titration experiments (shown in the inset of Fig. 5).

Fig. 6 Partial ¹H NMR spectra in DMSO-d₆. (a) Complex 1; (b) 1 and 1 equiv. of TBAI; (c) 1 and 1.5 equiv. of TBAI; (d) 1 and 2 equiv. of TBAI.

Scheme 2 The interactions of 1 with I⁻.

To further understand the complexation behavior of 1 and I⁻, infrared spectroscopy of 1 and 1·TBAI was performed. In the infrared spectra (Fig. S8†), we observed that the ν(C–N) absorption bands move from 1122 cm⁻¹ in free 1 to 1140 cm⁻¹ in 1·I⁻, which is attributed to the electron-donating effect of I⁻ as shown in Scheme 2.

By comprehensive analysis of the structure of 1, and the ¹H NMR spectra, high-resolution mass spectra and infrared spectra of 1 and 1·TBAI, we can see that the binding force of 1 to I⁻ originates mainly from Ag⋯I interactions due to the strong affinity of silver(I) ions to I⁻. When I⁻ is bound by silver(I) ions, the remarkable decrease of the fluorescence intensity of 1 may be attributed to a metal (d_π) to ligand (π*) charge transfer (MLCT) process promoted by the electron-donating effect of I⁻.²⁰

Conclusions

In summary, a new NHC silver(I) crown ether 1 has been synthesized and characterized. Fluorescence and UV/vis spectroscopic titrations indicate that complex 1 has great affinity to I⁻. ¹H NMR , HRMS and IR spectra show that I⁻ is captured through Ag⋯I interactions. The special selective ability of 1 for I⁻ means that it can discriminate between I⁻ and other anions in acetonitrile. Even a detection limit as low as 6.1 × 10⁻⁷ mol L⁻¹, 1 is still able to sensitively detect I⁻. A high selectivity and sensitivity and the great affinity to I⁻ mean this complex has a potential application for the quantitative measurement of I⁻.

Experimental section

General procedures

All manipulations were performed using Schlenk techniques, and solvents were purified by standard procedures. All the reagents for syntheses and analyses were of analytical grade and used without further purification. Melting points were determined with a Boetius Block apparatus. ¹H and ¹³C NMR spectra were recorded on a Bruker Avance III spectrometer at 400 MHz and 100 MHz, respectively. Chemical shifts, δ, are reported in ppm relative to the internal standard TMS for both ¹H and ¹³C NMR. J values are given in Hz. Elemental analyses were measured using a Perkin-Elmer 2400C Elemental Analyzer. The luminescence spectra were conducted on a Cary Eclipse fluorescence spectrophotometer. UV-vis spectra were obtained using a JASCO-V570 spectrometer. EI mass spectra were recorded on a VG ZAB-HS mass spectrometer (VG, U.K.). IR spectra (KBr) were recorded on an Bruker Equinox 55 spectrometer.

Preparation of 1,1′-[1,2-ethanediyl-bis(oxy-1,2-ethanediyl)]-bis(3-ⁿpropyl-benzimidazolium-1-yl) dihexafluorophosphate (LH₂·(PF₆)₂)

A tetrahydrofuran (THF) (15 mL) solution of benzimidazole (1.000 g, 8.5 mmol) was added to a suspension of oil-free sodium hydride (0.244 g, 10.2 mmol) in THF (25 mL) and stirred for 1 h at 60 °C. Then a THF (20 mL) solution of n-propyl bromide (1.145 g, 9.3 mmol) was dropwise added to the above mixture. The mixture was continually stirred for 48 h at 60 °C. After filtration, a yellow solution was obtained. The solvent was removed with a rotary evaporator and H₂O (30 mL) was added to the residue. The solution was extracted with CH₂Cl₂ (3 × 20 mL), and the extracting solution was dried over anhydrous MgSO₄. After removing CH₂Cl₂, a pale yellow oil 1-ⁿpropyl-benzimidazole was obtained. Yield: 1.221 g (90%).

A THF (50 mL) suspension of 1-ⁿpropyl-benzimidazole (1.429 g, 8.9 mmol) and 1,2-bis(2-chloroethoxy)ethane (0.766 g, 4.1 mmol) in the presence of NaI (1.474 g, 9.8 mmol) was stirred for three days in a reflux, and a white precipitate was formed. The product was filtered and washed with THF. The white powder of 1,1′-[1,2-ethanediyl-bis(oxy-1,2-ethanediyl)]-bis(3-ⁿpropyl-benzimidazolium-1-yl) diiodide (LH₂·I₂) was obtained by recrystallization from methanol/diethyl ether. Yield: 2.207 g (78%). Mp: 170–172 °C. MS (EI): m/z [M − I⁻]⁺ = 563.1869, m/z [M − 2I⁻]⁺ = 435.2749.

NH₄PF₆ (1.705 g, 10.5 mmol) was added to a methanol (50 mL) solution of LH₂·I₂ (3.000 g, 4.4 mmol) whilst stirring and a white precipitate was formed immediately. The product was collected by filtration, washed with small portions of cold methanol, and dried in a vacuum to give 1,1′-[1,2-ethanediyl-bis(oxy-1,2-ethanediyl)]-bis(3-ⁿpropyl-benzimidazolium-1-yl) hexafluorophosphate (LH₂·(PF₆)₂). Yield: 2.875 g (90%). Mp: 150–152 °C. Anal. calcd for C₂₆H₃₆F₁₂N₄O₂P₂: C, 42.98; H, 5.00; N, 7.71%. Found: C, 42.72; H, 4.63; N, 7.95%. ¹H NMR (400 MHz, DMSO-d₆): δ 0.84 (t, J = 7.2, 6H, CH₃), 1.89 (q, J = 7.2 Hz, 4H, CH₂), 3.46 (s, 4H, CH₂), 4.43 (t, J = 7.2 Hz, 4H, CH₂), 4.58 (t, J = 4.8, 4H, CH₂), 7.63–7.69 (m, 4H, PhH), 7.96–7.98 (q, J = 2.9 Hz, 2H, PhH), 8.02–8.04 (q, J = 3.0 Hz, 2H, PhH), 9.58 (s, 2H, 2-bimiH). ¹³C NMR (100 MHz, DMSO-d₆): δ 10.4 (CH₃), 21.9 (CH₂), 46.6 (CH₂), 48.0 (CH₂), 67.4 (CH₂), 69.4 (CH₂), 113.5 (PhC), 113.7 (PhC), 126.5 (PhC), 126.6 (PhC), 130.8 (PhC), 131.1 (PhC), 142.1 (2-bimiC) (bimi = benzimidazole). MS (EI): m/z [M − (PF₆⁻)]⁺ = 581.2462, m/z [M − 2(PF₆⁻)]⁺ = 435.2752.

Preparation of silver-{C,C′-1,1′-[1,2-ethanediyl-bis(oxy-1,2-ethanediyl)]-bis(3-ⁿpropyl-benzimidazolium-1-yl)} hexafluorophosphate (1)

Silver oxide (0.070 g, 0.3 mmol) was added to a dichloromethane (30 mL) solution of precursor LH₂·(PF₆)₂ (0.200 g, 0.3 mmol) and the suspension was stirred for 24 h under reflux. The mixture was filtered and concentrated to 5 mL, and diethyl ether (5 mL) was added to precipitate a white powder. Isolation by filtration yielded complex 1. Yield: 0.072 g (38%). Mp: 230–231 °C. Anal. calcd for C₂₆H₃₄F₆AgN₄O₂P: C, 45.43; H, 4.99; N, 8.15%. Found: C, 45.68; H, 4.62; N, 8.53%. ¹H NMR (400 MHz, DMSO-d₆): δ 0.97 (m, J = 1.0, 6H, CH₃), 1.91–1.96 (m, J = 1.6, 4H, CH₂), 3.51 (s, 4H, CH₂), 3.78 (t, J = 1.0, 4H, CH₂), 4.56 (t, J = 2.0, 4H, CH₂), 4.74 (t, J = 1.0, 4H, CH₂), 7.46–7.49 (m, J = 1.0, 4H, PhH), 7.86–7.89 (m, J = 0.6, 4H, PhH). ¹³C NMR (100 MHz, DMSO-d₆): δ 11.1 (CH₃), 23.2 (CH₂), 48.3 (CH₂), 50.0 (CH₂), 67.7 (CH₂), 69.4 (CH₂), 111.7 (PhC), 112.0 (PhC), 124.0 (PhC), 133.0 (PhC), 133.2 (PhC). The carbene carbon was not observed. MS (EI): m/z [M − (PF₆⁻) − 1]⁺ = 541.1733.

UV titrations

UV titrations were performed on a JASCO-V570 spectrometer using a 1 cm path-length quartz cuvette. The acetonitrile used in the titrations was freshly distilled over calcium hydride. Titrations were carried out by placing the sensor 1 (1 × 10⁻⁵ mol L⁻¹) into the 4 mL cuvette and adding increasing amounts of I⁻ (0.0–20.0 × 10⁻⁵ mol L⁻¹) using a microsyringe. The absorption spectra were recorded in the range of 200–400 nm. After each addition, an equilibration time of 8–10 min was allowed before the absorption spectra were recorded. Statistical analysis of the data was carried out using Origin 8.0.

Fluorescence titrations

Fluorescence titrations were performed on a Cary Eclipse fluorescence spectrophotometer using a 1 cm path-length quartz fluorescence cell. The acetonitrile used in the titrations was freshly distilled over calcium hydride. Titrations were carried out by placing the sensor 1 (1 × 10⁻⁵ mol L⁻¹) into the 4 mL cuvette and adding increasing amounts of I⁻ (0.0–24.0 × 10⁻⁵ mol L⁻¹) using a microsyringe. The sensor solution was excited at 235 nm, and the emission spectra were recorded in the range of 305–480 nm. After each addition, an equilibration time of 8–10 min was allowed before the fluorescence intensity was recorded. Statistical analysis of the data was carried out using Origin 8.0.

X-ray structure determinations

For complex 1 selected single crystals were mounted on a Bruker APEX II CCD diffractometer at 296(2) K with Mo–K radiation (λ = 0.71073 Å) and an ω scan mode. Data collection and reduction were performed using SMART and SAINT software²¹ with frames of 0.6° oscillation in the range of 1.8° < θ < 25°. An empirical absorption correction was applied using the SADABS program.²² The structures were solved by direct methods and all non-hydrogen atoms were subjected to anisotropic refinement by full-matrix least squares on F² using the SHELXTL package.²³ All hydrogen atoms were generated geometrically (C–H bond lengths fixed at 0.96 Å), assigned appropriated isotropic thermal parameters and included in the final calculations. Crystallographic data are summarized in Table 1 for 1.

Table 1 Summary of crystallographic data for 1

a GOF = [Σw(Fo^2 − Fc^2)^2/(n − p)]^1/2, where n is the number of reflection and p is the number of parameters refined.b R1 = Σ(||Fo| − |Fc||)/Σ|Fo|; wR2 = [Σ[w(Fo^2 − Fc^2)^2 ]/Σw(Fo^2)^2]^1/2.
Chemical formula	C26H34AgF6N4O2P	F(000)	700
Formula weight	687.41	Cryst size, mm	0.25 × 0.17 × 0.16
Cryst syst	Triclinic	θmin, θmax, deg	1.82, 25.01
Space group	P1̄	T, K	296(2)
a, Å	11.291(2)	No. of data collected	7363
b, Å	11.448(2)	No. of unique data	5021
c, Å	11.816(2)	No. of refined params	418
α, deg	108.288(3)	Goodness-of-fit on F^2^a	1.042
β, deg	90.856(3)	Final R indices^b [I > 2σ(I)]
γ, deg	96.519(3)	R1	0.0382
V, Å^3	1438.7(4)	wR2	0.0978
Z	2	R indices (all data)
Dcalcd, mg m^−3	1.587	R1	0.0423
Abs coeff, mm^−1	0.826	wR2	0.1016

---
