Polyacrylonitrile (PAN)/crown ether composite nanofibers for the selective adsorption of cations

Abstract

In this study, we prepared electrospun polyacrylonitrile (PAN) nanofibers functionalized with dibenzo-18-crown-6 (DB18C6) crown ether and showed the potential of these fibers for the selective recovery of K⁺ from other both mono- and divalent ions in aqueous solutions. Nanofibers were characterized by SEM, FTIR and TGA. SEM results showed that the crown ether addition resulted in thicker nanofibers and higher mean fiber diameters, in a range of 138 to 270 nm. Batch adsorption experiments were conducted in order to evaluate the potential of the crown ether modified nanofibers as an adsorbent for ion removal. The maximum adsorption capacity of the crown ether modified nanofibers for K⁺ was 0.37 mmol g⁻¹ and the nanofibers followed the selectivity sequence of K⁺ > Ba²⁺ > Na⁺ ∼ Li⁺ for single ion experiments. Adsorption of Ba²⁺ ions onto crown ether-modified nanofiber was examined by XPS and the results confirmed the adsorption of the ion. Mixed ion adsorption experiments revealed competitive adsorption between K⁺ and Ba²⁺ ions for the available binding sites. This effect was not observed for the other monovalent ions present in the solution and exceptionally high selectivities for K⁺ over Li⁺ and Na⁺ were obtained. Also the crown ether modified nanofibers exhibited good regeneration properties and a good reusability over multiple consecutive adsorption–desorption cycles. Electrospinning is thus shown to be a very versatile tool to prepare crown ether functional polymer adsorbents for the selective recovery of ions.

---

Introduction

Electrospinning is a versatile and powerful technique for nanofiber formation from a wide variety of polymers such as water soluble polymers, biopolymers and liquid crystalline polymers.^1–4 In this technique, electrical forces are applied to produce polymer fibers with diameters ranging from a few nanometers to several micrometers.⁵ Electrospun nanofibers feature a high surface area-to-volume, high porosity and flexibility for chemical/physical functionalization.^1,5 Moreover, consistent production of nanofibers allows their application in various filtration applications^6–8 as fuel cell membranes,^9,10 for drug delivery¹¹ and as protective textiles.^12,13

The high surface area to volume ratio, porosity, and mechanical integrity of electrospun fibrous materials make them attractive alternatives to conventional adsorbents. A potentially attractive functionalization to increase the selectivity of the nanofibers includes their macrocycle functionalization. A macrocycle is a cyclic macromolecule or a macromolecular cyclic portion of a molecule. Such macrocycle functionalized fibers can serve as an adsorbent in water treatment owing to the selective binding ability of macrocycles with specific ions or organic molecules. Therefore, significant work on this topic has been performed and many researchers particularly focused on nanofiber modification with calixarenes and cyclodextrin.¹⁴ For example, nanofibers functionalized with calixarenes and cyclodextrins allow the removal of organic contaminants (e.g. Congo red, phenanthrene) from water.^15–17 Another application of calixarene modified nanofibers is the selective adsorption of ions such as La³⁺ and Cr₂O₇²⁻ ions onto the nanofibers.^18,19 Electrospun PAN nanofibers modified with p-sulfonatocalix[8]arene showed a maximum adsorption capacity of 155.1 mg g⁻¹ and a selectivity for La³⁺ ion in the presence of Fe³⁺, Al³⁺, Cu²⁺, Ca²⁺, Mg²⁺ and K⁺ ions.¹⁸

Following this line of reasoning, also electrospun nanofibers coupled with crown ethers could in principle also provide efficient platforms for selective metal ion removal. Crown ethers are well-known host molecules and have attracted increasing interest owing to their ability to form stable complexes with metal ions.²⁰ Crown ethers possess negatively polarized oxygen atoms with variable cavity size. Therefore they can selectively bind various ions.²¹ This led to the design and synthesis of new crown ethers and various well-defined crown ether polymers.^22–24 Owing to their high selectivities, considerable research interest has been devoted to the design of crown ether adsorbents as well. Duman et al. modified activated carbon cloth with mono and dibenzo derivatives of crown ethers. They investigated the adsorption behavior of Cr³⁺, Co²⁺ and Ni²⁺ ions onto crown ether modified activated carbon cloth. In this case, activated carbon cloth modified with benzo-18 crown-6 exhibited the highest adsorption capacity of 0.22 mmol g⁻¹ for the Co³⁺ ion.²⁵ Eliseo et al. prepared crown ether immobilized carbon nanotubes as adsorbent for Li⁺ ions.²⁶ The dibenzo-14-crown-4 modified carbon nanotube adsorbent showed a preference for cation uptake and followed the sequence of Li⁺ > Na⁺ > Mg²⁺ > Ca²⁺, K⁺ ∼ Sr²⁺. Jie et al. synthesized a crown ether incorporated thermoresponsive poly(N-isopropylacrylamide) (PNIPAM) hydrogel. This hydrogel exhibits Pb²⁺ ion recognition and adsorption characteristics. The Pb²⁺ adsorption capacity of the hydrogel decreased from 142 mg g⁻¹ to 112 mg g⁻¹ when the temperature increased from 23 °C to 50 °C.²⁷ Crown ether incorporated ion-imprinted polymers were synthesized by many researchers as well. Those adsorbents have promising prospects in the selective recovery of Li⁺, K⁺ and Pb²⁺ ions.^28–30

In this work, we use the high selectivity of crown ethers towards specific ions and the versatility for functionalization and the high surface area to volume ratio of electrospun nanofibers. To the best our knowledge, for the first time, we introduce the concept of crown ether/polyacrylonitrile (PAN) nanofibers for the selective binding of monovalent ions from aqueous solutions. PAN was chosen as polymer for the electrospinning process because of two reasons. Firstly, PAN membranes have been widely used in aqueous filtration applications.^31,32 Secondly, PAN is a well-known carbon fiber precursor due its easy conversion into carbon fibers, its high carbon yields and its cost effective processing.^33,34 In this regard, we prepared PAN nanofiber mats with different loading ratios of crown ether. We investigated the effect of crown ether loading and contact time on the adsorption capacity of functionalized nanofiber mats for both single and mixed ion solutions of Li⁺, K⁺, Na⁺ and Ba²⁺ ions. We believe that the introduction of crown ethers enhances the operating window of electrospun nanofibers and will introduce specific ion selectivity, making them promising and more effective for adsorption and filtration applications.

Experimental

Materials

Dibenzo-18-crown-6 (DB18C6) (98%), polyacrylonitrile (PAN, 99% M_w 150 000) and N,N-dimethylformamide (DMF, 99.8%) were obtained from Aldrich.

Electrospinning

8 wt% PAN (Fig. 1a) powder was dissolved in DMF and mechanically stirred at room temperature for 24 h. DB18C6 (Fig. 1b) was washed 3 times with 1 M HCl in deionized water at least 3 times and the purified crown ether was dried before use. Five DB18C6 concentrations (0, 5, 10, 15 and 20 wt%) were selected. Homogeneous, stable suspensions were prepared and used for electrospinning. During spinning, the processing and ambient conditions were held constant during fiber formation. The electrospinning set up was positioned in a horizontal configuration, as shown in Fig. 2. The homogenous solutions were put in a 2 mL glass syringe kept with an 18 gauge metal needle. The syringe was placed horizontally positioned in a syringe pump. A high voltage power supply was connected to the needle tip. As ground electrode, a rotating drum covered with aluminum foil was used. The working distance between the needle tip and the rotating cylinder was 15 cm. The cylinder rotated at 120 rpm. The flow rate of the solution was varied from 250 μL h⁻¹ to 400 μL h⁻¹. The electrospinning voltage was set to 15 kV. All electrospinning experiments were carried out at standard room temperature and relative humidity. Nanofibers were coded as PAN-x where x represents the weight percentage of DB18C6 with respect to PAN.

Fig. 1 Chemical structures of (a) PAN and (b) dibenzo-18-crown-6 (DB18C6).

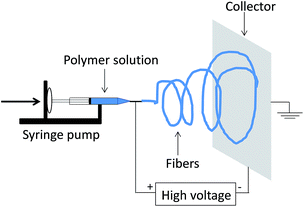

Fig. 2 Schematic representation of the electrospinning set-up.

Characterization

The morphologies and mean diameters of the nanofibers were investigated by scanning electron microscopy (JEOL SEM JSM 6010 LA). Around 50 fibers were analyzed per sample and the mean fiber diameter (MFD) was determined from the scanning electron microscopy (SEM) images. Fourier transform infrared (FTIR) spectra were measured with a Bruker ALPHA. Thermogravimetric analysis (TGA) measurements were carried out using a Perkin Elmer TGA 4000. 10 mg of sample was heated under N₂ atmosphere with a 20 °C min⁻¹ heating rate over a 50 to 800 °C temperature range. X-ray photoelectron spectroscopy (XPS) measurements were performed with a Quantera SXM with monochromatic Al Kα as the excitation and an X-ray power of 50 W.

Single ion adsorption

Batch single ion adsorption experiments were performed by adding 10 mg of nanofibers in 10 mL of 10 mM solutions of KCl, BaCl₂, LiCl and NaCl in ultrapure water. All adsorption tests were carried out at room temperature.

For analysis, 0.1 mL samples were taken at different time intervals. The samples were diluted and filtered with a 0.20 μm filter (LLG, cellulose acetate (CA) syringe filter). The residual metal ions in the solution were analyzed using a BWB-XP flame photometer. The amount of metal ions adsorbed by the nanofibers was calculated from:

where q_e is the adsorbed amount of metal ions per gram of nanofibers (mmol g⁻¹), C₀ and C_e are the initial and the equilibrium concentration (mM) of the specific cation in the solution, respectively. V is the volume of the salt solution (mL) and m is the mass of the dry nanofibers (g).

Mixed ion adsorption

In the case of the mixed ion adsorption experiments, the 10 mg of nanofibers were left in contact with 10 mL of a mixture of 10 mM KCl, 10 mM BaCl₂, 10 mM LiCl and 10 mM NaCl in ultrapure water for 24 h. For analysis, 0.1 mL samples were taken after 24 h. The samples were filtered over a 0.20 μm filter (LLG, cellulose acetate (CA) syringe filter). The adsorption capacity for each ion was calculated using the eqn (1). The selectivity coefficient was subsequently calculated using eqn (2):where q_K⁺,24 and q_C⁺,24 are the adsorption capacities (mmol g⁻¹) of K⁺ and other cations (Li⁺, Na⁺ or Ba²⁺) after 24 h, respectively.

Adsorbent regeneration

Desorption experiments were carried out using a 1 M HCl solution in ultrapure water. The used PAN-10 nanofibers were placed in the 1 M HCl solution and magnetically stirred at 300 rpm at 25 °C for 48 h. Then the nanofibers were washed with distilled water several times and dried at 60 °C overnight. In order to assess the regeneration and reusability of the PAN-10 nanofibers, consecutive adsorption–desorption cycles were repeated four times. The adsorption tests were carried out with a 10 mM KCl solution at 25 °C for 24 h.

Results and discussion

Morphology of composite electrospun fibers

The properties of the electrospun nanofiber formed, in particular the fiber diameter and morphology, depend on various parameters that can be divided into three groups: polymer solution properties, processing conditions and ambient conditions. In this study, processing (applied voltage, volume flow rate) and ambient conditions (temperature, humidity) were held constant in order to systematically investigate the effect of polymer solution properties (crown ether concentration) on the mean fiber diameter. Suspending the DB18C6 in the polymer solution and ensuring the formation of homogenous stable suspensions prior to electrospinning are the frontline challenges in the electrospinning process. Completely transparent solutions that are stable over a long term were achieved without using any surfactants. Morphologies of the neat and crown ether modified PAN nanofiber mats were characterized by SEM and the micrographs are shown in Fig. 3. The diameter distribution of the nanofibers is also presented in Fig. 3. In these pictures, the DB18C6 concentration was varied while the voltage was kept constant at 15 kV at a constant collector distance of 15 cm. Without the addition of DB18C6, neat PAN nanofibers have a diameter of 102 ± 41 nm, which is comparable with the values reported in literature.³⁵ PAN-5, PAN-10, PAN-15, and PAN-20 nanofibers have mean diameters of 138 ± 24 nm, 224 ± 56 nm, 248 ± 77 nm, and 270 ± 124 nm, respectively. The mean fiber diameter increased with DB18C6 concentration, while variance in the fiber diameter was also elevated. The effect on the fiber radii upon addition of crown ether is attributed to two factors: electrical conductivity and rheological changes in the polymer solution. These two contributions have opposing effects on the mean fiber diameter. For instance, the increase of electrical conductivity of a polymer solution leads to thinner fibers, while the fiber diameter tends to increase with shear viscosity.^36,37 As anticipated, the addition of nonconductive DB18C6 will not increase the electrical conductivity of the solutions (σ_ethanol = 1.5 ± 0.1 μS cm⁻¹ and σ_{0.1 wt% crown ether/ethanol} = 1.8 ± 0.2 μS cm⁻¹), while the shear viscosity of PAN-5, PAN-10, PAN-15, and PAN-20 solutions increased with the crown ether concentration. Fig. 3 shows that the mean fiber diameter tends to increase with the crown ether/PAN stochastic ratio. Also, increasing crown ether concentrations lead to the formation of bead-like structures (yellow arrow in Fig. 3, (PAN-15)) and a higher variance in the fiber diameter. The mean fiber diameter distribution of PAN and PAN-5 is rather uniform. However, PAN-10, PAN-15 and PAN-20 nanofibers have a broader fiber diameter distribution and comparatively high diameter range from 120 to 650 nm. We assume that the increased viscosity due to the higher crown ether fractions³³ and the reduced solution conductivity are the primary reason of fiber thickening.

Fig. 3 The morphology and fiber diameter distribution of PAN and PAN/crown ether electrospun nanofibers.

FTIR

Fig. 4 shows the FTIR spectra of PAN, PAN-10, and PAN-20 nanofibers. In the spectra, all nanofibers exhibited an absorbance at 2921 cm⁻¹ that can be assigned to the stretching vibration of the –CH and –CH₂ groups.¹⁵ The peaks at 2242 cm⁻¹ and 1451 cm⁻¹ belong to –C≡N stretching and –CH vibration of PAN.^15,38 The presence of crown ether at the PAN surface is confirmed by an absorption peak at 1505 cm⁻¹ that is ascribed to the –CH stretching vibrations of the alkanes in the aromatic ring of the crown ether.³⁹ Moreover, the characteristic C–O–C stretching signals of the crown ethers are observed at around 1060 cm⁻¹ and 1129 cm⁻¹ (ref. 39 and 40) for all PAN/crown ether fibers, while these are absent for neat PAN fibers.

Fig. 4 FTIR spectra of PAN and PAN/crown ether nanofibers.

TGA

TGA was conducted in order to determine the thermal stability of the nanofibers. Fig. 5 shows the thermogravimetric curves of PAN and PAN/crown ether nanofibers. The removal of residual DMF from the PAN-5 nanofibers causes a slight weight loss around ∼150 °C, thus shifting the full curve to a bit lower values. PAN decomposition starts around 335 °C with the cyclization of the nitrile groups and the decomposition reaction of PAN.^41,42

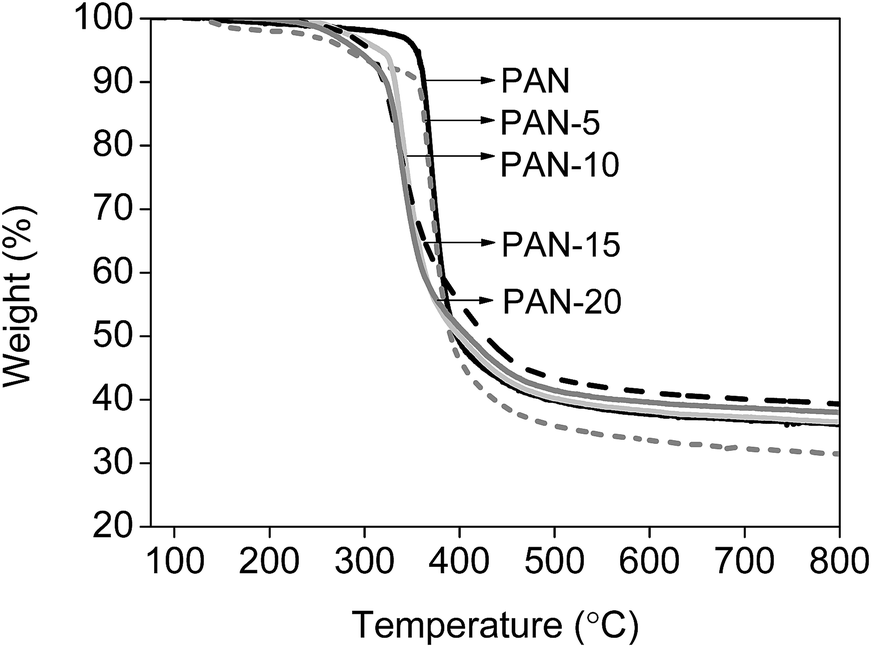

Fig. 5 Thermogravimetric curves of PAN and PAN/crown ether nanofibers.

PAN-5, PAN-10, PAN-15, and PAN-20 nanofibers exhibit a two-stage thermal degradation profile. The first weight loss results from the removal of the crown ether around 250 °C.^43,44 The crown ether is more sensitive to thermal degradation and starts to decompose at around 250 °C.⁴⁴ The decomposition of crown ether is followed by thermal cleavage of PAN at around 350 °C.

Single ion adsorption

The ion adsorption potential of the developed fibers was investigated for both single and mixed aqueous ion solutions. First, the effect of the adsorption time on the static adsorption capacity of single ions on neat PAN and PAN/crown ether nanofibers was investigated. Fig. 6 shows the results of the adsorption of Li⁺, Na⁺, K⁺ and Ba²⁺ ions. Neat PAN nanofibers have almost no adsorption capacity for Li⁺, Na⁺, K⁺ and Ba²⁺ ions, whereas PAN/crown ether fibers have a tendency to Li⁺, Na⁺, K⁺ and Ba²⁺ ion uptake. This leads to the conclusion that the crown ether moieties, which are known to be able to form a complex with the ions, are responsible for the adsorption capacity of the prepared PAN/crown ether nanofibers.^22,45,46 The adsorption capacity increases over time and levels off after 8 h, indicating that the adsorption equilibrium is achieved.

Fig. 6 Adsorption kinetics of Li⁺, Na⁺, K⁺ and Ba²⁺ onto PAN and PAN/crown ether nanofibers.

Fig. 6 indicates that the adsorption capacity for K⁺ ions is higher than that for Li⁺, Na⁺, and Ba²⁺ ions due to the selective complexation ability of the crown ether with K⁺ ions.^47,48 PAN-10 and PAN-20 nanofibers exhibit a K⁺ adsorption capacity of 0.37 mmol g⁻¹, which is slightly higher than that of PAN-15 nanofibers (0.34 mmol g⁻¹). The K⁺ uptake increases with crown ether concentration, up to 10 wt%, and remains nearly constant with a further increase in crown ether addition. This is expected because higher crown ether loading results in a higher number of available binding sites for the ions. However, this only accounts till a maximum of approximately 10 wt% crown ether. Beyond this point, a further increase of the crown ether concentration does not have a significant effect on the ion adsorption capacity. Presumably, some of the binding sites are not accessible due to crown ether aggregation. Another reason might be that a fraction of the crown ether is embedded in or covered by the PAN polymer, preventing the binding sites from being freely accessible to the K⁺ ions.

The Ba²⁺ adsorption capacities obtained with PAN-5, PAN-10, PAN-15, and PAN-20 nanofibers are 0.10 mmol g⁻¹, 0.17 mmol g⁻¹, 0.15 mmol g⁻¹, and 0.15 mmol g⁻¹, respectively and the capacities are in all cases lower than the K⁺ ion adsorption capacity. Takeda et al. investigated benzo-18-crown-6-metal complex formation constants in water by conductometry or potentiometry and spectrophotometry, respectively. They found a selectivity sequence of Ba²⁺ > K⁺ > Na⁺.⁴⁹ Shchori et al. determined the aqueous stability constants for complex formation of DB18C6 with Li⁺, Na⁺, K⁺ and Ba²⁺. In this case, K⁺ and monodissociated ion pairs [BaCl]⁺ complex more strongly with DB18C6 compared to Li⁺ and Na⁺.⁵⁰ Although the previous researches demonstrate a strong affinity between DB18C6 and Ba²⁺, we observe higher K⁺ ion uptakes by the PAN/crown ether nanofibers. We will come back to this issue while discussing the mixed ion adsorption results.

The Na⁺ and Li⁺ ion adsorption capacities are the lowest of all ions investigated. In both cases, the adsorbed amount is almost the same and hardly changes with an increase of the crown ether mass fraction. We reason that, due to weak interactions between Na⁺ and Li⁺ ions and DB18C6, the adsorption capacity of the crown ether for these ions is lower and less stable complexes are formed in which the ions can easily dissociate from the crown ether.⁵¹

XPS spectra

Elemental analyses of PAN and PAN-10 nanofibers were conducted by XPS in order to investigate the presence and effectiveness of the crown ether upon ion adsorption. The atomic ratios of C/O and C/N are shown in Table 1. As expected, we observe a slight C/N ratio increase as a result of an increase in the percentage of carbon relative to nitrogen due to the addition of the crown ether.

Table 1 Atomic ratios of C/O and C/N for neat PAN and PAN-10 nanofibers

	C/O	C/N
PAN	21.0	3.6
PAN-10	16.3	4.0

---

Fig. 7 exhibits the survey spectrum and the high resolution C 1s, O 1s spectra of PAN, PAN-10 before and PAN-10 nanofibers after Ba²⁺ adsorption. The survey XPS spectrum of PAN nanofibers shown in Fig. 7 exhibits two intense peaks at 286.4 and 339.5 eV corresponding to C 1s and N 1s core levels, respectively. In addition to those peaks, we also observe a water induced O 1s peak centered at 533.03 eV.⁵² The C 1s core spectra of PAN can be cure-fitted to three peaks. The peaks at 286.74, 285.84 and 284.94 eV belong to the –CH₂, –CH–CN and –C≡N groups, respectively. The peak areas of the functional groups of –CH₂, –CH–CN and –C≡N are equal to each other.^53,54 The survey spectrum of PAN-10 shown in Fig. 7 also shows the peaks of the C 1s, N 1s, and O 1s core levels. Comparison of the PAN-10 C 1s spectra with those of PAN shows a peak shift. The relative peak intensities of the peaks change upon crown ether addition, and the peak at 286.34 becomes more intense compared to the other two peaks. The peak at 286.34 eV reflects the presence of ether carbon.^55,56 The O 1s spectrum of PAN-10 has one peak, similar to that of PAN. However, the peak shifts to a slightly lower binding energy, which is in good agreement with the previously reported O 1s spectra of the native crown ether.⁵⁷ Finally, the spectra for PAN-10 nanofibers after barium adsorption clearly show the oxidation states of the barium ions.

Fig. 7 XPS survey and high resolution XPS spectra of C 1s, O 1s of PAN, PAN-10 and PAN-10-B.

The O 1s peak appears again at 532.79 eV, and no significant chemical shift in O 1s peak is observed after complexation of the crown ether with Ba²⁺ ions. The two peaks at 795.3 and 780.5 eV correspond to the Ba 3d_3/2 and Ba 3d_5/2 binding energies respectively^58,59 and confirm the adsorption of the Ba²⁺ ions on the PAN/crown ether nanofiber.

Mixed ion adsorption

Competitive adsorption experiments are carried out in order to assess the selective and competitive recognition of the crown ether modified PAN nanofibers for specific ions. Fig. 8 shows the adsorption capacities of PAN, PAN-5, PAN-10, PAN-15, and PAN-20 nanofibers for a mixture of Li⁺, Na⁺, K⁺ and Ba²⁺ ions.

Fig. 8 Adsorption capacities of neat PAN and PAN/crown ether nanofibers for mixed ion systems.

Neat PAN nanofibers exhibit no adsorption capacity for Na⁺ and Li⁺ ions and only very small capacities for K⁺ and Ba²⁺ ions. Single ion experiments showed that the PAN/crown ether nanofibers exhibited the highest adsorption capacities for K⁺ ions compared to the other ions. The same behavior is observed for K⁺ over Li⁺ and Na⁺. The developed nanofibers can be used to separate selectively K⁺ from Li⁺ and Na⁺ ions. The presence of Ba²⁺ ions in the mixture, however, shows a different behavior. Ba²⁺ and K⁺ ion adsorption capacities are fairly equal in mixed ion adsorption measurements. Moreover, as Fig. 8 reveals, the Ba²⁺ ion adsorption capacities are more or less equal to their single ion equivalents, while the K⁺ adsorption is significantly reduced when Ba²⁺ is present in the solution. As we mentioned before, DB18C6 can form stable complexes with K⁺ and Ba²⁺ ions, and therefore competition exists between K⁺ and Ba²⁺ ions for the available binding sites.^49,50 Among the metal ions, Na⁺ and Li⁺ have the weakest ability to bind to the PAN-10 nanofibers.

Table 2 presents the adsorption selectivities of the different cationic species for the different crown ether concentrations in the PAN fibers. Selectivities calculated based on both single and mixed ion adsorptions are shown. Table 2 shows the K⁺/Li⁺, K⁺/Na⁺ and K⁺/Ba²⁺ adsorption selectivity coefficients of PAN/crown ether nanofibers for single ion and mixed ion adsorption experiments. For single ion experiments, increasing the crown ether mass fraction does not significantly affect the K⁺/Li⁺, K⁺/Na^+, and K⁺/Ba²⁺ adsorption selectivities. The crown ether fibers seem to exhibit a slightly higher selectivity for K⁺ over Na⁺ than for the other ions, but still selectivities are low. When mixtures are considered, the behavior changes drastically. Selectivities for K⁺ over especially Li⁺ but also Na⁺ significantly increase, while the selectivity for K⁺ over Ba²⁺ decreases due to competition for the binding sites. So in the case of Li⁺ and Na⁺, competition is for the benefit of K⁺, while this switches when Ba²⁺ is present. In that case, Ba²⁺ is preferentially adsorbed. This is due to the preference of the crown ether for Ba²⁺ over K⁺, as also observed in literature.^49,50 These results clearly show exceptionally high K⁺ over Li⁺ and Na⁺ selectivities, making the developed fibers very attractive for the selective recovery of K⁺ from mixtures with other monovalent ions. One exception is the selectivity for K⁺ over Na⁺ for the PAN-15 fibers. There the selectivity unexpectedly drops. We do not have a clear explanation for that, but expect this is due to an artefact. In addition, also the errors in the mixed K⁺/Na⁺ selectivities for the other fibers are relatively large in case of mixtures.

Table 2 Adsorption selectivities of PAN/crown ether nanofibers

	SK^+/Li^+		SK^+/Na^+		SK^+/Ba^2+
	Single	Mixed	Single	Mixed	Single	Mixed
PAN-0	1.6 ± 0.2	n.a.	1.6 ± 0.2	n.a.	0.8 ± 0.1	2.0 ± 0.1
PAN-5	2.7 ± 0.6	7.6 ± 3.2	3.6 ± 0.7	5 ± 1.5	2.9 ± 0.9	0.8 ± 0.1
PAN-10	2.6 ± 0.1	10.6 ± 6.2	4.7 ± 0.7	21 ± 16.3	2.2 ± 0.2	0.6 ± 0.6
PAN-15	2.9 ± 0.5	12.4 ± 5.8	4.2 ± 0.6	6 ± 1.8	2.4 ± 0.6	1.2 ± 0.1
PAN-20	3.2 ± 0.9	14.2 ± 6.5	4.7 ± 0.7	28 ± 12.9	2.6 ± 0.7	1.0 ± 0.1

---

Reusability of nanofibers

Effective regeneration of the nanofibers is essential for their potential application as an adsorbent for the selective recovery of ions from aqueous solutions. Therefore, we investigated the K⁺ adsorption onto PAN-10 nanofibers, and the subsequent regeneration of the K⁺ loaded PAN-10 nanofibers. Desorption tests were performed with 1 M HCl, and the regenerated fibers were used for in total 4 adsorption–desorption cycles. The results are shown in Fig. 9. Fig. 9 shows a slight capacity loss of only 10% after the first 2 adsorption–desorption cycles, but overall, the adsorption capacity remains rather constant after that. This small loss is most probably due to the fact that not all K⁺ ions could desorbed with 1 M HCl and some small amounts remain adsorbed.

Fig. 9 K⁺ adsorption capacity of PAN/crown ether (PAN-10) nanofibers as a function of the number of adsorption–desorption.

Conclusions

PAN/crown ether nanofiber mats containing different weight fractions of the crown ether DB18C6 were prepared by electrospinning. FTIR confirmed the presence of the crown ether in the PAN nanofiber matrix. SEM microscopy images showed that the addition of crown ether resulted in thicker nanofibers. The average diameter of the PAN nanofibers increased from 102 nm to 270 nm with the addition of 20 wt% crown ether with respect to PAN. Single ion adsorption results revealed a selectivity sequence of K⁺ > Ba²⁺ > Na⁺ ∼ Li⁺ for DB18C6 modified PAN nanofibers. In mixed salt solutions the adsorption capacity of K⁺ ion declined in the presence of especially Ba²⁺ ions suggesting competition between the ions for the available binding sites. The PAN/crown ether nanofibers exhibit exceptionally high selectivities for K⁺ over Li⁺ and Na⁺. Considering reusability, PAN/crown ether nanofibers only lose 10% of the K⁺ adsorption capacity after four consecutive adsorption and desorption cycles. Electrospinning thus shows to be a very versatile tool to prepare crown ether functional polymer adsorbents.
